Holographic Formation of Non-uniform Diffraction Structures by Arbitrary Polarized Recording Beams in Liquid Crystal-photopolymer Compositions

Department of Microwave and Quantum Radio Engineering, Tomsk State University of Control Systems and Radioelectronics, 634050, Tomsk, Russia
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(5), 861; https://doi.org/10.3390/polym11050861
Received: 28 February 2019 / Revised: 4 May 2019 / Accepted: 9 May 2019 / Published: 11 May 2019
(This article belongs to the Special Issue Holographic Materials and Photonic Applications)
  |
PDF [2209 KB, uploaded 16 May 2019]
  |

Abstract

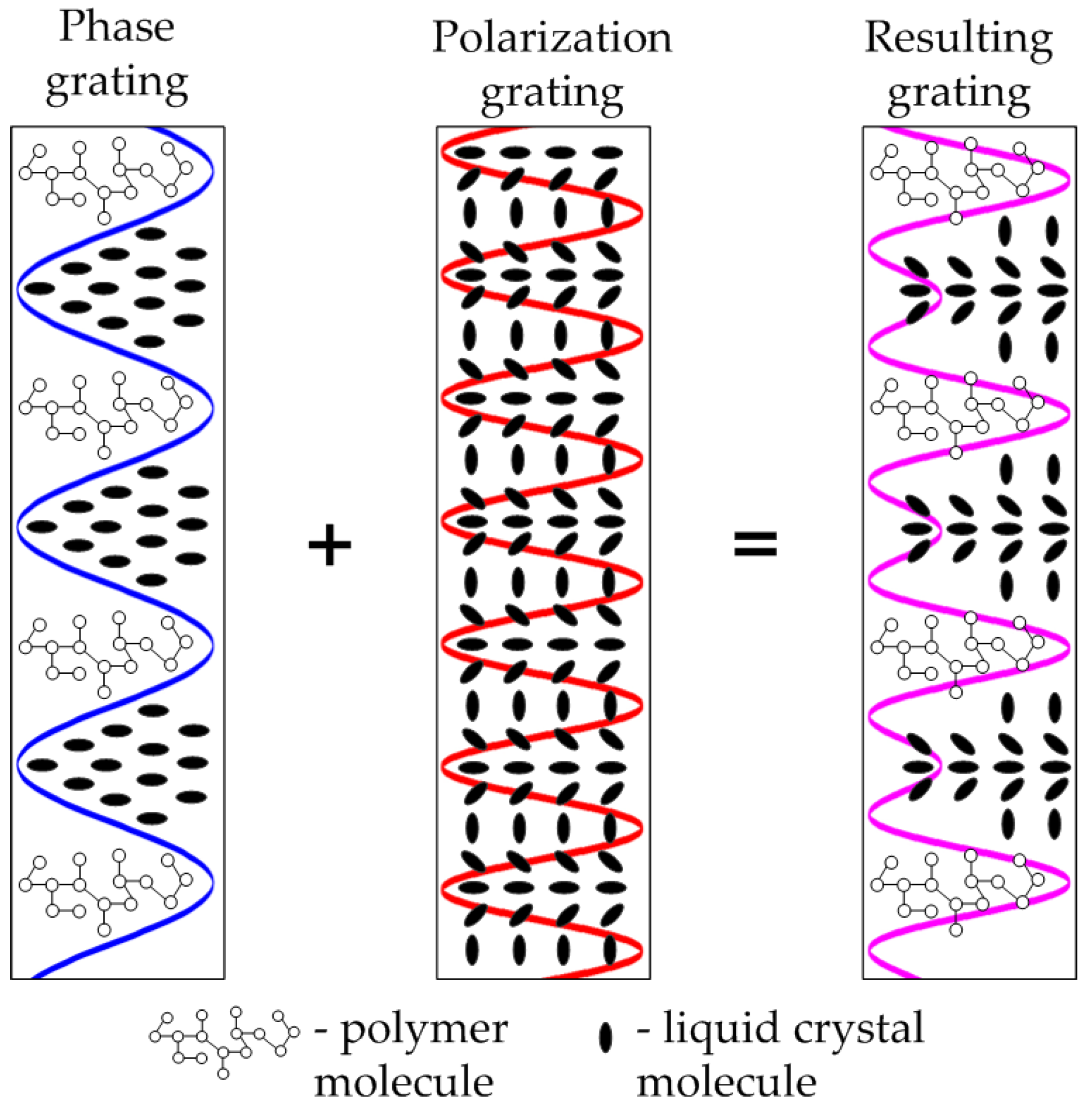

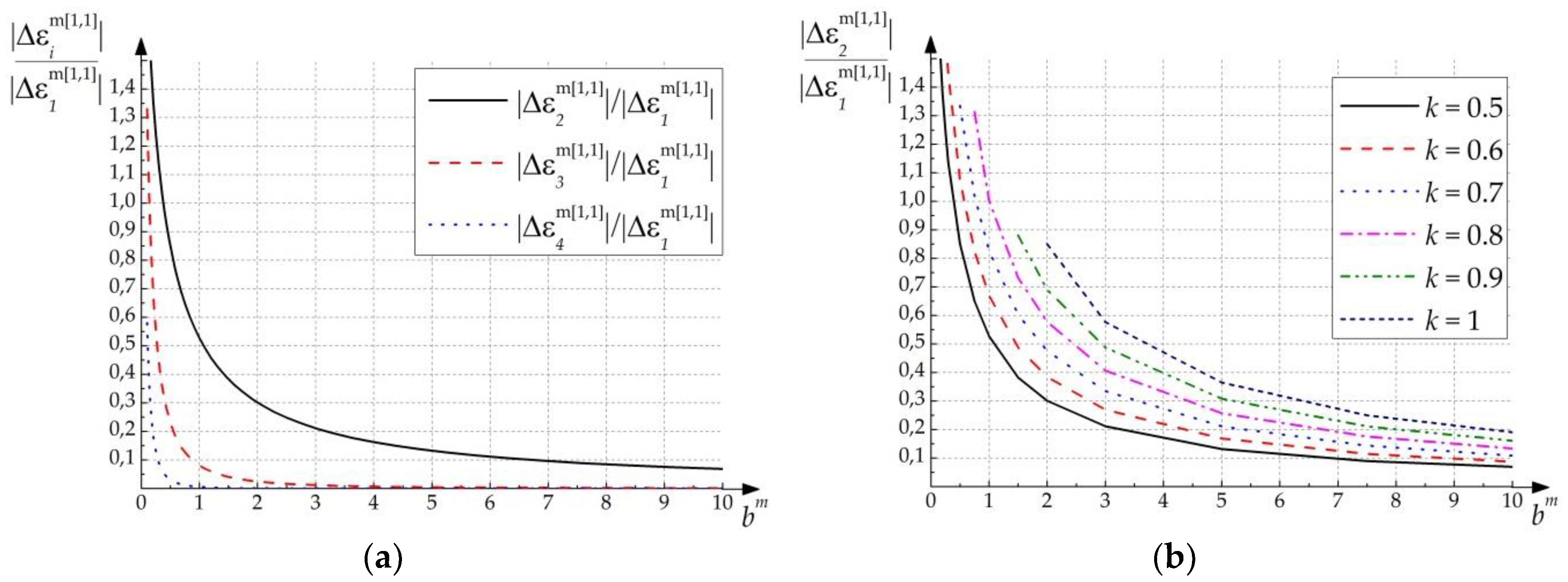

In this work, the theoretical model of non-uniform diffraction structures’ holographic formation in liquid crystal-photopolymer (LC-PPM) composite materials with a dye-sensitizer is developed. The model takes into account the arbitrary character of amplitude and phase spatial distributions of recording light field, its arbitrary polarization state and also a non-linearity of the recording process. Two the most common types of liquid crystal-photopolymer composite are investigated: Holographic polymer-dispersed liquid crystals (H-PDLC) and polymer-stabilized liquid crystals (PSLC). Numerical simulations for the most common cases of holographic formation schemes are made. It is shown that due to the photo-induced Freedericksz transition, in the case of arbitrary polarization states of recording light beams, the non-uniform polarization diffraction grating (PDG) is formed in LC-PPM. Numerical simulations’ results show that PDG’s contribution to the change of the dielectric tensor of the media is comparable with the contribution of the photopolymerization-diffusion process. View Full-Text
Keywords: holographic polymer-dispersed liquid crystals; polymer-stabilized liquid crystals; holography; diffraction gratings; polarization diffraction gratings holographic polymer-dispersed liquid crystals; polymer-stabilized liquid crystals; holography; diffraction gratings; polarization diffraction gratings
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
