Article

Unprecedentedly High Activity and/or High Regio-/Stereoselectivity of Fluorenyl-Based CGC Allyl-Type η3:η1-tert-Butyl(dimethylfluorenylsilyl)amido Ligated Rare Earth Metal Monoalkyl Complexes in Olefin Polymerization

by
Ge Guo
1,
Xiaolu Wu
1,
Xiangqian Yan
1,
Li Yan
2,
Xiaofang Li
1,*,
Shaowen Zhang
1,* and
Nannan Qiu
3,*
1
Key Laboratory of Cluster Science of Ministry of Education, School of Chemistry and Chemical Engineering, Beijing Institute of Technology, 5 South Zhongguancun Street, Haidian District, Beijing 100081, China
2
Analytical and Testing Center, Liangxiang Campus of Beijing Institute of Technology, Liangxiang East Road, Fangshan District, Beijing 102488, China
3
NHC Key Laboratory of Food Safety Risk Assessment, China National Center for Food Safety Risk Assessment, Beijing 100021, China
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(5), 836; https://doi.org/10.3390/polym11050836
Submission received: 11 April 2019 / Revised: 29 April 2019 / Accepted: 30 April 2019 / Published: 8 May 2019
(This article belongs to the Collection Design and Synthesis of Polymers)
Browse Figures
Versions Notes

Abstract

:
A series of fluorenyl-based constrained-geometry-configuration (CGC) allyl-type rare earth metal monoalkyl complexes bearing the divalent anionic η3:η1-tert-butyl(dimethylfluorenylsilyl)amido (η3:η1-FluSiMe2NtBu) ligand (η3:η1-FluSiMe2NtBu)Ln(CH2SiMe3)(THF)2 (1–3) have been synthesized via the alkane elimination reaction between the FluHSiMe2NHtBu ligand and rare earth metal tri(trimethylsilylmethyl) complexes Ln(CH2SiMe3)3(THF)n. Their structures are characterized by means of NMR spectrum, elemental analyses, and X-ray diffraction. These complexes 1–3 are isostructural and isomorphous, and each of them adopts a distorted-trigonal-bipyramidal configuration containing one η3:η1-FluSiMe2NtBu ligand, one CH2SiMe3 ligand, and two THF molecules. Unlike traditional CGC allyl-type rare earth metal complexes showing no or low activity and regio-/stereoselectivity in styrene or MMA polymerization, these complexes 1–3 exhibit high catalytic activities and/or high regio-/stereoselectivities in the cis-1,4-polymerization of isoprene and myrcene or in the syndiotactic polymerization of styrene under the aid of different activators (borate or borane) and AlR3. The in situ 1H NMR spectra suggest that the exchanges of chelating ligands such as alkyl groups and divalent anionic η3:η1-FluSiMe2NtBu ligands between rare earth metal centers and Al centers result in the formation of a heterobimetallic tetraalkylaluminate complex R2Al(μ-R)2Ln(R)(μ-R)2AlR2, which is activated by activators to form a divalent cationic species [Ln(μ-R)2AlR2]2+ as a catalytically active species in the coordination–insertion polymerization of olefins.

1. Introduction

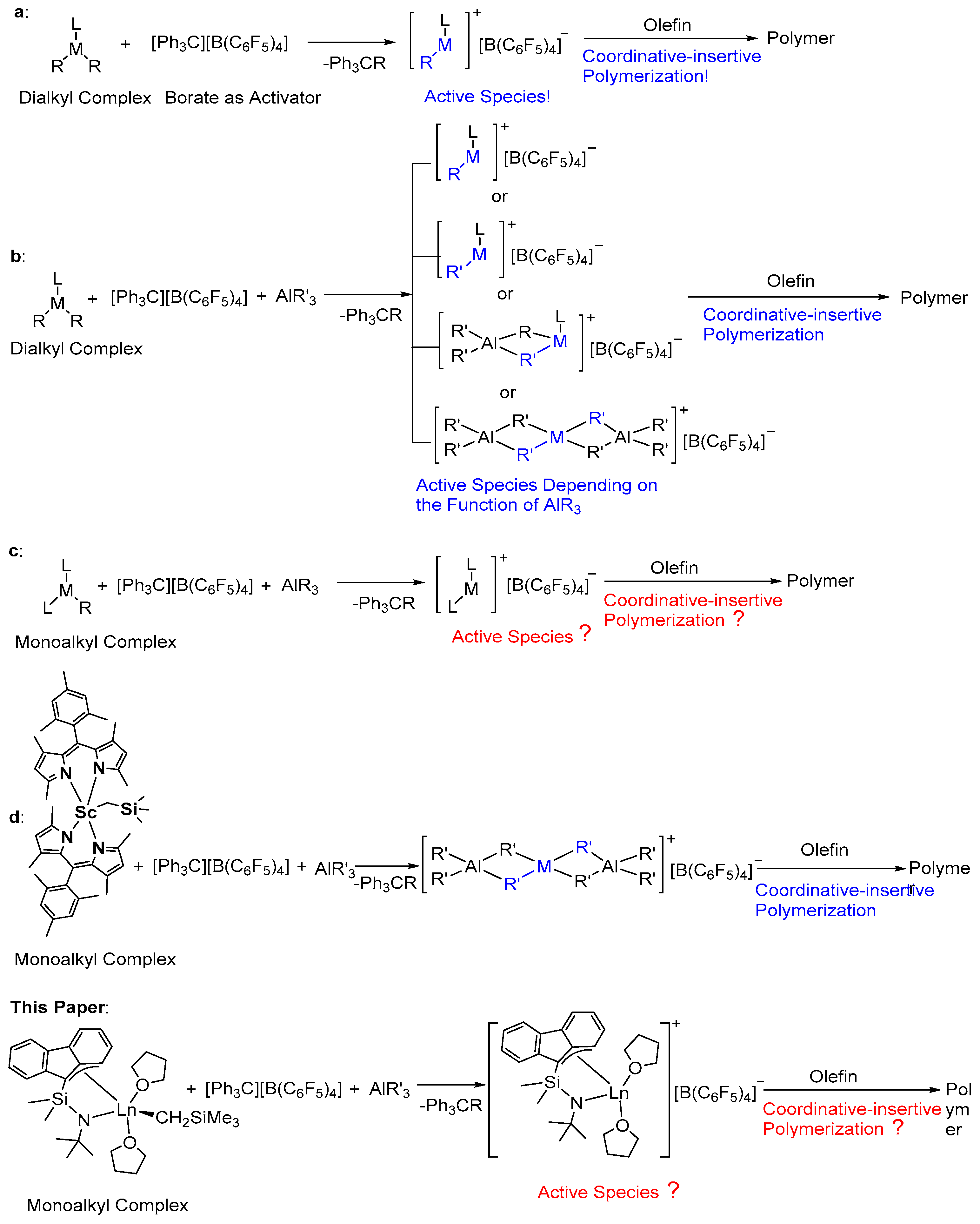

The development of highly efficient and highly regio-/stereoselective rare earth metal catalysts has become a hot topic in the coordination–insertion polymerization of olefin over the past two decades, which brings new opportunities for the synthesis of high-performance (co)polymers unavailable from transition metal catalysts [1,2,3,4,5,6,7,8,9,10,11]. So far, a large number of the metallocene [12,13,14,15], constrained-geometry-configuration (CGC) [16,17,18,19], half-sandwich [20,21,22,23], and non-metallocene rare earth metal catalysts precursors bearing different chelating ligands [24,25,26] have emerged for the polymerization of olefins. Among them, the metallocene or nonmetallocene rare earth metal catalysts usually show high activities and different regio-/stereoselectivities in the polymerization of conjugated dienes. The half-sandwich or CGC type rare earth metal catalysts exhibit unprecedentedly high activities and high syndiotactic or isotactic selectivities in the polymerization of styrene. Despite of these results, the CGC allyl-type rare earth metal catalysts containing an η3-allyl bonding mode of cyclopentadiene (Cp), indenyl (Ind), or fluorenyl (Flu) moiety are rare [27,28,29], and all of them show no or low activities and regio-/stereoselectivies in olefin polymerization (Chart 1). In 2003, Carpentier et al. reported the synthesis of the amido-functionalized Flu-based CGC allyl-type yttrium monoalkyl complexes [η3:η1-(3,6-tBu2Flu)SiR2NtBu]Y(CH2SiMe3)(THF)2. However, such complexes showed no activities in the ethylene polymerization in a larger range of temperature or very low activities and tacticities in the polymerization of MMA [27]. In 2012, Cui et al. synthesized the phosphazene-functionalized Cp-based CGC allyl-type rare earth metal dialkyl complexes [η3:η1-(C5Me4)PPh2N(2,6-iPr2C6H3)]Y(CH2SiMe3)2(THF), which were inert even in ethylene polymerization [28]. Subsequently, the pyridyl-functionalized Flu-based CGC allyl-type rare earth metal dialkyl complexes (η3:η1-FluC5H4N)Ln(CH2SiMe3)2THF and (η3:η1-FluC5H4N)Y(CH2C6H4-o-NMe2)2 also developed by Cui and co-workers could promote the polymerization of styrene (ST) but with low activities and moderate syndiotacticities [29]. Therefore, it is of great interest to develop highly efficient and highly regio-/stereoselective CGC allyl-type rare earth metal catalysts and explore their catalytic performances in the polymerization of olefins.

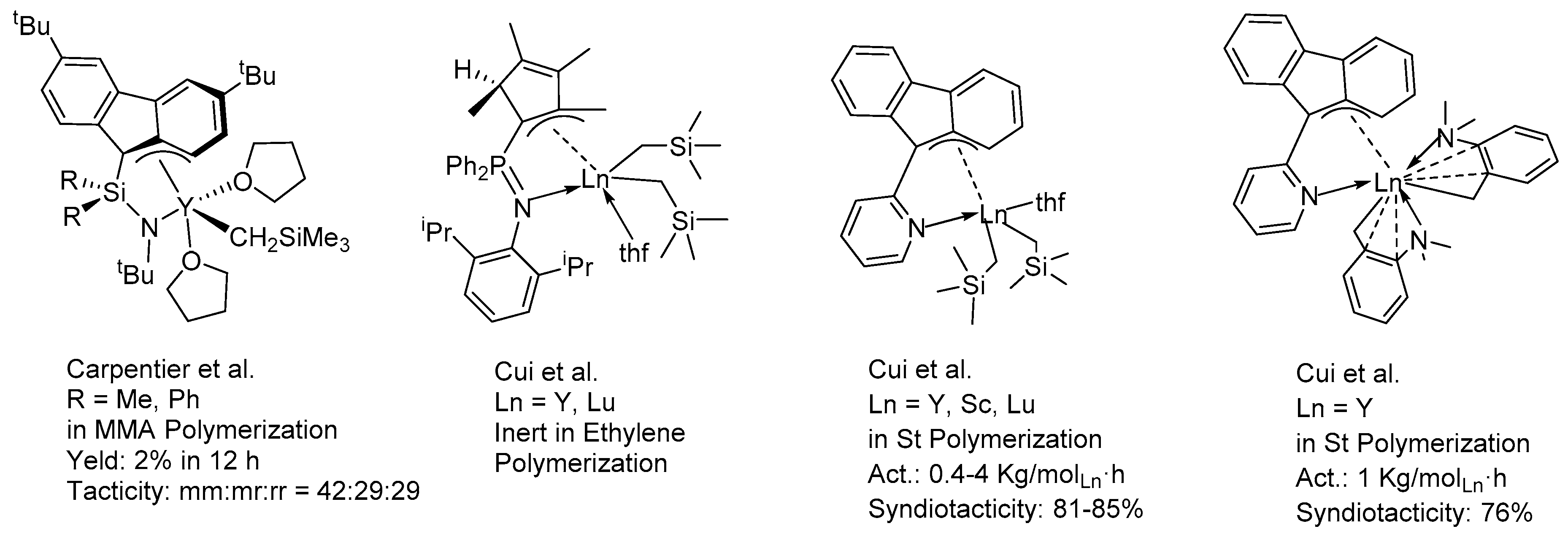

Recently, we have paid much attention to the synthesis of the half-sandwich Flu-ligated rare earth metal dialkyl complexes Flu’Ln(CH2SiMe3)2(THF)n and their applications in the coordination–insertion (co)polymerization of olefins such as ST or conjugated dienes. In 2013, these complexes displayed high activities up to 3.4 × 107 (g of polymer)/(molLn h) and syndiotacticities up to >99% in ST polymerization when activated by an activator with or without a small amount of AliBu3 [30]. Moreover, such complexes also showed very high activities up to 1.9 × 107 (g of polymer)/(molLn h) and high cis-1,4-selectivities, 93% in the polymerization of isoprene (IP) in the presence of activator and AlR3 [31]. In addition, such catalysts were also active in the regioselective polymerization of 1,3-cyclohexadiene and copolymerization with ST and IP [32]. These results demonstrate that the effective adjustment of the skeleton of the Flu ligand of these complexes has an important impact on their catalytical performance in the olefin polymerization, which arouses our interests to explore more Flu-based rare earth metal complexes and detect their catalytic performance in olefin polymerization. Herein, we report the synthesis and structural characterization of three Flu-based CGC allyl-type rare earth metal monoalkyl complexes (η3:η1-FluSiMe2NtBu)Ln(CH2SiMe3)(THF)2 1–3 (1: Ln = Sc; 2: Ln = Lu; 3: Ln = Y) via the alkane elimination reaction between the tert-butyl(dimethylfluorenylsilyl)amido (FluHSiMe2NHtBu) ligand and the rare earth metal trialkyl complexes Ln(CH2SiMe3)3(THF)n. Activated by different cocatalysts, these complexes 1–3 unprecedentedly exhibit high activities and high regio-/stereoselectivities in the polymerization of IP, myrcene (MY), or ST, affording the cis-1,4-poly(conjugated diene)s or syndiotactic polystyrenes with high molecular weights and moderate molecular weight distributions. The possible coordination–insertion polymerization mechanism is investigated by means of the in situ 1H NMR spectrum.

2. Materials and Methods

2.1. Materials

All manipulations that were sensitive to air or moisture were performed in a MBraun glovebox (Munich, Germany). Activator borate and borane were bought from Tosoh Finechem Corporation (Tokyo, Japan). LiCH2SiMe3 (1.0 M solution in pentane) and LnCl3 (Ln = Sc, Y, Lu; 99.9% analytically pure) were bought from Aldrich (St. Louis, MO, USA). AliBu3 (1.0 M solution in hexane), AlMe3 (1.0 M solution in toluene), AlEt3 (1.0 M solution in heptane), fluorine (99% analytically pure), tert-butylamine (98% analytically pure), triethylamine (analytically pure), dichlorodimethylsilane (98% analytically pure), n-BuLi (2.4 M in hexane), Na2SO4 (analytically pure), CaH2 (98% analytically pure), dichloromethane (analytically pure), petroleum ether (analytically pure), and methanol (analytically pure) were obtained from Energy Chemistry (Beijing, China). The FluHSiMe2NHtBu ligand was prepared according to the literature (Supplementary Materials) [33]. IP, MY and ST (analytically pure) were purchased from Aldrich and TCI (Tokyo, Japan). Toluene (Tol), THF, and hexane were purified by a solvent purification system (SPS-800, Mbraun, Garching, Germany), and dried over Na in the glovebox. Chlorobenzene (PhCl), ortho-dichlorobenzene (PhCl2), and 1,1,2,2-tetrachloroethane (C2H2Cl4) were dried over CaH2 under stirring for 48 h and distilled under reduced pressure before use. The deuterated solvents C6D6 (99.6 atom% D), C7D8 (99.5 atom% D), and CDCl3 (99.8 atom% D) were purchased from Cambridge Isotope (Tewksbury, MA, USA).

2.2. Method

By using J. Young valve NMR tubes, the samples of rare earth metal catalysts were prepared for NMR spectroscopic measurements in the glove box. 1H, 13C NMR spectra of ligand and catalysts were tested on a Bruker AVANCE 400 spectrometer in C6D6 or C7D8 at room temperature. 1H, 13C NMR spectra of polyisoprene (PIP), polymyrcene (PMY) and polystyrene (PST) samples were recorded on a Bruker AVANCE 400 spectrometer in CDCl3 at room temperature or at 60 °C. The molecular weights and the molecular weight distributions (PDI) of the poly(conjugated dienes)s were performed at 25 °C by gel permeation chromatography (GPC) on a WATERS 1515 apparatus. THF was selected as the eluent at a flow rate of 1 mL/min. For SPSTs, GPC data were performed in 1,2,4-trichlorobenzene at 150 °C using IR detection and calibration against polystyrene. Differential scanning calorimetry (DSC) measurements were carried out on a TA 60 (TA Co.) at a rate of 10 °C/min. Any thermal history difference in the poly(conjugated diene)s was eliminated by first heating the specimen to 100 °C, cooling at 10 °C/min to –100 °C, and then recording the second DSC scan. For SPSTs, DSC parameter was set to 10 °C/min to speed up to 300 °C, then cooled at 10 °C/min to room temperature, before recording the second DSC scan. Elemental analyses were performed on an Elementary Vario MICRO CUBE (Germany).

2.3. X-ray Crystallographic Analysis

The crystals of complexes 1–3 were oil sealed under a microscope in the glove box. For data collection at –100 °C, a CCD area detector using graphite-monochromated Mo Kα radiation (λ = 0.71073 Å) was chosen on a Bruker Smart-Apex CCD diffractometer. The SMART program package was used to determine the crystal class and unit cell parameters. SAINT and SADABS were adopted to process the original frame data and generated the reflection data file. Shelxtl-97 program was applied to solve the structure. F2 anisotropic non-hydrogen atoms were refined by using the full matrix least square method. All the non-hydrogen atoms were anisotropy refined, and all hydrogen atoms were introduced in the calculated positions and were included in the structure calculation without further refinement of the parameters. Crystallographic data (excluding structure factors) have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication nos. CCDC-1904924 (1), CCDC-1904923 (2), and CCDC-1904925 (3) containing the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif from The Cambridge Crystallographic Data Centre.

2.4. Synthesis of (η3:η1-FluSiMe2NtBu)Ln(CH2SiMe3)(THF)2 1–3

To a colorless hexane solution (15.0 mL) of Ln(CH2SiMe3)3(THF)2 1–3 (1: Ln = Sc; 2: Ln = Lu; 3: Ln = Y. 1.0 mmol) was added a solution of the FluHSiMe2NHtBu ligand (1.0 mmol) in hexane (15.0 mL) at room temperature. The mixture was stirred at room temperature for 2–3 h. After removal of all volatiles in vacuo, the residue was recrystallized from toluene/hexane at –30 °C to give Flu-based CGC allyl type rare earth metal monoalkyl complexes [η3:η1-FluSiMe2NtBu]Ln(CH2SiMe3)(THF)2 1–3 (1: Ln = Sc, 63%; 2: Ln = Lu, 67%; 3: Ln = Y, 84%).
1H NMR of complex 1 (400 MHz, Tol-d8): δ 8.10 (d, J = 7.8 Hz, 2H, Flu), 8.02 (d, J = 8.0 Hz, 2H, Flu), 7.41 (t, J = 7.3 Hz, 2H, Flu), 7.12 (d, J = 7.4 Hz, 2H, Flu), 3.00 (br, 8H, THF-α-CH2), 1.50 (s, 9H, NC(CH3)3), 1.14 (t, 8H, THF-β-CH2), 0.78 (s, 6H, Si(CH3)2), 0.17 (s, 9H, CH2Si(CH3)3), –1.09 (s, 2H, CH2Si(CH3)3). 13C NMR of complex 1 (100 MHz, C6D6): δ 142.83, 131.10, 125.80, 120.91, 117.65, 116.96, 84.13 (C1), 69.92 (α-THF), 54.47 (NC(CH3)3), 36.51 (NC(CH3)3), 30.59 (d, J = 45.4 Hz, ScCH2Si(CH3)3), 25.02 (β-THF), 5.94 (Si(CH3)2), 4.62 (CH2Si(CH3)3). Anal. Calcd (%) for C31H50NO2ScSi2: C, 65.45; H, 8.68; N, 2.46. Found: C, 65.40; H, 8.61; N, 2.53.
1H NMR of complex 2 (400 MHz, C6D6): δ 8.21 (d, J = 7.7 Hz, 2H, Flu), 8.07 (d, J = 7.7 Hz, 2H, Flu), 7.52 (t, J = 7.1 Hz, 2H, Flu), 7.22 (t, J = 7.2 Hz, 2H, Flu), 2.94 (br, 8H, THF-α-CH2), 1.59 (s, 9H, NC(CH3)3), 1.08 (t, 8H, THF-β-CH2), 0.79 (s, 6H, Si(CH3)2), 0.28 (s, 9H, CH2Si(CH3)3), –0.82 (s, 2H, CH2Si(CH3)3). 13C NMR of complex 2 (100 MHz, C6D6): δ 144.20, 132.67, 125.73, 120.34, 117.47, 116.83 (s), 84.02 (C1), 69.77 (α-THF), 54.40 (NC(CH3)3), 36.22 (NC(CH3)3), 31.98 (LuCH2Si(CH3)3), 25.22 (β-THF), 5.55 (Si(CH3)2), 4.76 (CH2Si(CH3)3). Anal. Calcd (%) for C31H50NO2LuSi2: C, 53.28; H, 7.07; N, 2.00. Found: C, 53.21; H, 7.01; N, 2.04.
1H NMR of complex 3 (400 MHz, Tol-d8): δ 8.16 (d, J = 7.8 Hz, 2H, Flu), 8.09 (d, J = 8.1 Hz, 2H, Flu), 7.47 (t, J = 7.5 Hz, 2H, Flu), 7.19 (s, 2H, Flu), 3.05 (br, 8H, THF-α-CH2), 1.55 (s, 9H, NC(CH3)3), 1.19 (t, 8H, THF-β-CH2), 0.85 (s, 6H, Si(CH3)2), 0.23 (s, 9H, CH2Si(CH3)3), –1.06 (s, 2H, CH2Si(CH3)3). 13C NMR of complex 3 (100 MHz, C6D6): δ 142.51, 131.62, 124.59, 120.16, 117.53, 116.66, 83.57 (C1), 69.75 (α-THF), 53.97 (NC(CH3)3), 36.41 (NC(CH3)3), 35.62 (YCH2Si(CH3)3), 24.74 (β-THF), 5.34 (Si(CH3)2), 4.38 (CH2Si(CH3)3). Anal. Calcd (%) for C31H50NO2YSi2: C, 60.76; H, 8.06; N, 2.29. Found: C, 60.72; H, 8.00; N, 2.34.

2.5. A Typical Procedure for IP Polymerization in Table 2 Entry 4

In a glovebox at 25 °C, toluene solution (3.5 mL), AliBu3 (100 μL, 1.0 M, 100 μmol), complex 1 (0.0057 g, 10 µmol), a toluene solution (1.5 mL) of [Ph3C][B(C6F5)4] (0.0093 g, 10 μmol), and IP (0.34 g, 5 mmol) were added into a 50 mL round bottom flask in succession. The reaction system became sticky rapidly. After 2 min, the flask was taken outside and then quenched by addition of ethanol (50 mL, containing 5% butylhydroxytoluene (BHT) as stabilizing agent). The mixture was washed with ethanol and then dried under vacuum at 45 °C to a constant weight (0.34 g, yield = 100%). The resulting polymer was soluble in THF and chloroform at room temperature. The isomer contents of the polyisoprene was calculated from the 1H and 13C NMR spectra according to the following Formulas (1)–(5):
Mol 1,4-IP% = [IH1/(IH1 + 0.5IH2)] × 100%
Mol 3,4-IP% = [0.5IH2/(IH1 + 0.5IH2)] × 100%
in which IH1 represents the resonance integration of the one vinyl proton of the 1,4-isoprene unit at 5.13 ppm in the 1H NMR spectrum; and IH2 represents the resonance integration of the two vinyl protons of the 3,4-isoprene unit at 4.72 ppm in the 1H NMR spectrum.
Mol cis-1,4-IP% = [IC1/(IC1 + IC2 + IC3)] × 100%
Mol trans-1,4-IP% = [IC3/(IC1 + IC2 + IC3)] × 100%
Mol 3,4-IP% = [IC2/(IC1 + IC2 + IC3)] × 100%
in which IC1 is the integration of 23.2 ppm signals of the cis-1,4-isoprene unit methyl carbon, and IC2 is the integration of 18.5 ppm signals of the 3,4-isoprene unit methyl carbon, while IC3 is the integration of 15.9 ppm signals of the trans-1,4-isoprene unit methyl carbon in the 13C NMR spectrum.

2.6. A Typical Procedure for MY Polymerization in Table 3 Entry 3

In a glovebox at 25 °C, toluene solution (3.5 mL), AliBu3 (100 μL, 1.0 M, 100 μmol), complex 3 (0.0063 g, 10 μmol), a toluene solution (1.5 mL) of B(C6F5)3 (0.0052 g, 10 μmol), and MY (0.68 g, 5 mmol) were added into a 50 mL round bottom flask in succession. The reaction system became sticky rapidly. After 1 h, the flask was taken outside and then quenched by addition of ethanol (50 mL, containing 5% butylhydroxytoluene (BHT) as stabilizing agent). The mixture was washed with ethanol and then dried under vacuum at 45 °C to a constant weight (0.49 g, yield = 72%). The resulting polymer was soluble in THF and chloroform at room temperature. The isomer contents of the PMY products were calculated from the 1H NMR spectra (Formulas (6)–(8) and 13C NMR spectra (Formulas (9)–(12).
Mol 1,2-MY% = [I5.30/(I5.11 + 0.5I4.76)] × 100%
Mol 3,4-MY% = [I4.76-2I5.30/(I5.11 + 0.5I4.76)] × 100%
Mol 1,4-MY% = [(I5.11-0.5I4.76)/(I5.11 + 0.5I4.76)] × 100%
Mol 1,2-MY% = [I29.07/(I29.07 + I37.09 + I37.51 + I42.18)] × 100%
Mol 3,4-MY% = [I42.18/(I29.07 + I37.09 + I37.51 + I42.18)] × 100%
Mol cis-1,4-MY% = [I37.09/(I29.07 + I37.09 + I37.51 + I42.18)] × 100%
Mol trans-1,4-MY% = [I37.51/(I29.07 + I37.09 + I37.51 + I42.18)] × 100%

2.7.A Typical Procedure for ST Polymerization in Table 4 Entry 9

In a glovebox at 25 °C, toluene solution (3.5 mL), AliBu3 (100 μL, 1.0 M, 100 μmol), complex 1 (0.0057 g, 10 μmol), a toluene solution (1.5 mL) of [PhNHMe2][B(C6F5)4] (0.0081 g, 10 μmol), and ST (0.52 g, 5 mmol) were added into a 50 mL round bottom flask in succession. Some solids were gradually precipitated from the reaction system. After 20 h, the flask was taken outside and then quenched by addition of ethanol (50 mL, containing 5% butylhydroxytoluene (BHT) as stabilizing agent). The mixture was washed with ethanol and then dried under vacuum at 45 °C to a constant weight (0.22 g, yield = 43%). The resulting polymer is soluble in CHCl3 and 1,2,4-trichlorobenzene at high temperature. The isomer contents of the polystyrene products were calculated from the 1H and 13C NMR spectra according to the following Formulas (13) and (14):
Mol isotactic PST% = [IC1/IC1] × 100%
Mol syndiotactic PST% = [IC2/IC3] × 100%
in which IC1 is the integration of the resonance at 146.8 ppm (mmmm) and IC2 is the integration of the resonance at 145.4 ppm (rrrr) in the 13C NMR spectrum.

3. Results and Discussion

3.1. Synthesis of Flu-Based CGC Allyl-Type Rare Earth Metal Monoalkyl Complexes 1–3

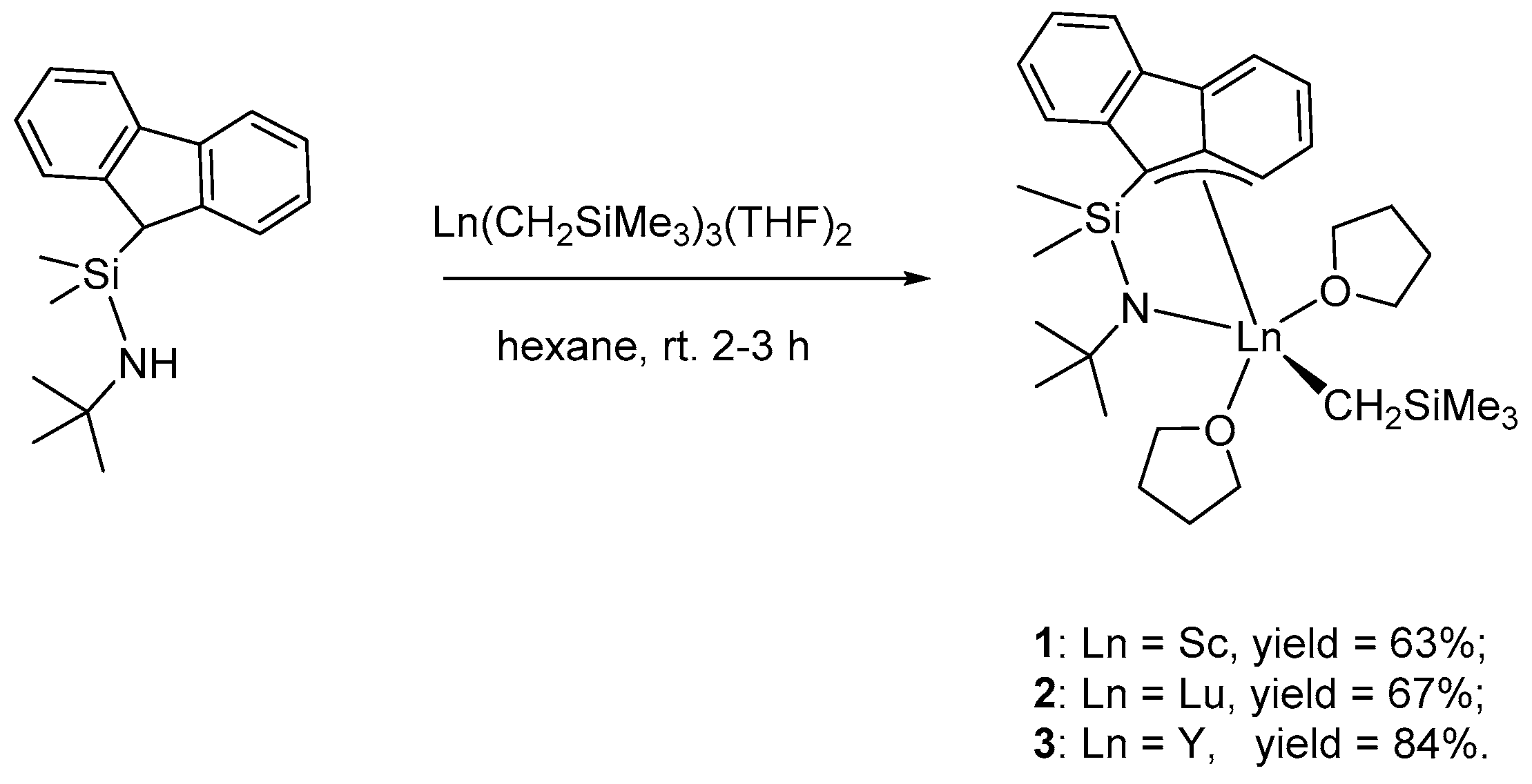

The FluSiMe2NtBu ligand was synthesized according to the literature [33]. The alkane elimination reaction between the FluSiMe2NtBu ligand and 1 equivalent unit of the rare earth metal tri(trimethylsilylmethyl) complexes Ln(CH2SiMe3)3(THF)n straightforwardly yielded the Flu-based CGC allyl-type rare earth metal monoalkyl complexes (η3:η1-FluSiMe2NtBu)Ln(CH2SiMe3)(THF)2 1–3 (1: Ln = Sc, 63%; 2: Ln = Lu, 67%; 3: Ln = Y, 84%) with moderate to high yields in 2–3 h (Scheme 1). In comparison with the slow synthesis speed of previous similar results [η3:η1-(3,6-tBu2Flu)SiR2NtBu]Y(CH2SiMe3)(THF)2 (37% yield after 1 h and 90% yield after a few days) [27], the rapid synthesis speed of these complexes might be attributed to the lesser bulk of the FluHSiMe2NHtBu ligand than that of the (3,6-tBu2-FluH)SiR2NHtBu ligand.

3.2. Structural Characterization of Flu-Based CGC Allyl-Type Rare Earth Metal Monoalkyl Complexes 1–3

These complexes 1–3 have good solubilities in common organic solvents such as hexane, toluene and THF. In the 1H NMR spectra of the complexes 1–3 in C7D8 and C6D6, the disappearance of the proton signals attributed to the Flu−H and N−H group of the FluHSiMe2NHtBu ligand suggests the generation of a dianionic chelating ligand in these complexes. Moreover, the eight Flu protons are divided into four peaks, indicating an asymmetric coordination mode of the Flu ligand around the metal center [29]. In each case, the molar ratio of the integral areas of the signals for the FluSiMe2NtBu ligand, the CH2SiMe3 ligand, and THF molecules is 1:1:2. Similar to the flexible [(3,6-tBu2C13H6)SiR2NtBu]Y(CH2SiMe3)(THF)2 at room temperature [27], these complexes also have a flexible structure and the CH2SiMe3 group in these complexes can not be fixed at the NMR time scale at room temperature since the two methylene protons of the Ln-CH2SiMe3 groups show only a singlet at high field for 1 at –1.09 ppm, for 2 at –0.82 ppm, and for 3 at –1.06 ppm, respectively.

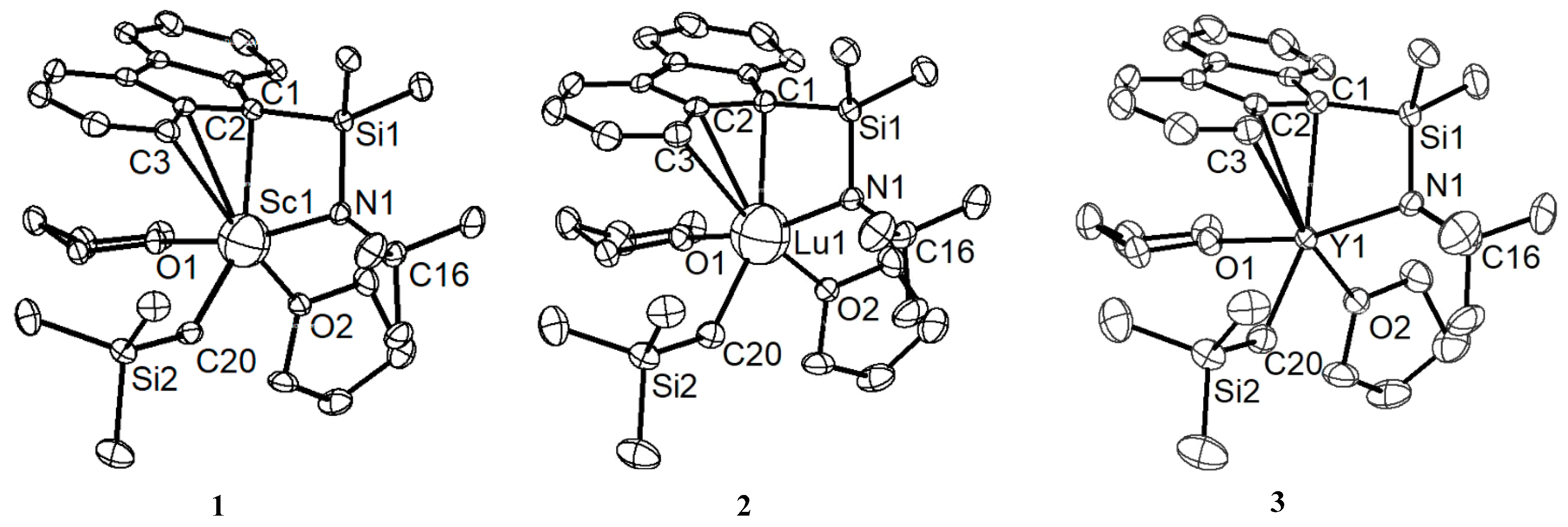

In a mixed toluene/hexane solution at –30 °C, single crystals of the complexes 1–3 were cultivated for an X-ray determination. The ORTEP (Oak Ridge Thermal-Ellipsoid Plot Program) drawings of the complexes 1–3 are shown in Figure 1 and the representative bond distances and angles are summarized in Table 1. The X-ray diffraction study reveals that these complexes 1–3 are isomorphous and isostructural. Similar to the previous Flu-based CGC allyl-type complex [η3:η1-(3,6-tBu2C13H6)SiR2NtBu]Y(CH2SiMe3)(THF)2 [27], each of them contains one dianionic FluSiMe2NtBu ligand, one CH2SiMe3 group, and two coordinated THF molecules and adopts a distorted-trigonal-bipyramidal configuration. Moreover, the 9-position carbon atom (C1) and the two adjacent carbon atoms (C2, C3) of one phenyl (Ph) ring of the Flu ligand are bound to the metal center in an asymmetric η3-allyl mode. The distance of Ln–C1 (2.395(3)–2.566(3) Å) is shorter than those of Ln–C2 (2.730(3)–2.769(3) Å) and Ln–C3 (3.036(4)–3.067(3) Å), implying the more possible presence of –C1–C2=C3 than –C3–C2=C1 in such asymmetric η3-Flu ligands. By comparison, the bond distances of Ln–N1, Ln–O1, Ln–O2, Ln–C1 as well as Ln–C2 increase in the order of 1 < 2 < 3, which are consistent with the trend of the increased ionic radius of the metal centers (Sc < Lu < Y).

3.3. Cis-1,4-Polymerization of Ip by the Complexes 1–3/activator/AlR3 Ternary Systems

The complexes 1–3 alone, the complexes 1–3/AlR3 binary systems, and the complexes 1–3/activator binary systems were inactive in IP polymerization. In the presence of both activator and AlR3, however, these complexes 1–3 unprecedentedly exhibited high activities and regio-/stereoselectivities in IP polymerization under mild conditions as shown by 1H and 13C NMR analysis (Table 2 and supporting information). At the very beginning, the best catalytic system was investigated for IP polymerization. At first, the Y complex 3 and 2.5 equivalent units of AliBu3 were fixed for screening of activators. As an activator, trityl borate [Ph3C][B(C6F5)4] (A) showed low activity, approximately 4 × 103 (g of polymer)/(molLn h) and moderate cis-1,4-selectivity of approximately 83% in 30 min. (Table 2, entry 1), while anilinum borate [PhNHMe2][B(C6F5)4] (B) displayed moderate activity, approximately 18 × 103 (g of polymer)/(molLn h) and low cis-1,4-selectivity of approximately 65% under the same condition (Table 2, entry 2). By contrast, neutral borane B(C6F5)3 (C) was inert for the polymerization of IP even in a long polymerization time (Table 2, entry 3). In order to prepare PIPs with high cis-1,4-selectivities, the borate A was chosen as an optimum activator in the following IP polymerization. In the presence of borate A and 10 equivalent units of AliBu3, high activity approximately 1.1 × 106 (g of polymer)/(molLn h) and high cis-1,4-selectivity of approximately 90% were obtained in IP polymerization catalyzed by the Sc complex 1 only in 2 min, affording main cis-1,4-PIP with high molecular weight and moderate molecular weight distribution (Mn = 700 kg/mol, Mw/Mn = 2.26) (Table 2, entry 4). In comparison, the Lu complex 2 and the Y complex 3 had moderate activities (1.6 × 104–1.7 × 104 (g of polymer)/(molLn h)) and similar or slightly lower cis-1,4-selectivities (86%–90%) under the same conditions to prepare main cis-1,4-PIPs with lower molecular weights and broader molecular weight distributions (Mn: 100–300 kg/mol, Mw/Mn: 3.17–3.26) (Table 2, entries 5–6). Therefore, the Sc complex 1 served as an optimized catalyst in the following polymerization of IP.
Table
Table 2. Cis-1,4-polymerization of isoprene by complexes 1–3/activator/AlR3 ternary systems.a
Table 2. Cis-1,4-polymerization of isoprene by complexes 1–3/activator/AlR3 ternary systems.a
Polymers 11 00836 i001
entryCat.AbAlR3 t
(h)		T
(°C)		Y
(%)		AcMicrostructure (%)dMne
(105)		Mw/MneTgf
(°C)
[Al]/[Ln][IP]/[Ln]Sol.c-1,4t-1,43,4
13AAliBu32.5500Tol0.52564 83017 1 3.23−55
23BAliBu32.5500Tol0.52526 18 652312 7 2.31−52
33CAliBu32.5500Tol4825--------
41A AliBu310500Tol0.0325100113590 1972.26−56
52A AliBu310500Tol125511790 01033.17−57
63A AliBu310500Tol1254716 86014 13.26−55
71AAlMe310500Tol22576139415 22.55−62
81AAlEt310500Tol0.0825994219208 101.78−59
91AAlMe310500PhCl182514 0.39145 22.58−57
101AAlMe310500PhCl222510017 94 1551.79−58
111A AlMe35500PhCl222510017 9415 62.33−60
121A AlMe320500PhCl2225761394 1542.67−58
131A AlMe310500PhCl25–1050 3 96 0410 1.80−66
141A AlMe310500PhCl22044795 1472.10−62
151A AlMe310500PhCl20.55010068931652.36−60
161A AlMe310500PhCl20.57094 6490 3723.71−55
171A AlMe310100PhCl2125130.994 2442.23−59
181A AlMe310300PhCl21255110 951462.05−62
191A AlMe310800PhCl20.525100109 943352.10−58
20ScgAAlMe310500PhCl222521493430.92.18−60
21ScgAhAlMe310500PhCl22258915942443.70−60
a Conditions unless specified otherwise: 10 μmol of Ln complex, 10 μmol of activator, 5 mL of solvent. b Activator: A = [Ph3C][B(C6F5)4]; B = [PhNHMe2][B(C6F5)4]; C = B(C6F5)3. c Activity in 103 g of polymer/(molLn h). d Determined by 1H and 13C NMR spectrum: c-1,4: cis-1,4-selectivity; t-1,4: trans-1,4-selectivity; 3,4: 3,4-selectivity. e Determined by GPC in THF at 40 °C against polystyrene standard. f Measured by DSC. g Sc = Sc(CH2SiMe3)3(THF)2. h 20 μmol of activator.
Then, the influence of alkyl aluminum on the catalytic performance of the Sc complex 1/A system was studied (Table 2, entries 4, 7–8). In comparison with PIP obtained by AliBu3 in entry 4, PIP obtained by AlEt3 had lower yield in long polymerization time (99% in 5 min), but higher molecular weight (Mn = 1000 kg/mol), narrower molecular weight distribution (Mw/Mn = 1.78), and higher cis-1,4-selectivity (92%) (Table 2, entry 8). While PIP obtained by AlMe3 had the highest cis-1,4-selectivity, up to 94%, its yield, molecular weight, and molecular weight distribution were lower than those obtained in the above two cases (Table 2, entry 7). Therefore, the complex 1/A/AlMe3 ternary system was identified as the optimum catalytic system for IP polymerization and was used for choosing the optimized polymerization conditions. Solvent, [Al]:[1] molar ratio, polymerization temperature, and [IP]:[1] molar ratio had an effect on yield, regio-/stereoselectivity, molecular weight, and molecular weight distribution of the resulting PIPs (Table 2, entries 7, 9–19). When the IP polymerization catalyzed by the Sc complex 1/A/AlMe3 ternary system was carried out in different solvents such as Tol, PhCl, and PhCl2, the catalytic activity obtained in PhCl2 (1.7 × 104 (g of polymer)/(molLn h)) was higher than those obtained in Tol and PhCl (0.3 × 103–1.3 × 104 (g of polymer)/(molLn h)), while the cis-1,4-selectivities of PIPs obtained in Tol and PhCl2 (94%) were higher than that obtained in PhCl (91%). When the [Al]:[1] molar ratio was decreased to 5:1, the catalytic activity and the PIP’s cis-1,4-selectivity and molecular weight did not change practically (Table 2, entries 10–11). In contrast, with the increasing [Al]:[1] molar ratio to 20:1, the catalytic activity and the PIP’s molecular weight slightly decreased, while the PIP’s cis-1,4-selectivity was still retained (Table 2, entries 10, 12). The PIPs obtained in low polymerization temperatures approximately −10 °C and 0 °C had higher cis-1,4-selectivities (95%–96%), higher molecular weights (Mn: 700–1000 kg/mol), narrower molecular weight distributions (Mw/Mn: 1.80–2.10), but resulted in lower yields (Table 2, entries 10, 13–14). Moreover, the complex 1/A/AlMe3 ternary system had a certain tolerance to the high polymerization temperatures of approximately 50 and 70 °C with increasing catalytic activities but decreasing cis-1,4-selectivity (Table 2, entries 10, 15–16). With the increasing [IP]:[1] molar ratio from 100:1 to 800:1, the catalytic activities gradually increased from 0.9 × 103 (g of polymer)/(molLn h) to 1.1 × 105 (g of polymer)/(molLn h), and the cis-1,4-selectivities of the resulting PIPs remained almost unchanged (Table 2, entries 10, 17–19). For comparison, IP polymerization was also carried out by use of the Sc(CH2SiMe3)3(THF)2/A/AlMe3 ternary system with molar ratios of 1:1:10 and 1:2:10 (Table 2, entries 20,21). The commonality of these three catalytic systems was the similar cis-1,4-selectivities of the resulting PIPs, but the catalytic activities of these three catalytic systems were different in decreasing order of the Sc complex 1/A/AlMe3 ternary system, the Sc(CH2SiMe3)3(THF)2/A/AlMe3 ternary system with a molar ratio of 1:2:10, and the Sc(CH2SiMe3)3(THF)2/A/AlMe3 ternary system with a molar ratio of 1:1:10.
All of the resulting PIPs have good solubilities in THF and CHCl3. The 1H NMR spectra of these PIPs in CDCl3 indicate the presence of main 1,4-PIP unit and a trace amount of 3,4-PIP unit. The 13C NMR spectra of these PIPs give diagnostic signals assigned as main cis-1,4 configuration (δ = 23.6, 26.6, 32.4, 125.2, and 135.4 ppm) and a small amount of 3,4-configuration (δ = 18.8, 26.6, 32.4, 125.2, and 135.4 ppm) with or without a trace amount of trans-1,4-configuration (δ = 16.1, 26.6, 32.4, 125.2, and 135.4 ppm) (see supporting information). The GPC curves reveal that these main cis-1,4-PIPs have moderate to high molecular weights in the range of 100–1000 kg/mol and bimodal molecular weight distributions (Mw/Mn = 1.78–3.71) similar to natural rubber. The DSC curves of these PIPs show the glass transition temperature (Tg) in the range of –52 to –66 °C, consistent with the thermoplasticity of the CPIP (see Supporting Information).

3.4. Cis-1,4-Polymerization of MY by the Complexes 1–3/Activator/AlR3 Ternary Systems

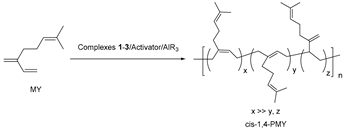

Similarly, the complexes 1–3/activator/AlR3 ternary systems also served as highly efficient and regio-/stereoselective catalyst for the cis-1,4-polymerization of MY (Table 3). In pursuit of high cis-1,4-selectivity, the Y complex 3/borane C/AliBu3 ternary system was chosen as the optimum catalytic system for MY polymerization since it showed the highest cis-1,4-selectivity up to 99% among these different ternary systems under similar condition in toluene (Table 3, entries 1–5). In comparison with MY polymerization in toluene, the Y complex 3/C/AliBu3 ternary system demonstrated low activities, approximately 8 × 103–1.1 × 104 (g of polymer)/(molLn h) and low cis-1,4-selectivities of approximately 95%–96% in MY polymerization in PhCl and PhCl2 (Table 3, entries 3,6,7). The amount of AliBu3 had an impact on the catalytic activity (Table 3, entries 3, 8–10). With an increase of the molar ratio of [Al]:[3] from 5:1 to 40:1, the activity first increased from 2 × 103 (g of polymer)/(molLn h) to 4.9 × 104 (g of polymer)/(molLn h), then decreased to 3.2 × 104 (g of polymer)/(molLn h) (Table 3, entries 3, 8–10). The cis-1,4-selectivities, molecular weights, and molecular weight distributions of the resulting PMYs remained constant or made small changes. In low polymerization temperature, approximately 0 °C, the complete cis-1,4-PMY (cis-1,4-selectivity of approximately 100%) was obtained with the highest molecular weight (Mn = 700 kg/mol) and the narrowest molecular weight distribution (Mw/Mn = 1.66) (Table 3, entry 11). In high polymerization temperature, approximately 50 °C or 70 °C, the catalytic activities and the cis-1,4-selectivities gradually decreased, implying the instability of this catalyst in high temperatures (Table 3, entries 12–13). The concentration of MY monomer also affected the catalytic activity (Table 3, entries 3, 14–17). With a gradually increasing [MY]:[3] molar ratio from 250:1 to 4000:1, the activity gradually increased from 1.3 × 104 (g of polymer)/(molLn h) to 1.2 × 105 (g of polymer)/(molLn h), but at the same time the cis-1,4-selectivity of PMYs were retained (Table 3, entries 3, 14–17). By contrast, low activities approximately 0.2–1 (kg of polymer)/(molLn h) and low cis-1,4-selectivities of approximately 95% were obtained by the Y(CH2SiMe3)3(THF)2/C/AliBu3 ternary system with different molar ratios as 1:1:10 and 1:2:10 under similar conditions (Table 3, entries 18,19).
Table
Table 3. Cis-1,4-polymerization of myrcene by complexes 1–3/activator/AlR3 ternary systems.a
Table 3. Cis-1,4-polymerization of myrcene by complexes 1–3/activator/AlR3 ternary systems.a
Polymers 11 00836 i002
entryCat.Ab t
(h)		T
(°C)		Y
(%)		AcMicrostructure (%)dMne
(105)		Mw/MneTgf
(°C)
[Al]/[Ln][MY]/[Ln]Sol.c-1,4t-1,43,4 1,2
13A10500Tol1251006876024033.47−60
23B10500Tol1251006880020032.56−60
33C10500Tol1257249>9900041.93−65
41C10500Tol225722488012091.97−60
52C10500Tol482560.0029307022.51−60
63C10500PhCl8259989505042.24−61
73C10500PhCl262599119604052.73−61
83C5500Tol225729901062.58−63
93C20500Tol22599349901052.61−63
103C40500Tol22594329802034.26−62
113C10500Tol50821110000071.66−67
123C10500Tol25078279802053.01−66
133C10500Tol2702279604013.31−60
143C10250Tol22578139901062.71−62
153C101000Tol225755110000051.75−67
163C102000Tol22561839901071.96−66
173C104000Tol325651189901091.76−64
18YgC10500Tol4825200.23950500.17.01−60
19YgCh10500Tol12252219523017.19−60
a Conditions unless specified otherwise: 10 μmol of Ln complex, 10 μmol of activator, only AliBu3 as AlR3, 5 mL of solvent. b Activator: A = [Ph3C][B(C6F5)4]; B = [PhNHMe2][B(C6F5)4]; C = B(C6F5)3. c Activity in 103 g of polymer/(molLn h). d Determined by 1H and 13C NMR spectrum: c-1,4: cis-1,4-selectivity; t-1,4: trans-1,4-selectivity; 3,4: 3,4-selectivity; 1,2: 1,2-selectivity. e Determined by GPC in THF at 40 °C against polystyrene standard. f Measured by DSC. g Y = Y(CH2SiMe3)3(THF)2. h 20 μmol of activator.
All of the PMYs obtained by the complexes 1–3/activator/AliBu3 systems were also soluble in THF and CHCl3. The 1H NMR spectra in CDCl3 demonstrate that these PMYs contained mainly 1,4-microstructure and a trace amount of 3,4-microstructure (see supporting information). The 13C NMR spectra display that these PMYs had mainly cis-1,4 configuration (δ = 17.86, 25.84, 26.96, 27.14, 30.79, 37.09, 124.63, 124.82, 131.34, and 139.16 ppm) and trace amount of 3,4-configuration (δ = 17.81, 25.81, 26.61, 32.32, 37.08, 47.55, 109.28, 124.63, 131.34, and 151.77 ppm) (see supporting information). By GPC analysis, these cis-1,4-PMYs had high molecular weights in the range of 100–900 kg/mol and bimodal molecular weight distributions (Mw/Mn = 1.66–4.26). The glass transition temperature (Tg) in the range of –60 °C to –67 °C was obtained for these cis-1,4-PMYs by DSC.

3.5. Syndiotactic Polymerization of ST by the Complexes 1–3/Activator/AlR3 Ternary Systems

The complexes 1–3/activator/AlR3 ternary systems could also promote the syndiotactic polymerization of ST (Table 4). By contrast, the Sc complex 1/B/AliBu3 ternary system was the best catalytic system for ST polymerization since such a catalyst exhibited the highest catalytic activity, approximately 2.8 × 103 (g of polymer)/(molLn h) and the highest syndiotacticity up to 99% in PhCl2, affording SPST with the highest molecular weight and moderate molecular weight distribution (Mn = 900 kg/mol, Mw/Mn = 2.38) (Table 4, entries 1–6). The solvent had a significant effect on syndiotacticity. When the ST polymerization was carried out in PhCl2 or Tol, the syndiotactic PSTs (SPSTs) with high syndiotacticities (rrrr up to 99%) were obtained (Table 4, entries 2, 9). While the PSTs with moderate syndiotacticities (rrrr in the range of 61% to 65%) were prepared in ST polymerization in PhCl and C2H2Cl4 (Table 4, entries 7,8,10). Different from the polymerization of conjugated dienes, the amount of AliBu3, polymerization temperature, and the concentration of ST monomer only had influence on catalytic activity instead of syndiotacticity of the Sc complex 1/B/AliBu3 ternary system (Table 4, entries 2, 11–18). With the increasing molar ratio of [Al]/[Ln] from 5:1 to 15:1, the activity first increased from 0.2 × 103 (g of polymer)/(molLn h) to 2.8 × 103 (g of polymer)/(molLn h) then decreased to 1.8 × 103 (g of polymer)/(molLn h). When the polymerization temperature rose from 25 °C to 90 °C, the activity slightly dropped from 2.8 × 103 (g of polymer)/(molLn h) to 2.6 × 103 (g of polymer)/(molLn h), suggesting that such catalyst is very stable in high polymerization temperatures (Table 4, entries 2, 13–15). Moreover, the activity went up from 0.7 × 103 (g of polymer)/(molLn h) to 2.8 × 103 (g of polymer)/(molLn h) then declined to 2.1 × 103 (g of polymer)/(molLn h) with the gradually increasing [St]:[1] molar ratio from 200:1 to 700:1 (Table 4, entries 2, 16–18). In the above cases, the resulting SPSTs always had complete syndiotacticities up to 99%. In comparison, the Sc(CH2SiMe3)3(THF)2/B/AliBu3 ternary system with the molar ratio of 1:1:10 produced PST with complete syndioselectivity (rrrr > 99%) similar to the Sc complex 1/B/AliBu3 ternary system, while the Sc(CH2SiMe3)3(THF)2/B/AliBu3 ternary system with the molar ratio of 1:1:10 only afforded PST with moderate syndioselectivity (rrrr = 78%) under similar conditions (Table 4, entries 19–20).
Table
Table 4. Syndiotactic polymerization of styrene by complexes 1–3/activator/AlR3 ternary systems.a
Table 4. Syndiotactic polymerization of styrene by complexes 1–3/activator/AlR3 ternary systems.a
Polymers 11 00836 i003
tTY rrrrdMne Tmf
entryCat.AbAlR3[Al]/[Ln][ST]/[Ln]Sol.(h)(°C)(%)Ac(%)(105)Mw/Mne(°C)
11AAliBu310500PhCl2122518781>9972.05272
21BAliBu310500PhCl2625322777>9992.38271
31CAliBu310500PhCl224257152>9932.36274
42BAliBu310500PhCl22425613054n.d.n.d.260
53BAliBu310500PhCl2242523499>9992.21271
71BAlEt310500PhCl2242510.4225.66>990.076.42
61BAlEt310500PhCl2242510217>990.16.42271
71AAliBu310500PhCl24252656463n.d.n.d.265
81BAliBu310500PhCl24251736965n.d.n.d.267
91BAliBu310500Tol2025431120>9972.27270
101BAliBu310500C2H2Cl448251718461n.d.n.d.265
111BAliBu35500PhCl212255217>99n.d.n.d.272
121BAliBu315500PhCl21225421822>9962.09271
131BAliBu310500PhCl21250602604>9952.00273
141BAliBu310500PhCl21270592561>9941.98272
151BAliBu310500PhCl21290612647>990.118.78271
161BAliBu310200PhCl2122541712>9952.02275
171BAliBu310400PhCl21225351215>9982.02273
181BAliBu310700PhCl21225352126>99131.49271
19ScgBAliBu310500PhCl2482577678n.d.n.d.268
20ScgBhAliBu310500PhCl212259390>99n.d.n.d.272
a Conditions unless specified otherwise: 10 μmol of Ln complex, 10 μmol of activator, 5 mL of solvent. b Activator: A = [Ph3C][B(C6F5)4]; B = [PhNHMe2][B(C6F5)4]; C = B(C6F5)3. c Activity in (g of polymer)/(molLn h). d Determined by 1H and 13C NMR spectrum. e Determined by GPC in 1,2,4-trichlorobenzene at 150 °C against polystyrene standard. f Measured by DSC. g Sc = Sc(CH2SiMe3)3(THF)2. h 20 μmol of activator.
The resulting SPSTs are soluble in PhCl2 and C2H2Cl4 in high temperatures. The 13C NMR spectra in CDCl3 indicate that these SPSTs have complete syndiotactic-microstructure with only a singlet at 145.35 ppm (see Supporting Information). GPC curves display that these SPSTs have moderate to high molecular weights in the range of 10–900 kg/mol and bimodal molecular weight distributions (Mw/Mn = 1.98–18.78). As demonstrated by DSC, the melting points (Tm) of these SPSTs are in the range of 260 °C to 275 °C (see Supporting Information).

3.6. Polymerization Mechanism Study

In general, the catalytically active species in the coordination–insertion polymerization of olefin is usually generated from the rare earth metal dialkyl/dihalides complex and activator with or without AlR3 (Chart 2a,b) [8]. In such catalytic systems, an activator usually eliminates one alkyl group from the metal center to afford cationic species containing a metal–alkyl (Ln–R) bond for the coordination and insertion of olefin monomer to finally give polyolefin with different regio-/stereoselectivity and microstructure. Unlike an activator, AlR3 can perform a lot of functions in olefin polymerization, such as scavenging impurities, transforming (alkylating and reducing) the cationic species, and/or acting as a chain transfer agent [34,35,36]. Later, AlR3, especially AlMe3, was found to react with the rare earth metal trialkyl/dialkyl complex to form a heterobimetallic tetraalkylaluminate complex as a catalyst precursor. Activated by an activator, the corresponding cationic heterobimetallic tetraalkylaluminate complex was formed as a truly active species in the olefin polymerization (Chart 2b) [37,38,39]. Recently, AlR3 was found to remove coordinated solvent molecules such as THF or pyridine from the metal center or transfer the anionic chelating ligand from the rare earth metal center (Chart 2b) [40,41,42,43]. But in comparison, the catalytically active species in the coordination–insertion polymerization of olefins by use of rare earth metal monoalkyl complex/activator/AlR3 ternary system is difficult to calculate and understand (Chart 2c). According to the conventional synthesis method a, the resulting cationic species does not have the alkyl group, which inhibits coordination and insertion of olefin monomer into the Ln–R bond. As a result, the high regio-/stereoselective polymerization of olefins can’t occur. Therefore, some special reaction must be happened during the formation of cationic active species. More recently, we found that in the cis-1,4-polymerization of isoprene catalyzed by the dipyrromethene ligated scandium monoalkyl complex/activator/AlR3 ternary system, both of two anionic dipyrromethene chelating ligands transferred from the Sc center to the Al center. This was observable by using naked eyes, UV irradiation, fluorescence spectrum, and in situ 1H NMR spectrum, and affords a catalyst precursor heterobimetallic tetraalkylaluminate complex (Chart 2d) [40]. Then, one alkyl group of such catalyst precursor was removed by an activator to form the cationic heterobimetallic tetraalkylaluminate complex as a truly active species in cis-1,4-polymerization of IP (Chart 2d). In this paper, these Flu-based CGC allyl-type rare earth metal monoalkyl complexes/activator/AlR3 ternary system also exhibited high regio-/stereoselectivities and/or high activities in the polymerization of olefins such as IP, MY, and ST. The catalytically active species of such ternary systems in the coordination–insertion polymerization of olefins also aroused our interest. Therefore, the polymerization initiation processes by the Y complex 3/activator/AlR3 ternary systems under different [Ln]/[AlR3] molar ratios were monitored by use of the in situ 1H NMR spectrum in d-toluene or d-THF at 25 °C (Figure 2 and supporting information).

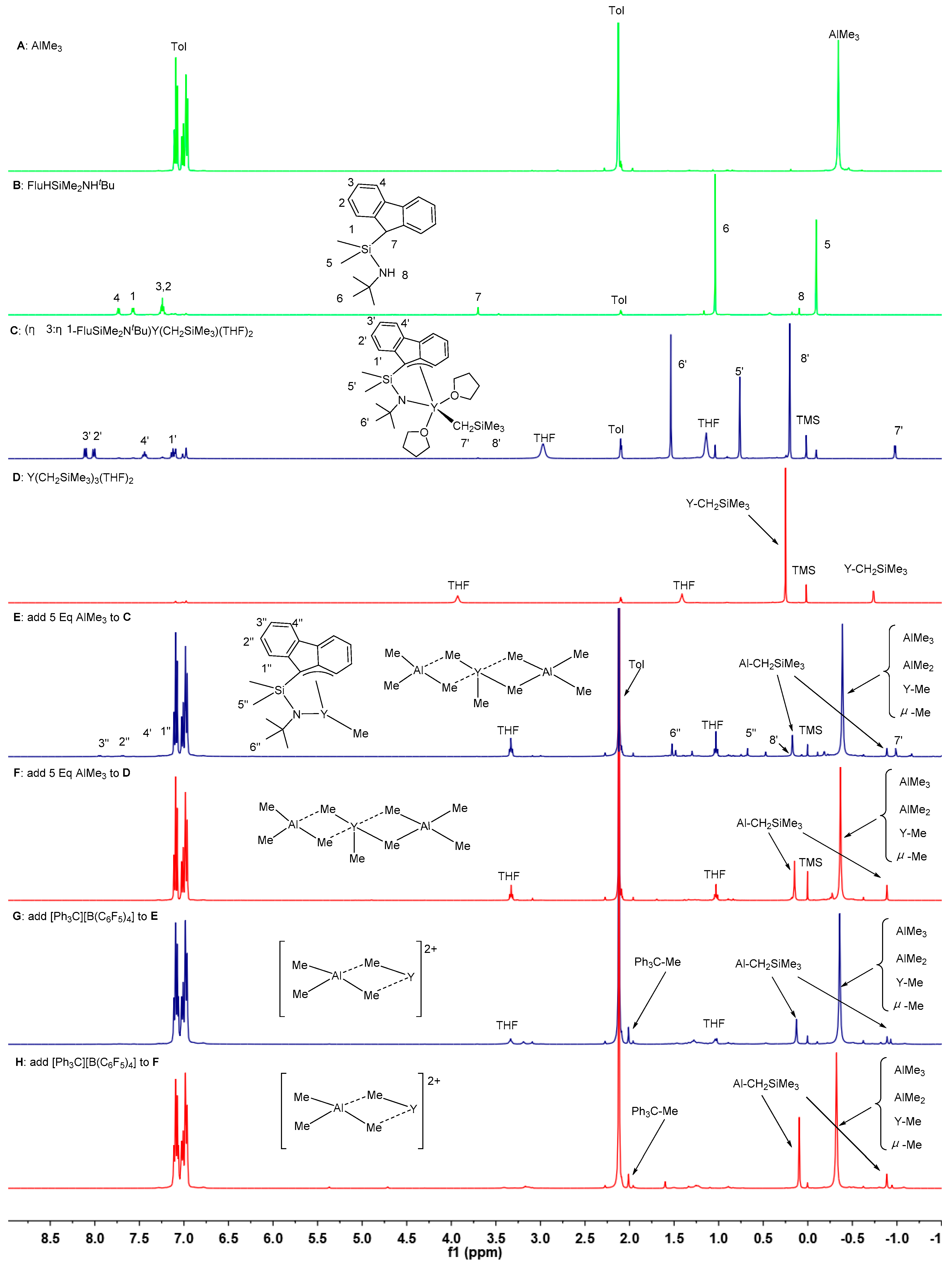

The analysis of the in situ 1H NMR spectra of the active species generated from the Y complex 3/[Ph3C][B(C6F5)4]/AlMe3 ternary system in d-toluene at 25 °C was taken as an example (Figure 2). Firstly, the reaction between the Y complex 3 and 5 equivalent units of AlMe3 was carried out in a J. Young valve NMR tube for 5 min consistent with polymerization procedure (Figure 2E). The in situ 1H NMR spectrum demonstrated that the peaks assigned to the dianionic FluSiMe2NtBu ligand became weak and moved to the high field. Moreover, the position of peaks assigned to the coordinated THF molecules and AlMe3 had obvious changes. It was very interesting that this 1H NMR spectrum very much looked like the in situ 1H NMR spectrum of the reaction of Y(CH2SiMe3)3(THF)2 and 5 equivalent units of AlMe3 after 5 min in d-toluene at 25 °C, in which the heterobimetallic tetramethylaluminate complex Y(Me)[(μ-Me)2Al(Me)2]2 was formed with a broad signal at –0.3 ppm for all of the methyl groups (slightly different with AlMe3) in addition with the byproduct Al(CH2SiMe3)3 (Figure 2F). These results implied that the Y complex 3 had decomposed during this reaction. In view that no free FluHSiMe2NHtBu ligand was observed from the above in situ 1H NMR spectrum, the dianionic FluSiMe2NtBu ligand should precipitate from the polymerization solvent. Then 1 equivalent unit of activator [Ph3C][B(C6F5)4] was added to the NMR tube in order to generate cationic species. Almost no peaks assigned to the dianionic FluSiMe2NtBu ligand were found in the in situ 1H NMR spectrum, identifying the precipitation of an insoluble complex containing the dianionic FluSiMe2NtBu ligand (Figure 2G). Similarly, this 1H NMR spectrum and the in situ 1H NMR spectrum of the reaction of Y(Me)[(μ-Me)2Al(Me)2]2 with 2 equivalent units of [Ph3C][B(C6F5)4] (Figure 2H) were nearly identical. The chemical shift of the main peak at –0.3 ppm was similar to that of the main peak of the cationic heterobimetallic tetramethylaluminate complex [(Me)2Al(μ-Me)2Y]2+[B(C6F5)4]2−. Meanwhile, a new peak assigned as byproduct Ph3CCH3 also appeared at 2.0 ppm. Such results identified the formation of cationic species [(Me)2Al(μ-Me)2Y]2+[B(C6F5)4]2− from the Y complex 3/[Ph3C][B(C6F5)4]/AlMe3 ternary system. The similar results were also obtained from the in situ 1H NMR spectra of the Y complex 3/activator/AlR3 ternary systems in d-THF at 25 °C (Supporting Information). Based on these facts, it is guessed that AlMe3 firstly removes two coordinated THF molecules from the Y center of complex 3 to give (FluSiMe2NtBu)Y(CH2SiMe3) as an intermediate. Then the alkyl exchange between the Y center of the above intermediate and the Al center of AlMe3 forms a new Y complex (FluSiMe2NtBu)YMe and a byproduct Al complex AlMe2(CH2SiMe3). Similar to the previous (DPM)2ScR/activator/AlR3 ternary system [40], the dianionic FluSiMe2NtBu ligand of (FluSiMe2NtBu)LnMe immediately transfers from the Y center to the Al center to produce the heterobimetallic tetramethylaluminate complex (Me)2Al(μ-Me)2Y(Me)(μ-Me)2Al(Me)2 as a catalyst precursor and the insoluble Y-Aluminum salt solid [(Me)2Al(μ-Me)2Y(μ-Me)2Al(Me)2][Al(FluSiMe2NtBu)2] as a byproduct. Such a rapid exchange of the FluSiMe2NtBu ligand from the Y center to the Al center is also observed in the in situ 1H NMR spectra when AlEt3 or AliBu3 was used as AlR3 (see Supporting Information). Although the transference of monodentate or bidentate ligand from the Y center to the Al center to form the heterobimetallic tetramethylaluminate complex LY[(μ-Me)2AlMe2]n have been reported previously by Anwander [41], Hou [42], and Kempe [43], this is the first discussion of the transference of dianionic CGC allyl-type chelating ligand. Later, in the presence of 2 equivalent units of activator [Ph3C][B(C6F5)4], a divalent cationic heterobimetallic tetramethylaluminate species [(Me)2Al(μ-Me)2Y]2+[B(C6F5)4]2− was obtained, in combination with Ph3CCH3 as a byproduct.

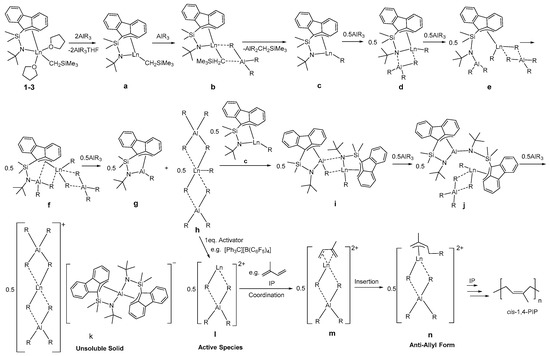

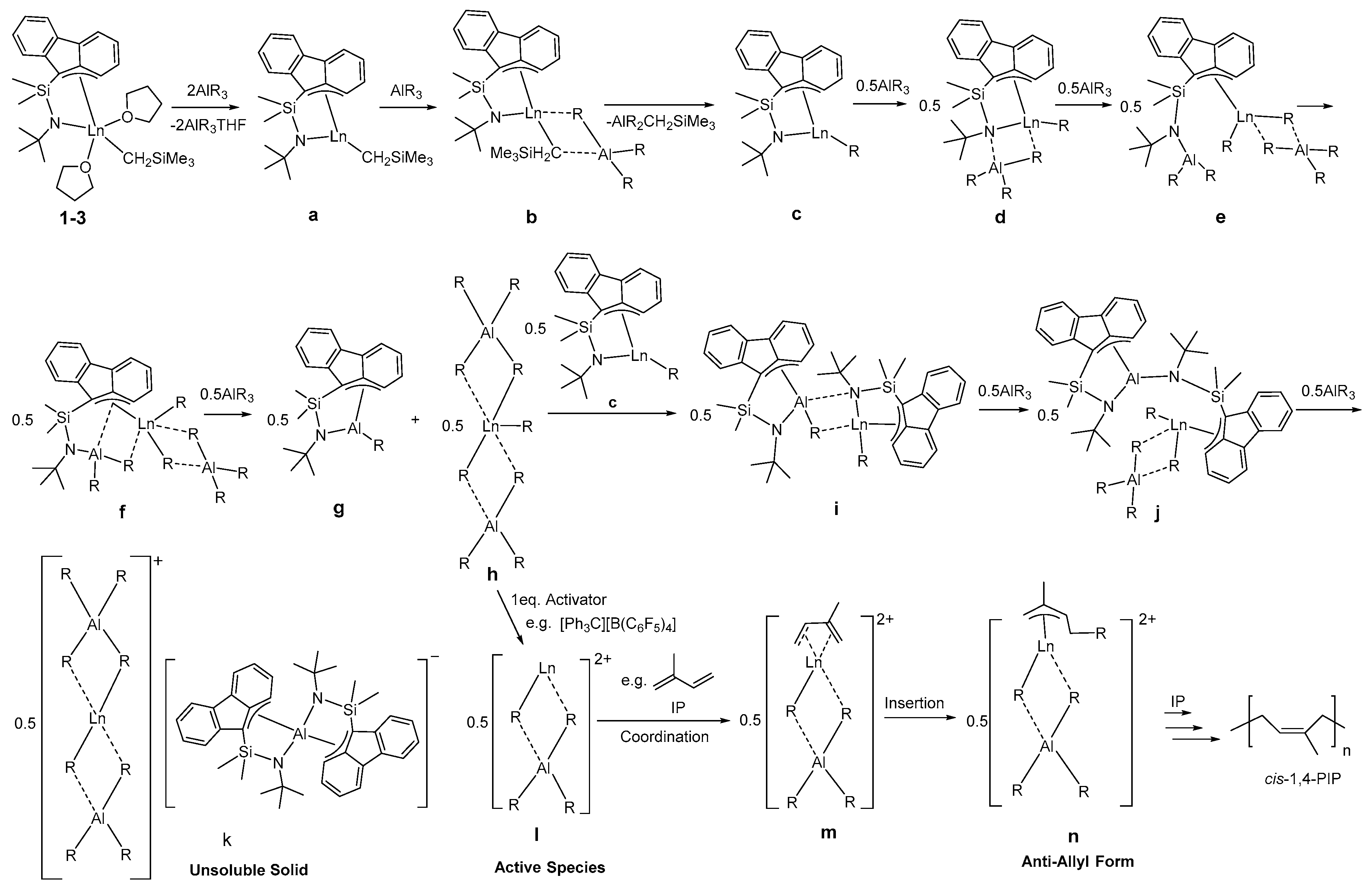

Taking above results into account, a plausible coordination–insertion mechanism is proposed for the regio-/stereoselective polymerization of olefins catalyzed by the Flu-based CGC allyl-type rare earth monoalkyl complexes (η3:η1-FluSiMe2NtBu)Ln(CH2SiMe3)(THF)2 (1–3)/activator/AlR3 ternary systems in Scheme 2. At first, 2 equivalent units of AlR3 abstracts two coordinated THF molecules from the rare earth metal center of these complexes 1–3 to produce intermediate (η3:η1-FluSiMe2NtBu)Ln(CH2SiMe3) (a). Then the exchange of the CH2SiMe3 group of a and alkyl group of AlR3 gives a new rare earth metal alkyl complex (η3:η1-FluSiMe2NtBu)LnR (c) with the release of AlR2(CH2SiMe3). The continued ligand exchange between metal center of 0.5 equivalent units of the above intermediate c and Al center of AlR3 forms 0.5 equivalent units of a heterobimetallic tetraalkylaluminate complex (R)2Al(μ-R)2Ln(R)(μ-R)2Al(R)2 (h) as catalyst precursor and 0.5 equivalent units of (η3:η1-FluSiMe2NtBu)AlR (g). Then the 0.5 equivalent units of g continues to react with the other 0.5 equivalent units of c to finally give an insoluble Y–Aluminum salt solid [(R)2Al(μ-R)2Ln(μ-R)2Al(R)2]+[Al(η3:η1-FluSiMe2NtBu)2]− (k) as a byproduct. Then two alkyl groups of 0.5 equivalent units of the catalyst precursor h are removed from metal center by 1 equivalent unit of activator to finally generate a divalent cationic species {Ln[(μ-R)2AlR2]2+} (l) as catalytically active species in the regio-/stereoselective polymerization of olefins. Based on the actual circumstance of syndiotactic polymerization of ST by the Y complex 3/B/AliBu3 ternary system and the Sc(CH2SiMe3)3(THF)2/B/AliBu3 ternary system with different molar ratios as 1:1:20 and 1:1:10 in Table 4, such a divalent cationic active species is quite reasonable. The less steric hindrance around the metal center of this cationic species permits the coordination and insertion of IP/MY monomers in cis-1,4 mode to form the anti-allyl form intermediate, which finally affords the cis-1,4-PIPs/PMYs with cis-1,4-selectivities up to 96% or 100%. Such high cis-1,4-selectivity in the coordination–insertion polymerization of conjugated dienes is in agreement with the high cis-1,4-selectivity obtained by the heterobimetallic tetraalkylaluminate active species {LLn[(μ-Me)2AlMe2]2+} in the isoprene polymerization [40,41]. Similarly, such a cationic species also promotes the backbiting of the last phenyl group in PST chains with a metal center. As a result, the SPSTs are obtained by such Flu-based CGC allyl-type rare earth monoalkyl complexes 1–3/activator/AlR3 ternary systems.

4. Conclusions

In summary, three Flu-based CGC allyl-type rare earth metal monoalkyl complexes 1–3 have been easily synthesized in moderate to high yields and structural characterization by 1H and 13C NMR spectrum, elemental analyses as well as X-ray diffraction. In the presence of cocatalyst activator borate [Ph3C][B(C6F5)4] (A) and AlMe3, these complexes 1–3 exhibit moderate activities from 0.3 × 103 (g of polymer)/(molLn h) to 1.1 × 106 (g of polymer)/(molLn h) and high cis-1,4-selectivities up to 96% in IP polymerization in PhCl2, yielding the main cis-1,4-PIPs with high molecular weights (Mn up to 1000 kg/mol) and bimodal molecular weight distributions (Mw/Mn = 1.78–3.71). Activated by the cocatalyst borane B(C6F5)3 (C) and AliBu3, these complexes 1–3 display high activities up to 1.2 × 105 (g of polymer)/(molLn h) and high cis-1,4-selectivities up to 100% in MY polymerization in Tol, producing the cis-1,4-PMYs with high molecular weights (Mn up to 900 kg/mol) and bimodal molecular weight distributions (Mw/Mn = 1.66–3.47). Moreover, these complexes 1–3/[PhNHMe2][B(C6F5)4] (B)/AliBu3 ternary systems also promote the syndiotactic polymerization of ST with moderate activities up to 2.8 × 103 (g of polymer)/(molLn h) in PhCl2 to give SPSTs with high molecular weights (Mn up to 1300 kg/mol) and bimodal molecular weight distributions (Mw/Mn = 1.49–18.78). In comparison with no, or very low activity and regio-/stereoselectivity of the previous CGC allyl type rare earth metal complexes, such results demonstrate that the transfer of the chelating ligand from the rare earth metal center to the Al center to form the heterobimetallic tetraalkylaluminate complex plays a key role on the excellent catalytic performance of these CGC allyl-type rare earth metal monoalkyl complexes in olefin polymerization. These findings will benefit the design of highly efficient and regio-/stereoselective rare earth metal catalysts as well as the precise synthesis of natural rubber. Further studies will be focused on the research of excellent rare earth metal catalysts for the polymerization of olefins.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/5/836/s1.

Author Contributions

X.L. conceived and designed the experiments; G.G. carried out the experiment and analyzed the data; X.W., X.Y., L.Y., S.Z. and N.Q. contributed reagents/materials/analysis tools; G.G. and X.L. wrote the paper.

Acknowledgments

This study was partially supported by the National Natural Science Foundation of China (No. 21774014) and the 111 project (B07012).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Edelmann, F.T. Lanthanides and Actinides: Annual Survey of their Organometallic Chemistry Covering the Year 2017. Coord. Chem. Rev. 2018, 370, 129–223. [Google Scholar] [CrossRef]
  2. Huang, J.; Liu, Z.; Cui, D.; Liu, X. Precisely Controlled Polymerization of Styrene and Conjugated Dienes by Group 3 Single-Site Catalysts. ChemCatChem 2018, 10, 42–61. [Google Scholar] [CrossRef]
  3. Soller, B.S.; Salzinger, S.; Rieger, B. Rare Earth Metal-Mediated Precision Polymerization of Vinylphosphonates and Conjugated Nitrogen-Containing Vinyl Monomers. Chem. Rev. 2016, 116, 1993–2022. [Google Scholar] [CrossRef]
  4. Nishiura, M.; Guo, F.; Hou, Z. Half-Sandwich Rare-Earth-Catalyzed Olefin Polymerization, Carbometalation, and Hydroarylation. Acc. Chem. Res. 2015, 48, 2209–2220. [Google Scholar] [CrossRef]
  5. Nishiura, M.; Hou, Z. Novel Polymerization Catalysts and Hydride Clusters from Rare-Earth Metal Dialkyls. Nat. Chem. 2010, 2, 257–268. [Google Scholar] [CrossRef]
  6. Zimmermann, M.; Anwander, R. Homoleptic Rare-Earth Metal Complexes Containing Ln-C σ-Bonds. Chem. Rev. 2010, 110, 6194–6259. [Google Scholar] [CrossRef] [PubMed]
  7. Zeimentz, P.M.; Arndt, S.; Elvidge, B.R.; Okuda, J. Cationic Organometallic Complexes of Scandium, Yttrium, and the Lanthanoids. Chem. Rev. 2006, 106, 2404–2433. [Google Scholar] [CrossRef]
  8. Gromada, J.; Carpentier, J.F.; Mortreux, A. Group 3 Metal Catalysts for Ethylene and α-olefin Polymerization. Coord. Chem. Rev. 2004, 248, 397–410. [Google Scholar]
  9. Arndt, S.; Okuda, J. Mono(cyclopentadienyl) Complexes of the Rare-Earth Metals. Chem. Rev. 2002, 102, 1953–1976. [Google Scholar] [CrossRef]
  10. Hou, Z.; Wakatsuki, Y. Recent Developments in Organolanthanide Polymerization Catalysts. Coord. Chem. Rev. 2002, 231, 1–22. [Google Scholar] [CrossRef]
  11. Piers, W.E.; Emslie, D.J. Non-Cyclopentadienyl Ancillaries in Organogroup 3 Metal Chemistry: A Fine Balance in Ligand Design. Coord. Chem. Rev. 2002, 233–234, 131–155. [Google Scholar] [CrossRef]
  12. Kawaoka, A.M.; Mark, T.J. Organolanthanide-Catalyzed Synthesis of Phosphine-Terminated Polyethylenes. Scope and Mechanism. J. Am. Chem. Soc. 2005, 127, 6311–6324. [Google Scholar] [CrossRef] [PubMed]
  13. Kirillov, E.; Lehmann, C.W.; Razavi, A.; Carpentier, J.F. Highly Syndiospecific Polymerization of Styrene Catalyzed by Allyl Lanthanide Complexes. J. Am. Chem. Soc. 2004, 126, 12240–12241. [Google Scholar] [CrossRef] [PubMed]
  14. Kawaoka, A.M.; Mark, T.J. Organolanthanide-Catalyzed Synthesis of Phosphine-Terminated Polyethylenes. J. Am. Chem. Soc. 2004, 126, 12764–12765. [Google Scholar] [CrossRef] [PubMed]
  15. Evans, W.J.; Forrestal, K.J.; Ziller, J.W. Activity of [Sm(C5Me5)3] in Ethylene Polymerization and Synthesis of [U(C5Me5)3], the First Tris(pentamethylcyclopentadienyl) 5f-Element Complex. Angew. Chem. Int. Ed. 1997, 36, 774–776. [Google Scholar] [CrossRef]
  16. Lin, F.; Liu, Z.; Wang, T.; Cui, D. Highly 2,3-Selective Polymerization of Phenylallene and Its Derivatives with Rare-Earth Metal Catalysts: From Amorphous to Crystalline Products. Angew. Chem. Int. Ed. 2017, 56, 14653–14657. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, B.; Cui, D.; Tang, T. Stereo- and Temporally Controlled Coordination Polymerization Triggered by Alternating Addition of a Lewis Acid and Base. Angew. Chem. Int. Ed. 2016, 55, 11975–11978. [Google Scholar] [CrossRef]
  18. Arndt, S.; Beckerle, K.; Hultzsch, K.C.; Sinnema, P.J.; Voth, P.; Spaniol, T.P.; Okuda, J. Group 3 and 4 Metal Alkyl and Hydrido Complexes Containing a Linked Amido-Cyclopentadienyl Ligand: “Constrained Geometry” Polymerization Catalysts for Nonpolar and Polar Monomers. J. Mol. Catal. A-Chem. 2002, 190, 215–223. [Google Scholar] [CrossRef]
  19. Hultzsch, K.C.; Spaniol, T.P.; Okuda, J. Half-Sandwich Alkyl and Hydrido Complexes of Yttrium: Convenient Synthesis and Polymerization Catalysis of Polar Monomers. Angew. Chem. Int. Ed. 1999, 38, 227–230. [Google Scholar] [CrossRef]
  20. Chen, J.; Gao, Y.; Wang, B.; Lohr, T.L.; Marks, T.J. Scandium-Catalyzed Self-Assisted Polar Co-monomer Enchainment in Ethylene Polymerization. Angew. Chem. Int. Ed. 2017, 129, 16180–16184. [Google Scholar] [CrossRef]
  21. Shi, X.; Nishiura, M.; Hou, Z. Cuu Polyaddition of Dimethoxyarenes to Unconjugated Dienes by Rare Earth Catalysts. J. Am. Chem. Soc. 2016, 138, 6147–6150. [Google Scholar] [CrossRef]
  22. Li, X.; Baldamus, J.; Hou, Z. Alternating Ethylene–Norbornene Copolymerization Catalyzed by Cationic Half-Sandwich Scandium Complexes. Angew. Chem. Int. Ed. 2005, 44, 962–965. [Google Scholar] [CrossRef] [PubMed]
  23. Luo, Y.; Baldamus, J.; Hou, Z. Scandium Half-Metallocene-Catalyzed Syndiospecific Styrene Polymerization and Styrene-Ethylene Copolymerization: Unprecedented Incorporation of Syndiotactic Styrene-Styrene Sequences in Styrene-Ethylene Copolymers. J. Am. Chem. Soc. 2004, 126, 13910–13911. [Google Scholar] [CrossRef]
  24. Gao, W.; Cui, D. Highly cis-1,4 Selective Polymerization of Dienes with Homogeneous Ziegler-Natta Catalysts Based on NCN-Pincer Rare Earth Metal Dichloride Precursors. J. Am. Chem. Soc. 2008, 130, 4984–4991. [Google Scholar] [CrossRef]
  25. Zhang, L.; Suzuki, T.; Luo, Y.; Nishiura, M.; Hou, Z. Cationic Alkyl Rare-Earth Metal Complexes Bearing an Ancillary Bis(phosphinophenyl)amido Ligand: A Catalytic System for Living cis-1,4-Polymerization and Copolymerization of Isoprene and Butadiene. Angew. Chem. Int. Ed. 2007, 119, 1941–1945. [Google Scholar] [CrossRef]
  26. Bambirra, S.; Bouwkamp, M.W.; Meetsma, A.; Hessen, B. One Ligand Fits All:  Cationic Mono(amidinate) Alkyl Catalysts over the Full Size Range of the Group 3 and Lanthanide Metals. J. Am. Chem. Soc. 2004, 126, 9182–9183. [Google Scholar] [CrossRef]
  27. Kirillov, E.; Toupet, L.; Lehmann, C.W.; Razavi, A.; Carpentier, J.F. “Constrained Geometry” Group 3 Metal Complexes of the Fluorenyl-Based Ligands [(3,6-tBu2Flu)SiR2NtBu]: Synthesis, Structural Characterization, and Polymerization Activity. Organometallics 2003, 22, 4467–4479. [Google Scholar] [CrossRef]
  28. Jian, Z.; Petrov, A.R.; Hangaly, N.K.; Li, S.; Rong, W.; Rufanov, K.A.; Harms, K.; Sundermeyer, J.; Cui, D. Phosphazene-Functionalized Cyclopentadienyl and Its Derivatives Ligated Rare-Earth Metal Alkyl Complexes: Synthesis, Structures, and Catalysis on Ethylene Polymerization. Organometallics 2012, 31, 4267–4282. [Google Scholar] [CrossRef]
  29. Jian, Z.; Cui, D.; Hou, Z. Rare-Earth-Metal-Hydrocarbyl Complexes Bearing Linked Cyclopentadienyl or Fluorenyl Ligands: Synthesis, Catalyzed Styrene Polymerization, and Structure-Reactivity Relationship. Chem. Eur. J. 2012, 18, 2674–2684. [Google Scholar] [CrossRef] [PubMed]
  30. Li, X.; Wang, X.; Tong, X.; Zhang, H.; Chen, Y.; Liu, Y.; Liu, H.; Wang, S.; Nishiura, M.; He, H.; et al. Aluminum Effects in the Syndiospecific Copolymerization of Styrene with Ethylene by Cationic Fluorenyl Scandium Alkyl Catalysts. Organometallics 2013, 32, 1445–1458. [Google Scholar] [CrossRef]
  31. Du, G.; Xue, J.; Peng, D.; Yu, C.; Wang, H.; Zhou, Y.; Bi, J.; Zhang, S.; Dong, Y.; Li, X. Copolymerization of Isoprene with Ethylene Catalyzed by Cationic Half-Sandwich Fluorenyl Scandium Catalysts. J. Polym. Sci. Pol. Chem. 2015, 53, 2898–2907. [Google Scholar] [CrossRef]
  32. Du, G.; Long, Y.; Xue, J.; Zhang, S.; Dong, Y.; Li, X. 1,4-Selective Polymerization of 1,3-Cyclohexadiene and Copolymerization with Styrene by Cationic Half-Sandwich Fluorenyl Rare Earth Metal Alkyl Catalysts. Macromolecules 2015, 48, 1627–1635. [Google Scholar] [CrossRef]
  33. Okuda, J.; Schattenmann, F.J.; Wocadlo, S.; Massa, W. Synthesis and Characterization of Zirconium Complexes Containing a Linked Amido-Fluorenyl Ligand. Organometallics 1995, 14, 789–795. [Google Scholar] [CrossRef]
  34. Bochmann, M.; Jaggar, A.J.; Nicholls, J.C. Base-Free Cationic 14-Electron Titanium and Zirconium Alkyls: In situ Generation, Solution Structures, and Olefin Polymerization Activity. Angew. Chem. Int. Ed. 1990, 29, 780–782. [Google Scholar] [CrossRef]
  35. Lin, Z.; Le Marechal, J.F.; Sabat, M.; Marks, T.J. Models for Organometallic Molecule-Support Complexes. Synthesis and Properties of Cationic Organoactinides. J. Am. Chem. Soc. 1987, 109, 4127–4129. [Google Scholar] [CrossRef]
  36. Jordan, R.F.; Dasher, W.E.; Echols, S.F. Reactive Cationic Dicyclopentadienylzirconium (IV) Complexes. J. Am. Chem. Soc. 1986, 108, 1718–1719. [Google Scholar] [CrossRef]
  37. Zimmermann, M.; Tornroos, K.W.; Anwander, R. Cationic Rare-Earth-Metal Half-Sandwich Complexes for the Living trans-1,4-Isoprene Polymerization. Angew. Chem. Int. Ed. 2008, 47, 775–778. [Google Scholar] [CrossRef]
  38. Dietrich, H.M.; Raudaschl-Sieber, G.; Anwander, R. Trimethylyttrium and Trimethyllutetium. Angew. Chem. Int. Ed. 2005, 117, 5437–5440. [Google Scholar] [CrossRef]
  39. Hitzbleck, J.; Beckerle, K.; Okuda, J.; Halbach, T.; Muelhaupt, R. Syndiospecific Polymerization Catalysts for Styrene Based on Rare Earth Metal Half-Sandwich Complexes. Macromol. Symp. 2006, 236, 23–29. [Google Scholar] [CrossRef]
  40. Yu, C.; Zhang, P.; Gao, F.; Zhang, S.; Li, X. A Displacement-Type Fluorescent Probe Reveals Active Species in the Coordinative Polymerization of Olefins. Polym. Chem. 2018, 9, 603–610. [Google Scholar] [CrossRef]
  41. Fischbach, A.; Klimpel, M.G.; Widenmeyer, M.; Herdtweck, E.; Scherer, W.; Anwander, R. Stereospecific Polymerization of Isoprene with Molecular and MCM-48-Grafted Lanthanide (Ш) Tetraalkylaluminates. Angew. Chem. Int. Ed. 2004, 116, 2284–2289. [Google Scholar] [CrossRef]
  42. Zhang, L.; Nishiura, M.; Yuki, M.; Luo, Y.; Hou, Z. Isoprene Polymerization with Yttrium Amidinate Catalysts: Switching the Regio- and Stereoselectivity by Addition of AlMe3. Angew. Chem. Int. Ed. 2008, 47, 2642–2645. [Google Scholar] [CrossRef] [PubMed]
  43. Döring, C.; Kempe, R. Synthesis and Structure of Aminopyridinato-Stabilized Yttrium and Lanthanum Amides and Their Reactivity towards Alkylaluminium Compounds. Eur. J. Inorg. Chem. 2009, 2009, 412–418. [Google Scholar] [CrossRef]
Polymers 11 00836 ch001 550
Chart 1. The known constrained-geometry-configuration (CGC) allyl-type rare earth metal catalysts.
Chart 1. The known constrained-geometry-configuration (CGC) allyl-type rare earth metal catalysts.
Polymers 11 00836 ch001
Polymers 11 00836 sch001 550
Scheme 1. Synthesis of the Flu-based CGC allyl-type rare earth metal monoalkyl complexes 1–3.
Scheme 1. Synthesis of the Flu-based CGC allyl-type rare earth metal monoalkyl complexes 1–3.
Polymers 11 00836 sch001
Polymers 11 00836 g001 550
Figure 1. ORTEP (Oak Ridge Thermal-Ellipsoid Plot Program) drawings of complexes 1–3 with thermal ellipsoids with a 30% probability. Hydrogen atoms are omitted for clarity.
Figure 1. ORTEP (Oak Ridge Thermal-Ellipsoid Plot Program) drawings of complexes 1–3 with thermal ellipsoids with a 30% probability. Hydrogen atoms are omitted for clarity.
Polymers 11 00836 g001
Polymers 11 00836 ch002 550
Chart 2. Coordination–insertion polymerization of olefin by using the different rare earth metal catalysts.
Chart 2. Coordination–insertion polymerization of olefin by using the different rare earth metal catalysts.
Polymers 11 00836 ch002
Polymers 11 00836 g002 550
Figure 2. In situ 1H NMR spectra of active species by using the Y complex 3/[Ph3C][B(C6F5)4]/AlMe3 ternary system in d-C7H8 at 25 °C.
Figure 2. In situ 1H NMR spectra of active species by using the Y complex 3/[Ph3C][B(C6F5)4]/AlMe3 ternary system in d-C7H8 at 25 °C.
Polymers 11 00836 g002
Polymers 11 00836 sch002 550
Scheme 2. Possible mechanism process for the coordination–insertion polymerization of olefin by Flu-based CGC allyl-type rare-earth metal complexes 1–3/activator/AlR3 ternary systems.
Scheme 2. Possible mechanism process for the coordination–insertion polymerization of olefin by Flu-based CGC allyl-type rare-earth metal complexes 1–3/activator/AlR3 ternary systems.
Polymers 11 00836 sch002
Table
Table 1. Selected bond distances (Å) and angles (deg) of complexes 1–3.
Table 1. Selected bond distances (Å) and angles (deg) of complexes 1–3.
123
Ln−N12.065(3)2.180(3)2.213(3)
Ln−C12.395(3)2.504(4)2.566(3)
Ln−C22.730(3)2.746(4)2.769(3)
Ln−C33.067(3)3.044(4)3.036(4)
Ln−C202.226(4)2.338(4)2.392(4)
N1−Ln−C20109.34(13)111.36(14)112.29(13)
N1−Ln−C175.05(11)71.80(13)70.57(11)
C20−Ln−C1144.95(13)148.23(15)149.02(13)
N1−Ln−C291.58(11)88.71(12)87.82(11)
C20−Ln−C2113.15(12)117.13(14)118.36(13)
C1−Ln−C232.52(11)31.92(13)31.58(11)
N1−Ln−C386.93(11)85.21(13)84.56(11)
C20−Ln−C389.52(11)93.24(14)94.39(12)
C1−Ln−C355.57(11)55.06(13)54.68(11)
C2−Ln−C327.22(10)27.32(12)27.47(11)

Share and Cite

MDPI and ACS Style

Guo, G.; Wu, X.; Yan, X.; Yan, L.; Li, X.; Zhang, S.; Qiu, N. Unprecedentedly High Activity and/or High Regio-/Stereoselectivity of Fluorenyl-Based CGC Allyl-Type η3:η1-tert-Butyl(dimethylfluorenylsilyl)amido Ligated Rare Earth Metal Monoalkyl Complexes in Olefin Polymerization. Polymers 2019, 11, 836. https://doi.org/10.3390/polym11050836

AMA Style

Guo G, Wu X, Yan X, Yan L, Li X, Zhang S, Qiu N. Unprecedentedly High Activity and/or High Regio-/Stereoselectivity of Fluorenyl-Based CGC Allyl-Type η3:η1-tert-Butyl(dimethylfluorenylsilyl)amido Ligated Rare Earth Metal Monoalkyl Complexes in Olefin Polymerization. Polymers. 2019; 11(5):836. https://doi.org/10.3390/polym11050836

Chicago/Turabian Style

Guo, Ge, Xiaolu Wu, Xiangqian Yan, Li Yan, Xiaofang Li, Shaowen Zhang, and Nannan Qiu. 2019. "Unprecedentedly High Activity and/or High Regio-/Stereoselectivity of Fluorenyl-Based CGC Allyl-Type η3:η1-tert-Butyl(dimethylfluorenylsilyl)amido Ligated Rare Earth Metal Monoalkyl Complexes in Olefin Polymerization" Polymers 11, no. 5: 836. https://doi.org/10.3390/polym11050836

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
