Water/Alcohol Soluble Thickness-Insensitive Hyperbranched Perylene Diimide Electron Transport Layer Improving the Efficiency of Organic Solar Cells

by
Dan Zhou
1,*,
Fei Yang
1,
Yuancheng Qin
1,
Rong Zhong
1,
Haitao Xu
2,
Yongfen Tong
1,
Yubao Zhang
3,
Qin Zhang
3,
Mingjun Li
1 and
Yu Xie
1,*
1
Key Laboratory of Jiangxi Province for Persistent Pollutants, Control and Resources Recycle, Nanchang Hangkong University, 696 Fenghe South Avenue, Nanchang 330063, China
2
College of Materials Science and Engineering, Nanchang Hangkong University, 696 Fenghe Avenue, Nanchang 330063, China
3
School of Measuring and Optical Engineering, Nanchang Hangkong University, Nanchang 330063, China
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(4), 655; https://doi.org/10.3390/polym11040655
Submission received: 23 February 2019 / Revised: 28 March 2019 / Accepted: 28 March 2019 / Published: 10 April 2019
(This article belongs to the Special Issue Natural Compounds for Natural Polymers)
Browse Figures
Versions Notes

Abstract

:
The electron transport layer (ETL) is very crucial for enhancing the device performance of polymer solar cells (PSCs). Meanwhile, thickness-insensitive and environment-friendly water/alcohol soluble processing are two essential requirements for large-scale roll-to-roll commercial application. Based on this, we designed and synthesized two new n-type ETLs with tetraethylene pentamine or butyl sulfonate sodium substituted tetraethylene pentamine as the branched side chains and high electron affinities perylene diimide (PDI) as the central core, named as PDIPN and PDIPNSO3Na. Encouragingly, both PDIPN and PDIPNSO3Na can effectively reduce the interfacial barrier and improve the interfacial contact. In addition, both of them can exhibit strong n-type self-doping effects, especially the PDIPN with higher density of negative charge. Consequently, compared to bare ITO, the PCE of the devices with ITO/PDIPN and ITO/PDIPNSO3Na ETLs has increased to 3–4 times. Our research results indicate that n-type self-doping PDI-based ETL PDIPN and PDIPNSO3Na could be promising candidates for ETL in environment-friendly water/alcohol soluble processing large-scale PSCs.

Graphical Abstract

1. Introduction

Polymer solar cells (PSCs) have attracted increasing attention due to their lightweight, flexibility, and easy large-area solution processability [1,2,3,4,5,6,7,8,9,10,11]. With the rapid progress in novel donor and acceptor material design and interfacial engineering, the power conversion efficiency (PCE) of the PSCs have been boosted over 14% [12,13]. Currently, most research focuses on the design of novel active layer materials for improving the power conversion efficiency (PCE) of the PSCs [14,15,16,17,18,19]. Interfacial modulating is also very crucial for enhancing the PCE of the device [20,21,22,23,24].
The mismatched energy lever between the active layer and electrode can cause the Schottky barrier, thus inhibiting the charge transfer and injection [25]. Suitable interfacial modification can decrease the interfacial barrier and increase the selectivity of charge, thus inhibiting the charge recombination and increasing the efficiency of charge injection [26,27]. Hence, inserting an interlayer between active layer and cathode electrode should be an effective strategy to increase the performance of the device. To date, metal oxide semiconductor (TiOx, ZnO, MoOx), electrolytes and fullerenes derivates etc have been used as ETLs to modulate interfacial contact and reduce interfacial barriers [28,29,30,31,32,33,34]. However, inorganic metal oxide ETL usually shows incompatible with the organic light harvest. Moreover, most of inorganic metal oxide ETLs need to be treated with a high temperature, which cannot be satisfied with the demand of the solution-process large-scale commercial application.
In consequence, to explore environment-friendly water/alcohol soluble processing organic ETL with strong interfacial control capability is extremely urgent. It would be better if the ETL is thickness-insensitive and can be efficient in different interlayer thickness. Perylene diimide (PDI) is a famous n-type material, which has many strong points, such as good electron affinities, high conductivities and facile modification by simple substitution reaction [35,36,37,38]. Moreover, the high conductivity of the PDI originated from self-organized p-stacks in solid film can endow the PDT-based ETL with thickness-insensitive superiority, which can conquer the thickness restriction (<10 nm) of the reported organic ETL. Thus, PDT-based ETL may have the potential to realize large-area manufacturing techniques owing to its tolerance of certain thickness variation.
N-type self-doping phenomena of the ETLs can enhance the electron mobility and form additional big interfacial dipoles on the interface of ITO and active layer [39]. Combining the PDI and n-type self-doping at molecular level can endow the material with the advantages of both materials. Tetraethylene pentamine contains enough polar groups and unpaired electrons of the N atoms. Inspired by this, we designed and synthesized two new n-type ETLs PDIPN and PDIPNSO3Na (Scheme 1) with perylene diimide (PDI) as central core and tetraethylene pentamine or butyl sulfonate sodium substituted tetraethylene pentamine as the branched side chains. Intriguingly, both n-type ETLs PDIPN and PDIPNSO3Na can form favorable interfacial dipole due to the polar groups and n-type self-doping effect. In sharp comparison to the device without ETL, the PCEs of the inverted device based on ITO/PDIPN and ITO/PDIPNSO3Na have been increased over two times. Furthermore, both PDIPN and PDIPNSO3Na can obtain an acceptable efficiency among a wide range of ETL thickness. As a result, environment-friendly water/alcohol soluble thickness-insensitive PDIPN and PDIPNSO3Na should be a promising ETL for large-scale commercial application.

2. Synthesis and Characterization

The detailed synthetic procedures of the hyperbranched perylene diimides ETLs PDIPN and PDIPNSO3Na are provided in Scheme 1, and the synthetic route is depicted in the Supporting Information. The PDIPN is synthesized by one-step substitution reaction between 3,4,9,10-perylenetetracarboxylic diimides and tetraethylene pentamine with a catalytic amount of zinc acetate (127 mg). The PDIPNSO3Na is prepared by PDIPN with NaH and 1,4-butanesultone via simple substitution reaction. Due to the existence of the polar group, the PDIPN and PDIPNSO3Na ETL can realize non-polluted water/alcohol processing. The structures of PDIPN and PDIPNSO3Na are verified by 1H nuclear magnetic resonance spectra (1H NMR) (Figure S1–S2) and UV–Vis absorption (Figure 1).
To calculate the optical bandgap (Egopt) and electrochemical bandgap (Egec) of the ETLs PDIPN and PDIPNSO3Na, the UV−Vis and cyclic voltammetry (CV) are investigated, as shown in Figure 1. From Figure 1a, we can obviously see that the absorption band onset (λonset) of PDIPN and PDIPNSO3Na are at 614 nm and 620 nm, an optical bandgap (Egopt) can be calculated to be 2.02 eV for PDIPN and 2.00 eV for PDIPNSO3Na. Meanwhile, a broad absorption peak can be easily observed at 800 nm and extended to 1100 nm both in PDIPN and PDIPNSO3Na film, which should be ascribed to the absorption of polarons [40,41,42]. These results suggest that maybe there are n-type self-doping effects exist in PDIPN and PDIPNSO3Na owing to the existence of unpaired electron in N atoms [43]. The unpaired electron of the N atoms can transfer to the perylene diimidess nucleus, thus giving rise to the formation of n-type self-doping behavior. Furthermore, compared to PDIPNSO3Na, PDIPN film shows stronger absorption band of polarons, indicating that the number of free electron of PDIPN is much more than that of PDIPNSO3Na. Because one mole PDIPNSO3Na has ten moles electron-withdrawing sodium sulfonate, the density of free electrons of PDIPNSO3Na is lower than that of PDIPN. The n-type self-doping can form additional interfacial dipole, which is beneficial to reduce the interface barrier and enhance the electron injection efficiency, thus increasing the PCE of the device. The electrochemical energy levels are measured by cyclic voltammetry in an anhydrous nitrogen-saturated acetonitrile solution of n-Bu4NPF6, as depicted in Figure 1b. The PDIPN and PDIPNSO3Na exhibit onset oxidation potentials at −0.73 eV and −0.79 eV, the HOMO of PDIPN and PDIPNSO3Na are estimated to be −5.59 eV and −5.67 eV, respectively [44,45]. Meanwhile, we can calculate the LUMO of PDIPN and PDIPNSO3Na to be −3.67 eV and −3.61 eV according to their onset reduction potentials; the detailed CV data are provided in Table S1.
To obtain further insight into the n-type self-doping behavior of PDIPN and PDIPNSO3Na, the electron paramagnetic resonance (EPR) spectra are characterized. In Figure 2, obvious narrow line shape signals at about 330G can be detected both in PDIPN and PDIPNSO3Na films, these signals are consistent with the presence of unpaired electrons [43]. Moreover, in comparison to the PDIPNSO3Na, the EPR signal of PDIPN is immensely stronger. These phenomena should because the density of negative charge of PDIPNSO3Na has been significantly reduced owing to the electron-withdrawing sulfonate of the branched chain, hence inhibiting the electron from transferring to the perylene diimidess nucleus [42]. The result of the EPR is quite in agreement with that of the UV–Vis measurement. Furthermore, we can easily draw a conclusion that both PDIPN and PDIPNSO3Na films possess n-type self-doping effect, and the PDIPN film show stronger n-type self-doping compared to that of PDIPNSO3Na. The schematic diagram of self-doping process is shown in Scheme 1.
The X-ray photoelectron spectra (XPS) of pristine ITO and ITO/ETLs are conducted to investigate the interfacial interaction, as displayed in Figure 3a. Figure 3b is the N 1s XPS graph of the ITO, ITO/PDIPN and ITO/PDIPNSO3Na. Obviously, there is no signal peak detected for bare ITO. Simultaneously, a broad peak at 400.04 eV is detected for ITO/PDIPN, which is associated to the N atoms of the imide and amine in PDIPN. Besides, for ITO/PDIPNSO3Na, a broad strong peak at a value of 399.9 eV and a broad weak peak at 403.05 eV are found. Similarly, the peak at 399.9 eV belongs to the imide and amine. However, the new weak peak of 403.05 eV is assigned to N(CH2)3H+. N(CH2)3 of PDIPNSO3Na can be partially protonated and form N(CH2)3H+ by reacting with the protons (H+) from the water/methanol due to its basicity. From Figure 3c, a strong peak at 1070.80 eV is observed for ITO/PDIPNSO3Na, which belongs to the sodium sulfonate branched chain. Nevertheless, Na 1s signal peaks cannot be traced in the spectra of ITO and ITO/PDIPN due to no Na element. The spectra of S 2p with different ETLs are shown in Figure 3d, there are no peaks in bare ITO and ITO/PDIPN, while an obvious peak at 168.04 eV has been found for ITO/PDIPNSO3Na film, which should be ascribed to the absorption of S atom in -SO3Na terminal groups. It indicates that PDIPN and PDIPNSO3Na have been triumphantly synthesized and spin-coated on ITO according to the high-resolution N 1s, Na 1s and S 2p spectra.
The XPS spectra of the In 3d and Sn 3d are carried out to further characterize the interfacial interactions and interfacial dipole between PDIPN and PDIPNSO3Na and ITO (Figure 4). In comparison to the In 3d of bare ITO (Figure 4a), the resolution peaks of both ITO/PDIPN and ITO/PDIPNSO3Na have moved to lower binding energy. The shift of the In 3d signal indicates that strong interfacial interaction occurs at the interface of the ITO/PDIPN and ITO/PDIPNSO3Na. Similarly, the Sn 3d XPS spectra of ITO, ITO/PDIPN and ITO/PDIPNSO3Na are also studied (Figure 4b). Bare ITO exhibits the Sn 3d peaks at 494.50 eV and 486.15 eV, and the corresponding peaks of ITO/PDIPN shift toward lower binding energies to 494.35 eV and 486.10 eV, respectively, and the corresponding peaks of ITO/PDIPNSO3Na are observed at 494.25 eV and 485.94 eV. Both the In 3d and Sn 3d signals shift to lower binding energy could once again demonstrate that the interfacial dipoles are indeed created and strong interfacial interactions are in the presence of ITO/PDIPN and ITO/PDIPNSO3Na interfaces. Interestingly, a strong broad peak at 497.00 eV has been detected for ITO/PDIPNSO3Na, which owing to the Na (KLL) Auger peak. The existence of Na (KLL) Auger peak originates from the KLL energy level transition of Na atoms proves that the PDIPNSO3Na film has been spin-coated on the ITO surface.
The polar branched chains of the PDIPN and PDIPNSO3Na are inclined to create preferable dipoles at the interface of the metal cathode electrode and active layer, which give rise to the shift of the vacuum-level, thus modifying the work function (WF) of the electrode [46]. The ultraviolet photoelectron spectroscopy (UPS) is carried out to confirm the positive influence of the ETLs PDIPN and PDIPNSO3Na on the WF of ITO (Figure 5a). The high binding energy cutoffs (Ecutoff) for reference ITO is 16.7 eV. However, the Ecutoff of ITO has been shifted toward higher energy to 17.1 eV and 17.4 eV after modified by PDIPN and PDIPNSO3Na, respectively. Simultaneously, there was a slight shift of Eonset. The Eonset values of ITO, ITO/PDIPN and ITO/PDIPNSO3Na are 0.10 eV, 0.05 eV and 0.19 eV. Based on the equation [47].: −HOMO = hν − (Ecutoff − Eonset), hν = 21.22 eV, the HOMO values of ITO, ITO/PDIPN and ITO/PDIPNSO3Na are −4.62 eV, −4.17 eV and −4.01 eV, respectively. Therefore, the WF differences (ΔΦ) among ITO, ITO/PDIPN and ITO/PDIPNSO3Na are −0.45 eV and −0.61 eV. The shifts of the energy levels demonstrate that both the PDIPN and the PDIPNSO3Na can indeed significantly lower the WF of ITO. The decreased WF of ITO originates from the interfacial dipole, manifesting that the interfacial dipole is 0.45 eV for ITO/PDIPN and 0.61 eV for ITO/PDIPNSO3Na. The detailed energy levels data are provided in Table 1. Kelvin probe microscopy (KPM) is used to obtain more information about the impact of the interface dipoles on the WF of ITO, as shown in Figure 5b. Based on the KPM matrix spectra, we can distinctly discover that the WF of ITO has been reduced after modified by PDIPN and PDIPNSO3Na. The bare ITO shows a WF of 4.70 eV. Intriguingly, compared to bare ITO, the WF values of ITO/PDIPN and ITO/PDIPNSO3Na have been decreased by 0.50 eV and 0.54 eV. The KPM results are quite coincide to those of UPS. Moreover, on the basis of the results of UPS and KPM, we can once again verify the interfacial dipole in the interface between ITO/PDIPN and ITO/PDIPNSO3Na. The interfacial dipole is beneficial to reduce the work function of ITO, thus reducing the electron injection barrier and enhancing the efficiencies of charge separation and transfer.
Surface morphology of the electron transport layer is very important for the charge separation and transfer. The atomic force microscopy (AFM) is measured to characterize the surface morphology of ITO/PDIPN and ITO/PDIPNSO3Na. Figure S3a,b are the height images of ITO/PDIPN and ITO/PDIPNSO3Na, and Figure S3c,d are the corresponding phase images. Delightfully, both PDIPN and PDIPNSO3Na can form homogeneous morphology on the surface of ITO. The root-mean-square (RMS) roughness of ITO/PDIPN is 3.36 nm, and the RMS ITO/PDIPNSO3Na 3.22 nm. Besides, the three-dimensional AFM image of ITO, ITO/PDIPN and ITO/PDIPNSO3Na are presented in Figure S4. The homogeneous and smooth morphology of ETL can facilitate charge transfer and transportation. In addition, the AFM images of the active layer are measured to confirm that whether the surface can become smoother by inserting PDIPN and PDIPNSO3Na than that of without the presence of any ETL (Figure 6). In comparison to ITO/P3HT:PC61BM with a RMS roughness of 11.3 nm, the RMS roughness of ITO/PDIPN/P3HT:PC61BM and ITO/PDIPNSO3Na/P3HT:PC61BM is decreased to 6.55 nm and 9.45 nm, manifesting that both PDIPN and PDIPNSO3Na ETL can exert a positive influence on the morphology of the corresponding active layer. The smoother morphology of the active layer is in favor of charge separation and transfer.
To verify the positive roles of PDIPN and PDIPNSO3Na ETLs in the PSCs, the PDIPN and PDIPNSO3Na ETLs corresponding to inverted devices are fabricated. The schematic representation of the inverted device structure and an energy levels diagram of the PSCs are shown in Figure 7. From the energy levels diagram, we can clearly observe that both the LUMO levels of ITO/PDIPN and ITO/PDIPNSO3Na are higher than that of PC61BM, indicating that ohmic contact can be formed after inserting PDIPN and PDIPNSO3Na ETLs. Meanwhile, compared to the HOMO level of P3HT, the ITO/PDIPN and ITO/PDIPNSO3Na have lower HOMO levels, revealing that both PDIPN and PDIPNSO3Na ETLs can block the hole transport.
The J-V spectra of the device based on ITO, ITO/PDIPN and ITO/PDIPNSO3Na are described in Figure 8a, and the relevant device performance data with different ETLs and different thicknesses are filled in Table S2. The J−V characteristics of the devices of ITO/PDIPN and ITO/PDIPNSO3Na with different thicknesses are supplemented in Figure S5. The device with ITO obtains a PCE of 0.9%. Delightfully, after modified by PDIPN (11 nm), the PCE has been dramatically increased to 3.5% with a Voc of 0.61 V, a Jsc of 8.95 mA/cm2 and a fill factor (FF) of 64.8%. Meanwhile, the device with ITO/PDIPNSO3Na (11 nm) shows a PCE of 3.1%, which is significantly improved compared to that of ITO. It is noteworthy that all the device parameters based on ITO/PDIPN and ITO/PDIPNSO3Na, including Voc, Jsc, PCE, and FF parameters have been significantly enhanced compared to that of bare ITO. The enhanced device properties should due to the improved interfacial contact and n-type self-doping effect. Manifestly, the photovoltaic performance of ITO/PDIPN is slightly higher than that of ITO/PDIPNSO3Na under the same condition, the higher PCE originates from the higher Jsc and FF. Compared to ITO/PDIPNSO3Na, the better performance of ITO/PDIPN could owing to its stronger n-type self-doping effect. As we known, the higher n-type self-doping effect is favorable for charge transfer, thus enhancing the Jsc and FF of the corresponding device. Moreover, when the thicknesses of the ITO/PDIPN and ITO/PDIPNSO3Na are increased to 28 nm, the devices can still achieve an acceptable PCE of 3.1% and 2.8%, respectively. The n-type essence of PDIPN and PDIPNSO3Na can endow them with thickness-insensitive superiority. The thickness-insensitive advantages can make them more suitable for large-scale commercial printing production. To further discuss the effects of the PDIPN and PDIPNSO3Na on the photovoltaic properties, the dark J−V curves are studied in the inset of Figure 8a. Encouragingly, the dark current densities of ITO/PDIPN and ITO/PDIPNSO3Na ETLs are dramatically smaller than that of bare ITO under the reverse bias, suggesting that the charge recombination has been significantly inhibited by the contribution of PDIPN and PDIPNSO3Na ETLs. The dark J−V curves can further manifest that the preferable interfacial dipoles originate from the polar branched chain and n-type self-doping effect of PDIPN and PDIPNSO3Na can efficiently suppress the leakage current, therefore increasing the charge injection efficiency of the devices. The research results of the dark J−V curves are in accordance with that of illuminated J−V.
The external quantum efficiency (EQE) has been measured to make further consideration of the interfacial dipoles on the Jsc, as presented in Figure 8b. From the skeleton diagram of the EQE, we can clearly see that both ITO/PDIPN and ITO/PDIPNSO3Na show more outstanding external quantum efficiency between 350 and 700 nm than bare ITO. Notably, ITO/PDIPN ETL exhibits the highest value among the three devices. The results from EQE are quite in consistent with those acquired from illuminated and dark J−V characteristic. In brief, due to their interfacial modulating and thickness-insensitive properties, both PDIPN and PDIPNSO3Na may become potential candidates as ETLs in polymer solar cells, especially for large-scale solution-processed PSCs. The integrated current values from EQE for ITO/PDIPN and ITO/PDIPNSO3Na are 8.90 mA/cm2 and 8.19 mA/cm2. The standard deviations error bars of Voc, PCE, FF and Jsc are shown in Figure 8c,d, and the detailed information are shown in Table 2.
The J−V characteristics of electron-only devices based on P3HT:PC61BM blends are measured to get more information regarding electronic mobility, as displayed in Figure 9. The bare-ITO device shows a low electronic mobility of 9.45 × 10−7 cm2 V−1 s−1. However, when inserting PDIPNSO3Na as ETL, the electronic mobility has been dramatically increased to 1.61 × 10−4 cm2 V−1 s−1. Moreover, in contrast to ITO/PDIPNSO3Na, the device with ITO/PDIPN ETL exhibits better electronic mobility of 4.18 × 10−4 cm2 V−1 s−1, which should be ascribed to the latter possesses higher n-type self-doping effect, thus supporting higher electronic mobility and higher Jsc. These results agree well with the electron paramagnetic resonance and J–V spectra.

3. Conclusions

In conclusion, two new n-type water/alcohol-soluble thickness-insensitive ETLs PDIPN and PDIPNSO3Na have been first designed and synthesized as ETL in PSCs. The appropriate energy levels and WF tuning properties of PDIPN and PDIPNSO3Na cause the corresponding PSCs to have acceptable PCE on a relatively broad range of interlayer thickness, especially in the device based on PDIPN ETL. Compared to the counterpart PDIPNSO3Na, PDIPN with higher density of an unpaired electron exhibits higher n-type self-doping effect, thus, contributing to higher Jsc, FF and PCE. In comparison to ITO-only devices, the PCE of the device based on ITO/PDIPN and ITO/PDIPNSO3Na ETLs has been increased from 0.9% to 3.1% and 3.5%, respectively. The outstanding properties of PDIPN and PDIPNSO3Na should make them potential candidates as ETL in solution-processed high-efficiency organic photovoltaic devices.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/2073-4360/11/4/655/s1.

Author Contributions

Data curation, F.Y. and Q.Z.; Methodology, Y.Q.; Project administration, D.Z.; Resources, H.X., Y.T. and Y.Z.; Supervision, M.L. and Y.X.; Validation, R.Z.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (51703091, 51663018, 51863016, 61765011 and 21501088), the Natural Science Foundation of Jiangxi province (20181BAB216012, 20181BCB18003, 20181ACG70025, 20171ACB20016 and 20172BCB22014), the Jiangxi Province Education Department of Science and Technology Project (GJJ170614, GJJ170589, DA201802151, DA201801176 and DA201702347) and the Foundation of Nanchang Hangkong University (EA201702484).

Conflicts of Interest

The authors declare they have no conflict of interest.

References

  1. Oh, S.H.; Na, S.I.; Jo, J.; Lim, B.; Vak, D.; Kim, D.Y. Water-Soluble Polyfluorenes as an Interfacial Layer Leading to Cathode-Independent High Performance of Organic Solar Cells. Adv. Funct. Mater. 2010, 20, 1977–1983. [Google Scholar] [CrossRef]
  2. Zhou, D.; Xiong, S.; Chen, L.; Cheng, X.; Xu, H.; Zhou, Y.; Liu, F.; Chen, Y. A green route to a novel hyperbranched electrolyte interlayer for nonfullerene polymer solar cells with over 11% efficiency. Chem. Commun. 2018, 54, 563–566. [Google Scholar] [CrossRef]
  3. Ouyang, X.; Peng, R.; Ai, L.; Zhang, X.; Ge, Z. Efficient polymer solar cells employing a non-conjugated small-molecule electrolyte. Nature Photon. 2015, 9, 520. [Google Scholar] [CrossRef]
  4. Qin, Y.; Liu, S.; Gu, H.; Dai, W.; Luo, X. Highly flattened donor-acceptor polymers based on fluoride-substituent acceptors for efficient heterojunction solar cells. Sol. Energy 2018, 166, 450–457. [Google Scholar] [CrossRef]
  5. Zhang, X.; Zhang, B.; Ouyang, X.; Chen, L.; Wu, H. Polymer solar cells employing water-soluble polypyrrole nanoparticles as dopants of PEDOT: PSS with enhanced efficiency and stability. J. Phys. Chem. C 2017, 121, 18378–18384. [Google Scholar] [CrossRef]
  6. Jiang, W.; Yu, R.; Liu, Z.; Peng, R.; Mi, D.; Hong, L.; Wei, Q.; Hou, J.; Kuang, Y.; Ge, Z. Ternary nonfullerene polymer solar cells with 12.16% efficiency by introducing one acceptor with cascading energy level and complementary absorption. Adv. Mater. 2018, 30, 1703005. [Google Scholar] [CrossRef]
  7. Jin, R.; Wang, F.; Guan, R.; Zheng, X.; Zhang, T. Design of perylene-diimides-based small-molecules semiconductors for organic solar cells. Mol. Phys. 2017, 115, 1591–1597. [Google Scholar] [CrossRef]
  8. Liu, M.; Yang, J.; Yin, Y.; Zhang, Y.; Zhou, E.; Guoa, F.; Zhaoa, L. Novel perylene diimide-based polymers with electron-deficient segments as the comonomer for efficient all-polymer solar cells. J. Mater. Chem. A 2018, 6, 414–422. [Google Scholar] [CrossRef]
  9. Gopalan, S.A.; Gopalan, A.I.; Vinu, A.; Lee, K.P.; Kang, S.W. A new optical-electrical integrated buffer layer design based on gold nanoparticles tethered thiol containing sulfonated polyaniline towards enhancement of solar cell performance. Sol. Energy Mater. Sol. Cells 2018, 174, 112–123. [Google Scholar] [CrossRef]
  10. Xu, B.; Sai-Anand, G.; Jeong, H.M.; Kim, S.W.; Kim, J.S.; Kwon, J.B.; Kang, S.W. Improving Air-Stability and Performance of Bulk Heterojunction Polymer Solar Cells Using Solvent Engineered Hole Selective Interlayer. Materials 2018, 11, 1143. [Google Scholar] [CrossRef]
  11. Sai-Anand, G.; Dubey, A.; Gopalan, A.I.; Venkatesan, S.; Ruban, S.; Rezac, K.M.; Choib, J.; Lakhi, K.S.; Xu, B.; Qiao, Q.; et al. Additive assisted morphological optimization of photoactive layer in polymer solar cells. Sol. Energy Mater. Sol. Cells 2018, 182, 246–254. [Google Scholar] [CrossRef]
  12. Zhang, S.; Qin, Y.; Zhu, J.; Hou, J. Over 14% efficiency in polymer solar cells enabled by a chlorinated polymer donor. Adv. Mater. 2018, 30, 1800868. [Google Scholar] [CrossRef]
  13. Cui, Y.; Yao, H.; Yang, C.; Zhang, S.; Hou, J. Organic solar cells with an efficiency approaching 15%. Acta Polym. Sinica 2018, 2, 223–230. [Google Scholar]
  14. Sun, Y.; Fu, H.; Wang, Z. Polymer Donors for High-performance Non-fullerene Organic Solar Cells. Angew. Chem. Int. Ed. 2018, 58, 4442–4453. [Google Scholar]
  15. Bi, P.; Hao, X. Versatile Ternary Approach for Novel Organic Solar Cells: A Review. Sol. RRL 2019, 3, 1800263. [Google Scholar] [CrossRef]
  16. Li, S.; Ye, L.; Zhao, W.; Yan, H.; Yang, B.; Liu, D.; Li, W.; Ade, H.; Hou, J. A wide band gap polymer with a deep highest occupied molecular orbital level enables 14.2% efficiency in polymer solar cells. J. Am. Chem. Soc. 2018, 140, 7159–7167. [Google Scholar] [CrossRef]
  17. Li, T.; Dai, S.; Ke, Z.; Yang, L.; Wang, J.; Yan, C.; Ma, W.; Zhan, X. Fused Tris (thienothiophene)-Based Electron Acceptor with Strong Near-Infrared Absorption for High-Performance As-Cast Solar Cells. Adv. Mater. 2018, 30, 1705969. [Google Scholar] [CrossRef]
  18. Yao, Z.; Liao, X.; Gao, K.; Lin, F.; Xu, X.; Shi, X.; Zuo, L.; Liu, F.; Chen, Y.; Jen, A.Y. Dithienopicenocarbazole-based acceptors for efficient organic solar cells with optoelectronic response over 1000 nm and an extremely low energy loss. J. Am. Chem. Soc. 2018, 140, 2054–2057. [Google Scholar] [CrossRef]
  19. Kan, B.; Feng, H.; Yao, H.; Chang, M.; Wan, X.; Li, C.; Hou, J.; Chen, Y. A chlorinated low-bandgap small-molecule acceptor for organic solar cells with 14.1% efficiency and low energy loss. Sci. China Chem. 2018, 61, 1307–1313. [Google Scholar] [CrossRef]
  20. Po, R.; Carbonera, C.; Bernardi, A.; Camaioni, N. The role of buffer layers in polymer solar cells. Energy Environ. Sci. 2011, 4, 285–310. [Google Scholar] [CrossRef]
  21. Sai-Anand, G.; Gopalan, A.I.; Lee, K.P.; Venkatesan, S.; Qiao, Q.; Kang, B.H.; Lee, S.W.; Lee, J.S.; Kang, S.W. Electrostatic nanoassembly of contact interfacial layer for enhanced photovoltaic performance in polymer solar cells. Sol. Energy Mater. Sol. Cells 2016, 153, 148–163. [Google Scholar] [CrossRef]
  22. Sai-Anand, G.; Gopalan, A.I.; Lee, K.P.; Venkatesan, S.; Kang, B.H.; Lee, S.W.; Lee, J.S.; Qiao, Q.; Kwon, D.H.; Kang, S.W. A futuristic strategy to influence the solar cell performance using fixed and mobile dopants incorporated sulfonated polyaniline based buffer layer. Sol. Energy Mater. Sol. Cells 2015, 141, 275–290. [Google Scholar] [CrossRef]
  23. Xu, B.; Sai-Anand, G.; Gopalan, A.I.; Muthuchamy, N.; Lee, K.P.; Lee, J.S.; Jiang, Y.; Lee, S.W.; Kim, S.W.; Kim, J.S.; et al. Functional solid additive modified PEDOT:PSS as an anode buffer layer for enhanced photovoltaic performance and stability in polymer solar cells. Sci. Rep. 2017, 7, 45079. [Google Scholar] [CrossRef] [Green Version]
  24. Jiang, Y.; Sai-Anand, G.; Xu, B.; Lee, J.S.; Kim, S.W.; Yeom, S.H.; Bae, J.H.; Kang, S.W. Enhancing the photovoltaic performance of polymer solar cells by manipulating photoactive/metal interface. J. Nanosci. Nanotechnol. 2017, 17, 8024–8030. [Google Scholar] [CrossRef]
  25. Hu, L.; Wu, F.; Li, C.; Hu, A.; Hu, X.; Zhang, Y.; Chen, L.; Chen, Y. Alcohol-soluble n-type conjugated polyelectrolyte as electron transport layer for polymer solar cells. Macromolecules 2015, 48, 5578–5586. [Google Scholar] [CrossRef]
  26. Yang, B.; Zhang, S.; Li, S.; Yao, H.; Li, W.; Hou, J. A Self-Organized Poly (vinylpyrrolidone)-Based Cathode Interlayer in Inverted Fullerene-Free Organic Solar Cells. Adv. Mater. 2019, 1804657. [Google Scholar] [CrossRef]
  27. Liu, G.; Ji, S.; Xu, G.; Ye, C. Interface engineering: Boosting the energy conversion efficiencies for nanostructured solar cells. Pure Appl. Chem. 2012, 84, 2653–2675. [Google Scholar] [CrossRef]
  28. Li, Y.; Zhao, Y.; Chen, Q.; Yang, Y.; Liu, Y.; Hong, Z.; Liu, Z.; Hsieh, Y.T.; Meng, L.; Li, Y.; et al. Multifunctional fullerene derivative for interface engineering in perovskite solar cells. J. Am. Chem. Soc. 2015, 137, 15540–15547. [Google Scholar] [CrossRef]
  29. Zhou, D.; Xu, H.; Qin, Y.; Zhong, X.; Li, M.; Hu, B.; Tong, Y.; Xie, Y. Hyperbranched small-molecule electrolyte as cathode interfacial layers for improving the efficiency of organic photovoltaics. J. Mater. Sci. 2018, 53, 7715–7724. [Google Scholar] [CrossRef]
  30. Qi, B.; Zhang, Z.G.; Wang, J. Uncovering the role of cathode buffer layer in organic solar cells. Sci. Rep. 2015, 5, 7803. [Google Scholar] [CrossRef] [Green Version]
  31. Subbiah, J.; Mitchell, V.D.; Hui, N.K.C.; Jones, D.J.; Wong, W.W.H. A Green Route to Conjugated Polyelectrolyte Interlayers for High-Performance Solar Cells. Angew. Chem. Int. Ed. 2017, 56, 8431–8434. [Google Scholar] [CrossRef] [Green Version]
  32. Wang, Z.; Zheng, N.; Zhang, W.; Yan, H.; Xie, Z.; Ma, Y.; Huang, F.; Cao, Y. Self-Doped, n-Type Perylene Diimide Derivatives as Electron Transporting Layers for High-Efficiency Polymer Solar Cells. Adv. Energy Mater. 2017, 7, 1700232. [Google Scholar] [CrossRef]
  33. Nakano, K.; Tajima, K. Organic Planar Heterojunctions:From Models for Interfaces in Bulk Heterojunctions to High-Performance Solar Cells. Adv. Mater. 2017, 29, 1603269. [Google Scholar] [CrossRef]
  34. Lee, B.R.; Lee, S.; Park, J.H.; Jung, E.D.; Yu, J.C.; Nam, Y.S.; Heo, J.; Kim, J.Y.; Kim, B.S.; Song, M.H. Amine-Based Interfacial Molecules for Inverted Polymer-Based Optoelectronic Devices. Adv. Mater. 2015, 27, 3553–3559. [Google Scholar] [CrossRef]
  35. Yue, W.; Lv, A.; Gao, J.; Jiang, W.; Hao, L.; Li, C.; Li, Y.; Polander, L.E.; Barlow, S.; Hu, W.; et al. Hybrid rylene arrays via combination of stille coupling and C–H transformation as high-performance electron transport materials. J. Am. Chem. Soc. 2012, 134, 5770–5773. [Google Scholar] [CrossRef]
  36. Mikroyannidis, J.A.; Stylianakis, M.M.; Suresh, P.; Roy, M.S.; Sharma, G.D. Synthesis of perylene monoimide derivative and its use for quasi-solid-state dye-sensitized solar cells based on bare and modified nano-crystalline ZnO photoelectrodes. Energy Environ. Sci. 2009, 2, 1293–1301. [Google Scholar] [CrossRef]
  37. Huang, C.; Barlow, S.; Marder, S.R. Perylene-3, 4, 9, 10-tetracarboxylic acid diimides: Synthesis, physical properties, and use in organic electronics. J. Org. Chem. 2011, 76, 2386–2407. [Google Scholar] [CrossRef]
  38. Dubey, R.K.; Westerveld, N.; Eustace, S.J.; Sudhölter, E.J.R.; Grozema, F.C.; Jager, W.F. Synthesis of Perylene-3,4,9,10-tetracarboxylic Acid Derivatives Bearing Four Different Substituents at the Perylene Core. Org. Lett. 2016, 18, 5648–5651. [Google Scholar] [CrossRef]
  39. Chen, L.; Tan, Y.; Liu, X.; Chen, Y. Counterion induced facile self-doping and tunable interfacial dipoles of small molecular electrolytes for efficient polymer solar cells. Nano Energy 2016, 27, 492–498. [Google Scholar] [CrossRef]
  40. Sun, Z.W.; Frank, A.J. Characterization of the intrachain charge-generation mechanism of electronically conductive poly (3-methylthiophene). J. Chem. Phys. 1991, 94, 4600–4608. [Google Scholar] [CrossRef]
  41. Mai, C.K.; Zhou, H.; Zhang, Y.; Henson, Z.B.; Nguyen, T.Q.; Heeger, A.J.; Bazan, G.C. Facile Doping of Anionic Narrow-Band-Gap Conjugated Polyelectrolytes During Dialysis. Angew. Chem. Int. Ed. 2013, 52, 12874–12878. [Google Scholar] [CrossRef]
  42. Russ, B.; Robb, M.J.; Popere, B.C.; Perry, E.E.; Mai, C.K.; Fronk, S.L.; Patel, S.N.; Mates, T.E.; Bazan, G.C.; Urban, J.J.; et al. Tethered tertiary amines as solid-state n-type dopants for solution-processable organic semiconductors. Chem. Sci. 2016, 7, 1914–1919. [Google Scholar] [CrossRef]
  43. Patil, A.O.; Ikenoue, Y.; Basescu, N.; Colaneri, N.; Chen, J.; Wudl, F.; Heeger, A.J. Self-doped conducting polymers. Synth. Met. 1987, 20, 151–159. [Google Scholar] [CrossRef]
  44. Bredas, J.L.; Silbey, R.; Boudreaux, D.S.; Chance, R.R. Chain-length dependence of electronic and electrochemical properties of conjugated systems: Polyacetylene, polyphenylene, polythiophene, and polypyrrole. J. Am. Chem. Soc. 1983, 105, 6555–6559. [Google Scholar] [CrossRef]
  45. De Leeuw, D.M.; Simenon, M.M.J.; Brown, A.R.; Einerhand, R.E.F. Stability of n-type doped conducting polymers and consequences for polymeric microelectronic devices. Synth. Met. 1997, 87, 53–59. [Google Scholar] [CrossRef]
  46. Kang, R.; Oh, S.H.; Kim, D.Y. Influence of the ionic functionalities of polyfluorene derivatives as a cathode interfacial layer on inverted polymer solar cells. ACS Appl. Mater. Interfaces 2014, 6, 6227–6236. [Google Scholar] [CrossRef]
  47. Braun, S.; Salaneck, W.R.; Fahlman, M. Energy-level alignment at organic/metal and organic/organic interfaces. Adv. Mater. 2009, 21, 1450–1472. [Google Scholar] [CrossRef]
Polymers 11 00655 sch001 550

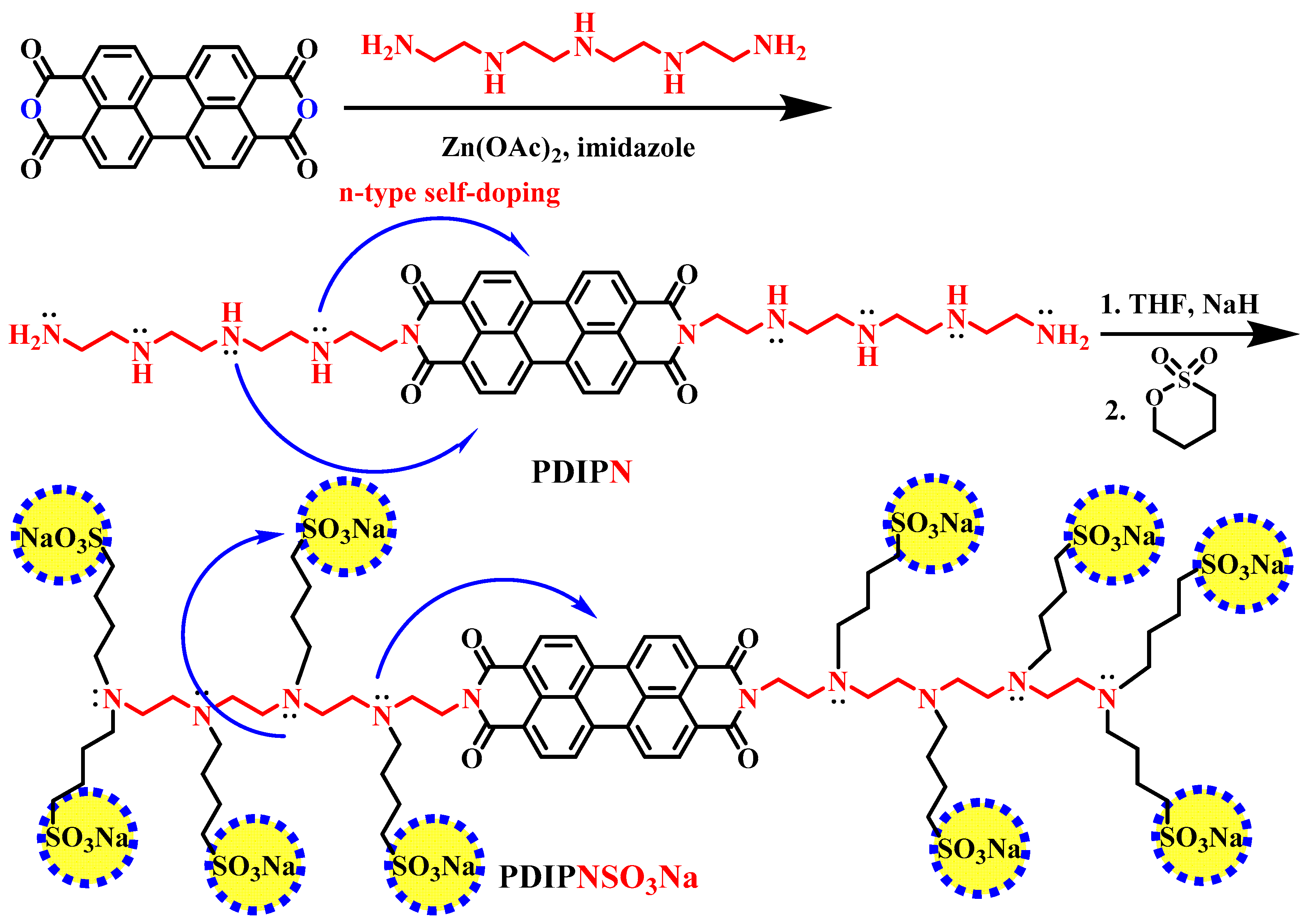

Scheme 1. Synthetic routes of PDIPN and PDIPNSO3Na.
Scheme 1. Synthetic routes of PDIPN and PDIPNSO3Na.
Polymers 11 00655 sch001
Polymers 11 00655 g001 550

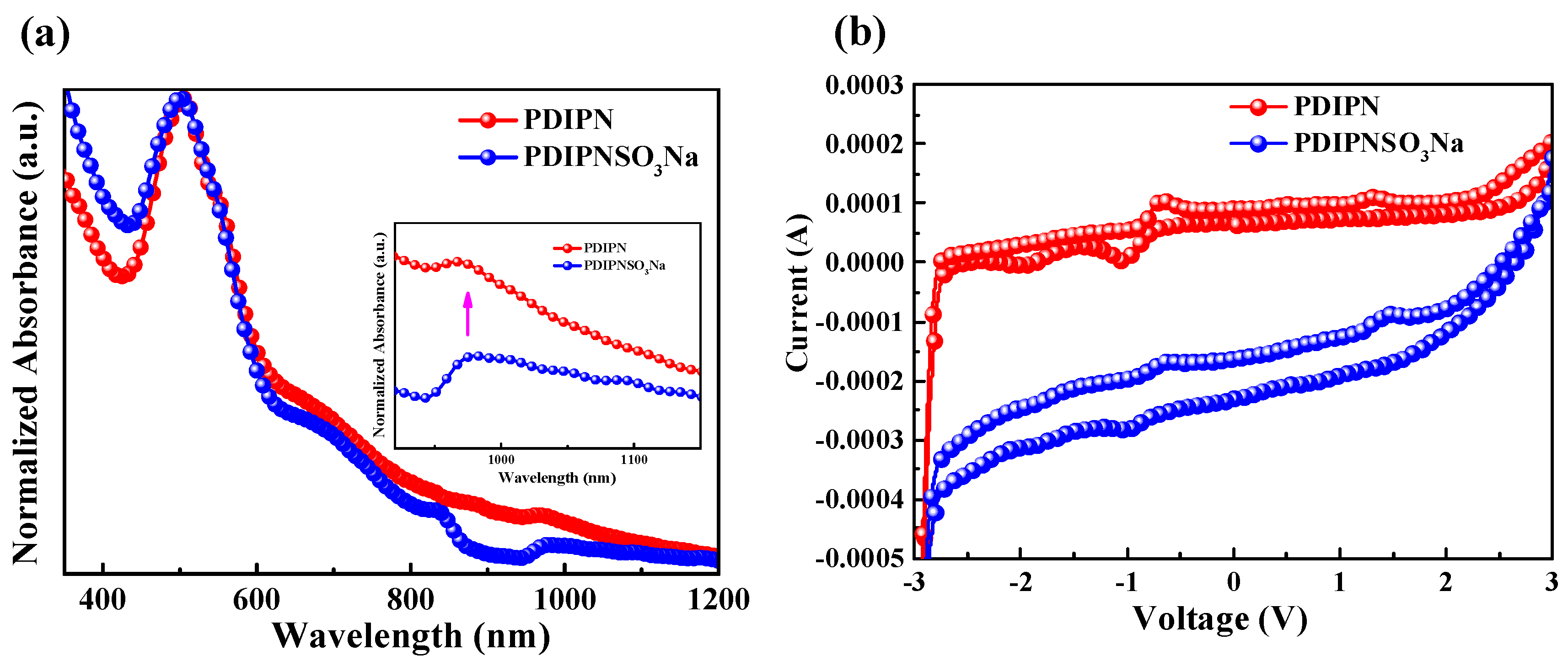

Figure 1. (a) UV–Vis absorption and (b) cyclic voltammograms (CV) spectra of PDIPN and PDIPNSO3Na films.
Figure 1. (a) UV–Vis absorption and (b) cyclic voltammograms (CV) spectra of PDIPN and PDIPNSO3Na films.
Polymers 11 00655 g001
Polymers 11 00655 g002 550
Figure 2. Electron paramagnetic resonance (EPR) spectra of the PDIPN and PDIPNSO3Na film.
Figure 2. Electron paramagnetic resonance (EPR) spectra of the PDIPN and PDIPNSO3Na film.
Polymers 11 00655 g002
Polymers 11 00655 g003 550
Figure 3. (a) Survey X-ray photoelectron spectra of bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na (b) N 1s, (c) Na 1s, (d) S 2p.
Figure 3. (a) Survey X-ray photoelectron spectra of bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na (b) N 1s, (c) Na 1s, (d) S 2p.
Polymers 11 00655 g003
Polymers 11 00655 g004 550

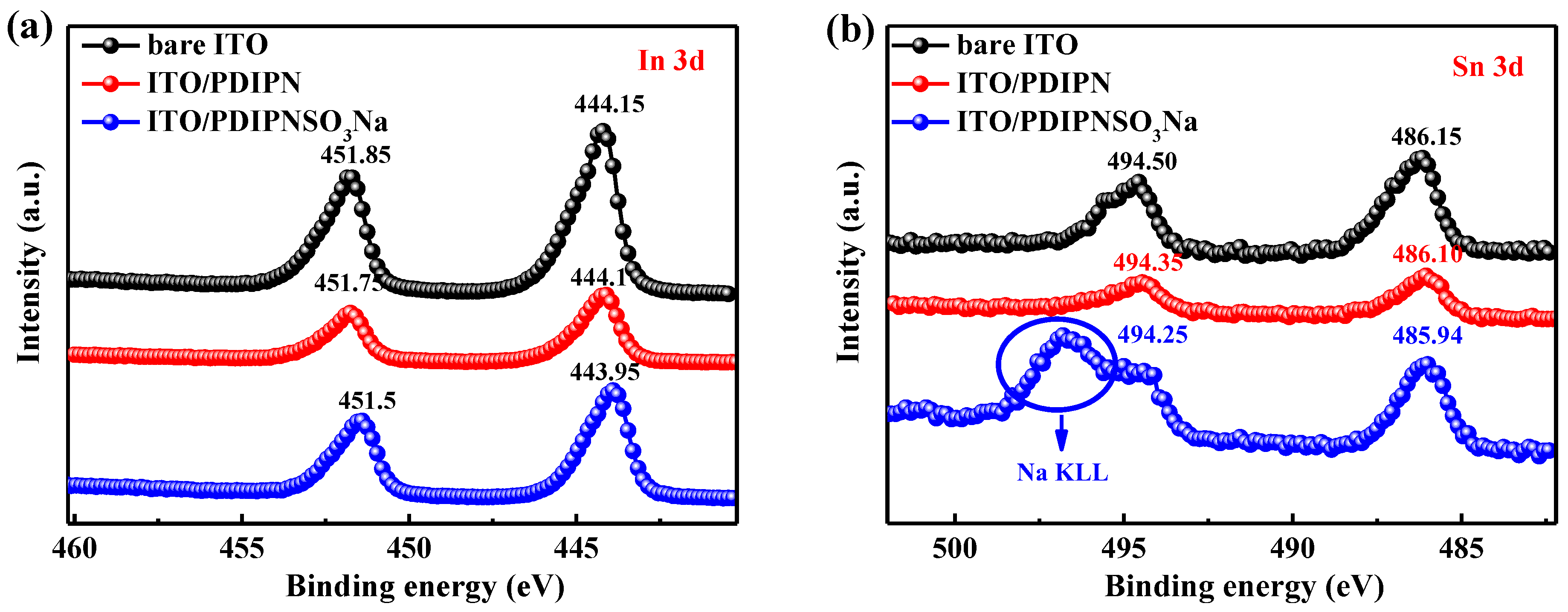

Figure 4. Survey X-ray photoelectron spectra of bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na (a) In 3d and (b) Sn 3d.
Figure 4. Survey X-ray photoelectron spectra of bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na (a) In 3d and (b) Sn 3d.
Polymers 11 00655 g004
Polymers 11 00655 g005 550
Figure 5. (a) Ultraviolet photoelectron spectroscopy (UPS) spectra of the inelastic cutoff region (left) and the HOMO region (right) of bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na ETLs and (b) Work function images from Kelvin probe microscopy matrix.
Figure 5. (a) Ultraviolet photoelectron spectroscopy (UPS) spectra of the inelastic cutoff region (left) and the HOMO region (right) of bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na ETLs and (b) Work function images from Kelvin probe microscopy matrix.
Polymers 11 00655 g005
Polymers 11 00655 g006 550

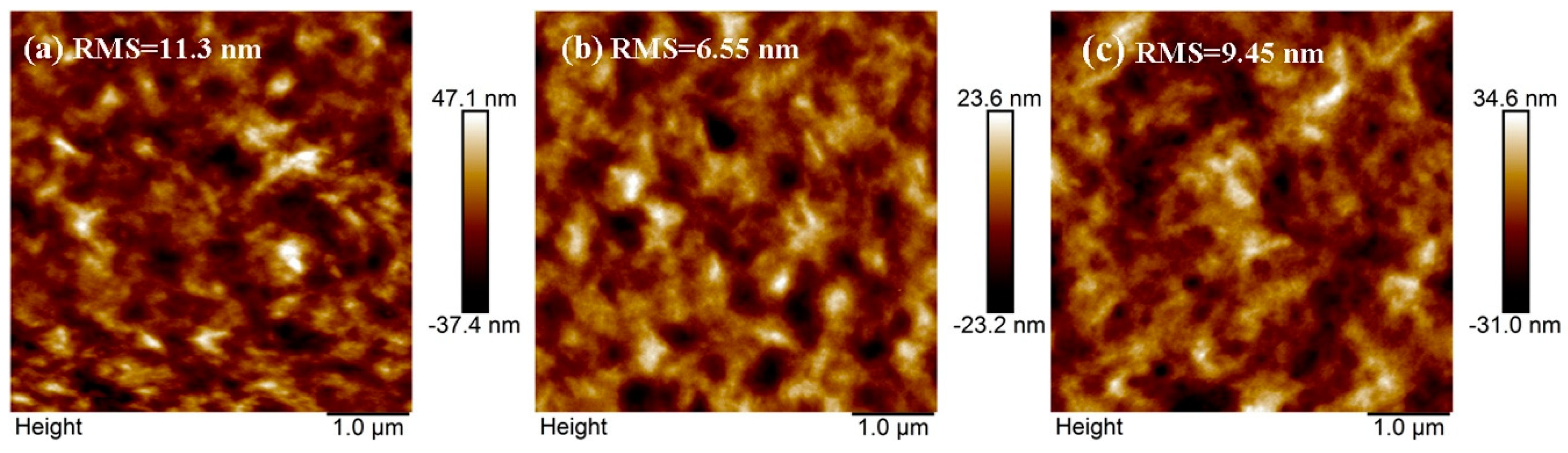

Figure 6. Atomic force microscopy (AFM) tapping mode height images the surface of (a) ITO/P3HT:PC61BM, (b) ITO/PDIPN/P3HT:PC61BM and (c) ITO/PDIPNSO3Na/P3HT:PC61BM.
Figure 6. Atomic force microscopy (AFM) tapping mode height images the surface of (a) ITO/P3HT:PC61BM, (b) ITO/PDIPN/P3HT:PC61BM and (c) ITO/PDIPNSO3Na/P3HT:PC61BM.
Polymers 11 00655 g006
Polymers 11 00655 g007 550
Figure 7. (a) The inverted device structure of the PSC. (b) Energy-level diagram of the PSCs.
Figure 7. (a) The inverted device structure of the PSC. (b) Energy-level diagram of the PSCs.
Polymers 11 00655 g007
Polymers 11 00655 g008 550

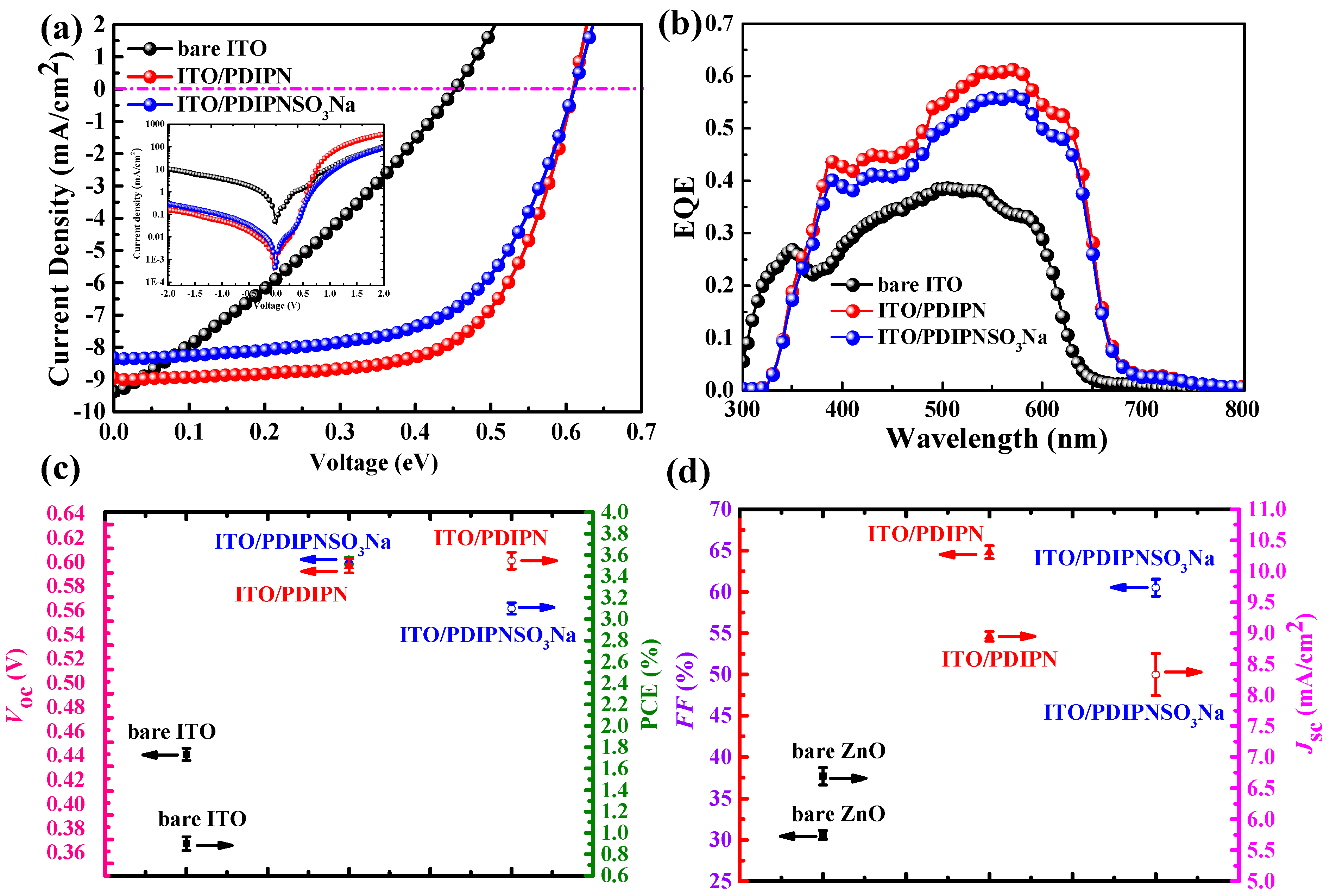

Figure 8. (a) J−V curves of devices based on P3HT:PC61BM with various ETLs under the illumination of AM1.5G, 100 mW cm−2 (inset: under dark conditions), (b) EQE characteristics, (c) The standard deviations error bars of Voc and PCE and (d) the standard deviations error bars of and FF and Jsc.
Figure 8. (a) J−V curves of devices based on P3HT:PC61BM with various ETLs under the illumination of AM1.5G, 100 mW cm−2 (inset: under dark conditions), (b) EQE characteristics, (c) The standard deviations error bars of Voc and PCE and (d) the standard deviations error bars of and FF and Jsc.
Polymers 11 00655 g008
Polymers 11 00655 g009 550
Figure 9. J0.5−V characteristics of electron-only devices ITO/ETLs/P3HT:PC61BM/Al with bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na ETLs.
Figure 9. J0.5−V characteristics of electron-only devices ITO/ETLs/P3HT:PC61BM/Al with bare ITO, ITO/PDIPN and ITO/PDIPNSO3Na ETLs.
Polymers 11 00655 g009
Table
Table 1. Energy levels of the ITO, ITO/PDIPN and ITO/PDIPNSO3Na.
Table 1. Energy levels of the ITO, ITO/PDIPN and ITO/PDIPNSO3Na.
ETLEcutoff (eV)Eoneset (eV)HOMO (eV)a ΔΦ (eV)KPM (eV)
ITO16.70.10−4.62-4.70
ITO/PDIPN17.10.05−4.17−0.454.20
ITO/PDIPNSO3Na17.40.19−4.01−0.614.16
a ΔΦ means the difference in the work function of ITO, ITO/PDIPN and ITO/PDIPNSO3Na according to the UPS, −HOMO = hν − (Ecutoff − Eonset), hν = 21.22 eV.
Table
Table 2. Device Performance of the Inverted P3HT:PC61BM Polymer Solar Cells with Various ETLs.
Table 2. Device Performance of the Inverted P3HT:PC61BM Polymer Solar Cells with Various ETLs.
Cathode Buffer LayerVoc (V)Jsc (mA/cm2)FF (%)PCE (%)
ITO0.45 ± 0.0056.69± 0.13830.6 ± 0.540.9 ± 0.064
ITO/PDIPN (11 nm)0.61 ± 0.0038.95 ± 0.07864.8± 0.793.5 ± 0.067
ITO/PDIPNSO3Na (11 nm)0.61 ± 0.0078.33 ± 0.34160.5 ± 1.033.1 ± 0.052
The device parameters of each device are obtained from 10 devices, and the ± refer to the standard deviation.
