Article

LED-Cured Reflection Gratings Stored in an Acrylate-Based Photopolymer

by
Manuel G. Ramírez
1,
Daniel Sirvent
1,
Marta Morales-Vidal
2,
Manuel Ortuño
3,
Francisco J. Martínez-Guardiola
3,
Jorge Francés
3 and
Inmaculada Pascual
1,*
1
Departamento de Óptica, Farmacología y Anatomía, Universidad de Alicante, Apartado de correos 99, Alicante E-03080, Spain
2
I.U. Física Aplicada a las Ciencias y las Tecnologías Universidad de Alicante, Apartado de correos 99, Alicante E-03080, Spain
3
Departamento de Física, Ingeniería de Sistemas y Teoría de la Señal, Universidad de Alicante, Apartado de correos 99, Alicante E-03080, Spain
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(4), 632; https://doi.org/10.3390/polym11040632
Submission received: 16 March 2019 / Revised: 28 March 2019 / Accepted: 4 April 2019 / Published: 6 April 2019

Abstract

:
The storage of volume holographic reflection gratings in low-toxicity photopolymers represents a challenge at present since they can be used in many important applications such as biosensors and holographic optical elements. In this context, an acrylate-based photopolymer developed in our research group was employed to study the recording of unslanted holographic reflection gratings at high spatial frequencies. The optimal preparation conditions of the photopolymer layers were determinated. The diffraction efficiencies are measured in both recording and curing stage and a comparative study of these values was realized. In addition, a theoretical study using Kogelnik’s coupled wave theory was carried out with the aim of understanding the diffraction efficiency behaviour of both processes. In this work, a maximum diffraction efficiency of 14.1% was reached after a curing process in 150 µm layers at a recording wavelength of 488 nm. This value represents a good result compared to that reported in the literature and opens the way to reflection mode holography research using low-toxicity material.

1. Introduction

Holography is an optical technique that allows the storage and reconstruction of three-dimensional objects in recording materials. The holographic gratings are stored through the interference produced by two spatially overlapping coherent light beams, reference and object. Transmission and reflection mode holography are used to carry out the recording process. In transmission mode, the beams impinge on the same side of the recording material, while in the reflection mode, these beams fall on opposite sides, making it possible to obtain high spatial frequencies. The holographic gratings are unslanted when reference and object beams impinge with the same angle with respect to the normal of the layer plane. Otherwise, slanted holographic gratings will be recorded inside the material.
Many researchers have carried out in transmission mode holography since this recording geometry allows the comparison and characterization of different materials [1,2,3]. Nevertheless, the interest in reflection holographic gratings has increased in recent years due to the demand of materials with enough resolution for high spatial frequencies recording. The reflection holograms have been employed for holography display [2,4], optical data storage, and three-dimensional multiplexing to improve the data storage density [5,6]. One of the main advantages of reflection holograms is that they can be reconstructed using white light. This feature has enabled researchers to focus on the development of sensors for different types of analytes [7,8,9]. Thermosensitive reflection holograms have also been investigated [10].
Different types of recording materials have been used in past decades such as dichromate gelatine [11,12], silver halide emulsion [13,14], photopolymers [15,16], photoresist [17,18], and photorefractive [19]. Among them, photopolymer materials presently attract great interest due to their properties, such as high sensitivity, chemical versatility for the design and preparation of different compositions, self-processing capabilities, large dynamic range, good dimensional stability, and relatively low cost. Photopolymers are used in many applications, such as fabrication of holographic optical elements (HOEs) [20,21], holographic sensors [7,22], non-image systems [23,24,25], holographic memories [26], and holographic waveguides [27,28]. Considering the characteristics of photopolymers and consequently their wide variety of applications, a lot of research is being carried out with the aim of developing photopolymer materials with improved properties. One of these properties must be the low-toxicity and environmental compatibility of all the components present in the photopolymer compositions.
Today’s society demands scientific development based on green technologies to reduce the environmental impact as much as possible. In this sense, the interest in the development of low-toxicity photopolymers for holographic recording in reflection mode has achieved great relevance in recent years. The majority of hydrophilic photopolymers investigated contain poly(vinyl alcohol) (PVA), gelatin binders, or monomers related to acrylamide [16,29,30,31]. The last compound is carcinogenic and toxic when used in its monomer form. Commercial photopolymers by Dupont [32] and Bayer [33] have also been used for holographic recording in reflection mode. Dupont photopolymer causes some problems due to skin contact, while there is no information available about Bayer photopolymer composition and its possible toxicity. In order to avoid this type of risk for health and environment, we employed an acrylate-based photopolymer developed in our researcher group as a recording holographic material for optical applications. This water-soluble holographic photopolymer has low toxicity and good recycling properties [34,35,36,37].
In our previous studies, holographic transmission gratings were stored in an acrylate-based photopolymer at different spatial frequencies of 1205 and 1144 lines/mm for recording laser wavelengths of 488 and 514 nm, respectively [34,36]. The preparation conditions of the prepolymer solutions in that work were controlled to obtain layers with the suitable optical properties that provide the highest diffraction efficiencies (DE), i.e., the ratio between the power of diffracted and incident beams was around 90% in 300 µm thick photopolymer layers. Volume phase transmission lenses have also been fabricated in this photopolymer [21]. However, there are no study details about reflection grating stored in this material. This fact represents a challenge and promotes the research realized in this work.
The strict control in the preparation conditions of photopolymer layers acquires greater relevance when high spatial frequencies are stored in the material due to whichever layer imperfection in them could cause decrease in their DE. As spatial frequency increase, the DE becomes lower as the material cannot correctly resolve the high number of interference fringes. One method to improve the photopolymer response, at high spatial frequency, is to reduce the polymer chain length by adding chain transfer agents (CTA), such as acid citric [38] or 4,4’-azobis(4-cyanopentanoic acid) [39] to the prepolymer solution. Furthermore, free radical scavengers (FRS), such as glycerol [40], can also be incorporated into the composition with the aim of stopping the growth of short polymer chains. A low-toxicity diacetone acrylamide-based material containing citric acid and glycerol has been reported to store a 3050 lines/mm grating in mode reflection with a DE of up to 50%. At this point, it is necessary to emphasize that for the correct comparison of DE values, the holographic gratings should have similar spatial frequencies.
In the present work, unslanted holographic reflection gratings were stored in low-toxicity photopolymer at a high spatial frequency of 4738 lines/mm. CTAs and FRSs were not used in this research in order to observe the acrylate-based photopolymer behaviour in reflexion mode (with the same composition as that used in other works in which transmission gratings were stored). A detailed study to optimize the preparation conditions of the photopolymer layers was first carried out. In order to provide temporary stability to the holographic reflection gratings, a curing process was realized. DE was measured immediately after both recording and curing processes and its values were compared. With the aim to understand the behaviour of the DE, Kogelnik’s coupled wave theory was used to fit the experimental values and to obtain parameters such as the refractive index modulation and the optical thickness.

2. Materials and Methods

2.1. Material Preparation

Holographic reflection gratings were stored in low-toxicity and water-soluble photopolymer (the average refractive index is n ~ 1.5). The prepolymer solution was composed of poly(vinyl alcohol) (PVA) as an inert binder polymer, sodium acrylate (NaAO) as a polymerizable monomer, triethanolamine (TEA) as coinitiator and plasticizer, and sodium salt 5′-riboflavin monophosphate (RF) as sensitizer dye. The solvent used was water as all components were soluble. The optimized concentrations in the prepolymer solution were 13.0 w/w %, 0.39 M, 9.0 × 10−3 M, 1.0 × 10−3 M for PVA, NaAO, TEA, and RF, respectively. All compounds were purchased from Sigma-Aldrich Quimica SL (Madrid, Spain).
The prepolymer solution was manually deposited over levelled thin and flat glass plates (n = 1.5255 at λ = 589 nm, 6.3 × 6.3 cm2, with a thickness of 0.55 mm, (Marienfeld GmbH & Co. KG, Lauda-Königshofen, Germany) under red light in which the material was not sensitive. The deposited solution was left inside an incubator (Climacell 111, MMM Medcenter Einrichtungen GmbH, Munich, Germany) with controlled conditions (60 ± 5% relative humidity and 20 ± 1° temperature). The photopolymer layers were ready for recording (see results Section 3.2) when enough water had evaporated to reach equilibrium with the environmental conditions inside the incubator. The optimum drying times for these photopolymer layers were studied in this work. The environmental conditions during the recording stage must be rigorously controlled in order to avoid precipitation of NaAO on the surface of the photopolymer layers and therefore obtain reproducible DE values. For this reason, environmental conditions at the laboratory must be the same as those used in the drying process.
Hologram stability was ensured and increased using a curing process with an LED lamp (13.5 W, 875 lm at 6500 K, Lexman, Alicante, Spain). The influence of the curing process on DE is investigated in Section 3.2. The physical thickness of the photopolymer layers (dh) was measured with an ultrasonic pulse-echo gauge (PosiTector 200, DeFelsko, Ogdensburg, NY, USA).

2.2. Holographic Reflection Setup

The experimental holographic setup used is shown in Figure 1. A continuous (CW) Argon Ion Laser BeamLok 2060-10S S/N 944 (Spectra-Physics, Santa Clara, CA, USA) emitting at λ = 488 nm (wavelength of the recording light), at which the material is sensitive, was split into two secondary beams, object and reference beams, using a beam splitter (Newport, Irvine, CA, USA). Both beams were spatially filtered and collimated to yield a planewave. The beam diameter was reduced to 0.375 cm using an afocal lens system (L2-L3, L5-L6) with the aim of increasing the radiant exposure (H) available. The holographic reflection grating was recorded by the appropriate interference between the object and the reference beam. The two laser beams were spatially overlapped at the sample, reaching symmetrically the opposite sides of the photopolymer layer with a recording angles (out of the material) θο = θr = 72.9 ± 0.1° with respect to the normal incidence. The exposure times were varied to obtain a range of H from 70 to 820 mJ/cm2.
The interference of both beams inside the photopolymer layer results in the formation of bright (constructive interference) and dark (destructive interference) zones. A radical polymerization reaction occurs in the bright zones and a refractive index modulation (Δn) is generated. The mechanism for this reaction has been reported in the literature [41]. When the RF molecules absorb photons at bright zones a singlet excited state (1RF*) is produced. After that, a triplet excited state (3RF*) is generated by an intersystem crossing. The 3RF* reacts with the co-initiator TEA (electron donor), producing TEA radicals which are combined with acrylate monomers to generate chain initiators.
According to Bragg’s law for symmetrical reflection geometry (Equation (1)), the theoretical spatial period (Λ) of the reflection grating was 0.211 µm (equivalent to a frequency of 4738 lines/mm).
Λ = λ 2   n 2 s i n 2 θ
The gratings obtained in this work are considered as volume hologram gratings because the Q factor (Equation (2)) is much higher than 10, particularly between 394 and 951 for the range of effective optical thicknesses (d) obtained.
Q =   2 π λ d n Λ 2

2.3. Analysis of Experimental Data Using Kogelnik’s Coupled Wave Theory

The diffracted beam of a holographic grating recorded in a reflection symmetric setup is overlapped with the Fresnel reflection of the other one. For this reason, it is not possible to evaluate the diffraction efficiency of these gratings as in transmission grating works [36]: by the holographic reconstruction at different angles. The DE of the reflection gratings prepared were evaluated by taking advantage of their high spectral selectivity. The Bragg wavelength, at which the maximum DE (DEmax) is obtained, is preferentially reflected when the hologram is illuminated with white light. DE can be obtained as a function of the photopolymer layer transmittance with (Tpg) and without (Tp) the stored grating (Equation (3)). The transmission spectra at normal incidence upon the photopolymer samples were measured with a double beam spectrophotometer (V-650, Jasco, Madrid, Spain).
D E = T p T pg T p
Kogelnik’s coupled wave theory [42] provides a useful approach to the parameters that determine the DE in sinusoidal volume gratings, considering a phase holographic grating and a null electric conductivity of the photopolymer, (Equation (4)).
D E = e ( α d / cos θ ) ( 1 + 1 ξ 2 ν 2 sinh 2 ν 2 ξ 2 ) 1
However, as previously mentioned, in our experiment, as it was not possible to measure the diffracted beam, experimental transmission spectra were used to obtain the DE. These experimental transmission values as a function of the wavelength can also be fitted by means of efficient transmission (TE) relation of Kogelnik’s coupled wave theory (Equation (5)). The parameters d, Δn, Λ, n, absorption loss coefficient (α), and fringe tip angles (ϕ) were obtained, considering a reconstruction angle (inside of the material) θ′ = 0.0 ± 0.01°. By calculating the theoretical TE, it would also be possible to calculate the theoretical DE, although in this work, the last parameter was previously obtained by using the experimental values in Equation (3).
T E = e ( α d / cos θ ) [ 1 ( 1 + 1 ξ 2 ν 2 sinh 2 ν 2 ξ 2 ) 1 ]
The parameter that controls DE at Bragg condition is ν (Equation (6)), while the ξ parameter (Equation (7)) is related to the deviation from the exact Bragg condition. As we can observe, ξ = 0 maximizes the DE value (DEmax).
ν = i π Δ n d λ c r   c S
ξ = π d Λ   c S [ | sin ( θ φ ) | λ 2   n   Λ ]
Slant factors (cr and cs) are defined in Equations (8) and (9), respectively.
c r = cos θ
c S = cos θ λ n   Λ sin φ

3. Results and Discussion

3.1. Optimization of the Preparation Conditions of Photopolymer Layers

The photopolymer layer uniformity was highly sensitive to drying and environmental conditions during the exposure stage. The high concentration of NaAO in the prepolymer solution together with the content of TEA can lead to crystallization during the drying process. TEA has the capacity to form H–bonds with water, therefore a low concentration of TEA makes it more difficult to dissolve NaAO. This fact causes the formation of small crystallization nucleus inside the material giving rise to diffusion processes of light when the photopolymer layers are illuminated with the laser wavelength during the recording stage. In this sense and with the aim to determinate the optimal drying time in which the higher DEmax is obtained, the weight of the photopolymer layers was monitored as a function of the time that the films remain inside an incubator with controlled humidity (60%) and temperature (20 °C). Figure 2a shows the weight loss of a photopolymer layer when an initial amount of 3.030 ± 0.001 g prepolymer solution is deposited over a glass plate and introduced in the incubator. Three regimens with different drying speeds can be clearly observed. In Regime I, a loss of 47.5% with respect to the initial weight of the photopolymer layer occurs during the first 10 hours of drying. From this time, the drying speed decreases (Regime II). The weight measured decreases very slightly and remains practically constant from 21 hours until the measurement is finished. It is denoted in Figure 2a as regime III.
In order to obtain the optimal drying time, the DEmax was measured for four drying times. A total H = 600 mJ/cm2 was used in the recording stage. The values of DEmax achieved are also shown in Figure 2a. If the photopolymer layer is illuminated with the recording laser wavelength in Regime I, the diffraction efficiencies achieved will be very close to zero. The higher water content in the layer facilitates the diffusion of polymer chains and the interference fringes will not form. To a lesser extent, a similar effect occurs in Regime II and a small value of DEmax can be measured. The highest value of DEmax is obtained when Regime III begins, at 21 h of drying. This time value is selected as the optimal drying time. The DEmax at 31 h of drying time is slightly lower compared to the highest value of DEmax. This decrease of DEmax in Regime III is a consequence of possible NaAO precipitation on the surface of the photopolymer layer. Because of this, the environmental conditions during the recording stage must be strictly controlled.
Identical experiments were realized for different amounts of prepolymer solution deposited over the glass plates. The optimal drying time was obtained following the same procedure described for the photopolymer layer in Figure 2a, by finding out the drying time in which the photopolymer layer weight remains practically constant. In addition, the physical thicknesses as a function of the prepolymer solution amount deposited were obtained (Figure 2b). Both optimal drying time and physical thickness show a linear trend with the deposited prepolymer solution in the investigated range. This is very important information in order to know the optimal drying time for a certain photopolymer layer thickness. If we need to store holograms in photopolymer layer with a certain thickness for a particular application, from Figure 2b we can see what the optimum drying time is according to which the recording process should be carried out. It is remarkable to note that this study must be done for each particular composition of the prepolymer solution since the weight loss could be affected by the concentration of the components.

3.2. Influence of Cured Time and Radiant Exposure on DE

The DEmax values shown in Figure 2a were measured without carrying out a subsequent curing stage after the recording. The holographic gratings are not stable and the DE decreases over time. This reduction of DE is due to the concentration gradient generated during the recording stage. Molecular diffusion processes are produced inside the photopolymer layers in which the interferential pattern is stored. Diffusion of short polymer chains out of the exposed zones is produced. On the other hand, the monomer and dye molecules that remain in the non-exposed zones diffuse towards exposed zones where the dye concentration is negligible. Therefore, a curing process is necessary to remove the concentration gradient and provide temporal stability to the holographic gratings, which can thereby be used in optical devices for different applications. Several techniques are employed with the aim of increasing the stability of the photopolymer-based holograms. Dehydration of the photopolymer layers under controlled temperature conditions, UV exposure, and incoherent light (LED lamp) are the most used techniques [35,43,44]. The curing process based in a LED lamp is simpler and cheaper compared to those that use UV lasers. Cody et al. carried out UV curing by illuminating diacetone acrylamide-based photopolymer layer with a nanosecond pulsed laser at 355 nm after the recording stage [45]. In that work, the performance of the gradients exposed to UV light remained constant while the layers that did not receive treatment showed a DE decrement over time. In the present work and following the same line as our previous papers [35,36], LED exposure post-recording was employed.
It is very important to identify the curing times for which the highest DEmax value are obtained. The normalized DEmax is represented as a function of the curing time for one holographic reflection grating in Figure 3. The physical thickness of the photopolymer layer was 150 ± 1 µm and a H = 700 mJ/cm2 was used in the recording stage. The highest DEmax value was obtained for a curing time range of 11 to 30 min in which DEmax remains practically constant, while the DEmax decreases slightly from 30 to 75 min. This DEmax behaviour after the curing stage is different from that of other photopolymers described in the literature [5]. Generally, the curing process decreases in the DEmax but, in the present work, the DEmax increases after the curing stage. In the next section, more details are offered to understand this effect. Finally, a curing time of 20 min was selected for carrying out the curing process of the photopolymer layers after recording stage.
Once the physical thickness of the photopolymer layers, the optimum drying time (as explained in Section 2.1 and Section 3.1, respectively), and curing time were selected to obtain the highest DEmax value, the influence of H on the DEmax after both recording and curing stages was investigated. The results are shown in Figure 4. Since the diffracted beam overlaps the reflected beam due to the symmetric geometry employed in the recording stage, the behaviour of the DEmax as a function of H cannot be measured in real time. For this reason, several photopolymer layers with a physical thickness of 150 µm were used for recording reflection gratings with spatial frequencies of 4738 lines/mm. As clearly observed in Figure 4, the DEmax measured immediately after the recording stage (denoted as DERS) grows from 0.9% until reaching a maximum (DEmax, RS) of 3.7% at 400 mJ/cm2 (fitted values). Further, H increment above this value did not lead to the improvement of DEmax. The explanation of this behaviour is that Δn stored is not enough. The energetic sensitivity, defined as the minimum H required to achieve the maximum DE, is 400 mJ/cm2. This energetic sensitivity is the same magnitude order as those obtained for acrylamide-based reflection mode photopolymer [5,38]. On the range of H studied, all DEmax increase after the curing process (denoted as DECS). In Figure 4, it can be observed that the DECS grows from 3.0% until reaching a maximum (DEmax, CS) of 13.3% at 495 mJ/cm2 (polynomial fitted values). From this H value, the DECS decreases. When a H of 820mJ/cm2 is used, the DEmax difference after the recording and curing stages is 0.2%. Taking into account that the difference between DEmax,CS and DEmax,RS is 9.6%, the optimum H to obtain the maximum DEmax is 495 mJ/cm2.
In order to compare the DEmax obtained in the present work with the values reported in the literature, it is necessary that the spatial frequencies of the holographic reflection gratings are similar. The DE of the holographic gratings stored in the photopolymer layers decrease as the spatial frequency increases [38,46]. The dependence between the recording exposure and the DE becomes less pronounced when the spatial frequency grows. The DEmax behaviour can be explained according to diffusion processes of the short polymer chains that take place from exposed zones to non-exposed regions. This diffusion causes a reduction of the refractive index modulation and therefore a decrease in DE. Cody et al. obtained a maximum DEmax of 15% in a low-toxicity diacetone acrylamide-based photopolymer in reflection geometry at 4750 lines/mm [38], and Mikulchyk et al. reached a 20% DEmax in a 2700 lines/mm reflection grating recorded on a N-isopropylacrylamide-based photopolymer [10]. In our previous paper, a DEmax of 9.1% in acrylamide-based photopolymer at 5174 lines/mm was obtained [5]. Taking into account these DE values reported in other works, the DEmax of 14.1% (experimental value) obtained in this paper represents an excellent result. Higher DEmax values could be achieved by decreasing the spatial frequency and adding CTAs and free radical scavenger in the photopolymer composition as shown in the references [40,47,48]. Hence, more studies are necessary in order to optimize the reflection holograms stored in our acrylate-based photopolymer and improve their performance.

3.3. Analysis of the Influence of Cured Time and Radiant Exposure on DE

In order to understand the DEmax behaviour between both recording and curing stages, a theoretical analysis of the holographic grating parameters were realized. As explained in Section 2.3, the optical parameters were obtained through the theoretical fit of the experimental data with Kogelnik’s coupled wave theory (Equation (5)). Figure 5 shows the experimental transmittance spectra measured (as percentage) immediately after recording (RS) (black squares) and curing stage (CS) (orange circles) for a reflection grating recorded with a total H = 550 mJ/cm2. The DEmax is calculated from the experimental data by means of Equation (3) and the theoretical fits are represented with solid lines. The same procedure was carried out for the rest of reflection gratings represented in Figure 4. A summary of the results is presented in Table 1.
The n values obtained through theoretical fit are between 1.499 and 1.509. For all photopolymer layers, the ϕ are close to 90°, which gives an idea of the goodness of fit. The α values are lower than 10−3·µm−1 in all cases. These parameters do not change significantly by the curing process. However, the Δn is one of the most important optical parameters in the DE of a holographic grating. The Δn values for both recording (ΔnRS) and curing (ΔnCS) stages can be observed in Table 1. ΔnRS are smaller than ΔnCS in the H range investigated. The maximum value of ΔnRS is 0.030 at 690 mJ/cm2, while the maximum ΔnCS value achieved is 0.050 at 550 mJ/cm2. For high H values from the exposure of 550 mJ/cm2 the decrease of ΔnCS is more noticeable than ΔnRS.
Regarding optical thickness, not large variations in this parameter occur when they are compared at the same stage (dRS and dCS denoted the optical thickness obtained after the recording and curing stage, respectively). These optical thicknesses are smaller than that obtained on stored transmission holograms in photopolymer layers with similar composition [36]. This can be qualitatively explained taking into account the different recording geometries used [39]. When interference fringes are stored by means of reflection geometry, recording beams come from both sides of the sample. The grating is formed from the centre of the photopolymer layer outwards. Theoretically, both beams must be subjected to the same material attenuation, and thus, the interferences would take place correctly. However, a gradient concentration of dye molecules between both sides of the sample could exist, causing an unequal attenuation between them. This fact means that the interferences could not be adequate. On the other hand, the recording beam approach in transmission geometry is from the same side of the sample, and therefore, its attenuation inside the material is similar.
When the curing stage is carried out, both dCS and ΛCS decrease with respect to dRS and ΛRS values, respectively (ΛRS and ΛCS are the spatial periods obtained after the recording and curing stage, respectively). This fact can be explained due to a dimensional change in the material that can occur during the curing process. The total conversion of the monomer molecules into a polymer network causes a volume reduction produced by the close packing between polymer chains. This is known as photopolymerization shrinkage. It is interesting to note that this phenomenon is very important in the case of reflection gratings due to the high number of interference fringes. From Equation (4), the effect of Δn, d, and Λ can be analyzed. Obviously, an increase of DE is produced when Δn grows. However, the DE decreases when d and Λ are lower. The variations in DE values when these parameters are modified are not of the same order of magnitude. Although the DE decreases due to the variations of d and Λ, the greater contribution of Δn causes the final increase of DE after the curing process. In this sense, more studies are necessary to modify the composition of the material by adding other components which produce higher Δn values [49,50].
From Equation (4), the DEmax is obtained at the Bragg condition (in which the parameter ξ is 0). From this point, DE is dominated by parameter ν, which depends on the product Δn·d. Therefore, and with the aim of understanding the DE behaviour between both recording and curing stage, the differences DECSDERS and (Δn·d)CS–(Δn·d)RS, are obtained and represented as a function of H in Figure 6. The same trend is clearly observed in both values. The maximum (Δn·d)CS–(Δn·d)RS difference is reached in the range from 490 to 500 mJ/cm2 and it matches with the maximum value of DECSDERS. From this maximum, the lowering of DECSDERS is explained by the fact that the Δn·d values decrease in both stages although in a different order. As observed in Table 1, (Δn·d)CS lowers from 0.070 µm at H = 550 mJ/cm2 until 0.029 µm at H = 820 mJ/cm2. In the same H range, the decreasing of (Δn·d)RS is less noticeable compared to that which occurs in the curing stage; (Δn·d)RS is 0.036 µm at H = 550 mJ/cm2, reaching the same value when H is 820 mJ/cm2. This trend explains the DEmax behaviour for both stages observed in Figure 4.
A reflection holographic grating inside the photopolymer sample after the curing process is shown in Figure 7. The green areas correspond to the real colour observed by the multilayer optic effect of the grating fringes. The unexposed zones were practically transparent to the sunlight.

4. Conclusions

In this paper, reflection holographic gratings of 4738 lines/mm have been presented in a low-toxicity and water-soluble photopolymer, prepared at optimum conditions. A curing process with a low-cost LED lamp that allows the hologram to stabilize over time, as well as increasing the DERS by around 10% with respect to the DECS, has been demonstrated. The DEmax obtained in this work is one of the best values published in reflection holographic gratings over green photopolymers. Considering the dependence of DE, discussed in this work, with the spatial frequency, the refractive index modulation, or the length of the polymer chains, we can conclude that higher DE will be possible to obtain in the low toxicity material, Biophotopol. In future works, the photopolymer composition will be modified by adding other components in order to increase the refractive index modulation and therefore the DEmax.

Author Contributions

Conceptualization, M.G.R., D.S. and I.P.; formal analysis, M.G.R., M.M.-V., and I.P.; investigation, M.G.R., D.S., and I.P.; project administration, I.P.; software, M.O., F.J.M.-G., and J.F.; writing—original draft, M.G.R., M.M.-V., and I.P.; writing—review and editing, M.O., F.J.M.-G., and J.F.

Acknowledgments

Ministerio de Ciencia, Innovación y Universidades, Spain, under projects FIS2017-82919-R (MINECO/AEI/FEDER, UE) and FIS2015-66570-P (MINECO/FEDER); Generalitat Valenciana, Spain, under project CDEIGENT/2018/024 and Universidad de Alicante under project GRE17-06.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lu, H.; Li, R.P.; Sun, C.X.; Xiao, Y.; Tang, D.G.; Huang, M.J. Holographic property of photopolymers with different amine photoinitiators. Chin. Phys. B 2010, 19, 024212. [Google Scholar] [CrossRef]
  2. Defosse, Y.; Carré, C.; Lougnot, D.J. Use of a self-developing polymer material for volume reflection hologram recording. Pure Appl. Opt. J. Eur. Opt. Soc. Part A 1993, 2, 437–440. [Google Scholar] [CrossRef]
  3. Jallapuram, R.; Naydenova, I.; Martin, S.; Howard, R.; Toal, V.; Frohmann, S.; Orlic, S.; Eichler, H.J. Acrylamide-based photopolymer for microholographic data storage. Opt. Mater. 2006, 28, 1329–1333. [Google Scholar] [CrossRef]
  4. Bjelkhagen, H.I.; Mirlis, E. Color holography to produce highly realistic three-dimensional images. Appl. Opt. 2008, 47, A123–A133. [Google Scholar] [CrossRef] [PubMed]
  5. Fuentes, R.; Fernández, E.; García, C.; Beléndez, A.; Pascual, I. Study of reflection gratings recorded in polyvinyl alcohol/acrylamide-based photopolymer. Appl. Opt. 2009, 48, 6553–6557. [Google Scholar] [CrossRef]
  6. Yonetani, Y.; Nitta, K.; Matoba, O. Numerical evaluation of angular multiplexing in reflection-type holographic data storage in photopolymer with shrinkage. Appl. Opt. 2010, 49, 694–700. [Google Scholar] [CrossRef]
  7. Yetisen, A.K.; Montelongo, Y.; Qasim, M.M.; Butt, H.; Wilkinson, T.D.; Monteiro, M.J.; Yun, S.H. Photonic nanosensor for colorimetric detection of metal ions. Anal. Chem. 2015, 87, 5101–5108. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, H.; Wang, R.; Yu, D.; Luo, S.; Li, L.; Wang, W.; Song, Q. Direct light written holographic volume grating as a novel optical platform for sensing characterization of solution. Opt. Laser Technol. 2019, 109, 510–517. [Google Scholar] [CrossRef]
  9. Liu, H.; Yu, D.; Zhou, K.; Wang, S.; Luo, S.; Li, L.; Wang, W.; Song, Q. Novel pH-sensitive photopolymer hydrogel and its holographic sensing response for solution characterization. Opt. Laser Technol. 2018, 101, 257–267. [Google Scholar] [CrossRef]
  10. Mikulchyk, T.; Martin, S.; Naydenova, I. N-isopropylacrylamide-based photopolymer for holographic recording of thermosensitive transmission and reflection gratings. Appl. Opt. 2017, 56, 6348–6356. [Google Scholar] [CrossRef]
  11. Kubota, T.; Ose, T. Lippmann color holograms recorded in methylene-blue sensitized dichromated gelatin. Opt. Lett. 1979, 1, 289–291. [Google Scholar] [CrossRef]
  12. Oliva, J.; Boj, P.G.; Pardo, M. Dichromated gelatin holograms derivated from agfa 8E75 HD plates. Appl. Opt. 1984, 23, 196–197. [Google Scholar] [CrossRef] [PubMed]
  13. Kim, J.M.; Choi, B.S.; Kim, J.M.; Bjelkhagen, H.I.; Phillips, N.J. Holographic optical elements recorded in silver halide sensitized gelatin emulsions Part 2 Reflection holographic optical elements. Appl. Opt. 2002, 41, 1522. [Google Scholar] [CrossRef]
  14. Beléndez, A.; Neipp, C.; Flores, M.; Pascual, I. High-efficiency silver-halide sensitized gelatin holograms with low absorption and scatter. J. Mod. Opt. 1998, 45, 1985–1992. [Google Scholar] [CrossRef] [Green Version]
  15. Close, D.H.; Jacobson, A.D.; Margerum, J.D.; Brault, R.G.; McClung, F.J. Hologram recording on photopolymer materials. Appl. Phys. Lett. 1969, 14, 159–160. [Google Scholar] [CrossRef]
  16. Gallego, S.; Ortuño, M.; Neipp, C.; Márquez, A.; Beléndez, A.; Pascual, I. Characterization of polyvinyl alcohol/acrylamide holographic memories with a first-harmonic diffusion model. Appl. Opt. 2005, 44, 6205–6210. [Google Scholar] [CrossRef] [Green Version]
  17. Kozna, A. Effects of film-grain noise in holography. J. Opt. Soc. Am. 1968, 58, 436–438. [Google Scholar] [CrossRef]
  18. Pascual, I.; Beléndez, A.; Mateos, F.; Fimia, A. Comparison between direct method and the copying method to obtain in HOEs in AZ-1350 photoresist material. Ópt. Pura Apl. 1991, 24, 63–67. [Google Scholar]
  19. Gunter, P.; Huignard, J.P. Photorefractive Materials and Their Applications 3; Buse, K., Havermeyer, F., Liu, W., Moser, C., Psaltis, D., Eds.; Springer: New York, NY, USA, 2007; pp. 295–317. [Google Scholar]
  20. Mihaylova, E.; Naydenova, I.; Martin, S.; Toal, V. Electronic speckle pattern shearing interferometer with a photopolymer holographic grating. Appl. Opt. 2004, 43, 2439–2442. [Google Scholar] [CrossRef]
  21. Lloret, T.; Navarro-Fuster, V.; Ramírez, M.G.; Ortuño, M.; Neipp, C.; Beléndez, A.; Pascual, I. Holographic lenses in an environment-friendly photopolymer. Polymers 2018, 10, 302. [Google Scholar] [CrossRef]
  22. Yetisen, A.K.; Naydenova, I.; Da Cruz Vasconcellos, F.; Blyth, J.; Lowe, C.R. Holographic sensors: Three-dimensional analyte-sensitive nanostructures and their applications. Chem. Rev. 2014, 114, 10654–10696. [Google Scholar] [CrossRef] [PubMed]
  23. Fouassier, J.P.; Allonas, X.; Burget, D. Photopolymerization reactions under visible lights: Principle, mechanisms and examples of applications. Prog. Org. Coat. 2003, 47, 16–36. [Google Scholar] [CrossRef]
  24. Marín-Sáez, J.; Atencia, J.; Chemisana, D.; Collados, M.-V. Characterization of volume holographic optical elements recorded in Bayfol HX photopolymer for solar photovoltaic applications. Opt. Express 2016, 24, A720. [Google Scholar] [CrossRef]
  25. Bañares-Palacios, P.; Álvarez-Álvarez, S.; Marín-Sáez, J.; Collados, M.-V.; Chemisana, D.; Atencia, J. Broadband behavior of transmission volume holographic optical elements for solar concentration. Opt. Express 2015, 23, A671–A681. [Google Scholar] [CrossRef]
  26. Fernández, E.; Ortuño, M.; Gallego, S.; Márquez, A.; García, C.; Beléndez, A.; Pascual, I. Multiplexed holographic data page storage on a polyvinyl alcohol/acrylamide photopolymer memory. Appl. Opt. 2008, 47, 4448–4456. [Google Scholar] [CrossRef] [Green Version]
  27. Malallah, R.; Li, H.; Kelly, D.P.; Healy, J.J.; Sheridan, J.T. A review of hologram storage and self-written waveguides formation in photopolymer media. Polymers. 2017, 9, 337. [Google Scholar] [CrossRef]
  28. Fernández, R.; Bleda, S.; Gallego, S.; Neipp, C.; Márquez, A.; Tomita, Y.; Pascual, I.; Beléndez, A. Holographic waveguides in photopolymers. Opt. Express 2019, 27, 827–840. [Google Scholar] [CrossRef]
  29. Gallego, S.; Márquez, A.; Méndez, D.; Neipp, C.; Ortuño, M.; Beléndez, A.; Fernández, E.; Pascual, I. Direct analysis of monomer diffusion times in polyvinyl/acrylamide materials. Appl. Phys. Lett. 2008, 92, 073306. [Google Scholar] [CrossRef] [Green Version]
  30. Weiss, V.; Millul, E.; Friesem, A.A. Photopolymeric holographic recording media: In-situ and real-time characterization. In Proceedings of the Photonic West, San Jose, CA, USA, 27 January–2 February 1996; Volume 2688, pp. 11–21. [Google Scholar]
  31. Ortuño, M.; Gallego, S.; García, C.; Pascual, I.; Neipp, C.; Beléndez, A. Holographic characteristics of an acrylamide/bisacrylamide photopolymer in 40–1000 µm thick layers. Phys. Scr. 2005, 2005, T118. [Google Scholar] [CrossRef]
  32. Gambogi, W.J.; Smothers, W.K.; Steijn, K.W.; Stevenson, S.H.; Weber, A.M. Color holography using DuPont holographic recording films. In Proceedings of the Photonic West, San Jose, CA, USA, 1–28 February 1995; Volume 2405. [Google Scholar]
  33. Berneth, H.; Bruder, F.K.; Fäcke, T.; Hagen, R.; Hönel, D.; Jurbergs, D.; Rölle, T.; Weiser, M. Holographic recording aspects of high resolution Bayfol HX photopolymer. In Proceedings of the SPIE OPTO, San Francisco, CA, USA, 22–27 January 2011; p. 79570. [Google Scholar]
  34. Ortuño, M.; Gallego, S.; Márquez, A.; Neipp, C.; Pascual, I.; Beléndez, A. Biophotopol: A sustainable photopolymer for holographic data storage applications. Materials 2012, 5, 772–783. [Google Scholar] [CrossRef]
  35. Navarro-Fuster, V.; Ortuño, M.; Fernández, R.; Gallego, S.; Marquez, A.; Beléndez, A.; Pascual, I. Peristrophic multiplexed holograms recorded in a low toxicity photopolymer. Opt. Mater. Express 2017, 7, 133–147. [Google Scholar] [CrossRef]
  36. Navarro-Fuster, V.; Ortuño, M.; Gallego, S.; Márquez, A.; Beléndez, A.; Pascual, I. Biophotopol’s energetic sensitivity improved in 300 μm layers by tuning the recording wavelength. Opt. Mater. 2016, 52, 111–115. [Google Scholar] [CrossRef]
  37. Ortuño, M.; Fernández, E.; Gallego, S.; Beléndez, A.; Pascual, I. New photopolymer holographic recording material with sustainable design. Opt. Express 2007, 15, 12425–12435. [Google Scholar] [CrossRef] [Green Version]
  38. Cody, D.; Gribbin, S.; Mihaylova, E.; Naydenova, I. Low-toxicity photopolymer for reflection holography. ACS Appl. Mater. Interfaces 2016, 8, 18481–18487. [Google Scholar] [CrossRef]
  39. Fernandez, E.; Fuentes, R.; Belendez, A.; Pascual, I. Influence of 4,4′-azobis (4-cyanopentanoic acid) in transmission and reflection gratings stored in a PVA/AA photopolymer. Materials 2016, 9, 194. [Google Scholar] [CrossRef]
  40. Cody, D.; Naydenova, I.; Mihaylova, E. Effect of glycerol on a diacetone acrylamide-based holographic photopolymer material. Appl. Opt. 2013, 52, 489–494. [Google Scholar] [CrossRef]
  41. Bertolotti, S.G.; Previtali, C.M.; Rufs, A.M.; Encinas, M.V. Riboflavin/triethanolamine as photoinitiator system of vinyl polymerization. A mechanistic study by laser flash photolysis. Macromolecules 1999, 32, 2920–2924. [Google Scholar] [CrossRef]
  42. Kogelnik, H. Coupled wave theory for thick hologram gratings. Bell Syst. Tech. J. 1969, 48, 2909–2947. [Google Scholar] [CrossRef]
  43. Jenney, J.A. Holographic recording with photopolymers. J. Opt. Soc. Am. 1970, 60, 1155–1161. [Google Scholar] [CrossRef]
  44. Tipton, M.D.; Armstrong, S.S. Improved process of refrection holography replication and heat processing. Procceding of the IS&T/SPIE 1994 International Symposium on Electronic Imaging: Science and Technology, San Jose, CA, USA, 6–10 February 1994; Volume 2176, pp. 172–183. [Google Scholar]
  45. Cody, D.; Naydenova, I.; Mihaylova, E. New non-toxic holographic photopolymer material. J. Opt. 2012, 14, 015601. [Google Scholar] [CrossRef]
  46. Naydenova, I.; Jallapuram, R.; Howard, R.; Martin, S.; Toal, V. Investigation of the diffusion processes in a self-processing acrylamide-based photopolymer system. Appl. Opt. 2004, 43, 2900–2905. [Google Scholar] [CrossRef]
  47. Cody, D.; Mihaylova, E.; O’Neill, L.; Naydenova, I. Determination of the polymerisation rate of a low-toxicity diacetone acrylamide-based holographic photopolymer using Raman spectroscopy. Opt. Mater. 2015, 48, 12–17. [Google Scholar] [CrossRef] [Green Version]
  48. Ren, X.; Yang, Z.; Kuang, T. Solvent-induced changes in photochemical activity and conformation of photosystem I particles by glycerol. Biol. Chem. 2006, 387, 23–29. [Google Scholar] [CrossRef]
  49. Tomita, Y.; Urano, H.; Fukamizu, T.; Kametani, Y.; Nshimura, N.; Doi, K.E.O. Nanoparticle-polymer composite volume holographic gratings dispersed with ultrahigh-refractive-index hyperbranched polymer as organic nanoparticles. Opt. Lett. 2016, 41, 1281–1284. [Google Scholar] [CrossRef]
  50. Ishizu, K.; Ochi, K.; Tomita, Y.; Furushima, K.; Odoi, K. A new class of holographic recording constructed by hyperbranched polymers dispersed in photopolymer film. Des. Monomers Polym. 2006, 9, 403–411. [Google Scholar] [CrossRef]

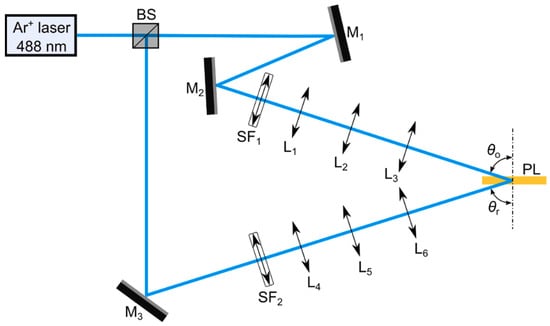

Figure 1. Holographic setup for reflection gratings. BS: beam splitter; SFi: spatial filters (microscope objective and pinhole); Mi: mirrors; Li: lenses; θο, θr: object and reference recording angle; PL: photopolymer layer.
Figure 1. Holographic setup for reflection gratings. BS: beam splitter; SFi: spatial filters (microscope objective and pinhole); Mi: mirrors; Li: lenses; θο, θr: object and reference recording angle; PL: photopolymer layer.
Polymers 11 00632 g001

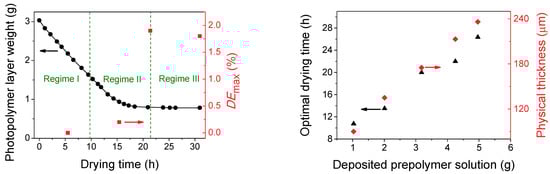

Figure 2. (a) Weight loss (black circles) and maximum diffraction efficiencies (DEmax, red squares) of a photopolymer layer when an initial amount of 3.030 g prepolymer solution is deposited over a glass plate. (b) Optimal drying time (black triangles) and physical thickness (red diamonds) obtained for different amounts of prepolymer solution deposited. Errors are ±0.001 g in the photopolymer layer weight and deposited prepolymer solution, ±0.017 h in the drying time and optimal drying time, ±1 µm in the physical thickness and ±0.6% in the maximum diffraction efficiencies (DEmax).
Figure 2. (a) Weight loss (black circles) and maximum diffraction efficiencies (DEmax, red squares) of a photopolymer layer when an initial amount of 3.030 g prepolymer solution is deposited over a glass plate. (b) Optimal drying time (black triangles) and physical thickness (red diamonds) obtained for different amounts of prepolymer solution deposited. Errors are ±0.001 g in the photopolymer layer weight and deposited prepolymer solution, ±0.017 h in the drying time and optimal drying time, ±1 µm in the physical thickness and ±0.6% in the maximum diffraction efficiencies (DEmax).
Polymers 11 00632 g002

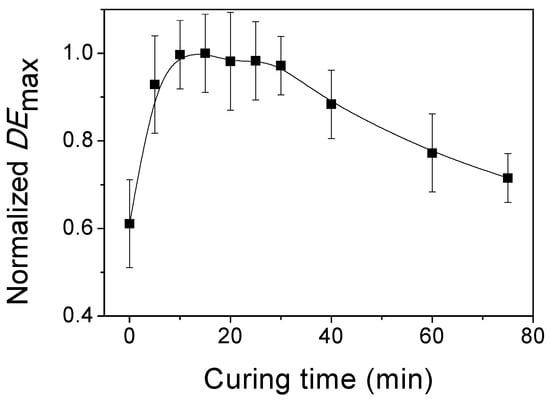

Figure 3. Normalized maximum diffraction efficiencies vs curing time for a photopolymer layer of dh = 150 ± 1 µm. H = 700 mJ/cm2 was used in the recording stage. Error is ±1 min in the curing time.
Figure 3. Normalized maximum diffraction efficiencies vs curing time for a photopolymer layer of dh = 150 ± 1 µm. H = 700 mJ/cm2 was used in the recording stage. Error is ±1 min in the curing time.
Polymers 11 00632 g003

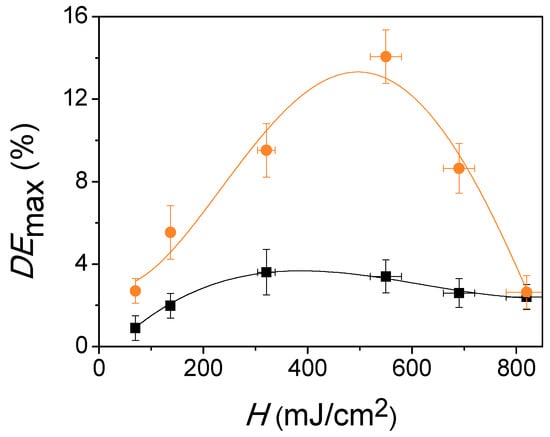

Figure 4. Normalized maximum diffraction efficiencies (DEmax) vs radiant exposure (H) for recording (black squares) and curing (orange circles) stages. The lines represent the experimental data polynomial fit.
Figure 4. Normalized maximum diffraction efficiencies (DEmax) vs radiant exposure (H) for recording (black squares) and curing (orange circles) stages. The lines represent the experimental data polynomial fit.
Polymers 11 00632 g004

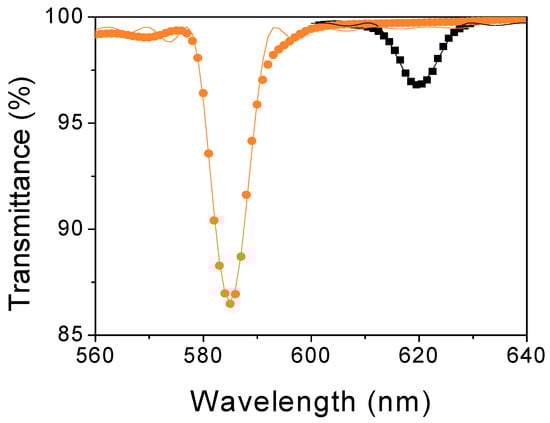

Figure 5. Transmittance of reflection gratings recorded at 550 mJ/cm2 for recording (black squares) and curing (orange circles) stages as a function of reconstruction wavelength. The spatial frequency of the gratings was 4738 lines/mm and dh = 150 µm. Solid lines represent the theoretical fit through Kogelnik’s coupled wave theory. Errors are ±0.3% in the transmittance and ±1 nm in the wavelength.
Figure 5. Transmittance of reflection gratings recorded at 550 mJ/cm2 for recording (black squares) and curing (orange circles) stages as a function of reconstruction wavelength. The spatial frequency of the gratings was 4738 lines/mm and dh = 150 µm. Solid lines represent the theoretical fit through Kogelnik’s coupled wave theory. Errors are ±0.3% in the transmittance and ±1 nm in the wavelength.
Polymers 11 00632 g005

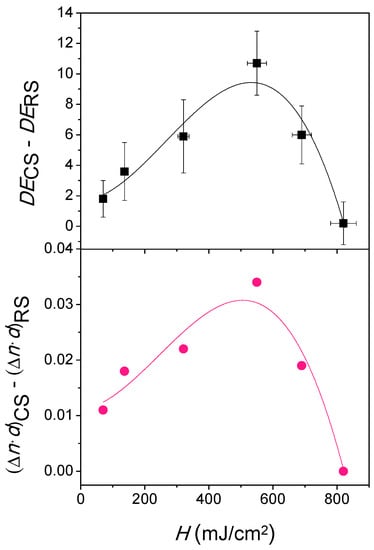

Figure 6. Differences between both curing and recording stage for diffraction efficiencies (DE) and Δn·d as function as radiant exposure (H). The lines represent the experimental data polynomial fit.
Figure 6. Differences between both curing and recording stage for diffraction efficiencies (DE) and Δn·d as function as radiant exposure (H). The lines represent the experimental data polynomial fit.
Polymers 11 00632 g006

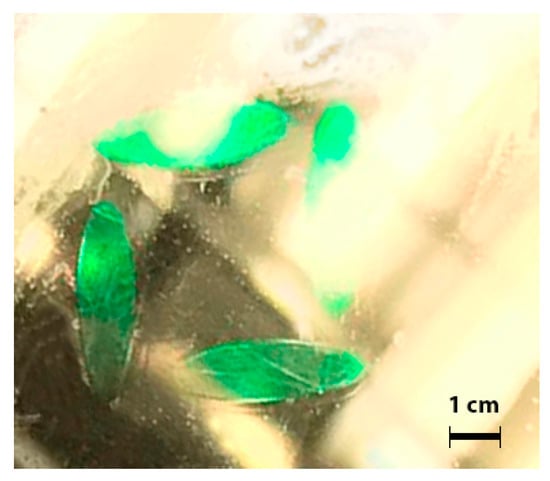

Figure 7. Photography of four holographic reflection gratings daylight illuminated.
Figure 7. Photography of four holographic reflection gratings daylight illuminated.
Polymers 11 00632 g007
Table 1. Parameters obtained from theoretical fit of the experimental transmittance values.
Table 1. Parameters obtained from theoretical fit of the experimental transmittance values.
H (mJ/cm2)CuredΔnd (µm)Δn·d (µm)Λ (µm)DEmax (%)
70No (RS *)0.001216.00.0190.2070.9
Yes (CS ¤)0.00358.60.0300.1942.7
137No (RS)0.001716.40.0280.2041.9
Yes (CS)0.004410.20.0460.1975.5
321No (RS)0.001820.70.0370.2073.6
Yes (CS)0.003616.50.0590.1989.5
550No (RS)0.002514.40.0360.2063.4
Yes (CS)0.005013.90.0700.19614.1
690No (RS)0.003010.70.0320.2032.6
Yes (CS)0.005010.30.0510.1918.6
820No (RS)0.002710.60.0290.2012.4
Yes (CS)0.00309.60.0290.1922.6
* Recording stage, ¤ Curing stage.
