Polymers 2019, 11(12), 2004; https://doi.org/10.3390/polym11122004

Article
The Effects of Inorganic Salts with Different Anions on the Structure and Properties of Starch/Poly (Butylene Succinate) Blends Plasticized with Ionic Liquid
by Zhixin Zhao 1,2, Bei Lei 1,2, Wenhao Du 1,2 and Xi Zhang 1,2,*
1
State Key Laboratory of Polymer Materials Engineering, Sichuan University, Chengdu 610065, China
2
Polymer Research Institute, Sichuan University, Chengdu 610065, China
*
Author to whom correspondence should be addressed.
Received: 29 October 2019 / Accepted: 28 November 2019 / Published: 3 December 2019

Abstract

:
1-butyl-3-methylimidazole chloride ((BMIM) Cl) modified starch/poly (butylene succinate) (PBS) blends with different anions of inorganic salts were prepared by HAAKE mixer. The compatibility and thermal behaviors including crystallinity, crystallization and melting temperature, thermal stability and mechanical properties were systematically investigated by Fourier transform infrared spectroscopy (FT-IR), scanning electron microscopy (SEM), thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), and X-ray diffraction (XRD). The results show that inorganic salts can produce a strong interaction with starch/PBS blends, which can improve the mechanical properties of starch/PBS blends, enhance the mechanical strength and elongation at break of starch/PBS blends, meanwhile, the thermal stability of starch/PBS blends decreased. The SEM images reveal that the compatibility of starch/PBS become better with the increase of inorganic salts. The melting and crystallization absorption peaks in the DSC curves show that the melting enthalpy (ΔHm), crystallinity (Xc), and crystallization temperature (Tc) of the blends decrease and the cold crystallization temperature (Tcc) increase when inorganic salts is added. Moreover, inorganic salts with smaller anionic radius have much better effects on the starch/PBS blends plasticized with ((BMIM)Cl).
Keywords:
poly(butylene succinate); starch; inorganic salts; ionic liquid; anion; modification

1. Introduction

As the continuous consumption of petroleum resources of raw materials for the preparation of polymer materials, and the increasing emphasis on environmental pollution caused by the difficult degradation of waste polymer materials, the development of eco-friendly polymer materials based on natural and non-petroleum resources has been greatly concerned by the governments and scientific research institutions all over the world [1,2,3]. Starch is a non-polluting, inexpensive natural degradable polymer material. PBS is one of the typical fully biodegradable materials which can be obtained by fermentation of biological resources. Polylactic acid (PLA) [4,5,6], polycaprolactone (PCL) [7,8,9], and poly(3-hydroxybutyrate) (PHB) [10,11,12] are typical biodegradable aliphatic polyesters, PBS stands out for the excellent performance and good industrial applications, such as eco-friendly nature, excellent properties in terms of biodegradability, processability, thermal properties and chemical resistance, and becomes one of the fastest growing varieties [13,14,15].
Starch is a highly abundant, non-toxic, and renewable biopolymer, which is produced from assimilating plants. It is extensively utilized in various fields, such as food, paper, wood, and pharmaceutical industry [16,17,18,19], and starch gradually becomes the main green chemical raw materials [20,21,22]. Therefore, the starch and PBS are mixed and the composite is expected to be eco-friendly with low cost and good performance. However, PBS exhibits hydrophobicity for the repeated aliphatic units on its main chain while starch exhibits strong hydrophilicity due to its crystalline structure and a large number of hydrogen bonds of intra-molecular and inter-molecular, which lead to the bad compatibility between PBS and starch [23,24,25,26,27]. Meanwhile, the interface bonding strength between the untreated starch particles and PBS interface is weak and the heat resistance, water resistance, and mechanical properties are terrible, hence, traditional simply blending can impossibility produce the ideal composite materials [1,28,29]. 1-butyl-3-methylimidazolium chloride ((BMIM)Cl) is a kind of ionic liquid, which can plastify and modify starch/PBS blends. By adding ((BMIM)Cl), the compatibility of starch/PBS and the brittleness of the composites greatly improve, however, the strength of the starch/PBS blends immensely reduced after plasticizing process.
In our work, we use extra magnesium sulphate (MgSO4) and magnesium chloride (MgCl2) inorganic salts cooperatively with the ((BMIM)Cl) to modify the starch/PBS blends, in addition, the different effects of MgSO4 and MgCl2 on the structure and properties of starch/PBS were studied. There are abundant oxygen atoms in starch and PBS, the ions of inorganic salt can interact with oxygen atoms and the interaction can change the aggregation structure of starch/PBS blends, the bonding strength of “macromolecule-modifying agent-macromolecule” in starch and starch/PBS blends are regulated which can inhibit the strength reduction from the plastication of ((BMIM)Cl) and improve the compatibility of starch/PBS blends. This method provides a new idea for the modification of starch/PBS blends.

2. Materials and Methods

2.1. Materials

Poly(butylene succinate) was kindly provided from Anqing Hexing Chemical Co., Ltd. (Anqing, China), which was injected in the molding grade. Corn starch was purchased from Xiadian corn development Industrial Co., Ltd. (Xi’an, China), which was in an edible level. Ionic liquid ((BMIM)Cl) (purity 97%) was purchased from Aladdin Biochemical Technology Co., Ltd. (Shanghai, China), which was used without any further purification. Magnesium chloride (MgCl2) and Magnesium sulphate (MgSO4) were purchased from Kelong Chemical Co. (Chengdu, China), which was in analytical purity.

2.2. Sample Preparation

The samples were prepared by the melt blending method. The starch and PBS were dried at 105 °C for 5 h under vacuum oven (p < 0.3 MPa). Starch and plasticizer (Ionic liquid and inorganic salts) were pre-mixed at room temperature for 2 h, and placed in a vacuum oven at 105 °C for 72 h before blending. The mixture was further plasticized in HAAKE Rheomix OS Torque Rheometer (Thermo Electron GmbH, Karlsruhe, Germany) at 125 °C with a rotor speed of 70 rpm for 15 min.
Starch/PBS blends were then prepared by melting thermoplastic starch and PBS in a HAAKE Mixer at 125 °C with a rotor speed of 70 rpm for 15 min. The compositions of samples were listed in Table 1 and Table 2 (according to the content of different inorganic salts, a series of samples were called as TSP, TSPMS1, TSPMS2, TSPMS3, TSPMS4, TSPM1, TSPM2, TSPM3, TSPM4 for short.). Finally, the blends were processed with an injection molding machine to obtain specimens for mechanical and other measurements. The barrel and mold temperatures during injection molding were 125 and 25 °C, respectively. The injection and packing pressure were both 400 bar. Dumb-bell specimens (width 4 mm, thickness 2 mm, length of parallel part 30 mm, and total length 75 mm) were prepared for the tensile tests.

2.3. Characterizations

2.3.1. Fourier Transform Infrared (FT-IR) Spectroscopy

The samples were dried in a vacuum oven at 105 °C for 5 h to remove water and then crushed into powder with a pulverizer. The infrared spectra were measured using a Fourier transform infrared spectrophotometer (Nicolet 560, Welltech Scientific Inc, Chantilly, VA, USA), at spectral resolution of 4 cm−1 and a scanning range from 400 to 4000 cm−1.

2.3.2. Scanning Electron Microscopy (SEM)

The morphology of the samples was examined with a scanning electron microscope JSM-5900LV (JEOL, Tokyo, Japan). The surfaces were coated with platinum prior to examination. The accelerating voltage was 10 kV.

2.3.3. Thermal Gravity Analysis (TGA)

TGA was performed by the TA2950 TGA thermal analysis instrument (Du Pont China Holding Co., Ltd, Beijing, China). The samples for testing were heated from room temperature to 600 °C at a heating rate of 20 °C min−1.

2.3.4. Differential Scanning Calorimetry (DSC)

The DSC measurements were performed by a differential scanning calorimeter (DSC8500, PerkinElmer Inc, Billerica, MA, USA). Samples (3–5 mg) were placed in sealed aluminum crucibles under a flow of nitrogen. Each sample was first heated from 30 to 140 °C at a rate of 50 °C min−1, kept at 140 °C for 3 min to eliminate thermal history, cooled to 30 °C at a cooling rate of 10 °C min−1, kept at 30 °C for 2 min, and then reheated at a rate of 10 °C min−1 to 140 °C.

2.3.5. X-ray Diffraction (XRD) Measurements

The XRD test was carried out by using an X’Pert Pro MPD diffractometer (Philips Analytical Company, Eindhoven, The Netherlands), with nickel filter CuKa as the radiation source. The acceleration voltage was 50 kV and the current was 35 mA. The samples were continuously scanned over the 2θ range from 5° to 50°.

2.3.6. Mechanical Properties Test

The mechanical properties (tensile strength (TS), elongation at break (%Eb) and Young’s modulus) of the samples were determined using a tensile testing equipment (Instron 5567, Instron Inc, Boston, MA, USA). The crosshead speed was 20 mm min−1. The initial gauge length of the specimen was 20 mm. The width of each tensile sample was 4 mm. All samples were balanced in 30% relative humidity (RH) at 25 °C for 48 h before the test. Five specimens were used for each group, and the average values plus the standard deviation were determined. t-Test was carried out to determine the statistically significant difference (p < 0.05) among the mechanical properties using STATA (STATA 11.2 for windows).

3. Results and Discussion

3.1. FT-IR Analysis

The interaction between anion and cation of inorganic salts and the hydroxy(-OH) of starch and PBS is the main interaction between inorganic salts and TSP composite. The movement of the stretching vibration peak of –OH can reflect the intensity of the electron interaction. Therefore, FT-IR was used to characterize the TSP before and after the modification by inorganic salts. The TSP sample without any addition of inorganic salt shows a peak at 3411 cm−1 which corresponds to the stretching vibration absorption peak of starch and PBS molecular chains [30], a peak at 1084 cm−1 corresponds to the stretching vibration peak of C–O in the C–O–H group of the starch molecules, and a peak at 1028 cm−1 corresponds to the stretching vibration peak of C–O in C–O–C of the starch molecular chain, and a peak at 1723 cm−1 corresponds to the stretching vibration absorption peak of C–O in the ester group of the PBS molecules [31].
Figure 1 shows the IR spectra of the TPS added with MgSO4 and MgCl2, and no extra absorption peaks of new chemical groups, which indicates that both MgSO4 and MgCl2 did not react with the matrix. As shown in Figure 1a,b, the –OH and C–O peaks of TSP modified by MgSO4 and MgCl2 shift to the high wavenumber, which indicates that the inorganic salt has strong interaction with starch and PBS molecular chains. Additionally, Figure 2 reveals the mechanism that electron-rich Cl or SO42− formed an electronic interaction with oxygen atoms in the hydroxyl group of starch molecules and in the ester group of PBS molecules, while the electron-deficient Mg2+ can interact with the hydrogen atoms in the hydroxyl group of both starch and PBS molecules with the separation role of ionic liquid. Therefore, inorganic salts can weaken the hydrogen bonds and lead to the change of aggregation structure and properties of the TSP. Furthermore, the comparison of TSPMS and TSPM shows that the effect of MgCl2 on the blue shift of hydroxyl peak in starch and PBS was more obvious than that of MgSO4, as the addition of both inorganic salts were the same. Meanwhile, the comparison between TSPMS and TSPM shows that the MgCl2 had a greater effect on the blue shift of –OH than MgSO4, which indicates that Cl−1 has a more pronounced effect on the –OH peak of TSP than SO42−. This is probably because the ion radius of SO42− is larger than that of Cl, thus the interaction between SO42− and hydroxyl groups on TSP is weaker than that of Cl, which eventually leads to the movement of stretching vibration absorption peak of –OH. The smaller the ionic radius of the ion is, the stronger the interaction between ions and –OH, the more obvious the infrared blue shift of hydroxyl.
In summary, inorganic salts can further affect the absorption peaks of hydroxyl and ester groups in TSP. The ionic radius is the main factor which can impact the hydroxyl peaks in TSP. The smaller the ionic radius of inorganic ions, the stronger the ability of ions to enter the molecular chains between starch and PBS, and the more obvious the influence on the movement of hydroxyl and ester groups peaks.

3.2. Scanning Electron Microscopy

As the mechanical properties are strongly dependent on the microscopic morphologies, the performance and properties of blending materials not only depend on the properties of the individual components but also their interfacial compatibility, so increasing the compatibility between the components is an important way to improve the performance of the materials.
In order to investigate the effect of inorganic salts on the compatibility of TSP blends, Figure 3 shows the SEM images of the cross section of the TSP blends with different content of inorganic salts. As shown in Figure 3a, the interface in the pure TPS sample is obvious, the starch particles inhomogeneously disperse in the continuous phase of the PBS matrix then forms the sea-island structure, the adhesion between the two-phase is very weak and there are some starch granules fall off from the section, and the grooves formed. This is due to the incomplete separation effect of the plastication of ionic liquid during the dissolution process, some starch granules retain with a low compatibility with PBS, resulting in an obvious phase separation structure. By comparing Figure 3b–e, it can be seen that samples gradually show no obvious interface between the two phases with the increase of inorganic salts, the amount of starch granules fall off from the matrix reduces and the adhesion of the two phases enhances. Furthermore, Figure 3 shows that there are still some residual starch granules and cracks in the fractured surfaces of the TSPMS4 blends, while the TSPM4 blends exhibited homogeneous and continuous morphology without visible starch granules and aggregation.
In general, the compatibility of starch/PBS blends plasticized with IL is further improved by the addition of inorganic salts. As the inorganic salts interfere in the formation of hydrogen bonds within the starch and PBS matrix and disturb the crystallization of the starch and PBS. Meanwhile, the electron-rich Cl with small ionic radius is stronger than that of SO42−, hence the electronic interaction with hydroxyl groups of starch molecular chains and ester groups of PBS molecular chains is strong.

3.3. Thermal Stability Analysis

The effect of inorganic salts on the thermal stability of starch/PBS composite system was studied by thermogravimetric analysis, as Figure 4a,b shown the TGA curves of MgSO4 and MgCl2 modified starch/PBS composite samples, respectively. The corresponding initial thermal decomposition temperatures (Ti) are listed in Table 3. All the results reveal that the Ti of each sample shows a decreasing tendency along with the increase of inorganic salt, moreover, the MgCl2 modified starch/PBS composite sample shows a much lower Ti than the MgSO4 modified sample. On the other hand, the Ti of the composite sample decreases to 215 °C as the content of MgSO4 is 4 wt%, while the Ti of the MgCl2 modified sample is 203 °C. This is due to the MgSO4 and MgCl2 weak the hydrogen bonds between the starch and PBS molecules and damage the perfect degree of crystallization of starch/PBS system, thus weak the thermal stability. In addition, the electronic interaction between MgSO4 and starch/PBS system is weaker than the MgCl2 modified sample, hence MgSO4 shows less impact on the thermal stability of the blend system.
In general, as the inorganic salts interfere the formation of hydrogen bonds within the starch and PBS matrix and disturb the crystallization of the starch and PBS. The Ti of each sample shows a decreasing tendency. Moreover, the electron-rich Cl with small ionic radius is stronger than that of SO42−, hence the electronic interaction with hydroxyl groups of starch molecular chains and ester groups of PBS molecular chains become stronger and the MgCl2 modified starch/PBS composite sample shows a much lower thermal stability.

3.4. Thermal Properties

In order to further study the interaction between MgSO4 or MgCl2 and starch /PBS, the inorganic salt modified starch /PBS blend samples were tested by DSC. Figure 4 shows the DSC curves of modified starch/PBS composite with different ratio of MgSO4 and MgCl2, respectively. The melting enthalpy corresponding Δ(Hm), crystallinity (Xc), the crystallization temperature (Tc), and the cold crystallization temperature (Tcc) are listed in Table 4. Xc is calculated as Equation (1):
X c % = 100 % × Δ H m Δ H m 0 × w t
where ΔHm represents the melting enthalpy of the corresponding sample, ΔH0m is the melting enthalpy of one hundred percent crystallization, and wt is the content of PBS.
Figure 5 and Table 4 reveal that the ΔHm, Xc and Tc of starch/PBS composites decrease while the Tcc increase as the content of MgSO4 and MgCl2 increased. This is due to the strong interaction between MgSO4 and the molecular chain of starch and PBS, as the Mg2+ tend to form the electronic interaction with the oxygen atoms of hydroxy in starch chains and oxygen atoms of ester in PBS chains, which make the force of molecular inter-atomic strong and restrict the movement of chains, hence raise the energy of the rearrangement and the temperature of cold crystallization. The addition of MgSO4 enhances the interaction between PBS and starch molecules, so relatively hindered the orderly arrangement in PBS chains and disturb the perfect degree of crystallization. Hence, the ΔHm and corresponding Xc decrease, meanwhile, the chain segment is difficult to pile up and requires great driving force, and the crystallization temperature decreases.
The effect of MgCl2 on thermal properties of starch/PBS composite is similar to the MgSO4, as shown in Figure 5b,d and Table 4, indicating that MgSO4 and MgCl2 have the similar rules. The thermal performance parameters of the MgSO4 blending system changes more slightly than that of MgCl2 as the adding amount was 4 wt%, by contrasting Figure 5a,c and Table 4. As the Xc and Tc of MgSO4 blending system decrease to 39.5% and 63.2 °C, respectively, and the Tcc raises to 89.8 °C, while the Xc, Tc, and Tcc of the corresponding MgCl2 system change to 37.8%, 59.2 and 91.7 °C, respectively (this conclusion is only suggested by our test results.) This is mainly because the participation efficiency of ions in MgSO4 is low, as only cation participates in the formation of strong electron interaction, while the electron interaction between SO42− and starch /PBS is very weak for the volume of SO42− is huge which restricts the electron interaction. Additionally, MgCl2 shows strong electron interaction as both cation and anion can easily participate in the formation of electron interaction.

3.5. Crystalline Properties

The previous studies have proved that inorganic salts could play the role of plasticizer by disturbing the crystallization of starch/PBS blends [32]. Both the anions and cations in inorganic salts could form the strong coordination effect with –OH. These interactions would interrupt the intermolecular and intramolecular hydrogen bonding of starch and PBS to disturb the growth of crystal. The effect of inorganic salts on the crystalline property of starch/PBS blends was studied by XRD.
Figure 6a,b show the X-ray diffraction spectra of the TSP blends and TSP blends modified with different inorganic salts. The previous studies have proved that PBS has three diffraction peaks when 2θ angles are 19.5, 21.5, and 22.5°, corresponding to (020), (021), and (110) crystal planes [33,34,35], respectively. It could be seen from Figure 6 that the diffraction peak positions of the TSP blends do not move or change as the increase of the MgSO4 or MgCl2. There is no new crystal diffraction peaks that appear, indicating that the addition of inorganic salts does not alter the crystalline form of PBS.
Moreover, the crystallization peak intensity of the TSP blends obviously reduced with the increase of inorganic salts. This phenomenon indicated that MgSO4 or MgCl2 had a damaging effect on the crystals of TSP blends and form strong interaction with TSP blends molecules, the interaction could interrupt the hydrogen bonding in the crystalline structure of TSP blends. In addition, the intensity of the TSPM crystal peak was weaker than that of the TSPMS crystal peak. This is because the ionic radius of Cl−1 is smaller than that of SO42−, and Cl−1 can more easily enter into the molecular chains of the starch and PBS and break the crystallization. This is also consistent with the results of DSC. It could also be noticed that the diffraction peaks of MgSO4 and MgCl2 did not appear in Figure 6a,b, respectively. This also suggests that MgSO4 and MgCl2 were completely dissolved in TSP blends and no MgSO4 and MgCl2 crystals or congregates existed.

3.6. Mechanical Properties

The influence of inorganic salts on the mechanical properties of TSP blends was evaluated by tensile testing. As the starch contains a large number of intermolecular and intramolecular hydrogen bonds, it is easy to form microcrystals, which makes the starch and starch-based materials show strong brittleness. Figure 7 shows the tensile strength and elongation at break of TSP blends before and after being modified with various content of MgSO4 and MgCl2. Table 5 shows the mechanical properties (tensile strength, elongation at break and Young’s modulus) of TSP, TSPMS, and TSPM blends. After the addition of the inorganic salts, the tensile strength and the elongation at break of the TSP blends increased obviously. This is due to the fact that both anions and cations of the inorganic salts have strong interaction with starch and PBS molecular chains hence improve the mechanical properties of the blends. Moreover, the electron-rich Cl with smaller ionic radius has higher anionic utilization efficiency than that of SO42−, which may have stronger interaction with starch/PBS molecular chains. These result in the tensile strength and the elongation at break of the TSPM blends increasing more than that of TSPMS blends, this is consistent with the previous results in this article. Without adding inorganic salts, the tensile strength of TSP was 10.8 MPa, the elongation at break was 14.1%, which showed obvious brittleness. After adding 4 wt% MgCl2, the tensile strength increased to 15.8 MPa and the elongation at break increased to 19.5%, which increased 46% and 38%, respectively than that without adding MgCl2. Meanwhile, the tensile strength increased to12.5 MPa and the elongation at break increased to 15.4% with the addition of 4 wt% MgSO4 (this conclusion is only suggested by our test results.) The elongation at break of all the TSPMS and TSPM blends maintained at a high level, which is rarely observed in previous researches. This is because the addition of inorganic salts weakens the original hydrogen bonds in starch and PBS molecules. Electron-rich anions can interact strongly with oxygen atoms in starch/PBS blends to enhance the compatibility of starch and PBS phases, thus improving the mechanical strength and flexibility of the composites. It was worth noting that the tensile strength and elongation at break of the TSP blends modified by MgCl2 were both higher than that of MgSO4. This is because the Cl in MgCl2 has more smaller ion radius and form stronger electronic interaction, the performance is improved more obviously. From all the above, we can conclude that inorganic salts can compensate the loss of mechanical strength caused by the plasticizers and provide a new method to control the properties of starch/PBS blends composites, especially, when using inorganic salts with the same cations to modify the blends, the anionic parts of inorganic salts with small volume can be preferentially selected.

4. Conclusions

In summary, the ((BMIM)Cl) modified starch/PBS blends were further modified by MgSO4 and MgCl2, in which the electron-rich anions SO42− and Cl form electronic interaction with the oxygen atoms in the hydroxyl groups of starch and the ester group of PBS and destroy the original hydrogen bonds in the molecules. Compared to starch/PBS blends modified only with ((BMIM)Cl), the samples with the addition of inorganic salts can further break the ordered arrangement of the molecular chains in the crystal regions of both starch and PBS, resulting in a decrease in crystallinity and making the compatibility of starch and PBS significantly improve. With the increase of the inorganic salts, the melting enthalpy (ΔHm), crystallization temperature (Tc), and the crystallinity (Xc) decrease, while the cold crystallization temperature (Tcc), the tensile strength, and elongation at break of starch/PBS blends increase. This is due to the electron interaction between inorganic salts and starch/PBS blends. This method of adding inorganic salts can compensate the loss of mechanical strength caused by ((BMIM)Cl) modification, and MgCl2 has a more significant effect on starch/PBS for the small anionic radius.

Author Contributions

X.Z. conceived and designed the experiments; Z.Z. and B.L. performed the experiments and analyzed the data; Z.Z. and W.D. wrote the paper. All authors discussed the results and improved the final text of the paper.

Acknowledgments

This research was funded by [Applied Basic Research Project of Sichuan Province], grant number [2017JY0247] and [National Science and Technology Major Project], grant number [2016ZX05021-004-007].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Iwata, T. Biodegradable and Bio-Based Polymers: Future Prospects of Eco-Friendly Plastics. Angew. Chem. Int. Ed. 2015, 54, 3210–3215. [Google Scholar] [CrossRef]
  2. Muller, J.; Gonzalez-Martinez, C.; Chiralt, A. Combination of Poly(lactic) Acid and Starch for Biodegradable Food Packaging. Materials 2017, 10, 952. [Google Scholar] [CrossRef] [PubMed]
  3. Peres, A.M.; Pires, R.R.; Orefice, R.L. Evaluation of the effect of reprocessing on the structure and properties of low density polyethylene/thermoplastic starch blends. Carbohydr. Polym. 2016, 136, 210–215. [Google Scholar] [CrossRef] [PubMed]
  4. Elsawy, M.A.; Kim, K.-H.; Park, J.-W.; Deep, A. Hydrolytic degradation of polylactic acid (PLA) and its composites. Renew. Sustain. Energy Rev. 2017, 79, 1346–1352. [Google Scholar] [CrossRef]
  5. Karamanlioglu, M.; Preziosi, R.; Robson, G.D. Abiotic and biotic environmental degradation of the bioplastic polymer poly(lactic acid): A review. Polym. Degrad. Stab. 2017, 137, 122–130. [Google Scholar] [CrossRef]
  6. Nagarajan, V.; Mohanty, A.K.; Misra, M. Perspective on Polylactic Acid (PLA) based Sustainable Materials for Durable Applications: Focus on Toughness and Heat Resistance. ACS Sustain. Chem. Eng. 2016, 4, 2899–2916. [Google Scholar] [CrossRef]
  7. Chen, D.R.; Bei, J.Z.; Wang, S.G. Polycaprolactone microparticles and their biodegradation. Polym. Degrad. Stab. 2000, 67, 455–459. [Google Scholar] [CrossRef]
  8. Kweon, H.; Yoo, M.K.; Park, I.K.; Kim, T.H.; Lee, H.C.; Lee, H.S.; Oh, J.S.; Akaike, T.; Cho, C.S. A novel degradable polycaprolactone networks for tissue engineering. Biomaterials 2003, 24, 801–808. [Google Scholar] [CrossRef]
  9. Xu, X.; Fan, P.; Ren, J.; Cheng, Y.; Ren, J.; Zhao, J.; Song, R. Self-healing thermoplastic polyurethane (TPU)/polycaprolactone (PCL) /multi-wall carbon nanotubes (MWCNTs) blend as shape-memory composites. Compos. Sci. Technol. 2018, 168, 255–262. [Google Scholar] [CrossRef]
  10. Garcia-Garcia, D.; Garcia-Sanoguera, D.; Fombuena, V.; Lopez-Martinez, J.; Balart, R. Improvement of mechanical and thermal properties of poly(3-hydroxybutyrate) (PHB) blends with surface-modified halloysite nanotubes (HNT). Appl. Clay Sci. 2018, 162, 487–498. [Google Scholar] [CrossRef]
  11. Godbole, S.; Gote, S.; Latkar, M.; Chakrabarti, T. Preparation and characterization of biodegradable poly-3-hydroxybutyrate-starch blend films. Bioresour. Technol. 2003, 86, 33–37. [Google Scholar] [CrossRef]
  12. Kai, D.; Chong, H.M.; Chow, L.P.; Jiang, L.; Lin, Q.; Zhang, K.; Zhang, H.; Zhang, Z.; Loh, X.J. Strong and biocompatible lignin /poly (3-hydroxybutyrate) composite nanofibers. Compos. Sci. Technol. 2018, 158, 26–33. [Google Scholar] [CrossRef]
  13. Deng, Y.; Thomas, N.L. Blending poly(butylene succinate) with poly(lactic acid): Ductility and phase inversion effects. Eur. Polym. J. 2015, 71, 534–546. [Google Scholar] [CrossRef]
  14. Fortunati, E.; Puglia, D.; Iannoni, A.; Terenzi, A.; Kenny, J.M.; Torre, L. Processing Conditions, Thermal and Mechanical Responses of Stretchable Poly (Lactic Acid)/Poly (Butylene Succinate) Films. Materials 2017, 10, 809. [Google Scholar] [CrossRef] [PubMed]
  15. Tserki, V.; Matzinos, P.; Pavlidou, E.; Vachliotis, D.; Panayiotou, C. Biodegradable aliphatic polyesters. Part I. Properties and biodegradation of poly(butylene succinate-co-butylene adipate). Polym. Degrad. Stab. 2006, 91, 367–376. [Google Scholar] [CrossRef]
  16. Averous, L. Biodegradable multiphase systems based on plasticized starch: A review. J. Macromol. Sci. Pol. R. 2004, 44, 231–274. [Google Scholar] [CrossRef]
  17. Copeland, L.; Blazek, J.; Salman, H.; Tang, M.C. Form and functionality of starch. Food Hydrocoll. 2009, 23, 1527–1534. [Google Scholar] [CrossRef]
  18. Jobling, S. Improving starch for food and industrial applications. Curr. Opin. Plant Biol. 2004, 7, 210–218. [Google Scholar] [CrossRef]
  19. Piñeros-Hernandez, D.; Medina-Jaramillo, C.; López-Córdoba, A.; Goyanes, S. Edible cassava starch films carrying rosemary antioxidant extracts for potential use as active food packaging. Food Hydrocoll. 2017, 63, 488–495. [Google Scholar] [CrossRef]
  20. Farran, A.; Cai, C.; Sandoval, M.; Xu, Y.; Liu, J.; Hernaiz, M.J.; Linhardt, R.J. Green solvents in carbohydrate chemistry: From raw materials to fine chemicals. Chem. Rev. 2015, 115, 6811–6853. [Google Scholar] [CrossRef]
  21. Lichtenthaler, F.W.; Peters, S. Carbohydrates as green raw materials for the chemical industry. C. R. Chim. 2004, 7, 65–90. [Google Scholar] [CrossRef]
  22. Sheldon, R.A. Engineering a more sustainable world through catalysis and green chemistry. J. R. Soc. Interface 2016, 13. [Google Scholar] [CrossRef] [PubMed]
  23. De Graaf, R.A.; Karman, A.P.; Janssen, L.P.B.M. Material properties and glass transition temperatures of different thermoplastic starches after extrusion processing. Starch Starke 2003, 55, 80–86. [Google Scholar] [CrossRef]
  24. De Menezes, A.J.; Pasquini, D.; Curvelo, A.A.S.; Gandini, A. Novel thermoplastic materials based on the outer-shell oxypropylation of corn starch granules. Biomacromolecules 2007, 8, 2047–2050. [Google Scholar] [CrossRef]
  25. Nabar, Y.; Narayan, R.; Schindler, M. Twin-screw extrusion production and characterization of starch foam products for use in cushioning and insulation applications. Polym. Eng. Sci. 2006, 46, 438–451. [Google Scholar] [CrossRef]
  26. Ning, W.; Yu, J.G.; Han, C.M. Influence of citric acid on the properties of glycerol-plasticised Cornstarch extrusion blends. Polym. Polym. Compos. 2007, 15, 545–552. [Google Scholar] [CrossRef]
  27. Ratto, J.A.; Stenhouse, P.J.; Auerbach, M.; Mitchell, J.; Farrell, R. Processing, performance and biodegradability of a thermoplastic aliphatic polyester/starch system. Polymer 1999, 40, 6777–6788. [Google Scholar] [CrossRef]
  28. Li, J.W.; Luo, X.G.; Lin, X.Y.; Zhou, Y. Comparative study on the blends of PBS/thermoplastic starch prepared from waxy and normal corn starches. Starch Starke 2013, 65, 831–839. [Google Scholar] [CrossRef]
  29. Zeng, J.-B.; Jiao, L.; Li, Y.-D.; Srinivasan, M.; Li, T.; Wang, Y.-Z. Bio-based blends of starch and poly(butylene succinate) with improved miscibility, mechanical properties, and reduced water absorption. Carbohydr. Polym. 2011, 83, 762–768. [Google Scholar] [CrossRef]
  30. Sankri, A.; Arhaliass, A.; Dez, I.; Gaumont, A.C.; Grohens, Y.; Lourdin, D.; Pillin, I.; Rolland-Sabaté, A.; Leroy, E. Thermoplastic starch plasticized by an ionic liquid. Carbohydr. Polym. 2010, 82, 256–263. [Google Scholar] [CrossRef]
  31. Cai, Y.M.; Lv, J.G.; Feng, J.M. Spectral Characterization of Four Kinds of Biodegradable Plastics: Poly (Lactic Acid), Poly (Butylenes Adipate-Co-Terephthalate), Poly (Hydroxybutyrate-Co-Hydroxyvalerate) and Poly (Butylenes Succinate) with FTIR and Raman Spectroscopy. J. Polym. Environ. 2013, 21, 108–114. [Google Scholar] [CrossRef]
  32. Zullo, R.; Iannace, S. The effects of different starch sources and plasticizers on film blowing of thermoplastic starch: Correlation among process, elongational properties and macromolecular structure. Carbohydr. Polym. 2009, 77, 376–383. [Google Scholar] [CrossRef]
  33. Nofar, M.; Oguz, H.; Ovali, D. Effects of the matrix crystallinity, dispersed phase, and processing type on the morphological, thermal, and mechanical properties of polylactide-based binary blends with poly[(butylene adipate)-co-terephthalate] and poly[(butylene succinate)-co-adipate]. J. Appl. Polym. Sci. 2019, 136. [Google Scholar] [CrossRef]
  34. Liu, G.; Zheng, L.; Zhang, X.; Li, C.; Jiang, S.; Wang, D. Reversible Lamellar Thickening Induced by Crystal Transition in Poly(butylene succinate). Macromolecules 2012, 45, 5487–5493. [Google Scholar] [CrossRef]
  35. Zeng, J.-B.; Li, Y.-D.; Zhu, Q.-Y.; Yang, K.-K.; Wang, X.-L.; Wang, Y.-Z. A novel biodegradable multiblock poly(ester urethane) containing poly(l-lactic acid) and poly(butylene succinate) blocks. Polymer 2009, 50, 1178–1186. [Google Scholar] [CrossRef]

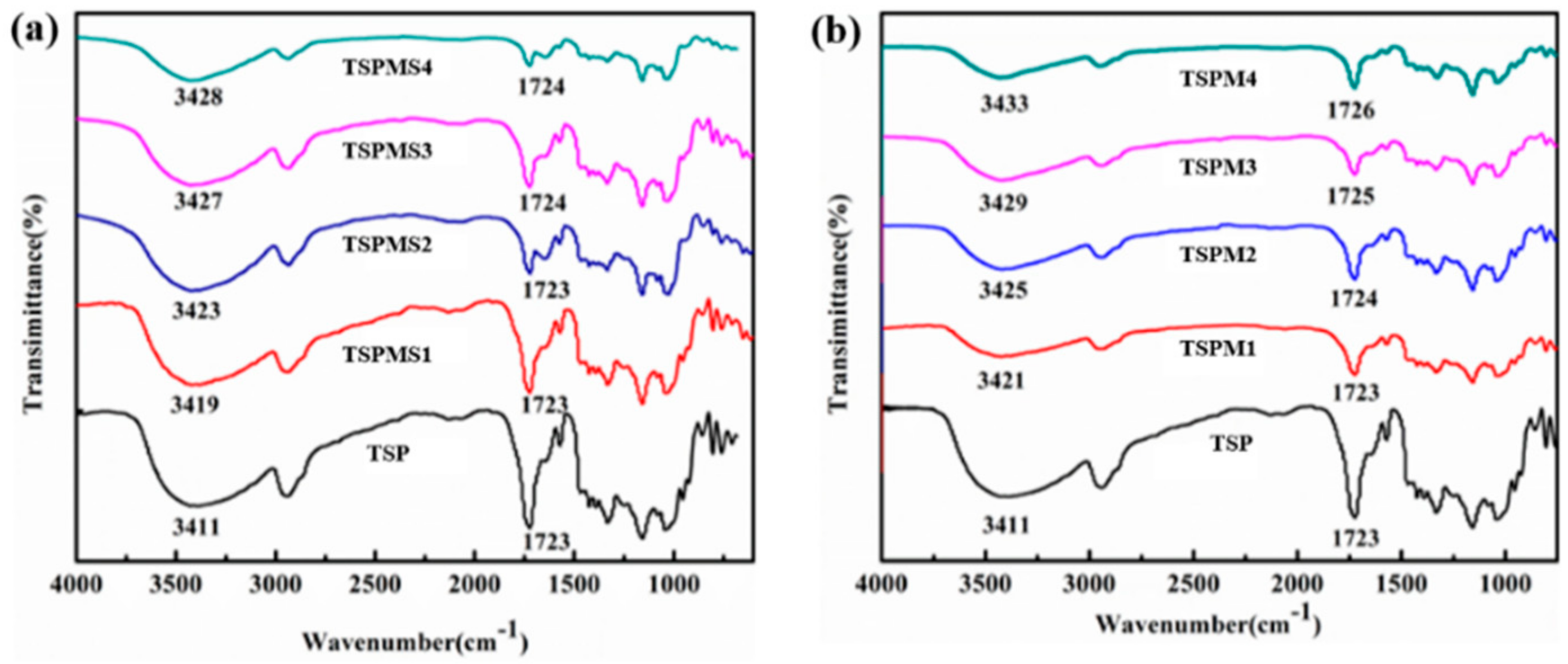

Figure 1. The FTIR spectra of TSP blends modified with MgSO4 (a) and MgCl2 (b).
Figure 1. The FTIR spectra of TSP blends modified with MgSO4 (a) and MgCl2 (b).
Polymers 11 02004 g001

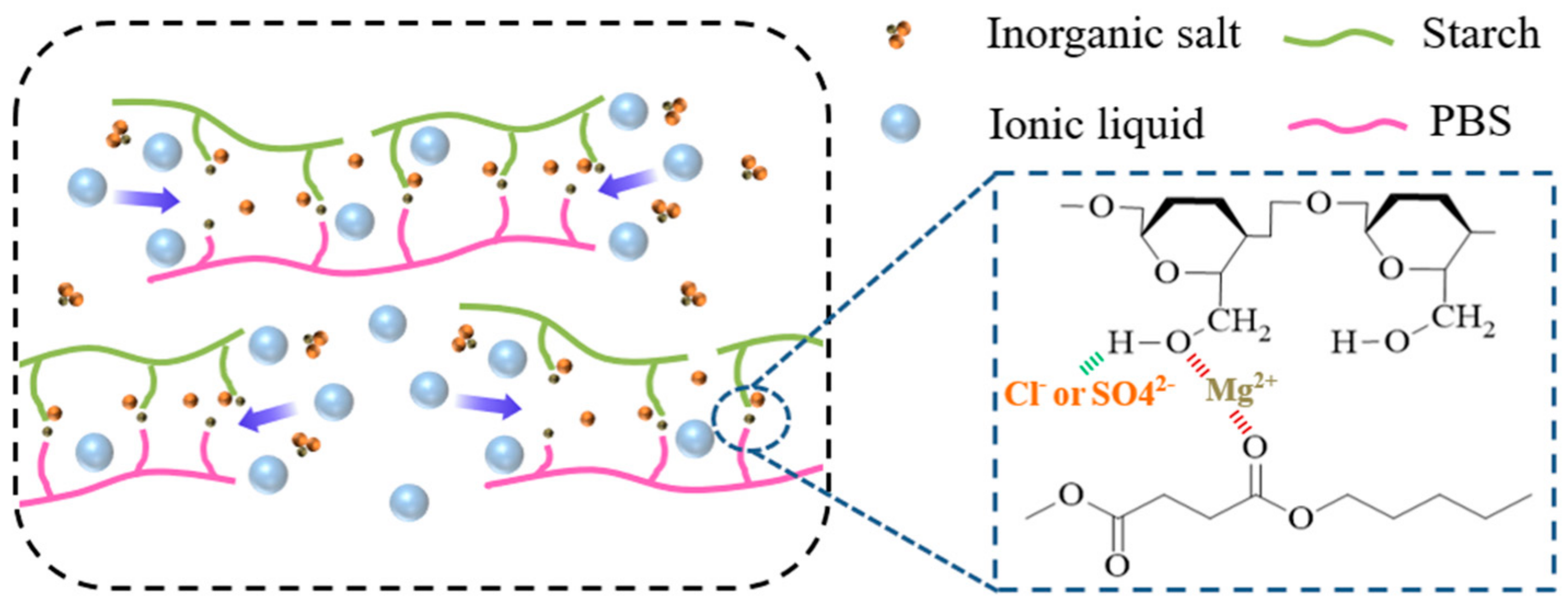

Figure 2. The mechanism of TSP blends modified with different inorganic salts.
Figure 2. The mechanism of TSP blends modified with different inorganic salts.
Polymers 11 02004 g002
Figure 3. The SEM micrographs of TSP (a), TSPMS1 (b), TSPMS4 (c), TSPM1 (d), TSPM4 (e).
Figure 3. The SEM micrographs of TSP (a), TSPMS1 (b), TSPMS4 (c), TSPM1 (d), TSPM4 (e).
Polymers 11 02004 g003

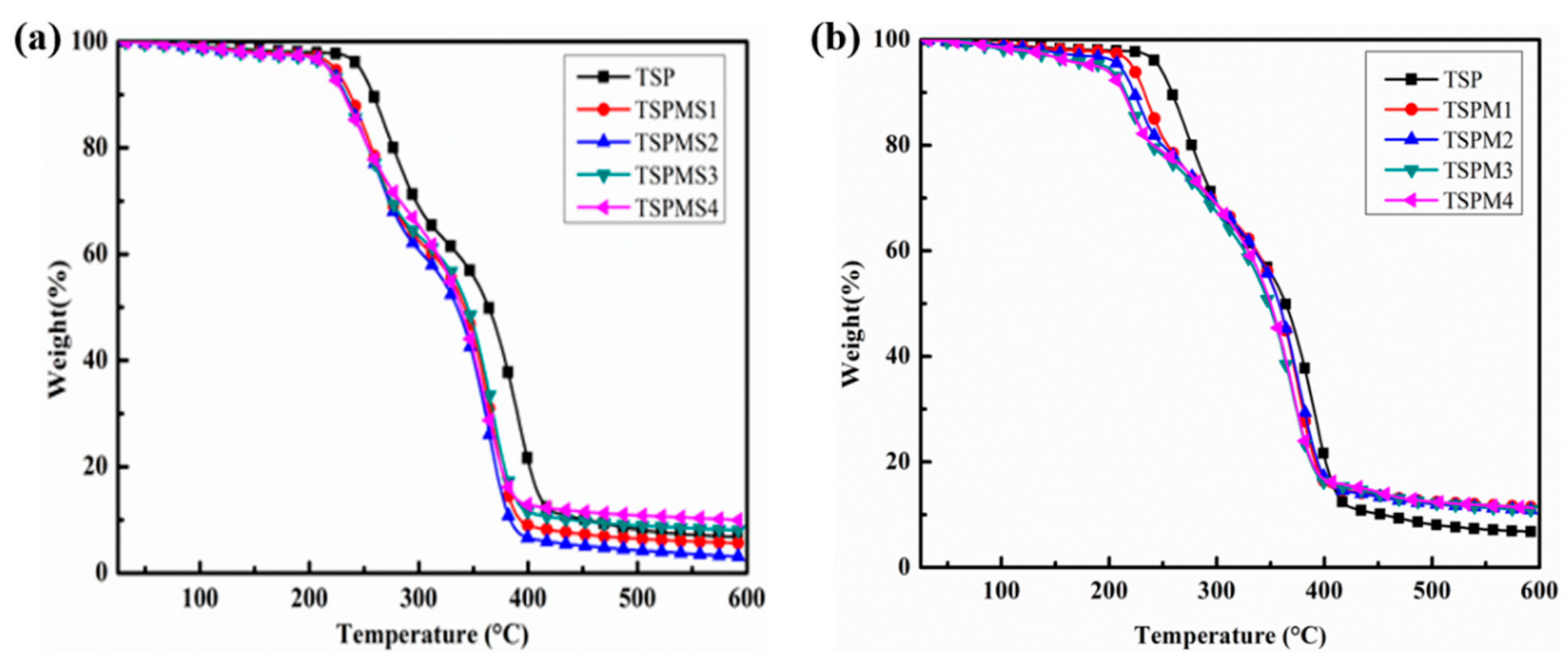

Figure 4. The TGA curves of starch/PBS blends modified with MgSO4 (a) and MgCl2 (b).
Figure 4. The TGA curves of starch/PBS blends modified with MgSO4 (a) and MgCl2 (b).
Polymers 11 02004 g004
Figure 5. The DSC melting curves of TSP blends modified with MgSO4 (a) or MgCl2 (b); the DSC crystallization curves of TSP blends modified with MgSO4 (c) or MgCl2 (d).
Figure 5. The DSC melting curves of TSP blends modified with MgSO4 (a) or MgCl2 (b); the DSC crystallization curves of TSP blends modified with MgSO4 (c) or MgCl2 (d).
Polymers 11 02004 g005

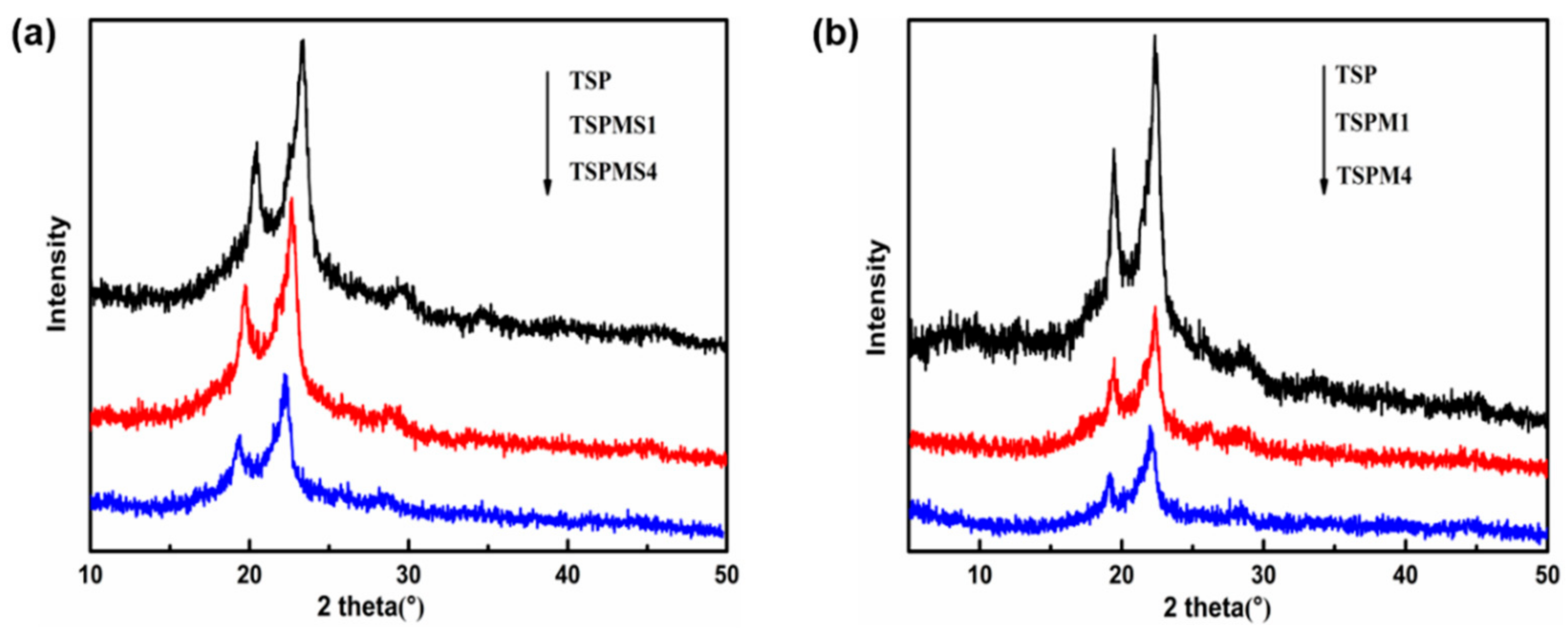

Figure 6. The XRD diffractograms of TSP blends modified with MgSO4 (a) or MgCl2 (b).
Figure 6. The XRD diffractograms of TSP blends modified with MgSO4 (a) or MgCl2 (b).
Polymers 11 02004 g006

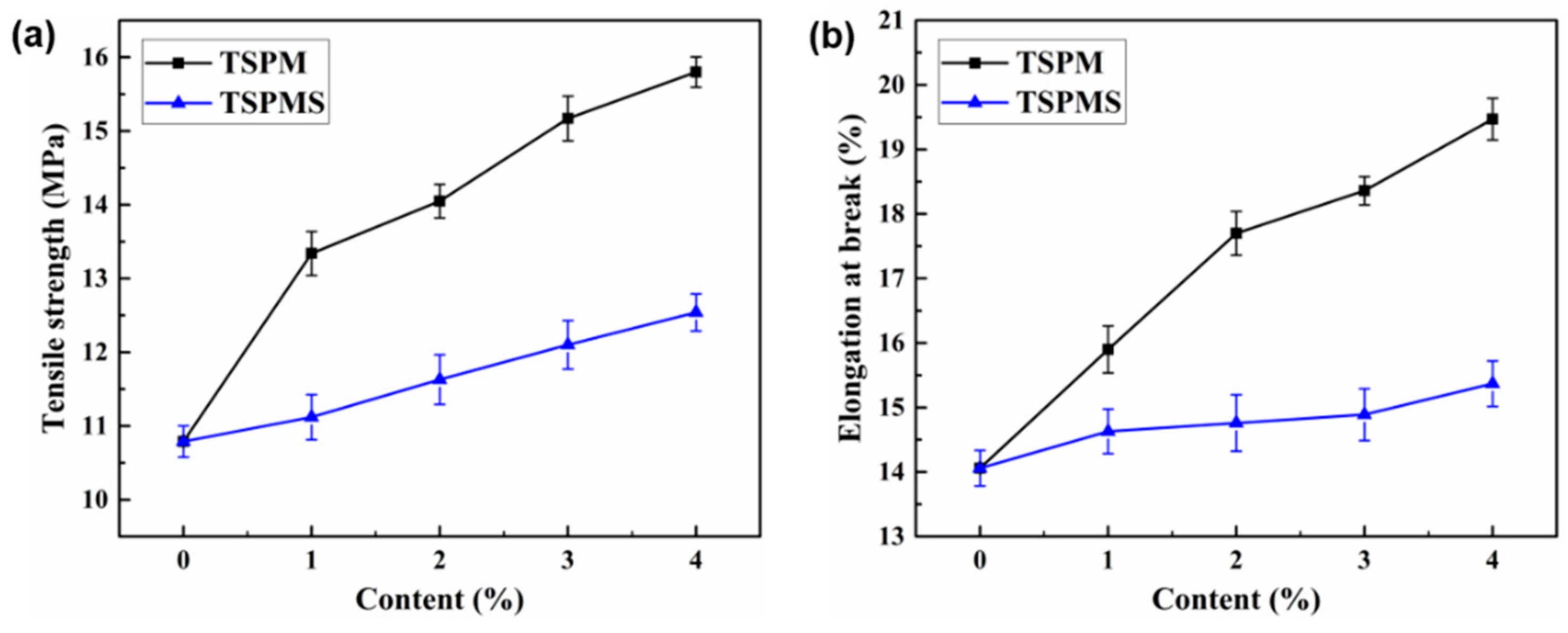

Figure 7. (a) The tensile strength of TSP blends modified with MgSO4 or MgCl2; (b) the elongation at break of TSP blends modified with MgSO4 or MgCl2.
