Next Article in Journal
Modeling and Experimental Validation of the VARTM Process for Thin-Walled Preforms
Previous Article in Journal
Improved Thermal Insulating Properties of Renewable Polyol Based Polyurethane Foams Reinforced with Chicken Feathers
Open AccessArticle

Terahertz Dielectric Spectroscopic Analysis of Polypropylene Aging Caused by Exposure to Ultraviolet Radiation

Institute of Automation, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250014, China
College of Instrumentation and Electrical Engineering, Jilin University, Changchun 130061, China
Chongqing Institute of Green and Intelligent Technology, Chinese Academy of Sciences, Chongqing 400714, China
Author to whom correspondence should be addressed.
Polymers 2019, 11(12), 2001;
Received: 5 November 2019 / Revised: 28 November 2019 / Accepted: 1 December 2019 / Published: 3 December 2019
Terahertz dielectric spectroscopy is shown to be an effective tool for bench-marking ultraviolet aging of polypropylene. In this, thin-film polypropylene samples exposed to standard artificial ultraviolet radiation in accelerated aging from 1 day to 30 days are closely monitored by a terahertz time-domain spectroscopy system and analyzed using an effective data processing method. It is found that the terahertz absorption of the polypropylene samples is generally weak and the terahertz dielectric constant varies slightly though discernibly during the aging process, with the refractive index decreasing slightly with increasing length of ultraviolet exposure. Nonetheless, the rate of variation of the polypropylene refractive index with increasing terahertz frequency exhibits a drastic inflection around the 15-days aging point and the rate changes suddenly from positive value to negative value. Based on this prominent and consistent THz dielectric spectroscopic feature of the aging process, an efficient judging criterion is established to distinguish the early-term, mid-term, and late-term phases as well as the degree of polypropylene ultraviolet aging, corresponding to the fundamental transformation of the polymer material from a nonpolar to a polar substance at a critical level of oxidation induced by ultraviolet radiation.

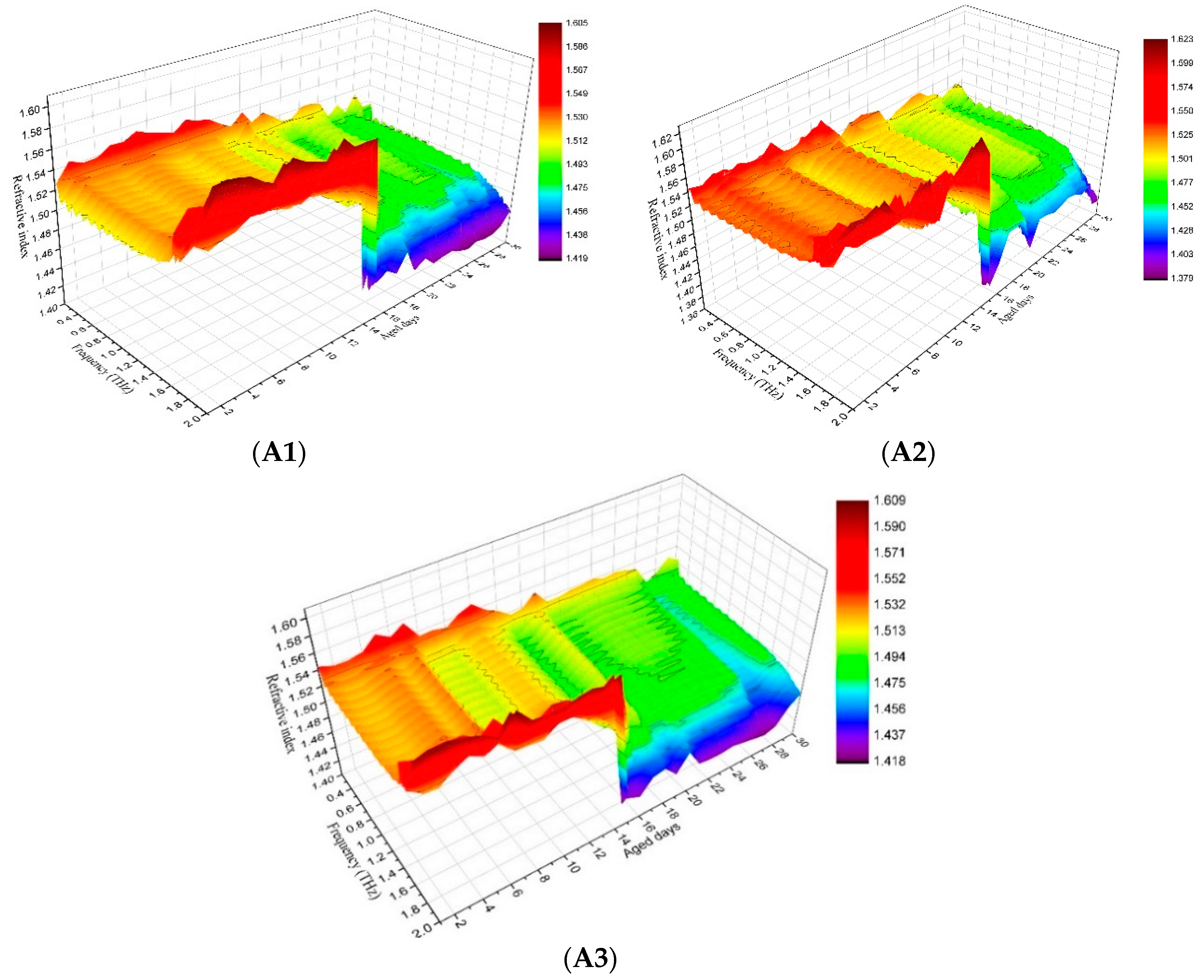

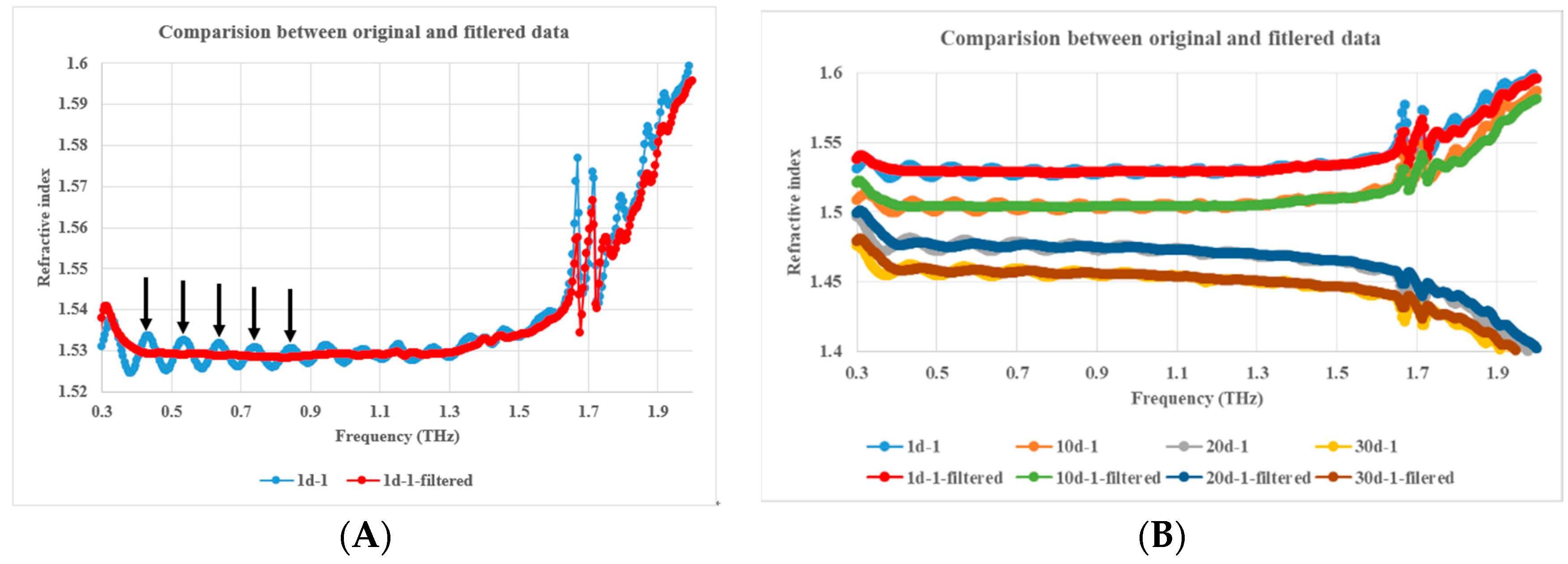

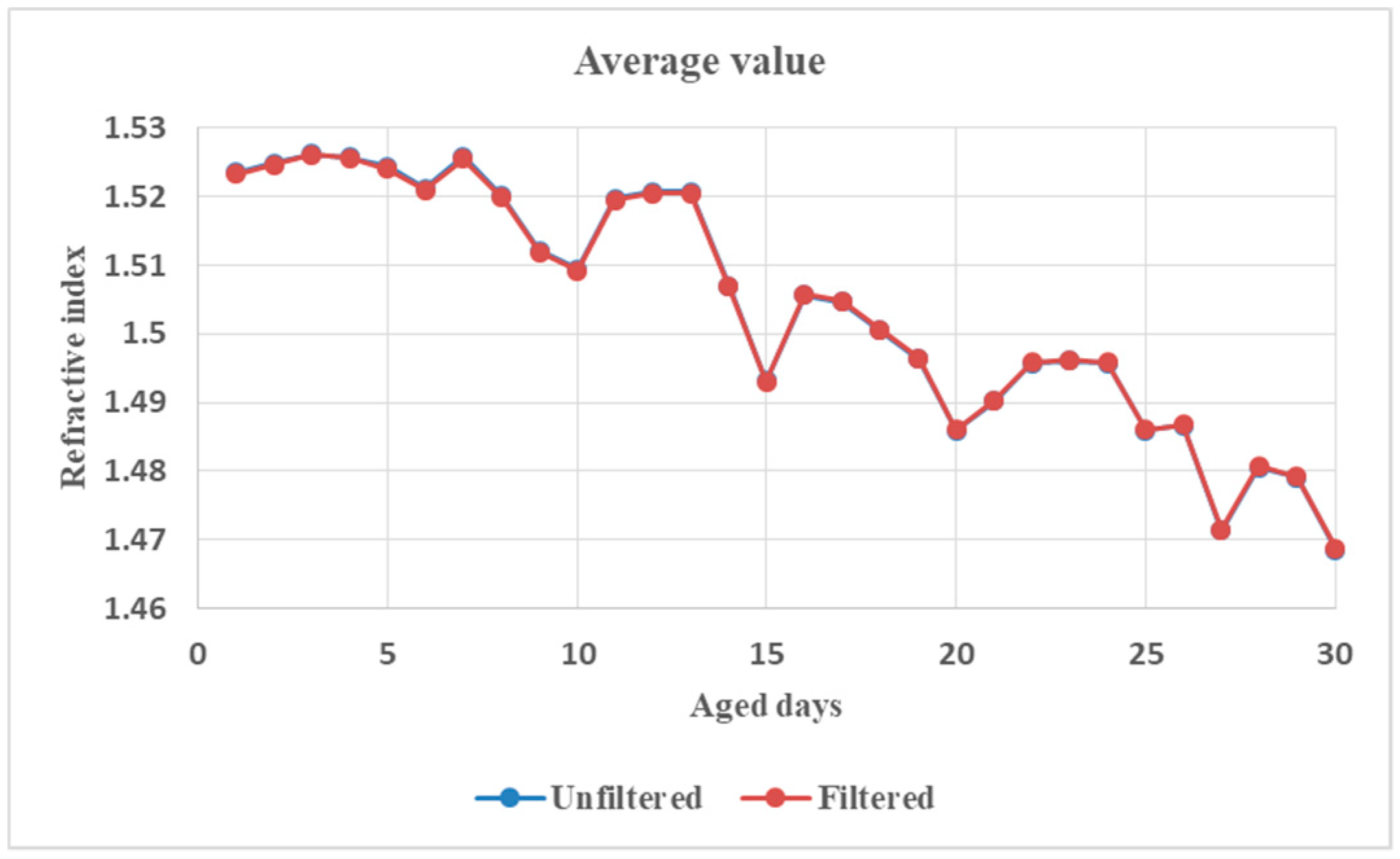

Keywords: polypropylene; ultraviolet aging; THz dielectric spectroscopy polypropylene; ultraviolet aging; THz dielectric spectroscopy
MDPI and ACS Style

Chang, T.; Zhang, X.; Cui, H.-L. Terahertz Dielectric Spectroscopic Analysis of Polypropylene Aging Caused by Exposure to Ultraviolet Radiation. Polymers 2019, 11, 2001.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
