Next Article in Journal
Synergistic Effects of Two-Dimensional MXene and Ammonium Polyphosphate on Enhancing the Fire Safety of Polyvinyl Alcohol Composite Aerogels
Previous Article in Journal
Role of Charge Regulation and Fluctuations in the Conformational and Mechanical Properties of Weak Flexible Polyelectrolytes
Previous Article in Special Issue
Injection Molding of Highly Filled Polypropylene-based Biocomposites. Buckwheat Husk and Wood Flour Filler: A Comparison of Agricultural and Wood Industry Waste Utilization
Open AccessArticle

Glycerolysis of Poly(lactic acid) as a Way to Extend the “Life Cycle” of This Material

Department of Chemistry and Technology of Polyurethanes, Institute of Materials Engineering, Kazimierz, Wielki University, J. K. Chodkiewicza Street 30, 85-064 Bydgoszcz, Poland
Authors to whom correspondence should be addressed.
Polymers 2019, 11(12), 1963;
Received: 5 November 2019 / Revised: 22 November 2019 / Accepted: 28 November 2019 / Published: 29 November 2019

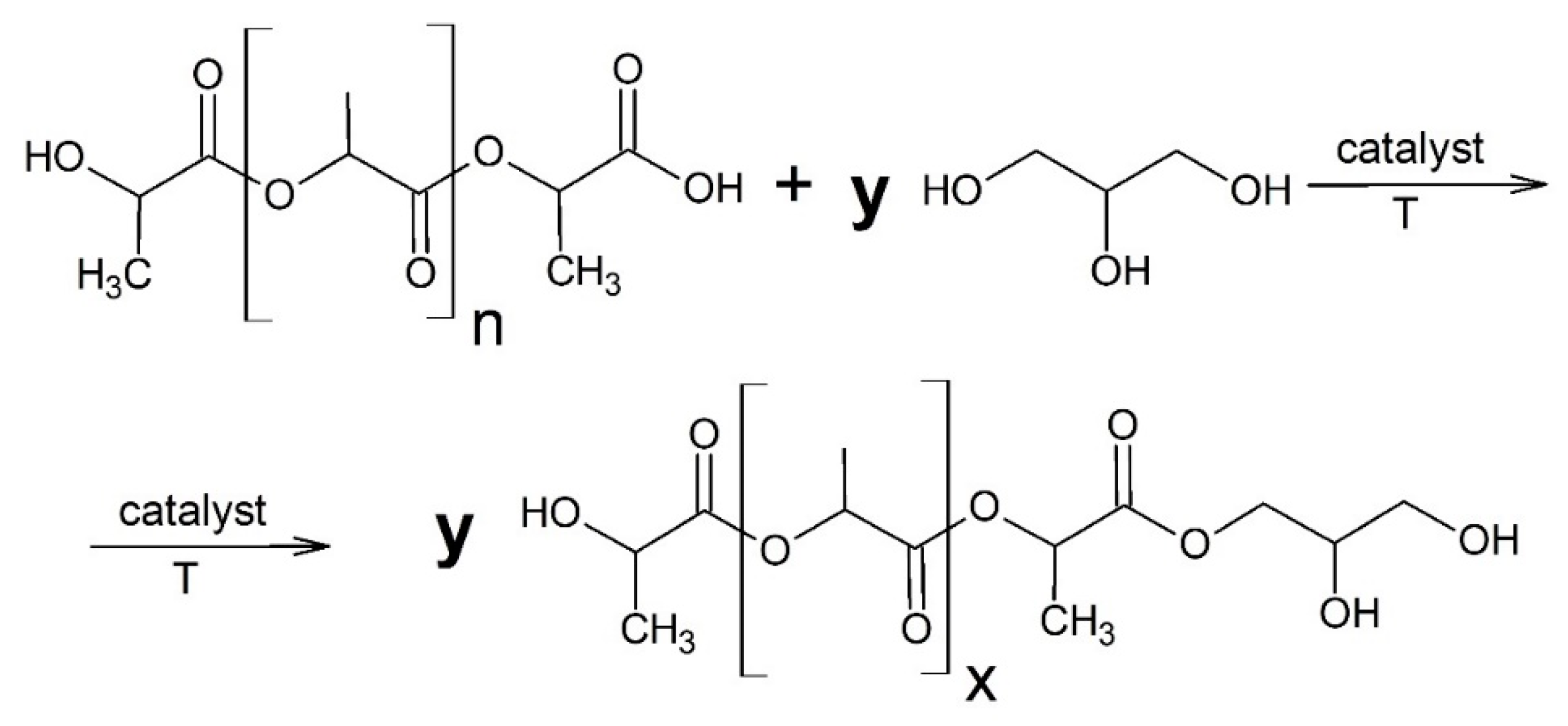

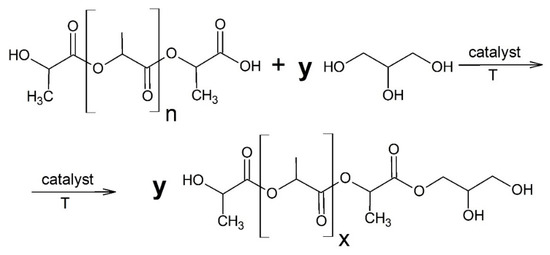

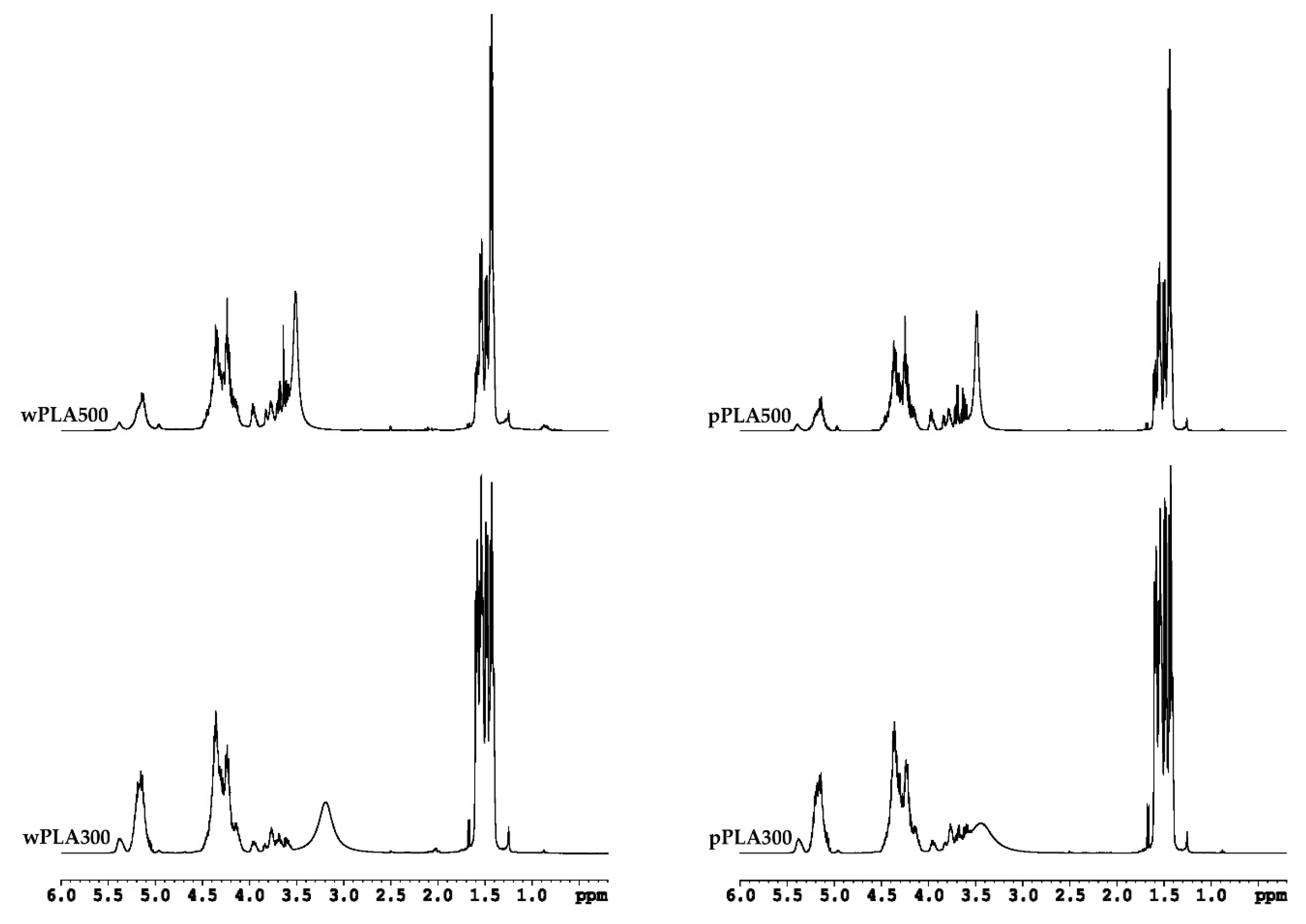

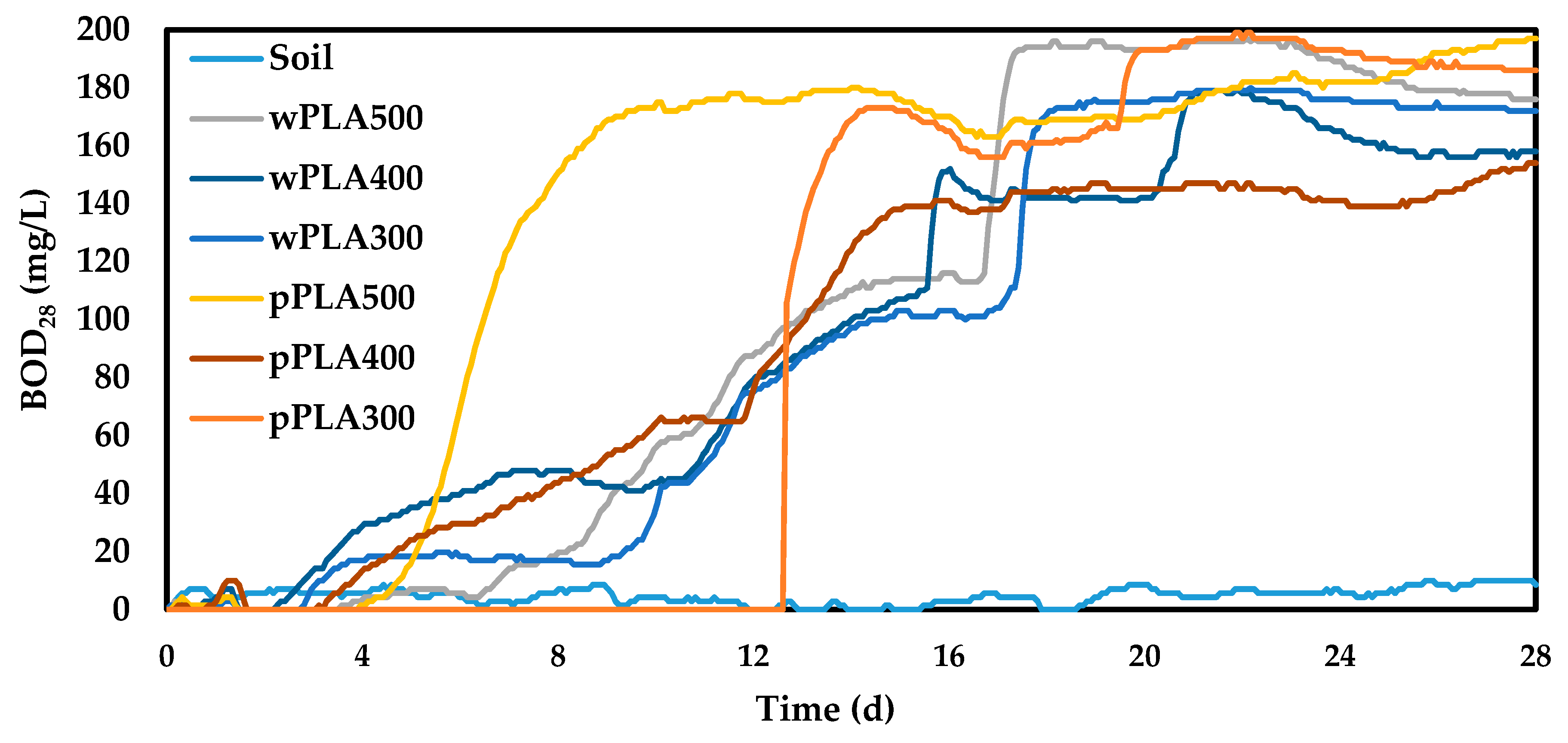

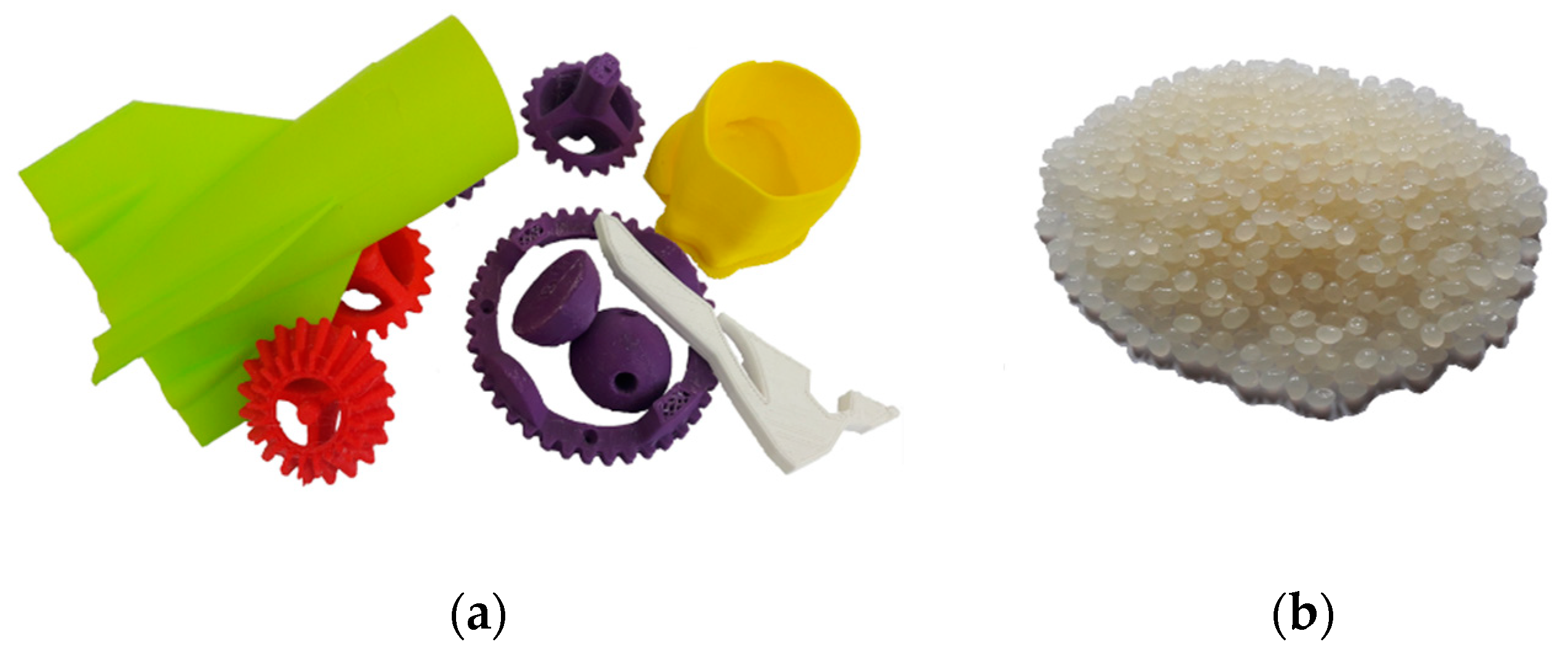

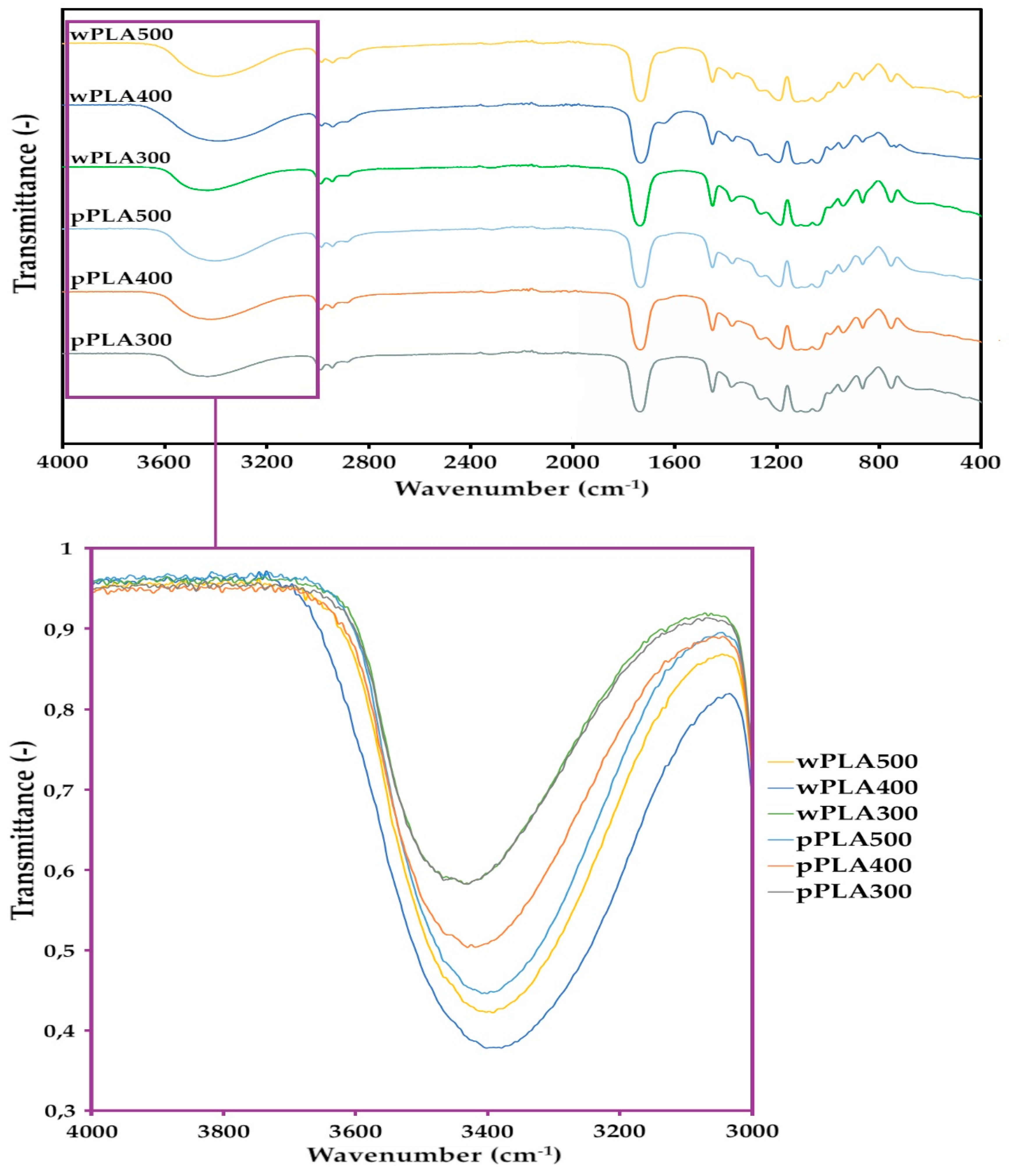

The article concerns the use of glycerolysis reaction as an alternative method of processing post-production and post-consumer waste from poly(lactic acid) (PLA). Management of waste is a very important issue from an environmental protection and economic point of view. Extending the “life cycle” of PLA is extremely important because it allows to make the most of this material. It also limits economic losses resulting from its disposal in the biodegradation process at the same time. This paper presents a method of glycerolysis of poly(lactic acid) waste using various amounts of anhydrous glycerol (mass ratio from 0.3 to 0.5 parts by weight of glycerol per 1.0 part by weight of PLA). This process was also carried out for pure, unmodified PLA Ingeo® (from NatureWorks) to compare the obtained results. The six liquid oligomeric polyhydric alcohols were obtained as a result of the synthesis. Then, they were subjected to physicochemical tests such as determination of color, smell, density, viscosity, and pH. In addition, the obtained raw materials were subjected to analytical tests such as determination of the hydroxyl value, acid value, water content, and elemental composition. The average molecular weights and dispersity were also tested by gel permeation chromatography (GPC). The assumed chemical structure of the obtained compounds was confirmed by spectroscopic methods such as FTIR, 1H NMR, 13C NMR. Glycerolysis products were also subjected to differential scanning calorimetry (DSC) to determine thermal parameters. The obtained research results have allowed the precise characterization of newly obtained products and determination of their suitability, e.g., for the synthesis of polyurethane (PUR) materials.
Keywords: poly(lactic acid); PLA; glycerolysis; waste; polyol poly(lactic acid); PLA; glycerolysis; waste; polyol

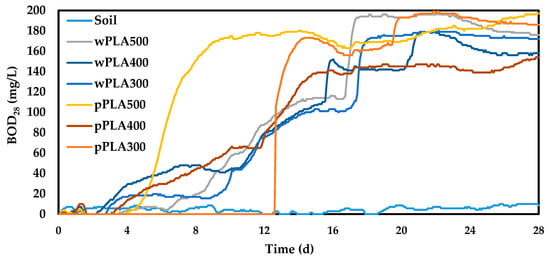

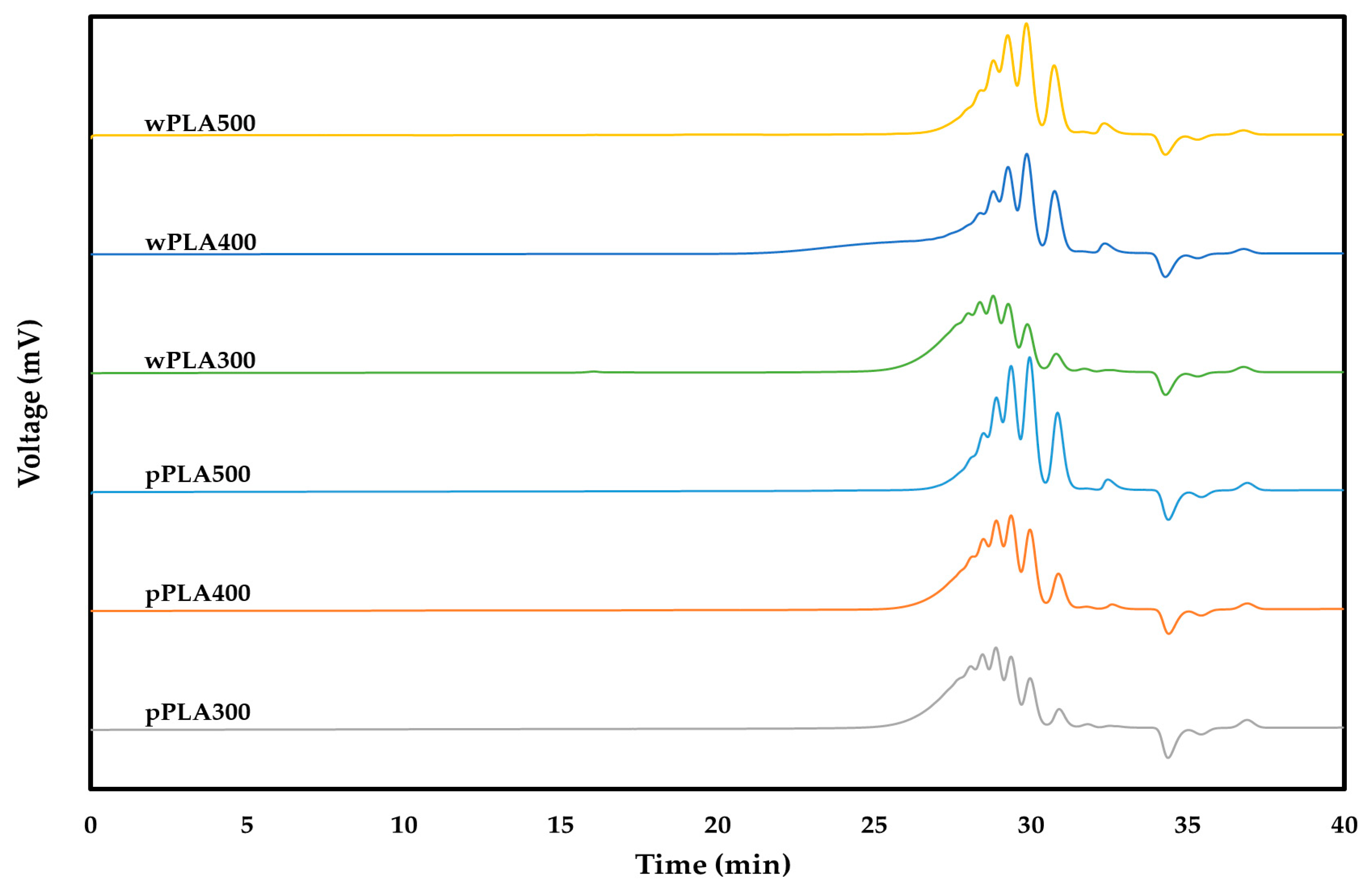

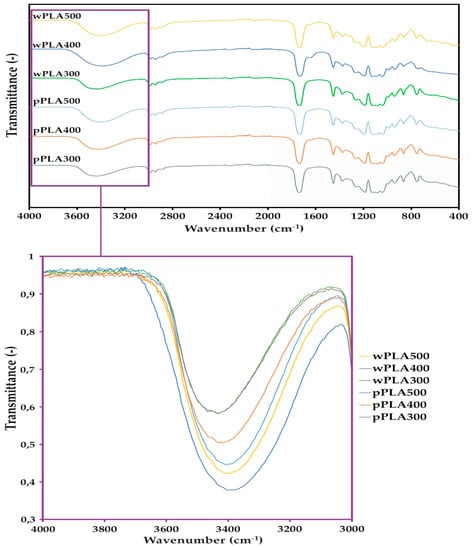

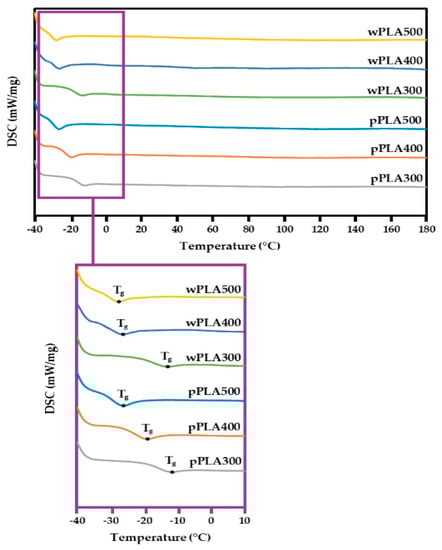

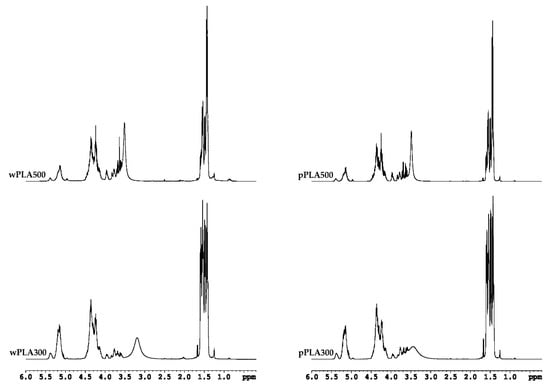

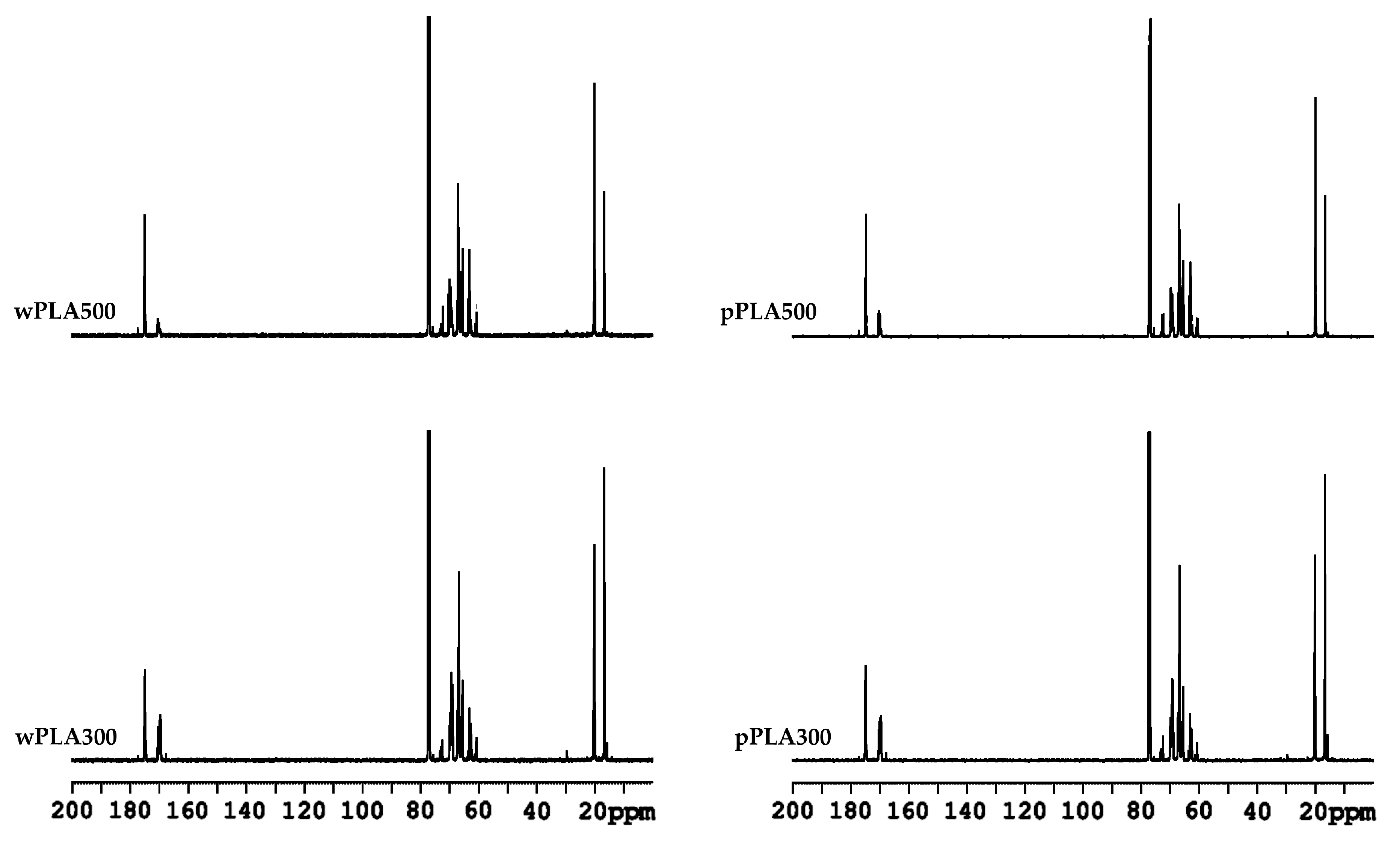

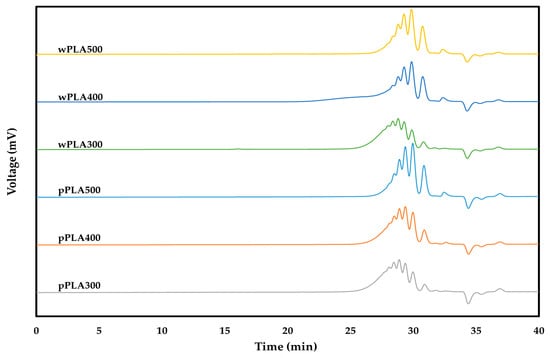

Show Figures

Graphical abstract

MDPI and ACS Style

Borowicz, M.; Paciorek-Sadowska, J.; Isbrandt, M.; Grzybowski, Ł.; Czupryński, B. Glycerolysis of Poly(lactic acid) as a Way to Extend the “Life Cycle” of This Material. Polymers 2019, 11, 1963.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
