Next Article in Journal
Thiol–Ene Photopolymerization: Scaling Law and Analytical Formulas for Conversion Based on Kinetic Rate and Thiol–Ene Molar Ratio
Previous Article in Journal
Anisotropic Thermally Conductive Perfluoroalkoxy Composite with Low Dielectric Constant Fabricated by Aligning Boron Nitride Nanosheets via Hot Pressing

Polymers 2019, 11(10), 1639;

Facile Strategy of Improving Interfacial Strength of Silicone Resin Composites Through Self-Polymerized Polydopamine Followed via the Sol-Gel Growing of Silica Nanoparticles onto Carbon Fiber
School of Chemistry and Materials Science, Ludong University, Yantai 264025, China
Correspondence: [email protected]; Tel.: +86-0535-669-7921
Yawen Zheng and Xiaoyun Wang have contributed equally to this work.
Received: 26 September 2019 / Accepted: 9 October 2019 / Published: 10 October 2019


In the present research, to enhance interfacial wettability and adhesion between carbon fibers (CFs) and matrix resin, hydrophilic silica nanoparticles (SiO2) were utilized to graft the surface of CFs. Polydopamine (PDA) as a “bio-glue” was architecturally built between SiO2 and CFs to obtain a strong adhesion strength and homogenous SiO2 distribution onto the surface of CFs. The facile modification strategy was designed by self-polymerization of dopamine followed by the hydrolysis of tetraethoxysilane (TEOS) onto carbon fibers. Surface microstructures and interfacial properties of CFs, before and after modification, were systematically investigated. The tight and homogeneous coverage of SiO2 layers onto the CF surface, with the assistance of a PDA layer by self-polymerization of dopamine, significantly enhanced fiber surface roughness and wettability, resulting in an obvious improvement of mechanical interlocking and interfacial interactions between CFs and matrix resin. The interlaminar shear strength (ILSS) and the interfacial shear strength (IFSS) of CF/PDA/SiO2 reinforced composites exhibited 57.28% and 41.84% enhancements compared with those of untreated composites. In addition, impact strength and the hydrothermal aging resistance of the resulting composites showed great improvements after modification. The possible reinforcing mechanisms during the modification process have been discussed. This novel strategy of developed SiO2-modified CFs has interesting potential for interfacial improvements for advanced polymer composites.
carbon fibers; surface modification; silica nanoparticles; interface; polymer-matrix composites

1. Introduction

Carbon fiber (CF) reinforced polymer composites with strong strength, light weight, and environmental stability have been widely used as structural materials in aerospace, automotive, and defense industries [1,2,3,4,5]. However, the lack of polar groups and the smooth graphitic fiber surface result in a poor-quality interface between CFs and matrix resin [6,7], limiting wide-ranging application of the composites. The mechanical properties of composites mainly depend on the interface between fibers and the matrix [8,9], and interfacial properties are strongly dependent on time, temperature, and fiber orientation. Zhandarov et al. [10] reported a valuable strategy for estimating local fiber/matrix interfacial strength parameters from micro-bond test data. Almeida Jr. et al. [11] studied the effects of fiber orientation on interlaminar and in-plane shear properties of glass fiber/epoxy composites using four different shear test methods; they also investigated the interfacial and creep characteristics of carbon fiber-reinforced epoxy laminates with different fiber orientations [12]. There are several mechanisms for fiber-matrix bonding, like chemical bonding, mechanical interlocking, physical adsorption, and interfacial wettability, which can affect interfacial adhesion between CFs and the matrix. Therefore, to obtain an optimized engineered interface for advanced polymer composites, many active works have been proposed, such as physical sizing or coating [13,14], chemical modification [15,16], oxidation or plasma treatment [17,18], and high energy irradiation [19].
In recent studies, CFs modified using nanoscale materials for notably improving interfacial wettability and adhesion with matrix resin have attracted increasing attention and have become more popular [20,21,22,23]. Noteworthy, nano-sized SiO2 with the unique spherical structure and high physicochemical properties has been smartly utilized for surface modification of CFs with the aim of constructing multi-scale and hierarchical structures [24,25,26]. Typically, the uniform dispersion and tight binding of nano-sized SiO2 onto CF surfaces has been considered as a vital factor for obtaining a high interfacial strength as well as their wide application. Therefore, several studies have been reported that firmly introduce SiO2 onto the fiber surface by chemical grafting to change fiber surface structures and composite interfacial properties [27,28]. However, these procedures either involve strong acids, toxic polar organic reagents, high energy consumption, or multistep manipulation, which easily form many defects and weak spots and thus damage a fiber′s intrinsic tensile strength. In addition, they cause energy consumption and chemical pollution, which inevitably impede environmental and sustainable development. Hence, it is imperative to explore a powerful and facile approach to disperse SiO2 well onto the surface of CFs and obtain a strong interfacial adhesion between CFs and SiO2 for advanced polymer composites.
Recently, dopamine (DA) with abundant catechol groups and ethylamino groups could self-polymerize under mild conditions and form polydopamine (PDA) layer on almost all types of substrates [29,30]. Moreover, based on the secondary reactivity of PDA, PDA could provide a versatile and robust platform for further grafting. Zhang et al. [31] grafted polyamide (PA) thin-film composite (TFC) membranes using TiO2 nanoparticles with the help of a PDA coating for multifunctional applications, and found that the PDA can readily bind TiO2 to membranes. Based on the nature and ability of PDA, modifying a CF′s surface with dopamine chemistry to enhance the interfacial strength of their composites has been employed [32,33]. However, studies on SiO2 grown on the surface of CFs pre-modified by a PDA coating and investigating their interfacial reinforcing mechanisms for advanced composites have not been reported.
In the present study, we reported a mild and effective method to construct a multifunctional SiO2 layer on a fiber surface with the aid of a PDA coating to simultaneously improve interfacial strength and environmental stability of composites. Biomimic PDA, with providing enough binding force for further SiO2 grafting, was firstly coated onto the CFs surface by self-polymerization. Then, SiO2 nanoparticles were uniformly deposited onto the surface of CFs via the hydrolysis of tetraethoxysilane (TEOS). During the facile procedure, no harsh conditions and toxic solvents were needed. Modified CFs have been physico-chemically characterized in more detail using scanning electron microscopy (SEM), X-ray photoelectron spectroscopy (XPS), and dynamic contact angle analysis (DCA). The interfacial properties (ILSS and IFSS), impact strength and hydrothermal aging resistance of untreated and treated composites have been thoroughly studied. In addition, interfacial reinforcing mechanisms have been also examined.

2. Materials and Methods

2.1. Materials

Carbon fibers with a monofilament diameter of 7 μm were purchased from Toray Industries, Inc. (Tokyo, Japan) The fiber sizing agents were removed by Soxhlet extraction with acetone before using, donated as untreated CF. Tris(hydroxyl-methyl)aminomethane (Tris) and dopamine hydrochloride were received from Aladdin (Shanghai, China) and Sigma-Aldrich (Shanghai, China), respectively. Methylphenylsilicone resin (MPSR) was provided by ShangHai Chemicals Co. (Shanghai, China) TEOS, ammonia, acetone, hydrochloric acid (HCl), and ethanol were purchased from Tianjin Bodi Organic Chemicals Co. Ltd. (Tianjin, China).

2.2. Preparation of PDA/SiO2 Coated CFs (CF/PDA/SiO2)

Modifying the CF surface by self-polymerization of dopamine followed by hydrolysis of TEOS was carried out using the following procedures. Untreated CF was directly immersed in an aqueous dopamine solution, which was prepared by dissolving dopamine in Tris-HCl solution (pH = 8.5), and allowed to react at 25 °C for 6 h to obtain polydopamine-coated CFs by self-polymerization of dopamine (denoted as CF/PDA). After being washed with deionized water to thoroughly remove unreacted dopamine, CF/PDA was immersed into an alcohol–water mixed solution of 82 mL ethanol and 3.4 mL water by stirring for 10 min. Afterwards, 5.6 mL ammonia solution was used as a catalyst and 0.05 mol/L TEOS were quickly added into the solution and allowed to react at 25 °C for 15 h. After the reaction, the modified fibers, which were donated as CF/PDA/SiO2, were washed repeatedly with deionized water and dried. Figure 1 shows a schematic outlining of the PDA coating, followed by the growth of SiO2 onto the fiber surface by TEOS hydrolysis.

2.3. Preparation of CF/MPSR Composites

MPSR composites reinforced by untreated and modified CFs were prepared by using the compression molding method according to our former work [4]. First, a metal frame wrapped around the CFs dissolved in MPSR solution to make the resin fully saturate into CFs, and then the unidirectional fiber prepreg was obtained. Next, the prepreg was placed into the given mold and cured using a hot press machine under the controlled conditions described in a previous paper [16]. The fiber contents in composite laminates were nearly in the range of 60% to 70%, and the laminate’s dimensions of about 2 mm × 20 mm × 6 mm were used for property testing.

2.4. Characterization Techniques

X-ray photoelectron spectroscopy (XPS, ESCALAB 220i-XL, Thermo VG Scientific, UK) was performed to study the surface chemical composition and functional groups of CFs surface with and without modifications. XPS measurement was carried out using a monochromatic Al Ka source of 1486.6 eV at a base pressure of 2 × 10−9 mbar. The XPS peak version 4.1 program was used for data analysis.
Scanning electron microscopy (SEM, Quanta 200FEG, Hitachi Instrument Inc., Japan) was utilized to observe surface morphologies of CFs before and after grafting and the fractured microstructures of different composites. All fiber and composite samples needed to be sputtered with gold before SEM analysis to increase sample conductivity to obtain stable and clear images.
A dynamic contact angle meter (DCAT21, Data Physics Instruments, Stuttgart, Germany) was used to examine dynamic contact angles for evaluating fiber wettability and surface energies. It was recorded by immersing CFs into two testing solutions (deionized water and diiodomethane), and followed by the calculation of fiber surface free energy, and its dispersive and polar components using the obtained contact angles and the known surface energies of testing liquids.
The ILSS values of CF/MPSR composites were tested on a universal testing machine (WD-1, Changchun, China) using a three-point short-beam bending testing mode.
Single filament pull-out tests (FA620, Tokyo, Japan) were used to examine interfacial adhesion between CFs and MPSR by pulling a single fiber out from the cured resin droplets. A carbon fiber monofilament was fixed on a metal holder with adhesive tape. Microdroplets were prepared by dropping small resin droplets with a pin and followed by the controlled curing procedure.
Impact toughness of different composites were studied via a drop weight impact test system (9250HV, Instron, Boston, Massachusetts, USA). The impact span, drop weight of the wedge-shaped impactor, and velocity were 40 mm, 3 kg and 1 m s−1, respectively.
To investigate effects of surface modification onto composites hydrothermal aging resistance, interfacial strength of composites which immersed in the boiling water for 48 h were characterized, and traced the changes in ILSS values compared to ILSS results without aging.

3. Results

3.1. Surface Composition and Microstructure of CFs

Surface elements and groups of different CFs were analyzed using XPS. Figure 2 shows the wide-scan and high-resolution XPS spectra of untreated and modified CFs. According to the wide spectra results (Figure 2a), there are C1s and O1s peaks in the wide spectra of untreated CF. After the introduced PDA coating, CF/PDA displays the new peak of N1s, indicating the successful deposition of the PDA layer onto the untreated CF surface. After the hydrolysis of TEOS onto CF/PDA surface, the appearance of S2p peak implies that SiO2 nanoparticles have been bound onto the surface of CF/PDA. The binding characterizations for different CFs have also been determined by the high-resolution XPS C1s spectra, as shown in Figure 2b–d. For untreated CF (Figure 2b), there were five peaks (C=C (284.5 eV), C–C (285.2 eV), C–O (286.6 eV), C=O (287.8 eV), and COOH (288.9 eV) onto the fiber XPS spectrum [34]. Compared to untreated CF, the C–N peaks (285.7 eV) appeared in CF/PDA, and the contents of C–O and C=O peaks increased obviously, owing to the formed PDA coating by the self-polymerization of DA. CF/PDA/SiO2 presents the decrease of C–N contents and the increase of C–O contents attributed to the sol-gel growing of SiO2 nanoparticles onto CFs.
Surface microstructures of untreated and modified CFs are presented in Figure 3. As is known, the surface of untreated CF is typically smooth and neat [7]. After the self-polymerization of PDA, the surface of CF/PDA (Figure 3a,b) becomes rougher compared to that of untreated CF, due to the coverage of PDA layer onto the fiber surface. The formed PDA acts as, not only the active platform for SiO2 grafting, but also as a shielding layer for hydrothermal aging. This surface morphology is analogous to that of fibers grafted with PDA coating [33]. As for CF/PDA/SiO2 (Figure 3c,d), many nodule-like structures are observed on the fiber surface owing to the hydrolysis of TEOS in situ and the introduction of SiO2 nanoparticles. The PDA/SiO2 layer not only augments the surface roughness and improves the capacity of mechanical interlocking, but also creates many curing reactive areas to introduce chemical bonding at the interface between CFs and matrix resin, with the aim of achieving outstanding interfacial properties.

3.2. Surface Wettability Analysis of CFs

High fiber surface energy is critical to enhance the specific activity and wettability with matrix resin, and results in a good quality of fiber–matrix interface. Hence, dynamic contact angles and surface energy have been carried out to evaluate the relative wettability of different CFs with matrix resin. The dynamic contact angles and surface energy of untreated and modified CFs are summarized in Table 1. Based on the non-ideal graphitic basal planes on the surface of untreated CF, θ of untreated CF in water (θwater) and in diiodomethane (θdiiodomethane) are 78.50° and 58.91°, respectively. It is well known that the smaller contact angle indicates the better wettability of CFs. Hence, Surface energy of untreated CF is only 35.86 mN·m−1, with the dispersion component of 29.20 mN·m−1 and the polar component of 6.66 mN·m−1. After being introduced by PDA coating, θwater of CF/PDA decreases from 78.50° to 51.36°, whereas θdiiodomethane decreases from 58.91° to 49.72°; the surface energy of CF/PDA increases up to 54.17 mN·m−1. The phenomenon also confirms that the PDA layer containing hydrophilic groups has been successfully deposited onto the surface of CFs. After SiO2 grafting, θwater and θdiiodomethane decrease sharply to 44.32° and 43.26°, the main contributors being the improved polar groups and surface roughness. Compared to those of untreated CF and CF/PDA, the surface energies of CF/PDA/SiO2 increases to 60.18 mN·m−1 by 67.82% and 11.10%, respectively. As a result, the obvious increase of surface energy can facilitate the resin impregnation and enhance curing reactivity and wettability between CFs and MPSR aiming to improve composites interfacial strength.

3.3. Interfacial Property Testing of Composites

A good quality of fiber-matrix interface is a key factor to increase the integrative mechanical properties of resultant composites. The ILSS and IFSS results of MPSR composites reinforced by different CFs are presented in Figure 4. ILSS and IFSS values of untreated CF composites are only 29.47 and 40.37 MPa, respectively. As for CF/PDA composites, they reach 40.23 MPa with a 36.51% amplification for ILSS and 49.87 MPa improved by 23.53% for IFSS as compared to those of untreated CF composites. This may be due to the improved wettability and interfacial interaction between CFs and matrix resin by introducing many polar groups onto the fiber surface after PDA grafting. As for CF/PDA/SiO2 composites, the recorded ILSS value is 46.35 MPa (57.28% amplification to that of untreated composites), whereas the recorded IFSS value is 57.26 MPa (42.19% amplification to that of untreated composites). Compared to CF/PDA composites, PDA/SiO2 deposition combines more active groups and bigger surface roughness, and exhibit a synergistic effect, leading to higher amplifications in ILSS and IFSS evaluation of the resulting composites.
In general, the reinforcing mechanisms of interfacial strength may be due to the introduced mechanical interlocking, the increased surface wettability, as well as the formed chemical bonding at the fiber–matrix interface. After being introduced to PDA/SiO2 layers, polar hydroxy groups can enhance fiber surface free energy, and make the surface of CFs easier to be wetted with matrix resin, which maximizes the degree of molecular contact. Moreover, the polar groups as the curing agents can react with matrix resin to form chemical bonding at the interface. In addition, PDA/SiO2 deposition layers onto the fiber surface significantly enhance fiber surface roughness, especially on a nano-scale, and thus increase mechanical interlocking between CFs and matrix resin aiming to improve composite interfacial strength.
The above analysis of the results is also confirmed by SEM images of the composites fracture surfaces after the ILSS test, as shown in Figure 5. As for untreated CF composites (Figure 5a), there are many pulled-out fibers and holes observed on the fracture surfaces of composites, confirming the weak interfacial adhesion between untreated CF and MPSR. After the formation of PDA coating (Figure 5b), many resin fragments emerge on the fracture surfaces of CF/PDA, and simultaneously shows benign adhesion between CFs and MPSR. However, the existence of a few holes, slight breakage of CFs and a few pulled-out CFs for PDA modified composites. As for CF/PDA/SiO2 composites (Figure 5c), with the lack of interface debonding, fracture step, and pulled-out fibers, a favorable and desired fracture surface has been observed owing to the formation of a good PDA/SiO2 interface, which can increase the fiber–matrix interface combination and realize the applied load transfer effectively and high-efficient load implementation by PDA/SiO2 modification.
Figure 6 illustrates the possible mechanism of binding the SiO2 layer onto the PDA pre-modified CFs surface and the interfacial reaction of CF/PDA/SiO2 composites. When adding CF/PDA into the solution of TEOS, the catechol groups of the PDA layer attract the hydrolyzed SiO2 in-situ in the solution, and the good coordination bonds can be formed between SiO2 nanoparticles and CF/PDA. Many key factors, like chemical bonding, mechanical interlocking, and interfacial wettability, affect interfacial adhesion between CFs and matrix. Generally, the formed chemical bonding at the interface contributes to the largest share of interface properties of composites. The presence of hydroxyl groups of CF/PDA/SiO2 has the high reaction activity with MPSR, creating chemical bonding at the interface of composites. The homogenous distribution and the tight binding of the SiO2 coating onto the fiber surface and the possible interfacial reaction may be crucial factors for better interfacial improvement.

3.4. Impact Property Testing of Composites

The impact property testing results of different CFs reinforced MPSR composites are shown in Figure 7. Untreated CF composites have the low impact strength of 58.46 kJ/m2. After being introduced via PDA coating, impact strength of CF/PDA composites increases obviously, with the impact toughness of 69.74 kJ/m2 (19.30% amplification to that of untreated composites). For CF/PDA/SiO2 composites, the impact strength of the resulting composites enhances sharply to 80.2 kJ/m2, increased by 37.19% compared with that of untreated composites and 15.00% compared with that of CF/PDA composites. Such an improvement in impact toughness can be related to the formation of the PDA/SiO2 stratified interface, which serves as a shielding layer to prevent the crack tips from directly contacting the surface of CFs and cause the crack path to deviate away from the fiber surface to the interface region of composites. Moreover, the pull-out or rupture of tightly binding SiO2 nanoparticles at the interface can consume a great deal of additional energy, which contributes to the increase of the composites impact strength. The schematic illustration of the composites interface is shown in Figure 7a,b.

3.5. Hydrothermal Aging Resistance Testing of Composites

Carbon fiber reinforced polymer composites as high-performance engineering materials are widely used in extreme weathering environments with high humidity and temperatures. CFs composites can absorb moisture, which severely affects their long-term durability and overall performance. Hence, higher requirements on hydrothermal aging resistance have been put forward. In the work, the modification strategy is also expected to improve their hydrothermal aging resistance. ILSS values with and without hydrothermal aging of untreated CF, CF/PDA, and CF/PDA/SiO2 composites are presented in Figure 8. ILSS values of untreated CF composites decrease sharply from 29.47 MPa without hydrothermal aging to 20.52 MPa after aging, with ILSS retention ratios of 69.63%. In fact, CFs virtually absorb no moisture, and absorption is largely matrix-dominated. Water uptake is mainly affected via the hydrophilic characters of matrix resin and fiber reinforcement, interfacial adhesion between the reinforcement and matrix resin, microcracks as well as voids [35]. Moisture permeation is dominated by diffusion, capillarity, and/or transport by microcracks. Based on the weak quality of the interface between untreated CF and MPSR, defects, voids as well as microcracks are easily formed under the hydrothermal aging condition, and many water molecules penetrate into the interface of composites with the aid of these microcracks or voids, leading to interfacial debonding and matrix cracking. Hence, the aging treatment deteriorates matrix resin and fiber–matrix interfaces, reducing the overall interfacial strength of the resulting composites. After 48 h of hydrothermal aging, the ILSS retention ratio of CF/PDA composites is 76.26%, which declines much slower compared to that of untreated CF composites. However, the ILSS value of CF/PDA/SiO2 composites after aging is 42.67 MPa with a slight decrease of 7.94%. The tested samples failed via delamination′s at the specimen mid-plane. Moisture penetration by the carbon fiber/matrix resin surface results in interfacial debonding and matrix plasticization. The formed good compaction of hierarchical PDA/SiO2 layers used as the buffer layers helps to inhibit the formation of microcracks and voids at the interface, and thus prevent water molecules from penetrating and damaging the interface and matrix resin effectively. Additionally, the introduced Si–O–Si bonds are to be destroyed by needing more energy and a long period of time. Hence, CF/PDA/SiO2 composites show the best hydrothermal aging resistance in the three types of fibers. The aging treatment has a strong effect on matrix-dominated properties due to the degradation of matrix resin and interface, resulting in a subsequent decrease in interfacial strength of composites inevitably. An ILSS retention ratio of CF/PDA/SiO2 composites is relatively high compared to other types of fiber’s composites, owing to the introduced hierarchical PDA/SiO2 layers.

4. Conclusions

In summary, a facile and effective strategy to modify CFs by self-polymerized polydopamine and subsequent hydrolysis of tetraethoxysilane has been reported to change interfacial microstructure and properties of MPSR composites. Characterization results indicated that SiO2 has been successfully deposited onto the pre-modified CFs surface. The hierarchical PDA/SiO2 layer led to an increased surface roughness for mechanical interlocking and surface polarity for interfacial wettability and reaction with a greater degree to that of CF/PDA as compared to untreated CF. As a result, CF/PDA/SiO2 composites have the highest enhancement of interfacial strength and impact toughness, affording the ILSS value (46.35 MPa), IFSS value (57.26 MPa) as well as impact toughness value (80.2 kJ/m2). In addition, the formation of PDA/SiO2 interface and the introduction of Si–O–Si bonds could effectively protect the interface from penetration of water molecules, leading to the best hydrothermal aging resistance among the three studied fibers.

Author Contributions

Y.Z. and X.W. performed the experiments and the data analyses and wrote the manuscript. G.W. contributed to the conception of the study and revised the manuscript. All authors reviewed the manuscript.


This work was financially supported by Natural Science Foundation of China (No. 21806070) and Natural Science Foundation of Shandong Province, China (No. ZR2018PB017).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Li, N.; Yang, X.; Bao, F.; Pan, Y.; Wang, C.; Chen, B. Improved Mechanical Properties of Copoly(Phthalazinone Ether Sulphone)s Composites Reinforced by Multiscale Carbon Fibre/Graphene Oxide Reinforcements: A Step Closer to Industrial Production. Polymers 2019, 11, 237. [Google Scholar] [CrossRef] [PubMed]
  2. Ma, L.; Li, N.; Wu, G.; Song, G.; Li, X.; Han, P. Interfacial enhancement of carbon fiber composites by growing TiO2 nanowires onto amine-based functionalized carbon fiber surface in supercritical water. Appl. Surf. Sci. 2018, 433, 560–567. [Google Scholar] [CrossRef]
  3. Peng, Q.; He, X.; Li, Y.; Wang, C.; Wang, R.; Hu, P. Chemically and uniformly grafting carbon nanotubes onto carbon fibers by poly(amidoamine) for enhancing interfacial strength in carbon fiber composites. J. Mater. Chem. 2012, 22, 5928–5931. [Google Scholar] [CrossRef]
  4. Wu, G.; Chen, L.; Liu, L. Effects of silanization and silica enrichment of carbon fibers on interfacial properties of methylphenylsilicone resin composites. Compos. Part A 2017, 98, 159–165. [Google Scholar] [CrossRef]
  5. Zhang, X.; Fan, X.; Yan, C.; Li, H.; Zhu, Y.; Li, X. Interfacial microstructure and properties of carbon fiber composites modified with graphene oxide. ACS Appl. Mater. Interface 2012, 4, 1543–1552. [Google Scholar] [CrossRef] [PubMed]
  6. Jiang, J.; Xu, C.; Su, Y.; Guo, Q.; Liu, F.; Deng, C.; Yao, X.; Zhou, L. Influence of Carbon Nanotube Coatings on Carbon Fiber by Ultrasonically Assisted Electrophoretic Deposition on Its Composite Interfacial Property. Polymers 2016, 8, 302. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, C.; Wu, G.; Jiang, H. Tuning interfacial strength of silicone resin composites by varying the grafting density of octamaleamic acid-POSS modified onto carbon fiber. Compos. Part A 2018, 109, 555–563. [Google Scholar] [CrossRef]
  8. Gao, B.; Zhang, J.; Hao, Z.; Huo, L.; Zhang, R.; Shao, L. In-situ modification of carbon fibers with hyperbranched polyglycerol via anionic ring-opening polymerization for use in high-performance composites. Carbon 2017, 123, 548–557. [Google Scholar] [CrossRef]
  9. Zhang, C.; Wu, G. Interfacial strength and mechanisms of silicone resin composites reinforced with 2 different polyhedral oligomeric silsesquioxanes/carbon fiber hybrids. Polym. Advan. Technol. 2018, 29, 2373–2380. [Google Scholar] [CrossRef]
  10. Almeida, J.H.S., Jr.; Angrizani, C.C.; Botelho, E.C.; Amico, S.C. Effect of fiber orientation on the shear behavior of glass fiber/epoxy composites. Mater. Des. 2015, 65, 789–795. [Google Scholar] [CrossRef]
  11. Zhandarov, S.; Mäder, E. Estimation of the local interfacial strength parameters of carbon nanotube fibers in an epoxy matrix from a microbond test data. Carbon 2015, 86, 54–57. [Google Scholar] [CrossRef]
  12. Almeida, J.H.S., Jr.; Ornaghi, H.L.; Lorandi, N.P.; Bregolin, B.P.; Amico, S.C. Creep and interfacial behavior of carbon fiber reinforced epoxy filament wound laminates. Polym. Compos. 2018, 39, E2199–E2206. [Google Scholar] [CrossRef]
  13. Shazed, M.A.; Suraya, A.R.; Rahmanian, S.; Mohd Salleh, M.A. Effect of fibre coating and geometry on the tensile properties of hybrid carbon nanotube coated carbon fibre reinforced composite. Mater. Des. 2014, 54, 660–669. [Google Scholar] [CrossRef]
  14. Ma, L.; Zhu, Y.; Feng, P.; Song, G.; Huang, Y.; Liu, H. Reinforcing carbon fiber epoxy composites with triazine derivatives functionalized graphene oxide modified sizing agent. Compos. Part B Eng. 2019, 176, 107078. [Google Scholar] [CrossRef]
  15. Xiong, L.; Zhan, F.; Liang, H.; Chen, L.; Lan, D. Chemical grafting of nano-TiO2 onto carbon fiber via thiol–ene click chemistry and its effect on the interfacial and mechanical properties of carbon fiber/epoxy composites. J. Mater. Sci. 2017, 53, 2594–2603. [Google Scholar] [CrossRef]
  16. Zhang, X.; Wu, G. Grafting Halloysite Nanotubes with Amino or Carboxyl Groups onto Carbon Fiber Surface for Excellent Interfacial Properties of Silicone Resin Composites. Polymers 2018, 10, 1171. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, J.; Tian, Y.; Chen, Y.; Liang, J.; Zhang, L.; Fong, H. A surface treatment technique of electrochemical oxidation to simultaneously improve the interfacial bonding strength and the tensile strength of PAN-based carbon fibers. Mater. Chem. Phys. 2010, 122, 548–555. [Google Scholar] [CrossRef]
  18. Li, W.; Yao, S.; Ma, K.; Chen, P. Effect of plasma modification on the mechanical properties of carbon fiber/phenolphthalein polyaryletherketone composites. Polym. Compos. 2013, 34, 368–375. [Google Scholar] [CrossRef]
  19. Xu, Z.; Huang, Y.; Zhang, C.; Liu, L.; Zhang, Y.; Wang, L. Effect of γ-ray irradiation grafting on the carbon fibers and interfacial adhesion of epoxy composites. Compos. Sci. Technol. 2007, 67, 3261–3270. [Google Scholar] [CrossRef]
  20. Li, N.; Zong, L.; Wu, Z.; Liu, C.; Wang, X.; Bao, F. Amino-terminated nitrogen-rich layer to improve the interlaminar shear strength between carbon fiber and a thermoplastic matrix. Compos. Part A 2017, 101, 490–499. [Google Scholar] [CrossRef]
  21. Wang, C.; Li, J.; Yu, J.; Sun, S.; Li, X.; Xie, F. Grafting of size-controlled graphene oxide sheets onto carbon fiber for reinforcement of carbon fiber/epoxy composite interfacial strength. Compos. Part A 2017, 101, 511–520. [Google Scholar] [CrossRef]
  22. Wu, G.; Ma, L.; Jiang, H.; Liu, L. Directly grafting octa(aminophenyl) polyhedral oligomeric silsesquioxane onto carbon fibers for superior interfacial strength and hydrothermal aging resistance of silicone resin composites. Constr. Build. Mater. 2017, 157, 1040–1046. [Google Scholar] [CrossRef]
  23. Zhang, R.; Gao, B.; Ma, Q.; Zhang, J.; Cui, H.; Liu, L. Directly grafting graphene oxide onto carbon fiber and the effect on the mechanical properties of carbon fiber composites. Mater. Des. 2016, 93, 364–369. [Google Scholar] [CrossRef]
  24. Yang, Y.; Lu, C.; Su, X.; Wu, G.; Wang, X. Effect of nano-SiO2 modified emulsion sizing on the interfacial adhesion of carbon fibers reinforced composites. Mater. Lett. 2007, 61, 3601–3604. [Google Scholar] [CrossRef]
  25. Qin, W.; Vautard, F.; Askeland, P.; Yu, J.; Drzal, L. Modifying the carbon fiber–epoxy matrix interphase with silicon dioxide nanoparticles. RSC Adv. 2015, l5, 2457–2465. [Google Scholar] [CrossRef]
  26. Zhao, G.; Hu, P.; Zhou, S.; Chen, G.; An, Y.; Cheng, Y. Ordered Silica Nanoparticles Grown on a Three-Dimensional Carbon Fiber Architecture Substrate with Siliconborocarbonitride Ceramic as a Thermal Barrier Coating. ACS Appl. Mater. Interface 2016, 8, 4216–4225. [Google Scholar] [CrossRef]
  27. Fu, J.; Zhang, M.; Jin, L.; Liu, L.; Li, N.; Shang, L. Enhancing interfacial properties of carbon fibers reinforced epoxy composites via Layer-by-Layer self-assembly GO/SiO2 multilayers films on carbon fibers surface. Appl. Surf. Sci. 2019, 470, 543–554. [Google Scholar] [CrossRef]
  28. Wu, G.; Ma, L.; Jiang, H.; Liu, L.; Huang, Y. Improving the interfacial strength of silicone resin composites by chemically grafting silica nanoparticles on carbon fiber. Compos. Sci. Technol. 2017, 153, 160–167. [Google Scholar] [CrossRef]
  29. Shao, L.; Wang, Z.; Zhang, Y.; Jiang, Z.; Liu, Y. A facile strategy to enhance PVDF ultrafiltration membrane performance via self-polymerized polydopamine followed by hydrolysis of ammonium fluotitanate. J. Membr. Sci. 2014, 461, 10–21. [Google Scholar] [CrossRef]
  30. Yang, X.; Du, H.; Li, S.; Wang, Z.; Shao, L. Codepositing Mussel-Inspired Nanohybrids onto One-Dimensional Fibers under “Green” Conditions for Significantly Enhanced Surface/Interfacial Properties. ACS Sustain. Chem. Eng. 2018, 6, 4412–4420. [Google Scholar] [CrossRef]
  31. Zhang, R.; Braeken, L.; Luis, P.; Wang, X.; Van der Bruggen, B. Novel binding procedure of TiO2 nanoparticles to thin film composite membranes via self-polymerized polydopamine. J. Membr. Sci. 2013, 437, 179–188. [Google Scholar] [CrossRef]
  32. Chen, S.; Feng, J. Epoxy laminated composites reinforced with polyethyleneimine functionalized carbon fiber fabric: Mechanical and thermal properties. Compos. Sci. Technol. 2014, 101, 145–151. [Google Scholar] [CrossRef]
  33. Liu, Y.; Fang, Y.; Liu, X.; Wang, X.; Yang, B. Mussel-inspired modification of carbon fiber via polyethyleneimine/polydopamine co-deposition for the improved interfacial adhesion. Compos. Sci. Technol. 2017, 151, 164–173. [Google Scholar] [CrossRef]
  34. Zhang, G.; Sun, S.; Yang, D.; Dodelet, J.-P.; Sacher, E. The surface analytical characterization of carbon fibers functionalized by H2SO4/HNO3 treatment. Carbon 2008, 46, 196–205. [Google Scholar] [CrossRef]
  35. Almeida, J.H.S., Jr.; Souza, S.D.B.; Botelho, E.C.; Amico, S.C. Carbon fiber-reinforced epoxy filament-wound composite laminates exposed to hygrothermal conditioning. J. Mater. Sci. 2016, 51, 4697–4708. [Google Scholar] [CrossRef]
Figure 1. Schematic of binding SiO2 coating onto the modified fiber surface via self-polymerized polydopamine.
Figure 1. Schematic of binding SiO2 coating onto the modified fiber surface via self-polymerized polydopamine.
Polymers 11 01639 g001
Figure 2. (a) Wide-scan survey XPS spectra of carbon fibers; XPS spectra of C1s peaks: (b) untreated CF, (c) CF/PDA, and (d) CF/PDA/SiO2.
Figure 2. (a) Wide-scan survey XPS spectra of carbon fibers; XPS spectra of C1s peaks: (b) untreated CF, (c) CF/PDA, and (d) CF/PDA/SiO2.
Polymers 11 01639 g002

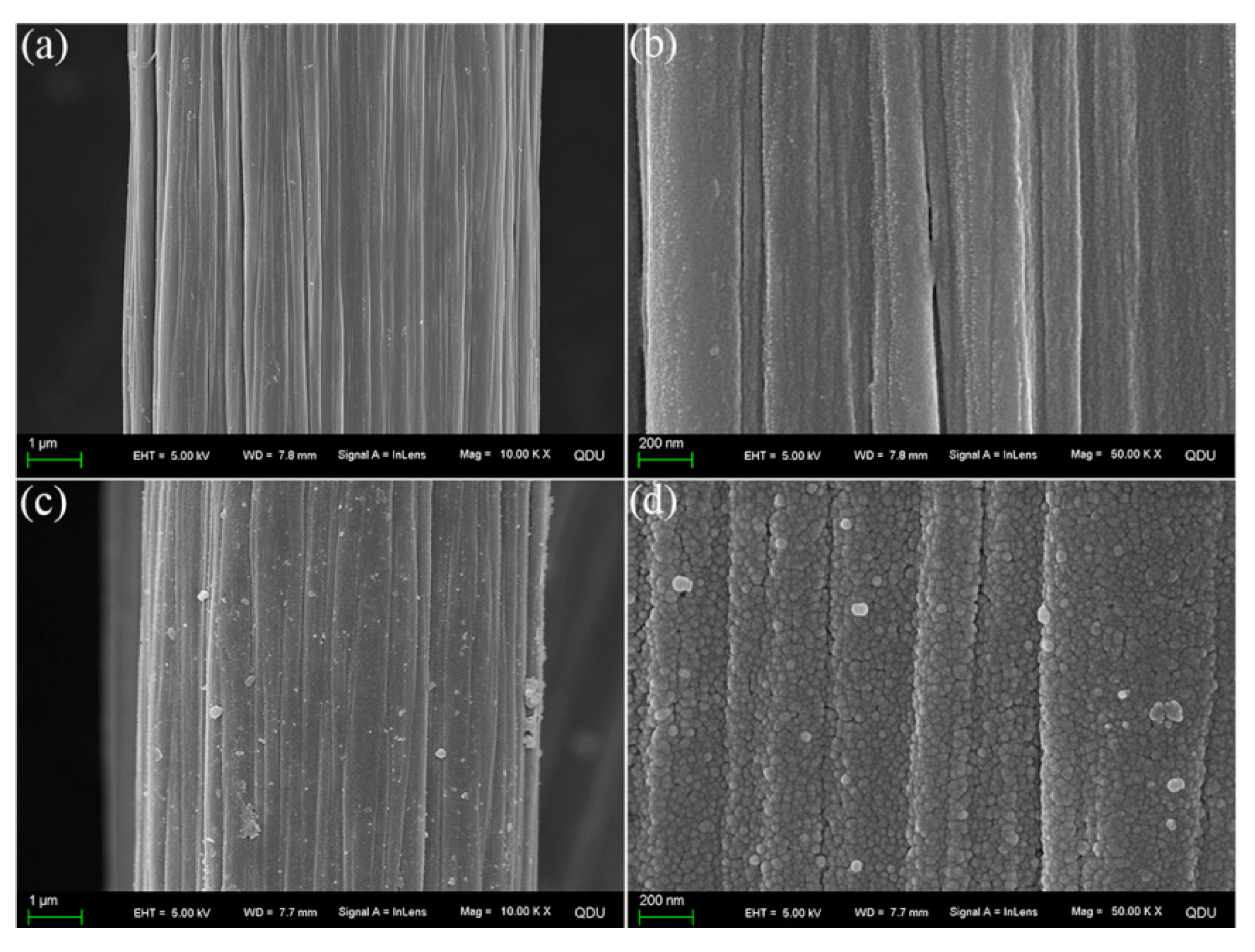

Figure 3. SEM images of different CFs surfaces: (a,b) CF/PDA and (c,d) CF/PDA/SiO2.
Figure 3. SEM images of different CFs surfaces: (a,b) CF/PDA and (c,d) CF/PDA/SiO2.
Polymers 11 01639 g003
Figure 4. ILSS and IFSS results of composites.
Figure 4. ILSS and IFSS results of composites.
Polymers 11 01639 g004
Figure 5. SEM morphologies of the fracture surface of MPSR composites reinforced with (a) untreated CF; (b) CF/PDA, and (c) CF/PDA/SiO2.
Figure 5. SEM morphologies of the fracture surface of MPSR composites reinforced with (a) untreated CF; (b) CF/PDA, and (c) CF/PDA/SiO2.
Polymers 11 01639 g005
Figure 6. The possible mechanism of binding the SiO2 layer onto the PDA pre-modified CF surface and the interfacial reaction of CF/PDA/SiO2 composites.
Figure 6. The possible mechanism of binding the SiO2 layer onto the PDA pre-modified CF surface and the interfacial reaction of CF/PDA/SiO2 composites.
Polymers 11 01639 g006
Figure 7. Impact testing results of composites and schematic of impact testing of composites reinforced with (a) untreated CF and (b) CF/PDA/SiO2.
Figure 7. Impact testing results of composites and schematic of impact testing of composites reinforced with (a) untreated CF and (b) CF/PDA/SiO2.
Polymers 11 01639 g007
Figure 8. ILSS of composites before and after hydrothermal aging treatment.
Figure 8. ILSS of composites before and after hydrothermal aging treatment.
Polymers 11 01639 g008
Table 1. Contact angles and surface energy of different CFs.
Table 1. Contact angles and surface energy of different CFs.
SamplesContact Angles (°)Surface Energy (mN·m−1)
Untreated CF78.5058.9129.206.6635.86

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (
Back to TopTop
