Polymers 2019, 11(1), 55; https://doi.org/10.3390/polym11010055

Article
Synthesis of Bithiophene-Based D-A1-D-A2 Terpolymers with Different A2 Moieties for Polymer Solar Cells via Direct Arylation
Fujian Key Laboratory of Polymer Materials, College of Chemistry and Materials Science, Fujian Normal University, Fuzhou 350007, China
*
Correspondence: [email protected]
These authors contributed equally as first authors to this work
Received: 5 December 2018 / Accepted: 26 December 2018 / Published: 2 January 2019

Abstract

:
A series of bithiophene (2T)-based D-A1-D-A2 terpolymers with different A2 moieties were prepared via direct arylation reaction. In these terpolymers, pyrrolo[3,4-c]pyrrole-1,4-dione (DPP) was selected as the first electron-accepting (A1) moiety, 2,1,3-benzothiadiazole (BT) or fluorinated benzothiadiazole (FBT) or octyl-thieno[3,4-c]pyrrole-4,6-dione (TPD) or 2,1,3-benzoselendiazole (SeT) was selected as the second electron-accepting (A2) moiety, while bithiophene with hexyl side chain was used as the electron-donating moiety. The UV-vis absorption, electrochemical properties, blend film morphology, and photovoltaic properties were studied to explore the effects of the A2 moiety. It is shown that these terpolymer films exhibit broad absorption (350–1000 nm), full width at half-maximum of more than 265 nm and ordered molecular packing. Varying the A2 moiety could affect the energy levels and blend film morphology leading to different polymer solar cell (PSC) performances of these (2T)-based D-A1-D-A2 terpolymers. As a result, the highest Jsc of 10.70 mA/cm2 is achieved for Polymer 1 (P1) with BT as A2 moiety, while the higher highest occupied molecular orbital (HOMO) level limits the open circuit voltage (Voc) and leads to a power conversion efficiency (PCE) of 3.46%.
Keywords:
D-A1-D-A2 terpolymers; direct arylation; polymer solar cells; pyrrolo[3,4-c]pyrrole-1,4-dione; bithiophene

1. Introduction

Over the past decade, continuous efforts have been devoted to polymer solar cells (PSCs) [1,2]. Development and impressive power conversion efficiency (PCE) values in the range of 10–14% were achieved [3,4,5]. These achievements were mainly attributed to the advance in electron-rich unit (D)-electron-accepting unit (A) alternating low band gap polymers. In addition, the development of the single-material organic solar cell (SMOC) with high efficiency has been reported by the use of electro-spinning to obtain ultrathin fibers with aligned D-A polythiophene chains [6]. However, newly synthesized D-A copolymers typically have narrow absorption bands with a full width at half-maximum of 200 nm, which is not very broad [7,8]. Recently, the use of regio-regular D-A1-D-A2 terpolymers as polymer donors, which contain three components with one electron-donating unit and two different electron-accepting units on their conjugated polymer backbones, provides an effective approach for tuning optical and electrochemical properties, thereby enhancing the photovoltaic performance of PSCs. Therefore, developing high-performance regio-regular D-A1-D-A2 terpolymer donors for application in solar cells is in demand [9,10,11,12,13]. Furthermore, these polymers could be potential materials for field-effect transistors (OFETs) and light-emitting diodes (PLED) [14]. Most importantly, conjugated polymers became extensively studied for biomedical application, especially for photothermal therapy (PPT) and its combination with other therapies [15].
How to design and synthesize conjugated polymers by simpler, faster, and cheaper means is an important research area. Pd-catalyzed C−H direct arylation (DA) reaction is an emerging, advantageous tool for the synthesis of conjugated polymers with a large variety of monomers. This methodology has some obvious advantages, such as fewer synthetic steps, less time, less harmful substance [16,17,18,19,20]. In our previous work, novel terthiophene (3T)-based D-A1-D-A2 terpolymers with terthiophene as electron-donating units by DA, have been obtained and applied for PSCs [21]. However, the molecular weight of these 3T-based polymers was not high due to the steric hindrance of the monomer. Many works have revealed that the molecular weight of the polymer has positive influence on the PSC performance [22,23]. Compared with 3T-based terpolymers, bithiophene (2T)-based terpolymers with higher Mn can be easily obtained by DA polymerization. Our previous work demonstrated that the efficient bithiophene (2T)-based terpolymers can be simply synthesized [24]. As well known, electron-accepting moiety can obviously influence the packing structure and properties of polymers. However, few reports have studied effects of secondary acceptor moiety (A2) on the properties of 2T-based D-A1-D-A2 terpolymers obtained by DA polymerization.
Herein, we designed synthesis of bithiophene (2T)-based terpolymers with different A2 moieties via DA reaction. Here, D-A1-D and D-A2-D intermediates were synthesized as the building blocks. In these building blocks, pyrrolo[3,4-c]pyrrole-1,4-dione (DPP) was selected as the first electron-accepting moiety (A1), 2,1,3-benzothiadiazole (BT), or fluorinated benzothiadiazole (FBT), or alkylthieno[3,4-c]pyrrole-4,6-dione (TPD), or 2,1,3-benzoselendiazole (SeT) was selected as the secondary electron-accepting moiety (A2) [25,26,27,28]. Bithiophene moiety with hexyl side chain was selected as the donor unit. Then, four 2T-based D-A1-D-A2 terpolymers were synthesized with D-A1-D and D-A2-D monomers via DA in fewer synthetic steps compared to the reported D-A1-D-A2 terpolymers via Stille or Suzuki coupling methods [29,30]. The UV-vis absorption, electrochemical properties, film morphology, and photovoltaic properties were studied to explore the effects of the secondary electron-accepting moiety.

2. Experimental Section

2.1. Materials

Monomer 2,5-bis(2-octyldodecyl)-3,6-di(thiophen-2-yl)pyrrolo[3,4-c]pyrrole-1,4(2H, 5H)-dione (D-A1-D, purity: >98%) was purchased from Derthon, Three monomers (D-A2-D), 4,7-bis(5-bromo-4-hexylthiophen-2-yl)benzo[c][1,2,5]thiadiazole(A2: BT), 4,7-bis(5-bromo-4-hexylthiophen-2-yl)-5,6-difluorobenzo[c][1,2,5]thiadiazole (A2: FBT), 1,3-bis(5-bromo-4-hexylthiophen-2-yl)-5-octyl-4H-thieno[3,4-c]pyrrole-4,6(5H)-dione (A2: TPD) were synthesized by direct arylation according to our previous literature [21]. The synthetic detail of 4,7-bis-(5-bromo-4-hexylthiophen-2-yl)-benzo[1,2,5]selenadiazole (A2: SeT) was provided in supporting information. PEDOT:PSS (Baytron PVP A1 4083), palladium acetate, tricyclohexylphosphoniumtetrafluoroborate were purchased from J&K Scientific Ltd. All solvents (N,N-dimethylacetamide (DMAc), xylene, chloroform, methanol, acetone and hexane) were purchased from Sinopharm and must be distilled in order to exclude water and oxygen in the reaction.

2.2. Synthesis of Polymers (P1, P2, P3, P4)

Four bithiophene (2T)-based terpolymers with different A2 moieties via DA reaction were synthesized. First, monomer (D-A1-D) 2,5-bis(2-octyldodecyl)-3,6-di(thiophen-2-yl)pyrrolo[3,4-c]pyrrole-1,4(2H, 5H)-dione (0.1 mmol, 86.1 mg) and either monomer (D-A2-D) (4,7-bis(5-bromo-4-hexylthiophen-2-yl)benzo[c][1,2,5]thiadiazole or 4,7-bis(5-bromo-4-hexylthiophen-2-yl)-5,6-difluorobenzo[c][1,2,5]thiadiazole or 1,3-bis(5-bromo-4-hexylthiophen-2-yl)-5-octyl-4H-thieno[3,4-c]pyrrole-4,6(5H)-dione or 4,7-bis-(5-bromo-4-hexylthiophen-2-yl)-benzo[1,2,5]selenadiazole)) (0.1 mmol), as well as potassium carbonate (0.25 mmol), pivalic acid (0.1 mmol), palladium acetate (Pd(OAc)2) (0.005 mmol) and tricyclohexylphosphoniumtetrafluoroborate (0.01 mmol) were mixed in 1 mL DMAc /p-xylene (V/V = 1:1) under nitrogen. Then, the mixture was heated to reflux for 48 h. The mixture was cooled down and precipitated from methanol. The product was sequentially purified via Soxhlet extraction using methanol, acetone, hexane, and chloroform. The chloroform fraction was concentrated and re-precipitated from the methanol. The final dark-black solid was obtained by drying under vacuum overnight.
Polymer P1: yield: 75.9%. Gel permeation chromatography (GPC) (tetrahydrofuran (THF), polystyrene standard): number-average molecular weight (Mn) = 32.4 kg/mol, weight-average molecular weight (Mw) = 64.7 kg/mol, polydispersity index (PDI) = 1.99. 1H NMR (400 MHz, CDCl3) δ: 9.11–8.72 (br, 2H), 8.10–7.56 (br, 4H), 6.98 (br, 2H), 4.10–3.56 (br, 4H), 2.80–0.56 (br, 100H). Polymer P2: yield: 43.8%. GPC (THF, polystyrene standard): Mn = 26.7 kg/mol, Mw = 42.2 kg/mol, PDI = 1.58. 1H NMR (400 MHz, CDCl3) δ: 9.05–8.70 (br, 2H), 8.10–7.65 (br, 2H), 6.98 (br, 2H), 4,12–3.78 (br, 4H), 2.75–0.56 (br, 100H). Polymer P3: yield: 49.2%. GPC (THF, polystyrene standard): Mn = 40.5 kg/mol, Mw = 62.7 kg/mol, PDI = 1.55. 1H NMR (400 MHz, CDCl3) δ: 8.98–8.50 (br, 2H), 8.05–7.50 (br, 2H), 7.03–6.50 (br, 2H), 4.01–3.42 (br, 6H), 2.82–0.82 (br, 119H). Polymer P4: yield: 34.4%. GPC (THF, polystyrene standard): Mn = 42.2 kg/mol, Mw = 62.2 kg/mol, PDI = 1.47. 1H NMR (400 MHz, CDCl3) δ: 9.10–8.80 (br, 2H), 8.01–7.51 (br, 4H), 7.10–6.80 (br, 2H), 4,04–3.81 (br, 4H), 2.86–0.83 (br, 100H).

2.3. Measurement

The NMR spectra were performed on a BRUKER AVIII-400 NMR spectrometer. The molecular weights were measured using water 1515 gel permeation chromatography (GPC) analysis using tetrahydrofuran column and tetrahydrofuran as eluent. The GPC was calibrated against polystyrene standard. Thermogravimetric analysis (TGA) was used to measure the thermal property on analysis system (Mettler-Toledo 851e/822e) under nitrogen, at a heating rate of 10 °C/min. Uv-vis absorption spectra were performed on a SHIMADZU UV-2600 spectrometer. Cyclic voltammetric (CV) measurements were carried out on a Zahner IM6e Electrochemical Workstation in a tetrabutylammonium hexafluorophosphate (Bu4NPF6) (0.1 M) acetonitrile solution. Polymer films were drop cast onto the working electrode, a platinum wire was the counter electrode, and an Ag/Ag+ electrode was the reference electrode. The scan rate was set to 20 mV s−1. Atomic force microscopy (AFM) images of the thin films were carried out on a NanoMan VS microscope using a BRUKER RTESP-300 probe (operation mode: tapping; material: 0.01–0.025 ohm-cm Antimony (n) doped Si; spring constant: 40 N/m; scanning rate: 0.6–1 μm/s).

2.4. Fabrication of Devices and Characterization

Photovoltaic devices were fabricated with a conventional sandwich structure of ITO/PEDOT:PSS/polymers:PC71BM/PFN/Al. in a N2-filled glove box. The ITO-coated glass and PEDOT:PSS (30 nm) were treated as described in the literature. Then the blends comprising of polymer:PC71BM were dissolved in chloroform with 3% 1,8-diiodooctane (DIO) and the solution concentration was 15 mg/mL. The blended solutions were spin-coated on the ITO/PEDOT:PSS substrate to generate the active layer. Afterwards, poly[(9,9-dioctyl-2,7-fluorene)-alt-(9,9-bis(3-(N,N-dimethylamino)propyl)-2,7-fluorene)] (PFN) solution (0.4 mg/mL) was spin-coated at 3500 rpm on the surface of active layer. Finally, the Al electrode (100 nm) was successively deposited under a high vacuum on top of the PFN layer. The active areas of the cells were 4 mm2. A Keithley 2400 Source Meter under 100 mW cm2 simulated AM 1.5 G irradiation was used to measure current-voltage (J-V) characteristics. Enlitech QE-R3011 at room temperature was used to measure the external quantum efficiency (EQE) values of the devices.

3. Results and Discussion

3.1. Synthesis and Thermal Property

We synthesized four intermediate monomers (D-A2-D); {4,7-bis(5-bromo-4-hexylthiophen-2-yl)benzo[c][1,2,5]thiadiazole (A2: BT), 4,7-bis(5-bromo-4-hexylthiophen-2-yl)-5,6-difluorobenzo[c][1,2,5]thiadiazole (A2: FBT), 4,7-bis(5-bromo-4-hexylthiophen-2-yl)-5-octyl-4H-thieno[3,4-c]pyrrole-4,6(5H)-dione (A2: TPD) according to our previous literature [21]. The synthetic detail of 4,7-bis-(5-bromo-4-hexylthiophen-2-yl)-benzo[1,2,5]selenadiazole (A2: SeT) was provided in supporting information. The bithiophene (2T)-based D-A1-D-A2 terpolymers were prepared via DA polymerization, in which DPP (A1)-based monomer (D-A1-D) (2,5-bis(2-octyldodecyl)-3,6-di(thiophen-2-yl)pyrrolo[3,4-c]pyrrole-1,4(2H, 5H)-dione) was a C-H monomer and the second acceptor (A2)-based monomer (D-A2-D) was a C-Br monomer. Scheme 1 shows the synthetic route of the monomers and polymers. In this work, the hexyl side chain was incorporated into thiophene moiety to construct a C-Br monomer to promote the DA polymerization and solubility [31]. Under nitrogen atmosphere, by way of the DA condition; K2CO3 (0.25 mmol), pivalic acid (0.1 mmol), catalyst (Pd(OAc)2) (0.005 mmol) and ligand (tricyclohexylphosphoniumtetrafluoroborate) (0.01 mmol), the ultimate target 2T-based D-A1-D-A2 terpolymers with high molecular weight (Mn values range from 27 to 42 kg/mol) were successfully obtained. It demonstrated that 2T-based D-A1-D-A2 terpolymers in this work displayed improved Mn values in comparison with previously reported 3T-based terpolymers (Mn values ranged from 12 to 24 kg/mol) [21]. Compared to the C-H monomer (D-A1-D) in this work, monomer 2T-DPP-2T that used as C–H monomers to construct 3T-based terpolymers in our previous work, has more thiophene moieties, resulting in negative steric influence during DA polymerization. Therefore, bithiophene (2T)-based terpolymers with high Mn value can be easily obtained. All polymers were subjected to sequential Soxhlet extraction with methanol, acetone, hexane, and chloroform. The chloroform fractions were concentrated under reduced pressure and precipitated in methanol to obtain the resulting polymers.
All these polymers show good thermal stability, as revealed by thermogravimetric analysis (TGA) with decomposition temperature over 350 °C. As shown in Figure 1, the onset decomposition temperature (Td) (5% weight loss) was found to be at 387 °C (P1), 368 °C (P2), 385 °C (P3) and 386 °C (P4), respectively. Good thermal stability is helpful for stabilized morphology of the active layer at elevated temperatures.

3.2. Optical and Electrochemical Properties

The optical properties of polymers were characterized by the UV-vis spectra of dilute (1 × 10−6 mol/L) chloroform solutions and of thin films. The concentration for monomer unit D-A1-D-A2 was 2.4 (P1), 2.0 (P2), 2.8 (P3), 3.1 (P4) × 10−5 mol/L in solution. The absorption maxima wavelength (λmax), optical band gap deduced from the solution and film absorption is summarized in Table 1. As shown in Figure 2, all these 2T-based D-A1-D-A2 terpolymers showed broad absorption (350–1000 nm) and full width at half-maximum of more than 265 nm in solutions and thin films. This is the typical advantage of these D-A1-D-A2 terpolymers. The broader absorption was beneficial to capture more sunlight to generate photocurrent. In solution, all polymers showed a strong and broad absorbance band at the range of 350–1000 nm. This was attributed to the intra-molecular charge transfer (ICT) from the donor moiety to the acceptor moiety in the polymer backbone. The weak absorbance band, at the range 350–450 nm, that was observed in P3, originated from the π–π* transition of polymer backbones [32]. When replacing BT with FBT or TPD or SeT as the A2 moiety, a blue-shifted absorbance band was observed. From solution to film, polymer P1 and P2 afforded a slightly blue-shifted and narrowing absorbance band due to the formation of molecular packing and solvent effect in the polymer (P1 or P2) solution. The other two terpolymers exhibited broadened and red-shifted absorbance bands due to the stronger intermolecular interactions and the extension of the effective conjugated length in condensed solid states. In addition, absorbance bands (350–450 nm) with low intensity were observed in all polymer films, which demonstrated that the π–π* transition of polymer backbones was strengthen in the solid state. The shoulder peaks at the longer wavelength were obviously observed in polymer films. These demonstrated that the π–π stacking interaction of ordered molecular packing existed in the solid state. The fluorinated polymer P2 displayed a clear blue-shift compared to the non-fluorinated polymer P1, while no similar phenomena were observed in our reported 3T-polymer [21]. When replacing BT with TPD or SeT as the A2 moiety, polymer P3 and P4 films displayed a similar spectrum compared to the P1 film. From the onset of film absorption, the optical bandgaps of P1–P4 were estimated to be 1.23, 1.26, 1.22, 1.22 eV, respectively, which demonstrated that they were the narrow bandgap polymers.
Cyclic voltammetry (CV) measurement of the polymers was performed to explore the effects of A2 moieties on their electrochemical properties. The highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) levels of the polymers were calculated by the empirical relationship [33]. EHOMO = −e(Eoxd−EFc/Fc+ + 4.80)V, ELUMO = −e(Ered − EFc/Fc+ + 4.80)V, where the formal potential of Fc/Fc+ was measured as 0.38 V against Ag/Ag+ [34].
The CV curves and energy levels of the polymers are provided in Figure 3. In order to reduce the errors caused by the broad and irreversible oxidation peaks observed in the polymer CV curves, the onset oxidation (Eoxd) and reduction potentials (Ered) were obtained by using tangent method. The respective HOMO and LUMO energy levels are summarized in Table 1. The HOMO and LUMO energy levels of fluorinated polymer P2 were lower than that of non-fluorinated polymer P1 due to the electron-withdrawing nature of the fluorine atoms. As the A2 moiety changed from BT to SeT, the energy levels were similar. As the A2 moiety changed from BT to TBD, the energy levels were decreased. The deeper HOMO levels may obtain higher Voc. The results showed that varying the A2 moiety could influence the energy levels of the obtained D-A1-D-A2 polymers. However, the LUMO offset between fluorinated terpolymer P2 (−3.72 eV) and PC71BM (−4.0 eV) was only 0.28 eV, which might not provide a sufficient LUMO offset to ensure highly efficient exciton dissociations for polymer: PC71BM cells.

3.3. Photovoltaic Properties

In order to explore the effects of the A2 moiety on the photovoltaic properties, four polymers were paired with PC71BM to fabricate the devices with the conventional architecture of ITO/PEDOT:PSS/active layer/PFN/Al. Figure 4A,B shows the current density-voltage (J-V) curves and the external quantum efficiency (EQE) of these devices. The summary of device performance parameters for the device based polymer: PC71BM are listed in Table 2.
As shown in Figure 4A and Table 2, the PCE of the four 2T-based terpolymers strongly depended on the secondary electron-accepting (A2) moiety. For P1, with BT as the A2 moiety, the highest Jsc values were obtained among the devices based four polymers. Compared to our reported polymer with the dodecyl side chain under the similar molecular weight [24], P1 with the hexyl side chain displayed enhanced Jsc (9.34→10.70 mA/cm2). This is owing to the more ordered packing structure of the polymer with its shorter side chain. The highest PCE of P1 was found to be 3.46%, with a Voc of 0.59 V, a Jsc of 10.70 mA/cm2 and a FF of 54.8%. Compared to P1, the PCE of P2 was obviously reduced, the PCE of 0.5%, with a Voc of 0.61 V, a Jsc of 2.32 mA/cm2 and a FF of 35.4%. Therefore, changing the A2 moiety from BT to FBT significantly reduced the Jsc and FF. The reduction in Jsc might be related to the ELUMODONOR–ELUMOPC71BM energy level offset [35]. For P2, the ELUMO offset with PC71BM was 0.28 eV, which was below the 0.3 eV. In addition, the bad morphology of active layer is the likely factor in the lower observed Jsc and FF in P2. For P3, as the A2 moiety replacing BT with TPD, the Voc and FF were obviously enhanced, to 0.72 V and 65.3%, but the Jsc was reduced to 5.93 mA/cm2, resulting in a PCE of 2.79%. Compared to P1, P4 with SeT as the A2 moiety, had a decreased Jsc of 7.08 mA/cm2 and FF of 47.2%. The good charge transport ability and morphology of active layer could contribute to the improved Jsc of the device based P1.
External quantum efficiencies (EQEs) were measured for different PSC devices under optimized device conditions (Figure 4B). As shown in Figure 4B, the EQE spectra of the four polymers showed a clear photo-response over the spectral region between 300–900 nm, consistent with the absorption of PC71BM and the polymer. Device based P1 showed the highest photo-response with a maximal EQE in a broad range of 350–900 nm, that benefited from the intensive absorption of polymer P1 in this region. This result is in accordance with the highest Jsc of the corresponding device based P1. In contrast, the device based fluorinated-polymer P2 showed negligible contribution in the absorption of polymer PC71BM, leading to the lowest Jsc. However, the peak positions of EQE spectra were different from the absorption spectra of polymers because the photocurrents were contributed by the PC71BM (300–500 nm) and polymer (500–900 nm) absorption.

3.4. Active Layer Morphology

The morphological properties of the four types of donor:PC71BM blend films were estimated by atomic force microscopy (AFM) to investigate the correlation between the morphology and the PCE of these four polymers. Figure 5 and Figures S5–S8 show the AFM topographic and 3D images of the blend films. As shown in Figures S5–S8, the surface roughness (RMS) of the blend film was 2.62 nm (P1:PC71BM), 11.3 nm (P2:PC71BM), 4.71 nm (P3:PC71BM), 3.86 nm (P4:PC71BM), respectively. As shown in Figure 5, the P1:PC71BM film exhibited relatively uniform and smooth morphology with less aggregation, which is beneficial for charge carrier transport. In addition, the proper and continuous phase separation was observed in the P1:PC71BM film, which could assure efficient exciton dissociation. This was in accordance with the highest Jsc obtained in the device based P1. In contrast, the P2:PC71BM film exhibited distinct globular aggregate and rough surface, which might originate from the poor miscibility of the polymer P2 with PC71BM. The large domain phase separation in P2 blend films limited the photocurrent due to inefficient charge separation of the active layer. Furthermore, an insufficient energy offset between P2 and PC71BM could also limit the photocurrent, resulting in the lowest Jsc for the device based fluorinated polymer P2. In addition, compared to P1, P3 (P4), PC71BM blend films exhibited coarser and rougher morphology, which might be the reason for the lower Jsc for the device based P3 (P4).

4. Conclusions

In summary, a synthetic procedure for a series of bithiophene (2T)-based D-A1-D-A2 terpolymers with different A2 moieties using DA was provided. This synthesis of 2T-based D-A1-D-A2 terpolymers is non-toxic and simple, compared with existing routes [29,30]. It was shown that the A2 moiety could introduce difference in the energy levels, packing structure, blend film morphology and PSC performance of the polymers. Finally, the highest Jsc of 10.70 mA/cm2, was achieved for P1 with BT as the A2 moiety, while the higher HOMO level limits the open circuit voltage (Voc) and leads to a power conversion efficiency (PCE) of 3.46%. The results demonstrate that varying the electron-accepting moiety can be an effective strategy for the construction of D-A1-D-A2 terpolymers.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/1/55/s1.

Author Contributions

J.H. and Z.L. contributed equally to this work, designed and performed the experiments, analyzed the data; W.F. performed the experiments; W.W. conceived and designed the experiments and wrote the paper.

Acknowledgments

This work was financially supported by the Natural Science Foundation of Fujian Province (2018J01749, 2018J01670, 2017J01683).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Y. Molecular design of photovoltaic materials for polymer solar cells: Toward suitable electronic energy levels and broad bsorption. Acc. Chem. Res. 2012, 45, 723–733. [Google Scholar] [CrossRef] [PubMed]
  2. Li, G.; Zhu, R.; Yang, Y. Polymer solar cells. Nat. Photonics 2012, 6, 153–161. [Google Scholar] [CrossRef]
  3. Zhang, H.; Yao, H.; Zhao, W.; Ye, L.; Hou, J. High-efficiency polymer solar cells enabled by environment-friendly single-solvent processing. Adv. Energy Mater. 2016, 6, 1502177. [Google Scholar] [CrossRef]
  4. Wang, G.; Melkonyan, F.S.; Facchetti, A.; Marks, T.J. All-polymer solar cells: Recent progress, challenges, and prospects. Angew. Chem. Int. Ed. 2018, in press. [Google Scholar] [CrossRef]
  5. Lin, Y.; Zhao, F.; He, Q.; Huo, L.; Wu, Y.; Parker, T.C.; Ma, W.; Sun, Y.; Wang, C.; Zhu, D. High-performance electron acceptor with thienyl side chains for organic photovoltaics. J. Am. Chem. Soc. 2016, 138, 4955–4961. [Google Scholar] [CrossRef] [PubMed]
  6. Pierini, F.; Lanzi, M.; Nakielski, P.; Pawłowska, S.; Urbanek, O.; Zembrzycki, K.; Kowalewski, T.A. Single-material organic solar cells based on electrospun fullerene-grafted polythiophenenanofibers. Macromolecules 2017, 50, 4972–4981. [Google Scholar] [CrossRef]
  7. You, J.; Dou, L.; Yoshimura, K.; Kato, T.; Ohya, K.; Moriarty, T.; Emery, K.; Chen, C.C.; Gao, J.; Li, G. A polymer tandem solar cell with 10.6% power conversion efficiency. Nat. Commun. 2013, 4, 1446. [Google Scholar] [CrossRef][Green Version]
  8. Li, W.; Hendriks, K.H.; Furlan, A.; Roelofs, W.S.C.; Wienk, M.M.; Janssen, R.A.J. Universal correlation between fibril width and quantum efficiency in diketopyrrolopyrrole-based polymer solar cells. J. Am. Chem. Soc. 2013, 135, 18942–18948. [Google Scholar] [CrossRef]
  9. Dang, D.; Chen, W.; Yang, R.; Zhu, W.; Mammo, W.; Wang, E. Fluorine substitution enhanced photovoltaic performance of a D-A1-D-A2 copolymer. Chem. Commun. 2013, 49, 9335–9337. [Google Scholar] [CrossRef]
  10. Sun, W.; Ma, Z.; Dang, D.; Zhu, W.; Andersson, M.R.; Zhang, F.; Wang, E. An alternating D-A1-D-A2 copolymer containing two electron-deficient moieties for efficient polymer solar cells. J. Mater. Chem. A 2013, 1, 11141–11144. [Google Scholar] [CrossRef]
  11. Keshtov, M.; Kuklinm, S.A.; Godovsky, D.Y.; Khokhlov, A.R.; Kurchania, R.; Chen, F.C.; Koukaras, E.N.; Sharma, G.D. New alternating D-A1-D-A2 copolymer containing two electron-deficient moieties based on benzothiadiazole and 9-(2-Octyldodecyl)-8H-pyrrolo[3,4-b]bisthieno[2,3-f:3′,2′-h]quinoxaline-8,10(9H)-dione for efficient polymer solar cells. J. Polym. Sci. Part A 2016, 54, 155–168. [Google Scholar] [CrossRef]
  12. Chakravarthi, N.; Gunasekar, K.; Kim, C.S.; Kim, D.H.; Song, M.; Park, Y.G.; Lee, J.Y.; Shin, Y.; Kang, I.N.; Jin, S.H. Synthesis, characterization, and photovoltaic properties of 4,8-dithienylbenzo[1,2-b:4,5-b]dithiophene-based donor-acceptor polymers with new polymerization and 2D conjugation extension pathways: A potential donor building block for high performance and stable inverted organic solar cells. Macromolecules 2015, 48, 2454–2465. [Google Scholar] [CrossRef]
  13. Bohra, H.; Wang, M.F. Direct C–H arylation: A “Greener” approach towards facile synthesis of organic semiconducting molecules and polymers. J. Mater. Chem. A 2017, 5, 11550–11571. [Google Scholar] [CrossRef]
  14. Nikolka, M.; Nasrallah, I.; Rose, B.; Ravva, M.K.; Broch, K.; Sadhanala, A.; Harkin, D.; Charmet, J.; Hurhangee, M.; Brown, A.; et al. High operational and environmental stability of high-mobility conjugated polymer field-effect transistors through the use of molecular additives. Nat. Mater. 2017, 16, 356–362. [Google Scholar] [CrossRef] [PubMed]
  15. Pierini, F.; Nakielski, P.; Urbanek, O.; Pawłowska, S.; Lanzi, M.; Sio, L.D.; Kowalewski, T.A. Polymer-based nanomaterials for photothermal therapy: FROM light-responsive to multifunctional nanoplatforms for synergistically combined technologies. Biomacromolecules 2018, 19, 4147–4167. [Google Scholar] [CrossRef]
  16. Mercier, L.G.; Leclerc, M. Direct (hetero) arylation: A new tool for polymer chemists. Acc. Chem. Res. 2013, 46, 1597–1605. [Google Scholar] [CrossRef] [PubMed]
  17. Lombeck, F.; Matsidik, R.; Komber, H.; Sommer, M. Simple synthesis of P(Cbz-alt-TBT) and PCDTBT by combining direct arylation with Suzuki polycondensation of heteroaryl chlorides. Macromol. Rapid Commun. 2015, 36, 231–237. [Google Scholar] [CrossRef]
  18. Homyak, P.; Liu, Y.; Liu, F.; Russel, T.P.; Coughlin, E.B. Systematic variation of fluorinated diketopyrrolopyrrole low bandgap conjugated polymers: Synthesis by direct arylation polymerization and characterization and performance in organic photovoltaics and organic field-effect transistors. Macromolecules 2015, 48, 6978–6986. [Google Scholar] [CrossRef]
  19. Pouliot, J.R.; Mercier, L.G.; Caron, S.; Leclerc, M. Accessing new DPP-Based copolymers by direct heteroarylation polymerization. Macromol. Chem. Phys. 2013, 214, 453–457. [Google Scholar] [CrossRef]
  20. Wakioka, M.; Nakamura, Y.; Wang, Q.; Ozawa, F. Direct arylation of 2-methylthiophene with isolated [PdAr(μ-O2CR)(PPh3)]n complexes: Kinetics and Mechanism. Organometallics 2012, 31, 4810–4816. [Google Scholar] [CrossRef]
  21. Lu, M.X.; Wang, W.; Lv, W.; Yan, S.H.; Zhang, T.; Zhen, H.Y.; Ling, Q.D. Simple synthesis of novel terthiophene-based D-A1-D-A2 polymers for polymer solar cells. RSC Adv. 2016, 6, 86276–86284. [Google Scholar] [CrossRef]
  22. Kang, H.; Uddin, M.A.; Lee, C.; Kim, K.H.; Nguyen, T.L.; Lee, W.; Li, Y.; Wang, C.; Woo, H.Y. Determining the role of polymer molecular weight for high-performance all-polymer solar cells: Its effect on polymer aggregation and phase separation. J. Am. Chem. Soc. 2015, 137, 2359–2365. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, S.; An, Y.; Dutta, G.K.; Kim, Y.; Zhang, Z.G.; Li, Y.F.; Yang, C. A synergetic effect of molecular weight and fluorine in all-polymer solar cells with enhanced performance. Adv. Funct. Mater. 2016, 27, 1603564. [Google Scholar] [CrossRef]
  24. Sun, M.M.; Wang, W.; Lv, W.; Lu, M.X.; Yan, S.H.; Liang, L.Y.; Ling, Q.D. Synthesis of regular D-A1-D-A2 copolymers via direct arylation polycondensation and application in solar cells. Synth. Met. 2015, 209, 412–418. [Google Scholar] [CrossRef]
  25. Lu, K.; Fang, J.; Yan, H.; Zhu, X.; Yi, Y.; Wei, Z. A facile strategy to enhance absorption coefficient and photovoltaic performance of two-dimensional benzo[1,2-b:4,5-b]dithiophene and thieno[3,4-c]pyrrole-4,6-dione polymers via subtle chemical structure variations. Org. Electron. 2013, 14, 2652–2661. [Google Scholar] [CrossRef]
  26. Hendriks, K.H.; Li, W.; Wienk, M.M.; Janssen, R.A. Small-bandgap semiconducting polymers with high near-infrared photoresponse. J. Am. Chem. Soc. 2014, 136, 12130–12136. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, B.; Tang, S.W.; Zhang, W.; Tao, Y.; Wong, M.S. Naphthodithiophene-2, 1, 3-benzothiadiazole copolymers for bulk heterojunction solar cells. Chem. Commun. 2011, 47, 9471–9473. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, N.; Chen, Z.; Wei, W.; Jiang, Z. Fluorinated benzothiadiazole-based conjugated polymers for high-performance polymer solar cells without any processing additives or post-treatments. J. Am. Chem. Soc. 2013, 135, 17060–17068. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Kong, L.; Ju, X.; Zhao, J. Effects of fluoro substitution on the electrochromic performance of alternating benzotriazole and benzothiadiazole-based donor–acceptor type copolymers. Polymers 2018, 10, 23. [Google Scholar] [CrossRef]
  30. Yuan, J.D.; Fan, J.; Seifter, J.; Lim, B.; Hufschmid, R.; Heeger, A.J.; Wudl, F. High performance weak donor-acceptor polymers in thin film transistors: Effect of the acceptor on electronic properties, ambipolar conductivity, mobility, and thermal stability. J. Am. Chem. Soc. 2011, 133, 20799–20807. [Google Scholar] [CrossRef]
  31. Schröter, S.; Stock, C.; Bach, T. Regioselective cross-coupling reactions of multiple halogenated nitrogen-, oxygen-, and sulfur-containing heterocycles. Tetrahedron 2005, 61, 2245. [Google Scholar] [CrossRef]
  32. Subramaniyan, S.; Kim, F.; Ren, G.; Li, H. JenekheA. High mobility thiazole–diketopyrrolopyrrole copolymer semiconductors for high performance field-effect transistors and photovoltaic devices. Macromolecules 2012, 45, 9029–9037. [Google Scholar] [CrossRef]
  33. Deleeuw, D.; Simenon, M.; Brown, A.; Einerhand, R. Stability of n-type doped conducting polymers and consequences for polymeric microelectronic devices. Synth. Met. 1997, 87, 53–59. [Google Scholar] [CrossRef]
  34. Eckhardt, H.; Shacklette, L.W.; Jen, K.Y.; Elsenbaumer, R.L. The electronic and electrochemical properties of poly (phenylene vinylenes) and poly (thienylene vinylenes): An experimental and theoretical study. J. Chem. Phys. 1989, 91, 1303. [Google Scholar] [CrossRef]
  35. Li, W.; Hendriks, K.H.; Furlan, A.; Zhang, A.; Wienk, M.; Janssen, R.A. A regioregular terpolymer comprising two electron-deficient and one electron-rich unit for ultra small band gap solar cells. Chem. Commun. 2015, 51, 4290–4293. [Google Scholar] [CrossRef] [PubMed][Green Version]

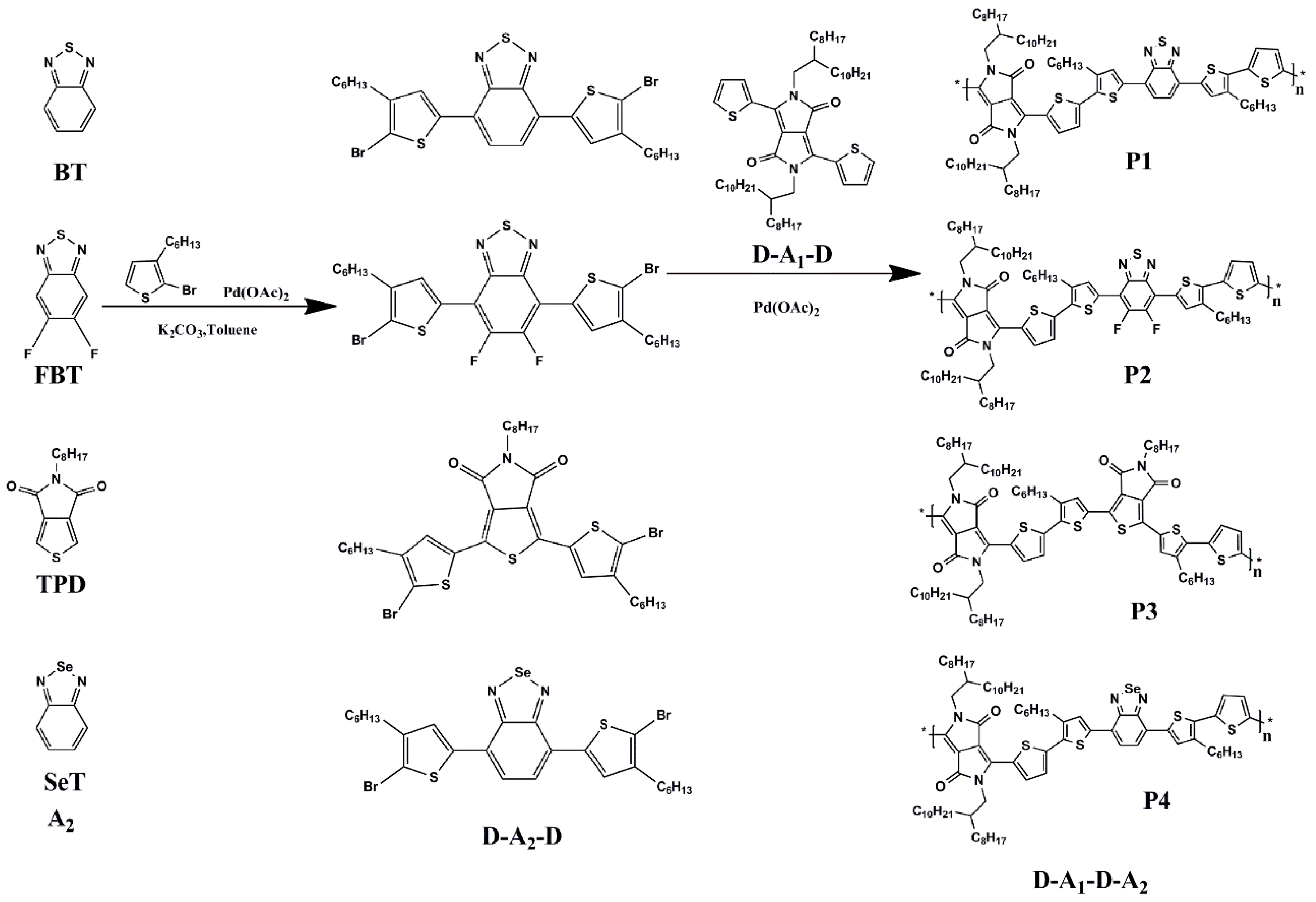

Scheme 1. The synthetic route of the monomers and polymers.
Scheme 1. The synthetic route of the monomers and polymers.
Polymers 11 00055 sch001
Figure 1. Thermogravimetric analysis (TGA) curves of polymers under N2 at a heating rate of 10 °C/min.
Figure 1. Thermogravimetric analysis (TGA) curves of polymers under N2 at a heating rate of 10 °C/min.
Polymers 11 00055 g001

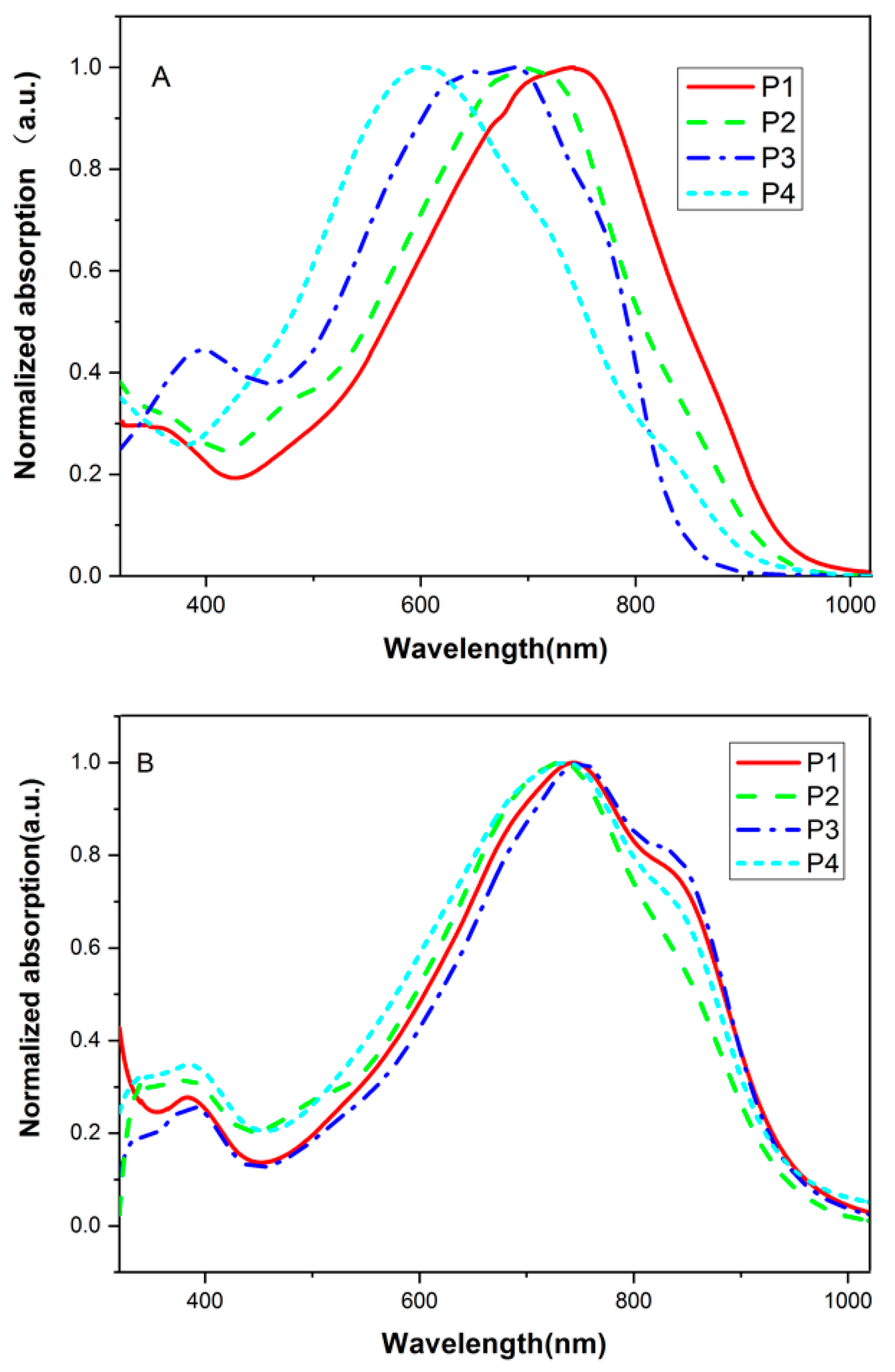

Figure 2. UV-vis spectra of P1, P2, P3 and P4 in dilute chloroform solutions (10−6 mol/L) (A) and films (spin coating from chloroform solutions) (B).
Figure 2. UV-vis spectra of P1, P2, P3 and P4 in dilute chloroform solutions (10−6 mol/L) (A) and films (spin coating from chloroform solutions) (B).
Polymers 11 00055 g002

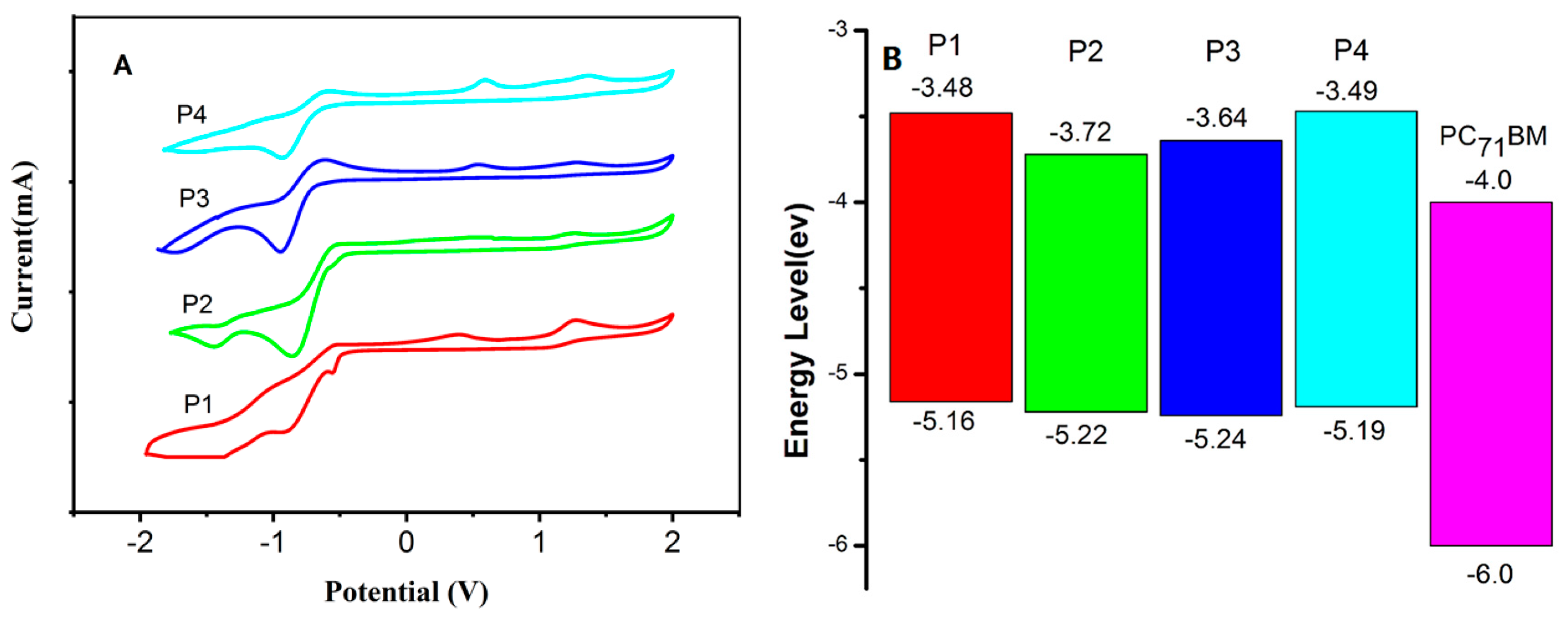

Figure 3. Cyclic voltammetric curves (A) and energy levels (B) of the polymers (estimated by the empirical relationship proposed by de Leeuw et al. [33]).
Figure 3. Cyclic voltammetric curves (A) and energy levels (B) of the polymers (estimated by the empirical relationship proposed by de Leeuw et al. [33]).
Polymers 11 00055 g003

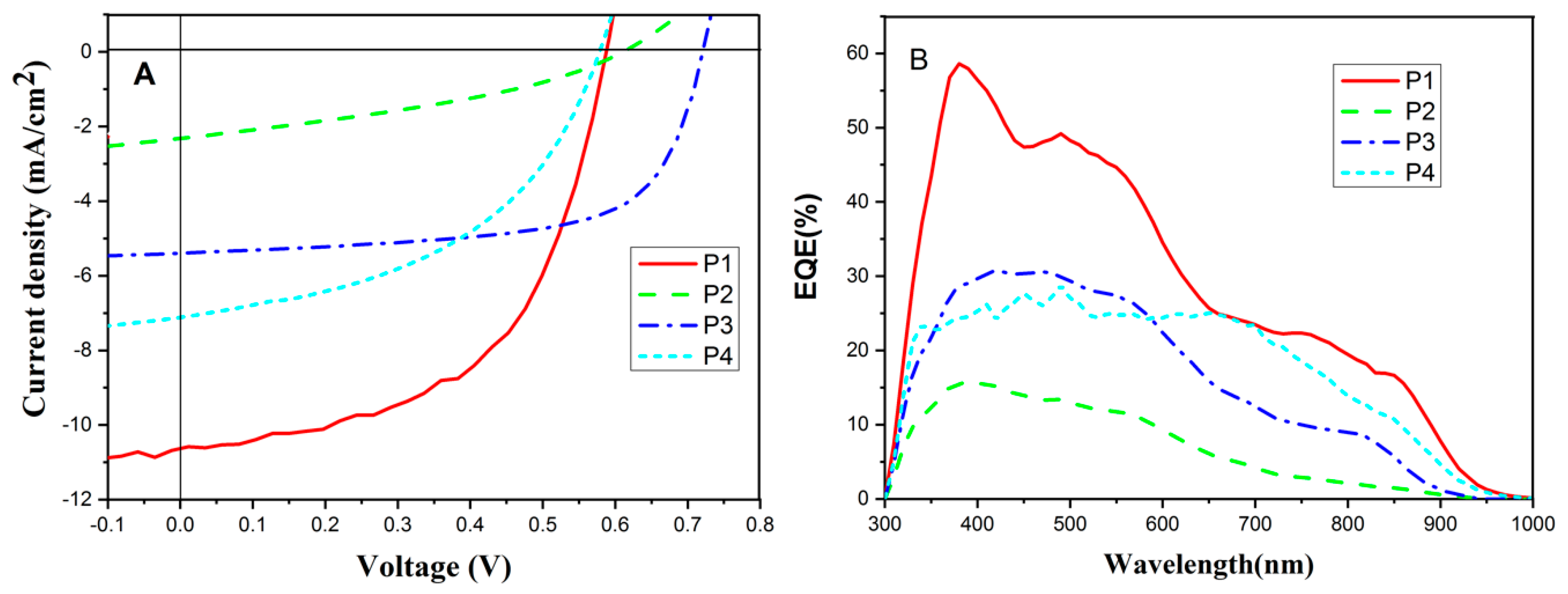

Figure 4. Current density-voltage (J-V) characteristics (A) and External quantum efficiencies (EQE) spectra (B) of polymer solar cells (PSCs) based the devices with the conventional architecture of ITO/PEDOT:PSS/polymer:PC71BM/PFN/Al.
Figure 4. Current density-voltage (J-V) characteristics (A) and External quantum efficiencies (EQE) spectra (B) of polymer solar cells (PSCs) based the devices with the conventional architecture of ITO/PEDOT:PSS/polymer:PC71BM/PFN/Al.
Polymers 11 00055 g004
Figure 5. Atomic force microscopy (AFM) topographic images (2 μm × 2 μm) of polymer/PC71BM blend films. P1 (A), P2 (B), P3 (C) and P4 (D).
Figure 5. Atomic force microscopy (AFM) topographic images (2 μm × 2 μm) of polymer/PC71BM blend films. P1 (A), P2 (B), P3 (C) and P4 (D).
Polymers 11 00055 g005
Table 1. The UV-vis spectra data and energy levels of four polymers.
Table 1. The UV-vis spectra data and energy levels of four polymers.
PolymerSolution (nm) aFilm (nm) bEgoptEredEoxdHOMOLUMOEgcv
λmaxλonsetλmaxFwhm cλonseteV deVeVeVeVeV e
P175098174828010181.23−0.940.74−5.16−3.481.68
P27209677192669861.26−0.700.80−5.22−3.721.50
P369189075126010191.22−0.780.82−5.24−3.641.60
P456789073429810191.22−0.930.77−5.19−3.491.70
a Polymer in dilute CHCl3 solution (c = 1.0 × 106 mol L−1). b Thin film processed with CHCl3 solution. c Full width at half-maximum in film. d Estimated from the absorption band edge in film, Egopt = 1240/λonset(eV). e Egcv = ELUMO − EHOMO, EHOMO = −e(Eoxd−EFc/Fc+ + 4.80)V, ELUMO = −e(Ered − EFc/Fc+ + 4.80)V.
Table 2. Photovoltaic parameters of the device based polymer/PC71BM a.
Table 2. Photovoltaic parameters of the device based polymer/PC71BM a.
PolymerVoc (V)Jsc (mA/cm2)FF (%)PCE (%)ELUMOpolymer–ELUMOPC71BM (eV)
P10.5910.70 b (10.30) c54.8 b (54.2) c3.46 b (3.29) c0.52
P20.612.32 (2.22)35.4 (35.1)0.50 (0.48)0.28
P30.725.93 (5.62)65.3 (64.3)2.79 (2.60)0.36
P40.587.08 (6.51)47.2 (46.8)1.93 (1.77)0.53
a: solvent (CHCl3/3%DIO), polymer concentration (5 mg/mL), polymer/PC71BM weight ratio (1:2); b: maximal value; c: average value from 10 devices.
