Highly Permeable Matrimid®/PIM-EA(H2)-TB Blend Membrane for Gas Separation
by
, ,
Elisa Esposito
1,
Irene Mazzei
2,
Marcello Monteleone
1,
Alessio Fuoco
1
,
Mariolino Carta
3,*
,
Neil B. McKeown
4,
Richard Malpass-Evans
4 and
Johannes C. Jansen
1,*
1
Institute on Membrane Technology, ITM-CNR, Via P. Bucci 17/C, 87036 Rende (CS), Italy
2
Department of Chemistry, Durham University, Stockton Road, Durham DH1 3LE, UK
3
Department of Chemistry, College of Science, Swansea University, Grove Building, Singleton Park, Swansea SA2 8PP, UK
4
EastChem, School of Chemistry, University of Edinburgh, David Brewster Road, Edinburgh EH9 3FJ, UK
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(1), 46; https://doi.org/10.3390/polym11010046
Submission received: 7 December 2018
/
Revised: 21 December 2018
/
Accepted: 25 December 2018
/
Published: 30 December 2018
(This article belongs to the Special Issue Microporous Organic Polymers: Synthesis, Characterization and Applications)
Abstract
:The effect on the gas transport properties of Matrimid®5218 of blending with the polymer of intrinsic microporosity PIM-EA(H2)-TB was studied by pure and mixed gas permeation measurements. Membranes of the two neat polymers and their 50/50 wt % blend were prepared by solution casting from a dilute solution in dichloromethane. The pure gas permeability and diffusion coefficients of H2, He, O2, N2, CO2 and CH4 were determined by the time lag method in a traditional fixed volume gas permeation setup. Mixed gas permeability measurements with a 35/65 vol % CO2/CH4 mixture and a 15/85 vol % CO2/N2 mixture were performed on a novel variable volume setup with on-line mass spectrometric analysis of the permeate composition, with the unique feature that it is also able to determine the mixed gas diffusion coefficients. It was found that the permeability of Matrimid increased approximately 20-fold with the addition of 50 wt % PIM-EA(H2)-TB. Mixed gas permeation measurements showed a slightly stronger pressure dependence for selectivity of separation of the CO2/CH4 mixture as compared to the CO2/N2 mixture, particularly for both the blended membrane and the pure PIM. The mixed gas selectivity was slightly higher than for pure gases, and although N2 and CH4 diffusion coefficients strongly increase in the presence of CO2, their solubility is dramatically reduced as a result of competitive sorption. A full analysis is provided of the difference between the pure and mixed gas transport parameters of PIM-EA(H2)-TB, Matrimid®5218 and their 50:50 wt % blend, including unique mixed gas diffusion coefficients.
1. Introduction
Significant progress has been made in the development of new polymers for the fabrication of gas separation membranes. Polymers used for gas separation membranes can be either rubbers, generally characterized by a relatively low selectivity but high permeability and thus enabling a great productivity, or glassy polymers, characterized by low permeability but high gas-pair selectivity and offering a good separation efficiency. This trade-off between permeability and selectivity, first introduced [1], and updated by Robeson [2] and then by Pinnau et al. [3] is typical for polymeric membranes, and was theoretically explained by Freeman et al. [4]. An exceptional novel class of so-called polymers of intrinsic microporosity (PIMs), introduced by Budd, McKeown and co-workers [5], which combine an exceptionally high permeability with relatively high selectivities, is responsible for the large upward shift of the upper bound in recent years. PIMs owe their exceptional behaviour to extremely rigid [6] and highly contorted [7,8] polymer chains, which do not allow efficient packing and is responsible for a high free volume in these materials.
While most high performing PIMs require complex and expensive synthetic procedures, the key challenge to improve the competitiveness of membrane separations over other gas separation techniques is the fabrication of inexpensive polymer membranes, having a good trade-off between permeability and selectivity. Commercial polymers used for gas separation membranes generally have a high selectivity, but low permeability. Matrimid®5218, a commercial amorphous glassy polyimide, is one of those polymers, and improvements of its overall performance would necessarily require an increase in its permeability. One option to improve the permeability of a polymer is by blending with another polymer to combine synergistically the best properties of the two individual materials [9,10]. This is not an easy task, because due to only a very small gain in entropy, most polymers are not miscible at the molecular level. Early studies on the miscibility of Matrimid®5218 were reported by Grobelny et al. [11], and since then different polymers were blended with Matrimid, in order to increase its separation performance [12,13,14]. The blend of Matrimid®5218 with polyethersulfone (PES) yielded mechanically stable flat film [15] and hollow fiber [16] membranes for efficient CO2/N2 separation; its blend with polysulfone (PSf) enhanced the stability of Matrimid in CO2/CH4 binary mixtures, due to the mitigation of CO2 plasticization [17]. While the CO2 and CH4 permeability of polysulfone/Matrimid®5218 blend membranes increase with the polyimide content, there is an optimum in the CO2/CH4 mixed gas selectivity (≃30) for the blend with 20% of Matrimid [18].
With their unique properties, starting with PIM-1 [19] that defined the 2008 Robeson upper bound [2], numerous new PIMs with a wide range of different chemical structures [6,20,21,22,23,24,25,26,27,28] and increasingly efficient gas separation performance, have moved the Robeson upper bounds further for several gas pairs [3]. Despite their high permeability, the sophisticated synthesis and high costs hinder PIMs from being the basis for large scale membrane production and industrial applications at present [29]. In addition, for demanding separations, their modest selectivity needs improvement. The idea underpinning the present work is to blend PIMs with a highly selective commercial polymer such as Matrimid®5218, in order to tailor their permeability and selectivity. In the last few years, the archetypal PIM-1 was blended with several other commercial polymers, especially with highly selective polymers such as polysulfone [30] and polyimide [31] in order to increase its selectivity. Blends of PIM-1 with polyphenylenesulfone (PPSU) and sulfonated polyphenylenesulfone (sPPSU) exhibited similar permeability of the polysulfone but enhanced selectivity compared to the neat PIM-1, with an additional anti-plasticization effect under mixture conditions [30]. Similarly, the blending of carboxylated PIM-1 (cPIM-1) with the highly selective co-polyimide P84 demonstrated increased selectivity with a simultaneous reduction of the permeability, as the amount of P84 was increased in the blend [31]. The first blend of PIM-1 with Matrimid was made by Yong et al. and they also studied the miscibility of Matrimid and Torlon with cPIM-1 [32,33,34]. Addition of a small quantity of Matrimid in PIM-1 improved the O2/N2 separation performance, while a small amount of PIM-1 in an excess of Matrimid enhanced the CO2/CH4 gas separation performance. Moreover, they used the PIM-1/Matrimid blend to fabricate hollow fibers, demonstrating the greater versatility of the blend for obtaining an ultrathin dense layer, potentially suitable for industrial use [35]. More recently, a novel blend membrane of PIM-1 and a Tröger’s Base (TB) polymer showed lower pure gas permeability but higher ideal selectivity than that of the pristine PIM-1 membrane [36].
In the present paper, we study the properties of a blend membrane based on the highly permeable PIM-EA(H2)-TB [37,38,39,40] and the highly selective Matrimid®5218 (Figure 1). PIM-EA(H2)-TB is a member of the new class of PIMs consisting of Tröger’s Base and ethanoanthracene (EA), forming a particularly rigid polymer backbone. The equivalent polymer with methyl substituents on the two bridgehead positions of the ethanoanthracene unit, PIM-EA-TB, was shown to have a marked size-sieving behaviour that favours the diffusion of gases with smaller kinetic diameters, and surpasses the 2008 Robeson upper bound for the O2/N2, H2/CH4 and H2/CO2 gas pairs [8,41]. The PIM-EA(H2)-TB is highly selective, as the analogous PIM-EA-TB, and was recently used to increase the hydrogen permeability of polybenzimidazole by blending [40].
The aim of this work to enhance the permeability of Matrimid by the addition of PIM-EA(H2)-TB, and to find the desired combination of the high permeability of the PIM and the high selectivity of the polyimide. Detailed analysis of the gas transport parameters under single and mixed gas permeation conditions provides deep insight into the role of gas diffusivity and solubility in the overall transport properties of the novel Matrimid®5218/PIM-EA(H2)-TB blend. In particular, a novel mixed gas permeation setup with the unique possibility to determine the mixed gas diffusion coefficients will provide unprecedented information on the coupling effect between CO2 and CH4 or CO2 and N2 during permeation of the respective mixtures in the neat polymers and the blend.
2. Materials and Methods
2.1. Materials
Matrimid®5218 was kindly supplied by Huntsman (Basel, Switzerland) and PIM-EA(H2)-TB was prepared as described previously [37] and the purified polymer, isolated as a powder, was used without any further treatment.
2.2. Preparation of Matrimid®5218/PIM-EA(H2)-TB Blend Membranes
The casting solutions of both pure polymers were prepared at a concentration of 2 wt % of the polymer in dichloromethane (DCM). Homogenous solutions were obtained under magnetic stirring overnight. The blend solution was prepared by mixing equal amounts of the two individual solutions. The blend membrane containing 50 wt % of both Matrimid®5218 and PIM-EA(H2)-TB was prepared pouring the appropriate amount of the blend solution into a metallic casting ring of 3 cm diameter, placed on a Teflon® support. The solvent was evaporated at room temperature for 24 h, yielding optically defect-free membranes Figure 1.
2.3. Membranes Characterization
Chemical and morphological analysis of membranes were performed by scanning electron microscopy (SEM) on a Phenom Pro X desktop SEM, equipped with backscattering detector (Phenom-World B.V., Eindhoven, The Netherlands) and infrared spectroscopy (FTIR) analyses on a Spectrum Spotlight Chemical Imaging Instrument (PerkinElmer). Single gas permeation tests were carried out at 25 °C and at a feed pressure of 1 bar, using a fixed-volume pressure increase instrument (ESSR, Geestchacht, Germany), described elsewhere [43]. Permeability coefficients, P, and diffusion coefficients, D, were determined by the time-lag method [44]. The simplest model of permeation through dense polymeric films describes permeability as the product of diffusion coefficient and solubility coefficient. Thus, the apparent solubility, S, was indirectly calculated as S = P/D. The ideal selectivity is the ratio of permeability of two species, α(A/B) = PA/PB. Mixed gas permeation tests were carried out using a custom made constant pressure/variable volume instrument, described elsewhere [45,46], equipped with a quadrupole mass filter (HPR-20 QIC Benchtop residual gas analysis system, Hiden Analytical). Measurements were carried out as a sequence of increasing and subsequently decreasing pressure steps in the range from 1–6 bar(a).
3. Results and Discussion
3.1. Chemical and Morphological Characterization
The chemical interaction between Matrimid®5218 and PIM-EA(H2)-TB was studied by means of FTIR-ATR. The IR-spectrum for neat Matrimid®5218, neat PIM-EA(H2)-TB and for the blend were shown in Figure 2. The distinctive imide peaks of Matrimid®5218 appear at 1712 for C=O stretching and at 1361 cm−1 for C–N stretching, these peaks are also found in the spectrum of the blend. The characteristic peaks of PIM-EA(H2)-TB are the CH2 asymmetric stretch vibrations of the ethanoanthracene (EA) unit at 2960 cm−1 and the scissoring vibrations at 1420 cm−1. The water peak (3370 cm−1) in the neat PIM-EA(H2)-TB and in the blend demonstrate the relatively hydroscopic nature of TB-PIMs [23]. The good compatibility of Matrimid®5218 and PIM-EA(H2)-TB was also deduced from the high optical transparency of the film and high mechanical resistance. The cross-sectional SEM image shows very few separate domains (less than 1% of the area) confirming the excellent miscibility between PIM-EA(H2)-TB and Matrimid (Figure 2).
3.2. Pure Gas Transport Properties
Single gas permeation measurements were carried out in the order He, H2, O2, N2, CH4 and CO2 at 25 °C on time-stabilized membranes [47]. Figure 3 shows a plot of the gas transport parameters of 30 days aged PIM and blend membranes, and a >1 year aged Matrimid membrane as a function of the membrane composition. The quantitative values are reported in Table 1. The experimental results highlight the different behaviour of Matrimid®5218 and PIM-EA(H2)-TB. For all gases, the pure gas permeability (Figure 3a), diffusivity (Figure 3c) and solubility (Figure 3e) are all higher in the Matrimid®5218/PIM-EA(H2)-TB blend than in neat Matrimid membrane, thanks to the higher free volume of the PIM.
The gas permeability and diffusivity are greater for the neat PIM, while there is little difference in solubility between the blend and the neat PIM. The effect of composition is largest for diffusivity, which increases about two orders of magnitude from Matrimid to PIM, whereas the solubility increases less than an order of magnitude. The time lag of H2 and He is too short to be measured accurately in the relatively thin neat Matrimid®5218 membrane, and thus the related diffusion coefficient and solubility of this membrane could not be determined. The combined effect of S and D is reflected in an exceptionally high permeability of the neat PIM membrane, with an approximately three orders of magnitude higher N2 and CH4 permeability compared to the Matrimid membrane. On the other hand, the selectivity is generally higher in Matrimid®5218 (Figure 3b and Table 1), especially for gas pairs with very different kinetic diameters, like H2/N2, He/N2, mainly as a result of the much higher diffusion selectivity (Figure 3d). The O2/N2 selectivity is higher in Matrimid®5218 due to a slightly higher diffusion selectivity and solubility selectivity, whereas the higher CO2/N2 selectivity in Matrimid®5218 must be ascribed mainly to the higher solubility selectivity (Figure 3e).
The blend membrane with 50 wt% of each polymer exhibits intermediate properties with respect to the two individual polymers, with a roughly linear trend in permeability on a logarithmic scale. This trend suggests that the two polymers have good compatibility and form a homogeneous blend, because Robeson [48] anticipated that that the permeability, Pb, of a homogeneous polymer blend can be expressed as:
where ϕ1 and ϕ2 are the volume fractions of the two polymers in the blend, and P1 and P2 are their respective permeabilities. The minor deviations of the experimental data from linearity are likely due to the use of the weight fraction (Figure 3) instead of volume fraction (Equation (1)). The volume fraction of the PIM, which has a lower density than Matrimid®5218, is higher than the weight fraction. To some extent, the nonlinearity may also be due to slight differences in the degree of physical ageing in the three samples, typically observed for PIMs but less in common glassy polymers with lower free volume.
3.3. Mixed Gas Transport Properties
3.3.1. Mixed Gas Permeability
The membrane performance for two relevant industrial separations was investigated via mixed gas permeability measurements on the pristine Matrimid®5218, PIM-EA(H2)-TB and on the Matrimid®5218/PIM-EA(H2)-TB blend (See Appendix A Table A1). Measurements were performed from 1 to 6 bar(a) with two binary gas mixtures of CO2/CH4 (35:65 vol %) and CO2/N2 (15:85 vol %), in order to simulate the biomethane purification process from biogas and CO2 capture from flue gas, respectively (Figure 4, Table 2).
The Matrimid®5218 membrane showed very weak pressure-dependence of permeability and selectivity for both gas pairs, CO2/CH4 and CO2/N2 in the given pressure range. It does not show significant hysteresis between the pressure increase steps and the pressure decrease steps, which means that neither substantial physical ageing, nor CO2 induced dilation of the polymer takes place. On the other hand, for the Matrimid®5218/PIM-EA(H2)-TB blend and the neat PIM-EA(H2)-TB membranes, the CO2 permeability decreases as function of the feed pressure for both gas mixtures. This is typical for polymers with distinct dual mode behaviour, which is indeed very common for PIMs [49]. The N2 permeability decreases in a similar fashion as a function of pressure, and thus the CO2/N2 selectivity is virtually constant in all three samples. In the blend and the pure PIM, the methane permeability is slightly less pressure-dependent than that of CO2, and therefore the CO2/CH4 selectivity decreases in these two membranes. The stronger effect of CO2 on methane than on nitrogen is likely due to its higher concentration (35 vol %) in the CO2/CH4 mixture, compared to 15 vol % in the CO2/N2 mixture. All membranes were aged for at least a month before the measurements, so that further ageing during the experiments should not be expected. Only neat PIM-EA(H2)-TB showed a slightly lower permeability in the pressure decrease steps, but the difference was hardly more than the experimental error, so may not be necessarily attributed to physical ageing. On the contrary, the Matrimid®5218/PIM-EA(H2)-TB blend showed weak hysteresis for CO2 and CH4, with slightly higher permeability of both gases in the pressure decrease steps. This suggests a slight dilatation of the polymer matrix and/or removal of trace amounts of residual solvent at elevated CO2 partial pressures.
3.3.2. Mixed Gas Diffusion and Solubility
As described recently, a unique feature of our mixed gas permeation setup with on-line mass-spectrometric analysis of the permeate composition is that it allows the determination of, not only, the permeability but also the diffusion coefficients of the individual gases in the mixture [45,46]. The results for the three membranes are given in Table 3. The diffusion coefficient is determined by a time lag method for gas mixtures [45], and the solubility is approximated indirectly as S = P/D. The most obvious result for the blend and PIM membrane is that, while the CH4 and N2 permeability change relatively little in the mixture (Table 2), their diffusion coefficients increase substantially and since the change in diffusion coefficient of CO2 is much smaller, the diffusion selectivity decreases significantly. The gas solubility shows exactly the opposite trend: the CH4 and N2 solubility decrease in the presence of CO2. This provides clear evidence of competitive sorption by CO2 at the expense of the less condensable gases.
3.4. Robeson Plots and Comparison with Literature Blend-Data
The gas permeability data of neat Matrimid®5218, PIM-EA(H2)-TB, and the blended membrane are plotted in the Robeson diagrams for CO2/N2, CO2/CH4, O2/N2 and H2/CH4 (Figure 5). From Matrimid®5218 to the blend and to pure PIM-EA(H2)-TB, the diagrams show a strong increase in the pure gas permeability, accompanied by a modest decrease in ideal selectivity, as a common trend for all gas pairs. Literature data of pure Matrimid and other PIM/Matrimid blend membranes for CO2/N2 and CO2/CH4 separation are plotted for reference. Most of the data of our samples lie inside the data cloud near its top range. The cloud of Matrimid data derives from the different measurement conditions, membrane preparation and conditioning.
Only the CO2/N2 selectivity of the neat PIM and the blend lie significantly higher than the cloud and these samples are positioned much closer to the most recent upper bound than Matrimid. Especially for CO2/N2, with PCO2 = 198 Barrer and αCO2/N2 = 29, the Matrimid®5218/PIM-EA(H2)-TB blend presents a better trade-off between permeability and selectivity compared to other Matrimid®5218/PIM (50:50) blends reported in the literature, such as PIM-1/Matrimid (PCO2 = 155 Barrer; αCO2/N2 = 27) and cPIM-1/Matrimid (PCO2 = 145 Barrer; αCO2/N2 = 24) [32,34]. Of note is that the Matrimid permeability was increased approximately 20-fold by the addition of 50 wt % of PIM-EA(H2)-TB. This offers the potential for the preparation of asymmetric or thin film composite membranes with much higher permeability, without compromising selectivity too much.
4. Conclusions
The pure and mixed gas permeation measurements of neat polymer of intrinsic microporosity PIM-EA(H2)-TB, Matrimid®5218 and their 50/50 wt % blend demonstrated that the permeability of Matrimid®5218 can be increased dramatically by the addition of the PIM whilst maintaining a reasonably high selectivity. Mixed gas permeation experiments reveal a comparable CO2 permeability and a slightly higher selectivity than the ideal one for the CO2/CH4 and CO2/N2 gas pairs, and addition of the PIM moves the performance of Matrimid®5218 closer to the Robeson upper bound for these gas pairs. Interestingly, in spite of the slightly higher mixed gas permselectivity, the mixed gas diffusion selectivity is significantly lower than the ideal diffusion selectivity. This indicates that the presence of CO2 favours the diffusion of the slower gases N2 and CH4, but that the effect of competitive sorption, which reduces their solubility, dominates the overall performance of the membranes. All membranes show a moderate to weak decrease in either the permeability or the selectivity for the CO2/CH4 and CO2/N2 gas pairs with increasing pressure, typical for dual mode sorption behaviour. The very strong effect of PIM-EA(H2)-TB offers the possibility to tailor the permeability of Matrimid®5218 over a wide range and opens perspectives for making high permeability thin film composite membranes with the mechanical resistance of Matrimid and PIM-like permeabilities.
Author Contributions
E.E. and I.M. conceived, designed and performed the membrane preparation and characterization experiments under the supervision of J.C.J., R.M.-E., M.C. and N.B.M. conceived, synthetized and provided the polymer PIM-EA(H2)-TB. E.E., I.M. and A.F. conceived, designed and performed the single gas permeation experiments under the supervision of J.C.J., M.M. conceived, designed and performed the mixed gas permeation experiments under the supervision of J.C.J., All authors analyzed the data and wrote the manuscript with similar effort.
Funding
This research was funded by the European Union’s Seventh Framework Program (FP7) under grant agreement no. 608490, project M4CO2, grant agreement no. 228631, project DoubleNanoMem, and by the by the CNR-CAS bilateral agreement 2016–2018 “Innovative polymeric membranes for pervaporation and advanced gas and vapour separations”.
Acknowledgments
Phenom-World B.V., Eindhoven (NL), is gratefully acknowledged for providing a Phenom Pro X desktop SEM for evaluation. Huntsman (Basel, Switzerland) is gratefully acknowledged for providing a sample of Matrimid®5218.
Conflicts of Interest
The authors declare no conflict of interest.
Appendix A. Mixed Gas Permeation Data
Table A1.
Mixed gas permeabilities and selectivity for Matrimid, Matrimid®5218/PIM-EA(H2)-TB blend and PIM-EA(H2)-TB membranes using the binary mixture CO2/CH4 (35/65) vol % and the binary mixture CO2/N2 (15/85) vol %.
Table A1.
Mixed gas permeabilities and selectivity for Matrimid, Matrimid®5218/PIM-EA(H2)-TB blend and PIM-EA(H2)-TB membranes using the binary mixture CO2/CH4 (35/65) vol % and the binary mixture CO2/N2 (15/85) vol %.
| Matrimid | Pressure | P, (Barrer) | Selectivity (−) | Pressure | P, (Barrer) | Selectivity (−) | ||
| (bar(a)) | CH4 | CO2 | CO2/CH4 | (bar(a)) | N2 | CO2 | CO2/N2 | |
| 1 | 0.19 | 10.5 | 55.7 | 1 | 0.23 | 11.3 | 48.5 | |
| 2 | 0.18 | 10.0 | 55.6 | 2 | 0.22 | 11.0 | 49.8 | |
| 3 | 0.18 | 10.3 | 56.7 | 3 | 0.22 | 10.8 | 49.3 | |
| 4 | 0.18 | 10.1 | 55.3 | 4 | 0.22 | 10.7 | 49.3 | |
| 5 | 0.18 | 9.9 | 54.0 | 5 | 0.22 | 10.4 | 48.0 | |
| 6 | 0.18 | 9.8 | 53.6 | 6 | 0.22 | 10.8 | 49.4 | |
| 5.5 | 0.18 | 9.9 | 54.3 | 5.5 | 0.22 | 10.9 | 49.5 | |
| 4.5 | 0.18 | 10.1 | 55.3 | 4.5 | 0.22 | 10.5 | 47.3 | |
| 3.5 | 0.18 | 10.3 | 56.3 | 3.5 | 0.23 | 10.7 | 47.1 | |
| 2.5 | 0.19 | 10.6 | 57.2 | 2.5 | 0.23 | 10.8 | 47.7 | |
| 1.5 | 0.19 | 10.4 | 54.4 | 1.5 | 0.23 | 11.0 | 48.3 | |
| 1 | 0.19 | 10.6 | 55.2 | 1 | 0.23 | 11.1 | 48.5 | |
| Matrimid®5218/PIM-EA(H2)-TB blend | Pressure | P, (Barrer) | Selectivity (−) | Pressure | P, (Barrer) | Selectivity (−) | ||
| (bar(a)) | CH4 | CO2 | CO2/CH4 | (bar(a)) | N2 | CO2 | CO2/N2 | |
| 1 | 9.09 | 250 | 27.5 | 1 | 6.0 | 260 | 43.5 | |
| 2 | 8.59 | 231 | 26.8 | 2 | 5.4 | 246 | 45.3 | |
| 3 | 8.29 | 217 | 26.2 | 3 | 5.2 | 236 | 45.0 | |
| 4 | 8.09 | 210 | 25.9 | 4 | 5.0 | 225 | 45.6 | |
| 5 | 8.08 | 200 | 24.8 | 5 | 4.7 | 219 | 46.6 | |
| 6 | 7.91 | 212 | 26.8 | 6 | 4.6 | 217 | 47.0 | |
| 5.5 | 8.16 | 215 | 26.4 | 5.5 | 4.7 | 219 | 46.7 | |
| 4.5 | 8.46 | 213 | 25.2 | 4.5 | 4.9 | 224 | 45.2 | |
| 3.5 | 8.70 | 226 | 26.0 | 3.5 | 5.2 | 233 | 45.3 | |
| 2.5 | 9.09 | 240 | 26.4 | 2.5 | 5.4 | 244 | 45.2 | |
| 1.5 | 9.48 | 257 | 27.1 | 1.5 | 5.7 | 258 | 45.0 | |
| 1 | 9.46 | 263 | 27.8 | 1 | 5.8 | 265 | 45.5 | |
| PIM-EA(H2)-TB | Pressure | P, (Barrer) | Selectivity (−) | Pressure | P, (Barrer) | Selectivity (−) | ||
| (bar(a)) | CH4 | CO2 | CO2/CH4 | (bar(a)) | N2 | CO2 | CO2/N2 | |
| 1 | 75.7 | 1540 | 20.3 | 1 | 49.6 | 1410 | 28.4 | |
| 2 | 73.4 | 1430 | 19.5 | 2 | 47.1 | 1350 | 28.7 | |
| 3 | 73.7 | 1430 | 19.4 | 3 | 44.8 | 1320 | 29.4 | |
| 4 | 73.4 | 1370 | 18.7 | 4 | 43.4 | 1280 | 29.5 | |
| 5 | 72.6 | 1320 | 18.2 | 5 | 42.0 | 1230 | 29.4 | |
| 6 | 72.1 | 1270 | 17.6 | 6 | 41.1 | 1200 | 29.2 | |
| 5.5 | 72.2 | 1290 | 17.8 | 5.5 | 41.6 | 1230 | 29.5 | |
| 4.5 | 71.6 | 1340 | 18.8 | 4.5 | 43.7 | 1260 | 28.8 | |
| 3.5 | 71.6 | 1390 | 19.4 | 3.5 | 44.9 | 1290 | 28.8 | |
| 2.5 | 71.1 | 1460 | 20.6 | 2.5 | 46.1 | 1340 | 29.1 | |
| 1.5 | 71.1 | 1430 | 20.2 | 1.5 | 47.7 | 1410 | 29.5 | |
| 1 | 69.5 | 1460 | 21.0 | 1 | 48.6 | 1430 | 29.4 | |
References
- Robeson, L.M. Correlation of separation factor versus permeability for polymeric membranes. J. Memb. Sci. 1991, 62, 165–185. [Google Scholar] [CrossRef]
- Robeson, L.M. The upper bound revisited. J. Memb. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
- Swaidan, R.; Ghanem, B.; Pinnau, I. Fine-Tuned Intrinsically Ultramicroporous Polymers Redefine the Permeability/Selectivity Upper Bounds of Membrane-Based Air and Hydrogen Separations. ACS Macro Lett. 2015, 4, 947–951. [Google Scholar] [CrossRef] [Green Version]
- Freeman, B.D. Basis of permeability/selectivity tradeoff relations in polymeric gas separation membranes. Macromolecules 1999, 32, 375–380. [Google Scholar] [CrossRef]
- Budd, P.M.; Elabas, E.S.; Ghanem, B.S.; Makhseed, S.; McKeown, N.B.; Msayib, K.J.; Tattershall, C.E.; Wang, D. Solution-Processed, Organophilic Membrane Derived from a Polymer of Intrinsic Microporosity. Adv. Mater. 2004, 16, 456–459. [Google Scholar] [CrossRef]
- Williams, R.; Burt, L.A.; Esposito, E.; Jansen, J.C.; Tocci, E.; Rizzuto, C.; Lanč, M.; Carta, M.; McKeown, N.B. A highly rigid and gas selective methanopentacene-based polymer of intrinsic microporosity derived from Tröger’s base polymerization. J. Mater. Chem. A 2018, 6, 5661–5667. [Google Scholar] [CrossRef]
- Rose, I.; Bezzu, C.G.; Carta, M.; Comesanã-Gándara, B.; Lasseuguette, E.; Ferrari, M.C.; Bernardo, P.; Clarizia, G.; Fuoco, A.; Jansen, J.C.; et al. Polymer ultrapermeability from the inefficient packing of 2D chains. Nat. Mater. 2017, 16, 932–937. [Google Scholar] [CrossRef] [PubMed]
- Carta, M.; Malpass-Evans, R.; Croad, M.; Rogan, Y.; Jansen, J.C.; Bernardo, P.; Bazzarelli, F.; McKeown, N.B. An Efficient Polymer Molecular Sieve for Membrane Gas Separations. Science 2013, 339, 303–307. [Google Scholar] [CrossRef]
- Paul, D.R.; Barlow, J.W. A binary interaction model for miscibility of copolymers in blends. Polymer 1984, 25, 487–494. [Google Scholar] [CrossRef]
- Mannan, H.A.; Mukhtar, H.; Murugesan, T.; Nasir, R.; Mohshim, D.F.; Mushtaq, A. Recent applications of polymer blends in gas separation membranes. Chem. Eng. Technol. 2013, 36, 1838–1846. [Google Scholar] [CrossRef]
- Grobelny, J.; Rice, D.M.; Karasz, F.E.; MacKnight, W.J. High-resolution solid-state carbon-13 nuclear magnetic resonance study of polybenzimidazole/polyimide blends. Macromolecules 1990, 23, 2139–2144. [Google Scholar] [CrossRef]
- Chung, T.S.; Guo, W.F.; Liu, Y. Enhanced Matrimid membranes for pervaporation by homogenous blends with polybenzimidazole (PBI). J. Memb. Sci. 2006, 271, 221–231. [Google Scholar] [CrossRef]
- Jansen, J.C.; Darvishmanesh, S.; Tasselli, F.; Bazzarelli, F.; Bernardo, P.; Tocci, E.; Friess, K.; Randova, A.; Drioli, E.; Van der Bruggen, B. Influence of the blend composition on the properties and separation performance of novel solvent resistant polyphenylsulfone/polyimide nanofiltration membranes. J. Memb. Sci. 2013, 447, 107–118. [Google Scholar] [CrossRef]
- Han, J.; Lee, W.; Choi, J.M.; Patel, R.; Min, B.-R. Characterization of polyethersulfone/polyimide blend membranes prepared by a dry/wet phase inversion: Precipitation kinetics, morphology and gas separation. J. Memb. Sci. 2010, 351, 141–148. [Google Scholar] [CrossRef]
- Kapantaidakis, G.C.; Kaldis, S.P.; Dabou, X.S.; Sakellaropoulos, G.P. Gas permeation through PSF-PI miscible blend membranes. J. Memb. Sci. 1996, 110, 239–247. [Google Scholar] [CrossRef]
- Kapantaidakis, G.C.; Koops, G.H. High flux polyethersulfone–polyimide blend hollow fiber membranes for gas separation. J. Memb. Sci. 2002, 204, 153–171. [Google Scholar] [CrossRef]
- Basu, S.; Cano-Odena, A.; Vankelecom, I.F.J. Asymmetric membrane based on Matrimid® and polysulphone blends for enhanced permeance and stability in binary gas (CO2/CH4) mixture separations. Sep. Purif. Technol. 2010, 75, 15–21. [Google Scholar] [CrossRef]
- Rafiq, S.; Man, Z.; Maitra, S.; Maulud, A.; Ahmad, F.; Muhammad, N. Preparation of asymmetric polysulfone/polyimide blended membranes for CO2 separation. Korean J. Chem. Eng. 2011, 28, 2050–2056. [Google Scholar] [CrossRef]
- Budd, P.M.; McKeown, N.B.; Ghanem, B.S.; Msayib, K.J.; Fritsch, D.; Starannikova, L.; Belov, N.; Sanfirova, O.; Yampolskii, Y.; Shantarovich, V. Gas permeation parameters and other physicochemical properties of a polymer of intrinsic microporosity: Polybenzodioxane PIM-1. J. Memb. Sci. 2008, 325, 851–860. [Google Scholar] [CrossRef]
- Mason, C.R.; Maynard-Atem, L.; Al-Harbi, N.M.; Budd, P.M.; Bernardo, P.; Bazzarelli, F.; Clarizia, G.; Jansen, J.C. Polymer of intrinsic microporosity incorporating thioamide functionality: Preparation and gas transport properties. Macromolecules 2011, 44, 6471–6479. [Google Scholar] [CrossRef]
- Bezzu, C.G.; Carta, M.; Tonkins, A.; Jansen, J.C.; Bernardo, P.; Bazzarelli, F.; Mckeown, N.B. A spirobifluorene-based polymer of intrinsic microporosity with improved performance for gas separation. Adv. Mater. 2012, 24, 5930–5933. [Google Scholar] [CrossRef] [PubMed]
- Mason, C.R.; Maynard-Atem, L.; Heard, K.W.J.; Satilmis, B.; Budd, P.M.; Friess, K.; Lanč, M.; Bernardo, P.; Clarizia, G.; Jansen, J.C. Enhancement of CO2 Affinity in a Polymer of Intrinsic Microporosity by Amine Modification. Macromolecules 2014, 47, 1021–1029. [Google Scholar] [CrossRef] [PubMed]
- Carta, M.; Croad, M.; Malpass-Evans, R.; Jansen, J.C.; Bernardo, P.; Clarizia, G.; Friess, K.; Lanč, M.; McKeown, N.B. Triptycene Induced Enhancement of Membrane Gas Selectivity for Microporous Tröger’s Base Polymers. Adv. Mater. 2014, 26, 3526–3531. [Google Scholar] [CrossRef] [PubMed]
- Bezzu, C.G.; Carta, M.; Ferrari, M.-C.; Jansen, J.C.; Monteleone, M.; Esposito, E.; Fuoco, A.; Hart, K.; Liyana-Arachchi, T.P.; Colina, C.M.; et al. The synthesis, chain-packing simulation and long-term gas permeability of highly selective spirobifluorene-based polymers of intrinsic microporosity. J. Mater. Chem. A 2018, 6. [Google Scholar] [CrossRef]
- Du, N.; Robertson, G.P.; Song, J.; Pinnau, I.; Guiver, M.D. High-performance carboxylated polymers of intrinsic microporosity (PIMs) with tunable gas transport properties. Macromolecules 2009, 42, 6038–6043. [Google Scholar] [CrossRef]
- Du, N.; Robertson, G.P.; Pinnau, I.; Guiver, M.D. Polymers of intrinsic microporosity derived from novel disulfone-based monomers. Macromolecules 2009. [Google Scholar] [CrossRef]
- Du, N.; Robertson, G.P.; Pinnau, I.; Guiver, M.D. Polymers of intrinsic microporosity with dinaphthyl and thianthrene segments. Macromolecules 2010. [Google Scholar] [CrossRef]
- Swaidan, R.; Ghanem, B.S.; Litwiller, E.; Pinnau, I. Pure- and mixed-gas CO2/CH4 separation properties of PIM-1 and an amidoxime-functionalized PIM-1. J. Memb. Sci. 2014, 457, 95–102. [Google Scholar] [CrossRef]
- Ma, C.; Urban, J.J. Polymers of Intrinsic Microporosity (PIMs) Gas Separation Membranes: A mini Review. Proc. Nat. Res. Soc. 2018, 2, 2002. [Google Scholar] [CrossRef] [Green Version]
- Yong, W.F.; Lee, Z.K.; Chung, T.S. Blends of a polymer of intrinsic microporosity and partially sulfonated polyphenylenesulfone for Gas separation. ChemSusChem 2016, 9, 1953–1962. [Google Scholar] [CrossRef]
- Salehian, P.; Yong, W.F.; Chung, T.-S. Development of high performance carboxylated PIM-1/P84 blend membranes for pervaporation dehydration of isopropanol and CO2/CH4 separation. J. Memb. Sci. 2016, 518, 110–119. [Google Scholar] [CrossRef]
- Yong, W.F.; Li, F.Y.; Xiao, Y.C.; Li, P.; Pramoda, K.P.; Tong, Y.W.; Chung, T.S. Molecular engineering of PIM-1/Matrimid blend membranes for gas separation. J. Memb. Sci. 2012, 407–408, 47–57. [Google Scholar] [CrossRef]
- Yong, W.F.; Li, F.Y.; Chung, T.S.; Tong, Y.W. Molecular interaction, gas transport properties and plasticization behavior of cPIM-1/Torlon blend membranes. J. Memb. Sci. 2014, 462, 119–130. [Google Scholar] [CrossRef]
- Yong, W.F.; Chung, T.S. Miscible blends of carboxylated polymers of intrinsic microporosity (cPIM-1) and Matrimid. Polymer 2015, 59, 290–297. [Google Scholar] [CrossRef]
- Yong, W.F.; Li, F.Y.; Xiao, Y.C.; Chung, T.S.; Tong, Y.W. High performance PIM-1/Matrimid hollow fiber membranes for CO2/CH4, O2/N2 and CO2/N2 separation. J. Memb. Sci. 2013, 443, 156–169. [Google Scholar] [CrossRef]
- Zhao, S.; Liao, J.; Li, D.; Wang, X.; Li, N. Blending of compatible polymer of intrinsic microporosity (PIM-1) with Tröger’s Base polymer for gas separation membranes. J. Memb. Sci. 2018, 566, 77–86. [Google Scholar] [CrossRef]
- Bernardo, P.; Scorzafave, V.; Clarizia, G.; Tocci, E.; Jansen, J.C.; Borgogno, A.; Malpass-Evans, R.; McKeown, N.B.; Carta, M.; Tasselli, F. Thin film composite membranes based on a polymer of intrinsic microporosity derived from Tröger’s base: A combined experimental and computational investigation of the role of residual casting solvent. J. Memb. Sci. 2019, 569, 17–31. [Google Scholar] [CrossRef]
- Benito, J.; Sánchez-Laínez, J.; Zornoza, B.; Martín, S.; Carta, M.; Malpass-Evans, R.; Téllez, C.; McKeown, N.B.; Coronas, J.; Gascón, I. Ultrathin Composite Polymeric Membranes for CO2/N2 Separation with Minimum Thickness and High CO2 Permeance. ChemSusChem 2017, 10, 4014–4017. [Google Scholar] [CrossRef]
- Benito, J.; Vidal, J.; Sánchez-Laínez, J.; Zornoza, B.; Téllez, C.; Martín, S.; Msayib, K.J.; Comesaña-Gándara, B.; McKeown, N.B.; Coronas, J.; et al. The fabrication of ultrathin films and their gas separation performance from polymers of intrinsic microporosity with two-dimensional (2D) and three-dimensional (3D) chain conformations. J. Colloid Interface Sci. 2019, 536, 474–482. [Google Scholar] [CrossRef]
- Sanchez-Lainez, J.; Zornoza, B.; Carta, M.; Malpass-Evans, R.; McKeown, N.B.; Téllez, C.; Coronas, J. Hydrogen Separation at High Temperature with Dense and Asymmetric Membranes based on PIM-EA(H2)-TB/PBI Blends. Ind. Eng. Chem. Res. 2018, 57, 16909–16916. [Google Scholar] [CrossRef]
- Carta, M.; Croad, M.; Jansen, J.C.; Bernardo, P.; Clarizia, G.; McKeown, N.B. Synthesis of cardo-polymers using Tröger’s base formation. Polym. Chem. 2014, 5, 5255. [Google Scholar] [CrossRef]
- Weigelt, F.; Georgopanos, P.; Shishatskiy, S.; Filiz, V.; Brinkmann, T.; Abetz, V. Development and characterization of defect-free Matrimid® mixed-matrix membranes containing activated carbon particles for gas separation. Polymers 2018, 10, 51. [Google Scholar] [CrossRef]
- Jansen, J.C.; Friess, K.; Drioli, E. Organic vapour transport in glassy perfluoropolymer membranes: A simple semi-quantitative approach to analyze clustering phenomena by time lag measurements. J. Memb. Sci. 2011, 367, 141–151. [Google Scholar] [CrossRef]
- Crank, J. The Mathematics of Diffusion, 2nd ed.; Clarendon Press: Oxford, UK, 1975; ISBN 0198533446. [Google Scholar]
- Fraga, S.C.; Monteleone, M.; Lanč, M.; Esposito, E.; Fuoco, A.; Giorno, L.; Pilnáček, K.; Friess, K.; Carta, M.; McKeown, N.B.; et al. A novel time lag method for the analysis of mixed gas diffusion in polymeric membranes by on-line mass spectrometry: Method development and validation. J. Memb. Sci. 2018, 561, 39–58. [Google Scholar] [CrossRef]
- Monteleone, M.; Esposito, E.; Fuoco, A.; Lanč, M.; Pilnáček, K.; Friess, K.; Bezzu, C.G.; Carta, M.; McKeown, N.B.; Jansen, J.C. A novel time lag method for the analysis of mixed gas diffusion in polymeric membranes by on-line mass spectrometry: Pressure dependence of transport parameters. Membranes 2018, 8, 73. [Google Scholar] [CrossRef] [PubMed]
- Pilnáček, K.; Vopička, O.; Lanč, M.; Dendisová, M.; Zgažar, M.; Budd, P.M.; Carta, M.; Malpass-Evans, R.; McKeown, N.B.; Friess, K. Aging of polymers of intrinsic microporosity tracked by methanol vapour permeation. J. Memb. Sci. 2016, 520, 895–906. [Google Scholar] [CrossRef] [Green Version]
- Robeson, L.M. Polymer blends in membrane transport processes. Ind. Eng. Chem. Res. 2010, 49, 11859–11865. [Google Scholar] [CrossRef]
- Lanč, M.; Pilnáček, K.; Mason, C.R.; Budd, P.M.; Rogan, Y.; Malpass-Evans, R.; Carta, M.; Gándara, B.C.; McKeown, N.B.; Jansen, J.C.; et al. Gas sorption in polymers of intrinsic microporosity: The difference between solubility coefficients determined via time-lag and direct sorption experiments. J. Memb. Sci. 2019, 570–571, 522–536. [Google Scholar] [CrossRef]

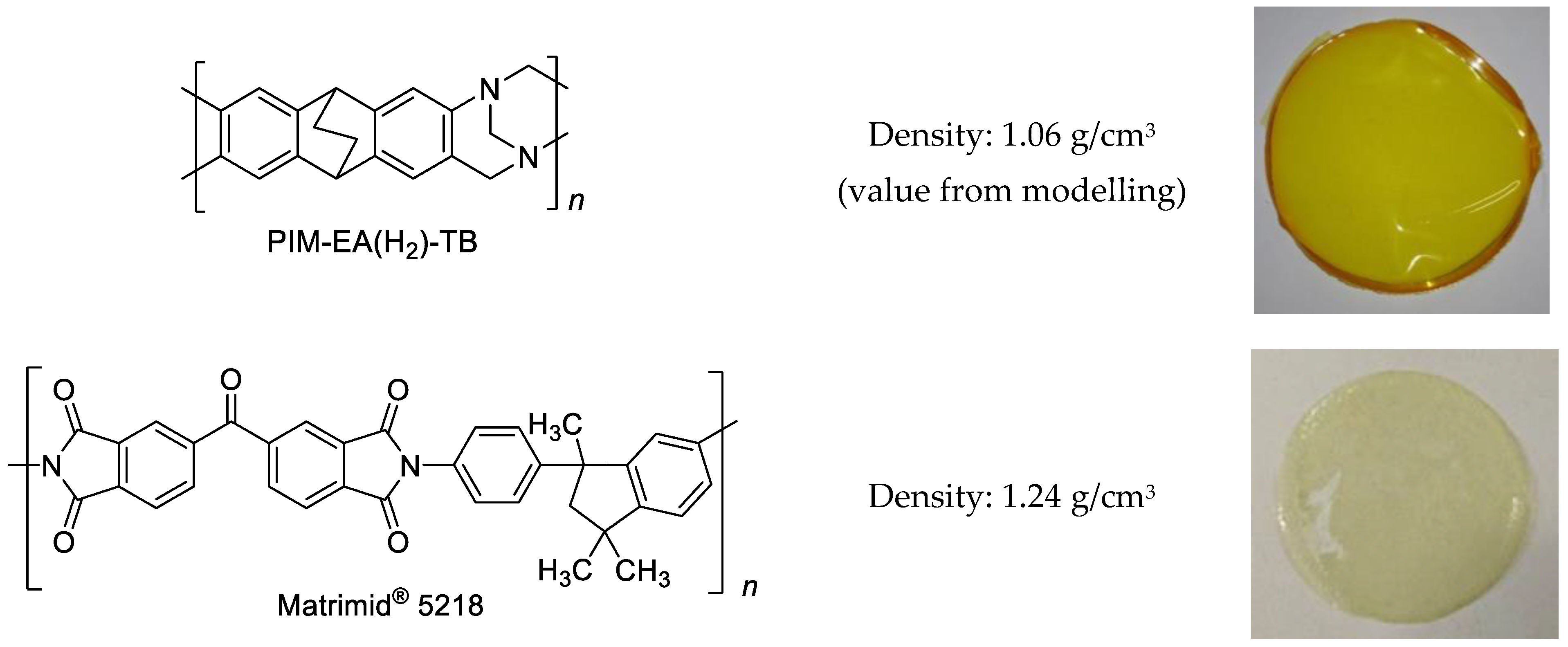

Figure 1.
Structure, properties and membrane sample of PIM-EA(H2)-TB and Matrimid. Density from Ref. [37] and [42], respectively.

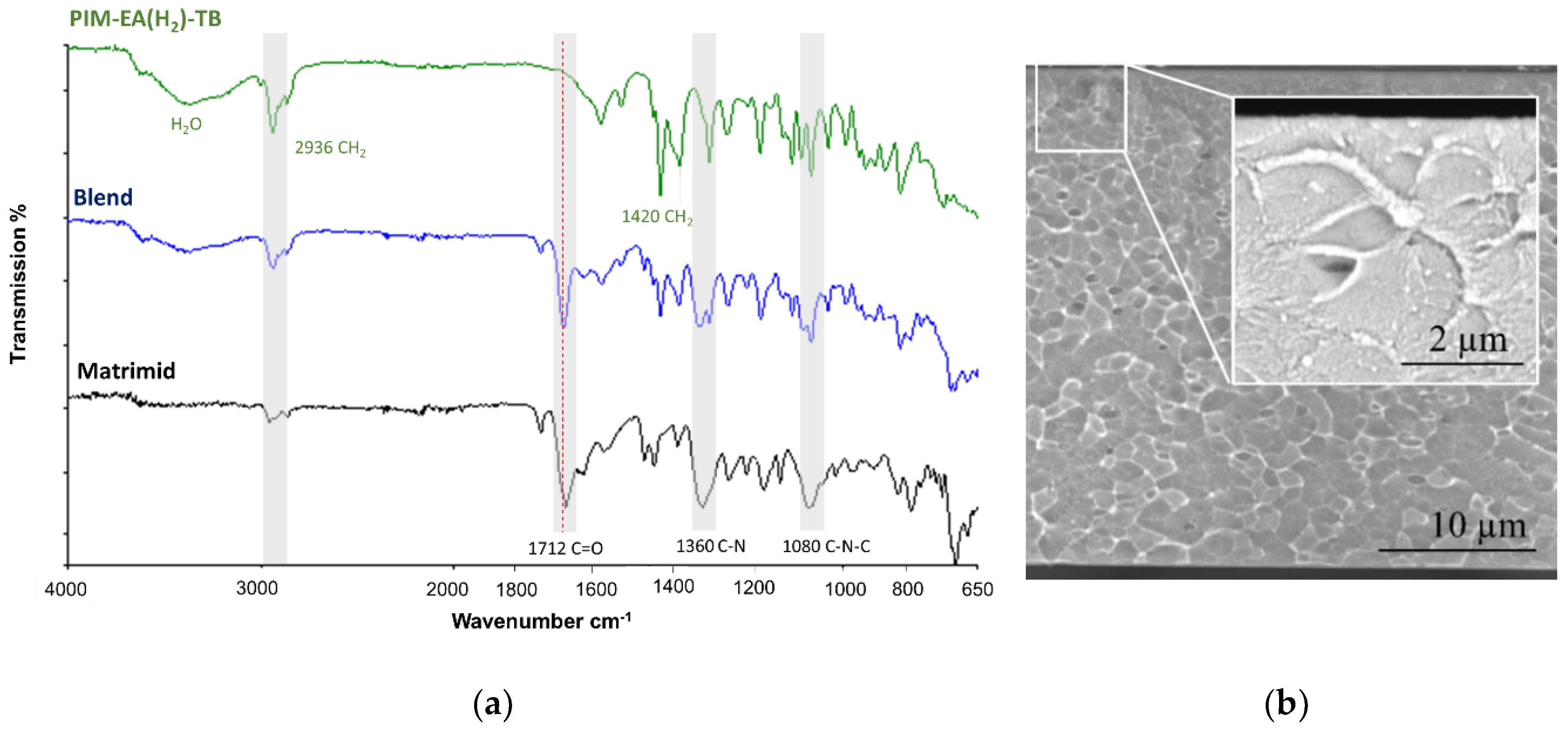

Figure 2.
(a) ATR-FTIR spectra of the Matrimid®5218/PIM-EA(H2)-TB blend and neat polymer membranes, and (b) SEM cross-sectional image of the Matrimid®5218/PIM-EA(H2)-TB blend membrane at a magnification of 8000× and 30,000× at an accelerating voltage of 10 kV.
Figure 2.
(a) ATR-FTIR spectra of the Matrimid®5218/PIM-EA(H2)-TB blend and neat polymer membranes, and (b) SEM cross-sectional image of the Matrimid®5218/PIM-EA(H2)-TB blend membrane at a magnification of 8000× and 30,000× at an accelerating voltage of 10 kV.
Figure 3.
(a) Permeability, (c) diffusivity and (e) solubility coefficients with their respective selectivities (b,d,f) of Matrimid® (100%); Matrimid®5218/PIM-EA(H2)-TB blend and PIM-EA(H2)-TB (100%). The lines are indicated as a guide to the eye.
Figure 3.
(a) Permeability, (c) diffusivity and (e) solubility coefficients with their respective selectivities (b,d,f) of Matrimid® (100%); Matrimid®5218/PIM-EA(H2)-TB blend and PIM-EA(H2)-TB (100%). The lines are indicated as a guide to the eye.

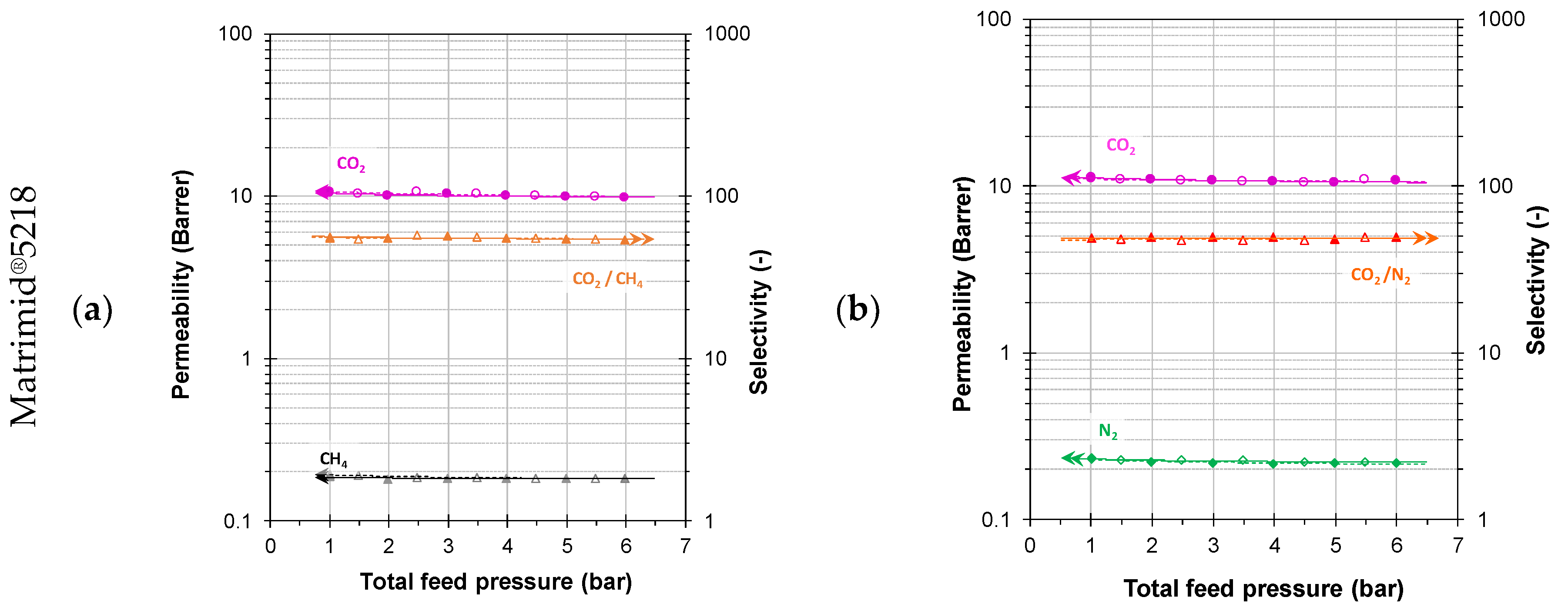

Figure 4.
(a,c,e) Pressure dependence of CO2 and CH4 permeabilities and CO2/CH4 selectivity using the binary mixture of CO2/CH4 (35:65 vol %) for neat polymers and Matrimid®5218/PIM-EA(H2)-TB blend membranes. (b,d,f) Pressure dependence of CO2 and N2 permeabilities and CO2/N2 selectivity in binary mixtures CO2/N2 (15:85 vol %); Closed symbols are used for the stepwise increase of the pressure and open symbols for the subsequent stepwise decrease of the pressure.
Figure 4.
(a,c,e) Pressure dependence of CO2 and CH4 permeabilities and CO2/CH4 selectivity using the binary mixture of CO2/CH4 (35:65 vol %) for neat polymers and Matrimid®5218/PIM-EA(H2)-TB blend membranes. (b,d,f) Pressure dependence of CO2 and N2 permeabilities and CO2/N2 selectivity in binary mixtures CO2/N2 (15:85 vol %); Closed symbols are used for the stepwise increase of the pressure and open symbols for the subsequent stepwise decrease of the pressure.
Figure 5.
Robeson’s plots of ♦ neat ![Polymers 11 00046 i001]()
Matrimid®5218, X PIM-EA(H2)-TB and Matrimid®5218/PIM blend membranes for CO2/N2 (a), CO2/CH4 (b), O2/N2 (c) and H2/CH4 (d) gas pairs (pure gas filled symbols and Mixed gas open symbols). Reference data for other matrimid-based blends (■) and other PIM-based blends (■) are plotted for comparison.
Matrimid®5218, X PIM-EA(H2)-TB and Matrimid®5218/PIM blend membranes for CO2/N2 (a), CO2/CH4 (b), O2/N2 (c) and H2/CH4 (d) gas pairs (pure gas filled symbols and Mixed gas open symbols). Reference data for other matrimid-based blends (■) and other PIM-based blends (■) are plotted for comparison.
Figure 5.
Robeson’s plots of ♦ neat ![Polymers 11 00046 i001]()
Matrimid®5218, X PIM-EA(H2)-TB and Matrimid®5218/PIM blend membranes for CO2/N2 (a), CO2/CH4 (b), O2/N2 (c) and H2/CH4 (d) gas pairs (pure gas filled symbols and Mixed gas open symbols). Reference data for other matrimid-based blends (■) and other PIM-based blends (■) are plotted for comparison.
Matrimid®5218, X PIM-EA(H2)-TB and Matrimid®5218/PIM blend membranes for CO2/N2 (a), CO2/CH4 (b), O2/N2 (c) and H2/CH4 (d) gas pairs (pure gas filled symbols and Mixed gas open symbols). Reference data for other matrimid-based blends (■) and other PIM-based blends (■) are plotted for comparison.
Table 1.
Experimental data of single gas permeation in the neat polymers and the Matrimid®5218/PIM-EA(H2)-TB blend membrane.
Table 1.
Experimental data of single gas permeation in the neat polymers and the Matrimid®5218/PIM-EA(H2)-TB blend membrane.
| Permeability (Barrer) | Selectivity (Px/Py) | ||||||||||||
| Membrane | N2 | CH4 | O2 | He | H2 | CO2 | H2/N2 | He/N2 | O2/N2 | CH4/N2 | O2/CH4 | CO2/CH4 | CO2/N2 |
| Matrimid | 0.19 | 0.17 | 1.63 | 21.9 | 22.8 | 8.62 | 120 | 115 | 8.54 | 0.90 | 9.54 | 50.6 | 45.3 |
| Blend | 6.83 | 9.14 | 41.0 | 197 | 328 | 198 | 48.0 | 28.8 | 6.00 | 1.34 | 4.48 | 21.6 | 29.0 |
| PIM-EA(H2)-TB | 62.8 | 77.6 | 350 | 606 | 1630 | 1380 | 25.9 | 9.64 | 5.57 | 1.23 | 4.51 | 17.7 | 21.9 |
| Diffusivity (10−12 m2/s) | Diffusion selectivity (Dx/Dy) | ||||||||||||
| Membrane | N2 | CH4 | O2 | He | H2 | CO2 | H2/N2 | He/N2 | O2/N2 | CH4/N2 | O2/CH4 | CO2/CH4 | CO2/N2 |
| Matrimid | 0.21 | 0.04 | 1.23 | 0.28 | 5.74 | 0.17 | 33.6 | 7.69 | 1.31 | ||||
| Blend | 1.09 | 0.30 | 6.04 | 900 | 403 | 1.73 | 370 | 826 | 5.54 | 0.28 | 19.9 | 5.71 | 1.59 |
| PIM-EA(H2)-TB | 9.6 | 2.36 | 47.9 | 2400 | 1790 | 11.2 | 187 | 251 | 5.01 | 0.25 | 20.3 | 4.72 | 1.17 |
| Solubility (cm3(STP)/cm3 bar) | Solubility selectivity (Sx/Sy) | ||||||||||||
| Membrane | N2 | CH4 | O2 | He | H2 | CO2 | H2/N2 | He/N2 | O2/N2 | CH4/N2 | O2/CH4 | CO2/CH4 | CO2/N2 |
| Matrimid | 0.67 | 3.49 | 0.99 | 22.9 | 1.49 | 5.24 | 0.28 | 6.58 | 34.4 | ||||
| Blend | 4.70 | 22.6 | 5.08 | 0.16 | 0.61 | 85.7 | 0.13 | 0.03 | 1.08 | 4.81 | 0.22 | 3.79 | 18.2 |
| PIM-EA(H2)-TB | 4.93 | 24.6 | 5.47 | 0.19 | 0.68 | 92.5 | 0.14 | 0.04 | 1.11 | 5.00 | 0.22 | 3.76 | 18.8 |
1 Barrer = 10−10 cm3 (STP) cm cm−2 s−1 cmHg−1.
Table 2.
Comparison of the pure and mixed gas permeability of the neat Matrimid®5218, PIM-EA(H2)-TB and their blend membrane as measured in the mixed gas setup. Feed gas: binary mixture CO2/CH4 (35/65 vol %) and binary mixture CO2/N2 (15/85 vol %) at 1 bar.
Table 2.
Comparison of the pure and mixed gas permeability of the neat Matrimid®5218, PIM-EA(H2)-TB and their blend membrane as measured in the mixed gas setup. Feed gas: binary mixture CO2/CH4 (35/65 vol %) and binary mixture CO2/N2 (15/85 vol %) at 1 bar.
| Permeability (Barrer) | Px/Py Selectivity (−) | |||||
|---|---|---|---|---|---|---|
| CO2 | CH4 | N2 | CO2/CH4 | CO2/N2 | ||
| Matrimid®5218 | Pure gas | 10.4 | 0.20 | 0.24 | 52 | 43.3 |
| Mix (CO2/CH4) | 10.5 | 0.19 | - | 55 | - | |
| Mix (CO2/N2) | 11.3 | - | 0.23 | - | 49.1 | |
| Blend | Pure gas | 198 | 9.1 | 6.83 | 21.66 | 28.99 |
| Mix (CO2/CH4) | 250 | 9.09 | - | 27.49 | - | |
| Mix (CO2/N2) | 260 | - | 6.00 | - | 43.37 | |
| PIM-EA(H2)-TB | Pure gas | 1391 | 62.6 | 53.1 | 22.22 | 26.20 |
| Mix (CO2/CH4) | 1527 | 76.1 | - | 20.07 | - | |
| Mix (CO2/N2) | 1445 | - | 49.4 | - | 29.25 | |
Table 3.
Comparison of the pure and mixed gas diffusivity and solubility of the neat Matrimid®5218, PIM-EA(H2)-TB, and their blend membrane as measured in the mixed gas setup. Feed gas: binary mixture CO2/CH4 (35/65 vol %) and binary mixture CO2/N2 (15/85 vol %) at 1 bar.
Table 3.
Comparison of the pure and mixed gas diffusivity and solubility of the neat Matrimid®5218, PIM-EA(H2)-TB, and their blend membrane as measured in the mixed gas setup. Feed gas: binary mixture CO2/CH4 (35/65 vol %) and binary mixture CO2/N2 (15/85 vol %) at 1 bar.
| Diffusivity (10−12 m2 s−1) | Dx/Dy Selectivity (−) | |||||
| CO2 | CH4 | N2 | CO2/CH4 | CO2/N2 | ||
| Matrimid®5218 | Pure gas | 0.35 | 0.05 | 0.28 | 7.04 | 1.24 |
| Mix (CO2/CH4) | 0.29 | 0.06 | - | 5.12 | - | |
| Mix (CO2/N2) | 0.24 | - | 0.30 | - | 0.80 | |
| Blend | Pure gas | 2.36 | 0.46 | 1.58 | 5.71 | 1.59 |
| Mix (CO2/CH4) | 2.10 | 0.66 | - | 3.18 | - | |
| Mix (CO2/N2) | 1.40 | - | 2.11 | - | 0.61 | |
| PIM-EA(H2)-TB | Pure gas | 10.7 | 2.31 | 9.22 | 4.63 | 1.16 |
| Mix (CO2/CH4) | 10.6 | 3.61 | - | 2.94 | - | |
| Mix (CO2/N2) | 7.14 | - | 10.5 | - | 0.68 | |
| Solubility (cm3(STP) cm−3 bar−1) | Sx/Sy Selectivity (−) | |||||
| CO2 | CH4 | N2 | CO2/CH4 | CO2/N2 | ||
| Matrimid®5218 | Pure gas | 22.2 | 3.00 | 0.64 | 7.39 | 34.8 |
| Mix (CO2/CH4) | 27.0 | 2.50 | - | 10.8 | - | |
| Mix (CO2/N2) | 34.9 | - | 0.57 | - | 61.5 | |
| Blend | Pure gas | 85.8 | 22.6 | 4.70 | 3.79 | 18.3 |
| Mix (CO2/CH4) | 89.2 | 10.3 | - | 8.66 | - | |
| Mix (CO2/N2) | 138 | - | 1.94 | - | 71.0 | |
| PIM-EA(H2)-TB | Pure gas | 97.5 | 20.3 | 4.32 | 4.80 | 22.3 |
| Mix (CO2/CH4) | 109 | 15.7 | - | 6.91 | - | |
| Mix (CO2/N2) | 148 | - | 3.53 | - | 42.0 | |
© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Esposito, E.; Mazzei, I.; Monteleone, M.; Fuoco, A.; Carta, M.; McKeown, N.B.; Malpass-Evans, R.; Jansen, J.C. Highly Permeable Matrimid®/PIM-EA(H2)-TB Blend Membrane for Gas Separation. Polymers 2019, 11, 46. https://doi.org/10.3390/polym11010046
AMA Style
Esposito E, Mazzei I, Monteleone M, Fuoco A, Carta M, McKeown NB, Malpass-Evans R, Jansen JC. Highly Permeable Matrimid®/PIM-EA(H2)-TB Blend Membrane for Gas Separation. Polymers. 2019; 11(1):46. https://doi.org/10.3390/polym11010046
Chicago/Turabian StyleEsposito, Elisa, Irene Mazzei, Marcello Monteleone, Alessio Fuoco, Mariolino Carta, Neil B. McKeown, Richard Malpass-Evans, and Johannes C. Jansen. 2019. "Highly Permeable Matrimid®/PIM-EA(H2)-TB Blend Membrane for Gas Separation" Polymers 11, no. 1: 46. https://doi.org/10.3390/polym11010046
APA StyleEsposito, E., Mazzei, I., Monteleone, M., Fuoco, A., Carta, M., McKeown, N. B., Malpass-Evans, R., & Jansen, J. C. (2019). Highly Permeable Matrimid®/PIM-EA(H2)-TB Blend Membrane for Gas Separation. Polymers, 11(1), 46. https://doi.org/10.3390/polym11010046
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
