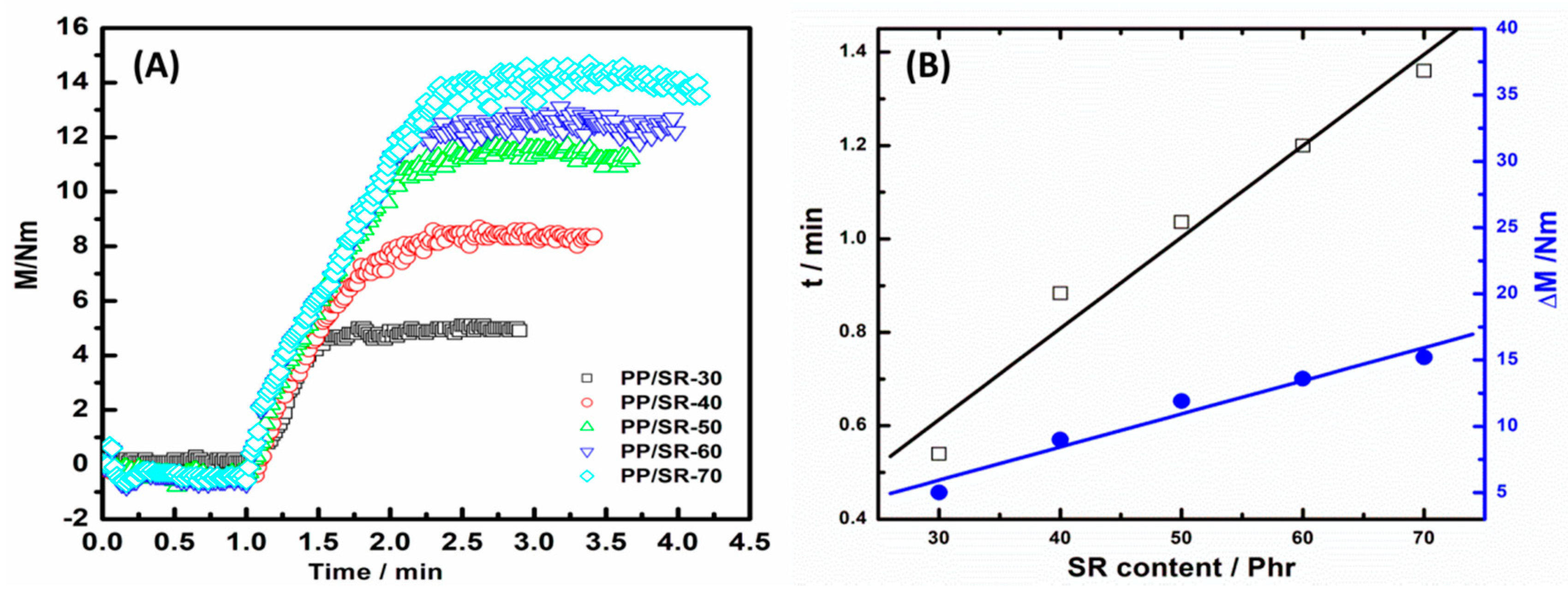

The thermoplastic vulcanizates (TPVs) of polypropylene (PP)/silicone rubber (SR) were prepared by dynamic vulcanization (DV) technology. The mixing torque, morphology, viscoelasticity, and creep response of PP/SR TPVs were investigated by torque rheometer, scanning electron microscope (SEM), transmission electron microscope (TEM), rotational rheometer, and dynamic mechanical analysis (DMA). A mixing-torque study showed that torque change and dynamic-vulcanization time increased with SR content increasing in the DV process, but DV rate was independent of SR content. TEM images indicated that the phase inversion of PP/SR-60 TPV from bicontinuous to a sea–island structure took place in the DV process, and a hot press would break the rubber aggregates and shrink a large SR phase. Dynamic-strain measurement demonstrated that PP/SR TPVs exhibit a distinct “Payne effect”, which can be attributed to the destruction and reconstruction of SR physical networks. Complex viscosity indicated that SR content did not affect the processability of PP/SR TPVs at high shear rates. Furthermore, the creep deformation and recovery of PP/SR TPVs at solid and melt states were studied, respectively.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
