Polymers 2018, 10(8), 845; https://doi.org/10.3390/polym10080845

Coupled Hygro-Mechanical Finite Element Method on Determination of the Interlaminar Shear Modulus of Glass Fiber-Reinforced Polymer Laminates in Bridge Decks under Hygrothermal Aging Effects

1
Department of Bridge Engineering, College of Civil Engineering, Tongji University, Shanghai 200092, China
2
Department of Structural Engineering, College of Civil Engineering, Tongji University, Shanghai 200092, China
3
Faculty of Civil Engineering and Geosciences, Delft University of Technology, 2628CN Delft, The Netherlands
*
Author to whom correspondence should be addressed.
Received: 26 June 2018 / Revised: 25 July 2018 / Accepted: 25 July 2018 / Published: 1 August 2018
(This article belongs to the Special Issue Simulations of Polymers)
Full-Text   |   PDF [6039 KB, uploaded 1 August 2018]   |

Abstract

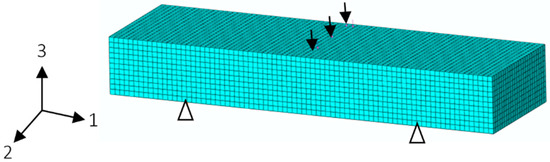

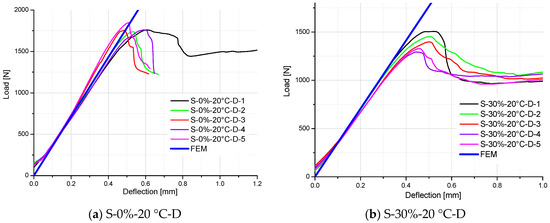

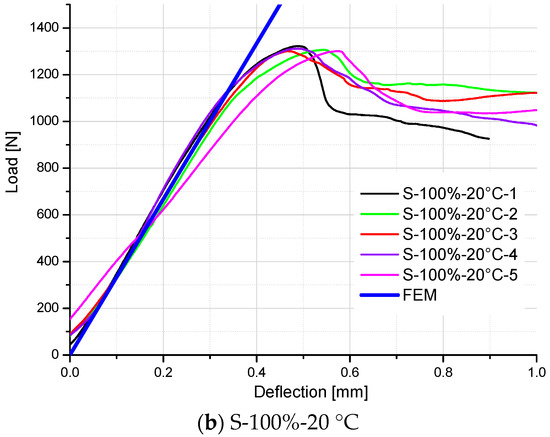

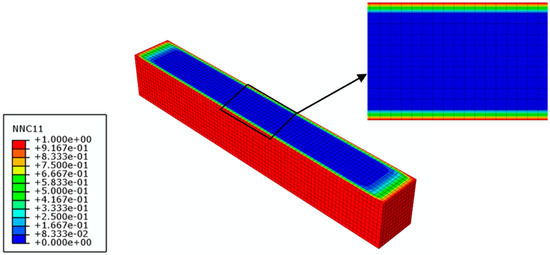

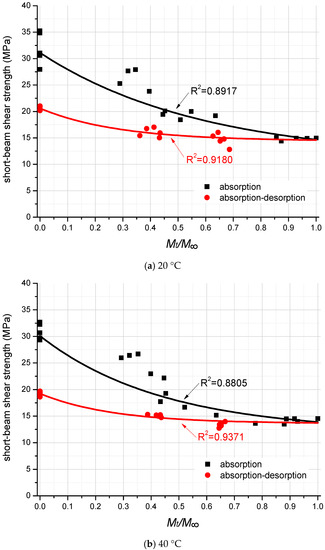

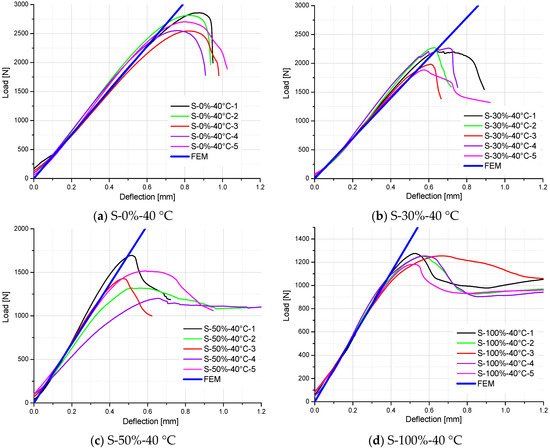

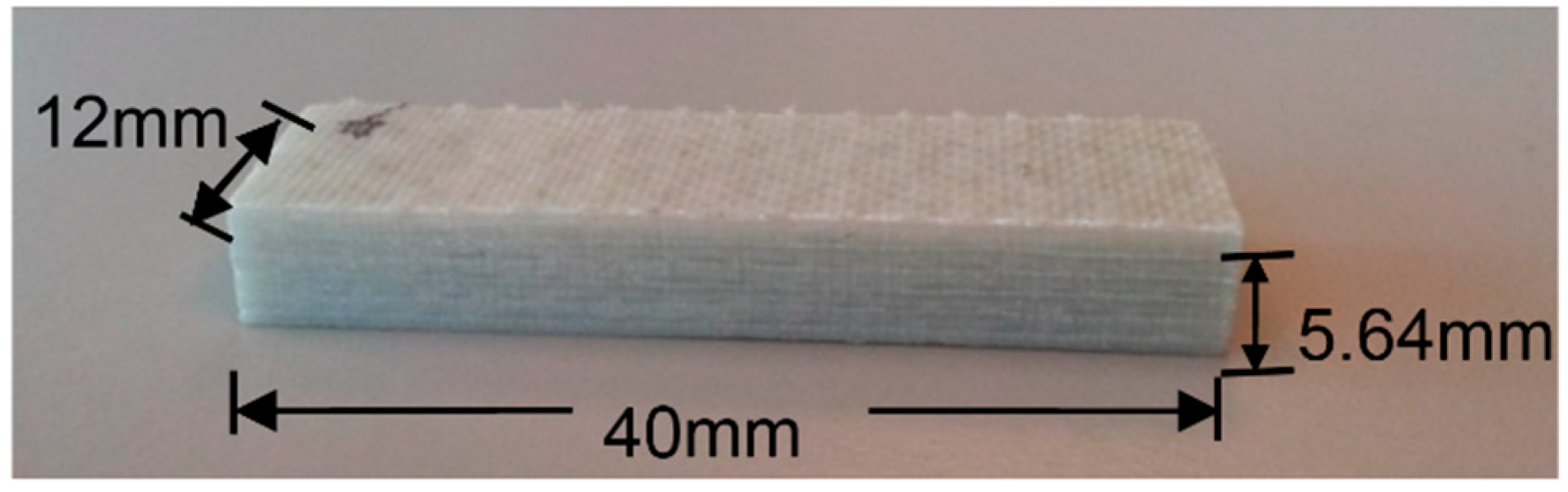

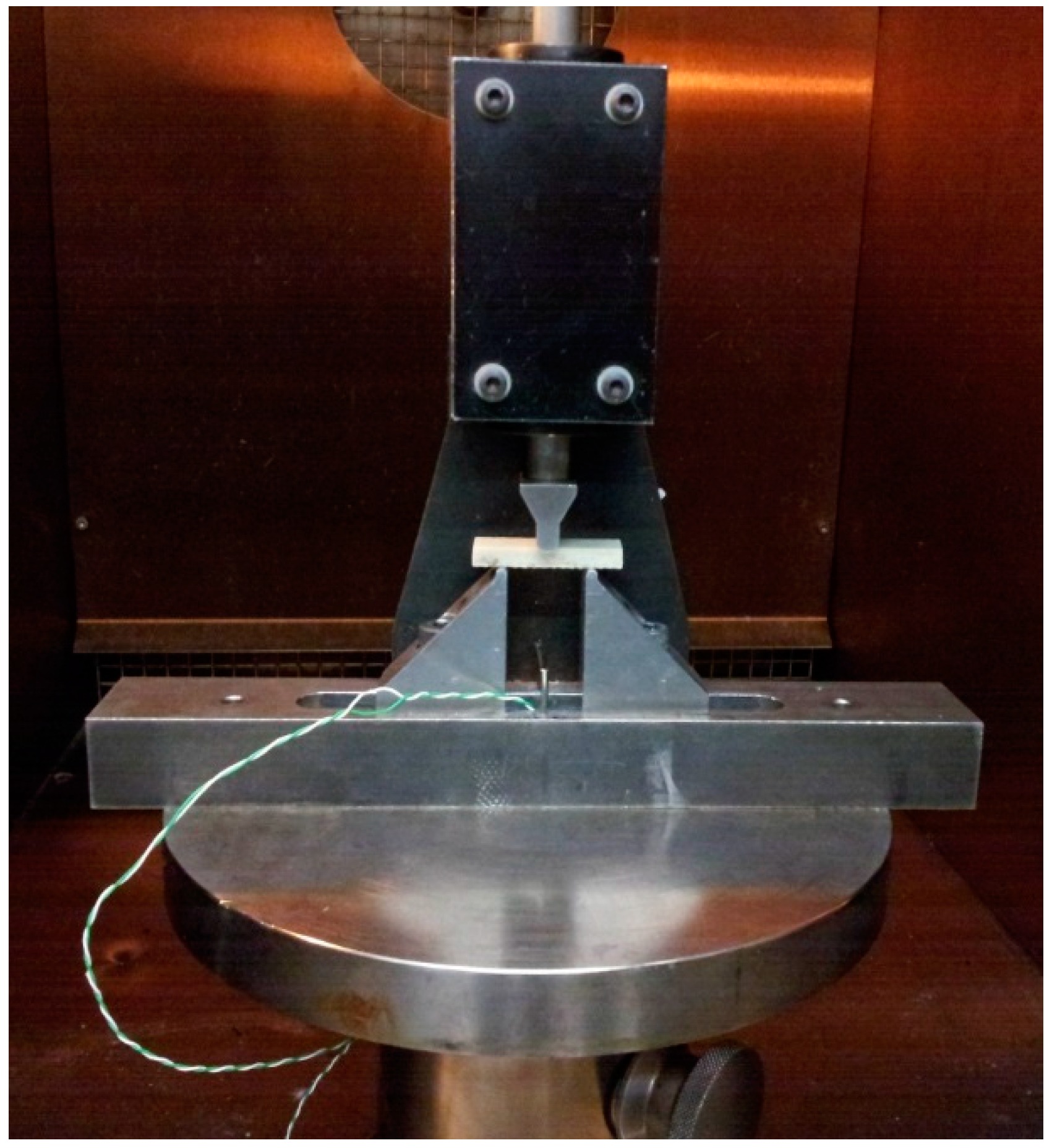

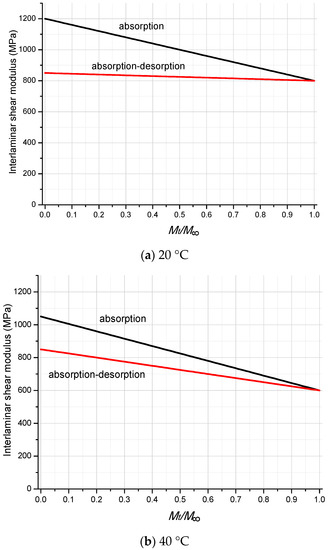

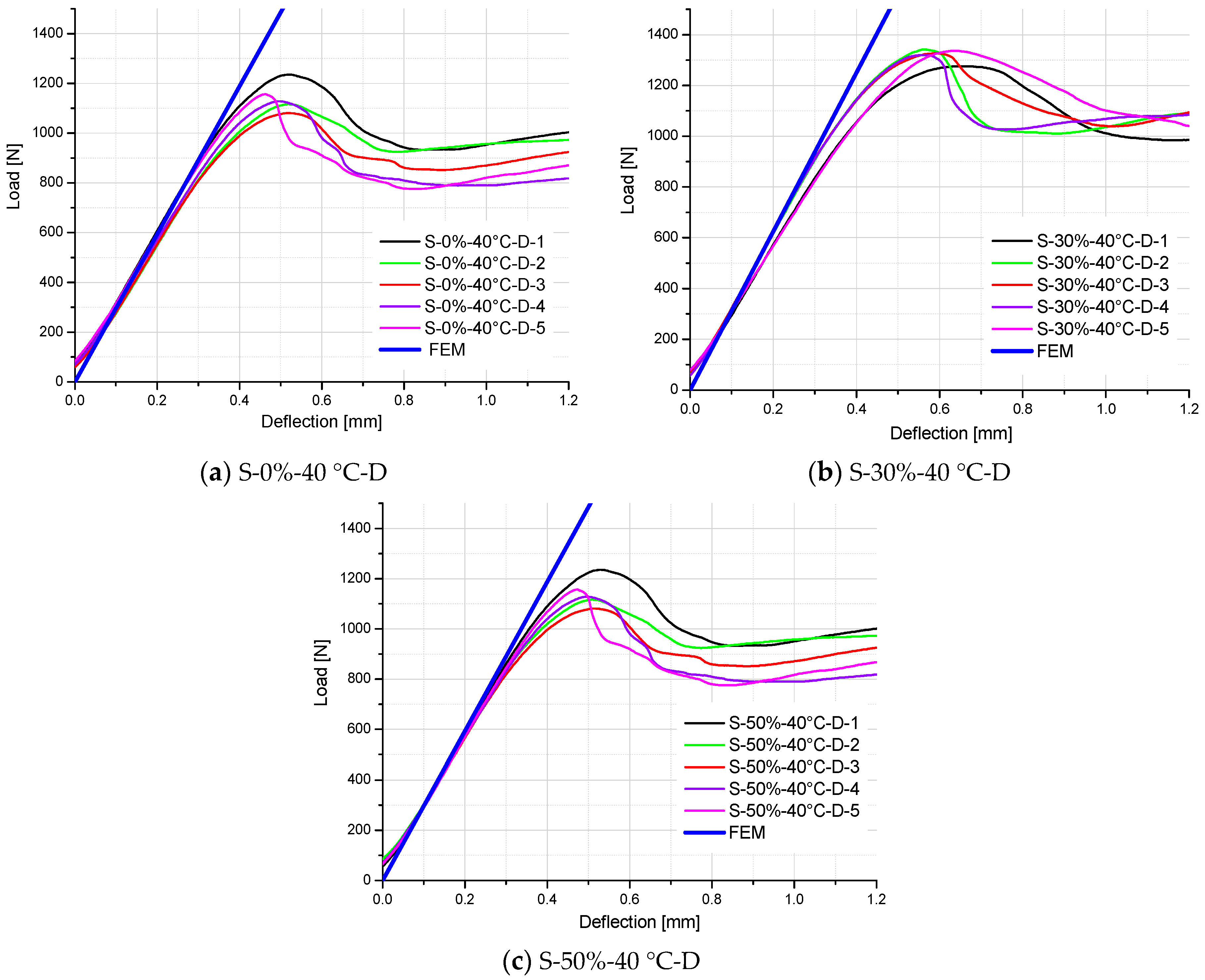

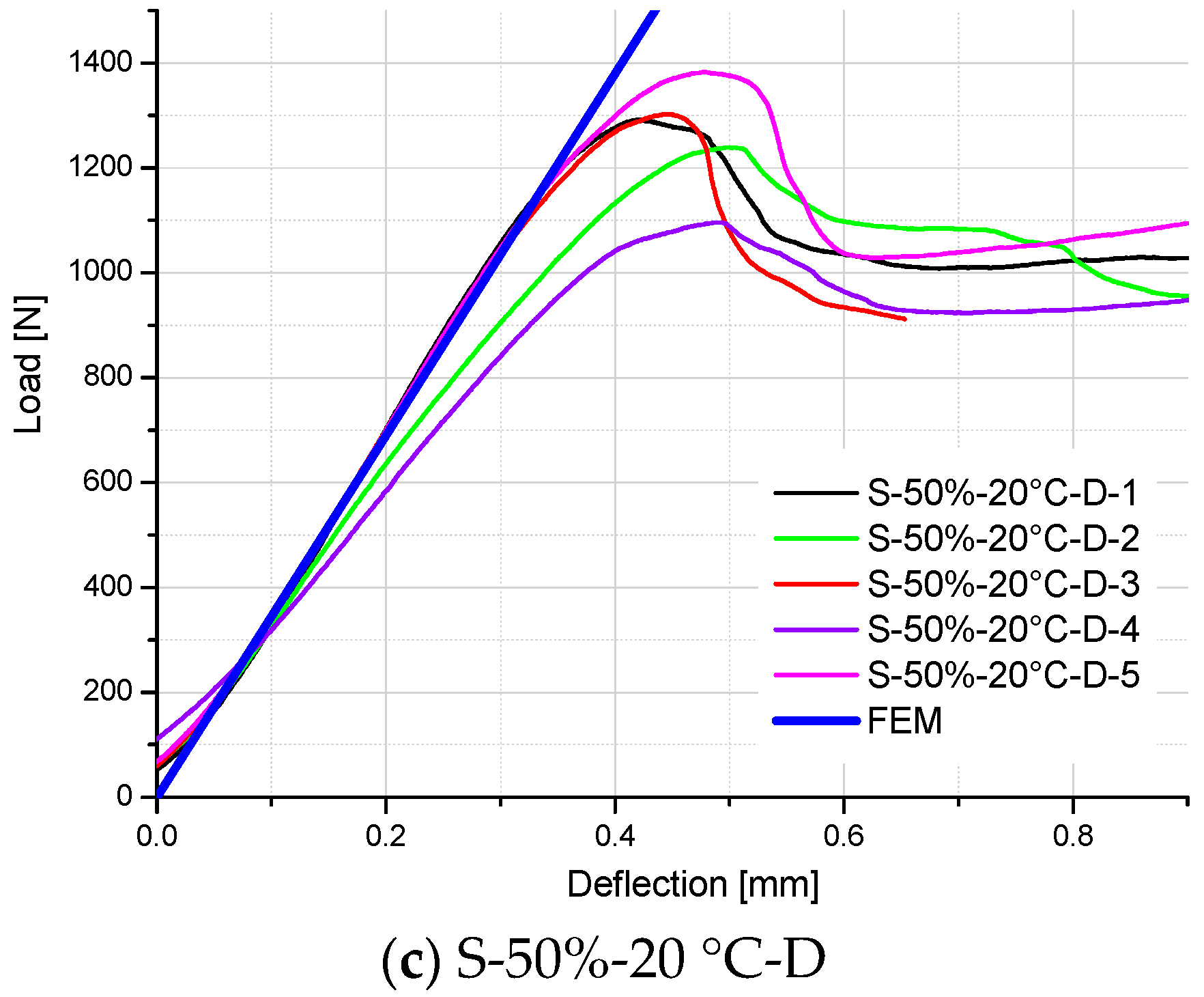

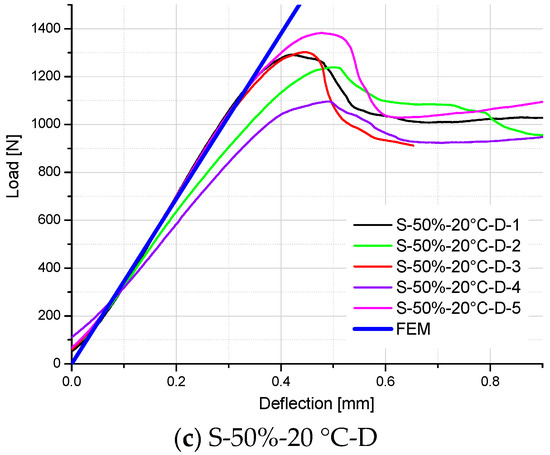

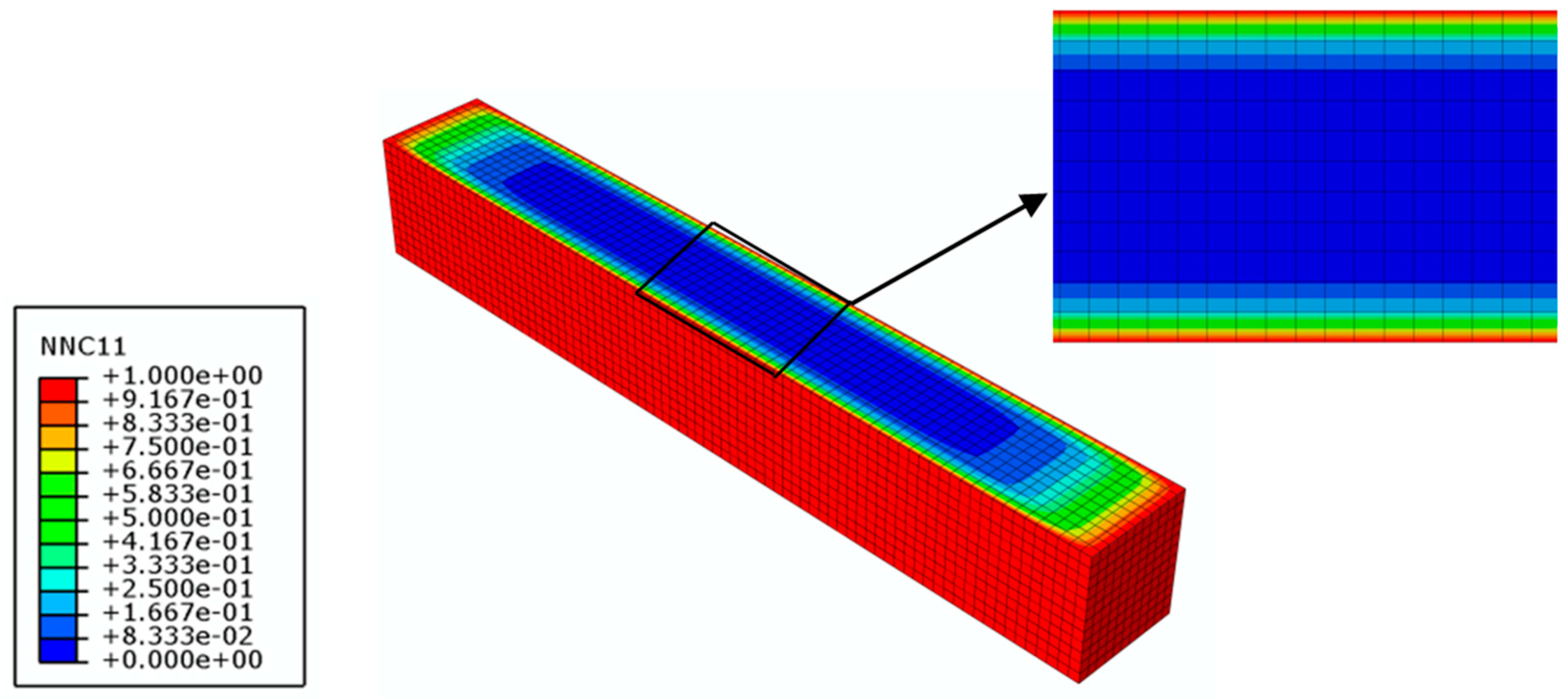

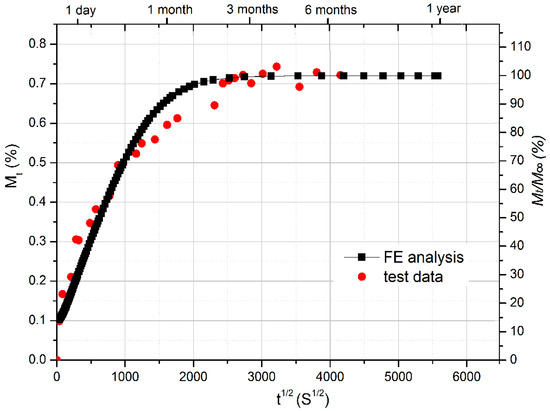

To investigate the mechanical degradation of the shear properties of glass fiber-reinforced polymer (GFRP) laminates in bridge decks under hygrothermal aging effects, short-beam shear tests were performed following the ASTM test standard (ASTM D790-10A). Based on the coupled hygro-mechanical finite element (FE) analysis method, an inverse parameter identification approach based on short-beam shear tests was developed and then employed to determine the environment-dependent interlaminar shear modulus of GFRP laminates. Subsequently, the shear strength and modulus of dry (0% Mt/M), moisture unsaturated (30% Mt/M and 50% Mt/M), and moisture saturated (100% Mt/M) specimens at test temperatures of both 20 °C and 40 °C were compared. One cycle of the moisture absorption–desorption process was also investigated to address how the moisture-induced residual damage degrades the shear properties of GFRP laminates. The results revealed that the shear strength and modulus of moisture-saturated GFRP laminates decreased significantly, and the elevated testing temperature (40 °C) aggravated moisture-induced mechanical degradation. Moreover, an unrecoverable loss of shear properties for the GFRP laminates enduring one cycle of the moisture absorption–desorption process was evident. View Full-Text
Keywords: fiber-reinforced polymer composite; interlaminar shear modulus; hygrothermal aging effect; mechanical degradation; short-beam test; finite element method fiber-reinforced polymer composite; interlaminar shear modulus; hygrothermal aging effect; mechanical degradation; short-beam test; finite element method
