Next Article in Journal
Bulk Modification of Poly(lactide) (PLA) via Copolymerization with Poly(propylene glycol) Diglycidylether (PPGDGE)
Next Article in Special Issue
Synthesis of Linseed Oil-Based Waterborne Urethane Oil Wood Coatings
Previous Article in Journal
Relaxation Dynamics in Polyethylene Glycol/Modified Hydrotalcite Nanocomposites
Previous Article in Special Issue
Diels–Alder-Crosslinked Polymers Derived from Jatropha Oil
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Polymers 2018, 10(11), 1183;

Aging Properties of Phenol-Formaldehyde Resin Modified by Bio-Oil Using UV Weathering

College of Materials Science and Technology, Beijing Forestry University, 35 Qinghua East Road, Haidian District, Beijing 100083, China
Author to whom correspondence should be addressed.
Received: 4 October 2018 / Revised: 22 October 2018 / Accepted: 23 October 2018 / Published: 24 October 2018
(This article belongs to the Special Issue Bio-Based Resins and Crosslinked Polymers from Renewable Resources)
Full-Text   |   PDF [4029 KB, uploaded 24 October 2018]   |

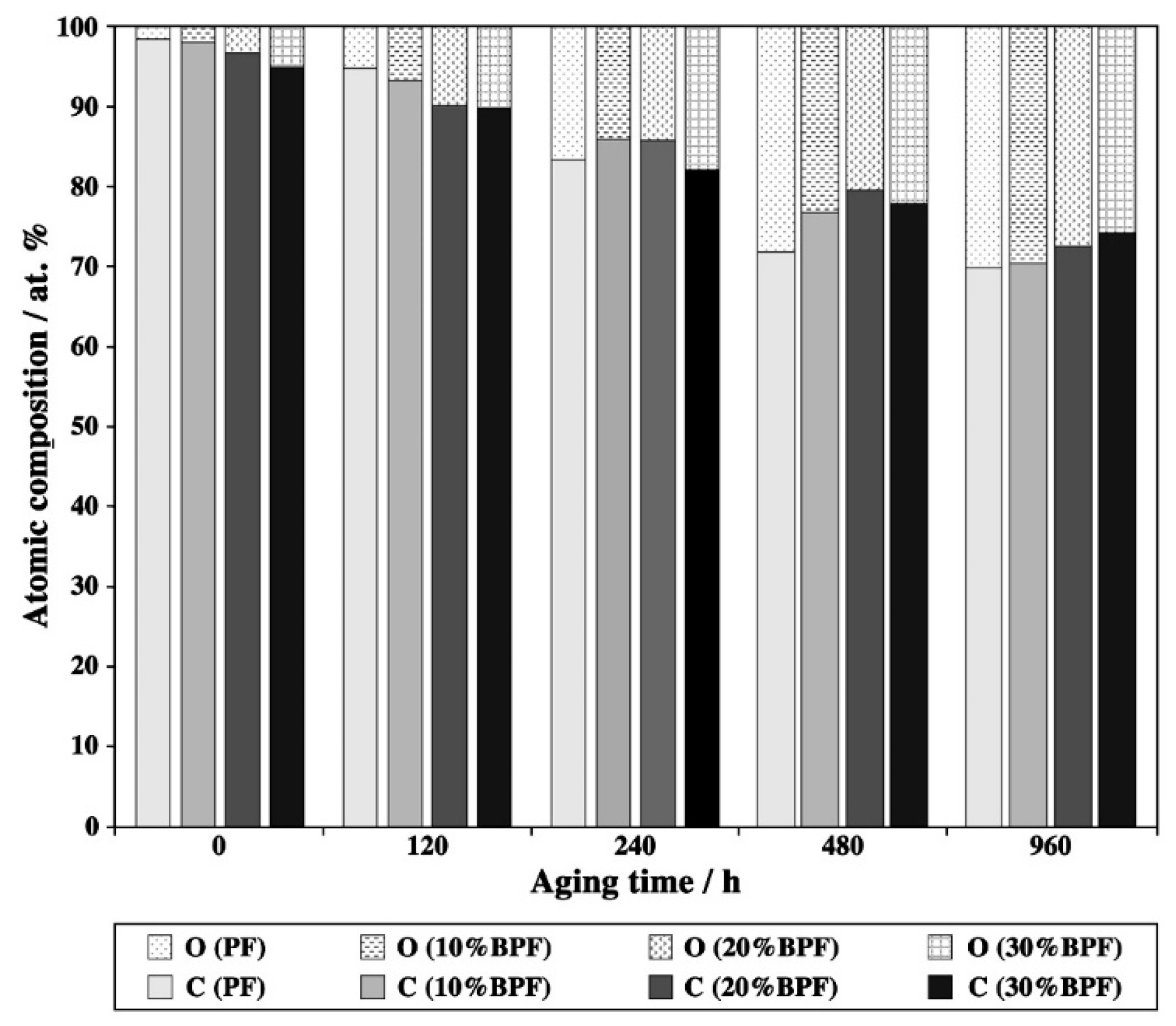

The aging properties of phenol-formaldehyde resin modified by bio-oil (BPF) were analyzed using ultraviolet (UV) weathering. The variations on bonding strength of BPF were measured, and the changes on microstructure, atomic composition and chemical structure of BPF were characterized by using a scanning electron microscope (SEM), X-ray photoelectron spectroscopy (XPS) and nuclear magnetic resonance (NMR), respectively. With the increase of aging time, the bonding strength decreased gradually, the resin surface became rougher and the O/C radio of resin surface increased. However, the loss rate of bonding strength of BPFs was 9.6–23.0% lower than that of phenol-formaldehyde resin (PF) after aging 960 h. The aging degree of BPF surfaces was smaller in comparison to PF at the same aging time. These results showed that the bio-oil had a positive effect on the anti-aging property. Analytical results revealed that with increasing the aging time, the XPS peak area of C–C/C–H decreased, while that of C=O and O–C=O increased. The intensity of methylene and ether bridges in NMR analysis decreased along with increasing the intensity of aldehydes, ketones, acids and esters. These results indicated that the aging mechanism of BPF was a process of the breakage of molecular chains and formation of oxygen-containing compounds. View Full-Text
Keywords: aging properties; phenol-formaldehyde resin; bio-oil; UV weathering aging properties; phenol-formaldehyde resin; bio-oil; UV weathering

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Yu, Y.; Xu, P.; Chang, M.; Chang, J. Aging Properties of Phenol-Formaldehyde Resin Modified by Bio-Oil Using UV Weathering. Polymers 2018, 10, 1183.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
