Crystals 2019, 9(6), 320; https://doi.org/10.3390/cryst9060320

Article
Simulation-Based Development of a New Cylindrical-Cavity Microwave-Plasma Reactor for Diamond-Film Synthesis
1,2,†, 1,2,†, 1,2,*, 3,*, 3 and 1,2
1
The Laboratory of Transients in Hydraulic Machinery, School of Power and Mechanical Engineering, Wuhan University, Wuhan 430072, China
2
Electronic Manufacturing and Packaging Laboratory, The Institute of Technological Sciences, Wuhan University, Wuhan 430072, China
3
School of Mechanical Science and Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
*
Correspondence: [email protected] (S.L.); [email protected] (Z.G.); Tel.: +86-27-6877-4384 (S.L.); +86-27-8754-2604 (Z.G.)
The first two authors contributed equally to this paper.
Received: 17 May 2019 / Accepted: 20 June 2019 / Published: 24 June 2019

Abstract

:
A 2.45 GHz microwave-plasma chemical-vapor deposition (MPCVD) reactor was designed and built in-house by collaborating with Guangdong TrueOne Semiconductor Technology Co., Ltd. A cylindrical cavity was designed as the deposition chamber and a circumferential coaxial-mode transformer located at the top of the cavity was adopted as the antenna. Two quartz-ring windows that were placed far away from the plasma and cooled by water-cooling cavity walls were used to affix the antenna to the cavity and act as a vacuum seal for the reactor, respectively. This design improved the sealing and protected the quartz windows. In addition, a numerical simulation was proposed to predict the electric-field and plasma-density distributions in the cavity. Based on the simulation results, a microwave-plasma reactor with TM021 mode was built. The leak rate of this new reactor was tested to be as low as 1 × 10−8 Pa·m3·s−1, and the maximal microwave power was as high as 10 kW. Then, single-crystal diamond films were grown with the morphology and crystalline quality characterized by an optical microscope, atomic force microscope (AFM), Raman spectrometer, photoluminescence (PL) spectrometer, and high-resolution X-ray diffractometer. It was shown that the newly developed MPCVD reactor can produce diamond films with high quality and purity.
Keywords:
microwave-plasma chemical-vapor deposition (MPCVD); cylindrical cavity; diamond films

1. Introduction

Diamond films have unique mechanical, electrical, optical, and thermal properties, and a variety of applications. In particular, the diamond is called the ultimate semiconductor material for electronic devices that may operate at high power and high frequency [1,2,3]. As the chemical bond of diamonds is very strong, diamond devices can work at high temperatures, as well as under strong chemical environments or in high-radiation conditions [4].
At present, there are two main methods for synthesizing diamond crystals, high-pressure high-temperature (HPHT) and chemical-vapor deposition (CVD). For the HPHT method, it is difficult to grow large single-crystal diamonds and the crystal size is mainly smaller than 10 × 10 mm2, while the CVD method is the more promising approach to produce large-size high-quality diamond films [5]. There are three typical ways to grow CVD diamond films in the laboratory: direct-current (DC) arc-plasma-jet, hot-filament, and microwave-plasma CVD (MPCVD). DC arc plasma-jet technology has the advantages of a high growth rate and no electrode contamination, but the thickness of diamond films is nonuniform and the internal stress is high [6,7,8]. Hot-filament technology can grow large-size diamond films due to the uniform temperature distribution. However, the growth rate is relatively low and diamond films may be contaminated with impurities from the filament [9,10,11]. MPCVD is a promising technology and at present it is most widely used for CVD diamond growth. It is an electrodeless process, so there is no contamination from electrode materials. The collisions of electrons with gas molecules can generate ionization plasma that can contribute to the high quality of CVD diamond films [12,13].
Thus, the development of MPCVD reactors is critical for growing high-quality and large-size diamond films [14]. There have been several kinds of MPCVD reactors, such as the quartz-tube, bell-jar, tablet-quartz-window, circumferential-antenna, ellipsoidal-cavity, and multimode clamshell-cavity types, according to the shape and location of the quartz windows in the chamber [15]. Quartz-tube-type MPCVD reactors were the earliest equipment, which were only used at a low-input microwave power of less than 800 Watts and with a plasma diameter of only 25 mm [16]. Subsequently, bell-jar-type reactors were developed. The quartz windows would be etched and overheated once the input power was high as the plasma was very close to them. Thus, the input microwave power of the reactor was strictly limited to less than 6 kW [17,18]. The tablet-quartz-window-type reactors employed quartz plates as microwave windows, which had a simple structure and could easily be fabricated. However, quartz windows of this type would be damaged by unwanted secondary plasma during the operation, and then cavity walls would be contaminated by SiO2 [19,20]. Pleuler et al. reported on the circumferential-antenna-type reactor, which combined the advantages of a CVD system with a high efficiency and compactness. It had the potential to grow large-size diamond films with the application of bias-enhanced nucleation. Nevertheless, tuning the microwave out to be rather difficult [21]. Ellipsoidal-cavity-type reactors were first proposed by the Fraunhofer Institute [22] and could offer stable plasma with a lateral extension of about 9 cm diameter at a microwave power of approximately 6 kW. However, the ellipsoidal reactor system was rather spacious and the quartz bell jar was difficult to cool [21]. Multimode clamshell-cavity-type reactors were developed by the SEKI Company and utilized as high-pressure and high-microwave power reactors, with TM011 mode (transverse magnetic mode with an axisymmetric electric field and a maximum of the electric field in the radial and axial directions, respectively) as the main excitation mode and TM021 mode (transverse magnetic mode with two maxima of the electric field in the radial direction and one maximum of the electric field in the axial direction, respectively) as the secondary mode overlapping in the cavity [15]. No quartz windows were exposed directly to plasma in the cavity and the contamination problem of the grown diamond was avoided. However, the pressure difference between the inside and outside of the deposition chamber was found to have reduced the sealing reliability [20].
In this study, a new cylindrical-cavity microwave-plasma reactor is proposed, with the expectation of achieving an outstanding sealing performance and a reliable geometric structure with little contamination from the external environment, as well as the internal quartz windows. A numerical simulation of the electric-field and plasma-density distributions is proposed to provide a feasible design for this new reactor. The performance of the developed reactor is presented for the single-crystal diamond films grown during the study. The experiment results are reported for the case with the plasma ball far away from the quartz windows and focus on the extremely high sealing ability. Therefore, the new reactor is reliable in producing high-quality and high-purity single-crystal diamonds.

2. New Reactor Design

In general, microwave energy in the MPCVD reactor is transmitted with a transverse electric (TE) mode via the rectangular waveguide and is converted to a transverse magnetic (TM) mode by the coaxial-mode transformer. Finally, it is coupled into the cavity through the quartz windows. The strong electric field is generated by the microwave energy transferred into the cavity and the plasma is ignited in a low-pressure atmosphere. Source gases are blown into the discharge area and dissociated into reactive radicals, which hit the substrate surface via atomic processes such as adsorption, desorption, diffusion, and nucleation. Diamond films are grown through these processes on the substrate at temperatures of 800–1200 °C.
Figure 1 shows the cross-sectional schematic diagram of the newly developed cavity. The cavity of the reactor is composed of a cylindrical stainless-steel vacuum chamber with a volume of 4000 cm3. The inner diameter of the cylindrical cavity is 24 cm, which is almost twice the microwave wavelength when a 2.45 GHz microwave frequency is used. The cavity is entirely axis-symmetrical to make the distribution of microwave power into the plasma more uniform. Several ports were reserved to measure the substrate temperature and observe the plasma state during the growing process. The source gas inlet is on the left and the outlet is on the opposite side. The coaxial-mode transformer, located on the top of the cavity, was designed as a circumferential antenna. A quartz-ring window placed above the antenna was used to affix the antenna to the cylindrical cavity; the other quartz-ring window, located beneath the antenna, acted as a vacuum seal for the reactor to separate the cavity atmospheric region from the plasma-discharge region. The quartz windows, which were far away from the plasma and cooled by water-cooling cavity walls, could be effectively protected from etching and overheating from the plasma, according to this design. The sealing reliability of the reactor is provided by the pressure difference between the inside and outside of the cavity during the operation [19]. In addition, the gravity of the antenna could also enhance the sealing ability of the cavity. The bottom of the cavity was integrated with the water-cooling substrate stage, which was designed to keep the temperature of the substrate stable during the diamond-growing process. The shape of the cylindrical cavity can be changed by moving the substrate stage up and down along the longitudinal axis to make sure that the good real-time impedance-tuning function of the reactor can be realized.

3. Numerical Simulation

The traditional method to design an MPCVD reactor was trial and error, which was time-consuming and costly [22]. Compared to the traditional method, a numerical simulation based approach could provide a theoretical basis and efficiently improve the design process. Here, the electric-field and plasma-density distributions in the resonant cavity were simulated.
The electric fields in the cavities could be calculated by the Maxwell equations [23,24], as follows:
× ( 1 μ r ( × E ) ) k 0 2 ( ε r i σ ω ε 0 ) E = 0 ,
k 0 2 = ω 2 ε 0 μ 0   with   ω = 2 π × 2.45 × 10 9   s 1 ,
where E is the electric field, k0 is the wave number of the microwave, ω is the microwave angular frequency of 2.45 GHz, σ is the plasma electric conductivity, μ0 is the vacuum permittivity, μr is the relative permittivity, ε0 is the vacuum permeability, and εr is the relative permeability.
The distribution of electron density can be calculated with the following model [23,25].
× ( D e n e ) + R vr · n e 2 + R a · n e = R i · E 2 · n e .
In the above equations, De is the ambipolar diffusion coefficient of electrons, ne is the electron density, and Ri, Rvr, and Ra are the ionization coefficient of hydrogen molecules, coefficient of electron disappearance, and coefficient of electron-neutral loss, respectively. Moreover, the values of Ri, Rvr, and Ra depend on the electron energy distribution function and the reduced electric field [26]. Here, the electron disappearance coefficient of Rvr is 1 × 10−13 m3/s, attachment term Ra ne, can be neglected, and the value of Ri is based on the comparison of the simulated results with the plasma distribution observed in the experiment [23].
In the simulation, the radio frequency module and plasma module of COMSOL were used to calculate the conditions of input power of 3 kW and gas pressure of 130 mbar. Boundary conditions for the equations were assumed as follows. The pure hydrogen discharge was assumed because it was the key factor among the reactions [12]. For solving Maxwell equations, the walls of the cavity were assumed to be a perfect conductor, except for the two quartz windows, and the tangential electric field of the walls of the cavity was set to zero. The electron densities were assumed to be zero at the boundaries.
Figure 2a shows the numerical simulation results of vacuum electric-field distribution in the cavity at a microwave power of 3 kW. It could be observed that the TM021 mode was excited within the cavity. There was a maximum-intensity area above the substrate stage with a maximum value of 8.6 × 104 V·m−1. The electric field and electron-density distribution with the consideration of plasma excitation are shown in Figure 2b,c, and the input power and reaction pressure were chosen to be 3 kW and 130 mbar. Electric-field intensity was found to have obviously attenuated above the substrate stage, compared to Figure 2a. A maximum value of 6.5 × 104 V·m−1 appeared in the inlet region of the coaxial-mode transformer. Such results could be attributed to the presence of plasma. When the plasma was generated, the conductivity and relative permeability of gas were changed and the intensity and distribution of the electric field in the cavity were varied as well, compared to those under its vacuum condition. Electron density is shown in Figure 2c and it could be seen that ball-shaped plasma appeared above the center region of the substrate stage; the diameter of the plasma was around 40 mm, with a maximum plasma density of 7.8 × 1017 m−3. No parasitic plasma appeared in the cavity. It could be indicated that the microwave energy was concentrated above the substrate stage after being coupled into the cavity by the coaxial-mode transformer. Moreover, the position of the plasma was far away from the ring-shaped quartz windows and the contamination problem introduced from quartz windows etched by plasma was solved in the newly developed reactor.

4. Reactor Performance

As shown in Figure 3a, the MPCVD device, named SCMP150, was manufactured collaboratively by Guangdong TrueOne Semiconductor Technology Co., Ltd (TrueOne, Foshan, Guandong, China)(www.chinasemi.net) and was automatically operated by a personal computer (PC). The reactor could work at 2.45 GHz with a maximum power of 10 kW. Figure 3b shows the hydrogen-plasma discharge in the reactor with a microwave power of 3 kW and a pressure of 130 mbar. The ball-shaped purple plasma was estimated to be around 40 mm in diameter, which was in good agreement with the theoretically predicted value. The leak rate was tested to be as low as 1 × 10−8 Pa·m3·s−1, which indicated the reactor’s outstanding sealing ability.
The experiments for the synthesis of single-crystal diamonds were performed to evaluate the built reactor. In this study, the polished (100)-oriented HPHT diamonds with a size of 4 × 4 × 1 mm3 were used as the substrate. They were pretreated with sulfuric acid, acetone, ethanol, and deionized water to remove metallic and organic contaminations and then nitrogen was used to dry the substrate. High-purity-grade hydrogen (99.9999%) and methane (99.999%) were used as the source gases and were controlled by mass flow controllers. Temperature was monitored by a two-color infrared thermometer with a value of around 1000 °C during growth. Gas-flow rate, temperature, pressure, and microwave power were automatically controlled by the operation software.
After a series of experiments, single-crystal diamond films were grown. The growth parameter, deposition rates, and crystalline quality of the diamond films are listed in Table 1. During the diamond film deposition, the microwave power was 3 kW and the pressure was between 130 and 155 mbar, respectively. The CH4/H2 ratio was set at between 1.5% and 3.5% and the deposition rates of the samples were in the range of 5.4–6.6 μm/h. The Raman full width at half maximum (FWHM) of the diamond peak was in the range of 3.1–3.5 cm1 for Samples A, B, and C, which indicated that the diamond films were of high quality. The X-ray diffraction (XRD) rocking curve was also used to evaluate the crystalline quality of Samples A, B, and C, with the FWHM of the diamond (400) peak ranging from 35 to 43 arcsec. Herein, with similar characteristics, Sample C was chosen as an example to show the surface morphology and growth quality of the diamond films.
Figure 4a shows the optical image of Sample C, grown for 14 h under the above conditions. As can be seen, the growth surface was macroscopically smooth and there were two hillocks near the central flat region. The formation of the hillocks was mostly related to defects originating from the substrate surface [27]. The polycrystalline diamond at the corners grew much faster than the single-crystal diamond in the central region. The higher growth rate at the corners was probably related to the local maxima of the ring-shaped distributions of CH3 concentrations [28]. The enlarged view of the flat surface is shown in Figure 4b. Growth steps were clearly observed, which suggested that the step-flow growth mode was dominated during growth under this condition.
Moreover, the morphology and roughness in the central region of 100 × 100 μm2 were obtained with atomic force microscopy. The images were scanned with a Bruker MultiMode 8 atomic force microscope (AFM) (Bruker, Germany) in ScanAsyst mode with SCANASYST-AIR tips. The two-dimensional image of the sample after growth is shown in Figure 5a, with the typical step-flow growth mode clearly observable, which was recognized as the growth mode for high-quality diamonds. The growth steps were found to be continuous and the bunched surface was smooth without etching pits. Root-mean-square (RMS) surface roughness was approximately 7.8 nm. Figure 5b shows the surface fluctuation along the yellow line in the AFM image. The average intervals and height from bottom to top along the terrace were about 17.5μm and 1.08 μm, respectively.
Raman spectroscopy is a spectroscopic technology that is commonly used to identify diamonds, graphite, and amorphous carbon. The Raman spectra of the testing points on the sample (from Point A to Point E), measured with a RENISHAW inVia Raman spectrometer (Renishaw, Wotton-under-Edge, United Kingdom), are shown in Figure 6. Five testing points were evenly distributed from center to periphery. The Raman spectra were measured from 1200 to 1600 cm−1, excited by a He–Ne laser at 633 nm, with a spot size of 2 μm. As can be seen in Figure 6, the Raman spectra of the sample only exhibited a strong diamond peak at 1332 cm−1 without any other peaks, indicating a diamond film of high purity and free of obvious carbonaceous impurities [29]. The full width at half maximum from Point A to Point E was approximately 3.0 cm−1, which revealed the uniform crystalline quality of the grown diamond film.
Figure 7 shows the photoluminescence (PL) spectra of Samples A, B, and C. The PL spectra of the CVD diamond films were performed with a HORIBA LabRAM HR Evolution Raman spectrometer (Jobin Yvon, France) at room temperature. The PL spectra were measured from 533 to 800 nm, excited by a solid-state laser at 532 nm, with a spot size of 2 μm. PL emissions of a nitrogen-vacancy (N-V) defect could exist in two charge states, with (N-V)0 centered at 575 nm and (N-V) centered at 637 nm, respectively. A silicon vacancy (Si-V), on the other hand, centered at 737 nm, could be created by etching the quartz windows during CVD [19]. It was shown that the PL spectrum of the CVD diamond films grown by the newly developed MPCVD reactor was dominated by the Raman peak of the diamond centered at 573 nm, and other PL peaks were nearly negligible. The results of the PL spectra indicated that there were very few impurities in the as-grown CVD diamond films. For these samples, the concentrations of nitrogen and silicon impurities were below the detection limits. The newly developed MPCVD reactor had outstanding leak-proof performance and nitrogen in the air was prevented from leaking into the reactor cavity. The quartz rings were well-protected during the diamond-growth process and were not etched by the plasma.
As shown in Figure 8, the crystalline quality of Sample C and the HPHT seed were studied with a high-resolution X-ray diffraction (PANalytical X’Pert MRD) rocking curve. The FWHM of the (400) face XRD rocking curve of Sample C was 43 arcsec, which is comparable to the 28 arcsec of the HPHT seed. The crystalline quality of Samples A, B, and C was also well comparable with films grown by other research groups, such as 47 arcsec reported by Mokuno et al. and 37 arcsec reported by Su et al. under similar growth parameters [5,30].

5. Conclusions

A cylindrical-cavity-type MPCVD reactor was designed and built by analyzing the electric-field distribution and electron density in the cavity. The reactor possesses an entirely axis-symmetrical cylindrical geometry, which makes it possible for a good real-time impedance-tuning function to be realized during its operation. In addition, a circumferential antenna and quartz windows were proposed as its mode transformer and vacuum seal, respectively. The leak rate of the new reactor was tested to be as low as 1 × 10−8 Pa·m3·s−1, and the contamination problem from the external environment, as well the internal quartz windows, was effectively controlled. Experimentally, single-crystal diamond films were grown and the measurement results indicated that uniform diamond films of high quality and purity were obtained. Further research on the performance of the reactor to improve the growth rate and quality at a higher-input microwave power and pressure will be conducted.

Author Contributions

Q.W. and G.W. designed and performed the experiments. Q.W. wrote the manuscript and G.W. prepared the supplementary material. G.W., S.L., and Z.G. reviewed the manuscript. B.Y. and J.P. participated in the numerical simulation. S.L. and Z.G. supervised the project.

Funding

This research was supported by the National Natural Science Foundation of China (No. 51727901) with Sheng Liu as its PI.

Acknowledgments

The optical image of the surface after growth was taken at the Gemological Institute of China, University of Geosciences (Wuhan), China. Raman spectroscopy and atomic force microscopy were carried out at the School of Physics and Technology, Wuhan University, China. We appreciate Guangdong TrueOne Semiconductor Technology Co., Ltd. for fabricating the MPCVD equipment. We also appreciate Qiao Shen and Lei Zhang for assisting with the numerical simulation.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

MPmicrowave plasma
CVDchemical-vapor deposition
AFMatomic force microscope
PLphotoluminescence
XRDX-ray diffraction
HPHThigh-pressure high-temperature
DCdirect current
TEtransverse electric
TMtransverse magnetic
PCpersonal computer
FWHMfull width at half maximum
RMSroot mean square

References

  1. Wort, C.J.H.; Balmer, R.S. Diamond as an electronic material. Mater. Today 2008, 11, 22–28. [Google Scholar] [CrossRef]
  2. Evgeny, E.A.; Roman, A.K.; Vadim, S.S.; Andrew, A.K.; Alexander, V.K.; Viktor, G.R. Morphology of diamond layers grown on different facets of single crystal diamond substrates by a microwave plasma CVD in CH4-H2-N2 gas mixtures. Crystals 2017, 7, 166. [Google Scholar]
  3. Olsen, R.H.; Dewes, R.C.; Aspinwall, D.K. Machining of electrically conductive CVD diamond tool blanks using EDM. J. Mater. Process. Tech. 2004, 149, 627–632. [Google Scholar] [CrossRef]
  4. Balmer, R.S.; Brandon, J.R.; Clewes, S.L.; Dhillon, H.K.; Dodson, J.M.; Friel, I.; Inglis, P.N.; Madgwick, T.D.; Markham, M.L.; Mollart, T.P.; et al. Chemical vapour deposition synthetic diamond: materials, technology and applications. J. Phys. Condens. Matter. 2009, 21, 364221. [Google Scholar] [CrossRef] [PubMed]
  5. Mokuno, Y.; Chayahara, A.; Soda, Y.; Yamada, H.; Horino, Y.; Fujimori, N. High rate homoepitaxial growth of diamond by microwave plasma CVD with nitrogen addition. Diam. Relat. Mater. 2006, 15, 455–459. [Google Scholar] [CrossRef]
  6. Railkar, T.A.; Kang, W.P.; Windischmann, H.; Malshe, A.P.; Naseem, H.A.; Davidson, J.L.; Brown, W.D. A critical review of chemical vapor-deposited (CVD) diamond for electronic applications. Crit. Rev. Solid State 2000, 25, 163–277. [Google Scholar] [CrossRef]
  7. Liu, J.; Hei, L.F.; Song, J.H.; Li, C.M.; Tang, W.Z.; Chen, G.C.; Lu, F.X. High-rate homoepitaxial growth of CVD single-crystal diamond by dc arc plasma jet at blow-down (open cycle) mode. Diam. Relat. Mater. 2014, 46, 42–51. [Google Scholar] [CrossRef]
  8. Hei, L.F.; Liu, J.; Li, C.M.; Song, J.H.; Tang, W.Z.; Lu, F.X. Fabrication and characterizations of large homoepitaxial single-crystal diamond grown by DC arc plasma jet CVD. Diam. Relat. Mater. 2012, 30, 77–84. [Google Scholar] [CrossRef]
  9. Zhang, T.; Wang, X.C.; Shen, B.; Shen, F.H.; Zhang, Z.M. The effect of deposition parameters on the morphology of micron diamond powders synthesized by HFCVD method. J. Cryst. Growth 2013, 372, 49–56. [Google Scholar] [CrossRef]
  10. Fuentes-Fernandez, E.M.A.; Alcantar-Peña, J.J.; Lee, G.; Boulom, A.; Phan, H.; Smith, B.; Nguyen, T.; Sahoo, S.; Ruiz-Zepeda, F.; Arellano-Jimenez, M.J.; et al. Synthesis and characterization of microcrystalline diamond to ultrananocrystalline diamond films via Hot Filament Chemical Vapor Deposition for scaling to large area applications. Thin Solid Films 2016, 603, 62–68. [Google Scholar] [CrossRef]
  11. Anuj Soni; Choudhary, R.K.; Polymeris, G.S.; Mishra, D.R.; Mishra, P.; Kulkarni, M.S. TL and OSL studies on undoped diamond films grown by hot filament chemical vapor deposition. J. Lumin. 2016, 177, 184–189. [Google Scholar]
  12. Hideaki, Y.; Akiyoshi, C.; Yoshiaki, M.; Shikata, S. Simulation with an improved plasma model utilized to design a new structure of microwave plasma discharge for chemical vapor deposition of diamond crystals. Diam. Relat. Mater. 2008, 17, 494–497. [Google Scholar]
  13. Silva, F.; Bonnin, X.; Scharpf, J.; Pasquarelli, A. Microwave analysis of PACVD diamond deposition reactor based on electric modelling. Diam. Relat. Mater. 2010, 19, 397–403. [Google Scholar] [CrossRef]
  14. Gu, Y.J.; Lu, J.; Grotjohn, T.; Schuelke, T.; Asmussen, J. Microwave plasma reactor design for high pressure and high power density diamond synthesis. Diam. Relat. Mater. 2012, 24, 210–214. [Google Scholar] [CrossRef]
  15. Silva, F.; Hassouni, K.; Bonin, X.; Gicquel, A. Microwave engineering of plasma-asisted CVD reactors for diamond deposition. J. Phys. Condens. Matter 2009, 21, 364202. [Google Scholar] [CrossRef] [PubMed]
  16. Kamo, M.; Sato, Y.; Matsumoto, S.; Setaka, N. Diamond synthesis from gas phase in microwave plasma. J. Cryst. Growth 1983, 62, 642–644. [Google Scholar] [CrossRef]
  17. Baudrillart, B.; Nave, A.S.C.; Hamann, S.; Bénédic, F.; Lombardi, G.; van Helden, J.H.; Röpcke, J.; Achard, J. Growth processes of nanocrystalline diamond films in microwave cavity and distributed co-axial mode transformer array systems: A comparative study. Diam. Relat. Mater. 2017, 71, 53–62. [Google Scholar] [CrossRef]
  18. Hemawan, K.W.; Grotjohn, T.A.; Reinhard, D.K.; Asmussen, J. Improved microwave plasma cavity reactor for diamond synthesis at high pressure and high power density. Diam. Relat. Mater. 2010, 19, 1446–1452. [Google Scholar] [CrossRef]
  19. Li, Y.F.; An, X.M.; Liu, X.C.; Jiang, L.; Zhang, P.W.; Guo, H.; Sun, Z.L.; Zhao, H.Z.; Tang, W.Z. A 915 MHz/75 kW cylindrical cavity type microwave plasma chemical vapor deposition reactor with a ladder-shaped circumferential co-axial mode transformer developed for growing large area diamond films. Diam. Relat. Mater. 2017, 78, 67–72. [Google Scholar] [CrossRef]
  20. Li, Y.F.; Su, J.J.; Liu, Y.Q.; Ding, M.H.; Wang, G.; Tang, W.Z. A circumferential antenna ellipsoidal cavity type MPCVD reactor developed for diamond film deposition. Diam. Relat. Mater. 2015, 51, 24–29. [Google Scholar] [CrossRef]
  21. Pleuler, E.; Wild, C.; Füner, M.; Koidl, P. The CAP-reactor, a novel microwave CVD system for diamond deposition. Diam. Relat. Mater. 2002, 11, 467–471. [Google Scholar] [CrossRef]
  22. Füner, M.; Wild, C.; Koidl, P. Simulation and development of optimized microwave plasma reactors for diamond deposition. Surf. Coat. Tech. 1999, 116–119, 853–862. [Google Scholar] [CrossRef]
  23. Su, J.J.; Li, Y.F.; Li, X.L.; Yao, P.L.; Liu, Y.Q.; Ding, M.H.; Tang, W.Z. A novel microwave plasma reactor with a unique structure for chemical vapor deposition of diamond films. Diam. Relat. Mater. 2014, 42, 28–32. [Google Scholar] [CrossRef]
  24. Shivkumar, G.; Tholeti, S.S.; Alrefae, M.A.; Fisher, T.S.; Alexeenko, A.A. Analysis of hydrogen plasma in a microwave plasma chemical vapor deposition reactor. J. Appl. Phys. 2016, 119, 113301. [Google Scholar] [CrossRef]
  25. Hideaki, Y.; Akiyoshi, C.; Yoshiaki, M. Simplified description of microwave plasma discharge for chemical vapor deposition of diamond. J. Appl. Phys. 2007, 101, 063302. [Google Scholar]
  26. Mahoney, E.J.D.; Truscott, B.S.; Mushtaq, S.; Ashfold, M.N.R.; Mankelevich, Y.A. Spatially resolved optical emission and modeling studies of microwave-activated hydrogen plasmas operating under conditions relevant for diamond chemical vapor deposition. J. Phys. Chem. A 2018, 122, 8286–8300. [Google Scholar] [CrossRef] [PubMed]
  27. Achard, J.; Silva, F.; Tallaire, A.; Bonnin, X.; Lombardi, G.; Hassouni, K.; Gicquel, A. High quality MPACVD diamond single crystal growth: high microwave power density regime. J. Phys. D: Appl. Phys. 2007, 40, 6175–6188. [Google Scholar] [CrossRef]
  28. Yamada, H. Numerical simulations to study growth of single-crystal diamond by using microwave plasma chemical vapor deposition with reactive (H, C, N) species. Jpn. J. Appl. Phys. 2012, 51, 090105. [Google Scholar] [CrossRef]
  29. Wu, G.; Chen, M.H.; Liao, J. The influence of recess depth and crystallographic orientation of seed sides on homoepitaxial growth of CVD single crystal diamonds. Diam. Relat. Mater. 2016, 65, 144–151. [Google Scholar] [CrossRef]
  30. Shu, G.Y.; Dai, B.; Ralchenko, V.G.; Khomich, A.A.; Ashkinazi, E.E.; Bolshakov, A.P.; Bokova-Sirosh, S.N.; Liu, K.; Zhao, J.S.; Han, J.C.; et al. Epitaxial growth of mosaic diamond: Mapping of stress and defects in crystal junction with a confocal Raman spectroscopy. J. Cryst. Growth 2017, 463, 19–26. [Google Scholar] [CrossRef]

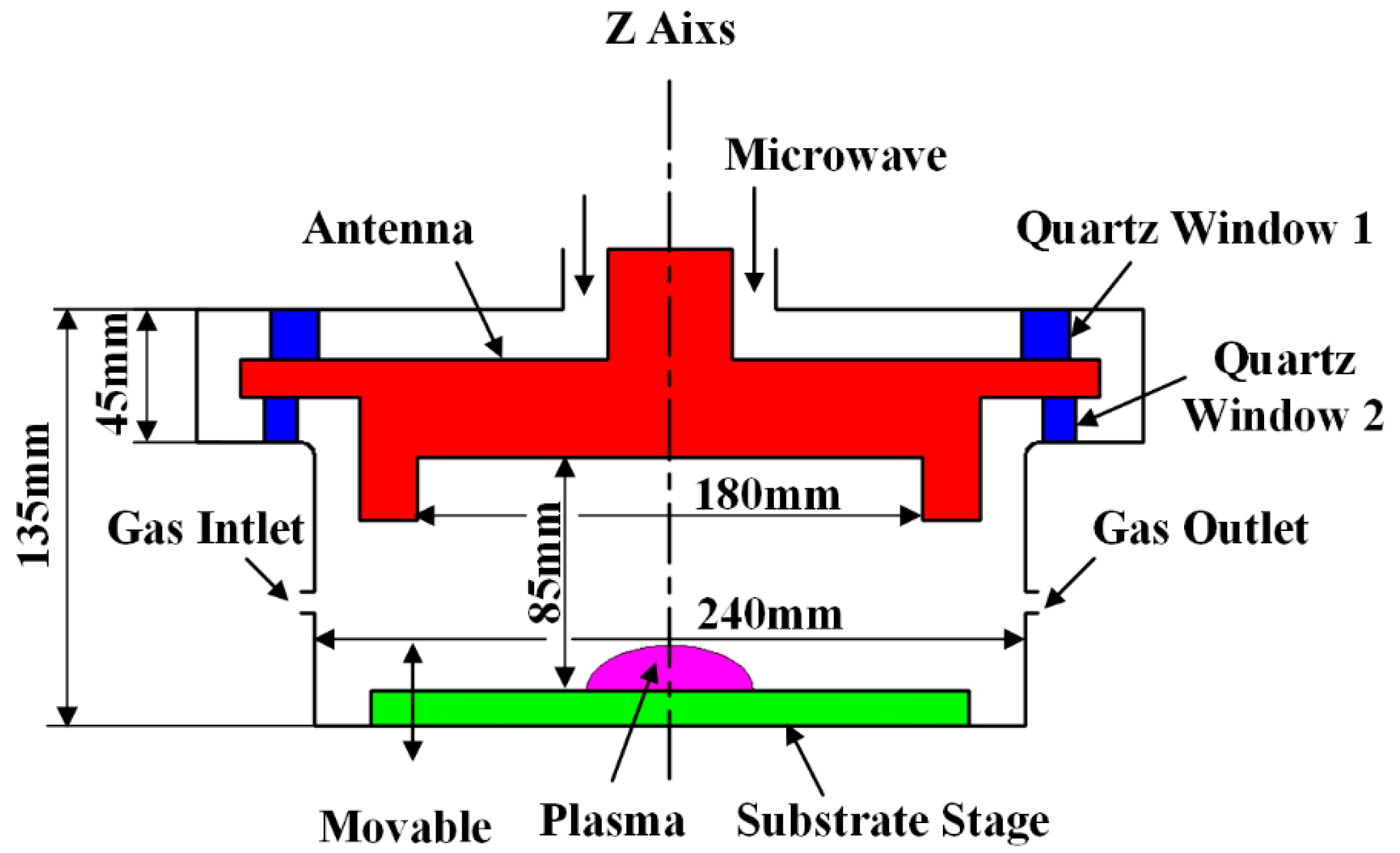

Figure 1. Schematic cross-section view of newly designed cylindrical cavity.
Figure 1. Schematic cross-section view of newly designed cylindrical cavity.
Crystals 09 00320 g001

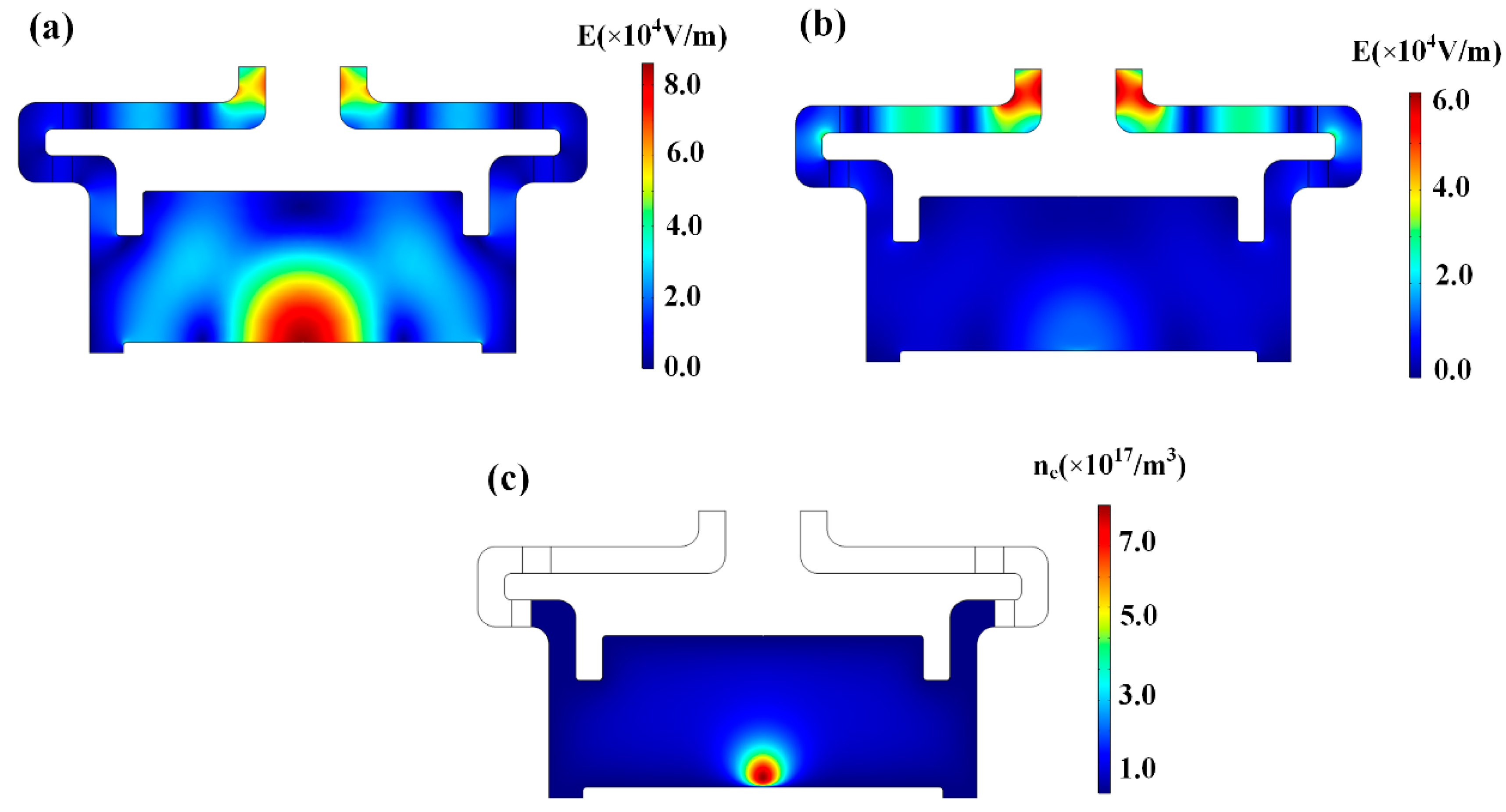

Figure 2. Simulation results of the (a) vacuum electric field, (b) microwave electric field with consideration of plasma excitation, and (c) electron-density distribution in the cylindrical cavity.
Figure 2. Simulation results of the (a) vacuum electric field, (b) microwave electric field with consideration of plasma excitation, and (c) electron-density distribution in the cylindrical cavity.
Crystals 09 00320 g002
Figure 3. Photographs of the (a) newly developed reactor and (b) the hydrogen plasma discharge generated by a microwave power of 3 kW and a gas pressure of 130 mbar.
Figure 3. Photographs of the (a) newly developed reactor and (b) the hydrogen plasma discharge generated by a microwave power of 3 kW and a gas pressure of 130 mbar.
Crystals 09 00320 g003
Figure 4. Optical images of Sample C. (a) Sample after growth with 15× magnification (LEICA M205 A) and (b) the surface morphology of step-flow growth with a 400× magnification (KEYENCE VHX-600).
Figure 4. Optical images of Sample C. (a) Sample after growth with 15× magnification (LEICA M205 A) and (b) the surface morphology of step-flow growth with a 400× magnification (KEYENCE VHX-600).
Crystals 09 00320 g004

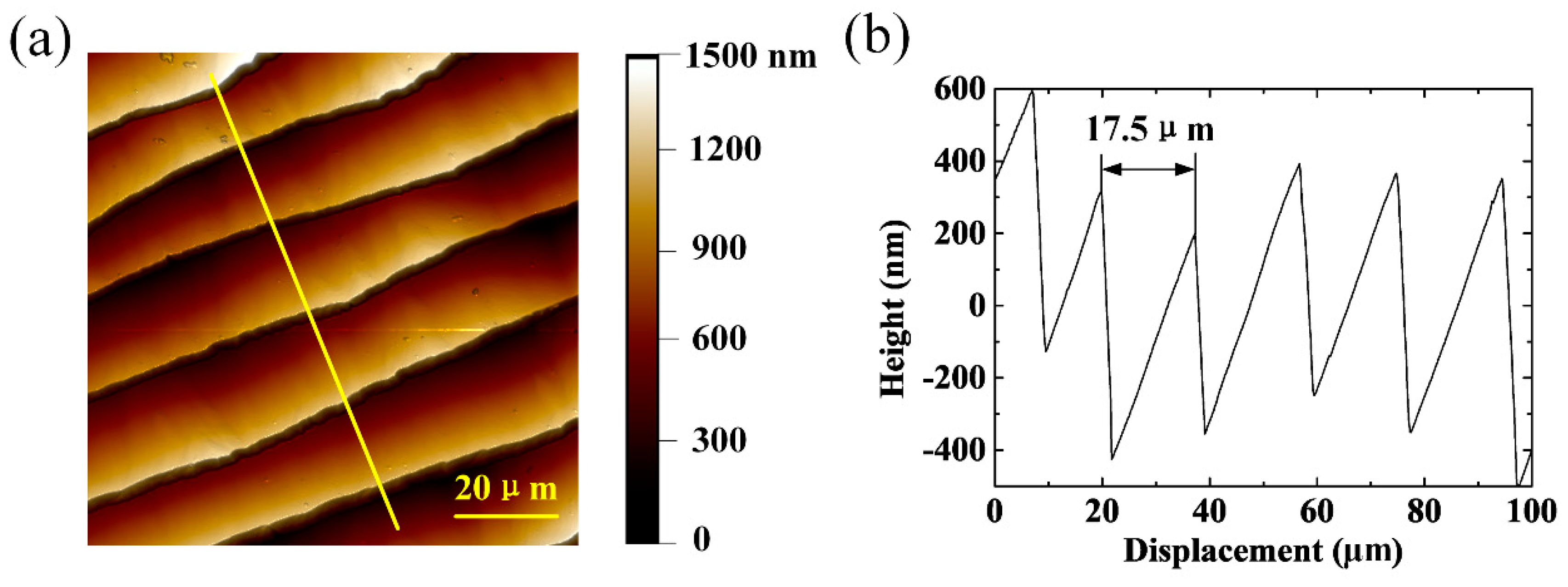

Figure 5. Atomic force microscopy (AFM) images of Sample C. (a) Two-dimensional image of the sample surface after growth and (b) surface fluctuation along the yellow line in the two-dimensional image.
Figure 5. Atomic force microscopy (AFM) images of Sample C. (a) Two-dimensional image of the sample surface after growth and (b) surface fluctuation along the yellow line in the two-dimensional image.
Crystals 09 00320 g005
Figure 6. Raman spectra of five points evenly distributed from center to periphery on Sample C, indicating the uniformity of the diamond film. Spectra were vertically offset for clarity.
Figure 6. Raman spectra of five points evenly distributed from center to periphery on Sample C, indicating the uniformity of the diamond film. Spectra were vertically offset for clarity.
Crystals 09 00320 g006
Figure 7. Photoluminescence spectra of Samples A, B, and C, indicating the high purity of the diamond films. Inset: Magnified view of area enclosed by red dashed rectangle. Spectra were vertically offset for clarity.
Figure 7. Photoluminescence spectra of Samples A, B, and C, indicating the high purity of the diamond films. Inset: Magnified view of area enclosed by red dashed rectangle. Spectra were vertically offset for clarity.
Crystals 09 00320 g007

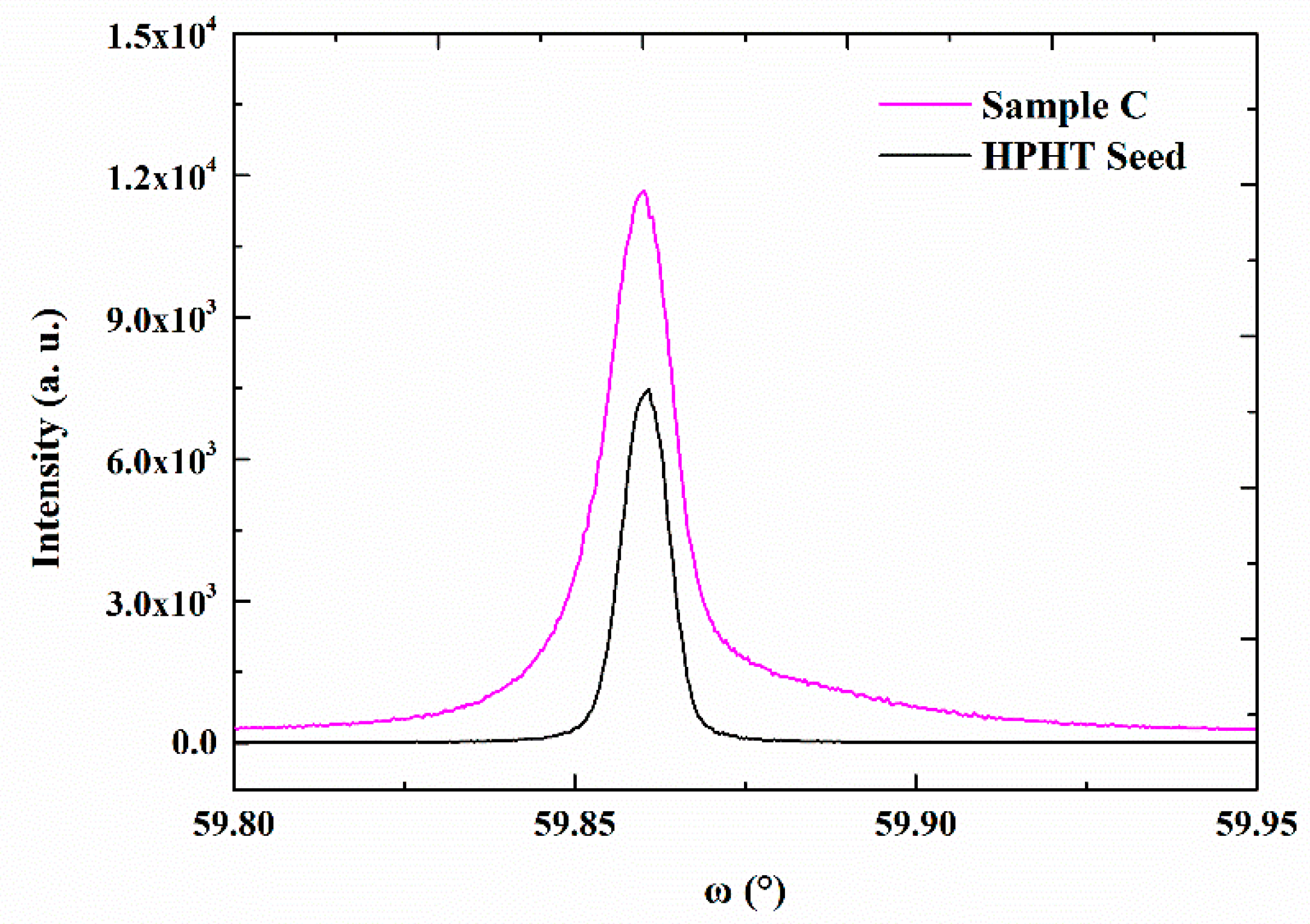

Figure 8. XRD (400) ω scan of high-pressure high-temperature (HPHT) diamond seed and Sample C showing the crystalline quality of diamond film comparable to HPHT diamond seed.
Figure 8. XRD (400) ω scan of high-pressure high-temperature (HPHT) diamond seed and Sample C showing the crystalline quality of diamond film comparable to HPHT diamond seed.
Crystals 09 00320 g008
Table 1. Deposition conditions and growth rates of diamond films deposited by the newly designed reactor.
Table 1. Deposition conditions and growth rates of diamond films deposited by the newly designed reactor.
Sample Power (kW)CH4/H2 (%)Pressure (mbar)Temperature (°C)Deposition Rate (μm/h)Raman FWHM (cm1)XRD FWHM (arcsec)
A 31.5155985~10255.63.235
B 2.5145975~10155.43.539
C 3.5130925~9556.63.143
Note: XRD, X-ray diffraction; FWHM, full width at half maximum.
