Synthesis and Simulation of CaF2@Al(OH)3 Core-Shell Coated Solid Lubricant Composite Powder
1
School of Mechanical and Automotive Engineering, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250353, China
2
Key Laboratory of Advanced Manufacturing and Measurement and Control Technology for Light Industry in Universities of Shandong, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250353, China
*
Author to whom correspondence should be addressed.
Received: 17 October 2019 / Accepted: 4 November 2019 / Published: 6 November 2019

Abstract

:
In self-lubricating ceramic tools, adding CaF2 will significantly reduce the mechanical properties of ceramic tools. Based on heterogeneous nucleation theory, we have recently prepared aluminum hydroxide (Al(OH)3) coating on calcium fluoride (CaF2) through a liquid-phase heterogeneous nucleation method. By adding CaF2@Al(OH)3 coated powder to replace CaF2 powder, the self-lubricating ceramic tools maintain higher lubricity while also having better mechanical properties. The coating process was further confirmed by using scanning electron microscopy (SEM) and transmission electron microscopy (TEM). In addition, we used the molecular simulation software to simulate the suspension system of CaF2, Al(NO3)3·9H2O, and Al(OH)3 to study the process of Al(OH)3 coating on the surface of CaF2 particle to form CaF2@Al(OH)3 powders with core-shell structure. Further, the formation and evolution of Al(OH)3 molecules on the surface of CaF2 were analyzed.
Keywords:
simulation; Al(OH)3 coated CaF2; solid lubricant; self-lubricating ceramic tool

1. Introduction

Preparing self-lubricating ceramic tools by adding solid lubricant to a ceramic matrix is an effective way to improve the performance of dry cutting tools [1,2]. As a high-temperature solid lubricant, calcium fluoride (CaF2) is easy to combine with the substrate and the coating process is simple because it does not react with the ceramic material matrix during the sintering process, and it has good lubrication performance at high temperatures [3,4]. CaF2 is a common solid lubrication in self-lubricating ceramic tools. However, due to the inherent characteristics of solid lubricants with weak mechanical properties, the addition of solid lubricants definitely reduce the mechanical properties of the ceramic tool matrix.
Powder surface coating can significantly improve the properties of composite materials and endow them with new functions through coating [5,6,7,8,9,10,11]. Through surface coating, the molecular scale preparation between particles in different phases of the composite powder can be realized, and the physical and chemical properties of the material are effectively improved [12,13,14,15,16,17,18]. At present, core-shell composite powders prepared via the surface coating method has been widely used in the preparation of ceramics and cemented carbide [19,20,21,22]. In recent years, some studies have introduced the surface coating methods of self-lubricating materials, which improves the mechanical and lubricating properties of the material, as well as opens up a new technical way for researching solid self-lubricating materials.
Wu et al. [23] synthesized core-shell structured [email protected] powders via the electroless plating technique using hydrazine hydrate as a reducing agent. The addition of [email protected] powders improved the microstructure of the self-lubricating ceramic tool and greatly improved the mechanical properties of the tool. Chen et al. [24] prepared core-shell structured (h-BN)/SiO2 composite powders to improve the mechanical property of h-BN. Compared with the self-lubricating ceramic tool without (h-BN)/SiO2 composite powders, the mechanical properties of the self-lubricating ceramic tool with (h-BN)/SiO2 composite powders were greatly improved.
In the present study, Aluminum hydroxide coated calcium fluoride composite powders (CaF2@Al(OH)3) were synthesized via the liquid-phase heterogeneous nucleation method. The composite particles had a core-shell structure. Molecular simulation software was used to simulate the suspension system of CaF2, Al(NO3)·9H2O, and aluminum hydroxide (Al(OH)3) to study the process of Al(OH)3 coating on the surface of CaF2 particles to form CaF2@Al(OH)3 powders with core-shell structure. The formation and evolution of Al(OH)3 molecules on the surface of CaF2 were analyzed. The coating process was further confirmed by using scanning electron microscopy (SEM) and transmission electron microscopy (TEM).

2. Experimental Procedure

2.1. Materials and Processing

The starting powders used to fabricate the CaF2@Al(OH)3 coated particles were commercially available Al(NO3)3·9H2O (purity > 99.9%, Shanghai Fine Chemical Co., Ltd., Shanghai, China), sodium acetate (analytically pure, Tianjin Chemical Reagent Factory, China), CaF2 (purity > 99.9%, Shanghai Chaowei Nanomaterials Science and Technology Co., Ltd., China), aqueous ammonia, and absolute ethanol were used as received without further purification.

2.2. Synthesis of CaF2@Al(OH)3 Powders

Firstly, CaF2 powder was pretreated via acid washing. Treated CaF2 was washed with distilled water until the supernatant was weakly acidic. Then, distilled water was added to CaF2 powder to prepare a dilute suspension with a concentration of 0.1 mol/L. Polyethylene glycol was used as a dispersant and then polyethylene glycol was added to the prepared suspension to be fully stirred, ultrasonically dispersed for 30 min.
Next, 0.1–0.2 mol/L Al(NO3)3·9H2O (analytical pure) solution was added to the fully stirred suspension. Then, a buffer solution prepared via sodium acetate (analytically pure) was added and used to carry out ultrasonic dispersion on the mixed suspension for 20 min.
The suspension was heated and rapidly stirred in DF-101S heat-collecting thermostatic heating magnetic stirrer. After heating to 65–85 °C, aqueous ammonia was added dropwise at a speed of 1–6 mL/min to increase the pH value of the suspension. After the pH value reached 6.5–8.5, the suspension was kept warm for 30 min to fully carry out the reaction. The obtained Al(OH)3 was uniformly coated on the surface of CaF2 particles in the form of precipitates.
The suspension was placed for 2 h and centrifuged at 6000 r/min in a high-speed centrifuge. Then, the suspension was repeatedly washed with absolute ethanol to prevent agglomeration of the CaF2@Al(OH)3 composite powder. The washed composite powder was dried in a vacuum at 110 °C for 24 h to obtain CaF2@Al(OH)3 core-shell coated composite powder.

2.3. Sample Characterization

The morphologies and microstructures were tested and analyzed using a field-emission scanning electron microscope (SEM, SUPRATM 55, Carl Zeiss Group, Oberkochen, Germany) and a transmission electron microscope (TEM, JEM-1400, JEOL, Tokyo, Japan).

3. Results and Discussion

3.1. Simulation of Adsorption of Al(OH)3 Molecules on CaF2 Surface

According to the aforementioned precipitation conditions of Al(OH)3 crystals, Al(OH)3 molecules are drawn using Material Studio software, in which the crystal cell model of CaF2 in the system was established. The obtained crystal cell model of Al(OH)3 molecules and CaF2 is shown in Figure 1.
Molecular dynamics are used to simulate the adsorption of Al(OH)3 molecules without fixing the atoms on the surface of CaF2. The pH value of the system is set to 7.5, the reaction temperature is 75 °C, and the concentration of aluminum ions in the solution is 0.15 mol/mL. The simulation process and results are as follows.
Select CaF2 protocell section (1 0 0) set the layer thickness to 2. A vacuum layer with a thickness of 20 A is built and the whole above is used as an adsorption template, in which Al(OH)3 molecules are used as adsorbents. In the initial state, the system model is shown in Figure 2a. The system of CaF2 in the cell is fixed. Al(OH)3 molecules are placed in any position in the vacuum layer and universal is selected as the force field. The energy of surface atoms and molecules are calculated by the geometry optimization function in the software Forcite module. At this time, Al(OH)3 molecules are adsorbed spontaneously to the surface of CaF2 particles in order to reduce the energy of the system. However, due to the CaF2 surface being fixed, Al(OH)3 molecules can only adsorb on the surface of CaF2. The system simulation results are shown in Figure 2b.
After the CaF2 cell is decoupled, the above operation is repeated and simulated. The simulation results are shown in Figure 2c. It can be seen from the figure that CaF2 molecules interact with Al(OH)3 molecules and the aluminum oxide molecules have established a stable adsorption relationship with CaF2 molecules.
The energy change of the above adsorption process system is shown in Figure 3. It can be seen from Figure 3a that the entropy of the system is continuously reduced until the stabilization of the Al(OH)3 molecule on the CaF2 surface is less than zero, from 29 kcal/mol stable in −5 kcal/mol, indicating that the system gradually becomes an orderly state. The above calculation shows that the reaction of the Al(OH)3 molecule to the CaF2 surface is a spontaneous reaction. It can be seen from Figure 3b that the entropy of the system is from 650 kcal/mol at the beginning to −33.681704 kcal/mol when the Al(OH)3 molecule interacts with the surface of the CaF2 cell after the CaF2 cell is removed.
Compared with the entropy change in the surface atomic operation of the fixed surface, the energy conversion of the CaF2 cell is more intense and the reaction time is shorter, which indicates that the reaction driving force of the CaF2 cell is more stable than that of Figure 3a,b. Thus, the interface after adsorption will be more stable. Compared with the previous reaction, the entropy change of the system is gradually reduced.
Using the energy unit in the Forcite module of the Materials Studio software, the total energy of the adsorbed system is calculated. The formula is:
E b = E T ( E S + E M )
where E b is the binding energy of the adsorption interface, E T is the total energy of the system, E S is the total surface energy of the system, and E M is the total molecular energy of each molecule.
The corresponding values can be calculated E T = 4.754992   k c a l / m o l , E S = 0.000000   k c a l / m o l , E M = 28.926712   k c a l / m o l , the above results are substituted into the formula (1) can be obtained:
E b = 4.754992 0.000000 28.926712 = 33.681704   k c a l / m o l
The coating process of Al(OH)3 on the CaF2 surface is a process in which Al(OH)3 molecules gradually adsorb to CaF2 solid surface. If the Gibbs system is negative, indicating that the reaction is exothermic, then the adsorption is stable and crystallization will occur spontaneously. If the adsorption energy is positive, indicating that the adsorption process is endothermic, then the adsorption is unstable and crystallization cannot occur spontaneously. In the above MS calculation of the CaF2-Al(OH)3 system, the adsorption energy is found to be negative, indicating that the system after adsorption is thermodynamically stable, meaning the system can realize spontaneous and stable adsorption. Therefore, Al(OH)3 can be stably adsorbed on the surface of CaF2. The test results show that the simulation results are consistent with the test results.

3.2. Simulation of Suspension Adsorption Interface

The molecular dynamics simulation is carried out using the Forcite module of Material Studio software. Set the system pH value to 7.5, the reaction temperature is 75 °C, and the concentration of Al(OH)3 in the solution is 0.15 mol/mL. The simulation process and the results were as follows.
First, a CaF2 crystal cell cross section was established in which the unit cell was connected with the aqueous solution containing Al(OH)3 in a layered manner to simulate the adsorption of Al(OH)3 in the solution. The force field is the compass and the molecular dynamics of Materials Studio software is used to simulate the motion of Al(OH)3 and the combination of CaF2. The primary cell cross section (1 1 0) of CaF2 is selected and the thickness is set to 3 to establish the layer of CaF2, as shown in Figure 4a. At the same time, a model of colloidal hydrate of 0.15 mol/mL Al(OH)3 is established in the system, as shown in Figure 4b.
In the operation process, the two models are linked and subjected to kinetic calculations. The results of the adsorption of Al(OH)3 molecules into the CaF2 cells can be obtained as shown in Figure 5a,b. A large number of Al(OH)3 molecules adsorbed on the surface of CaF2 and separated from the H2O molecules lead to a solution layered and adsorbed with Al(OH)3 that forms a precipitate with CaF2 and has a density field analysis of Al(OH)3-CaF2, with a suspension system created by the density field module, shows that the density field of the suspension system is clearly separated due to the formation of different substances in the system. The structure is that the top layer is the H2O layer, the middle layer is the Al(OH)3 and CaF2 binder layer, and the bottom layer is the CaF2 layer, as shown in Figure 5c.
Figure 6 shows the change in the energy of the CaF2-Al(OH)3 suspension system during the simulation. It can be seen from Figure 6 that until the end of the entire process, the potential energy in the system, the interface separation energy, and the total energy are finally converged to their respective stable and negative values. Further, the total kinetic energy in the system is stabilized, which indicates that the Al(OH)3 molecule has been stopped after the reaction of the system, i.e., the system has established a stable adsorption relationship. The above calculation further confirms that Al(OH)3 colloidal molecules can be stably coated on CaF2 surface under the experimental conditions setup in this subject.
The simulation experiment and calculation of the above coating process shows that Al(OH)3 colloid molecules can stably adsorb on the surface of CaF2 under the set test conditions. Further, it establishes a stable adsorption interface by forming new chemical bonds, which thus form a core-shell coated with a CaF2@Al(OH)3 composite powder. This simulation provides good technical support for the preparation experiment of core-shell coated CaF2@Al(OH)3 composite powder. Our experiments also prove that the core-shell coated CaF2@Al(OH)3 composite powder had good performance.

3.3. Test Analysis

Figure 7a,b show SEM photographs of the pre-coated CaF2 powder and the coated CaF2@Al(OH)3 composite powder. The surface morphology of each powder particle is visually shown.
It can be seen from Figure 7 that the morphology of CaF2 is very different from that of CaF2 before coating. The surface of CaF2 in Figure 7a is obvious and its surface is not very flat. It is clear that the coated CaF2 surface is coated with a layer of granular material Al(OH)3, forming a uniform and dense coating.
Figure 8 shows TEM photographs of the above coated microparticles. Figure 8a is a transmission electron micrograph of uncoated CaF2; Figure 8b is a transmission electron micrograph of coated CaF2@Al(OH)3 coated microparticles. As can be seen when comparing the two figures, after CaF2 was coated with Al(OH)3, its morphology changed greatly. Figure 8a shows that the uncoated CaF2 is flake and it can be seen from Figure 8b that the surface of CaF2 is coated with an Al(OH)3 layer with a thickness of about 50–200 nm. Al(OH)3 is evenly coated on the surface of calcium fluoride to form a core-shell structure and the coating effect is good.
Based on the above analysis, Al(OH)3 can be successfully coated on the surface of CaF2. Based on the principle of nonuniform nucleation, Al(OH)3 forms a dense and uniform coating layer. The cladding layer is deposited and connected with Al(OH)3 particles and the effect of the coating is better.

4. Conclusion

Through the above simulation, it is verified that aluminum hydroxide can be coated on the surface of calcium fluoride, wherein the optimal coating process is determined. Experiments were carried out according to the simulation process. The results show that Al(OH)3 can be stably adsorbed on the surface of CaF2 under the experimental conditions. The stable adsorption interface can be formed by the interaction of CaF2 and Al(OH)3. The well-behaved core-shell structure of CaF2@Al(OH)3 coated particles was prepared. The following conclusions were obtained.
1. The formation process and energy change of CaF2@Al(OH)3 coated composite powder were simulated using Material Studio. It was verified that under experimental conditions, Al(OH)3 colloidal molecules were stably adsorbed on the surface of CaF2 and a stable adsorption interface was established through the formation of new chemical bonds. This formed a core-shell coated CaF2@Al(OH)3 composite powder. The simulation results are in good agreement with the theoretical calculation and experimental results.
2. The preparation process of CaF2@Al(OH)3 core-shell coated composite powder was designed. The prepared CaF2@Al(OH)3 and CaF2@Al2O3 core-shell coated composite powders were characterized and analyzed using SEM and TEM, which proved that the coated particles formed the core-shell structure morphology.

Author Contributions

N.G. and Z.C. conceived and designed the experiments; N.G. performed the experiments; N.G., C.X., Z.C., R.G., B.W. and L.J. analyzed the data; N.G. and Z.C. wrote the paper.

Funding

This work was supported by the Key R and D project of Shandong Province (grant number: 2019GGX104084), the National Natural Science Foundation of China (grant number: 51575285), Project for the Innovation Team of Universities and Institutes in Jinan (grant number: 2018GXRC005), and the Natural Science Foundation of Shandong Province (grant number: ZR2017LEE014).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gajrani, K.K.; Sankar, M.R.; Dixit, U.S. Environmentally friendly machining with MoS2-filled mechanically microtextured cutting tools. J. Mech. Sci. Technol. 2018, 32, 3797–3805. [Google Scholar] [CrossRef]
  2. Xing, Y.; Deng, J.; Wu, Z.; Liu, L.; Huang, P.; Jiao, A. Analysis of tool-chip interface characteristics of self-lubricating tools with nanotextures and WS2/Zr coatings in dry cutting. Int. J. Adv. Manuf. Technol. 2018, 97, 1637–1647. [Google Scholar] [CrossRef]
  3. Deng, J.; Yang, X.; Liu, J. Self-lubricating behaviours of ceramic tools in dry cutting. Int. J. Mach. Mach. Mater. 2006, 1, 213–222. [Google Scholar]
  4. Xu, C.; Xiao, G.; Zhang, Y.; Fang, B. Finite element design and fabrication of Al2O3/TiC/CaF2 gradient self-lubricating ceramic tool material. Ceram. Int. 2014, 40, 10971–10983. [Google Scholar] [CrossRef]
  5. Razavi, M.; Fathi, M.; Savabi, O.; Razavi, S.M.; Heidari, F.; Manshaei, M.; Vashaeef, D.; Tayebi, L. In vivo study of nanostructured diopside (CaMgSi2O6) coating on magnesium alloy as biodegradable orthopedic implants. Appl. Surf. Sci. 2014, 313, 60–66. [Google Scholar] [CrossRef]
  6. Wu, Q. Applicatin of Modification Technology on Surface Coating to Ceramic Process. Adv. Ceram. 2000, 4. [Google Scholar] [CrossRef]
  7. Takahashi, N.; Hashimoto, S.; Daiko, Y.; Honda, S.; Iwamoto, Y. High-temperature shrinkage suppression in refractory ceramic fiber board using novel surface coating agent. Ceram. Int. 2018, 44, 16725–16731. [Google Scholar] [CrossRef]
  8. Weng, B.; Yang, M.Q.; Zhang, N.; Xu, Y.J. Toward the enhanced photoactivity and photostability of ZnO nanospheres via intimate surface coating with reduced graphene oxide. J. Mater. Chem. A 2014, 2, 9380–9389. [Google Scholar] [CrossRef]
  9. Say, Y.; Aksakal, B.; Dikici, B. Effect of hydroxyapatite/SiO2, hybride coatings on surface morphology and corrosion resistance of REX-734 alloy. Ceram. Int. 2016, 42, 10151–10158. [Google Scholar] [CrossRef]
  10. Yuan, Y.; Li, Z. Microstructure and Tribology Behaviors of In-situ WC/Fe Carbide Coating Fabricated by Plasma Transferred Arc Metallurgic Reaction. Appl. Surf. Sci. 2017, 423, 13–24. [Google Scholar] [CrossRef]
  11. Zhou, W.; Zhou, K.; Li, Y.; Deng, C.; Zeng, K. High temperature wear performance of HVOF-sprayed Cr3C2-WC-NiCoCrMo and Cr3C2-NiCr hardmetal coatings. Appl. Surf. Sci. 2017, 416, 33–44. [Google Scholar] [CrossRef]
  12. Sahan, H.; Göktepe, H.; Patat, S. A Novel Method to Improve the Electrochemical Performance of LiMn2O4 Cathode Active Material by CaCO3 Surface Coating. J. Mater. Sci. Technol. 2011, 27, 415–420. [Google Scholar] [CrossRef]
  13. Liu, Z.; Miyauchi, M.; Uemura, Y.; Cui, Y.; Hara, K.; Zhao, Z.; Sunahara, K.; Furube, A. Enhancing the performance of quantum dots sensitized solar cell by SiO2 surface coating. Appl. Phys. Lett. 2010, 96, 3183. [Google Scholar] [CrossRef]
  14. Shen-Wei, X.U.; Jiang, L.; Huang, X.Z.; Xu, S.; Jiang, L.; Huang, X.; Du, Z.; Xiao, L. Silicon Carbide Doped Beryllium Foam Ceramic Preparation by the Surface of Polyurethane Coating. Surf. Technol. 2016. [Google Scholar] [CrossRef]
  15. Sebben, J.; Canevese, V.A.; Alessandretti, R.; Pereira, G.K.; Sarkis-Onofre, R.; Bacchi, A.; Spazzin, A.O. Effect of Surface Coating on Bond Strength between Etched Feldspar Ceramic and Resin-Based Luting Agents. BioMed Res. Int. 2018, 2018, 3039251. [Google Scholar] [CrossRef]
  16. Wang, J.; Huang, S.; He, M.; Wangyang, P.; Lu, Y.; Huang, H.; Xu, L. Microstructural characteristic, outward-inward growth behavior and formation mechanism of MAO ceramic coating on the surface of ADC12 Al alloy with micro-groove. Ceram. Int. 2018, 44, 7656–7662. [Google Scholar] [CrossRef]
  17. Grigoriev, S.N.; Vereschaka, A.A.; Vereschaka, A.S.; Kutin, A.A. Cutting Tools Made of Layered Composite Ceramics with Nano-Scale Multilayered Coatings. Procedia CIRP 2012, 1, 301–306. [Google Scholar] [CrossRef]
  18. He, G.; Deng, X.; Cen, Y.K.; Li, X.Y.; Luo, E.; Nie, R.R.; Zhao, Y.; Liang, Z.H.; Chen, Z.Q. Development and Characterization of Nano-TiO2/HA Composite Bioceramic Coating on Titanium Surface. Key Eng. Mater. 2007, 336–338, 1802–1805. [Google Scholar] [CrossRef]
  19. Nazemosadat, S.M.; Foroozmehr, E.; Badrossamay, M. Preparation of Alumina/Polystyrene Core-Shell Composite Powder via Phase Inversion process for Indirect Selective Laser Sintering Applications. Ceram. Int. 2018, 44, 596–604. [Google Scholar] [CrossRef]
  20. Lin, J.F.; Cao, S.H.; Huang, Q.F. Preparation of Co/Fe Core-shell composite powder by chemical plating. Mater. Sci. Eng. Powder Metall. 2010, 15, 265–270. [Google Scholar]
  21. Luo, X.T.; Li, C.X.; Shang, F.L.; Yang, G.J.; Wang, Y.Y.; Li, C.J. WC-Co Composite Coating Deposited by Cold Spraying of a Core-Shell-Structured WC-Co Powder. J. Therm. Spray Technol. 2015, 24, 100–107. [Google Scholar] [CrossRef]
  22. Hu, Y.; Xu, C.; Xiao, G.; Yi, M.; Chen, Z.; Zhang, J. Electrostatic Self-assembly Preparation of Reduced Graphene Oxide-Encapsulated Alumina Nanoparticles with Enhanced Mechanical Properties of Alumina Nanocomposites. J. Eur. Ceram. Soc. 2018, 38, 5122–5133. [Google Scholar] [CrossRef]
  23. Wu, G.; Xu, C.; Xiao, G.; Yi, M.; Chen, Z.; Chen, H. An advanced self-lubricating ceramic composite with the addition of core-shell structured [email protected] powders. Int. J. Refract. Met. Hard Mater. 2018, 72, 276–285. [Google Scholar] [CrossRef]
  24. Chen, H.; Xu, C.; Xiao, G.; Chen, Z.; Ma, J.; Wu, G. Synthesis of (h-BN)/SiO2 core–shell powder for improved self-lubricating ceramic composites. Ceram. Int. 2016, 42, 5504–5511. [Google Scholar] [CrossRef]

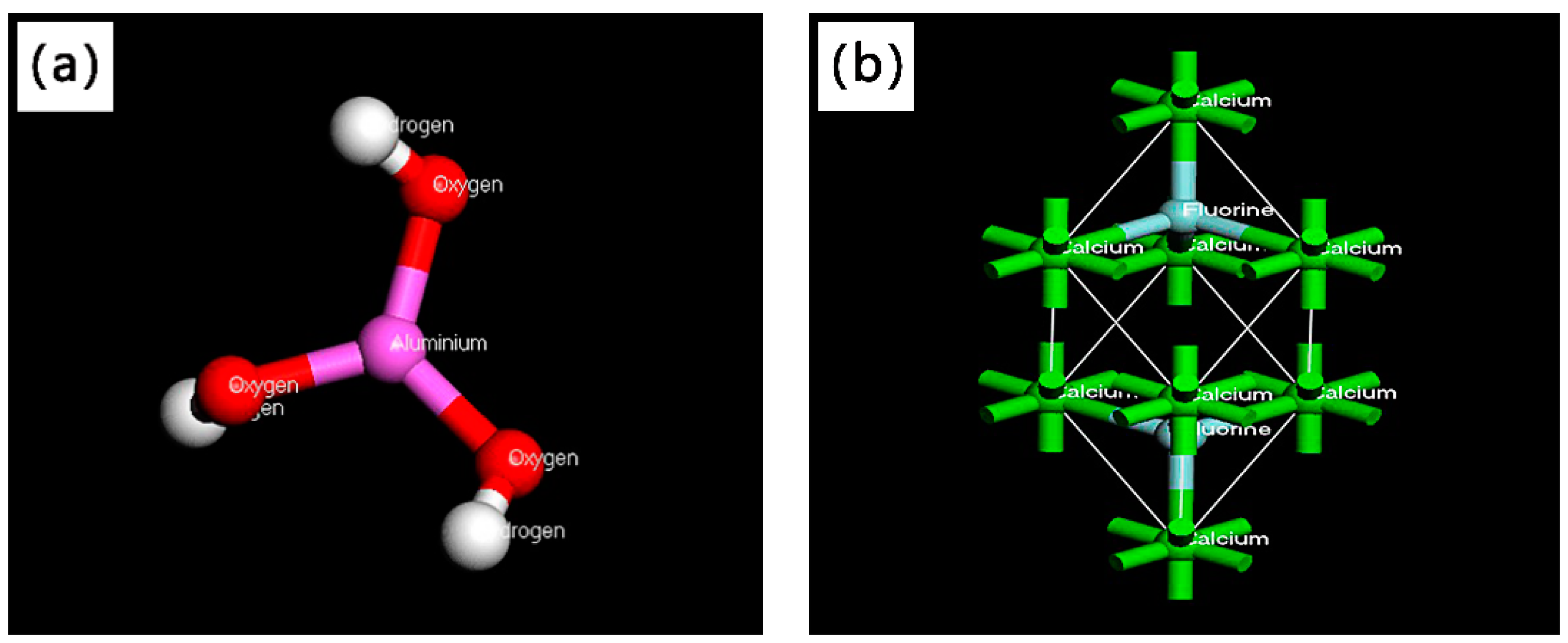

Figure 1. Model: (a) aluminum hydroxide (Al(OH)3) molecular model; (b) calcium fluoride (CaF2) unit cell model.
Figure 1. Model: (a) aluminum hydroxide (Al(OH)3) molecular model; (b) calcium fluoride (CaF2) unit cell model.
Crystals 09 00578 g001

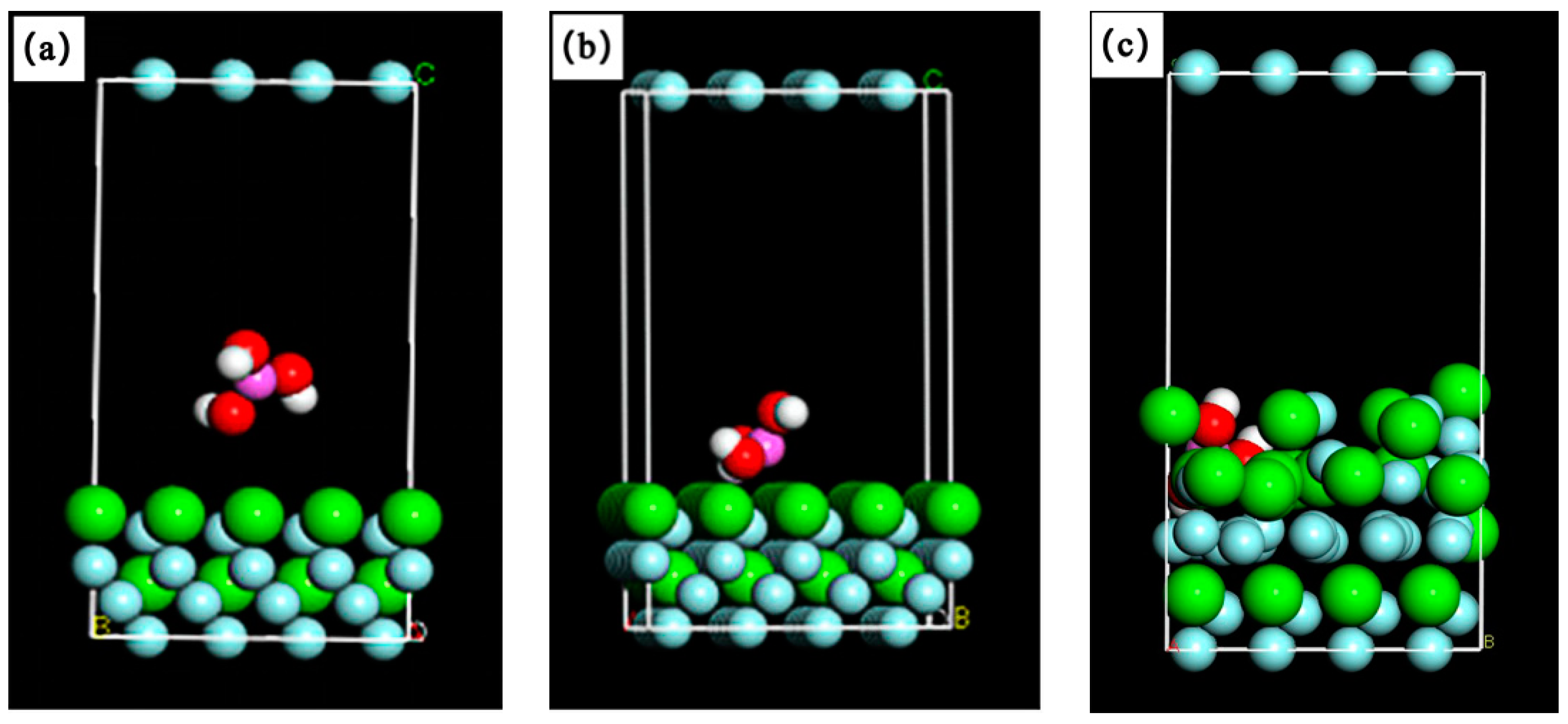

Figure 2. Adsorption process of Al(OH)3 molecules on the CaF2 surface: (a) before adsorption; (b) the surface is attached; and (c) fully adsorbed.
Figure 2. Adsorption process of Al(OH)3 molecules on the CaF2 surface: (a) before adsorption; (b) the surface is attached; and (c) fully adsorbed.
Crystals 09 00578 g002

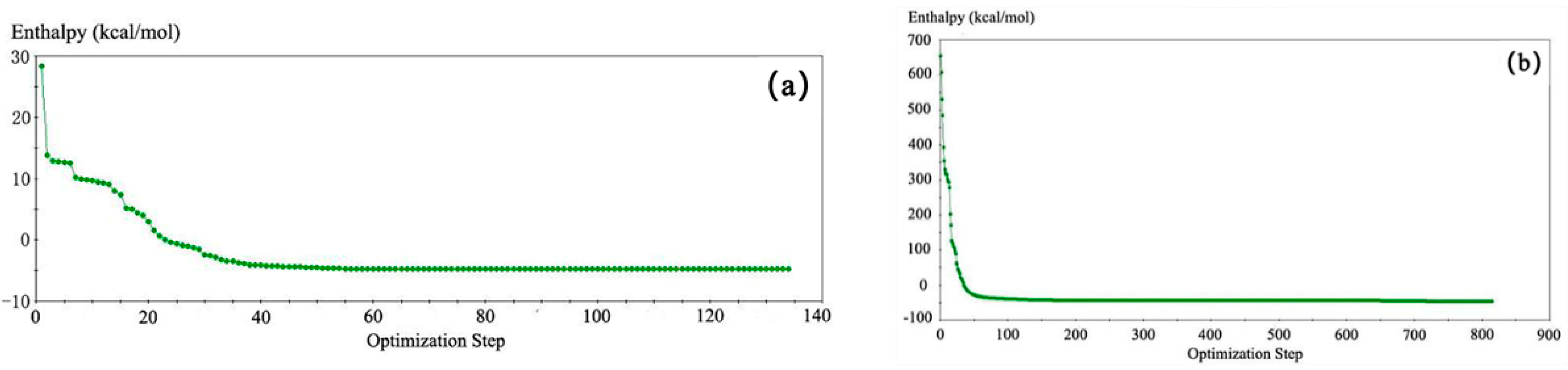

Figure 3. Change of entropy of adsorption process: (a) the change of the entropy value in the fixed surface atomic operation; (b) the entropy change in the operation when the surface atoms are not constrained.
Figure 3. Change of entropy of adsorption process: (a) the change of the entropy value in the fixed surface atomic operation; (b) the entropy change in the operation when the surface atoms are not constrained.
Crystals 09 00578 g003

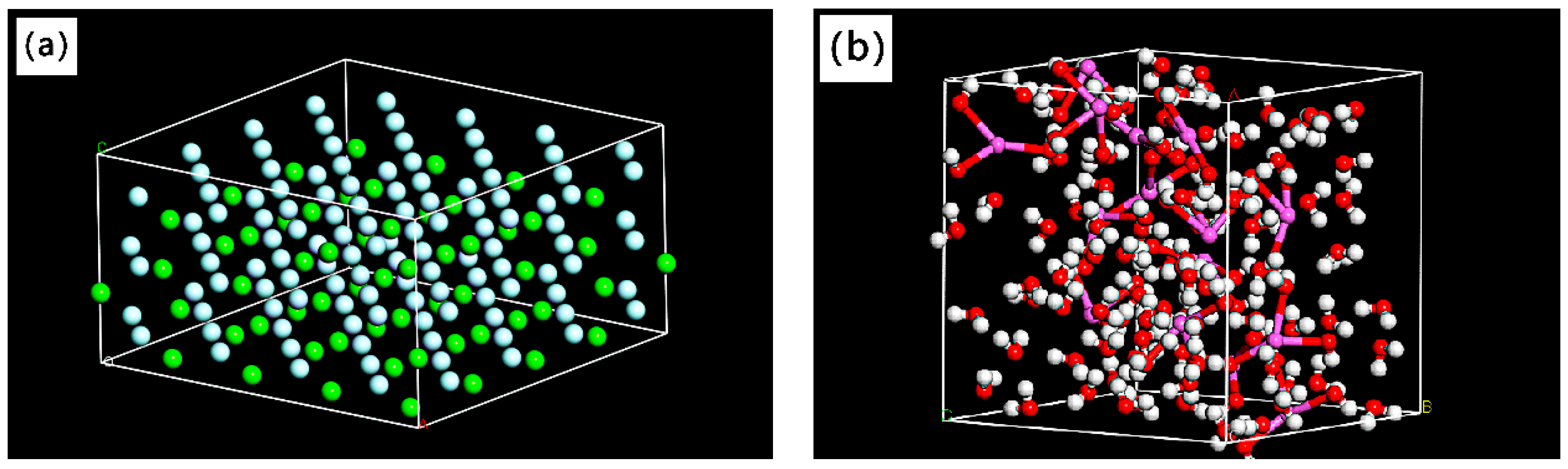

Figure 4. Model: (a) the model of CaF2 surface; (b) the model of an aqueous solution containing Al(OH)3 molecules.
Figure 4. Model: (a) the model of CaF2 surface; (b) the model of an aqueous solution containing Al(OH)3 molecules.
Crystals 09 00578 g004

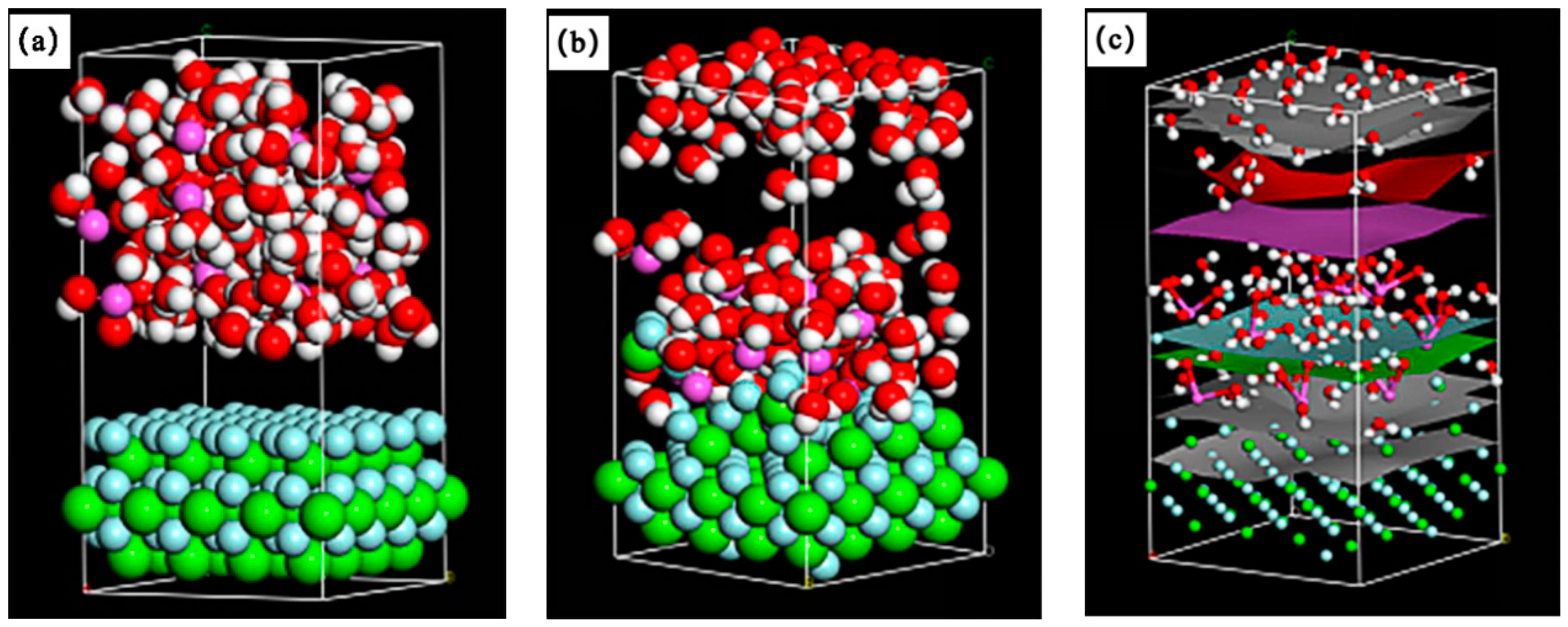

Figure 5. Al(OH)3-CaF2 suspension adsorption process: (a) before adsorption; (b) fully adsorbed; and (c) the density field analysis of the system.
Figure 5. Al(OH)3-CaF2 suspension adsorption process: (a) before adsorption; (b) fully adsorbed; and (c) the density field analysis of the system.
Crystals 09 00578 g005

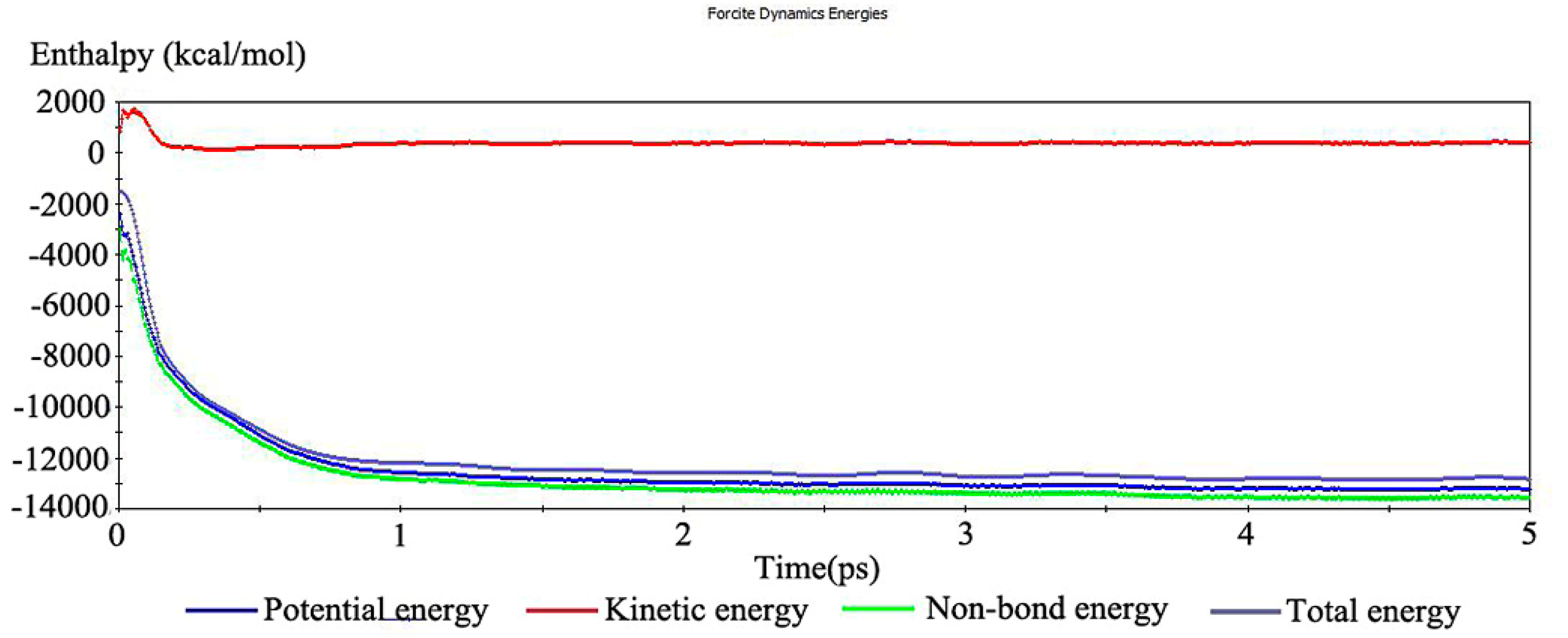

Figure 6. Energy change process of the CaF2-Al(OH)3 suspension system.
Figure 6. Energy change process of the CaF2-Al(OH)3 suspension system.
Crystals 09 00578 g006

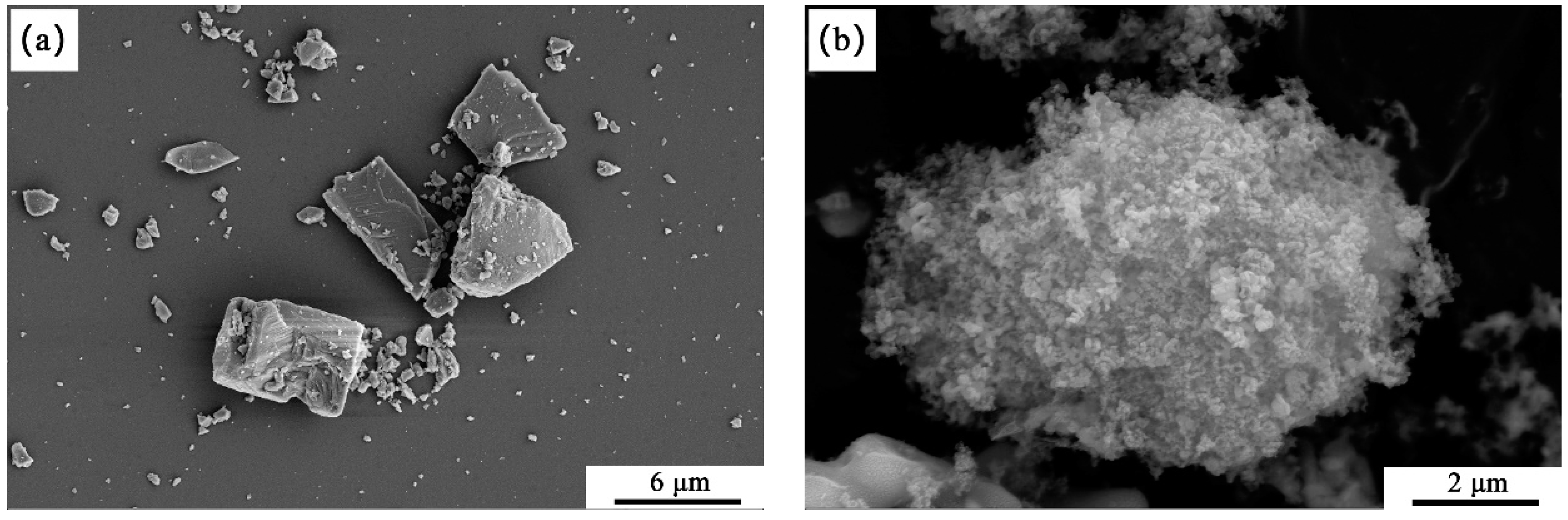

Figure 7. Scanning electron microscope (SEM) morphology: (a) CaF2 powders; (b) CaF2@Al(OH)3 composite powder.
Figure 7. Scanning electron microscope (SEM) morphology: (a) CaF2 powders; (b) CaF2@Al(OH)3 composite powder.
Crystals 09 00578 g007

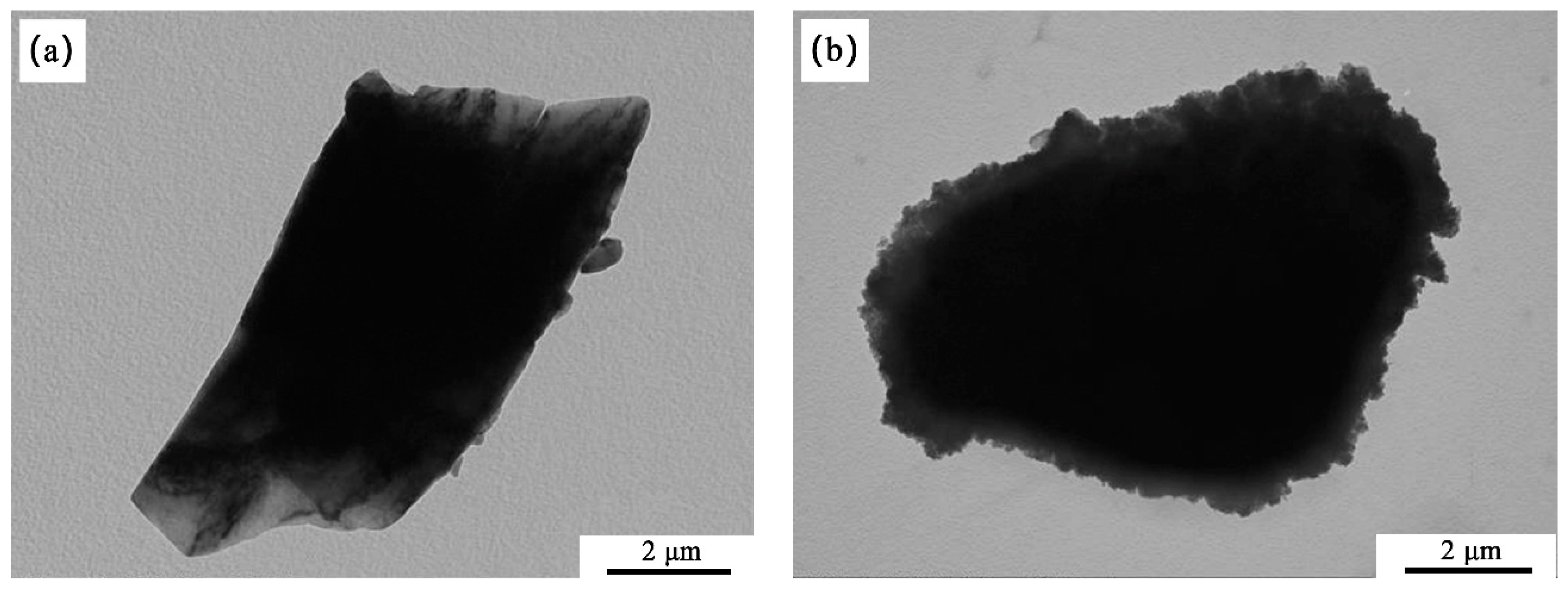

Figure 8. Transmission electron microscope (TEM) photographs: (a) CaF2 powder; (b) CaF2@Al(OH)3 composite powders.
