Next Article in Journal
Investigation of Piezoelectric Ringing Frequency Response of Beta Barium Borate Crystals
Next Article in Special Issue
Insight into Physical and Thermodynamic Properties of X3Ir (X = Ti, V, Cr, Nb and Mo) Compounds Influenced by Refractory Elements: A First-Principles Calculation
Previous Article in Journal
Research on the High-Performance Electrochemical Energy Storage of a [email protected] (NZO) Hybrid Based on Growth Time
Article Menu
Issue 1 (January) cover image

Export Article

Open AccessArticle
Crystals 2019, 9(1), 48;

First-Principles Assessment of the Structure and Stability of 15 Intrinsic Point Defects in Zinc-Blende Indium Arsenide

Nuclear Engineering and Radiological Sciences, University of Michigan, Ann Arbor, MI 48109, USA
Space Vehicles Directorate, Air Force Research Laboratory, Kirtland AFB, Albuquerque, NM 87117, USA
Materials and Manufacturing Directorate, Air Force Research Laboratory, Wright Patterson AFB, OH 45433, USA
Authors to whom correspondence should be addressed.
Received: 4 December 2018 / Revised: 14 January 2019 / Accepted: 15 January 2019 / Published: 17 January 2019
(This article belongs to the Special Issue First-Principles Prediction of Structures and Properties in Crystals)
Full-Text   |   PDF [1986 KB, uploaded 21 January 2019]   |

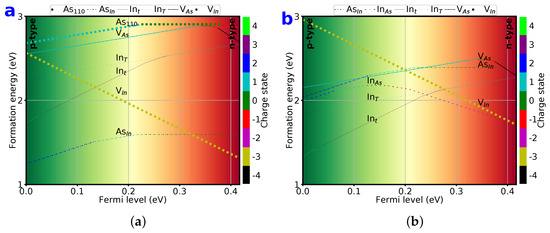

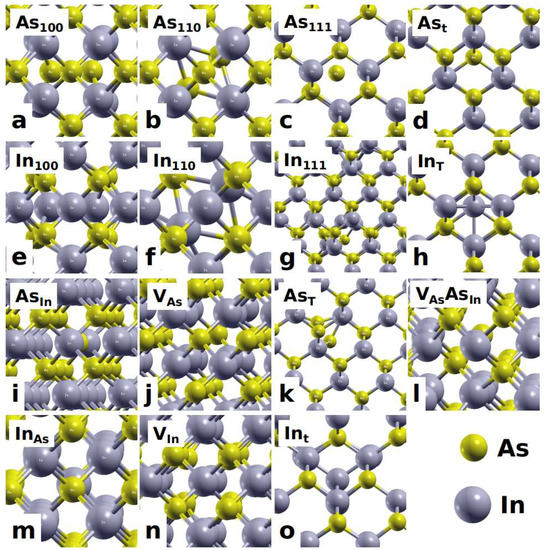

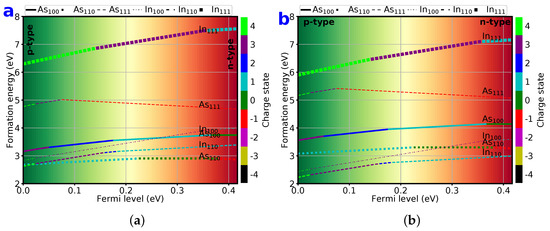

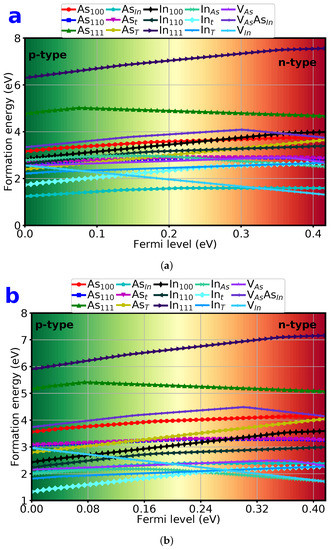

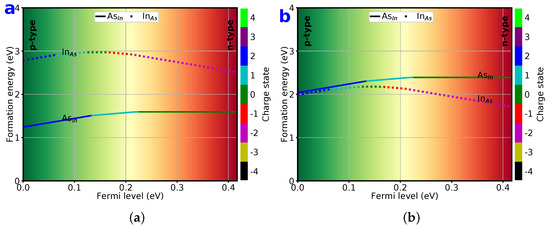

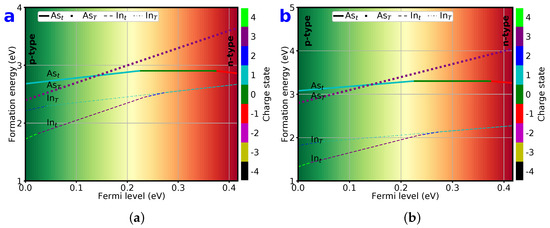

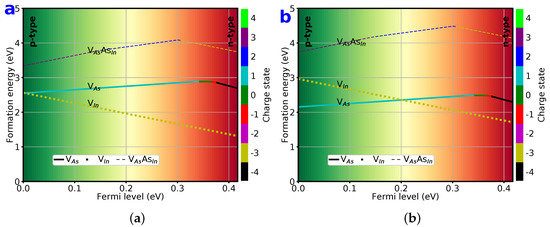

Point defects are inevitable, at least due to thermodynamics, and essential for engineering semiconductors. Herein, we investigate the formation and electronic structures of fifteen different kinds of intrinsic point defects of zinc blende indium arsenide (zb-InAs ) using first-principles calculations. For As-rich environment, substitutional point defects are the primary intrinsic point defects in zb-InAs until the n-type doping region with Fermi level above 0.32 eV is reached, where the dominant intrinsic point defects are changed to In vacancies. For In-rich environment, In tetrahedral interstitial has the lowest formation energy till n-type doped region with Fermi level 0.24 eV where substitutional point defects In A s take over. The dumbbell interstitials prefer < 110 > configurations. For tetrahedral interstitials, In atoms prefer 4-As tetrahedral site for both As-rich and In-rich environments until the Fermi level goes above 0.26 eV in n-type doped region, where In atoms acquire the same formation energy at both tetrahedral sites and the same charge state. This implies a fast diffusion along the t T t path among the tetrahedral sites for In atoms. The In vacancies V I n decrease quickly and monotonically with increasing Fermi level and has a q = 3 e charge state at the same time. The most popular vacancy-type defect is V I n in an As-rich environment, but switches to V A s in an In-rich environment at light p-doped region when Fermi level below 0.2 eV. This study sheds light on the relative stabilities of these intrinsic point defects, their concentrations and possible diffusions, which is expected useful in defect-engineering zb-InAs based semiconductors, as well as the material design for radiation-tolerant electronics. View Full-Text
Keywords: point defects; formation energy; indium arsenide; first-principles; charged defects point defects; formation energy; indium arsenide; first-principles; charged defects

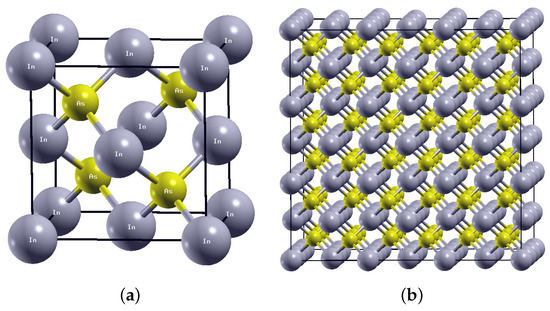

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Peng, Q.; Chen, N.; Huang, D.; Heller, E.R.; Cardimona, D.A.; Gao, F. First-Principles Assessment of the Structure and Stability of 15 Intrinsic Point Defects in Zinc-Blende Indium Arsenide. Crystals 2019, 9, 48.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
