Crystals 2018, 8(8), 322;

Photorefractive Properties of Molybdenum and Hafnium Co-Doped LiNbO3 Crystals

School of Physics, Nankai University, Tianjin 300071, China
The MOE Key Laboratory of Weak-Light Nonlinear Photonics and TEDA Institute of Applied Physics, Nankai University, Tianjin 300457, China
Authors to whom correspondence should be addressed.
Received: 10 July 2018 / Revised: 8 August 2018 / Accepted: 10 August 2018 / Published: 13 August 2018
Full-Text   |   PDF [2610 KB, uploaded 13 August 2018]   |

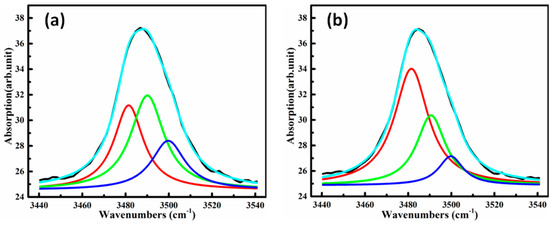

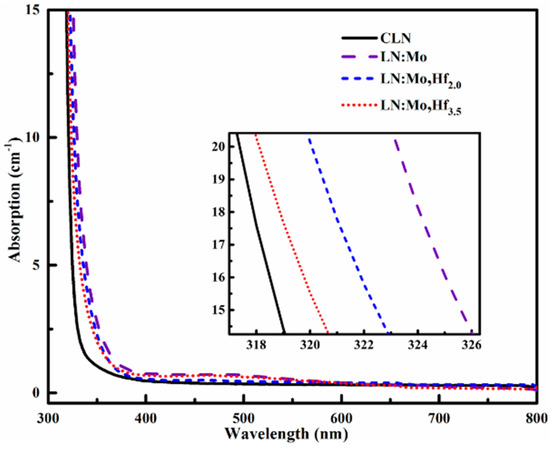

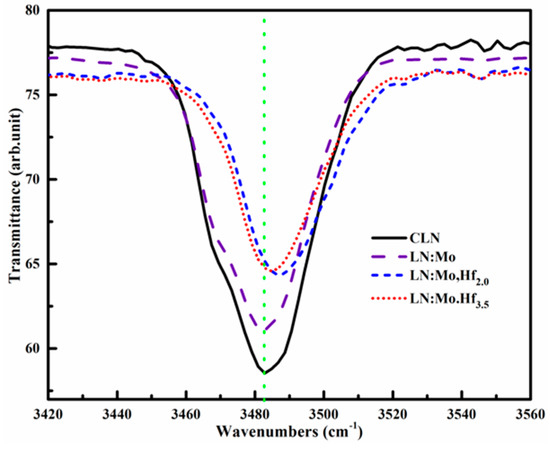

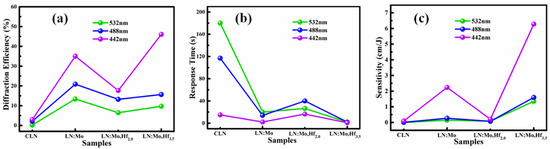

A series of LiNbO3: Mo, Hf crystals with 0.5 mol % fixed MoO3 and various HfO2 concentrations (0.0, 2.0, and 3.5 mol %) were grown by the Czochralski technique. The photorefractive properties of the LiNbO3: Mo, Hf crystals were investigated by two-wave coupling measurements and the beam distortion method was employed to obtain the optical damage resistance ability. The UV-visible and OH absorption spectra were also studied. The experimental results imply that the photorefractive properties of LiNbO3: Mo crystals at laser wavelengths of 532, 488, and 442 nm can be greatly enhanced by doping HfO2 over the threshold concentration. At 442 nm especially, the response time of LN: Mo, Hf3.5 can be shortened to 0.9 s with a diffraction efficiency of 46.07% and a photorefractive sensitivity reaching 6.28 cm/J. Besides this, the optical damage resistance at 532 nm is 3 orders of magnitude higher than that of the mono-doped LiNbO3: Mo crystal, which is beneficial for applying it in the field of high-intensity lasers. View Full-Text
Keywords: LiNbO3 crystal; molybdenum and hafnium co-doping; photorefractive properties LiNbO3 crystal; molybdenum and hafnium co-doping; photorefractive properties

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Zhu, L.; Zheng, D.; Saeed, S.; Wang, S.; Liu, H.; Kong, Y.; Liu, S.; Chen, S.; Zhang, L.; Xu, J. Photorefractive Properties of Molybdenum and Hafnium Co-Doped LiNbO3 Crystals. Crystals 2018, 8, 322.
