Crystals 2018, 8(6), 250;

Magnetic MOF for AO7 Removal and Targeted Delivery

Hubei Key Laboratory of Polymer Materials, Key Laboratory for the Green Preparation and Application of Functional Materials (Ministry of Education), Hubei Collaborative Innovation Center for Advanced Organic Chemical Materials, School of Materials Science and Engineering, Hubei University, Wuhan 430062, China
Department of Chemistry, Wuhan University, Wuhan 430072, China
School of Physics and Optoelectronic Engineering, Yangtze University, Jingzhou 434023, China
These authors contributed equally to this work.
Authors to whom correspondence should be addressed.
Received: 25 May 2018 / Revised: 6 June 2018 / Accepted: 13 June 2018 / Published: 15 June 2018
Full-Text   |   PDF [4200 KB, uploaded 15 June 2018]   |

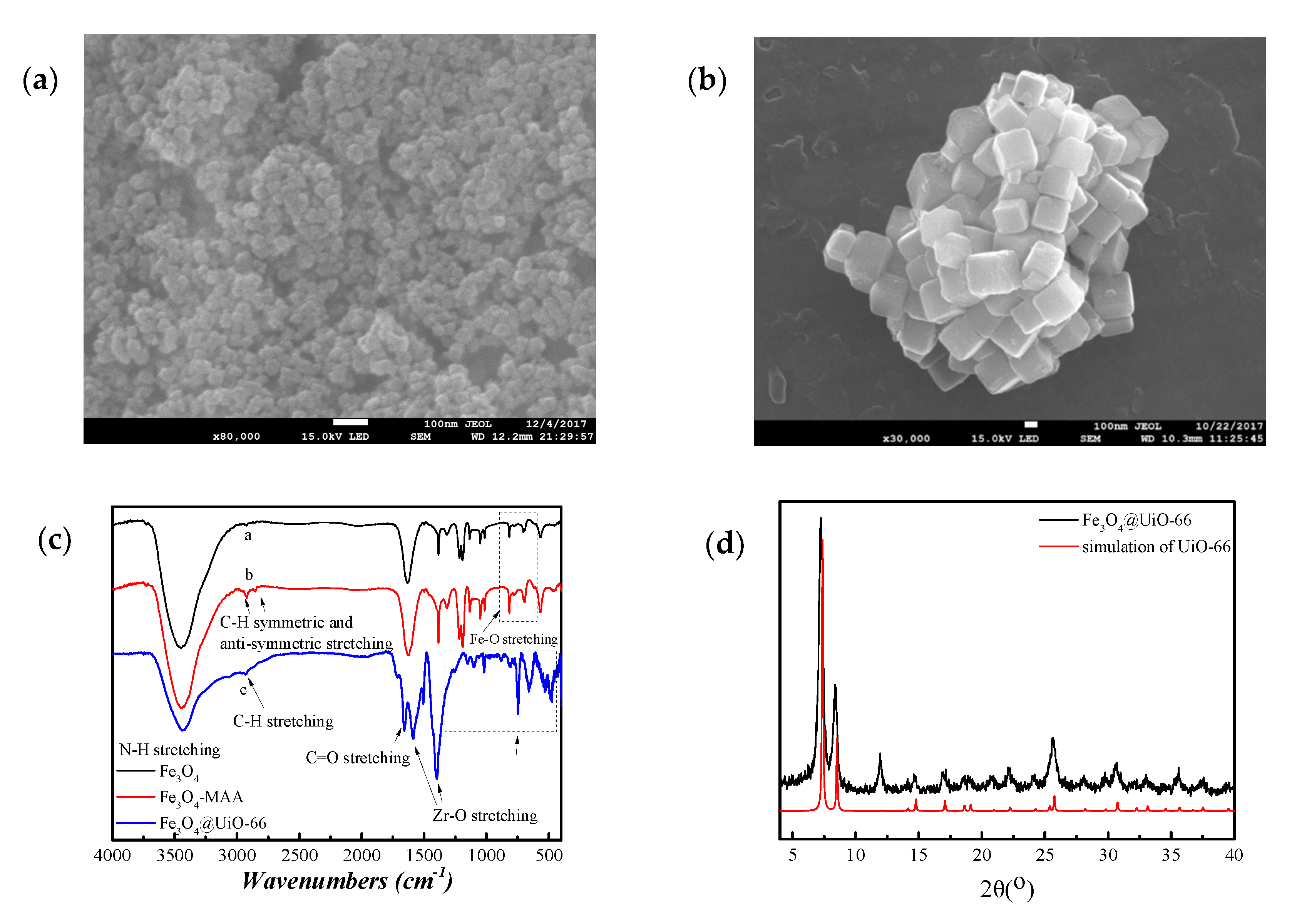

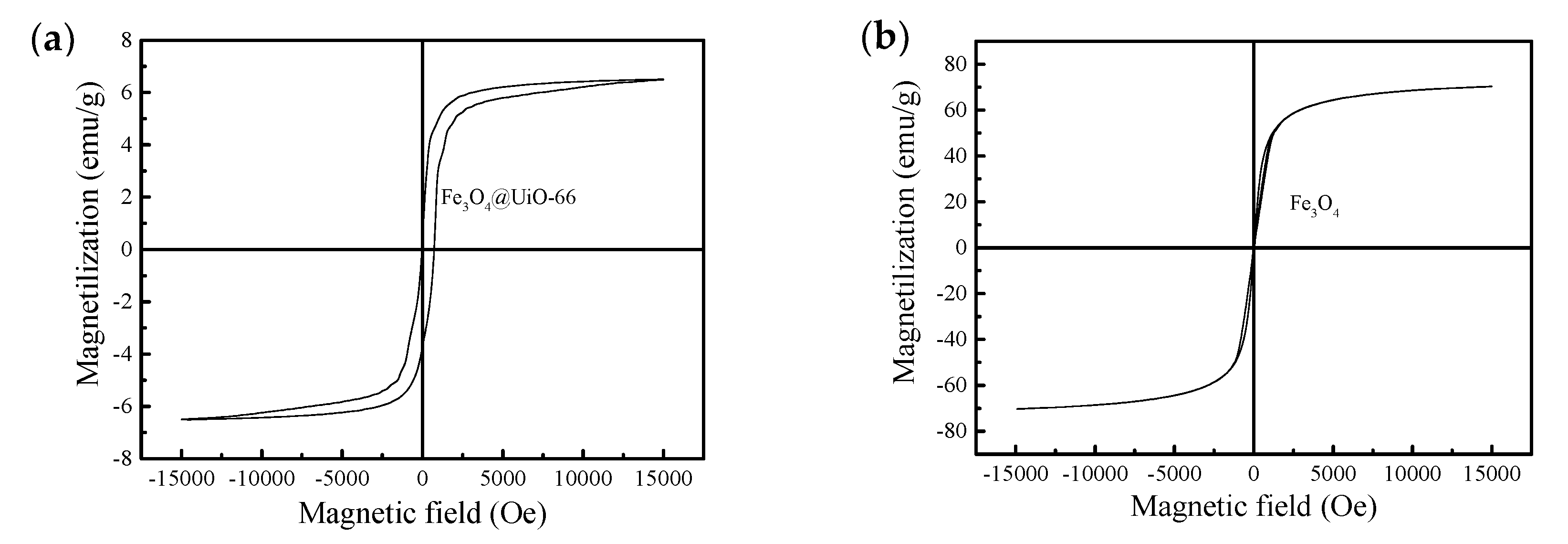

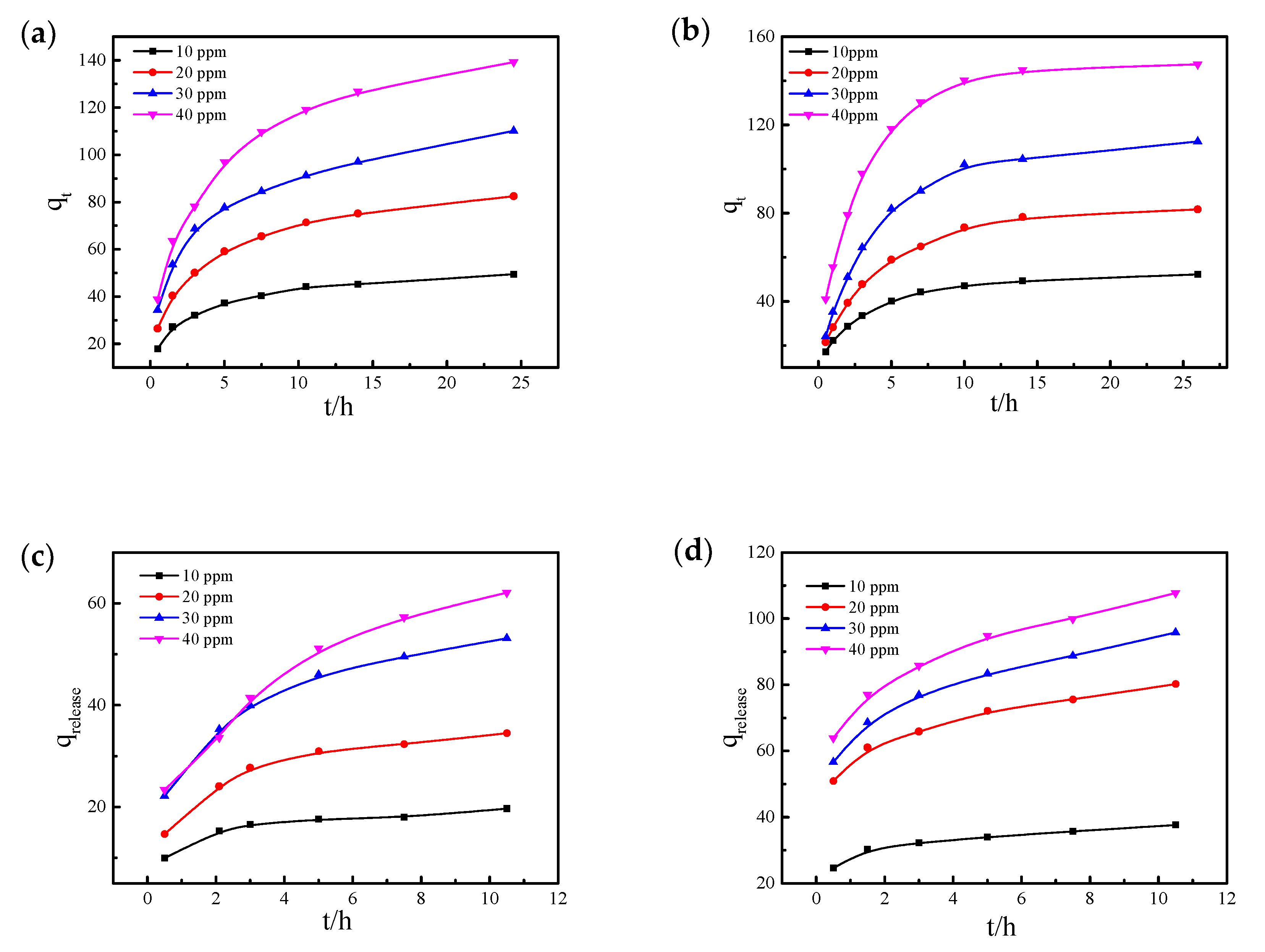

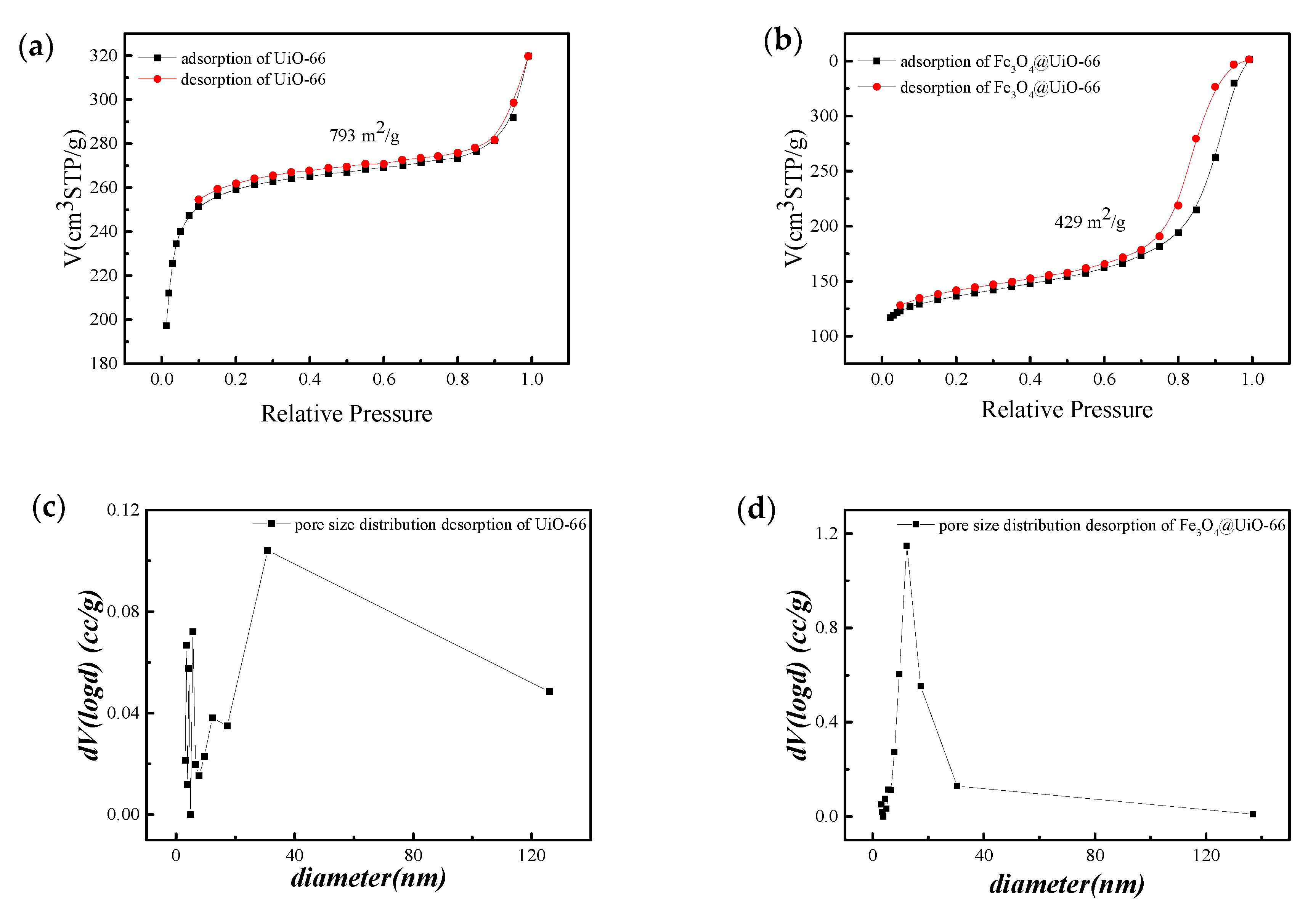

Owing to their high surface area and porosity, metal-organic frameworks (MOFs) have been gradually employed for a myriad of applications ranging from sensing, pollutant adsorption, and drug delivery to environmental remediation and catalysis. Magnetic nanoparticles-metal-organic frameworks (MMOFs) hybrid materials can facilitate facile removal of MOFs from solutions. In this report, we report the synthesis of Fe3O4@UiO-66 by encapsulation and simulated the drug loading and release by studying the adsorption and release of AO7. Thus, we loaded these MMOFs with AO7 and found that they were able to trigger and control its release by simply applying an external magnetic field. The magnetic field heats the magnets in the MOF, which causes the load to burst from the framework. View Full-Text
Keywords: magnetic MOFs; triggered release; targeted delivery; AO7 magnetic MOFs; triggered release; targeted delivery; AO7

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
