Theoretical and Experimental Investigations into Novel Oxynitride Discovery in the GaN-TiO2 System at High Pressure

1
Department of Chemistry, State University of New York, Stony Brook, NY 11794, USA
2
Department of Geosciences, State University of New York, Stony Brook, NY 11794, USA
3
Center for Materials by Design, Institute for Advanced Computational Science, State University of New York, Stony Brook, NY 11794, USA
4
Mineral Physics Institute, Stony Brook University, Stony Brook, New York 11794, USA
5
Skolkovo Institute of Science and Technology, Skolkovo Innovation Center, 3 Nobel Street, Moscow 143026, Russia
6
Department of Problems of Physics and Energetics, Moscow Institute of Physics and Technology, 9 Institutskiy Lane, Dolgoprudny City, Moscow 141700, Russia
7
International Center for Materials Design, Northwestern Polytechnical University, Xi’an 710072, China
*
Authors to whom correspondence should be addressed.
Received: 31 December 2017 / Revised: 19 January 2018 / Accepted: 19 January 2018 / Published: 23 January 2018
(This article belongs to the Special Issue Non-Ambient Crystallography)
Full-Text   |   PDF [6074 KB, uploaded 23 January 2018]   |

Abstract

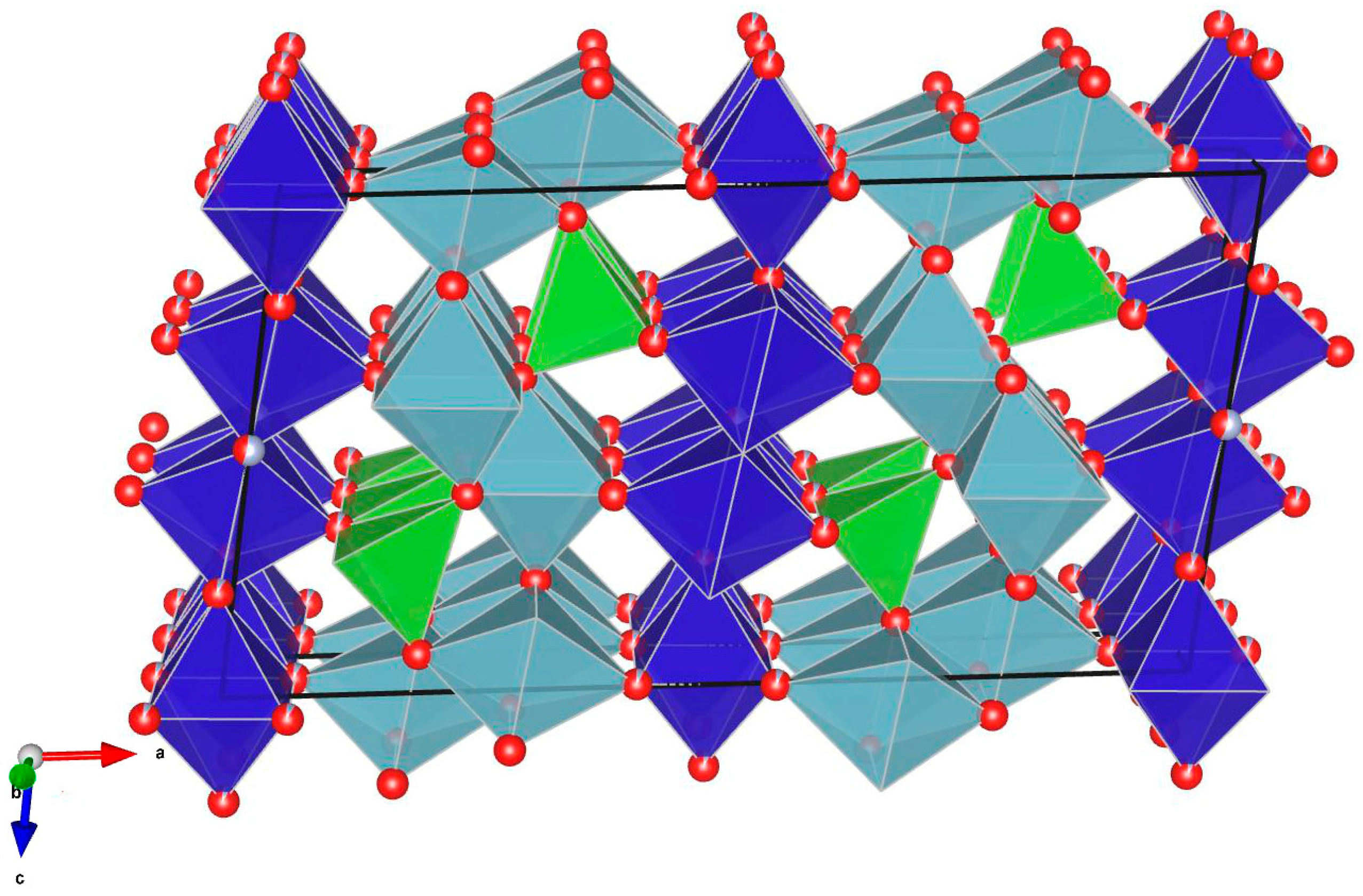

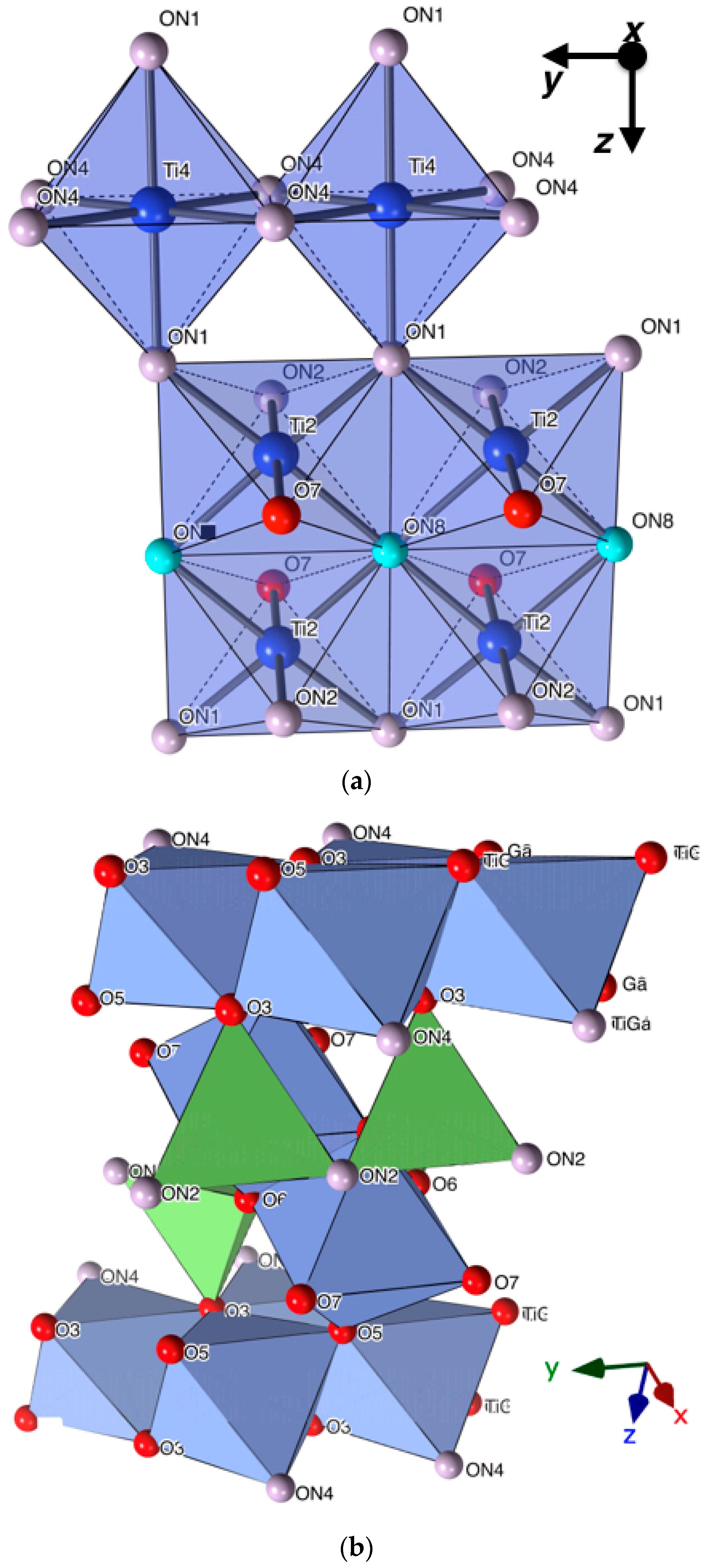

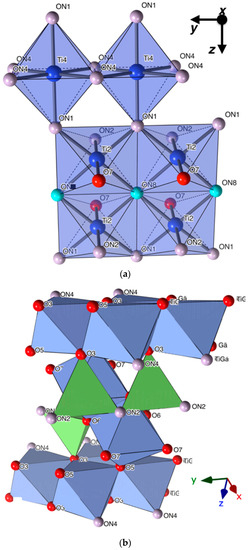

We employed ab initio evolutionary algorithm USPEX to speed up the discovery of a novel oxynitride in the binary system of GaN-TiO2 using high-pressure synthesis. A 1:2 mixture of GaN and nanocrystalline TiO2 (anatase) was reacted under 1 GPa of pressure and at 1200 °C in a piston cylinder apparatus to produce a mixture of TiO2 (rutile) and an unknown phase. From the initial analysis of high resolution neutron and X-ray diffraction data, it is isomorphic with monoclinic V2GaO5 with a unit cell composition of Ga10Ti8O28N2 with the following parameters: monoclinic, space group C2/m, a = 17.823(1) Å, b = 2.9970(1) Å, c = 9.4205(5) Å, β = 98.446(3)°; Volume = 497.74(3) Å3. Further, a joint rietveld refinement revealed two distinct regimes—A Ti-rich block and a Ga-rich block. The Ti-rich block consists of four edge-shared octahedra and contains a site which is about 60% occupied by N; this site is bonded to four Ti. The remainder of the block consists of edge linked Ti-octahedral chains linked to the TiN/TiO fragments at octahedral corners partially occupied by nitrogen. The Ga-block contains two symmetry independent octahedral sites, occupied mostly by Ga, and a pure Ga-centered tetrahedral site bonded mostly to oxygen. View Full-Text
Keywords: oxynitrides; water splitting; high pressure; crystal structure prediction; USPEX oxynitrides; water splitting; high pressure; crystal structure prediction; USPEX
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary materials

  • Supplementary File 1:

    Supplementary (ZIP, 1 KB)

  • Externally hosted supplementary file 1
    Doi: http://www.crystallography.net/cod/search.html
    Description: The COD entry 3000168 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.crystallography.net/cod/search.html.
