Open AccessArticle

A One-Dimensional Coordination Polymer Containing Cyclic [Ag4] Clusters Supported by a Hybrid Pyridine and Thioether Functionalized 1,2,3-Triazole

Institute of Materials Research and Engineering, A*STAR (Agency for Science, Technology and Research), 2 Fusionopolis Way, #08-03, Innovis, Singapore 138634, Singapore
*
Author to whom correspondence should be addressed.
Crystals 2018, 8(1), 16; https://doi.org/10.3390/cryst8010016
Received: 7 December 2017 / Revised: 28 December 2017 / Accepted: 28 December 2017 / Published: 2 January 2018
(This article belongs to the Special Issue Structural Design and Properties of Coordination Polymers)

Abstract

A pyridine and thioether co-supported triazole ligand L (L = 2-((4-(3-(cyclopentylthio)propyl)-1H-1,2,3-triazol-1-yl)methyl)pyridine) has been synthesized using the CuAAC click reaction. This ligand supports the formation of a thermally stable, one-dimensional coordination polymer [L2Ag4]n·4n(BF4) (1) possessing a cationic polymeric structure with [Ag4] metallomacrocycles, in which the ligand L displays chelate/bridging coordination modes using all four potential donors of nitrogen (N) and thioether (S). The dominant direction of the prism crystals of 1 aligns with the propagation of the chain in the lattice.
Keywords: hybrid ligand; click reaction; [Ag4] metallomacrocycle; coordination polymer; crystal morphology hybrid ligand; click reaction; [Ag4] metallomacrocycle; coordination polymer; crystal morphology

1. Introduction

Coordination polymers are well-defined molecular materials consisting of metal centers and organic ligands, and have received considerable attention because of their fascinating crystalline structures and wide range of applications, including as luminescent sensors, catalysts, and porous and electrochemical materials [1,2,3,4,5]. The formation and dimensionality of coordination polymers are governed by the coordination number and geometry of the metal centers and the nature and arrangement of donor atoms on the ligand. Reaction conditions—such as temperature, solvent, metal-to-ligand ratio, and counter ions—also influence coordination diversity [6,7]. Many synthetic chemists have dedicated themselves to the construction of new organic ligands and coordination polymers, from which to discover the principles of controlled self-assembly. Significant effort has been devoted to the complementarity of metal precursor and rationally designed organic ligands [8,9,10,11,12]. Ag(I) with d10 electronic configuration, multiple coordination geometries and luminescence resulting from Ag⋯Ag interactions is especially attractive to crystal engineers [13,14,15,16,17]. Ag(I) is a soft metal and so favored to N, O, and S donor ligands [18,19,20,21]. N-heterocyclic pyridine, pyrazole, imidazole, triazole, and multidentate ligands have been employed to support Ag(I) ions and clusters. We have a particular interest in hybrid ligands with different chemical donors that demonstrate hemilability for the design of new functional materials [22,23]. Schiff-base-, pyrazole-, and thioether-functionalized pyridines have been used to construct magnetic and luminescent coordination polymers of MnII, NiII, CuII/I, and ZnII [24,25,26,27,28,29,30]. The copper-catalyzed azide-alkyne cycloaddition (CuAAC) reactions provide access to versatile, multidirectional 1,2,3-triazole ligands and we have used these ligands to make copper-iodide cluster-based coordination compounds and study the relationship between lattice weak interactions and crystal growth [31,32]. Different substituents on the ligands can be used to tune the possible coordination modes and these weak lattice interactions. The distance between two coordination sites (e.g., thioether (S) and pyridine–triazole NN groups) is also appropriate for stabilizing different sized copper-iodide clusters. As a continuation of this work, we herein report a new pyridine and thioether supported 1,2,3-triazole ligand L synthesized using the click reaction. This neutral ligand employs pyridine–triazole chelate-bridging and thioether bridging modes to stabilize Ag(I) centers and form a polymeric, cationic chain with cyclic [Ag4] clusters.

2. Materials and Methods

All reagents were used as received. Infrared spectra were obtained on a PerkinElmer Spectrum 2000 FT-IR spectrometer from a sample in KBr disc. Elemental analyses were performed on a thermo electron corporation flash EA 1112 series analyzer. Electrospray ionization mass spectrometry (ESI-MS) was recorded in positive ion mode using a Shimadzu LCMS-IT-TOF mass spectrometer. UV–vis absorption spectrum was recorded on a Shimadzu UV-2501PC UV–vis recording spectrophotometer. Photoluminescence spectrum was measured on a Shimadzu RF-5301 PC spectrofluorophotometer. Powder X-ray diffraction data was collected on a Bruker D8 Advance X-ray diffractometer with Cu-Kα radiation (λ = 1.54056 Å). Thermogravimetric analysis (TGA) was carried out in an air stream using a TA Instruments TGA Q500 analyzer with a heating rate of 20 °C per min.

X-ray Crystallography

Single-crystal X-ray diffraction data were collected using a Bruker AXS SMART APEXII CCD diffractometer using Mo-Kα radiation (λ = 0.71073 Å). Data integration and scaling were performed using Bruker SAINT [33]. The empirical absorption correction was performed by SADABS [34]. The space group determination, structure solution, and least-squares refinements on |F|2 were carried out with the Bruker SHELXL [35]. The structure was solved by direct method to locate the heavy atoms, followed by difference maps for the light non-hydrogen atoms. Anisotropic thermal parameters were refined for the rest of the non-hydrogen atoms. Hydrogen atoms were placed geometrically and refined isotropically. CCDC reference number: 1587041 (1). Crystal Data for C32H44Ag4B4F16N8S2 (M = 1383.57 g/mol): monoclinic, space group P21/c, a = 15.6371(4) Å, b = 9.1234(3) Å, c = 16.6824(5) Å, β = 101.648(1)°, V = 2331.0(1) Å3, Z = 2, T = 296(2) K, Dcalc = 1.971 g/cm3, 39572 reflections measured (1.33° ≤ Θ ≤ 27.12°), 5147 unique (Rint = 0.0277) which were used in all calculations. The final R1 was 0.0733 (I > 2σ(I)) and wR2 was 0.2093 (all data).

3. Results and Discussion

3.1. Synthesis

Sodium azide is potentially explosive. Only micro-scaled reactions should be performed. The alkyne precursor (4-pentyn-1-ylthio)-cyclopentane was prepared following literature procedures for thioether formation [28,32]. The crude alkyne was placed in a round bottom flask containing 2-(chloromethyl)pyridine hydrochloride (328 mg, 2 mmol), Na2CO3 (210 mg, 2 mmol), NaN3 (156 mg, 2.5 mmol), CuI (23 mg, 0.12 mmol), and CH3OH/H2O (1:1 v:v, 6 mL) (Scheme 1). The reaction was stirred at 50 °C for 24 h. The residue was extracted with ethyl acetate (150 mL) and the organic layer was washed with water (3 × 20 mL), dried (with anhydrous Mg2SO4) and concentrated by rotary evaporator at 60 °C under vacuum. Column chromatography on silica gel with hexane/ethyl acetate (2:1 v:v) as eluent produced a band at Rf = 0.1 that was collected and the solvent removed by rotary evaporator at 40 °C under vacuum. The product (L) was a pale yellow oil. Yield: 330 mg, 55%. 2-((4-(3-(Cyclopentylthio)propyl)-1H-1,2,3-triazol-1-yl)methyl)pyridine (L), (C16H22N4S, MW 302.44). ESI-MS (m/z, %): [L+H]+ (303, 100). 1H NMR (CDCl3, 500.2 MHz) δ: 8.56 (s, 1H, pyridine, NCH), 7.68–7.65(m, 1H), 7.45 (s, 1H, triazole), 7.25–7.23 (m, 1H), 7.16–7.13 (t, 1H), 5.61 (s, 2H, pyridine–CH2–triazole), 3.06–3.01 (m, 1H, SCH), 2.81–2.78 (m, 2H), 2.56–2.52 (m, 2H), 1.97–1.91 (m, 4H), 1.69 (b, 2H), and 1.53–1.43 (m, 4H). 13C NMR (CDCl3, 125.8 MHz): 154.7, 149.5, 147.9, 137.6, 123.5, 122.5, and 121.6 (C in pyridine and triazole groups), 55.4 (pyridine–CH2–triazole), 43.8 (SCH), 33.9, 31.2, 29.4, and 24.9.
Complex 1 was prepared by mixing a methanol solution (5 mL) of ligand L (151 mg, 0.5 mmol) and a methanol solution (5 mL) of AgBF4 (195 mg, 1 mmol). Single crystals were obtained by slow evaporation of the solvent over one week at room temperature (Scheme 2). The product was collected by filtration, washed with methanol and diethyl ether, and dried in vacuum oven for overnight at 60 °C. Yield: 270 mg, 78%. The powder sample of complex 1 is grey and no obvious solid-state luminescence was observed. Single crystals of 1 are prisms with a relative long axis. Anal. Calcd. for C32H44Ag4B4F16N8S2 (1383.57): C, 27.78; H, 3.21; N, 8.10%. Found: C, 27.80; H, 3.27; N, 8.08%. Main IR bands (cm−1): 3132(m), 3078(m), 2951(s), 2865(m), 1594(m), 1573(m), 1553(m), 1476(m), 1439(m), 1301(m), 1218(m), 1057(s, b, ν(BF4), 756(m), 726(m), 596(m), 534(m), and 522(m). ESI-MS (m/z, %): [LAg]+ (409, 100), [L2Ag]+ (713, 81).

3.2. UV–Vis and Photoluminescent Spectra of Ligand L

An ethanol solution of ligand L absorbed UV–vis light at 203 nm and between 240–280 nm with a maximum at about 260 nm (Figure 1a) and exhibited a broad emission between 400–500 nm with a maximum at 442 nm upon excitation at 358 nm. Neat liquid gave a blue emission under UV 365 nm light. (Figure 1b, insert) Coordination polymer 1 was synthesized by the reaction of L and AgBF4 in methanol at room temperature (Scheme 2). IR spectroscopy indicated characteristic absorption by the BF4 anion. The polymeric structure may be disassociated into small fragments (e.g., [LAg]+ and [L2Ag]+) in solution which were detected by ESI-MS.

3.3. Molecular Structure of Complex 1

Coordination polymer 1 crystallized in a monoclinic crystal system with space group P 21/c. There is one neutral ligand L, two cationic Ag(I) centers and two lattice BF4 anions in the crystallographic asymmetric unit. (Figure 2a) Ag1 and Ag2 possess three-coordinated trigonal planer and two-coordinated linear geometries, respectively. Ag1 is surrounded by two chelating N donors from pyridine and triazole of ligand L and one bridging S donor from another ligand L. Ag2 is coordinated by one 3′-Ntriazole of ligand L and one bridging S donor from another ligand L. These two S donors also bridge neighboring Ag1-Ag2 centers to form a [Ag4] metallomacrocycle. The cyclic [Ag4] units are further linked by double ligands and extend along the short b axis, which aligns with the dominant direction of the prism-shaped single crystals. (Figure 2c,d) The polymeric chains are parallel to each other in the lattice (Figure 2b). The counterions BF4 occupy the cavities created by the cationic polymeric chains. The Ag1⋯Ag2 distances are 4.28 and 4.04 Å in the [Ag4] metallomacrocycle. The shortest Ag⋯Ag distance of neighboring [Ag4] units is 6.06 Å. The shortest Ag⋯Ag distance of neighboring chains is 7.60 Å.

3.4. Powder XRD and TGA

The experimental powder X-ray diffraction pattern for complex 1 showed good agreement with its simulated pattern determined from the single-crystal XRD experiment, supporting its phase purity (Figure 3). Thermogravimetric analysis (TGA) of 1 was conducted from room temperature to 900 °C under an air flow with a heating rate of 20 °C per min (Figure 4). Complex 1 is stable to about 230 °C. There are two weight loss stages between 230 and 890 °C, which correspond to the removal of ligand L, decomposition of BF4 anion, and the formation of metallic silver with a residue amount of 31.5% (calcd. 31.2%).

4. Conclusions

In summary, a pyridine and thioether functionalized 1,2,3-triazole ligand with a relatively long methylene bridge ((CH2)3) between NN and S donors was synthesized using the CuAAC click reaction. The reaction of ligand L and AgBF4 afforded a novel, thermally stable polymeric chain structure with [Ag4] metallomacrocyclics. The propagation of these chains in the lattice aligns with the dominant growth direction of the prism crystals. The observation of two types of Ag(I) coordination geometries (linear and trigonal planar) further emphasizes the diversity of Ag(I) coordination chemistry.

Acknowledgments

We thank Professor David J. Young of University of the Sunshine Coast of Australia for helpful discussion regarding this manuscript. We gratefully acknowledge the funding support (SERC Grant No. 1527200020) from the Institute of Materials Research and Engineering, A*STAR Singapore.

Author Contributions

Shiqiang Bai conceived and designed the experiments; Shiqiang Bai and Hoi Ka Ivy Wong. performed the experiments; Shiqiang Bai wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cui, J.-W.; Hou, S.-X.; Hecke, K.V.; Cui, G.-H. Rigid versus semi-rigid bis(imidazole) ligands in the assembly of two Co.(II) coordination polymers: Structural variability, electrochemical properties and photocatalytic behavior. Dalton Trans. 2017, 46, 2892–2903. [Google Scholar] [CrossRef] [PubMed]
  2. Pettinari, C.; Tăbăcaru, A.; Galli, S. Coordination polymers and metal–organic frameworks based on poly(pyrazole)-containing ligands. Coord. Chem. Rev. 2016, 307, 1–31. [Google Scholar] [CrossRef]
  3. Zhang, X.; Wang, W.; Hu, Z.; Wang, G.; Uvdal, K. Coordination polymers for energy transfer: Preparations, properties, sensing applications, and perspectives. Coord. Chem. Rev. 2015, 284, 206–235. [Google Scholar] [CrossRef]
  4. Hasegawa, Y.; Nakanishi, T. Luminescent lanthanide coordination polymers for photonic applications. RSC Adv. 2015, 5, 338–353. [Google Scholar] [CrossRef]
  5. Zhang, W.-X.; Liao, P.-Q.; Lin, R.-B.; Wei, Y.-S.; Zeng, M.-H.; Chen, X.-M. Metal cluster-based functional porous coordination polymers. Coord. Chem. Rev. 2015, 293, 263–278. [Google Scholar] [CrossRef]
  6. Tiekink, E.R.T.; Henderson, W. Coordination chemistry of 3- and 4-mercaptobenzoate ligands: Versatile hydrogen-bonding isomers of the thiosalicylate (2-mercaptobenzoate) ligand. Coord. Chem. Rev. 2017, 341, 19–52. [Google Scholar] [CrossRef]
  7. Zhao, D.; Timmons, D.J.; Yuan, D.; Zhou, H.-C. Tuning the topology and functionality of metal-organic frameworks by ligand design. Acc. Chem. Res. 2011, 44, 123–133. [Google Scholar] [CrossRef] [PubMed]
  8. Hao, J.-M.; Yu, B.-Y.; Van Hecke, K.; Cui, G.-H. A series of d10 metal coordination polymers based on a flexible bis(2-methylbenzimidazole) ligand and different carboxylates: Synthesis, structures, photoluminescence and catalytic properties. Cryst. Eng. Commun. 2015, 17, 2279–2293. [Google Scholar] [CrossRef]
  9. Khlobystov, A.N.; Blake, A.J.; Champness, N.R.; Lemenovskii, D.A.; Majouga, A.G.; Zyk, N.V.; Schröder, M. Supramolecular design of one-dimensional coordination polymers based on silver(I) complexes of aromatic nitrogen-donor ligands. Coord. Chem. Rev. 2001, 222, 155–192. [Google Scholar] [CrossRef]
  10. Liu, C.-Y.; Xu, L.-Y.; Ren, Z.-G.; Wang, H.-F.; Lang, J.-P. Assembly of silver(i)/n,n-bis(diphenylphosphanylmethyl)-3-aminopyridine/halide or pseudohalide complexes for efficient photocatalytic degradation of organic dyes in water. Cryst. Growth Des. 2017, 17, 4826–4834. [Google Scholar] [CrossRef]
  11. Beheshti, A.; Soleymani-Babadi, S.; Mayer, P.; Abrahams, C.T.; Motamedi, H.; Trzybińki, D.; Wozniak, K. Design, synthesis, and antibacterial assessment of silver(i)-based coordination polymers with variable counterions and unprecedented structures by the tuning spacer length and binding mode of flexible bis(imidazole-2-thiones) ligands. Cryst. Growth Des. 2017, 17, 5249–5262. [Google Scholar] [CrossRef]
  12. Dey, A.; Biradha, K. Anion and guest directed tetracyclic macrocycles of ag5l4 and ag6l4 with an arc-shaped ligand containing pyridine and benzimidazole units: reversal of anion selectivity by guest. Cryst. Growth Des. 2017, 17, 5629–5633. [Google Scholar] [CrossRef]
  13. Reger, D.L.; Semeniuc, R.F.; Smith, M.D. Supramolecular architecture of a silver(i) coordination polymer supported by a new ligand containing four tris(pyrazolyl)methane units. Inorg. Chem. 2001, 40, 6545–6546. [Google Scholar] [CrossRef] [PubMed]
  14. Han, L.; Wang, R.; Yuan, D.; Wu, B.; Lou, B.; Hong, M. Hierarchical assembly of a novel luminescent silver coordination framework with 4-(4-pyridylthiomethyl)benzoic acid. J. Mol. Struct. 2005, 737, 55–59. [Google Scholar] [CrossRef]
  15. Chen, Z.-F.; Yu, L.-C.; Zhong, D.-C.; Liang, H.; Zhu, X.-H.; Zhou, Z.-Y. An unprecedented 1D ladder-like silver(I) coordination polymer with ciprofloxacin. Inorg. Chem. Commun. 2006, 9, 839–843. [Google Scholar] [CrossRef]
  16. He, W.-J.; Luo, G.-G.; Wu, D.-L.; Liu, L.; Xia, J.-X.; Li, D.-X.; Dai, J.-C.; Xiao, Z.-J. An odd-numbered heptameric water cluster containing a puckered pentamer self-assembled in a Ag(I) polymeric solid. Inorg. Chem. Commun. 2012, 18, 4–7. [Google Scholar] [CrossRef]
  17. Zorlu, Y.; Can, H.; Aksakal, F. A novel 2D chiral silver(I) coordination polymer assembled from 5-sulfosalicylic acid and (2S,4R)-4-hydroxyproline: Synthesis, crystal structure, HOMO–LUMO and NBO analysis. J. Mol. Struct. 2013, 1049, 368–376. [Google Scholar] [CrossRef]
  18. Zhao, Y.-Q.; Fang, M.-X.; Xu, Z.-H.; Wang, X.-P.; Wang, S.-N.; Han, L.-L.; Li, X.-Y.; Sun, D. Construction of a crystalline Ag(I) coordination polymer based on a new ligand generated from unusual in situ aza-Michael addition reaction. Cryst. Eng. Commun. 2014, 16, 3015–3019. [Google Scholar] [CrossRef]
  19. Yang, L.; Li, X.; Qin, C.; Wang, X.-L.; Shao, K.-Z.; Su, Z.-M. A highly electrical conducting, 3D supermolecular Ag(I) coordination polymer material with luminescent properties. Inorg. Chem. Commun. 2016, 70, 31–34. [Google Scholar] [CrossRef]
  20. Bahemmat, S.; Ghassemzadeh, M.; Neumüller, B. A new silver(I) coordination polymer containing 3-methylthio-(1H)-1,2,4-triazole as precursor for preparation of silver nanorods. Inorg. Chim. Acta, 2015, 435, 159–166. [Google Scholar] [CrossRef]
  21. Semitut, E.; Komarov, V.; Sukhikh, T.; Filatov, E.; Potapov, A. Synthesis, crystal structure and thermal stability of 1d linear silver(i) coordination polymers with 1,1,2,2-tetra(pyrazol-1-yl)ethane. Crystals 2016, 6, 138. [Google Scholar] [CrossRef]
  22. Braunstein, P.; Naud, F. Hemilability of hybrid ligands and the coordination chemistry of oxazoline-based systems. Angew. Chem. Int. Ed. 2001, 40, 680–699. [Google Scholar] [CrossRef]
  23. Deria, P.; Mondloch, J.E.; Karagiaridi, O.; Bury, W.; Hupp, J.T.; Farha, O.K. Beyond post-synthesis modification: Evolution of metal–organic frameworks via building block replacement. Chem. Soc. Rev. 2014, 43, 5896–5912. [Google Scholar] [CrossRef] [PubMed]
  24. Bai, S.-Q.; Fang, C.-J.; He, Z.; Gao, E.-Q.; Yan, C.-H.; Hor, T.S.A. Chelating schiff base assisted azide-bridged Mn(II), Ni(II) and Cu(II) magnetic coordination polymers. Dalton Trans. 2012, 41, 13379–13387. [Google Scholar] [CrossRef] [PubMed]
  25. Bai, S.-Q.; Leelasubcharoen, S.; Chen, X.; Koh, L.L.; Zuo, J.-L.; Hor, T.S.A. Crystallographic elucidation of chiral and helical Cu(II) polymers assembled from a heterodifunctional 1,2,3-triazole ligand. Cryst. Growth Des. 2010, 10, 1715–1720. [Google Scholar] [CrossRef]
  26. Bai, S.-Q.; Kwang, J.Y.; Koh, L.L.; Young, D.J.; Hor, T.S.A. Functionalized 1,2,3-triazoles as building blocks for photoluminescent POLOs (polymers of oligomers) of copper(I). Dalton Trans. 2010, 39, 2631–2636. [Google Scholar] [CrossRef] [PubMed]
  27. Jiang, L.; Wang, Z.; Bai, S.-Q.; Hor, T.S.A. “Click-and-click”—hybridised 1,2,3-triazoles supported Cu(I) coordination polymers for azide–alkyne cycloaddition. Dalton Trans. 2013, 42, 9437–9443. [Google Scholar] [CrossRef] [PubMed]
  28. Bai, S.-Q.; Jiang, L.; Zuo, J.-L.; Hor, T.S.A. Hybrid NS ligands supported Cu(I)/(II) complexes for azide–alkyne cycloaddition reactions. Dalton Trans. 2013, 42, 11319–11326. [Google Scholar] [CrossRef] [PubMed]
  29. Bai, S.-Q.; Jiang, L.; Sun, B.; Young, D.J.; Hor, T.S.A. Five Cu(I) and Zn(II) clusters and coordination polymers of 2-pyridyl-1,2,3-triazoles: Synthesis, structures and luminescence properties. Cryst. Eng. Commun. 2015, 17, 3305–3311. [Google Scholar] [CrossRef]
  30. Bai, S.-Q.; Ke, K.L.; Young, D.J.; Hor, T.S.A. Structure and photoluminescence of cubane-like [Cu4I4] cluster-based 1D coordination polymer assembled with bis(triazole)pyridine ligand. J. Organomet. Chem. 2017, 137–141. [Google Scholar] [CrossRef]
  31. Bai, S.-Q.; Young, D.J.; Hor, T.S.A. Hydrogen-Bonding interactions in luminescent quinoline-triazoles with dominant 1d crystals. Molecules 2017, 22, 1600. [Google Scholar] [CrossRef] [PubMed]
  32. Bai, S.-Q.; Jiang, L.; Tan, A.L.; Yeo, S.C.; Young, D.J.; Hor, T.S.A. Assembly of photoluminescent [CunIn] (n = 4, 6 and 8) clusters by clickable hybrid [N,S] ligands. Inorg. Chem. Front. 2015, 2, 1011–1018. [Google Scholar] [CrossRef]
  33. Bruker AXS Inc. SAINT Software Reference Manual; Version 6.0; Bruker AXS Inc.: Madison, WI, USA, 2003. [Google Scholar]
  34. Krause, L.; Herbst-Irmer, R.; Sheldrick, G. M.; Stalke, D. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Cryst. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed]
  35. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, 71, 3–8. [Google Scholar]

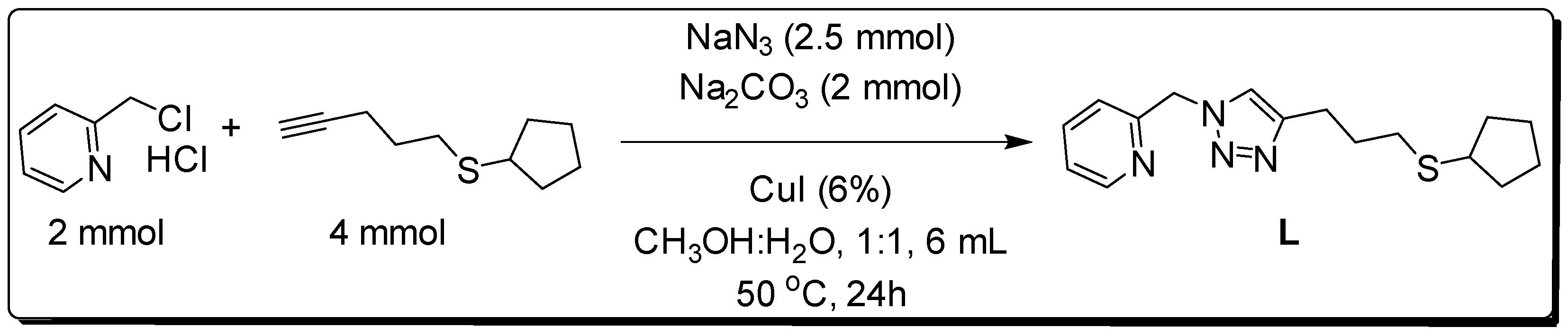

Scheme 1. Preparation of ligand L.
Scheme 1. Preparation of ligand L.
Crystals 08 00016 sch001

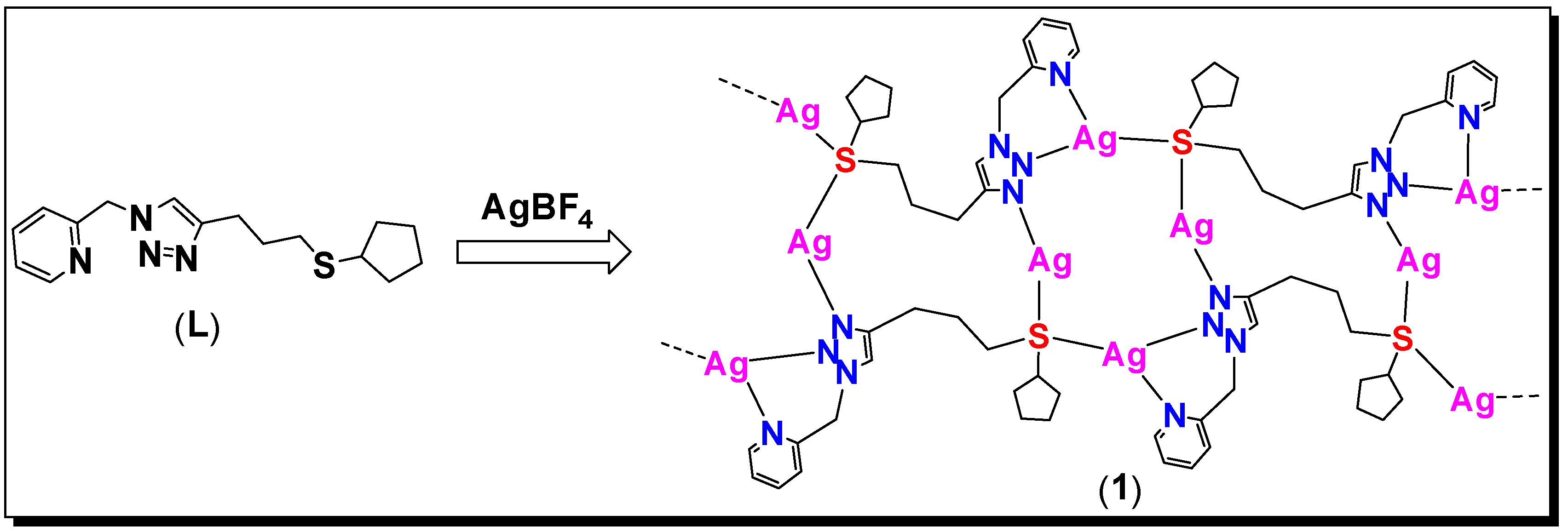

Scheme 2. Formation of cationic coordination polymer 1.
Scheme 2. Formation of cationic coordination polymer 1.
Crystals 08 00016 sch002

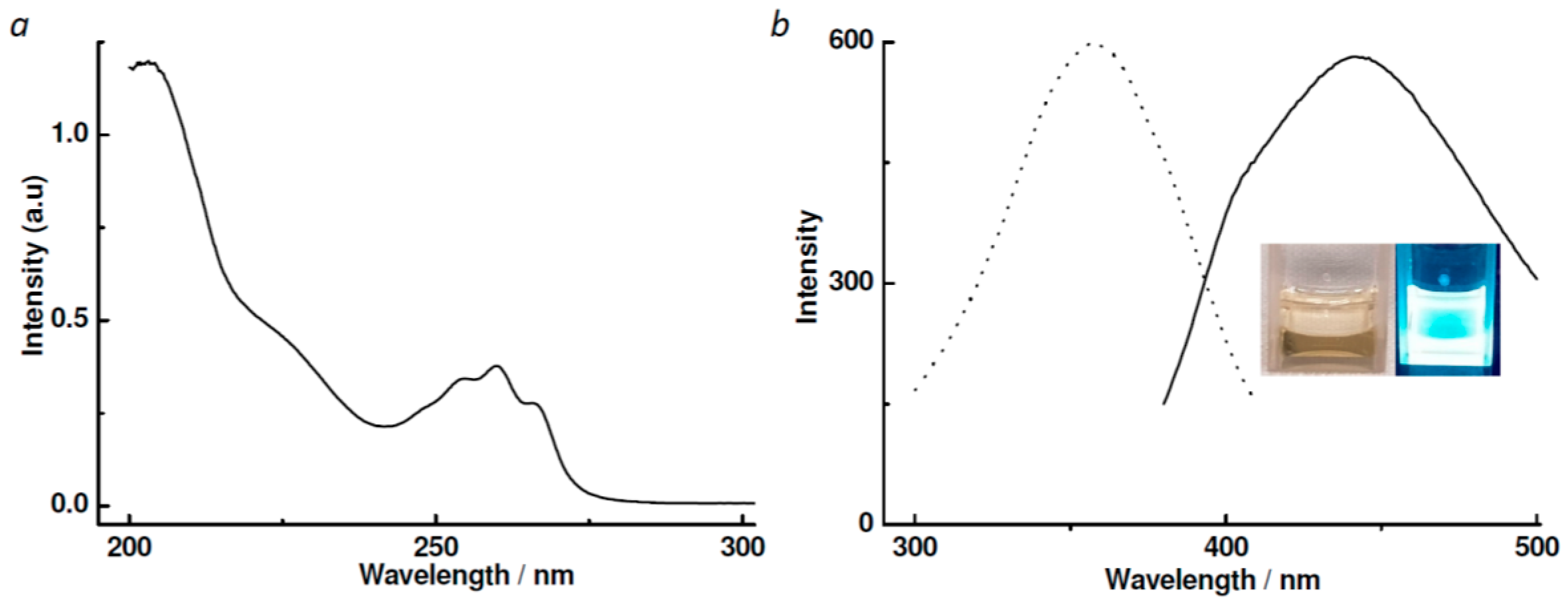

Figure 1. UV–vis (a) and excitation (dotted line) and emission (solid line) (b) spectra of ligand L in ethanol (0.1 M). (The inset images are ligand L in a quartz cuvette under normal and 365 nm lights, respectively).
Figure 1. UV–vis (a) and excitation (dotted line) and emission (solid line) (b) spectra of ligand L in ethanol (0.1 M). (The inset images are ligand L in a quartz cuvette under normal and 365 nm lights, respectively).
Crystals 08 00016 g001
Figure 2. (a) Cationic and polymeric chain structure in 1. (b) Packing structure in 1. (BF4 anions are removed for clarity) (c,d) Single crystal indexes in different orientations of 1.
Figure 2. (a) Cationic and polymeric chain structure in 1. (b) Packing structure in 1. (BF4 anions are removed for clarity) (c,d) Single crystal indexes in different orientations of 1.
Crystals 08 00016 g002
Figure 3. Powder XRD patterns of 1. (T = theoretical profile referenced to the experimentally determined single-crystal XRD pattern; E = experimental data).
Figure 3. Powder XRD patterns of 1. (T = theoretical profile referenced to the experimentally determined single-crystal XRD pattern; E = experimental data).
Crystals 08 00016 g003

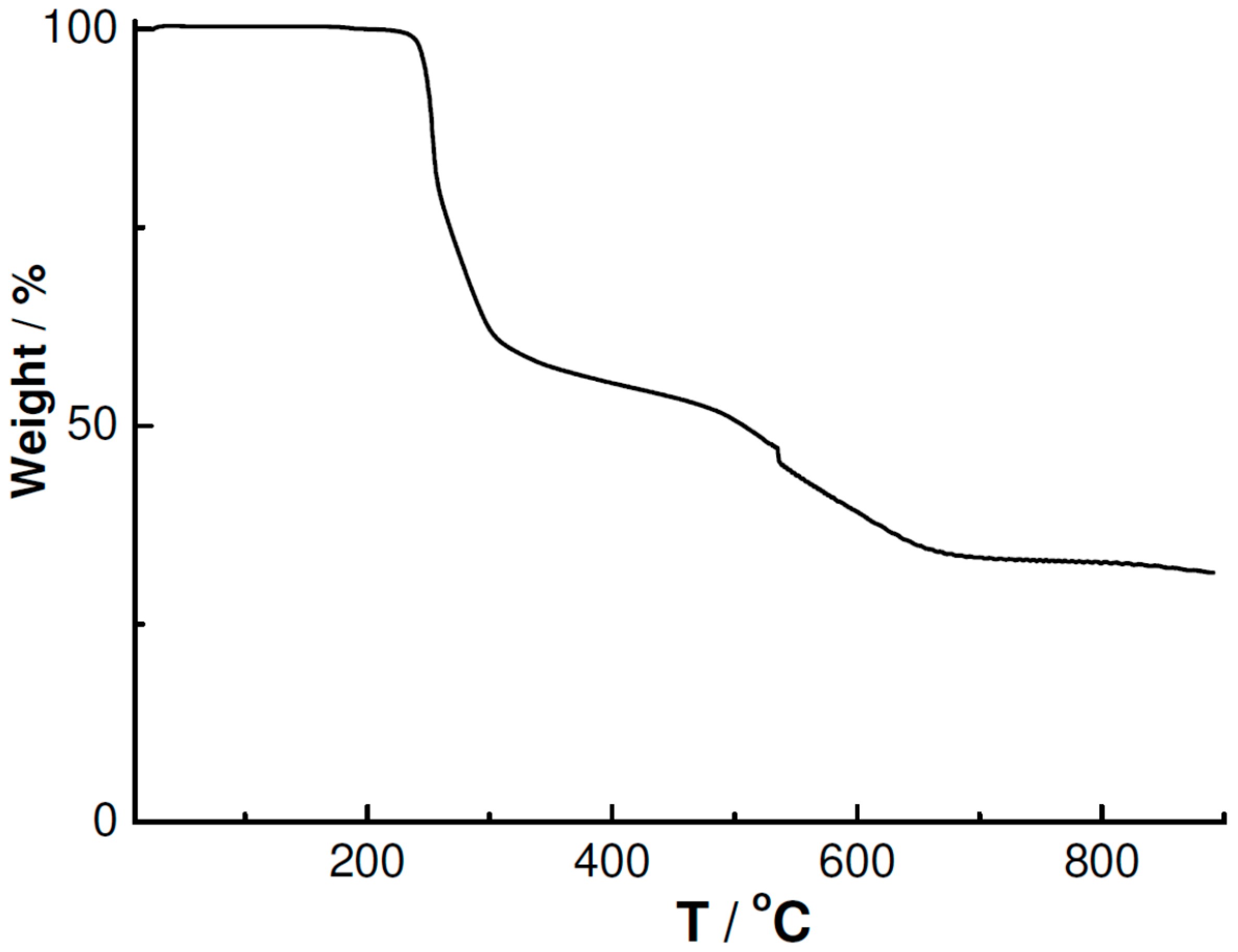

Figure 4. TGA curves of 1.
Figure 4. TGA curves of 1.
Crystals 08 00016 g004
