SRG Inscription in Supramolecular Liquid Crystalline Polymer Film: Replacement of Mesogens

Department of Molecular and Macromolecular Chemistry, Graduate School of Engineering, Nagoya University, Furo-cho, Chikusa, Nagoya 464-8603, Japan
Nagoya University Venture Business Laboratory, Furo-cho, Chikusa, Nagoya 464-8603, Japan
Authors to whom correspondence should be addressed.
Academic Editor: Vladimir Chigrinov
Crystals 2017, 7(2), 52;
Received: 16 January 2017 / Revised: 9 February 2017 / Accepted: 9 February 2017 / Published: 11 February 2017
(This article belongs to the Special Issue Micro and Nano Patterned Substrates for Liquid Crystal Alignment)
PDF [4842 KB, uploaded 11 February 2017]

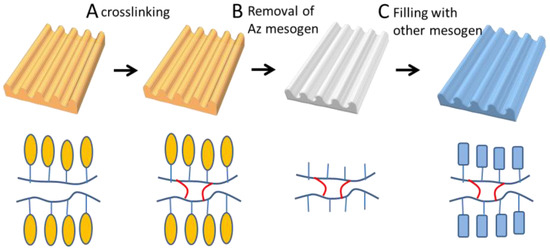

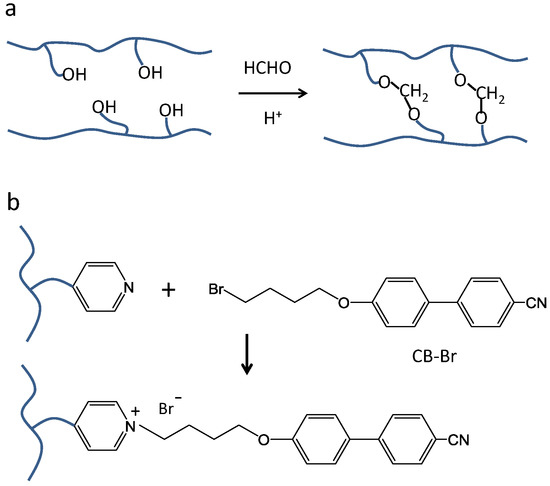

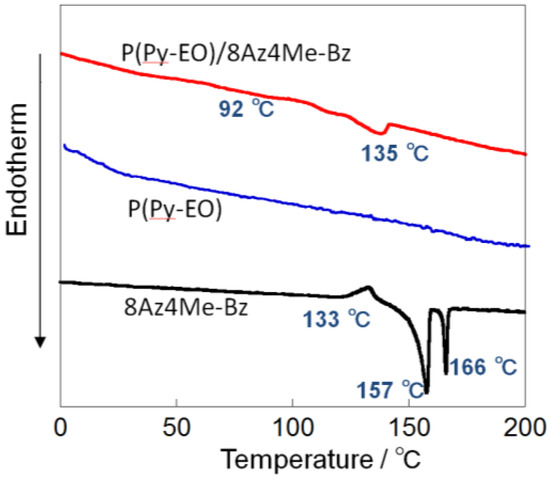

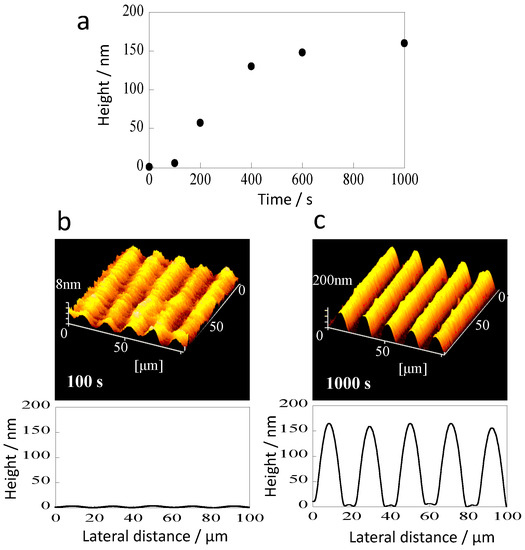

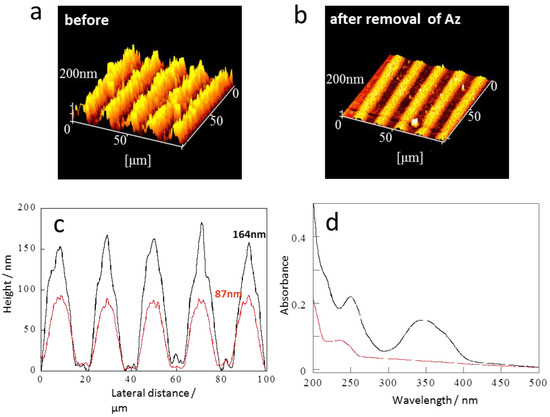

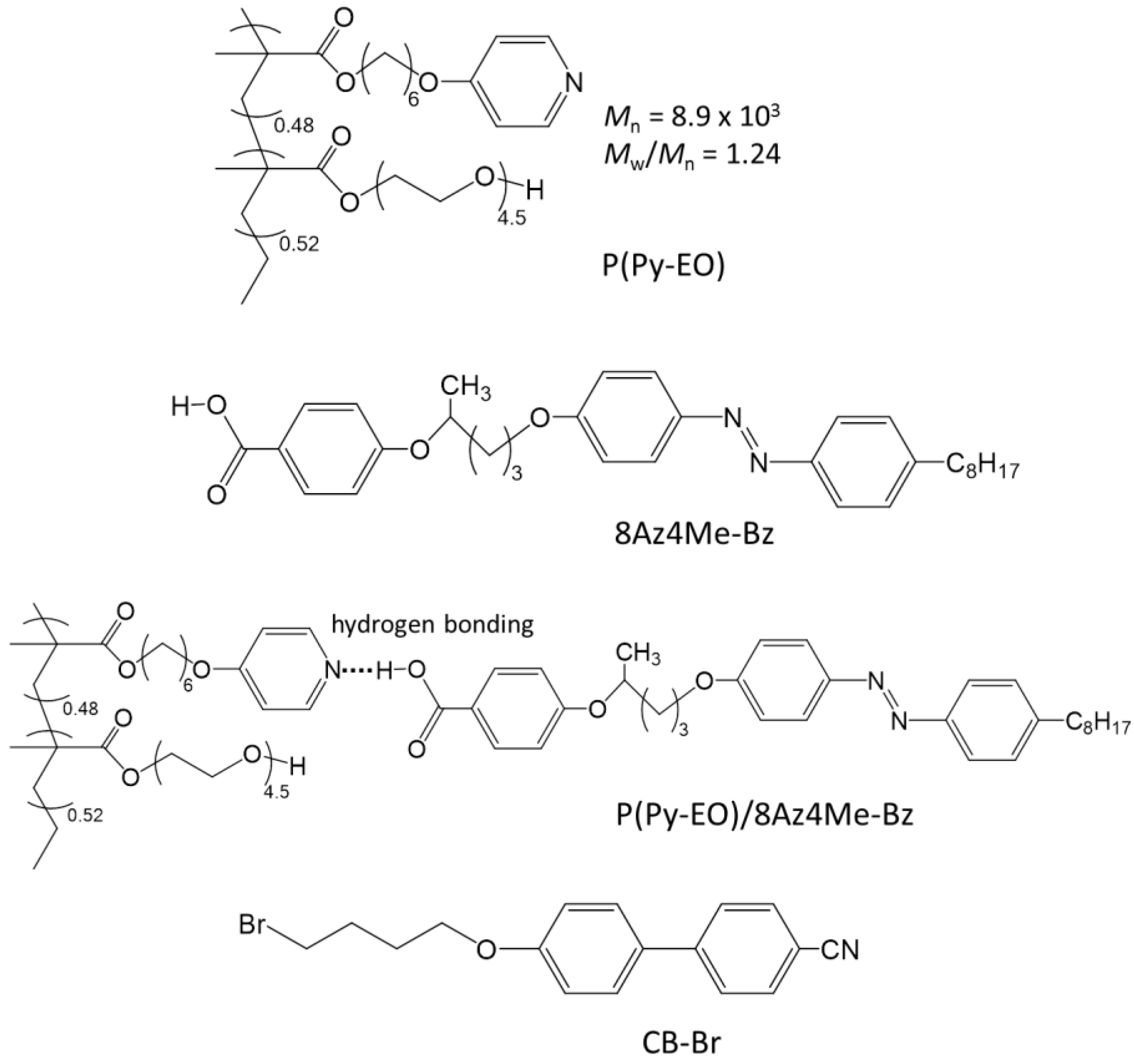

The photoinduced surface relief formation via mass transfer upon irradiation with patterned light has long been a subject of extensive investigation. In azobenzene-containing liquid crystalline materials, UV light irradiation that generates the cis isomer leads to the liquid crystal to isotropic photochemical transition. Due to this phase change, efficiency of the mass transfer to generate a surface relief grating (SRG) becomes markedly greater. We have previously indicated that azobenzene-colored SRG-inscribed film can be bleached by removing a hydrogen-bonded azobenzene mesogen. However, this process largely reduces the height feature of the SRG corrugation. Herein, we propose an extended procedure where a colorless mesogen is filled successively after the removal of the azobenzene side chain. The process involves four stages: (i) SRG inscription in a hydrogen-bonded supramolecular azobenzene material; (ii) crosslinking (insolubilization) of the SRG film; (iii) removal of azobenzene mesogen by rinsing with a solvent, and (iv) stuffing the hollow film with a different mesogen. Although the final stuffing stage was insufficient at the present stage, this work demonstrates the possibility and validity of the strategy of mesogen replacement. View Full-Text
Keywords: azobenzene; liquid crystalline polymer; surface relief grating; hydrogen bonding azobenzene; liquid crystalline polymer; surface relief grating; hydrogen bonding

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
