Crystals 2017, 7(12), 352;

Stuck in Our Teeth? Crystal Structure of a New Copper Amalgam, Cu3Hg

Department Chemie, LMU München, Butenandtstraße 5-13(D), D-81377 München, Germany
Author to whom correspondence should be addressed.
Academic Editor: Matthias Weil
Received: 23 October 2017 / Revised: 20 November 2017 / Accepted: 22 November 2017 / Published: 24 November 2017
(This article belongs to the Special Issue Crystal Chemistry of Zinc, Cadmium and Mercury)
Full-Text   |   PDF [5698 KB, uploaded 24 November 2017]   |

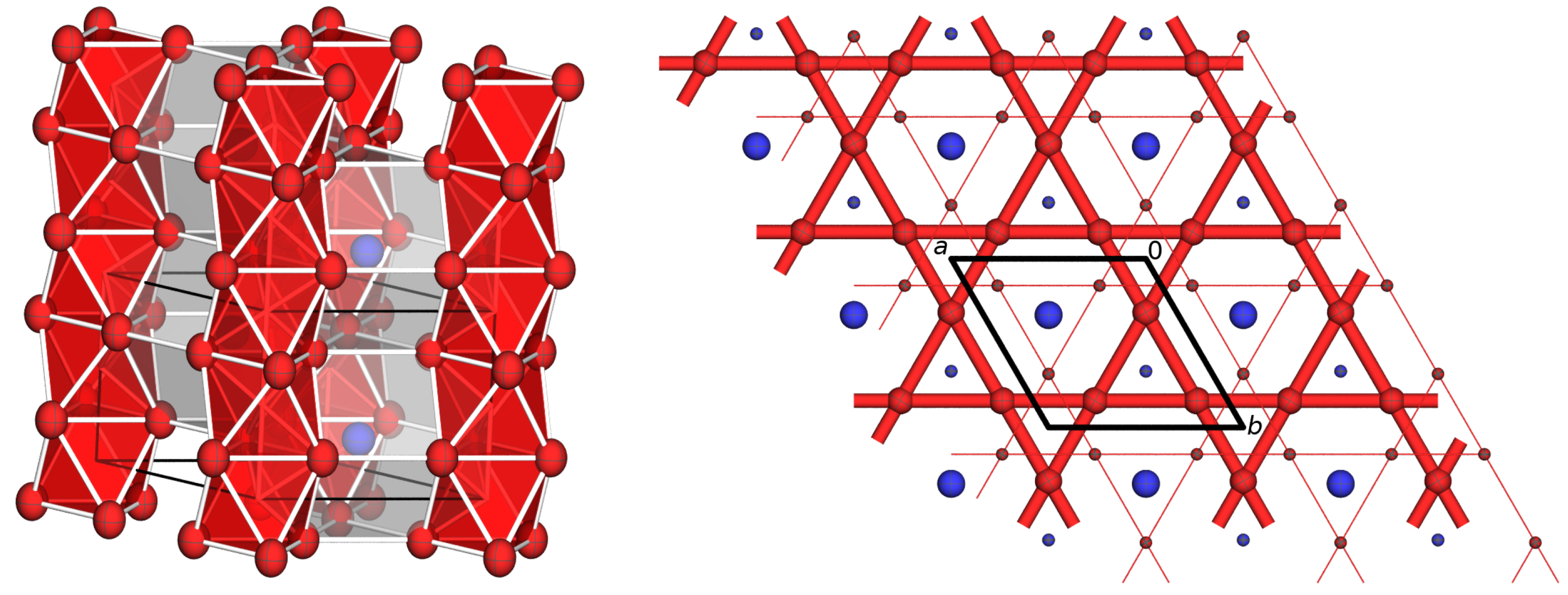

We have synthesized a new Cu amalgam, the Cu-rich phase Cu 3 Hg. It crystallizes with the Ni 3 Sn structure type with a hexagonal unit cell (space group P6 3 /mmc , a = 5.408(4) Å, c = 4.390(3) Å) and shows some mixed occupancy of Cu on the Hg site, resulting in a refined composition of Cu 3.11 Hg 0.89 . This is the first example of an amalgam with the Ni 3 Sn structure type where Hg is located mainly on the Sn site. Cu 3 Hg might be one of the phases constituting dental amalgams and therefore has major relevance, as well as the only Cu amalgam phase described so far, Cu 7 Hg 6 with the γ -brass structure. It occurs as a biphase in our samples. Thermal decomposition of Cu amalgam samples in a dynamic vacuum yields nanostructured copper networks, possibly suitable for catalytic applications. View Full-Text
Keywords: copper amalgams; dental amalgams; crystal structure; Ni3Sn structure type copper amalgams; dental amalgams; crystal structure; Ni3Sn structure type

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Sappl, J.; Freund, R.; Hoch, C. Stuck in Our Teeth? Crystal Structure of a New Copper Amalgam, Cu3Hg. Crystals 2017, 7, 352.
