Crystals 2017, 7(10), 303; https://doi.org/10.3390/cryst7100303

Article
Synthesis and Crystal Structure of a New Hydrated Benzimidazolium Salt Containing Spiro Structure
MicroScale Science Institute, Department of Chemistry, Chemical Engineering and Environmental Engineering, Weifang University, Weifang 261061, China
*
Author to whom correspondence should be addressed.
Academic Editor: Shujun Zhang
Received: 23 August 2017 / Accepted: 29 September 2017 / Published: 9 October 2017

Abstract

:
A new hydrated benzimidazolium salt containing spiro structure was obtained when benzimidazole is added to ethyl alcohol of 1,5-dioxaspiro[5.5]undecane-2,4-dione and trimethoxymethane. The title compound (C19H21O8) (C7H7N2) (0.5H2O) was characterized by elemental analysis, IR, UV-Vis, and single-crystal X-ray diffraction. The result shows that it belongs to the triclinic system, space group P-1, with a = 11.017(2) Å, b = 11.424(2) Å, c = 11.650(2) Å, α = 70.60(3)°, β = 71.00(3)°, γ = 67.64(3)°, Mr = 505.51, V = 1245.2(5) Å, Z = 2, Dc = 1.348 g/cm3, F(000) = 534, μ(MoKa) = 0.102 mm−1. There exist two types of hydrogen bonds in the crystal. (C19H21O8) anions and (C7H7N2)+ cations are linked by N–H···O hydrogen bonds, while (C19H21O8) anions and free water are linked by O–H···O hydrogen bonds. All of the above hydrogen bonds form a one-dimensional (1D)-chained structure. The 1D chains further links the molecule into a three-dimensional (3D)-layered structure.
Keywords:
synthesis; crystal structure; benzimidazolium

1. Introduction

Heterocyclic compounds occupy an important position in medicinal chemistry and in the pharmaceutical industry. As an important type of heterocycles, spiro compounds that contain one common atom have also shown prominent biological and pharmacological properties, such as antimicrobial [1,2], anticancer [3,4], antioxidant [5], anti-tubercular agents [6], protease activated receptor-1 (PAR1) antagonist [7], antineoplastic [8], and so on. In the last decade, the researchers’ interests are now shifted to the salts of heterocyclic compounds in order to increase their solubility and efficacy. Therefore, numerous benzimidazolium salts have been reported due to a wide application in various fields such as catalysis [9], medicine [10,11], fluorescent probes [12], and liquid electrolyte [13]. Considering that two biological active organic moieties are combined into different ionic parts might augment their biological activities, a new hydrated benzimidazolium salt containing spiro structure was synthesized. Its crystal structure was determined by single-crystal X-ray diffraction analysis (Scheme 1):

2. Results and Discussion

Crystallographic data for the structures reported in this paper have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication no. CCDC-1567471. Copies of availablematerial can be obtained, free of charge, on application tothe Director, CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (Fax: 44-(0)-1223-336033) or e-mail: [email protected] cam.ac.uk).

2.1. Crystal Structure

The selected molecular structure parameters of the title compound are listed in Table 1. Figure 1 shows the molecular structure of (C19H21O8) (C7H7N2) (0.5H2O), and Figure 2 depicts its crystal packing in the unit cell.
The molecular structure consists of (C7H7N2)+ cation, (C19H21O8) anion, and water molecule (Figure 1). As shown in Figure 3, one water molecule is shared by two (C19H21O8) anions. In addition, water molecule is found to be disordered positions and the occupancy of each H2O is 0.5. It is possible that the volume of water molecule is small and it is a free state in hydrated benzimidazolium salt. The central C(17) atom of (C19H21O8) anion is bridged by two 1,5-dioxaspiro[5.5]undecane-2,4-dione groups. The bond lengths C17–C15 (1.386(2) Å) and (C17–C19) (1.380(2) Å) are different with other spiro structures reported (C=C double bond C(10)–C(2) 1.367(7) Å, single bond C(10)–C(11) 1.433(8) Å) [14], which indicates C(15)–C(17)=C(19) is allyl anion. The bond angle of C(15)–C(17)–C(19) 131.19(1)° in the structure is little smaller than C(11)–C(10)–C(2)137.9(5)° in reference [14]. The title compound is not planar. The C(15)−C(17)−C(19)−C(18), C(14)−C(15)−C(17)−C(19), O(5)−C(18)−C(19)−C(17), O(3)−C(14)− C(15) −C(17) torsion angles are −167.65(2)°, −170.89(2)°, −16.7(3)° and −11.9(2)°, respectively. The two cyclohexane rings both exhibit a chair-like configuration, with puckering parameters for ring 1 (C8−C13): Q = 0.565 (6) Å, q2 = 0.025 Å, q3 = −0.565 Å, ϑ = 177.5°, ϕ = 69.43°; ring 2 (C21−C26): Q = 0.556 Å, q2 = 0.037 Å, q3 = −0.555 Å, ϑ = 176.2°, ϕ = 168.05° [15].
As can be seen from Figure 3, there are N–H···O and O–H···O two types of hydrogen bonds in the crystal. (C19H21O8) anions and (C7H7N2)+ cations are linked by N–H···O hydrogen bonds, the donor, and acceptor distances are 2.728(1) Å for N(1)–H(1A)···O(4), 2.718(1) Å for N(2)–H(2)···O(3), respectively. While (C19H21O8) anions and free water are linked by O–H···O hydrogen bonds, the donor and acceptor distances are 2.875(1)Å for O1W−H1W1···O(5), 2.994(1)Å for O1W−H1W2···O(5), respectively (Table 2). A one-dimensional (1D)-chained structure is assembled by intermolecular hydrogen bonds. The molecule further forms a three-dimensional (3D)-layered structure by the 1D chains (Figure 4).

2.2. Spectroscopic Properties

As shown in Figure 5, the two bands at 2937 cm−1 and 2856 cm−1 are assigned to the C–H stretching vibration of the benzimidazolum ring. The strong bands at 1675 cm−1 and 1218 cm−1 are attributed to the stretching vibrations of C=O and C–O bands of 1,3-dioxane ring, which conforms to our earlier report [16,17]. The title compound exhibits strong bands at 1493 cm−1 (C=C), 1441 cm−1(C=N), 779 cm−1C-H benzene ring) and 744 cm−1C-H imidazole ring) for the benzimidazolum group [18]. These are in accordance with the results of crystal structure analysis.
As shown in Figure 6, the molecule exists three bands, which were observed at 210 nm, 243 nm and 384 nm in EtOH. The absorption band at 243 nm is assigned to π→π* transition of the benzimidazole group. The absorption band at 384 nm is attributed to π→π* electron transition of enolate form (HO–C=C–C=O).The absorption band at 210 nm is possibly affected by the nitrogen atom and the solvent polarity. These values are similar to those found in related structure compound [14,18].

3. Experimental Section

3.1. Materials and Methods

Elemental analyses were obtained using a Vario ELIII analyzer (Elementar, Hanau, Germany). Fourier transform infrared spectra were determined on FT-IR 510P (Nicolet, Madison, WI, USA). UV-visible absorption spectra were carried out on a UV3100 pectrometer (Shimadzu, Kyoto, Japan).

3.2. Preparation of the Title Compound

1,5-dioxaspiro[5.5]undecane-2,4-dione (1.84 g, 0.01 mol) was reacted with trimethoxymethane (1.27 g, 0.024 mol) in ethyl alcohol (30mL) solution. After refluxing 2.5 h, benzimidazole (1.18 g, 0.01 mol) was addedand the mixture was refluxed for another 5 h. The red precipitate was recovered by filtration and dried. Yield 18.2 %. m.p.: 176.5–177.3 °C. Elemental analysis Calcd. (%) For C26H29N2 O8.50: C, 61.77; H, 5.78; N, 5.54. Found: C, 61.54; H, 5.66; N, 5.67. Red block-shaped crystals were obtained by recrystallization from the solution of ethanol.

3.3. Crystallography

The crystal of (C19H21O8) (C7H7N2) (0.5H2O) with dimensions of 0.40 mm × 0.38 mm × 0.37 mm was mounted a spiderdiffractometer using MoKα radiation at 293(2) K. Its structure was solved by SHELXS-97 [19]. The final cycle of refinement included 334 parameters gave R = 0.0481 and wR = 0.1268 with w = 1/[σ2(Fo2) + (0.0721P)2 + 0.2939P], where P = (Fo2 + 2Fc2)/3. Further details of crystallographic data are shown in Table 3.

4. Conclusions

A new hydrated benzimidazolium salt containing spirostructure was synthesized. Its structure was characterized by elemental analysis, IR, UV-Vis, and single-crystal X-ray diffraction. The title compound consists of (C7H7N2)+ cations, (C19H21O8) anions, and water molecule. The result shows that it belongs to the triclinic system, space group P-1. In the crystal, (C19H21O8) anions and (C7H7N2)+ cations are linked by N–H···O hydrogen bonds, while (C19H21O8) anions and free water are linked by O–H···O hydrogen bonds. All of the abovehydrogen bonds form a 1D-chained structure. The 1D chains further link the molecule into a 3D-layered structure.

Acknowledgments

We thank the financial support ofNNSFC (No. 51541205), and the Natural Science Foundation of Shandong Province (No. ZR2017BEE038).

Author Contributions

Jinhe Jiang synthesized the title compound. Wulan Zeng conceived and designed the experiments and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lohar, T.; Jadhav, S.; Kumbhar, A.; Mane, A.; Salunkhe, R. Bis-amino methylation for the synthesis of spiro-fused piperidines using iron(III) trifluroacetate in aqueous micellar medium. Res. Chem. Intermediat. 2016, 42, 5329–5338. [Google Scholar] [CrossRef]
  2. Meena, K.; Kumari, S.; Khurana, J.M.; Malik, A.; Sharma, C.; Panwar, H. One pot three component synthesis of spiro[indolo-3,10′-indeno[1,2-b] quinolin]-2,4,11′-triones as a new class of antifungal and antimicrobial agents. Chin. Chem. Lett. 2017, 28, 136–142. [Google Scholar] [CrossRef]
  3. Shrestha, R.; Sharma, K.; Lee, Y.R.; Wee, Y.J. Cerium oxide-catalyzed multicomponent condensation. Mol. Divers. 2016, 20, 847–858. [Google Scholar] [CrossRef] [PubMed]
  4. Khazir, J.; Singh, P.P.; Reddy, D.M.; Hyder, I.; Shafi, S.; Sawant, S.S.; Chashoo, G.; Mahajan, A.; Alam, M.S.; Saxena, A.K.; et al. Synthesis and anticancer activity of novel spiro-isoxazoline and spiro-isoxazolidine derivatives of asantonin. Eur. J. Med. Chem. 2013, 63, 279–289. [Google Scholar] [CrossRef] [PubMed]
  5. Ashok, D.; Gandhi, D.M.; Kumar, A.V.; Srinivas, G.; Reddy, M.S.; Kanth, S.S.; Vijjulatha, M. Microwave assisted synthesis, biological evaluation, and molecular docking of novel chroman scaffolds incorporating spiro chromanone framework. Med. Chem. Res. 2016, 25, 2882–2894. [Google Scholar] [CrossRef]
  6. Borad, M.A.; Bhoi, M.N.; Rathwa, S.K.; Vasava, M.S.; Patel, H.D.; Patel, C.N.; Pandya, H.A.; Pithawala, E.A.; Georrge, J.J. Microwave assisted ZrSiO2 catalysed synthesis, characterization and computational study of novel spiro [indole-thiazolidines] derivatives as anti-tubercular agents. Interdiscip. Sci. Comput. Life Sci. 2016, 11, 1–8. [Google Scholar] [CrossRef] [PubMed]
  7. Park, C.M.; Baek, S.; Kim, S.; Song, J.H.; Lee, S.Y.; Kim, M. Trans-fused 5-(tert-butoxtycarbonyl) amino octahydroindenes as a protease activated receptor-1 (PAR1) antagonist. Arch. Pharm. Res. 2016, 39, 1275–1295. [Google Scholar] [CrossRef] [PubMed]
  8. Abdou, W.M.; Ganoub, N.A.; Sabry, E. Spiro- and substituted thiophenetriazaphospholes and phosphoramidates as potent antineoplastic agents: synthesis, biological evaluation, and SAR studies. Monatsh. Chem. 2016, 147, 619–626. [Google Scholar] [CrossRef]
  9. Iwamoto, K.; Kimura, H.; Oike, M.; Sato, M. Methylene-bridged bis(benzimidazolium) salt as a highly efficientcatalystfor thebenzoinreaction in aqueous media. Org. Biomol. Chem. 2008, 6, 912–915. [Google Scholar] [CrossRef] [PubMed]
  10. Yıgıt, B.; Yetkin, Y.; Gök, Y.; Özdemır, I.; Gün, S. Synthesis and antimicrobial studies of 1-methyl-2-dimethylaminoethyl-substituted benzimidazolium salts and N-heterocyclic carbene–silver complexes. J. Coord. Chem. 2012, 65, 371–379. [Google Scholar] [CrossRef]
  11. Iqbal, M.A.; Haque, R.A.; Ahamed, M.B.K.; Majid, A.M.S.; Al-Rawi, S.S. Synthesis and anticancer activity ofpara-xylyl linked bis-benzimidazolium salts and respective Ag(I)N-heterocyclic carbene complexes. Med. Chem. Res. 2013, 22, 2455–2466. [Google Scholar] [CrossRef]
  12. Lal, A.K.; Milton, M.D. Synthesis of new benzimidazolium salts with tunable emission intensities and their application as fluorescent probes for Fe3+ in pure aqueous media. Tetrahedron Lett. 2014, 55, 1810–1814. [Google Scholar] [CrossRef]
  13. Lee, J.P.; Yoo, B.; Suresh, T.; Kang, M.S.; Vital, R.; Kim, K.J. Novel silane-substituted benzimidazolium iodide as gel electrolyte for dye-sensitized solar cells. Electrochim. Acta 2009, 54, 4365–4370. [Google Scholar] [CrossRef]
  14. Zeng, W.L.; Cai, X.; Guo, H.M. Synthesis, experimental and theoretical characterization of 3-(4-(dimethylamino) benzylidene)-1,5-dioxaspiro [5.5]undecane-2,4-dione. Chin. J. Struct. Chem. 2013, 32, 1603–1610. [Google Scholar]
  15. Cremer, D.J.; Pople, A. A general definition of ring puckering coordinates. J. Am. Chem. Soc. 1975, 97, 1354–1358. [Google Scholar] [CrossRef]
  16. Zeng, W.L. 5,5-[(2,4-Dichlorophenyl)methylene]bis(2,2-dimethyl-1,3dioxane-4,6-dione). Acta Crystallogr. Sect. E Struct. Rep. Online 2011, 67, o1894. [Google Scholar] [CrossRef] [PubMed]
  17. Jiang, J.H.; Zeng, W.L. Synthesis and crystal structures of two new oxaspirocyclic compounds. Crystals 2016, 6, 134. [Google Scholar] [CrossRef]
  18. Jian, F.F.; Sian, H.L.; Sun, P.; Mukhopadhyay, U.; Bernal, I. Synthesis, structures and thermal properties of three crystalline polymorphs of the bis(n-phenylmethylbenzimidazole-n) dichloro cobalt(II) complex CoCl2(C7H5N2CH2Ph)2. J. Coord. Chem. 2004, 57, 923–934. [Google Scholar] [CrossRef]
  19. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A Found. Crystallogr. 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]

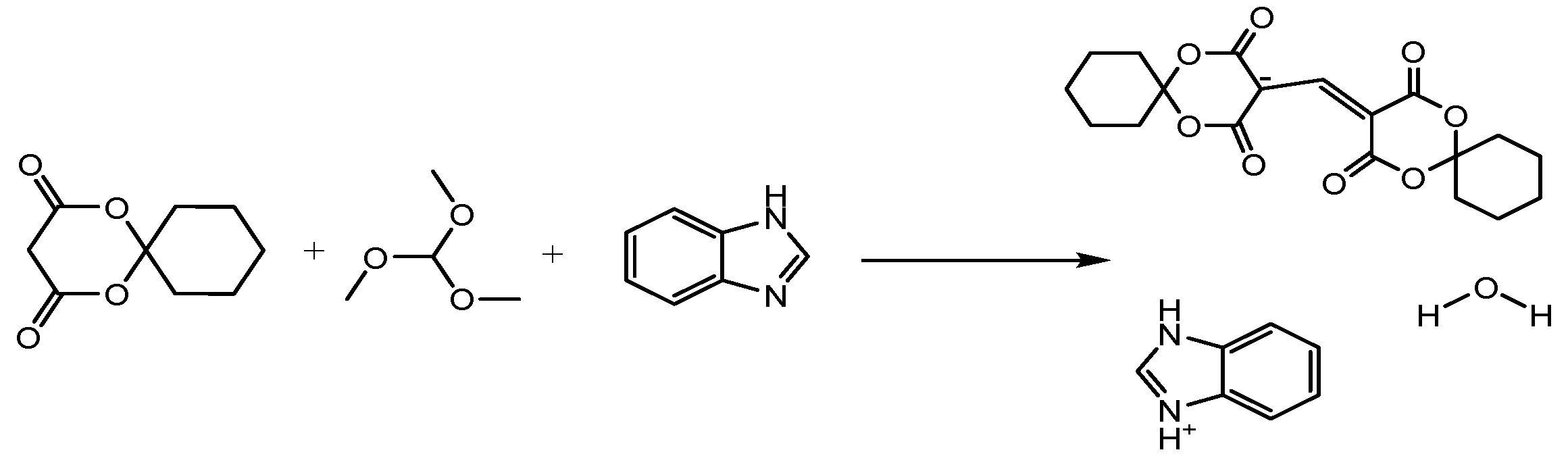

Scheme 1. The synthesis route of a new hydrated benzimidazolium salt containing spiro structure.
Scheme 1. The synthesis route of a new hydrated benzimidazolium salt containing spiro structure.
Crystals 07 00303 sch001

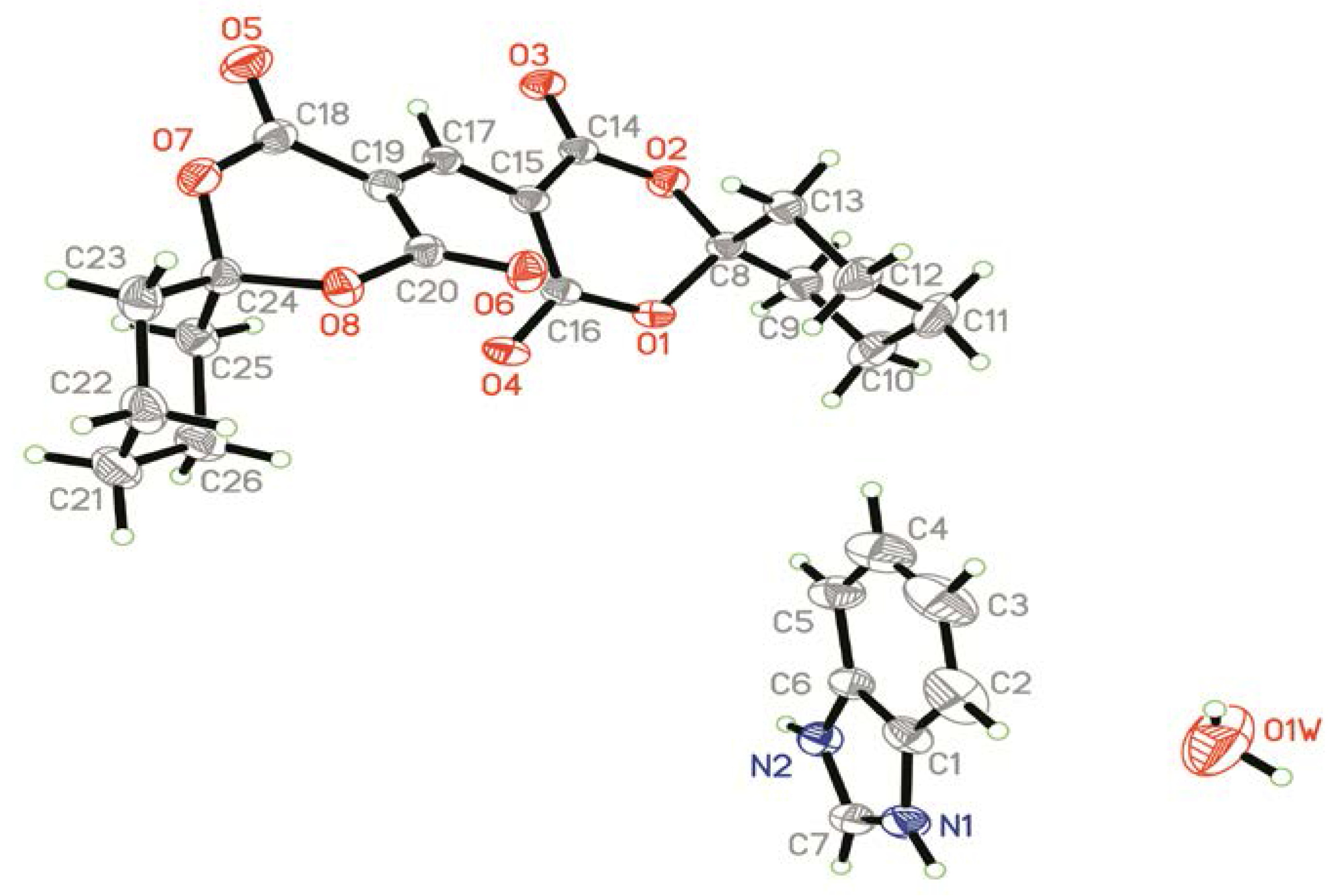

Figure 1. The molecular structure of (C19H21O8) (C7H7N2) (0.5H2O), showing 30% probability displacement ellipsoids and the atomic numbering scheme.
Figure 1. The molecular structure of (C19H21O8) (C7H7N2) (0.5H2O), showing 30% probability displacement ellipsoids and the atomic numbering scheme.
Crystals 07 00303 g001

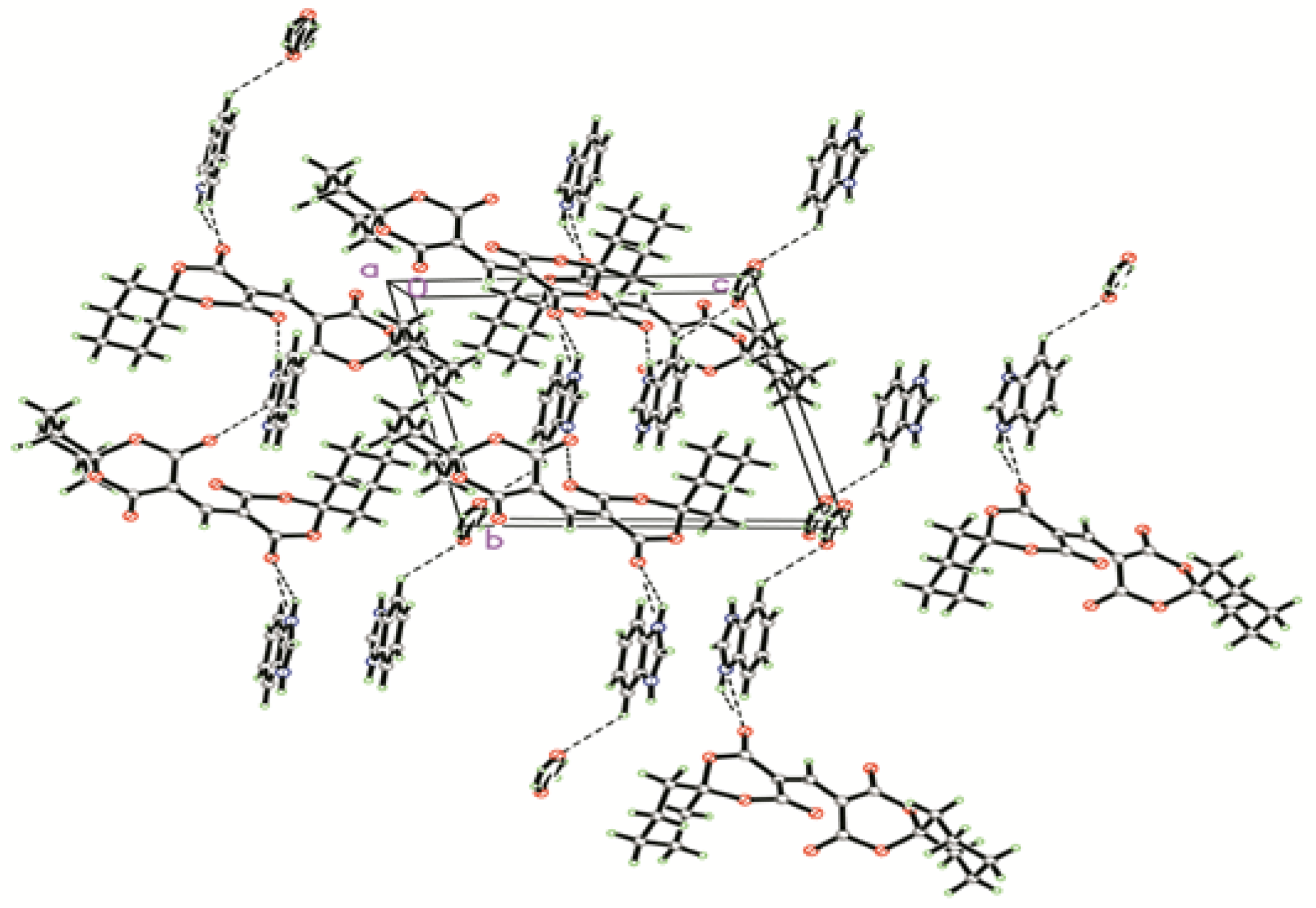

Figure 2. The packing arrangement down the a axis of (C19H21O8) (C7H7N2) (0.5H2O).
Figure 2. The packing arrangement down the a axis of (C19H21O8) (C7H7N2) (0.5H2O).
Crystals 07 00303 g002

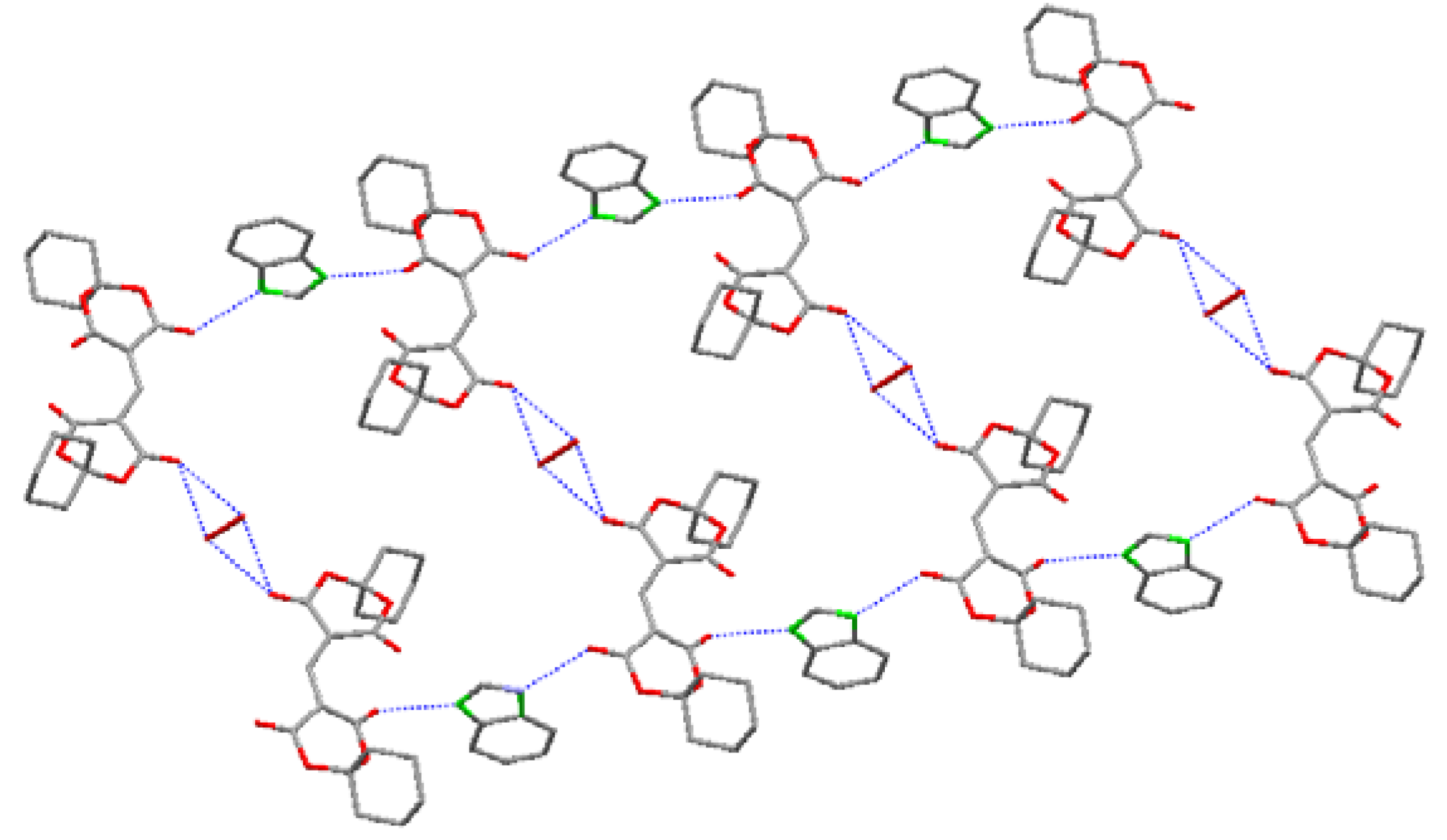

Figure 3. One-dimensional (1D)-chained structure by N–H···O and O–H···O intermolecular interactions.
Figure 3. One-dimensional (1D)-chained structure by N–H···O and O–H···O intermolecular interactions.
Crystals 07 00303 g003

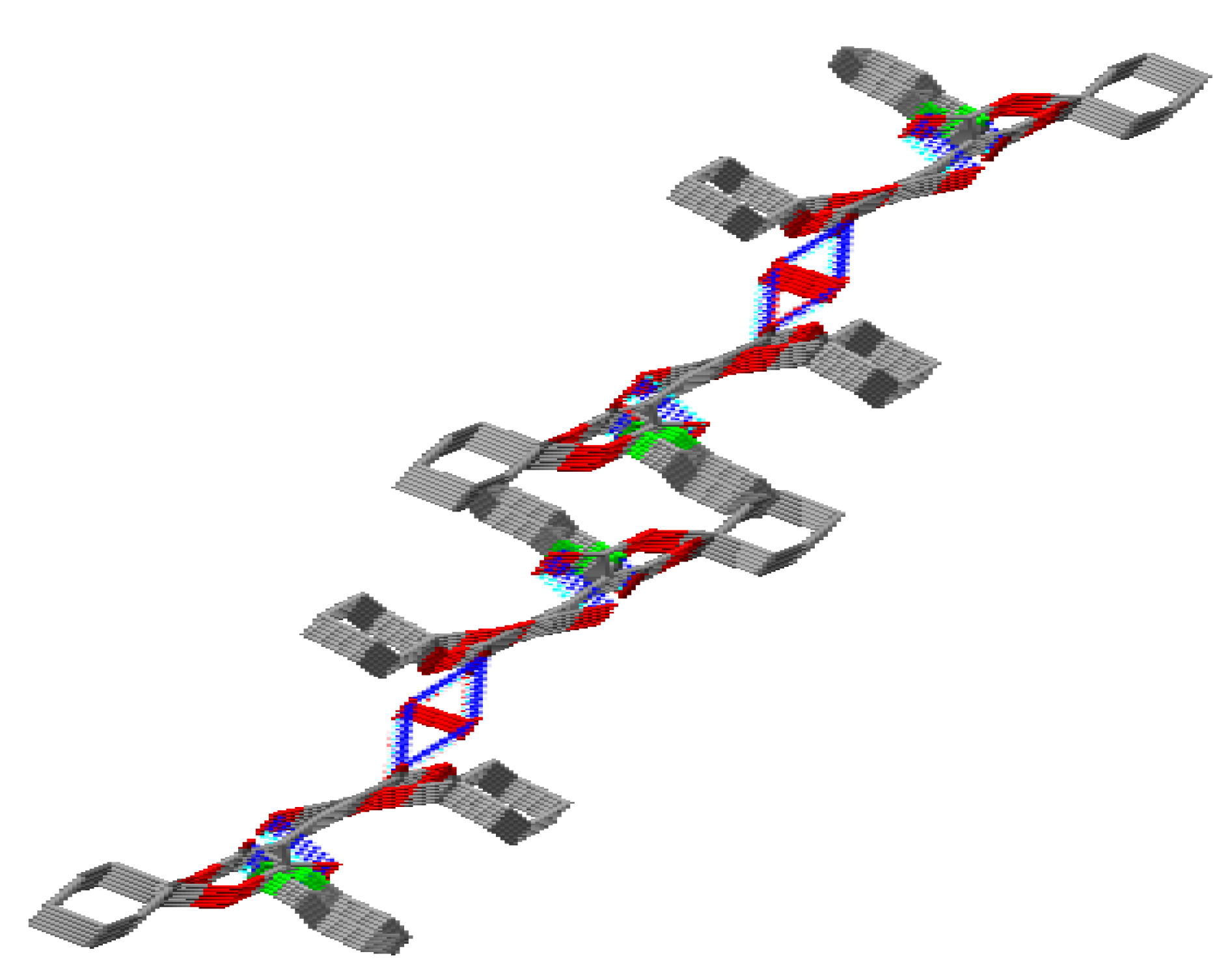

Figure 4. Three-dimensional (3D)-layered structure of (C19H21O8) (C7H7N2) (0.5H2O).
Figure 4. Three-dimensional (3D)-layered structure of (C19H21O8) (C7H7N2) (0.5H2O).
Crystals 07 00303 g004

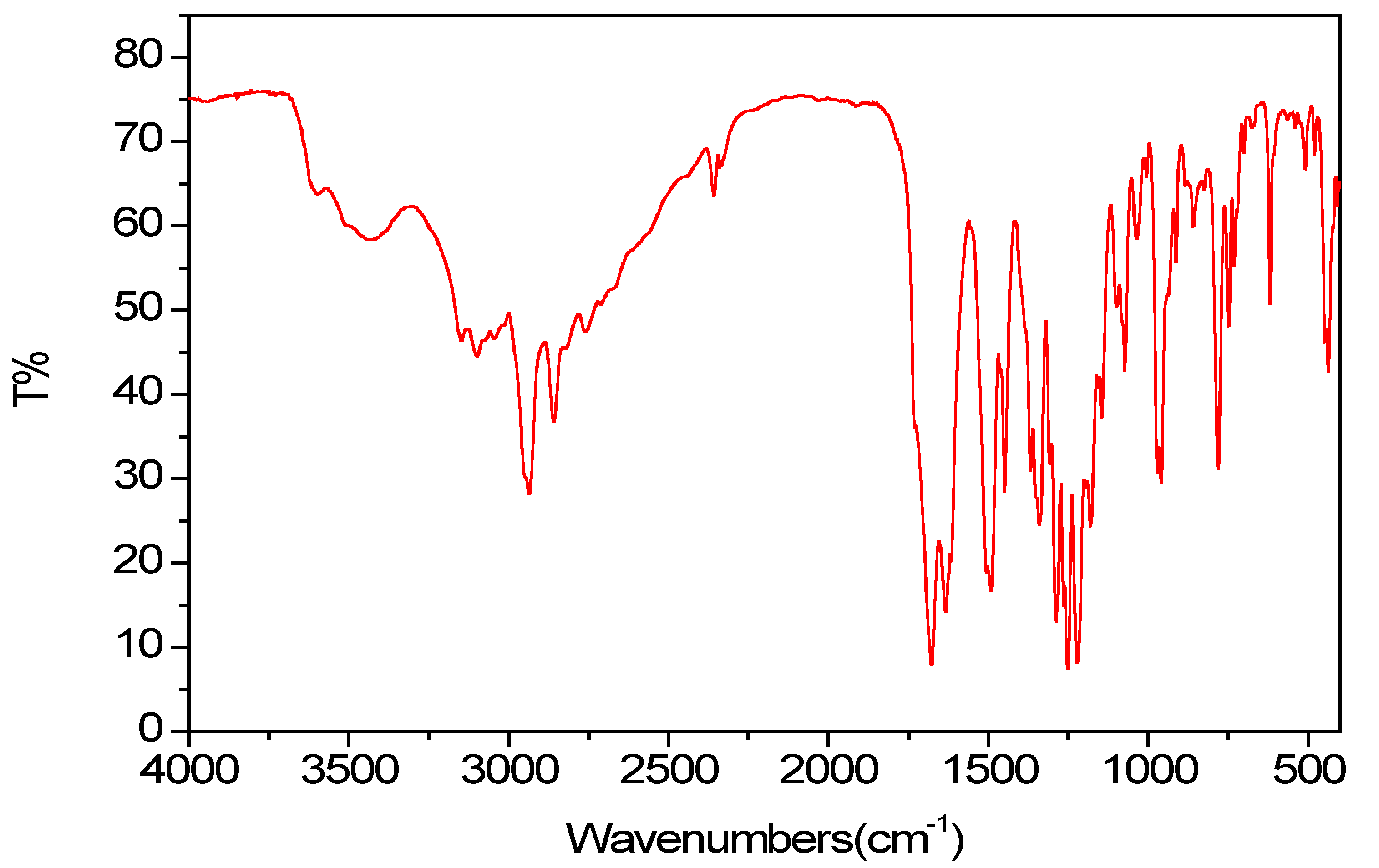

Figure 5. Infrared spectrum of the title compound.
Figure 5. Infrared spectrum of the title compound.
Crystals 07 00303 g005

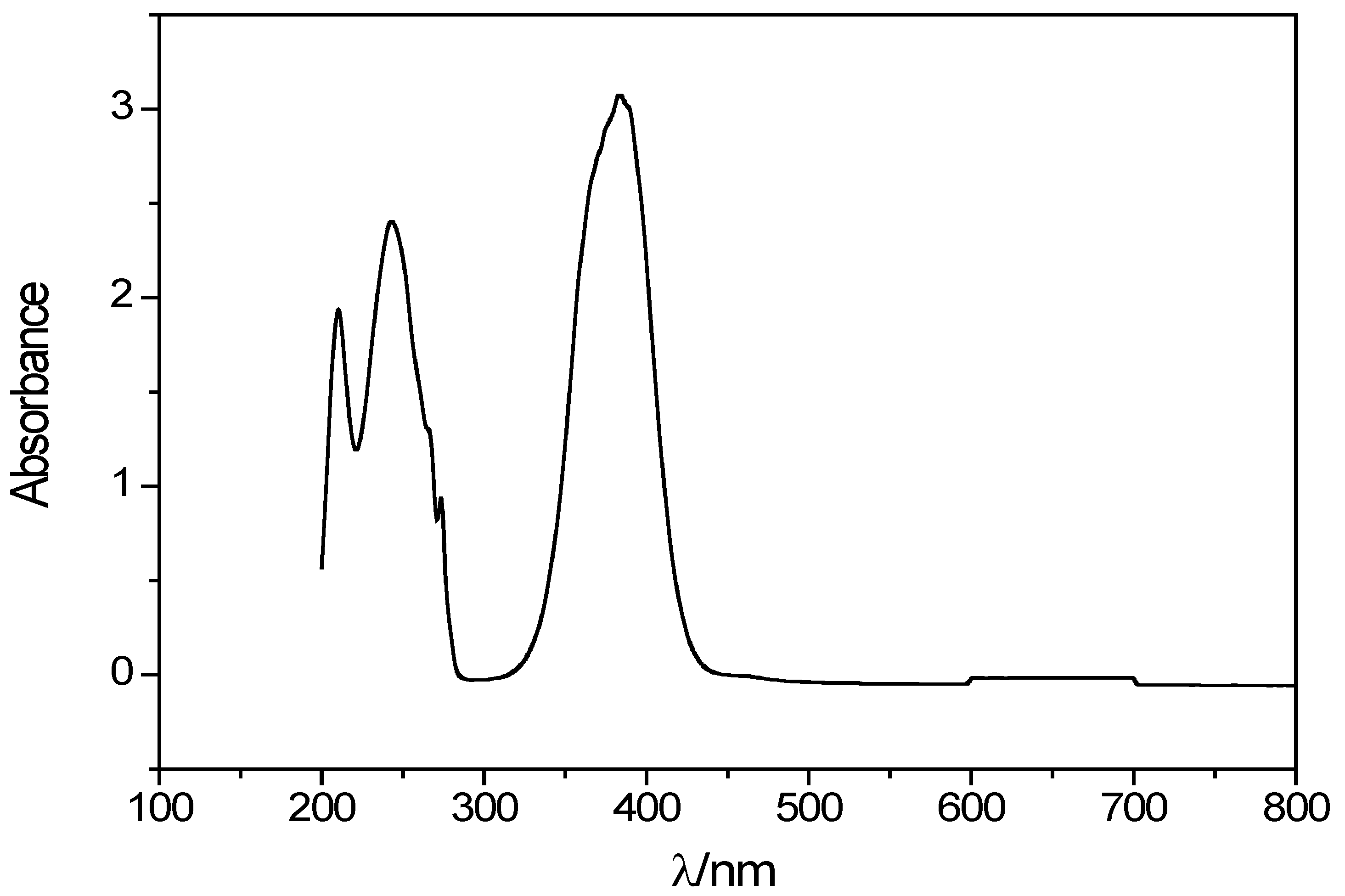

Figure 6. UV-Vis spectra of the title compound.
Figure 6. UV-Vis spectra of the title compound.
Crystals 07 00303 g006
Table 1. Selected molecular structure parameters.
Table 1. Selected molecular structure parameters.
BondDistances (Å)BondDistances (Å)
N(1)−C(7)1.316(3)N(2)−C(7)1.315(2)
N(1)−C(1)1.386(3)N(2)−C(6)1.379(2)
C(14)−C(15)1.446(2)C(18)−C(19)1.457(2)
C(15)−C(17)1.386(2)C(19)−C(20)1.456(2)
C(15)−C(16)1.445(2)O(2)−C(8)1.4422(2)
C(17)−C(19)1.380(2)O(1)−C(8)1.4381(2)
O(7)−C(24)1.439(2)O(8)−C(24)1.438(2)
Angle(°)Angle(°)
C(19)−C(17)−C(15)131.18(1)C(17)−C(15)−C(16)124.55(1)
C(17)−C(19)−C(18)116.84(1)C(17)−C(15)−C(14)117.487(1)
C(20)−C(19)−C(18)117.55(2)C(16)−C(15)−C(14)117.16(2)
O(8)−C(24)−O(7)108.89(1)O(1)−C(8)−O(2)108.72(1)
Torsion(°)(°)
O(3)−C(14)−C(15)−C(17)−11.9(2)C(17)−C(19)−C(20)−O(6)20.5(3)
O(2)−C(14)−C(15)−C(17)170.22(1)O(5)−C(18)−C(19)−C(17)−16.7(3)
O(3)−C(14)−C(15)−C(16)158.38(2)C(17)−C(19)−C(20)−O(8)−165.71(1)
C(15)−C(17)−C(19) −C(18)−167.65(2)C(14)−C(15)−C(17)−C(19)−170.89(2)
Symmetry transformations used to generate equivalent atoms:A: −x + 1,−y + 2,−z.
Table 2. Hydrogen bond distances and angles for the title compound.
Table 2. Hydrogen bond distances and angles for the title compound.
D–H···ASymmetryD–H(Å)H…A(Å)D…A(Å)∠D–H···A (°)
N(1)–H(1A)···O(4)−x + 1, −y + 1, −z + 10.8991.8322.728173.53
N(2)–H(2)···O(3)−x + 1, −y, −z + 10.8511.9252.717154.53
O1W−H1W1…O(5)x + 1, y + 1, z − 10.8542.0642.878159.30
O1W−H1W2…O(5)−x, −y + 1, −z + 10.8532.3072.985136.62
Table 3. Selected crystal data and details of the structure determination for the title compound.
Table 3. Selected crystal data and details of the structure determination for the title compound.
Formula(C19H21O8) (C7H7N2) (0.5H2O)
Formula Weight505.51
Crystal SystemTriclinic
Space groupP-1
Crystal Size(mm3)0.40 × 0.38 × 0.37
Wavelength (Å)0.71073
a(Å)11.017(2)
b(Å)11.424(2)
c(Å)11.650(2)
α(°)70.60(3)
β(°)71.00(3)
γ(°)67.64(3)
V(Å3)1245.2(4)
Z2
F(000)534
D/g·cm−31.348
−h, h/−k, k/−l, l−13:14; −14:14; −15:15
Reflections collected12207
Independent reflections5629[R(int) = 0.0345]
Reflections observed(I > 2σ(I))4279
Refinement methodFull-matrix least-squares on F2
Data/restraints/parameters5629/0/342
Goodness-of-fit on F21.081
Final R indices [I > 2sigma(I)]R1 = 0.0481, wR2 = 0.1265
R indices (all data)R1 = 0.0650, wR2 = 0.1490
Largest diff. peak and hole (e Å−3)0.373, –0.218
