Crystal Growth and Associated Properties of a Nonlinear Optical Crystal—Ba2Zn(BO3)2

by
Weiguo Zhang
1,
Hongwei Yu
1,
Hongping Wu
1,2 and
P. Shiv Halasyamani
1,*
1
Department of Chemistry, University of Houston, 112 Fleming Building, Houston, TX 77204-5003, USA
2
Xinjiang Key Laboratory of Electronic Information Materials and Devices, Xinjiang Technical Institute of Physics & Chemistry, Chinese Academy of Sciences, Urumqi 830011, China
*
Author to whom correspondence should be addressed.
Crystals 2016, 6(6), 68; https://doi.org/10.3390/cryst6060068
Submission received: 25 May 2016 / Revised: 8 June 2016 / Accepted: 10 June 2016 / Published: 15 June 2016
(This article belongs to the Special Issue Nonlinear Optical Crystals)
Browse Figures
Versions Notes

Abstract

:
Crystals of Ba2Zn(BO3)2 were grown by the top-seeded solution growth (TSSG) method. The optimum flux system for growing Ba2Zn(BO3)2 crystals was 2BaF2:2.5B2O3. The transmission spectra of a (100)-orientated crystal indicated an absorption edge of 230 nm. Powder second-harmonic generation measurement revealed that Ba2Zn(BO3)2 can achieve type-I phase matching behavior at the fundamental wavelengths of 1064 and 532 nm respectively. The second-harmonic generating efficiency is around 0.85 and 0.58 times that of β-BaB2O4 when radiated with 1064 and 532 nm lasers.

Graphical Abstract

1. Introduction

Nonlinear optical (NLO) materials play a very important role in laser applications owing to their ability to produce coherent light and thus expand the spectral ranges of solid state lasers from ultraviolet (UV) to infrared (IR) [1,2,3,4]. Among these NLO materials, borate NLO materials have predominance in UV applications owing to their high UV transmittance and large laser damage threshold (LDT) [2,5]. The first report of NLO phenomena in borates was on KB5O8·4H2O (KB5) [6]. The intense research on the NLO phenomena of borates was triggered by the second-harmonic generation (SHG) reported on β-BaB2O4 (β-BBO) and LiB3O5 (LBO) in the late 1980s [7,8]. Thereafter, a variety of NLO borate materials have been discovered, such as BaZn2(BO3)2 [9], CsB3O5 (CBO) [10], Ba2Zn(BO3)2 [11], KBe2BO3F2 (KBBF) [12], Sr2Be2B2O7 (SBBO) [13], CsLiB6O10 (CLBO) [14], K2Al2B2O7 (KABO) [15], BaAl2B2O7 (BABO) [15], LiAB4O7 (A = K, Rb) [16], M2B5O9X (M = Pb, Ca, Sr, Ba; X = Cl, Br) [17], MBi2B2O7 (M = Ca, Sr) [18], Ca5(BO3)3F [19], BiAlGa2(BO3)4 [20], Bi2ZnOB2O6 [21], Ba3Sr4(BO3)3F5 [22], BaMBO3F (M = Zn, Mg) [23], M3B6O11F2 (M = Sr, Ba) [24], K3B6O10Cl [25], Li3Cs2B5O10 [26], Li4Cs3B7O14 [27], K2SrVB5O12 [28], Pb4O(BO3)2 [29], KSr4B3O9 [30], Ba4B11O20F [31], Cs3Zn6B9O21 [32], Li2Sr4B12O23 [33], Li4Sr(BO3)2 [34] and K3Ba3Li2Al4B6O20F [35]. Despite these new borate-based NLO materials, β-BBO, LBO and CLBO are still the most frequently used NLO crystals in UV region, which is attributable to the difficulties of growing high quality crystals or the low transmittance in the UV region. In order to explain the relationship between the microstructure and NLO properties of a crystal, Chen et al. proposed an ‘anionic group theory’ which considered the anionic group mainly responsible for the bulk NLO coefficient [36]. According to the anionic group theory, only 10 kinds of (BxOy)n− units would be of practical interest to borate NLO materials, i.e., (BO3)3−, (BO4)5−, (B2O5)4−, (B2O7)8−, (B3O6)3−, (B3O7)5−, (B3O8)7−, (B3O9)9−, (B4O9)6−, and (B5O10)5− [36]. As some large units can be taken as linked small units, such as (B3O9)9− formed by three end-to-end corner-shared BO4 tetrahedra, microscopic second-order susceptibilities (χ2) and band gaps (ΔEg) of four primary borate anionic units were calculated and the relative orders are χ2(B3O6)3− ≈ χ2(B3O7)5− > χ2(BO3)3− >> χ2(BO4)5− and ΔEg(BO4)5− > ΔEg(BO3)3− ≈ ΔEg(B3O7)5− > ΔEg(B3O6)3−, respectively [1]. Even though the (B3O6)3− group has the largest second-order susceptibility, the (BO3)3− group seems to be the optimum choice for borate NLO materials based on overall considerations of nonlinearity, birefringence, UV cut-off and laser damage threshold [1,37].
Among the aforementioned newly discovered borates, Ba2Zn(BO3)2 crystalizes in the acentric space group, Pca21, and its structure is composed of ZnO4 tetrahedra and BO3 triangles [11]. In addition, thermal analysis indicated that Ba2Zn(BO3)2 may congruently melt around 984 °C which provides a piece of crystal grown from melt for structure refinement [11]. Calculated SHG coefficients were also reported, i.e., d24 = 0.61 pm/V, around one third of d11 of β-BBO [11]. Other than the crystal structure, thermal properties and calculated SHG coefficients, neither large size crystals nor other physical properties were reported. Considering that Ba2Zn(BO3)2 melts congruently and (BO3)3− unit resides in its structure, we suggest that Ba2Zn(BO3)2 could be easily grown as large crystals and show a higher SHG efficiency than calculated. In this work, we report on crystal growth as well as physical properties of Ba2Zn(BO3)2.

2. Results and Discussion

2.1. Polycrystalline Powder Synthesis and Characterization

Polycrystalline Ba2Zn(BO3)2 was synthesized through standard solid-state techniques (see Section 3.1). The powder X-ray diffraction (XRD) pattern of the polycrystalline material is in good agreement with the calculated pattern from the single crystal data (see Figure 1) [11]. As mentioned earlier [11], Ba2Zn(BO3)2 melts congruently at 984 °C and Ba2Zn(BO3)2 crystals for structure analysis were grown from melt at 1050 °C. 1 g of polycrystalline Ba2Zn(BO3)2 , placed in a platinum crucible and heated to 1100 °C to determine if a homogenous melt could be obtained. However, a transparent homogenous melt was not obtained even after maintaining the temperature at 1100 °C for 20 h. After slow cooling (50 °C/h) to room temperature, Ba2Zn(BO3)2 was partially decomposed even though the main phase did not change according to powder XRD (see Figure 1). The extra peaks indicated by black arrows in the figure are assigned to ZnO (PDF# 79-0206). Therefore, crystals of Ba2Zn(BO3)2 cannot simply be grown from its stoichiometric melt.

2.2. Crystal Growth

Our experiments indicate that Ba2Zn(BO3)2 does not melt congruently. Therefore, a modified flux method, top-seeded solution growth (TSSG), was employed to grow Ba2Zn(BO3)2 crystals. We attempted many flux systems, such as B2O3, BaO–B2O3, and BaF2–B2O3. When solely taking B2O3 as flux, we can obtain Ba2Zn(BO3)2 crystals from the system, but the viscosity is very high that prevents growing large and high quality crystals. A BaO–B2O3 flux also works for growing Ba2Zn(BO3)2 crystals. However, adding BaO to the system raised the crystallization temperature and narrowed the growth temperature range. After many attempts, a BaF2–B2O3 flux was determined to be optimum to grow Ba2Zn(BO3)2 crystals. The proper molar ratio for growing Ba2Zn(BO3)2 crystals is Ba2Zn(BO3)2:B2O3:BaF2 = 15:2.5:2. Figure 2 shows the as-grown crystals and the powder XRD patterns confirmed its phase (see red pattern in Figure 3). From Figure 2, it is clear that Ba2Zn(BO3)2 crystals layer during their growth. The layered face was indexed to be (100) plane (see blue pattern in Figure 3). As discussed earlier [11], the structure of Ba2Zn(BO3)2 crystal contains two dimensional layers which are perpendicular to the (100) direction. This may explain the layered growth tendency of Ba2Zn(BO3)2 crystals.

2.3. UV-Visible-Near Infrared Transmission Spectra

The UV-visible-Near infrared (UV-vis-NIR) transmission spectra of an unpolished (100) plate of Ba2Zn(BO3)2 with a size of 6 × 4 × 0.2 mm3 indicated that the UV transmission starts to rapidly decrease at around 245 nm and the UV cut-off edge for Ba2Zn(BO3)2 is around 230 nm (see Figure 4). According to Chen’s calculation, the borates containing (BO3)3− group could transmit well below 200 nm [1]. This result is consistent with KBBF and KABO crystals where the UV cut-off edges are 155 and 180 nm respectively [38]. However, Chen’s calculation did not consider the contribution of transition metals residing in borates to the UV cut-off edge. As the band gap of ZnO is 3.3 eV [39], adding Zn cations to borates may red-shift the UV cut-off edge, e.g., BaZnBO3F has a UV cut-off edge of 223 nm, whereas BaMgBO3F has a UV cut-off edge of 190 nm [40,41].

2.4. Powder SHG Measurements

Powder SHG efficiency versus particle size (20–125 um) (see Figure 5) revealed that Ba2Zn(BO3)2 has an SHG efficiency approximately 0.85 and 1.5 times of β-BaB2O4 and KDP when radiated with 1064 nm lasers respectively. While the SHG efficiency of Ba2Zn(BO3)2 is around 0.58 times of β-BaB2O4 under the fundamental wavelength of 532 nm. The measurements also indicate Ba2Zn(BO3)2 is type-I phase-matchable at both wavelengths, and falls in the class A category of SHG materials [42]. The decreased SHG efficiency at 532 nm is probably attributable to the slightly decreased transmission at the second harmonic generating wavelength (266 nm) (see Figure 4).

3. Materials and Methods

3.1. Materials and Polycrystalline Powder Synthesis

Polycrystalline Ba2Zn(BO3)2 was synthesized by solid-state reaction techniques. Stoichiometric amounts of BaCO3 (Alfa Aesar, Ward Hill, MA, USA, 99%), ZnO (Alfa Aesar, Ward Hill, MA, USA, 98%) and H3BO3 (Alfa Aesar, Ward Hill, MA, USA, 98%) were ground, placed into a platinum crucible, and heated in air to 600 °C for 24 h and 900 °C for 40 h with intermittent re-grindings.

3.2. Powder X-Ray Diffraction

Powder X-ray diffraction measurements were carried out on a PANalytical X’Pert Pro diffractometer (Almelo, The Netherlands) equipped with Cu Kα radiation (λ = 1.54056 Å) in the 2θ range from 10° to 70°.

3.3. Single Crystal Growth of Ba2Zn(BO3)2

Polycrystalline Ba2Zn(BO3)2, H3BO3, and BaF2 (Alfa Aesar, 99%) with a molar ratio of 15:5:2 were placed in a platinum crucible, and heated to 950 °C for 24 h in order to form a homogenous melt. Heating BaCO3, ZnO, H3BO3 and BaF2 with a molar ratio 30:15:35:2, at a rate of 50 °C/h to 950 °C and holding for 24 h will also form a homogenous melt. Either may be used for the crystal growth. Crystals of Ba2Zn(BO3)2 were first grown by spontaneous crystallization, i.e., crystals formed on a platinum wire dipped into the melt. Seed crystals were selected from these spontaneously grown crystals. A crystallization temperature of 937 °C was determined by observing the growth or dissolution of the seed crystals when dipped into the melt. A piece of seed was introduced into the melt at a rotation rate of 10 rpm at 2 °C higher than the crystallization temperature of 937 °C in order to reduce surface defects. The temperature was decreased to the crystallization temperature at a cooling rate of 0.5 °C/min. From the crystallization temperature, the melt was cooled at a rate of 0.5 °C per day to 935 °C. When the crystal growth process was done, i.e., by observing the gap between the growing crystal and the crucible wall (when the crystal edge is very close to the crucible wall the crystal growth is considered complete), the crystal is pulled from the melt and cooled (20 °C/h) to room temperature.

3.4. Optical Spectra Measurement

UV-vis-NIR transmission data were collected on a Varian Cary 5000 scan UV-vis-NIR spectrophotometer (Agilent Technologies, Inc., Santa Clara, CA, USA) over the 200–2000 nm spectral range at room temperature. An unpolished piece of (100) crystal plate with a thickness of 0.2 mm was used to perform the measurement.

3.5. Powder Second Harmonic Generation Measurement

Powder SHG measurements were performed on a modified Kurtz-NLO system [42] using a pulse Nd:YAG laser (Quantel Laser, Ultra 50, Bozeman, MT, USA) with wavelengths of 1064 and 532 nm. A detailed description of the equipment and methodology has been published elsewhere [43]. As the powder SHG efficiency has been shown to depend strongly on particle size, [42] polycrystalline Ba2Zn(BO3)2 was ground and sieved into distinct particle size ranges (<20, 20–45, 45–63, 63–75, 75–90, 90–125 μm) to investigate its phase-matching behavior. Polycrystalline β-BBO and KH2PO4 (KDP) were also sieved into similar particle sizes for SHG efficiency comparison.

4. Conclusions

Ba2Zn(BO3)2 crystals have been grown by the top-seeded solution growth (TSSG) method with 2BaF2-2.5B2O3 as flux. The transmission spectra and the powder SHG measurement indicated that Ba2Zn(BO3)2 crystal is an attractive candidate for UV NLO optical application. The only issue left to conquer is its layered growth tendency.

Acknowledgments

We thank the Welch Foundation (Grant E-1457), the National Science Foundation (DMR-1503573), and the Texas Center for Superconductivity for support.

Author Contributions

Weiguo Zhang and P. Shiv Halasyamani conceived and designed the experiments; Weiguo Zhang performed the experiments; Hongwei Yu and Hongping Wu contributed reagents/materials/analysis tools; and all authors contributed in the manuscript preparation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, C.; Lin, Z.; Wang, Z. The development of new borate-based UV nonlinear optical crystals. Appl. Phys. B 2005, 80, 1–25. [Google Scholar] [CrossRef]
  2. Becker, P. Borate Materials in Nonlinear Optics. Adv. Mater. 1998, 10, 979–992. [Google Scholar] [CrossRef]
  3. Petrov, V.; Rempel, C.; Stolberg, K.-P.; Schade, W. Widely tunable continuous-wave mid-infrared laser source based on difference-frequency generation in AgGaS2. Appl. Opt. 1998, 37, 4925–4928. [Google Scholar] [CrossRef] [PubMed]
  4. Gettemy, D.J.; Harker, W.C.; Lindholm, G.; Barnes, N.P. Some Optical Properties of KTP, LiIO3, and LiNbO3. IEEE J. Quantum Electron. 1988, 24, 2231–2237. [Google Scholar] [CrossRef]
  5. Arun Kumar, R. Borate Crystals for Nonlinear Optical and Laser Applications: A Review. J. Chem. 2013, 2013, 154862. [Google Scholar] [CrossRef]
  6. Dewey, C.F.; Cook, W.R.; Hodgson, R.T.; Wynne, J.J. Frequency doubling in KB5O8·4H2O and NH4B5O8·4H2O to 217.3 nm. Appl. Phys. Lett. 1975, 26, 714–716. [Google Scholar] [CrossRef]
  7. Chen, C.; Wu, Y.; Jiang, A.; Wu, B.; You, G.; Li, R.; Lin, S. New nonlinear-optical crystal: LiB3O5. J. Opt. Soc. Am. B 1989, 6, 616–621. [Google Scholar] [CrossRef]
  8. Chen, C.; Wu, B.; Jiang, A.; You, G. A new-type ultraviolet SHG crystal—β-BaB2O4. Sci. China Ser. B 1985, 28, 235–243. [Google Scholar]
  9. Smith, R.W.; Keszler, D.A. The noncentrosymmetric orthoborate BaZn2(BO3)2. J. Solid State Chem. 1992, 100, 325–330. [Google Scholar] [CrossRef]
  10. Wu, Y.; Sasaki, T.; Nakai, S.; Yokotani, A.; Tang, H.; Chen, C. CsB3O5: A new nonlinear optical crystal. Appl. Phys. Lett. 1993, 62, 2614–2615. [Google Scholar] [CrossRef]
  11. Smith, R.W.; Koliha, L.J. A new noncentrosymmetric orthoborate [Ba2Zn(BO3)2]. Mater. Res. Bull. 1994, 29, 1203–1210. [Google Scholar] [CrossRef]
  12. Chen, C.; Wang, Y.; Xia, Y.; Wu, B.; Tang, D.; Wu, K.; Wenrong, Z.; Yu, L.; Mei, L. New development of nonlinear optical crystals for the ultraviolet region with molecular engineering approach. J. Appl. Phys. 1995, 77, 2268–2272. [Google Scholar] [CrossRef]
  13. Chen, C.T.; Wang, Y.B.; Wu, B.C.; Wu, K.C.; Zeng, W.L.; Yu, L.H. Design and synthesis of an ultraviolet-transparent nonlinear-optical crystal Sr2Be2B2O7. Nature 1995, 373, 322–324. [Google Scholar] [CrossRef]
  14. Tu, J.-M.; Keszler, D.A. CsLiB6O10: A noncentrosymmetric polyborate. Mater. Res. Bull. 1995, 30, 209–215. [Google Scholar] [CrossRef]
  15. Ye, N.; Zeng, W.; Wu, B.; Chen, C. Two new nonlinear optical crystals: BaAl2B2O7 and K2Al2B2O7. SPIE 1998, 3556, 21–23. [Google Scholar]
  16. Ono, Y.; Nakaya, M.; Sugawara, T.; Watanabe, N.; Siraishi, H.; Komatsu, R.; Kajitani, T. Structural study of LiKB4O7 and LiRbB4O7: New nonlinear optical crystals. J. Cryst. Growth 2001, 229, 472–476. [Google Scholar] [CrossRef]
  17. Plachinda, P.A.; Dolgikh, V.A.; Stefanovich, S.Y.; Berdonosov, P.S. Nonlinear-optical susceptibility of hilgardite-like borates M2B5O9X (M = Pb, Ca, Sr, Ba; X = Cl, Br). Solid State Sci. 2005, 7, 1194–1200. [Google Scholar] [CrossRef]
  18. Barbier, J.; Cranswick, L.M. D. The non-centrosymmetric borate oxides, MBi2B2O7 (M = Ca, Sr). J. Solid State Chem. 2006, 179, 3958–3964. [Google Scholar] [CrossRef]
  19. Chen, G.; Wu, Y.; Fu, P. Growth and characterization of a new nonlinear optical crystal Ca5(BO3)3F. J. Cryst. Growth 2006, 292, 449–453. [Google Scholar] [CrossRef]
  20. Wang, S.; Ye, N. Nonlinear optical crystal BiAlGa2(BO3)4. Solid State Sci. 2007, 9, 713–717. [Google Scholar] [CrossRef]
  21. Li, F.; Hou, X.; Pan, S.; Wang, X. Growth, Structure, and Optical Properties of a Congruent Melting Oxyborate, Bi2ZnOB2O6. Chem. Mater. 2009, 21, 2846–2850. [Google Scholar] [CrossRef]
  22. Zhang, G.; Liu, Z.; Zhang, J.; Fan, F.; Liu, Y.; Fu, P. Crystal Growth, Structure, and Properties of a Non-Centrosymmetric Fluoride Borate, Ba3Sr4(BO3)3F5. Cryst. Growth Des. 2009, 9, 3137–3141. [Google Scholar] [CrossRef]
  23. Li, R.K.; Chen, P. Cation Coordination Control of Anionic Group Alignment to Maximize SHG Effects in the BaMBO3F (M = Zn, Mg) Series. Inorg. Chem. 2010, 49, 1561–1565. [Google Scholar] [CrossRef] [PubMed]
  24. McMillen, C.D.; Stritzinger, J.T.; Kolis, J.W. Two Novel Acentric Borate Fluorides: M3B6O11F2 (M = Sr, Ba). Inorg. Chem. 2012, 51, 3953–3955. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, H.; Pan, S.; Poeppelmeier, K.R.; Li, H.; Jia, D.; Chen, Z.; Fan, X.; Yang, Y.; Rondinelli, J.M.; Luo, H. K3B6O10Cl: A new structure analogous to perovskite with a large second harmonic generation response and deep UV absorption edge. J. Am. Chem. Soc. 2011, 133, 7786–7790. [Google Scholar] [CrossRef] [PubMed]
  26. Yang, Y.; Pan, S.; Hou, X.; Wang, C.; Poeppelmeier, K.R.; Chen, Z.; Wu, H.; Zhou, Z. A congruently melting and deep UV nonlinear optical material: Li3Cs2B5O10. J. Mater. Chem. 2011, 21, 2890–2894. [Google Scholar] [CrossRef]
  27. Yang, Y.; Pan, S.; Li, H.; Han, J.; Chen, Z.; Zhao, W.; Zhou, Z. Li4Cs3B7O14: Synthesis, crystal structure, and optical properties. Inorg. Chem. 2011, 50, 2415–2419. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, S.; Pan, S.; Zhao, W.; Yu, H.; Wu, H.; Yang, Z.; Yang, Y. A new noncentrosymmetric vanadoborate: Synthesis, crystal structure and characterization of K2SrVB5O12. Dalton. Trans. 2012, 41, 9202–9208. [Google Scholar] [CrossRef] [PubMed]
  29. Yu, H.; Pan, S.; Wu, H.; Zhao, W.; Zhang, F.; Li, H.; Yang, Z. A new congruent-melting oxyborate, Pb4O(BO3)2 with optimally aligned BO3 triangles adopting layered-type arrangement. J. Mater. Chem. 2012, 22, 2105–2110. [Google Scholar] [CrossRef]
  30. Zhao, W.; Pan, S.; Wang, Y.; Yang, Z.; Wang, X.; Han, J. Structure, growth and properties of a novel polar material, KSr4B3O9. J. Solid State Chem. 2012, 195, 73–78. [Google Scholar] [CrossRef]
  31. Wu, H.; Yu, H.; Yang, Z.; Hou, X.; Su, X.; Pan, S.; Poeppelmeier, K.R.; Rondinelli, J.M. Designing a Deep Ultraviolet Nonlinear Optical Material with Large Second Harmonic Generation Response. J. Am. Chem. Soc. 2013, 135, 4215–4218. [Google Scholar] [CrossRef] [PubMed]
  32. Yu, H.; Wu, H.; Pan, S.; Yang, Z.; Hou, X.; Su, X.; Jing, Q.; Poeppelmeier, K.R.; Rondinelli, J.M. Cs3Zn6B9O21: A Chemically Benign Member of the KBBF Family Exhibiting the Largest Second Harmonic Generation Response. J. Am. Chem. Soc. 2014, 136, 1264–1267. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, M.; Pan, S.; Han, J.; Yang, Z.; Su, X.; Zhao, W. Li2Sr4B12O23: A new alkali and alkaline-earth metal mixed borate with [B10O18]6− network and isolated [B2O5]4− unit. J. Solid State Chem. 2012, 190, 92–97. [Google Scholar] [CrossRef]
  34. Zhao, S.; Gong, P.; Bai, L.; Xu, X.; Zhang, S.; Sun, Z.; Lin, Z.; Hong, M.; Chen, C.; Luo, J. Beryllium-free Li4Sr(BO3)2 for deep-ultraviolet nonlinear optical applications. Nat. Comm. 2014, 5, 4019. [Google Scholar] [CrossRef] [PubMed]
  35. Zhao, S.; Kang, L.; Shen, Y.; Wang, X.; Asghar, M.A.; Lin, Z.; Xu, Y.; Zeng, S.; Hong, M.; Luo, J. Designing a Beryllium-Free Deep-Ultraviolet Nonlinear Optical Material without a Structural Instability Problem. J. Am. Chem. Soc. 2016, 138, 2961–2964. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, C.; Wu, Y.; Li, R. The anionic group theory of the non-linear optical effect and its applications in the development of new high-quality NLO crystals in the borate series. Int. Rev. Phys. Chem. 1989, 8, 65–91. [Google Scholar] [CrossRef]
  37. Xia, Y.; Chen, C.; Tang, D.; Wu, B. New nonlinear optical crystals for UV and VUV harmonic generation. Adv. Mater. 1995, 7, 79–81. [Google Scholar] [CrossRef]
  38. Wang, G.L.; Zhang, C.Q.; Chen, C.T.; Xu, Z.Y.; Wang, J.Y. Determination of nonlinear optical coefficients of KBe2BO3F2 crystals. Chin. Phys. Lett. 2003, 20, 243–245. [Google Scholar]
  39. Srikant, V.; Clarke, D.R. On the optical band gap of zinc oxide. J. Appl. Phys. 1998, 83, 5447–5451. [Google Scholar] [CrossRef]
  40. Xia, M.; Li, R.K. Growth, structure and optical properties of nonlinear optical crystal BaZnBO3F. J. Solid State Chem. 2016, 233, 58–61. [Google Scholar] [CrossRef]
  41. Zhao, J.; Xia, M.; Li, R.K. Flux growth of a potential nonlinear optical crystal BaMgBO3F. J. Cryst. Growth 2011, 318, 971–973. [Google Scholar] [CrossRef]
  42. Kurtz, S.K.; Perry, T.T. A Powder Technique for the Evaluation of Nonlinear Optical Materials. J. Appl. Phys. 1968, 39, 3798–3813. [Google Scholar] [CrossRef]
  43. Ok, K.M.; Chi, E.O.; Halasyamani, P.S. Bulk characterization methods for non-centrosymmetric materials: Second-harmonic generation, piezoelectricity, pyroelectricity, and ferroelectricity. Chem. Soc. Rev. 2006, 35, 710–717. [Google Scholar] [CrossRef] [PubMed]
Crystals 06 00068 g001 1024
Figure 1. Calculated and experimental XRD of Ba2Zn(BO3)2. The black arrows refer to ZnO (PDF# 79-0206).
Figure 1. Calculated and experimental XRD of Ba2Zn(BO3)2. The black arrows refer to ZnO (PDF# 79-0206).
Crystals 06 00068 g001
Crystals 06 00068 g002 1024

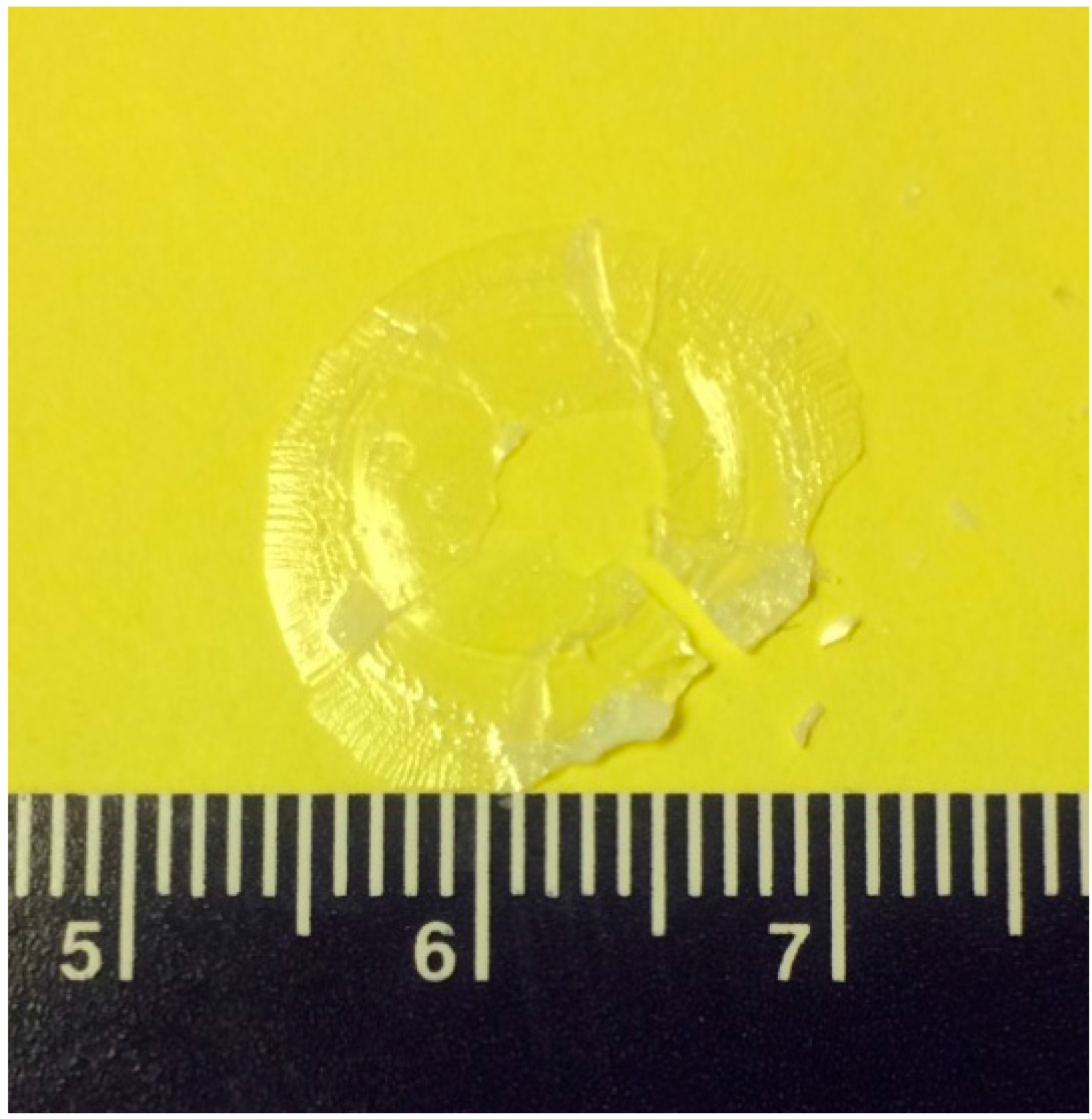

Figure 2. Photo of as-grown Ba2Zn(BO3)2 crystals. The minimum scale on the ruler is 1 mm.
Figure 2. Photo of as-grown Ba2Zn(BO3)2 crystals. The minimum scale on the ruler is 1 mm.
Crystals 06 00068 g002
Crystals 06 00068 g003 1024
Figure 3. Calculated and experimental XRD patterns of Ba2Zn(BO3)2 crystals.
Figure 3. Calculated and experimental XRD patterns of Ba2Zn(BO3)2 crystals.
Crystals 06 00068 g003
Crystals 06 00068 g004 1024

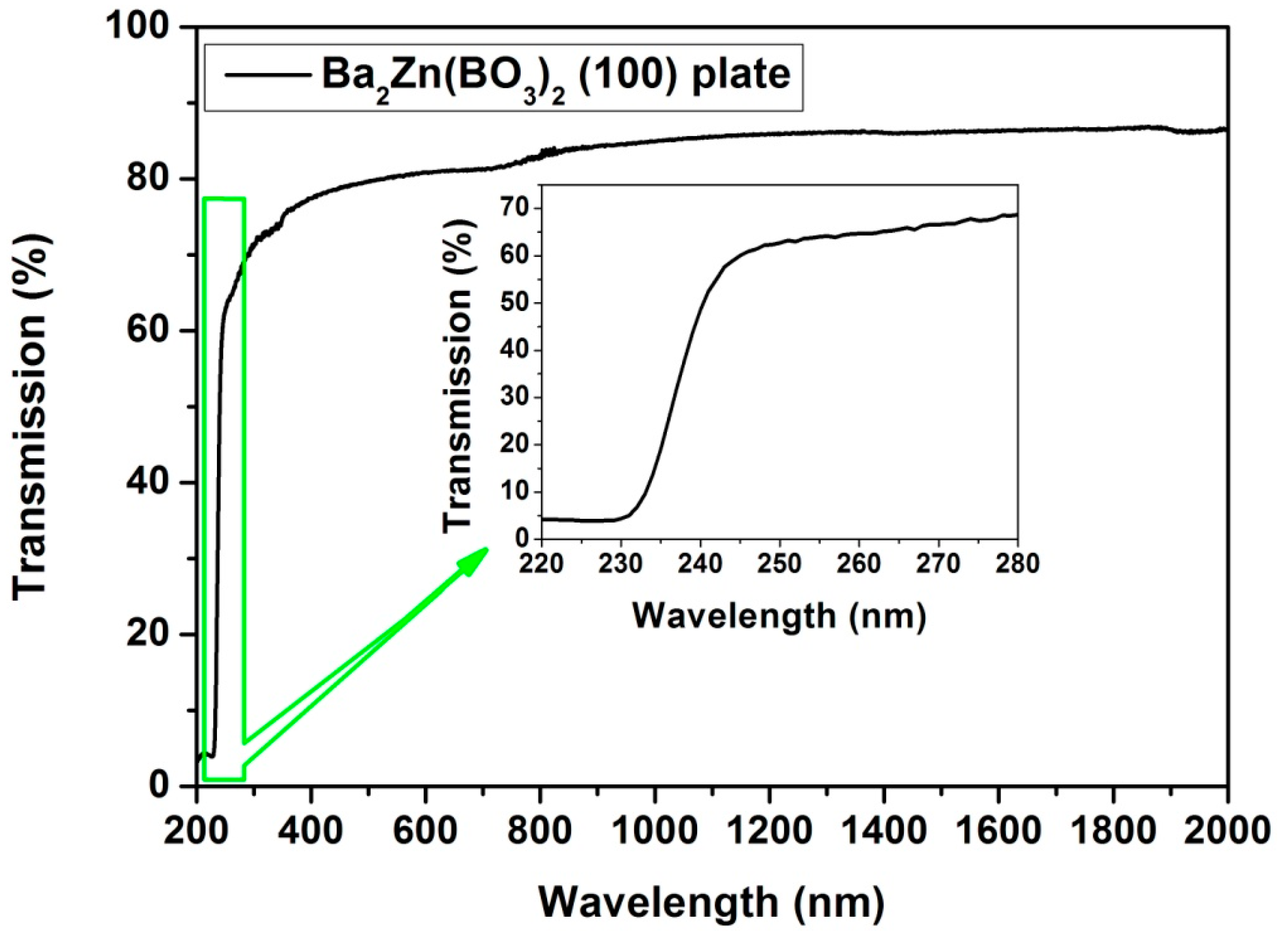

Figure 4. UV-vis-NIR transmission spectra of Ba2Zn(BO3)2 (100) plate. Insert is enlarged UV range.
Figure 4. UV-vis-NIR transmission spectra of Ba2Zn(BO3)2 (100) plate. Insert is enlarged UV range.
Crystals 06 00068 g004
Crystals 06 00068 g005 1024
Figure 5. Powder SHG measurement of polycrystalline Ba2Zn(BO3)2 at the fundamental wavelengths of (a) 1064 nm (b) 532 nm. Note the curves are drawn to guide the eye and are not a fit to the data.
Figure 5. Powder SHG measurement of polycrystalline Ba2Zn(BO3)2 at the fundamental wavelengths of (a) 1064 nm (b) 532 nm. Note the curves are drawn to guide the eye and are not a fit to the data.
Crystals 06 00068 g005
