# Formation of Bragg Band Gaps in Anisotropic Phononic Crystals Analyzed With the Empty Lattice Model

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Empty Lattice Model

#### 2.1. Analytical Model

#### 2.2. Empty Lattice Model for Scalar Waves in an Isotropic Medium

#### 2.3. Empty Lattice Model for Vector Waves in an Isotropic Solid

#### 2.4. Empty Lattice Model for Vector Waves in an Anisotropic Solid

## 3. Formation of Bragg Band Gaps in Phononic Crystals

## 4. Conclusions

## 5. Materials and Methods

#### 5.1. Materials

#### 5.2. Methods

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References and Notes

- Laude, V. Phononic Crystals: Artificial Crystals for Sonic, Acoustic, and Elastic Waves; Walter de Gruyter: Berlin, Germany, 2015. [Google Scholar]
- Hussein, M.I.; Leamy, M.J.; Ruzzene, M. Dynamics of phononic materials and structures: Historical origins, recent progress, and future outlook. Appl. Mech. Rev.
**2014**, 66, 040802. [Google Scholar] [CrossRef] - Kafesaki, M.; Economou, E.N. Multiple-scattering theory for three-dimensional periodic acoustic composites. Phys. Rev. B
**1999**, 60, 11993. [Google Scholar] [CrossRef] - Liu, Z.; Chan, C.; Sheng, P.; Goertzen, A.; Page, J. Elastic wave scattering by periodic structures of spherical objects: Theory and experiment. Phys. Rev. B
**2000**, 62, 2446. [Google Scholar] [CrossRef] - Kushwaha, M.S.; Halevi, P.; Dobrzynski, L.; Djafari-Rouhani, B. Acoustic band structure of periodic elastic composites. Phys. Rev. Lett.
**1993**, 71, 2022. [Google Scholar] [CrossRef] [PubMed] - Sigalas, M.; Economou, E. Band structure of elastic waves in two dimensional systems. Solid State Commun.
**1993**, 86, 141–143. [Google Scholar] [CrossRef] - Moiseyenko, R.P.; Laude, V. Material loss influence on the complex band structure and group velocity in phononic crystals. Phys. Rev. B
**2011**, 83, 064301. [Google Scholar] [CrossRef] - Wang, Y.F.; Wang, Y.S.; Su, X.X. Large bandgaps of two-dimensional phononic crystals with cross-like holes. J. Appl. Phys.
**2011**, 110, 113520. [Google Scholar] [CrossRef] - Laude, V.; Moiseyenko, R.P.; Benchabane, S.; Declercq, N.F. Bloch wave deafness and modal conversion at a phononic crystal boundary. AIP Adv.
**2011**, 1, 041402. [Google Scholar] [CrossRef] [Green Version] - Wang, Y.F.; Wang, Y.S.; Laude, V. Wave propagation in two-dimensional viscoelastic metamaterials. Phys. Rev. B
**2015**, 92, 104110. [Google Scholar] [CrossRef] - Martinezsala, R.; Sancho, J.; Sánchez, J.; Gómez, V.; Llinares, J.; Meseguer, F. Sound-attenuation by sculpture. Nature
**1995**, 378, 241. [Google Scholar] [CrossRef] - Suzuki, T.; Paul, K. Complex elastic wave band structures in three-dimensional periodic elastic media. J. Mech. Phys. Solids
**1998**, 46, 115–138. [Google Scholar] [CrossRef] - Dowling, J.P. Sonic band structure in fluids with periodic density variations. J. Acoust. Soc. Am.
**1992**, 91, 2539–2543. [Google Scholar] [CrossRef] - Brillouin, L. Wave Propagation in Periodic Structures: Electric Filters and Crystal Lattices; Dover Publications: New York, NY, USA, 1946. [Google Scholar]
- Ashcroft, J.; Mermin, N. Solid State Physics; Harcourt Inc.: San Diego, CA, USA, 1976. [Google Scholar]
- Tamura, S.; Hurley, D.; Wolfe, J. Acoustic-phonon propagation in superlattices. Phys. Rev. B
**1988**, 38, 1427–1449. [Google Scholar] [CrossRef] - Wu, T.T.; Huang, Z.G. Level repulsions of bulk acoustic waves in composite materials. Phys. Rev. B
**2004**, 70, 214304. [Google Scholar] [CrossRef] - Achaoui, Y.; Khelif, A.; Benchabane, S.; Laude, V. Polarization state and level repulsion in two-dimensional phononic crystals and waveguides in the presence of material anisotropy. J. Phys. D: Appl. Phys.
**2010**, 43, 185401. [Google Scholar] [CrossRef] - Sivarajah, P.; Maznev, A.; Ofori-Okai, B.; Nelson, K. What is the Brillouin zone of an anisotropic photonic crystal? Phys. Rev. B
**2016**, 93, 054204. [Google Scholar] [CrossRef] - Wang, Y.Z.; Li, F.M.; Huang, W.H.; Jiang, X.; Wang, Y.S.; Kishimoto, K. Wave band gaps in two-dimensional piezoelectric/piezomagnetic phononic crystals. Int. J. Solids Struct.
**2008**, 45, 4203–4210. [Google Scholar] [CrossRef] - Lin, S.C.S.; Huang, T.J. Tunable phononic crystals with anisotropic inclusions. Phys. Rev. B
**2011**, 83, 174303. [Google Scholar] [CrossRef] - Auld, B.A. Acoustic Fields and Waves in Solids; Wiley: New York, NY, USA, 1973. [Google Scholar]
- Inoue, K.; Ohtaka, K. Photonic Crystals: Physics, Fabrication and Applications; Springer: Berlin, Germany, 2004. [Google Scholar]
- At the minimum of these branches, the group velocity vanishes in the Γ-M direction. However, the orthogonal group velocity component is non-zero since the equifrequency contour centered on Γ
_{0,1}or Γ_{1,−1}is tangent to the propagation direction at these points. Energy propagation is then orthogonal to the Bloch wavevector. - Lai, Y.; Wu, Y.; Sheng, P.; Zhang, Z.Q. Hybrid elastic solids. Nat. Mater.
**2011**, 10, 620–624. [Google Scholar] [CrossRef] [PubMed] - Zhu, R.; Liu, X.; Hu, G.; Sun, C.; Huang, G. Negative refraction of elastic waves at the deep-subwavelength scale in a single-phase metamaterial. Nat. Commun.
**2014**, 5, 5510. [Google Scholar] [CrossRef] [PubMed] - Wang, Y.F.; Wang, Y.S.; Zhang, C. Two-dimensional locally resonant elastic metamaterials with chiral comb-like interlayers: Bandgap and simultaneously double negative properties. J. Acoust. Soc. Am.
**2016**. accepted for publication. [Google Scholar] - Gorishnyy, T.; Jang, J.H.; Koh, C.; Thomas, E.L. Direct observation of a hypersonic band gap in two-dimensional single crystalline phononic structures. Appl. Phys. Lett.
**2007**, 91, 121915. [Google Scholar] [CrossRef] - Still, T.; Cheng, W.; Retsch, M.; Sainidou, R.; Wang, J.; Jonas, U.; Stefanou, N.; Fytas, G. Simultaneous occurrence of structure-directed and particle-resonance-induced phononic gaps in colloidal films. Phys. Rev. Lett.
**2008**, 100, 194301. [Google Scholar] [CrossRef] [PubMed] - Sato, A.; Pennec, Y.; Yanagishita, T.; Masuda, H.; Knoll, W.; Djafari-Rouhani, B.; Fytas, G. Cavity-type hypersonic phononic crystals. New J. Phys.
**2012**, 14, 113032. [Google Scholar] [CrossRef] - Zhu, G.; Swinteck, N.Z.; Wu, S.; Zhang, J.S.; Pan, H.; Bass, J.D.; Deymier, P.A.; Banerjee, D.; Yano, K. Direct observation of the phonon dispersion of a three-dimensional solid/solid hypersonic colloidal crystal. Phys. Rev. B
**2013**, 88, 144307. [Google Scholar] [CrossRef] - Schneider, D.; Liaqat, F.; El Abouti, O.; Tremel, W.; Butt, H.J.; Djafari-Rouhani, B.; Fytas, G.; El Boudouti, E.H. Defect-controlled hypersound propagation in hybrid superlattices. Phys. Rev. Lett.
**2013**, 111, 164301. [Google Scholar] [CrossRef] [PubMed] - Beltramo, P.J.; Schneider, D.; Fytas, G.; Furst, E.M. Anisotropic hypersonic phonon propagation in films of aligned ellipsoids. Phys. Rev. Lett.
**2014**, 113, 205503. [Google Scholar] [CrossRef] [PubMed] - Alonso-Redondo, E.; Schmitt, M.; Urbach, Z.; Hui, C.; Sainidou, R.; Rembert, P.; Matyjaszewski, K.; Bockstaller, M.; Fytas, G. A new class of tunable hypersonic phononic crystals based on polymer-tethered colloids. Nat. Commun.
**2015**, 6, 8309. [Google Scholar] [CrossRef] [PubMed] - Hecht, F. New development in FreeFem++. J. Numer. Math.
**2012**, 20, 251–266. [Google Scholar] [CrossRef] - FreeFEM++ Codes. Available online: http://members.femto-st.fr/vincent-laude/freefem-scripts-numerical-simulation-phononic-crystals (accessed on 5 May 2016).

**Figure 1.**Graphical construction of the empty lattice model for anisotropic phononic crystals. (

**a**) The unit cell of a two-dimensional square-lattice phononic crystal. When the matrix (A) and the inclusion (B) are composed of the same material, the model reduces to the unit cell of the empty lattice. (

**b**) The dispersion relation for Bloch harmonics in reciprocal space is a set of cones originating from reciprocal lattice points. The vertical axis is the angular frequency. The horizontal plane is the reciprocal space, and the black dots are for reciprocal lattice points labeled as ${\Gamma}_{{\alpha}_{1},{\alpha}_{2}}$ with ${\alpha}_{1}$ and ${\alpha}_{2}$ being arbitrary integers. The central square centered at ${\Gamma}_{0,0}$ (black solid line) is the boundary of the first BZ for the square lattice with high symmetry points X and M. The colored lines centered around each reciprocal lattice points represent the isofrequency curves of an arbitrary anisotropic material. The shape of isofrequency curves is a frequency-scaled version of the slowness curve for the considered bulk wave shown in (

**c**). ψ is the direction angle defined with respect to the ${s}_{1}$ axis.

**Figure 2.**Empty lattice model for out-of-plane polarized waves in epoxy. (

**a**) The slowness curve is a circle in this case. (

**b**) The empty-lattice band structure for the out-of-plane polarized waves of epoxy is shown. Numerical and analytical results are shown with solid circles and lines, respectively. Each branch is labeled by an index corresponding to the reciprocal lattice point from which the generating cone originates. Points S${}_{1}$ and S${}_{2}$ are examples of intersections between branches located inside the first Brillouin zone (BZ). (

**c**) Isofrequency curves are plotted for the first band. The white dashed lines mark the first intersection between cones centered at adjacent reciprocal lattice points.

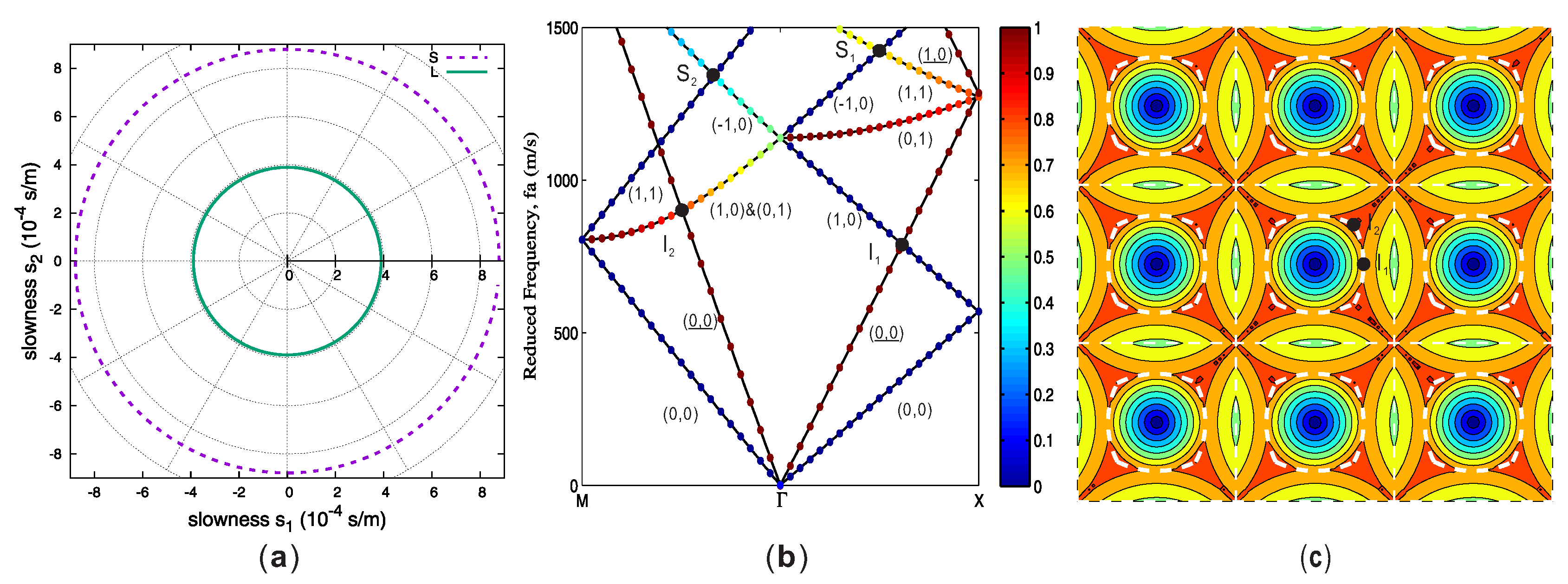

**Figure 3.**Empty lattice model for in-plane polarized waves in epoxy. (

**a**) The slowness curves for pure shear (dashed line) and for pure longitudinal (solid line) waves are both circles. (

**b**) The empty-lattice band structure for in-plane polarized waves is shown. Numerical and analytical results are shown with solid circles and lines, respectively. The color scale represents the polarization in the propagation direction, from 0 (shear) to 1 (longitudinal). Each dispersion branch is labeled by an index corresponding to the reciprocal lattice point from which the generating cone originates. Indices for longitudinal branches are underlined for clarity. Points I${}_{1}$ and I${}_{2}$ are the first intersections between shear and longitudinal branches. (

**c**) Isofrequency curves are plotted for the second band. The thick dashed lines show the first intersection between shear and longitudinal cones, while the thin dashed lines show the first intersection between pure shear cones.

**Figure 4.**Empty lattice model for in-plane polarized waves in Z-cut rutile with the X$-{15}^{\circ}$ orientation. (

**a**) The three slowness curves are for a pure shear wave (long dashed line), a quasi-shear (QS) wave (short dashed line) and a quasi-longitudinal (QL) wave (solid line). The empty-lattice band structures for (

**b**) out-of-plane and (

**c**) in-plane polarized waves are shown. Numerical and analytical results are shown with solid circles and lines, respectively. The color scale in (

**c**) represents the polarization in the propagation direction, from 0 (shear) to 1 (longitudinal). Each dispersion branch is labeled by an index corresponding to the reciprocal lattice point from which the generating cone originates. Indices for longitudinal branches are underlined for clarity. Points I${}_{1}$, I${}_{2}$, and I${}_{2}^{\prime}$ are intersections between QS and QL branches. (

**d**) Isofrequency curves are plotted for the first band of in-plane waves. The thick dashed lines represent the intersections between adjacent QS cones. (

**e**) Isofrequency curves are plotted for the second band of in-plane waves. The thick dashed lines show the first intersection between QS and QL cones and thin dashed lines show intersections between adjacent QS cones.

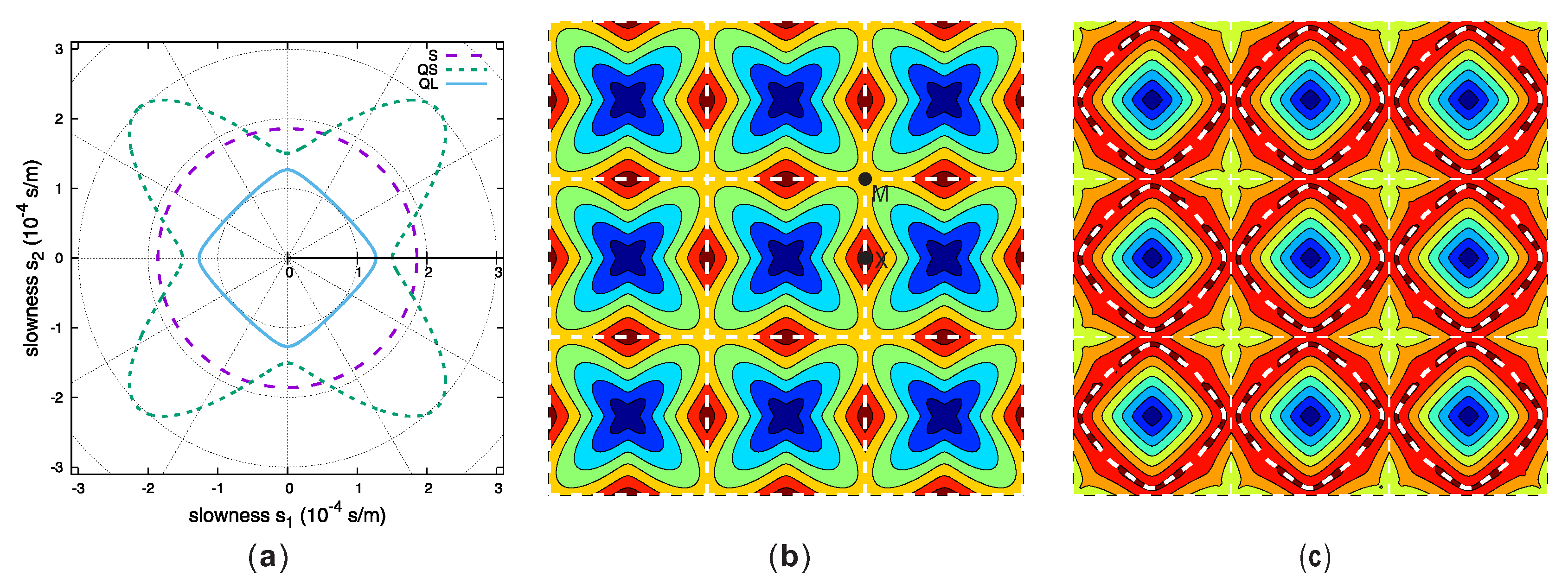

**Figure 5.**Empty lattice model for in-plane polarized waves in Z-cut rutile. (

**a**) The three slowness curves are for a pure shear wave (long dashed line), a QS wave (short dashed line) and a QL wave (solid line). (

**b**) Isofrequency curves are plotted for the first band of in-plane waves. The thick dashed lines represent the intersections between adjacent QS cones. (

**c**) Isofrequency curves are plotted for the second band of in-plane waves. The thick dashed lines show the first intersection between QS and QL cones.

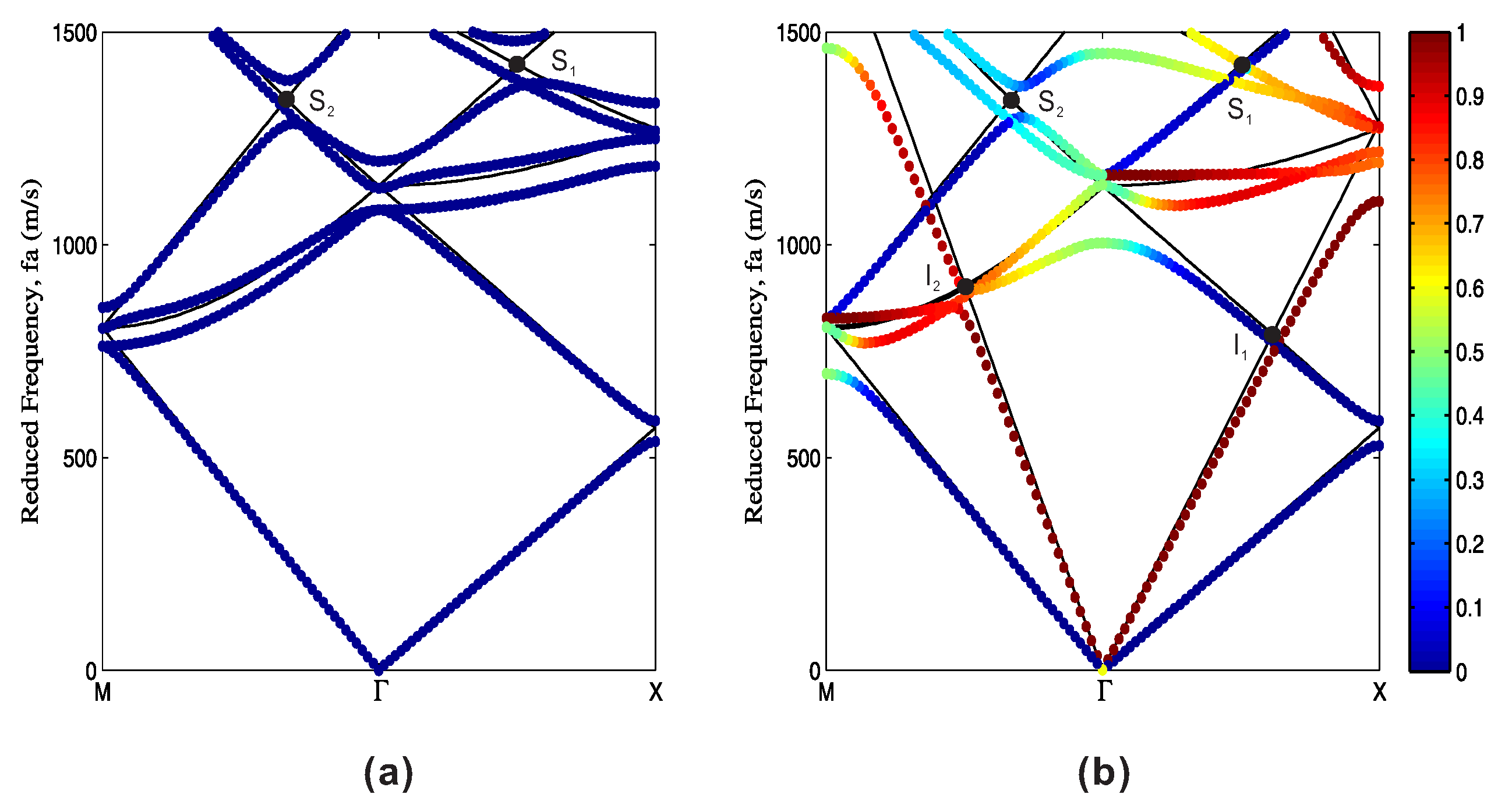

**Figure 6.**Band structures for (

**a**) the out-of-plane polarized waves and (

**b**) the in-plane polarized waves of epoxy with air holes ($d/a=0.2$). The color scale represents the polarization amount in the propagation direction, from 0 (shear) to 1 (longitudinal). Solid lines correspond to the empty lattice model.

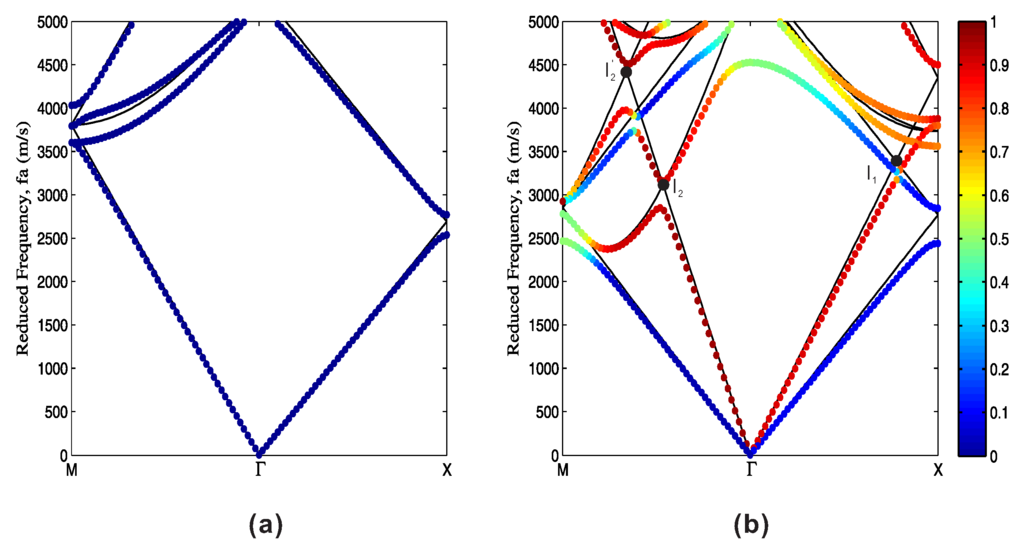

**Figure 7.**Band structures for (

**a**) the out-of-plane polarized waves and (

**b**) the in-plane polarized waves of Z-cut rutile for the X$-{15}^{\circ}$ orientation with air holes ($d/a=0.2$). The color scale represents the polarization amount in the propagation direction, from 0 (shear) to 1 (longitudinal). Solid lines correspond to the empty lattice model.
