# Development of a CA-FVM Model with Weakened Mesh Anisotropy and Application to Fe–C Alloy

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Model Description

#### 2.1. Nucleation Model

_{max}is the maximum nucleation density, m

^{−1}, and ΔT

_{n}and ΔT

_{σ}are the average and the standard deviation of the nucleation undercooling, K, respectively. The increment of the nucleation density, δn, induced by the change of the melt undercooling δ(ΔT) is calculated as follows:

_{n}of a liquid cell at the domain bottom is determined as follows:

_{n}, and simultaneously ΔT is higher than ΔT

_{n}, nucleation will occur. The preferential growth orientation is randomly chosen within −45° to 45°.

#### 2.2. CA Model

**n**is the norm of the solidification interface,

**V**is the norm growth velocity of the interface, m/s, ${C}_{0}$, ${C}_{\mathrm{l}}^{*}$, and ${C}_{\mathrm{s}}^{*}$ are the initial content, equilibrium liquid, and solid concentrations at the interface, wt%, respectively, k

_{n}_{0}is the equilibrium redistribution coefficient of the solute, m

_{l}is the slope of the liquidus line in the equilibrium Fe–C phase diagram, K·wt%

^{−1}, Γ is the Gibbs–Thomson coefficient of Fe–C alloy, K·m, $\phi $ and θ are angles of the interface norm and the preferential growth orientation with respect to the x axis, °, respectively, ε is the anisotropy parameter, D

_{l}and D

_{s}are diffusion coefficients of the solute in liquid and solid phases, m

^{2}·s

^{−1}, respectively, T

_{l}is the equilibrium liquidus temperature of Fe–C alloy, K, and ∂

_{x}f

_{s}, ∂

_{y}f

_{s}, ∂

_{xx}f

_{s}, ∂

_{yy}f

_{s}, and ∂

_{xy}f

_{s}are derivatives of solid fraction f

_{s}determined with the bilinear interpolation method [13,14].

**V**is determined as follows [7]:

_{n}_{x}and V

_{y}are growth velocities along x and y axes, m·s

^{−1}, and W and E represent left and right neighbors of the present interface cell P, respectively.

_{dia}is updated as follows [9,35,36]:

#### 2.3. Transport Models

^{−3}, λ is the thermal conductivity, W·m

^{−1}·K

^{−1}, c

_{p}is the specific heat capacity, J·kg

^{−1}·K

^{−1}, and L is the solidification latent heat, J·kg

^{−1}.

_{n}

_{,max}is the maximum growth velocity of the interface, m·s

^{−1}, and D

_{max}is the maximum solute diffusion coefficient, m

^{2}·s

^{−1}. Physical properties of Fe–0.82C alloy are listed in Table 1 [37,38].

## 3. Model Evaluation and Application

#### 3.1. Free Growth of Equiaxed Dendrite

^{−1}) predicted by the LGK model. Therefore, before the dendritic growth reaches the steady state at ΔT = 5 K, it will be influenced by boundary conditions. Beltran-Sanchez and Stefanescu [7] proposed that the steady state can be determined as the concentration at the boundary contrary to the dendritic tip reaches 1.01 times the initial value. So, the domain size is adjusted according to the melt undercooling in the present work. Steady states at melt undercoolings of 5 K (n = 701) and 8 K (n = 301) are properly determined according to Beltran-Sanchez and Stefanescu [7], as shown in Figure 2. Figure 3 shows steady tip growth velocities of equiaxed dendrites predicted by CA-FVM model and the comparison with analytical results. Steady tip growth velocities agree with analytical results. Meanwhile, compared with our previous model based on Neumann rule [37,38,41], the accuracy is much improved. However, because the present approach is deterministic and depends on the mesh layout, the mesh size greatly influences the dendritic radius.

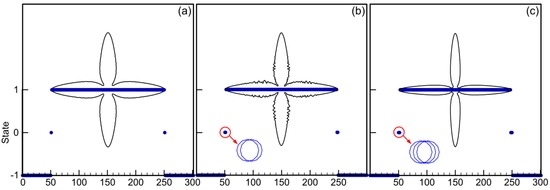

#### 3.2. Interface Type and Growth Consistence

#### 3.3. Segregation among Equiaxed Dendrites

_{l}according to the preset cooling rate. Figure 7 shows the solute distribution around equiaxed dendrites at the solid fraction of 0.5, as the cooling rate (CR) varies from 0.5 K·s

^{−1}to 50 K·s

^{−1}. As CR is 0.5 K·s

^{−1}, the nuclei develop as cellular structures. With the improvement of CR, the equiaxed dendritic structure gradually forms (as shown in Figure 7b). As CR increases to 50 K·s

^{−1}, primary arms become thinner, with developed secondary arms.

#### 3.4. Constrained Growth of Columnar Dendrite

_{l}, and cools the domain down with the average heat flux according to the mold cooling condition of SWRH82B steel billet [37], accordingly simulating the unidirectional solidification of Fe–0.82C alloy. Initial and boundary conditions for the solute diffusion are the same as those mentioned above. Figure 9 shows the comparison between the predicted columnar dendritic morphology and the experimental observation. Some columnar dendrites win from the initial competition, and are with strong primary branches and well developed secondary, even higher-order arms. Moreover, columnar dendrites with contrary growth directions alternately restrict each other, which is similar to the experimental observation. Additionally, average primary and secondary dendrite arm spacings (λ

_{1}and λ

_{2}) in regions A and B are concerned. The predicted λ

_{1}and λ

_{2}are 182.8 μm and 69.8 μm, while the corresponding experimental measurements are 142.2 μm and 101.5 μm, respectively. On the one hand, dendritic arms become ripened with repeated temperature cycles, rising up and going down in secondary and radiation cooling zones during the continuous casting of SWRH82B steel billet. On the other hand, λ

_{1}is determined before being adjusted by tertiary arms in the simulation, while secondary arms are promoted by the higher heat flux and the finer mesh. Additionally, the lack of one-dimensional space also contributes to the numerical deviation.

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Presoly, P.; Pierer, R.; Bernhard, C. Identification of defect prone peritectic steel grades by analyzing high-temperature phase transformations. Metall. Mater. Trans. A
**2013**, 44, 5377–5388. [Google Scholar] [CrossRef] - Ogibayashi, S. Mechanism of centerline segregation in continuous casting and current status of the mathematical model and future subject. Sanyo Tech. Rep.
**2012**, 19, 2–14. [Google Scholar] - Stefanescu, D.M. Science and Engineering of Casting Solidification, 3rd ed.; Springer International Publishing: Cham, Switzerland, 2015; pp. 1–5. [Google Scholar]
- Ji, C.; Luo, S.; Zhu, M.Y. Analysis and application of soft reduction amount for bloom continuous casting process. ISIJ Int.
**2014**, 54, 504–510. [Google Scholar] [CrossRef] - Zhu, M.F.; Stefanescu, D.M. Virtual front tracking model for the quantitative modeling of dendritic growth in solidification of alloys. Acta Mater.
**2007**, 55, 1741–1755. [Google Scholar] [CrossRef] - Reuther, K.; Rettenmayr, M. Perspectives for cellular automata for the simulation of dendritic solidification—A review. Comput. Mater. Sci.
**2014**, 95, 213–220. [Google Scholar] [CrossRef] - Beltran-Sanchez, L.; Stefanescu, D.M. A quantitative dendrite growth model and analysis of stability concepts. Metall. Mater. Trans. A
**2004**, 35, 2471–2485. [Google Scholar] [CrossRef] - Shin, Y.H.; Hong, C.P. Modeling of dendritic growth with convection using a modified cellular automaton model with a diffuse interface. ISIJ Int.
**2002**, 42, 359–367. [Google Scholar] [CrossRef] - Zhu, M.F.; Chen, J.; Sun, G.X.; Hong, C.P. Numerical modeling of dendritic growth. Acta Metall. Sin.
**2005**, 41, 583–587. [Google Scholar] - Zhang, X.F.; Zhao, J.Z. Effect of forced flow on three dimensional dendritic growth of Al-Cu alloys. Acta Metall. Sin.
**2012**, 48, 615–620. [Google Scholar] [CrossRef] - Yu, J.; Xu, Q.Y.; Cu, K.; Liu, B.C. Numerical simulation of microstructure evolution based on a modified CA method. Acta Metall. Sin.
**2007**, 43, 731–738. [Google Scholar] - Zhan, X.H.; Wei, Y.H.; Dong, Z.B. Cellular automaton simulation of grain growth with different orientation angles during solidification process. J. Mater. Process. Technol.
**2008**, 208, 1–8. [Google Scholar] [CrossRef] - Wei, L.; Lin, X.; Wang, M.; Huang, W.D. A cellular automaton model for the solidification of a pure substance. Appl. Phys. A
**2010**, 103, 123–133. [Google Scholar] [CrossRef] - Wei, L.; Lin, X.; Wang, M.; Huang, W.D. Cellular automaton simulation of the molten pool of laser solid forming process. Acta Phys. Sin.
**2015**, 64, 018103. [Google Scholar] - Krane, M.J.M.; Johnson, D.R.; Raghavan, S. The development of a cellular automaton-finite volume model for dendritic growth. Appl. Math. Model.
**2009**, 33, 2234–2247. [Google Scholar] [CrossRef] - Rappaz, M.; Gandin, C.A. Probabilistic modelling of microstructure formation in solidification processes. Acta Metall. Mater.
**1993**, 41, 345–360. [Google Scholar] [CrossRef] - Gandin, C.A.; Rappaz, M. A 3D cellular automaton algorithm for the prediction of dendritic grain growth. Acta Mater.
**1997**, 45, 2187–2195. [Google Scholar] [CrossRef] - Rappaz, M. Modeling and characterization of grain structures and defects in solidification. Curr. Opin. Solid State Mat. Sci.
**2016**, 20, 37–45. [Google Scholar] [CrossRef] - Wang, W.; Lee, P.D.; Mclean, M. A model of solidification microstructures in nickel-based superalloys: Predicting primary dendrite spacing selection. Acta Mater.
**2003**, 51, 2971–2987. [Google Scholar] [CrossRef] - Dong, H.B.; Lee, P.D. Simulation of the columnar-to-equiaxed transition in directionally solidified Al-Cu alloys. Acta Mater.
**2005**, 53, 659–668. [Google Scholar] [CrossRef] - Yuan, L.; Lee, P.D.; Djambazov, G.; Pericleous, K. Numerical simulation of the effect of fluid flow on solute distribution and dendritic morphology. Int. J. Cast. Met. Res.
**2009**, 22, 204–207. [Google Scholar] [CrossRef] - Yuan, L.; Lee, P.D. Dendritic solidification under natural and forced convection in binary alloys: 2D versus 3D simulation. Model. Simul. Mater. Sci. Eng.
**2010**, 18, 055008. [Google Scholar] [CrossRef] - Yuan, L.; Lee, P.D. A new mechanism for freckle initiation based on microstructural level simulation. Acta Mater.
**2012**, 60, 4917–4926. [Google Scholar] [CrossRef] - Nakagawa, M.; Natsume, Y.; Ohsasa, K. Dendrite growth model using front tracking technique with new growth algorithm. ISIJ Int.
**2006**, 46, 909–913. [Google Scholar] [CrossRef] - Yamazaki, M.; Satoh, J.; Ohsasa, K.; Matsuura, K. Numerical model of solidification structure formation in Fe-C alloy with peritectic transformation. ISIJ Int.
**2008**, 48, 362–367. [Google Scholar] [CrossRef] - Zhao, Y.; Chen, D.F.; Long, M.J.; Arif, T.T.; Qin, R.S. A three-dimensional cellular automata model for dendrite growth with various crystallographic orientations during solidification. Metall. Mater. Trans. B
**2014**, 45, 719–725. [Google Scholar] [CrossRef] - Yin, H.; Felicelli, S.D. Dendrite growth simulation during solidification in the LENS process. Acta Mater.
**2010**, 58, 1455–1465. [Google Scholar] [CrossRef] - Yin, H.; Felicelli, S.D.; Wang, L. Simulation of a dendritic microstructure with the lattice Boltzmann and cellular automaton methods. Acta Mater.
**2011**, 59, 3124–3136. [Google Scholar] [CrossRef] - Yin, H.B.; Felicelli, S.D. A cellular automaton model for dendrite growth in magnesium alloy AZ91. Model. Simul. Mater. Sci. Eng.
**2009**, 17, 075011. [Google Scholar] [CrossRef] - Chen, R.; Xu, Q.Y.; Liu, B.C. A modified cellular automaton model for the quantitative prediction of equiaxed and columnar dendritic growth. J. Mater. Sci. Technol.
**2014**, 30, 1311–1320. [Google Scholar] [CrossRef] - Chen, R.; Xu, Q.Y.; Liu, B.C. Cellular automaton simulation of three-dimensional dendrite growth in Al–7Si–Mg ternary aluminum alloys. Comput. Mater. Sci.
**2015**, 105, 90–100. [Google Scholar] [CrossRef] - Han, R.H.; Dong, W.C.; Lu, S.P.; Li, D.Z.; Li, Y.Y. Modeling of morphological evolution of columnar dendritic grains in the molten pool of gas tungsten arc welding. Comput. Mater. Sci.
**2014**, 95, 351–361. [Google Scholar] [CrossRef] - Han, R.H.; Lu, S.P.; Dong, W.C.; Li, D.Z.; Li, Y.Y. The morphological evolution of the axial structure and the curved columnar grain in the weld. J. Cryst. Growth
**2015**, 431, 49–59. [Google Scholar] [CrossRef] - Luo, S.; Zhu, M.Y. A two-dimensional model for the quantitative simulation of the dendritic growth with cellular automaton method. Comput. Mater. Sci.
**2013**, 71, 10–18. [Google Scholar] [CrossRef] - Tan, W.D.; Bailey, N.S.; Shin, Y.C. A novel integrated model combining cellular automata and phase field methods for microstructure evolution during solidification of multi-component and multi-phase alloys. Comput. Mater. Sci.
**2011**, 50, 2573–2585. [Google Scholar] [CrossRef] - Tan, W.D.; Wen, S.Y.; Bailey, N.; Shin, Y.C. Multiscale modeling of transport phenomena and dendritic growth in laser cladding processes. Metall. Mater. Trans. B
**2011**, 42, 1306–1318. [Google Scholar] [CrossRef] - Wang, W.L.; Luo, S.; Zhu, M.Y. Numerical simulation of dendritic growth of continuously cast high carbon steel. Metall. Mater. Trans. A
**2015**, 46, 396–406. [Google Scholar] [CrossRef] - Wang, W.L.; Luo, S.; Zhu, M.Y. Dendritic growth of high carbon iron-based alloy under constrained melt flow. Comput. Mater. Sci.
**2014**, 95, 136–148. [Google Scholar] [CrossRef] - Thévoz, P.; Desbiolles, J.L.; Rappaz, M. Modeling of equiaxed microstructure formation in casting. Metall. Trans. A
**1989**, 20, 311–322. [Google Scholar] [CrossRef] - Lipton, J.; Glicksman, M.E.; Kurz, W. Dendritic growth into undercooled alloy metals. Mater. Sci. Eng.
**1984**, 65, 57–63. [Google Scholar] [CrossRef] - Luo, S.; Wang, W.L.; Zhu, M.Y. Validation and simulation of cellular automaton model for dendritic growth during the solidification of Fe-C binary alloy with fluid flow. ISIJ Int.
**2016**, 56, 564–573. [Google Scholar] [CrossRef] - Nastac, L. Analytical modeling of solute redistribution during the initial unsteady unidirectional solidification of binary dilute alloys. J. Cryst. Growth
**1998**, 193, 271–284. [Google Scholar] [CrossRef] - Reuther, K.; Rettenmayr, M. Simulating dendritic solidification using an anisotropy-free meshless front-tracking method. J. Comput. Phys.
**2014**, 279, 63–66. [Google Scholar] [CrossRef] - Wang, W.L.; Zhu, M.Y.; Cai, Z.Z.; Luo, S.; Ji, C. Micro-segregation behavior of solute elements in the mushy zone of continuous casting wide-thick slab. Steel Res. Int.
**2012**, 83, 1152–1162. [Google Scholar] [CrossRef]

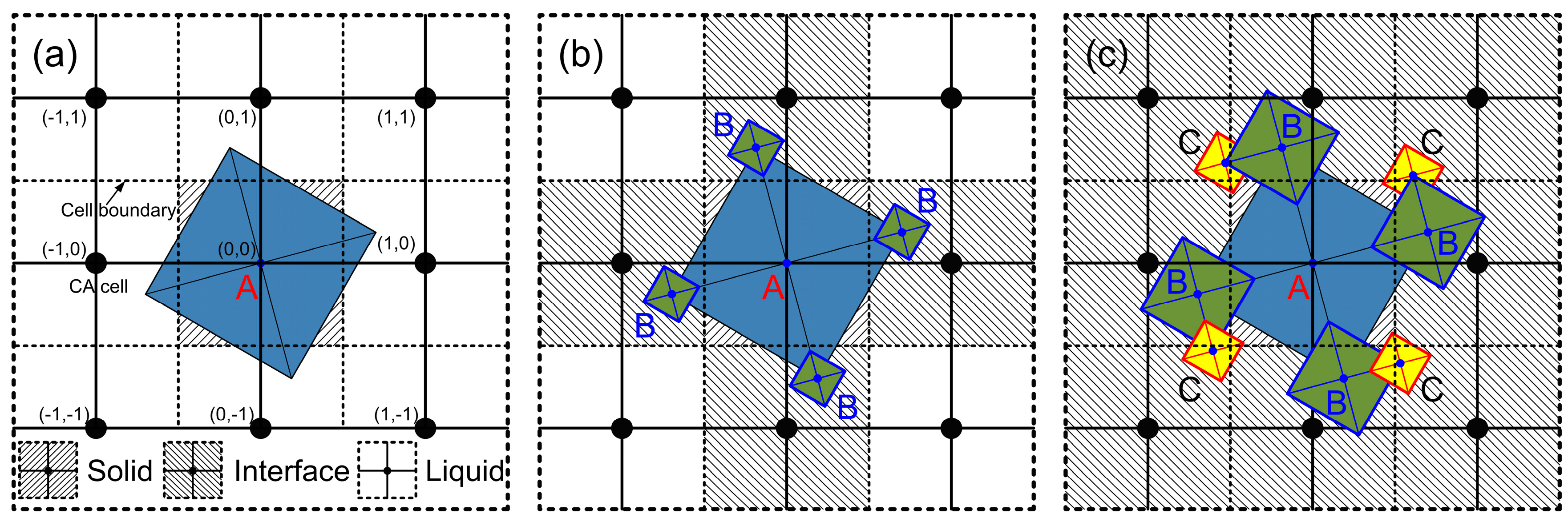

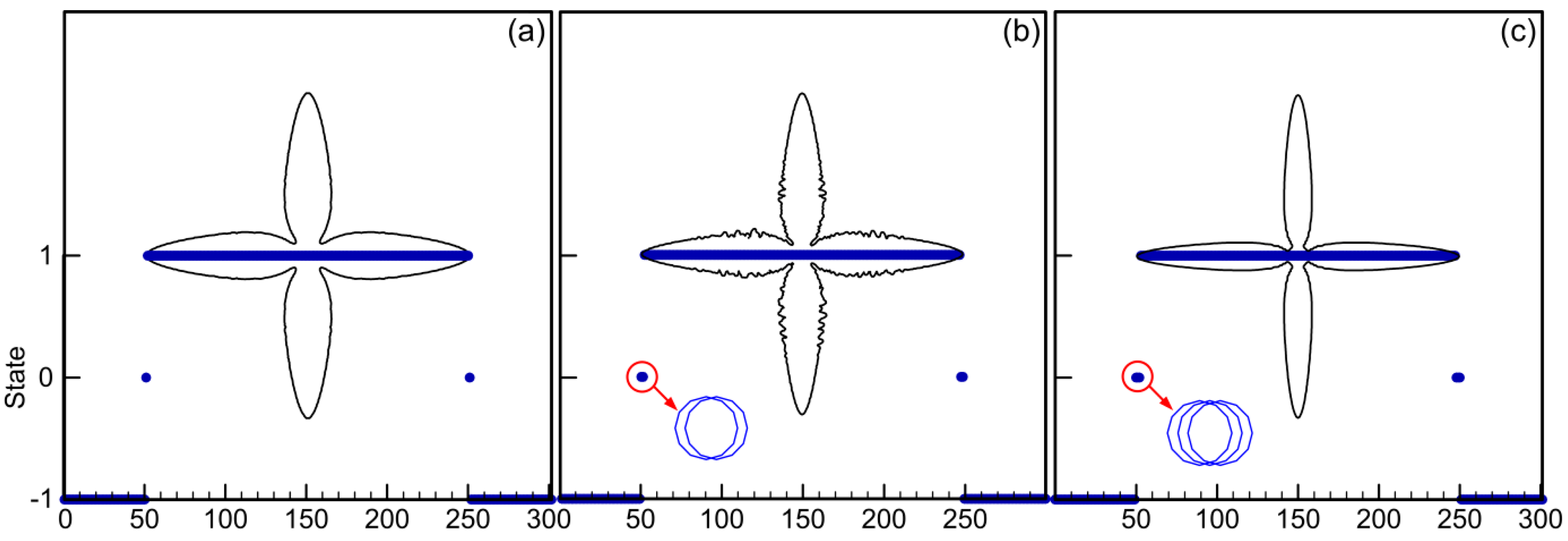

**Figure 1.**Basic concept of decentered square algorithm (DCSA): (

**a**) nucleation; (

**b**) capture of first nearest neighboring cells; and (

**c**) capture of second nearest neighboring cells.

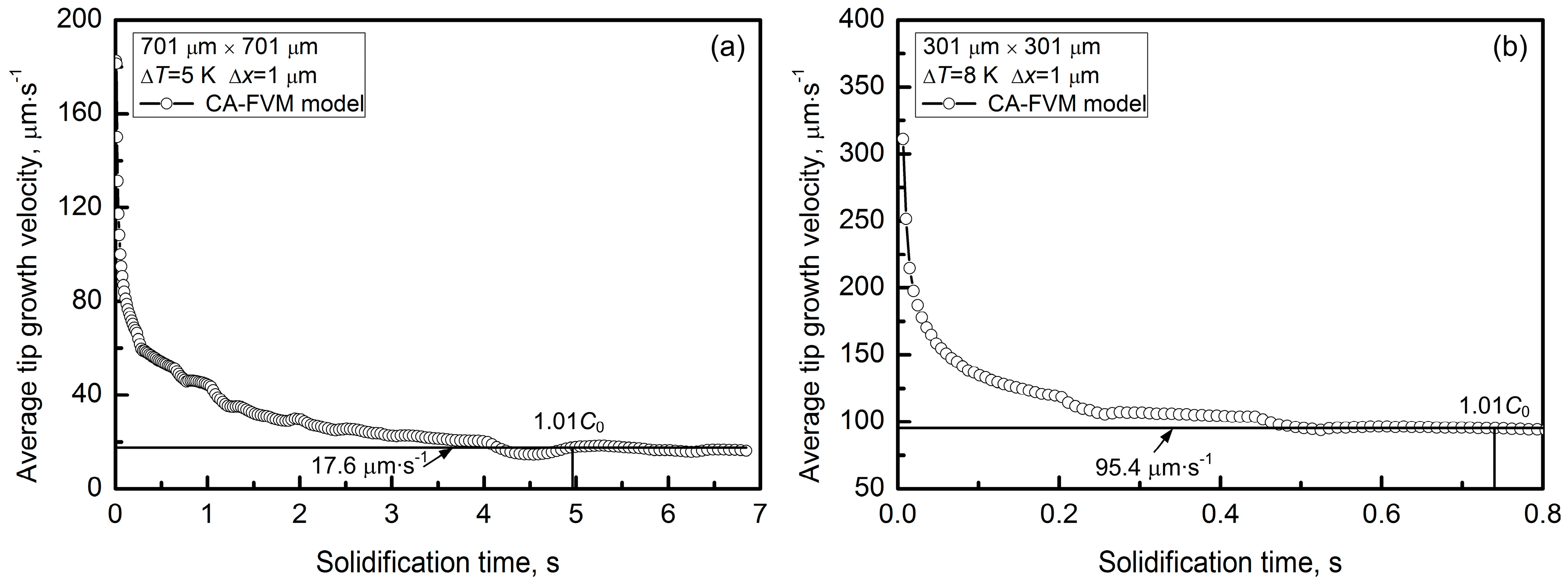

**Figure 2.**Average tip growth velocities: (

**a**) ΔT = 5 K and (

**b**) ΔT = 8 K. CA-FVM: cellular automaton-finite volume method.

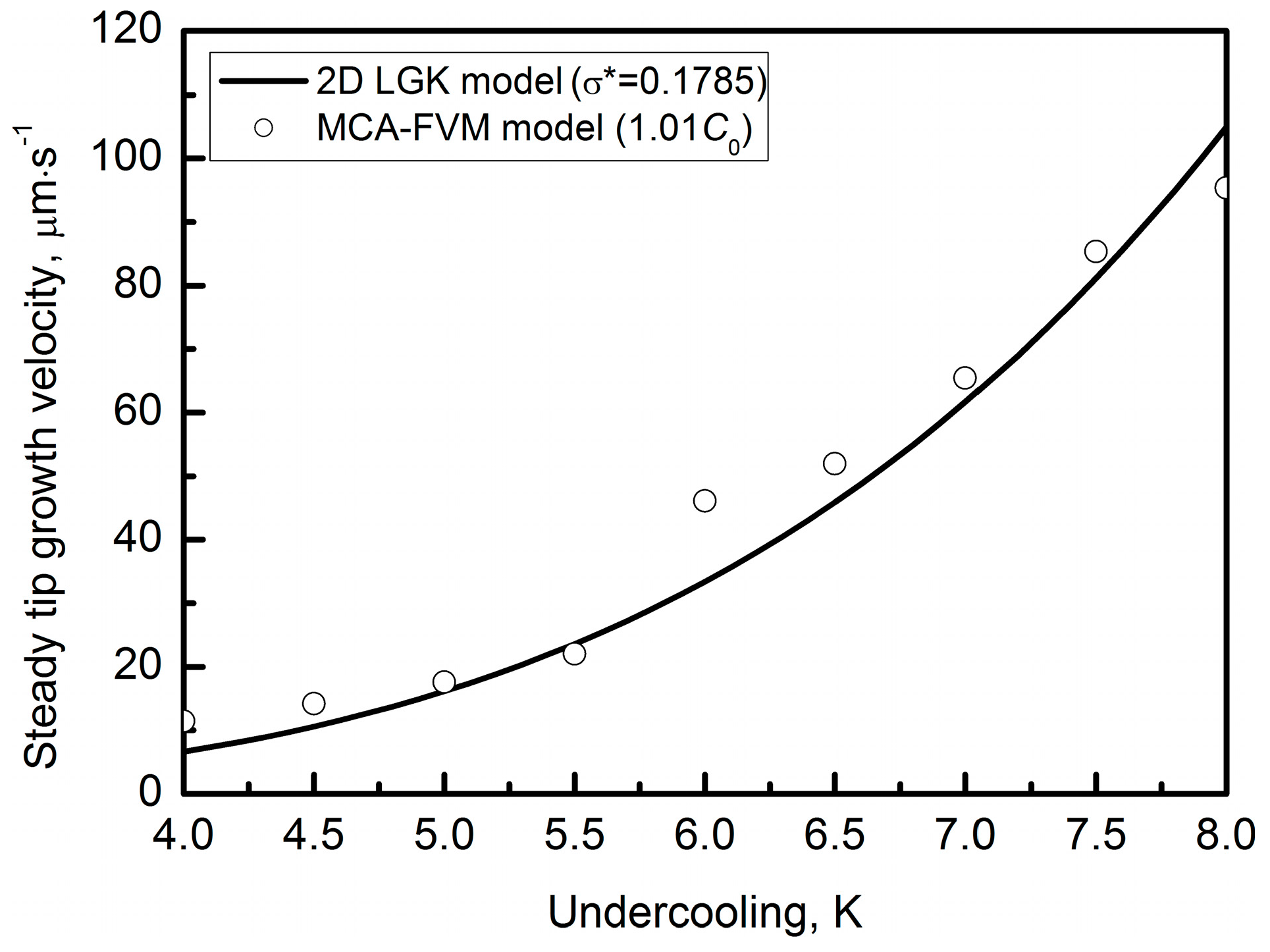

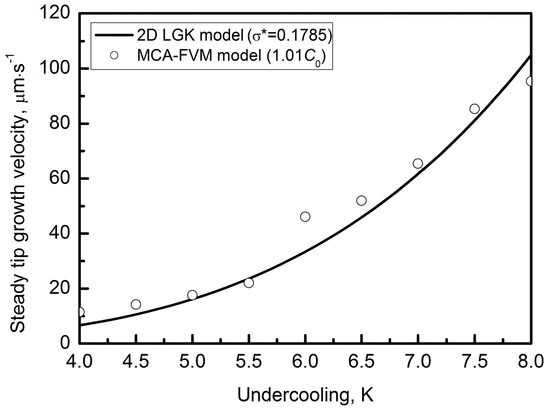

**Figure 3.**Comparison between predicted steady tip growth velocities and Lipton, Glicksman, and Kurz (LGK)’s results [40].

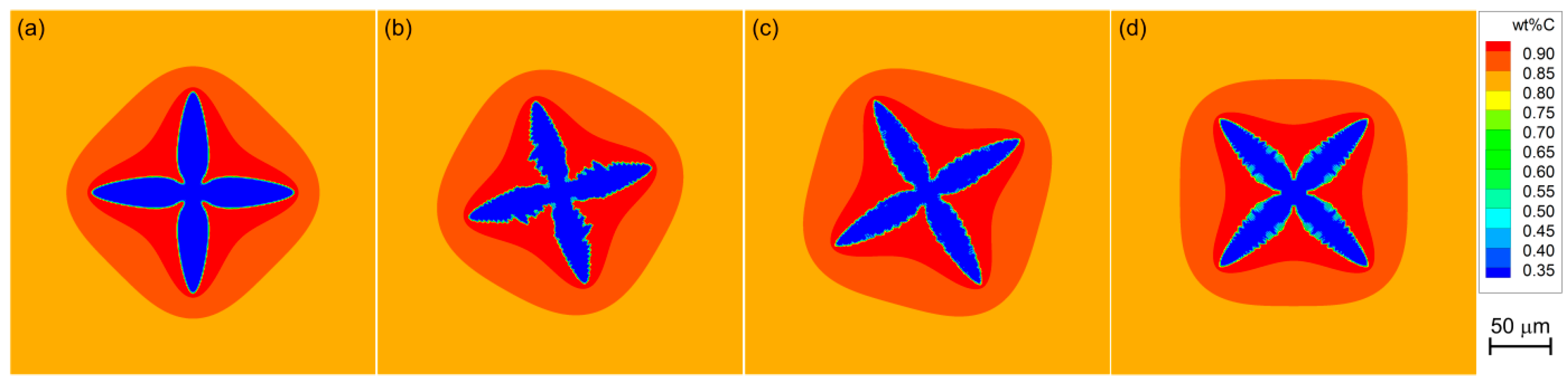

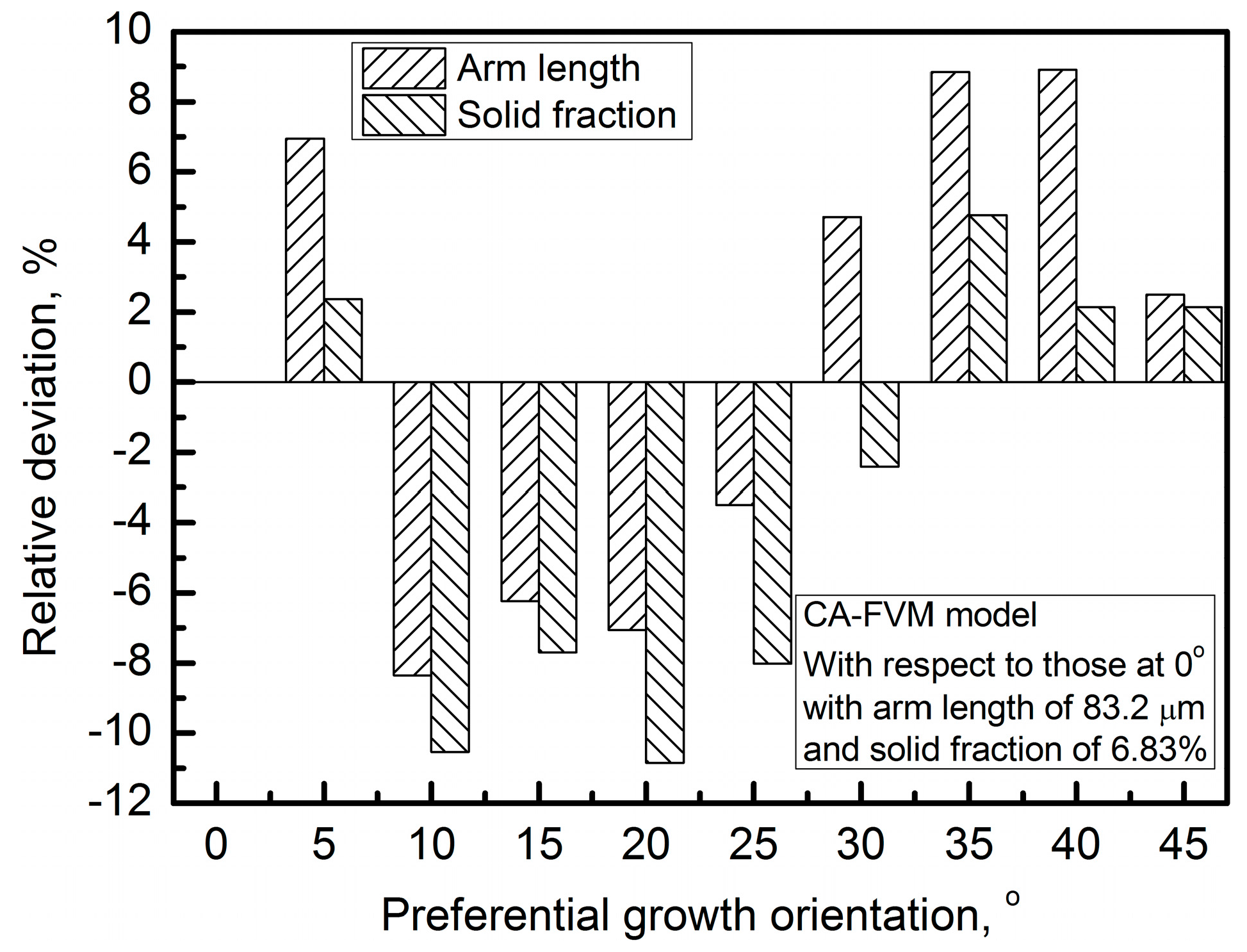

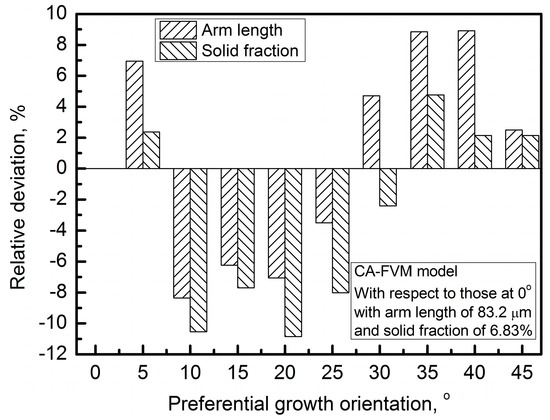

**Figure 5.**Equiaxed dendritic morphology at ΔT = 9 K and t = 0.6 s, with preferential growth orientations of: (

**a**) 0°; (

**b**) 15°; (

**c**) 30°; and (

**d**) 45°.

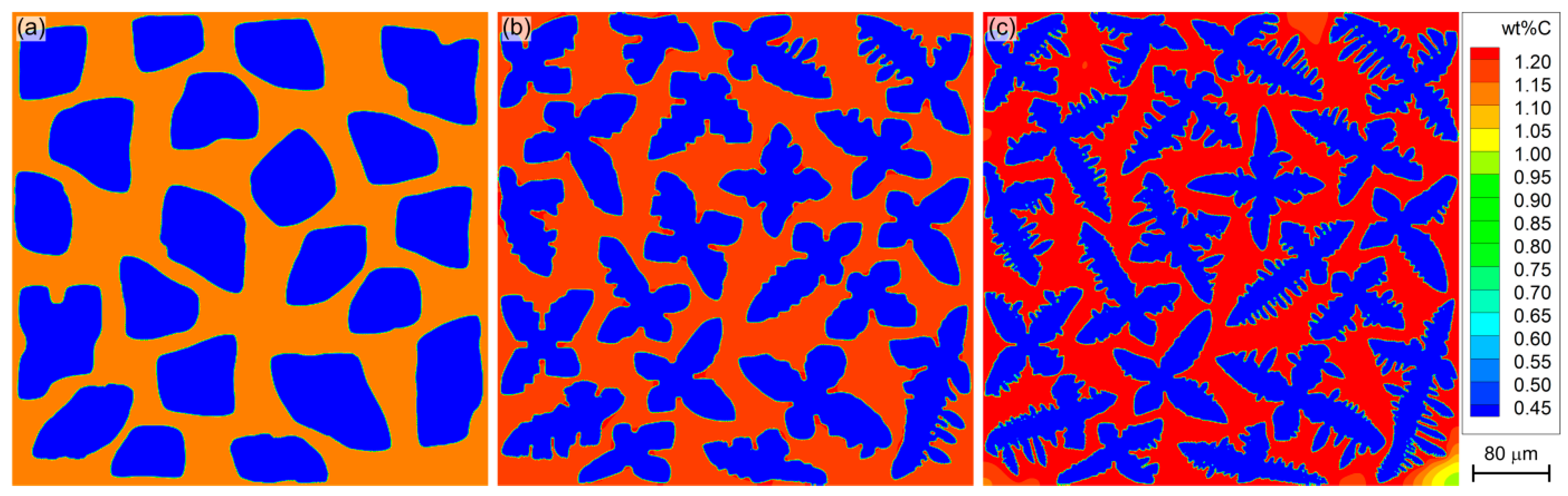

**Figure 7.**Equiaxed dendritic morphology of Fe–0.82C alloy at f

_{s}= 0.5 when cooling rates are (

**a**) 0.5 K·s

^{−1}; (

**b**) 10 K·s

^{−1}; and (

**c**) 50 K·s

^{−1}.

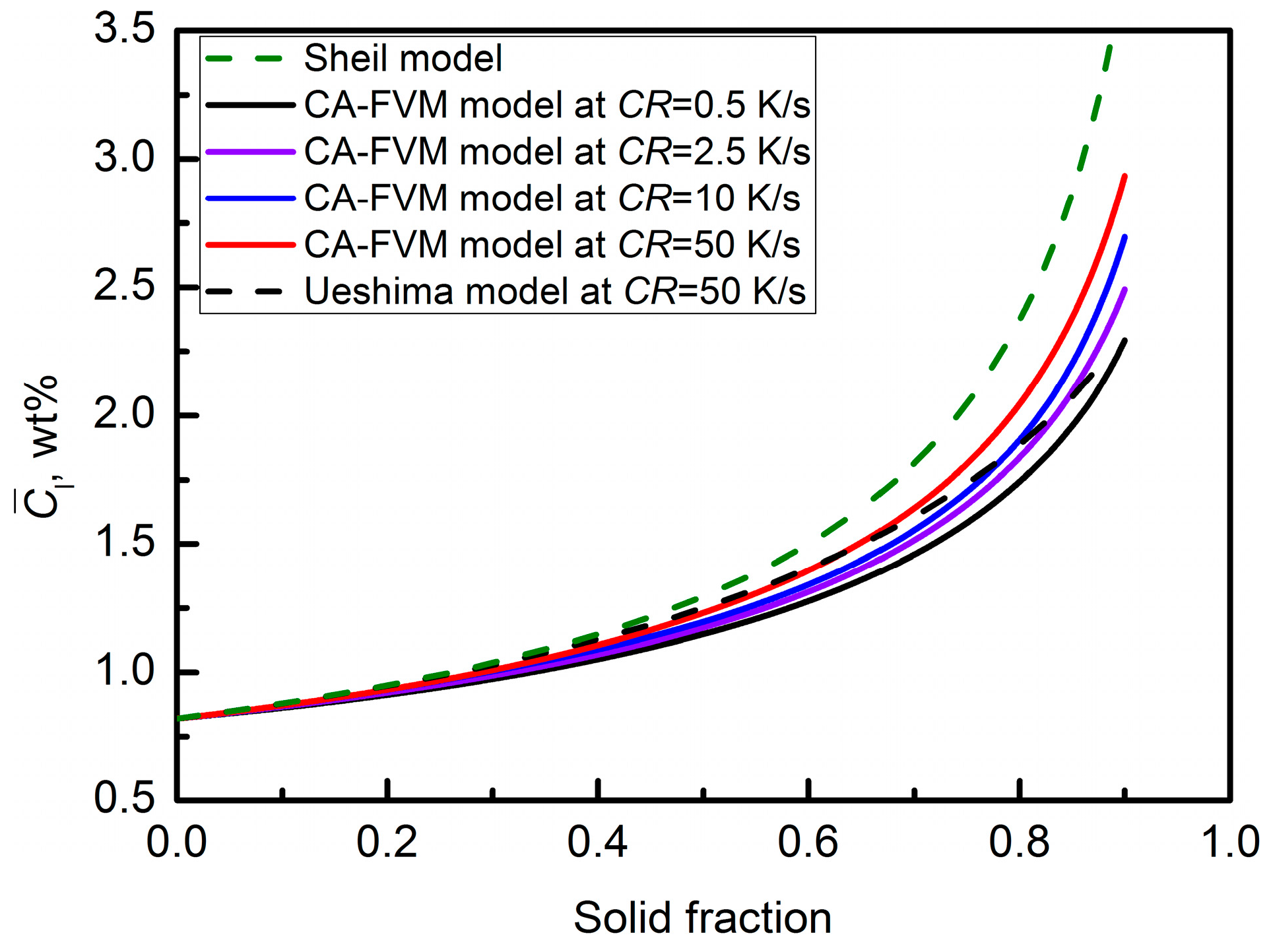

**Figure 8.**Average solute concentration in liquid phase during the solidification of multi-equiaxed dendrites. CR: cooling rate.

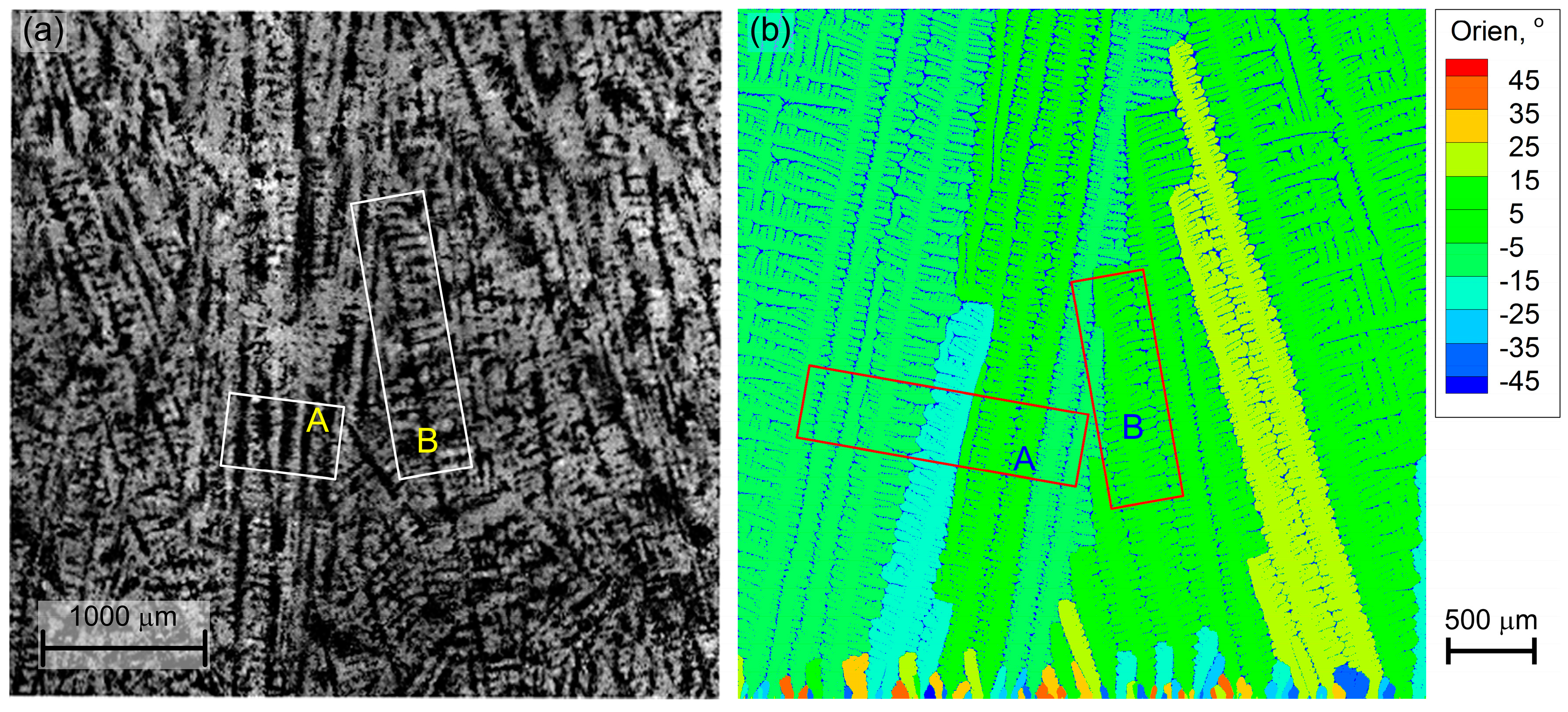

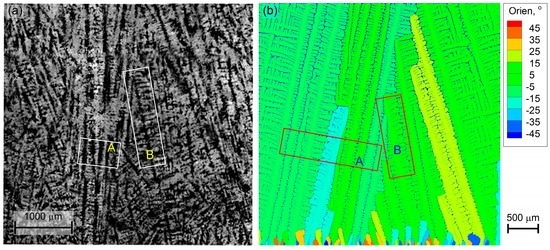

**Figure 9.**Columnar dendritic morphology of SWRH82B steel billet: (

**a**) experimental observation [37] (Reproduced with permission from Weiling Wang, Sen Luo, Miaoyong Zhu, Metallurgical and Materials Transactions A; published by Springer, 2015); and (

**b**) present prediction.

Physical Property | Symbol | Unit | Value |
---|---|---|---|

Melt temperature of pure iron | T_{m} | K | 1809.15 |

Liquidus line slope of Fe–C alloy | m_{l} | K·wt%^{−1} | −78.0 |

Thermal conductivity | λ | W·m^{−1}·K^{−1} | 33.0 |

Density of solid phase | ρ_{s} | kg·m^{−3} | 7400 |

Density of liquid phase | ρ_{l} | kg·m^{−3} | 7020 |

Specific heat capacity of solid phase | c_{p,s} | J·kg^{−1}·K^{−1} | 648 |

Specific heat capacity of liquid phase | c_{p,l} | J·kg^{−1}·K^{−1} | 824 |

Specific heat capacity at mushy state | c_{p,m} | J·kg^{−1}·K^{−1} | 770 |

Solidification latent heat | L | J·kg^{−1} | 27,200 |

Diffusion coefficient in solid phase | D_{s} | cm^{2}·s^{−1} | 0.0761exp(−16,185.2/T) |

Diffusion coefficient in liquid phase | D_{l} | cm^{2}·s^{−1} | 0.0767exp(−12,749.6/T) |

Partition coefficient | k_{0} | -- | 0.34 |

Anisotropy parameter | ε | -- | 0.04 |

Gibbs–Thomson coefficient | Γ | K·m | 1.9 × 10^{−7} |

Maximum nucleus density | n_{max} | m^{−1} | 16,736 |

Standard deviation of nucleation undercooling | ΔT_{σ} | K | 0.1 |

Average nucleation undercooling | ΔT_{n} | K | 1.0 |

© 2016 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC-BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Wang, W.; Luo, S.; Zhu, M.
Development of a CA-FVM Model with Weakened Mesh Anisotropy and Application to Fe–C Alloy. *Crystals* **2016**, *6*, 147.
https://doi.org/10.3390/cryst6110147

**AMA Style**

Wang W, Luo S, Zhu M.
Development of a CA-FVM Model with Weakened Mesh Anisotropy and Application to Fe–C Alloy. *Crystals*. 2016; 6(11):147.
https://doi.org/10.3390/cryst6110147

**Chicago/Turabian Style**

Wang, Weiling, Sen Luo, and Miaoyong Zhu.
2016. "Development of a CA-FVM Model with Weakened Mesh Anisotropy and Application to Fe–C Alloy" *Crystals* 6, no. 11: 147.
https://doi.org/10.3390/cryst6110147
