Diffusivity and Mobility of Adsorbed Water Layers at TiO2 Rutile and Anatase Interfaces

by
Niall J. English
School of Chemical and Bioprocess Engineering, University College Dublin, Belfield, Dublin 4, Ireland
Crystals 2016, 6(1), 1; https://doi.org/10.3390/cryst6010001
Submission received: 26 October 2015 / Revised: 18 November 2015 / Accepted: 17 December 2015 / Published: 22 December 2015
(This article belongs to the Special Issue Analysis of Hydrogen Bonds in Crystals)
Browse Figures
Versions Notes

Abstract

:
Molecular-dynamics simulations have been carried out to study diffusion of water molecules adsorbed to anatase-(101) and rutile-(110) interfaces at room temperature (300 K). The mean squared displacement (MSD) of the adsorbed water layers were determined to estimate self-diffusivity therein, and the mobility of these various layers was gauged in terms of the “swopping” of water molecules between them. Diffusivity was substantially higher within the adsorbed monolayer at the anatase-(101) surface, whilst the anatase-(101) surface’s more open access facilitates easier contact of adsorbed water molecules with those beyond the first layer, increasing the level of dynamical inter-layer exchange and mobility of the various layers. It is hypothesised that enhanced ease of access of water to the anatase-(101) surface helps to rationalise experimental observations of its comparatively greater photo-activity.

1. Introduction

In 1972, Fujishima and Honda first established that titania (TiO2) could lead to splitting of water when exposed to visible light, thereby producing gaseous oxygen and hydrogen [1]. Since then, there has been considerable scrutiny of the properties of aqueous solutions in contact with titania surfaces. More generally, beyond titania, there are a great deal of renewable-energy applications potentially of interest involving photo-electrochemical splitting of water in dye-sensitised solar cells. Naturally, though, the non-toxic, inexpensive and abundant nature of titania render it especially attractive in this regard. Potential photo-active materials may involve support-metal-support-interaction (SMSI) changes to photo-catalytic properties [2]. In any event, given that titania is one of the most scrutinised oxides, there is somewhat of a paucity in our understanding of the characteristics of interfacial water molecules, together with their potential reactivity at surfaces. This is in spite of progress recently [3,4], including via molecular-simulation approaches and theoretical techniques [5], although the outlook in this regard is surely improved in recent years [4].
Titania-water interfaces allow for a detailed study of confined water molecules’ dynamical properties. This is very important for the case where hydrogen-bonded molecules play an part in stabilising solutes by solvent interactions, and also forming thereby “cages” [3,4]. For instance, Inelastic Neutron Scattering (INS) measurements have led to vibrational spectra of adsorbed water on anatase powder and rutile rods [6,7]; this led to insight that confined adsorbed water molecules have dynamical and vibrational behaviour more redolent of less mobile ice vis-à-vis to a liquid [6,7]. This adsorbed-water vibrational behaviour has been studied in detail via molecular dynamics (MD) at interfaces of anatase-(101) and rutile-(110) with water [8,9]. Further, ab initio MD (AIMD) has led to important results in interesting studies recently [9,10] on librational and higher-frequency adsorbed-water modes. The rutile-(110)-water interface has been particularly scrutinised by MD [11,12,13,14,15,16]. Ion adsorption has been studied by Zhang et al. [11]. Importantly, Predota et al. have investigated structure of the electric double layer [12,13,14], establishing the underlying structural nature of water layers [12], adsorption of ions [13], and diffusivity and viscosity properties of water layers [14]. Crucially, Predota et al. concluded that diffusivity increases farther away from the interface, increasing to values synonymous with the bulk state [14]. The effects of protonation on surface properties and characteristics have been considered by Machesky et al. [15].
We have performed classical MD to characterise strain within adsorbed water molecules at a variety of titania-water interfaces, as well as considering orientations of their dipoles relative to the normal to the surface [16]. For a wide range of titania surfaces, we have also considered hydrogen-bonding kinetics between bridging oxygen atoms and water molecules adsorbed physically [17]. For confined water molecules, we have reproduced well vibrational-spectra data with respect to INS spectra [18]. For these rather confined layers, a particularly important feature in [18] was computing of self-diffusivity within these layers. We concluded recently that spatial distribution functions (SDF), in three dimensions, of adsorbed water show there is a more open-like topography for anatase-101 relative to rutile-(110) [19], facilitating easier contact of adsorbed water with that beyond the first layer. This boosts the degree of hydrogen bonding with water molecules outside the adsorbed layer. We concluded tentatively that this may rationalise different values for mobility in water layers [19], i.e., lower mobility for rutile-110 interfaces, and rather higher for anatase-(101), providing extremes in the self-diffusivity of the adsorbed monolayer [18]. In any event, an empirical-potential model treatment of titania-water interfaces may well fail to capture the subtleties of their physico-chemical characteristics, together with hydroxylation properties [19]. To clarify this singularly important question, we performed AIMD of rutile-(110) surfaces with partial hydroxylation to determine vibrational properties of hydrogen bonds between bridging oxygen atoms and water, and of orientations of water molecules’ dipoles with respect to the surface normal, for surfaces featuring oxygen-atom vacancies, as well as pristine ones [20].
Quite apart from the interest in rutile- and anatase- water interfaces’ physico-chemical characteristics per se, there is the pertinent question of the link between these ground-state characteristics and photo-activity. Titania’s most photo-active polymorph tends to be anatase, possessing greater stability vis-à-vis rutile for nanoparticles [21]. Pan et al. have measured and assessed a wide variety of facets of titania crystals, determining that clean anatase-(101) surfaces are more photo-active than their (001) analogues, contrary to many previous findings [22]; it was also determined that anatase-(101) surfaces afford greater photo-activity than rutile-(110). Naturally, in the context of the previous discussion of DFT-based and classical- MD modelling of titania-water interfaces, this raises the tantalising question of how greater photo-activity in anatase-(101) may be rationalised with respect to rutile-(110) from the perspective of structure, hydrogen-bonding arrangements and kinetics, and also, intriguingly, in terms of ease of access of water beyond the adsorbed layer to the titania surface. Given the tentative evidence of [19] from SDF considerations of anatase-(101)’s more accessible and open architecture facilitating hydrogen bonding with water beyond the adsorbed layer, this suggests that greater levels of mobility, or self-diffusivity, in the adsorbed layer of water at the anatase-(101) surface, observed from classical MD in [18], allow for greater scope of more “promiscuous” water contact with the surface. Naturally, this would increase photo-activity and water-splitting rates [22]. However, the contention of inter-layer water “swopping”, or exchange, to allow for penetration of water molecules into the adsorbed layer in a dynamic equilibrium between layers, has not been explored in the literature to any extent, although Predota et al. have indeed studied self-diffusivity (via MD) increasing towards bulk-like values further away from the rutile-(110) surfaces [14]. In the present work, motivated by tackling these open questions of water self-diffusivity in layers for “extremes” of adsorbed-layer diffusional behaviour in anatase-(101) (higher) and rutile-(110) (low) [18], we study this in various layers, as well as exchange “events” into the adsorbed layer and outer ones, allowing conjecture as to the influence of these water-mobility characteristics, together with architecture of surfaces, on experimentally observed trends in titania-facet photo-activity.

2. Simulation Methodology

We carried out a 1 ns NVT MD simulation [23] for rutile-(110) and anatase-(101) TiO2 surfaces, using in-house code, using classical dynamics under equilibrium conditions. We applied three-dimensional Ewald treatment for non-bonded interactions with a relative precision of 10−5 (in terms of variation of the number of reciprocal-space wavevectors and the real-space contributions [23]). A Nosé-Hoover NVT ensemble was employed at 300 K, in conjunction with a Velocity-Verlet integration with a 0.33 fs timestep. Bulk liquid water was relaxed for around 200 ps using the Anderson-Hoover NPT ensemble (300 K and 1 bar pressure), prior to running for 1 ns under NVT at 300 K with mild thermostat coupling (period of 0.5 ps). The necessary number of water molecules were added to realise an appropriate bulk-like density of circa 1 g/cm3 between the titania surface and its periodically-imaged couterpart. The initial MD relaxation was performed for liquid water under NPT conditions, so as to achieve a box density corresponding to 1 bar pressure. The Matsui-Akaogi (MA) [24] model was applied for titania, whilst a flexible-SPC (FwSPC) [25] potential was used for water. Ti-Ow parameters were established using the Buckingham potential and O-Ow LJ potential (cf. Table 1) [16]. The application of these potentials has led to good accord between computed and experimental vibrational density of states, and also hydrogen-bonding characteristics on the presently-considered titania-water interfaces [18]. The MA model involves Buckingham-type interactions (see Table 1). All slabs used were free to move. The details of system size and box dimensions are specified in Table 2.
Table
Table 1. Force-field parameters. Taken from [24] (titania) and [25] (water), with titania-water interactions as described in [16].
Table 1. Force-field parameters. Taken from [24] (titania) and [25] (water), with titania-water interactions as described in [16].
Buckingham Potential for TiO2 and Water Oxygen: Aij × exp(-rij/ρij) − Cij/rij6
i–jAij (kcal·mol−1)ρij (Å)Cij (kcal·mol−1 Å6)
Ti–O391049.10.194290.331
Ti–Ti717647.40.154121.067
O–O271716.30.234696.888
Ti–Ow28593.00.265148.000
Lennard-Jones potential for water: εij[(σij/rij)1−σij/rij)6]
i–jεij (kcal·mol−1)σij (Å)
Ow–Ow0.15543.165492
Harmonic potential for water: k/2 × (rij − r0)2
i–jkij (kcal·mol−1 Å−2)R0ij (Å)
Ow–Hw1059.1621.012
Harmonic angle bending potential for water: k/2 × (θ – θ0)
i–j–kθ0 degk (kcal·mol−1 rad−2)
H–O–H113.2475.900
Atomic charges: q(Ti) = 2.196 e, q(O) = −1.098 e, q(Ow) = −0.82 e, q(Hw) = 0.41 e; Ow, Hw = water oxygen and hydrogen atoms
Table
Table 2. Simulation-box dimensions and number of particles.
Table 2. Simulation-box dimensions and number of particles.
Phase (surface) X, Y, Z (Å)System Size
Rutile (110) 26.26, 45.47, 69.490(TiO2)630 (H2O)2000
Anatase (101) 71.46, 26.43, 72.680(TiO2)1176 (H2O)3162
Surfaces (cf. Figure 1) were prepared from bulk rutile featuring lattice vectors a0 = b0 = 4.593 Å, c0 = 2.959 Å (P42/MNM) and bulk anatase [a0 = b0 = 3.776 Å and c0 = 9.486 Å (I41/AMD)]. Details of topography and construction of the surfaces are detailed elsewhere more completely [16]. The normal to the surface coincided with the z-axis. We estimated water self-diffusivity in the x-y plane (parallel to the surfaces) and z-direction (perpendicular thereto) via the mean squared displacement (MSD) over 1 ns, sampled in regions of increasing distance from the interface in 0.5 Å “bins”, taking care with length of MSD and statistical sampling level to ensure establishment of the Fickian regime in each bin [23], whilst also monitoring swopping/exchange events between layers (vide infra).
Crystals 06 00001 g001 1024

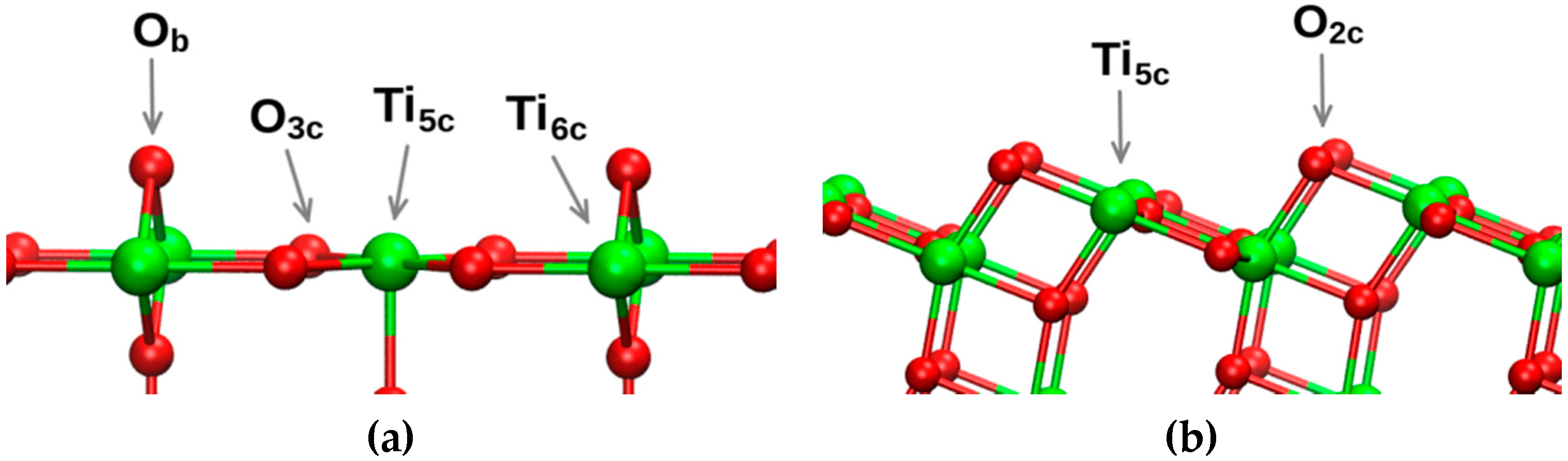

Figure 1. Structure of surfaces; laboratory z-direction is vertical. Ob stands for bridging oxygen, O3c a three-coordinated surface oxygen, Ti5c a penta-coordinated surface Ti atom, and Ti6c denotes a hexa-coordinated Ti atom. (a) rutile-110, and (b) anatase-101.
Figure 1. Structure of surfaces; laboratory z-direction is vertical. Ob stands for bridging oxygen, O3c a three-coordinated surface oxygen, Ti5c a penta-coordinated surface Ti atom, and Ti6c denotes a hexa-coordinated Ti atom. (a) rutile-110, and (b) anatase-101.
Crystals 06 00001 g001

3. Results and Discussion

The water-density “profiles”, in terms of z-axis displacement from interfaces are very similar to those reported previously in [16] (cf. Figure 2). In this case, the first minimum is at ~2.9 Å distance from the plane of “uppermost” titanium atoms in the case of both surfaces (cf. Figure 2). This minimum is the de facto “border” between the adsorbed monolayer (referred to hereinafter as “ML”) and layers further out from the surfaces, and, in both cases, uniform density is achieved within ~9 Å of the surfaces. There is a second, less distinct adsorbed layer (termed “2L”) between ~2.9 and 4.5 Å distance which is not in any direct contact with the surface at any instant, and beyond this distance, the density layers become less clear-cut as more bulk-like behaviour is achieved, with a third density layer (dubbed “3L”) partly evident between 4.5 and 6.3 Å.
Crystals 06 00001 g002 1024
Figure 2. Density profile along z-axis of water molecules from topmost layers of titanium atoms.
Figure 2. Density profile along z-axis of water molecules from topmost layers of titanium atoms.
Crystals 06 00001 g002
The self-diffusivities of each of the three labelled density layers are specified in Table 3. The self-diffusivity of bulk water was found to be ~2.8 × 10−9 m2·s−1 (or ~0.93 × 10−9 m2·s−1 in each x-, y-, z-direction given its isotropic nature), whilst the experimental bulk-water value is 2.3 × 10−9 m2·s−1 [26]. The diffusivity values in the ML exhibit a certain anisotropy due to preferential motion along the local “ridged” architecture (cf. Figure 1), and are consistent with those in [18] (determined from a Green-Kubo integral of centre-of-mass velocity autocorrelation functions [23]). In any event, they tend towards bulk-like values with increasing distance from the surfaces (cf. Table 3). Those evaluated in 0.5 Å bins along the z-direction from the surfaces also show a gradual increase to recover bulk values within ~9–10 Å, consistent with recovering a bulk-like density profile (cf. Figure 3 of [16]). Predota et al. observed this in MD simulations for water in contact with rutile-110 [14], while Mamontov et al. have studied multi-layer water absorption via neutron scattering and MD, reporting also that the self-diffusivity of water increases away from the surface [27]. The markedly low value for ML water at rutile-(110) results from the atomistic architecture of the surface (cf. Figure 1a): adsorbed molecules are confined relatively rigidly in the region between Ob atoms, in contrast to the more “terraced” anatase-101 (cf. Figure 1b). The latter surface is more accessible to water molecules and allows for greater hydrogen-bonding interactions of somewhat localised “bound” water molecules with those beyond this layer. In [19], it was found that there are essentially two hydrogen bonds with molecules outside the adsorbed layer in anatase-(101), whilst there is around one such bond per adsorbed water molecule in rutile-(110). This disparity originates from the anatase-(101) surface’s more accessible architecture. The present work confirms the tentative conclusion of [19] that this open surface structure and greater hydrogen-bond interaction and “communication” of anatase-(101) 1L water molecules with those in the second “2L” layer facilitates a greater self-diffusivity in the ML for anatase-(101), in stark contrast with the much less mobile, “ice-like” and “trapped” ML water molecules at rutile–(110). Indeed, [18] has determined these more ice-like vibrational features for ML water molecules at rutile-(110) via MD from velocity autocorrelation functions (to obtain the ML’s vibrational density of states) with inelastic neutron scattering spectra.
Table
Table 3. Self-diffusivities [×10−9 m2·s−1] (x,y,z) in adsorbed layer (ML) and second and third layers (2L & 3L, respectively) from each surface (cf. density profiles in Figure 3 of [16]. Note that the sum of the different laboratory directions gives the total self-diffusivity. That of bulk water is ~2.8 × 10−9 m2·s−1 (or ~0.93 × 10−9 m2·s−1 in x,y,z), whilst the experimental bulk-water value is 2.3 × 10−9 m2·s−1.
Table 3. Self-diffusivities [×10−9 m2·s−1] (x,y,z) in adsorbed layer (ML) and second and third layers (2L & 3L, respectively) from each surface (cf. density profiles in Figure 3 of [16]. Note that the sum of the different laboratory directions gives the total self-diffusivity. That of bulk water is ~2.8 × 10−9 m2·s−1 (or ~0.93 × 10−9 m2·s−1 in x,y,z), whilst the experimental bulk-water value is 2.3 × 10−9 m2·s−1.
SurfaceML1L2L
Rutile-(110)0.011 ± 0.002, 0.063 ± 0.007, 0.021 ± 0.004 (0.31,0.37,0.34) ± 0.03(0.58,0.60,0.66) ± 0.06
Anatase-(101)0.70 ± 0.05, 0.75 ± 0.06, 0.67 ± 0.05(0.80, 0.81, 0.76) ± 0.07(0.83,0.85,0.80) ± 0.08
We now turn to the key point of inter-layer mobility, with special focus on exchange events between the ML and 2L density layers. It was found over 1 ns runs that the probability of an exchange event was only ~0.3% from the ML molecules to transition to the 2L layer at the rutile-(110) surface, but was markedly higher at ~4.2% at anatase-(101), with a similar number of reverse exchanges. Given the greater level of hydrogen-bond interactions (essentially double) for ML with 2L water molecules at anatase-(101), this “communication”, coupled with a substantially more mobile ML layer (cf. Table 3), affords a much greater likelihood of such exchanges. It was found that there were a great deal more such events between 2L and 3L, approaching levels seen in bulk water, with less disparity between the two surfaces, as one would expect for a transition towards bulk-like diffusive behaviour (cf. Table 3).

4. Conclusions

MD has been carried out to study water self-diffusivity in quasi-distinct density layers, in contact with rutile-(110) and anatase-(101) surfaces at room temperature, via computation of MSD. Water diffusivity was substantially higher within the anatase-(101) ML, coupled with increasing the level of dynamical inter-layer (ML-1L) exchange and mobility of the various layers. An interesting hypothesis would be that this enhanced ease of access of water to the anatase-(101) surface helps to rationalise experimental observations of its comparatively greater photo-activity in relation to rutile-(110) [22,23], given the greater probability of access of water to the titania surface, allowing greater interaction possibilities with photo-excited holes at the surface. However, it must be noted that this conjecture is somewhat tentative at this stage.
At 300 K, there may well be an appreciable extent of chemically adsorbed water at both surfaces. Naturally, this would serve to change the flavor of anisotropy in water-water structuring relative to physical adsorption studied via classical MD, as in the present work. In any event, even accepting the distinct likelihood of some level of water chemical adsorption, this present work offers useful semi-quantitative insights into water diffusive behaviour. Employing “reactive” models [28] to study these further open questions in the future is to be considered and recommended, given their propensity to handle the complex tapestry of physico-chemical quirks of these surfaces’ topographies more accurately.

Acknowledgements

The author thanks Science Foundation Ireland for funding under grant SFI 15/ERC-I3142.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  2. Haller, G.L.; Resasco, D.E. Metal–support interaction: Group VIII metals and reducible oxides. Adv. Catal. 1989, 36, 173–235. [Google Scholar]
  3. Diebold, U. The surface science of titanium dioxide. Surf. Sci. Rep. 2003, 48, 53–229. [Google Scholar] [CrossRef]
  4. Henderson, M.A. The interaction of water with solid surfaces: Fundamental aspects revisitied. Surf. Sci. Rep. 2002, 46, 1–308. [Google Scholar] [CrossRef]
  5. Sun, C.; Lui, L.-M.; Selloni, A.; Lu, G.Q.; Smith, S.C. Titania-water interactions: A review of theoretical studies. J. Mater. Chem. 2010, 20, 10319–10334. [Google Scholar] [CrossRef]
  6. Levchenko, A.A.; Kolesnikov, A.I.; Ross, N.L.; Boerio-Goates, J.; Woodfield, B.F.; Li, G.; Navrotsky, A. Dynamics of Water Confined on a TiO2 (Anatase) Surf. J. Phys. Chem. A 2007, 111, 12584–12588. [Google Scholar] [CrossRef] [PubMed]
  7. Spencer, E.C.; Levchenko, A.A.; Ross, N.L.; Kolesnikov, A.I.; Boerio-Goates, J.; Woodfield, B.F.; Navrotsky, A.; Li, G. Inelastic Neutron Scattering Study of Confined Surface Water on Rutile Nanoparticles. J. Phys. Chem. A 2009, 113, 2796–2800. [Google Scholar] [CrossRef] [PubMed]
  8. Mattioli, G.; Filippone, F.; Caminiti, R.; Bonapasta, A.A. Short Hydrogen Bonds at the Water/TiO2 (Anatase) Interface. J. Phys. Chem. C 2008, 112, 13579–13586. [Google Scholar] [CrossRef]
  9. Kumar, N.; Neogi, S.; Kent, P.R.C.; Bandura, A.V.; Kubicki, J.D.; Wesolowski, D.J.; Cole, D.; Sofo, J.O. Hydrogen Bonds and Vibrations of Water on (110) Rutile. J. Phys. Chem. C 2009, 113, 13732–13740. [Google Scholar] [CrossRef]
  10. Russo, D.; Teixeira, J.; Kneller, L.; Copley, J.R. D.; Ollivier, J.; Perticaroli, S.; Pellegrini, E.; Gonzalez, M.A. Vibrational Density of States of Hydration Water at Biomolecular Sites: Hydrophobicity Promotes Low Density Amorphous Ice Behavior. J. Am. Chem. Soc. 2011, 133, 4882–4888. [Google Scholar] [CrossRef] [PubMed]
  11. Zhang, Z.; Fenter, P.; Cheng, L.; Sturchio, N.C.; Bedzyk, M.J.; Předota, M.; Bandura, A.; Kubicki, J.D.; Lvov, S.N.; Cummings, P.T.; et al. Ion Adsorption at the Rutile−Water Interface:  Linking Molecular and Macroscopic Properties. Langmuir 2004, 20, 4954–4969. [Google Scholar] [CrossRef] [PubMed]
  12. Predota, M.; Bandura, A.V.; Cummings, P.T.; Kubicki, J.D.; Wesolowski, D.J.; Chialvo, A.A.; Machesky, M.L. Electric Double Layer at the Rutile (110) Surface. 1. Structure of Surfaces and Interfacial Water from Molecular Dynamics by Use of ab Initio Potentials. J. Phys. Chem. B 2004, 108, 12049–12060. [Google Scholar]
  13. Predota, M.; Cummings, P.T.; Zhang, Z.; Fenter, P.; Wesolowski, D.J. Electric Double Layer at the Rutile (110) Surface. 2. Adsorption of Ions from Molecular Dynamics and X-ray Experiments. J. Phys. Chem. B 2004, 108, 12061–12072. [Google Scholar] [CrossRef]
  14. Predota, M.; Cummings, P.T.; Wesolowski, D.J. Electric Double Layer at the Rutile (110) Surface. 3. Inhomogeneous Viscosity and Diffusivity Measurement by Computer Simulations. J. Phys. Chem. C 2007, 111, 3071–3079. [Google Scholar] [CrossRef]
  15. Machesky, M.L.; Predota, M.; Wesolowski, D.J.; Vlcek, L.; Cummings, P.T.; Rosenqvist, J.; Ridley, M.K.; Kubicki, J.D.; Bandura, A.V.; Kumar, N.; et al. Surface Protonation at the Rutile (110) Interface: Explicit Incorporation of Solvation Structure within the Refined MUSIC Model Framework. Langmuir 2008, 24, 12331–12339. [Google Scholar] [CrossRef] [PubMed]
  16. Kavathekar, R.; Dev, P.; English, N.J.; MacElroy, J.M.D. Molecular dynamics study of water in contact with the TiO2 rutile-110, 100, 101, 001 and anatase-101, 001 surface. Mol. Phys. 2011, 109, 1649–1656. [Google Scholar] [CrossRef]
  17. English, N.J.; Kavathekar, R.; MacElroy, J.M.D. Hydrogen-bond dynamical properties of adsorbed liquid water monolayers with various TiO2 interfaces. Mol. Phys. 2012, 110, 2919–2925. [Google Scholar] [CrossRef]
  18. Kavathekar, R.S.; English, N.J.; MacElroy, J.M.D. Study of translational, librational and intra-molecular motion of adsorbed liquid water monolayers at various TiO2 interfaces. Mol Phys. 2011, 109, 2645–2654. [Google Scholar] [CrossRef]
  19. Kavathekar, R.; English, N.J.; MacElroy, J.M.D. Spatial distribution of water monolayers at the TiO2 rutile- and anatase-titania interfaces. Chem. Phys. Lett. 2012, 554, 102–106. [Google Scholar] [CrossRef]
  20. English, N.J. Dynamical properties of physically adsorbed water molecules at the TiO2 rutile-(110) surface. Chem. Phys. Lett. 2013, 583, 125–130. [Google Scholar] [CrossRef]
  21. Barnard, A.S.; Curtiss, L.A. Prediction of TiO2 Nanoparticle Phase and Shape Transitions Controlled by Surface Chemistry. Nano Lett. 2005, 5, 1261–1266. [Google Scholar] [CrossRef] [PubMed]
  22. Pan, J.; Liu, G.; Lu, G.Q.; Cheng, H.-M. On the True Photoreactivity Order of {001}, {010}, and {101} Facets of Anatase TiO2 Crystals. Angew. Chem. Int. Ed. 2011, 50, 2133–2137. [Google Scholar] [CrossRef] [PubMed]
  23. Allen, M.P.; Tildesley, D.J. Computer Simulation of Liquids; Oxford University Press: Oxford, UK, 1987. [Google Scholar]
  24. Matsui, M.; Akaogi, M. Molecular dynamics simulations of the structural and physical properties of the four polymorphs of TiO2. Mol. Simul. 1991, 6, 239–244. [Google Scholar] [CrossRef]
  25. Wu, Y.; Tepper, H.L.; Voth, G.A. Flexible simple point-charge water model with improved liquid-state properties. J. Chem. Phys. 2006, 124, 024503. [Google Scholar] [CrossRef] [PubMed]
  26. Lamanna, R.; Delmelle, M.; Cannistraro, S. Role of hydrogen-bond cooperativity and free-volume fluctuations in the non-Arrhenius behavior of water self-diffusion: A continuity-of-states model. Phys. Rev. E 1994, 49, 2841–2850. [Google Scholar] [CrossRef]
  27. Mamontov, E.; Vlcek, L.; Wesolowski, D.J.; Cummings, P.T.; Wang, W.; Anovitz, L.M.; Rosenqvist, J.; Brown, C.M.; Sakai, V.G. Dynamics and Structure of Hydration Water on Rutile and Cassiterite Nanopowders Studied by Quasielastic Neutron Scattering and Molecular Dynamics Simulations. J. Phys. Chem. C 2007, 111, 4328–4341. [Google Scholar] [CrossRef]
  28. Raju, M.; Kim, S.-Y.; van Duin, A.C.T.; Fichthorn, K.A. ReaxFF Reactive Force Field Study of the Dissociation of Water on Titania Surfaces. J. Phys. Chem. C 2013, 117, 10558–10572. [Google Scholar] [CrossRef]
