(C5H12N)Cu2Br3: A Piperidinium Copper(I) Bromide with [Cu2Br3] Ladders

Department of Chemistry and Biochemistry, Universität Bern, Freiestrasse 3, CH-3012 Bern, Switzerland
Institute of Microtechnology, CSEM, Rue Jaquet-Droz 1, CH-2002 Neuchâtel, Switzerland
Author to whom correspondence should be addressed.
Crystals 2012, 2(4), 1434-1440;
Submission received: 10 August 2012 / Revised: 3 September 2012 / Accepted: 18 September 2012 / Published: 16 October 2012


Piperidinium copper(I) bromide, (C5H12N)Cu2Br3, was obtained from a solution of CuBr2, piperidine, and HBr in ethanol. At 60 °C ethanol slowly reduces copper(II) to copper(I). Colorless plates of (C5H12N)Cu2Br3 crystallize in the triclinic space group P-1 with lattice parameters of a = 6.2948(10) Å, b = 8.2624(14) Å, c = 10.7612(17) Å, α = 75.964(19)°, β = 89.232(19)°, γ = 84.072(19)°, and Z = 2 at 173 K. [CuBr4] tetrahedra share edges and form [Cu2Br3] ladders parallel to the a-axis. (C5H12N)+ ions adopt a chair conformation and connect the [Cu2Br3] ladders via H-bonding. The (C5H12N)Cu2Br3 structure is related to the mineral rasvumite, KFe2S3, space group Cmcm, which is isostructural to several alkali copper(I) halides.

1. Introduction

Piperidinium copper(I) bromide, (C5H12N)Cu2Br3, abbreviated as (HPip)Cu2Br3, has an interesting structure composed of [Cu2Br3] ladders and (C5H12N)+ cations. The structural motif of ladders built from edge-sharing tetrahedra is known from alkali copper and silver halides, e.g., CsCu2Cl3, CsCu2Br3 [1], CsCu2I3 [2], CsAg2I3 [3], also from chalcogenides, e.g., the mineral rasvumite, KFe2S3 [4]. Compared to those orthorhombic compounds the symmetry of (HPip)Cu2Br3 is strongly reduced due to the bulky (HPip)+ cations.
(HPip)Cu2Br3 was obtained during crystal growth experiments for (HPip)2CuBr4. Cu(II) compounds attract a lot of interest in solid state physics as quantum magnets. In compounds like SrCu2(BO3)2 [5] and TlCuCl3 [6] Cu2+ ions form dimers which are further linked to layers or ladders, respectively. An antiferromagnetic intra-dimer coupling results in a vanishing magnetic susceptibility at low temperatures. The reduced lattice dimensionality and weak inter-dimer interactions prevent three-dimensional magnetic order. But an external magnetic field can induce a quantum phase transition leading to exotic states of matter, e.g., a Luttinger liquid. For (HPip)2CuBr4 all quantum phases of a spin ladder were experimentally accessible for the first time and were investigated by inelastic neutron scattering on single crystals [7,8]. A prerequisite for the crystal growth of (HPip)2CuBr4 was an investigation of the HPipBr–CuBr2–ethanol system. (HPip)2CuBr4 [9] was known in literature. As the isostructural chloride [10], it contains isolated [CuX4]2− tetrahedra. Also (HPip)CuCl3 is known with [CuCl4/2Cl] chains [11]. To our knowledge, no further structural data on piperidinium copper halides are published. Here we report on the synthesis and crystal structure of the new copper(I) halide (HPip)Cu2Br3.

2. Results and Discussion

(HPip)Cu2Br3 was synthesized from a solution of CuBr2 and HPipBr in ethanol. The slow reduction of Cu(II) to Cu(I) by ethanol at 60 °C offers a convenient method to obtain crystals of the rather insoluble (HPip)Cu2Br3. A direct synthesis from HPipBr and CuBr appears less facile. The low solubility of CuBr in ethanol hampers the reaction and prohibits the formation of sizeable crystals.
The crystal structure of (HPip)Cu2Br3 was determined by single crystal X-ray diffraction. The lattice parameters and experimental conditions are summarized in Table 1. The atomic positions are shown in Table 2 and selected distances and angles in Table 3. The structure has two Cu sites which are both tetrahedrally coordinated by Br ions, see Figure 1. The Cu+ ions form a ladder centered at [x, 0.5, 0] with Cu–Cu distances of 2.889(2) Å and 2.903(2) Å along the rungs and longer distances of 3.015(2) Å and 3.283(2) Å along the legs. Br1 coordinates four Cu(I) ions alternatively in front and behind the ladder with longer Cu–Br distances between 2.53 Å and 2.58 Å. Br2 and Br3 are located at the side of the ladder. They coordinate only two Cu(I) ions at shorter distances around 2.41 Å. Accordingly, the Br2–Cu–Br3 angles of 124.8° are significantly wider than the other angles within the [CuBr4] tetrahedra. The [Cu2Br3] ladder of (HPip)Cu2Br3, which also may be seen as a double chain of edge-sharing tetrahedra, is comparable to that of CsCu2Br3 [1]. The Cs compound crystallizes in space group Cmcm and is therefore less distorted than the HPip one. The sequence of the Cu–Cu rung and leg distances of 3.094 Å and 2.909 Å, respectively, is inverted for CsCu2Br3. The Cu–Br distances of 2.425 Å and 2.587 Å are very similar, given that the structure of the Cs compound was determined at 298 K vs. that of the HPip one at 173 K. The widest Br–Cu–Br tetrahedral angle of 116.9° is significantly smaller than the respective Br2–Cu–Br3 angle of 124.8°.
Table 1. Crystal data, data collection, and refinement details at 173 K.
Table 1. Crystal data, data collection, and refinement details at 173 K.
Formula weight452.97 g/mol
Space group, ZP-1 (no. 2), 2
Lattice parameters a = 6.2948(10) Å
b = 8.2624(14) Å
c = 10.7612(17) Å
α = 75.964(19)°
β = 89.232(19)°
γ = 84.072(19)°
V540.04(15) Å3
ρxray2.786 g/cm3
Crystal size0.45 × 0.15 × 0.1 mm3
MoKα radiation, λ0.71073 Å
Absorption coefficient14.978 mm−1
Angle range1.95° < θ < 25.96°
Index ranges−7 ≤ h ≤ 7
−10 ≤ k ≤ 10
−13 ≤ l ≤ 13
Reflections measured4244
Independent reflections, Rint1967, 0.0687
No. of parameters101
Transmission, max., min.0.566, 0.102
R1[F2 > 2σ(F2)]0.0534
e-density, min., max.−1.679, 1.552 e/Å3
Extinction coefficient0.0042(13)
Deposition no.CCDC 873300
Table 2. Atomic coordinates and displacement factors Ueq/pm2.
Table 2. Atomic coordinates and displacement factors Ueq/pm2.
Atomx/ay/bz/cUeq a
a The anisotropic Uij are available from [12].
Table 3. Atomic distances/Å and angles/° at 173 K.
Table 3. Atomic distances/Å and angles/° at 173 K.
Atoms Atoms
Cu1–Cu1 (rung)2.889(2)Cu2–Cu2 (rung)2.903(2)
Cu1–Cu2 (leg)3.015(2)Cu1–Cu2 (leg)3.283(2)

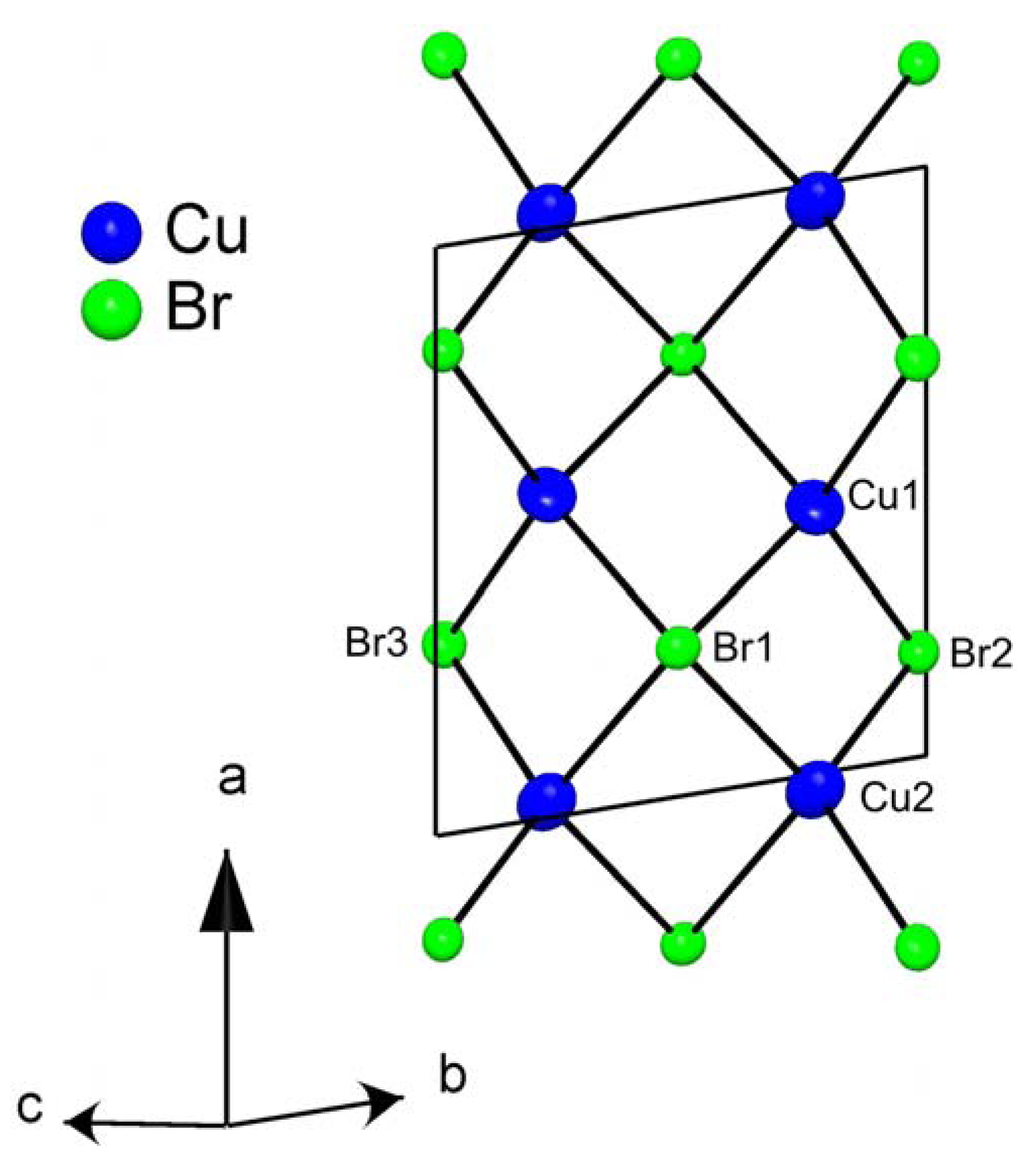

Figure 1. View onto a [Cu2Br3] ladder of (HPip)Cu2Br3 centered at [x, 0.5, 0]. The atoms are labeled according to Table 2.
Figure 1. View onto a [Cu2Br3] ladder of (HPip)Cu2Br3 centered at [x, 0.5, 0]. The atoms are labeled according to Table 2.
Crystals 02 01434 g001
The piperidinium ions in (HPip)Cu2Br3 have a chair conformation, see Figure 2. Their geometry is close to that in (HPip)2CuBr4 [9] and the respective chlorides [10,11]. They connect the ladders via H-bonding, see Figure 3. The shortest distances of 3.384(6) Å and 3.370(7) Å are observed between N1 and Br2 and Br3, respectively, followed by C–Br distances in the range of 3.67 Å to 4 Å. Each [Cu2Br3] ladder is surrounded by six stacks of HPip+ ions. Compared to CsCu2Br3, the bulky HPip+ ions widen the structure and reduce the symmetry from Cmcm to P-1.

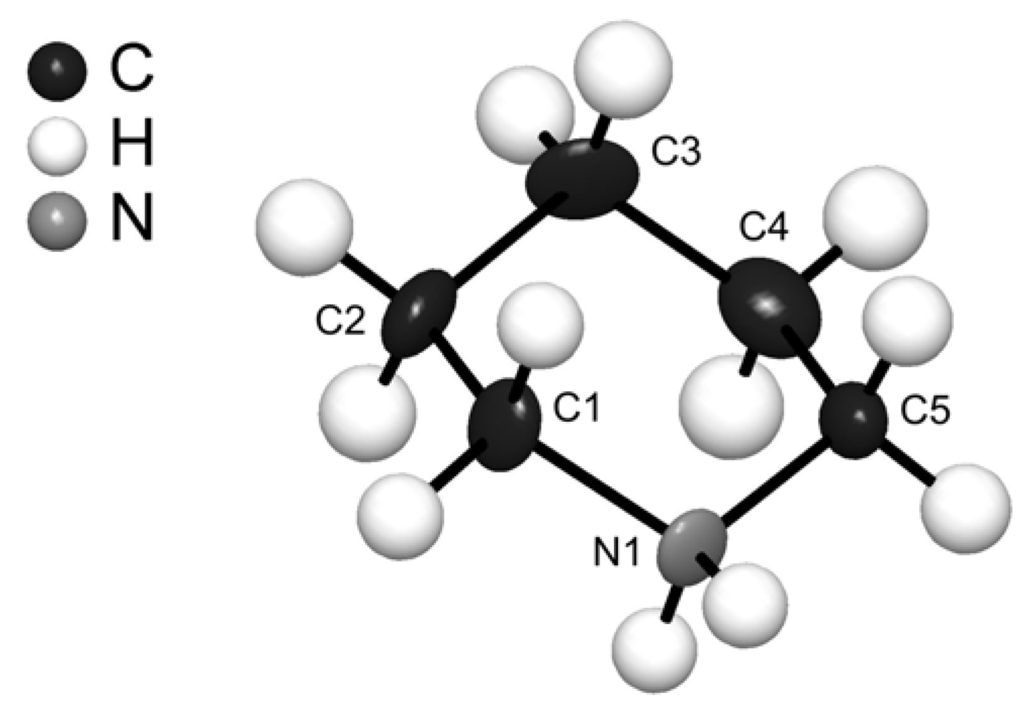

Figure 2. View onto a piperidinium ion of (HPip)Cu2Br3 in chair conformation. The atoms are labeled according to Table 2.
Figure 2. View onto a piperidinium ion of (HPip)Cu2Br3 in chair conformation. The atoms are labeled according to Table 2.
Crystals 02 01434 g002

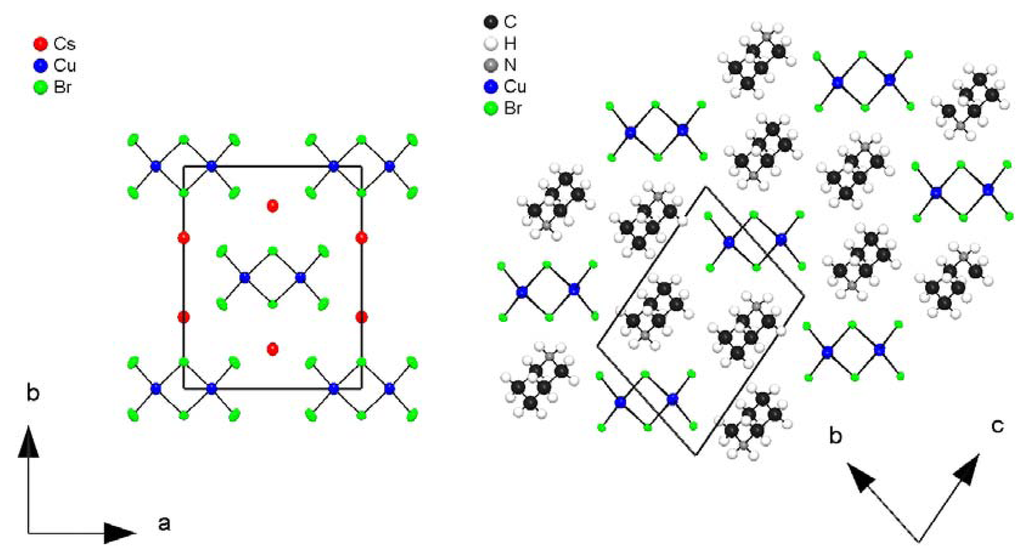

Figure 3. View along the [Cu2Br3] ladders of CsCu2Br3 (left) and (HPip)Cu2Br3 (right).
Figure 3. View along the [Cu2Br3] ladders of CsCu2Br3 (left) and (HPip)Cu2Br3 (right).
Crystals 02 01434 g003

3. Experimental Section

(HPip)Cu2Br3 was obtained from a solution of CuBr2 and HPipBr in absolute ethanol. CuBr2 (99,999%, Aldrich) is very soluble in ethanol with a deep violet color. The HPipBr solution was prepared by adding a slight excess of aqueous HBr (47%, suprapur, Merck) to a solution of piperidine (≥ 99% p.a., Sigma-Aldrich) in ethanol. The concentrated solutions with a HPip to Cu ratio of 2:1 were sealed in a flask under argon and heated to 50–60 °C. The slow reduction of Cu(II) to Cu(I) by ethanol resulted after several days in the growth of big, colorless, plate-like crystals of (HPip)Cu2Br3. They were separated from the solution and dried in vacuum. (HPip)Cu2Br3 is rather insoluble in ethanol. Under dry conditions (HPip)Cu2Br3 crystals are stable. In contact with ethanol or water the crystals are oxidized by air.
A suitable single crystal of (HPip)Cu2Br3 was selected for X-ray structure determination and mounted in a 0.3 mm capillary. Data were collected on a STOE IPDS diffractometer [13] at 173 K using graphite monochromated Mo-Kα radiation (λ = 0.71073 Å). The structure was solved by direct methods using the program SHELXS-97 [14] and refined by full matrix least squares on F2 with SHELXL-97 [15]. All hydrogen atoms were included at calculated positions (d(C–H) = 97 pm) and treated as riding atoms using SHELXL-97 default parameters. An empirical absorption correction was applied using DELrefABS (PLATON [16]). The results of the structure determination as well as selected atomic distances and angles are summarized in Table 1, Table 2 and Table 3. Further details may be obtained from the Cambridge structure database under reference CCDC 873300 [12].

4. Conclusions

The reduction of Cu(II) halides by ethanol provides a convenient way for the synthesis of the respective Cu(I) compounds. The structure of (HPip)Cu2Br3 resembles those of the alkali homologues AM2X3, but its symmetry is lower due to the bulky HPip+ ions. The [Cu2Br3] ladders, which also may be seen as double chains of edge-sharing tetrahedra, occur as a remarkably stable structural feature.


The financial support by the Swiss National Science Foundation is gratefully acknowledged.

Conflict of Interest

The authors declare no conflict of interest.

References and Notes

  1. Meyer, G. Synproportionierung am metallischen Substrat: CsCu2Cl3 und CsCu2Br3. Z. Anorg. Allg. Chem. 1984, 515, 127–132. [Google Scholar] [CrossRef]
  2. Jouini, N.; Guen, L.; Tournoux, M. Structure cristalline de CsCu2I3. Rev. Chim. Mineral. 1980, 17, 486–491. [Google Scholar]
  3. Hull, S.; Berastegui, P. Crystal structures and ionic conductivities of ternary derivatives of the silver and copper monohalides—II: Ordered phases within the (AgX)x − (MX)1−x and (CuX)x − (MX)1−x (M = K, Rb and Cs; X = Cl, Br and I) systems. J. Solid State Chem. 2004, 177, 3156–3173. [Google Scholar] [CrossRef]
  4. Clark, J.R.; Brown, G.E. Crystal structure of rasvumite, KFe2S3. Am. Mineral. 1980, 65, 477–482. [Google Scholar]
  5. Kageyama, H.; Nishi, M.; Aso, N.; Onizuka, K.; Yosihama, T.; Nukui, K.; Kodama, K.; Kakurai, K.; Ueda, Y. Direct evidence for the localized single-triplet excitations and the dispersive multitriplet excitations in SrCu2(BO3)2. Phys. Rev. Lett. 2000, 84, 5876–5879. [Google Scholar]
  6. Rüegg, C.; Cavadini, N.; Furrer, A.; Güdel, H.U.; Krämer, K.W.; Mutka, H.; Wildes, A.; Habicht, K.; Vorderwisch, P. Bose-Einstein condensation of the triplet states in the magnetic insulator TlCuCl3. Nature 2003, 423, 62–65. [Google Scholar] [CrossRef]
  7. Rüegg, C.; Kiefer, K.; Thielemann, B.; McMorrow, D.F.; Zapf, V.; Normand, B.; Zvonarev, M.B.; Bouillot, P.; Kollath, C.; Giamarchi, T.; et al. Thermodynamics of the spin luttinger liquid in a model ladder material. Phys. Rev. Lett. 2008, 101. [Google Scholar]
  8. Thielemann, B.; Rüegg, C.; Rønnow, H.M.; Läuchli, A.M.; Caux, S.; Normand, B.; Biner, D.; Krämer, K.W.; Güdel, H.U.; Stahn, J.; et al. Direct observation of magnon fractionalization in the quantum spin ladder. Phys. Rev. Lett. 2009, 102. [Google Scholar]
  9. Patyal, B.R.; Scott, B.L.; Willett, R.D. Crystal-Structure, magnetic-susceptibility, and EPR studies of bis(piperidinium)tetrabromocuprate(II): A novel monomer system showing spin diffusion. Phys. Rev. B 1990, 41, 1657–1663. [Google Scholar]
  10. Fernandez, V.; Moran, M.; Gutierrez-Rios, M.T.; Foces-Foces, C.; Cano, F.H. EPR and X-ray structural study of some tetrahalocuprates CuX42− (X = Cl, Br) of protonated ammines with thermochromic properties. Inorg. Chim. Acta 1987, 128, 239–243. [Google Scholar] [CrossRef]
  11. Battaglia, L.P.; Corradi, A.B.; Geiser, U.; Willett, R.D.; Motori, A.; Sandrolini, F.; Antolini, L.; Manfredini, T.; Menabue, L.; Pellacani, G.C. The crystal structures, magnetic and electrical properties of two polymeric chlorocuprate(II) compounds. J. Chem. Soc. Dalton Trans. 1988, 265–271. [Google Scholar]
  12. A .cif file with the crystallographic data of (C5H12N)Cu2Br3 can be obtained from the Cambridge structure database at under reference number CCDC 873300.
  13. Stoe & Cie, X-Area V1.17 & X-RED32 V1.04 Software; Stoe & Cie GmbH: Darmstadt, Germany, 2002.
  14. Sheldrick, G.M. Phase annealing in SHELX-90: Direct methods for larger structures. Acta Cryst. A 1990, 46, 467–473. [Google Scholar] [CrossRef]
  15. Sheldrick, G.M. SHELXL-97, Program for Crystal Structure Refinement; University of Göttingen: Gottingen, Germany, 1997. [Google Scholar]
  16. Spek, A.L. Single-Crystal structure validation with the program PLATON. J. Appl. Cryst. 2003, 36, 7–13. [Google Scholar] [CrossRef]
