Boron-Based Compounds for Solid-State Hydrogen Storage: A Review

Abstract

Due to the depletion of hydrocarbon resources worldwide, intensive research is being conducted to identify alternative energy carriers. Hydrogen has emerged as a promising candidate due to its high energy density and environmentally friendly nature. However, large-scale implementation of hydrogen energy is hindered by the lack of safe, efficient, and cost-effective storage methods. Among the various materials studied for solid-state hydrogen storage, boron nitride (BN)-based compounds have attracted significant attention owing to their high thermal stability, tunable morphology, and potential for physisorption-based storage. This review focuses on recent advances in the synthesis, functionalization, and structural optimization of BN-based materials, including nanotubes, nanosheets, porous frameworks, and chemically modified BN. Although other boron-containing hydrides such as LiBH₄, Mg(BH₄)₂, and closo-borates are briefly mentioned for comparison, the primary emphasis is placed on BN-related systems. This paper discusses various modification strategies aimed at enhancing hydrogen uptake and reversibility, offering insights into the future potential of BN-based materials in hydrogen storage technologies.

1. Introduction

The world faces urgent problems related to preserving resources, producing energy efficiently, improving transportation, and ensuring long-term storage solutions. These challenges are exacerbated by environmental problems, particularly the increased release of carbon dioxide and other harmful gases, which are intensifying human impact on the climate [1,2].

As the world moves towards cleaner energy sources (decarbonization), scientific research is heavily focused on creating innovative, energy-efficient, and environmentally friendly technologies for the entire energy lifecycle, from production to consumption. Hydrogen is gaining significant attention as a potential energy carrier due to its high energy content, clean-burning properties, and diverse production methods [3].

Hydrogen, a pure and non-toxic element, can be produced from various sources like fossil fuels, biomass, and water, making it adaptable to different technologies. However, challenges remain, especially in ensuring the reliability, efficiency, and safety of hydrogen storage and transportation. Therefore, considerable research is dedicated to developing new materials and designs that can effectively store hydrogen under realistic operating conditions [4].

Current hydrogen storage methods involve compressing it, liquefying it, or binding it to solid materials like carbon nanomaterials, boron and nitrogen compounds, metal–organic frameworks (MOFs), and covalent organic frameworks (COFs). Using these nanostructured materials, especially those enhanced with lithium, offers promising possibilities for developing compact, safe, and energy-efficient hydrogen storage systems [5,6,7].

In conclusion, hydrogen is a crucial element in the global shift towards sustainable energy. Continued research and development are essential to improve hydrogen storage technologies, transportation methods, and their integration into existing energy systems (

Table 1. Hydrogen storage methods [7].

	Storage Method	Advantages	Disadvantages
Physical methods	Compressed gaseous hydrogen (300 K, ≤200 bar) stationary storage systems and underground repositories; glass microspheres and capillaries	Mature and accessible technology, relatively low cost	Low volumetric capacity (~7.7 kg/m3 at 100 bar). High-pressure storage (up to 700 bar) remains underdeveloped.
	Liquid hydrogen (20.4 K)	High density (71 kg/m3)	High energy costs for liquefaction, hydrogen loss due to evaporation, need for superinsulation, high cost.
Storing hydrogen in its physical form, either as a liquefied gas at cryogenic temperatures or as a compressed gas under high pressure, allows for large volumes to be stored. However, this requires specialized equipment capable of withstanding extreme conditions, such as pressures of hundreds of megapascals and temperatures below the temperature of liquid nitrogen. Although technically feasible, these storage methods often prove to be disadvantageous in terms of cost, ease of use, and safety. Liquid hydrogen is stable only in a narrow temperature range between its boiling point (20 K) and freezing point (17 K). As the temperature rises above the boiling point, it rapidly evaporates and becomes a gas. Although the strength and material requirements for cryogenic liquid hydrogen tanks are less stringent than for pressure vessels used to store gaseous hydrogen, the gravimetric density of storage in liquid form is higher. However, the maximum bulk density is limited by the intrinsic density of liquid hydrogen, which is 70.8 kg/m3.
Adsorption Methods	Cryoadsorption (activated carbon, 155 K)	Simple and well-developed technology	Low volumetric capacity (0.5–20 kg/m3). Requires cooling and compression.
	Zeolites, MOFs	Low cost, scalable production, reusability, low losses (0.1%)	Low hydrogen capacity (Zeolites: ~0.3 wt.% at RT, 1.8 wt.% at 77 K; MOFs: 1 wt.% at RT, 4.5 wt.% at 70 K)
	Carbon nanostructures (nanotubes, fullerenes)	Technologies in the future can provide high Potential for high storage density (30–100 kg/m3)	Unreliable production methods, inconsistent hydrogen retention results.
Hydrogen storage systems that use physical sorption have high storage capacity for their size and weight at low pressures, are affordable, and are easy to build. Nonetheless, notable limitations exist, such as a low hydrogen capacity—spanning from 1 to 4.5 wt.%—and reduced sorption temperatures, which are generally at the temperature of liquid nitrogen. A common problem with how hydrogen is stored in various materials like metal–organic frameworks, zeolites, and carbon is that the energy holding hydrogen to the surface is not strong enough to allow for good storage at temperatures higher than that of liquid nitrogen.
Chemical Methods	Metal hydrides, intermetallics, composites	Safe solid-state storage, well-developed technologies	Limited capacity (≤1.5 wt.%), heating required, degradation over time, high cost.
	Irreversible hydrides (AlH3, NH3, methanol) water-reactive (AlH3, Fe, Al, Si, water-regulating alloys based on aluminum and silicon, NH3, methanol, ethanol, etc.)	High volumetric density (~100 kg/m3)	Difficult to reuse storage media.
It is evident that the metal hydride method can successfully compete with conventional hydrogen storage methods in terms of compactness, but it is inferior to them in gravimetric performance. The hydrogen content by mass is significantly higher for high-temperature hydrides of light elements.

) [7].

Each existing hydrogen storage method has specific advantages and limitations, which are influenced by both technical parameters (e.g., energy density, reversibility) and economic considerations in the target application. Among these, metal and complex hydrides stand out as promising candidates for hydrogen storage and transport due to their favorable safety profile, high volumetric density, and tunable thermodynamic properties [8].

Recent publications have extensively surveyed the field of hydrogen storage technologies, each emphasizing different materials or methodologies. For example, Usman and colleagues (2022) presented a comprehensive overview of hydrogen storage techniques, encompassing gaseous, liquid, and solid-state options. Their study underscores the fundamental difference between physical storage (compressed gas and cryogenic liquid) and material-dependent storage approaches like metal hydrides, physisorption materials, and chemical hydrogen carriers. The researchers highlighted that hydrogen can be stored through diverse physical and chemical processes, summarizing the pros and cons of each, especially regarding energy efficiency, safety considerations, and system complexity. However, their analysis omitted any discussion of boron nitride (BN) or hexagonal boron nitride (h-BN) materials [9].

Conversely, Scarpati et al. [10] specifically investigated metal hydrides for use in mobile systems, particularly fuel cell vehicles. Their review offers a thorough comparison of the most relevant metal hydrides, including their typical reversible hydrogen storage capacities (ranging from 1.3% to 1.85% by weight) and volumetric densities (approximately 90 g/L), along with reaction enthalpies spanning 25–35 kJ/mol H₂. The authors emphasized the potential of metal hydrides for specialized transportation uses but acknowledged ongoing challenges related to weight, reaction kinetics, and stability over repeated cycles. Boron-containing or h-BN-based materials were not considered in this study.

Mahmoud et al. [11] analyzed porous carbon materials—such as graphene, activated carbons, and carbon nanotubes—for hydrogen storage based on physical adsorption principles. Their review examines how key material properties, including surface area, pore size distribution, and surface chemistry, influence hydrogen uptake under moderate pressure. The authors outlined several strategies, such as introducing heteroatoms and using nanostructuring, to improve both storage capacity and kinetics. Nevertheless, h-BN and other boron nitride-based systems were not included in their scope.

Similarly, Elyasi et al. [12] concentrated on nanoporous carbons derived from biomass for solid-state hydrogen storage. They highlighted the importance of pore structure and surface chemistry in optimizing hydrogen adsorption and desorption. Notably, the review mentions that incorporating heteroatoms—like boron, nitrogen, and sulfur—can enhance hydrogen interactions with carbon surfaces. While BN nanotubes are briefly mentioned regarding enhanced binding energies, the main focus remains on carbonaceous materials and their modifications.

Soni et al. provided a critical assessment of carbon-based materials for hydrogen storage, covering activated carbon, carbon aerogels, graphene, graphite, fullerenes, carbon nanotubes, and MXenes. The review emphasizes recent engineering techniques aimed at increasing hydrogen uptake, such as tailoring pore size and functionalization. The authors underlined that, despite notable advancements, current carbon materials still do not meet practical requirements. BN or h-BN materials were not considered in their work [13].

Finally, Sutton et al. presented an in-depth analysis of metal–organic frameworks (MOFs) for hydrogen storage at or near room temperature. The review explores the limitations of typical MOF-H₂ interactions (heat of adsorption around 4–7 kJ/mol) and suggests methods to improve binding energy using open metal sites, alkali metal doping, and hydrogen spillover mechanisms. While the study offers detailed comparisons of MOF performance and modification strategies, it does not address boron-containing or BN-based materials [14].

This review focuses on the potential of boron-containing materials, especially nanostructured boron nitride, as effective media for hydrogen adsorption, storage, and release. We provide a systematic analysis of recent experimental and theoretical studies, highlight key morphological modifications (e.g., doping, functionalization, porosity), and compare the performance of h-BN with other emerging storage materials. To the best of our knowledge, no recent review has comprehensively addressed the integration of various h-BN morphologies for hydrogen storage. Therefore, this work aims to fill that gap and contribute to the growing body of knowledge on boron-based hydrogen storage systems.

2. Key Properties of BN-Based Materials for Hydrogen Storage

BN-based materials, especially in nanostructured form (nanotubes, nanosheets, porous frameworks), are promising candidates for hydrogen storage due to their high-temperature and chemical stability, low density, high specific surface area (up to 1500 m²/g), and the ability to control porosity and surface chemistry through doping and functionalization. These properties allow BN materials to efficiently adsorb hydrogen at cryogenic temperatures (up to 2.6 wt.% at 77 K and 1 bar), while providing safe operation due to a wide band gap (~5.5 eV) and electrical insulation. In contrast to metal hydrides, which require high temperatures and have low reversibility, and carbon materials with limited capacity, BN provides an optimal balance between stability, safety, and the potential for improved hydrogen storage efficiency.

In the early 21st century, boron nitride (BN) attracted much attention as a promising hydrogen storage material. This is due to its outstanding physicochemical properties, such as high thermal and chemical stability, low density, developed porosity, and unique electronic properties. In 2002, Wang et al. [15] synthesized nanostructured hexagonal BN (h-BN) by mechanochemical milling in a hydrogen atmosphere. The resulting material demonstrated hydrogen absorption at a level of 2.6 wt.%, which is approximately 35% higher than that of nanostructured graphite, which was previously considered a reference adsorbent. Hydrogen desorption was observed at about 570 K and nitrogen desorption at about 700 K. No signs of recrystallization of the material were found even when heated to 1173 K. The differences in the behavior of h-BN and graphite during dehydrogenation are likely due to local differences in the electronic structure near the lattice defects [16].

Despite the favorable properties, the development of BN-based systems in the field of hydrogen storage lags behind other materials such as MOFs and borane ammine (NH₃BH₃) [17,18,19,20,21,22,23,24]. However, the results of computer simulations [25] open up new possibilities for modifying BN to create next-generation hydrogen storage technologies. This promising research direction is attracting increasing attention, and the present work aims to critically evaluate the hydrogen storage potential of modified BN structures, explore conceptual strategies, and identify key issues.

BN frameworks are composed of equimolar amounts of boron (B) and nitrogen (N) atoms, forming structures that are isoelectronic to carbon lattices and have similar morphology. Among the polymorphs of BN, hexagonal BN (h-BN) is the most stable under ambient conditions [25], while cubic BN (c-BN), an analogue of diamond, is known for its exceptional hardness [25], and wurtzite BN (w-BN) is an sp³-hybridized tetrahedral structure with various configurations [25]. Structurally, h-BN consists of layers in which B and N atoms are strongly bonded by covalent bonds, and interlayer interactions are due to weak van der Waals forces (Figure 1). However, unlike graphite, h-BN has an AB-type stacking, where the B atoms in one layer are located directly above the N atoms in adjacent layers, reflecting the polarity of the B-N bonds. The electron density is shifted towards the more electronegative N atoms, with only partial delocalization of the nitrogen pz electrons into the boron pz orbital, as opposed to the complete delocalization characteristic of the C-C bonds in graphite [25].

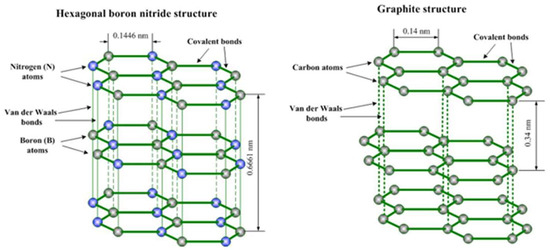

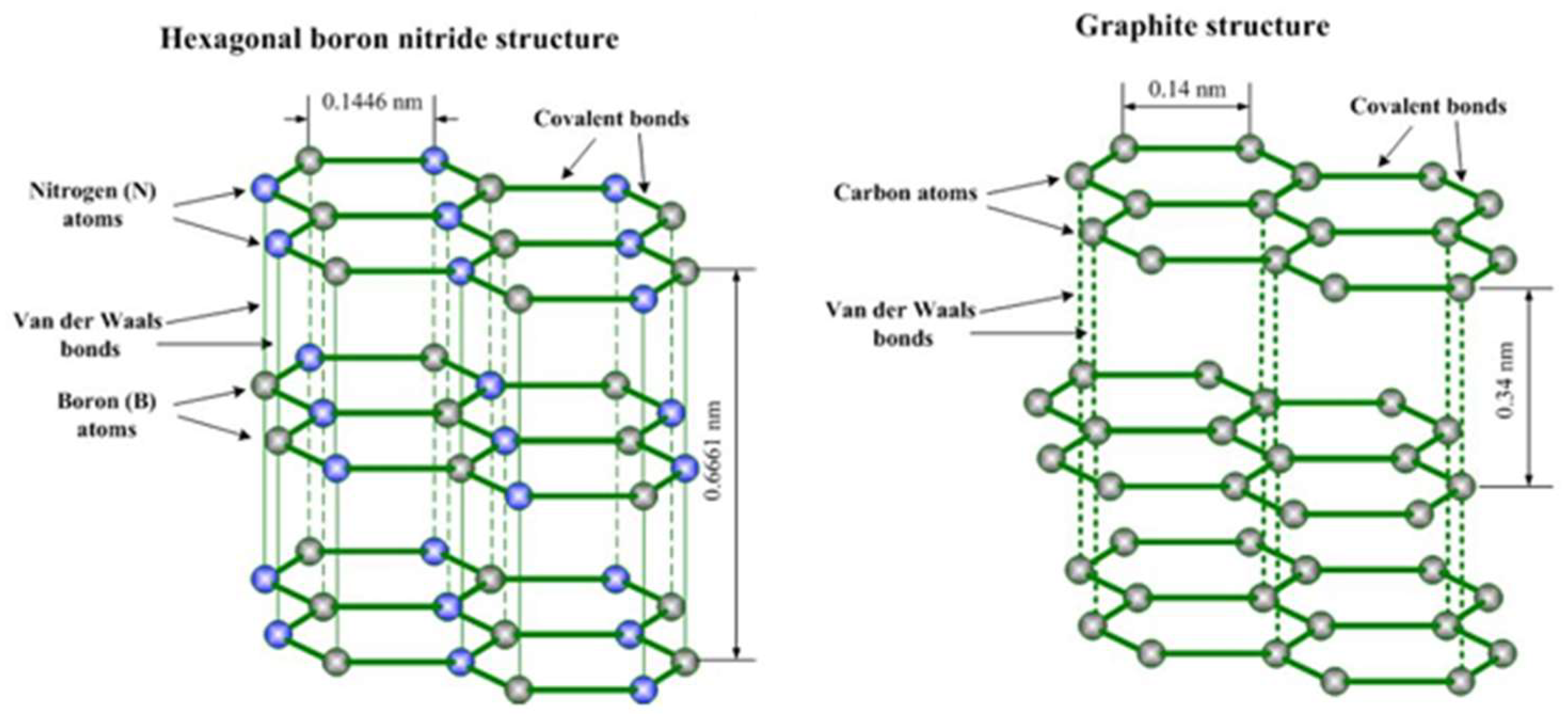

Hexagonal boron nitride (h-BN) possesses remarkable physical and chemical properties due to its unique structure, including high thermal conductivity, mechanical strength, electrical insulation, and thermal/chemical stability. Its promising applications across diverse scientific and technological domains have made boron nitride-based materials a focus of current research. Boron nitride exists in various structural forms, including those analogous to carbon structures like diamond (c-BN), lonsdaleite (w-BN), and graphite (g-BN). Beyond these, BN can form nanosheets, nanotubes, and porous materials, thanks to the different bonding configurations (sp, sp2, and sp3 hybridization) of boron and nitrogen [26,27,28].

Like other cutting-edge substances, BN has been extensively examined in recent years concerning its nanostructured configurations and related characteristics. The progression of BN nanomaterials has mirrored that of their carbon equivalents, moving from zero-dimensional (0D) fullerenes and nanocages, and one-dimensional (1D) nanotubes in the 1990s, to two-dimensional (2D) graphene and nanosheets in the 2000s. This evolution also encompasses diverse forms like nanomeshes, nanospheres, nanowires, nanoribbons, and nanoporous BN [29].

The findings acquired by research teams exploring BN and carbon materials for hydrogen storage using density functional theory (DFT) calculations offer significant data for mathematical modeling of adsorption/desorption mechanisms. When evaluating the hydrogen storage capacity of solid-state substances, multiple parameters are considered, including binding energy, adsorption energy, average adsorption energy, and desorption temperature. Based on computational modeling by scientists from Australia and the United States, boron nitrides are capable of storing between 6.5 and 8.65 weight percent of hydrogen. The simulations indicate that each gram of BN can reversibly adsorb and desorb up to 60 L of hydrogen.

Scientists have utilized diverse DFT-based computational software programs [30], including VASP, Quantumwise ATK, CASTEP, GAMESS, and Dmol3, to scrutinize hydrogen adsorption behaviors in BN and carbon nanostructures [31,32]. The following equation is used to calculate the adsorption energy [33,34]:

$$E_{ad}=E_{tot}\left({\displaystyle \frac{BN}{C}}+H_2\right)-E_{tot}\left({\displaystyle \frac{BN}{C}}\right)-n{E}_{free}(H_2)$$

(1)

The average adsorption energy is calculated using the following relationship:

$$E_{ad}=\left\{E_{tot}\left({\displaystyle \frac{BN}{C}}+H_2\right)-E_{tot}\left({\displaystyle \frac{BN}{C}}\right)-n{E}_{free}(H_2)\right\}/n$$

(2)

where:

BN/C denotes the base material of carbon and BN nanomaterials, a $E_{tot}\left({\displaystyle \frac{BN}{C}}+H_2\right)$—is the total energy of hydrogen molecules adsorbed by the system, $E_{free}(H_2)$—is the total energy of a free H₂ molecule.

$E_{tot}\left({\displaystyle \frac{BN}{C}}\right)$—the total energy of the base material (carbon and boron nitride nanostructures) is represented, with n indicating the quantity of adsorbed H₂ molecules on the base materials.

The capacity of carbon and boron nitride nanomaterials to absorb hydrogen can be determined through the following equations [35,36,37,38]:

$$H_2(wt\%)={\displaystyle \frac{n{M}_{H_2}}{(n{M}_{H_2}+M_{H_{ost}})}}·100$$

(3)

where:

$M_{H_2}$, $M_{H_{ost}}$ и n—and n are the masses of H₂, host material (boron nitride and carbon nanostructure), and the number of H₂ molecules, respectively.

To quantitatively analyze the desorption process, the desorption temperature (TD(K)) is estimated using the Van’t Hoff equation [39]:

$$T_D=\left({\displaystyle \frac{E_{ads}}{K_b}}\right){\left({\displaystyle \frac{\Delta S}{R}}-\ln P\right)}^{-1}$$

(4)

where:

$K_b$—Boltzmann constant (1.38 × 10⁻²³ J K⁻¹);

△S = 130 J K⁻¹ Mol⁻¹—change in entropy of H₂ from gas to liquid phase at equilibrium pressure P = 1 atm;

R(=8.31 J K⁻¹ Mol⁻¹)—gas constant.

Ball milling primarily results in a substantial enlargement of the specific surface area, the creation of refined microstructures with smaller grain dimensions, the generation of numerous imperfections (both on the surface and within the bulk material) and phase interfaces, the formation of porous surface textures offering abundant locations for hydrogen absorption/desorption, a near-consistent hydrogen storage capability compared to the original material, faster hydrogenation rates, and enhanced thermodynamic attributes.

These microstructural defects act as points where the hydride phase begins to form, and the expanded boundary area makes it easier for hydrogen to diffuse. These changes lead to improved surface activation and hydrogenation speed, decreased activation energy requirements, lower temperatures for hydrogen release, and faster movement of hydrogen within the material.

Modern metal hydride-based hydrogen storage systems (HSSs) are generally classified into the following categories: Alloys based on rare earth metals (REMs), including mischmetal alloys (which are mixtures of rare earth elements produced during the creation of pure REM), typically containing 25–35% La, 40–50% Ce, 4–15% Nd, 1–7% Sm+Gd, and unavoidable impurities such as Fe, Si, Mg, and Al; they also include alloys based on titanium, zirconium, and magnesium [40,41,42,43].

BN nanomaterials, similar to their carbon counterparts, possess notable porosity and elevated surface area. These characteristics, coupled with remarkable thermodynamic stability and chemical inertness (h-BN remains stable in air up to 1273 K), the high specific surface area of nanoparticles, and polar covalent B-N bonds, make them promising for various applications, especially hydrogen storage [44]. While recent theoretical studies increasingly emphasize the potential of BN-based structures for achieving high physisorption capacities, traditionally, h-BN materials have been primarily considered effective for hydrogen storage through chemisorption processes [45]. Hexagonal boron nitride (h-BN) is a very stable hydrogen storage material, offering superior performance, excellent cyclability, and regeneration capabilities. However, a significant obstacle to the industrial application of h-BN is the absence of well-defined, cost-effective methods for large-scale production of nanostructured forms, as well as the creation of straightforward and effective modification techniques to enhance sorption performance. The exceptional qualities of this material and its hydrogen storage potential are extensively reviewed in [46,47,48,49,50,51]. For instance, BN nanotubes synthesized through the annealing of ball-milled boron-nickel catalyst in a nitrogen/hydrogen gas mixture at 1298 K exhibited hydrogen sorption capabilities at room temperature, with a predicted storage capacity reaching up to 2.2 wt.% at 6 MPa pressure [52]. The improved hydrogen storage capabilities of this material can be attributed to its nanoscale structure and the existence of heteropolar B-N bonds. The ionic B-N bond generates an extra dipole moment, which enhances hydrogen adsorption strength.

Nanostructured BN possesses unique physical and chemical properties compared to bulk and micro-sized materials. For instance, BN nanoparticles (BNNPs) can be synthesized through precursor vapor-phase pyrolysis, then adapted into nanostructures by high-temperature annealing (2273 K). Subsequent ball milling of these nanostructures can further improve the specific surface area. This process yields hollow BNNPs with porous shell structures exhibiting a specific surface area of 200.5 m² g⁻¹ and a total pore volume of 0.287 cm³ g⁻¹, facilitating superior hydrogen accumulation [53].

The initial experimental synthesis of BN nanotubes via arc discharge was accomplished in 1995 by Chopra et al. [54]. The tight-binding theoretical model had predicted BN nanotube existence in 1993 by Rubio et al. [55], followed by Blase et al. the subsequent year, who employed ab initio pseudopotential methods to predict both single-walled and multi-walled BNNTs [56]. BN nanotubes are considered promising materials due to their enhanced Young’s modulus (~1.2 TPa), exceptional thermal stability, and chemical inertness. Defects such as vacancies and Stone–Wales defects commonly occur during nanostructure formation; consequently, defect engineering is widely employed to modify nanomaterial properties [57,58]. Several reports exist on BNNT synthesis. The selection of boron precursor, catalyst, temperature, heating regime, and duration is a critical factor in the synthesis process. The length and dimensions of BNNT may fluctuate based on these conditions. This section provides a concise overview of the synthesis methods and the characteristics of the resulting BNNTs. The precursors utilized in the synthesis of BNNT, along with the mechanisms of formation, applications, and physical properties (such as diameters and lengths), are compiled in

Table 2. The literature outlines the reaction conditions, growth mechanisms, and applications of BNNT [59].

Precursor	T [°C]; t [h]	Substrate	Method	Growth Mechanism	Physical Properties	Modification	Application	Ref.
B, h-BN, NH3	<1100; 2	iron deposits alumina	ball milling (20 h), CVD	base-growth	40–100 nm diam., bamboo-like	–	–	[60]
	1200; 2				40–100 nm diam., cylindrical shape
B:FeO:MgO (2:1:1), NH3	1200; 0.5	Si/SiO2	mechanic. mixed CVD	base-growth	30 nm diam., random direction, closed tip ends	–	–	[61]
	1300; 0.5			tip-growth	60 nm diam., random direction, closed tip ends
	1400; 0.5			mixed-growth	10 nm diam., flower-like, closed tip ends
B:FeO:MgO (1:1:1), NH3	1300; 0.5			tip-/base-growth	100–500 nm diam., closed tip ends			[62]
B:FeO:MgO (4:1:1), NH3	1300; 0.5			tip-/base-growth	50–150 nm diam., closed tip ends
B2O3, CaB6, Mg, NH3	1150; 6	–	CVD	base-growth	150 nm diam., >10 µm length	–	–
h-BN, N2	1250–1300; 10	–	ball milling (100 h), CVD	–	30–60 nm diam., cylindirical shape, 500 nm length	covalent with NH4HCO3	reinforced material for Al-matrix composite	[63]
B, FeO, MgO	1100–1700; 1	–	ball milling, CVD	metal catalytic growth	50–80 nm diam., up to 10 µm length, straight nanowires	noncoval. polyaniline/Pt/GOX	amper. glucose biosensor	[64]
B, iron particle, N2	1100; 15	Si/SiO2	ball milling (50 h), CVD	metal catalytic growth	50–200 nm diam., up to 1 mm length, bamboo-like	–	insulators for electromechanical systems	[65]
MWCNT, H3BO3, NH3	1300; 3	–	substitution	–	40–50 nm diam.	noncoval. trioctylam., tributylam., triphenyphos.	gel nanocomposite	[66]
B, Co(NO3)2, N2, H2	1100; 0.5–3	stainless steel	ball milling, CVD	–	bamboo-like	–	superhydrophobic surface	[67]
B, N2	1200; 16	–	ball milling (150 h), CVD	–	20–50 nm diam. cylindrical, cylindrical capped by iron, bamboo-like	–	–	[68]
BH4, NH4CI, N2	1200–1300; 5–10	–	CVD	–	10–30 nm diam., up to 5 µm length, bamboo-like	–	–	[69]
B, Fe2O3, NH3	1200–1300; 2.25	–	CVD	–	64–136 nm diam., bamboo-like	–	–	[70]
MWCNT, H3BO3, NH3	1080; 6	–	substitution	–	10–100 nm diam., 10 µm length	coval. PVA and HP-MEC	imp. mechanical performance of polymer	[71]
mmon. borane, ferrocn., N2	1450; 1	graphite crucible (graphite paper inner line)	CVD	(large diam. catalyst)	300 nm diam., 10 µm length, bamboo-like	–	–	[72]
				vapor–liquid–solid (small diam. catalyst)	15–200 nm diam., 100 µm length, cylindrical shape
B, Fe2O3, NH3	600; 1	–	CVD	–	20–60 nm diam.	–	hydrogen storage	[73]
B, Fe3+-MCM-41, NH3					2.5–4 nm diam.
YB6, N2/Ar	–	–	arc discharge	mixed-growth	4–10 nm diam., 4–6 µm length, closed or open tip	–	–	[74]

[59].

In conclusion, due to its special structure and physicochemical characteristics, boron nitride (BN) remains one of the most promising materials for hydrogen storage. The diversity of its structural variations—from zero-dimensional nanoparticles to two-dimensional nanosheets—combined with high thermal stability, chemical inertness, and wide possibilities of surface modification, makes it attractive for both physical and chemical hydrogen sorption.

Recent studies, including both experimental work and DFT calculations, demonstrate the high capacity of BN for hydrogen storage, as well as its potential application in composites with LiBH₄ and other boron-based hydrides to destabilize and improve the reversibility of hydrogen storage processes [75,76,77,78].

Despite the existing limitations, progress in creating nanostructured forms of BN opens up new prospects in hydrogen energy and requires further in-depth research aimed at improving the efficiency and scalability of such solutions.

One area of interest is using h-BN as an additive to improve the hydrogen release (dehydrogenation) of lithium borohydride (LiBH₄). The structural features of h-BN, such as the lone pair of electrons on nitrogen, defects in the crystal lattice, and interactions between B-H and B-N, contribute to destabilizing LiBH₄ [79].

Several studies have explored this application:

Nanoporous h-BN: Zhu et al. [79] used nanoporous h-BN to create a LiBH₄ composite that released 13.9 wt.% H₂ at 400 °C. However, the hydrogen storage capacity decreased over cycles, stabilizing at 7.6 wt.% H₂ after five cycles, due to the formation of Li₂B₁₂H₁₂ (leading to irreversibility) and Li_xBN (important for rehydrogenation).

Acid-treated h-BN: Muthu et al. [80] employed acid-treated h-BN to prevent particle clumping during rehydrogenation. This composite released hydrogen between 110–150 °C and retained 85.7% of its initial capacity after four cycles.

Tu et al. [81] explored the synergistic influence of hexagonal boron nitride (h-BN) and niobium pentachloride (NbCl₅) in destabilizing lithium borohydride (LiBH₄), resulting in highly pure hydrogen liberation. NbCl₅ functioned as a catalyst, diminishing the dehydrogenation activation energy to 122 kJ/mol. Niobium hydride (NbH) particles, created in situ, acted as nucleation centers and decreased the solid–liquid interface during LiBH₄ breakdown.

Besides h-BN, other boron compounds can also destabilize LiBH₄. For example, Li₃BO₃ acts as a dehydrogenation catalyst by creating active sites, weakening Li-B bonds, promoting [BH₄]⁻ dissociation, and maintaining spatial proximity between Li, B, and H atoms. Li et al. doped LiBH₄ with Nb(OE_t)₅, which formed Li₃BO₃ and NbH. This composite released 7.9 wt.% H₂ within 20 min at 400 °C [82].

Li et al. [83] introduced niobium ethoxide (Nb(OE_t)₅) as a dopant to LiBH₄, leading to the formation of Li₃BO₃ and NbH. This composite yielded 7.9 wt.% H₂ in 20 min at 400 °C. Following 30 sorption–desorption cycles, the material maintained 91% of its original capacity. The decline in reversibility was linked to the emergence of a stable Li₂B₁₂H₁₂ phase.

Wu et al. [84] employed boric acid (B(OH)₃), where O-H_δ⁺ and B-H_δ⁻ interactions promoted LiBH₄ dehydrogenation at reduced temperatures. The composite released 5.6 wt.% H₂ below 180 °C, with minimal H₂O production. The main decomposition product identified was LiB₅O₉H₂. The dehydrogenation occurred swiftly, releasing 4.5 wt.% H₂ within 2 min at 180 °C. However, the exothermic nature of the reaction restricted its reversibility.

Eutectic blends of LiBH₄ with different metal borohydrides (MBH₄) have been widely researched. These blends exhibit lower melting points compared to their individual constituents, while preserving significant theoretical hydrogen storage capacities, around 10 wt.% H₂. The dehydrogenation temperature of these blends is primarily dictated by the characteristics of the additional component, rather than their melting temperatures [85].

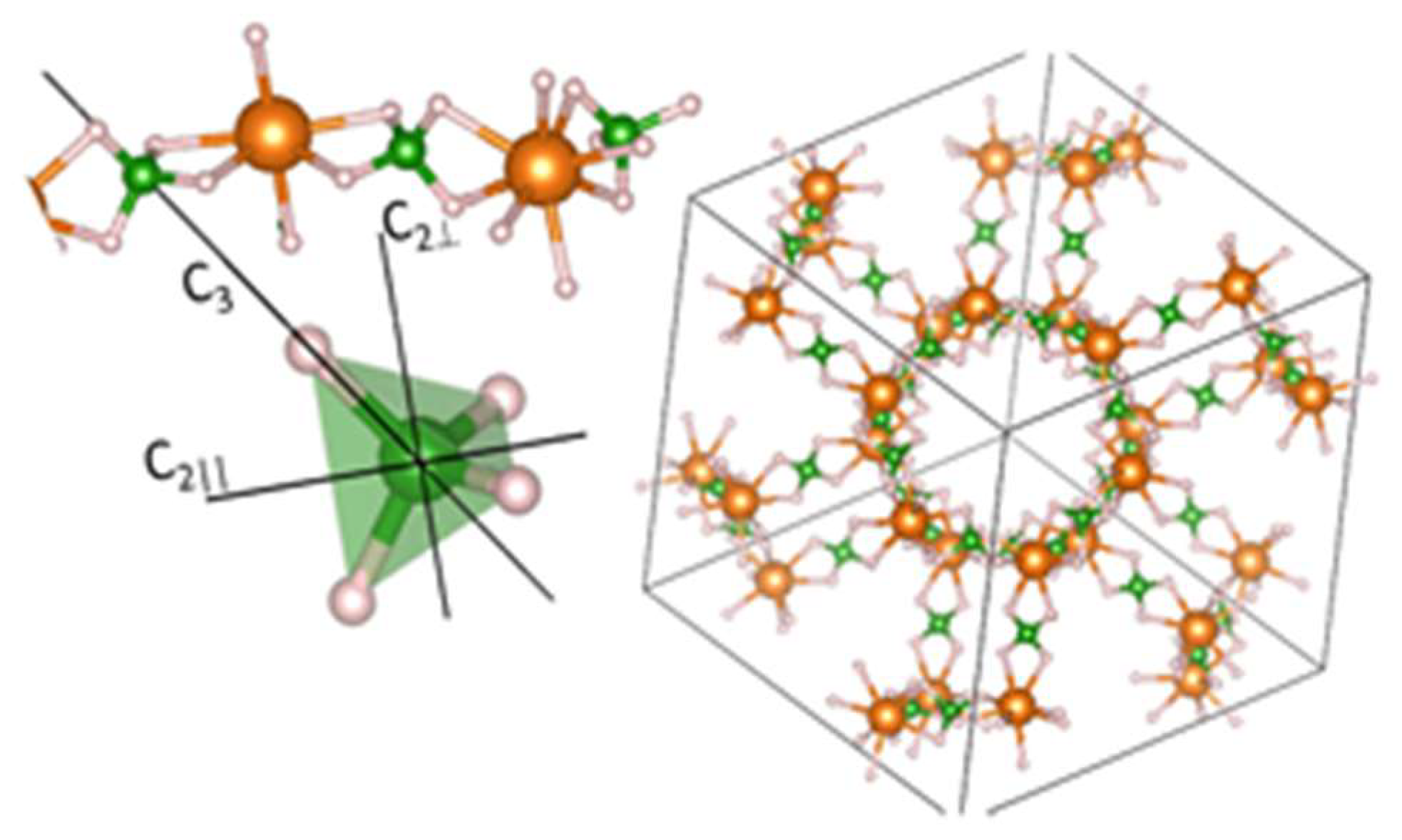

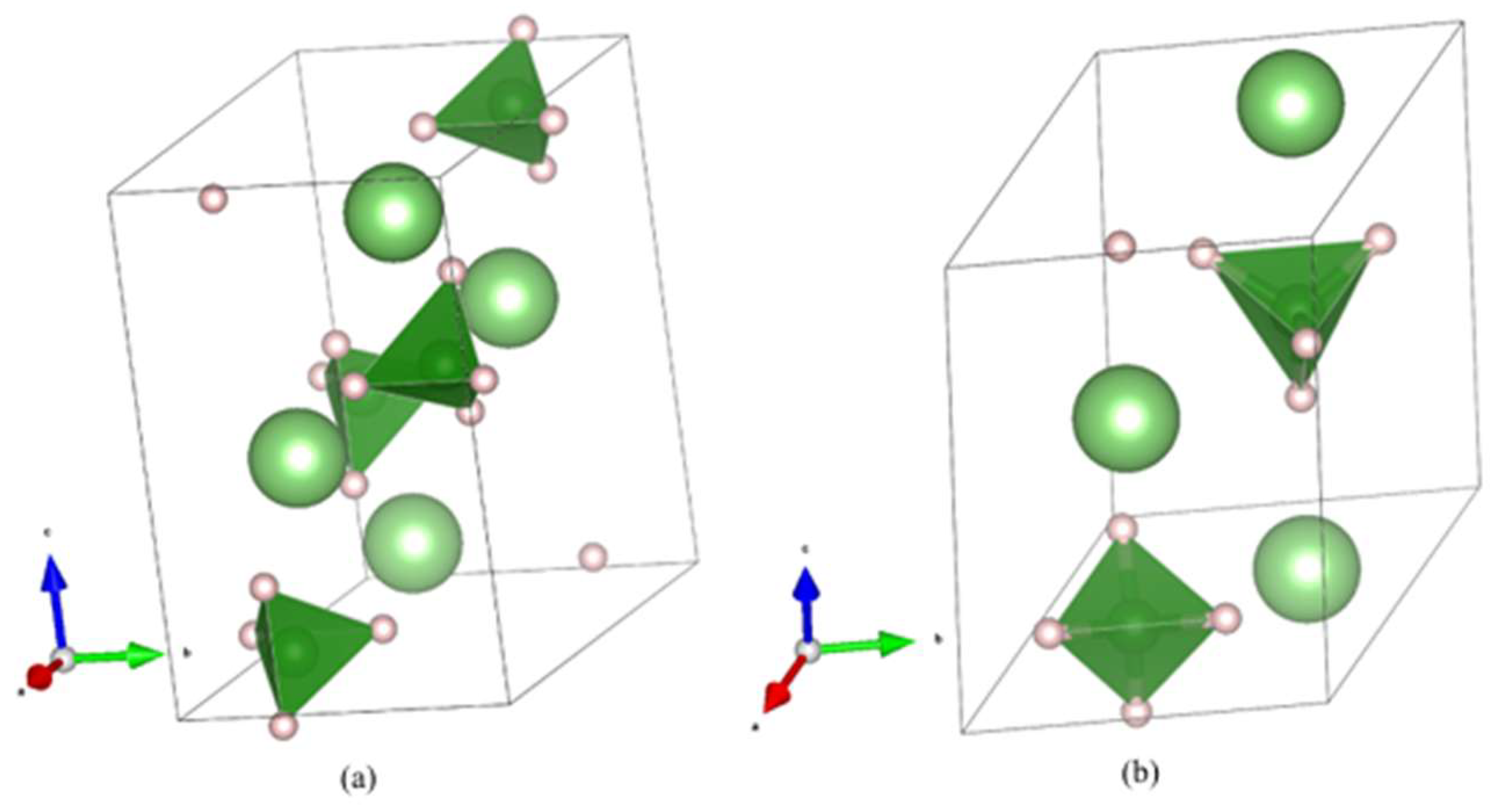

To investigate the destabilization of LiBH₄, several borohydrides, such as La(BH₄)₃, Er(BH₄)₃, K BH₄, and NaBH₄, have been analyzed [86,87,88]. However, these eutectic combinations, when in the bulk state, did not demonstrate sufficient destabilization of LiBH₄. Hydrogen liberation usually took place at temperatures exceeding 300 °C, with some instances surpassing 500 °C, rendering them unsuitable for hydrogen storage purposes.

In another study [89], boron nitride nanosheets modified with oxygen, synthesized using the sol-gel technique, were analyzed. This material demonstrated a hydrogen storage capability of 5.7 wt.% at ambient temperature and a pressure of 5 MPa. Notably, each 3 × 3 supercell within the BN monolayer could accommodate up to six H₂ molecules. Theoretical modeling suggests that the enhanced hydrogen storage performance is likely due to the introduction of oxygen into the BN nanosheets. This doping process reduces the distance between hydrogen molecules and oxygen atoms during adsorption, compared to pristine BN. The two most important are shown in Figure 2 the low temperature phase of LiBH₄, known as orthorhombic-LiBH₄ (o-LiBH₄), which transforms into high temperature hexagonal-LiBH₄ (h-LiBH₄) phase at ∼388 K.) At ambient pressures, h-LiBH₄ exists in SG P6₃mc (Figure 3) [89].

Additional research [90] focused on evaluating the structural integrity of metal-doped BN systems and identifying preferred metal adsorption locations on the BN layers. An examination of sodium-doped BN layers revealed that the electric field formed between positively charged sodium and negatively charged nitrogen plays a crucial role in strengthening the bond between hydrogen and the complex. This enhancement occurs through hydrogen polarization. Consequently, the sodium-doped layer achieved a hydrogen storage capacity of approximately 5.84 wt.%.

Magnesium and its alloys have recently attracted increasing attention as promising hydrogen storage materials due to their significant reversible capacity (up to 7.6 wt.%) and affordable cost. Among the hydrides used in hydrogen energy, magnesium hydride (MgH₂) stands out for its high energy capacity—up to 9 MJ/kg Mg—and its ability to undergo reversible hydrogenation/dehydrogenation reactions [91].

Figure 4 shows various dehydrogenation processes (highlighted in blue) and rehydrogenation reactions (highlighted in red) [92].

Despite its advantages, the use of MgH₂ is limited by a number of important factors:

Challenging operating conditions: high temperatures (about 300 °C) and pressures (5–10 MPa) are required for effective hydrogenation.

Kinetic limitations: Slow kinetics of reversible hydrogen binding processes, which complicates the absorption and release of hydrogen.

Activation issues: High energy barrier for H₂ dissociation on Mg surface, resulting in poor chemisorption.

Passivation layer formation: The forming MgH₂ layer impedes diffusion, making further hydrogenation difficult.

Oxygen sensitivity: Surface oxidation upon contact with O₂ reduces the rate of hydrogen uptake.

Cycling degradation: Gradual loss of capacity over repeated hydrogenation /dehydrogenation cycles [92].

To improve the performance of hydrogen storage systems, the interaction of magnesium hydrides with boranes is studied. It was found that the thermal decomposition of Mg(BH₄)₂ in a vacuum is likely to result in the formation of the intermediate compound Mg(B₃H₈)₂. Similarly, heating Y(BH₄)₃ under a hydrogen pressure of 1–10 bar allows one to obtain the compound Y(B₃H₈)₃. Various methods for the synthesis and transformation of the B₃H₈⁻ anion are described in the literature, including the following:

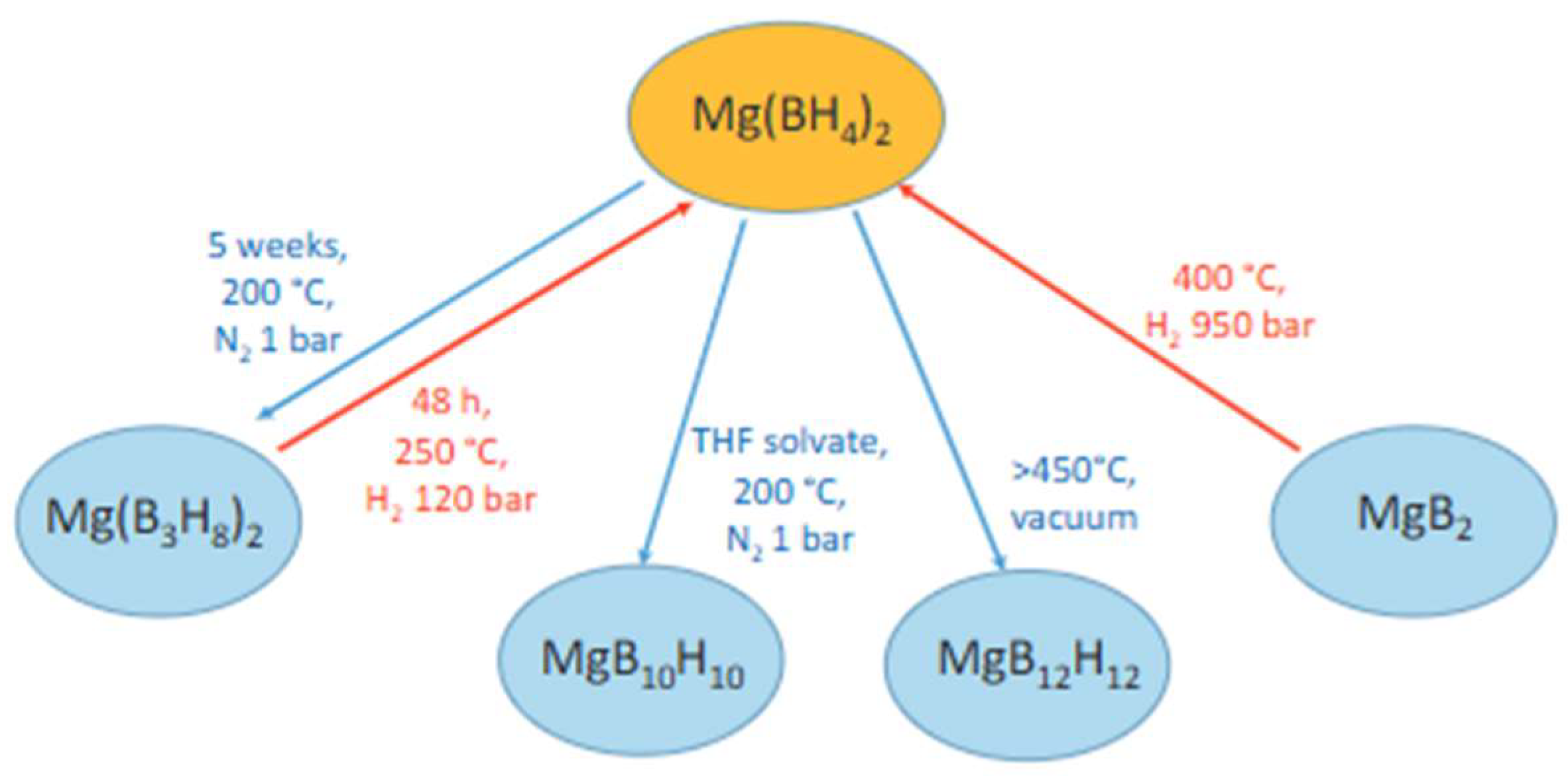

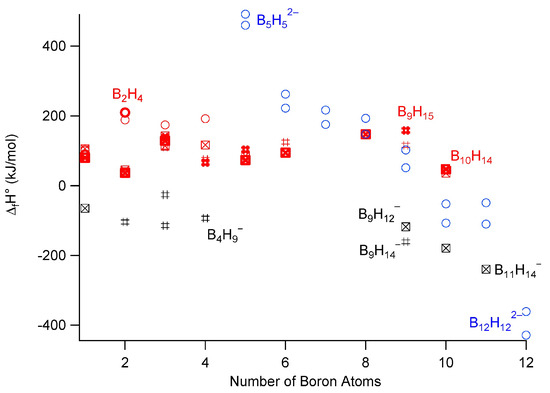

Reactions with diborane under strong reduction conditions, leading to the formation of intermediate anions B₂H₆₂- and BH₆₂-, which are confirmed by NMR spectroscopy [93,94,95]. Interaction of potassium with THF BH₃, resulting in the formation of B₃H₈⁻ and BH₄⁻.

Reactions of BH₄⁻ with B₂H₆, yielding B₃H₈⁻ and releasing hydrogen.

Synthesis of B₃H₈⁻ from BH₄⁻ and CH₂Cl₂ at elevated temperatures.

The resulting B₃H₈⁻ can further participate in reactions leading to the formation of more complex borane clusters (B₉, B₁₀, B₁₂, etc.):

4B₃H₈⁻ → B₉H₁₄⁻ + 3BH₄⁻ + 3H₂, ΔH = −413 kJ/mol

4B₃H₈⁻ → B₁₀H₁₀²⁻ + 2BH₄⁻ + 9H₂, ΔH = −49.8 kJ/mol

These reactions are thermodynamically favorable and are accompanied by a significant entropy increase, particularly at elevated temperatures. The concurrent formation of BH₄⁻ provides an additional thermodynamic driving force for these transformations (Figure 5) [96].

Heating Mg(B₃H₈)₂ combined with 4MgH₂, whether or not hydrogen is present, results in a conversion of up to 88% back to Mg(BH₄)₂, along with the formation of some MgB₁₂H₁₂. This process facilitates the development of closed synthesis/decomposition cycles for hydrides, aiming to improve the effectiveness of hydrogen storage systems. The B₃H₈⁻ ion can also serve as a building block for producing multi-component solid-state ionic conductors. For example, highly ionically conductive materials such as Na₄(B₁₀H₁₀)(B₁₂H₁₂) can be synthesized. This synthesis pathway involves transforming NaBH₄ into (Et₄N)BH₄, followed by a reaction with CH₂Cl₂, a thermal transformation into toluene, and exchange reactions using sodium tetraphenylborate [103,104,105].

3. Summary of Hydrogen Storage and Release in h-BN-Based Materials

The current body of research reveals a notable lack of empirical information concerning the hydrogenation and dehydrogenation mechanisms of hexagonal boron nitride (h-BN). Most studies primarily employ computational modeling. Further experimental investigations, concentrating on the release of hydrogen from h-BN-based compounds, are of significant importance. A considerable number of publications neglect to examine the reusability of BN materials after undergoing dehydrogenation/desorption, or to elucidate the impact of hydrogen storage and release at the relevant temperatures on their characteristics [106,107].

Hydrogen adsorption phenomena have been explored extensively on various nanotube types and their modified versions over the last ten years. Different approaches have been used to explore hydrogen molecule adsorption on boron nitride nanotubes (BNNTs), including those functionalized with metals [108] like Rh, Ni, and Pd. The adsorption of hydrogen molecules on Al-doped BNNTs (5,0) and (3,3) has also been examined, with data given on the quantity of adsorbed hydrogen molecules and mean adsorption energies [109].

Multiple studies have established that metallic magnesium’s surface is critical for hydrogen absorption, promoting the separation of H₂ molecules and facilitating hydrogen atom diffusion into the material’s core (

Table 3. Hydrogen absorption/desorption properties of selected magnesium-based metal hydrides and their alloys [110].

Material	Method	Temperature (°C)	Pressure (MPa)	Kinetic (min)	Cyclical Stability	Max.% (mas.) H2	Ref.
Mg/MgH2- 5% (мac.) Ni	Wet chemical method	Tabs. 230–370	Pabs. and Pdes. 0.4–0.14	tabs. 90	800 cycles, stable	6.0	[111]
MgH2- 0.2% (мoл.) Cr2O3	BM	Tabs. and Tdes. 300	Pabs. and Pdes. 0.1–0.2	tabs. 6 tdes. 10–35	1000 cycles, stable	6.40	[112]
MgH2	BM	Tabs. 300 and Tdes. 350	Pabs. 0.3–1.0 Pdes. 0.015	tdes. 12.5 tdes. 50 tabs. 420	-	7.0	[113]
MgH2-1% (aт.) Al	BM benzene or hexane	Tbs. 180 Tdes. 335–347	Pabs. 0.06		-	7.30	[114]

). Ball milling, which involves mechanically processing magnesium or its hydride using high-energy techniques, represents cutting-edge methods for improving and accelerating hydrogenation–dehydrogenation processes. This approach is widely used to enhance the surface properties of metal hydrides [110].

DFT was utilized to explore how structural defects and substitutional doping affect the ability of BNNTs to adsorb hydrogen. The results indicated that the binding energy significantly increased when compared to the ideal BN structure. It was also shown that the projected desorption temperature is approximately 123 K, and hydrogen diffuses more slowly in BNNTs with smaller diameters than in those with larger diameters. The binding energy of BN nanotubes is also about 40% higher than that of carbon nanotubes [115]. The impact of Pt modification on BN nanotubes, which results in a high average adsorption energy of hydrogen molecules at −0.365 eV, was examined using DFT simulations in [116].

The connection between the Pt atom and the BN nanotube was shown to be weakened by the adsorptive hydrogen molecule. The formation of a Pt dimer after two Pt atoms are doped onto a BN nanotube weakens the Pt-BN connection and lowers the adsorption energy of hydrogen molecules on the Pt dimer. A theoretical study of the structure, stability, and hydrogen storage capabilities of hydrogenated h-BN sheets doped with lithium was also carried out in [117]. Li atoms on h-BN sheets were shown to act as binding sites, absorbing up to 6 weight percent hydrogen at lower temperatures (<198 K). Ab initio modeling suggests a hydrogen desorption temperature of ∼398 K. In addition to pure lithium, its compounds have also been shown to be effective modifiers for increasing the hydrogen storage capacity of h-BN. The calculated gravimetric hydrogen density of 2(OLi₃)-decorated h-BN for storing H₂ molecules can reach 9.67 wt.% [118]. −0.175 eV, the average adsorption energy per H₂ molecule, is the ideal window for reversible uptake-release at room temperature.

Composites of Ti powder that had been mechanically milled with h-BN at a mass ratio of 1:1 achieved a hydrogen adsorption capacity of 4.2 wt.%. The observed value is consistent with the theoretical calculations for hydrogen uptake by Ti, indicating that Ti is essential for hydrogen absorption in the analyzed mixture [119]. DFT calculations were used in a different study (Chen et al., 2012) [120] to investigate the adsorption of transition metals, including Sc, Ti, V, Cr, Mn, Fe, Co, and Ni, on carbon-doped h-BN sheets and the B₁₂N₁₂ cage. Sc, V, Cr, and Mn exhibited favorable energetics for dispersion on the sheet and CN-BN cage, with a hydrogen absorption capacity of up to 6 wt.%. It has been demonstrated that carbon dopants in h-BN can function as potential traps for metal atoms, preventing their clustering [120].

A new method for hydrogen storage utilizing pure h-BN bubbles, which are emerging convex structures on the h-BN surface, through plasma treatment has been proposed [121]. To identify the type of gas trapped inside the h-BN bubbles, low-temperature atomic force microscopy (AFM) measurements were conducted to monitor how the bubbles responded to temperature changes. This experiment was inspired by recent research on bubble structures in bulk transition metal dichalcogenides.

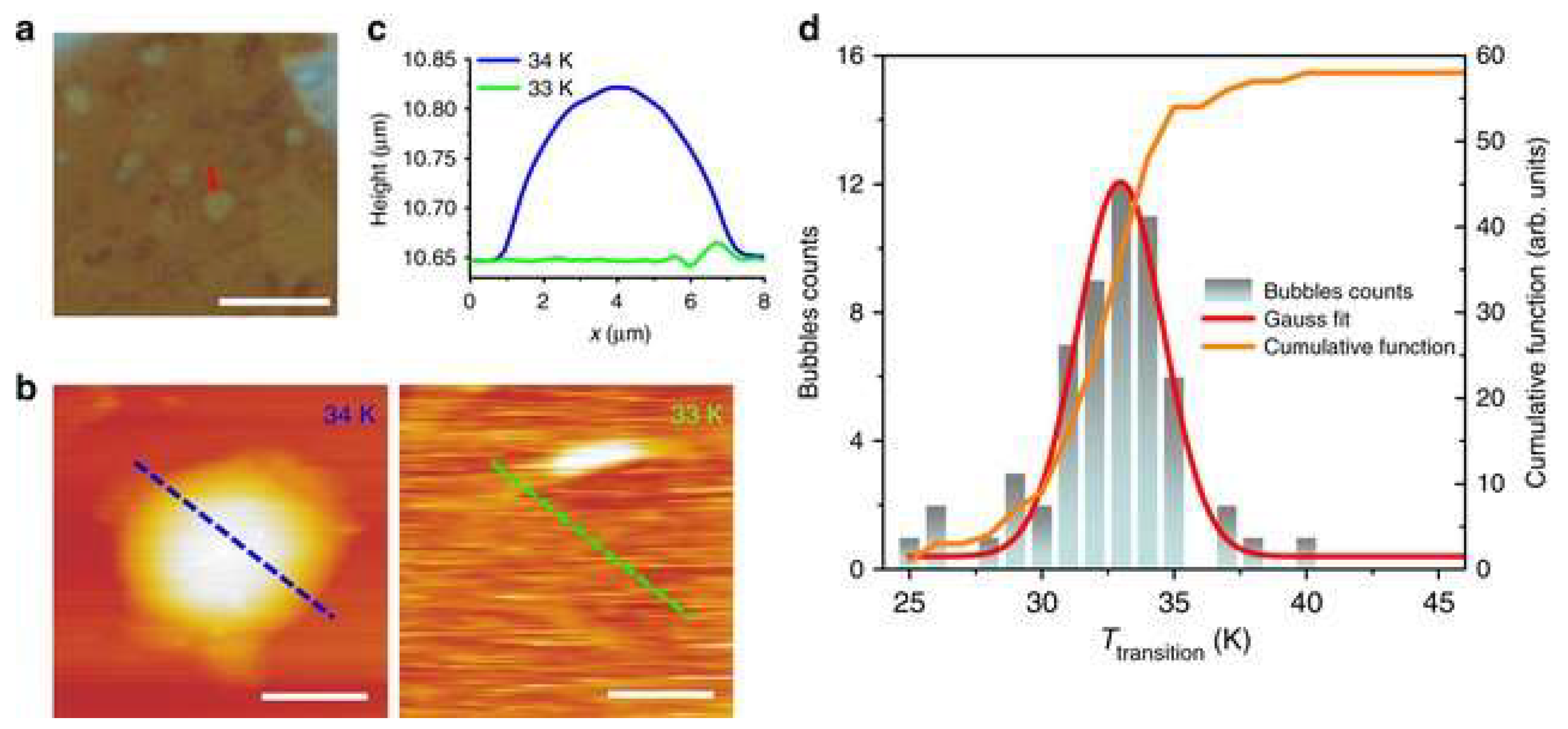

Figure 6a presents an optical image of bubbles on an h-BN flake. After transferring the sample into a vacuum chamber equipped with AFM, it was gradually cooled. Topographic AFM images of the same region at 34 K and 33 K are shown in Figure 6b. It is evident that the bubbles are inflated with gas at 34 K but collapse at 33 K. As illustrated in Figure 6c, height profiles taken along the dashed lines in Figure 6b demonstrate that the bubble is visible at 34 K but disappears at 33 K.

This inflation–deflation behavior was reversible and reproducible upon heating and cooling. The highest temperature at which the bubbles flattened was defined as the transition temperature (T_transition). A histogram was then constructed (Figure 6d), showing the distribution of T_transition values with 1 K intervals.

The T_transition values followed a Gaussian distribution, with an average of 33.2 ± 3.9 K, which closely matches the known transition temperature of hydrogen (33.18 K). This strongly suggests that the gas trapped inside the h-BN bubbles is hydrogen [121].

These bubble structures, created from methane plasma, exhibit diameters between 2 and 4 µm and heights reaching up to 8.5 nm. The stability of hydrogen bubbles, influenced by geometric evolution, indicates that the diameters of all bubbles typically maintain stability for approximately 30 weeks in ambient conditions. This approach shows potential for hydrogen preservation; however, the extraction aspect is still not addressed.

A comparison of various BN-based materials in terms of their hydrogen storage capacity is presented in

Table 4. Comparison of BN-based materials for hydrogen storage [122].

Storage Ability, wt%	Morphology	Material’s Features	Storing Conditions		References
			P, MPa	T, K
Experimental data
2.9	Nanofibres	30–100 nm width and several µm length	10	293	[123]
1.8	Multifalled nanotubes		10	293	[124]
2.5	Flower-type nanostrucrures	Specific surface area about 180 m2 g−1	10	298	[125]
2.6	Bamboo-like nanotubes	10–80 nm width and >µm length	10	293	[126]
3.0	Bamboo-like nanotubes	Specific surface area about 180 m2 g−1	10	298	[127]
0.2	Bulk powder	-	10	293	[123]
0.1	Bulk powder	-	6	293	[123]
2.6	Nanostractured milled powder	Fine-milled (80 h)	1	293	[126]
4.2	Collapsed nanotubes	Catalyzed by the Pt	10	293	[127]
5.7	o-doped	Nanosheets with 2–6 atomic layers	5	293	[127]
2.57	Porous microsponge	Ultrahigh surface area up to 1900 m2 g−1	1	77	[128]
5.6	Micro/meso-porous	High surface area pf 1.687 m2 g−1, pore volume of 0.99 cm3 g−1, rich structural defects	3	298	[129]
2.3	Porous microbelts	High surface area up to 1.488 m2 g−1	1	77	[130]
Theoritical modeling data
1.5	Pristine	-	5	293	[131]
1.9	o-doped	Interlayer distance 7–7.5 Å	5	293	[132]
5.5	o-doped	-	N/a		[126]
2.81	Pt-doped sheets	-	N/a		[131]
4.82	Pt-doped sheets	-	N/a		[131]
6.33	C-doped nanosheets modified with Ti	-	0.5	298	[132]
5.1	Porous	Ultrahigh surface area 3.260 m2 g−1	N/a		[133]
7.5	Li-decorated porous	One-side decoration	N/a		[133]
8.65	Li-doped nanosheets	Distance between sheets 8.3 Å	0.1	300	[131]
9.67	h-BN monolayer	2(Oli3)-decorated	N/a		[134]
3.4	h-BN bilayer	Sorption in the interlayer spacing	N/a		[135]
6.7	h-BN bilayer	Sorption on the h-BN surface	N/a		[136]
3.86	eh-BN	Expanded h-BN	20	243	[137]
11.21	O-B2N2 monolayer	Decorated by Ti atoms	-		[138]

[122].

The ability of materials to store hydrogen is strongly influenced by their specific surface area and, consequently, their structural arrangement. A larger specific surface area encourages the development of imperfect structures, featuring multiple layers and exposed edges on the surface. Among high-surface-area forms of h-BN nanostructures, nanotubes are particularly promising for hydrogen storage at room temperature. Research indicates that chemisorption is generally more prevalent than physisorption in BN nanotubes. This results in a requirement for greater energy inputs to remove hydrogen (during the dehydrogenation process).

BN nanofibers, with diameters between 30 and 100 nm and lengths spanning several micrometers, exhibit a hydrogen storage capacity of roughly 2.9 wt.% at 293 K and 100 bar. However, it is worth noting that only a small fraction of the stored hydrogen, about 20 wt.%, is released at room temperature, representing the physisorbed portion. To release the chemisorbed hydrogen, a temperature of 573 K is needed. Similar findings were reported, where bamboo-like BN nanotubes retained approximately 70% of the stored hydrogen after pressure reduction, suggesting chemisorption as the predominant mechanism. Complete release of adsorbed hydrogen only occurred upon heating the sample to 573 K. In subsequent cycles, the hydrogen uptake capacity remained consistent, indicating reversible adsorption–desorption processes. This suggests that imperfect structures enhance chemical interactions with hydrogen, leading to the creation of stable bonds.

According to Ma et al. (2002a) [124], hydrogen adsorption on multi-walled BN nanotubes (specific surface area: 150 m²/g) and bamboo-like BN nanotubes (specific surface area: 210 m²/g) at 293 K and 100 bar reached 1.8 wt.% and 2.6 wt.%, respectively. Moreover, experimental studies show that the hydrogen storage potential in h-BN nanostructures increases with hydrogen pressure. For instance, straight-walled BN nanotubes (specific surface area: 210 m²/g) exhibit an enhanced capacity of 2.7 wt.% under the same conditions, while flower-like BN nanostructures (specific surface area: 180 m²/g) demonstrate a maximum hydrogen storage capacity of 2.5 wt.% at around 100 bar. The bamboo-type nanotubes, featuring the highest specific surface area (230 m²/g), also exhibit the highest hydrogen uptake (3.0%).

Additionally, a proposed mechanism allows for the regeneration of triflic acid during operation, ensuring gradual hydrogen release over time. In comparison, Pt-catalyzed collapsed BN nanotubes release 5% of adsorbed hydrogen in the 353–413 K range and the remaining 95% in the 573–723 K range [125].

The researchers Tang et al. (2002) [127] investigated the hydrogen storage potential of various BN configurations at 10 MPa and room temperature. Their findings highlighted that BN nanotubes, when collapsed, exhibit a significantly improved hydrogen adsorption capacity compared to conventional multi-walled nanotubes. This enhancement was attributed to an increased density of dangling bonds and a substantial elevation in specific surface area, which rose from 254.2 m²/g to 789.1 m²/g. The observed hydrogen uptake ranged from 0.9 to 4.2 wt.%. Further studies [128] showed that approximately 89% of the hydrogen stored in oxygen-doped h-BN nanosheets could be released at room temperature simply by reducing the pressure to ambient conditions. Furthermore, the hydrogen absorption capacity experienced only a slight decrease, from 5.7 to 4.79 wt.%, over 15 cycles of adsorption and desorption.

The capacity of nanomaterials for hydrogen sorption is significantly affected by chemical functionalization. Oxygen-doped h-BN nanosheets (2–6 layers), created through the sol-gel method [130], can store up to 5.7 wt.% hydrogen at room temperature and 5 MPa. This material exhibited remarkable cyclic stability, maintaining its performance over 15 hydrogen uptake and release cycles. Another study (Zhang et al., 2015) [134] underscored the potential of porous boron nitride (p-BN) as a promising structure for hydrogen storage.

Theoretical investigations using first-principles calculations suggested that pristine h-BN bilayers could function as hydrogen storage materials, providing a maximum capacity of 3.4 wt.% with desorption temperatures ranging from 139 K to 279 K, contingent on the quantity of adsorbed H₂ molecules [136]. DFT calculations indicated that a Ti-decorated orthorhombic diboron dinitride (o-B₂N₂) monolayer could attain a storage capacity of 11.21 wt.% with a 396 K desorption temperature [137].

Releasing chemisorbed hydrogen (including hydrogen from hydrogenated functional groups) from BN-based materials often demands additional energy due to the strong bonds involved. For instance, nanostructured h-BN powder, capable of storing 2.6 wt.% hydrogen, requires heating to 570 K for complete release [138]. Chemisorbed hydrogen within BN nanotubes typically necessitates temperatures exceeding 623 K for release. However, triflic acid can catalyze this process, facilitating efficient dehydrogenation at modestly elevated temperatures (313–323 K) [139,140,141,142].

A novel structure, B₂₀N₂₄ [143], designed via the CALYPSO code, presents itself as a potential hydrogen storage candidate, with simulations indicating a 6.8 wt.% storage capacity corresponding to 19 adsorbed H₂ molecules. First-principles quantum-chemical calculations reveal that C-doped p-BN can achieve a maximum hydrogen uptake of 5.1 wt.%, while Li-doped p-BN can adsorb up to 7.5 wt.% hydrogen. Similar analyses apply to materials like Li-functionalized BC₂N monolayers and boron/carbon-doped structures. Furthermore, dispersion-corrected semi-empirical methods suggest that B₉₆N₉₆ nanocages can exhibit the highest hydrogen uptake at 12.01 wt.%. Notably, theoretically designed TM-fullerenes B₂₄N₂₄ (TM = Sc, Ti) demonstrate gravimetric hydrogen densities of 7.74 wt.% (Sc₆B₂₄N₂₄) and 7.50 wt.% (Ti₆B₂₄N₂₄), with hydrogen release temperatures falling within the 243–408 K range [144,145,146]. These combined theoretical and experimental results provide optimism for the development of effective hydrogen storage devices based on nanostructured h-BN.

The mechanisms of hydrogen uptake and release in hexagonal boron nitride (h-BN) are still not fully understood, with current research heavily dependent on computational simulations [147]. There is a significant lack of experimental evidence concerning the ability of h-BN to be reused following hydrogen liberation, as well as data on how the material’s characteristics change after dehydrogenation. Recent work has focused on how hydrogen is adsorbed onto boron nitride nanotubes (BNNTs) and their altered versions, like those with added metals or aluminum. To boost hydrogen adsorption, metal hydrides like magnesium-based compounds have been used, with mechanical milling techniques improving the speed and amount of hydrogen absorbed.

Computational studies employing DFT have shown that adding metals, such as platinum (Pt), can greatly improve how well hydrogen sticks to BN structures. It has been reported that adding lithium can raise the hydrogen storage capability of h-BN to as much as 9.67 wt.%. Additionally, experimental research indicates that hydrogen storage capacities differ depending on the shape of the h-BN, with bamboo-like BN nanotubes exhibiting the highest capacity (3.0 wt.% at 298 K), but hydrogen release necessitates temperatures close to 573 K.

New materials, including doped h-BN and B₂₀N₂₄ clusters, have demonstrated considerable potential. Theoretical models suggest effective hydrogen storage and release between 243 and 408 K. These results, drawn from both theoretical calculations and experimental observations, offer a solid base for the ongoing development of nanostructured h-BN as a potential advanced material for storing hydrogen.

4. Conclusions

Current scholarly investigations suggest that boron nitrides stand out as particularly appealing substances for hydrogen storage applications. Both computer simulations and real-world tests highlight the considerable promise of hydrogen storage systems built around h-BN materials. According to these findings, strategies for boosting the hydrogen absorption capabilities of h-BN materials involve enlarging the effective surface area, creating structural imperfections to change the crystal structure, and possibly changing the distance between layers. Additional methods include adding other elements to BN and creating metal-based coatings on the surface through functionalization (for example, using Ti, Li, etc.).

Nevertheless, several key issues have slowed the advancement of BN as a material for hydrogen storage. First, major scientific interest in BN is a fairly recent phenomenon, with initial research appearing in the early 2000s. Its development has been slow compared to materials found later. Secondly, there is significantly more theoretical work (based on computational methods) than experimental research. These theoretical studies have improved our understanding of how BN absorbs hydrogen and have suggested different ways to improve it. However, the absence of experimental confirmation has made it harder to use BN as a hydride in practice.

Therefore, the most effective way to create high-performing hydrogen storage systems based on BN is to conduct a series of experiments that focus on layer-by-layer ball milling. This method results in a bigger specific surface area, a microstructure with smaller grains, many flaws (both on the surface and inside), the creation of phase boundaries, and a porous surface structure with numerous active sites for hydrogen absorption and desorption. These changes can greatly improve how fast hydrogenation happens and its thermodynamic features while keeping the hydrogen storage capacity almost the same.

Moreover, it is necessary to continue in-depth studies on how hydrogen is released and how well BN-based materials can be recycled after many cycles of adding and removing hydrogen.
