Influence of Yttria Nanoclusters on the Void Nucleation in BCC Iron During Multi-Axial Tensile Deformation: A Molecular Dynamics Simulation

Abstract

Oxide dispersion-strengthened (ODS) steels are among the most promising candidate structural materials for fusion and Generation-IV (Gen-IV) fission reactors, but the ductility of ODS steels is inferior to its strength properties. Therefore, we investigate void nucleation, considered as the first step of ductile damage in metal, using molecular dynamics simulations. Given that the materials are subjected to extremely complex stress states within the reactor, we present the void nucleation process of 1–4 nm Y₂O₃ nanoclusters in bcc iron during uniaxial, biaxial, and triaxial tensile deformation. We find that the void nucleation process is divided into two stages depending on whether the dislocations are emitted. Void nucleation occurs at smaller strain in biaxial and triaxial tensile deformation in comparation to uniaxial tensile deformation. Increasing the size of clusters results in a smaller strain for void nucleation. The influence of 1 nm clusters on the process of void nucleation is slight, and the void nucleation process of 1 nm cluster cases is similar to that of pure iron. In addition, void nucleation is affected by both stress and strain concentration around the clusters, and the voids grow first in the areas of high stress triaxiality.

1. Introduction

Oxide dispersion-strengthened (ODS) steels are considered as one of the promising candidate materials for first wall structural materials in fusion reactors and cladding materials in Generation-IV (Gen-IV) reactors [1,2,3,4]. Numerous experiments have been conducted on the mechanical properties of ODS steels, revealing their enhanced high-temperature strength, improved creep resistance, and excellent irradiation resistance [5,6,7,8]. However, ODS steels exhibit lower total elongations than steels that have been manufactured using the same production parameters but without Y₂O₃ addition during ball milling [9]. Therefore, it is important to investigate the mechanism for ductility improvement in ODS steels.

Void nucleation is the first step of ductile damage in metals during the deformation process. Second-phase particles and inclusions are the most commonly observed sites for void nucleation during ductile rupture [10]. Recently, Zhao et al. [11] have found that oxide nanoclusters are inside the dimples from the fracture surfaces of ODS steels. A significant quantity of nanoclusters distributed homogeneously in ODS steels would provide numerous nucleation sites. Therefore, it is very important to study the process of void nucleation induced by oxide nanoclusters in ODS steels, as the results are key to understanding the ductility degradation of ODS steels.

Localized plastic deformation at the interface between the particle and matrix has long been recognized as a key driver of void nucleation [10]. Thus, it is crucial to study the variations of localized plastic deformation at the interface during the process of void nucleation. Because of the experimental limitations for observing the void nucleation process at atomic scales, molecular dynamics (MD) simulation is normally used to study the issues of void nucleation. The MD approach can simulate the void nucleation process at the atomic scale and analyze localized plastic deformation at the interface between particle and matrix in detail. Some studies have investigated the process of void nucleation by MD simulations for Si particles in a Cu matrix [12]; Al₂Cu particles in an Al matrix [13]; Cu, Ti, and Mg particles in an Al matrix; and Ni particles in an Fe matrix [14,15,16,17]. Their investigations have greatly contributed to the understanding of the effects of particle sizes, temperatures, and strain rates on void nucleation. However, the void nucleation issues of the oxide clusters in ODS steels remain largely unexplored. Moreover, structural metals are generally subjected to complex stress states in engineering applications [18], especially for nuclear materials which are used inside nuclear reactors, but few studies have investigated the effects of different stress states on the void nucleation process.

In this paper, MD simulation is employed to investigate the void nucleation process of Y₂O₃ nanoclusters in bcc iron. The simulation setup explores different sizes of nanoclusters during uniaxial, biaxial, and triaxial tensile deformation. Since the size of oxide nanoclusters in current advanced ODS steel is less than 5 nm [19,20,21], we focused on the void nucleation process of 1–4 nm nanoclusters. This paper provides significant insights into the effect of size and the void nucleation process under complex stress states, which will help us to qualitatively explain ductility degradation in ODS steels.

2. Computational Method

The MD simulations are performed using the parallel MD code large-scale atomic/molecular massively parallel simulator (LAMMPS) [22]. The pairwise potentials developed by Hammond et al. [23] are employed to describe the interaction of Y-Y, Y-O, Y-Fe, O-O, and O-Fe. The simulation system in our study is mostly made up of iron atoms, in order to avoid the symmetry constraints of pair potentials and better characterize the mechanical response of the system; thus, the EAM potential is used to describe the Fe-Fe interaction. The Fe-Fe interaction is described by an EAM potential termed M07, which was developed by Malerba et al. [24]. This potential set effectively describes the properties of yttria nanoclusters in bcc iron and has been validated by numerous published studies [21,25,26,27].

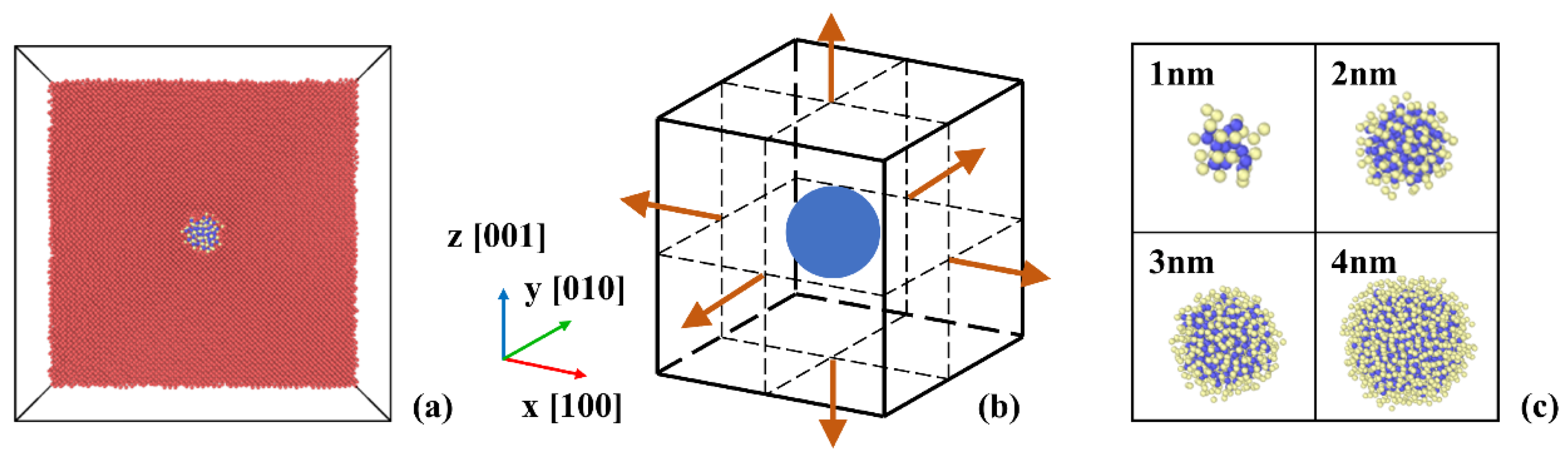

Figure 1 shows snapshots of MD simulation system and the schematic of multi-axial tensile deformation. As shown in Figure 1a, the simulation box is built with bcc iron, with the center replaced by a spherical Y₂O₃ cluster, which is constructed by a custom lattice based on the structure of Y₂O₃ [21]. The coordinate axes of the simulation box (x, y, z) and the lattice directions of Y₂O₃ are oriented in [100], [010], [001] directions, respectively. Multi-axial tensile deformation is applied after model relaxation and the schematic of multi-axial tensile deformation is shown in Figure 1b. The deformation is applied in the x-direction for uniaxial deformation, in the x-direction and y-direction for biaxial deformation, in all three directions for triaxial deformation, so we use stress–strain relationships in the x-direction for analysis.

As the number density of Y₂O₃ clusters is in the range of 1 × 10²² m⁻³~1 × 10²⁴ m⁻³ for sizes less than 5 nm [8,28,29,30,31,32,33,34,35], we consider a number density of about 3 × 10²³ m⁻³ for the 1–4 nm clusters when building the model. The configurations of the 1–4 nm spherical oxide clusters are shown in Figure 1c. Thus, the MD block consists of 56 × 56 × 56 unit cells of iron, containing 350,000 atoms. The lattice parameter of iron is a = 2.85528 Å. Periodic boundary conditions are imposed in all Cartesian directions. The whole system is relaxed using the conjugant gradient method for static relaxation to attain the minimum energy configuration. Then, the temperature of the system is raised to 300 K and equilibrated for 30 ps with the NPT ensemble, using the time step with 0.001 ps. The structure of the Y₂O₃ clusters after equilibration in 300 K is consistent with the results of other authors [21,25]. Multi-axial tensile deformation is then applied on the relaxed configuration, and the NVT ensemble is kept for the system during tension. We tested the different strain rates during tensile deformation and consider that a strain rate of 5 × 10⁸ s⁻¹ is reasonable to investigate void nucleation issues, and this strain rate is in the range of 1 × 10⁸ s⁻¹~1 × 10¹⁰ s⁻¹, which has been investigated by other authors for the effect of strain rates on void nucleation [12,14,15]. Analysis and visualization of the atomic configurations are performed using dislocation extraction analysis (DXA), construct surface mesh, atomic strain, and common neighbor analysis as implemented in OVITO [36].

3. Results

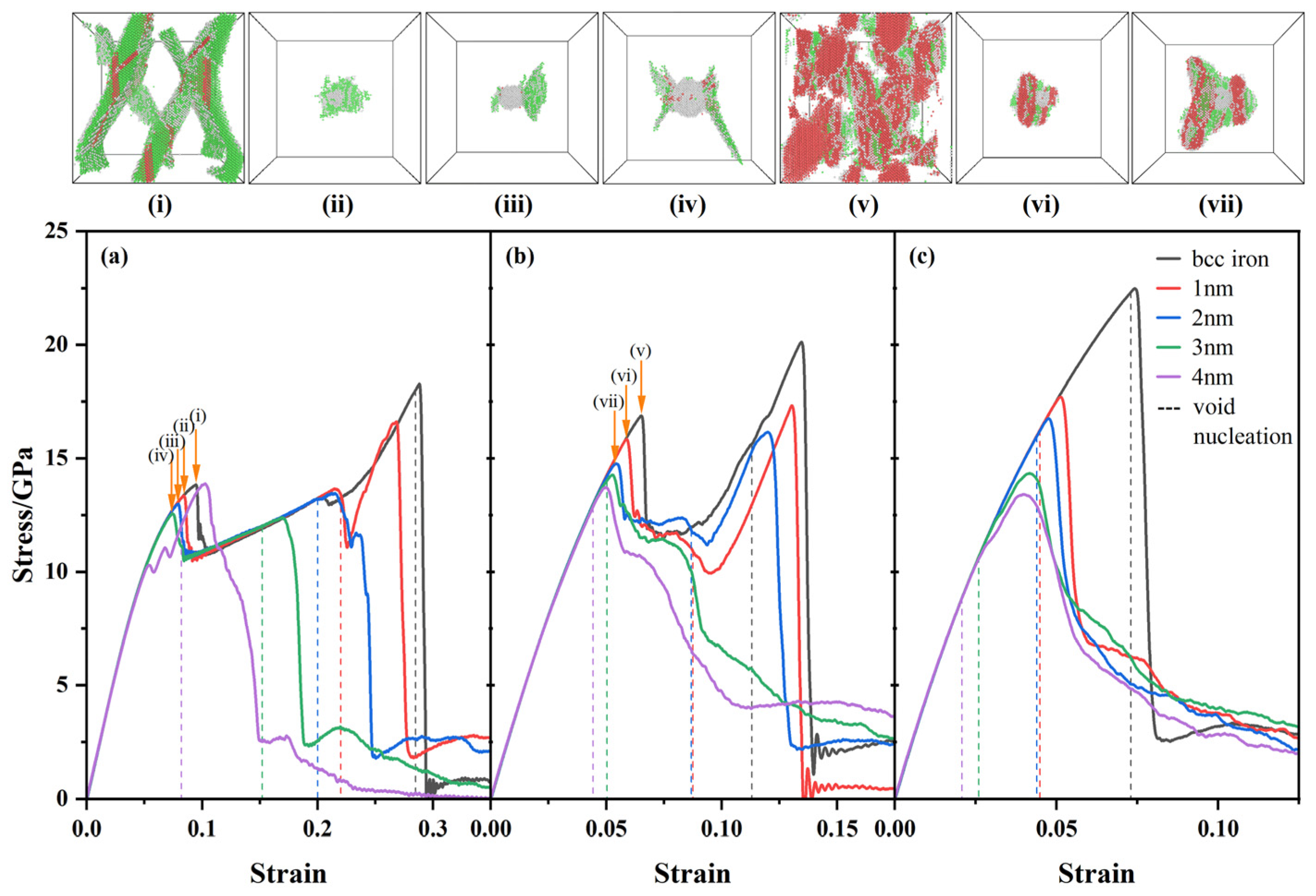

Figure 2 shows the stress–strain curves for bcc iron with or without 1–4 nm Y₂O₃ nanoclusters during tensile deformation under three different stress states. Figure 2a–c represents uniaxial, biaxial, and triaxial tension, respectively, along with snapshots of the phase transition configurations without atoms in bcc structures. The dashed lines denote the strain at void nucleation. There is a peak stress when voids penetrate the simulation box, and the strain of peak stress is called the failure strain. It can be seen that the failure strains decrease as cluster size increases. The failure strains are the smallest in triaxial tension among the three stress states in the cases of same cluster size. If the stress–strain curves have a distinct peak before the peak stress, the curves represent bimodal distribution, and the curves represent unimodal distribution if there is only one peak. Common neighbor analysis is thus carried out and we find that the first peak in the stress–strain curves correspond to the phase transition. The initial bcc structures transform into fcc structures and hcp structures. The bimodal pattern due to phase transition has also been observed in the tensile MD simulations of pure iron [37]. The phase transition occurs at the first stress peak, which leads to a decrease in the stress–strain curve. Subsequently, the phase transition region in the system starts to expand, and the intersection between the phase transition regions during the expansion process leads to an increase in stress, and finally a second stress peak is generated. We present the diagrams of phase transition configurations at the first peak for stress–strain curves exhibiting a distinct bimodal pattern in Figure 2ⅰ–ⅶ. It can be seen that sheet-like phase transition regions have been generated at the first peak of the bimodal pattern during uniaxial and biaxial tension. The phase transition regions in pure iron are distributed all over the system, but the phase transition regions are concentrated around the clusters in the systems with an oxide cluster. There is no bimodal pattern in triaxial tensile deformation, indicating that it is difficult to form a large number of phase transition regions before void nucleation under a triaxial tensile stress state. Our results show that there are two ways of releasing stress at the same time: one is phase transition, and the other is void nucleation. With increasing cluster size, void nucleation becomes the dominant way to influence stress reduction, so the stress–strain curves do not show the bimodal pattern for the 4 nm cluster cases during uniaxial tension and for the 3 nm and 4 nm clusters cases during biaxial tension.

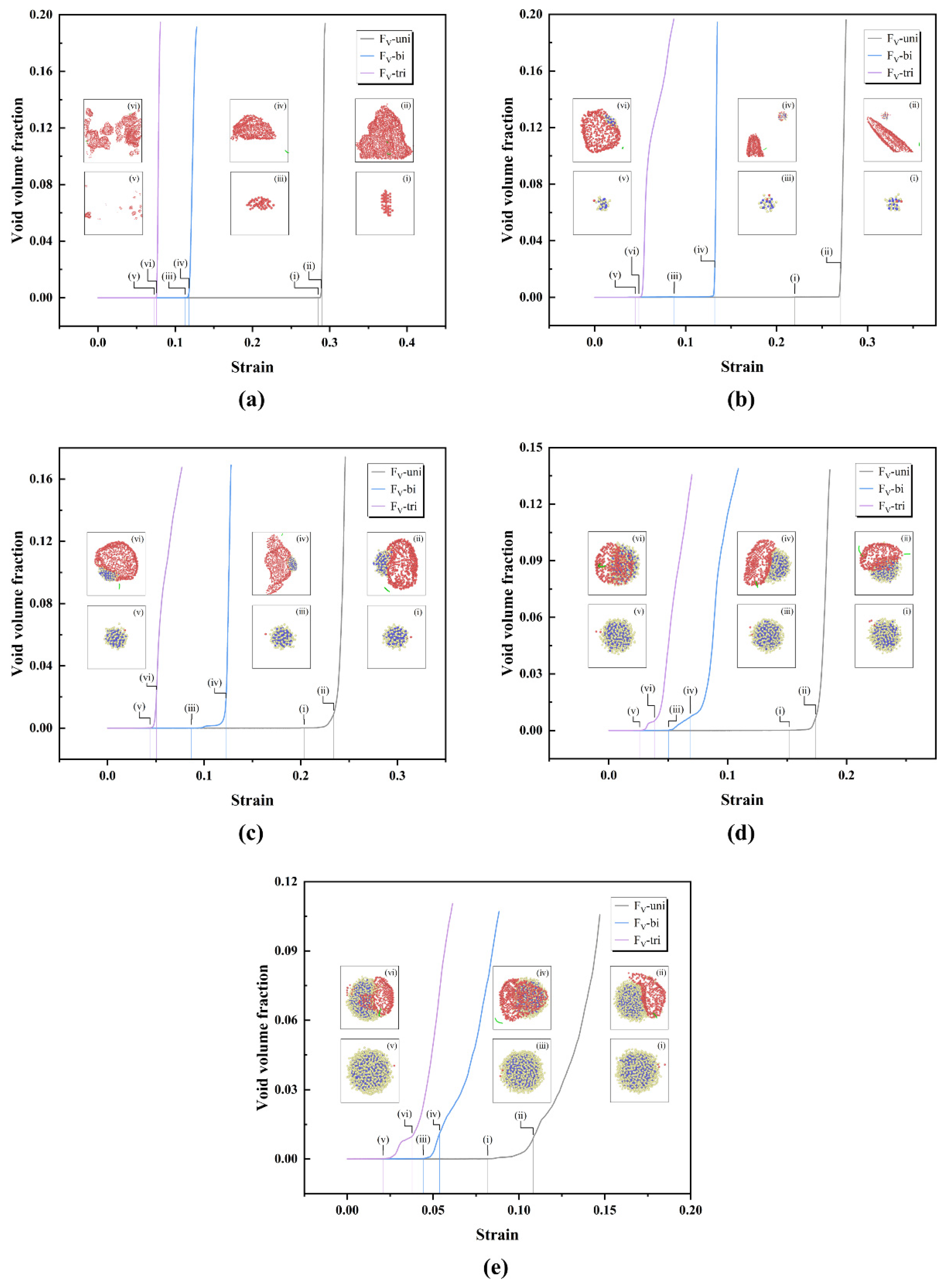

In order to gain deeper insight into the process of void nucleation under different stress states, the construct surface mesh method was used to analyze the variation of void volume fraction in the whole system with increasing strain. Figure 3 illustrates the variation of the void volume fraction with strain, along with snapshots of void configurations for pure iron and the 1–4 nm oxide cluster cases. Void volume fraction curves after voids penetrating the simulation box are not shown. It can be seen from the curves that the dislocation emission always occurs after the appearance of voids and the void volume fraction increases rapidly once the dislocation is emitted. The voids grow to a certain size and cause enough atomic movement to form dislocations around the voids. Thus, the process of void nucleation is divided into two stages depending on whether dislocations are emitted. In the first stage of void nucleation, the atoms debond at the interface between cluster and matrix. In the second stage of void nucleation, voids grow rapidly after dislocation emission. This result aligns with the findings of void nucleation processes in other materials [12,13]. The snapshots of void configurations in Figure 3 are labelled as (i), (iii), and (v) for void nucleation and (ii), (iv), and (vi) for dislocation emission during uniaxial, biaxial, and triaxial tensile deformation, respectively. The void identification method from reference [13] is used to identify the voids in the system, where the red atoms, whose atom volume is greater than 30 ų according to Voronoi analysis, represent the voids. The volume of a bcc iron atom in a perfect system is calculated by us to be 11.6 ų at 300 K. The dislocations around the voids are 1/2<111> dislocations in the beginning, which are also the most easily formed full dislocations in the bcc system. As the voids grow larger, the number of dislocations around the voids increases, and another common <100> dislocation in the bcc system appears, which can be obtained by synthesizing two 1/2<111> dislocations. It can be seen from void volume fraction curves that the void growth was significantly accelerated after the dislocations were emitted.

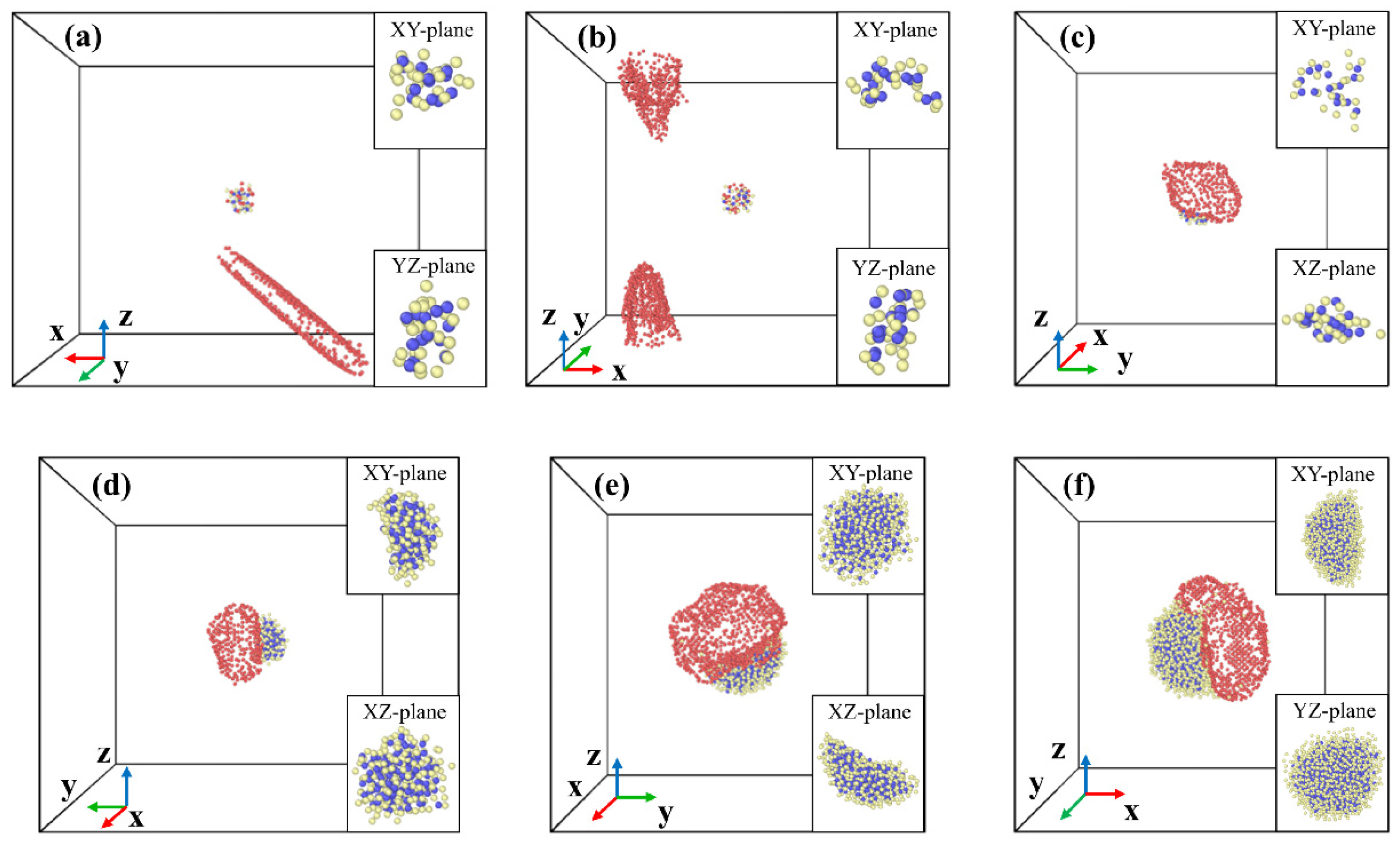

The snapshots of the void configurations show that void nucleation does not occur at the same location in pure iron cases, but that voids nucleate around the clusters in 1–4 nm cases. The location of the dislocation emission is consistently around the voids. In most cases, the voids around clusters grow with increasing strain. It is noteworthy that during uniaxial and biaxial tensile deformation of 1 nm oxide clusters, as shown in Figure 3b, the voids which nucleate around the clusters do not grow. Instead, other new voids nucleate in the matrix, which continue to grow, and the dislocations are emitted around the new voids. It shows that the results for 1 nm clusters are similar to the results for pure iron, indicating that the influence of clusters smaller than 1 nm on the process of void nucleation is slight. Comparing the differences in void nucleation of the same size of clusters under different stress states, it can be seen that void nucleation occurs at the smallest strain during triaxial tension. The strain required for void nucleation during biaxial and triaxial tension is evidently smaller than that during uniaxial tension. These results suggest that the biaxial and triaxial tensile stress states are beneficial to void nucleation, and the process of void nucleation is strongly influenced by the stress states.

There are two different outcomes for the shape of clusters during tensile deformation [15,16]: if the cluster is softer than matrix, it will gradually deform; otherwise, if the cluster is stiffer than matrix, it will retain its original shape. To explore this further, we investigate the modulus of Y₂O₃ nanoclusters and the iron matrix. The bulk modulus of Y₂O₃ is 148.9 GPa, as determined by ultrasonic measurements [38], while that of single-crystal bcc Fe is 173 GPa [39,40]. This indicates that the Y₂O₃ nanoclusters are softer than the Fe matrix. Figure 4 shows snapshots of the voids and oxide cluster configuration in detail after the void nucleation for clusters of different size. It can be seen that the Y₂O₃ nanoclusters gradually deform as voids grow, rather than maintaining their original shape. The deformation of the clusters is similar across different sizes and stress states. Therefore, some representative cases are selected as examples in Figure 4. The deformation of the 1 nm clusters during uniaxial and biaxial tension cases is not very significant due to the fact that the voids around the clusters do not grow continuously, as shown in Figure 4a,b.

4. Discussion

In order to further investigate the mechanism of void nucleation, we analyze the stress and strain distribution of the system before nucleation. According to the GTN model, the rate of void nucleation is affected by both stress and strain [41]. Figure 5 shows the distribution of hydrostatic stress, von Mises stress, volumetric strain, and shear strain of the Fe atoms in the system before void nucleation using 2 nm during triaxial tension as an example. The stress and strain values for different types of atoms are too disparate for direct comparison; only the stress and strain distribution for Fe atoms is presented. The LAMMPS program facilitates the output of six stress and strain components, so we choose the form consisting of six stress or strain components when using the following formulas. The hydrostatic stress is calculated by three normal stresses:

$${\sigma }_H={\displaystyle \frac{1}{3}}({\sigma }_{11}+{ \sigma }_{22}+{\sigma }_{33})$$

(1)

where ${\sigma }_H$ is the hydrostatic stress of each atom, and ${\sigma }_{11}$, ${\sigma }_{22}$, and ${\sigma }_{33}$ refer to the normal stresses of each atom in x, y, and z directions, respectively. The von Mises stress is calculated by the expression of six stress components:

$${\sigma }_M=\sqrt{{\displaystyle \frac{1}{6}}[{({\sigma }_{11}-{\sigma }_{22})}^2+{({\sigma }_{22}-{\sigma }_{33})}^2+{({\sigma }_{33}-{\sigma }_{11})}^2]+{{\sigma }_{12}}^2+{{\sigma }_{13}}^2+{{\sigma }_{23}}^2}$$

(2)

where ${\sigma }_M$ is the von Mises stress of each atom, and ${\sigma }_{12}$, ${\sigma }_{13}$, and ${\sigma }_{23}$ refer to the shear components of the stress tensors of each atom. The volumetric strain is calculated by three normal strains:

$${\epsilon }_V={\displaystyle \frac{ 1}{3}}({\epsilon }_{11}+{\epsilon }_{22}+{\epsilon }_{33})$$

(3)

where ${\epsilon }_V$ is the volumetric strain of each atom, and ${\epsilon }_{11}$, ${\epsilon }_{22}$, and ${\epsilon }_{33}$ refer to the normal strains of each atom in x, y, and z directions, respectively. The shear strain is calculated by the expression of six strain components:

$${\epsilon }_S=\sqrt{{\displaystyle \frac{1}{6}}[{({\epsilon }_{11}-{\epsilon }_{22})}^2+{({\epsilon }_{22}-{\epsilon }_{33})}^2+{({\epsilon }_{33}-{\epsilon }_{11})}^2]+{{ \epsilon }_{12}}^2+{{\epsilon }_{13}}^2+{{\epsilon }_{23}}^2}$$

(4)

where ${\epsilon }_S$ is the shear strain of each atom, and ${\epsilon }_{12}$, ${\epsilon }_{13}$, and ${\epsilon }_{23}$ refer to the shear components of the strain tensors of each atom.

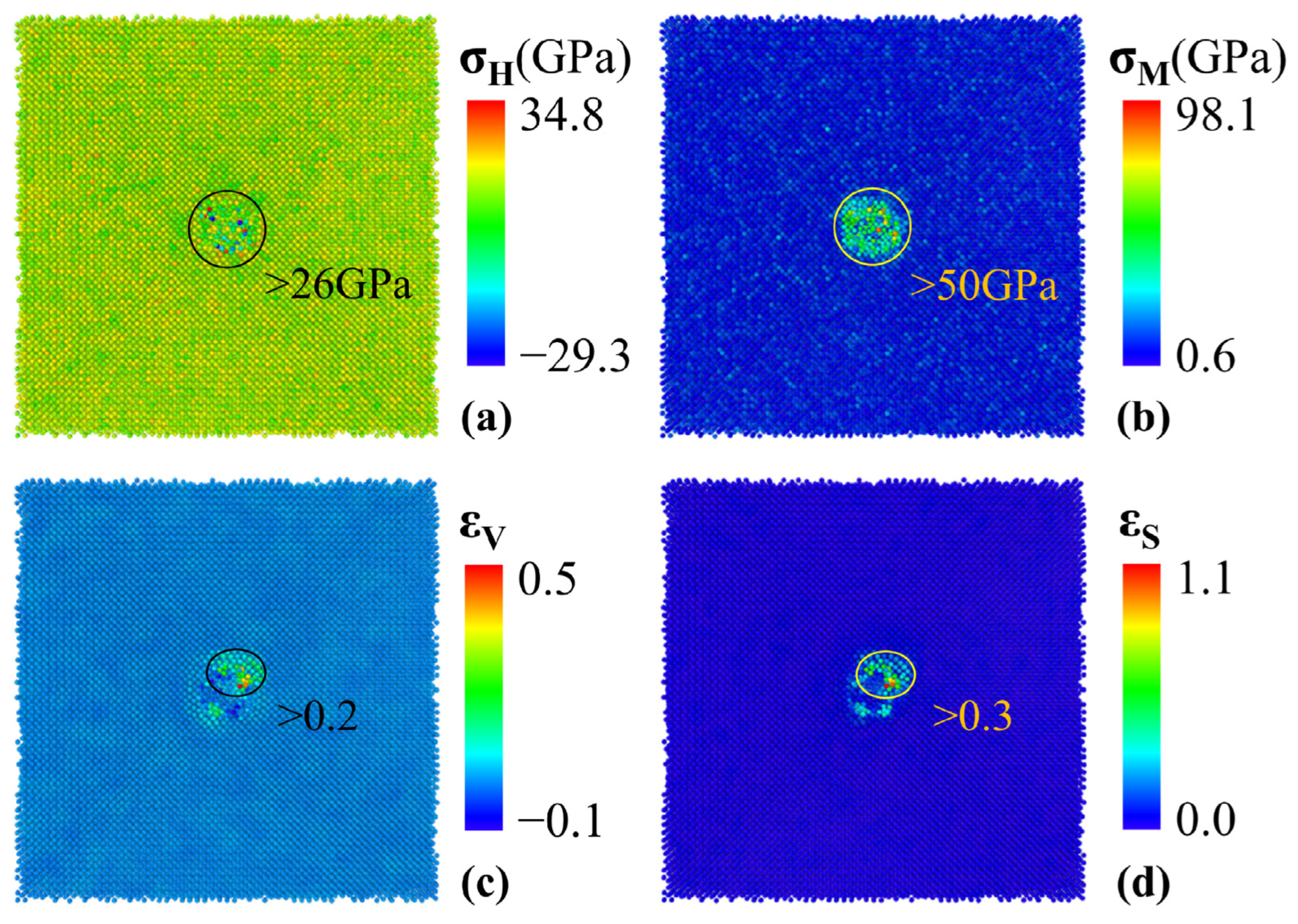

The distributions of hydrostatic stress and von Mises stress are illustrated in Figure 5a,b. Positive hydrostatic stress represents atoms under tensile forces, while negative hydrostatic stress represents atoms under compressive forces. Iron atoms experiencing hydrostatic stress greater than 26 GPa and von Mises stress greater than 50 GPa are highlighted. The iron atoms with the largest hydrostatic stress and von Mises stress are located around the cluster, indicating that there is a large stress concentration around the cluster before void nucleation. Stress concentration may be one of the primary reasons for the occurrence of void nucleation. The distributions of volumetric strain and shear strain are illustrated in Figure 5c,d. Positive volumetric strain indicates that the atomic volume is increasing, and negative volumetric strain indicates that the atomic volume is decreasing. We highlight the iron atoms with volumetric strain larger than 0.2 and shear strain larger than 0.3. It can be seen that the iron atoms with the largest stress are uniformly distributed around the cluster, while the iron atoms with the largest strain are concentrated in one corner of the cluster, where the void nucleation ultimately occurs. This suggests that strain concentration also contributes to void nucleation, and it is more straightforward and accurate to use volumetric strain and shear strain to identify the location of void nucleation.

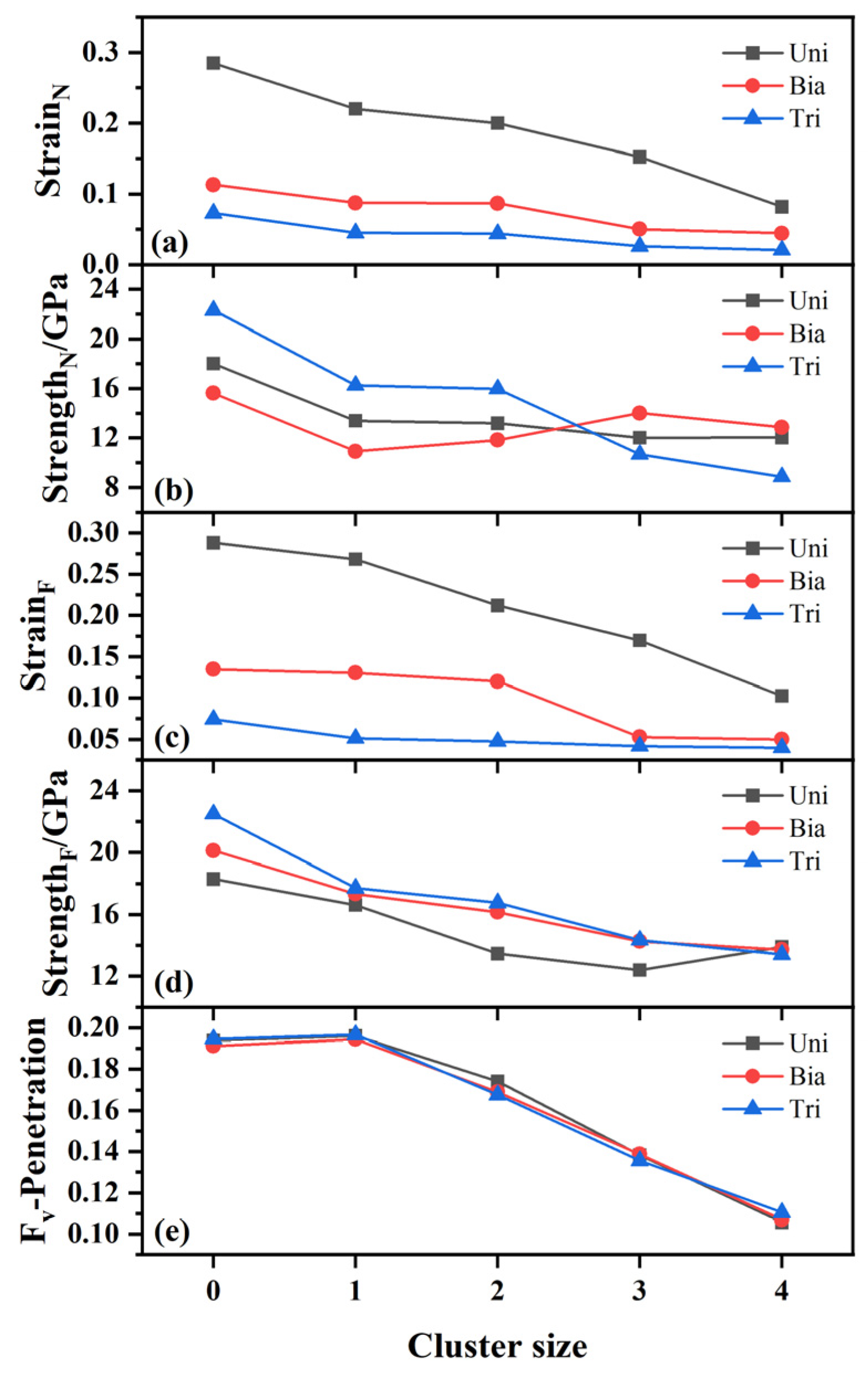

The variation of nucleation strain, nucleation strength, failure strain, failure strength, and the void volume fraction at penetration with oxide cluster size during multi-axial tensile deformation are shown in Figure 6a–e, respectively. The strain at which void nucleation occurs is called nucleation strain, and the strength at this point is called nucleation strength. The strength of peak stress is called failure strength. It can be seen that the nucleation strain and failure strain decrease with increasing cluster size, as shown in Figure 6a,c, indicating that larger clusters nucleate and fail at smaller strain, which is in agreement with both experimental and theoretical studies about void nucleation in other materials [42,43]. In addition, it can be seen that the variation of the nucleation strain and failure strain with cluster size tends to flatten from uniaxial to biaxial and then to triaxial tension, indicating that the effect of cluster size on nucleation strain and failure strain is small during biaxial and triaxial tension. From Figure 6b,d, we can see that the addition of the oxide clusters reduces the nucleation strength and failure strength, and the reduction in strength has also been observed in other types of clusters during the process of void nucleation [14,15]. The nucleation strength and failure strength decrease with increasing cluster size in most of the cases. The unusual increase in nucleation strength and failure strength in relatively large clusters during uniaxial and biaxial tension is due to the change in the stress–strain curve from a bimodal pattern to a unimodal pattern, with fewer phase transitions to release the stress, resulting in higher nucleation and failure strength. Figure 6e shows that the void volume fraction at penetration decreases with increasing cluster size, and the volume fractions for the 1 nm cluster and pure iron cases are similar. The void volume fractions at penetration under different stress states for the same cluster size are almost the same.

Investigation of the void nucleation process reveals that the voids initially nucleate within the iron matrix around the oxide clusters, followed by the debonding of clusters from the matrix, which aligns well with the theory of void nucleation [10]. However, in the case of 1 nm clusters during uniaxial and biaxial tensile deformation, the voids around the oxide clusters do not grow. Instead, new voids nucleate elsewhere, and these new voids are able to grow, as shown in Figure 3. Therefore, we analyze the stress triaxiality of the two voids in the system after the appearance of the second voids, as shown in Figure 7. The stress triaxiality is based on hydrostatic stress and von Mises stress:

$$T={\displaystyle \frac{{\sigma }_H}{{\sigma }_M}}$$

(5)

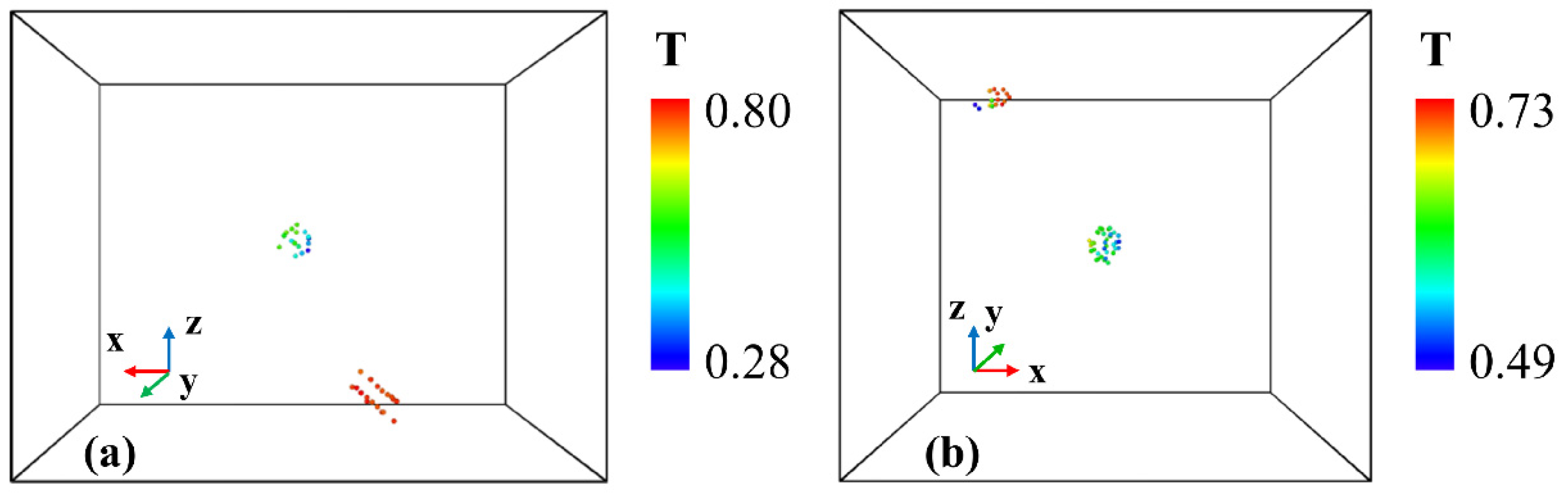

where T is the stress triaxiality of each atom. The locations of the two voids are illustrated in Figure 7a,b for uniaxial and biaxial tension, respectively, and the stress triaxiality of these atoms is calculated by averaging the stress triaxiality of each atom with its neighboring atoms. It can be seen that the stress triaxiality of the voids around the cluster is relatively low, whereas the stress triaxiality of the second void is much higher. These results are in agreement with experimental results in other materials showing that the voids grow first in high stress triaxiality regions [44,45], and the low stress triaxiality around the first voids may be one of the reasons for their lack of growth.

With respect to the influence of the oxide clusters on the ductility degradation of ODS steels, void nucleation is considered as the first step of ductile damage in metals during the deformation process and the fact that second-phase particles promote void nucleation has already been used to account for the degradation of ductility [46]. According to our results, the addition of oxide clusters reduces nucleation strain, nucleation strength, failure strain, and failure strength in comparison to pure iron. The influence of a 1 nm cluster on void nucleation is slight, and the influence of clusters increases with increasing cluster size, indicating that larger cluster sizes would be more susceptible to ductile damage during tensile deformation. Therefore, increasing the size of oxide clusters will enhance strength through obstacle dislocation slip [26,47,48], but it also increases the risk of void nucleation which leads to ductile degradation, and the number density and size distribution of oxide clusters in ODS steels should be chosen by considering both aspects.

5. Conclusions

The void nucleation process in a bcc iron matrix with 1–4 nm Y₂O₃ nanoclusters during multi-axial tensile deformation has been investigated using MD simulations. The effects of different stress states and cluster sizes on the void nucleation process have been analyzed in detail. The main outcomes of this study are as follows:

Similar to other clusters, the process of void nucleation for a bcc iron matrix with Y₂O₃ nanoclusters is divided into two stages depending on whether the dislocations are emitted: (i) atoms debonding at the interface between the cluster and matrix, or (ii) rapid void growth after dislocation emission. The Y₂O₃ nanoclusters gradually deform during tension due to the fact that Y₂O₃ nanoclusters are softer than the bcc iron matrix. Void nucleation is affected by both stress and strain concentration around the clusters.

Void nucleation occurs at smaller strain in biaxial and triaxial tensile deformation compared to uniaxial tensile deformation for the Y₂O₃ nanocluster system. Increasing cluster size leads to a smaller strain for void nucleation, indicating that larger clusters make the material more susceptible to ductile damage during tensile deformation.

The influence of 1 nm clusters on void nucleation is slight and the void nucleation process for a bcc iron matrix with a 1 nm cluster is similar to that of pure iron. In addition, voids grow first in the areas of high stress triaxiality instead of growing around the clusters in uniaxial and biaxial tensile deformation for 1 nm cluster cases.
