Mechanisms and Applications of Impurity-Driven Surface Modification in Magnesium Sulfate Crystallization

Abstract

Impurities significantly constrain the production of high-purity magnesium sulfate crystals, essential for advanced magnesium-based materials. Sodium–magnesium co-precipitation affects the crystals’ purity and surface smoothness, with NaCl embedding into crystal surfaces during cooling crystallization in the MgSO₄-NaCl-H₂O system. Trace impurities, however, inhibit NaCl adhesion, alter SO₄²⁻ coordination structures, and enhance the purity and morphology of MgSO₄·6H₂O crystals. Adding 300 mmol/L K₂SO₄ reduces sodium content in crystals from 0.57% to 0.03% and surface roughness from 2.76 nm to 0.415 nm. The binding energies of Na⁺ on MgSO₄·6H₂O crystal planes are lower than those of impurity ions, which compete for active growth sites and prevent Na⁺ nucleation. This finding challenges the assumption that higher-purity solutions yield higher-purity crystals.

1. Introduction

Salt lakes are a major source of magnesium sulfate; however, the magnesium sulfate crystals extracted from brine often exhibit significant issues, including surface impurities, irregular morphologies, and rough surfaces. These deficiencies reduce the surface smoothness and overall purity of the crystals, thereby compromising the quality of downstream products, such as basic magnesium sulfate. This, in turn, impacts the compatibility [1] and interfacial bonding strength of these materials with other components [2,3]. For instance, in construction materials and adhesives [4], smoother surfaces enhance interfacial bonding properties [5]. Similarly, in photocatalytic composite materials [6], smoother surfaces reduce frictional resistance, improve magnesium sulfate dispersion within the matrix, and enhance both catalytic efficiency and reaction selectivity. At present, the quality of magnesium sulfate products derived from salt lakes requires substantial improvement. Achieving the desired purity and morphology in magnesium sulfate crystals is essential for advancing the salt-lake magnesium industry.

An ideal crystal surface should be smooth and defect-free, enabling efficient crystal growth, minimizing impurity accumulation, and enhancing overall crystal purity. The surface morphology and purity of a crystal are closely linked to its nucleation and growth processes. During nucleation, classical nucleation theory describes crystallization in aqueous solutions as the aggregation of constituent ions [7,8]. Structural details in the pre-nucleation stage play a foundational role in determining the composition and structure of the resulting crystals. For example, Hu [9] demonstrated via Raman spectroscopy that altering solution conditions can modify ionic structures, thereby influencing the composition and morphology of precipitated crystals. Similarly, Kollias [10] employed molecular dynamics simulations to show that the ionic composition and concentration in a solution significantly affect the morphology of ion clusters, which subsequently impacts nucleation rates and the final crystal morphology. In the MgSO₄ system, the association structures of SO₄²⁻ ions are influenced by other ions, leading to the formation of distinct MgSO₄ crystal nuclei [11].

During crystal growth, the anisotropic surface energy of nuclei drives solute molecules to preferentially attach and accumulate on low-energy lattice planes, thereby promoting directional growth [12]. Dobberschütz [13] identified that the inhibitory effects of inorganic substances on crystallization are primarily due to surface adsorption, which blocks active growth sites. Other studies [14] have suggested that impurities may bind to specific crystal surface sites via charge adsorption [15] or chelation with lattice functional groups [16]. These interactions alter the adsorption layer at the crystal–solution interface [17], modify energy barriers during crystallization, and interfere with nucleation, aggregation, and growth processes [18]. Such disruptions ultimately impact the morphology and purity of the final crystalline products [19]. Impurity ions, therefore, play a critical role in disrupting crystal habits. Accumulated impurities during growth result in defect sites or boundaries, adversely affecting the crystal’s overall quality. The specific effects of impurities vary depending on the crystallization system [20]. In the context of cooling crystallization for magnesium sulfate production, the mechanisms through which impurity ions influence nucleation and growth remain poorly understood, necessitating further investigation.

This study focused on the effects of common brine ions, such as K⁺, Li⁺, and Ca²⁺, on solution ion structures and crystallization products. Molecular dynamics simulations were employed to analyze these effects at the atomic scale, exploring impurity attachment mechanisms and their interactions with magnesium sulfate crystal surfaces. The ultimate goal was to control magnesium sulfate crystal morphology and provide guidance for the production of high-quality magnesium sulfate.

2. Materials and Methods

2.1. Materials

The reagents used in the experiments included magnesium sulfate heptahydrate, sodium chloride, potassium chloride, potassium sulfate, calcium sulfate dihydrate, lithium chloride, and lithium sulfate monohydrate, all of which were of analytical grade and purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Additionally, nitric acid (analytical grade) was sourced from Shanghai Lingfeng Chemical Reagent Co., Ltd. (Shanghai, China). Ultrapure water with a conductivity of less than 0.1 μS/cm was utilized throughout the experiments to ensure minimal contamination and consistent results.

Crystallization experiments were performed in a 500 mL borosilicate glass reactor under ambient atmospheric conditions (25 °C, 1 atm). The reactor remained open to air throughout the process to simulate industrial crystallization environments, with no active control of oxygen ingress.

The instruments employed in this study included an X-ray diffractometer (X-ray diffraction (XRD) measurements were performed using a D/teX-Ultra, Rigaku, Japan, diffractometer with Cu Ka radiation (λ = 1.5406 Å) operated at 40 kV and 40 mA. Scans were collected over a 2θ range of 10°–80° with a step size of 0.02°) for crystallographic analysis, a high-vacuum scanning electron microscope equipped with an energy-dispersive spectrometer (JSM-IT500HR, JEOL, Tokyo, Japan) for morphological and elemental composition analysis, and a focused ion beam scanning electron microscope (Scios 2 HiVac, Thermo Fisher Scientific, Bothell, WA, USA) for detailed structural imaging. An atomic force microscope (AFM, Bruker Dimension Icon, Karlsruhe, Germany) was used to measure surface roughness, while an inductively coupled plasma optical emission spectrometer (5800VD, Agilent Technologies, Santa Clara, CA, USA) provided elemental quantification. Additionally, an in situ infrared spectrometer (Nicolet iS50, Thermo Fisher Scientific, Bothell, WA, USA) was used for the chemical bond analysis.

In an aqueous solution environment, oxygen may exist as dissolved oxygen (DO) or peroxides (e.g., H₂O₂). While dissolved oxygen could theoretically interact with Mg²⁺ and SO₄²⁻ ions during nucleation and growth, our experiments were conducted in an open crystallizer under ambient atmospheric conditions (25 °C). Atmospheric oxygen diffusion was not actively controlled here, as the study prioritized impurity incorporation. Nevertheless, oxygen-related effects on crystal morphology and doping—including potential mitigation strategies such as sealed crystallizers—will be systematically investigated in future work.

2.2. Experimentai Procedure

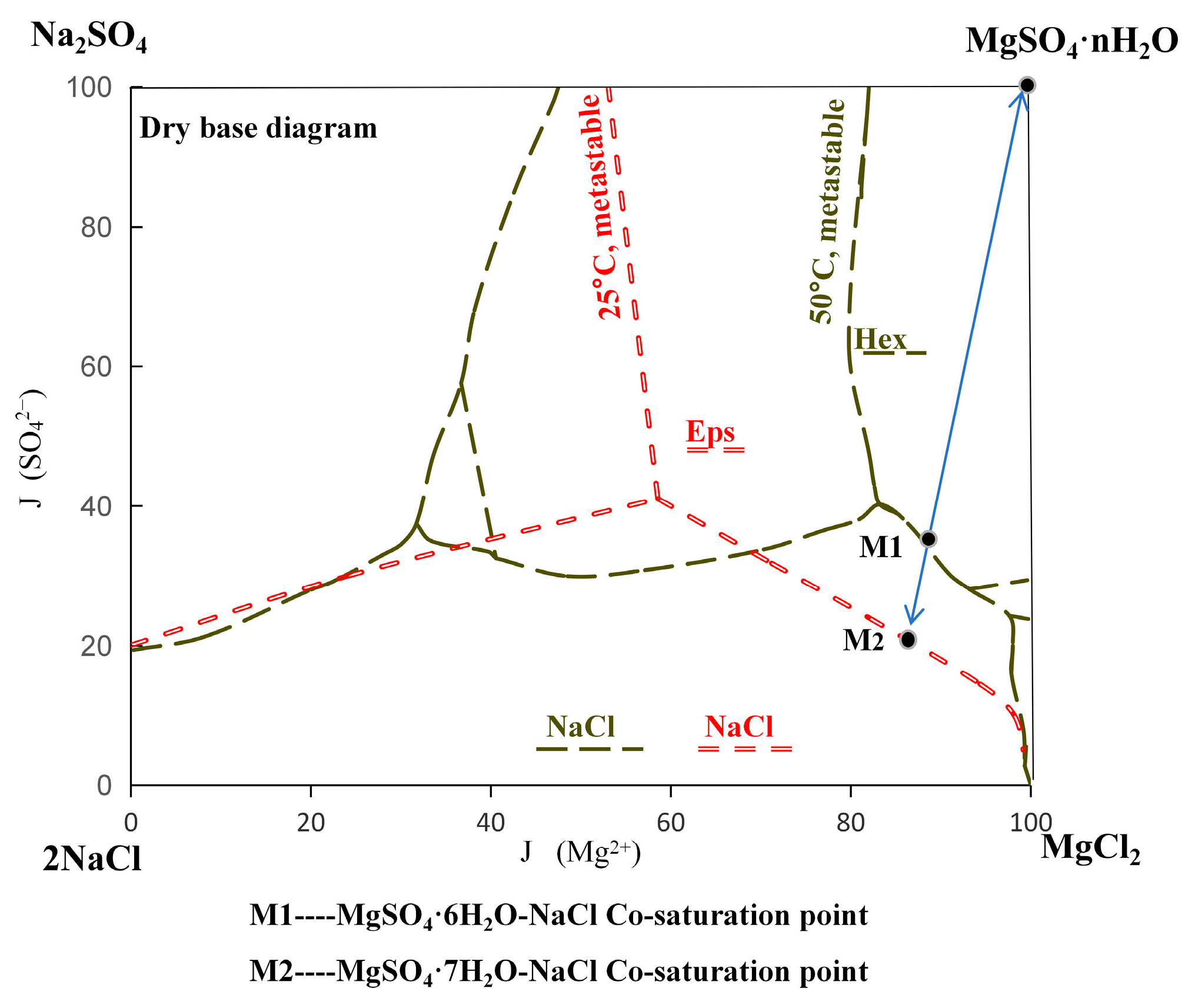

Given the relatively high NaCl content in the cooling crystallization process of magnesium sulfate, it was considered the primary component of the salt solution. To obtain high-purity magnesium sulfate hydrates, a quaternary phase diagram of the Na⁺, Mg²⁺//Cl⁻, SO₄²⁻-H₂O system (Figure 1) [1] was used as a reference. A co-saturated solution of MgSO₄·6H₂O-NaCl at the M1 phase point (containing 31.19 g/L Na⁺, 82.41 g/L Mg²⁺, 48.21 g/L Cl⁻, and 327.68 g/L SO₄²⁻) was prepared in a constant-temperature water bath maintained above 60 °C. The SO₄²⁻ to Cl⁻ ratio was adjusted, and the solution was gradually cooled to 60 °C under static conditions to form a metastable saturated solution. Crystallization was initiated by further cooling the solution from M1 to M2, down to room temperature, resulting in the precipitation of magnesium sulfate hydrates.

2.3. Molecular Dynamics Simulation

During crystal growth, the attachment of solute molecules and impurities is influenced by both the anisotropic surface energy and the atomic structure of the crystal faces. While low-energy lattice planes may promote preferential attachment, the specific arrangement of atoms on each face also plays a critical role in determining impurity capture. For example, in KDP crystals, the (100) and (101) faces both exhibit low surface energy but capture impurities differently due to their distinct atomic structures [21]. Therefore, the binding energy of impurities on the crystal surface was calculated using the (100) and (010) planes of MgSO₄·6H₂O as examples.

Molecular dynamics simulations were conducted to investigate the cooling crystallization process of MgSO₄-NaCl co-saturated solutions. A mixed solution model of MgSO₄-NaCl was constructed, and energy minimization was performed to ensure system neutrality, as shown in Figure 2a. The system was cooled from 333.15 K to 298.15 K with a timestep of 2 femtoseconds, and energy values were obtained over a 365 ps stabilization period to monitor changes in system energy over time. Optimized MgSO₄·6H₂O (100) and (010) crystal planes were prepared, and NaCl crystals were added to the processed crystal surfaces. Layer models of MgSO₄·6H₂O (100) and (010) with NaCl were developed; the (100) plane is characterized by the hexahydrated Mg octahedra, while the (010) plane simultaneously features both Mg octahedra and sulfate tetrahedra. The following equations were applied to calculate the surface energy of the two planes without NaCl, the formation energy of NaCl on the product surface, and the interaction energy between impurity ions and Na⁺ on the magnesium sulfate crystal planes, to analyze the competition between impurity ions and Na⁺.

Esurf = (Eslab − nEbulk)/2A

(1)

where Esurf is the surface energy; Eslab is the total energy of the surface model, including the energy of surface atoms and additional energy due to the surface presence; n is the number of atoms in the slab model; Ebulk is the average energy of each atom in the bulk phase; A is the surface area of the slab model.

E = E(crystallographicnplane) – EnaCl − Eslab

(2)

where E(crystallographicnplane) is the total energy of the crystal plane; ENaCl is the energy of NaCl; and Eslab is the total energy of the surface model.

ΔE = Etotal − (Esurface + Eion)

(3)

where ΔE is the binding energy; Etotal is the total energy of the system with impurity ions on the crystal surface; Esurface is the total energy of the surface; and Eion is the energy of the ions.

3. Results

3.1. Morphology and Composition of Cryogenic Crystallization Products

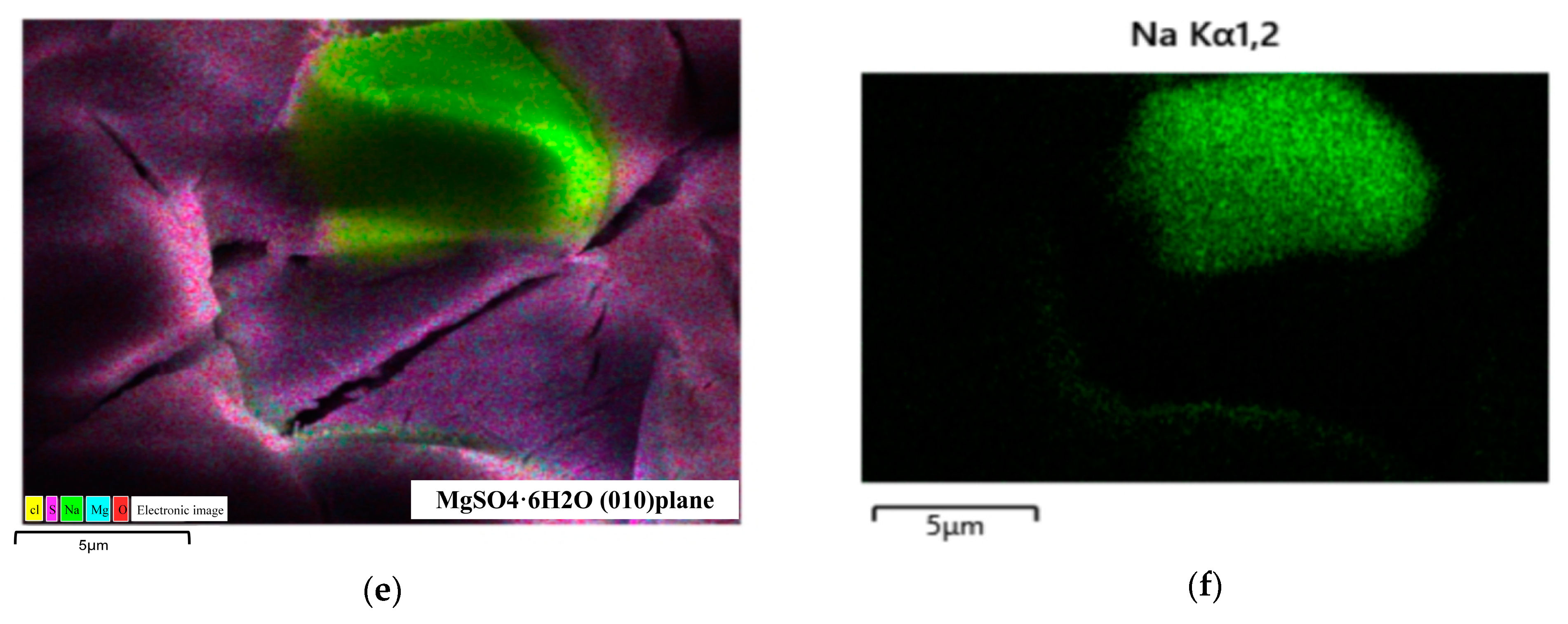

To evaluate the crystallization effects of the MgSO₄-NaCl saturated solution under cooling conditions, experiments were conducted, and the results are summarized in Figure 3. The XRD spectrum in Figure 3a confirms that the primary solid product was MgSO₄·6H₂O. The presence of co-precipitated impurities or additional crystalline phases in the product resulted in extra diffraction peaks in the XRD spectrum compared to the standard reference pattern. Therefore, as shown in the SEM image in Figure 3b, small square-shaped particles were observed on the crystal surface. The EDS analysis in Figure 3c identified these particles as NaCl, with sodium and chlorine present in a 1:1 ratio. AFM measurements in Figure 3d revealed that the surface roughness (Ra) of the crystal within a 2.5 μm × 2.5 μm region was 2.76 nm. Further analysis using FIB-SEM in Figure 3e demonstrated that NaCl particles were embedded within the MgSO₄·6H₂O crystal surface, which was further confirmed by 3D imaging and EDS analysis in Figure 3f. These results indicate that NaCl co-precipitates with MgSO₄ during the crystallization process, significantly affecting the surface roughness and overall quality of the crystals.

These results indicate that the cryogenic crystallization products of MgSO₄-NaCl saturated solutions have poor quality. The primary reason is the embedding of NaCl particles into the crystal surface during crystallization, which significantly impacts the morphology and quality of the crystals.

3.2. Effects of Impurity Ions on Crystallization Product Morphology and Composition

To explore the influence of impurity ions in the solution on cryogenic crystallization products, commonly found impurity ions in brine were added to the MgSO₄-NaCl saturated solution. The chemical composition, phase composition, and morphology of the resulting crystalline products were analyzed, with the results shown in Figure 4, Figure 5, Figure 6 and Figure 7. As shown in Figure 4, the addition of trace impurity ions significantly reduced the sodium content in the crystallized product. For example, when 300 mmol/L K₂SO₄ was added, the sodium mass fraction in the product decreased from 0.57% to 0.03%, resulting in the highest-purity product.

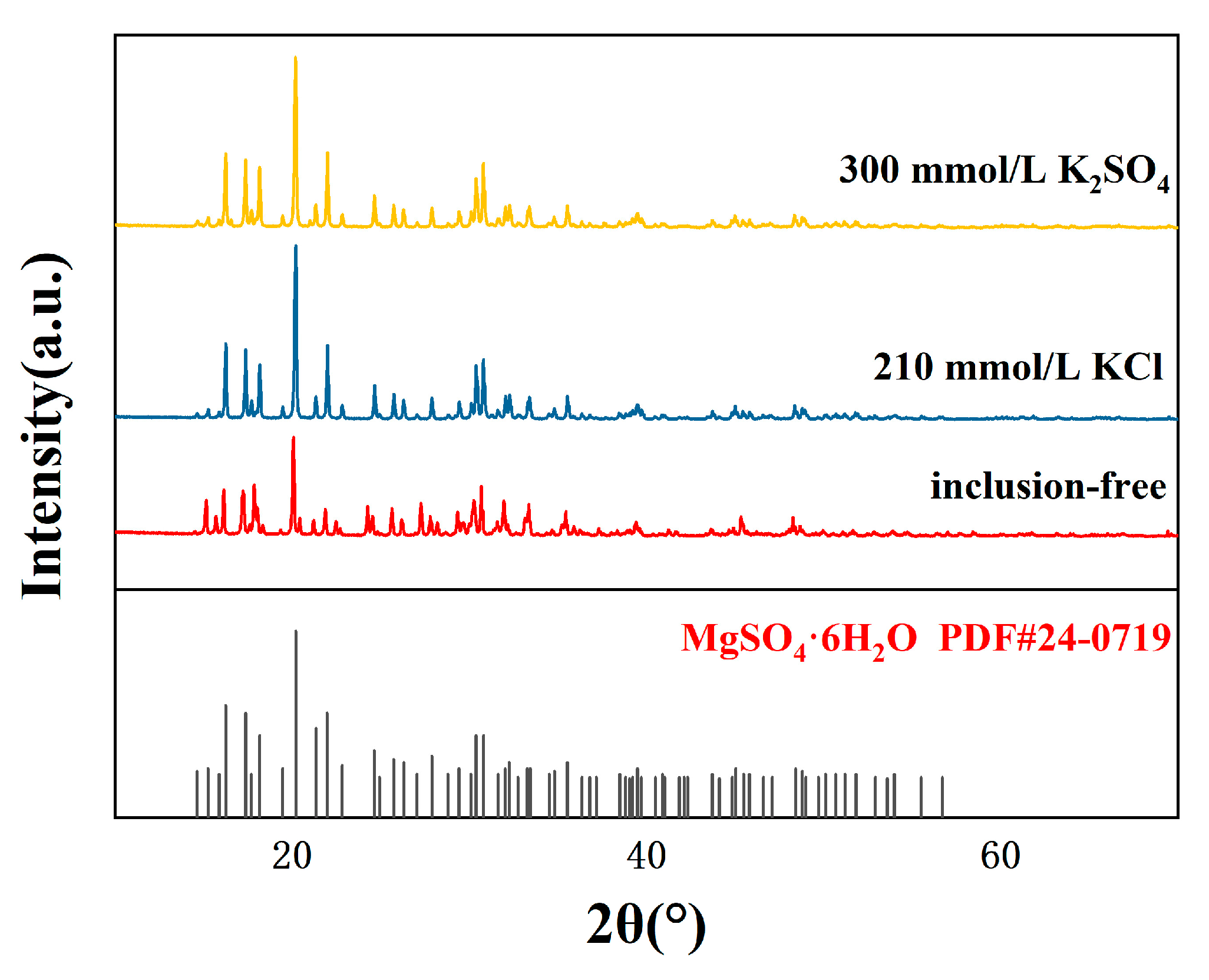

The XRD analysis (Figure 5) of the crystalline products indicated that the addition of impurity ions did not alter the phase composition of the product, which remained MgSO₄·6H₂O. The sharp diffraction peaks and absence of additional peaks in the XRD spectra confirmed the product’s phase purity. However, slight shifts in peak positions and intensities suggested that impurity ions slightly influenced the crystal lattice structure.

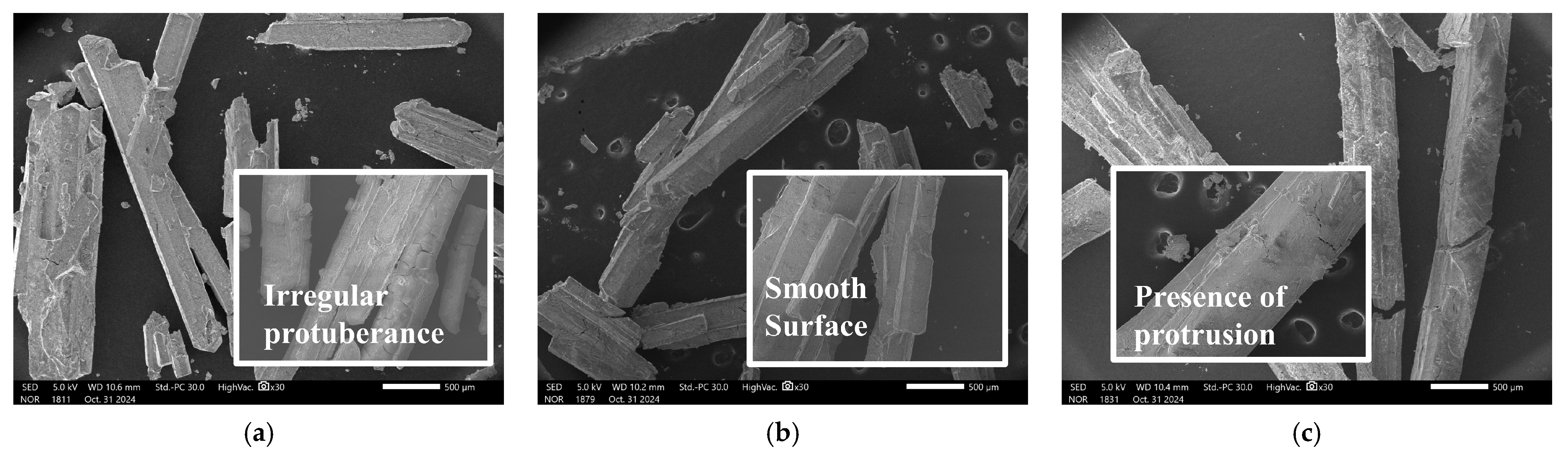

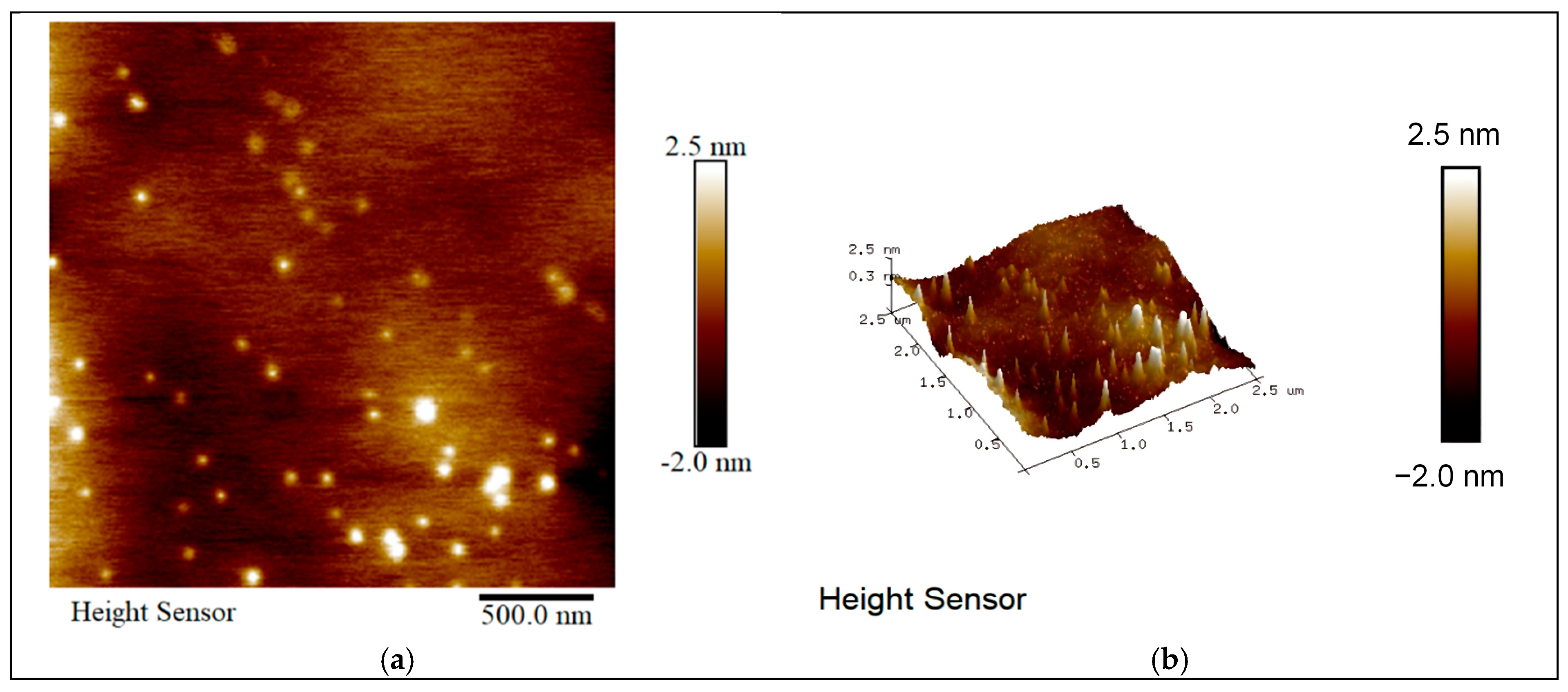

The SEM and AFM analysis (Figure 6 and Figure 7) demonstrated that the addition of impurity ions significantly reduced the number of square-shaped NaCl particles on the crystal surface, resulting in smoother and more uniform crystal morphologies. When 300 mmol/L K₂SO₄ was added, the surface roughness was reduced to 0.415 nm, as observed in the AFM images.

These results indicated that reducing the sodium content improved the regularity of the crystal morphology and enhanced product purity. Within the experimental range, the addition of impurity ions optimized the morphology of MgSO₄-NaCl cooling crystallization products, thereby improving product quality. It is hypothesized that the addition of impurity ions would increase the solubility of sodium chloride, thereby reducing the Na content in the crystal [22].

3.3. Effects of Impurity Ions on the Structure of Saturated Solutions

In aqueous solutions, Mg²⁺ exhibits strong electrostatic interactions with water molecules due to its high charge density and small ionic radius (0.72 Å). Beyond its primary hydration shell, Mg²⁺ interacts with surrounding sulfate ions (SO₄²⁻) through ion pairing and hydrogen bonding networks. The relative proportions of these species directly impact the nucleation and growth mechanisms of MgSO₄·6H₂O crystals.

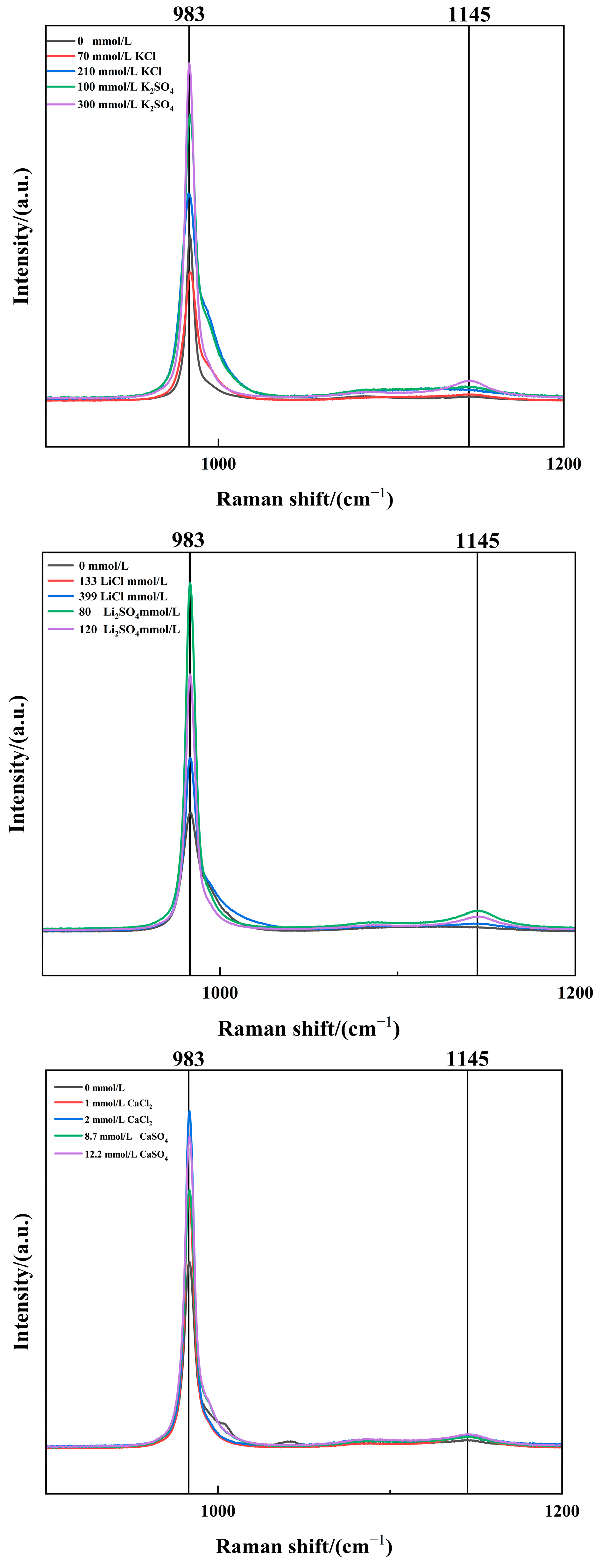

Previous studies have demonstrated that impurity ions enhance the morphology and purity of MgSO₄·6H₂O crystals. To further elucidate the microscopic mechanisms behind this improvement, in situ Raman spectroscopy was utilized to analyze the influence of impurity ions on the SO₄²⁻ coordination structures in the MgSO₄ system [23,24]. As shown in Figure 8, the characteristic peak at 983 cm⁻¹ corresponded to solvent-separated ion pairs (Mg²⁺-H₂O-SO₄²⁻), while the peak at 1145 cm⁻¹ represented complex SO₄²⁻ ionic clusters [25]. An increased transmittance at these peaks indicates a higher concentration of the respective components [26]. After introducing impurity ions, the transmittance at both 983 cm⁻¹ and 1145 cm⁻¹ increased significantly, suggesting that impurity ions promote the formation of Mg²⁺-H₂O-SO₄²⁻ complexes, facilitating the nucleation of MgSO₄·6H₂O crystals. These findings confirm that impurity ions alter the ratio of SO₄²⁻ coordination structures in the solution, making the system more conducive to the precipitation of MgSO₄·6H₂O. This conclusion aligns with the improved purity and morphology of magnesium sulfate crystals observed in Figure 4 and Figure 6.

3.4. Competitive Modification Effects of Impurities During Cryogenic Crystallization

To investigate the atomic-scale mechanisms of NaCl co-precipitation with MgSO₄ and the role of impurities in the reduction of Na content in crystals, molecular dynamics simulations were conducted.

The calculated formation energies of NaCl on the (100) and (010) planes of MgSO₄·6H₂O were negative, as shown in

Table 1. Calculation of NaCl formation energy.

Formation Energy E = E(plane) − Enacl − Eslab	(100)plane	(010)plane
Energy after adsorption	−48,070.75873	−48,077.44381
Eslab	−46,354.04541	−46,357.70313
ENaCl	−1714.430308	−1714.430308
Formation energy	−2.283022519	−5.310377279

, indicating a thermodynamic tendency for NaCl precipitation under current cooling and pressure conditions. Furthermore, the presence of sulfate tetrahedra on the (010) plane creates energetically favorable sites for NaCl attachment, which is why NaCl preferentially attaches to the (010) plane.

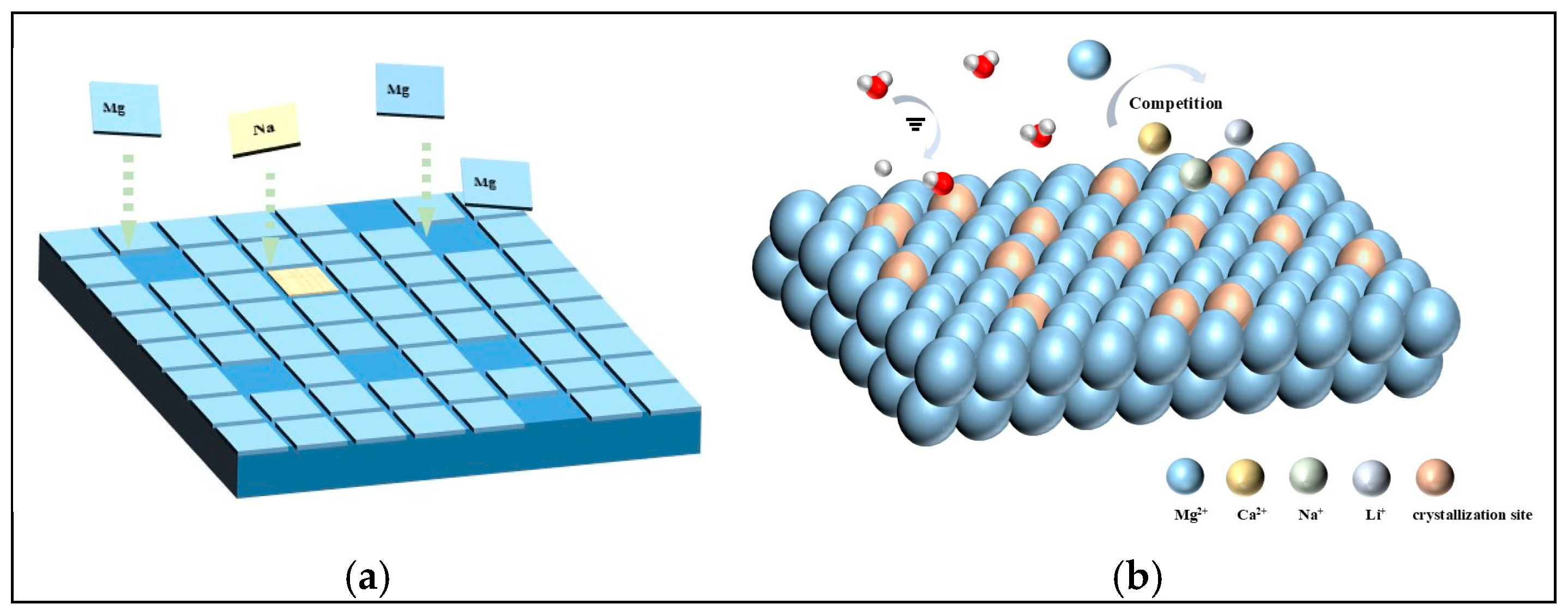

This suggests that Na⁺ and Cl⁻ ions in the system, having reached saturation, occupy active growth sites on MgSO₄·6H₂O surfaces [27]. Figure 9a illustrates how Na⁺ and Cl⁻ diffuse and are adsorbed onto MgSO₄·6H₂O clusters via electrostatic interactions, leading to the formation of local NaCl nuclei [28,29]. These nuclei modify the relative growth rates of different crystallization sites, altering the crystal morphology [30].

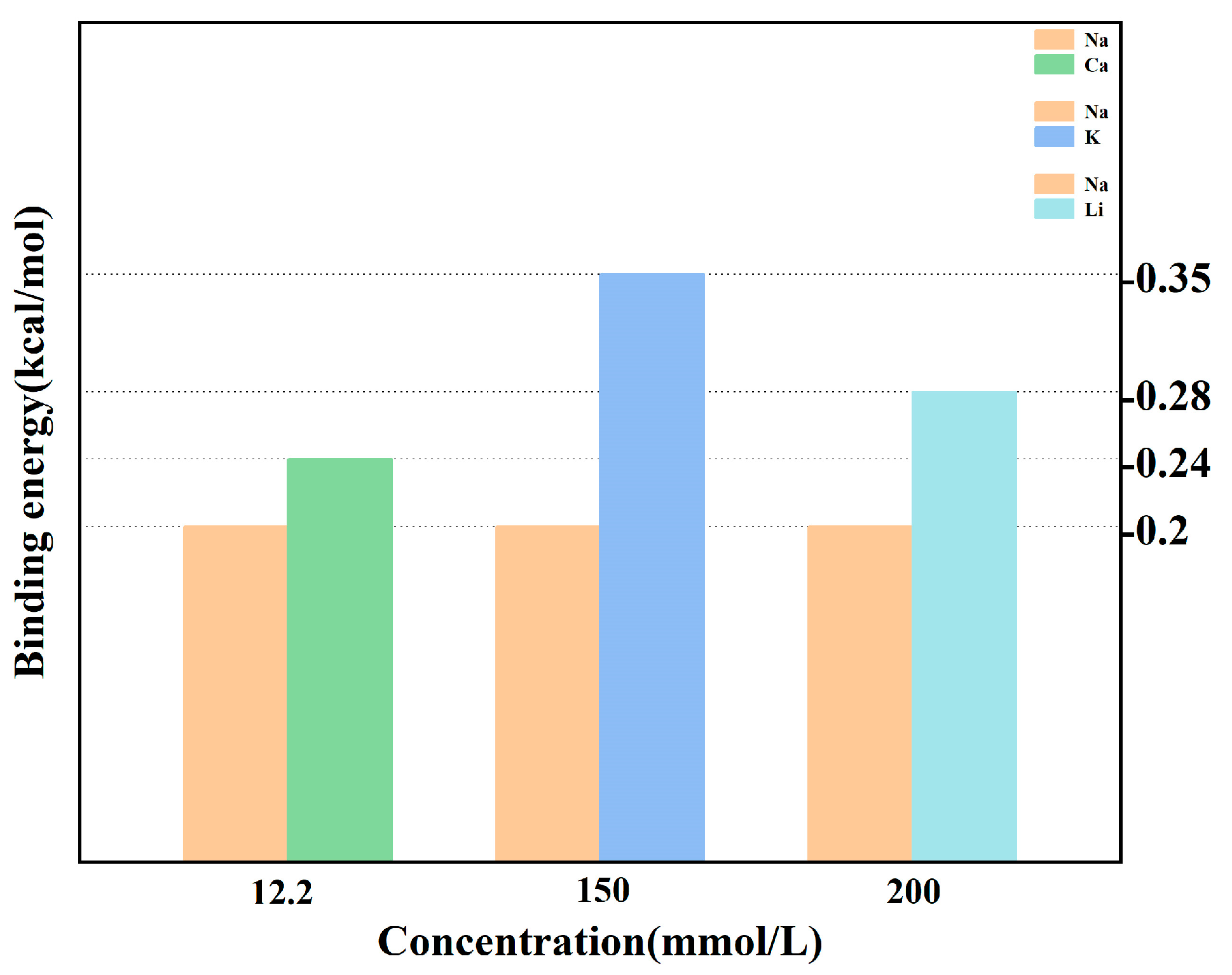

Impurity ions exhibited stronger binding affinities to MgSO₄·6H₂O crystal surfaces compared to Na⁺, as shown in Figure 10. This competitive advantage allowed impurity ions to occupy active growth sites, effectively inhibiting NaCl nucleation and growth.

The microscopic mechanism of NaCl crystal nucleation and growth on the surface of MgSO₄·6H₂O crystals involves the migration of Na⁺ ions to occupy crystallization sites on the MgSO₄·6H₂O crystal surface. Simultaneously, impurity ions compete with Na⁺ ions for the active crystallization sites, exhibiting a preferential adsorption behavior that inhibits the formation of NaCl crystals. This observation highlights the competitive modification effect of impurities on crystal growth and provides an atomic-level explanation for the phenomenon whereby solutions containing trace impurities are more likely to precipitate high-purity crystals.

4. Conclusions

The magnesium sulfate crystals produced through salt lake cooling crystallization processes are often characterized by high surface roughness and low purity, which significantly limit their applicability in downstream processes. The primary reason for the poor quality of crystals derived from MgSO₄-NaCl saturated solutions is the attachment of numerous square-shaped NaCl particles onto the crystal surface during cooling crystallization. However, within a specific range, the presence of impurity ions does not alter the composition of the crystallization product. Instead, it significantly reduces the occurrence of square-shaped NaCl particles on the crystal surface, resulting in smoother and more uniform crystals. For instance, the addition of 300 mmol/L K₂SO₄ reduced the sodium content in the final product from 0.57% to 0.03% and decreased surface roughness from 2.76 nm to 0.415 nm.

The Raman spectroscopy analysis of the solution structure revealed that trace impurities promoted the binding of Mg²⁺ and SO₄²⁻ to form Mg²⁺-H₂O-SO₄²⁻ complexes, thereby facilitating the nucleation and precipitation of MgSO₄·6H₂O. Molecular dynamics simulations further elucidated the cooling crystallization process at the atomic level. The simulations demonstrated that Na⁺ and Cl⁻ ions occupy active growth sites on MgSO₄·6H₂O crystal surfaces, leading to nucleation and growth that result in rougher surfaces and reduced crystal purity. However, the introduction of impurity ions into the system allows them to compete with Na⁺ ions for these active growth sites, effectively inhibiting NaCl nucleation and optimizing the crystal morphology.

These findings highlight the critical role of impurity competition in modifying the surface of magnesium sulfate crystals. Remarkably, solutions containing trace impurities are more conducive to the precipitation of high-purity crystals, challenging the conventional understanding of crystallization mechanisms. This work provides a novel perspective on the interplay between impurities and crystal growth, offering theoretical insights and practical strategies for improving the quality of magnesium sulfate products.
