Fabrication and Properties for Thermal Neutron Detection of ⁶LiCl/Rb₂CeCl₅ Eutectic Scintillator

Abstract

The ³He gas is commonly used for the detection of thermal neutrons. However, with the depletion of ³He gas, there is a need to develop new solid scintillators for thermal neutron detection. Solid scintillators containing ⁶Li, which have large neutron capture cross-sections and a large amount of energy released by transmutation reactions, are commonly used as alternative candidates. However, only single-crystal scintillators are currently used, and their ⁶Li concentration is limited by their chemical composition. In this study, we designed, grew, and evaluated a new eutectic scintillator, Rb₂CeCl₅/LiCl, which can improve the ⁶Li concentration compared with single-crystal scintillators. Rb₂CeCl₅, which was selected as the scintillator phase, has excellent scintillator properties (light yield: 36,000 photons/MeV, decay time: mostly 24 ns, slightly 153 ns), and is less deliquescent than other halide scintillators. The crystal grown using the vertical Bridgman method exhibited a eutectic phase composed of Rb₂CeCl₅ and LiCl. The eutectic crystals exhibited Ce³⁺ 5d-4f emissions, with a peak between 360 and 370 nm. The Rb₂CeCl₅ phase was identified as the luminescent phase via cathodoluminescence mapping, and 16,000 photons/neutron of the light yield and 56.1 ns of the decay time were observed. This study indicates that the Rb₂CeCl₅/LiCl eutectic scintillator is a promising candidate for use in thermal neutron detectors.

1. Introduction

The demand for thermal neutron detectors is rapidly increasing for various applications, such as stargazing, safety security, neutron capture therapy, resource exploration, time-resolved structural observation, and single-crystal structure analysis. Furthermore, they are used to observe structures inside materials that contain large amounts of light elements, such as Li-ion batteries and plastics [1,2,3]. In recent years, there has been growing interest in decommissioning nuclear reactors, and the decommissioning of aging nuclear facilities has progressed worldwide, with 19 units decommissioned and 193 units under decommissioning. In addition, the removal of fuel debris from the primary containment vessels (PCV) of the nuclear power plants in Fukushima Daiichi is planned (to start in FY2023), and its scale will gradually expand. Therefore, the demand for thermal neutron detectors will continue to increase in the future.

To date, thermal neutron detectors have been used, starting with ³He gas detectors [4,5,6] and followed by BF₃ gas detectors [7,8], Ce:Cs₂LiYCl₆ [9,10], Tl,Li:NaI(NaIL) [11,12], and Ce,Eu:LiCaAlF₆ [13,14] single-crystal scintillator detectors. The current mainstream is Ce:Cs₂LiYCl₆, a single-crystal scintillator. Its features include a low density of 3.31 g/cm³ and low sensitivity to gamma rays, high discrimination between gamma and neutron radiation, and a high light yield of 70,000 photons/neutron. However, because it is a single-crystal scintillator, the ⁶Li concentration is limited by the chemical composition, and there is a weakness in that the ⁶Li concentration cannot be increased further. Another issue with Ce:Cs₂LiYCl₆ is its long decay time of 6500 ns. ⁶Li concentration is one of the most important properties in thermal neutron detection. Therefore, our laboratory has focused on eutectic crystals and has developed eutectic scintillators for neutron detection to increase ⁶Li concentration. Eutectic scintillators are composed of two phases: a ⁶Li phase that captures thermal neutrons via the following transmutation reaction (Equation (1)) between ⁶Li and neutrons, and a scintillator phase that emits scintillation light due to α-rays generated by the transmutation reaction [15]. And ³H also contributes to luminescence because of its higher energy and longer path range than α-rays [16].

⁶Li+ n → α-ray (2.05 MeV) + ³H (2.73 MeV)

(1)

The characteristics of eutectic scintillators include the ability to select a scintillator phase with characteristics suited to the application and high concentration of ⁶Li. Tl:CsI/LiBr [17] and Ce:LaBr/LiBr [18] are examples of eutectic scintillators with satisfactory properties. CeCl₃/LiCl/SrCl₂ [19] ternary eutectic crystals have been reported recently. In this study, we focused on eutectic scintillators, with Rb₂CeCl₅ as the scintillator phase and LiCl as the neutron-capture phase. The scintillator phase, Rb₂CeCl₅, has excellent scintillator properties (light yield: 36,000 photons/MeV (γ-ray irradiation), decay times: mostly 24 ns, slightly 153 ns (X-ray irradiation), low density: 3.33 g/cm³, and slight hygroscopic nature [20]. Because a binary phase diagram did not exist for the system designed in this study, crystals were grown at the assumed eutectic point by referring to the binary system of state of K₂CeCl₅-LiCl, which is a similar system [21]. A eutectic structure consisting of the target phase was confirmed, and the scintillator’s properties were evaluated.

2. Materials and Methods

2.1. Crystal Growth

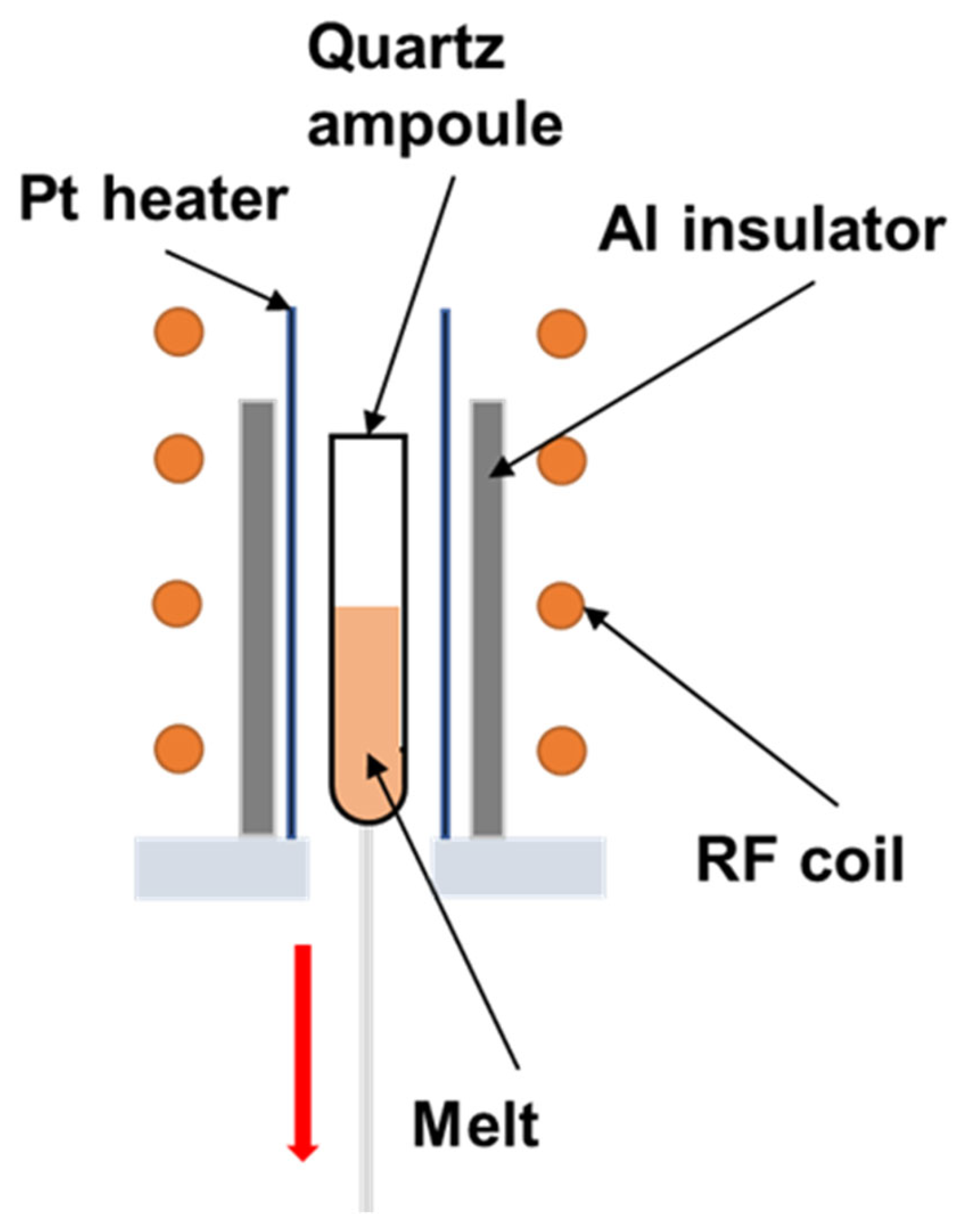

CeCl₃, RbCl, and 95% ⁶Li-enriched LiCl powders (99.99% purity) were used as raw materials. First, the raw materials were sealed in a quartz ampoule with an inner diameter of 6.0 mm in a glovebox filled with Ar gas. The weighed composition of Rb₂CeCl₅/⁶LiCl eutectic was 26.7 mol% RbCl: 13.3 mol% CeCl₃: 60.0 mol% ⁶LiCl. For this eutectic composition, the volume ratio of Rb₂CeCl₅: LiCl was 82.7:17.3, and the density was 2.57 g/cm³. The quartz ampoule was taken out of the glove box, and raw materials in the quartz ampoule were baked at 180 °C under a vacuum of ~10⁻¹ Pa for 3 h to remove moisture and air. The ampoules were sealed using an oxyhydrogen burner. After sealing, the raw material was heated until it melted and then fabricated using the Vertical Bridgman–Stockbarger (VB) method in the apparatus shown in Figure 1, at a pull-down rate of 0.20 mm/min.

2.2. Evaluation of Microstructure and Scintillation Properties

The fabricated samples were cut using a wire saw to obtain wafers in the cross-sectional direction. Subsequently, the thick samples were polished to 1.0 mm in a dry room. The microstructure in the transverse section was observed using backscattered electron image analysis (BEI) with a Hitachi (Tokyo, Japan) S3400N scanning electron microscope (SEM), and powder X-ray diffraction (XRD) was performed using a Bruker (Billerica, MA, USA) D8 Discover diffractometer with a CuKα X-ray source in the 2θ range of 10–90°, with a 40 mA tube current and 40 kV acceleration voltage for phase identification of the microstructure.

Radioluminescence spectra were measured under X-ray excitation in a dry room to determine the emission wavelengths of the grown samples. An Andor Technology (Belfast, UK) iDus420-OE charge-coupled device (CCD) detector and an Andor Technology SR-163 spectrometer were used to collect data. The quantum efficiency (QE) of the measurement device was used to correct the measured data. Furthermore, the cathodoluminescence (CL) spectra of each crystalline phase were obtained using a JEOL (Tokyo, Japan) JSM-7800F-PRIME field-emission scanning electron microscope (FE-SEM) equipped with a Horiba (Japan) MP-32M CL detector and a Horiba (Japan) Synapse Plus BIUV CCD. To confirm the thermal neutron detection properties, the decay time and light yield were measured in a dry room. The light yield was calculated by comparing the pulse height spectra of the GS20 Li-glass standard with a light output of 4,000 photons/neutron. The grown sample was irradiated using thermal neutrons (²⁵²Cf) and gamma rays (⁶⁰Co) at room temperature, and the signals were obtained using a Hamamatsu Photonics (Japan) R7600U-200 photomultiplier tube (PMT). Shinetsu (Tokyo, Japan) KF-96H-60000CS optical grease was applied to the grown sample to prevent signal attenuation and set in the PMT. The radioisotope, ²⁵²Cf, was placed 15 cm from the sample across a moderator, a 10 cm thick polyethylene plate. The obtained data were then corrected for the QE of the detector, as in RL. The same setup used to measure the light yield was also used to measure the decay time, and the signals were digitized using a digital oscilloscope (TD5032B, Tektronix). The decay time was calculated using the average of 128 waveforms as the decay curve.

3. Results

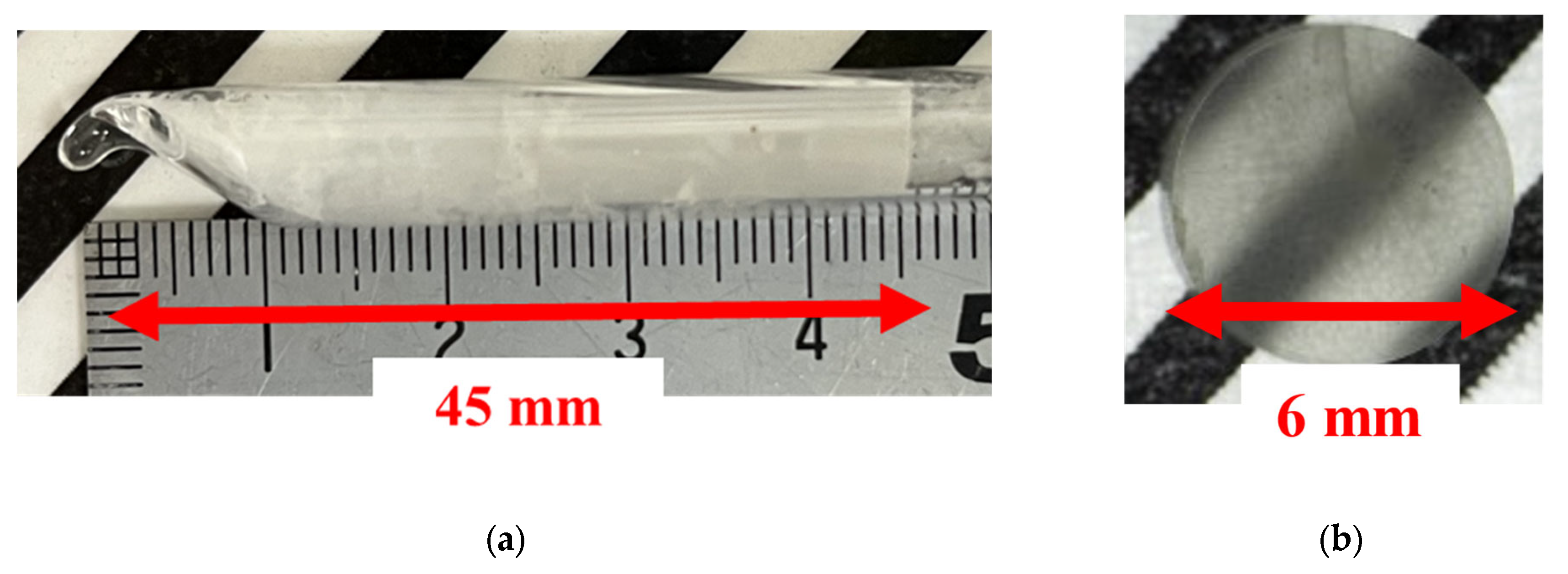

First, microstructural observations of the grown eutectics were carried out. Figure 2 shows a photograph of the growth crystal and 1 mm wafer after cutting and polishing in a dry room. In general, the size requirements for scintillators vary depending on the application. In this study, we aimed to apply the scintillator to thermal neutron beam measurement in the high gamma-ray background environment at the Fukushima Daiichi Nuclear Power Plant. To reduce sensitivity to gamma rays, the scintillator size must be very thin and small (0.1 to 1 mm). Therefore, it is necessary to ensure sufficient transparency at a thickness of 1 mm, and photographs of the crystals were taken at a thickness of 1 mm.

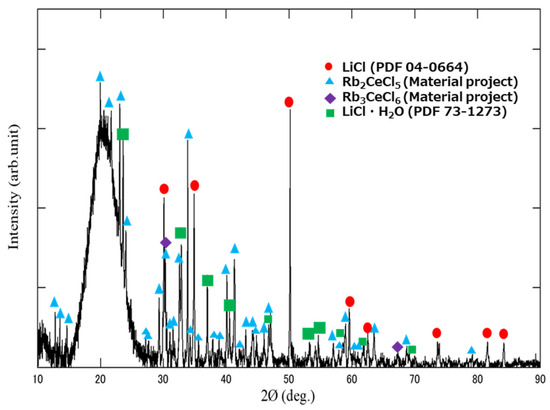

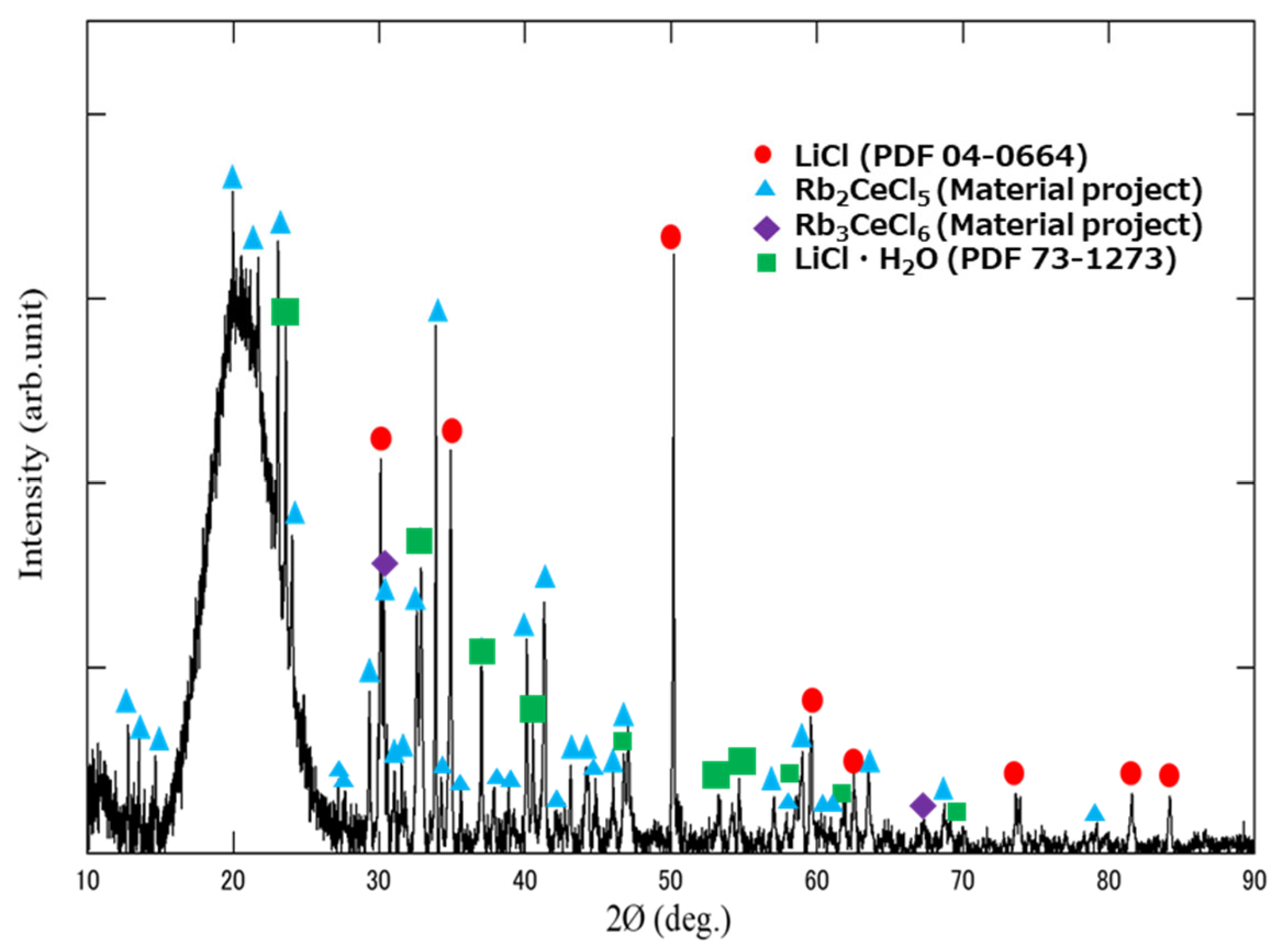

The total length of the crystal grown in the quartz tube was approximately 45 mm. In addition, the photograph of the 1 mm wafer shows that the grown crystal exhibited such transparency that the lines behind it were dimly visible. Figure 3 shows the powder XRD results of the grown eutectics. The broad peaks around 15°~25° originated from the glass cover case to prevent the powder sample from deliquescence during the measurement.

Powder XRD results showed a LiCl phase, a LiCl hydrate phase, an Rb₂CeCl₅ phase, and a slight Rb₃CeCl₆ phase; LiCl·H₂O was formed by a reaction with the atmosphere when the crystal was powdered, and is not directly related to the grown crystal. Figure 4 shows the result of SEM observation. The grown crystals had a two-phase eutectic structure, and based on the volume ratio, the black matrix areas were considered to be Rb₂CeCl₅, while the white rod areas were LiCl. The molecular weight and contrast were reversed, but this was due to the measurement setup. As in the previous study, the powder XRD results showed a slight Rb₃CeCl₆ phase, but it was too small to be confirmed by means of SEM observations. The powder XRD results and SEM-BEI show that the targeted crystals, Rb₂CeCl₅/LiCl eutectic, were obtained.

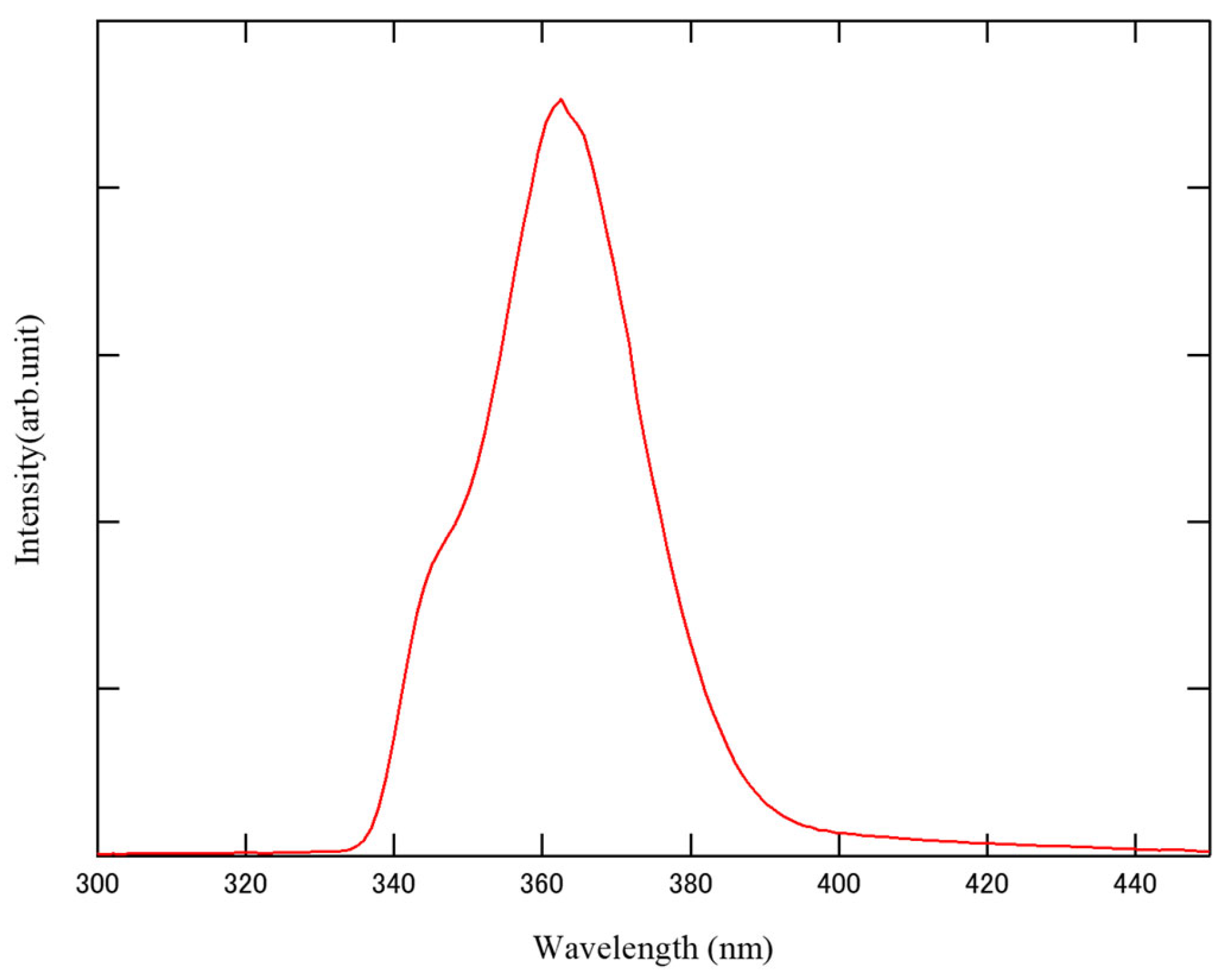

Next, the scintillator properties are shown. Figure 5 shows the resulting radioluminescence spectrum measured using X-ray excitation, with a peak between 360 nm and 370 nm.

This is thought to originate from Ce³⁺ 4f-5d transition and is similar to the radioluminescence spectrum of the single crystal [20]. Figure 6 then shows the results of the cathodoluminescence mapping. Cathodoluminescence spectra were obtained by selectively irradiating electron beams while looking at the BEI to identify the emitting phase. Compared with the BEI observed at the same time, the eutectic structure and luminescent/non-luminescent phases were found to correspond to each other. The rod phase of LiCl did not emit light; only the matrix phase of Rb₂CeCl₅ emitted light. Therefore, it was confirmed that the eutectic sample was luminescent due to the Rb₂CeCl₅ phase.

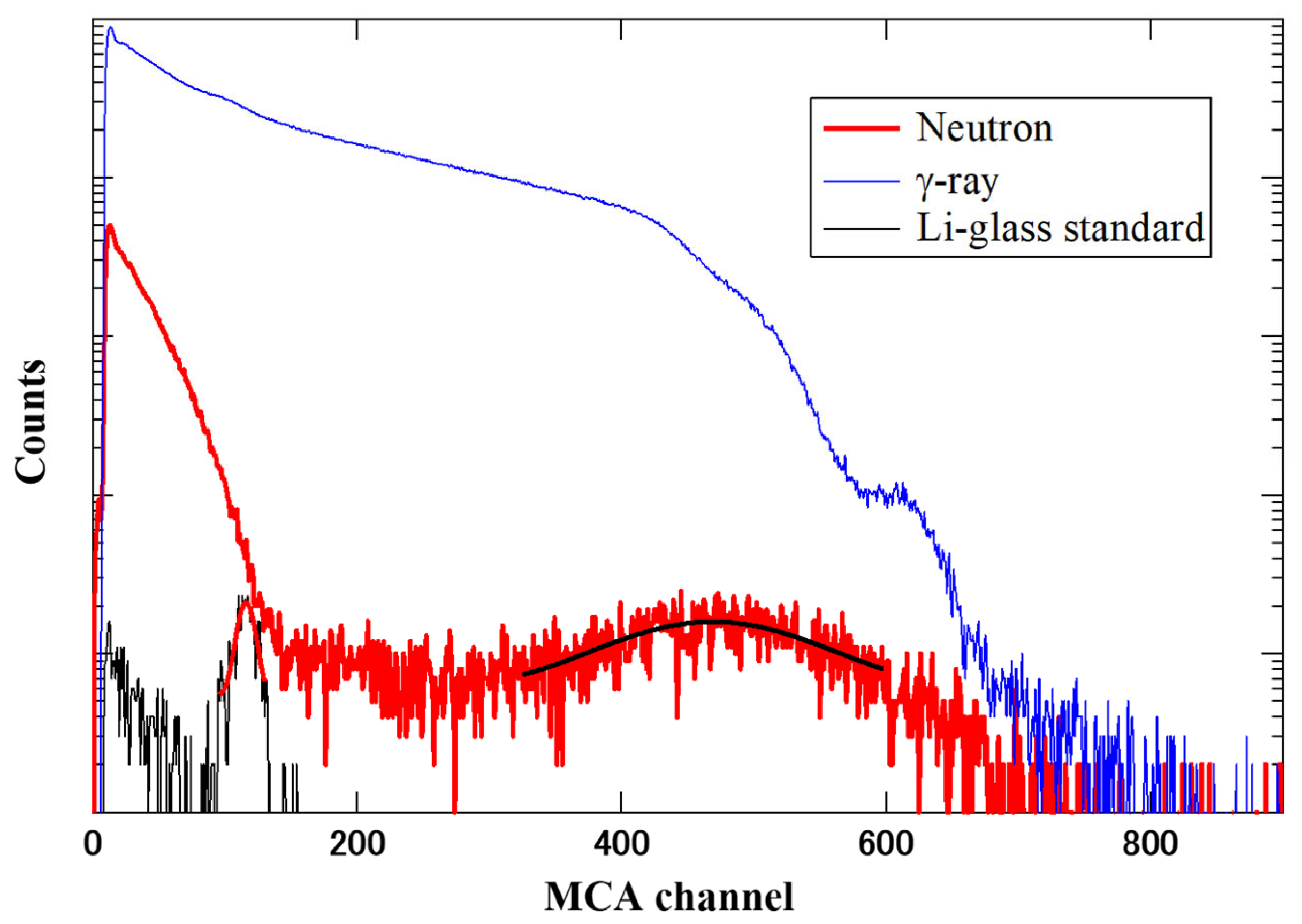

Finally, the results of the neutron response are given. Figure 7 shows the luminescence results for the grown crystals and Li-glass; the light yield of the sample was calculated in comparison to the Li-glass standard.

Below 120, it was considered to be affected by Compton scattering and gamma rays at ²⁵²Cf. The pulse height spectra of the eutectics exhibited a broad peak, likely stemming from their growth at a theoretical eutectic point with a relatively moderate growth rate. This condition led to variations in the grain size of the eutectic composition, attenuating certain α-rays before reaching the scintillator phase. However, ³H has a longer path range than α-rays, so the effect of grain size variation is smaller than that of α-rays. The details of the relationship between grain size, energy resolution, and light yield is not clear at this time, but will be clarified in the future through simulations and measurements using samples with different growth rates and composition ratios. Figure 7 illustrates that the peak of the Li-glass standard (4000 photons/neutron, absolute light yield measured) was at 115.8 ± 0.59 Ch., while that of Rb₂CeCl₅/LiCl was at 469.0 ± 3.47 Ch., approximately 400% higher than that of GS20 Li-glass. Taking into consideration both the quantum efficiency (QE) in the photomultiplier tube (PMT) of the Li-glass standard (40%) and the grown crystal (41%), the estimated emission was around 16,000 ± 400 photons/neutron. The emission of gamma-ray excitation is also shown in Figure 7. It was detected as higher on the channel side than at the neutron peak. The light yield was estimated to be 13,600 ± 1000 photons/MeV by comparing the γ-ray peak with that of Tl:NaI (43,000 photons/MeV,QE:39%) [22]. These results show that it is difficult to distinguish neutrons from gamma rays by the difference in light yields in a grown eutectic crystal.

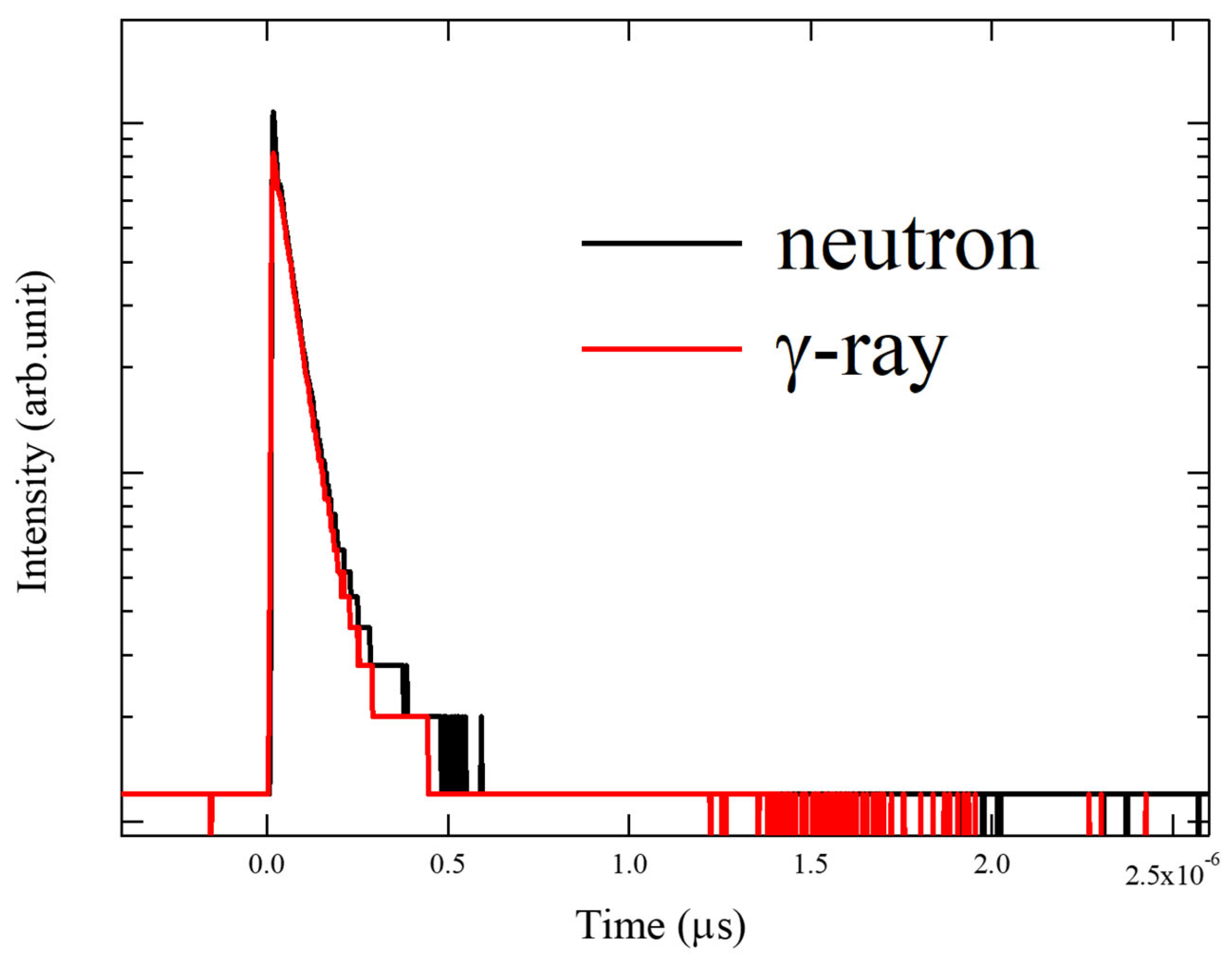

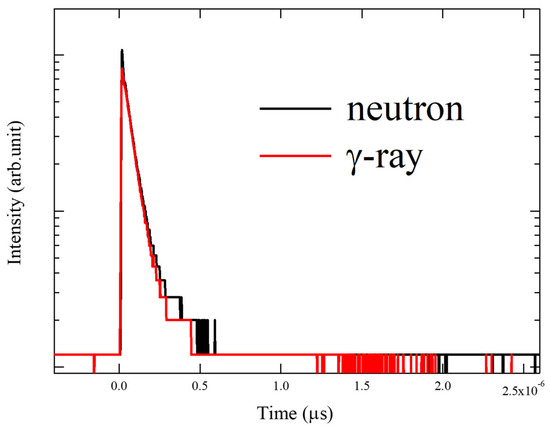

Figure 8 shows the decay curve of the grown crystals. The decay times were estimated to be τ = 56.1 ± 0.4 ns (thermal neutron) and τ = 60.7 ± 0.2 ns (γ-ray) as a result of fitting to the function shown in the figure using the following Equation (2):

I = y₀ + A₁ (exp(−x−x₀)/τ₁)

(2)

where each letter in the above equation is I: intensity, y₀: baseline, A₁: constant, x andx: time, and τ₁: decay time. The decay time when irradiated by thermal neutrons was slower than that of the Rb₂CeCl₅ single crystal irradiated by X-ray (24 ns). This phenomenon of different decay times for eutectic crystals and single crystals in the scintillator phase was also observed in previous studies on K₂CeCl₅/LiCl [19]. This may be due to Li⁺ substitution into the Rb⁺ site of the Rb₂CeCl₅ phase, as in the K₂CeCl₅/LiCl, resulting in a different reaction to neutrons and X-rays, but the detailed mechanism is not known. And these results show that the grown crystals had difficulty in discriminating neutrons from γ-rays according to the difference in decay times, like the previous study [23,24,25].

The actual ⁶Li concentration could not be calculated in this study because the crystals were grown at a hypothetical eutectic point based on the K₂CeCl₅-LiCl binary system. However, the volume ratio of Rb₂CeCl₅: LiCl = 64:36 and the molar ratio = 20:80 were estimated by analyzing the BEI. From this result, the ⁶Li concentration was estimated to be 0.039 mol/cm³.

4. Conclusions

In this study, Rb₂CeCl₅/LiCl was synthesized via the VB method at a theoretical eutectic point, employing a quartz tube with an inner diameter of 6.0 mm. The purpose was to validate the microstructure and assess the scintillator properties. SEM-BEI and powder XRD analyses verified the presence of two phases in Rb₂CeCl₅/LiCl, with a slight Rb₃CeCl₆ phase. The eutectic exhibited a Ce³⁺ 4f-5d emission peak between 360 and 370 nm in the Rb₂CeCl₅ phase, as is consistent with previously reported studies on single crystals of Rb₂CeCl₅. The light yield measured about 16,000 ± 400 photons/neutron, and the single decay component was τ = 56.1 ± 0.2 ns. The density calculated by BEI analysis was notably low at 2.32 g/cm³, and the eutectic contained 0.039 mol/cm⁻³ of ⁶Li, surpassing LiCaAlF₆ (0.0159 mol/cm⁻³) and Cs₂LiYCl₆ (0.0052 mol/cm⁻³) [26].

As the crystals were grown with a hypothesized eutectic composition based on the phase diagram of K₂CeCl₅/LiCl, with a not-so-fast growth rate, there emerged significant variations in the grain size of the eutectic structure. This phenomenon might be responsible for the broadening of the thermal neutron peak in the pulse height spectra and/or the reduction in light yield.

In applications such as fuel debris removal, detecting thermal neutrons amidst a high γ-ray background is crucial. Consequently, scintillators with low density and short decay time are imperative. Additionally, to minimize sensitivity to gamma rays, the scintillator crystals must be exceedingly small (less than 1.0 mm thick). Conversely, they should possess high ⁶Li content and strong thermal neutron sensitivity. Despite the Rb₂CeCl₅/LiCl eutectic’s optical transparency being inferior to single crystals like Cs₂LiYCl₆, it excelled in terms of its higher ⁶Li content, shorter decay time, and lower density. However, Rb₂CeCl₅/LiCl did not have the expected performance in discriminating neutrons from gamma rays.

In future research, our objective is to enhance scintillator properties by constructing a phase diagram of Rb₂CeCl₅-LiCl and optimizing eutectic fabrication conditions, including growth rate and temperature. Subsequently, we plan to conduct more comprehensive analyses of thermal neutron response characteristics.
