ZnSe Nanoparticles for Thermoelectrics: Impact of Cu-Doping

Abstract

The present study investigates the impact of copper doping on the thermoelectric properties of zinc selenide (ZnSe) nanoparticles synthesized by the hydrothermal method. Nanoparticle samples with varying copper concentrations were prepared and their thermoelectric performances were evaluated by measuring the electrical transport properties, the Seebeck coefficient, and extracting the power factor. The results demonstrate that the thermoelectric properties of Cu-doped ZnSe nanoparticles are significantly enhanced by doping, mainly as an effect of an improved electrical conductivity, providing a promising avenue for energy applications of these nanomaterials. To gain further insights into the fundamental mechanisms underlying the observed improvements in thermoelectric performance of the samples, the morphological, structural, and vibrational properties were characterized using a combination of scanning electron microscopy, X-ray diffraction, and Raman spectroscopy.

1. Introduction

The rise of global energy consumption and the pressing need to address climate change by reducing greenhouse gas emissions have emphasized the importance of developing sustainable and efficient energy generation and management systems. However, the current low efficiency of energy utilization leads to a significant amount of energy being wasted as heat, which can be recovered and utilized. Furthermore, there is a growing demand for locally available, non-intermittent energy sources to power various devices, including wearable, implantable, and biomedical devices, as well as to manage heat flows in electronic circuits. This need has prompted the intensification of theoretical and experimental studies on thermoelectric energy conversion, which aims to generate usable electrical energy from temperature gradients and potentially convert wasted heat into a valuable resource. Thermoelectric devices, display several advantages, such as the lack of moving parts, which simplifies the design and increases reliability, the possibility to operate in remote or harsh environments, making them suitable for a wide range of applications such as space exploration, automotive and industrial systems. Moreover, they have no emissions and are silent, and have the potential to be highly scalable and easily integrated into existing systems. Despite the current challenges, the scientific community is actively investigating new materials and designs to improve the performance of thermoelectric devices and unlock their full potential. In particular, achieving high thermoelectric figure of merit requires simultaneous optimization of interdependent thermoelectric properties, including electrical conductivity, thermopower, and thermal conductivity. While the efficiency of thermoelectric materials is still relatively low, recent advances in nanotechnology have unlocked significant potential for improving their performance [1]. These include leveraging quantum phenomena and density of states engineering to improve the power factor [2,3], as well as utilizing nano-structuring to minimize the lattice contribution to thermal conductivity [4,5]. Such techniques have shown great potential for optimizing the performance of thermoelectric materials. More recently, innovative gating approaches have been proposed as a new means of tuning the thermoelectric properties of various semiconductor nanostructures [6].

Group II–VI semiconductor nanostructures have gained considerable attention and are extensively studied due to their diverse range of applications in several fields of technology as well as their unique physical properties [7]. Among them, ZnSe is a widely studied semiconductor with a wide bandgap of 2.7 eV, possessing attractive properties such as eco-friendliness [8], optical transmittance, low resistivity, high electrical conductivity, mechanical hardness, and stability to heat treatment. These properties make it suitable for use in solid-state gas sensors, sensing arrays, photovoltaic cells, and other applications [7]. ZnSe is also used as a buffer layer in copper zinc tin sulfide (CZTS) solar cells instead of CdSe due to its non-toxicity and superior optoelectronic application [9]. In addition, ZnSe has many other applications and properties, including white light emitting diodes (LEDs) [10], optically controlled switches [11], and blue laser diodes [12]. Numerous studies have been conducted on the structural, electrical, and optical properties of ZnSe nanocrystals prepared by different methods, such as chemical vapor deposition (CVD), laser-assisted evaporation (LAE) [13], metal organic chemical vapor deposition (MOCVD), electron deposition (ED) [14], photochemical deposition [15], chemical bath deposition (CBD) [16], and thermal evaporation (TE) [17].

Doping of these nanostructures can significantly enhance their properties, and the use of transition metals, such as Mn⁺², has been extensively studied in various nanocrystalline and nanoparticle materials [18,19,20,21]. Among different transition metal doping agents, copper ions (Cu²⁺) are also interesting dopants for ZnSe, as Cu possesses similar electronic shell structure and physical and chemical properties to that of Zn [22]. Thus, Zn²⁺ ion can be easily replaced by Cu²⁺. Literature studies report their role in improving luminescence of ZnSe quantum dots and inducing physical properties such as ferromagnetism addition it also improves the magnetic saturation [23,24].

The objective of the current study was to investigate the effect of copper doping on the thermoelectric properties of zinc selenide (ZnSe) nanoparticles grown by the hydrothermal synthesis method, a topic which has received relatively little attention in previous research. Specifically, the study analyzed the effect of varying copper ion concentrations on the thermoelectric properties of the resulting Zn_1−xCu_xSe nanocomposites, as well as the role of Cu dopants on the structural, vibrational, and morphological properties of the synthesized nanoparticles. To achieve these objectives, a comprehensive set of experimental techniques was utilized. Initially, the Seebeck coefficient and electrical conductivity of the samples were measured using a standard homemade setup. Subsequently, X-ray diffraction (XRD) and scanning electron microscopy (SEM) were utilized to analyze the structural and morphological properties of the synthesized nanocomposites. Raman spectroscopy was used to gain insights into their vibrational properties.

The results demonstrate that doping and temperature have a significant impact on the thermoelectric properties of ZnSe nanoparticles, particularly through improved electrical conductivity. Additionally, although less pronounced, doping also enhances the Seebeck coefficient, an effect which is not commonly observed. The analysis of the samples’ structure and morphology revealed that doping increases defect concentration, reduces crystal size, and leads to the formation of secondary crystal phases. The analysis of the samples structure and morphology revealed that doping increases the defects concentration, reduces the crystal size, and leads to the formation of secondary crystal phases in the material. The reduced crystallinity, likely elevates the significance of grain boundary regions, where the secondary phases are probably located, in determining the thermoelectric properties.

The results of this study contribute to the understanding of the thermoelectric properties of ZnSe nanoparticles doped with Cu and the underlying mechanisms governing their behavior. The findings may have potential applications in the development of high-performance thermoelectric materials for various energy conversion and harvesting applications.

2. Materials and Methods

Copper-doped zinc selenide nanoparticles were synthesized using the hydrothermal method. A first solution of ZnSe was prepared, and different concentrations of Cu (0.1, 0.2, 0.3, and 0.4) were added. Zinc acetate dihydrate (Zn(CH₃COO)₂•2H₂O, 99% purity, Sigma Aldrich) and selenium (Se, 99% purity, Sigma Aldrich) were separately dissolved in deionized water and mixed together. The necessary amount of copper chloride (CuCl₂, 8% purity, Sigma Aldrich) was then added to the aqueous solution of zinc selenide. The pH of the reaction was adjusted to 8.4 ± 0.2 using sodium hydroxide (NaOH, 99% purity, Sigma Aldrich). The precursor solution was stirred for 30 min to obtain a homogeneous mixture. The resulting clear greenish-colored solution of precursors was then transferred into a Teflon-lined stainless steel autoclave with a volume of 50 mL. The autoclave was tightly closed and placed in a hot oven at 200 °C for 24 h. Afterwards, the autoclave was allowed to cool down to room temperature and the solution was filtered using filter paper to separate the precipitate. The product was washed with distilled water five times and finally dried in an oven at 100 °C. After the synthesis, rectangular pellets of the material were realized by using a hydraulic press having pressure 13 ton [25]. The density of the pellets was found to be around 2.1 g/cm³.

The Seebeck coefficient and Power Factor were measured using a homemade Seebeck system, and the electrical conductivity was measured using Hall measurement. The nanoparticles were characterized using various techniques. X-ray Diffraction (XRD) with a Bruker D8 Advanced instrument and a CuKɑ source with a wavelength of 0.145 nm was used to examine the crystalline structure of the sample. Raman spectroscopy was performed using an MN STEX-PR 1100 instrument to analyze the vibration modes. Scanning Electron Microscopy (SEM) with an Emcrafts instrument was used to observe the surface morphology.

To investigate the effect of Cu ion concentration on on Zn_1−xCu_xSe nanoparticles, the molar ratio of [Cu]/[Zn] in the reaction mixture was varied from 0.0 to 0.4 M. The resulting samples were denoted as ZS, CZS1, CZS2, CZS3, and CZS4, and had doping concentration of 0 (undoped), 0.1M, 0.2M, 0.3M, 0.4M, respectively.

3. Results and Discussion

3.1. Thermoelectric Measurements

The performance at a temperature T of a thermoelectric material is quantified by the thermoelectric figure of merit ZT [26], defined by the equation:

$$ZT=\frac{\sigma S^{2}T}{k}$$

where σ is the electrical conductivity, k is the thermal conductivity (which comprises both electronic and thermal contributions), and S is the Seebeck coefficient, defined as the open-circuit voltage developed across a material in response to an imposed temperature gradient. The numerator of this expression, σS², is known as the power factor, P, and is a crucial parameter in evaluating a material’s thermoelectric properties. A high power factor, combined with low thermal conductivity, is necessary for achieving a high ZT value.

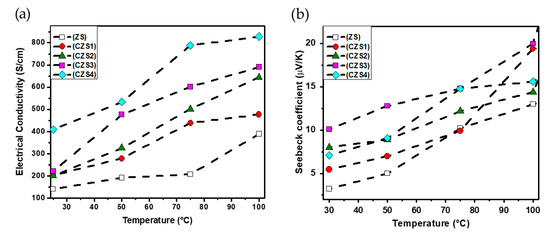

Figure 1a,b display, for all the samples, the values of the electrical conductivity and of the Seebeck coefficient as a function of temperature.

The undoped sample displayed a typical semiconducting behavior, with an electrical conductivity of about 140 Scm⁻¹ at room temperature, which increased to about 390 Scm⁻¹ as the temperature was raised to 100 °C. As expected for doped semiconductors, as the doping concentration was increased, the electrical conductivity of the samples also increased. The electrical conductivity of all the samples increased as the temperature was raised, which is again a common feature of semiconductors. Overall, the results showed that the electrical conductivity of the samples increased from 140.98 Scm⁻¹ to 827.99 Scm⁻¹ as the doping concentration and temperature were varied.

The positive Seebeck values indicate holes as the predominant charge carriers, revealing a p-type behavior, in agreement with previously reported literature studies [27].

The Seebeck coefficient exhibits a general increasing trend with both doping and temperature, although its dependence on both factors is not particularly strong. While simultaneous enhancements in Seebeck coefficient and electrical conductivity have been reported several times in the literature [28,29], such occurrences are not common. A comprehensive understanding of the underlying mechanisms and strategies to exploit them for producing high-performance materials is still unknown. Although dedicated theoretical calculations may be required to fully comprehend the physical mechanisms that dictate the specific behavior of the analyzed samples, valuable insights can still be gained by analyzing the morphology and crystal structure of the samples.

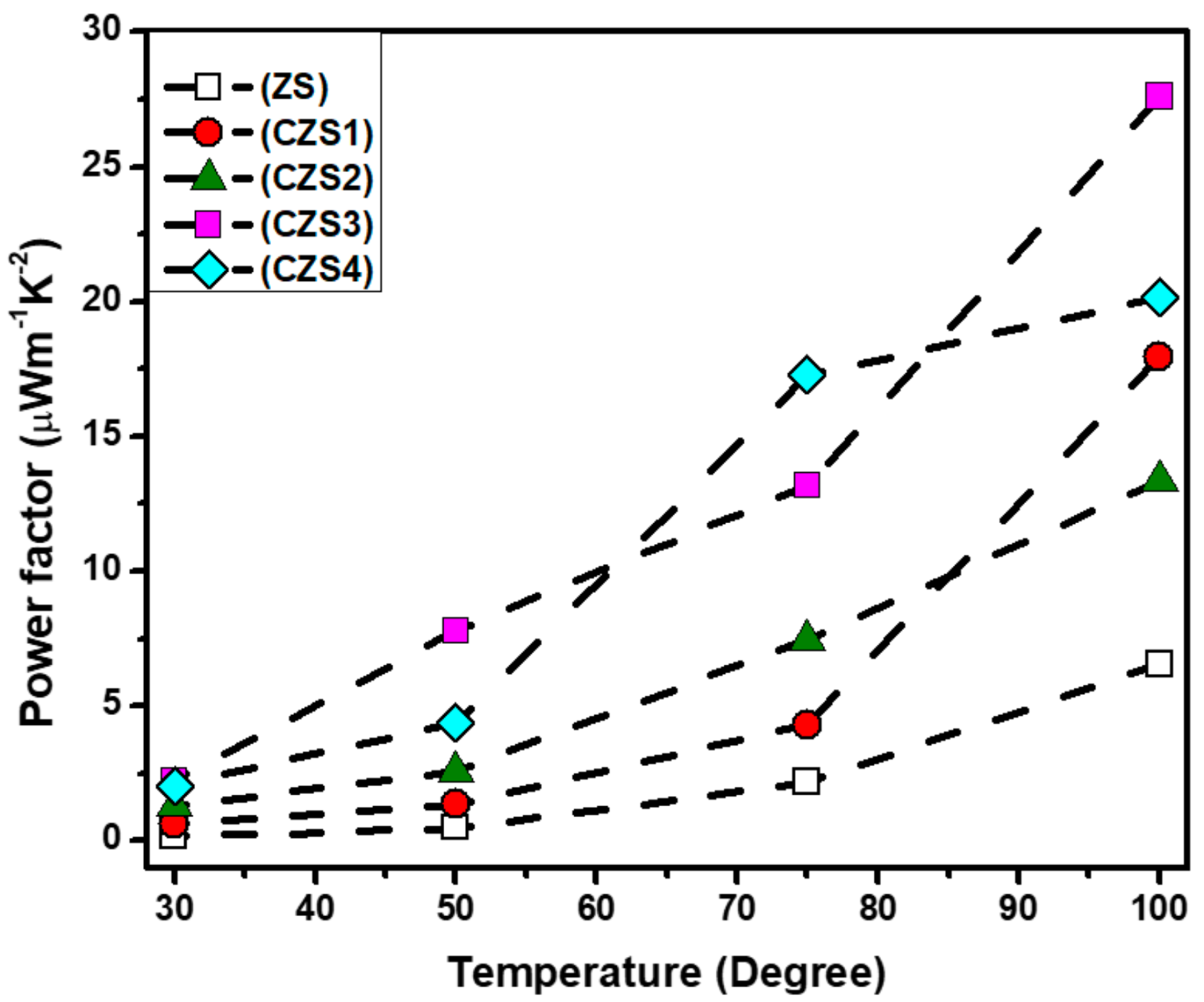

The power factor of Zn_1−xCu_xSe was calculated according to the formula PF = S²σ, where S is the Seebeck coefficient and σ is the electrical conductivity. The graph of the power factor versus temperature, for all the samples, is shown in Figure 2.

The power factor is significantly improved through doping and temperature changes, primarily due to an increase in electrical conductivity. Additionally, the simultaneous increase in the Seebeck coefficient partially contributes to the improvement.

In order to gain more insights into the thermoelectric properties we deeply investigated the structural, morphological and vibrational properties of the synthesized nanocomposites by XRD, scanning electron microscopy and Raman spectroscopy.

3.2. Scanning Electron Microscopy

Figure 3 displays scanning electron micrographs of the as-grown samples, revealing that their morphology consists of aggregates of smaller-sized particles. The undoped sample appears relatively compact, with very large aggregates. Meanwhile, the intermediate-doped samples show a similar morphology, with small particles agglomerating into large grains, having sizes ranging from several µm to tens of microns. Only the sample with the higher doping level exhibits a slightly different morphology, with particles aggregating into almost round-shaped agglomerates with an average size of around 1 µm.

3.3. X-ray Diffraction

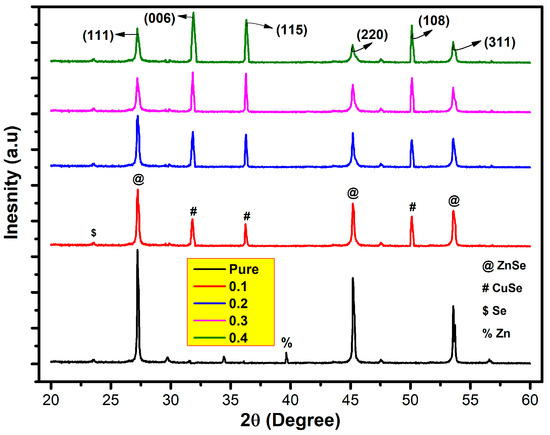

The X-ray diffraction pattern of Cu-doped ZnSe nanoparticles, scanned at 2θ in the range of 20–60°, is shown in Figure 4.

The undoped sample (ZS) exhibits well-defined peaks at 2θ = 27°, 45°, and 53°. These peaks correspond to diffraction from the (111), (220), and (311) planes in ZnSe with a zinc blende structure (JCPDS File no. 80-0021), which is consistent with previous findings in the literature [30]. Small peaks located at 23.81° and 39.67° are related to the pure zinc and selenium secondary phases [31].

By increasing the Cu concentration the crystallinity of ZnSe nanoparticles decreases, the intensity of the main ZnSe (111) peak decreases and other peaks can be detected. In particular, the additional peaks are located at 2θ = 31.81°, 36.29°, and 50.11° and are related to the formation of a new CuSe phase in the composite. In particular, peaks at 31.81°, 36.29° and 50.11° correspond to planes (006), (115) and (108), respectively, and correspond to the hexagonal phase of CuSe (JCPDS file no 34-0171) [32,33]. The intensity of these peaks increases as the doping concentration is increased, while the incorporation of Cu in ZnSe, as expected, does not have a strong effect on ZnSe lattice structure as Cu²⁺ and Zn²⁺ ions have a small ionic radii mismatch [34,35].

The grain size was estimated using the Scherrer relation [36,37], D = 0.9λ/β cos θ, where D is the crystallite size, β is full width at half maximum of the highest intensity (111) peak, λ is the wavelength of X-ray radiation (1.542 Å of Cu Kα) and θ is the Bragg’s angle. The dislocation density (δ), that is the number of defect present in the sample, was calculated using the Williamson and Smallmman’s relation [38], δ = 1/D², and the lattice microstrain was calculated according to the formula ε = (βcot(θ))/4 [39].

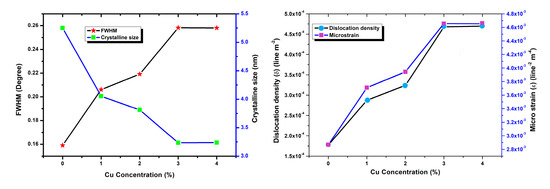

Figure 5 reports, as a function of the dopant concentration, the calculated values of the full width at half maximum, of the crystalline size, of the dislocation density and of the microstrain, extracted from the (111) peak of Zn_1−xCu_xSe.

As shown in the figure, the undoped sample has a nanocrystalline structure, with a crystalline size about 5.2 nm (Figure 5). The increase of the doping induces an increase in the FWHM and consequently a reduction of crystallinity of doped ZnSe nanoparticles. In particular, the crystalline size decreased monotonically from about 5.2 nm to about 3.2 nm. This reveals the nanocrystalline nature of the material. The results also show that the dislocation density and the microstrain of Zn_1−xCu_xSe increased as the concentration of copper increased in ZnSe. The presented evidence, especially the decrease in ZnSe crystallinity upon doping, along with the enhanced intensity of the peaks attributed to the secondary CuSe phase, and the increase in defects concentration, suggests that doping plays a role in elevating the significance of grain boundary regions, and that in that regions the secondary CuSe phase is prevalent.

This results shed light on the possible origin of the observed simultaneous increase in Seebeck coefficient and electrical conductivity with increasing temperature, which is not a very common or expected phenomenon but has been reported in the literature several times [28,29]. Previous studies have demonstrated that optimized doping can induce the formation of nanocrystalline structures where the contribution of secondary crystal phases, located at grain boundaries, can be as significant as that of grain regions to the thermoelectric properties [28,40,41]. Indeed, grain boundary engineering has been proposed as a valid tool for enhancing the thermoelectric properties of granular semiconductors [42].

The band structure of the material, the position of the chemical potential, and the carriers’ effective mass around grain boundaries can be strongly modified compared to the bulk material. This modification leads to various mechanisms such as the contribution of higher energy carriers to transport and an increase in the electrical conductivity due to an increased scattering mean free path of these carriers. Moreover, energy barriers can form at grain boundaries, promoting an energy filtering effect that enhances the Seebeck coefficient [29], by introducing a strongly energy-dependent scattering mechanism [42].

3.4. Raman Spectroscopy

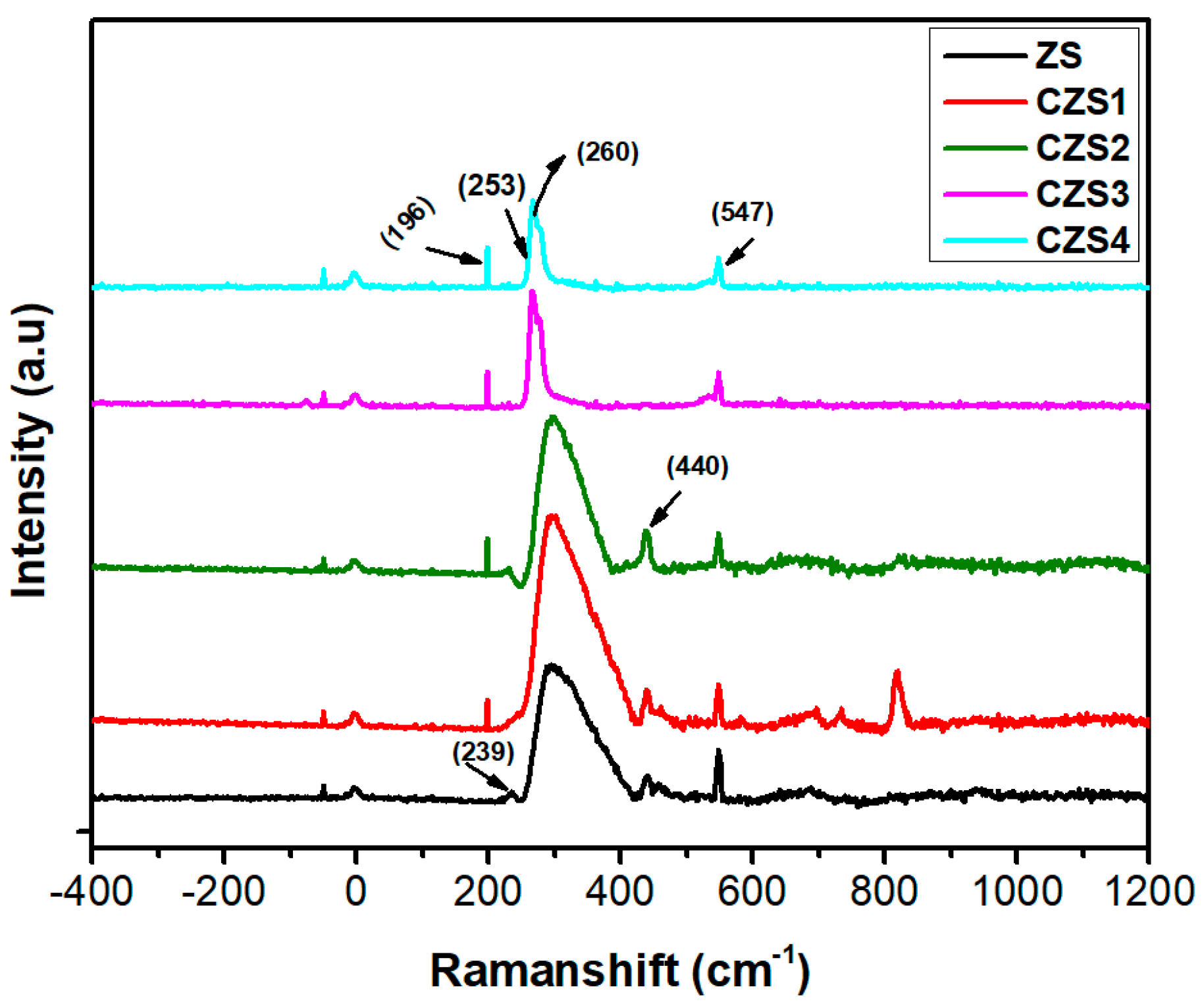

Raman spectroscopy is also a powerful technique for thermoelectric materials characterization as it provides valuable information about their crystal structure, phonon scattering mechanisms, defect density, doping level, and nanostructuring effects [43,44]. The Raman spectroscopy results confirm the information obtained from XRD. Figure 6 shows the Raman spectra of Zn_1-xCu_xSe at different concentrations of Cu dopant.

Several series of peaks are observed, including 239 cm⁻¹, 253 cm⁻¹, 260 cm⁻¹, 440 cm⁻¹, and 547 cm⁻¹. The peaks at 253 cm⁻¹ and 547 cm⁻¹ were attributed to the longitudinal optical (LO) phonon modes of ZnSe [45]. The intensity of these peaks weakens as copper concentration increases, as copper replaces ZnSe. In the doped samples, the presence of a strong copper selenide phase, which was already detected by XRD analysis, is confirmed by the Raman spectra. Specifically, the intense peak observed at 196 cm⁻¹ in the Raman spectra can be attributed to the Cu-Se vibration (LO) phonon mode of copper selenide, as reported in the literature [46,47]. The peak at 239 cm⁻¹ is attributed to Se-Se extending vibration and can be related to trigonal selenium [47,48].

4. Conclusions

The present study investigated the effect of copper doping on the thermoelectric properties of zinc selenide (ZnSe) nanoparticles synthesized through the hydrothermal method. Five Zn_1−xCu_xSe samples were prepared, with varying Cu²⁺ concentrations from x = 0 to x = 0.4. Our results demonstrate that Cu doping significantly improves the thermoelectric properties of the ZnSe nanoparticles. Specifically, increasing Cu concentration leads to an increase in the electrical conductivity and Seebeck coefficient of the Zn_1−xCu_xSe nanocomposites, resulting in enhanced power factors. The structural, vibrational, and morphological properties of the synthesized nanoparticles were investigated using X-ray diffraction, scanning electron microscopy, and Raman spectroscopy, in order to gain more insight into the thermoelectric behavior. The analysis revealed the formation of composites with multiple phases and nanocrystalline morphology. The extracted average grain size was found to be lower than 5 nm and decreased with increasing doping concentration. The observed changes in the structural and morphological properties, particularly the emergence of secondary crystal phases at grain boundaries induced by the dopants, are likely related to the improvement in the thermoelectric properties of the Cu-doped ZnSe nanoparticles. The promising results of this study need to be complemented with further experiments focused on the measurements of the material’s thermal conductivity. Our findings provide valuable insights into the underlying mechanisms governing the thermoelectric properties of these nanoparticles and highlight their potential for use in various energy conversion and harvesting applications.
