Dynamics–Function Correlation in Photosystem II: Molecular Dynamics in Solution

Abstract

A detailed comprehension of protein function requires information on the spatial structure of the protein, which is often gathered from X-ray crystallography. However, conformational dynamics often also plays an important functional role in proteins and can be directly investigated by complementary quasielastic neutron scattering. A classic example for dynamics–function correlations is Photosystem II, which is a multimeric pigment–protein complex responsible for catalyzing the light-induced photosynthetic water splitting into protons and oxygen. Several functional subprocesses of photosynthetic electron transfer and water splitting are strongly dependent on temperature and hydration, two factors also known to affect protein dynamics. Photosystem II is often investigated in the form of membrane fragments, where the protein complex remains embedded into its native lipid environment. However, experiments on protein function are often carried out in solution state, while direct investigations of molecular dynamics by quasielastic neutron scattering are mainly performed using specifically hydrated membrane fragments only. The present study provides the first quasielastic neutron scattering investigation of the molecular dynamics of Photosystem II membrane fragments (PSIImf) in solution over a wide temperature range from 50 to 300 K. At physiological temperatures above the melting point of water, we observed that the dynamics of PSIImf are significantly activated, leading to larger atomic mean square displacement values compared to those of specifically hydrated membrane stacks. The QENS data can be described by two dynamical components: a fast one, most probably corresponding to methyl group rotation; and a slower one, representing localized conformational dynamics. The latter component could be fitted by a jump-diffusion model at 300 K. The dynamics observed characterize the level of flexibility necessary for the proper PS II functionality under physiological conditions. In contrast, we observe a severe restriction of molecular dynamics upon freezing of the solvent below ~276 K. We associate this unexpected suppression of dynamics with a substantial aggregation of PSIImf caused by ice formation.

1. Introduction

Photosynthesis is the fundamental physiological process by which green plants and cyanobacteria convert light energy into storable chemical energy by synthesizing glucose. As the primary energy source for nearly all ecosystems and the foundation of the food chain for numerous species, photosynthesis is a critical process for life on Earth. Photosynthesis is a multifaceted process encompassing several stages. The light-induced water splitting occurs in Photosystem II (PS II), a multi-subunit protein complex found in the thylakoid membranes of photosynthetic organisms [1]. The crystal [2] and solution structures of PSII [3] are shown in Figure 1. The redox reactions triggered by light in PS II are greatly influenced by temperature and hydration. Therefore, it is evident that the conformational dynamics of PS II play a critical role in these redox reactions, as the latter changes in dynamics with temperature, and hydration levels strongly correlate with functional processes in PS II [4].

Dynamics–function correlations have often been inferred indirectly when observing pronounced temperature dependences of functional processes. This implies that the “freezing” of conformational dynamics upon temperature decrease impairs functionally important structural changes in proteins [5]. In the case of PSII, the light-induced charge separation, leading to the formation of the radical ion pair $P{680}^{+•}{Q}_A^{-}$, remains active even at low temperatures [6]. However, the reoxidation of this pair by the primary electron acceptor $Q_A^{-•}$ by $Q_B$, is blocked completely below 200 K [7,8,9], and the individual redox steps of the water-oxidizing complex display a distinct temperature dependence (see e.g., [10]). In addition, the hydration level has a significant effect on the reoxidation of $Q_A^{-}$ [11] and the redox steps of the water-oxidizing complex [12]. These effects appeared to be consistent with a reorientation of the Q_B headgroup upon electron uptake reported based on X-ray crystallography, implying a two-state gating mechanism (see Figure 1) [13]. The two orientations of the Q_B headgroup are shown in violet and cyan colors in Figure 1, respectively, and are plotted along with the neighboring protein residues shown in grey and labeled by residue number. The rearrangements also encompass the breaking and formation of hydrogen bonds. Later, however, the conformational changes required for Q_B reduction by Q_A were described as much more complex, comprising additional rearrangements of hydrogen bonds, e.g., the reorientation of the Ser223 residue in the vicinity of the Q_B binding site [14,15]. It was inferred indirectly that the presence of a general conformational flexibility of PSII is required to allow the above rearrangements of Q_B and of its protein environment upon electron transfer. In turn, a freezing of protein flexibility was assumed to inhibit electron transfer. It was also shown that a fine-tuning of protein dynamics leads to thermal adaptation of electron transfer in thermophile bacteria [16]. Therefore, understanding the correlation between protein dynamics and function is essential for a deeper comprehension of these processes. However, a direct proof of a dynamics–function correlation was still lacking.

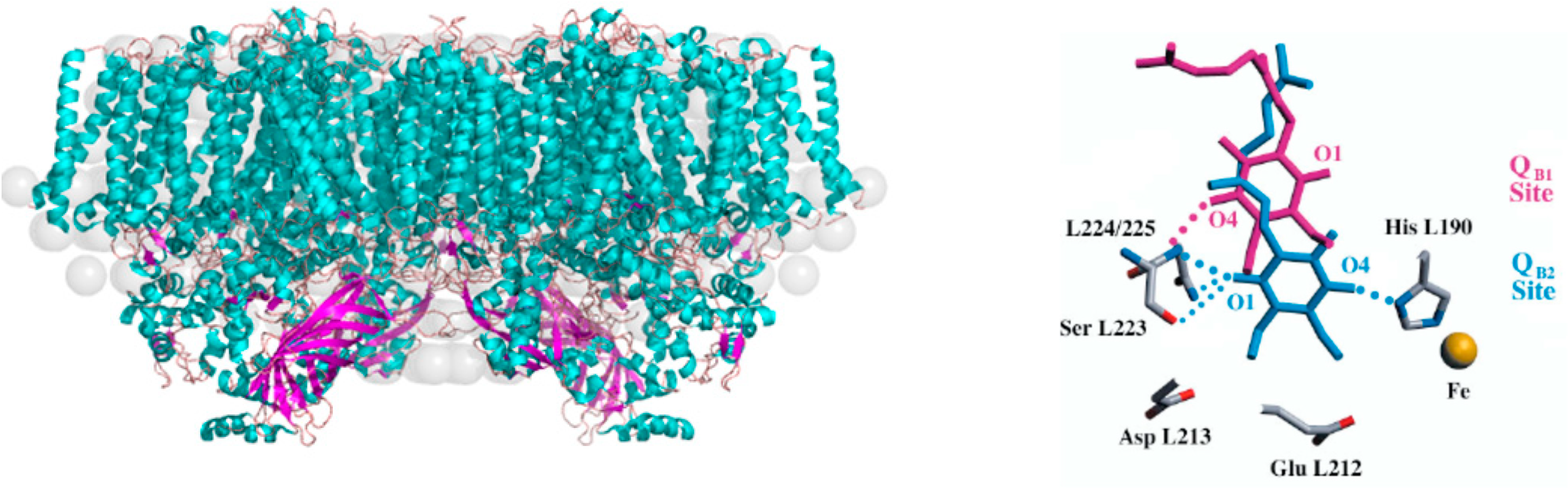

Figure 1. (Left): Comparison of the crystal structure of PSII of Thermosynechococcus elongatus (pdb 5 kaf [2]) shown in cyan and violet with the solution structure determined from SANS data (gray spheres) with the PSII crystal structure. This figure is adapted from Golub et al. [3] Copyright (2023) American Chemical Society. (Right): Conformational changes in the vicinity of the Q_B binding site upon Q_A→Q_B electron transfer according to Stowell et al. [13], see text. This figure is reprinted from Stowell et al. [13] with permission.

Figure 1. (Left): Comparison of the crystal structure of PSII of Thermosynechococcus elongatus (pdb 5 kaf [2]) shown in cyan and violet with the solution structure determined from SANS data (gray spheres) with the PSII crystal structure. This figure is adapted from Golub et al. [3] Copyright (2023) American Chemical Society. (Right): Conformational changes in the vicinity of the Q_B binding site upon Q_A→Q_B electron transfer according to Stowell et al. [13], see text. This figure is reprinted from Stowell et al. [13] with permission.

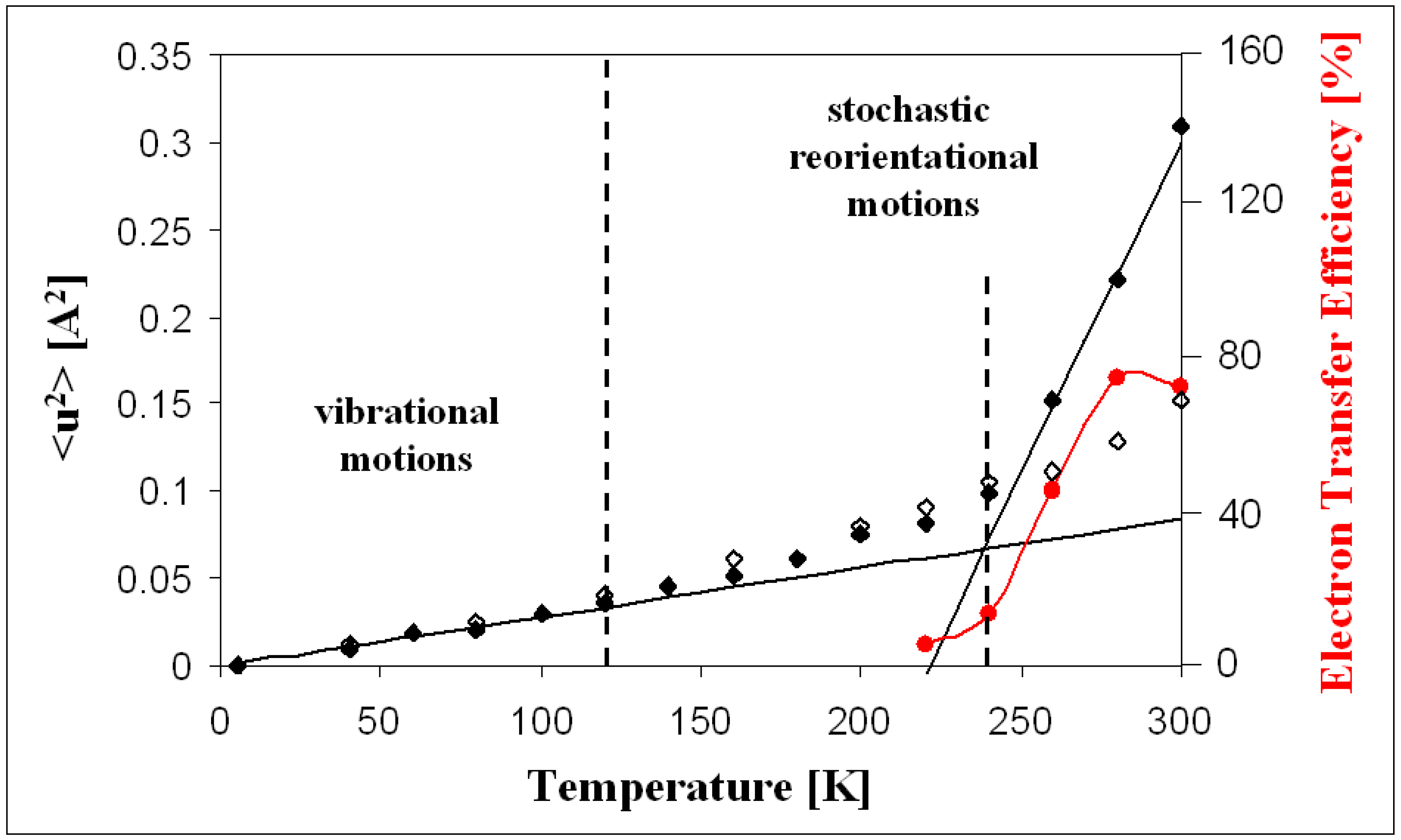

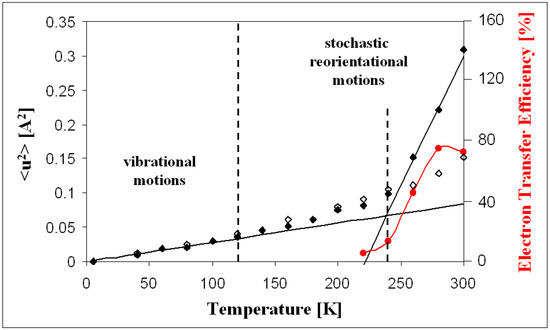

Therefore, quasielastic neutron scattering (QENS) was used to directly investigate the dynamics of hydrated PS II membrane fragments (PSIImf) from spinach [17,18]. The dynamics of PS II was studied over a temperature range of 5 to 300 K, and a dynamical transition with a strong increase of molecular mobility with increasing temperature was reported at approximately ~240 K at 90% relative humidity [18]. It was shown that the latter increase of molecular mobility is strongly correlated with the temperature-dependent increase of the electron transport efficiency from $Q_A^{-•}$ to $Q_B$. The latter dynamics–function correlation is visible in Figure 2, where the mean square displacement <u²> (MSD) is shown by black diamonds along with the electron transport efficiency provided by red diamonds. Between 280 and 340 K, the dynamics of PSIImf revealed a hydration-sensitive transition occurring between 310 and 320 K, which was attributed to the detachment of the oxygen-evolving complex [19]. At room temperature, the protein dynamics were suppressed below 44% r.h., which aligns with the inhibition of electron reduction in dehydrated PS II [17]. Point mutations in the vicinity of the cofactors Q_A and Q_B were shown to affect the overall protein dynamics in bacterial reaction centers [20,21].

Therefore, exploring the correlations between protein dynamics and function is crucial for a deeper comprehension of these processes. However, previous QENS studies were largely restricted to experiments using specifically hydrated membranes to avoid a sizeable scattering contribution from the solvent. This means that a thorough examination of the conformational dynamics of PSIImf in solution, which is close to its native state, is so far lacking. QENS is a highly effective experimental technique for directly investigating protein dynamics (for more details, see [22,23,24]). This method takes advantage of the fact that hydrogen atoms are uniformly distributed in biomolecules and have a high scattering cross-section [22,25,26] so that they can serve as efficient probes of the overall molecular dynamics. As a result, QENS has become widely used for studying the molecular motions of proteins on the picosecond to nanosecond timescale [5].

Our study seeks to go beyond the use of hydrated membranes and to explore the dynamics of PSIImf in solution for the first time. We are presenting QENS measurements over a wide temperature range from 50 K to 295 K. As solution measurements of molecular dynamics contain contributions from both the protein/membrane and from the buffer, a reliable method for buffer subtraction is a key prerequisite for obtaining reasonable data. Below, we present such an approach based on the coherent scattering of the D₂O present in the solvent and apply it to PSIImf for the first time. As a result, we are able to directly probe the dynamics of PSIImf in solution, i.e., in the same form as routinely used for studies of functional processes in PSII by employing complementary methods of optical spectroscopy [6,7,8,9,11,12]. In perspective, these insights will help us to achieve a direct dynamics–function correlation and a better understanding of the vital role that dynamics play in protein function.

2. Materials and Methods

Sample preparation: The preparation of PSIImf was described in detail earlier [18]. Briefly, PSIImf were isolated from spinach (Spinacea oleracea) following the procedure described by Berthold et al. [27]. PSIImf with modifications according to Völker et al. [28]. Finally, the PS II membrane fragment sample was prepared in a buffer solution containing D₂O, 50 mM MES (pD 6.5), 0.4 M sucrose, 15 mM NaCl, and 10 mM CaCl₂ at a concentration of 80 mg/mL. We used a flat cylindrical aluminum slab cell with a diameter of 50 mm and a thickness of 0.4 mm filled with 1 mL sample or buffer solution for the measurement.

QENS experiment: To measure the QENS spectra of PSIImf in a D₂O solution, we employed the IN6 time-of-flight spectrometer at ILL (Grenoble, France). The experiments were conducted using a sample cell with a cylindrical shape in a temperature range spanning from 50 K to 295 K. For accurate buffer subtraction at each temperature point, we also measured the buffer solution separately, but under the same conditions as the PSIImf. The incident neutron wavelength was 5.12 Å, which corresponded to a q-range of 0.2 to 2 Å. We estimated the elastic energy resolution to be 88 μeV based on standard vanadium measurement.

We utilized the Large Array Manipulation Program (LAMP) for the data reduction process. The raw data were normalized based on the elastic intensity of vanadium runs and corrected for detector efficiency. Finally, the scattering function S_exp(Q,ω) was transferred in energy and momentum transfer scale.

QENS data analysis: In the case of a protonated scatterer like a protein, the number of neutrons detected in a solid angle element δΩ and an energy element δω in an incoherent neutrons scattering experiment is provided by the double-differential cross-section $\frac{{\delta }^2\sigma }{\delta \Omega \delta \omega }$ (for an overview, see, e.g., Ref. [29])

$$\frac{{\delta }^2\sigma }{\delta \Omega \delta \omega }=\hspace{0.33em}\frac{\left|{\mathit{k}}_{\mathbf{1}}\right|}{\left|{\mathit{k}}_{\mathbf{0}}\right|}{b}_{inc}^2{S}_{inc}\left(Q,\omega \right)$$

(1)

where k₀ and k₁ are the wave vectors of the incident and scattered neutrons, respectively, Q is the momentum transfer vector, b_inc is the incoherent scattering length, and S_inc(Q,ω) is the incoherent scattering function. S_inc(Q,ω) is not directly accessible in experiments; it has to be replaced by the experimental scattering function S_exp(Q,ω), which can be provided as:

$$S_{exp}\left(Q,\omega \right)=F_{N}exp\left(-\frac{\hslash \omega }{2kT}\right)R\left(Q,\omega \right)\otimes S_{theo}\left(Q,\omega \right)$$

(2)

which consists of a normalization factor F_N, the detailed balance factor according to $\mathit{exp}\left(-\frac{\hslash \omega }{2kT}\right)$, the instrument resolution function R(Q,ω) and a model scattering function S_theo(Q,ω), which are a function of energy ħω and the momentum transfer vector Q. The following model function often represents the theoretical function characterizing the dynamics of the protein:

(3)

which consists of the Debye–Waller factor $e^{-\left(u^2\right)Q^2}$ with the “global” vibrational mean square displacement <u²> (MSD), the elastic component A₀$\left(Q\right)\delta \left(\omega \right)$, the quasielastic component ${{\displaystyle \sum }}_n{A}_n\left(Q\right)L_n\left(H_n,\omega \right)$, and, finally, the (vibrational) inelastic contribution S_in(Q,ω). Assuming an exponential protein relaxation, the line shape $L_n\left(H_n,\omega \right)$ becomes a Lorentzian with a width H_n (HWHM) related to a characteristic relaxation time ${\tau }_R$. The pre-factors A₀(Q) and A_n(Q) are denoted as elastic and quasielastic incoherent structure factors (EISF and QISF), respectively, which add up to unity according to

$${\displaystyle \sum }_n{A}_n\left(Q\right)=\hspace{0.33em}1-\hspace{0.33em}{A}_0\left(Q\right)$$

(4)

Elastic incoherent neutron scattering data can be analyzed in terms of the Gaussian approximation according to

(5)

The value of the average atomic MSD at a given temperature can be obtained from the slope of the semi-logarithmic plot of the elastic intensity

$$MSD=-\frac{d \ln \left[S_{exp}\left(Q,\omega =0\pm △E\right)\right]}{d Q^2}$$

(6)

This approximation is valid only at Q → 0, but can be extended to MSD* Q² ≤ 1 [22]. According to Equation (3), the QENS spectrum measured at 295 K was fitted using a sum of one elastic contribution and two Voigt functions as the convolution of a Lorentzian with the experimental resolution. The experimental resolution is defined according to the fit of the vanadium spectrum and has been fixed in all further fits. In the case of a jump-diffusion model of the protons’ motion within the protein suggested by Singwi and Sjölander [30], the Lorentzian HWHM is expected to follow

$$HWHM\left(Q\right)=\frac{D{Q}^2}{1+D\tau Q^2}$$

(7)

where τ provides the residence time, during which protons oscillate around an equilibrium position, and D is the jump-diffusion constant, which describes the diffusive motion of protons from one equilibrium position to another. Previously, the jump-diffusion model was successfully applied to describe the internal motions of proteins [24,31,32,33]. Fitting of the QENS spectra has been performed in OriginPro 2018 program [34].

3. Results and Discussion

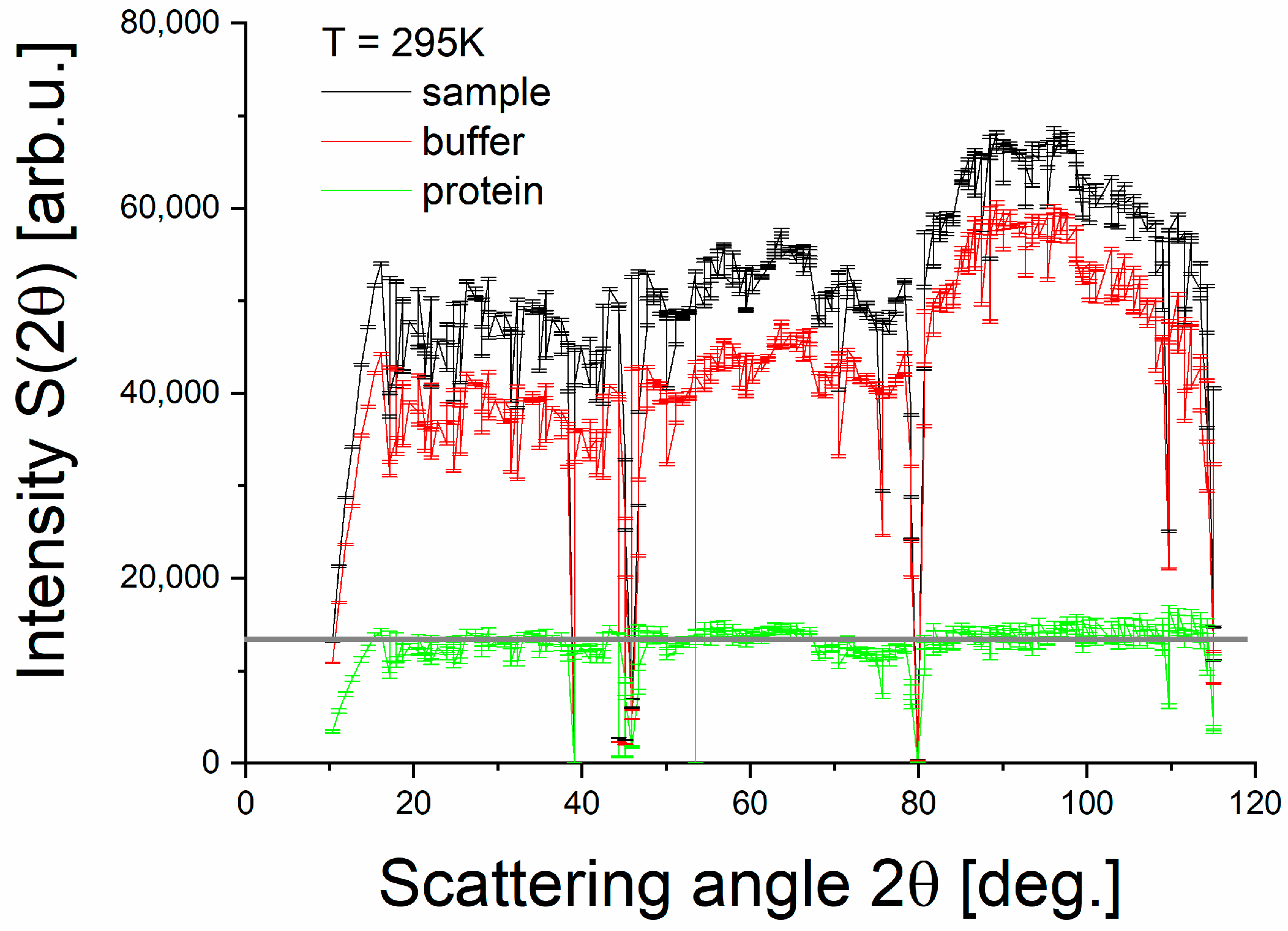

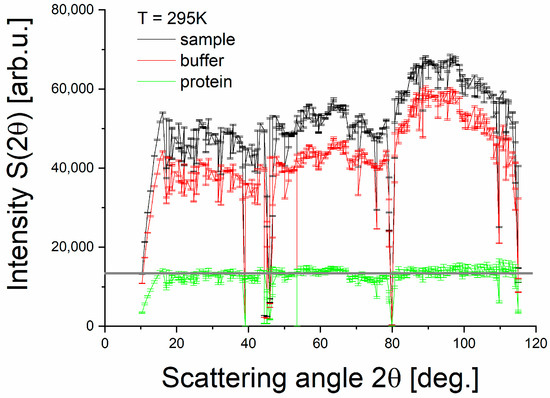

Buffer subtraction: The QENS signal of a protein in solution comprises both protein and solvent contributions, thus necessitating buffer subtraction. One approach involves analyzing the coherent scattering of D₂O, which primarily originates from the buffer. Figure 3 displays the angle spectrum or diffractogram of the PS II membrane fragment sample in buffer solution (black line) and of the separate buffer measurement (red line). The sample spectrum exhibits a correlation peak at a 2θ-value of roughly 100°, similar to the peak visible in the buffer data. Note that the latter position may be affected by angle-dependent detector efficiency, but a precise determination was not within the scope of this study. The correlation peak corresponds mainly to D₂O coherent scattering and is not present for incoherent scatterers like a protein, membrane or the vanadium standard [35]. To estimate the PSIImf contribution, we followed [36], and performed buffer subtraction with a scaling factor of k. The correlation peak disappears after the subtraction, and the resulting diffractogram becomes flat, akin to the vanadium standard. In this case, the scaling factor k equals 0.9, meeting the buffer subtraction criteria. This procedure enabled us to isolate the QENS signal of PSIImf for further analysis and obtain accurate data on their dynamical behavior in solution.

Dynamics at physiological temperatures: The central aim of this investigation is to explore the conformational dynamics of PSIImf in solution under physiological temperature conditions. We first measured QENS spectra of PSIImf at 295 K (see Figure 4A). In the latter spectrum, the broadening that is visible around the elastic peak is generally associated with diffusive conformational motions between different protein conformations on the picosecond timescale. These motions are deemed to be an essential component of the functional structural changes necessary for the functional processes [17,37,38].

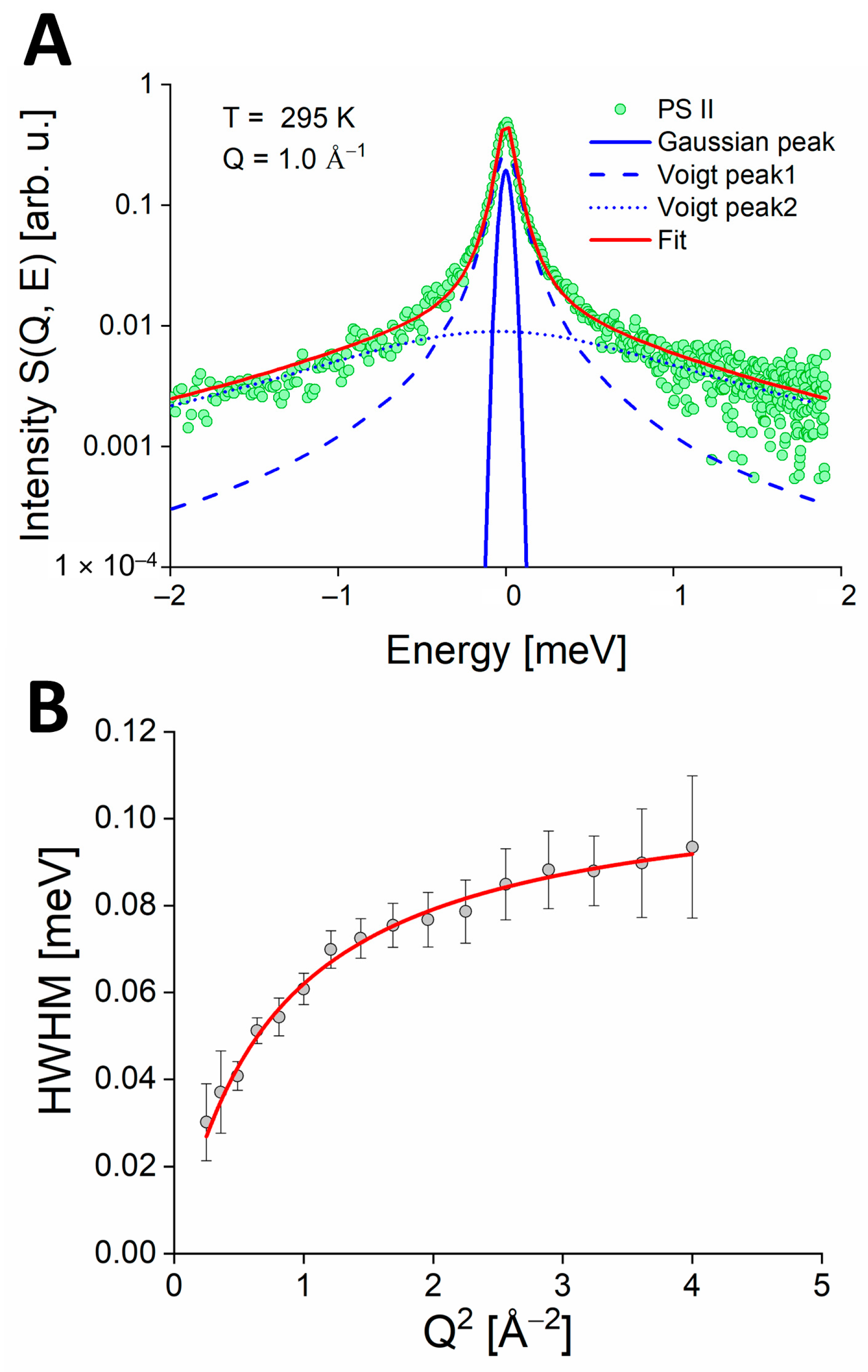

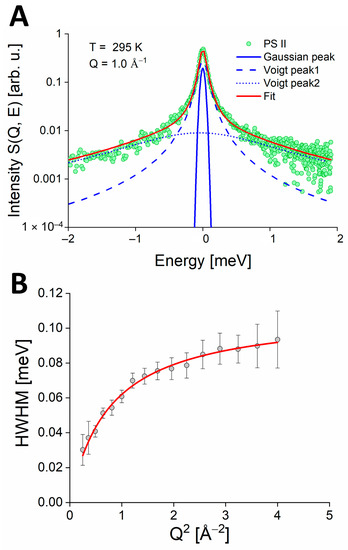

We further analyzed the PSIImf QENS spectra collected at 295 K by utilizing model scattering functions (as outlined in Equations (2) and (3)) in the energy range of −2 meV to 2 meV. The fit obtained (as illustrated in Figure 4A by the red line) is the summation of a Gaussian peak representing the elastic contribution and of two quasielastic Voigt peaks corresponding to the fast (for broader linewidth) and the slow (for narrow linewidth) components of the protein dynamics, respectively. It has to be kept in mind that this is a minimal description of the measured QENS data, so that each of the two components represents a larger number of unresolved motional components expected in the accessible observation time range.

The Lorentzian linewidths of the QENS spectra are sensitive to the wavevector Q, which enables the differentiation and characterization of various motions within the protein system being studied. The broader quasielastic peak that represents the fast motions (depicted by the dotted line in Figure 4A) exhibits a constant Lorentzian HWHM, indicating a fast rotational motion. Through several fitting iterations, we identified an optimal Lorentzian HWHM of approximately 1.1 ± 0.2 meV, which corresponds to a rotation frequency of 1.67 ps⁻¹. Similarly, fast dynamical contributions were associated, e.g., with the rotation of the CH₃ groups [39,40]. Another possible interpretation of the broad QENS component may lie in even faster motions corresponding to hydrogen atoms engaging in swift, non-oscillatory librational movements around the carbon atom they are bonded to [41]. The narrower quasielastic contribution corresponds to slower motions that we associate with internal protein dynamics (as indicated by the blue dashed line in Figure 4A). For this dynamical component, we observed a Q-dependence of the HWHM that follows the typical behavior of a localized jump-diffusion (as shown in Figure 4B). The jump-diffusion model has been previously used to describe the internal motions of proteins in various studies [24,31,33,42]. Through our analysis, we determined a diffusion coefficient of 4.4 ± 0.5 10⁻⁹ m²/s and a residence time of 3.2 ± 0.5 ps.

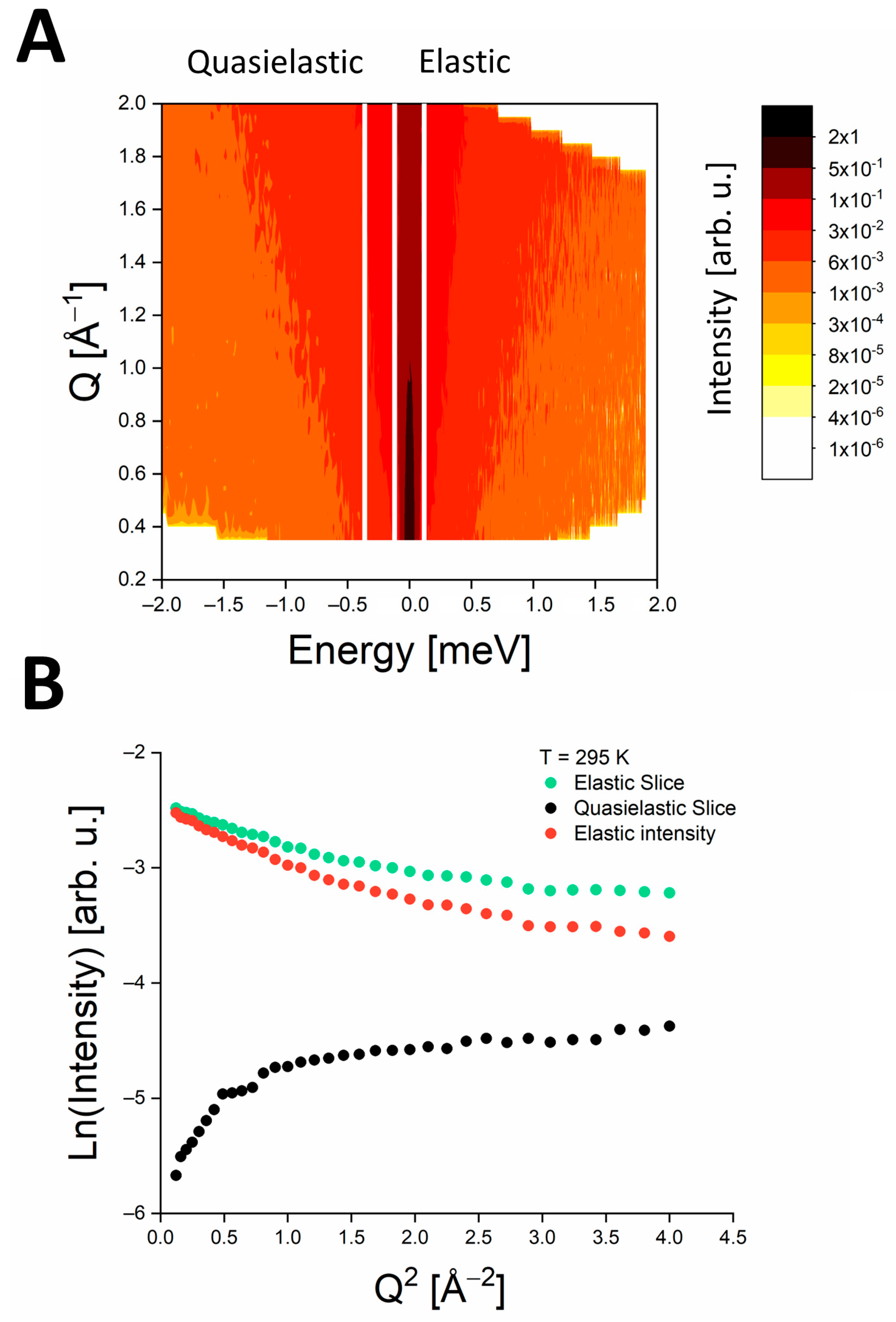

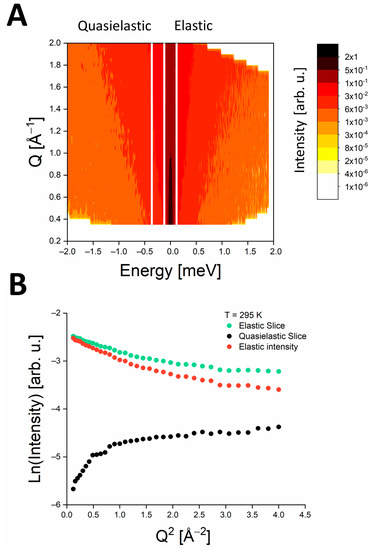

Temperature dependence of molecular dynamics: Our subsequent aim was to examine the temperature dependence of MSDs for PSIImf in solution based on the elastic intensity using Equation (6). To define the EINS intensity from the measured S_exp(Q,ω) data, we utilized the ElasticWindow algorithm (Elwin), which is implemented in the Mantid program. In this approach, we considered a region of elastic intensity that corresponded to the energy range of −0.12 to 0.12 meV for the IN6 instrument (as shown in Figure 5A). The “elastic” slice was estimated as the integrated intensity within the aforementioned elastic energy window (represented by the green points in Figure 5B). One has to consider the quasielastic contribution that is not neglectable in the elastic window at higher q values (see Figure 4A), which is specifically the case for data taken at temperatures above ice melting point. We took the quasielastic background to EINS intensity (indicated by black points in Figure 5B) into account by integrating the scattering intensity in the energy range from −0.36 to −0.12 meV (as illustrated in Figure 5A). Finally, we estimated the EINS intensity by subtracting the intensity of the “quasielastic” slice from that of the “elastic” slice (as indicated by the red point in Figure 5B). This analysis was repeated for EINS data at each measured temperature. Figure 6 shows EINS for the temperature point of 295 K obtained according to the Elwin approach (see red points) and EINS estimated from the Q-dependent analysis, i.e., without considering the quasielastic contribution (see open diamonds). A comparison of the MSDs determined by both approaches reveals that the Elwin method leads to larger MSDs because of a more realistic estimate of the elastic intensity (see Figure 7).

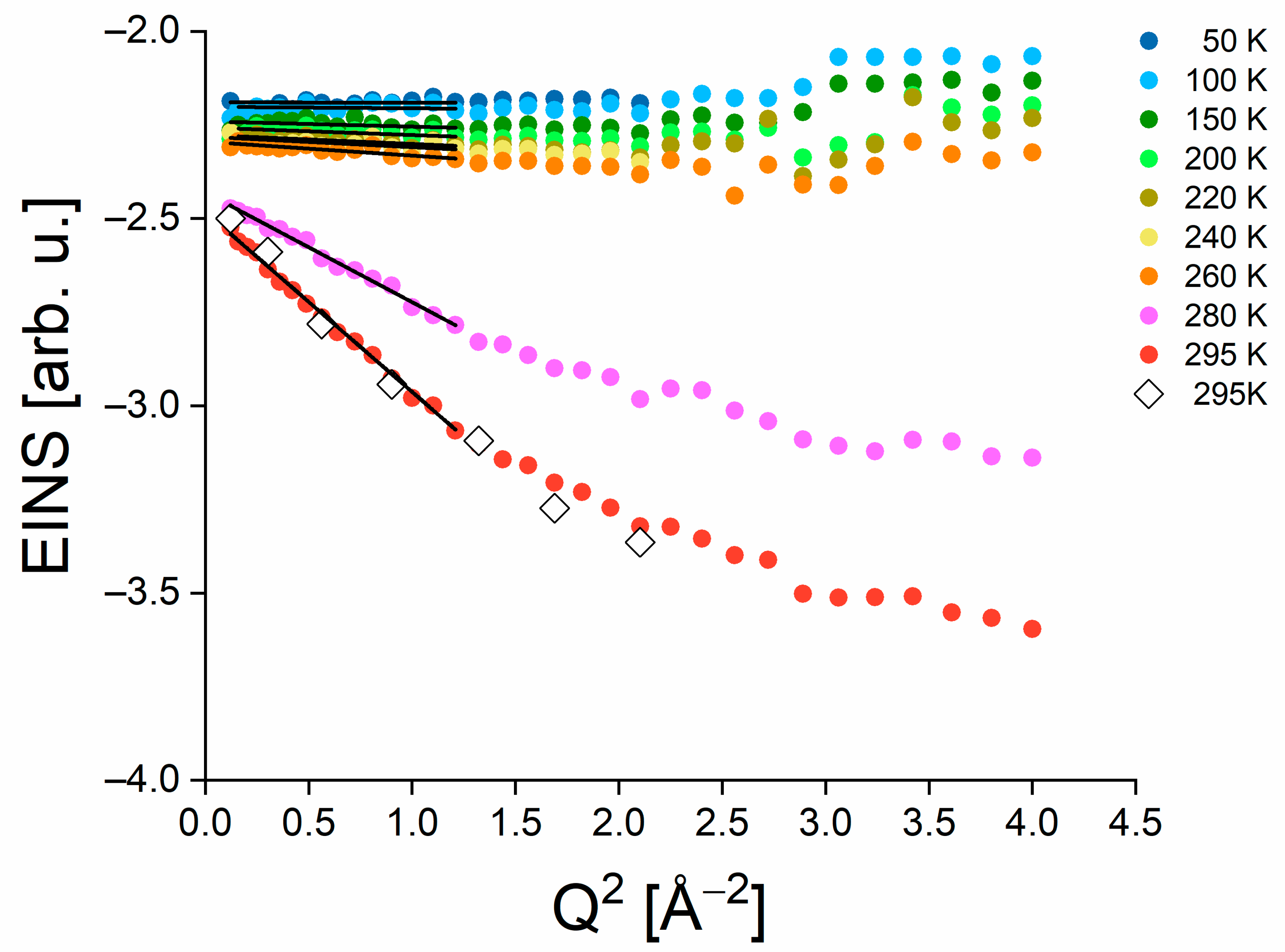

The MSDs are determined from the EINS data according to Equation (6). The fit range was restricted to the Q values between 0.12 and 1.21 Å⁻¹, where the dependence of ln [S(Q,ω = 0 ± ΔE)] on Q² was found to be linear within the experimental uncertainty (see Figure 6). The temperature dependence of the MSD values is shown in Figure 7 (red points). For comparison, we also show MSDs of PSIImf measured previously in dry state and at 90% relative humidity (r.h.) [18], see green and blue points in Figure 7, respectively.

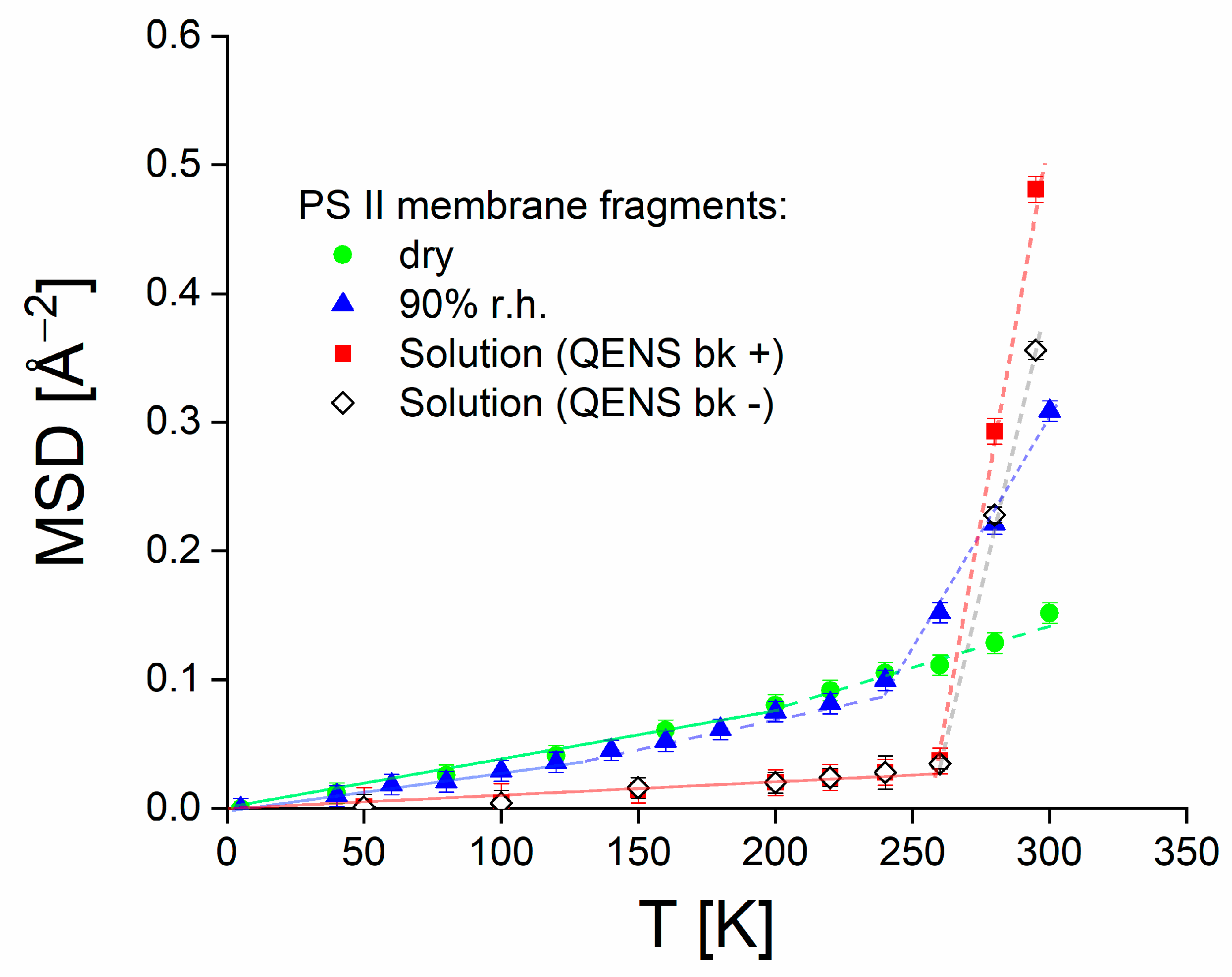

As visible in Figure 7, the MSD values for PSIImf in solution above the melting point of D₂O are significantly higher than those obtained earlier for hydrated membrane stacks. In contrast, however, the MSDs in solution state appear to be significantly suppressed at lower temperatures, with the latter surprising observation especially requiring a discussion.

Starting from previously published data, the MSDs for PSIImf hydrated at 90% r.h. reveal a notable increase in molecular dynamics in the temperature above 230 K (see dotted blue guiding line in Figure 7). The latter effect was referred to as the dynamical transition in proteins [43], membranes [37,44], and model membrane systems [45] and associated with the onset of diffusive conformational dynamics. Similar effects were observed for PSII [46], and other photosynthetic proteins [47]. It has to be noted, however, that the presence of a dynamical transition as such has been questioned (see, e.g., Ref. [48]). The latter study of the dynamics of lysozyme combining QENS and dielectric spectroscopy suggests that there is no specific transition at 230 K, but rather a thermal activation of molecular dynamics, whose relaxation time enters the observation time window of the spectrometer at a specific temperature. Regardless of the latter question, however, the temperature dependence of electron transfer efficiency appears to be correlated with the thermally activated increase in protein dynamics as shown in Figure 2, thus pointing to a dynamics–function correlation in PSIImf.

As to the hydration dependence, the MSD values for dry PSIImf do not exhibit a similar increase in dynamics as observed for hydrated PSIImf. It was shown, especially, that the MSDs of PSIImf above 230 K increase with increasing hydration level [17]. Therefore, it should be expected that the MSDs of PSIImf in solution are generally higher than in the case of hydrated membrane stacks. This anticipated increase of protein flexibility of PSIImf in solution is indeed observed above the melting point of D₂O, thus permitting studies of molecular dynamics in solution state at physiological temperatures.

The increase in slope of the MSDs of PSIImf at 90% r.h. above roughly 130 K is often interpreted as the onset of internal protein motions, especially those of methyl groups [40,49]. In the case of the Light-Harvesting Complex II, this transition was associated with the onset of anharmonic vibrational motions [47]. The MSDs of dry PSIImf exhibit the latter transition at a slightly elevated temperature of about 200 K. Because of the above-mentioned suppression of MSDs below the freezing point of D₂O, the latter intermediate transition cannot be detected for PSIImf in solution. That is, only two strikingly distinct temperature ranges are observed characterizing the dynamics of PSIImf in solution.

A remarkable finding is that the MSD values for PSIImf in solution were significantly lower than for hydrated membranes in the temperature range below ~276 K. This temperature dependence of MSD was unexpected, as PSIImf in solution are generally anticipated to exhibit higher flexibility due to a higher hydration level, see above. Interestingly, SANS studies of lysozyme protein solutions reported significant protein aggregation due to ice formation below the freezing point of water [50,51]. The frozen state of the protein solution has been characterized as primarily consisting of ice crystals with regions of amorphous water containing freeze-concentrated protein. Based on the observations of Curtis et al. [50,51], we assume that a similar structural rearrangement may occur in PSIImf upon freezing, thus leading to ice-induced crowding or even unspecific aggregation. Due to the large size of the membrane fragments studied here, this effect should be even more significant than for the globular protein lysozyme. Such experiments on PSIImf in solution are planned. Crowding effects have been shown to restrict protein dynamics [52]. Therefore, we propose that the low MSD values corresponding to unexpectedly rigid PSIImf in solution at temperatures below ~276 K can be attributed to the restriction of protein dynamics due to ice-induced aggregation. This result suggests that the influence of dynamic restriction due to aggregation in ice overpowers the occurrence of a classical dynamic transition. Further investigation into the dynamic transition of PSIImf in solution may involve utilizing cryoprotectants, such as glycerol, to prevent ice formation. However, conducting such experiments is beyond the scope of the present work.

4. Conclusions

This study provides a comprehensive analysis of the dynamical behavior of PSIImf in solution and elucidates two distinct temperature regions of molecular dynamics. Specifically, our investigation characterizes the flexibility of PSIImf in a native liquid state at physiological temperatures.

In summary, we observed that the dynamics of PSIImf are significantly activated at temperatures above the melting point of water, leading to larger MSD values compared to those of specifically hydrated membrane stacks. In this temperature regime, the MSD values for PSIImf in solution are up to twice as high as for the hydrated membrane stacks as expected for a higher hydration level. A jump-diffusion model has been used to characterize the time scale of this conformational dynamics at the temperature of 295 K. The obtained results characterize the level of flexibility necessary for the proper PS II functionality under physiological conditions, which plays a vital role in photosynthetic water splitting to generate oxygen. To perform these essential functions, PS II requires structural flexibility, allowing the protein to undergo conformational changes necessary for electron transfer and specific steps of water splitting. In contrast, we observe a severe restriction of molecular dynamics upon freezing of the solvent below ~276 K. We associate this unexpected suppression of dynamics with a substantial aggregation of PSIImf caused by ice formation. Upon aggregation, the motional freedom of the protein becomes seriously restricted by congestion with neighboring molecules, which results in a suppression of the observed MSD.

Overall, this study provides valuable insights into the mechanisms of photosynthesis by highlighting the vital role that dynamics play in protein function. Understanding the dynamic processes of PSIImf in solution is essential for developing effective strategies to maintain the stability and functionality of photosynthetic organisms.
