Sol–Gel-Process-Based Molten-Flux Synthesis of Plate-like La₂NiO_4+δ Particles

Abstract

La₂NiO_4+δ particles with a plate-like morphology were prepared from a NaOH melt by molten-flux synthesis. For this purpose, the intermediates from a sol–gel process were used as reactants. Using powder X-ray diffraction, the sol–gel intermediates were identified as a mixture of tetragonal La₂O₂CO₃ and cubic NiO. The existence of NiO was also confirmed by transmission electron microscopy in combination with electron-energy loss spectroscopy. The ultrafine mixed sol–gel intermediates were then mixed with NaOH powder and additional water in a nickel crucible and heated to 673 K for 8 h. The chemical reactions in the air during the molten-flux synthesis and the influence of the salt on the formation of La₂NiO_4+δ were examined by thermogravimetric analysis. The powder X-ray diffraction indicated a K₂NiF₄-type tetragonal structure with the I4/mmm space group for the reaction product. The scanning electron microscopy showed plate-like La₂NiO_4+δ crystals with a length and thickness of approximately 9 µm and 2 µm, respectively, while the energy-dispersive X-ray spectroscopy revealed a homogeneous distribution of lanthanum and nickel in the product powder. The influence of the processing parameters on the product generation, as well as on the size and morphology of the La₂NiO_4+δ particles, was systematically studied.

1. Introduction

Due to its high chemical and thermal stability in a CO₂-containing atmosphere under working conditions, the mixed ionic–electronic conductor (MIEC) oxide La₂NiO_4+δ (LNO) has attracted considerable attention in the research area of oxygen-transporting membranes (OTMs) [1]. OTMs based on MIECs find applications in the production of oxygen-enriched air, the partial oxidation of methane to syngas or ethane to ethylene and as cathode material in solid-oxide fuel cells (SOFCs) or in lithium–air batteries [2,3,4,5,6,7]. LNO exhibits a K₂NiF₄ structure and is the first member (n = 1) of the Ruddlesden–Popper (RP) phase series, which can be generally described by the formula La_n+1Ni_nO_3n+1 (n = 1, 2, 3, ∞). The crystal structure of LNO is anisotropic and consists of alternating cubic perovskite LaNiO₃ layers and LaO rock-salt layers along its c-axis [8,9,10]. The rock-salt layers are able to include oxygen ions in interstitial positions, which are involved in the oxygen-transport mechanism in LNO [9]. The migration of oxygen ions through LNO is highly anisotropic and occurs mainly in the a,b plane of the structure [11,12]. The amount of the oxygen interstitials can be described by the oxygen excess δ. Depending on the δ (0 ≤ δ ≤ 0.25) and temperature, LNO can exhibit versatile orthorhombic and tetragonal structures [13,14,15,16].

LNO is typically prepared by the sol–gel process (SGP) implicating reactions between nanocrystalline intermediates, which require high temperatures of at least 1223 K to obtain pure powder product with crystal sizes up to a few micrometers [1,17,18,19,20]. However, the crystal morphology of the resulting LNO particles cannot be controlled by the SGP [17,18,19,20]. As an alternative method, molten-flux synthesis (MFS) enables the production of anisotropic metal-oxide materials, such as LNO, with high purity. The chemical conversion during MFS takes place in a liquid medium, resulting in the faster mobility of the ionic species compared to the SGP. This leads to the high homogeneity of the reaction mixture, and the synthesis can be completed in shorter times. Furthermore, the MFS permits the formation of large crystals, mostly in the micrometer range, and well-defined morphologies according to the crystal structure. Depending on the flux used, and thus, its melting point, MFS usually requires a lower reaction temperature than the SGP [21,22,23,24,25,26].

For the investigations in this study, NaOH was chosen as the flux due to its low melting point of 596 K [27]. It has previously been reported that the use of the stronger oxidant KOH compared with NaOH causes the production of the perovskite-like oxide LaNiO₃. The presence of peroxides and superoxides in the KOH melt stabilizes the +3 oxidation state of Ni, facilitating the exclusive formation of LaNiO₃ [28]. Analogous to the autoprotolysis of water, and according to the Lux–Flood theory [29], the acid–base equilibrium present in the NaOH melt can be described as follows:

2 OH⁻ (oxobase) ⇌ H₂O (oxoacid) + O²⁻

(1)

The MFS starts with the dissolution of the reactants in the wet acidic melt. The heating of the reaction mixture causes a slow loss of water, making the melt more basic and promoting product formation by shifting the acid–base equilibrium. The basicity of the melt is expressed analogously to the pH value as a function of the oxygen ions in the following way:

pO²⁻ = −log [O²⁻]

(2)

where pO²⁻ is the potential of the oxygen ions, and [O²⁻] corresponds to the concentration of the oxygen ions. The possible chemical reactions in the melt are determined by the magnitude of the pO²⁻ [30,31,32]. Analogous to the introduction of the absolute pH scale [33], Equation (2) can be related to the absolute chemical potential of the oxygen ions (${\mu }_{{\mathrm{O}}^{2-}, \mathrm{abs}}$), according to Equation (3):

$$p{\mathrm{O}}_{\mathrm{abs}}^{2-}=-{\mu }_{{\mathrm{O}}^{2-}, \mathrm{abs}}/RT \ln 10$$

(3)

Here, R is the gas constant, and T is the temperature. This definition allows us to compare the basicity of the oxygen ions in different chemical environments. So far, many materials, such as La_2−xM_xCuO₄ (M = Na, K), LnBa₂Cu₃O_7−δ (Ln = Nd, Sm, Eu, Gd) and LnCu₂O₄ (Ln = La, Nd, Sm, Eu, Gd, Dy, Ho, Y, Er), have been successfully synthesized via MFS using a NaOH–KOH eutectic [34,35,36]. The use of pure NaOH as a flux in MFS has only been reported in a few cases. For example, LnFeO₃ (Ln = La, Pr, Nd) and Na_0.2CoO₂ were obtained from a NaOH melt [37,38]. In earlier work, plate-like LNO crystals were synthesized by MFS using NaOH as the flux. Nevertheless, in addition to LNO, the secondary phase La(OH)₃ was also identified, which can represent an obstacle for possible future applications due to its size of at least 10 µm [39,40]. LNO plates, obtained via solid-state route-mediated MFS, have already been used in our research group to fabricate the ceramic composite from Ca₃Co_4-xO_9+δ and a small amount of LNO (max. 5 wt%), which showed enhanced thermoelectric properties compared to pure Ca₃Co_4−xO_9+δ [41]. Due to the anisotropic crystal structure and oxygen-transport properties, LNO particles with a plate-like shape can possibly be used as template particles for the production of microstructured LNO ceramic membranes with increased oxygen-transport rates using a templated grain-growth process [40,42]. Thermogravimetric analysis (TGA) investigations on the oxygen uptake/release of nanostructured LNO materials have previously demonstrated that LNO with a rod-like geometry, prepared via the reversible microemulsion method, led to a 75% increase in the oxygen-transport rates compared with LNO to a polyhedral shape [43].

In this work, the synthesis of plate-like LNO particles by the molten-flux method with NaOH as the flux is reported. An ultrafine mixture of intermediates consisting of La₂O₂CO₃ and NiO from the SGP was used as the precursor. By the appropriate choice of the reaction parameters, high-purity micron-sized LNO was produced. A number of different analytical methods were utilized to characterize the sol–gel intermediates and LNO product powder.

2. Materials and Methods

The reactants for the MFS of LNO were synthesized by the SGP using La(NO₃)₃·6 H₂O (Alfa Aesar, Kandel, Germany, 99.9%) and Ni(NO₃)₂·6 H₂O (Alfa Aesar, Kandel, Germany, 99.9%) as metal precursors, ethylenediaminetetraacetic acid (EDTA) (Alfa Aesar, Kandel, Germany, 99.4%) and citric acid (Alfa Aesar, Kandel, Germany, 99.5%). Stoichiometric amounts of the metal precursors were dissolved in distilled water at 353 K. EDTA and citric acid were added under stirring until the molar ratio of La³⁺:Ni²⁺:EDTA:citric acid was 2:1.15:3.15:6.3. After adjusting the pH value between 7 and 9 by adding NH₃·H₂O (Carl Roth, Karlsruhe, Germany, ≥25%), a blue-colored sol was formed. The solution was then heated at 423 K for a few hours under constant stirring until a blue gel was obtained. Next, the gel was transferred to an evaporating dish and heated in a heating mantel for several hours at 573 K. After complete water evaporation, a xerogel powder was obtained, which was thoroughly ground and then calcined in air in a furnace at 773 K for 2 h using a heating and cooling rate of 2 K/min. The finely mixed sol–gel intermediates gained in this way were ground and used as starting material for the MFS in the next step.

For a typical MFS, distilled water was first added to NaOH beads (Alfa Aesar, Kandel, Germany, 99.9%) in a nickel crucible. Then, the sol–gel intermediates (La/Ni molar ratio = 2:1.15) were added to the NaOH, resulting in a sol–gel-intermediates/NaOH/H₂O-weight ratio of 1:5:0.9. The crucible was transferred in a muffle furnace and heated at 673 K for 8 h, with a heating rate of 10 K/min and a cooling rate of 2 K/min. After the furnace was cooled to room temperature, the dark-colored crude product was washed several times with distilled water, treated in an ultrasonic bath for a few minutes and filtrated to remove residual NaOH, smaller particles and other impurities. Finally, the product powder was washed with acetone and dried at 373 K.

The crystal structure and phase identification of the reaction products were determined by powder X-ray diffraction (XRD) (Bruker D8 Advance, Bruker AXS GmbH, Karlsruhe, Germany), which was operated at 40 kV and 40 mA using monochromatic Cu-K_α radiation. XRD data were collected in a step-scan mode in the 2θ range of 10–50°, with a step size of 0.01°, and count times of 1 s per step. Powder diffraction files (PDFs) from the ICDD database were used to identify the following chemical compounds from the recorded XRD patterns: La₂NiO_4.18 (PDF 01-089-3589; tetragonal; a = 3.866 Å; c = 12.678 Å); LaNiO₃ (PDF 00-033-0710; cubic; a = 3.861 Å); La(OH)₃ (PDF 01-079-5398; hexagonal; a = 6.529 Å; c = 3.852 Å); La₂O₃ (PDF 01-074-2430; hexagonal; a = 3.937 Å; c = 6.130 Å); La₂O₂CO₃ (PDF 00-023-0320; tetragonal; a = 4.063 Å; c = 13.500 Å); NiO (PDF 01-071-4750; cubic; a = 4.200 Å).

Morphological investigations of the synthesized chemical compounds were performed with a field-emission scanning electron microscope (FE-SEM) (JEOL JSM-6700F, Tokyo, Japan) using a secondary electron detector at 2 kV. The size of the LNO crystals was determined from the recorded SEM micrographs using the image analysis program ImageJ, version 1.53e (Wayne Rasband, U.S. National Institutes of Health, Bethesda, Maryland, USA) [44]. For this purpose, 100 particles were evaluated. The chemical compositions of the sol–gel intermediates and LNO powder were investigated by an energy-dispersive X-ray spectrometer (EDXS) (Oxford Instruments INCA-300, Abingdon, Oxfordshire, UK), with an ultrathin window at 15 kV, located on the SEM. For a more precise determination of the amounts of La and Ni in the reaction products, the oxygen content was omitted, as this chemical element is difficult to quantify exactly by EDXS due to its limited sensitivity.

A field-emission transmission electron microscope (FE-TEM) (JEOL JEM-2100F-UHR, Tokyo, Japan, C_s = 0.5 mm and C_c = 1.2 mm) in bright-field and high-resolution mode (HRTEM) at 200 kV was used to further characterize the sol–gel intermediates. The microscope was equipped with a Gatan GIF 2001 energy filter and a 1 k charge-coupled-device (CCD) camera to acquire the selected area electron diffraction (SAED) patterns and electron-energy-loss (EEL) spectra. For the TEM measurements, the powder was placed on a carbon-coated copper TEM grid.

Chemical reactions in the air and the role of the flux during the MFS were studied by TGA and differential thermal gravimetric analysis (DTGA) using a TGA/DSC 3+ from Mettler-Toledo GmbH, Giessen, Germany. For this, the mixtures were transferred into alumina crucibles. The measurements were taken in the temperature range of 298–1073 K, with a heating rate of 10 K/min and a cooling rate of 2 K/min.

3. Results and Discussion

3.1. Synthesis of Precursors via Sol–Gel Process

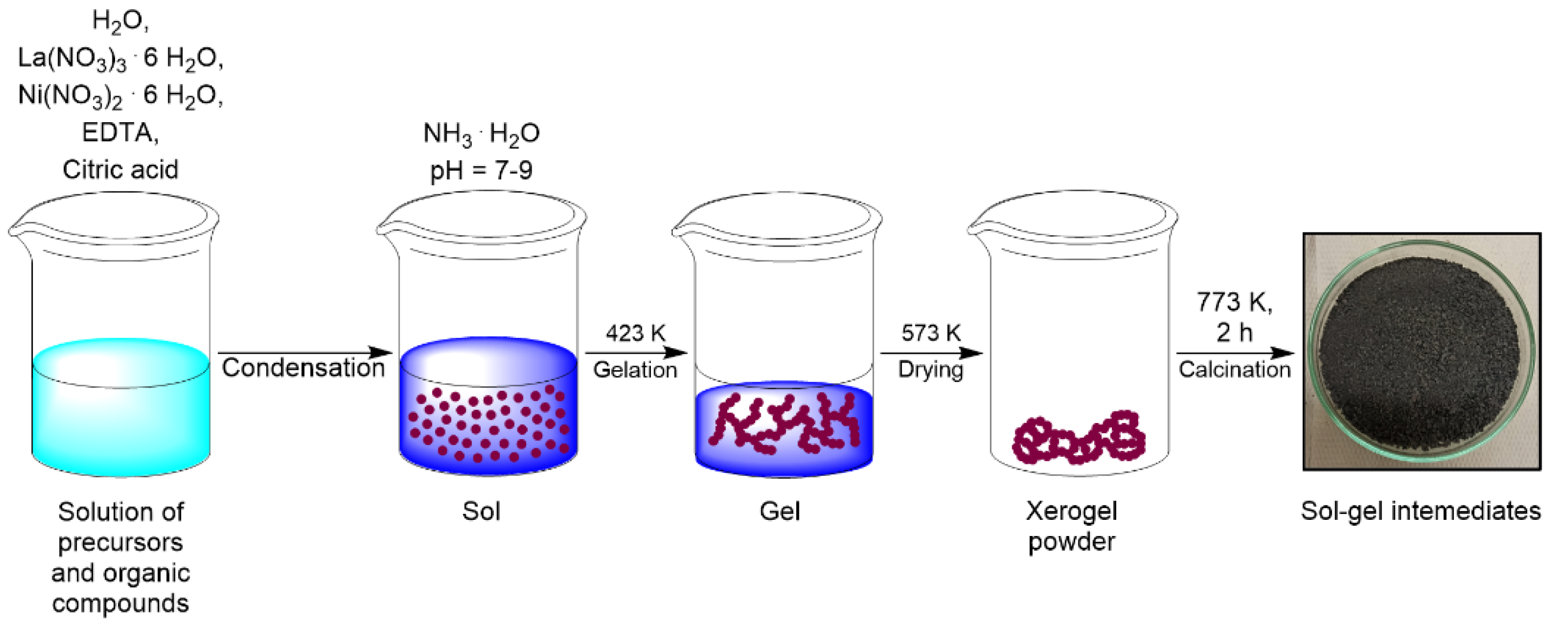

The reactants for the MFS were obtained via the SGP from lanthanum and nickel nitrate using EDTA as the complexing agent and citric acid as the gelation agent. The schematic representation of the SGP is shown in Figure 1. After adding ammonia water to the reaction mixture, a blue sol was formed, which turned into a gel after a few hours through the dehydration and evaporation of ammonia [45,46]. In the next step, the blue-colored gel was heated to 573 K. As a result of the liquid loss, a xerogel powder was produced [47,48]. The powder still contained residues of incompletely burned carbon and nitrogen-based components that could have an impact on the MFS, and they were therefore removed by a calcination step [39]. The calcination of the xerogel powder at 773 K resulted in a crystalline product, hereinafter called sol–gel intermediates.

A calcination temperature of 773 K was chosen because, in previous works, the formation of the first crystalline intermediates, La₂O₂CO₃ and NiO, instead of LNO, was observed between 673 K and 773 K [39]. Temperatures between 773 K and 1173 K led to the generation of LNO, accompanied by La₂O₂CO₃ in different phases, La₂O₃ and NiO. From a temperature of 1223 K or higher, only pure LNO was obtained [17]. The appearance of the intermediate product La₂O₂CO₃ can be explained by the reaction between La₂O₃ and atmospheric CO₂. Furthermore, the production of this oxycarbonate was favored by the presence of carbonaceous compounds in the reaction mixture, which released CO₂ when burned. La₂O₃ is formed as the result of the decomposition of the lanthanum precursor. The chemical reactions during the combustion of the La(NO₃)₃·6 H₂O and the formation of lanthanum oxycarbonate can be described by Equations (4)–(7), involving the decomposition of lanthanum oxynitrate species [49]:

La(NO₃)₃·6 H₂O (s) → LaONO₃ (s) + N₂O₅ (g) + 6 H₂O (g)

(4)

3 LaONO₃ (s) → La₃O₄NO₃ (s) + N₂O₅ (g)

(5)

2 La₃O₄NO₃ (s) → 3 La₂O₃ (s) + N₂O₅ (g)

(6)

La₂O₃ (s)+ CO₂ (g) → La₂O₂CO₃ (s)

(7)

It is important to mention that N₂O₅ can decompose into other gaseous products, such as NO, NO₂, NO₃ or O₂, depending on the temperature [50]. The stability of La₂O₂CO₃ has been studied elsewhere using an Ellingham diagram, and it was found that this crystalline intermediate compound is not thermodynamically stable above 753 K in ambient air when p(CO₂) = 30 Pa [17]. The presence of lanthanum oxycarbonate in the sol–gel product between 773 K and 1023 K could be attributed to the reaction kinetics, which is supported by the fact that no oxycarbonate was found in the powder gained between 873 K and 1073 K after 20 h [17]. The detection of NiO in the sol–gel intermediates has, so far, proven difficult [17,39]. No sharp NiO reflections could be found by XRD, which means that the NiO particles are too small or still amorphous [39]. Bright-field scanning transmission electron microscopy (STEM) together with EDXS revealed that the product from a SGP at 1023 K and 2 h is an intermixed ultrafine powder composed of individual lanthanum- and nickel-based nanoscale grains with a size below 100 nm [17]. It is therefore possible that NiO particles are nanoparticles, which, depending on their size, lead to a strong broadening of the reflections in the XRD pattern so that they can no longer be distinguished from the background. The mechanism of NiO formation has not yet been elucidated. Possibly, NiO is the product of the decomposition of NiCO₃. According to the Ellingham diagram, NiCO₃ disintegrates into NiO and CO₂ at a temperature below 773 K, and so this carbonate is no longer found in sol–gel intermediates [17].

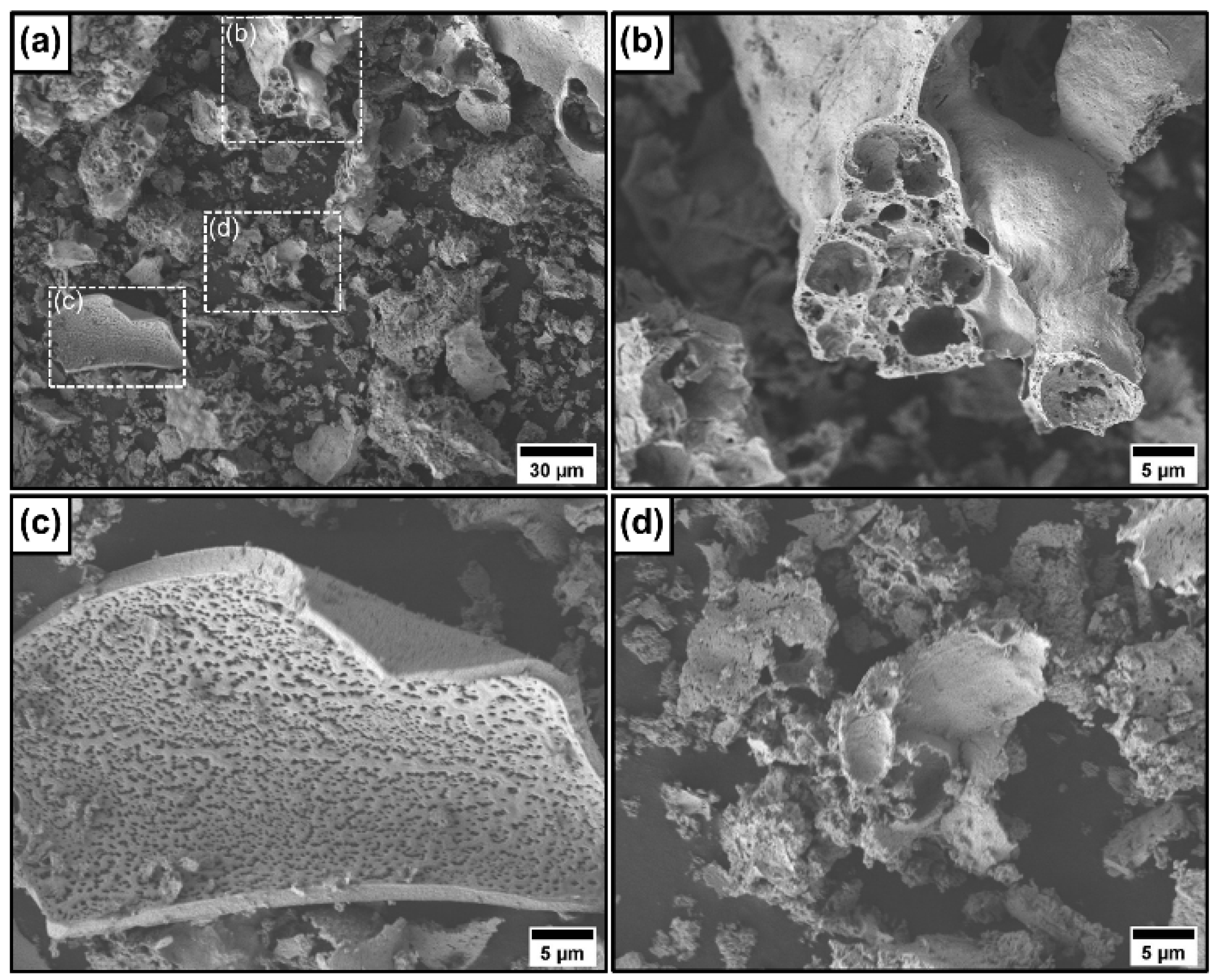

For the synthesis of the sol–gel intermediates, a La/Ni molar ratio of 2:1.15 was employed, which, as is discussed later, was conducive to the formation of pure LNO during the MFS. The SEM micrographs in Figure 2 show a porous sponge-like structure generated by the release of gases, such as CO₂ and NO_x, from the organic and nitrogen-based compounds after the calcination step [51]. The size of the grains is not inferior to 100 nm.

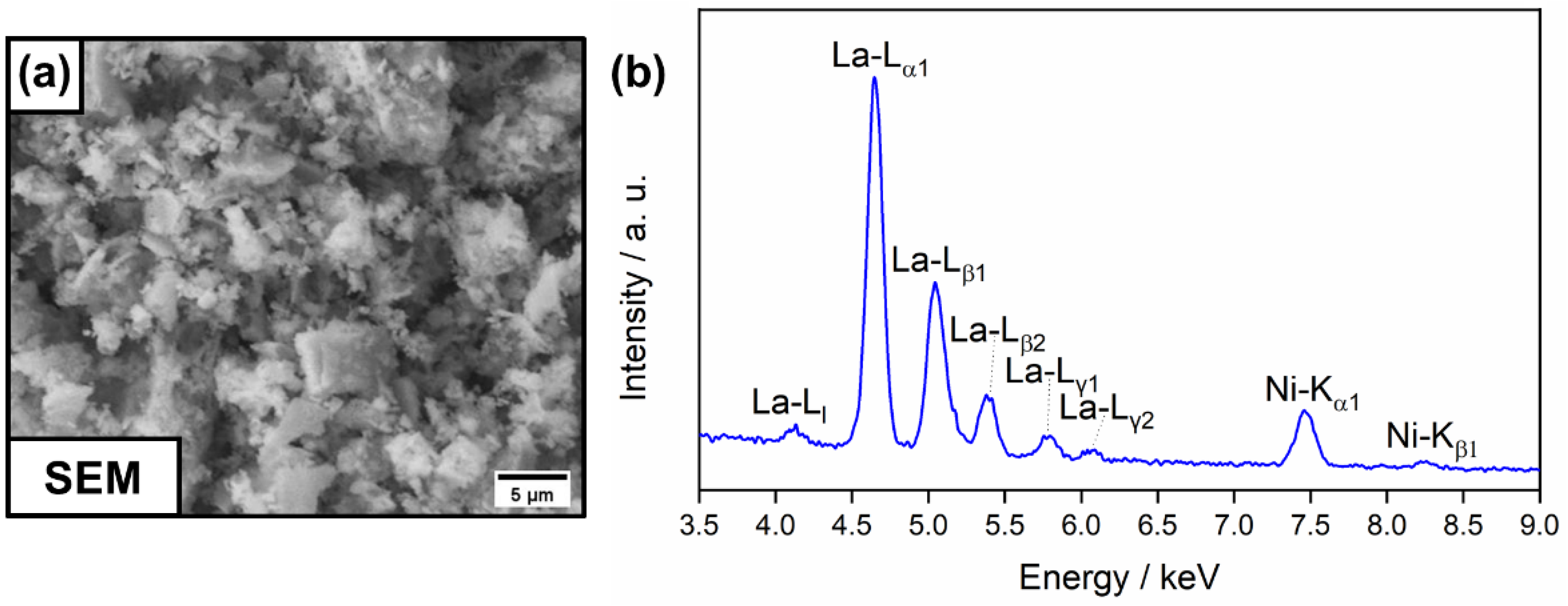

Next, the chemical composition of the sol–gel intermediates was analyzed via EDXS. In Figure 3a, the area selected for the EDXS study is presented. The EDXS spectrum in Figure 3b displays the presence of La and Ni in the product powder. As can be observed in Figure A1, the EDXS elemental maps reveal highly homogeneous distributions of both metals, and they further confirm that the La/Ni ratio is close to 2:1.15 (see

Table 1. Metal composition of sol–gel intermediates based on EDXS results.

Element	Atomic Percent (%)	Stoichiometric Ratio 1
La	66.29 ± 0.28	2.26 ± 0.01
Ni	33.71 ± 0.67	1.15 ± 0.02

¹ Normalized by the atomic percent of Ni.

), which is in good agreement with the stoichiometry of La₂O₂CO₃ and NiO.

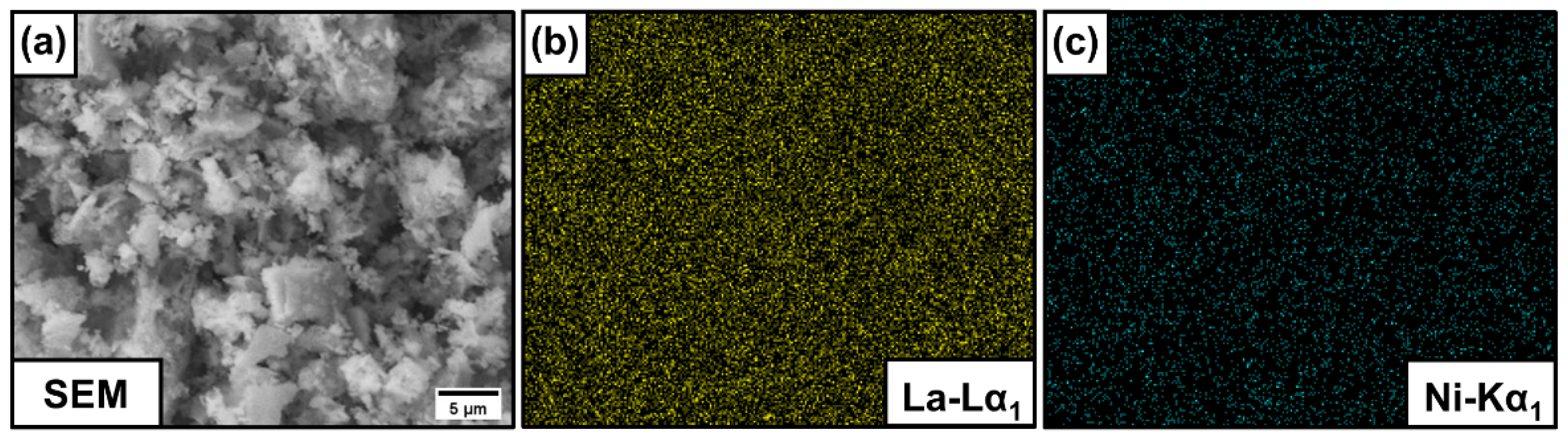

The EDXS results demonstrated that the SGP produced a mixed ultrafine powder of La₂O₂CO₃ and NiO, which is an excellent precursor for MFS. This high level of mixing is considered to be a common feature and a great advantage of the SGP [17]. In another research work, a mixture of La₂O₃ and nanoscale NiO prepared by SSR was utilized for the MFS of LNO [39]. It turned out that the NiO was not homogeneously distributed in the oxide mixture, but it formed agglomerates with sizes of a few micrometers. These inhomogeneities led to the increased formation of the byproducts La(OH)₃ and LaNiO₃ during the MFS [39].

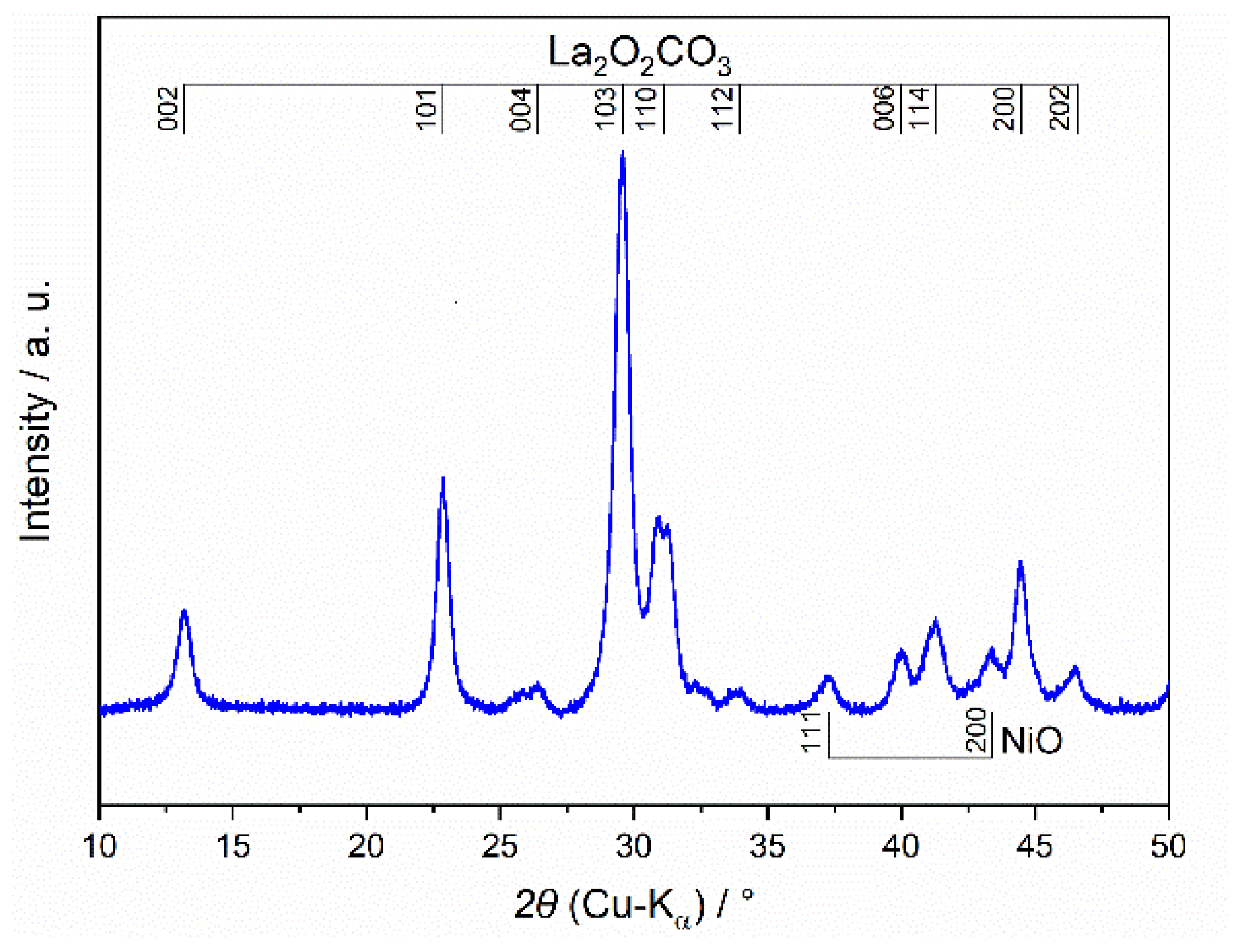

XRD measurements of the sol–gel intermediates were also recorded. The XRD pattern displayed in Figure 4 affirms that tetragonal La₂O₂CO₃ and cubic NiO were formed in the powder at 773 K. Compared with previous works, the NiO reflections are visible, which can be partly explained by the higher nickel content in the starting material (La/Ni molar ratio = 1:1.15) [39]. Nevertheless, the NiO reflections are not as pronounced as the lanthanum oxycarbonate reflections, which indicates a NiO particle size in the nanometer range.

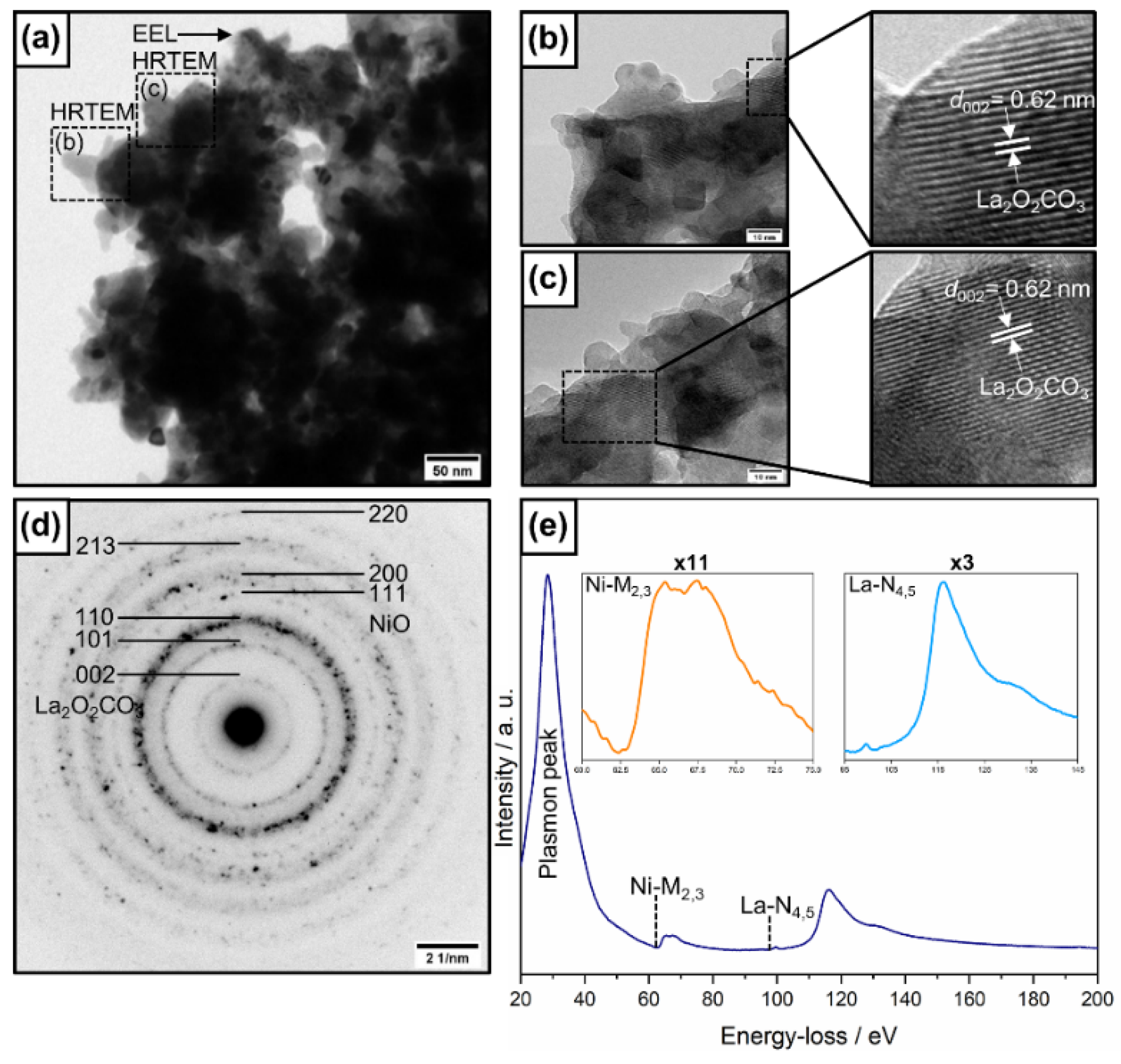

For a detailed analysis of the sol–gel intermediates, the powder was examined using bright-field TEM (see Figure 5a). The HRTEM micrographs presented in Figure 5b,c of the selected areas in Figure 5a exhibit the existence of tetragonal La₂O₂CO₃. The lattice fringes arise from the (002) plane of this oxycarbonate with a distance of 0.62 nm, which agrees with the value of PDF 00-023-0320. NiO and La₂O₂CO₃ were also detected by SAED. As seen in Figure 5d, the SAED pattern manifests polycrystalline Debye–Scherer rings, which belong to the (002), (101) and (110) planes of tetragonal La₂O₂CO₃, and to the (111), (200) and (220) planes of cubic NiO (PDF 01-071-475). To gain more information about the composition of the sol–gel intermediates, an EEL spectrum in the low-loss region (see Figure 5e) of a sample area shown in Figure 5a was recorded, demonstrating the plasmon region for NiO, ionization edges of Ni-M_2,3 at 68 eV, and La-N_4,5 in the range of 99–140 eV [52,53]. By comparison with the EEL spectra from other publications and the EELS atlas from Gatan, the NiO could be successfully identified [52,53,54,55].

3.2. Molten-Flux Synthesis of Plate-like La₂NiO_4+δ Particles

For the MFS, the finely mixed sol–gel intermediates were combined with solid NaOH and additional distilled water in a nickel crucible and heated at 673 K for 8 h (see Figure 6a). The entire process can be separated into four steps, as schemed in Figure 6b–d. In the first step, the sol–gel intermediates dissolve in the wet acid NaOH melt, and in the second step, the diffusion of the free ions (La³⁺, Ni²⁺ and CO₃²⁻) through the molten flux occurs, resulting in a homogenous reaction mixture. In the next step, the nucleation of the reaction products takes place, accompanied by crystal growth from the nuclei based on Ostwald ripening in the last step [23,25].

The chemical reactions during MFS are given by the following equations [39]:

La₂O₂CO₃ (s) + 2H₂O (l) ⇌ 2 La³⁺ (aq) + 4 OH⁻ (aq) + CO₃²⁻ (aq)

(8)

NiO (s) + H₂O (l) ⇌ Ni²⁺ (aq) + 2 OH⁻ (aq)

(9)

2 La³⁺ (aq) + Ni²⁺ (aq) + 6 OH⁻ (aq) + CO₃²⁻ (aq) ⇌ La₂NiO₄ (s) + 3 H₂O (g) + CO₂ (g)

(10)

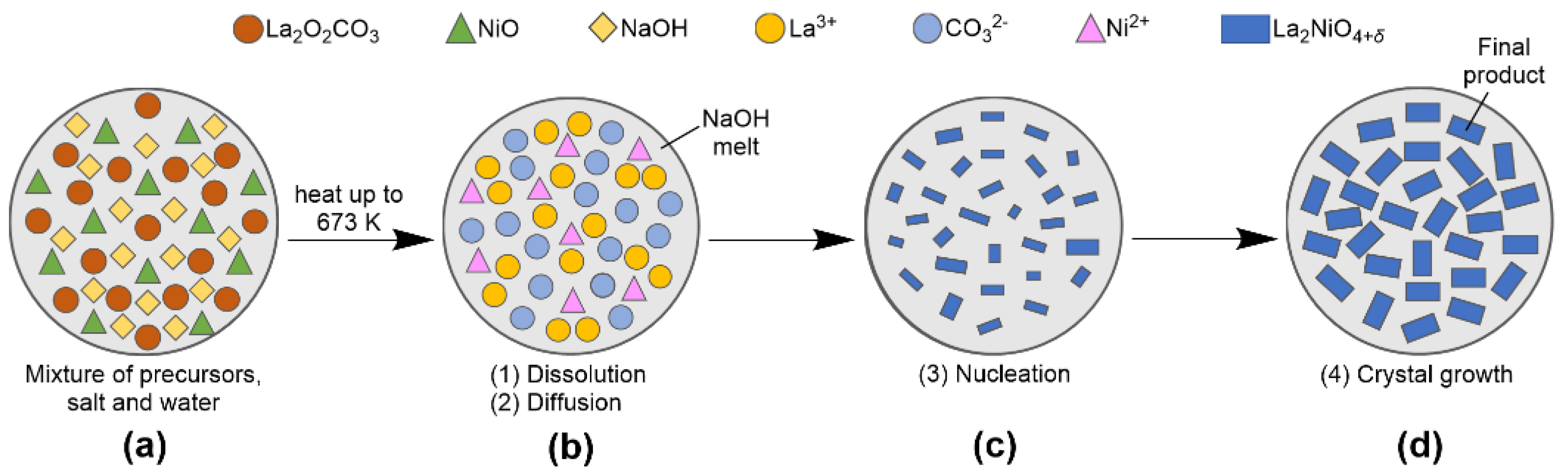

By adding water, the NaOH melt becomes more acidic. At 596 K, the salt begins to melt, and the sol–gel intermediates dissolve in the resulting wet acidic melt according to Equations (8) and (9). Due to the constant evaporation of water and the release of CO₂ during the MFS at 673 K, the equilibrium reaction is shifted to the product side (see Equation (10)) so that the target product, LNO, is formed.

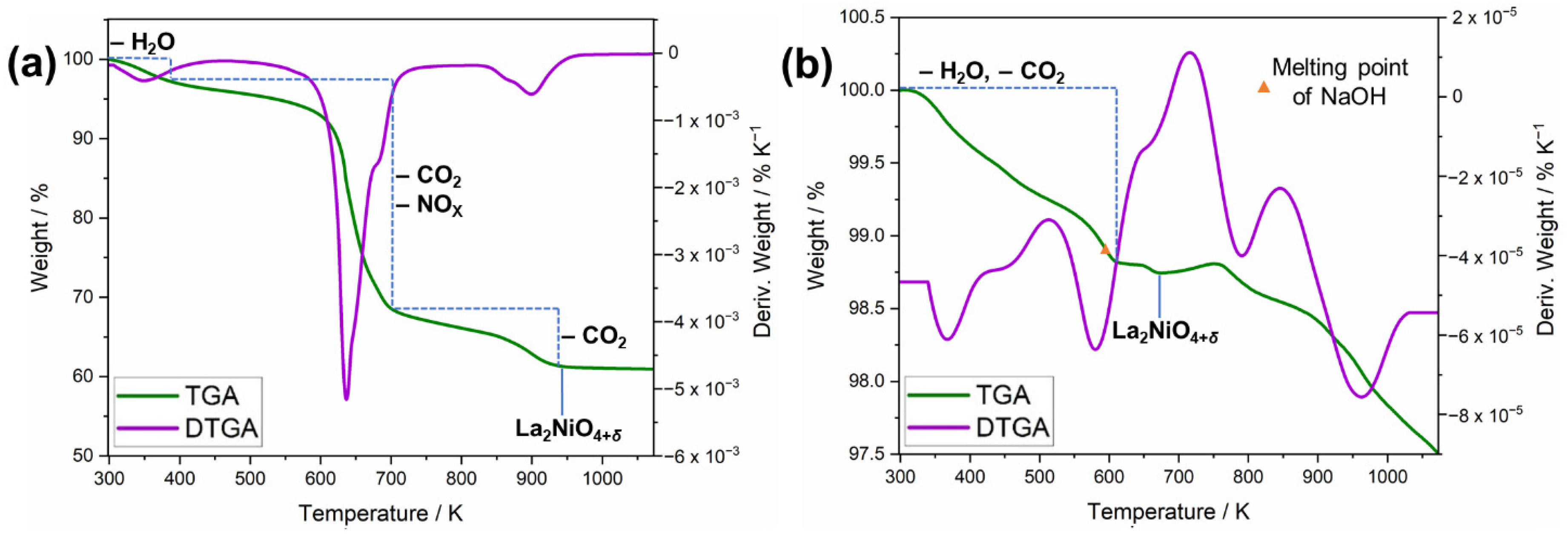

The chemical transformations during the MFS in the ambient air and the influence of the flux on the product formation were studied by TGA. For this, the TGA and DTGA curves of the sol–gel intermediates were recorded in the presence or absence of NaOH. Figure 7a displays the thermal decomposition of the sol–gel powder. A weight loss of approximately 30% between 300 K and 650 K was observed after the evaporation of water and the liberation of residual CO₂ and NO_x from the SGP. Above 700 K, La₂O₂CO₃ chemically decomposes, releasing CO₂, which leads to a mass loss of about 10%. Finally, LNO is generated from about 900 K [17]. The addition of NaOH to the crystalline intermediates changes the course of the chemical reaction, as can be seen in Figure 7b. First, the loss of water and CO₂ takes place in accordance with Equation (10), which is accompanied by a minimal mass decrease. At 596 K, the melting of NaOH occurs, followed by the product formation starting at around 673 K. This means that MFS allows for the generation of LNO at a lower temperature compared to the SGP.

In MFS, the choice of the reaction parameters is essential because they not only influence the particle growth and/or morphology, but also control the product formation. Figure 8 summarizes the investigated influence factors on the MFS. While the reaction conditions highlighted in orange regulate the crystal size and/or shape, the parameters accentuated in blue are decisive the product generation. The arrows show that increasing some parameters has a decisive impact on the particle size or product formation. In contrast, the experimental parameters marked in gray play no role in the product generation or particle size or shape, but their correct selection contributes to the better control of the MFS and results in a higher product yield.

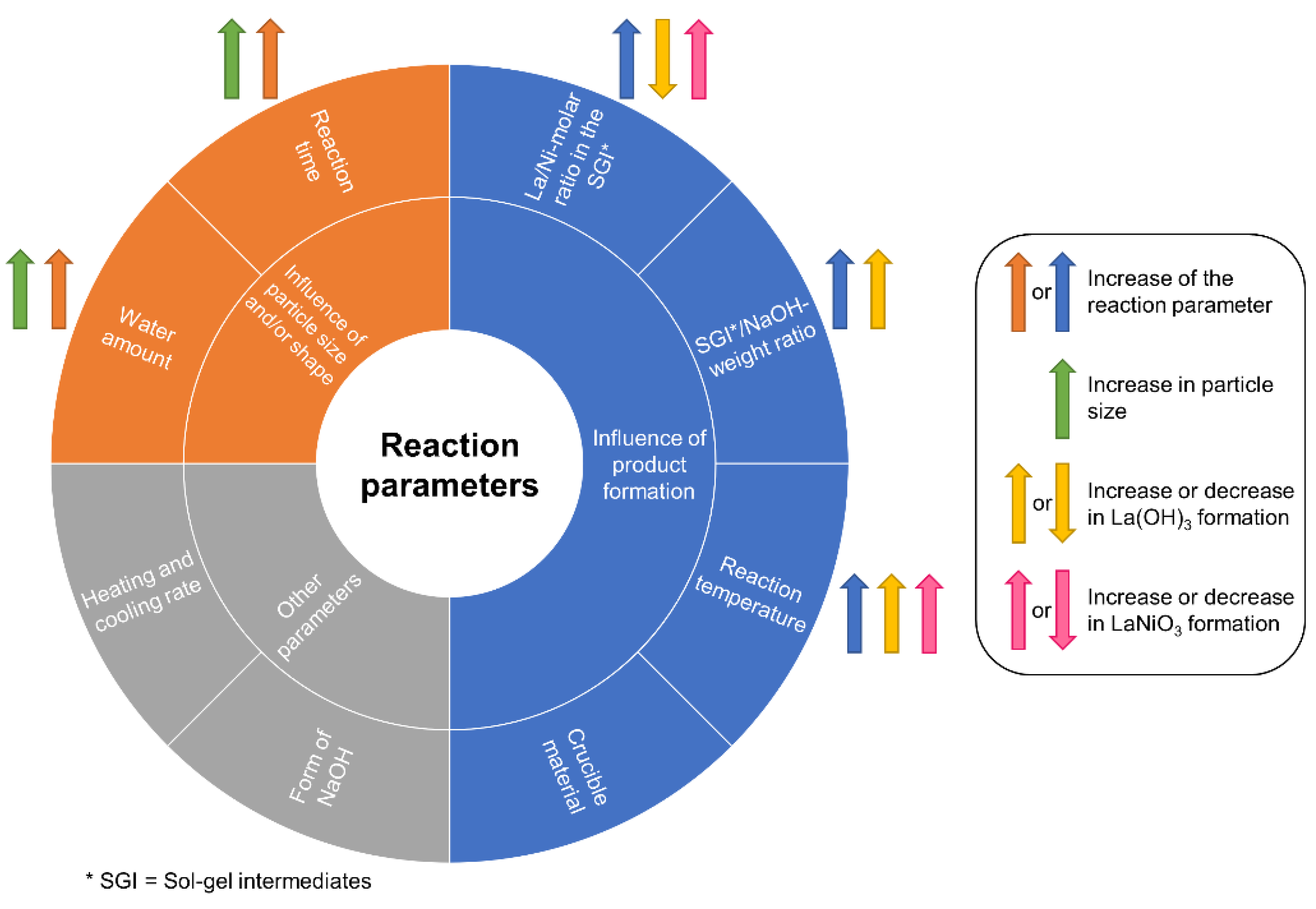

The effects of the various reaction parameters on the MFS are explained in more detail below. Only one parameter varied during the investigations, and all the others remained constant. The reaction conditions were adopted from past research work and are listed in

Table 2. Reaction parameters from the previous scientific publication. Data from [39].

Reaction Parameter	Description/Value
La/Ni molar ratio in the SGI *	2:1
SGI */NaOH-weight ratio	1:10
NaOH/H2O-weight ratio	1:0.1
Form of NaOH	Pellets
Crucible material	Al2O3
Reaction temperature	673 K
Reaction time	8 h
Heating rate	10 K/min
Cooling rate	-

* SGI: sol–gel intermediates.

[39]. The goal of our experiments was to increase the yield of LNO crystals with a well-defined plate morphology while reducing the number of byproducts.

Form of NaOH: The use of beads instead of pellets, as in the previous work, has been found to be effective for the following reasons: (i) the beads are of a higher purity (Alfa Aesar, Kandel, Germany, 99.99%) than the NaOH pellets (Carl Roth, Karlsruhe, Germany, ≥ 99%); (ii) the beads are smaller (Ø ≤ 1 mm) than the pellets (Ø ≤ 10 mm), and are therefore more easily and completely dissolved; (iii) the spherical beads do not react as violently as the other shapes during the MFS, such that the crude product does not spill out of the crucible. The solid form of the flux does not affect the product formation, size or shape, but it allows for a better chemical conversion of the educts and maximizes the product yield.

Heating and cooling rates: For other materials obtained via MFS, it was found that the heating and cooling rates do not affect the product formation, but they can control the particle growth [22,56]. Analogous to these investigations, the effects of the heating and cooling processes on the MFS of LNO were studied. Our experiments revealed that the choice of the heating and cooling rates does not influence the product formation or the size and shape of the LNO crystals. Hence, we continued to work with a heating rate of 10 K/min and a cooling rate of 2 K/min, as in [39]. Due to the fast heating rate, the educts and NaOH are brought to the desired reaction temperature in less than one hour, which allows the MFS to be completed in a shorter time.

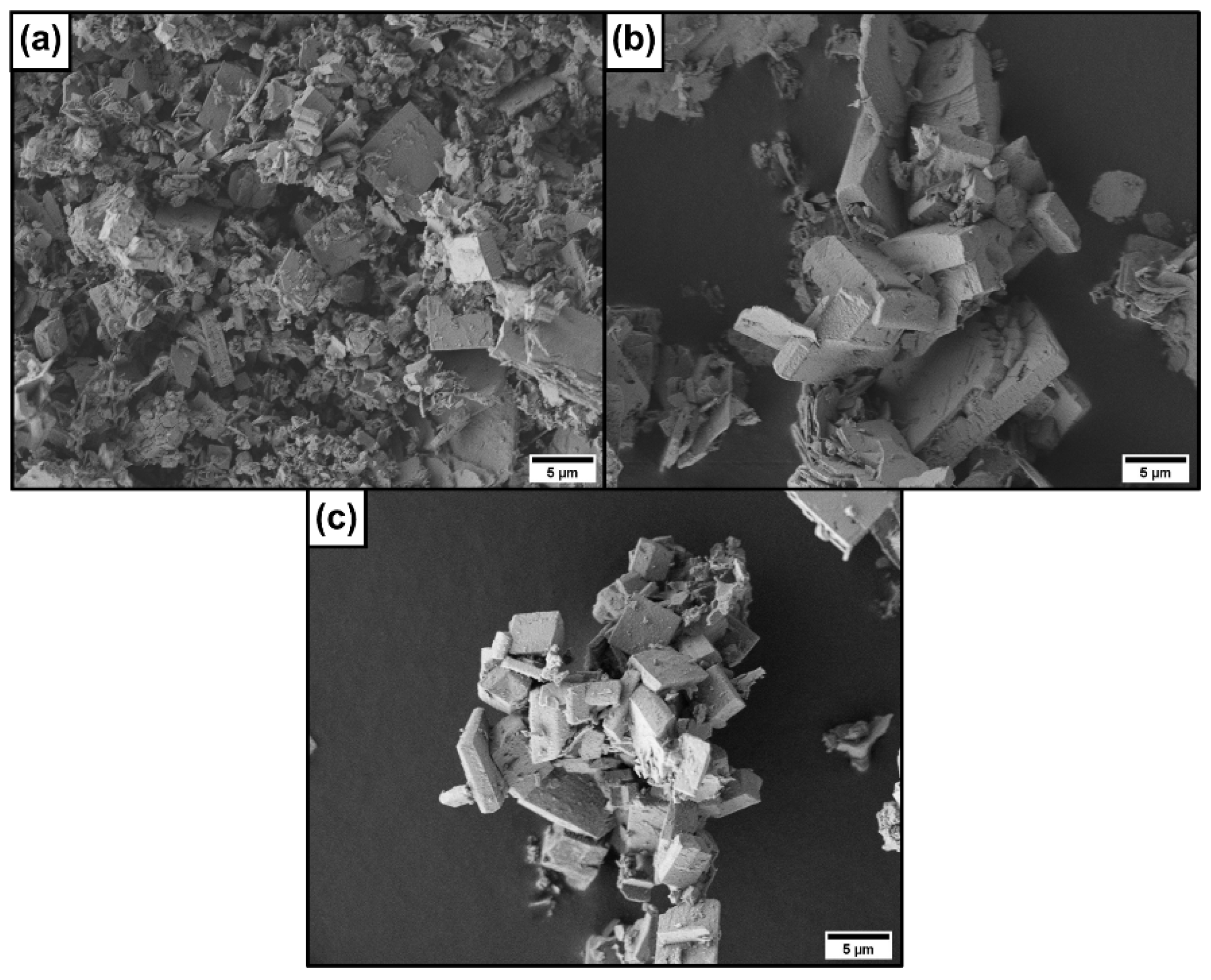

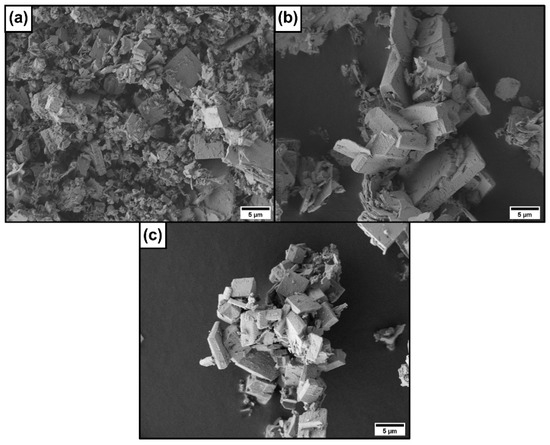

Water amount: Adding water to solid NaOH creates a wet acidic hydroxide melt (see Equation (1)), which ensures the complete dissolution of the educts. During the MFS, water vapor is expelled from the system, favoring the product formation by shifting the equilibrium position to the right side (see Equation (10)). Compared to the synthesis without additional water, the MFS in the presence of water leads to the production of larger plate-like LNO particles. Without water, LNO crystals with the dimensions of 3.0 µm × 0.5 µm (length × thickness) were found, as shown in Figure A2a. At a NaOH/water-mass ratio of 1:0.1, particles of 6.0 µm × 0.7 µm, as in Figure A2b, were obtained. Doubling the water content (NaOH/water-weight ratio = 1:0.2) resulted in a further increase in the length to 9.0 µm, and in the thickness to 0.8 µm (see Figure A2c). The formation of larger crystals can be explained by the different nucleation sites and nuclei numbers. The addition of water allows the reactants to dissolve completely when the NaOH melts. At a certain pH value, homogeneous nucleation occurs, resulting in the formation of few nuclei for crystal growth, which favors the formation of larger particles.

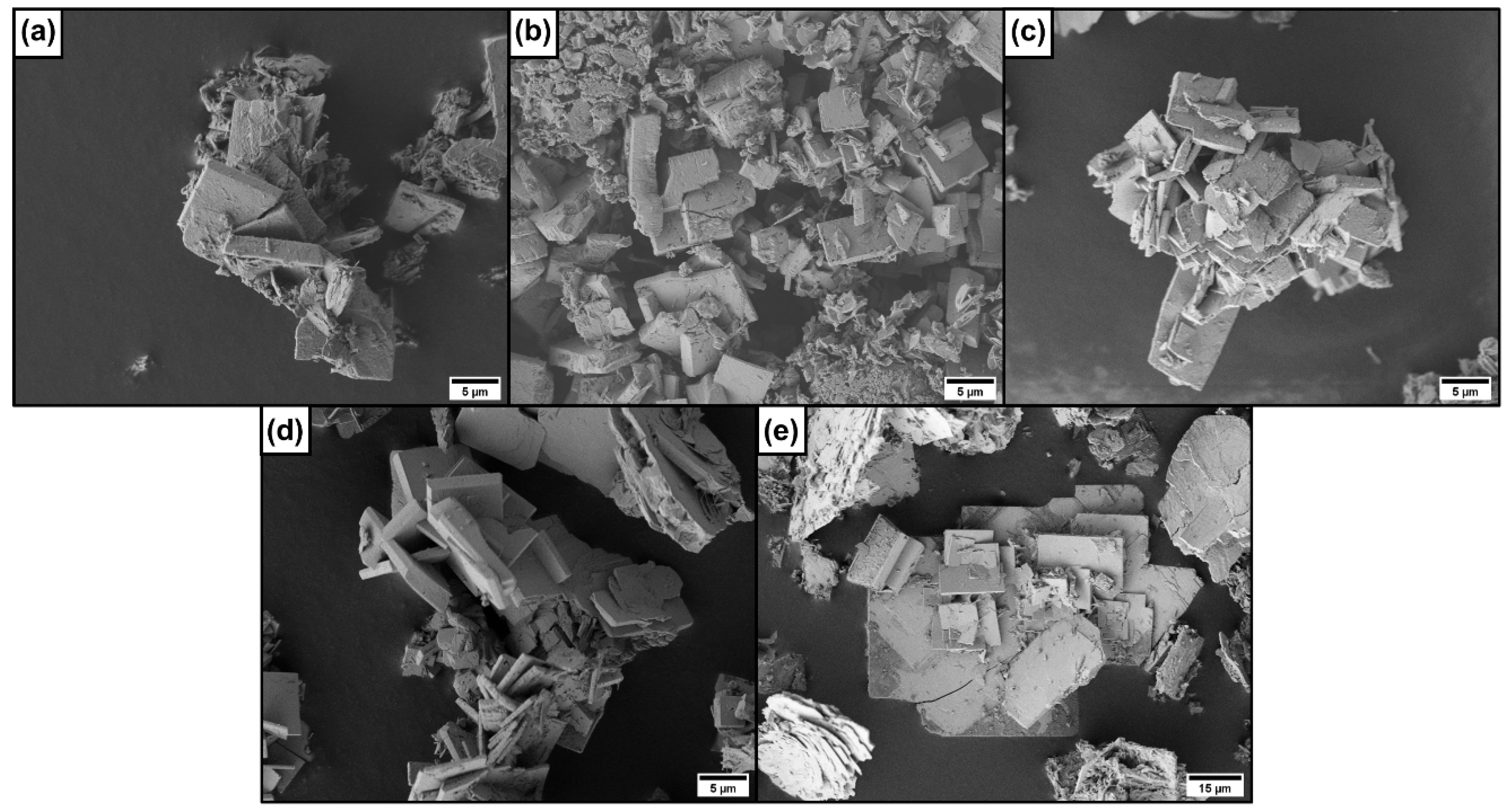

Reaction time: The SEM micrographs in Figure A3 display the reaction products of the MFS obtained after: (a) 6 h; (b) 8 h; (c) 10 h; (d) 12 h; (e) 18 h at 673 K. After 6 h, many well-defined LNO plates of 5.0 µm × 0.6 µm could already be observed. Increasing the dwell time to 8 h, 10 h or 12 h was conducive to further but moderate growth, and individual crystals with dimensions of 6.0 µm × 0.7 µm (8 h), 6.40 µm × 0.72 µm (10 h) and 6.80 µm × 0.74 µm (12 h) were won. Choosing a holding time of 18 h led to the formation of very large plate-like structures, some of which were composed of smaller particles. The average length and thickness of the crystals were 13.0 µm and 1.8 µm, respectively. Single plates were found less frequently, suggesting the involvement of the Ostwald ripening process during crystal growth [23,25]. Moreover, longer reaction times increase the flux-loss rate, inducing a higher degree of supersaturation, which benefits particle growth [57].

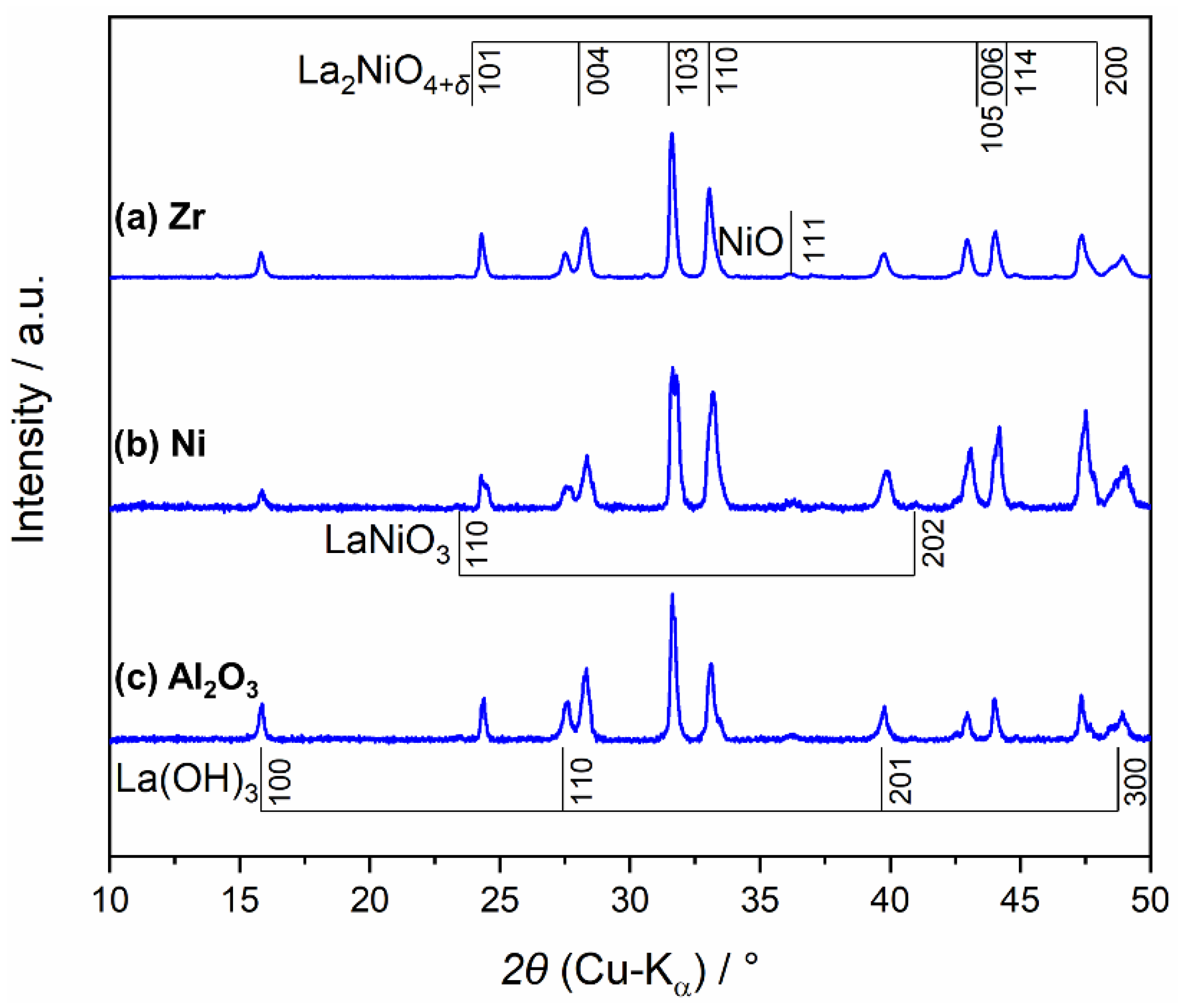

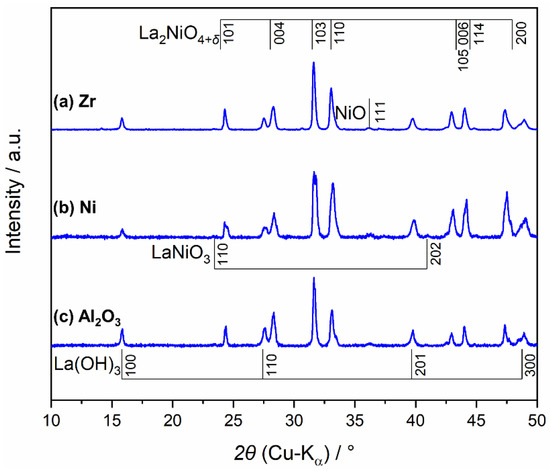

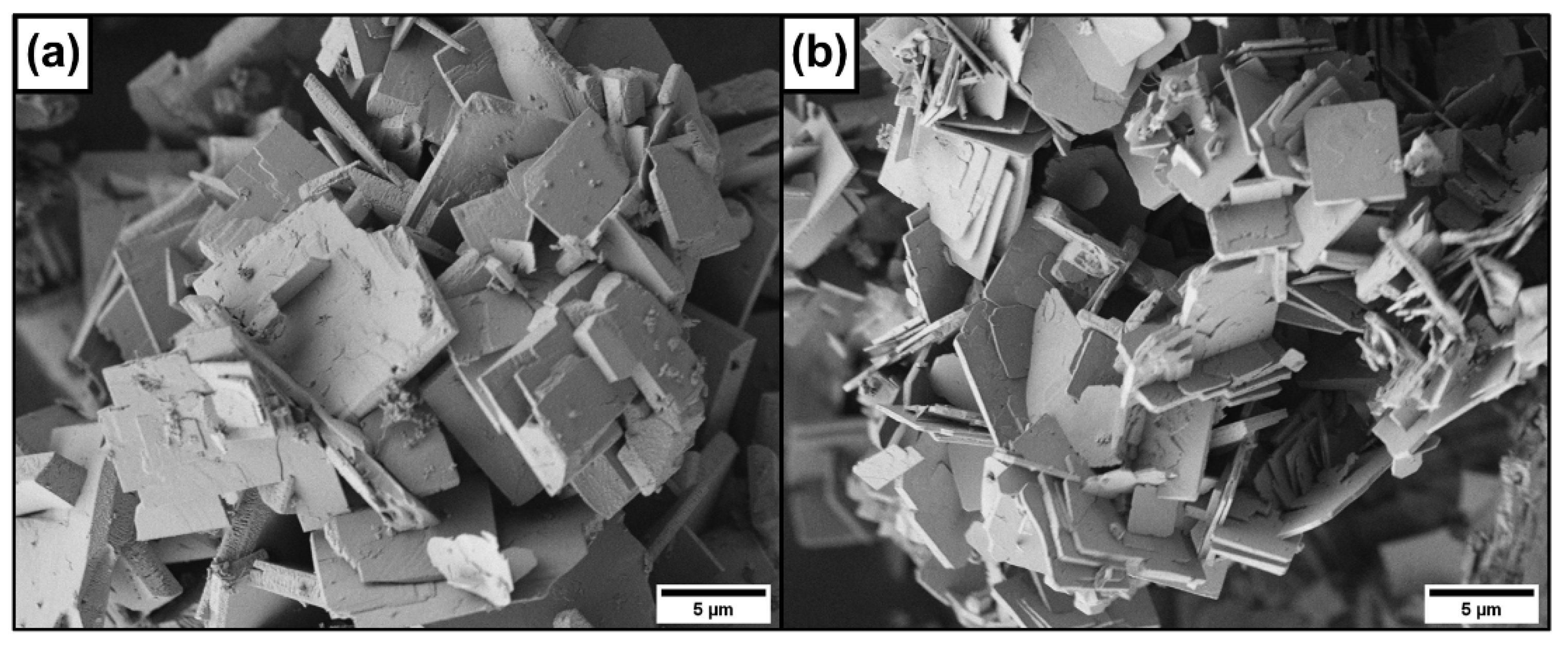

Crucible material: Crucibles composed of Al₂O₃, Ni and Zr were used for the investigations. While the metal crucibles were resistant to molten alkali salts, the alumina melting pot was severely attacked by the NaOH after several syntheses and had to be replaced by another. The XRD patterns presented in Figure A4 demonstrate that utilizing a metal instead of an Al₂O₃ crucible has no effect on the product formation. LNO forms the main phase, and La(OH)₃ and NiO were found as the secondary phases in all the crucibles. The precipitation of La(OH)₃ can be explained by the reaction of the La³⁺ ions with the excess OH⁻ ions, which occurs due to the differences in the solubilities of the reactants. The presence of Na⁺ ions from the flux also favors the La(OH)₃ formation because Na⁺ can replace La³⁺, and thereby more lanthanum ions are available to fabricate La(OH)₃ [39]. The observation of NiO is due to traces of unreacted nickel oxide from the sol–gel intermediates. Only when using the Ni melting pot was the higher-RP-phase LaNiO₃ found in the XRD pattern (see Figure A4b), the formation of which could have been caused by the involvement of the crucible in the MFS. However, its contribution should be minor, as Ni as a crucible material remains stable up to 1773 K under the influence of molten NaOH, but can already partially react with it to generate NiO, Na₂O and H₂ from 973 K [58,59,60]. The SEM micrographs in Figure A3b and Figure A5 show that the plate-shaped LNO particles were obtained, regardless of the crucible chosen. The particles obtained in the Al₂O₃ and Ni melting pots were similar in size: 6.0 µm × 0.7 µm and 5.5 µm × 0.5 µm, respectively. In contrast, the synthesized plates in the Zr crucible were slightly larger (7.00 µm × 0.72 µm).

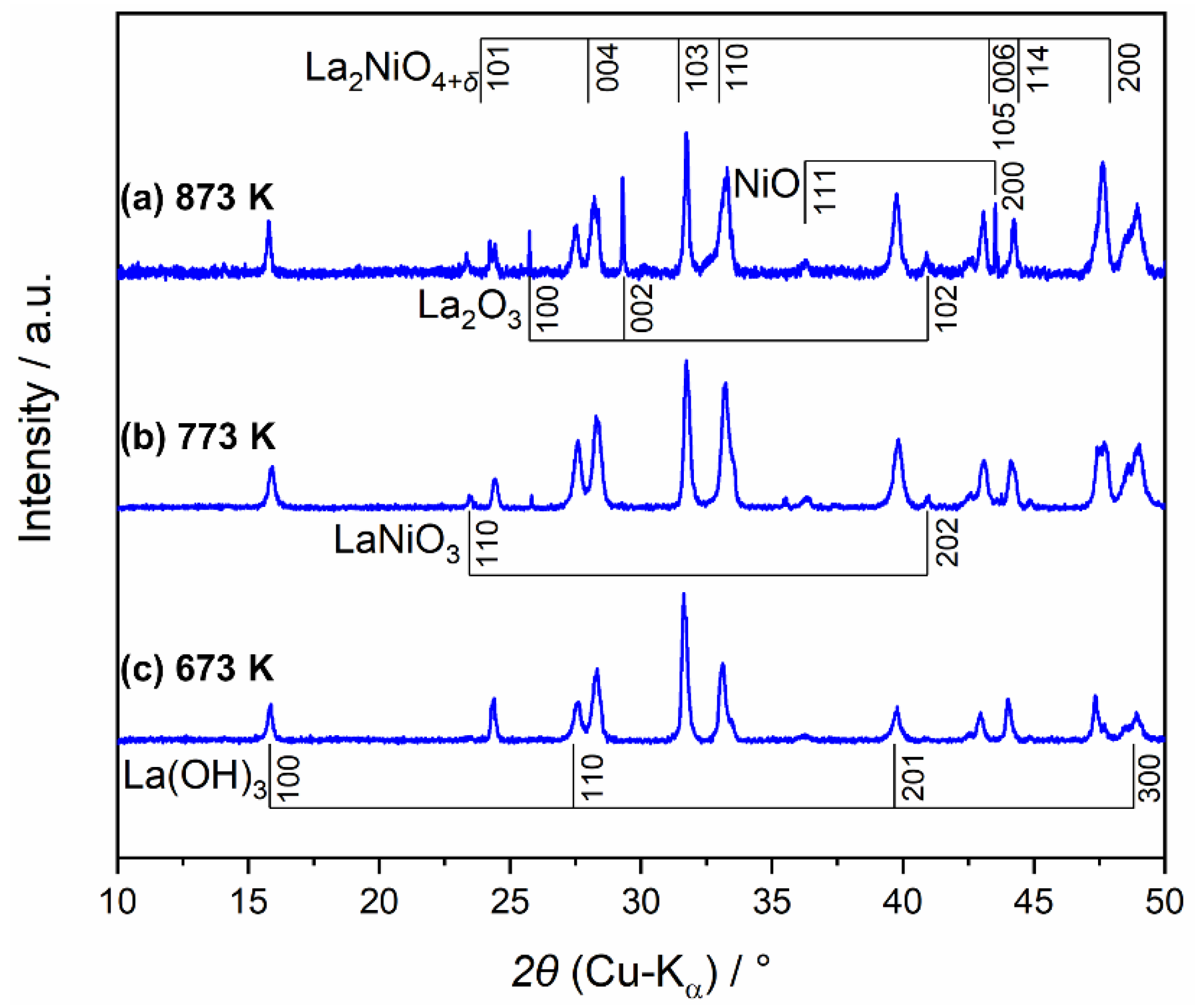

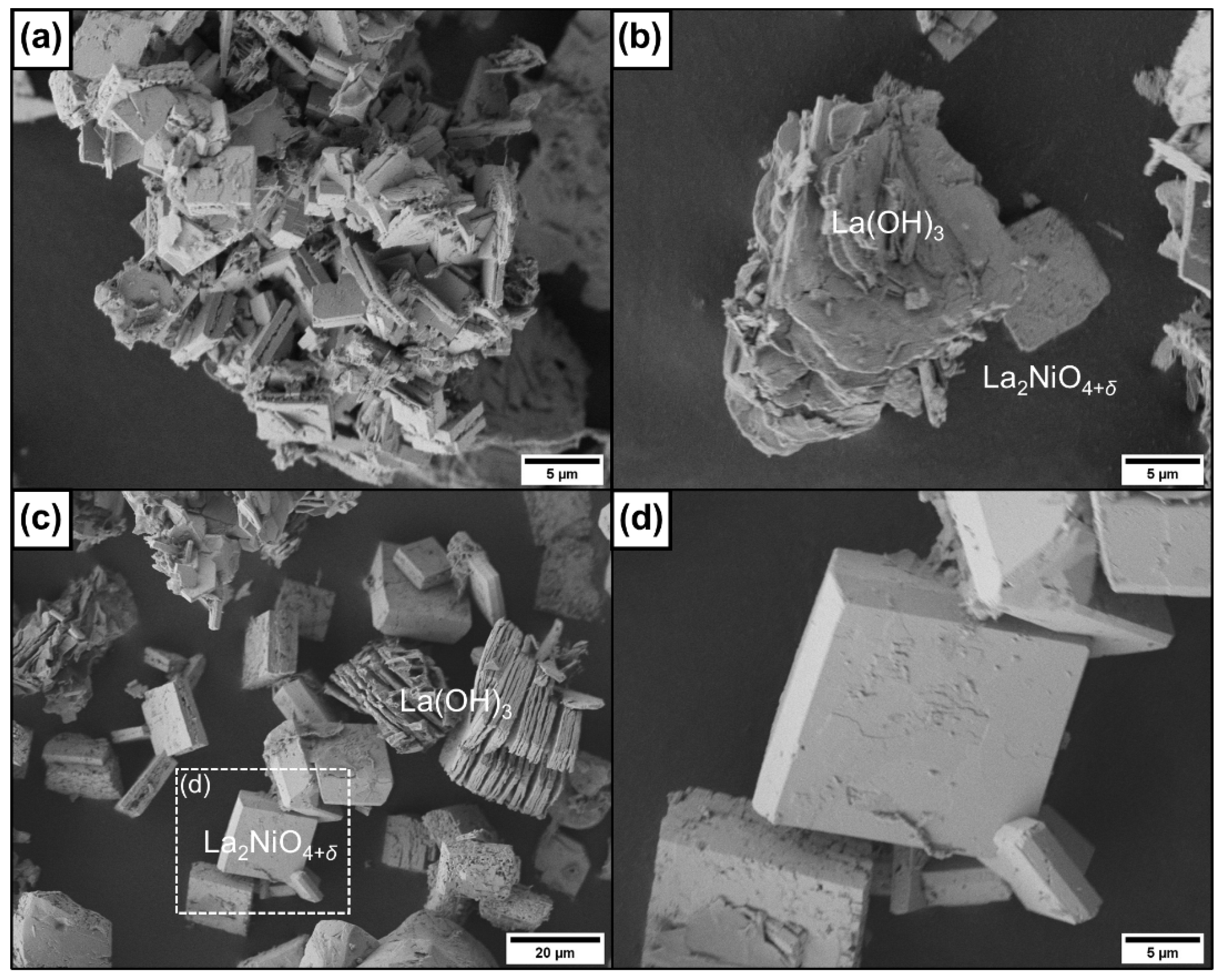

Reaction temperature: In general, the reaction temperature to form the desired product should be above the melting point of the flux utilized [22,61]. Therefore, molten-flux syntheses were performed at 673 K, 773 K and 873 K. The XRD patterns of the reaction products can be seen in Figure A6. Only at 673 K was LNO identified as the main product, accompanied by a small amount of La(OH)₃. Increasing the temperature to 773 K or 873 K led to an increase in the intensity of the La(OH)₃ reflections. In addition, new byproducts appeared, the reflections of which were assigned to LaNiO₃, La₂O₃ and NiO. The presence of the oxide La₂O₃ can be understood as a result of the thermal decomposition of LNO. NiO may originate from the sol–gel intermediates, or as another decomposition product of LNO. Due to the presence of NiO, more Ni was available so that the LaNiO₃ production was favored. On the one hand, the SEM micrographs of the product powders, synthesized at 773 K and 873 K (see Figure A7), display LNO plates of up to 30 µm × to 2 µm. On the other hand, La(OH)₃ particles of up to 70 µm were found, which could be recognized by their layered hexagonal structure. Temperatures higher than 673 K resulted in larger LNO plates. However, the secondary-phase formation increased unexpectedly. The SEM images revealed that La(OH)₃ can form even larger structures than LNO, which could pose an issue for potential applications. The optimal formation temperature of LNO by MFS is therefore 673 K.

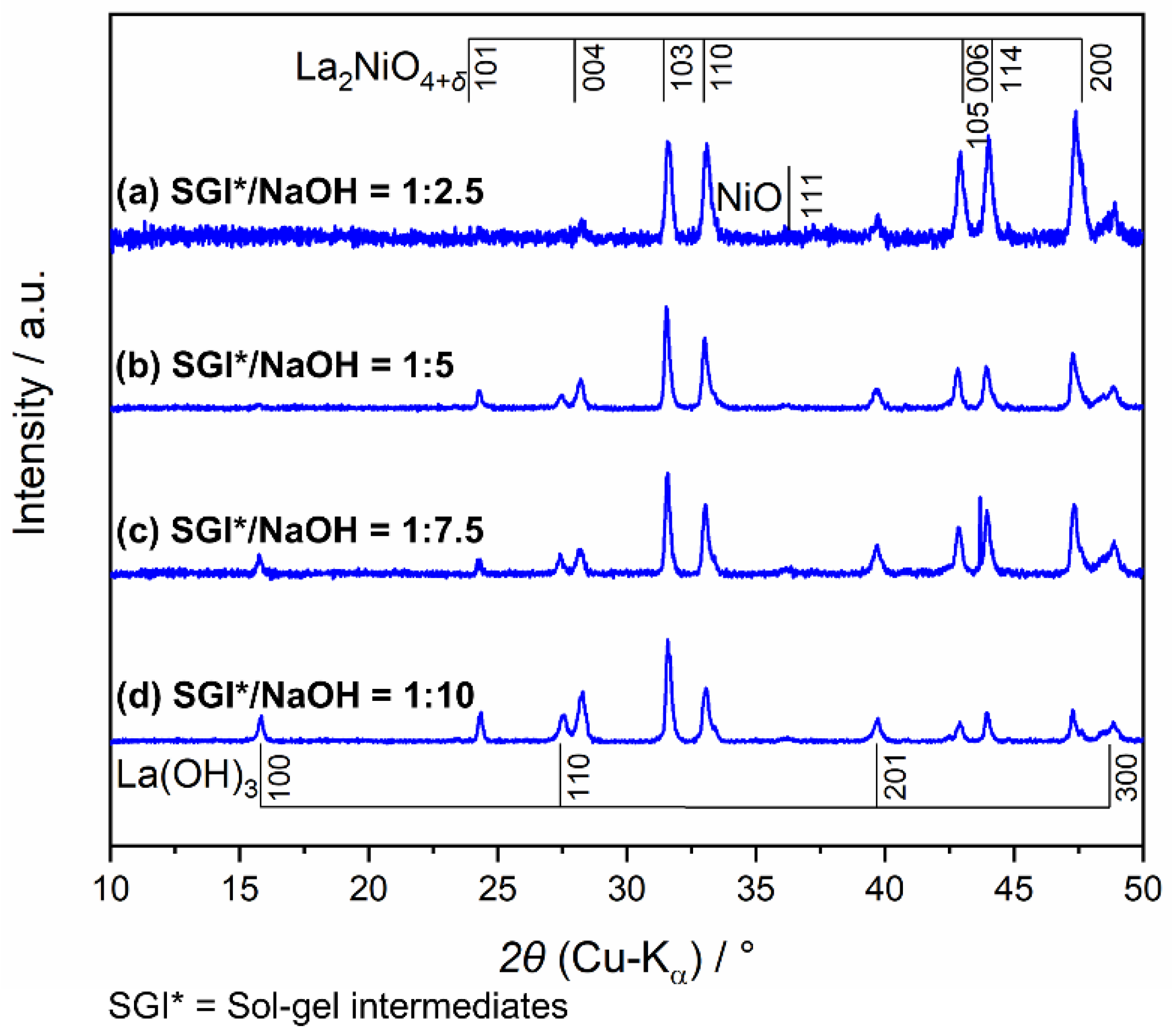

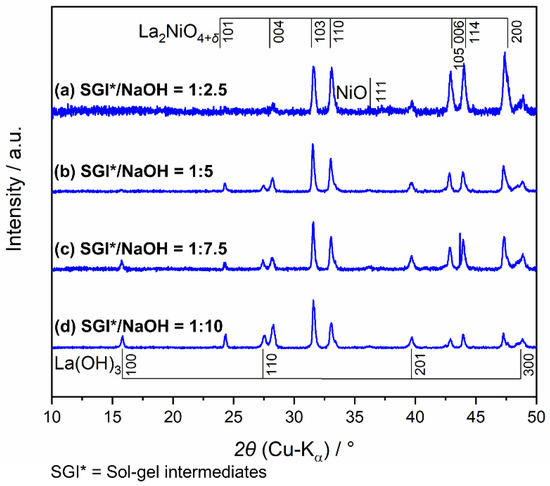

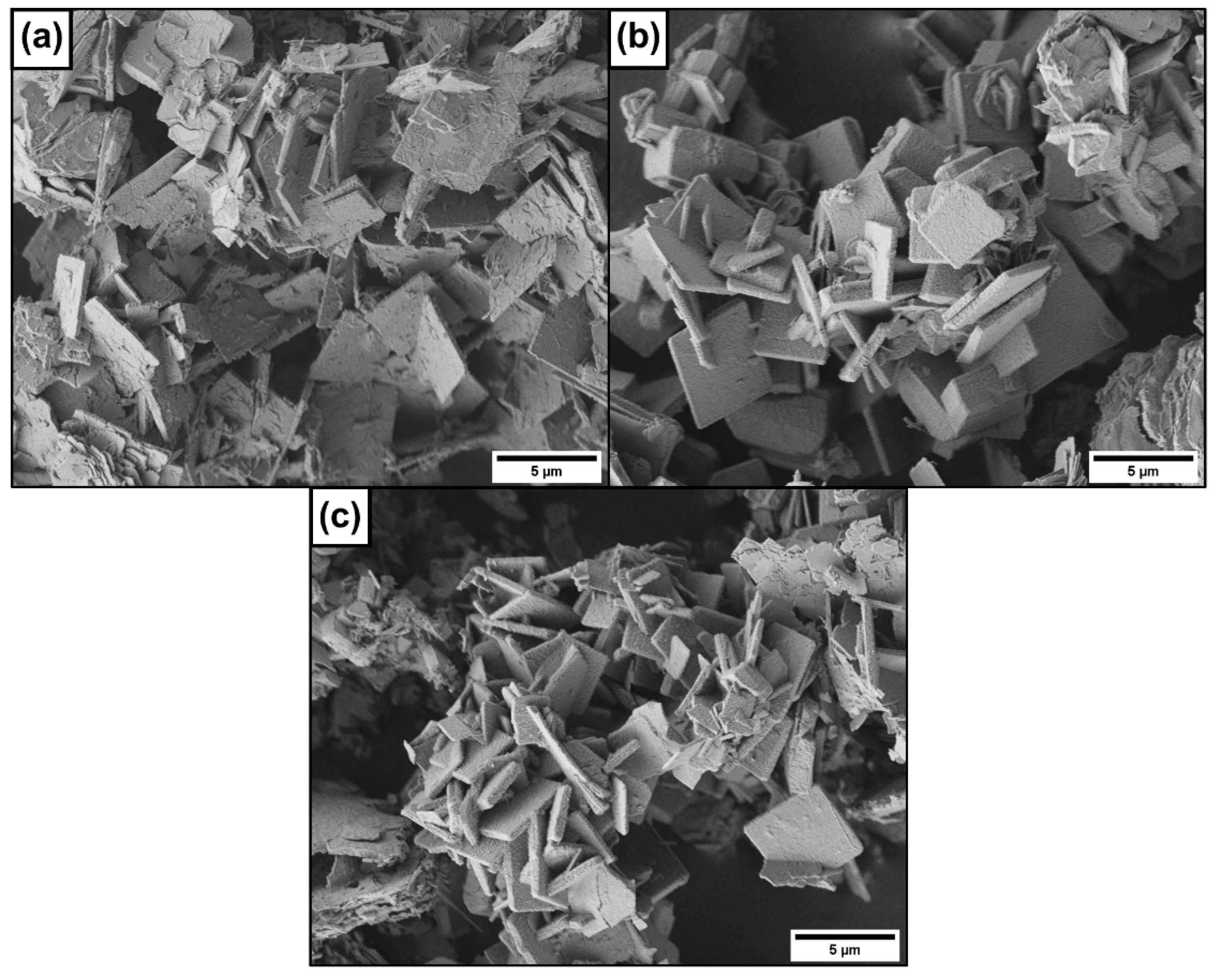

Sol–gel-intermediates/NaOH-weight ratio: The amount of flux is critical to the success of the MFS. The salt acts as a solvent and can control the size of the product particles [62,63]. There must be sufficient flux to fill the interstices of the reactant particles and adequately cover the reactant surface. A small quantity of salt cannot ensure the formation of a liquid phase during MFS. Conversely, a high salt mass is not advantageous because it can lead to the separation of the reactant particles by sedimentation. Moreover, excess melted salt may form lumps that are not as easy to dissolve [64]. To examine the influence of NaOH on the MFS of LNO, four syntheses were performed using the reactants/NaOH-weight ratio: (i) 1:2.5; (ii) 1:5; (iii) 1:7.5; (iv) 1:10. The La(OH)₃ formation should be minimized by a small content of NaOH because there are fewer OH⁻ ions in the melt that can react with the La³⁺ ions. The XRD patterns in Figure A8 confirm the presence of LNO, independent of the NaOH amount. It can also be observed that La(OH)₃ was obtained in all four cases. However, up to a sol–gel-intermediates/NaOH-weight ratio of 1:5, the amount of La(OH)₃ was moderate. At a ratio of 1:2.5, the reflections from the LNO were not as sharp, indicating too-small product particles. With higher masses of NaOH, the presence of La(OH)₃ becomes clearer, as the 100 main reflection appears and the intensities of all the other reflections are more pronounced. As can be seen in the SEM images in Figure A3b and Figure A9, LNO particles with the desired morphology were won in all the syntheses. Only at a ratio of 1:2.5 were the LNO plates thin with a rough texture. It is possible that the NaOH amount was not high enough, and thus only a small amount of liquid medium was available for the precursor dissolution and crystal growth. The melt was consumed faster during the MFS due to the constant loss of flux and water, resulting in the formation of smaller product particles with a less well-defined shape. Regardless of the NaOH content, La(OH)₃ was found on all the SEM micrographs. Consequently, a sol–gel-intermediate/NaOH-weight ratio of 1:5 was selected for later investigations.

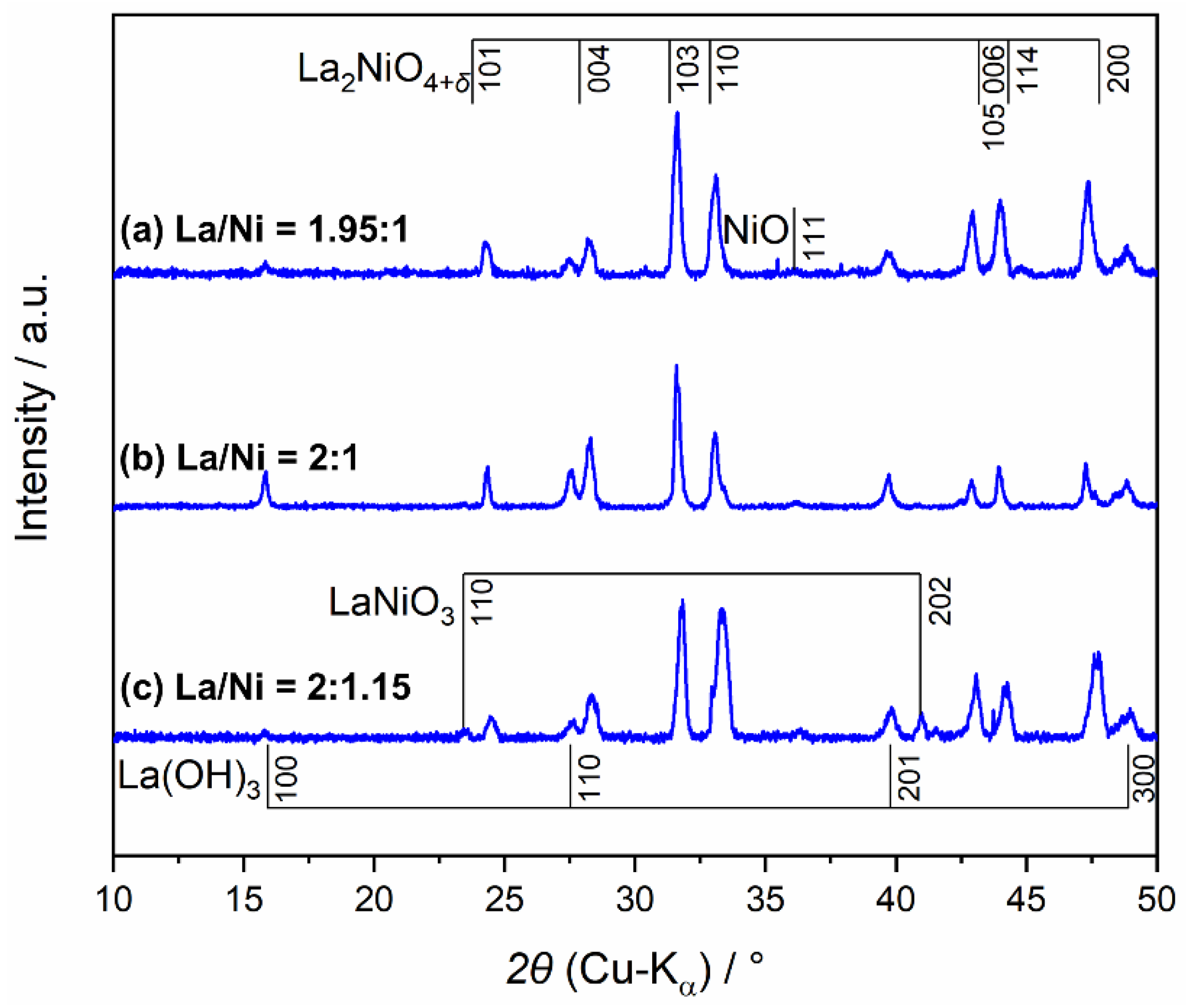

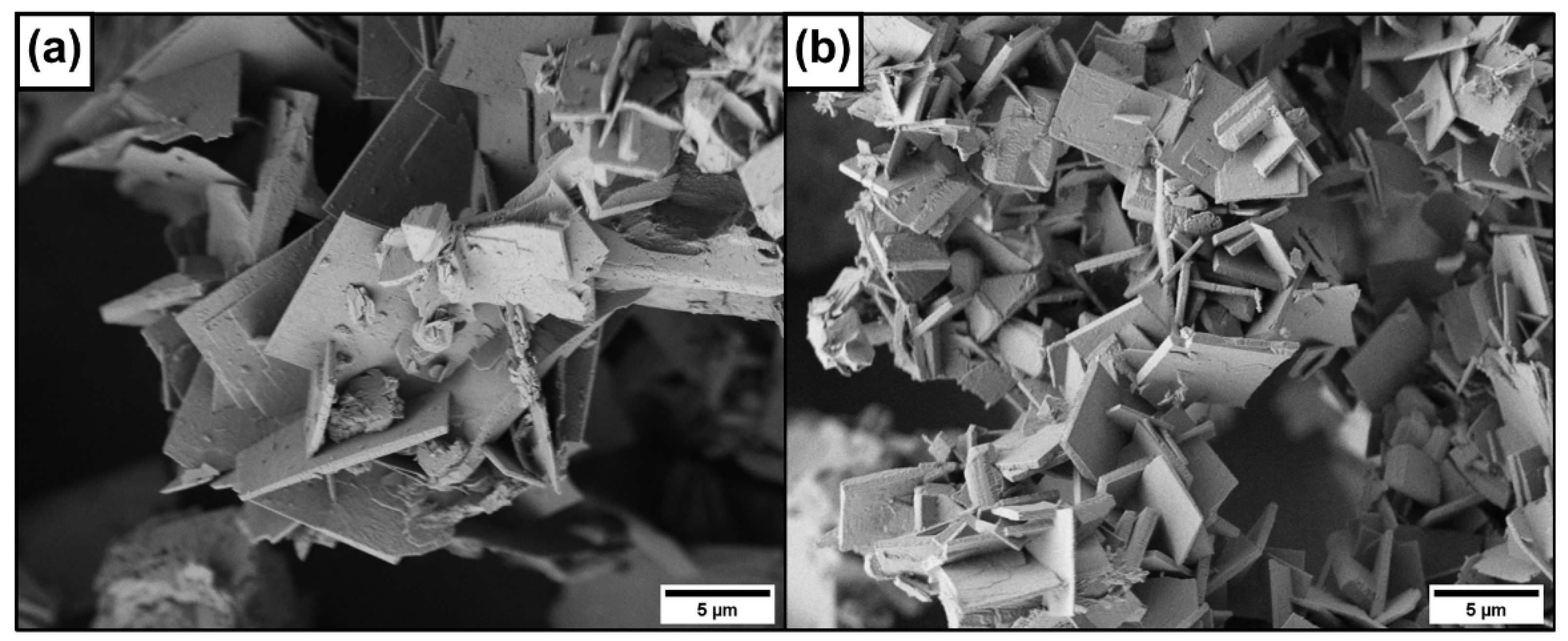

La/Ni molar ratio in sol–gel intermediates: To test the influence of the La/Ni molar ratio in the sol–gel intermediates on the MFS of LNO, reaction mixtures with La/Ni ratios of 2:1; 1.95:1 and 2:1.15 were used. A smaller La amount in the precursor can be advantageous because fewer La³⁺ ions are available to react with the OH⁻ ions from the flux to form La(OH)₃. The lack of La³⁺ ions can be compensated by the Na⁺ ions. The doping of the La site by Na in LNO due to the similar radii of La³⁺ (116 pm) and Na⁺ (121 pm) has already been observed, which can be described by the chemical formula La_2−xNa_xNiO_4+δ (x = 0.05 or 0.10) [65,66]. By using a higher amount of Ni in the precursor, there are also fewer La³⁺ ions for the formation of La(OH)₃, but this may have the disadvantage of increasing the formation of the Ni-rich phases, such as LaNiO₃ or NiO. As explained in the section on the role of the crucible, a La/Ni molar ratio of 2:1 in the precursor gave LNO as the main phase. However, La(OH)₃ was identified as a minor phase. As can be seen from the XRD pattern in Figure A10a, a lower amount of La in the sol–gel intermediates reduced the formation of La(OH)₃ partially, but not completely. An increase in the Ni amount in the precursor also led to less La(OH)₃ in the product powder (see Figure A10b). On the contrary, LaNiO₃ perovskite was found, the formation of which can be attributed to the increased amount of Ni used in the precursor. No changes in the morphologies of the resulting LNO plates (see SEM images in Figure A3b and Figure A11) were detected by varying the La/Ni ratio. In short, a lower La amount or higher Ni content in the sol–gel intermediates favors the formation of the main product. Compared with a La/Ni molar ratio of 2:1, the production of La(OH)₃ was reduced, which was evident from the weaker reflections in the XRD pattern.

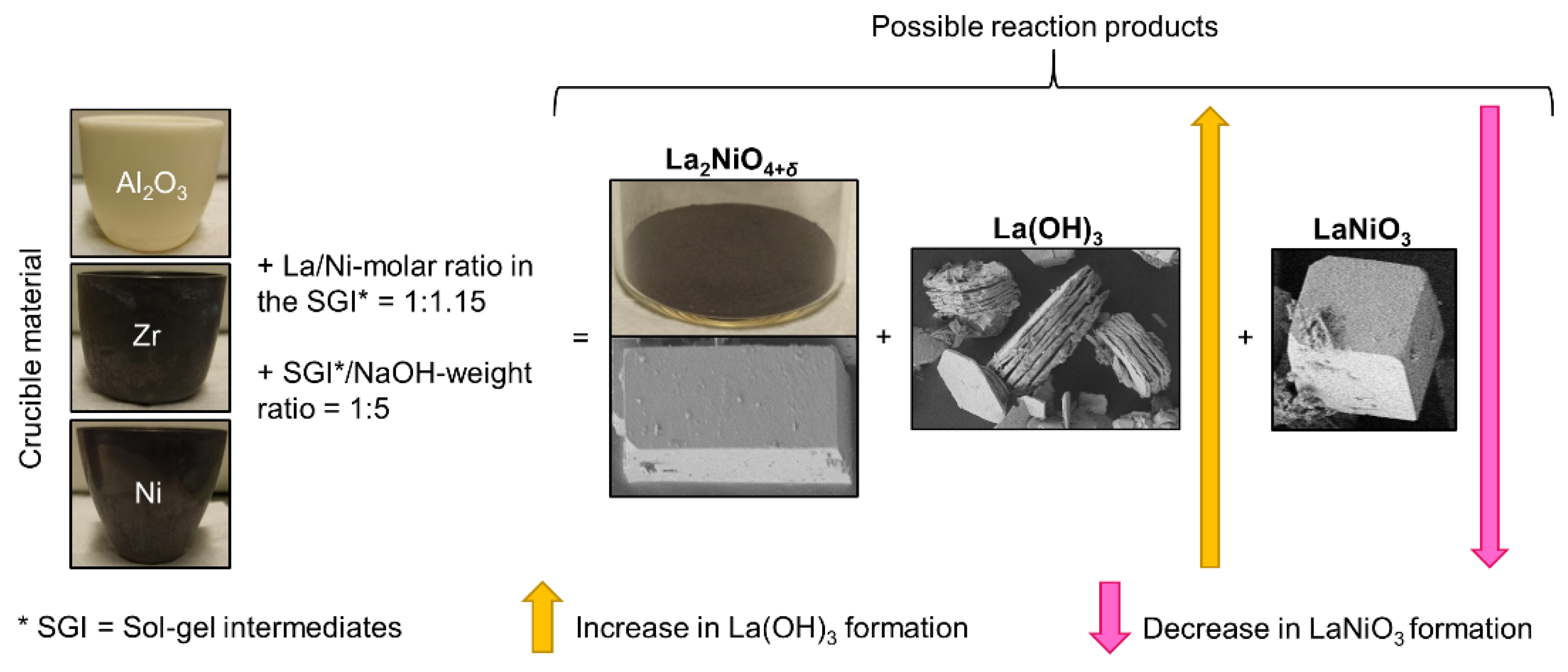

By the proper choice of the La/Ni molar ratio in the precursor, the precursor/NaOH-weight ratio, and crucible material, the formation of undesirable phases, such as La(OH)₃ and LaNiO₃, can be specifically decreased so that the main-phase LNO is gained in a high yield. Our experiments have shown that a La/Ni molar ratio in the sol–gel intermediates of 2:1.15, a sol–gel-intermediates/NaOH-mass ratio of 1:5 and the use of a nickel crucible are conducive to the generation of high-purity LNO. In addition, excess water was added to the reaction mixture in order to produce larger crystals. Replacing a Ni crucible with a Zr crucible or an Al₂O₃ crucible resulted in an increasing amount of La(OH)₃ in the order Ni < Zr < Al₂O₃, but it also led to a slight decrease in the LaNiO₃ formation in the order Ni > Zr > Al₂O₃, as supported by the XRD. No differences were found in the morphologies of the LNO particles. La(OH)₃ and LaNiO₃ were recognized due to their hexagonal and cubic shapes, respectively (see Figure 9). All the reaction parameters optimized by our investigations are described in

Table 3. Optimized reaction conditions for the MFS of LNO.

Reaction Parameter	Description/Value
La/Ni molar ratio in SGI *	2:1.15
SGI */NaOH-weight ratio	1:5
NaOH/H2O-weight ratio	1:0.2
Form of NaOH	Beads
Crucible material	Ni
Reaction temperature	673 K
Reaction time	8 h
Heating rate	10 K/min
Cooling rate	2 K/min

* SGI: sol–gel intermediates.

.

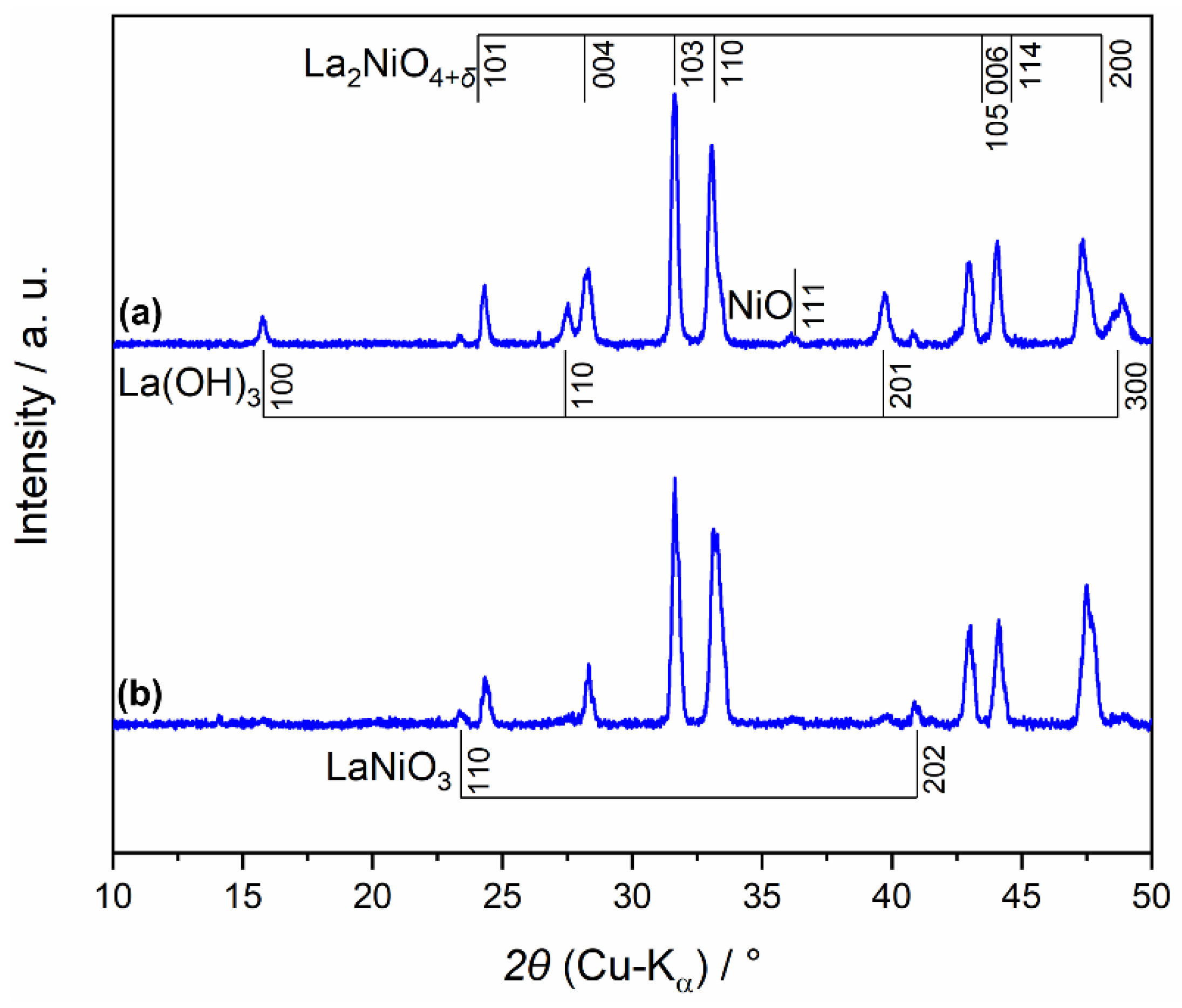

XRD measurements, presented in Figure 10, were performed to determine the reaction products of the MFS. For a better understanding, the XRD patterns of the powders prepared under the reaction conditions of the previous publication (see Figure 10a and Table 2) and present work (see Figure 10b and Table 3) are compared. In both cases, LNO was identified as the main phase, which is present in the body-centered tetragonal crystal structure of the K₂NiF₄ type (space group: I4/mmm). This structure is to be expected at temperatures above 423 K (here, 773 K) in air [14,67]. As shown in Figure 10a, using the reaction parameters from Table 2 led to the appearance of hexagonal La(OH)₃ (space group: P6₃/m) and cubic LaNiO₃ (space group: Pm$\overline{3}$m) as impurities. Traces of cubic NiO (space group: Fm$\overline{3}$m) were also found. By optimizing the reaction conditions, it was possible, in this work, to completely suppress the formation of La(OH)₃, as no further reflections of this product were observed in the XRD patterns in Figure 10b. However, reflections of LaNiO₃ and NiO were still detected, which can be explained by the high content of Ni used in the sol–gel intermediates and the possible participation of the Ni crucible in the reaction.

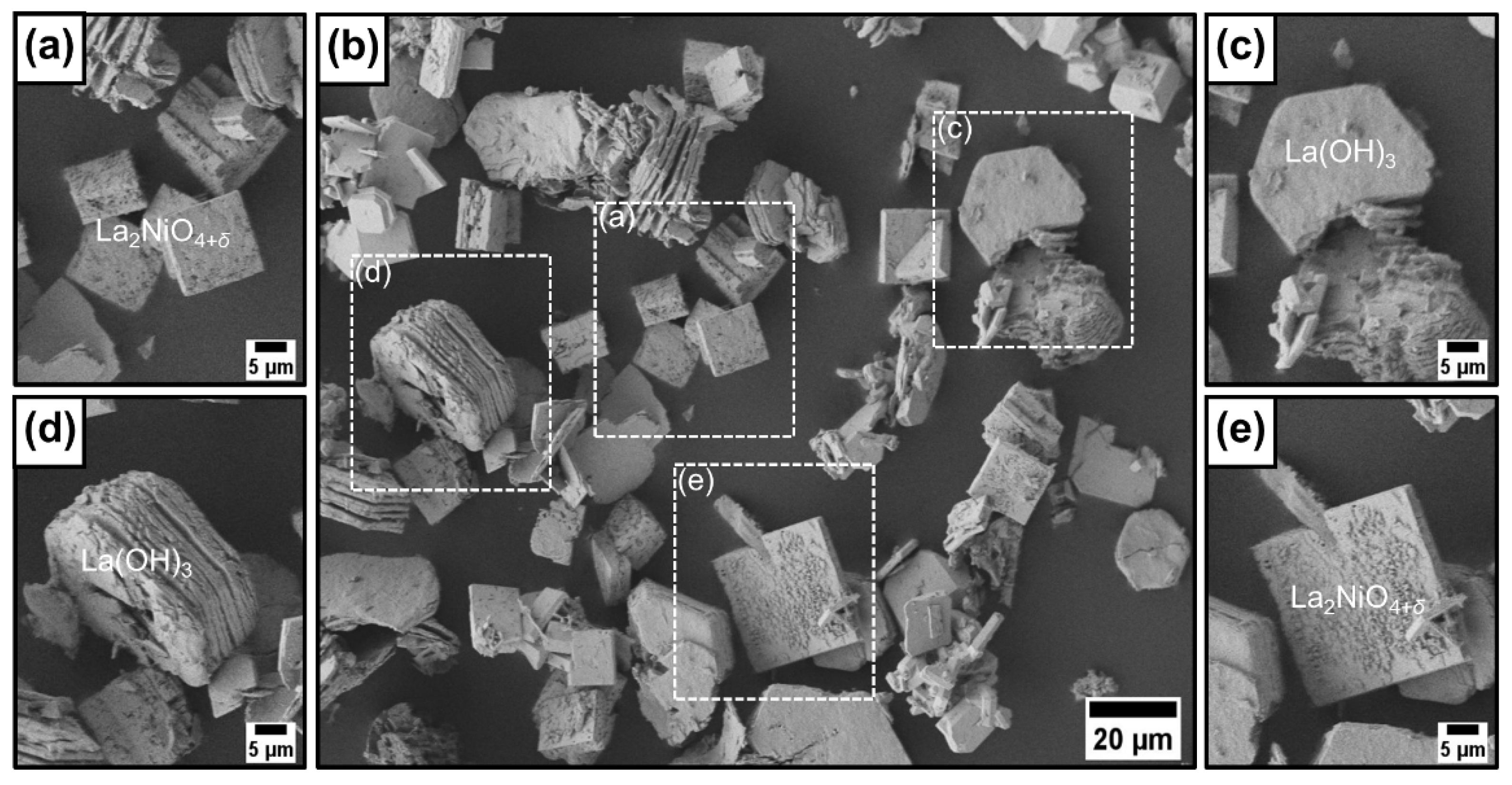

The SEM micrographs of the reaction powder, synthesized by MFS under the reaction conditions of Table 2, are displayed in Figure 11. The LNO crystals possess a plate-like morphology, with a size of up to 30 µm. The byproduct La(OH)₃ was also visible on the SEM images as large crystals with a length of up to 40 µm due to its layered hexagonal structure. The La(OH)₃ formation should be avoided, as these particles can later interfere, for example, in the fabrication of LNO membranes by reason of their large size.

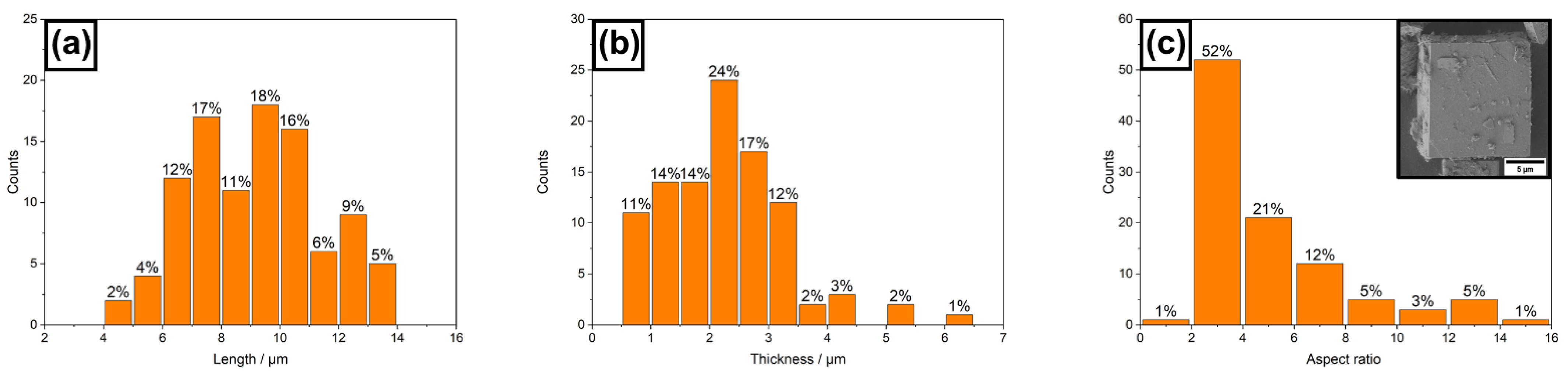

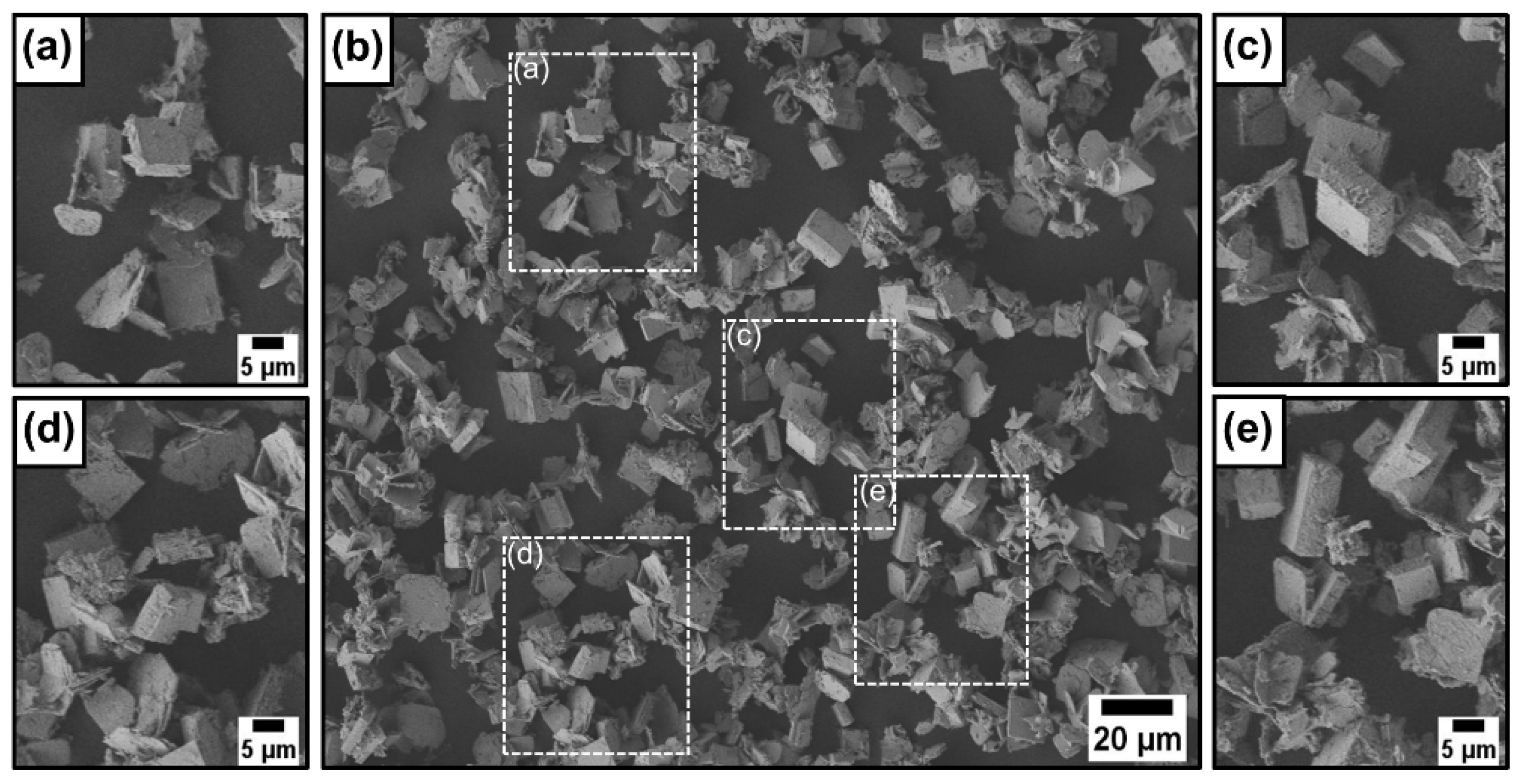

As can be perceived from the SEM images presented in Figure 12, the application of the reaction conditions of this research in the MFS also resulted in the acquisition of LNO particles, which exhibit a well-defined plate-like shape. The crystals have an average length and thickness of approximately 9 µm and 2 µm, respectively, and thus an aspect ratio close to 5. Because neither La(OH)₃ nor LaNiO₃ crystals were found on the SEM micrographs, it can be assumed that the molten-flux method using NaOH induces the formation of high-purity LNO.

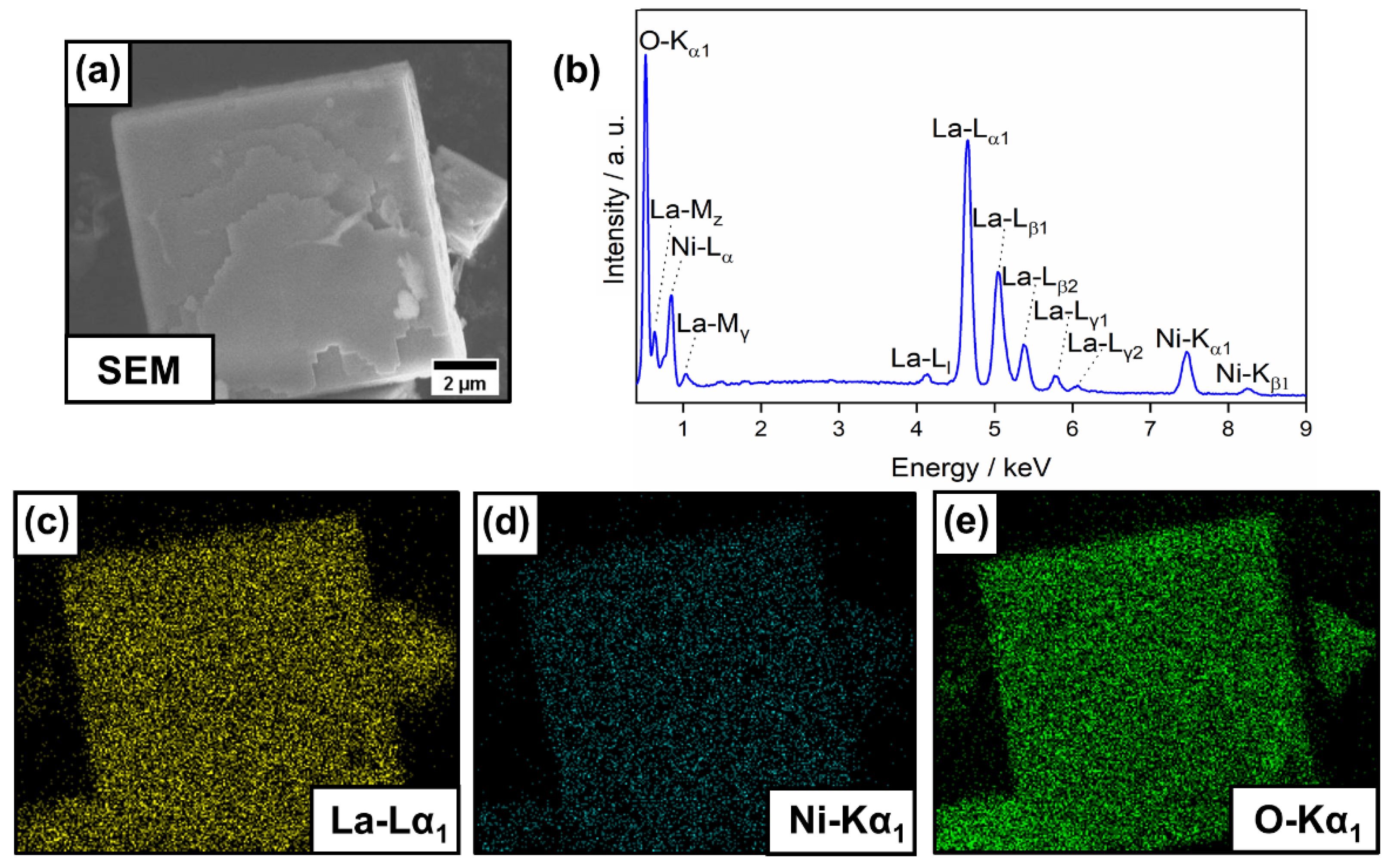

The chemical composition of one LNO crystal was determined by EDXS. The results of this study are reported in Figure 13 and

Table 4. Metal composition of LNO based on EDXS results.

Element	Atomic Percent (%)	Stoichiometric Ratio 1
La	66.89 ± 0.41	2.02 ± 0.01
Ni	33.11 ± 0.97	1.00 ± 0.03

¹ Normalized by atomic percent of Ni.

. As the basis for the EDXS analysis, the SEM micrograph in Figure 13a was utilized. The EDXS spectrum in Figure 13b affirms the presence of La, Ni and O in the reaction product. As can be seen in Figure 13c–e, the EDXS elemental maps demonstrate that the LNO plate is homogeneously composed of La, Ni and O. Moreover, the La/Ni ratio was calculated to be close to 2:1, which coincides with the stoichiometry of LNO (see Table 4).

4. Conclusions

Plate-like LNO was successfully prepared from MFS using NaOH powder as the flux. The intermediates from a sol–gel process, which were identified as an ultrafine mixture of La₂O₂CO₃ and NiO, served as the starting material. Compared with the classical SGP, MFS allows for LNO formation at a lower temperature (starting at 673 K). The influence of different reaction parameters on the synthesis of LNO was investigated. It was found that a La/Ni molar ratio in the sol–gel intermediates of 2:1.15, a sol–gel-intermediates/NaOH-weight ratio of 1:5, the use of a nickel crucible as the reaction vessel and the addition of excess water are conducive to the production of LNO with well-defined plate-like morphology and the highest purity. The length and thickness of the particles averaged 9 µm and 2 µm, respectively, corresponding to an aspect ratio of approximately 5. Even larger crystals can be generated by increasing the reaction time. By choosing these conditions, the undesired La(OH)₃ formation was suppressed. Nevertheless, traces of LaNiO₃ and NiO were still observed, which can be explicated by the increased nickel content in the precursor and the involvement of the wall and bottom of the Ni crucible. Due to their plate-like morphology, LNO crystals can be used in promising future applications.
