Magnetic Properties of FeNiCoAlTiNb Shape Memory Alloys
Abstract
:1. Introduction
2. Materials and Methods
3. Results and Discussion

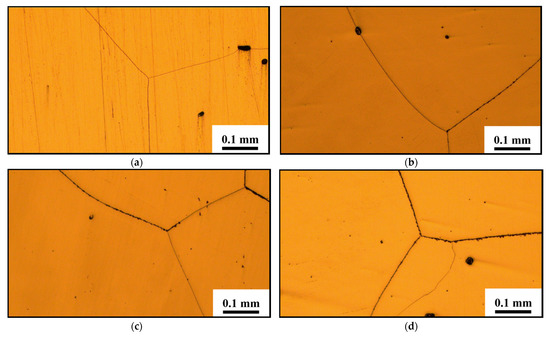

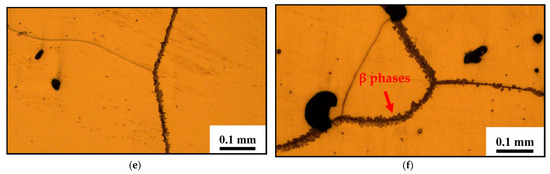

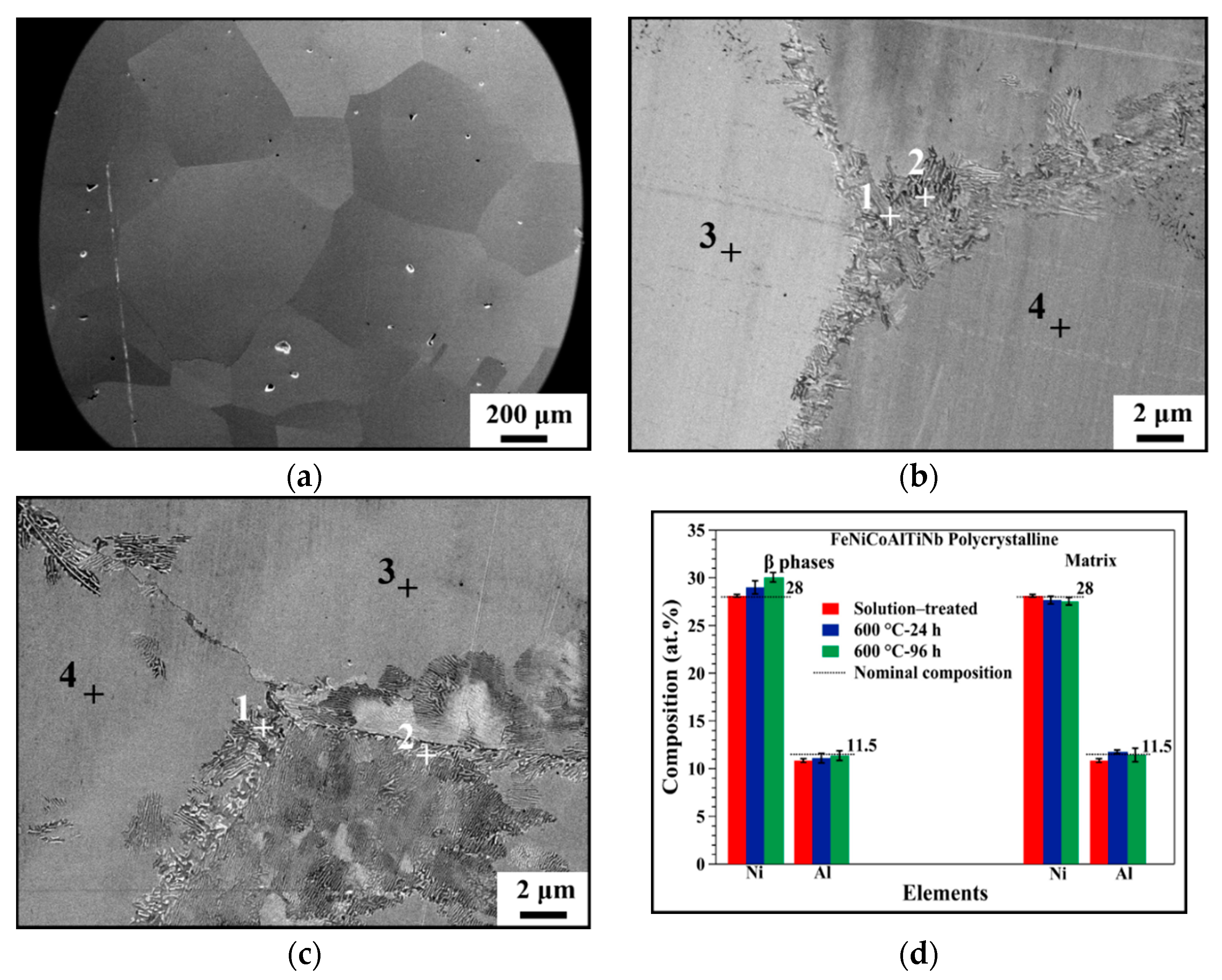

3.1. Optical Microscope and EDS Results

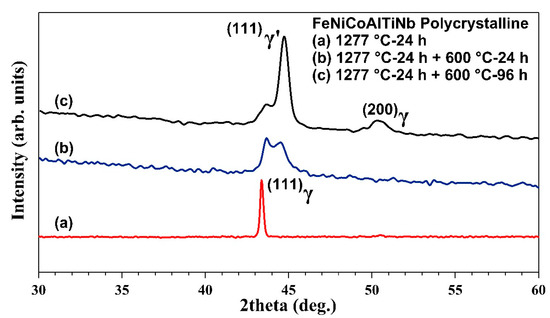

3.2. XRD Results

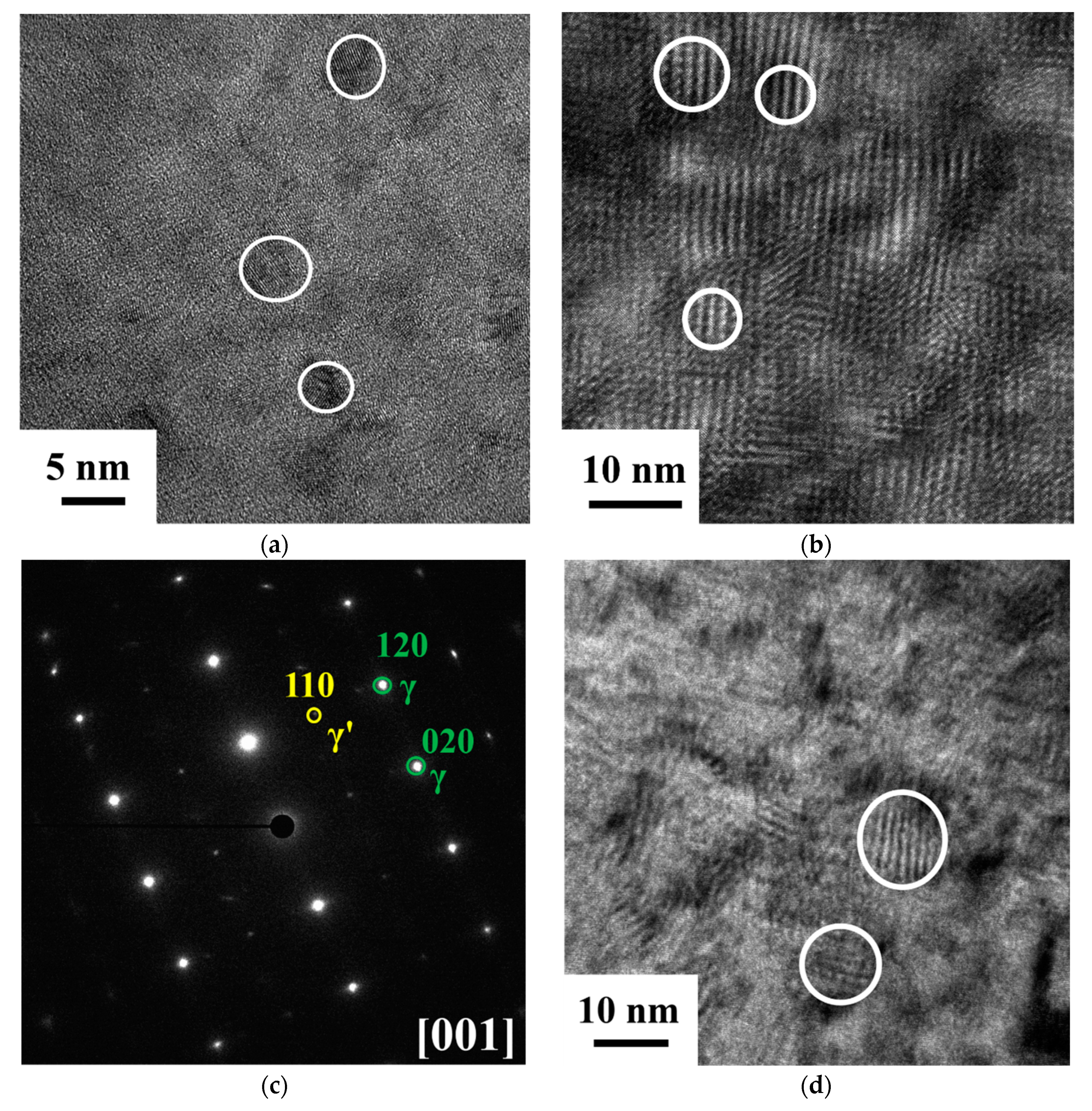

3.3. Transmission Electron Microscope Results

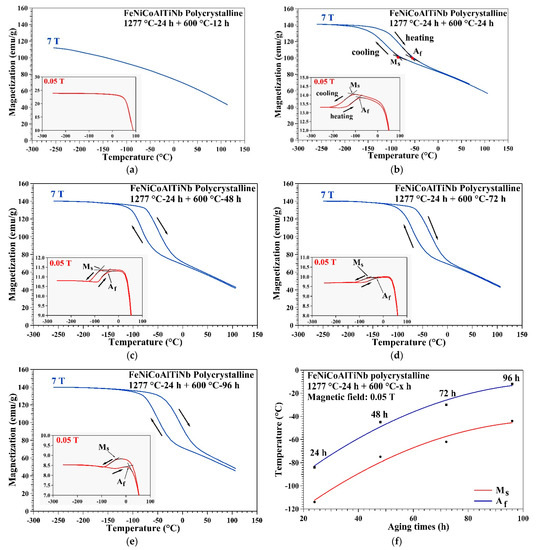

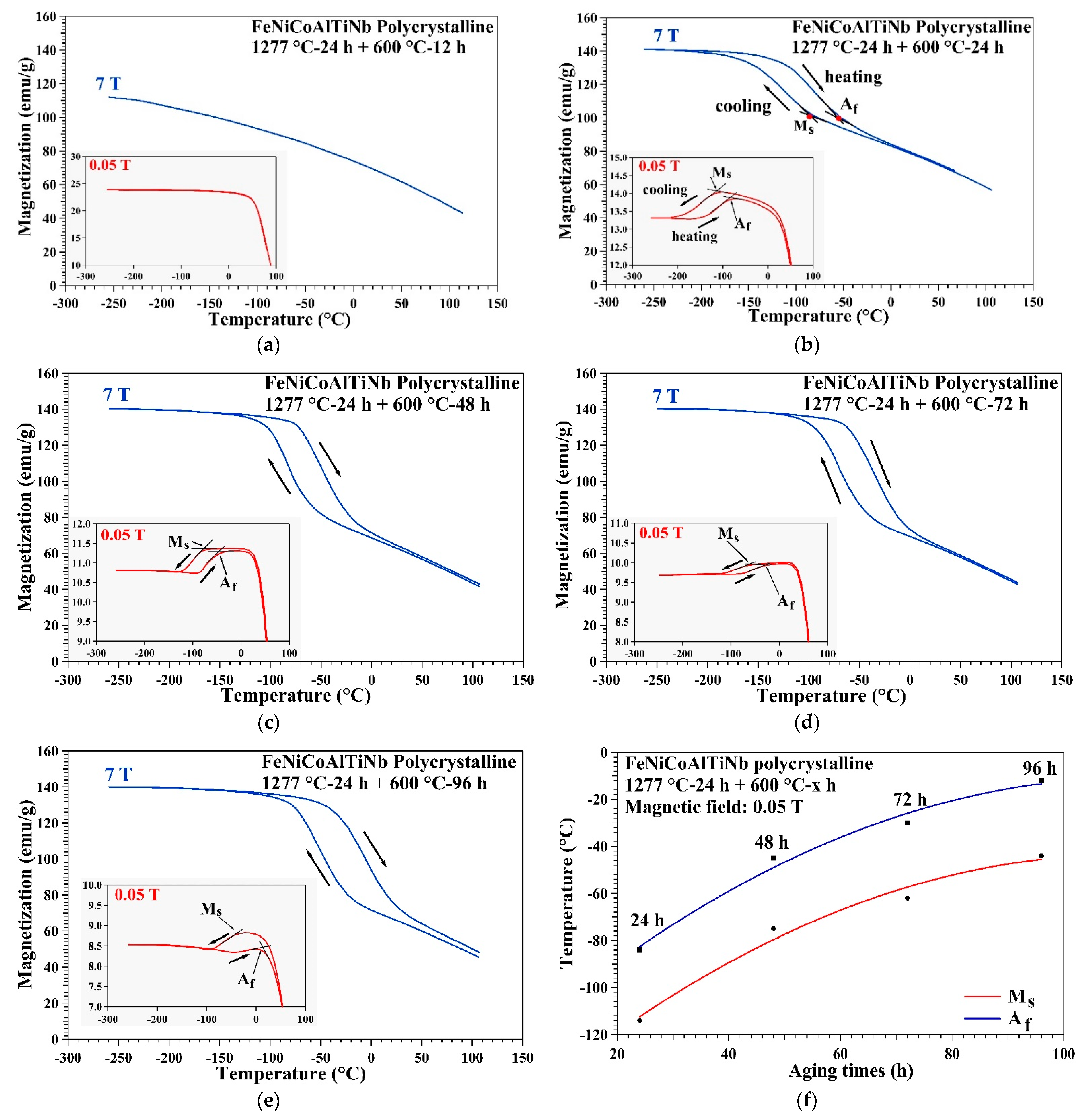

3.4. Magnetization Results

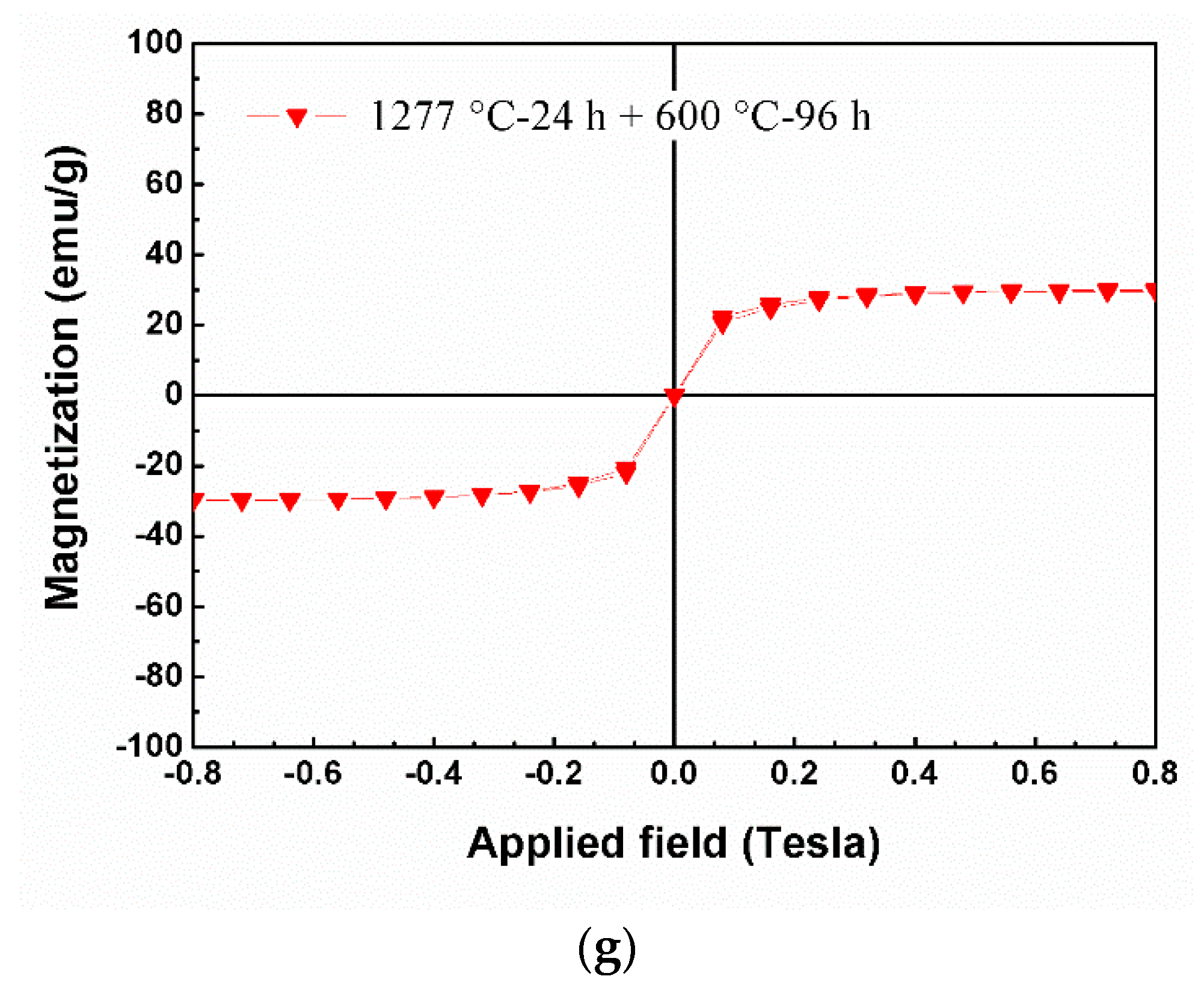

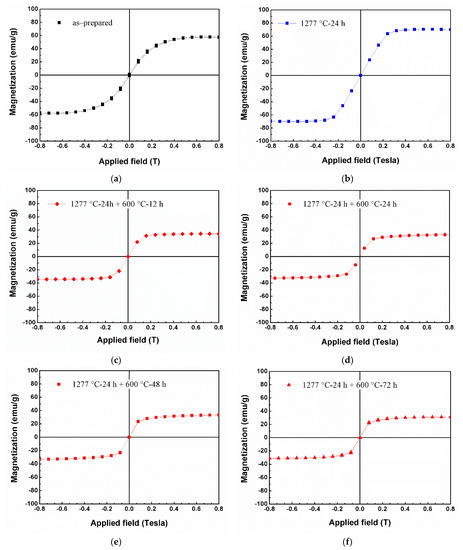

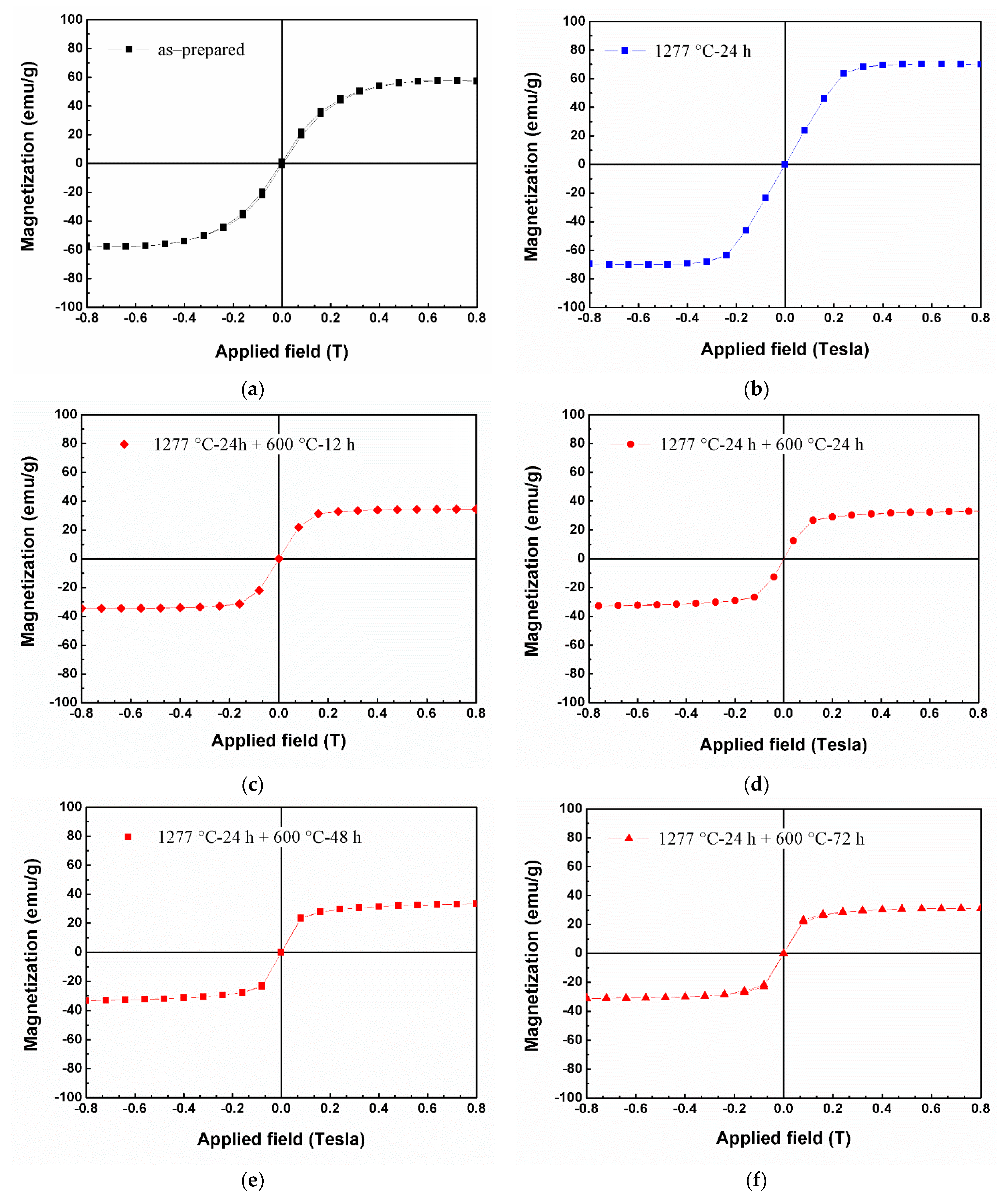

3.5. Vibrating-Sample Magnetometer Results
4. Conclusions
- The XRD results show that the new peak γ’ appears during the aging process. The intensity of this new peak (γ’) increases with the aging time, while the intensity of the FCC (111) austenite peak decreases with aging time.
- The TEM results show that aging for 24 h, only small amounts of precipitates with the size of 4–5 nm are obtained. When the aging time is prolonged to 48 h, the precipitate phases grow to the size of 7–9 nm. When the aging time increases to 72 h, the precipitates further grow up and the size of the precipitate is about 10–12 nm and the distribution of precipitates also tends to be more intensive.
- The thermo-magnetization results show that phase transformation is observed when the aging time reaches 24 h. The transformation temperatures increase with both aging time and magnetic field. The magnetization saturates at 140 emu/g when the aging time is 24 h.
- β phases prefer to be precipitated at the triple junction. Compared with the nominal composition, β phases are enriched in Ni and Al contents. With an increase in the aging heat treatment conditions from 24 to 96 h, Ni and Al contents increase.
- From hysteresis loop studies, the thermal process was found to significantly affect the magnetic properties of this alloy. A higher saturated magnetization value (70 emu/g) and more coherent magnetic moment reversal were revealed after solution heat treatment (57 emu/g). After aging for variety of lengths of time, all samples display similar saturated magnetization (~30 emu/g), which reveals that some constituents contributing to magnetism may reform to constituents without magnetism. By considering reversal behavior, the complete transformation point of the shape memory feature lies between 24 and 48 h of aging. The gradually reduced saturated magnetization values imply that residual constituent transformation was still present when prolonging aging time. These results regarding magnetic properties could provide a deeper understanding of the new system and other similar alloys.
