Crystal Chemical Relations in the Shchurovskyite Family: Synthesis and Crystal Structures of K2Cu[Cu3O]2(PO4)4 and K2.35Cu0.825[Cu3O]2(PO4)4

by
Ilya V. Kornyakov
1,2 and
Sergey V. Krivovichev
1,3,*
1
Department of Crystallography, Institute of Earth Sciences, St. Petersburg State University, University Emb. 7/9, 199034 Saint-Petersburg, Russia
2
Laboratory of Nature-Inspired Technologies and Environmental Safety of the Arctic, Kola Science Centre, Russian Academy of Science, Fesmana 14, 184209 Apatity, Russia
3
Nanomaterials Research Center, Federal Research Center–Kola Science Center, Russian Academy of Sciences, Fersmana Str. 14, 184209 Apatity, Russia
*
Author to whom correspondence should be addressed.
Crystals 2021, 11(7), 807; https://doi.org/10.3390/cryst11070807
Submission received: 28 June 2021 / Revised: 7 July 2021 / Accepted: 9 July 2021 / Published: 11 July 2021
(This article belongs to the Special Issue Mineralogical Crystallography (2nd Edition))
Browse Figures
Versions Notes

Abstract

:
Single crystals of two novel shchurovskyite-related compounds, K2Cu[Cu3O]2(PO4)4 (1) and K2.35Cu0.825[Cu3O]2(PO4)4 (2), were synthesized by crystallization from gaseous phase and structurally characterized using single-crystal X-ray diffraction analysis. The crystal structures of both compounds are based upon similar Cu-based layers, formed by rods of the [O2Cu6] dimers of oxocentered (OCu4) tetrahedra. The topologies of the layers show both similarities and differences from the shchurovskyite-type layers. The layers are connected in different fashions via additional Cu atoms located in the interlayer, in contrast to shchurovskyite, where the layers are linked by Ca2+ cations. The structures of the shchurovskyite family are characterized using information-based structural complexity measures, which demonstrate that the crystal structure of 1 is the simplest one, whereas that of 2 is the most complex in the family.

Graphical Abstract

1. Introduction

The last two decades are marked by the increased interest in mineralogical data from the field of material sciences. Since the discovery of a quantum spin liquid state in herbertsmithite [1,2], the number of mineralogically inspired studies in this field has grown exponentially: from the investigation of magnetic properties of the atacamite-group minerals [3,4,5,6,7], to other Cu minerals such as lindgrenite [8], libethenite [9], dioptase [10,11], volborthite [12], vesigneite [13,14], etc. [15,16,17]. The most important common feature of all these mineral structures is the presence of Cu2+ cations in variable coordination geometries, a consequence of the Jahn–Teller effect [18,19,20] that results in the existence of at least four most common coordination geometries [21,22,23] with a diversity of transitional forms. Such a flexibility of Cu2+-centered coordination polyhedra leads to the occurrence of a multitude of structure types with interesting physical properties tunable through an interplay between structure and chemical composition.
A number of mineral-related structures are characterized by the presence of ‘additional’ oxygen atoms that do not participate in the formation of strongly bonded “acid residue” complexes (sulfate, vanadate, phosphate, arsenate, selenite groups, etc.). These structures can be described in terms of anion-centered tetrahedra and attract special attention due to their magnetic properties controlled by the local structure of oxygen-based copper polycations [24,25,26]. For example, magnetic studies were performed for such anion-centered-based minerals as ilinskite [27], averievite [28,29], yaroshevskite [30], atlasovite [31], etc.
An important trend in the study of magnetic phases is the synthesis of novel mineral-inspired compounds, revealing the dynamics of structural changes and crystal chemical relations in various mineral groups. Recently, we discovered new structure types in the averievite family, (MX)Cu5O2(TO4)2 (T5+ = P, V; M+ = K, Rb, Cs, Cu; X = Cl, Br) [32], which demonstrate significant changes in the first coordination spheres of Cu2+ cations with the changes induced by the size of alkali metal ions, resulting in significant geometrical changes within the kagomé arrangements of magnetic Cu2+ centers.
Aksenov et al. [33] reported on the synthesis and magnetic properties of Rb2CaCu6(PO4)4O2, belonging to the shchurovskyite family, originally discovered by Pekov et al. [34] in the fumaroles of the Great fissure Tolbachik eruption, Kamchatka peninsula, Russia. Herein, we report on the synthesis and crystal structures of two novel compounds of the shchurovskyite family. Despite the fact that both structures significantly differ from the original shchurovskyite structure, both of them possess shchurovskyite-type Cu-based layers.

2. Materials and Methods

2.1. Synthesis

Single crystals of 1 (K2Cu[Cu3O]2(PO4)4) and 2 (K2.35Cu0.825[Cu3O]2(PO4)4) were prepared via gas phase crystallization, successfully employed for the simulation of fumarolic mineral formation in a number of previous experiments [30,35,36]. Stoichiometric amounts of copper oxide (CuO, 99%, Vekton, St. Petersburg, Russia), copper pyrophosphate (Cu2P2O7, 99%, Vekton) and potassium chloride (KCl, 99%, Vekton) taken in the 6:2:3 molar ratio were ground in an agate mortar. Due to the hygroscopic nature of potassium chloride [37,38], the resulting mixture was loaded into a porcelain boat and annealed at 250 °C for ~24 h in air. The mixture was further loaded into a fused silica ampule, evacuated to 10−2 mbar, sealed and placed horizontally in a furnace and heated to 800 °C over a period of 6 h. After two days, the furnace was cooled to 350 °C over a period of 72 h and switched off. The resulting sample contained single crystals of K2Cu[Cu3O]2(PO4)4 (1), K2.35Cu0.825[Cu3O]2(PO4)4 (2), Cu5O2(PO4)2 [39] and copper oxide. All the compounds were found in a source zone of the ampule.

2.2. Single-Crystal X-ray Diffraction Study

Single crystals of both compounds were selected for data collection under an optical microscope, coated in an oil-based cryoprotectant and mounted on cryoloops. Diffraction data for 1 were collected using a Bruker APEX II DUO X-ray diffractometer (Bruker Co., Billerica, MA, U.S.A.) operated with a monochromated microfocus MoKα tube (λ = 0.71073 Å) at 50 kV and 0.6 mA and equipped with a CCD APEX II detector. Diffraction data for 2 were collected using a Rigaku XtaLAB Synergy S X-ray diffractometer (Rigaku Co., Tokyo, Japan) operated with a monochromated microfocus MoKα tube (λ = 0.71073 Å) at 50 kV and 1.0 mA and equipped with a CCD HyPix 6000 detector. Exposures were 10 and 74 s per frame for 1 and 2, respectively. CrysAlisPro software [40] was used for the integration and correction of diffraction data for polarization, background and Lorentz effects as well as for an empirical absorption correction based on spherical harmonics implemented in the SCALE3 ABSPACK algorithm. The unit cell parameters (Table 1) were refined using the least-squares technique. The structures were solved by a dual-space algorithm and refined using the SHELX programs [41,42] incorporated in the OLEX2 program package [43]. The final models include coordinates and anisotropic displacement parameters (Table A1 and Table A2).

3. Results

Crystal Structure Descriptions

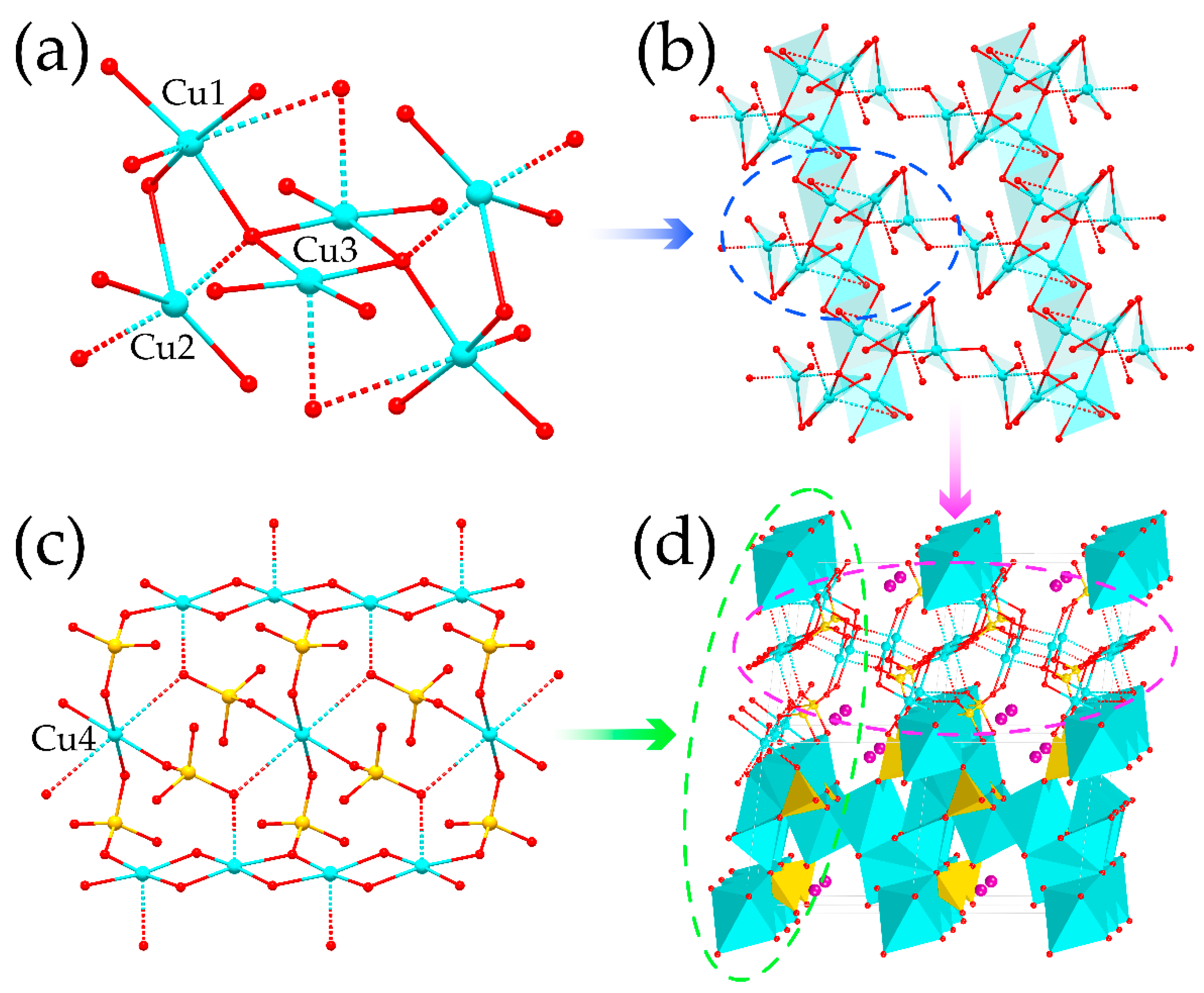

The crystal structure of 1 contains four symmetrically distinct Cu2+ cations, three of which (Cu1, Cu2 and Cu3) form the shchurovskyite-type layer as shown in Figure 1a. Considered in terms of the cation-centered polyhedral, the basic unit of the structure is a rod of edge-sharing Cu3O5 square pyramids (Cu3 · · · Cu3 = 2.856 Å), extended along [100]. The orientation of apical vertices (Oap) of square pyramids alternates up (U) and down (D) relative to the (010) plane, giving the UDUDUD sequence within the rod, with the Cu–Oap bond distance equal to 2.239 Å (Figure 1c). Each rod is decorated by Cu1O6 octahedra and Cu2O5 triangular bipyramids from both sides in the (010) plane. The Cu1O6 octahedron shows a typical [4+2] distortion with four short (1.887–2.097 Å) and two long (2.706 and 2.768 Å) Cu–O bonds. It is noteworthy that the Cu1 site has one more elongated (2.936 Å) Cu–O distance to the O atom located near one of the apical ligands (O · · · O = 2.500 Å), which corresponds to the edge of the (PO4)3− tetrahedron. Such a coordination geometry of Cu2+ cations is rather rare and, as far as we know, among all the natural Cu2+-containing oxysalts, it was observed in the crystal structures of cesiodymite, cryptochalcite and saranchinaite, which are the products of fumarolic activity of the Tolbachik volcano [44,45]. The Cu1O6 octahedron shares a common edge with the Cu2O5 triangular bipyramid. The equatorial plane of the Cu2O5 bipyramid is formed by one short (1.944 Å) and two elongated (2.237 and 2.299 Å) Cu-O bonds. The apical Cu2–Oap bond lengths are equal to 1.884 and 1.920 Å. The Cu2O5 bipyramid is slightly distorted due to the Berry twist mechanism [46,47]: the Oap–Cu2–Oap and Oeq–Cu2–Oeq angles are equal to 166.6 and 124.4°, respectively.
The rods are linked into the Cu-based polyhedral layer parallel to (010) due to the edge-sharing of two adjacent Cu2O5 triangular bipyramids belonging to the neighboring rods (Figure 1b). The connection between the layers in the shchurovskyite-related compounds proceeds via the PO4 tetrahedra. In the crystal structure of 1, each P2O4 tetrahedron shares common vertices with the Cu3O5 square pyramid and Cu2O5 triangular bipyramid of one layer, and with the Cu1O6 octahedron of the adjacent layer. In opposition, the P1O4 tetrahedron is located within the layer, and shares common vertices with two Cu2O5 triangular bipyramids and one Cu1O5 square pyramid. There is one additional Cu4 site located in between the layers (Figure 1c) and coordinated by six oxygen atoms, belonging to the PO4 tetrahedra, to form [4+2]-distorted octahedron with four short (1.977 (×2) and 1.984 (×2) Å) and two long (2.823 (×2) Å) Cu4-O bonds. Two opposite vertices of the equatorial plane of the Cu4O6 octahedron are common with two Cu3O5 square pyramids of adjacent Cu-based layers. The resulting framework has channels filled by K+ cations (Figure 1d). There is one symmetrically distinct K atom, coordinated by six oxygen atoms (2.633–2.959 Å), with the <K1 ∙ ∙ ∙ K1> distance equal to 3.865 (3) and 3.732 (3) Å. The calculation of the effective width (e.c.w.) of the channels, by subtracting the ionic diameter of O2− (2.7 Å) from the shortest and longest O · · · O distances across the channel [48], shows that the channel in the structure of 1 is much smaller than in the structure of shchurovskyite: 1.3 × 4.6 Å2 in 1 versus 2.8 × 5.9 Å2 in shchurovskyite.
As with all known shchurovskyite-type minerals and compounds, the crystal structure of 1 contains so-called ‘additional’ oxygen atoms (Oadd), allowing it to be described in terms of anion-centered tetrahedra [24,25]. The structure of 1 contains one symmetrically distinct ‘additional’ oxygen atom tetrahedrally coordinated by two Cu3, one Cu1 and one Cu2 atoms (Figure 1a). The Oadd–Cu bond lengths are the shortest among all Cu–O bonds and span the range of 1.881–1.913 Å. Two OCu4 tetrahedra share a common Cu3 · · ·Cu3 edge to form a [O2Cu6]8+ dimer.

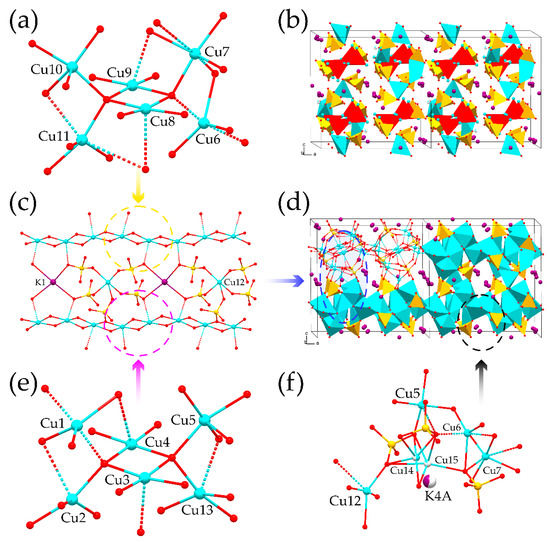

The crystal structure description of 2 is far more difficult to describe due to its disordered nature and the enlarged unit cell, which is a consequence of the increased number of symmetrically distinct positions of all atoms. There are two symmetrically distinct rods of CuO5 square pyramids in 2. The first rod consists of the Cu3O5 and Cu4O5 pyramids, alternating along [010], whereas the alternation of the Cu8O5 and Cu9O5 pyramids builds the second rod (Figure 2a,c,e). The equatorial Cu–Oeq bond lengths within square pyramids are in the range of 1.898–1.966 Å. The apical oxygen atom of the Cu8O5 square pyramid is split into two positions, resulting in the Cu8-Oap bond lengths of 2.579 and 2.739 Å; the apical bond lengths in the other square pyramids vary from 2.386 to 2.469 Å. The apical vertices of the square pyramids within the rods are oriented according to the UUDDUU sequence, which is different from the sequence UDUD observed in 1.
The local coordination of the Cu atoms, involved in the orthogonal connection of the polyhedral rods, is different from those observed in the crystal structure of 1: instead of one symmetrically distinct Cu2+-centered triangular bipyramid, there are four distinct Cu2+ polyhedra, forming two types of bridges. The bridge of the first type is formed by the dimer of edge-sharing Cu2O5 and Cu10O5 square pyramids. The average <Cu–Oeq > bond distances are equal to 1.953 and 1.966 Å for the Cu2O5 and Cu10O5 pyramids, respectively, whereas the apical bond lengths are 2.597 and 2.305 Å, respectively. Note that the Cu2O5 square pyramid can be considered as a [4+1+1]-distorted octahedron due to the presence of an additional elongated Cu–Oap bond equal to 2.939 Å. The bridge of the second type consists of the Cu5O5 square pyramid and Cu6O5 triangular bipyramid, sharing a common edge. The Cu5O5 square pyramid is similar to the Cu2O5 and Cu10O5 pyramids, with the average <Cu5–Oeq> bond length equal to 1.947 Å and the Cu–Oap bond of 2.528 (6) Å. The triangular–bipyramidal coordination geometry of the Cu6 atom is similar to that in 1, with one short and two elongated (1.88, 2.305 and 2.188 Å) equatorial bonds, and two short (1.965 and 1.880 Å) apical bonds. Taking the crystal structure of 1 as an archetype, the Cu1O6 octahedron in 1 is replaced in 2 by four symmetrically distinct Cu atoms, attached to the rods. The Cu7O6 and Cu11O6 octahedra share common vertices with the Cu8O5 and Cu9O5 square pyramids of the rods (Figure 2a). While the Cu7O6 octahedron shows a typical [4+2]-distortion, the coordination geometry of the Cu11 atom is difficult to assess due to the disorder of one equatorial and one apical ligands. We suppose the overlap of two possible coordination geometries—octahedral and triangular–bipyramidal. The presence of one or another geometry depends on the rotation of the P5O4 tetrahedron that has three split oxygen positions with the site-occupancy factors (S.O.F.) equal to 0.663:0.337. Equatorial bond lengths of the Cu11O5 triangular bipyramid are equal to 1.93, 2.212 and 2.474 Å, whereas the apical bonds are 1.905 and 1.912 Å long. The octahedral coordination geometry of the Cu11 atom shows the [3+1+2]-distortion, with three short (1.905–2.051 Å) and one elongated (2.212 Å) equatorial bonds and two long apical bonds (2.474 and 2.809 Å). The second rod is decorated by the the Cu13O6 octahedra and Cu1O5 triangular bipyramids (Figure 2e). The Cu13O6 octahedron is [4+1+1]-distorted with four short equatorial (1.897–2.052 Å) and two long apical bonds (2.476 and 2.897 Å). The bond distribution in the Cu1O5 polyhedron is different from those in other triangular bipyramids in 1 and 2: there are two apical bonds (1.906 and 1.911 Å) slightly shorter than the equatorial bonds (2.070–2.172 Å).
The Cu2+-centered polyhedra in 2 form the Cu-based layer parallel to the (001) plane. The comparison with the structure of 1 reveals the significant difference between two structures: instead of the CuO6 octahedra connecting the layers in 1, the crystal structure of 2 shows an alternation of the Cu and K atoms along [010] (Figure 3c). There are two symmetrically distinct fully occupied Cu12 and K1 sites. The Cu12 site is coordinated by five oxygen atoms to form a [4+1]-distorted square pyramid. Taking into account that positions of two neighboring oxygens in the equatorial plane of the Cu12O5 polyhedron are disordered, the average < Cu12–Oeq> bond length is 1.972 Å. The coordination geometry of the Cu12 site can also be considered as transitional from square-pyramidal to square-planar due to the long Cu12–Oap bond length (2.731 Å). The K1 atoms are coordinated by eight oxygen atoms of the phosphate groups, with five relatively short (2.711–2.857 Å) and three long (3.375–3.318 Å) K1–O bonds.
The enlargement of the unit cell results in the presence of the second symmetrically distinct intra-framework channel. Both types of channels are filled by highly disordered K atoms (Figure 2d). The first channel contains K2 and K3 atoms, each split into two and three symmetrically distinct partially occupied positions, respectively. The displacement of the K atoms, placed in average positions, is similar to that observed in the structure of 1 due to the zigzag arrangement within the channel, with the K2av∙∙∙K3av and K3av∙∙∙K3av distances equal to 3.992 and 4.124 Å, respectively. The effective channel width (1.3 × 5.8 Å2) is close to that observed in the crystal structure of shchurovskyite [34]. The content of the second symmetrically distinct channel is significantly different from that observed in any other shchurovskyite-type structures. Herein, along with the disordered K atoms, additional Cu atoms are present. The Cu site within the channel is split into two symmetrically distinct positions, Cu14 and Cu145, with S.O.F. of 0.5 and 0.15, respectively (Figure 3f). While the most occupied Cu14 position exhibits a typical square-pyramidal coordination geometry (2.012–2.735 Å), the Cu15 site shows a different bond distribution, having one short (2.033 Å) and four elongated (2.212–2.490 Å) bonds, a consequence of the low occupancy of the disordered configuration. The K atoms are concentrated near to the center of the channel with the K–O bond lengths in the range of 2.564–3.40 Å. Due to the presence of the additional Cu atoms, the effective width of channels is reduced to 1.5 × 3.0 Å2.
The crystal structure of 2 contains four symmetrically distinct ‘additional’ oxygen atoms, tetrahedrally coordinated by copper atoms, with the Oadd–Cu bond lengths varying from 1.881 to 1.928 Å (Figure 2b).

4. Discussion

The crystal structures of shchurovskyite, K2Ca[Cu3O]2(AsO4)4, dmisokolovite, K3[Cu5AlO2](AsO4)4, and synthetic Rb2Ca[Cu3O]2(PO4)4 are based upon Cu-based oxo-layers, linked via (PO4)3− tetrahedra [33,34]. The hetero-polyhedral framework contains channels, filled by K+ cations, and one additional position between the copper layers, occupied by Ca2+ and K+ atoms in shchurovskyite and dmisokolovite, respectively. Unlike the structure of both minerals, these additional positions in the crystal structures of 1 and 2 are occupied by Cu2+ cations, connecting the Cu-based layers, which results in the formation of a Cu-based porous framework, decorated by (PO4)3− tetrahedra and containing potassium atoms within the channels.
As was mentioned above, all the shchurovskyite-type structures can be described as consisting of Cu-based layers. The simplest way to distinguish the main features of each structure is a topological analysis, which can be performed by means of representation of the connectivity of copper atoms in terms of nets. In order to reduce the influence of chemical composition on crystal chemical comparative analysis, only phosphate members of the shchurovskyite family will be discussed below.
The core of the layers in each structure is a Cu6 cluster, representing a [O2Cu6] dimer of two edge-sharing (OCu4) tetrahedra, with their bases approximately parallel to the planes of the layers. The dimers form linear rods along a in 1, and along b in 2 and other shchurovskyite-type structures, with the shortest Cu∙∙∙Cu distances between the adjacent dimers varying from 2.866 (in Rb2Ca[Cu3O]2(PO4)4), to 2.908 and 2.933 (in 2), and 2.941 Å (in 1).

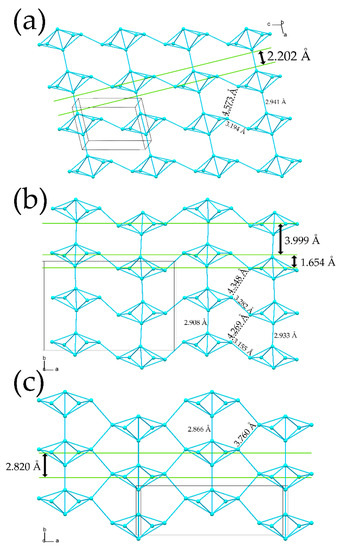

Figure 3a shows the projection of the Cu-based layer onto the (010) plane in 1, with green lines aligned along terminal Cu atoms of dimers of the neighboring rods. The distance between the lines is 2.202 Å. The rods in the structure of 2 are aligned along two-fold screw axis, which results in the different arrangement (Figure 3b). Herein, each rod is surrounded by two symmetrically related rods shifted by 1.654 Å relative to each other. The shift is maximal in the crystal structure of Rb2Ca[Cu3O]2(PO4)4, where each rod is shifted by 2.820 Å relative to the adjacent rod (Figure 3c).
The results presented above show the highly flexible nature of the shchurovskyite-type structures. Indeed, at least four different structure types are present: triclinic archetype (1), monoclinically distorted 1 × 1 × 1 shchurovskyite and its phosphate synthetic analogue with the C2 space groups, monoclinically distorted 1 × 1 × 2 superstructure of dmisokolovite with the C2/c space group, and monoclinically distorted 2 × 2 × 2 superstructure. Both the archetype (1) and 2 × 2 × 2 superstructure (2) reported herein were obtained in the same experiment, whereas the phosphate analogue of shchurovskyite does not exhibit any significant difference from its parent structure. At the same time, the 1 × 1 × 2 superstructure of dmisokolovite is due to the partial substitution of Cu by Al cations. Thus, the broad variety of shchurovskyite-type structures most likely depends on the flexibility of the Cu-based framework, and the arrangement of the Cu-based rods in particular. We suppose that the flexibility of the Cu-based framework will lead to the discovery of other novel compounds of the series, including novel mineral species.
Another important feature of the shchurovskyite-type structures is the interlayer space that can accommodate different cations, from K+ (in the structures of dmisokolovite and 2), to Ca2+ (in shchurovskyite and Rb2Ca[Cu3O]2(PO4)4) and Cu2+ (in 1 and 2). The interlayer sites are responsible for the connection of adjacent Cu-based layers, and it can be assumed that the substitution of non-magnetic cations by Cu2+ will lead to significant changes in the magnetic properties of the respective materials.
The differences between the shchurovskyite-related structure types can be easily demonstrated by information-based measures of structural complexity [49,50,51] (Table 2). In the framework of this approach, the complexity is estimated as the amount of Shannon information contained in a crystal structure according to the following formulas:
strIG = −∑ki=1 pi log2 pi          (bits/atom)
strIG = −v∑ki=1 pi log2 pi          (bits/cell)
where k is the number of different crystallographic orbits (independent crystallographic Wyckoff sites) in the structure and pi is the random choice probability for an atom from the ith crystallographic orbit, which is:
pi = mi/v
where mi is a multiplicity of a crystallographic orbit (i.e., the number of atoms of a specific Wyckoff site in the reduced unit cell), and v is the total number of atoms in the reduced unit cell.
The crystal structure of 1 (archetype) is the simplest one (3.986 bits/atom and 123.58 bits/cell), whereas the crystal structure of 2 is the most complex in the series (5.974 bits/atom and 1493.446 bits/cell) and belongs to the category of very complex structures [52,53]. The complexity parameters of the crystal structures of shchurovskyite and Rb2Ca[Cu3O]2(PO4)4 are almost as simple as those for the 1 (4.051 bits/atom and 125.58 bits/cell), whereas the crystal structure of dmisokolovite with the doubled c parameter is twice as complex (4.051 bits/atom and 251.16 bits/cell).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cryst11070807/s1, Crystallographic information files of compounds 1 and 2.

Author Contributions

Conceptualization, I.V.K. and S.V.K.; formal analysis, I.V.K.; investigation, I.V.K.; resources, S.V.K.; writing—original draft preparation, I.V.K.; writing—review and editing, S.V.K.; visualization, I.V.K.; supervision, S.V.K.; project administration, S.V.K.; funding acquisition, S.V.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation (grant No. 19-17-00038).

Data Availability Statement

Supplementary crystallographic data for this paper have been deposited at Cambridge Crystallographic Data Centre (CCDC 2092265 and 2092265 for 1 and 2, respectively) and can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif.

Acknowledgments

The XRD measurements were performed at the X-ray Diffraction Centre of St. Petersburg State University.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Fractional atomic coordinates and isotropic displacement parameters (Å2) for 1.
Table A1. Fractional atomic coordinates and isotropic displacement parameters (Å2) for 1.
AtomxyzUeq
Cu10.54313(10)0.21854(7)0.18319(7)0.00826(15)
Cu20.62938(11)0.54189(7)0.35677(7)0.01248(16)
Cu30.25788(9)0.51344(7)0.00581(7)0.00691(14)
Cu41110.01075(19)
K11.1877(2)−0.12671(17)0.39996(14)0.0251(3)
P10.5789(2)−0.14031(14)0.18292(14)0.0066(2)
P20.9306(2)0.67348(14)0.72047(13)0.0053(2)
O10.7258(6)−0.2413(4)0.3016(4)0.0146(7)
O20.5839(6)0.0261(4)0.2838(4)0.0102(7)
O30.3192(6)−0.2209(4)0.1123(4)0.0134(7)
O40.6982(6)−0.1156(4)0.0350(4)0.0106(7)
O50.9594(5)0.5576(4)0.8563(4)0.0093(6)
O61.1450(5)0.6696(4)0.6400(4)0.0074(6)
O70.6911(5)0.6036(4)0.5917(4)0.0093(6)
O80.9150(6)0.8492(4)0.7897(4)0.0120(7)
O90.5292(5)0.4366(4)0.1373(4)0.0066(6)
Table
Table A2. Fractional atomic coordinates, site occupancy factors (S.O.F.) and isotropic displacement parameters (Å2) for 1.
Table A2. Fractional atomic coordinates, site occupancy factors (S.O.F.) and isotropic displacement parameters (Å2) for 1.
AtomS.O.F.xyzUeq
Cu110.84435(4)0.42009(6)0.88948(4)0.01789(15)
Cu210.92922(4)0.41660(6)0.73252(4)0.01725(15)
Cu310.75839(4)0.54529(5)0.73128(4)0.01226(14)
Cu410.74882(4)0.30406(5)0.75677(4)0.01233(14)
Cu510.57404(4)0.39718(6)0.75159(4)0.01062(13)
Cu610.43001(4)0.59447(7)0.74471(5)0.02626(19)
Cu710.33900(4)0.56147(6)0.89307(4)0.01664(15)
Cu810.25552(4)0.44950(5)0.73520(4)0.01493(15)
Cu910.24989(4)0.69237(5)0.76032(4)0.01117(14)
Cu1010.07531(4)0.59072(5)0.75522(4)0.01117(13)
Cu1110.16550(4)0.58938(6)0.60214(4)0.01817(15)
Cu1210.25872(5)0.82651(7)0.49436(5)0.0335(2)
Cu1310.34155(4)0.58442(6)0.39884(4)0.01298(14)
Cu140.50.10290(9)0.86289(12)0.34216(9)0.0188(3)
Cu150.150.0595(3)0.8514(4)0.3650(3)0.0188(3)
K110.23938(9)0.32812(12)0.49506(9)0.0313(3)
K2A0.410.4229(4)0.8501(4)0.6448(3)0.0718(19)
K2B0.590.4599(2)0.8680(3)0.5471(3)0.0613(11)
K3A0.420.4539(10)0.335(3)0.5443(9)0.078(6)
K3B0.360.4585(5)0.3883(10)0.5623(9)0.0382(19)
K3C0.220.445(2)0.346(4)0.569(2)0.069(9)
K4A0.450.5346(3)0.6385(4)0.9684(4)0.0725(17)
K4B0.550.4942(3)0.7322(5)1.0182(2)0.0804(19)
K4C0.150.4597(14)0.8276(19)1.042(2)0.125(12)
K4D0.550.4772(3)0.9217(6)1.0477(3)0.0828(17)
P110.90143(8)0.16223(11)0.83315(8)0.0099(3)
P210.90101(7)0.65707(11)0.82032(8)0.0080(2)
P310.40314(7)0.33475(11)0.81544(8)0.0090(2)
P410.40152(8)0.83626(11)0.83808(8)0.0111(3)
P510.34316(8)0.61861(13)0.57888(8)0.0144(3)
P6A0.337(6)0.3350(19)1.0893(18)0.5736(18)0.011(3)
P6B0.663(6)0.3349(9)1.0612(9)0.5739(10)0.0129(17)
P710.16036(8)1.05119(12)0.42170(8)0.0130(3)
P810.16418(8)0.62317(12)0.41864(8)0.0125(3)
O110.9538(2)0.1157(4)0.7643(3)0.0240(10)
O210.8989(3)0.0726(4)0.9004(3)0.0289(11)
O310.9302(2)0.2838(3)0.8587(2)0.0173(8)
O410.8155(2)0.1732(3)0.7957(2)0.0161(8)
O510.9596(2)0.5784(3)0.7737(2)0.0141(8)
O610.8775(3)0.5963(3)0.8971(2)0.0192(9)
O710.8277(2)0.6751(3)0.7635(2)0.0152(8)
O810.9385(2)0.7797(3)0.8364(2)0.0105(7)
O910.4379(2)0.2116(3)0.8333(2)0.0162(8)
O1010.3249(2)0.3197(3)0.7645(2)0.0167(8)
O1110.4600(2)0.4076(3)0.7625(2)0.0165(8)
O1210.3874(3)0.3991(3)0.8928(2)0.0194(8)
O1310.4321(2)0.7117(3)0.8570(3)0.0210(9)
O1410.4578(2)0.9000(4)0.7807(3)0.0239(10)
O1510.3901(3)0.9127(4)0.9113(3)0.0320(11)
O1610.3197(2)0.8238(3)0.7932(2)0.0159(8)
O1710.3869(2)0.6187(4)0.5003(2)0.0272(10)
O18A0.337(6)0.3132(7)0.7541(10)0.5773(7)0.0199(12)
O18B0.663(6)0.2644(4)0.6911(5)0.5798(4)0.0199(12)
O19A0.337(6)0.4069(9)0.6053(15)0.6410(9)0.021(3)
O19B0.663(6)0.4004(4)0.6670(8)0.6433(5)0.0221(17)
O20A0.337(6)0.2739(8)0.5379(11)0.5834(8)0.0258(13)
O20B0.663(6)0.3189(4)0.4881(6)0.5983(4)0.0258(13)
O2110.4024(3)1.0565(5)0.6340(3)0.0390(13)
O22A0.337(6)0.2806(18)0.9835(18)0.5575(14)0.044(6)
O22B0.663(6)0.3011(7)0.9367(8)0.5635(7)0.030(2)
O2310.2682(3)1.1526(5)0.6017(3)0.0374(12)
O2410.3724(3)1.1141(5)0.4974(3)0.0325(11)
O2510.1884(3)0.9209(4)0.4246(3)0.0269(10)
O2610.2261(2)1.1350(4)0.3955(2)0.0189(8)
O2710.0901(2)1.0434(4)0.3599(2)0.0271(10)
O2810.1255(3)1.0924(4)0.5000(2)0.0209(9)
O2910.1786(3)0.4971(3)0.3940(2)0.0228(9)
O3010.1071(2)0.6862(4)0.3573(2)0.0199(9)
O3110.2454(2)0.6921(3)0.4201(2)0.0147(8)
O3210.1241(2)0.6348(4)0.5000(2)0.0191(8)
O3310.8264(2)0.4268(3)0.7770(2)0.0094(7)
O3410.6801(2)0.4241(3)0.7134(2)0.0092(7)
O3510.3253(2)0.5669(3)0.7799(2)0.0110(7)
O3610.1812(2)0.5730(3)0.7141(2)0.0116(7)

References

  1. Han, T.-H.; Singleton, J.; Schlueter, J.A. Barlowite: A spin-1212 antiferromagnet with a geometrically perfect kagome motif. Phys. Rev. Lett. 2014, 113, 227203. [Google Scholar] [CrossRef] [Green Version]
  2. Norman, M.R. Herbertsmithite and the search for the quantum spin liquid. Rev. Mod. Phys. 2016, 88, 041002. [Google Scholar] [CrossRef] [Green Version]
  3. Zheng, X.G.; Kawae, T.; Kashitani, Y.; Li, C.S.; Tateiwa, N.; Takeda, K.; Yamada, H.; Xu, C.N.; Ren, Y. Unconventional magnetic transitions in the mineral clinoatacamite Cu2Cl(OH)3. Phys. Rev. B Condens. Matter Mater. Phys. 2005, 71, 052409. [Google Scholar] [CrossRef]
  4. Zheng, X.G.; Mori, T.; Nishiyama, K.; Higemoto, W.; Yamada, H.; Nishikubo, K.; Xu, C.N. Antiferromagnetic transitions in polymorphous minerals of the natural cuprates atacamite and botallackite Cu2Cl(OH)3. Phys. Rev. B Condens. Matter Mater. Phys. 2005, 71, 174404. [Google Scholar] [CrossRef]
  5. Li, Y.-S.; Zhang, Q.-M. Structure and magnetism of S = 1/2 kagome antiferromagnets NiCu3(OH)6Cl2 and CoCu3(OH)6Cl2. J. Phys. Condens. Matter. 2013, 25, 026003. [Google Scholar] [CrossRef]
  6. Malcherek, T.; Mihailova, B.; Welch, M.D. Structural phase transitions of clinoatacamite and the dynamic Jahn-Teller effect. Phys. Chem. Miner. 2017, 44, 307–321. [Google Scholar] [CrossRef]
  7. Malcherek, T.; Welch, M.D.; Williams, P.A. The atacamite family of minerals—A testbed for quantum spin liquids. Acta Crystallogr. 2018, B74, 519–526. [Google Scholar] [CrossRef]
  8. Vilminot, S.; André, G.; Richard-Plouet, M.; Bourée-Vigneron, F.; Kurmoo, M. Magnetic Structure and Magnetic Properties of Synthetic Lindgrenite, Cu3(OH)2(MoO4)2. Inorg. Chem. 2006, 45, 10938–10946. [Google Scholar] [CrossRef] [PubMed]
  9. Belik, A.A.; Koo, H.-J.; Whangbo, M.-H.; Tsujii, N.; Naumov, P.; Takayama-Muromachi, E. Magnetic Properties of Synthetic Libethenite Cu2PO4OH: A New Spin-Gap System. Inorg. Chem. 2007, 46, 8684–8689. [Google Scholar] [CrossRef] [PubMed]
  10. Janson, O.; Tsirlin, A.A.; Schmitt, M.; Rosner, H. Large quantum fluctuations in the strongly coupled spin-1/2 chains of green dioptase Cu6Si6O18∙6H2O. Phys. Rev. B Condens. Matter Mater. Phys. 2010, 82, 014424. [Google Scholar] [CrossRef] [Green Version]
  11. Podlesnyak, A.; Prokhorenko, O.; Nikitin, S.E.; Kolesnikov, A.I.; Matsuda, M.; Dissanayake, S.E.; Prisk, T.R.; Nojiri, H.; Díaz-Ortega, I.F.; Kidder, M.K.; et al. magnetic ground state and magnetic excitations in black dioptase Cu6Si6O18. Phys. Rev. B Condens. Matter Mater. Phys. 2019, 100, 184401. [Google Scholar] [CrossRef]
  12. Hiroi, Z.; Ishikawa, H.; Yoshida, H.; Yamaura, J.-I.; Okamoto, Y. Orbital Transitions and Frustrated Magnetism in the Kagome-Type Copper Mineral Volborthite. Inorg. Chem. 2019, 58, 11949–11960. [Google Scholar] [CrossRef] [PubMed]
  13. Yoshida, H.; Michiue, Y.; Takayama-Muromachi, E.; Isobe, M. β-Vesignieite BaCu3V2O8(OH)2: A structurally perfect S = 1/2 kagomé antiferromaget. J. Matter. Chem. 2012, 22, 18793–18796. [Google Scholar] [CrossRef]
  14. Boldrin, D.; Knight, K.; Wills, A.S. Orbital frustration in the S = 1/2 kagome magnet vesignieite, BaCu3V2O8(OH)2. J. Matter. Chem. C 2016, 4, 10315–10322. [Google Scholar] [CrossRef]
  15. Sun, W.; Huang, Y.-X.; Pan, Y.; Mi, J.-X. Synthesis and magnetic properties of centennialite: A new S = 1/2 Kagomé antiferromagnet and comparison with herbertsmithite and kapellasite. Phys. Chem. Miner. 2016, 43, 127–136. [Google Scholar] [CrossRef]
  16. Vilminot, S.; Richard-Plouet, M.; André, G.; Swierczynski, D.; Guillot, M.; Bourée-Vigneron, F.; Drillon, M.; André, G.; Swierczynski, D.; Guillot, M.; et al. Magnetic structure and properties of Cu3(OH)4SO4 made of triple chains of spins s = 1/2. J. Solid State Chem. 2003, 170, 255–264. [Google Scholar] [CrossRef]
  17. Brandão, P.; Rocha, J.; Reis, M.S.; dos Santos, A.M.; Jin, R. Magnetic properties of KNaMSi4O10 compounds (M = Mn, Fe, Cu). J. Solid State Chem. 2009, 182, 253–258. [Google Scholar] [CrossRef]
  18. Jahn, H.A.; Teller, E. Stability of polyatomic molecules in degenerate electronic states. Proc. R. Soc. Ser. A 1937, 161, 220–235. [Google Scholar]
  19. Hathaway, B.J. A new look at the stereochemistry and electronic properties of complexes of the copper(II) ion. In Complex Chemistry. Structure and Bonding; Emsley, J., Ernst, R.D., Hathaway, B.J., Warren, K.D., Eds.; Springer: Berlin/Heidelberg, Germany, 1984; Volume 57, pp. 55–118. [Google Scholar]
  20. Burns, P.C.; Hawthorne, F.C. Static and dynamic Jahn-Teller effects in Cu2+ oxysalt minerals. Can. Mineral. 1996, 34, 1089–1105. [Google Scholar]
  21. Effenberger, H. Contribution to the Stereochemistry of Copper. The Transition from a Tetragonal Pyramidal to a Trigonal Bipyramidal Cu(II)O5 Coordination Figure with a Structure Determination of PbCu2(SeO3)3. J. Solid State Chem. 1988, 73, 118–126. [Google Scholar] [CrossRef]
  22. Eby, R.K.; Hawthorne, F.C. Structural Relations in Copper Oxysalt Minerals. I. Structural Hierarchy. Acta Crystallogr. Sect. B Struct. Sci. Cryst. Eng. Mater. 1993, 49, 28–56. [Google Scholar] [CrossRef]
  23. Burns, P.C.; Hawthorne, F.C. Coordination-geometry structural pathways in Cu2+ oxysalt minerals. Can. Mineral. 1995, 33, 889–905. [Google Scholar]
  24. Krivovichev, S.V.; Filatov, S.K. Structural principles for minerals and inorganic compounds containing anion-centered tetrahedra. Am. Mineral. 1999, 84, 1099–1106. [Google Scholar] [CrossRef]
  25. Krivivochev, S.V.; Mentré, O.; Siidra, O.I.; Colmont, M.; Filatov, S.K. Anion-Centered Tetrahedra in Inorganic Compounds. Chem. Rev. 2013, 113, 6459–6535. [Google Scholar] [CrossRef]
  26. Volkova, L.M.; Marinin, D.V. Frustrated Antiferromagnetic Spin Chains of Edge-Sharing Tetrahedra in Volcanic Minerals K3Cu3(Fe0.82Al0.18)O2(SO4)4 and K4Cu4O2(SO4)4MeCl. J. Supercond. Nov. Magn. 2017, 30, 959–971. [Google Scholar] [CrossRef] [Green Version]
  27. Badrtdinov, D.I.; Kuznetsova, E.S.; Verchenko, V.Y.; Berdonosov, P.S.; Dolgikh, V.A.; Mazurenko, V.V.; Tsirlin, A.A. magnetism of coupled spin tetrahedra in ilinskite-type KCu5O2(SeO3)2Cl3. Sci. Rep. 2018, 8, 2379. [Google Scholar] [CrossRef] [Green Version]
  28. Botana, A.S.; Zheng, H.; Lapidus, S.H.; Mitchell, J.F.; Norman, M.R. Averievite: A copper oxide kagome antiferromagnet. Phys. Rev. B 2018, 98, 054421. [Google Scholar] [CrossRef] [Green Version]
  29. Winiarski, M.J.; Tran, T.T.; Chamorro, J.R.; McQueen, T.M. (CsX)Cu5O2(PO4)2 (X = Cl, Br, I): A Family of Cu2+ S = ½ Compounds with Capped-Kagomé Networks Composed of OCu4 Units. Inorg. Chem. 2019, 58, 4328–4336. [Google Scholar] [CrossRef]
  30. Siidra, O.I.; Vladimirova, V.A.; Tsirlin, A.A.; Chukanov, N.V.; Ugolkov, V.L. Cu9O2(VO4)4Cl2, the first copper oxychloride vanadate: Mineralogically inspired synthesis and magnetic behavior. Inorg. Chem. 2020, 59, 2136–2143. [Google Scholar] [CrossRef] [PubMed]
  31. Fujihala, M.; Morita, K.; Mole, R.; Mitsuda, S.; Tohyama, T.; Yano, S.-I.; Yu, D.; Sota, S.; Kuwai, T.; Koda, A.; et al. Gapless spin liquid in a square-kagome lattice antiferromagnet. Nat. Commun. 2020, 11, 3429. [Google Scholar] [CrossRef]
  32. Kornyakov, I.V.; Vladimirova, V.A.; Siidra, O.I.; Krivovichev, S.V. Expanding the Averievite Family, (MX)Cu5O2(T5+O4)2 (T5+ = P, V; M = K, Rb, Cs, Cu; X = Cl, Br): Synthesis and Single-Crystal X-ray Diffraction Study. Molecules 2021, 26, 1833. [Google Scholar] [CrossRef]
  33. Aksenov, S.M.; Borovikova, E.Y.; Mironov, V.S.; Yamnova, N.A.; Volkov, A.S.; Ksenofontov, D.A.; Gurbanova, O.A.; Dimitrova, O.V.; Deyneko, D.V.; Zvereva, E.A.; et al. Rb2CaCu6(PO4)4O2, a novel oxophosphate, with a shchurovskyite-type topology: Synthesis, structure, magnetic properties and crystal chemistry of rubidium copper phosphate. Acta Crystallogr. 2019, B75, 903–913. [Google Scholar] [CrossRef]
  34. Pekov, I.V.; Zubkova, N.V.; Belakovskiy, D.I.; Yapaskurt, V.O.; Vigasina, M.F.; Sidorov, E.G.; Pushcharovsky, D.Y. New arsenate minerals from the Arsenatnaya fumarole, Tolbachik volcano, Kamchatka, Russia. IV. Shchurovskyite, K2CaCu6O2(AsO4)4 and dmisokolovite, K3Cu5AlO2(AsO4)4. Mineral. Mag. 2015, 79, 1737–1753. [Google Scholar] [CrossRef]
  35. Kornyakov, I.V.; Krivovichev, S.V.; Gurzhiy, V.V. Oxocentered Units in Three Novel Rb-Containing Copper Compounds Prepared by CVT Reactions Method. Z. Anorg. Allg. Chem. 2018, 644, 77–81. [Google Scholar] [CrossRef]
  36. Kovrugin, V.M.; Siidra, O.I.; Colmont, M.; Mentré, O.; Krivovichev, S.V. Emulating exhalative chemistry: Synthesis and structural characterization of ilinskite, Na[Cu5O2](SeO3)2Cl3, and its K-analogue. Miner. Petrol. 2015, 109, 421–430. [Google Scholar] [CrossRef]
  37. Jing, B.; Peng, C.; Wang, Y.; Liu, Q.; Tong, S.; Zhang, Y.; Ge, M. Hygroscopic properties of potassium chloride and its internal mixtures with organic compounds relevant to biomass burning aerosol particles. Sci. Rep. 2015, 7, 43572. [Google Scholar] [CrossRef] [Green Version]
  38. Giamarelou, M.; Smith, M.; Papapanagiotou, E.; Martin, S.; Biskos, G. Hygroscopic properties of potassium-halide nanoparticles. Aerosol Sci. Technol. 2018, 52, 536–545. [Google Scholar] [CrossRef] [Green Version]
  39. Brunel-Laügt, M.; Guitel, J.-C. Structure crystalline de Cu5O2(PO4)2. Acta Crystallogr. 1977, B33, 3465–3468. [Google Scholar] [CrossRef]
  40. CrysAlisPro Software System, version 1.171.38.46; Rigaku Oxford Diffraction: Oxford, UK, 2015.
  41. Sheldrick, G.M. SHELXT—Integrated space-group and crystal structure determination. Acta Crystallogr. 2015, A71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  42. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar]
  43. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  44. Pekov, I.V.; Zubkova, N.V.; Agakhanov, A.A.; Pushcharovsky, D.Y.; Yapaskurt, V.O.; Belakovskiy, D.I.; Vigasina, M.F.; Sidrov, E.G.; Britvin, S.N. Cryptochalcite, K2Cu5O(SO4)5, and cesiodymite, CsKCu5O(SO4)5, two new isotypic minerals and the K-Cs isomorphism in this solid-solution series. Eur. J. Mineral. 2018, 30, 593–607. [Google Scholar] [CrossRef]
  45. Siidra, O.I.; Lukina, E.A.; Nazarchuk, E.V.; Depmeier, W.; Bubnova, R.S.; Agakhanov, A.A.; Avdontseva, E.Y.; Filatov, S.K.; Kovrugin, V.M. Saranchinaite, Na2Cu(SO4)2, a new exhalative mineral from Tolbachik volcano, Kamchatka, Russia, and a product of the reversible dehydration of kröhnkite, Na2Cu(SO4)2(H2O)2. Mineral. Mag. 2018, 82, 257–274. [Google Scholar] [CrossRef]
  46. Berry, R.S. Correlation of Rates of Intramolecular Tunneling Processes, with Application to Some Group V Compounds. J. Chem. Phys. 1960, 32, 933–938. [Google Scholar] [CrossRef] [Green Version]
  47. Pasquarello, A.; Petri, I.; Salmon, P.S.; Parisel, O.; Car, R.; Tóth, E.; Powell, D.H.; Fischer, H.E.; Helm, L.; Merbach, A.E. First Solvation Shell of the Cu(II) Aqua Ion: Evidence for Fivefold Coordination. Science 2001, 291, 856–859. [Google Scholar] [CrossRef]
  48. McCusker, L.B.; Liebau, F.; Engelhardt, G. Nomenclature of structural and compositional characteristics of ordered microporous and mesoporous materials with inorganic hosts: (IUPAC recommendations 2001). Microporous Mesoporous Mater. 2003, 58, 3–13. [Google Scholar] [CrossRef]
  49. Krivovichev, S.V. Topological complexity of crystal structures: Quantitative approach. Acta Crystallogr. 2012, A68, 393–398. [Google Scholar] [CrossRef] [PubMed]
  50. Krivovichev, S.V. Structural complexity of minerals: Information storage and processing in the mineral world. Miner. Mag. 2013, 77, 275–326. [Google Scholar] [CrossRef]
  51. Krivovichev, S.V. Structural complexity and configurational entropy of crystalline solids. Acta Crystallogr. 2016, B72, 274–276. [Google Scholar]
  52. Krivovichev, S.V. Ladders of information: What contributes to the structural complexity in inorganic crystal. Z. Kristallogr. 2018, 233, 155–161. [Google Scholar] [CrossRef]
  53. Krivovichev, S.V. Which inorganic structures are the most complex? Angew. Chem. Int. Ed. 2014, 53, 654–661. [Google Scholar] [CrossRef] [PubMed]
Crystals 11 00807 g001 550
Figure 1. The key features of the crystal structure of 1: (a) the linkage of coordination polyhedra of the Cu1, Cu2 and Cu3 atoms; (b) the Cu-based layer; (c) the rods of Cu3O5 square pyramids and Cu4O6 octahedra, connecting the Cu-based layers; (d) lateral view of the crystal structure. Legend: Cu = cyan, O = red, P = yellow, K = purple.
Figure 1. The key features of the crystal structure of 1: (a) the linkage of coordination polyhedra of the Cu1, Cu2 and Cu3 atoms; (b) the Cu-based layer; (c) the rods of Cu3O5 square pyramids and Cu4O6 octahedra, connecting the Cu-based layers; (d) lateral view of the crystal structure. Legend: Cu = cyan, O = red, P = yellow, K = purple.
Crystals 11 00807 g001
Crystals 11 00807 g002 550
Figure 2. The key features of the crystal structure of 2: (a) the fragment of the Cu9∙∙∙Cu8 rod; (b) the arrangement of anion-centered tetrahedra (shown in red); (c) two symmetrically distinct rods linked via the Cu12O6 octahedra; (d) lateral view of the crystal structure; (e) the fragment of the Cu3∙∙∙Cu4 rod; (f) the disordered arrangement of the Cu14 and Cu15 sites, and associated K4A site. Disordered oxygen atoms are shown at most probable positions. Legend: as in Figure 1.
Figure 2. The key features of the crystal structure of 2: (a) the fragment of the Cu9∙∙∙Cu8 rod; (b) the arrangement of anion-centered tetrahedra (shown in red); (c) two symmetrically distinct rods linked via the Cu12O6 octahedra; (d) lateral view of the crystal structure; (e) the fragment of the Cu3∙∙∙Cu4 rod; (f) the disordered arrangement of the Cu14 and Cu15 sites, and associated K4A site. Disordered oxygen atoms are shown at most probable positions. Legend: as in Figure 1.
Crystals 11 00807 g002
Crystals 11 00807 g003 550
Figure 3. Cu-based layers in the crystal structures of 1 (a), 2 (b) and Rb2Ca[Cu3O]2(PO4)4 (c). Thin black lines show boundaries of unit cells. Legend: as in Figure 1. See details in the text.
Figure 3. Cu-based layers in the crystal structures of 1 (a), 2 (b) and Rb2Ca[Cu3O]2(PO4)4 (c). Thin black lines show boundaries of unit cells. Legend: as in Figure 1. See details in the text.
Crystals 11 00807 g003
Table
Table 1. Crystallographic data and refinement parameters for 1 and 2.
Table 1. Crystallographic data and refinement parameters for 1 and 2.
Compound12
FormulaK2Cu[Cu3O]2(PO4)4K2.35Cu0.825[Cu3O]2(PO4)4
Space GroupP-1P21/n
a, Å5.7787(3)16.7138(4)
b, Å8.2612(4)11.2973(3)
c, Å8.3717(4)16.8031(4)
α, °95.813(4)90
β, °103.239(4)90.775(2)
γ, °96.821(4)90
V, Å3382.85(3)3172.47(13)
μ, mm−110.60110.137
Z18
Dcalc, g/cm34.0553.925
ColorLight greenIntense green
Total reflections412637428
Unique reflections17597219
Reflection with |Fo|≥4σF14915761
Angle range 2θ, °, MoKα5.01 to 54.9986.492 to 55
Rint, Rσ0.0286, 0.03590.0368, 0.0303
R1, wR2 (|Fo| ≥ 4σF)0.0285, 0.06020.0394, 0.0847
R1, wR2 (all data)0.0368, 0.06340.0535, 0.0901
GOOF1.0781.032
ρmin, ρmax, e/Å30.69 / −0.641.57 / −1.94
CSD20922652092266
Table
Table 2. Selected crystallographic and structural complexity parameters for shchurovskyite-type structures.
Table 2. Selected crystallographic and structural complexity parameters for shchurovskyite-type structures.
CompoundK2Cu[Cu3O]2(PO4)4K2.35Cu0.825[Cu3O]2(PO4)4Rb2Ca[Cu3O]2(PO4)4K2Ca[Cu3O]2(AsO4)4K3[Cu5AlO2](AsO4)4
Space GroupP-1P21/nC2C2C2/c
a, Å5.77916.71416.89117.28617.085
b, Å8.26111.2975.6415.6705.719
c, Å8.37216.8038.3598.57316.533
α, β, γ, °95.81, 103.24, 96.8290, 90.77, 9090, 93.92, 9090, 92.95, 9090, 91.72, 90
V, Å3382.83172.5794.6839.21614.7
Z18224
v, atoms/cell31250313162
IG, bits/atom3.9865.974 *4.0514.0514.051
IG, total, bits/cell123.581493.446 *125.58125.58251.16
ReferenceThis workThis work333434
* All the disordered atoms were placed in their average positions.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kornyakov, I.V.; Krivovichev, S.V. Crystal Chemical Relations in the Shchurovskyite Family: Synthesis and Crystal Structures of K2Cu[Cu3O]2(PO4)4 and K2.35Cu0.825[Cu3O]2(PO4)4. Crystals 2021, 11, 807. https://doi.org/10.3390/cryst11070807

AMA Style

Kornyakov IV, Krivovichev SV. Crystal Chemical Relations in the Shchurovskyite Family: Synthesis and Crystal Structures of K2Cu[Cu3O]2(PO4)4 and K2.35Cu0.825[Cu3O]2(PO4)4. Crystals. 2021; 11(7):807. https://doi.org/10.3390/cryst11070807

Chicago/Turabian Style

Kornyakov, Ilya V., and Sergey V. Krivovichev. 2021. "Crystal Chemical Relations in the Shchurovskyite Family: Synthesis and Crystal Structures of K2Cu[Cu3O]2(PO4)4 and K2.35Cu0.825[Cu3O]2(PO4)4" Crystals 11, no. 7: 807. https://doi.org/10.3390/cryst11070807

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
