Preparation, Characterization of Graphitic Carbon Nitride Photo-Catalytic Nanocomposites and Their Application in Wastewater Remediation: A Review

Abstract

Energy crisis and environmental pollution are the major problems of human survival and development. Photocatalytic technology can effectively use solar energy and is prospective to solve the above-mentioned problems. Carbon nitride is a two-dimensional polymer material with a graphite-like structure. It has good physical and chemical stabilities, unique chemical and electronic energy band structures, and is widely used in the field of photocatalysis. Graphitic carbon nitride has a conjugated large π bond structure, which is easier to be modified with other compounds. thereby the surface area and visible light absorption range of carbon nitride-based photocatalytic composites can be insignificantly increased, and interface electron transmission and corresponding photogenerated carriers separation of streams are simultaneously promoted. Therefore, the present study systematically introduced the basic catalytic principles, preparation and modification methods, characterization and calculation simulation of carbon nitride-based photocatalytic composite materials, and their application in wastewater treatment. We also summarized their application in wastewater treatment with the aid of artificial intelligence tools. This review summarized the frontier technology and future development prospects of graphite phase carbon nitride photocatalytic composites, which provide a theoretical reference for wastewater purification.

1. Introduction

With the development of industry and society, water pollution is becoming increasingly serious, which is a worldwide problem of environmental governance [1,2,3]. The sources of water pollution are mainly industrial wastewater, agricultural and domestic sewage [4,5]. At present, several researchers on water environmental pollution mainly focus on the refractory organic pollutants, which is probably due to a longer retention period in the environment and accumulate in the biological chain in the process of continuous material exchange in nature [6,7]. With the composition of organic pollutants becoming sharply complex, the number and types of organic pollutants are increasing rapidly. In addition, their toxicities are also significantly enhanced, causing more serious harm to the water environment [8,9]. Therefore, for the sake of people’s health, economic and social sustainable development, it is urgent to prevent water pollution, protect and improve the environment and ensure the safety of drinking water.

Currently, wastewater remediation is mainly divided into physical, chemical, physical-chemical, and biological treatment methods [10,11]. However, several highly toxic organic compounds are difficult to be effectively removed by traditional treatment way due to their complex chemical structure [12,13,14,15,16]. Therefore, it is urgent to develop effective and emerging technologies used to treat organic wastewater. Photocatalysis is a branch of heterogeneous catalysis, which can use light energy for material conversion. Further, photocatalytic oxidation technology is extensively used in the field of environment and energy, especially for wastewater treatment (i.e., dyes, antibiotics, pesticides), gas purification (NOx, SOx, VOCs, etc.), photolysis of water to produce hydrogen, reduction of CO₂ [17,18,19,20]. Photocatalytic materials mainly include metal oxides (e.g., TiO₂, Fe₂O₃, ZnO, Bi₂O₃ and Cu₂O), metal sulfides (CDs and MoS₂), Bi-based photocatalysts, graphite carbon nitride (g-C₃N₄), elemental semiconductor photocatalysts and monatomic photocatalysts [21,22,23,24,25,26]. Especially, carbon nitride is a new covalent compound, whose hardness is comparable to that of diamond and has not been found in nature [27]. It has a variety of allotypes, including α-C₃N₄, β-C₃N₄, cubic phase C₃N₄, quasi cubic phase C₃N₄ and graphite phase C₃N₄. Among them, the structure of graphite phase C₃N₄ with a similar graphite layer structure is the most stable [28,29]. Graphitic carbon nitride is metal-free, non-toxic, and side effects, has good biocompatibility, abundant in the earth, and readily synthesized [30]. It has excellent chemical and thermal stability, with a bandgap of about 2.7 eV, and fine optical and electrical properties [31,32,33,34]. Its suitable bandgap can respond to visible light, which has important values in the fields of photocatalytic hydrogen decomposition, artificial photosynthesis, organic pollutant degradation and CO₂ reduction [35,36,37,38].

With the development of computer technology and the rise of artificial intelligence, all walks of life have the trend of automation and intelligence [39,40,41,42]. Currently, the wastewater treatment management and control system overly reliant on the experience of knowledge workers to make decisions, and there are many process data. Therefore, it is difficult to be used for process management and control. The application of new generation artificial intelligence technology in wastewater treatment can achieve multi-objective optimal control [43,44]. Up to now, the photocatalytic mechanism, preparation methods and functionalization of g-C₃N₄ and its composites have been widely reported, whereas there are few reports on advanced characterization techniques, computational simulation (i.e., density functional theory, molecular simulation and Monte Carlo) and artificial intelligence tools. Overall, the present study will systematically review the latest progress of g-C₃N₄ photocatalyst, and the basic mechanism and internal key steps of g-C₃N₄ photocatalyst degradation of pollutants. Meanwhile, the present study will exhibit the preparation methods and modification techniques of g-C₃N₄ composites are discussed, and its new characterization techniques and computational simulation. In addition, We will elaborate the application of photocatalyst in wastewater treatment and artificial intelligence tools in the pollutant degradation process. Finally, we will summary the problems and challenges faced by composite materials in the field of photocatalysis and prospect its future development trend to promote the further development of their application in photocatalysis.

2. Basic Principles of Graphitic Carbon Nitride Photocatalytic Nanocomposites for Pollutant Degradation

The band theory can clearly explain the photocatalytic mechanism of g-C₃N₄ photocatalyst. According to the solid band theory, the band structure of semiconductors is discontinuous. There is a bandgap between the valence band (VB) filled with electrons and the empty or dissatisfied conduction band (CB). The size of bandgap determines the redox ability and photo responsiveness of semiconductor photocatalysts. The specific photocatalytic reaction path of g-C₃N₄ is shown in Figure 1.

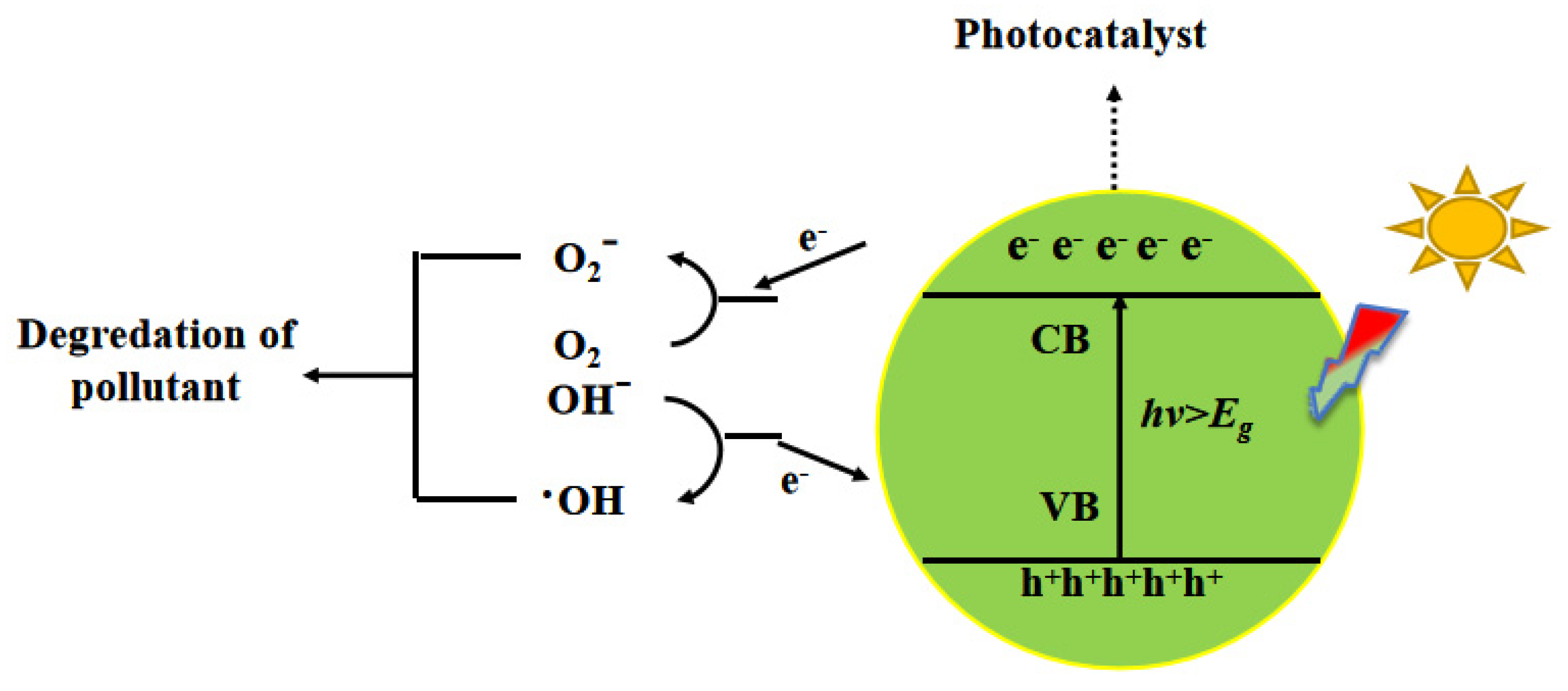

As shown in Figure 1, the photocatalytic reaction occurs when g-C₃N₄ absorbs photons not less than the bandgap energy. The whole catalytic reaction is divided the following into four processes [45,46].

(1)

When the energy absorbed by g-C₃N₄ is equal to or higher than the bandgap energy, the valence band e^- in VB can be excited into CB, and h⁺ can be produced in VB;

(2)

Under the action of the electric field, the photogenerated carrier pairs migrate to the surface of g-C₃N₄, and a part of e^- and h⁺ will be recombined in g-C₃N₄;

(3)

The photogenerated e^- in CB of g-C₃N₄ can react with the dissolved oxygen in solution to form superoxide radical (O²⁻), and h+ reacts with the water molecule active hydroxyl ion adsorbed on the surface of re semiconductor to form hydroxyl radical (OH);

(4)

The generated free radicals can oxidize organics without selectivity or directly oxidize pollutants adsorbed on the surface through holes.

g-C₃N₄ + hv → g-C₃N₄ + e⁻ + h⁺

(1)

H₂O + h⁺ → ·OH + H⁺

(2)

OH⁻ + h⁺ → ·OH

(3)

O₂ + e⁻ → ·O₂

(4)

H₂O + ·O²⁻ → ·OOH + OH⁻

(5)

2·OOH → O₂ + H₂O₂ + OH⁻

(6)

H₂O + e⁻ + ·OOH → H₂O₂ + OH⁻

(7)

H₂O₂ + e⁻ → OH + OH⁻

(8)

Pollutants + ·OH → Degradation + products

(9)

Pollutants + ·O²⁻ → Degradation + products

(10)

Pollutants + h⁺ → Degradation + products

(11)

3. Study on Synthesis and Modification of Graphitic Carbon Nitride Nanomaterials

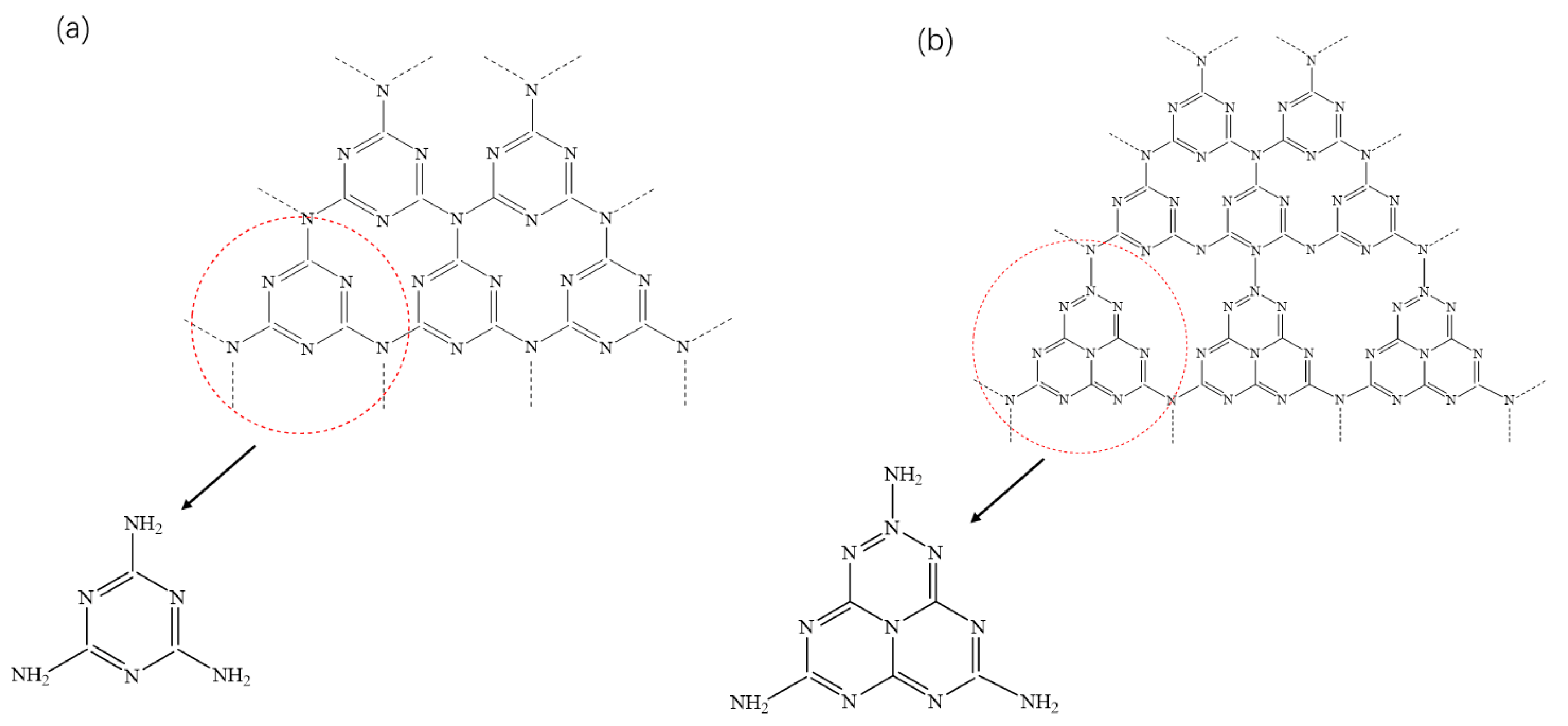

There may be two stable structures in g-C₃N₄, with triazine ring and heptazine ring as the basic structural units, respectively, forming a network structure g-C₃N₄ (Figure 2) [47,48]. In these two structures, the layers are combined by the weak van der Waals force, and the layer spacing is 0.326 nm. The C and N atoms are all hybridized by sp², forming a highly delocalized elementary conjugation system through the lone pair electrons on the p-orbital [49]. Kroke et al. [50] calculated by density functional theory that the binding energy of heptazine ring is smaller than that of triazine ring structure. Consequently, g-C₃N₄ with heptazine ring structure has higher stability and is considered to be the main unit structure of g-C₃N₄ stable structure.

3.1. Synthesis of Graphitic Carbon Nitride Nanomaterials

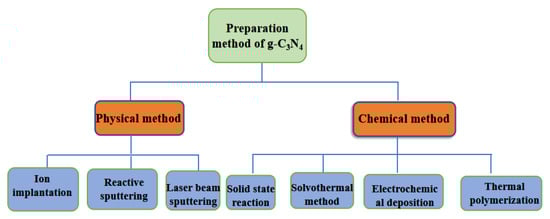

g-C₃N₄ nanomaterials are usually prepared by selecting appropriate carbon and nitrogen sources (i.e., melamine, cyanuric chloride, dicyandiamide, urea and thiourea) as reactants under certain reaction conditions [51,52,53,54,55]. Figure 3 is a diagram of the methods currently used to prepare g-C₃N₄. The most commonly used methods are thermal polymerization, vapor deposition, high temperature, and high-pressure synthesis and solvothermal synthesis [56,57,58].

Thermal polymerization is the preparation of g-C₃N₄ by pyrolysis of nitrogen-rich organic matter and polycondensation of precursor itself. The reaction process is direct, simple, low cost and no pollution to the environment. The results show that the samples prepared by this method have good crystallinity, and the triazine structure is conducive to the growth of graphite-like crystals [59]. It is convenient to add other substances or change the reaction conditions, to adjust the structure of g-C₃N₄ and improve the photocatalytic performance of the materials. Cui et al. [60] synthesized graphitized carbon nitride polymer by thermal polymerization at high temperature (>500 °C) using dicyandiamide as precursor. A certain amount of dicyandiamide was put into a crucible with a cover, calcined in a muffle furnace for 4 h, and then cooled to room temperature to obtain the polymer. Zhang et al. [61] prepared carbon self-doped (C-g-C₃N₄) nanosheets using cyanuric acid, ethylene glycol and melamine as precursors of thermal polymerization, in which ethylene glycol was used as the solvent of cyanuric acid and melamine, and as the source of doped carbon. The results showed that the visible light absorption range of the nanosheets increases and the electron-hole pair separation speeds up. Wu et al. [62] utilized melamine as raw material to prepare g-C₃N₄ by thermal polymerization.

The reaction conditions of g-C₃N₄ prepared by high temperature and high-pressure synthesis method are harsh, and the requirements of reaction equipment are high. Yang et al. [63] synthesized 3D porous g-C₃N₄ heterojunction nanosheets by solid-state synthesis and high-temperature calcination. The nanosheet structure is conducive to charge transfer to the surface and provides more surface active sites, and thus exhibiting excellent photocatalytic performance. This new structure preparation method provides a new idea for other photocatalytic materials.

The vapor deposition method is divided into physical vapor deposition (PVD) and chemical vapor deposition (CVD). PVD method is a kind of thin-film preparation technology in which materials are deposited on the workpiece by physical methods in vacuum, including ion beam sputtering, ion deposition, ion plating and ion implantation. CVD mainly refers to the synthesis of coatings or nanomaterials by one or several gaseous compounds or monomers on the surface of the substrate, which can be used to prepare high-quality g-C₃N₄ [64,65,66] At present, the main methods are electron cyclotron resonance, hot wire assisted, DC glow discharge, RF discharge, and indirect microwave plasma chemical vapor deposition. Dou et al. [67] deposited g-C₃N₄ nanosheets on cellulose-based carbonized paper by chemical vapor deposition and prepared photocatalyst mixed film, which was used to degrade dimethyl dye. The mixed film showed high activity and stability. The large surface area of the substrate is helpful to reduce the size of g-C₃N₄, form three-dimensional thin nanosheets, and reduce the recombination of electron-hole pairs.

Solvothermal synthesis refers to the synthesis of g-C₃N₄ by putting the precursor and solvent together in an autoclave. The reaction temperature is relatively mild, and nitrogen is not easy to lose. Various templates can be added to control the morphology of the product, and microporous, mesoporous, and macroporous materials can be obtained. Hu et al. [68] prepared g-C₃N₄ powder by a new microwave-assisted solvothermal synthesis method at a certain time and temperature, which had a good photocatalytic effect on the degradation of organic dyes under visible light irradiation.

3.2. Modification of Graphitic Carbon Nitride Nanomaterials

The bandgap value of g-C₃N₄ is about 2.7 eV, which can absorb blue-violet light with a wavelength less than 475 nm in the solar spectrum [69]. However, the photocatalytic effect of g-C₃N₄ is poor due to the problems of easy recombination of photogenerated electron-hole pairs, poor conductivity, limited utilization of visible light and small specific surface area. Researchers have modified g-C₃N₄ nanomaterials by template method, chemical doping and physical composite methods [70,71].

The hard template is often used as a “microreactor” in the synthesis process because of its stable structure. The precursor is filled into the pores of the hard template (anodic aluminum oxide film, porous silicon, molecular sieve, carbon nanotubes, etc.) or adsorbed on the surface of the hard template, and then the template material is removed by appropriate methods to obtain the target product [72,73]. The hard template has high stability and good narrow confinement, which can strictly control the size and morphology of nanomaterials. Different morphologies of g-C₃N₄ (e.g., mesoporous g-C₃N₄, hollow g-C₃N₄, nanorods g-C₃N₄, core-shell g-C₃N₄) can be prepared by selecting different hard templates [74,75,76,77]. Luo et al. [78] prepared ordered mesoporous g-C₃N₄ by using melamine as raw material, polysilicon as template, the mixture of raw material and template through thermal polymerization, and then removing polysilicon sacrificial template with a certain concentration of NH₄HF₂. The characterization and experimental results showed that the hollow g-C₃N₄ has a large surface area, enhanced optical absorption range, good carrier separation efficiency and photocatalytic performance.

The soft template method mainly uses organic molecules of surfactants as templates, such as polyvinylpyrrolidone and sodium alkylbenzene sulfonate [79]. The soft template has no fixed rigid structure, and the intermolecular or intramolecular interactions (hydrogen bond, chemical bond and electrostatic force) are used to form clusters with certain structural characteristics. The precursor forms a certain shape of nanomaterials under the action of micelles, and the template must be removed to obtain mesoporous materials just like the hard template. Sun et al. [80] used ultrastable foam as soft template to prepare micrometer porous 3D g-C₃N₄ foam. In addition, Cu₂O QDs were fixed onto 3D g-C₃N₄ foam by simple optical deposition strategy to obtain g-C₃N₄ foam/Cu₂O QDs composites. Characterization and photocatalytic tests of composite materials show that their unique porous structure and the interaction between g-C₃N₄ foam and Cu₂O QDs have excellent photocatalytic activity.

Chemical doping can change the electronic structure of g-C₃N₄ and improve photocatalytic performance. Doping a small number of metal ions (i.e., Fe, Ni, Ti, Cu, Zn, Co) into the g-C₃N₄ structural unit can make it a shallow potential trapping trap of photogenerated electron-hole pair, and prolong the recombination time of electron and hole [81,82,83,84]. Nonmetallic doped elements include O, N, P, S, B, F, etc., which can replace C, N, H elements in 3-S-triazine structural unit, forming the lattice defects of g-C₃N₄, to achieve the effect of efficient photogenerated electron-hole pair separation [85,86,87]. Liu et al. [88] synthesized Fe(III)-doped g-C₃N₄(CNFex) by co-doping Fe(III) with amide group. The results showed that the coordination of Fe(III) can not only promote the transfer of photogenerated electrons of g-C₃N₄ but also transfer the carbon site of triazine ring, which reveals the doping mechanism and action mechanism of element metals in photocatalysis. Liu et al. [89] prepared to defect rich g-C₃N₄ (DCN) modified by N-doped carbon quantum dots (NCD) and used it to degrade rhodamine B. The results show that the modified composite has excellent photocatalytic activity, mainly because the coupling effect between NCD upconversion effect and DCN defect effect enhances the visible light response and inhibits the charge recombination.

Physical composite modification is to date the most convenient and commonly used improvement method. The selected composites mainly include semiconductor materials (i.e., metal oxides, sulfides, metal-organic frameworks), carbon materials (e.g., graphene, graphene oxide, carbon nanotubes), and metal materials (such as precious metals and bimetallic materials) [90,91,92,93,94]. Heterojunction can be formed between g-C₃N₄ and the complex, which can promote the separation and transfer of interface charge. The addition of the complex can also give the catalyst some unique advantages, such as the combination of g-C₃N₄ and Fe₃O₄, which is convenient for the recycling of photocatalysts [95,96].

4. Characterization and Simulation of Graphitic Carbon Nitride Nanocomposites

4.1. Characterization of Graphitic Carbon Nitride Nanocomposites

Material properties determine the application direction of materials, and the performance is often closely related to the structure and chemical composition of materials. It is important to understand the morphology, internal structure, and chemical composition of materials by characterization. The characterization of g-C₃N₄ matrix composites can be analyzed from three aspects: micromorphology, phase structure and composition analysis.

Micromorphology analysis refers to the analysis of the geometry, particle size distribution, composition and phase structure of the micro-region. The main analytical methods include scanning electron microscopy (SEM), transmission electron microscopy (TEM), atomic force microscope (AFM) and scanning tunnel microscope (STM). Figure 4 shows the SEM and HR-TEM images of g-C₃N₄/RGO/Fe₃O₄. Phase analysis refers to the analysis of material composition, distribution and characteristics of each phase, including mineral type, quantity, crystal form, grain size, distribution, combination mode. The common phase analysis methods include X-ray diffraction (XRD), Raman analysis, Fourier transform infrared (FTIR), nuclear magnetic resonance (NMR), micro area electron diffraction (SAED) and ultraviolet-visible light spectroscopy (UV-Vis). Component analysis refers to the analysis of elements and impurities through techniques such as spectroscopy, mass spectroscopy, energy spectroscopy, and chromatography. Those methods include atomic absorption spectrometry (AAS), inductively coupled plasma optical emission spectrometry (ICP-OES), and X-ray fluorescence.

Table 1. Characterization methods of morphology, phase and composition analysis of carbon nitride-based photocatalytic nanocomposites.

	Technology	Analysis Content	References
Morphology analysis	SEM	The surface or fracture morphology of the sample was observed and analyzed	[97]
	TEM	Provide the internal structure information of the sample, such as crystal structure, morphology and stress state	[98]
	AFM	The three-dimensional appearance image of the sample surface can be obtained, and the roughness calculation, thickness, or particle size analysis of the three-dimensional appearance image can be carried out	[99]
	STM	The characteristic image of atomic level sample surface morphology was obtained	[100]
Phase analysis	XRD	Through the preliminary qualitative analysis of the material, the name and chemical formula of the material are determined	[101]
	Raman	The chemical structure, morphology, crystallinity and molecular interaction of the samples were analyzed	[102]
	FTIR	Analysis of group structure of materials	[103]
	NMR	Study the molecular structure, conformation, molecular dynamics, etc.	[104]
	SAED	The morphology and structure of the selected region in the sample were analyzed	[105]
	UV-Vis	The absorption range of the photocatalyst material is reflected, and the energy bandgap of the photocatalyst is calculated by the subsequent formula conversion	[103]
Component analysis	AAS	Qualitative and quantitative analysis of the elements to be determined	[106]
	ICP-OES	Qualitative and quantitative analysis of various metal elements and some non-metal elements were carried out	[107]
	XRF	Simultaneous determination of major, minor and trace elements in solid samples	[108]

shows the basic analysis method to ascertain the morphology, phase and composition of carbon nitride-based photocatalytic nanocomposites.

In addition to the above-mentioned characterization techniques, this review also summarizes the important properties of carbon nitride-based photo-catalytic nanocomposites (e.g., electron-hole separation, charge dynamics, defects, energy band structure), characterization methods of reaction intermediates, and their intermediates after degradation of pollutants are summarized (below).

Commonly used techniques to characterize electron-hole separation are electrochemical impedance spectroscopy (EIS), photocurrent response analysis, steady-state photoluminescence (PL), time-resolved transient fluorescence (TRF), and ultrafast transient absorption (TA) [109,110,111,112,113]. EIS is broadly considered an effective means to evaluate the ability of photoinduced carrier separation. The resistance of charge transfer can be judged by comparing the radius of the semicircle area. The smaller the radius, the smaller the impedance of charge transfer, and the higher the charge separation degree. Photocurrent response analysis means that when the material is excited by light energy, the valence band electrons are excited and jump to the conduction band. Under the action of strong electric field, the conduction band electrons will move in a directional direction to form photocurrent. Higher photocurrent response indicates better charge separation performance. The recombination degree of photogenerated electron and hole can be determined by the peak intensity of PL spectrum. TRF can obtain time-resolved fluorescence spectrum by testing, analyze and fit the fluorescence lifetime, to obtain the separation effect of photogenerated electrons and holes. TA means that high-energy pump light is used to excite the material in the ground state to the excited state, and then a low-energy probe light is used to detect the relaxation process of the excited state level particles. The relaxation time represents the length of the electron lifetime, which can be used to analyze the dynamics of particles with very short lifetime.

When the material is excited by light, the separation and migration of photogenerated electrons and holes are very important for the photocatalytic activity of the material. Cui et al. [114] synthesized WO₃/g-C₃N₄ composite photocatalyst from urea to degrade rhodamine B under visible light irradiation. The results showed that the photocatalytic activity of WO₃/g-C₃N₄ composite is better than that of pure WO₃, g-C₃N₄, and other WO₃/g-C₃N₄ materials. Based on the comparative analysis of EIS and PL, a possible Z-type photocatalysis mechanism is proposed, which can well explain the enhancement mechanism of photogenerated electron and hole mobility in composite heterostructures. Cui et al. [115] controlled the morphology of g-C₃N₄ and prepared carbon nitride with onion ring morphology. The main reason was that the catalyst with onion ring morphology is conducive to the separation of photogenerated carriers. Photocurrent analysis showed that the photogenerated electrons were separated effectively, and PL analysis showed that the recombination of photogenerated electrons and holes was significantly inhibited. Combined with photocurrent analysis, PL and EIS, the important influence of morphology control on photogenerated electron-hole separation of carbon nitride was explored.

Characterization of reaction intermediates includes capture and quenching of reaction intermediates, detection and analysis, etc. Active substance capture experiment by adding active substance capture agent in the photocatalytic system to study the change of photocatalytic performance, we can confirm which active substance plays the role of photocatalysis [116]. The fluorescent labeling method uses free radicals to react specifically with some substances to produce substances with fluorescent properties. By adding this fluorescent marker in the photocatalytic reaction, and then using the fluorescence spectrum to test after the reaction, the type of free radicals can be determined [117]. Electron paramagnetic resonance (ESR) is used to analyze the types of free radicals in the process of photocatalysis, and the determination process is fast, direct and effective [118]. GC-MS and LC-MS can identify the intermediate products after photocatalytic degradation of pollutants, to deduce the possible degradation pathway. With high resolution and sensitivity, GC-MS is widely used in the separation and identification of complex components. It is an effective tool for qualitative and quantitative analysis of drugs and metabolites in biological samples. LC-MS is mainly used in drug metabolism, pharmacokinetics, natural drug development, residue analysis and toxicological analysis. Tang et al. [119] prepared double Z scheme g-C₃N₄/Ag₃PO₄/AgI composite photocatalyst by in situ ion exchange method of Z scheme Ag₃PO₄/g-C₃N₄. Compared with pure g-C₃N₄, silver phosphate, silver iodide and their binary composites, the double Z-type photocatalyst has a better degradation effect in the degradation of pyrazine. The results of PL and transient photocurrent response showed that the separation efficiency of photo-induced electrons and pores of the composite is significantly improved, which was conducive to improving its photocatalytic activity. The active species capture experiment and ESR showed that the main active substances for nitenpyram degradation were O²⁻ and h⁺. The possible degradation pathway of nitenpyram was deduced by LC-MS. Under the continuous attack of O²⁻ and other active species, nitenpyram was finally oxidized into carbon dioxide and water.

4.2. Numerical Simulation and Characterization of Graphitic Carbon Nitride Nanocomposites

The data of microstructure, physicochemical properties, and characterization parameters of materials can be obtained by calculation, which is a supplement and in-depth excavation to the traditional material science dominated by experiments. The combination of computational simulation and test characterization can verify the experimental results or explain the mechanism. Commonly used calculation and simulation methods include density functional first-principles calculations, molecular dynamics and Monte Carlo methods [120].

The first-principles calculation is based on spin-polarized density functional theory (DFT), which was proposed by Perdew, Burke and Ernzerhof. The calculation does not rely on any empirical parameters, only needs to know the atomic species of each element in the microscopic system, and directly solve the Schrodinger equation through DFT calculation software [121,122]. In the computational material, by optimizing its geometric structure and calculating the energy of the system, important information such as the energy band structure, the density of states, and the charge distribution is obtained, and then the system is analyzed quantitatively in theory. Shi et al. [123] successfully synthesized the g-C₃N₄/NaNbO₃ nanowire composite photocatalyst. DFT and Mulliken electronegativity calculations show that the conduction band bottom and valence band top potentials of NaNbO₃ and g-C₃N₄ are −0.77, 2.63 and −1.13 and 1.57 eV, respectively. Wang et al. [124] proposed a metal-free C₃N/g-C₃N₄ heterojunction and explored its electronic structure, charge distribution and photocatalytic performance through DFT calculations. The results show that the C₃N/g-C₃N₄ heterojunction is expected to be a direct Z-scheme photocatalyst, which is due to the band bending caused by charge transfer between C₃N and g-C₃N₄. In addition, the photogenerated electron and hole heterojunction in C₃N/g-C₃N₄ can not only be effectively separated, the visible light absorption range is significantly enhanced, but also has a strong redox ability.

Molecular dynamics is a computational method based on the statistical mechanics of classical physics. By solving the intermolecular interaction potential function and the equation of motion, it gives the relationship between the microscopic quantity and the macroscopic observability, thus study the equilibrium and mechanical properties of the composite system. Wang et al. [125] prepared B-doping in g-C₃N₄ nanosheets (BCN) by introducing boron into g-C₃N₄. Experiments results and molecular dynamics simulation showed that the B-N-C bond constructed by B-doping can not only anchor the exposed active N atoms on the surface of carbon nitride stably but also effectively inhibit the photogenerated carrier recombination of g-C₃N₄ by forming a nano-level p-n junction. N₂ chemisorption test and molecular dynamics simulation show that the introduction of B atom site becomes the active site of N₂ molecular adsorption and activation, which is conducive to the photocatalytic reaction.

The Monte Carlo method is a random sampling statistical method based on probability theory and mathematical statistics, which uses random numbers (or more common pseudo-random numbers) to solve practical problems. It is often used to solve some real-life problems with “random” properties and study some experiments with physical quantities that are difficult to observe under current conditions. According to the law of large numbers, a large number of repeated experiments are needed to make random independent events present statistical results with certain regularity [126]. Chen et al. [127] prepared single atom heterogeneous catalysts by adding metals (Pd, Ag, Ir, Pt or Au) into different forms of g-C₃N₄ (block, mesoporous and spalling form). Employing density functional theory and dynamic Monte Carlo simulation, the dispersion of different metals is rationalized, and the interaction between adsorption energetics and diffusion kinetics is emphasized. The evaluation of the continuous three-phase semi hydrogenation of 1-hexene shows that controlling the metal carrier interaction and the metal sites exposed to the surface layer are the key challenges in the design of efficient Sachs.

5. Application of Graphitic Carbon Nitride Photocatalytic Nanocomposites in Organic Wastewater Treatment

Photocatalytic technology has been widely concerned by researchers in wastewater treatment. It can transform organic pollutants into small molecules of CO₂ and water through an oxidation-reduction reaction. It is an ideal green technology with great application value and potential. In wastewater treatment, carbon nitride-based photocatalytic nanocomposites mainly treat dye wastewater (Rhodamine B, methylene blue, etc.) and pharmaceutical wastewater (antibiotics and pesticides). The specific utilization is summarized in

Table 2. g-C₃N₄ composites and their photocatalytic degradation of organic pollutants.

Composite	Pollutant	Percentage Degradation	Reaction Time	Source	Oxidizing Species	Reference
g-C3N4/TiO2	phenol	16.5%	120 min	visible light (>420 nm).	O2−	[128]
mesoporous carbon nitride	amoxicillin and cefotaxime	40%, 80%	60 min	300 W xenon lamp (with filter >420 nm)	O2−	[129]
N-TiO2/CNONV-2	tetracycline hydrochloride	79.9%	160 min	visible light	O2− and h+	[130]
Cl-doped porous g-C3N4	tetracycline	92%	120 min	300 W xenon lamp	O2− and h+	[131]
CDs/g-C3 N4/SnO2	indomethacin	90.8%	80 min	350 W xenon lamp	O2− and h+	[132]
g-C3N4(1.5wt.%)/HAp	tetracycline	100%	15 min	300 W Xe arc lamp	O2− and h+	[133]
GQdots/Mn−N−TiO2/g-C3N4	ciprofloxacin	89%	120 min	300 W Xe lamp	OH	[134]
Ag3PO4/GO/g-C3N4	rhodamine B	94.8%	50 min	visible light	OH, O2− and h+	[135]
POCN/anatase TiO2 1-1	enrofloxacin	98.5%	60 min	350 W xenon lamp	O2− and h+	[136]
CoP-HCCN	tetracycline	96.7%	120 min	visible light	OH, ·O2− and h+	[137]
WO3/g-C3N4/Bi2O3	tetracycline	80.2%	60 min	300 W Xe lamp	OH, ·O2− and h+	[138]
Oxygen functional carbon nitride	ten typical herbicides (e.g., acetochlor, pretilachlor)	N.A.	>180 min	visible-light (λ > 400 nm)	OH, h+	[139]
g-C3N4/Bi4O5I2	methyl orange	0.164 min−1	50 min	visible light	O2− and h+	[140]
CeO2/g-C3N4 nanosheet	toward bisphenol A	93.7%	80 min	300 W Xe lamp	O2− and h+	[141]

.

Deng et al. [142] prepared CD-rGO-O-g/C₃N₄ by adjusting energy band, optimizing charge extraction and decorating cocatalyst to change the photocatalytic behavior of g/C₃N₄, and used it to degrade lincomycin. The results show that the degradation rate of the optimized photocatalyst is ten times higher than that of the original g/C₃N₄. Li et al. [143] introduced Cu²⁺ into g-C₃N₄ to improve the photocatalytic degradation activity of g-C₃N₄. The doped Cu²⁺ can be used as an electron capture site, which is helpful for the separation of photogenerated electron-hole pairs and the interface charge transfer. The degradation of rhodamine B by Cu/g-C₃N₄ and g-C₃N₄ monomers was investigated, and the mechanism of Rhodamine B degradation was studied by radical capture experiment. Deng et al. [144] designed and synthesized unique ultra-thin 1D/2D W₁₈O₄₉/g-C₃N₄ nanocomposites through reasonable band structure and multi-scale structure, and used them for the degradation of ibuprofen. The results show that the composite has a good photocatalytic degradation ability of ibuprofen under simulated standard sunlight (the removal rate of IBF can reach 96.3% under am 1.5 g illumination for 60 min), and the degradation ability of ibuprofen under near-infrared illumination is also better than that of pure g-C₃N₄ and W₁₈O₄₉ (under near-infrared illumination for 120 min, the degradation rate of IBF is higher than that of pure g-C₃N₄ and W₁₈O₄₉), The degradation rate of IDF by UWN-3 was 39.2%.

To improve the utilization rate of carbon nitride nanocomposite materials, the nanomaterials can be recovered by recycling equipment, magnetic separation, precipitation, and other methods. Chu et al. [145] designed a specific device to recover the photocatalyst supported by g-C₃N₄/active carbon fiber. The results show that the modified device is suitable for the high-efficiency and recyclable treatment of organic wastewater, which opens up a feasible way for the development of high-efficiency photocatalytic technology that can recycle and degrade environmental pollutants. Kumar et al. [146] used magnetic materials to recycle TACN/TiO₂/Fe₃O₄@SiO₂ nanocomposite materials. The recovered materials can be recycled within 5 h without calcination or heating, and the photocatalytic efficiency remains above 83% after five cycles.

6. Artificial Intelligence Prediction and Optimization

Modeling and optimization of photocatalytic degradation of wastewater by neural network is a hot topic in this field [147]. It is essentially a parallel distribution and can mimic the human brain’s information processing system in varying degrees and levels. It adopts a completely different mechanism from traditional information processing technology and overcomes the shortcomings of processing intuition and unstructured information. This has the characteristics of self-adaptation, self-organization and real-time learning, so it can predict complex multi-dimensional problems in catalysis [148,149]. At present, the most common neural networks are perceptron network, BP network, genetic algorithm neural network, particle swarm optimization neural network, radial basis function neural network.

The artificial neural network has been proved to be an effective method to develop complex nonlinear prediction model, which can predict the effect of catalyst dosage, pH value, time and other factors on the degradation effect, and obtain the optimal reaction conditions. Dorraji et al. [150] synthesized polymer g-C₃N₄ by heating with melamine as precursor and used it for degradation of Reactive Black 5. They used an artificial neural network to establish the relationship between input independent variables and output dependent variables. They utilized an artificial neural network to establish the relationship between input variables and output variables, and combined with genetic algorithm to model and optimize the four operation parameters (pH, initial dye concentration, g-C₃N₄ dosage and time) in the process of photocatalytic degradation, to obtain the optimal operation conditions. Gupta et al. [151] utilized the prepared 3D S-C₃N₄/ZnO to degrade ciprofloxacin and predicted the optimal experimental conditions with the help of neural network multivariable method. The input value and target value are set as the experimental conditions of five parameters (catalyst dosage, pH, initial concentration, temperature and time) and the corresponding degradation rate. Through comparing predicted value, experimental value, error value, Marquardt’s percent standard deviation and X² square test statistics to get the best experimental conditions.

7. Concluding Remarks and Future Outlook

The present study systematically introduces the basic catalytic principle, preparation, modification, characterization and computational simulation of carbon nitride-based photocatalysis composites. It is also summarized for the latest research progress of them with the aid of artificial intelligence tools in wastewater treatment. To sum up, some promising results have been reported so far, but the research in this field is still in the initial stage, which needs further development. It is worth noting that the photocatalytic efficiency of composite materials is relatively low, and the stability is poor. There are still some challenges in preparing high-performance carbon nitride-based photocatalysts. In addition, its photocatalytic mechanism needs to be studied in depth. Based on the above discussion, the related issues to be further studied and clarified in the future are as follows:

(1)

With the help of new characterization techniques, the charge transfer path and photocatalytic mechanism of carbon nitride-based composites were further elucidated, such as X-ray absorption spectrum fine structure, high-energy resolution fluorescence-detected X-ray absorption spectroscopy, vacuum ultraviolet photoionization mass spectrometry, photoelectric emission technology, angle-resolved photoelectron spectroscopy, and material structure analysis;

(2)

DFT theoretical calculation is more widely used in the field of photocatalysis, which can provide important information support for elucidating the optimal performance of modified g-C₃N₄ and predicting its catalytic reaction efficiency;

(3)

The application of intelligent nanodevices (e.g., micro-robots) combined with photocatalyst in wastewater treatment can quickly remove pollutants in wastewater and can be recycled after recycling, which is expected to bring an efficient and economic wastewater purification method.
