Single Crystal Growth and Physical Properties of Pyroxene CoGeO₃

by

Li Zhao

¹,

Zhiwei Hu

¹,

Hanjie Guo

^1,2

,

Christoph Geibel

¹,

Hong-Ji Lin

³,

Chien-Te Chen

³,

Daniel Khomskii

⁴,

Liu Hao Tjeng

¹ and

Alexander C. Komarek

^1,*

¹

Max-Planck Institute for Chemical Physics of Solids, Nöthnitzer Str. 40, D-01187 Dresden, Germany

²

Neutron Science Platform, Songshan Lake Materials Laboratory, Dongguan, Guangdong 523808, China

³

National Synchrotron Radiation Research Center, 101 Hsin-Ann Road, Hsinchu 30076, Taiwan

⁴

Physics Institute II, University of Cologne, Zülpicher Str. 77, 50937 Cologne, Germany

^*

Author to whom correspondence should be addressed.

Crystals 2021, 11(4), 378; https://doi.org/10.3390/cryst11040378

Submission received: 16 March 2021 / Revised: 29 March 2021 / Accepted: 1 April 2021 / Published: 5 April 2021

(This article belongs to the Section Inorganic Crystalline Materials)

Download

Browse Figures

Versions Notes

Abstract

We report on the synthesis and physical properties of cm-sized CoGeO

_{3}

single crystals grown in a high pressure mirror furnace at pressures of 80 bar. Direction dependent magnetic susceptibility measurements on our single crystals reveal highly anisotropic magnetic properties that we attribute to the impact of strong single ion anisotropy appearing in this system with T

_{N}

∼33.5 K. Furthermore, we observe effective magnetic moments that are exceeding the spin only values of the Co ions, which reveals the presence of sizable orbital moments in CoGeO

_{3}

.

Keywords:

floating zone method; single crystal growth; pyroxene; magnetic susceptibility; X-ray diffraction; X-ray absorption spectroscopy

1. Introduction

Pyroxenes are one of the main rockforming minerals in the Earth’s crust [1,2,3,4] and have the general formula AMX

_{2}

O

_{6}

(A = mono- or divalent metal, M = di- or trivalent metal, X = Si

^{4 +}

, Ge

^{4 +}

or V

^{5 +}

). This class of materials gained considerable interest due to their large amount of diverse properties [5,6] including the observation of multiferroicity and magnetoelectric effects [7]. The quasi 1D system CoGeO

_{3}

having two Co sites belongs to the family of pyroxene minerals [8] and crystallizes in two polymorphs [8,9]—the monoclinic polymorph is stable above 1351

^{°}

C and the orthorhombic one below this temperature [9]. As reported in literature, single crystals of the monoclinic phase with space group

C 2 / c

(a = 9.64 Å, b = 8.99 Å, c = 5.15 Å and

β

= 101

^{°}

10′) have been grown from the melt with crystal sizes of the order of 1 × 0.25 × 0.1 mm

^{3}

[9]. The corresponding pyroxene structure of monoclinic CoGeO

_{3}

[10] consist of Co1 ions that are forming CoO

_{6}

octahedral zigzag chains running in c-direction, with adjacent Co2 octahedra, compare Figure 1. The so formed Co ladders (or double-zig-zag chains) are separated by GeO

_{4}

tetrahedra from each other. Throughout this article, we refer to the monoclinic form of CoGeO

_{3}

, which orders antiferromagnetically below T

_{N}

∼ 36 K [8].

2. Results and Discussion

A photo of our several cm

^{3}

-sized, as-grown single crystal of CoGeO

_{3}

is shown in Figure 2a. Powder XRD measurements performed on crushed and powderized parts of the single crystal indicate an impurity-free monoclinic phase, compare Figure 3. The lattice parameters obtained from a Rietveld-refinement can be found in the crystal structure table (Table 1). X-ray Laue and single crystal X-ray diffraction measurements indicate the single crystalline nature of our as-grown crystal. As can be seen in Figure 2b, the single crystals are twined with the underlying twin matrix (−1 0 −0.732, 0 1 0, 0 0 1). A precise structural analysis by means of single crystal X-ray diffraction has been performed which confirms that we have synthesized the monoclinic pyroxene CoGeO

_{3}

—see Table 1 and Table 2. The resulting positional parameters (x, y, z) for the six different atoms in the asymmetric unit are in agreement with literature data [10], but within the high precision of our measurement we were additionally able to determine the anisotropic displacement parameters—see Table 1 and Table 2. From the obtained structural parameters, the accurate bond distances could also be determined, see Table 3. According to the bond valence sum (BVS) formalism, these results indicate Co oxidation states that are very close to 2+, see Table 3.

The oxidation state of the Co ions in CoGeO

_{3}

was further investigated by soft X-ray absorption spectroscopy (XAS) measurements at the Co L

_{2, 3}

edge in the total electron yield mode using a CoO single crystal as a Co

^{2 +}

reference. The similarity of the Co-L

_{2, 3}

XAS spectra of CoGeO

_{3}

and CoO, see Figure 4, reveals a Co

^{2 +}

high spin state in octahedral coordination [11,12,13] in CoGeO

_{3}

. These observations corroborate the results of the BVS for the Co ions and further confirm the stoichiometry of our single crystals.

The magnetic susceptibility

χ

of CoGeO

_{3}

shows a drop at T

_{N}

∼ 33.5 K, see Figure 5. The transition to an antiferromagnetic state is in agreement with literature [8]. The availability of sizeable single crystals allowed us to measure also the direction dependence of the magnetic susceptibility. These direction dependent measurements (with

H | | c

and

H ⊥ c

) reveal a highly anisotropic behavior of

χ

. The Weiss temperatures

Θ_{W}

obtained from Curie–Weiss fits even have different signs for

H | | c

and

H ⊥ c

and amount to 45.08 K and −49.55 K, respectively. This strong anisotropy arises from the presence of single ion anisotropy in the system which is typical for Co

^{2 +}

-ions [11,14]. Moreover, the corresponding effective moments

μ_{eff}

amount to 4.76

μ_{B}

and 5.18

μ_{B}

respectively. The value of the effective moments in CoGeO

_{3}

is much larger than the theoretical spin-only value for Co

^{2 +}

ions of 3.87

μ_{B}

and suggests that the Co

^{2 +}

ions are in a high spin state with large orbital moment contributions. For powder samples, the Weiss temperatures

Θ_{W}

amount to 6.46 K with effective moments

μ_{eff}

of 4.98

μ_{B}

.

3. Materials and Methods

The floating zone growth of monoclinic CoGeO

_{3}

was carried out in a high pressure optical mirror furnace (HKZ, SciDre GmbH). Initially, Co

_{3}

O

_{4}

and GeO

_{2}

with an excess of 3% GeO

_{2}

were mixed together and sintered at 1200

^{°}

C for 72 h with intermediate grindings. From these powders, polycrystalline rods were made using a hydrostatic press and subsequently sintered at 1300

^{°}

C for 24 h.

During the floating zone growth, pressures of 80 bar of an Argon/O

_{2}

mixture (with a ratio of 98:2) were used and a growth rate of 3.6 mm per hour was successful for growing large (twined) CoGeO

_{3}

single crystals (heating power ∼2700 W).

Powder and single crystal X-ray diffraction (XRD) measurements have been performed on a Bruker D8 Discover A25 (Cu

K_{α 1}

radiation) and on a Bruker D8 VENTURE diffractometer (Mo

K_{α}

radiation), respectively.

Soft X-ray absorption spectroscopy measurements have been performed at the BL11A Beamline of National Synchrotron Radiation Research Centre (NSRRC) in Taiwan. The Co-

L_{2, 3}

edge were recorded in the total electron yield method with a probing depth of about 40 Å [18]. The samples were cleaved in-situ under ultra-high vacuum conditions to ensure atomically clean sample surfaces. The pressure in the measurement chamber is in the low 10

^{- 10}

mbar range.

Direction dependent magnetic properties of single crystals of CoGeO

_{3}

were initially studied using a SQUID magnetometer (MPMS-5XL, Quantum Design Inc.).

4. Conclusions

We have grown sizable single crystals of CoGeO

_{3}

in a high pressure floating zone furnace that were characterized by XRD and XAS measurements. Our direction dependent magnetic susceptibility measurements on our single crystals reveal highly anisotropic magnetic properties with large effective moments of ∼5

μ_{B}

per Co ion, which are indicative for (i) the significance of single ion anisotropy and (ii) the occurrence of large orbital moments in this system.

Author Contributions

Floating zone growth: A.C.K. and L.Z.; magnetic susceptibility measurements: L.Z.; powder and single crystal XRD measurements: A.C.K. measurements: L.Z., Z.H. and H.-J.L.; interpretation and writing: L.Z., Z.H., H.G., C.G., H.-J.L., C.-T.C., D.K., L.H.T. and A.C.K. All authors have read and agreed to the published version of the manuscript.

Funding

The research in Dresden was partially funded by the Deutsche Forschungs-gemeinschaft through SFB 1143 (Project-Id 247310070) and the work in Cologne (D. I.K.) by the Deutsche Forschungsgemeinschaft through CRC 1238 (Project-Id 277146847).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon request.

Acknowledgments

We acknowledge support for the XAS experiments from the Max Planck-POSTECH-Hsinchu Center for Complex Phase Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

Morimoto, N.; Fabries, J.; Ferguson, A.K.; Ginzburg, I.V.; Ross, M.; Seifert, F.A.; Zussman, J.; Aoki, K.; Gottardi, G. Nomenclature of pyroxenes. Am. Miner. 1988, 73, 1123–1133. [Google Scholar]
Lindsley, D.H. Pyroxene thermometry. Am. Miner. 1983, 68, 477–493. [Google Scholar]
Boyd, F. A pyroxene geotherm. Geochim. Cosmochim. Acta 1973, 37, 2533–2546. [Google Scholar] [CrossRef]
Warren, J.M.; Hauri, E.H. Pyroxenes as tracers of mantle water variations. J. Geophys. Res. Solid Earth 2014, 119, 1851–1881. [Google Scholar] [CrossRef]
Vasiliev, A.N.; Ignatchik, O.L.; Sokolov, A.N.; Hiroi, Z.; Isobe, M.; Ueda, Y. Long-range magnetic order in quasi-one-dimensional chromium-based (S = $\frac{3}{2}$ ) pyroxenes (Li, Na)Cr(Si, Ge)₂O₆. Phys. Rev. B 2005, 72, 012412. [Google Scholar] [CrossRef]
Streltsov, S.V.; Popova, O.A.; Khomskii, D.I. Comment on “Sodium Pyroxene NaTiSi₂O₆: Possible Haldane Spin-1 Chain System”. Phys. Rev. Lett. 2006, 96, 249701. [Google Scholar] [CrossRef] [PubMed]
Jodlauk, S.; Becker, P.; Mydosh, J.A.; Khomskii, D.I.; Lorenz, T.; Streltsov, S.V.; Hezel, D.C.; Bohatý, L. Pyroxenes: A new class of multiferroics. J. Phys. Condens. Matter 2007, 19, 432201. [Google Scholar] [CrossRef]
Redhammer, G.J.; Senyshyn, A.; Tippelt, G.; Pietzonka, C.; Roth, G.; Amthauer, G. Magnetic and nuclear structure and thermal expansion of orthorhombic and monoclinic polymorphs of CoGeO₃ pyroxene. Phys. Chem. Miner. 2010, 37, 311–332. [Google Scholar] [CrossRef]
Tauber, A.; Kohn, J.A. Orthopyroxene and clinopyroxene polymorphs of CoGeO₃. Am. Miner. 1965, 50, 13–21. [Google Scholar]
Peacor, D.R. The crystal structure of CoGeO3*. Z. Krist. 1968, 126, 299–306. [Google Scholar] [CrossRef]
Burnus, T.; Hu, Z.; Hsieh, H.H.; Joly, V.L.J.; Joy, P.A.; Haverkort, M.W.; Wu, H.; Tanaka, A.; Lin, H.J.; Chen, C.T.; et al. Local electronic structure and magnetic properties of LaMn_0.5Co_0.5O₃ studied by x-ray absorption and magnetic circular dichroism spectroscopy. Phys. Rev. B 2008, 77, 125124. [Google Scholar] [CrossRef]
Chang, C.F.; Hu, Z.; Wu, H.; Burnus, T.; Hollmann, N.; Benomar, M.; Lorenz, T.; Tanaka, A.; Lin, H.J.; Hsieh, H.H.; et al. Spin Blockade, Orbital Occupation, and Charge Ordering in La_1.5Sr_0.5CoO₄. Phys. Rev. Lett. 2009, 102, 116401. [Google Scholar] [CrossRef] [PubMed]
Burnus, T.; Hu, Z.; Wu, H.; Cezar, J.C.; Niitaka, S.; Takagi, H.; Chang, C.F.; Brookes, N.B.; Lin, H.J.; Jang, L.Y.; et al. X-ray absorption and x-ray magnetic dichroism study on Ca₃CoRhO₆ and Ca₃FeRhO₆. Phys. Rev. B 2008, 77, 205111. [Google Scholar] [CrossRef]
Khomskii, D.I. Transition Metal Compounds; Cambridge University Press: Cambridge, UK, 2014. [Google Scholar]
Petricek, V.; Dusek, M.; Palatinus, L. Crystallographic Computing System JANA2006: General features. Z. Krist. 2014, 229, 345. [Google Scholar]
Rodrguez-Carvajal, J. Recent advances in magnetic structure determination by neutron powder diffraction. Physica B 1993, 192, 55–69. [Google Scholar] [CrossRef]
Brown, I.D.; Altermatt, D. Bond-valence parameters obtained from a systematic analysis of the Inorganic Crystal Structure Database. Acta Cryst. 1985, B41, 244–247. [Google Scholar] [CrossRef]
De Groot, F. X-ray absorption and dichroism of transition metals and their compounds. J. Electron Spectrosc. Relat. Phenom. 1994, 67, 529–622. [Google Scholar] [CrossRef]

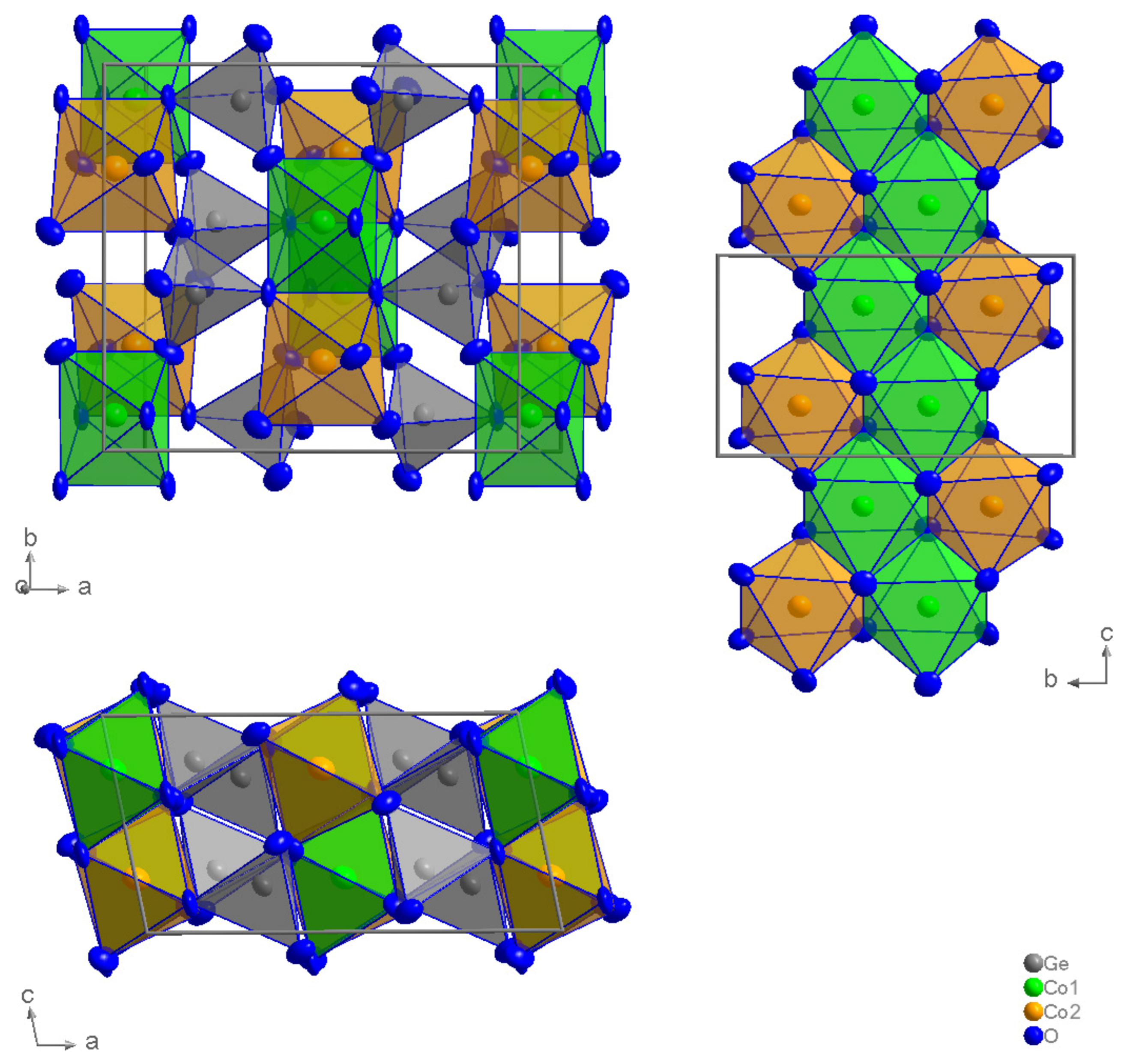

Figure 1. Crystal structure of CoGeO

_{3}

. The atoms are indicated by 99.9% probability ellipsoids obtained from single crystal X-ray diffraction (see Table 1 and Table 2); grey: germanium (Ge1), green: cobalt (Co1), dark yellow: cobalt (Co2) and blue: oxygen (O1–O3) atoms.

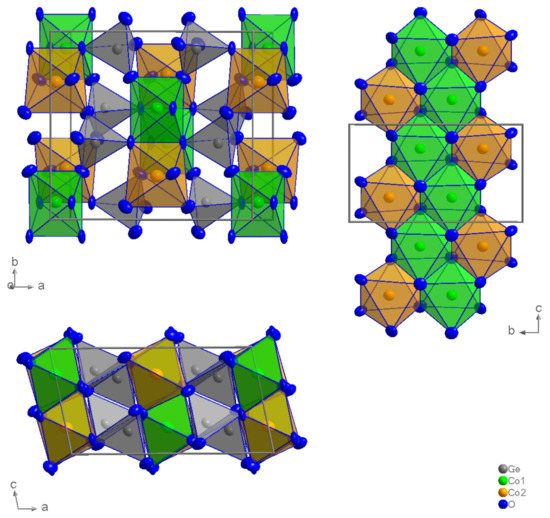

Figure 1. Crystal structure of CoGeO

_{3}

. The atoms are indicated by 99.9% probability ellipsoids obtained from single crystal X-ray diffraction (see Table 1 and Table 2); grey: germanium (Ge1), green: cobalt (Co1), dark yellow: cobalt (Co2) and blue: oxygen (O1–O3) atoms.

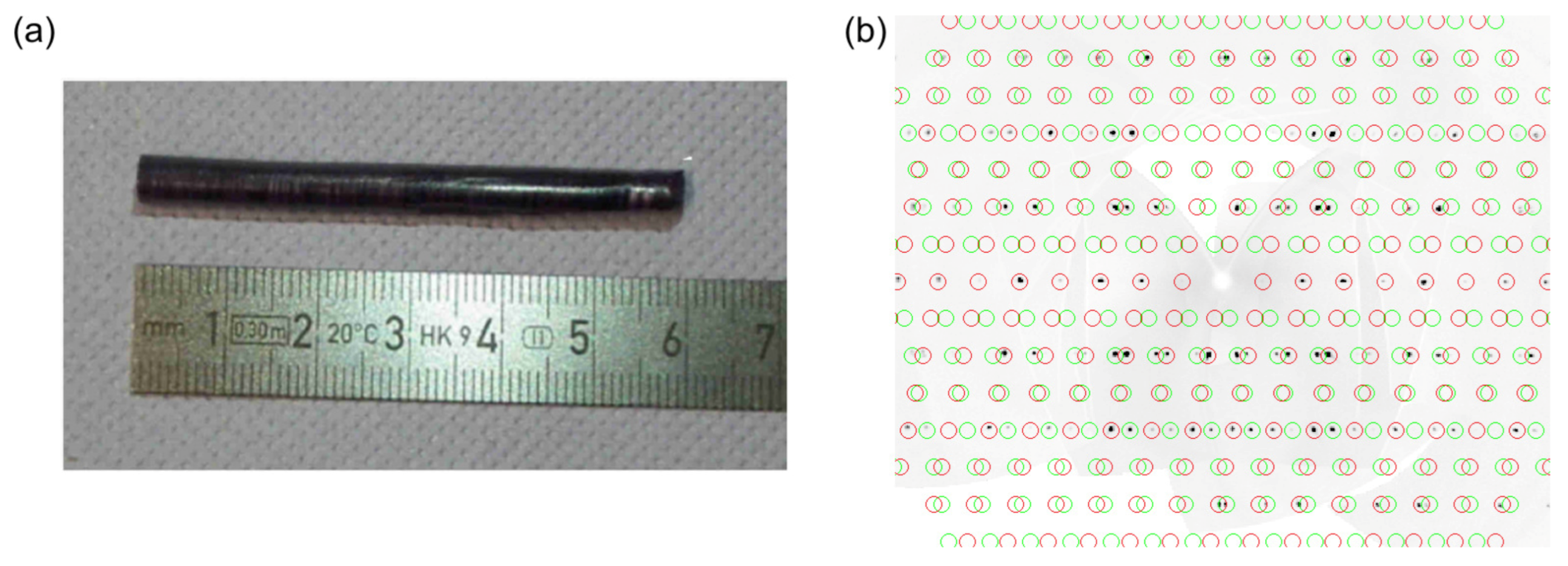

Figure 2. (a) Single crystal of CoGeO

_{3}

grown in a high pressure mirror furnace; (b) intensities in the H0L plane of reciprocal space measured by means of single crystal X-ray diffraction, compare Table 1. These measurements reveal twinning in our single crystals with the twin law matrix (−1 0 −0.732, 0 1 0, 0 0 1). The green and red circles indicate reflections belonging to twin domain A or B.

Figure 2. (a) Single crystal of CoGeO

_{3}

grown in a high pressure mirror furnace; (b) intensities in the H0L plane of reciprocal space measured by means of single crystal X-ray diffraction, compare Table 1. These measurements reveal twinning in our single crystals with the twin law matrix (−1 0 −0.732, 0 1 0, 0 0 1). The green and red circles indicate reflections belonging to twin domain A or B.

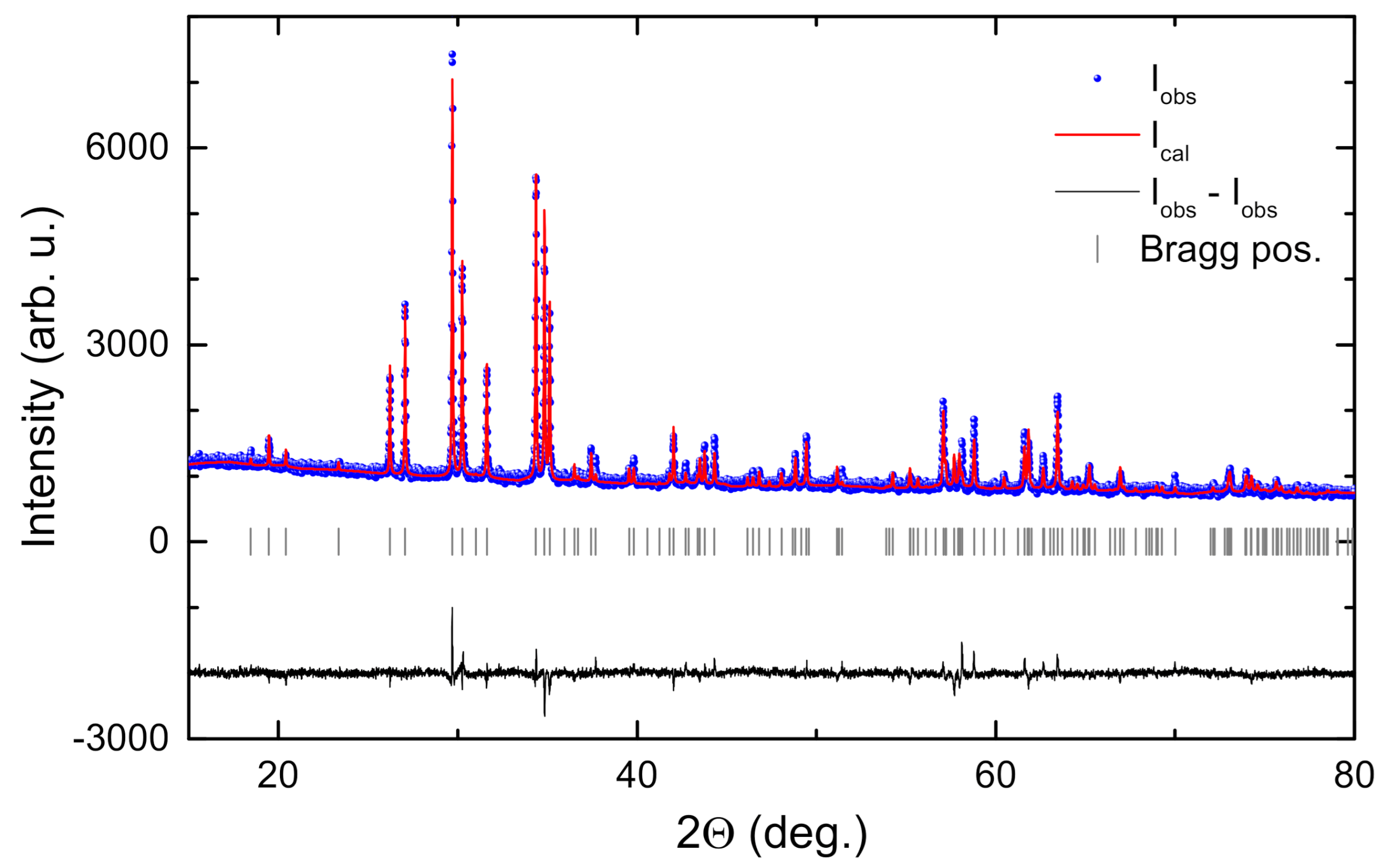

Figure 3. Powder X-ray diffraction pattern of a crushed CoGeO

_{3}

single crystal.

Figure 3. Powder X-ray diffraction pattern of a crushed CoGeO

_{3}

single crystal.

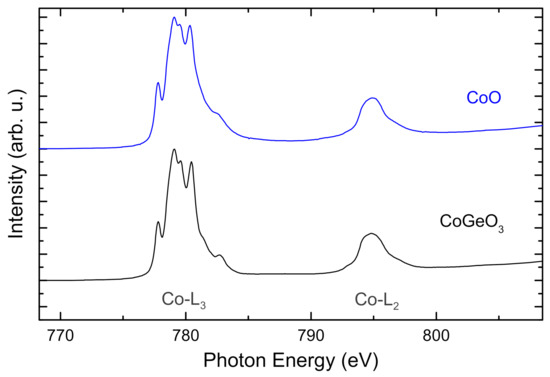

Figure 4. (Isotropic) X-ray absorption spectra of CoGeO

_{3}

and of CoO at the Co L

_{2, 3}

edge.

Figure 4. (Isotropic) X-ray absorption spectra of CoGeO

_{3}

and of CoO at the Co L

_{2, 3}

edge.

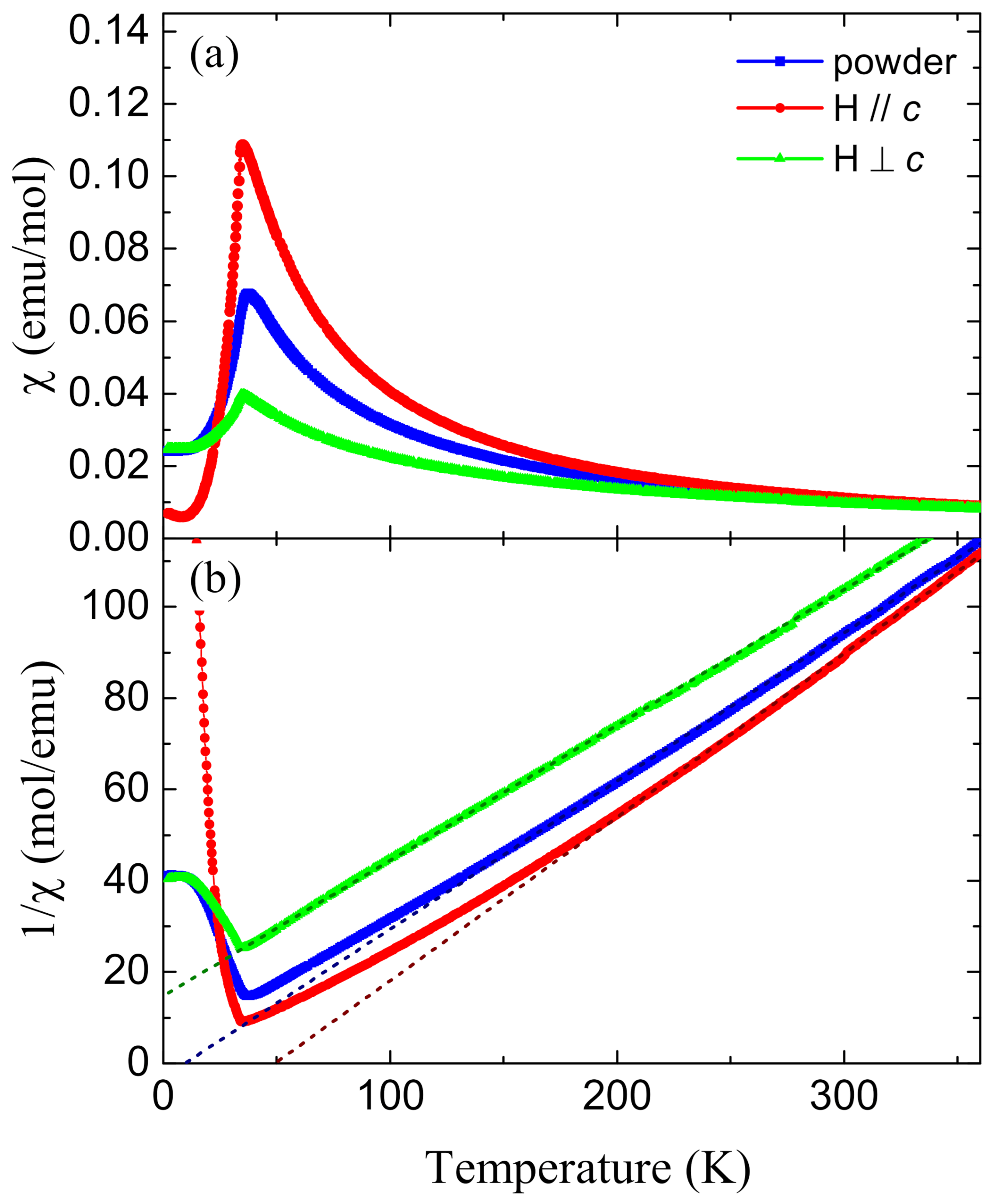

Figure 5. (a) Direction dependent magnetic susceptibility (

χ

) of CoGeO

_{3}

single crystals measured in a field of

μ_{0} H

= 0.1 T. For comparison also the values for a CoGeO

_{3}

powder sample are shown. (b) The inverse of the magnetic susceptibility (

χ^{- 1}

).

Figure 5. (a) Direction dependent magnetic susceptibility (

χ

) of CoGeO

_{3}

single crystals measured in a field of

μ_{0} H

= 0.1 T. For comparison also the values for a CoGeO

_{3}

powder sample are shown. (b) The inverse of the magnetic susceptibility (

χ^{- 1}

).

Table 1. Crystallographic and structural refinement data of a single crystal X-ray diffraction measurement. The crystallographic software Jana was used for the structural refinement [15]. The lattice parameters were obtained from a powder X-ray diffraction measurement using Cu K

_{α 1}

radiation (Rietveld refinement with Fullprof [16];

χ^{2}

= 2.24). [*: unobserved reflections were also used.]

Table 1. Crystallographic and structural refinement data of a single crystal X-ray diffraction measurement. The crystallographic software Jana was used for the structural refinement [15]. The lattice parameters were obtained from a powder X-ray diffraction measurement using Cu K

_{α 1}

radiation (Rietveld refinement with Fullprof [16];

χ^{2}

= 2.24). [*: unobserved reflections were also used.]

Empirical formula	CoGeO $_{3}$
Formula weight (g/mol)	179.5
Temperature	room temperature
Wavelength	Mo K $_{α}$
Crystal system	monoclinic
Space group	C 2/c (15)
Unit cell dimensions	a = 9.6623(2) Å
	b = 8.9928(2) Å
	c = 5.16980(10) Å
	$β$ = 101.2785(10) $^{°}$
Volume	440.535(16) Å $^{3}$
Z	8
Density (g/cm $^{3}$ )	5.4134
Absorption coefficient $μ$	20.861
F(000)	664
Crystal size	∼10–20 $μ$ m
2 $Θ_{m a x}$	106.58 $^{°}$
Index range	h: −21 → 21
	k: −19 → 20
	l: −11 → 10
Reflections in total / independent	13,219/2438
Observed reflections / independent	10,541/2078
Internal R-value	2.31%
Completeness up to 2 $Θ_{m a x}$	91.48%
Absorption correction	multi-scan
Min. / max. transmission	0.3738 / 0.7505
Refinement method	least squares on $F^{2}$
Reflections threshold *	$I > 5 σ (I)$
Goodness of fit	1.97
R / R $_{w}$	1.63/5.28%
Largest minima in Fourier difference	−3.10 e $^{-}$ Å $^{- 3}$
Largest maxima in Fourier difference	2.78 e $^{-}$ Å $^{- 3}$

Table 2. Refinement results of single crystal X-ray diffraction measurements of CoGeO

_{3}

. Our structural results are in fair agreement with older data in literature that contain only isotropic temperature factors B [10].

Table 2. Refinement results of single crystal X-ray diffraction measurements of CoGeO

_{3}

. Our structural results are in fair agreement with older data in literature that contain only isotropic temperature factors B [10].

Atom	x	y	z
Ge1	0.30104(2)	0.09381(2)	0.21471(4)
Co1	0	0.09179(4)	0.75
Co2	0	0.26966(4)	0.25
O1	0.11779(15)	0.09052(14)	0.1358(3)
O2	0.38225(14)	0.24390(16)	0.3830(3)
O3	0.36047(15)	0.06723(16)	0.9099(3)
atom	U $_{11}$ (Å $^{2}$ )	U $_{22}$ (Å $^{2}$ )	U $_{33}$ (Å $^{2}$ )
Ge1	0.00347(12)	0.00445(13)	0.00401(12)
Co1	0.00526(17)	0.00499(19)	0.00458(18)
Co2	0.00622(16)	0.00571(17)	0.00483(16)
O1	0.0020(5)	0.0075(6)	0.0067(5)
O2	0.0074(5)	0.0062(5)	0.0059(5)
O3	0.0077(6)	0.0071(5)	0.0052(5)
atom	U $_{12}$ (Å $^{2}$ )	U $_{13}$ (Å $^{2}$ )	U $_{23}$ (Å $^{2}$ )
Ge1	−0.00022(5)	0.00010(8)	−0.00009(5)
Co1	0	0.00021(13)	0
Co2	0	0.00010(12)	0
O1	0.0003(4)	0.0003(5)	−0.0003(4)
O2	−0.0025(4)	−0.0001(4)	−0.0012(4)
O3	−0.0019(5)	0.0027(5)	−0.0014(4)

Table 3. Bond lengths and bond valence sums (BVS) in CoGeO

_{3}

. BVS parameters were taken from Ref. [17].

Table 3. Bond lengths and bond valence sums (BVS) in CoGeO

_{3}

. BVS parameters were taken from Ref. [17].

Atoms	Distance (Å) / BVS
Ge1-O1	1.7399(14)
Ge1-O2	1.7142(14)
Ge1-O3	1.7965(18)
Ge1-O3	1.7963(15)
BVS(Ge1)	3.896(8)
Co1-O1	2.0959(15)
Co1-O1	2.0959(15)
Co1-O1	2.1458(15)
Co1-O1	2.1458(15)
Co1-O2	2.0649(16)
Co1-O2	2.0649(16)
BVS(Co1)	1.999(3)
Co2-O1	2.1229(15)
Co2-O1	2.1229(15)
Co2-O2	2.0157(15)
Co2-O2	2.0157(15)
Co2-O3	2.2588(17)
Co2-O3	2.2588(17)
BVS(Co2)	1.894(3)
