The Effect of Reaction Conditions and Presence of Magnesium on the Crystallization of Nickel Sulfate

Abstract

Recycling of valuable metals such as nickel is instrumental to meet the need from the dramatic increase in electric vehicle battery production and to improve its sustainability. Nickel required in the battery manufacture can be recovered from the hydrometallurgical industrial process streams by crystallization of nickel sulfate. Here, crystallization of nickel sulfate is studied from an industrial point of view, investigating the effects of temperature, seeding and presence of magnesium on the formation of various solid phases for the evaluation of their potential influence on the process design. Results showed that the precipitating phase was dictated both by seed amount and reaction temperature. Transformation of metastable phases both in suspension and in a dry state was observed over time. Presence of magnesium was shown to promote formation of NiSO₄·7H₂O in solution and increased its stability in a dry form. In their dry state, nickel sulfate that was formed in the absence of magnesium transformed towards α-NiSO₄·6H₂O, whereas those precipitated in the presence of high magnesium concentrations transformed towards β-NiSO₄·6H₂O, indicating that magnesium inhibited the phase transformation towards α-NiSO₄·6H₂O. Knowledge about various solid phases of varying crystal morphology and stability can be used as input to decisions for the best suited solid product type and how this relates to the initial conditions of the sidestreams.

1. Introduction

Nickel is an important component in a wide range of materials such as stainless steel, nickel- or copper-based alloys and catalysts, crystal UV-filters, and the cathode of ion batteries [1,2,3,4]. Among these, nickel containing electric vehicle batteries (EVBs) has seen a dramatic increase in production over the last decade as a result of the environmental targets set by, amongst others, the EU [5,6]. This situation not only creates a high demand for the production of metals used in batteries, but also necessitates their efficient recycling [7,8]. In addition to its market value, recycling of nickel reduces the environmental pollution caused by nickel-containing waste and the CO₂ footprint of the produced metal [9].

Nickel can be recycled from various sources such as spent batteries, spent catalysts, or from process streams in the hydrometallurgical industry [4,9,10,11]. In industrial hydrometallurgical production by electrowinning, nickel metal is produced from an electrolyte solution of nickel sulfate. Yet, in this process, significant amounts of nickel are still present in various sidestreams, such as from the purification steps and the spent electrolyte from electrowinning, from which nickel can potentially be recovered in the form of nickel sulfate salts. Due to their primary use in Li-ion batteries, production of nickel sulfate salts is expected to become the key growth area for nickel in the coming years with the rapidly growing battery sector and develop into the second-largest application for nickel after stainless steel by 2030 [12].

One method for achieving high purity nickel sulfate products from process or waste streams is crystallization [10,11]. A variety of techniques can be used for this purpose such as evaporative, antisolvent, eutectic freeze and cooling crystallization and for each technique in-depth analyses are needed to optimize yield, energy efficiency, purity and particle characteristics of the final product [13]. In this work, seeded cooling crystallization of nickel sulfate from industrially relevant solutions are investigated.

Nickel sulfate can precipitate as hydrated salts with different hydration levels ranging from mono to heptahydrates, depending on the reaction temperature [14]. Crystallization at temperatures between 5 °C to 100 °C at neutral conditions results in the precipitation of the hexa- and heptahydrates, and thus makes them the most studied nickel sulfate phases [14]. The hexahydrate form of nickel sulfate can crystallize into two polymorphs—α-NiSO₄·6H₂O (retgersite) and β-NiSO₄·6H₂O—with different stability regions [15,16]. The solubility curves of nickel sulfate hexahydrates and heptahydrate are presented in Figure 1, showing the most stable hydrate form in solution as a function of temperature. The high dependency of phase stability on reaction temperature forecasts significant implications on the cooling crystallization of nickel sulfates. Both the nucleation temperature and the time frame crystals spend in mother liquor at different temperature ranges will be commanding on the crystallization pathway and the final product population. In such a complex system, where multiple possible phases can crystallize, seeding of a supersaturated solution is a good method for inducing crystallization of a desired form, and is commonly used in industrial crystallization to control the crystallized product and product size. However, seeding does not guarantee phase purity in crystal systems with high solubility and close solubility values, such as nickel sulfate salts, due to strong contributions of the kinetic factors of crystallization [17,18]. Moreover, phase transformation of nickel sulfate takes place also in its dry state. Crystals of the NiSO₄·7H₂O phase decompose in air, losing water, even at room temperature [19]. At ambient conditions, nickel sulfate heptahydrate will lose one crystal water and transform into the hexahydrate form. The transition temperatures and stability order of phases in a dry state differ from the ones reported in solution [20,21]. At temperatures above the stability range of β-NiSO₄·6H₂O, the nickel sulfate can lose several crystal waters and convert into phases such as NiSO₄·4H₂O, NiSO₄·2H₂O or anhydrous NiSO₄.

The crystallization studies of nickel sulfate from industrial streams with the aim of producing battery-grade material have shown that common impurities found in such streams such as sodium, chloride and magnesium can be adsorbed or incorporated into the crystal structure. Their incorporation not only affects the purity of the product, but also can have consequences on the pathways of crystallization. Impurities present in a growth medium can influence the solubility of the crystallizing phases, and hence have significant effects on the course of reaction progression, and considerable effects on the properties of the crystal solid [18]. In the case of transformation between polymorphs or different phases, the rate of dissolution of a metastable form may decrease by the addition of specific impurities, and hence slows down the transformation towards the stable phase [17]. When the additives that will promote or inhibit certain forms of a compound are determined, it is possible to direct the system towards the desired product. Examples of this strategy can be found with L-glutamic acid, where the transformation from the metastable to the stable form can be inhibited by specific additives and thus allow kinetic factors to dominate the system [22,23]. Hence, from an industrial point of view, it is important to know how impurities in the process stream will influence the final crystallization product, in terms of properties such as purity and stability.

Having an understanding of different polymorphs or phases of nickel sulfates and transformation between these are of great importance for industrial production. Nickel sulfate hexahydrates are the preferred products over the heptahydrate form due to their lower water content. Additionally, stable crystals are favored during storage and transport, which reduces the risk of free water production and changes in crystal properties over time. Particle properties such as size, size distribution and shape effect their filterability, and thus should be controlled if possible [25].

On the basis of the described knowledge needs, this work aims to study the cooling crystallization of nickel sulfate from an industrial point of view, at relevant temperatures for process streams, containing nickel, which could potentially be used for extracting nickel by crystallization of nickel sulfate. For this purpose, crystallization experiments seeded with α-NSH6 are employed as a strategy to control the precipitation product. Among the nickel sulfate phases shown in Figure 1 that can be precipitated in the determined experimental range, α-NSH6 is preferred due to its lower water content and its higher stability in storage conditions. The effects of magnesium on the crystallization and stability of nickel sulfate is investigated due to earlier work showing high levels of uptake and possible incorporation of magnesium in the crystal bulk [4,26]. Finally, stability of precipitated crystals both in solution and in dry state is followed, which can have practical implications on the recovery and storage of nickel salts.

2. Materials and Methods

2.1. Experimental Set-Up for Crystallization Experiments

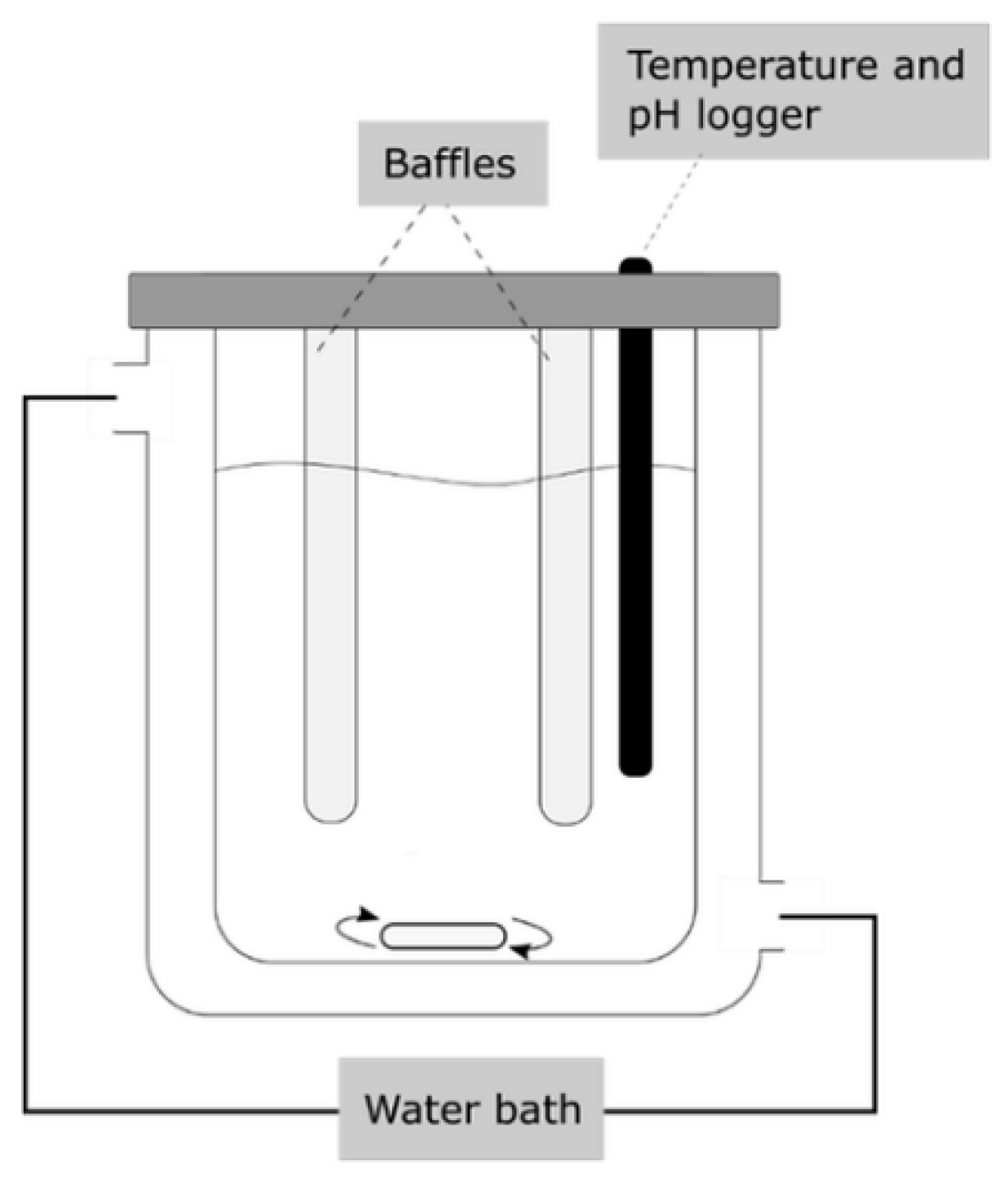

Crystallization experiments were performed using a 100 mL temperature-controlled double-walled batch reactor (Figure 2), as described in detail in our previous work [26]. Proper mixing was ensured by a magnetic stirrer operating at 600 rpm and two baffles were attached to the lid. Temperature and pH were logged throughout the experiments, using a pH probe connected to a Mettler Toledo SevenExcellence multiparameter module. The temperature of the reactor was controlled by a Julabo refrigerated/heating circulator. The temperature logging was used for observing the point of nucleation, which could be seen as a small temperature increase, due to the heat of crystallization liberated when a solute crystallizes out of a solution [17].

2.2. Experimental Methods and Characterization

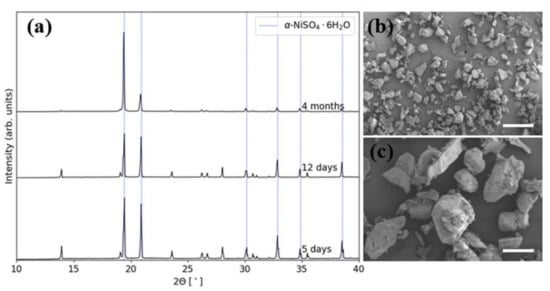

2.2.1. Preparation of Nickel Sulfate Seeds

In order to produce pure α-NiSO₄·6H₂O seeds, commercial nickel sulfate hexahydrate (reagent grade ≥ 98%, Sigma-Aldrich, Darmstadt, Germany) was dissolved in distilled water, and was left for evaporation at 40 °C overnight [27,28]. The phase purity of the seeds was verified by powder X-ray diffraction (XRD) analysis and comparing the spectra with theoretical diffraction patterns of nickel sulfate hydrates (see Supplementary Information, Section A). Seeds were stored in their dry state at room temperature until further use. Their stability over storage time was confirmed by XRD analyses (Figure 3), and seeds from the same batch were used for all the seeded crystallization experiments in this work.

2.2.2. Crystallization Experiments

Seeded and unseeded crystallization experiments were conducted at two temperature values: 25 °C and 70 °C. These values were chosen based on the temperatures of nickel-containing process streams that are potential candidates for the extraction of nickel. Initial nickel sulfate concentrations that allow seeding without spontaneous crystallization at the chosen temperatures were determined at preliminary experiments without impurities. For all the experiments performed at a low temperature (25 °C), the concentration of nickel sulfate was 0.53 g NiSO₄·6H₂O/g solution, and at high temperature (70 °C) the concentration was 0.70 g NiSO₄·6H₂O/g solution. The chosen concentrations corresponded to the same supersaturation level with respect to the most stable NiSO₄ phase at the respective temperatures. The solutions were prepared by dissolving the corresponding amounts of the nickel sulfate salt by heating, followed by cooling down to the chosen reaction temperatures at a cooling rate of 0.29 °C min⁻¹ (Figure 4). An overview of the experimental conditions is given in

Table 1. Overview of experiments and their respective temperatures, seed amounts, and initial magnesium concentrations (mg Mg/g total solution) in the reactor solution.

Seed Amount (g)	Mg Content (mg/g tot)
T = 25 °C
0	0
0	18
0.2	0
0.2	5
0.2	9
0.2	18
2	0
2	9
T = 70 °C
0.2	0
2	0

.

2.2.3. Seeded Experiments

Once the chosen temperature was reached, nickel sulfate seeds were added to the reactor, and the suspension was left for 10 min before the samples were taken out for characterization to ensure sufficient crystal growth while minimizing phase transformation. Low and high seed amounts were tested, with 0.2 and 2 g respectively, in order to study the effect of seed amount on the final nickel sulfate product. Seeded experiments were performed in solutions both without Mg and with different amounts of Mg.

2.2.4. Unseeded Experiments

Unseeded experiments were performed to study the behavior of the system at 25 °C without seeding. The experiments were allowed to run until nucleation was observed via an increase in temperature, and precipitates were left for 10 min before sampling. Unseeded experiments were not repeated at 70 °C since the nucleation point could not be detected at this temperature.

2.2.5. Magnesium Uptake during Crystallization

Based on our previous results [26], magnesium was selected as the impurity of interest in this study, due to its capability to be incorporated into the nickel sulfate crystal structure. Experiments in the presence of magnesium was conducted by the addition of MgSO₄ (anhydrous, ReagentPlus^® ≥ 99.5%, Sigma-Aldrich) at varying concentrations to the reaction medium, using the same setup as described above.

2.2.6. Characterization

At the end of the experiments, small samples of the suspension were taken out from the reactor, in order to characterize the precipitated nickel sulfate. Directly after sampling, the samples were filtered, washed with ethanol and dried at room temperature in air overnight. Filtration of samples from experiments conducted at 70 °C were performed with a preheated funnel to avoid additional crystallization on the filtration equipment. The crystal phase was determined by powder X-ray diffraction (XRD) with a Bruker D8 A25 DaVinci X-ray Diffractometer with CuKα radiation. All XRD analyses were performed within 24 h after the experiment in order to avoid phase transformations, since solid-state transition was observed when dry samples were stored for longer times. Due to the crowded XRD spectra of precipitating phases, two characteristic peaks, representing the highest intensity peaks of each nickel sulfate phase, were selected and marked in all provided data to make it easier for the readers to distinguish the produced nickel sulfate phases. The complete XRD spectra of all the relevant phases are given in the Supplementary Information, Section A.

Table 2. Overview of the nickel sulfate hydrates, and their abbreviations used in this work, and selected characteristic peaks with highest intensities. The selected peaks were used for identification and comparison of products from the experiments in this work.

Nickel Sulfate Hydrate	Abbreviations	Characteristic Peaks (2θ)
α-NiSO4·6H2O	α-NSH6	19.4° and 20.9°
β-NiSO4·6H2O	β-NSH6	20.4° and 22.3°
NiSO4·7H2O	NSH7	16.7° and 21.1°

shows the assigned peaks and the abbreviations for each nickel sulfate hydrate phase in this work. The morphology and size of the crystals was studied by scanning electron microscopy (SEM) (Hitachi S-3400 N). Light microscopy images of nickel sulfate products can be found in the Supplementary Information, Section C.

2.2.7. Phase Transformation in Solution and in Solid-State

The phase transformation of nickel sulfate hydrate salts was studied both in solution and in solid-state. The crystallization and solution-mediated phase transformation of nickel sulfates at chosen temperatures were followed by light microscopy (Axio Imager A1m, Zeiss, Oberkochen, Germany) via monitoring the change in crystal morphology. For this purpose, nickel sulfate solution was first cooled down to either 40 °C or 70 °C, and a drop of this solution was placed on a microscope glass slide. The glass slide was then placed under a microscope without further control of temperature and was monitored for 60 min.

Phase transformation in solid-state was investigated by using washed and dried samples that were obtained from experiments depicted in Table 1. Collected samples were stored in closed glass vials at room temperature and their phase transformation was followed by analyzing selected samples with XRD after 24 h and up to 10 days.

3. Results

3.1. Crystallization of Nickel Sulfate

3.1.1. Effect of Temperature

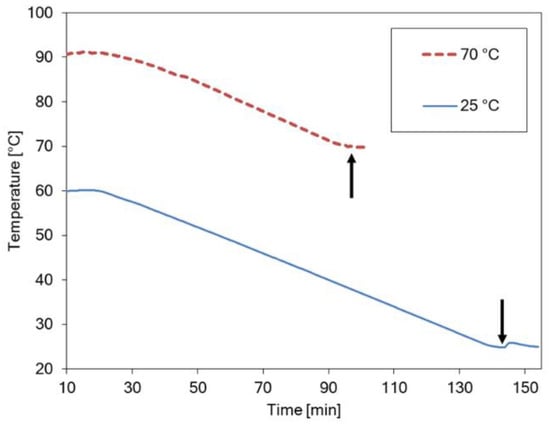

Seeded experiments in additive-free solutions were conducted at 25 °C and 70 °C by cooling the nickel sulfate solutions to establish supersaturation, then adding the seeds once the desired reaction temperature was reached.

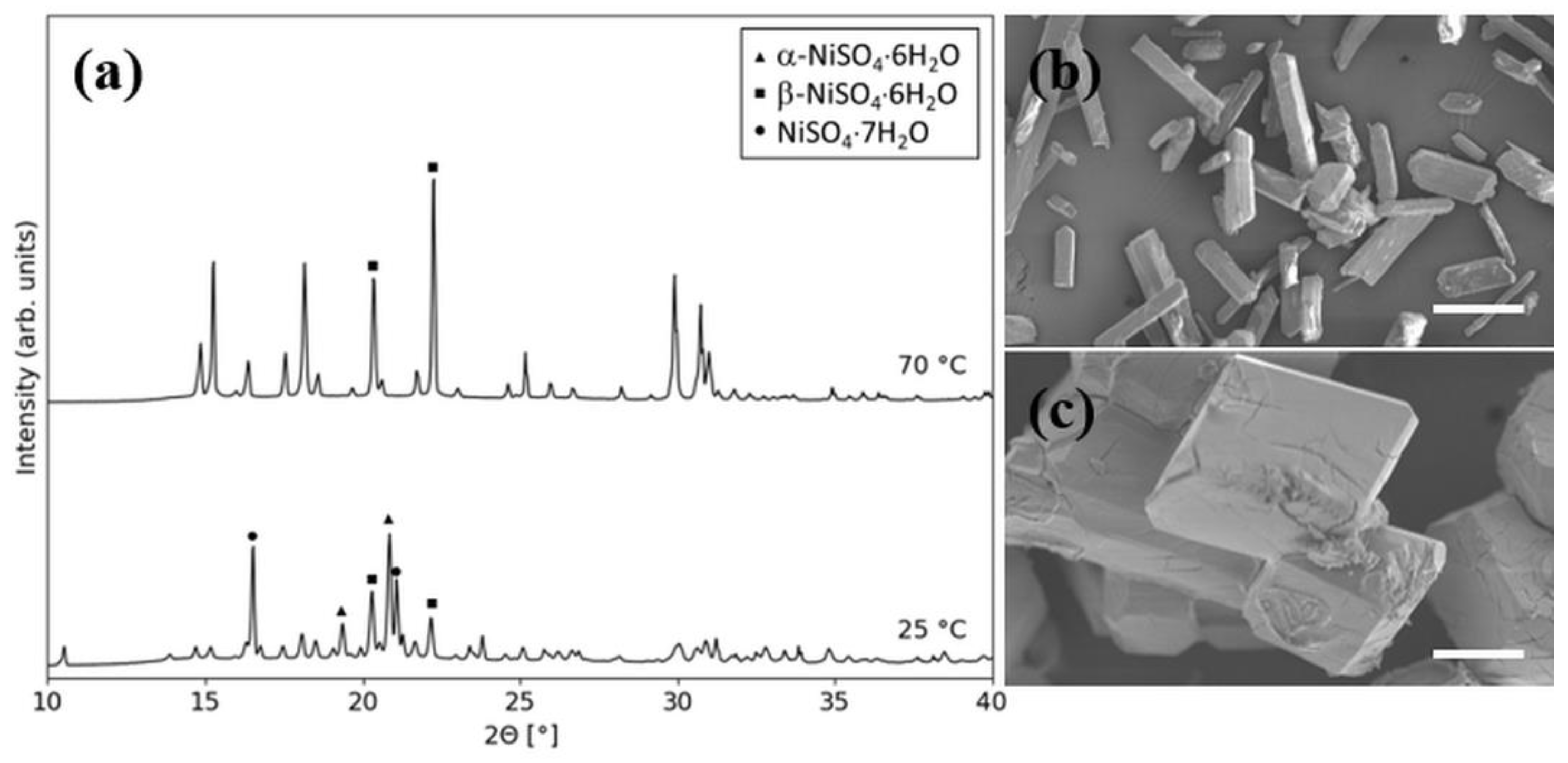

Crystallization from solutions at 25 °C and seeded with 0.2 g of α-NiSO₄·6H₂O, resulted in a mixture consisting of α-NiSO₄·6H₂O (α-NSH6), β-NiSO₄·6H₂O (β-NSH6) and NiSO₄·7H₂O (NSH7), while at 70 °C only β-NSH6 was produced, as observed from XRD analyses (Figure 5a). SEM images showed a distinct difference in crystal shape of the two products, in good accordance with the phases observed from the XRD analyses (Figure 5b,c).

The typical morphologies of nickel sulfate phases produced in our work correspond well with the previous observations of Kul’kov and Glikin [24]. They reported that NSH7 precipitates typically have the shape of fibrous or short-prismatic crystals, α-NSH6 are thick plates or short-prismatic crystals, and the β-NSH6 crystals are observed as basal plates.

3.1.2. Effect of Seed Amount

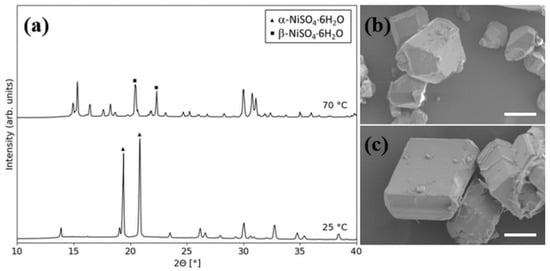

By increasing the seed amount by a tenfold, from 0.2 g to 2 g, it was possible to produce pure α-NSH6 at 25 °C, as verified by XRD analysis (Figure 6a). SEM images showed particles of a short-prismatic shape, typical for α-NSH6, and the long fibrous particles associated with NSH7 were absent (Figure 6a,b). On the contrary, the precipitating phase could not be altered at 70 °C even with high seed amount, and only β-NSH6 was detected in the XRD spectrum. The plate-like crystal morphology was also maintained at higher seed amount (Figure 6c).

Unseeded experiments were also performed following the same procedure as for the seeded experiments at 25 °C. The reaction was left to proceed for 48 h, but no crystal formation was observed in the system during this time interval.

3.2. Crystallization of Nickel Sulfate in the Presence of Magnesium

3.2.1. Effect of Initial Mg Content

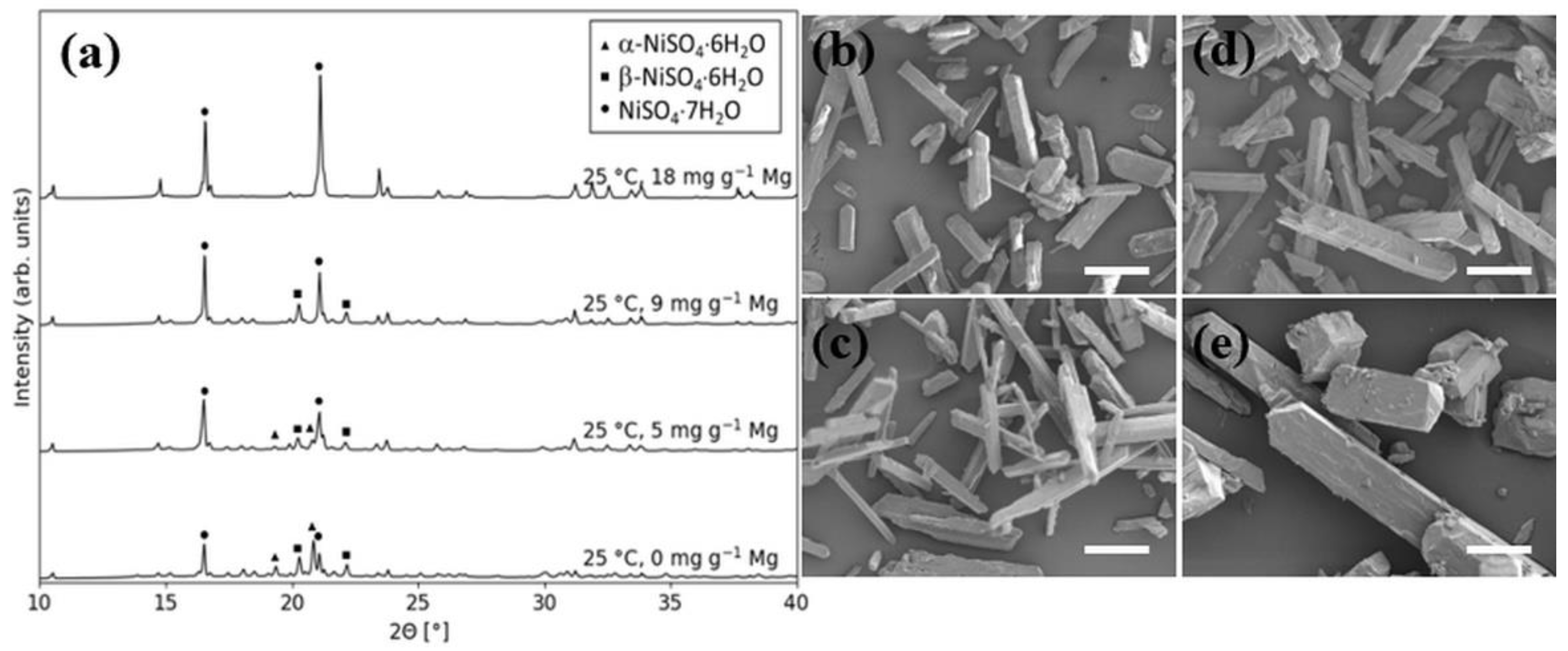

In order to study the effect of Mg uptake on the crystallization behavior of nickel sulfate, different initial concentrations of Mg were added in the reaction solution in experiments seeded with 0.2 g of α-NSH6 at 25 °C (Table 1). From XRD analyses (Figure 7a) it was seen that nickel sulfate precipitated with Mg concentrations of 0 and 5 mg g⁻¹ contained a mixture of α-NSH6, β-NSH6 and NSH7. At an initial Mg concentration of 9 mg g⁻¹, the product consisted of β-NSH6 and NSH7, and with 18 mg g⁻¹ only NSH7 was produced. As the initial Mg concentration increased in the reaction solution, the diffraction peaks of the α-NSH6 got weaker, while the peaks of the heptahydrate phase were more pronounced. As can be seen from SEM images in Figure 7, there was no significant difference in particle shape or size for the three lower concentrations of Mg, while the crystals were significantly bigger in the presence of high Mg concentration.

3.2.2. Effect of Seed Amount

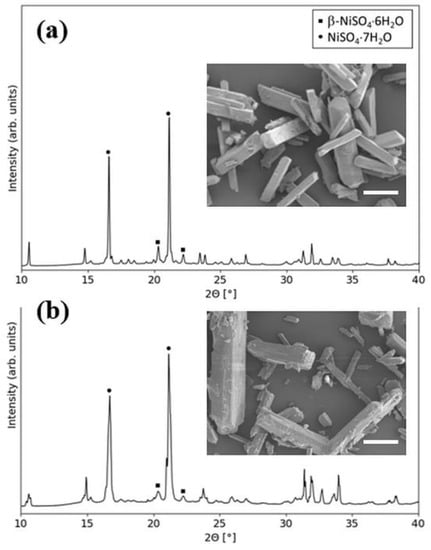

The effect of seed amount on crystallization in the presence of magnesium was tested only at a Mg concentration of 9 mg g⁻¹ and at 25 °C. The precipitating phase and morphology of the particles did not show any changes when the seed amount was increased from 0.2 g to 2 g, as seen from XRD analyses (Figure 7a and Figure 8a, respectively) and SEM images (Figure 7d and Figure 8a inset, respectively), showing a mixture of β-NSH6 and NSH7 crystals.

Unseeded experiments were performed at parallel reaction conditions without Mg and with an initial Mg concentration of 18 mg g⁻¹. In contrast to Mg free experiments, where no precipitation was observed for 48 h, nucleation was detected during initial cooling in the presence of Mg by an increase of temperature at 28 °C (see Supplementary Information, Section B), and the product was shown to consist of mainly NSH7, with weak peaks of β-NSH6 (Figure 8b). The characteristic long fibrous crystal form for NSH7 was observed by SEM (Figure 8b inset).

3.3. Phase Transformation of Nickel Sulfate Crystals

3.3.1. Phase Transformation in Suspension

The phase stability of nickel sulfate in solution was investigated at low and high temperatures, without seeding. For this purpose, a small amount of solution was taken out from the reactor, placed on a microscopy glass slide and imaged at predetermined time points during 60 min. For low and high temperature, the nickel sulfate solution was cooled to 40 °C and 70 °C, respectively, before sampling. After sampling, the glass slide was observed under the microscope for 60 min, without further control on temperature. At low temperatures, crystals with morphologies resembling α-NSH6 were present after 5 min of sampling, and no significant changes could be observed from the light microscopy images during 60 min (Figure 9a,b). It should be noted that unseeded batch experiments at 25 °C, which were also cooled down from 40 °C, did not yield any crystal formation. This discrepancy can be explained by the faster cooling rate when the sample is placed on the glass slide, and the large surface provided by the glass slide, allowing nucleation to take place. At high temperatures, many crystals with varying morphologies were observed from the initial time point, and phase transformation was observed in time (Figure 9c,d). Further growth of certain crystals accompanied by the consumption of neighboring ones showed that a solution-mediated phase transformation was active.

3.3.2. Phase Transformation in the Dry State

From preliminary experiments, it was observed that the nickel sulfate in its dry state transforms over time when stored at room temperature. Therefore, XRD analyses were performed to follow the transformation of chosen dry samples over several days (see Supplementary Information, Section D).

For nickel sulfate produced at 25 °C with addition of 0.2 g seeds and without Mg, the β-NSH6 peaks disappeared within 7 days of storage time, the NSH7 peaks got weaker, while the α-NSH6 peaks got stronger and new α-NSH6 peaks were observed.

Nickel sulfate produced at 70 °C with addition of 0.2 g seeds and without Mg, showed β-NSH6 peaks disappearing over the same time period, the NSH7 peaks got weaker, while the α-NSH6 peaks got stronger and new α-NSH6 peaks were observed. The same trend was observed for nickel sulfate produced at 25 °C with an initial Mg concentration of 5 mg g⁻¹. However, at 25 °C with initial Mg concentration of 18 mg g⁻¹, α-NSH6 peaks were observed after storage for 10 days, and the heptahydrate peaks were stronger. In addition, some peaks of the β-polymorph appeared. The same trend was observed for the nickel sulfate produced in the unseeded experiment in the presence of 18 mg g⁻¹ Mg. For nickel sulfate crystallized at 70 °C, the peaks of β-NSH6 got weaker with time, and after 10 days there were also new α-NSH6 peaks.

In summary, the dry nickel sulfate samples precipitated without Mg tend to transform towards α-NSH6, while the ones with Mg content showed stable NSH7 phase and emergence of β-NSH6.

4. Discussion

4.1. Effect of Temperature and Seed Amount

In nickel sulfate crystallization, temperature plays a pivotal role in determining the final product. Within the temperature range of 0–100 °C, the thermodynamic stability regions of different nickel sulfate phases are well-established. The crystalline phases of two hexahydrate polymorphs, α-NSH6 and β-NSH6, and the heptahydrate form, NSH7, are the most stable precipitation products at different temperature ranges marked by the eutonic points, according to their solubility curves as shown in Figure 1. Yet, near the eutonic points, these highly soluble salts can precipitate and persist in solution out of their stability zones as a result of comparable effects of kinetic factors to thermodynamic drivers.

At 25 and 70 °C, the most stable phases in solution are NSH7 and β-NSH6, respectively. Experiments conducted at the corresponding temperatures and with 0.2 g of α-NSH6 seeds showed that the presence of the seeds was not sufficient to manipulate the system towards precipitation of the metastable α polymorph. XRD analyses (Figure 5) showed that for crystallization of nickel sulfate at 70 °C, seeded with 0.2 g of α-NSH6, the product consisted of pure β-NSH6. Although seeds of the α-polymorph were added in the reaction medium, formation of the β-NSH6 at 70 °C was in good accordance with earlier findings showing that it is the most stable phase, above 53 °C [15,24]. The α-seeds must undergo dissolution and recrystallization reactions due to the higher solubility of α-NSH6 than β-NSH6 at this temperature. Even at a higher seed amount of 2 g, pure β-NSH6 was produced at 70 °C, verifying the high driving force in the system towards the formation of β-polymorph, which induces the phase transformation of the seed material (Figure 6). At 25 °C, our results showed that when seeded with 0.2 g of α-NSH6, the crystallization product contained both the α- and β-polymorph of the hexahydrate, in addition to the heptahydrate form which has been reported to be the most stable phase of nickel sulfate below 35 °C. For compounds that can undergo enantiotropic transformations, metastable phases can be crystallized, before transforming to the stable phase, following Ostwald’s rule of stages [17]. This might explain the presence of the two NSH6 polymorphs even though the NSH7 is the most thermodynamically stable phase at 25 °C since reaction times were limited to 10 min. The observations of α-NSH6 in this case can be explained by the presence of the seeds; yet, the formation of other phases must be due to additional nucleation, possibly caused by insufficient seed amounts to ensure only growth in the system [17,29]. When the seed amount was increased by a ten-fold, only α-NSH6 was obtained at 25 °C. Higher seed amounts provide an increased surface area for growth [30], hence promoting growth over nucleation. It should also be noted that with both seed amounts, the total mass of final precipitates was measured to be approximately 10 g, showing that the supersaturation consumption by relative rates of nucleation and growth was influenced by the seed amount, while the yield was not drastically affected. Some secondary nucleation was also observed for this experiment, as seen by the presence of smaller crystals in SEM images (Figure 6a,b) and from light microscopy (see Supplementary Information, Section C, Figure C.3b). These results showed that in addition to the interplay between the supersaturation value and the seed amount, the kinetics of precipitation was of paramount importance in determining the metastability regions of the three phases.

For unseeded experiments at 25 °C, without Mg, the reaction was left for 48 h, without any signs of nucleation taking place, neither visually nor by an increase in temperature. This indicates that the system is very stable with a broad metastable zone where spontaneous crystallization is unlikely to occur [17].

4.2. Effect of Magnesium

Additives can cause changes in the stability zones of crystalline phases by effecting kinetic and/or thermodynamic factors. Magnesium was chosen as the additive of interest due to its relevance in industrial streams and previous reports signaling for incorporation of Mg in the crystalline structure of nickel sulfate crystals [26]. Incorporation of additives can drastically affect the crystal solubility, thus the thermodynamic stability, as well as kinetic stability of metastable phases [17,18].

The effect of magnesium on precipitation of nickel sulfate crystals was investigated at 25 °C, in the absence and presence of varying amounts of α-NSH6 seeds. With no magnesium present and in the absence of seeds, no crystal formation was observed even after 48 h in the system, whereas Mg additives at a concentration of 18 mg g⁻¹ induced spontaneous formation of NSH7 even before reaching 25 °C by cooling. Promotion of NSH7 formation in the presence of Mg was further demonstrated in the seeded experiments, where increasing amounts of Mg shifted the product towards higher contents of NSH7. Experiments conducted at 25 °C without Mg and with 0.2 g of seeds resulted in a mixture of nickel sulfate hydrates as shown in Figure 5. With increasing Mg content under same experimental conditions, we observed promotion of the diffraction peaks corresponding to NSH7 and at the highest initial concentration of Mg (18 mg g⁻¹), the product consisted of phase pure NSH7 (Figure 7). It also must be noted that, in this experimental condition nucleation occurred at 33 °C (observed by a slight increase in temperature), hence prior to addition of the seeds. The primary nucleation of NSH7 during cooling can explain the phase pure product and the larger crystal size (Figure 7e). Since samples were taken out 10 min after reaching 25 °C for all experiments, the crystals nucleated during the cooling period were allowed to grow for a longer time period.

Seeded experiments with varying concentrations of Mg demonstrated that Mg promotes the formation of NSH7. Additionally, we cannot eliminate possible inhibition of the formation of hexahydrate polymorphs by Mg presence. Changing stability in the crystal product in the presence of additives is known. For crystallization of CaCO₃ as calcite and aragonite, similar effects of the presence of Mg has been observed, where Mg is favorable towards crystallization of aragonite, due to calcite becoming more soluble [31,32]. Moreover, for L-glutamic acid, certain additives have been shown to inhibit transformation from the metastable to the thermodynamically stable phase [22,23].

4.3. Transformation of Nickel Sulfate Hydrates in Solution and Dry State

Different polymorphs and phases of crystalline compounds have different physical properties that can be of importance in industrial applications [17,33]. Thus, phase transformations of nickel sulfate particles are investigated both in solution and in the dry state, which can be significant for the production and storage stages, respectively. By taking out a small sample of the nickel sulfate solution from the reactor at 40 °C and 70 °C, and immediately placing a few drops of the sample on a glass microscope slide, it was possible to follow the development of crystals by light microscopy over time. This could be a good indication of how the nickel sulfate crystals behave in solution. For these experiments, nucleation was observed within 5 min for both temperatures, whereas unseeded experiments at 25 °C did not produce any crystals. As mentioned in the previous section, this could be explained by the faster cooling rate when the sample was placed on the glass slide, and the large substrate surface. At 40 °C (Figure 9a,b), α-NSH6 was observed, based on the short-prismatic shape of the product compared with the morphologies of the α-NSH6 seeds (Figure 3c), α-NSH6 produced in our previous work [26], and previous findings by Kul’kov and Glikin [24]. During the time period of observation, it could be seen that the crystals were slightly growing while maintaining their shape. At 70 °C (Figure 9c,d), the particle shapes did not appear as well defined as for the sample taken out at 40 °C, but they showed resemblance to the typical plate like shape of β-NSH6 [24]. However, with time, the particles either had dissolved or the shape had changed significantly. After 60 min, short-prismatic crystals of α-NSH6 could be observed.

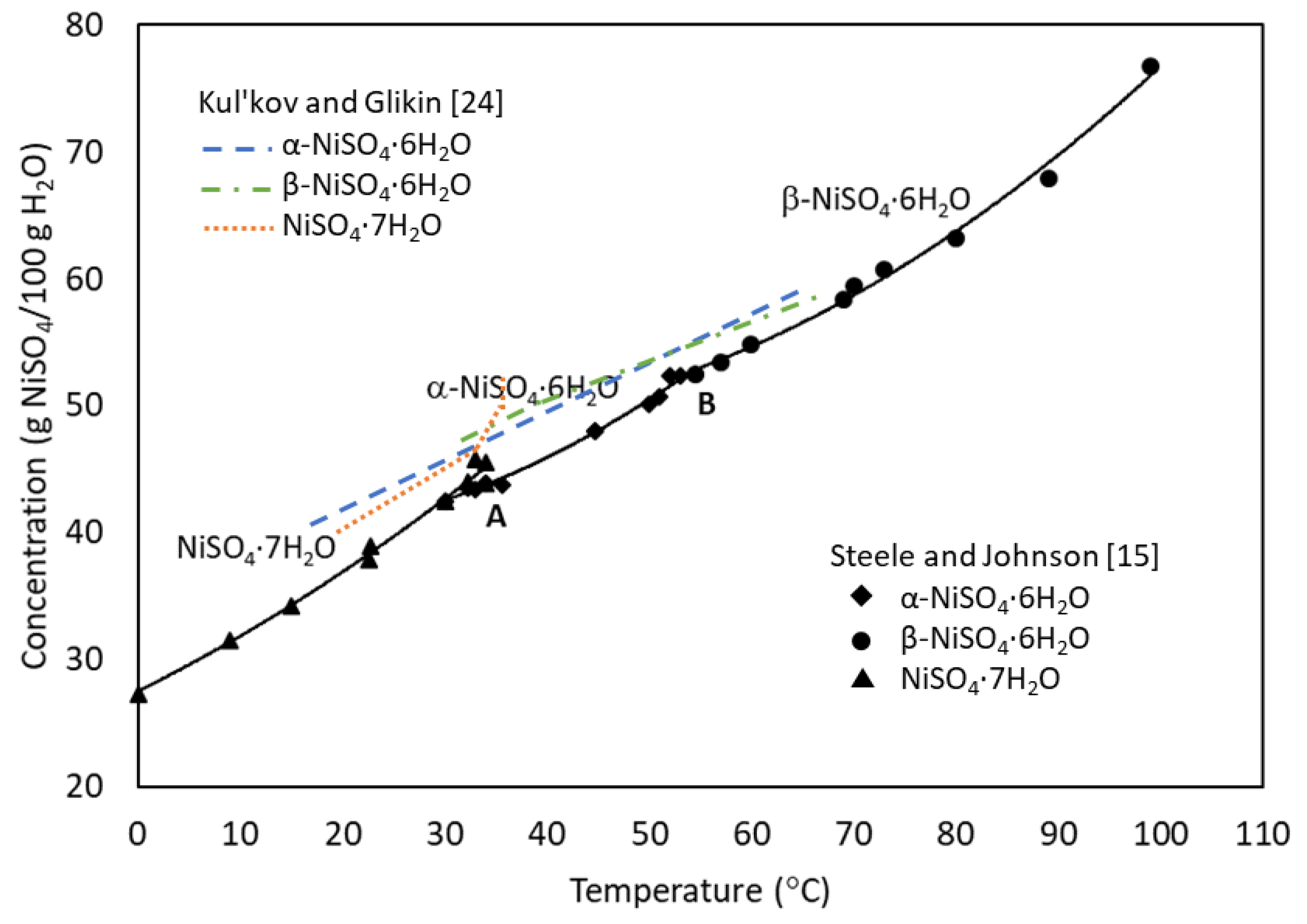

Nickel sulfate crystals in suspension have been observed to undergo transformations between the three mentioned phases during heating or cooling in the system [15]. Corresponding to the points A and B in Figure 1, the transition point between NSH7 and α-NSH6 is around 31.5 °C, and between α-NSH6 and β-NSH6 at 53.3 °C. From light microscopy images (Figure 9), phase transformation was observed at high temperature. Moreover, the crystallized product from experiments at 70 °C, seeded with α-NSH6, showed no indications of α-NSH6 in the XRD spectra. This could be explained by phase transformation from α-NSH6 to β-NSH6 in solution. Light microscopy images showed growth of crystals accompanied by consumption of neighboring crystals, indicating solution-mediated phase transformation.

In its dry state, nickel sulfate was observed to phase transform when stored as a dry powder. The phase transformations were followed by XRD analyses of chosen samples (see Supplementary Information, Section D). The general trend for samples not containing Mg was that with time, new α-NSH6 peaks appeared in the XRD spectra and α-NSH6 peaks already existing got more pronounced. Peaks of β-NSH6 got weaker with increasing storage time, and even disappeared completely in some cases. When precipitated in the presence of Mg, nickel sulfate crystals in their dry form showed a stable NSH7 phase and the emergence of β-NSH6. Phase transformations in the dry state at room temperature followed a different pathway to that in solution, which indicates a difference in the stability regions of crystal phases [34]. While NSH7 was the most stable phase in solution at 25 °C, in dry conditions α-NSH6 was favored. Earlier work shows that NSH7 loses one crystal water and transforms to α-NSH6, which is considered to be the most stable phase in dry state in air at room temperature [16,24,35]. Friesen et al. [20] observed that the NSH7 transforms spontaneously at room temperature via the pathway NSH7→β-NSH6→α-NSH6 [20,36]. This corresponds well with the transformations we observed for samples containing no or small amounts of Mg. On the other hand, this transformation was inhibited when crystals were precipitated in the presence of Mg, demonstrating stabilization of NSH7. However, suppression of α-NSH6 formation should also be considered as a possible outcome of Mg presence since at the highest concentration of the additive, NSH7 crystals were formed in solution transformed to β-NSH6.

5. Conclusions

Nickel sulfate salts show an increasing market share due to being a component of electric vehicle batteries, among other applications. Industrial hydrometallurgical nickel production by electrowinning offers a potential recovery route for nickel sulfates by precipitation since nickel metal is produced from an electrolyte solution of nickel sulfate and significant amounts of nickel are present in various sidestreams. Yet, the presence of multiple nickel sulfate hydrate phases, their metastability and significant effects of impurities necessitates detailed investigations to optimize the crystallization processes towards a desirable product. Accordingly, in this work, crystallization of nickel sulfate was investigated at 25 °C and 70 °C, with different seed amounts and in the absence and presence of various initial magnesium concentrations. The results showed that seeding alone is not always sufficient to control the crystallization of nickel sulfate phases from supersaturated solutions, and the reaction temperature as well as the reaction time may dominate the final precipitate. Following the phase transformations of nickel sulfate phases both in solution and in dry state further demonstrated the difficulty of manipulating this dynamic system towards a desired stable product. Experiments conducted with various initial concentrations of Mg showed that its presence promotes NSH7 formation and could have inhibitory effects on the formation of hexahydrate polymorphs in solution, as well as showing significant effects on the stability of different phases in the dry state. Although crystallization of nickel sulfate salts offer an attractive strategy to obtain high purity products and efficient recycling routes, our results show that the complexity of these systems should be recognized, where in-depth studies can provide the necessary input to optimize any chosen crystallization method for process design. Future work should include the designation of potential recycling routes for nickel sulfate salts from industrial streams and optimization of crystallization processes for their relevant conditions.
