Crystal Growth and Investigation of High-Pressure Physical Properties of Fe2As

1
Institute of Physics, Chinese Academy of Sciences, Beijing 100190, China
2
School of Physics, University of Chinese Academy of Sciences, Beijing 100190, China
3
Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049, China
4
Materials Research Laboratory at Songshan Lake, Dongguan 523808, China
*
Authors to whom correspondence should be addressed.
Crystals 2020, 10(9), 790; https://doi.org/10.3390/cryst10090790
Received: 9 August 2020 / Revised: 29 August 2020 / Accepted: 4 September 2020 / Published: 6 September 2020
(This article belongs to the Special Issue Magnetіc Structure Compounds)

Abstract

We reported the growth of Fe2As single crystals and the study of its physical properties via comprehensive measurements, such as transport properties under pressure and high-pressure synchrotron radiation X-ray diffraction. Fe2As is an antiferromagnetic metal with TN ~ 355 K. Within the pressure range of 100 GPa, no superconductivity was observed above 2 K. The abrupt drop in resistance from 21 to 31.7 GPa suggests a high-pressure phase transition happens. The high-pressure X-ray experiments indicate a new high-pressure phase appears, starting from 27.13 GPa. After the refinement of the high-pressure X-ray data, the pressure dependence of lattice constants of Fe2As (P4/nmm phase) was plotted and the bulk modulus B0 was obtained to be 168.6 GPa.
Keywords: iron-based compound; high-pressure resistivity; high-pressure structure iron-based compound; high-pressure resistivity; high-pressure structure

1. Introduction

The discovery of the superconducting LaO1−xFxFeAs [1] with Tc = 26 K has attracted great interest to search for new iron-based superconductors. Soon after this discovery, a series of iron-based layered oxypnictides RFeAs(O1−xFx) were found by replacing La atoms with other rare-earth elements R (R = Ce, Pr, Nd, Sm, ...) [2,3,4,5]. The superconducting transition temperature was quickly enhanced to a maximum of 55 K in SmO1−xFxFeAs [4]. Subsequently, several families of iron-based superconductors were discovered, such as 122-type (Ba, K)Fe2As2 [6], 11-type FeSe [7] and 111-type LiFeAs [8]. Iron-based superconductors contain the common Fe2×2 (X = As and Se) unit, which is believed to be crucial to support superconductivity in the iron-based materials. The superconductivity can be either induced by introducing charge carriers into the parent compounds or applying high pressure via suppressing the antiferromagnetic order [9,10,11,12]. Thus, the mechanism of superconductivity in iron-based compounds is considered to be highly related with the antiferromagnetic spin fluctuation.
Fe2As crystallizes into a Cu2Sb-type crystal structure. More interestingly, it contains [FeAs] layers, intercalated by Fe ions, and is isostructural to 111-type LiFeAs. For LiFeAs, there is no magnetic ordering and structural transition in compound LiFeAs, which makes it a special case in iron-based superconductors [13,14,15]. In contrast, Fe2As demonstrates an antiferromagnetic transition with a Néel temperature of about 353 K [16]. Therefore, it is possible for Fe2As to become a superconductor if the antiferromagnetic order is suppressed. High pressure was applied to Fe2As to explore the superconductivity within 32 GPa. However, no sign of superconductivity was observed [17,18]. In this work, we report on the study of properties of Fe2As within 100 GPa. Fe2As keeps its metallic state and no superconductivity is observed above 2 K. It undergoes a high-pressure phase transition at about 27 GPa, which rules out the possibility of pressure-induced superconductivity in the tetragonal P4/nmm phase of Fe2As. Via the study of high-pressure structure, the bulk modulus B0 for the P4/nmm phase of Fe2As is obtained to be about 168.6 GPa.

2. Materials and Methods

Single crystals of Fe2As were grown using the self-flux method. High-purity Fe powder (Alfa, 99.999%) and As powder (Alfa, 99.999%) were mixed with a molar ratio of 2:1. Then the mixtures were put in an Al2O3 capsule, sealed into a niobium tube filled with high-purity Ar gas and then sealed in an evacuated quartz tube. The quartz tube was heated to 1180 °C at a rate of 4 °C/min and hold at this temperature for 20 h. Then, it was slowly cooled down to 600 °C at a rate of 3 °C/h, after which the single crystals of Fe2As with the typical size of 2 mm were obtained.
The samples were characterized by X-ray powder diffraction (XRD) in the 10°–90° range on a Philips X’pert diffractometer (PANalytical B.V., Almelo, The Netherlands) using Cu Kα radiation generated at 40 kV and 40 mA. The chemical compositions were examined by energy dispersive X-ray spectroscopy (EDX). The DC magnetic susceptibility was measured using a superconducting quantum interference device (SQUID) (Quantum Design, San Diego, CA, USA). The electrical resistivity under ambient pressure was measured by a physical property measurement system (PPMS) (Quantum Design, California, USA) using the four-probe method. The four Pt lines were pasted using silver conductive adhesive onto the flat surface (ab-plane) of the single crystal sample, thus we could get the ab-plane resistance when current was applied in the ab-plane.
The electronic transport properties under high pressure were investigated using the four-probe electrical conductivity method as described in [19,20]. The dimension of the sample used in our measurement was about 35 μm × 35 μm for the surface (ab-plane) of single crystal and 5 μm thick, so that the four electrodes could be contacted tightly with the flat surface. NaCl powder was used as the pressure transmitting medium. The pressure was calibrated via the ruby fluorescence method at room temperature [21]. After being fully assembled, we put the diamond anvil cell inside a MagLab system (Oxford Instruments, Oxford, UK) to perform the electric transport experiments within the range of 2 K to 300 K.
In situ high pressure synchrotron X-ray diffraction experiments were performed at Beijing Synchrotron Radiation Facility (Beijing, China) with a wavelength of 0.6199 Å using a symmetric Mao Bell DAC (MHD Corporation, Fukuoka, Japan). Fine grounded polycrystalline powders were loaded in DAC and ruby balls were placed around the sample as pressure markers. The obtained two-dimensional image plate patterns were converted to one-dimensional 2θ versus intensity data using the Fit2D software package (Andy Hammersley, ESRF, Grenoble, France) [22]. Refinements of the high-pressure synchrotron X-ray diffraction patterns were performed by Rietveld method [23] through the GSAS package (Lansce Los Alamos, Los Alamos, NM, USA).

3. Results and Discussion

The compound Fe2As crystallizes into the Cu2Sb-type crystal structure. Figure 1a shows the X-ray diffraction (XRD) pattern of Fe2As single crystal. Only sharp [00l] peaks can be observed, suggesting a good quality of our crystal sample. A Le Bail fit to the diffraction data yields c = 5.965 Å, which coincides with the previous result [24] and is much smaller than that of LiFeAs (c = 6.3574 Å) [8]. The photograph of Fe2As crystal with the size up to 1 mm × 2 mm × 0.5 mm is shown in the inset of Figure 1a. The elemental composition of the single crystal was checked by EDX, giving an average atomic ratio of Fe:As = 2.07:1, which is very close to the elemental ratio of stoichiometric Fe2As. Figure 1b shows the DC magnetic susceptibility measurements on Fe2As single crystal from 5 K to 380 K with applied magnetic field parallel to ab-plane in both zero-field cooled (ZFC) and field cooled (FC) modes. We can unambiguously find an antiferromagnetic transition at about 355 K, which is in agreement with the result of magnetic susceptibility and neutron diffraction measurements [16]. Figure 1c shows the electrical resistivity versus temperature for Fe2As single crystal at ambient pressure. An anomaly at about 355 K can be observed in the resistivity curve, which can be attributed to the antiferromagnetic transition.
For the iron-based superconductors, superconductivity can always be induced by suppressing antiferromagnetic order. Pressure is a clean tool to suppress the antiferromagnetic order without introducing defects or impurities and, then, induce the possible superconductivity. The research on tuning superconductivity by pressure has been widely reported in many material systems ranging from topological materials to iron-based superconductors [25,26,27,28,29,30,31,32,33]. Therefore, we conducted the measurement of resistance for Fe2As within the range of 2 K to 300 K, under pressure as high as 100 GPa, which can be seen in Figure 2. As reported before [17,18], it is difficult to determine the Néel temperature from the high-pressure resistance curve. Within the pressure range of 21 GPa, the resistance at low temperature increases as pressure increases, which should arise from the suppression of antiferromagnetic order and the enhancement of magnetic fluctuation. While within lower pressure the decrease in resistance with increasing pressure was reported in the references [17,18]. The disagreement is suggested to be caused by the difference in samples. In our work, single crystal was used for the resistance measurement and the data we got indicate ab-plane resistance, while the polycrystalline samples were used in the previous work where the extrinsic grains contacting resistance is included. When pressure increases from 21 to 31.7 GPa, the resistance drops abruptly. Generally, high-pressure phase has a more compacted structure and leads to a lower resistance. In addition, the new phase might completely destroy the antiferromagnetic order and push Fe2As away from antiferromagnetic fluctuation, which can also cause the drop in resistance. Therefore, it is hinted that the sharp drop in resistance is associated with the occurrence of pressure-induced structure transition as will be confirmed by the following high-pressure X-ray experiments. Above 31.7 GPa, the resistance gradually increases when further increasing the pressure. For Fe2As, the anomaly of pressure dependence of resistance has also been observed in the pressure range from 10.4 to 31.4 GPa in the previous work [17]. In any case, we cannot observe any sign of superconductivity above 2 K within our highest experimental pressure.
To examine the high-pressure phase transition, we carried out the high-pressure synchrotron radiation X-ray experiments. Figure 3 shows the X-ray diffraction patterns under high pressure. Below 23.5 GPa, all the peaks can be indexed very well as a tetragonal P4/nmm phase. When the pressure increases up to 27.13 GPa, several peaks derived from P4/nmm phase become weak and disappear gradually. Simultaneously, there appears a set of new diffraction peaks marked with inverted triangles, as can be seen in Figure 3b, which indicates the appearance of the high-pressure phase. Further increasing the pressure, the high-pressure phase gradually becomes the main phase.
Data analysis of the diffraction patterns was performed with the Rietveld refinements using the GSAS program package, from which we can obtain the values of lattice constants and unit cell volumes under different pressures for P4/nmm phase. As an example, Figure 4 presents the Rietveld refinements for the diffraction patterns at 1.79 GPa. The evolution of the lattice parameters with a pressure for P4/nmm phase is shown in Figure 5a. Both the lattice constants of a and c are compressed by pressure. Within 25 GPa, a and c shrink about 3.9% and 1.6%, respectively; this demonstrates that the ab-plane is easier to be compressed than c axis. Figure 5b presents the unit cell volumes versus pressure. The volume–pressure data are fitted using the third-order Birch–Murnaghan equation of states, P ( GPa ) = 3 2 × B 0 [ ( V 0 V ) 7 3 ( V 0 V ) 5 3 ] × { 1 ( 3 3 4 × B 0 ) × [ ( V 0 V ) 2 3 1 ] } . When the first pressure derivative B′0 is fixed to be 4, the fitting gives the value of bulk modulus B0 = 168.6 GPa, which is higher than LiFeAs and close to that of CuFeAs [34].
For the unknown high-pressure phase of Fe2As, we can refer to the previous works about high-pressure phase transition for the isostructural “111” type iron based superconductors. NaFeAs has been reported to undergo an isostructural phase transition at 20 Gpa [35]. Interestingly, the high-pressure crystal structures prediction of “111” type iron-based superconductors (LiFeAs, NaFeAs, and LiFeP) based on CALYPSO (Crystal structure Analysis by Particle Swarm Optimization) methodology indicates there exist two possible high-pressure crystal structures below 100 GPa, the Cmcm structure for NaFeAs or LiFeP and the P-3m1 structure for LiFeAs [36]. However, using either Cmcm or P-3m1 structure as the initial model to carry out the refinements for our high-pressure X-ray data, we found that the peaks of high-pressure phase cannot be well fitted. Thus, the high-pressure phase of Fe2As needs further studies to be determined. In any case, the high-pressure phase transition rules out the possibility of pressure-induced superconductivity in the tetragonal P4/nmm phase of Fe2As.

4. Conclusions

In this work, high quality single crystals of Fe2As were grown and the properties under high pressure were studied. Within 100 GPa, Fe2As keeps its metallic state and no superconductivity is observed above 2 K. A high-pressure phase transition happens at about 27 GPa, which suggests that pressure-induced superconductivity cannot be observed in the tetragonal P4/nmm phase of Fe2As. At last, via the study of structure under high pressure we obtained the bulk modulus B0 of about 168.6 GPa for the ambient phase of Fe2As.

Author Contributions

X.W. and C.J. conceived and designed the experiments and edited the manuscript; G.D. performed the experiments, analyzed the data and drafted the manuscript; C.Z. and S.Z. contributed the initial high-pressure resistivity measurements; X.H., C.R., J.Z. and X.L. contributed the high-pressure synchrotron radiation X-ray experiments. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Science Foundation of China (NSFC) and the National Basic Research Program of China.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kamihara, Y.; Watanabe, T.; Hirano, M.; Hosono, H. Iron-based layered superconductor La[O1−xFx]FeAs (x = 0.05–0.12) with Tc = 26 K. J. Am. Chem. Soc. 2008, 130, 3296–3297. [Google Scholar] [CrossRef] [PubMed]
  2. Takahashi, H.; Igawa, K.; Arii, K.; Kamihara, Y.; Hirano, M.; Hosono, H. Superconductivity at 43K in an iron-based layered compound LaO1−xFxFeAs. Nature 2008, 453, 376–378. [Google Scholar] [CrossRef] [PubMed]
  3. Chen, X.H.; Wu, T.; Wu, G.; Liu, R.H.; Chen, H.; Fang, D.F. Superconductivity at 43 K in SmFeAsO1−xFx. Nature 2008, 453, 761–762. [Google Scholar] [CrossRef] [PubMed]
  4. Ren, Z.A.; Lu, W.; Yang, J.; Yi, W.; Shen, X.L.; Zheng, C.; Che, G.C.; Dong, X.L.; Sun, L.L.; Zhou, F.; et al. Superconductivity at 55 K in iron-based F-doped layered quaternary compound Sm[O1−xFx]FeAs. Chin. Phys. Lett. 2008, 25, 2215–2216. [Google Scholar]
  5. Chen, G.F.; Li, Z.; Wu, D.; Li, G.; Hu, W.Z.; Dong, J.; Zheng, P.; Luo, J.L.; Wang, N.L. Superconductivity at 41K and its competition with spin-density-wave instability in layered CeO1−xFxFeAs. Phys. Rev. Lett. 2008, 100, 247002. [Google Scholar] [CrossRef]
  6. Rotter, M.; Tegel, M.; Johrendt, D. Superconductivity at 38 K in the iron arsenide (Ba1−xKx)Fe2As2. Phys. Rev. Lett. 2008, 101, 107006. [Google Scholar] [CrossRef]
  7. Hsu, F.C.; Luo, J.Y.; Yeh, K.W.; Chen, T.K.; Huang, T.W.; Wu, P.M.; Lee, Y.C.; Huang, Y.L.; Chu, Y.Y.; Yan, D.C.; et al. Superconductivity in the PbO-type structure alpha-FeSe. Proc. Natl. Acad. Sci. USA 2008, 105, 14262–14264. [Google Scholar] [CrossRef]
  8. Wang, X.C.; Liu, Q.Q.; Lv, Q.Q.; Gao, W.B.; Yang, L.X.; Yu, R.C.; Li, F.Y.; Jin, C.Q. The superconductivity at 18 K in LiFeAs system. Solid State Commun. 2008, 148, 538–540. [Google Scholar] [CrossRef]
  9. Sefat, A.S.; Jin, R.; McGuire, M.A.; Sales, B.C.; Singh, D.J.; Mandrus, D. Superconductivity at 22 K in Co-Doped BaFe2As2 Crystals. Phys. Rev. Lett. 2008, 101, 117004. [Google Scholar] [CrossRef]
  10. Torikachvili, M.S.; Bud’ko, S.L.; Ni, N.; Canfield, P.C. Pressure Induced Superconductivity in CaFe2As2. Phys. Rev. Lett. 2008, 101, 057006. [Google Scholar] [CrossRef]
  11. Igawa, K.; Okada, H.; Takahashi, H.; Matsuishi, S.; Kamihara, Y.; Hirano, M.; Hosono, H.; Matsubayashi, K.; Uwatoko, Y. Pressure-Induced Superconductivity in Iron Pnictide Compound SrFe2As2. J. Phys. Soc. Jpn. 2009, 78, 025001. [Google Scholar] [CrossRef]
  12. Matsubayashi, K.; Katayama, N.; Ohgushi, K.; Yamada, A.; Munakata, K.; Matsumoto, T.; Uwatoko, Y. Intrinsic Properties of AFe2As2 (A = Ba, Sr) Single Crystal under Highly Hydrostatic Pressure Conditions. J. Phys. Soc. Jpn. 2009, 78, 073706. [Google Scholar] [CrossRef]
  13. Zhang, P.; Wang, Z.J.; Wu, X.X.; Yaji, K.; Ishida, Y.; Kohama, Y.; Dai, G.Y.; Sun, Y.; Bareille, C.; Kuroda, K.; et al. Multiple topological states in iron-based superconductors. Nat. Phys. 2019, 15, 41–47. [Google Scholar] [CrossRef]
  14. Yin, J.X.; Zhang, S.S.; Dai, G.Y.; Zhao, Y.Y.; Kreisel, A.; Macam, G.; Wu, X.X.; Miao, H.; Huang, Z.Q.; Martiny, J.H.J.; et al. Quantum phase transition of correlated iron-based superconductivity in LiFe1−xCoxAs. Phys. Rev. Lett. 2019, 123, 217004. [Google Scholar] [CrossRef] [PubMed]
  15. Xu, Z.; Dai, G.Y.; Li, Y.; Yin, Z.P.; Rong, Y.; Tian, L.; Liu, P.P.; Wang, H.; Xing, L.Y.; Wei, Y.; et al. Strong local moment antiferromagnetic spin fluctuations in V-doped LiFeAs. npj Quantum Mater. 2020, 5, 11. [Google Scholar] [CrossRef]
  16. Katsuraki, H.; Achiwa, N. The Magnetic structure of Fe2As. J. Phys. Soc. Jpn. 1966, 21, 2238–2243. [Google Scholar] [CrossRef]
  17. Zocco, D.A.; Tutun, D.Y.; Hamlin, J.J.; Jeffries, J.R.; Weir, S.T.; Vohra, Y.K.; Maple, M.B. High pressure transport studies of the LiFeAs analogs CuFeTe2 and Fe2As. Supercond. Sci. Technol. 2012, 25, 084018. [Google Scholar] [CrossRef]
  18. Takeshita, N.; Iyo, A.; Ishida, S.; Eisaki, H.; Yoshida, Y. Electrical resistivity of FeAs, FeAs2 and Fe2As at homogeneous high pressures. J. Phys. Conf. Ser. 2017, 950, 042024. [Google Scholar] [CrossRef]
  19. Zhang, J.L.; Zhang, S.J.; Weng, H.M.; Zhang, W.; Yang, L.X.; Liu, Q.Q.; Feng, S.M.; Wang, X.C.; Yu, R.C.; Cao, L.Z.; et al. Pressure-induced superconductivity in topological parent compound Bi2Te3. Proc. Natl. Acad. Sci. USA 2011, 108, 24–28. [Google Scholar] [CrossRef]
  20. Zhang, S.J.; Zhang, J.L.; Yu, X.H.; Zhu, J.; Kong, P.P.; Feng, S.M.; Liu, Q.Q.; Yang, L.X.; Wang, X.C.; Cao, L.Z.; et al. The comprehensive phase evolution for Bi2Te3 topological compound as function of pressure. J. Appl. Phys. 2012, 111, 112630. [Google Scholar] [CrossRef]
  21. Mao, H.; Xu, J.A.; Bell, P. Calibration of the ruby pressure gauge to 800 kbar under quasi-hydrostatic conditions. J. Geophys. Res. Solid Earth Plantets 1986, 91, 4673–4676. [Google Scholar] [CrossRef]
  22. Hammersley, A.P.; Svensson, S.O.; Hanfland, M.; Fitch, A.N.; Hausermann, D. Two-dimensional detector software: From real detector to idealized image or two-theta scan. Int. J. High Press. Res. 1996, 14, 235–248. [Google Scholar] [CrossRef]
  23. Toby, B.H. EXPGUI, a graphical user interface for GSAS. J. Appl. Cryst. 2001, 34, 210–213. [Google Scholar] [CrossRef]
  24. Nuss, J.; Wedig, U.; Jansen, M. Geometric variations and electron localizations in intermetallics: PbFCl type compounds. Z. Krist. 2006, 221, 554–562. [Google Scholar] [CrossRef]
  25. Kong, P.P.; Zhang, J.L.; Zhang, S.J.; Zhu, J.; Liu, Q.Q.; Yu, R.C.; Fang, Z.; Jin, C.Q.; Yang, W.G.; Yu, X.H.; et al. Superconductivity of the topological insulator Bi2Se3 at high pressure. J. Phys. Condens. Matter 2013, 25, 362204. [Google Scholar] [CrossRef]
  26. Zhu, J.; Zhang, J.L.; Kong, P.P.; Zhang, S.J.; Yu, X.H.; Zhu, J.L.; Liu, Q.Q.; Li, X.; Yu, R.C.; Ahuja, R.; et al. Superconductivity in Topological Insulator Sb2Te3 Induced by Pressure. Sci. Rep. 2013, 3, 2016. [Google Scholar] [CrossRef]
  27. Liu, Y.; Long, Y.J.; Zhao, L.X.; Nie, S.M.; Zhang, S.J.; Weng, Y.X.; Jin, M.L.; Li, W.M.; Liu, Q.Q.; Long, Y.W.; et al. Superconductivity in HfTe5 across weak to strong topological insulator transition induced via pressures. Sci. Rep. 2017, 7, 44367. [Google Scholar] [CrossRef]
  28. Jin, M.L.; Sun, F.; Xing, L.Y.; Zhang, S.J.; Feng, S.M.; Kong, P.P.; Li, W.M.; Wang, X.C.; Zhu, J.L.; Long, Y.W.; et al. Superconductivity Bordering Rashba Type Topological Transition. Sci. Rep. 2017, 7, 39699. [Google Scholar] [CrossRef]
  29. Okada, H.; Igawa, K.; Takahashi, H.; Kamihara, Y.; Hirano, M.; Hosono, H.; Matsubayashi, K.; Uwatoko, Y. Superconductivity under high pressure in LaFeAsO. J. Phys. Soc. Jpn. 2008, 77, 113712. [Google Scholar] [CrossRef]
  30. Mani, A.; Ghosh, N.; Paulraj, S.; Bharathi, A.; Sundar, C.S. Pressure-induced superconductivity in BaFe2As2 single crystal. Europhys. Lett. 2009, 87, 17004. [Google Scholar] [CrossRef]
  31. Wu, J.J.; Lin, J.F.; Wang, X.C.; Liu, Q.Q.; Zhu, J.L.; Xiao, Y.M.; Chow, P.; Jin, C.Q. Pressure-decoupled magnetic and structural transitions of the parent compound of iron-based 122 superconductors BaFe2As2. Proc. Natl. Acad. Sci. USA 2013, 110, 17263–17266. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, X.C.; Zhang, S.J.; Liu, Q.Q.; Deng, Z.; Lv, Y.X.; Zhu, J.L.; Feng, S.M.; Jin, C.Q. Effect of pressure on a “111”-type iron pnictide superconductor. High Press. Res. 2011, 31, 7–12. [Google Scholar] [CrossRef]
  33. Mizuguchi, Y.; Tomioka, F.; Tsuda, S.; Yamaguchi, T.; Takano, Y. Superconductivity at 27 K in tetragonal FeSe under high pressure. Appl. Phys. Lett. 2008, 93, 152505. [Google Scholar] [CrossRef]
  34. Chen, Z.J.; Xu, G.B.; Yan, J.G.; Kuang, Z.; Chen, T.H.; Li, D.H. First-principles investigation of mechanical and electronic properties of MFeAs (M = Cu, Li, and Na). J. Appl. Phys. 2016, 120, 235103. [Google Scholar] [CrossRef]
  35. Liu, Q.Q.; Yu, X.H.; Wang, X.C.; Deng, Z.; Lv, Y.X.; Zhu, J.L.; Zhang, S.J.; Liu, H.Z.; Yang, W.G.; Wang, L.; et al. Pressure-Induced isostructural phase transition and correlation of feas coordination with the superconducting properties of 111-Type Na1−xFeAs. J. Am. Chem. Soc. 2011, 133, 7892–7896. [Google Scholar] [CrossRef]
  36. Zhang, X.X.; Wang, Y.C.; Ma, Y.M. High pressure structures of ‘‘111’’ type iron-based superconductors predicted from first-principles. Phys. Chem. Chem. Phys. 2012, 14, 15029–15035. [Google Scholar] [CrossRef]
Figure 1. (a) X-ray diffraction (XRD) pattern of Fe2As single crystal. The inset shows the photograph of Fe2As single crystal; (b) Zero-field cooled (ZFC) and field cooled (FC) susceptibilities versus temperature for Fe2As single crystal with applied magnetic field parallel to ab-plane, an obvious antiferromagnetic transition can be seen at about 355 K; (c) Temperature dependence of ab plane resistance at ambient pressure. An obvious anomaly at about 355 K in the resistivity curve was marked by arrow.
Figure 1. (a) X-ray diffraction (XRD) pattern of Fe2As single crystal. The inset shows the photograph of Fe2As single crystal; (b) Zero-field cooled (ZFC) and field cooled (FC) susceptibilities versus temperature for Fe2As single crystal with applied magnetic field parallel to ab-plane, an obvious antiferromagnetic transition can be seen at about 355 K; (c) Temperature dependence of ab plane resistance at ambient pressure. An obvious anomaly at about 355 K in the resistivity curve was marked by arrow.
Crystals 10 00790 g001
Figure 2. (a) Temperature dependence of ab-plane resistance at various pressures range from 0.7 to 31.7 GPa; (b) Temperature dependence of ab-plane resistance at various pressures range from 31.7 to 99 GPa.
Figure 2. (a) Temperature dependence of ab-plane resistance at various pressures range from 0.7 to 31.7 GPa; (b) Temperature dependence of ab-plane resistance at various pressures range from 31.7 to 99 GPa.
Crystals 10 00790 g002
Figure 3. Synchrotron X-ray diffraction patterns of Fe2As polycrystalline at different pressures up to 50.43 GPa (λ = 0.6199 Å). (a) XRD patterns at various pressures range from 1.79 to 19.76 GPa; (b) XRD patterns at various pressures range from 23.46 to 50.43 GPa, the peaks marked with inverted triangles denote the new diffraction peaks emerging.
Figure 3. Synchrotron X-ray diffraction patterns of Fe2As polycrystalline at different pressures up to 50.43 GPa (λ = 0.6199 Å). (a) XRD patterns at various pressures range from 1.79 to 19.76 GPa; (b) XRD patterns at various pressures range from 23.46 to 50.43 GPa, the peaks marked with inverted triangles denote the new diffraction peaks emerging.
Crystals 10 00790 g003
Figure 4. Rietveld refined XRD patterns of Fe2As at 1.79 GPa.
Figure 4. Rietveld refined XRD patterns of Fe2As at 1.79 GPa.
Crystals 10 00790 g004

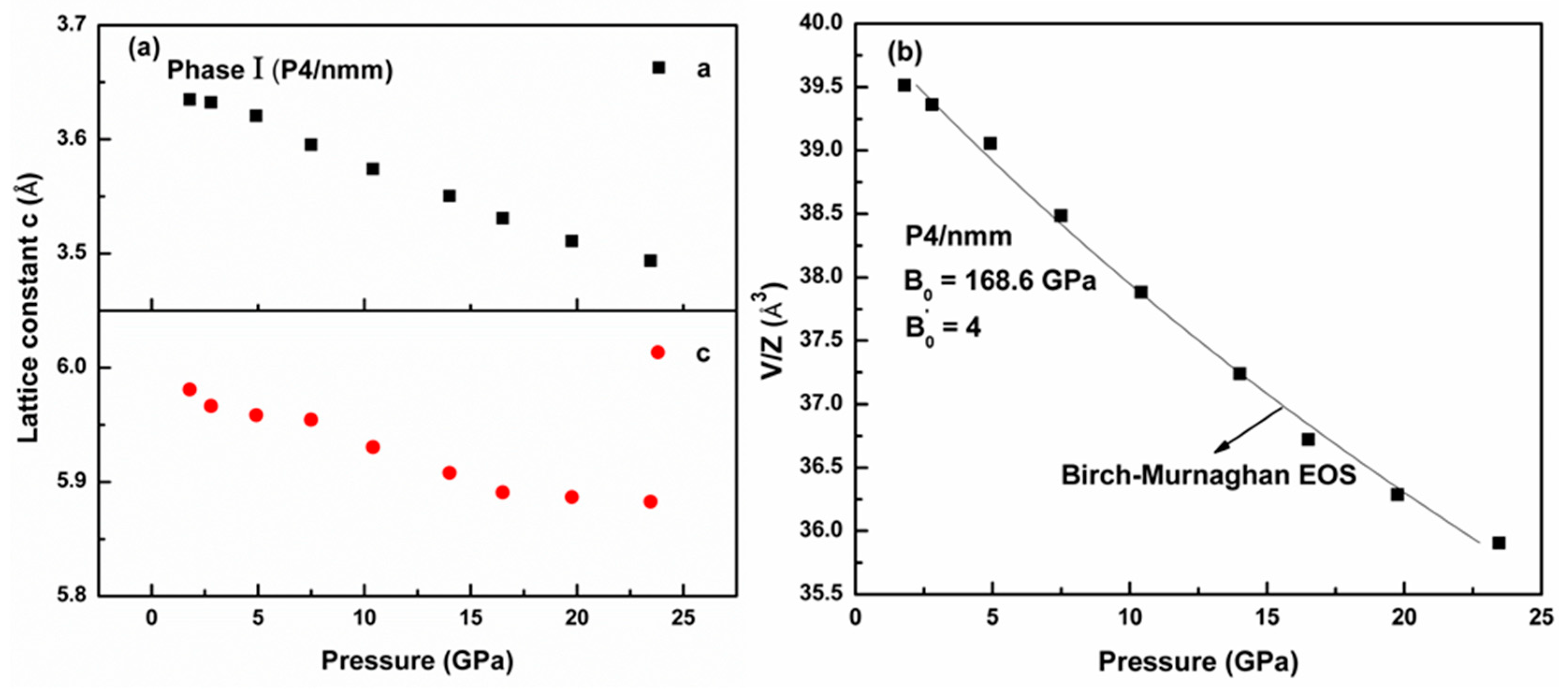

Figure 5. (a) Pressure dependence of the lattice constants a and c for P4/nmm phase; (b) Unit cell volumes versus pressure. The solid line shows the fitting curve using the third-order Birch–Murnaghan equation of states.
Figure 5. (a) Pressure dependence of the lattice constants a and c for P4/nmm phase; (b) Unit cell volumes versus pressure. The solid line shows the fitting curve using the third-order Birch–Murnaghan equation of states.
Crystals 10 00790 g005
