Synthesis, Single Crystal X-Ray Structure, Hirshfeld Surface Analysis, DFT Computations, Docking Studies on Aurora Kinases and an Anticancer Property of 3-(2,3-Dihydrobenzo[b][1,4]dioxin-6-yl)-6-methoxy-4H-chromen-4-one

Abstract

The isoflavone compound 3-(2,3-dihydrobenzo[b][1,4]dioxin-6-yl)-6-methoxy-4H-chromen-4-one (6) was prepared and structurally characterized using NMR, mass spectrum and X-ray crystallography. Compound 6, C₁₈H₁₄O₅, was crystallized in the monoclinic space group P2₁/n with the cell parameters; a = 7.1869(4) Å, b = 10.2764(6) Å, c = 19.6771(10) Å, β = 99.442(2)°, V = 1433.57(14) ų, Z = 4. In the title compound, the chromenone ring system is slightly twisted from planarity and the dihedral angle formed between the plane of the chromenone ring and benzene ring is 47.75°. Several intermolecular hydrogen bonds make the crystal stabilized in the three-dimensional structure, which was confirmed by Hirshfeld surface analysis. Density functional theory (DFT) calculations at the B3LYP/6-311++G(d,p) level were carried out and the calculated geometric parameters were compared with the experimental results. A frontier molecular orbital calculation was performed to reveal that the energy values of highest occupied molecular orbital (HOMO) and lowest un-occupied molecular orbital (LUMO) were −5.8223 eV and −1.8447 eV, and the HOMO–LUMO energy gap was 3.9783 eV. A clonogenic long-term survival assay of compound 6 against HCT116 human colon cancer cells showed an anti-cancer ability, with GI₅₀ value of 24.9 μM. Docking experiments within the active sites of aurora kinase A and B were carried out to explain the anti-cancer property of compound 6.

1. Introduction

Flavonoids are widely distributed in plants, performing interactions as secondary metabolites. One of the characteristic flavonoid features is phytoalexins, which show self-defense abilities in plants. The self-defense system of flavonoids has been extensively modified to apply it to medicinal chemistry and has demonstrated antioxidant, anti-proliferative, anti-tumor, anti-microbial, anti-inflammatory and anti-cardiovascular disease properties [1,2,3,4,5,6,7,8]. In the context of chemical structure, flavonoids are phenyl-substituted chromones which are divided into flavones and isoflavones depending on the site of substituents in the chromone ring [9].

The target identification of bioactive compounds is a significant step in medicinal chemistry for the development of new drugs which have unique modes of action. A recent review describes that flavones are one of the most important scaffolds for medicinal chemistry and their applications in pharmaceutical research are extremely diverse [10]. In silico methods, such as molecular docking, have been widely used in the target research of bioactive compounds, and the complete three-dimensional structures of substrates and proteins are the prerequisites for these processes [11,12,13].

In continuation of our previous research on flavones and isoflavones [14,15,16,17], and in order to expand their applications in target validation research, isoflavone compound 6 was synthesized and the structure was confirmed by X-ray crystallographic analyses. With the three-dimensional structure of isoflavone derivative 6 in hand, molecular docking studies on aurora kinases were performed to widen the molecular targets and to give insight on the mode of action for anti-cancer activities.

2. Materials and Methods

2.1. General

NMR experiments were carried out on a Bruker Avance 400 spectrometer. The concentrations of the samples were adjusted to approximately 50 mM dissolved in deuterated dimethyl sufoxide (DMSO-d₆). The detailed procedures and parameters for the experiments followed the methods reported previously [18]. The ¹H-NMR spectrum data were collected at room temperature, and the relaxation delay, 90° pulse, spectral width, number of data points and digital resolution were 1 s, 11.6 µs, 5500 Hz, 32 K, and 0.34 Hz/point, respectively. For the ¹³C-NMR spectrum, the proton signals were decoupled with broadband decoupling. The relaxation delay, 90° pulse, spectral width, number of data points and digital resolution were 3 s, 15.0 µs, 21,000 Hz, 64 K, and 0.64 Hz/point, respectively. To get a high-resolution mass spectrum, ultra performance liquid chromatography–hybrid quadrupole time-of-flight mass spectrometry was carried out on a Waters Acquity UPLC system (Waters Corp., Milford, MA, USA). All HR/MS data were collected in [M+H]⁺ mode. Thin layer chromatography (TLC) plates from Merck (silica gel pre-coated aluminum cards with fluorescent indicator at 254 nm) were used for TLC. Visualization was performed by illumination with UV light source (254 nm). All the commercially available chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA) [12].

2.2. Crystal Structure Determination

A Bruker D8 Venture (Bruker, Madison, WI, USA) equipped with an IμS micro-focus sealed tube Mo Kα (λ = 0.71073 Å) and a PHOTON 100 CMOS detector was used to collect data. Single crystals were obtained by slow evaporation of the ethanol solution of isoflavone 6 at an ambient temperature. A Bruker SAINT was utilized for cell refinement and data reduction [19]. The structure was solved by direct methods and refined by full-matrix least-squares on F² using SHELXTL [20]. All non-hydrogen atoms were located on different Fourier maps and refined anisotropically. The C-H hydrogen atoms were positioned with idealized geometry and were refined with fixed isotropic displacement parameters U_iso(H) = 1.2 U_eq(C) for aromatic and U_iso(H) = 1.5 U_eq(C) for methyl H atoms using a riding model. Details of the crystallographic data collection, structural determination and refinement are summarized in

Table 1. Crystal data and structure refinement for Compound 6.

Empirical formula	C18H14O5
Formula weight	310.29
Temperature	223(2) K
Wavelength	0.71073 Å
Crystal system	Monoclinic
Space group	P21/n
Unit cell dimensions	a = 7.1869(4) Å b = 10.2764(6) Å c = 19.6771(10) Å β = 99.442(2)°
Volume	1433.57(14) Å3
Z	4
Density (calculated)	1.438 Mg/m3
Absorption coefficient	0.106 mm−1
F(000)	648
Crystal size	0.190 × 0.150 × 0.100 mm3
Theta range for data collection	2.098 to 28.296°
Index ranges	−9 ≤ h ≤ 9, −13 ≤ k ≤ 13, −26 ≤ l ≤26
Reflections collected	39243
Independent reflections	3573 [R(int) = 0.0491]
Completeness to theta = 25.242°	100.00%
Refinement method	Full-matrix least-squares on F2
Data / restraints / parameters	3573 / 0 / 209
Goodness-of-fit on F2	1.039
Final R indices [I>2sigma(I)]	R1 = 0.0396, wR2 = 0.0990
R indices (all data)	R1 = 0.0577, wR2 = 0.1083
Largest diff. peak and hole	0.347 and −0.183 e.Å−3

. CCDC deposition number 1989319 contains the supplementary crystallographic data for this paper, which can be obtained free of charge from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: deposit@ccdc.cam.ac.uk.

2.3. In Silico Docking with Aurora Kinases

In silico dockings to elucidate the molecular binding mode between isoflavone 6 and aurora kinase A and B (AURKA and AURKB) were performed on an Intel Core 2 Quad Q6600 (2.4 GHz) Linux PC with Sybyl 7.3 (Tripos, St. Louis, MO, USA). The 3D structure of AURKA was adopted from the X-ray crystallographic structure deposited in the protein data bank as 3uod.pdb [21]. Although it is not the 3D structure containing the greatest number of residues (2j4z.pdb) [22], because the ligand contained in this 3D structure is similar to the current compound, 3uod.pdb was selected. Unlike AURKA, AURKB was rarely studied for its 3D structures, so 4af3.pdb was chosen from the protein databank [23].

3. Results and Discussion

3.1. Synthesis

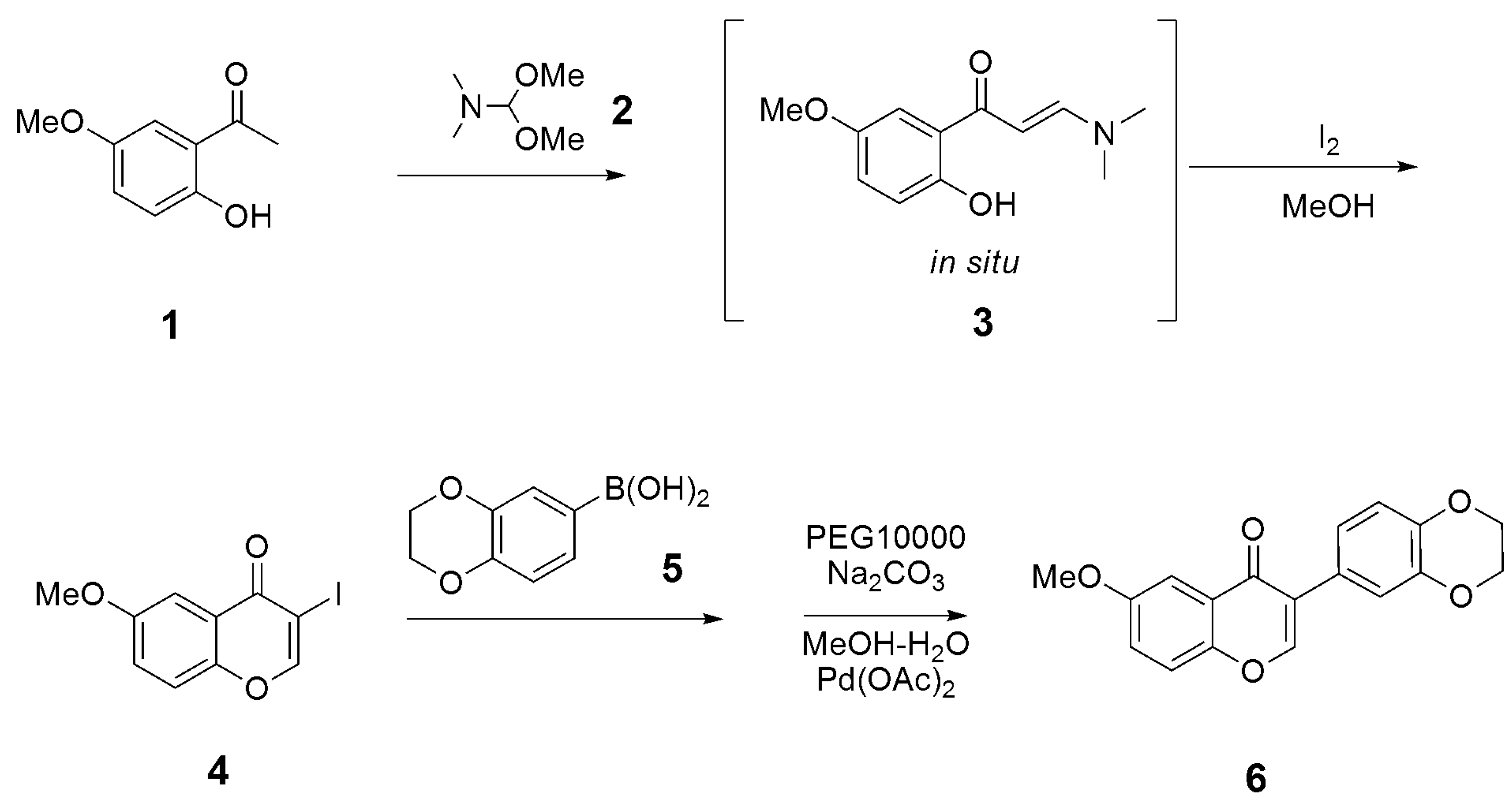

The isoflavone compound 6 was prepared according to literature methods as shown in Scheme 1 [24,25].

Synthesis of 3-iodo-6-methoxy-4H-chromen-4-one (4)

2-hydroxy-5-methoxyacetophenone (1, 1.66 g, 10 mmol) was dissolved in an excess amount of N,N-dimethylformamide dimethyl acetal (2, 4.5 mL, 21.1 mmol) and the reaction mixture was heated at 75 °C for 1 h. After the completion of the reaction (checked by TLC), the reaction mixture was cooled down to room temperature to give precipitates. The resulting solid was filtered and washed with cold methanol to give intermediate enamine (3) which was used for the next reaction without further purification. Enamine (3, 2.0 g, 7.9 mmol) was dissolved in MeOH (10 mL). To the solution, a 1.1 equivalent amount of iodine (2.22 g, 8.8 mmol) was added and the reaction mixture was stirred at room temperature overnight. After the completion of the reaction, precipitation was formed. The resulting solid was filtered and washed with cold methanol to provide a solid compound of iodoflavone (4). ¹H NMR (400 MHz, DMSO-d₆) δ 8.81 (s, 1H), 7.64 (dd, 1H, J = 9.0, 0.5 Hz), 7.42 (d, 1H, J = 3.2 Hz), 7.40 (d, 1H, J = 0.5 Hz), 3.86 (s, 3H,); ¹³C NMR (100 MHz, DMSO-d₆) δ 172.57, 158.85, 156.84, 150.42, 123.66, 121.78, 120.00, 105.14, 85.80, 55.77.

Synthesis of 3-(2,3-dihydrobenzo[b][1,4]dioxin-6-yl)-6-methoxy-4H-chromen-4-one (6)

3-Iodo flavone compound (4, 60 mg, 0.2 mmol) was dissolved in 20 ml of a methanol–water (1:1) solution. To the solution was added PEG (750 mg) and sodium carbonate (45 mg, 0.45 mmol) and it was stirred for 1 h. To the reaction mixture, a catalytic amount of palladium(II) acetate and (2,3-dihydrobenzo[b][1,4]dioxin-6-yl) boronic acid (5, 40 mg, 0.3 mmol) were added, and the resulting mixture was heated at 50 ^°C for 1 h. After the completion of the reaction (checked by TLC), the reaction mixture was cooled down to room temperature and the organic solvent was removed by evaporation. The resulting suspension was extracted with CH₂Cl₂ (10 mL × 3). The organic phase was dried over MgSO₄ and was filtered. The filtrate was evaporated, and the resulting residue was purified by flash chromatography to give an analytically pure compound of 6. ¹H NMR (400 MHz, DMSO-d₆) δ 8.48 (s, 1H), 7.65 (d, 1H, J = 9.1 Hz), 7.50 (d, 1H, J = 3.1 Hz), 7.42 (dd, 1H, J = 9.1, 3.2 Hz), 7.15 (d, 1H, J = 2.1 Hz), 7.07 (dd, 1H, J = 8.4, 2.1 Hz), 6.91 (d, 1H, J = 8.3 Hz), 4.27 (s, 4H), 3.87 (s, 3H); ¹³C NMR (100 MHz, DMSO-d₆) δ 174.80, 156.56, 153.99, 150.28, 143.21, 142.93, 124.89, 124.43, 123.29, 122.38, 121.73, 119.93, 117.57, 116.71, 105.13, 64.14, 64.03, 55.71; HR/MS (m/z): Calcd. for (M+H)⁺: 311.0919; Found: 311.0914.

3.2. Crystal Structure of Isoflavone Compound 6

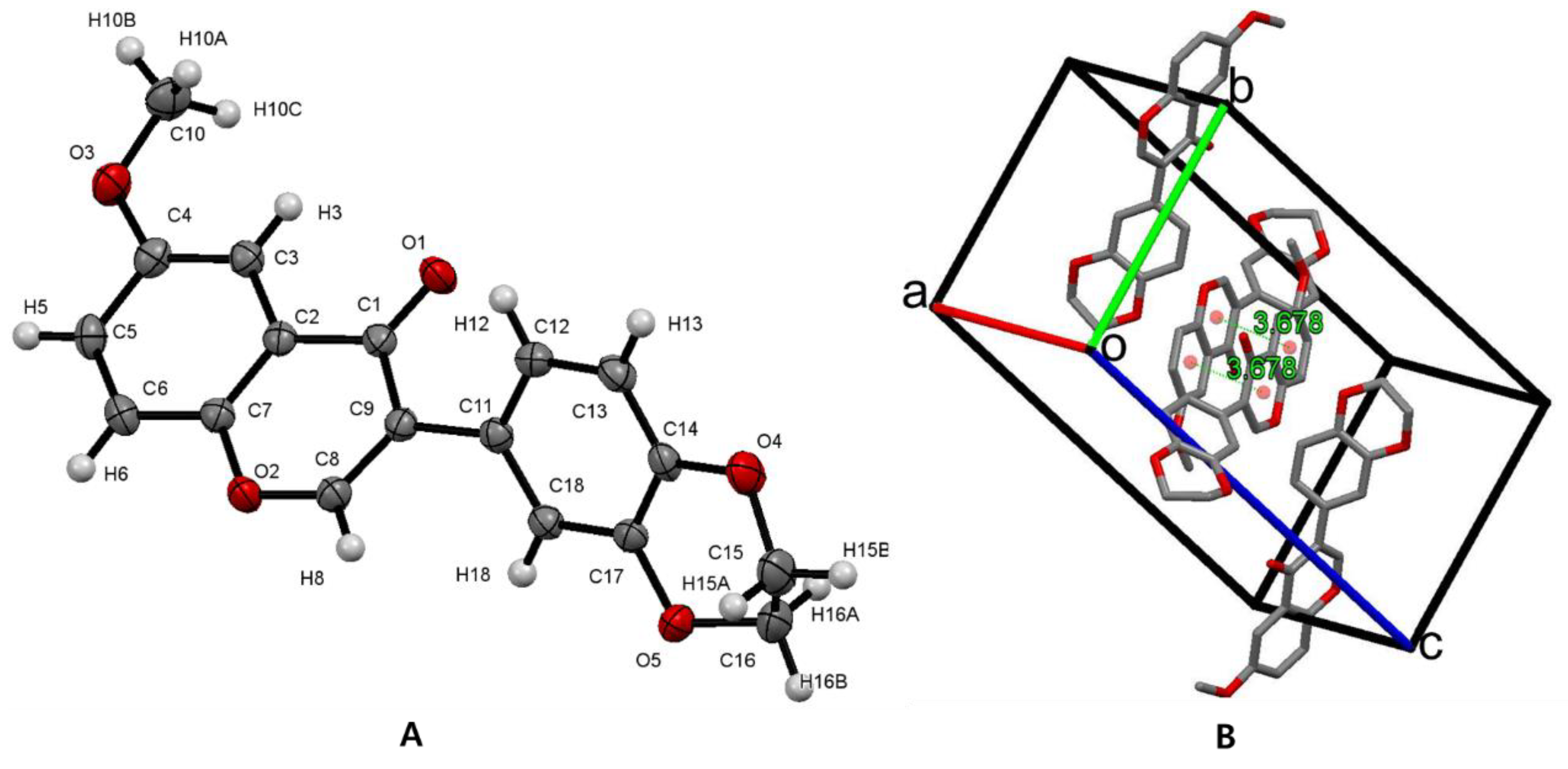

Isoflavone compound 6 crystallized in the monoclinic system with P2₁/n space group. The molecular structure based on single-crystal X-ray studies is shown in Figure 1A. In the middle of the unit cell, two molecules are stacked by pi–pi stacking between the two chromenone ring systems (C1-C9/O1). The distance between two centroids (Cg1 = C2-C3-C4-C5-C6-C7, Cg2 = C1-C2-C7-O2-C8-C9) is 3.678 Å. The asymmetric unit cell of compound 6 and the crystal packing image is shown in Figure 1B.

In the title compound, the methoxy groups in the chromenone ring at C4 is tilted from the ring by −5.81°. The benzene ring attached at C9 position of the chromenone ring is fused with two oxo-methylene substituents C14 and C17 to form a dihydrobenzo[b]dioxin ring. The dioxin ring forms a half-chair conformation in which the atom C16 shows maximum deviation from the dioxane ring of C15-C16-O5-C17-C14-O4 (root-mean-square deviation = 0.195 Å) by 0.317(1) Å. Each methylene carbon C14 and C17 contains two hydrogens, respectively, and their dihedral angles across the carbon C14-C17 are 179.1° (H16A-C16-C15-H15A, anti-periplanar), −62.5° (H16A-C16-C15-H15B, gauche) and −62.3° (H15A-C15-C16-H16B, gauche). Selected dihedral angles across the free rotational C–C single bonds are listed in

Table 2. Selected dihedral angles [°] for isoflavone compound 6.

C(10)-O(3)-C(4)-C(3)	−5.8(2)
C(17)-C(14)-O(4)-C(15)	−12.8(2)
C(14)-C(17)-O(5)-C(16)	−15.9(2)
C(10)-O(3)-C(4)-C(3)	−5.8(2)
C(7)-C(2)-C(1)-C(9)	−3.1(2)
H(16A)-C(16)-C(15)-H(15A)	179.1
H(15A)-C(15)-C(16)-H(16B)	−62.3
H(16A)-C(16)-C(15)-H(15B)	−62.5
H(16B)-C(16)-C(15)-H(15B)	56.1

.

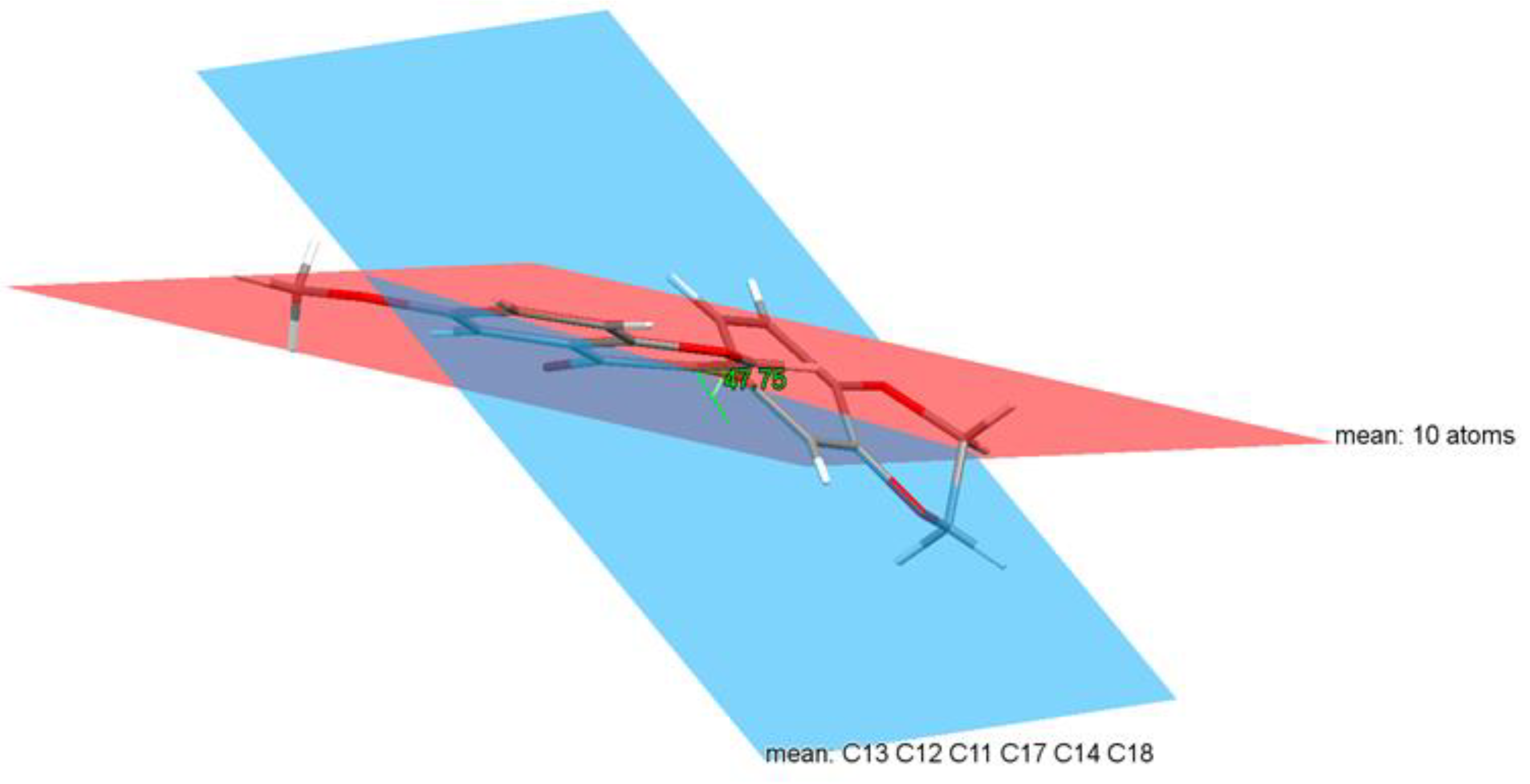

In the title compound, the chromenone ring system (C1-C9/O1) is slightly twisted from planarity, with a maximum deviation of 0.024 Å at C-1 (root-mean-square deviation = 0.016 Å). The dihedral angle formed between the plane of the chromenone ring and benzene (C11-C18) ring is 47.75° (Figure 2). It shows a good contrast with our previous reports on flavonoids, which described that the angle formed between the plane of the chromenone ring and benzene ring is 5.2 (4)°, which makes two planes parallel [26], and that of the chromenone ring and naphthalene ring is 88.96 (3)° making two planes orthogonal, respectively [27].

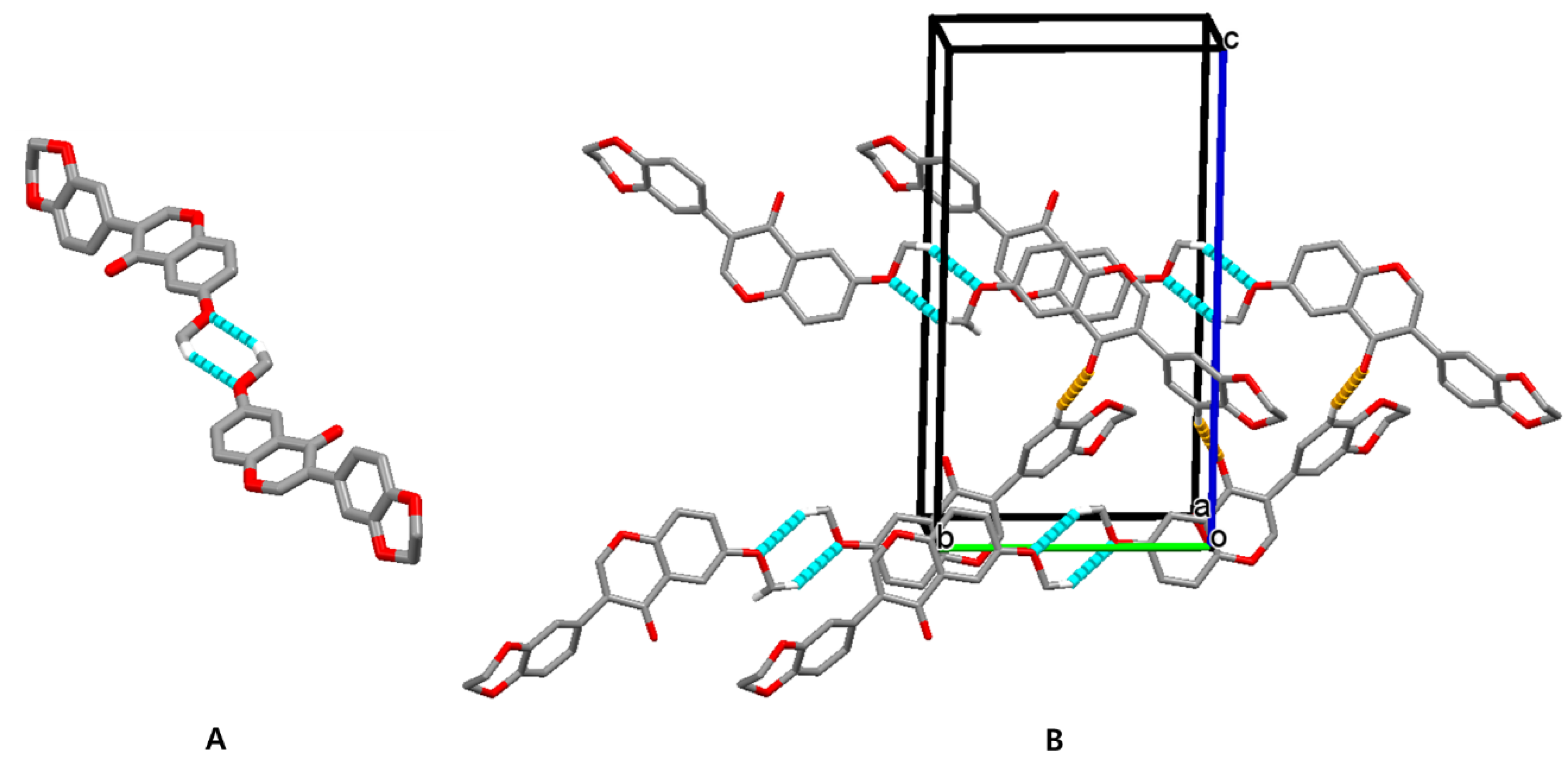

Hydrogen bonds play an important role in stabilizing the 3D framework structure. In the crystal, pairs of C(10)-H(10B)···O(3)#2 (Symmetry transformations #2; −x, −y+3, −z) hydrogen bonds form inversion dimers with graph-set notation R²₂(6). The dimers are linked into chains along the b-axis direction by pairs of the C(13)-H(13)···O(1) #1 (#1; −x+1/2, y−1/2, −z+1/2) hydrogen bonds (Figure 3,

Table 3. Intermolecular hydrogen bonds for isoflavone 6 [Å and °].

D-H···A	d(D-H)	d(H···A)	d(D···A)	<(DHA)
C(13)-H(13)···O(1)#1	0.94	2.48	3.3970(17)	163.8
C(10)-(10B)···O(3)#2	0.97	2.55	3.4005(19)	146.9
C(6)-H(6)···O(4)#3	0.94	2.61	3.2639(17)	127.0
C(16)-(16A)···O(1)#4	0.98	2.62	3.581(2)	168.2

Symmetry transformations used to generate equivalent atoms: #1 −x+1/2, y−1/2, −z+1/2, #2 −x, −y+3, −z, #3 x−1/2, −y+3/2, z−1/2, #4 −x+3/2, y−1/2, −z+1/2.

).

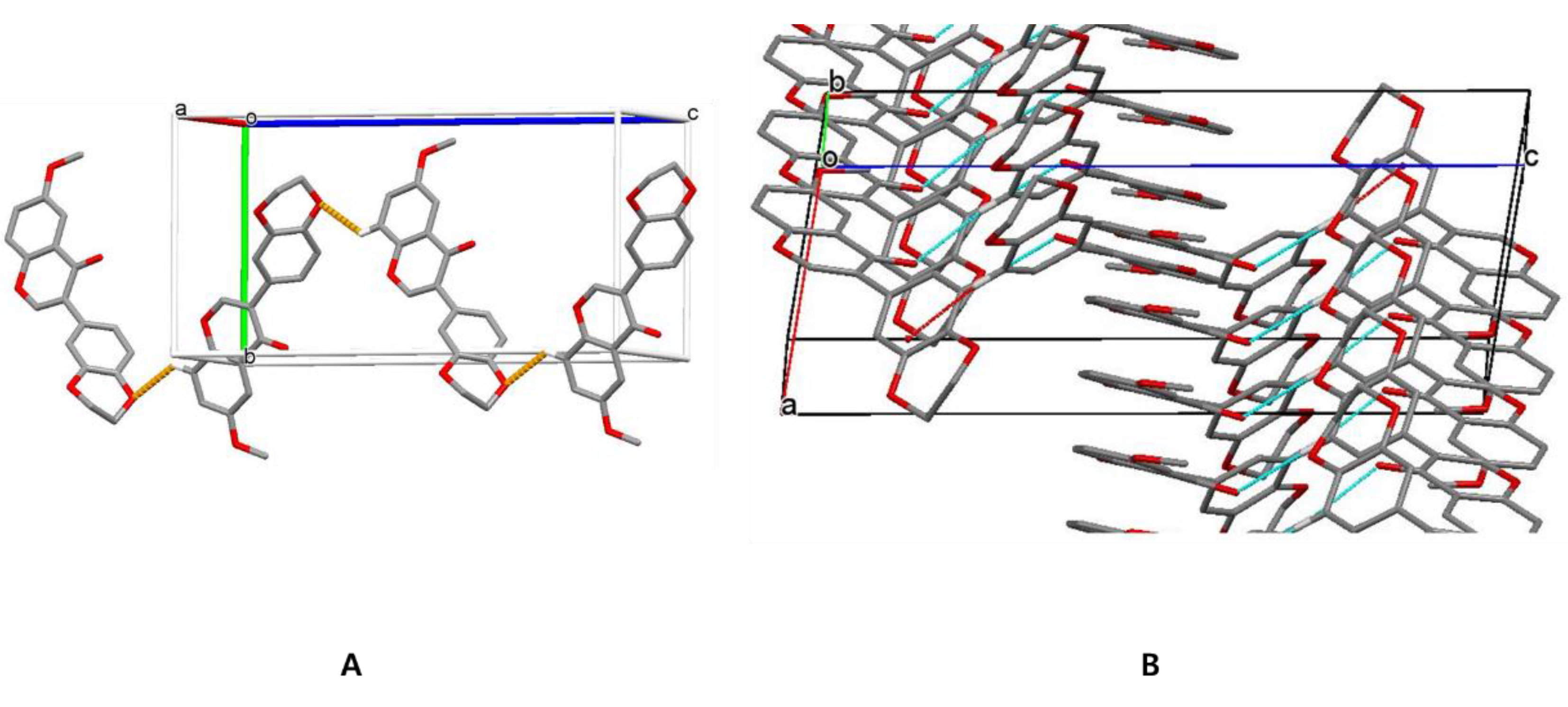

Additional intermolecular hydrogen bonds C(6)-H(6)···O(4)#3 (#3; x−1/2, −y+3/2, z−1/2) link molecules into chains propagating along the c-axis direction. Three dimensional molecular packings in the crystal are shown in Figure 4. The lengths (Å) and angles (°) of intermolecular hydrogen bonds for isoflavone 6 are listed in Table 3.

3.3. Hirshfeld Surface Analysis

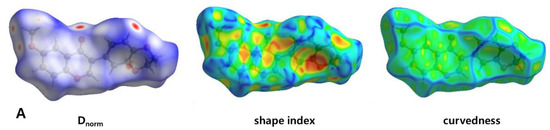

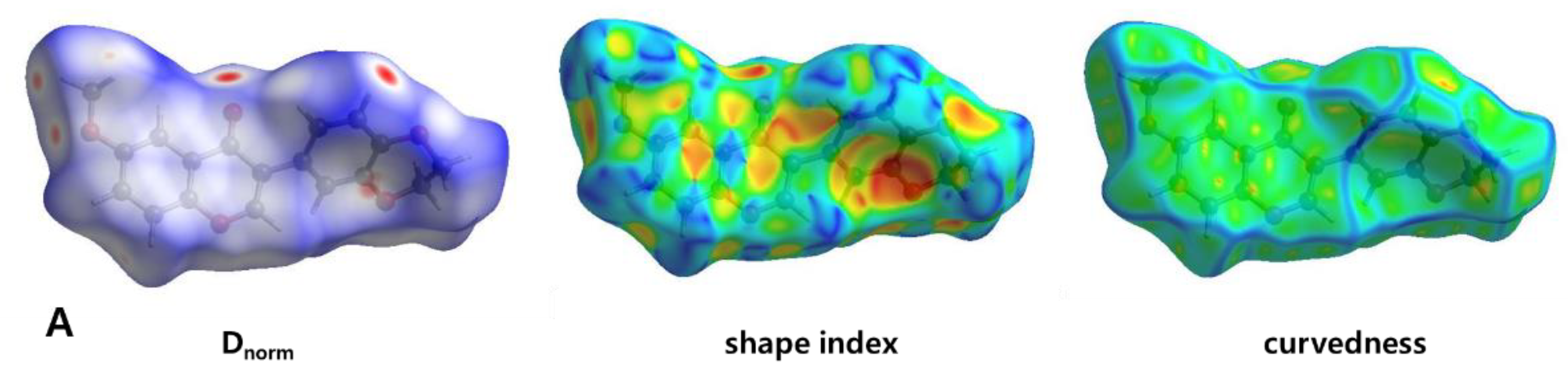

In order to analyze the intermolecular interactions in the crystal, Hirshfeld surface (HS) analysis was carried out using Crystal Explorer 17.5 [28,29]. The 3D Hirshfeld surfaces of the title compound are illustrated in Figure 5A, which maps d_norm, shape index and curvedness. The normalized contact distances (dnorm) were mapped into the Hirshfeld surface, which enabled the visualization of intermolecular interactions by using different colors. In the d_norm Hirshfeld surface, white indicate contacts equal to the sum of van der Waals radii, the red spots indicate the close contact interactions, and blue is for longer contacts. As shown in Figure 5B, the deep red spots on the d_norm Hirshfeld surface represent the close contact interactions, which are mainly responsible for the significant intermolecular C–H···O hydrogen bonds in the crystal. Two hydrogen bonds form an inversion dimer through the red spots (left part of Figure 5B) and an additional hydrogen bond links the dimer through another red spot in the d_norm Hirshfeld surface (right part of Figure 5B).

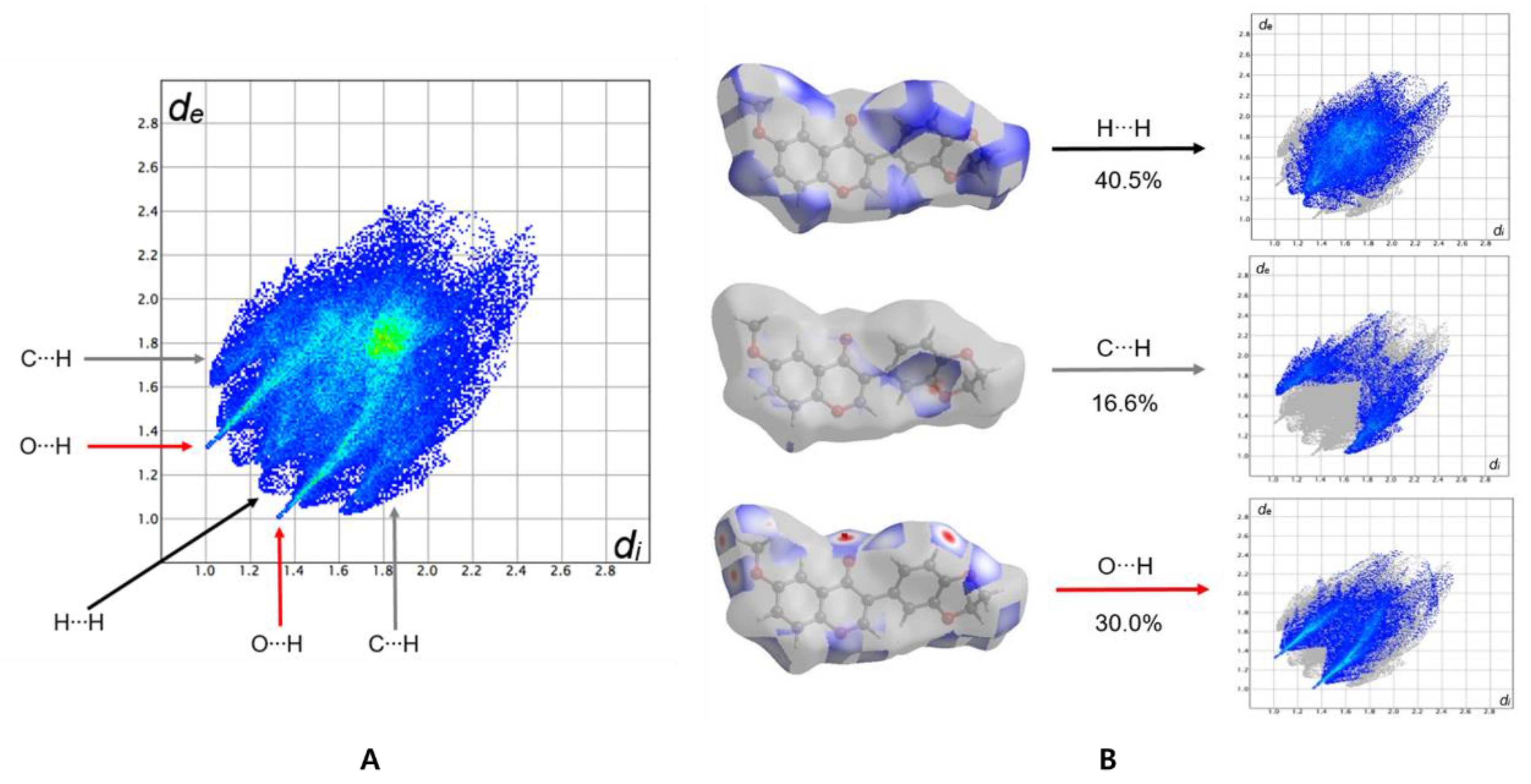

The Hirshfeld surfaces and their associated two-dimensional fingerprint plots were used to quantify various intermolecular interactions in the title compound. Therefore, two-dimensional fingerprint analysis was performed and the overall two-dimensional fingerprint plot, and those showing different contacts, are characterized in Figure 6a. Additional 2D fingerprint graphs give a summary of the relative contributions of intermolecular contacts in the crystal. Three major contributors to the total Hirshfeld surface are shown in Figure 6b. The most major H···H/H···H interactions contribute 40.5% to the overall crystal packing and are depicted as points at di = 1.1 and de = 1.3 and vice versa. The contribution from the O···H/H···O contacts are represented by a pair of sharp spikes characteristic of a strong hydrogen-bond interaction (30.0%). The C···H/H···C contacts in the structure have a symmetrical distribution of points di + de = 2.7 Å with a 16.6% contribution to the Hirshfeld surface.

3.4. DFT Calculation

For the title compound 6, the molecular structure was calculated using the Gaussian 16 program (Gaussian-16; Revision A.03; Gaussian, Inc.: Wallingford, CT, USA, 2016) [30]. Full geometry optimization was performed using the density functional theory (DFT) Becke, 3-parameter, Lee–Yang–Parr (B3LYP) functional with the 6-311++G(d,p) basis set [31,32]. The molecular structure derived from the calculation is shown in Supplementary Figure S6 and calculated bond lengths and bond angles are presented in the Supplementary Tables S1 and S2.

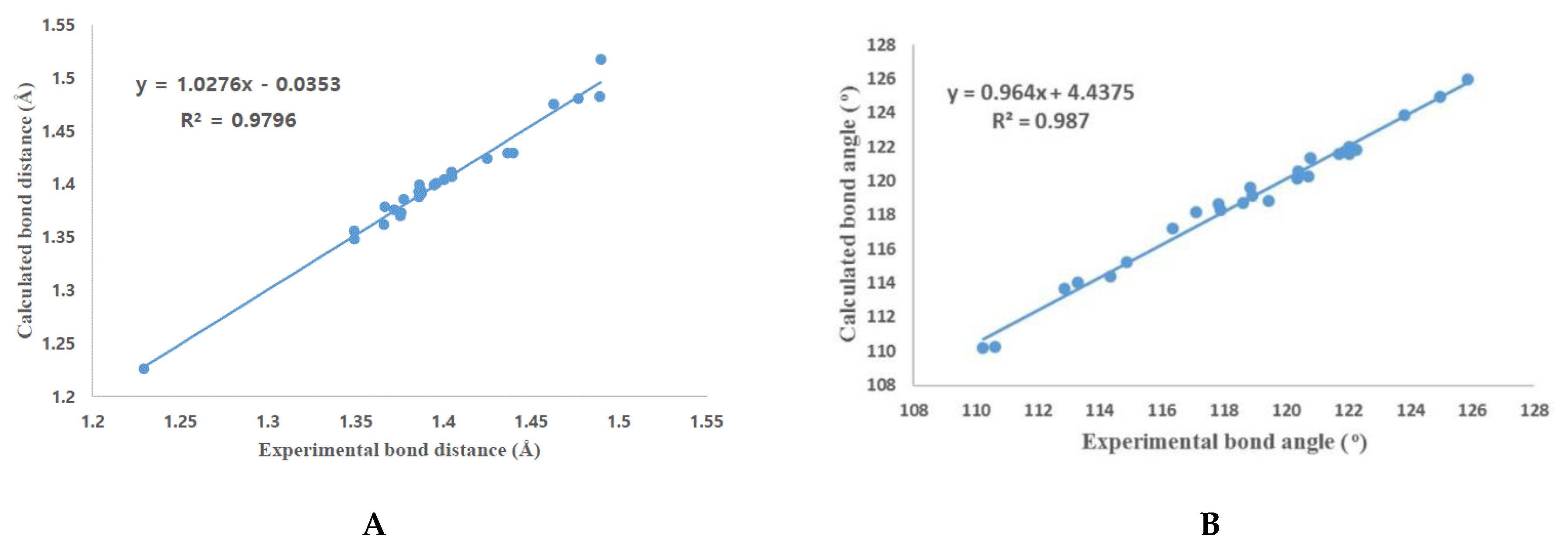

The geometrical values of the molecule observed from the X-ray crystallography experiment values were compared with those calculated. The experimental and calculated bond distances and bond angles show a good correlation, as shown in Figure 7.

However, there were some discrepancies in the experimental and the calculation values of the dihedral angles, especially where free rotation is possible through C9-C11 single bonds. There are four combinations of dihedral angles around C9-C11 and the experimental, and the calculated dihedral angles (vacuum, DMSO) are shown in

Table 4. Selected dihedral angles (°) for comparison between experimental and calculated values.

Dihedral Angle	Experimental	Calculated
	Crystal	Vacuum	DMSO
C(1)-C(9)-C(11)-C(12)	49.3755	42.4779	49.5214
C(1)-C(9)-C(11)-C(18)	−134.245	−138.276	−131.476
C(8)-C(9)-C(11)-C(12)	−129.908	−137.454	−131.062
C(8)-C(9)-C(11)-C(18)	46.4713	41.7922	47.9409

. A dihedral angle difference up to 7.5° was observed. This difference is due to the fact that there is a packing effect in the crystal that is not considered in the calculation.

The optimized geometry in dimethyl sulfoxide (DMSO) solvent was calculated because real chemical reactions occur in a solution phase. The self-consistent reaction field (SCRF) technique was used to account for the solvent effect of DMSO. The polarizable continuum model (PCM) using the integral equation formalism variant (IEFPCM), which is the default SCRF method of the Gaussian 16 program, was used for the calculation [33].

The calculated bond lengths and bond angles in DMSO (Tables S1 and S2) are almost similar to those in vacuum. For the dihedral angles, especially for the angles around C9-C11, the calculated values in DMSO show better correspondence with the experiment, as shown in Table 4.

3.5. Frontier Molecular Orbital Calculation

Frontier molecular orbitals (FMOs) are used for calculating the most reactive site in the molecule and for describing various kinds of chemical reactions. The HOMO (highest occupied molecular orbital) and the LUMO (lowest unoccupied molecular orbital) are most important factors used as descriptors for the chemical reactions. HOMO has the most outer shell electrons and has a tendency to donate electrons as an electron donor. LUMO accept electrons for the reaction and is closely related to electron affinity.

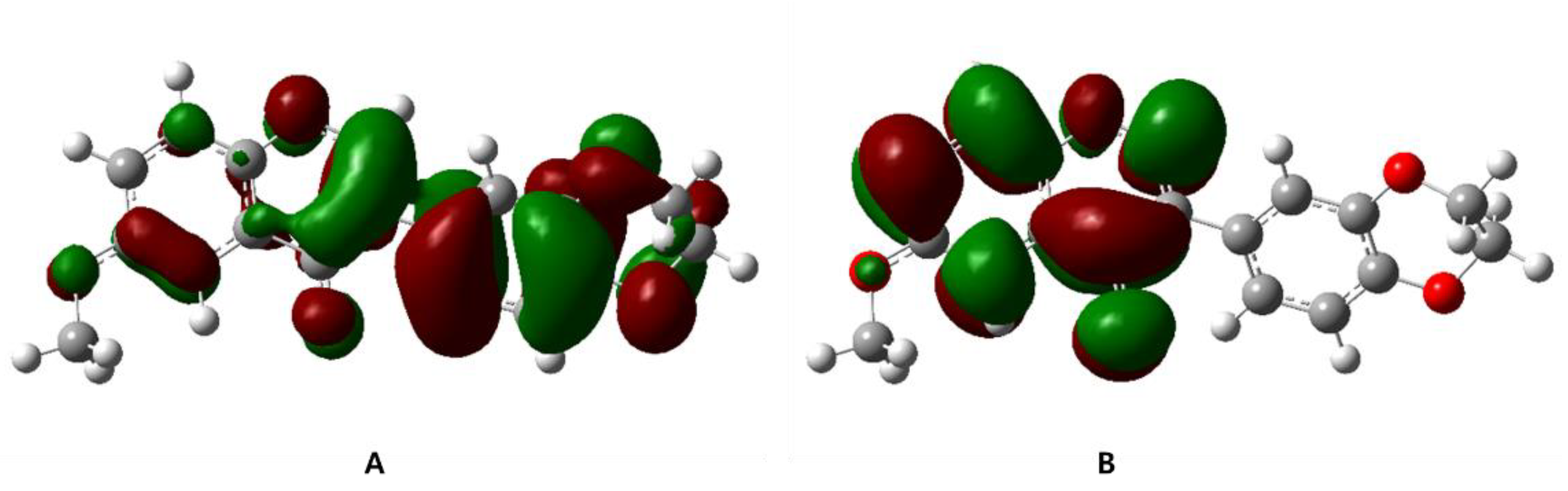

DFT calculations at the B3LYP/6-311++G(d,p) level (vacuum) disclosed that the HOMO is mainly localized on the 2,3-dihydrobenzo[b][1,4]dioxine region and LUMO on the 4H-chromen-4-one group (Figure 8). The energy values of HOMO and LUMO were −5.8223 eV and −1.8447 eV, and the calculated HOMO–LUMO energy gap was 3.9783 eV. The same calculations were performed in the DMSO condition because real chemical reactions occur in a solution state. Between the vacuum and DMSO environment, there is almost no difference in shape and energy of HOMO, LUMO and the HOMO–LUMO energy gap between the vacuum and DMSO environment (Figure S7, Supplementary Materials).

3.6. Natural Population Analysis (NPA)

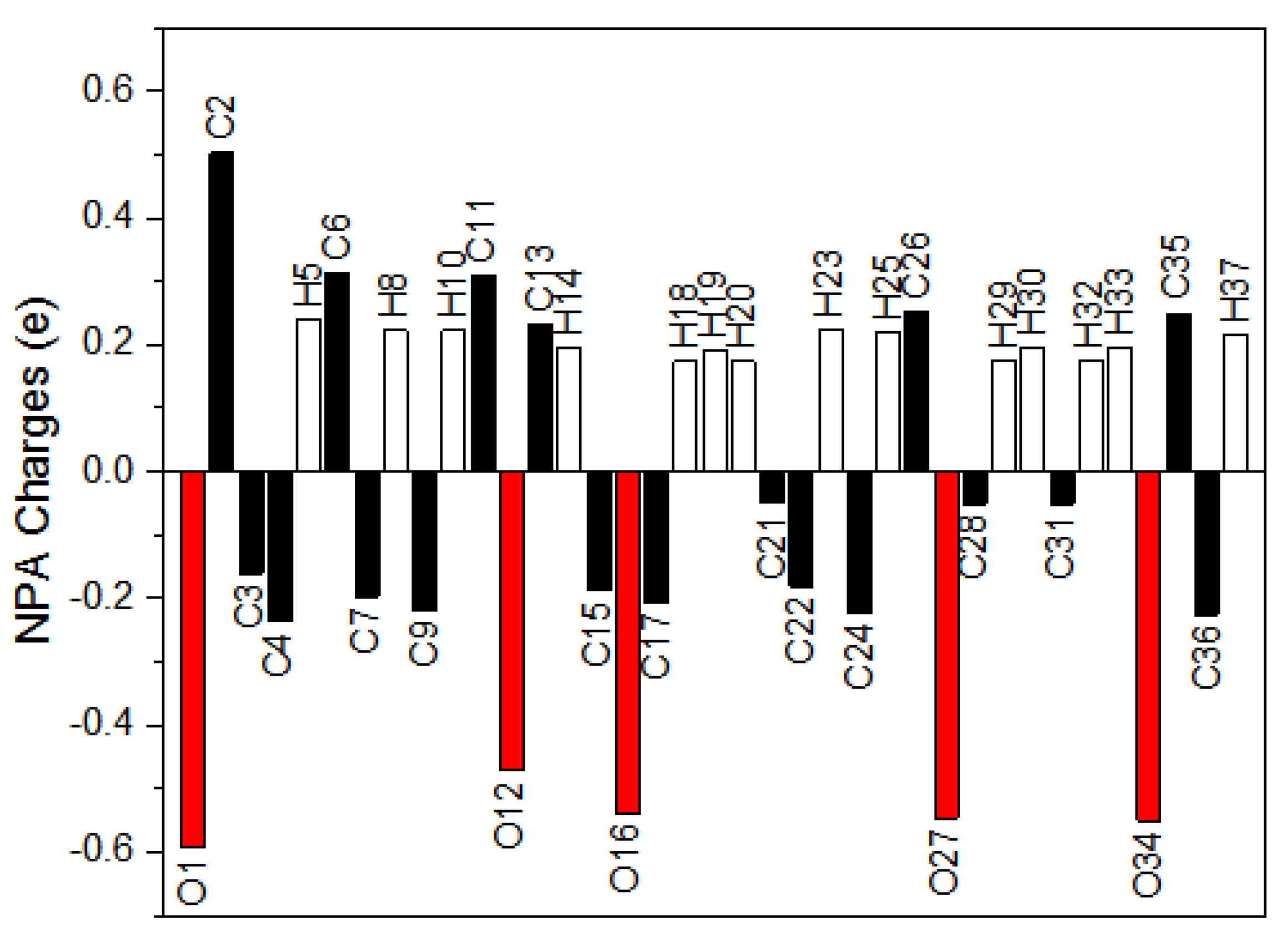

The natural population analysis is an alternative to conventional Mulliken population analysis and gives a better description of the electron distribution and atomic charges in compounds [34]. The natural population analysis of the title molecule was carried out using an NBO 3.1 program [35]. The atomic charge distribution of the title compound 6 is shown in Figure 9. C2 is the most positive atom because it is connected with two electronegative oxygen atoms by a C=O double bond, while O1, O12, O16, O27 and O34 are the most negative atoms in the compound 6.

3.7. In Silico Docking with Aurora Kinases

First, the apo-protein of Aurora kinase A (AURKA) was obtained by removing the ligand contained in 3uod.pdb using the Sybyl program. For the flexible docking experiments, the apo-protein was submitted to energy minimization using the conjugate gradient algorithm, Tripos force field and Gasteiger–Hückell charges. The 3D structure of isoflavone 6 was adapted from the X-ray crystallographic structure determined in this research. The binding pocket of AURKA was determined using the LigPlot software as previously reported [36]. They are composed of 13 residues; Arg137, Leu139, Gly140, Val147, Ala160, Glu211, Tyr212, Ala213, Gly216, Thr217, Arg220, Glu 260 and Leu263. To confirm our flexible docking procedure was working well, the original ligand contained in 3uod.pdb, 4-[(4-{[2-(trifluoromethyl)phenyl]amino}pyrimidin-2-yl)amino]benzoic acid (named as 0c3), was docked in the apo-protein. Because 30 iterations were performed for the flexible docking, 30 complexes between the apo-protein and 0c3 were generated. Their binding energy ranged from −27.80 to −19.83 kcal/mol and their binding poses were good enough to be comparable with 3uod.pdb.

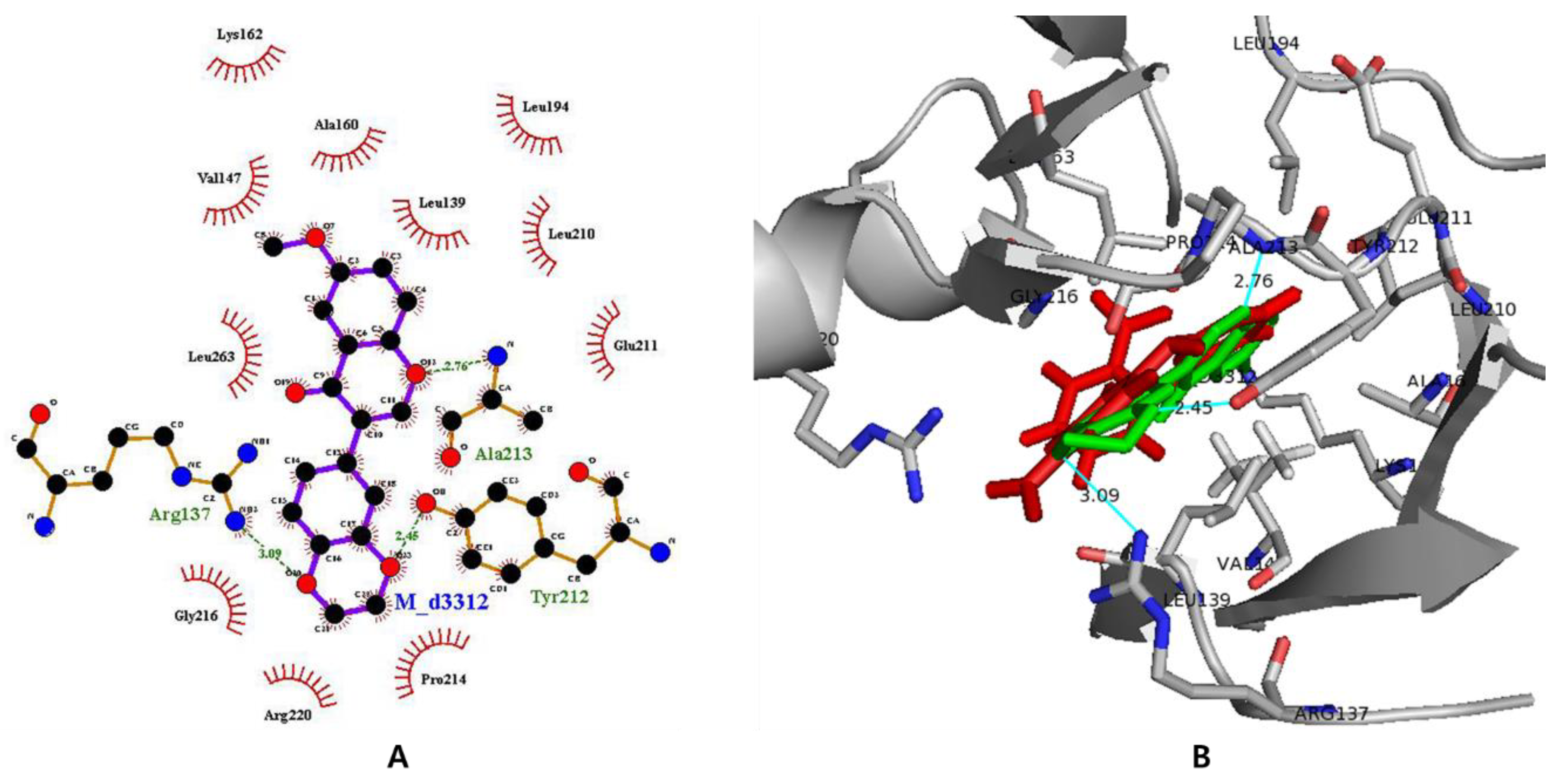

Next, isoflavone 6 was docked into the apo-protein in the same manner as the original ligand. The binding energy generated by the 30 iterations ranged from −22.45 to −17.66 kcal/mol. The interactions between AURKA and isoflavone 6 were analyzed using the LigPlot program. Eleven residues including Leu139, Val147, Ala160, Lys162, Leu194, Leu210, Glu211, Pro214, Gly216, Arg220 and Leu263 showed the hydrophobic interactions with the ligand and three residues, including Arg137, Tyr212 and Ala213, formed hydrogen bonds (H-bonds) with the ligand. In the case of the original ligand, 0c3, 11 hydrophobic interactions (Leu139, Val147, Ala160, Leu194, Leu210, Glu211, Tyr212, Gly216, Leu263, Ala273 and Asp274) and two H-bonds (Arg137 and Ala213) were observed. The binding energy and the LigPlot analysis demonstrated that isoflavone 6 binds to AURKA on the same 11 residues out of 13 to which the original ligand binds. The binding mode of isoflavone 6 residing in AURKA was visualized using the PyMOL program (PyMOL Molecular Graphics System, version 1.0r1, Schrödinger, LLC, Portland, OR, USA). The binding patterns of isoflavone 6 (green color in Figure 10B) in Aurora kinase A is very similar to those of the original ligand (red color in Figure 10B), which may imply isoflavone 6 would be a good inhibitor of AURKA as an anti-cancer agent.

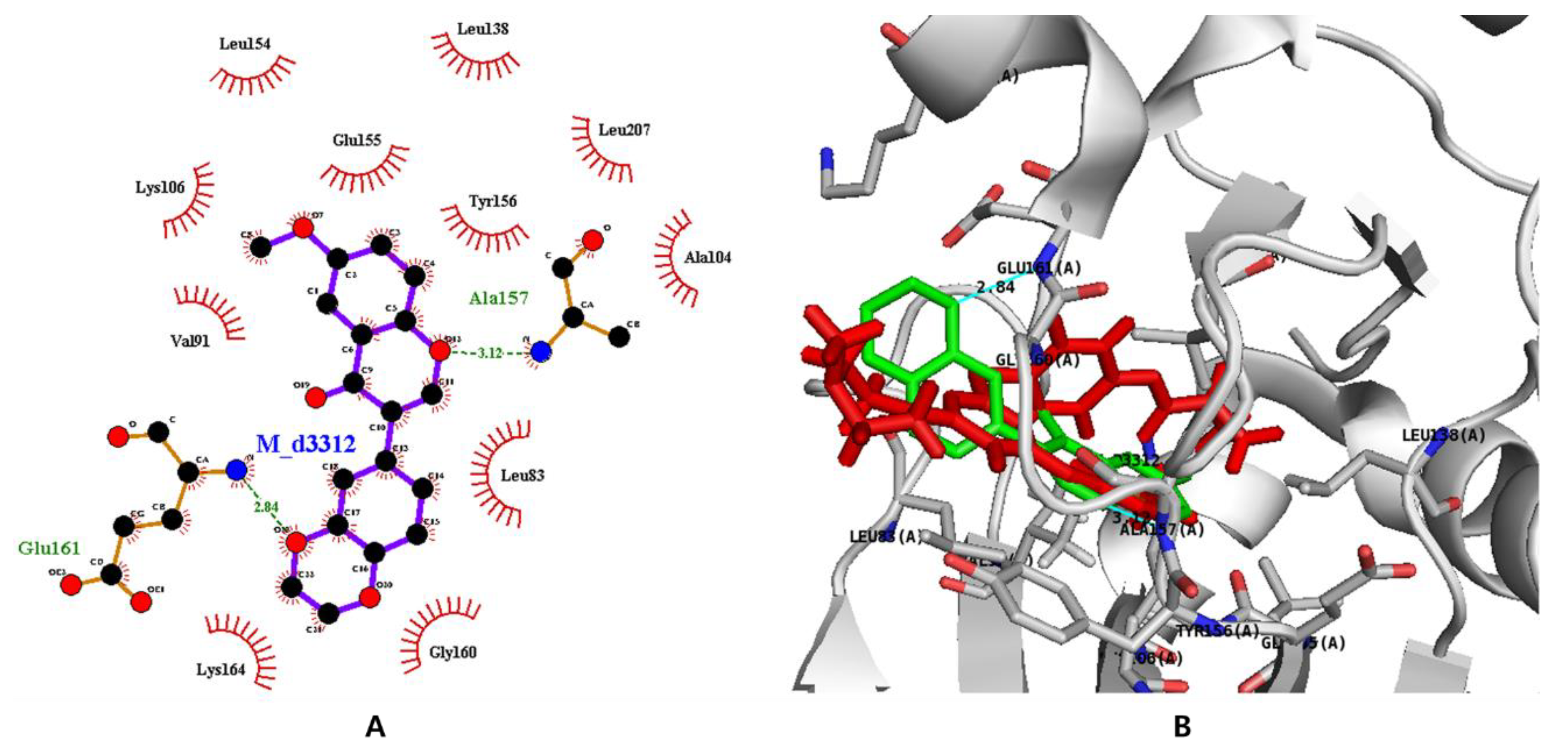

Like the AURKA docking procedure, the apo-protein of Aurora kinase B (AURKB) was obtained by removing its ligand 5-(2-(4-(cyclopropanecarboxamido)phenylthio)-6-(4-methylpiperazin-1-yl)pyrimidin-4-ylamino)-1H-pyrazole-3-carboxamide (named as VX680) from 4af3.pdb, and the binding sites were determined using the LigPlot program. Nine residues including Leu83, Phe88, Val91, Ala104, Lys106, Tyr156, Pro158, Gly160 and Leu207 are involved in hydrophobic interactions with VX680, and two, Glu155 and Ala157, formed H-bonds with VX680. The binding energy between the apo-protein of 4af3.pdb and VX680 ranged between −25.60 and −13.36 kcal/mol. The flexible docking of isoflavone 6 was carried out and its binding energy ranged between −22.19 and −17.26 kcal/mol. For the analysis of the docking result, the first complex between isoflavone 6 and AURKB was selected based on its binding energy and docking pose. It was confirmed that there were 11 residues, including Leu83, Val91, Ala104, Lys106, Leu138, Leu154, Glu155, Tyr156, Gly160, Lys164 and Leu207, that showed hydrophobic interactions with AURKB and two residues, Ala157 and Glu161, that formed H-bonds with AURKB. The residues participating in the binding of the isoflavone 6 in AURKB are visualized using LigPlot analysis in two dimensions and PyMOL in three dimensions. Isoflavone 6 (green color in Figure 11B) in Aurora kinase B showed binding patterns that is a little different from those of the original ligand 6 (red color in Figure 11B).

3.8. Anti-Cancer Activity

To measure the cytotoxicity of the compound against cancer cells, a clonogenic long-term survival assay was performed for HCT116 human colon cancer cells. Its detailed experimental procedures followed the methods reported previously [37]. HCT116 cell lines were treated with isoflavone 6 at different concentrations (0, 1, 5, 10 and 20 μM). Its half-maximal cell growth inhibitory concentration (GI₅₀) was determined using SigmaPlot software (SYSTAT, Chicago, IL, USA) [38]. The cytotoxicity obtained from the clonogenic long-term survival assay against HCT116 human colon cancer cells is shown in Figure 12. Its GI₅₀ value was determined to be 24.9 μM.

4. Conclusions

The novel isoflavone compound, 3-(2,3-dihydrobenzo[b][1,4]dioxin-6-yl)-6-methoxy-4H-chromen-4-one (6) was synthesized in order to find a lead product for Aurora kinase inhibitor as an anti-cancer agent. The three-dimensional structure of 6 was confirmed by single crystal X-ray diffraction. In the crystal, pairs of C–H···O hydrogen bonds form inversion dimers which are linked each other by additional hydrogen bonds and involved in the formation of three-dimensional networks. Hirshfeld surface analyses were used to study the intermolecular interactions. Two-dimensional fingerprint plots showed that the interactions of H···H, O···H, C···H are the major contributions of intermolecular contacts in the crystal. The geometric parameters obtained using the DFT/B3LYP functional with 6-311++G(d,p) basis set are consistent with the results from the crystal structure analyses. Isoflavone 6 showed cytotoxicity against HCT116 human colon cancer cells with a GI₅₀ value of 24.9 μM. Molecular docking was used to predict the protein–ligand binding mode against Aurora kinase A and B. A LigPlot analysis revealed that isoflavone 6 fitted into the binding pocket of Aurora kinase A as well as the original ligand.
