Next Article in Journal
Reduced Sintering Temperatures of Li+ Conductive Li1.3Al0.3Ti1.7(PO4)3 Ceramics
Next Article in Special Issue
Magnetocaloric Effect, Magnetoresistance of Sc0.28Ti0.72Fe2, and Phase Diagrams of Sc0.28Ti0.72Fe2−xTx Alloys with T = Mn or Co
Previous Article in Journal
Experimental and Theoretical Studies of Carboxylic Polymers with Low Molecular Weight as Inhibitors for Calcium Carbonate Scale
Open AccessArticle

Role of Potassium Substitution in the Magnetic Properties and Magnetocaloric Effect in La0.8−xKxBa0.05Sr0.15MnO3 (0 ≤ x ≤ 0.20)

1
Department of Physics, Universitas Indonesia, Depok 16424, Indonesia
2
Department of Physics, Tokyo Institute of Technology, Meguro-Ku, Tokyo 152-8551, Japan
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(5), 407; https://doi.org/10.3390/cryst10050407
Received: 19 April 2020 / Revised: 11 May 2020 / Accepted: 16 May 2020 / Published: 19 May 2020
(This article belongs to the Special Issue Magnetocalorics)

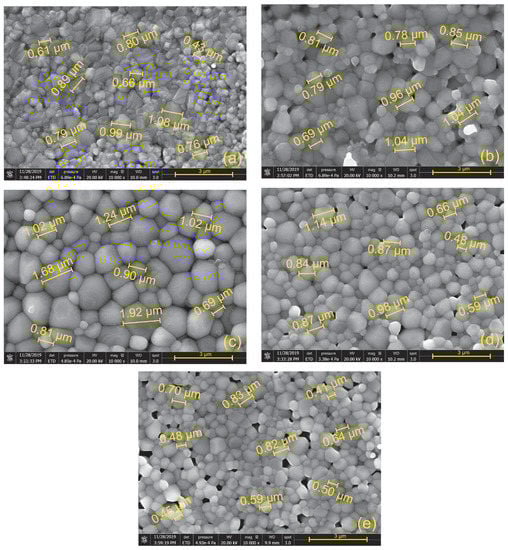

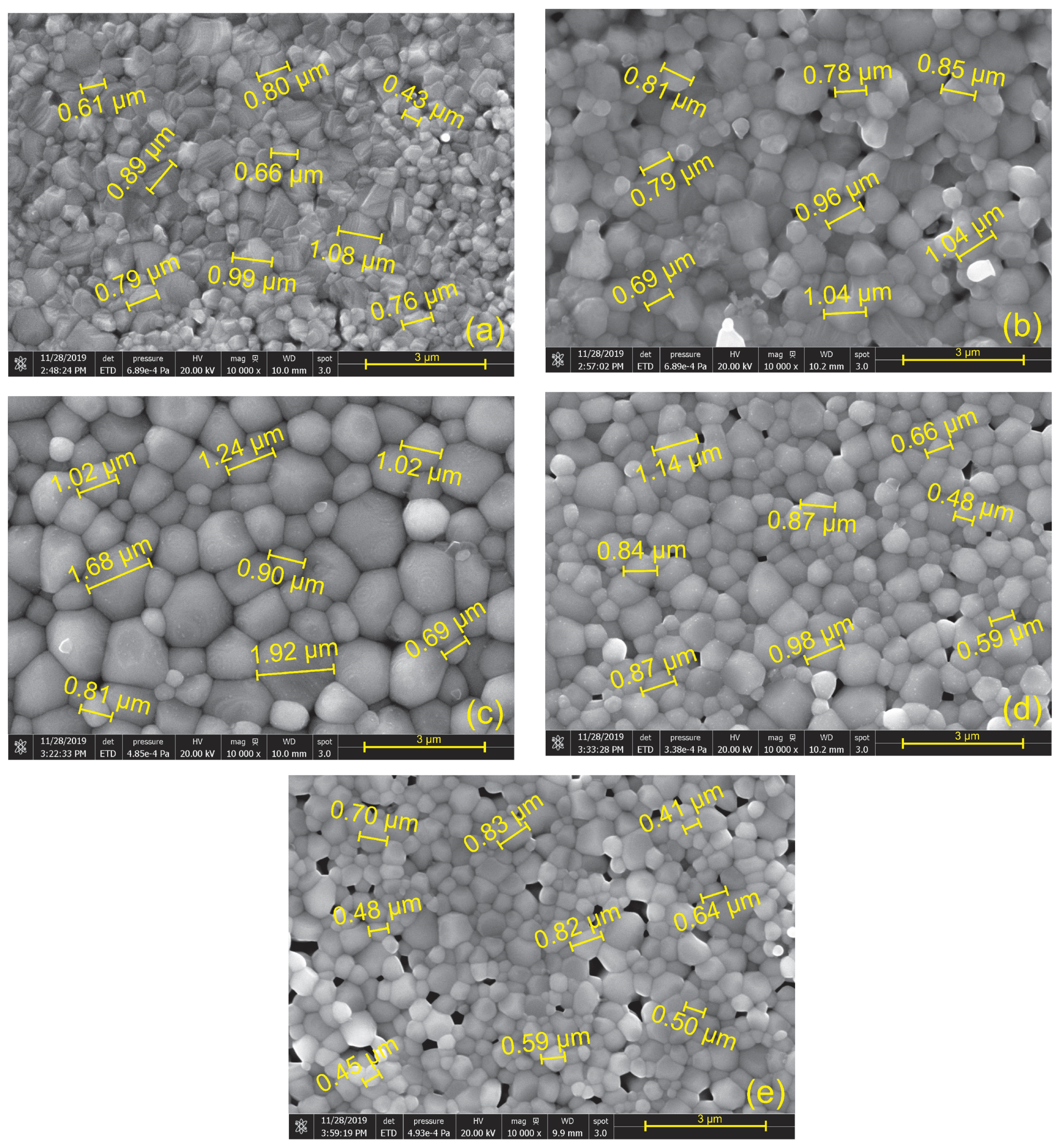

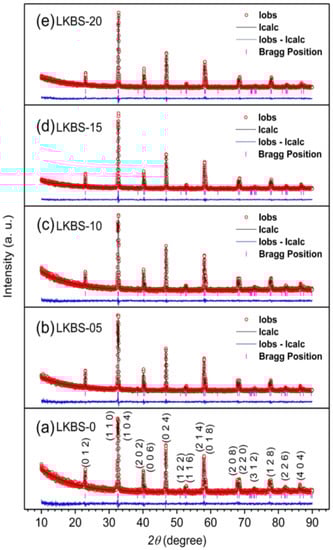

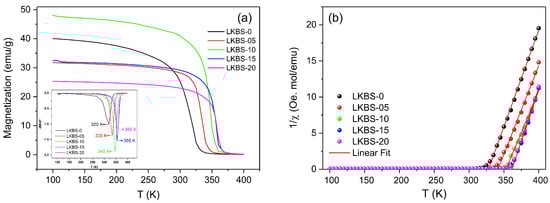

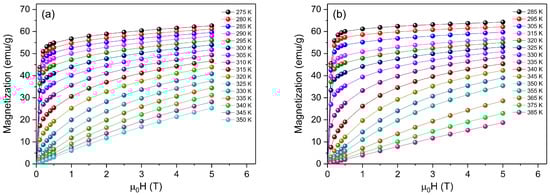

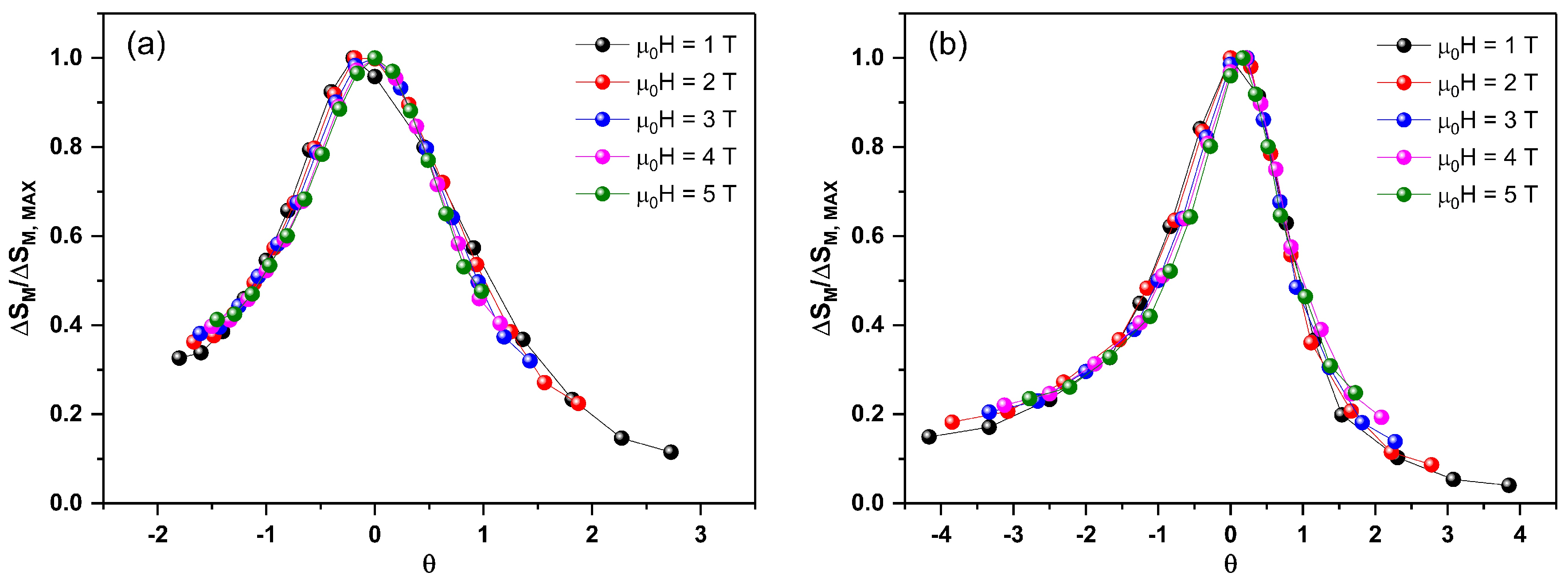

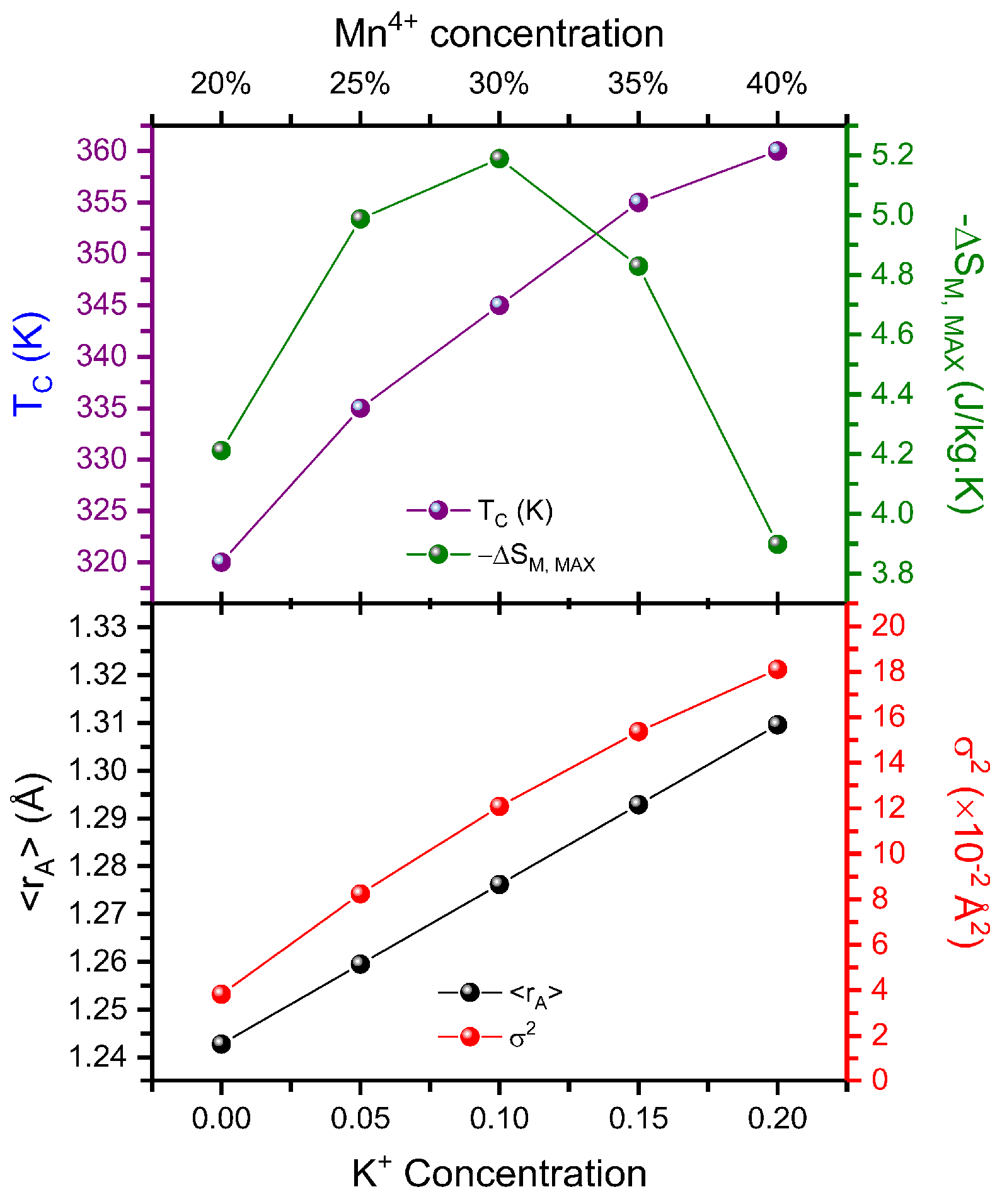

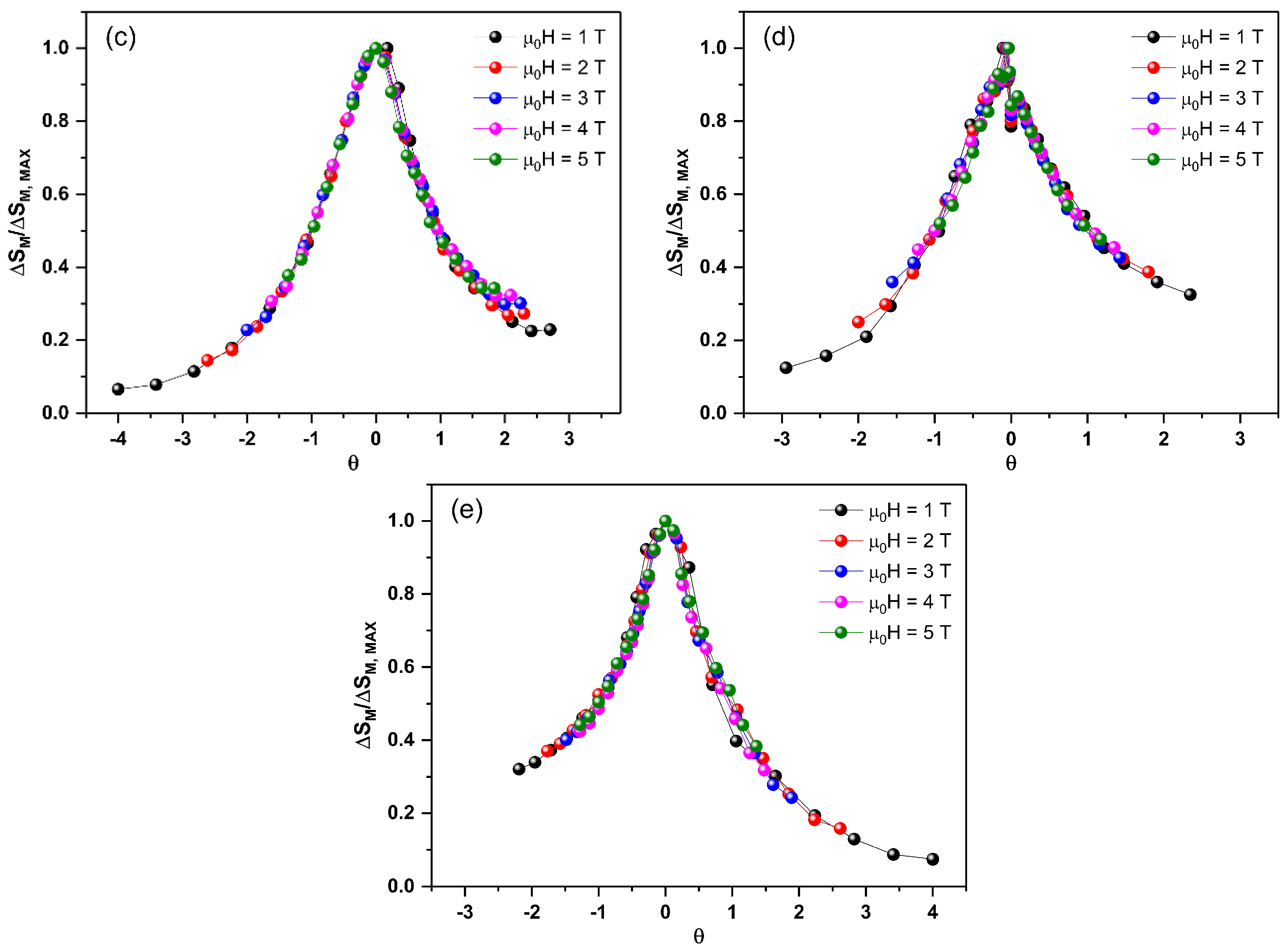

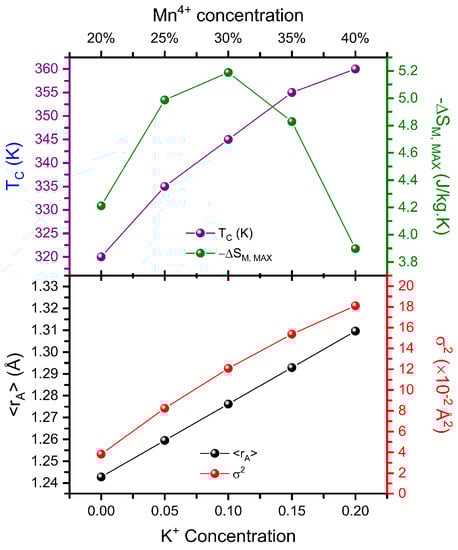

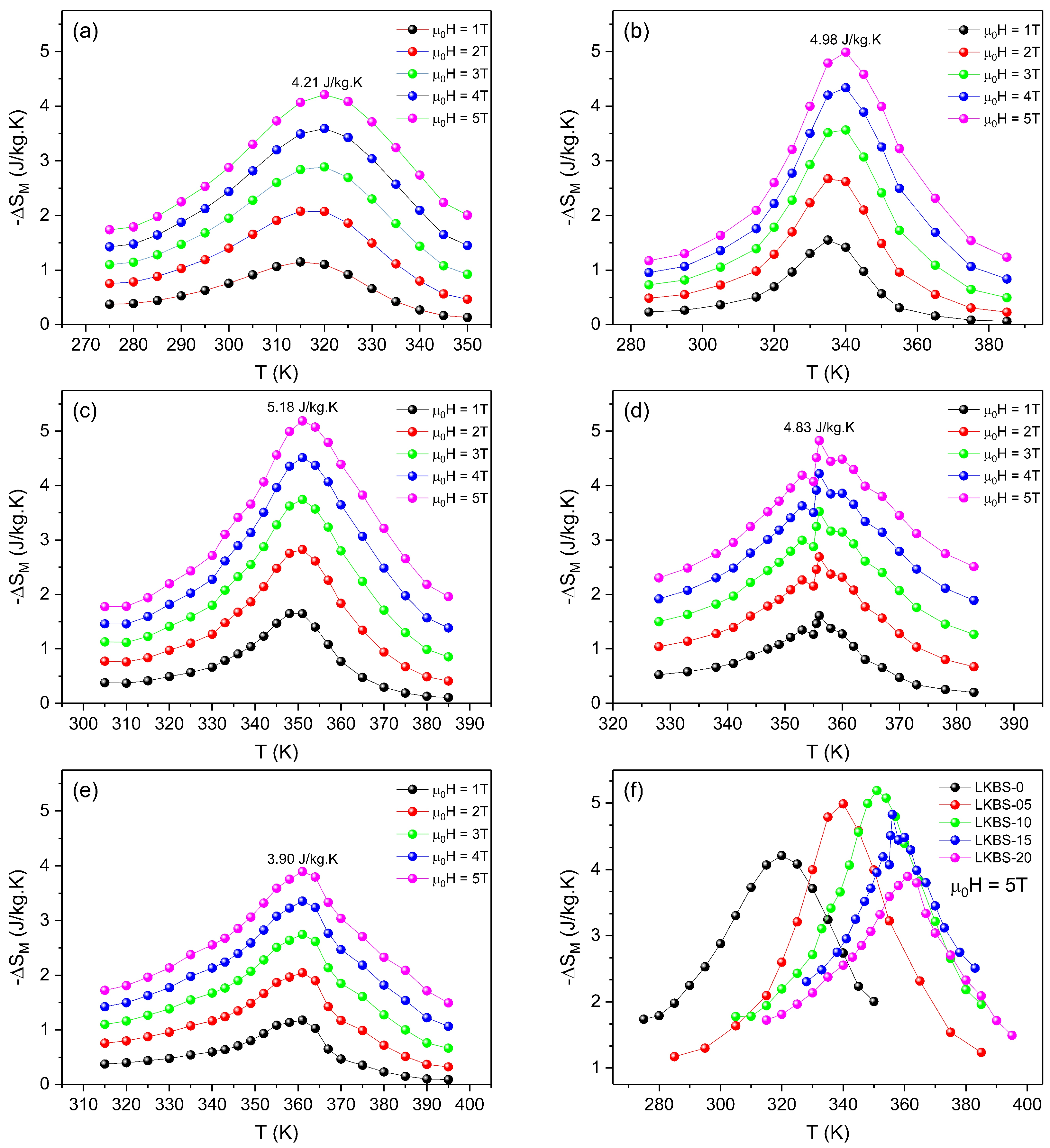

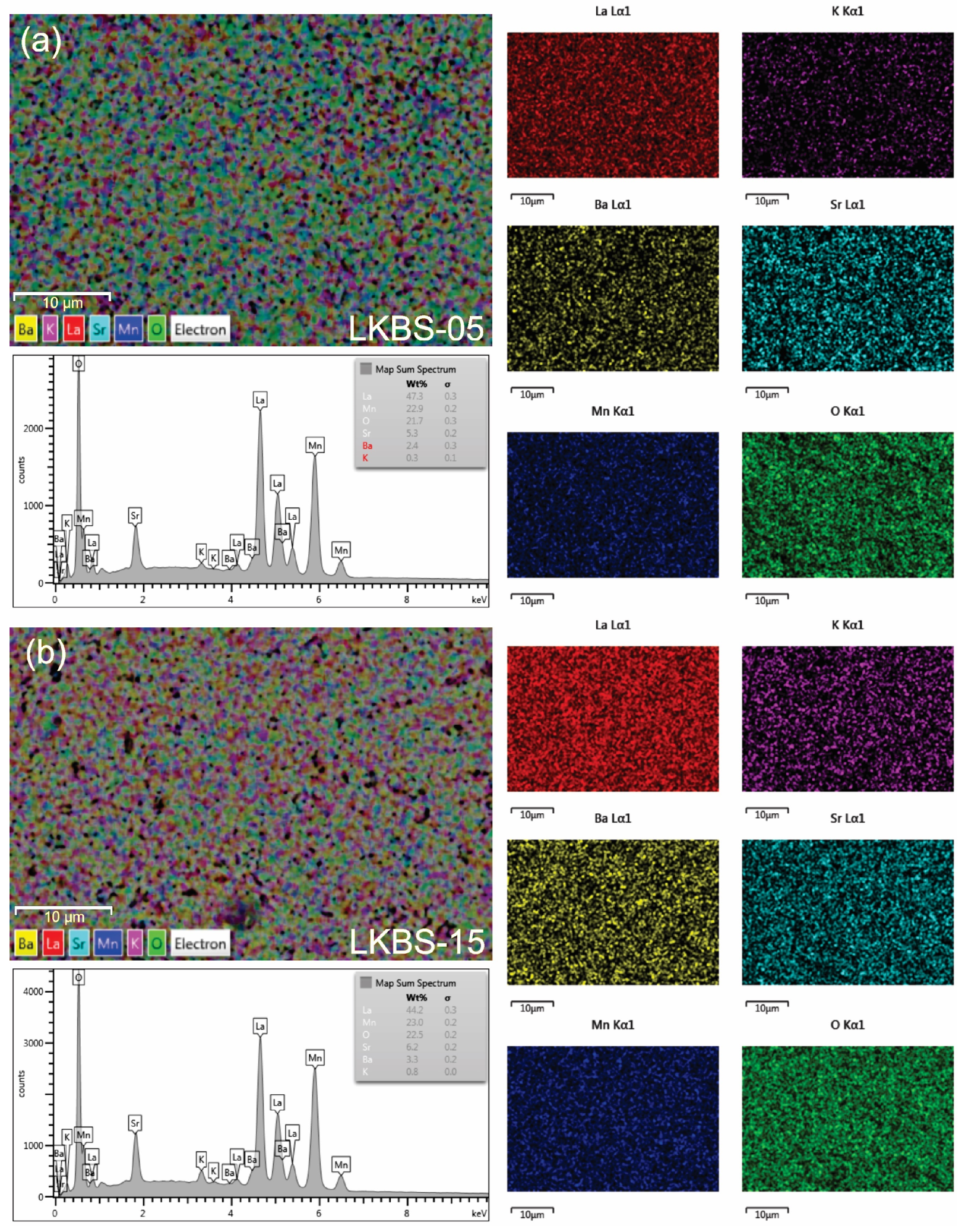

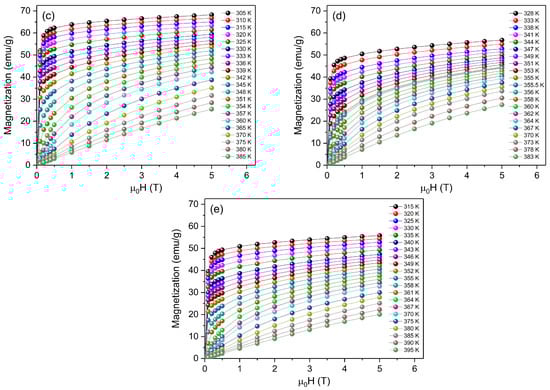

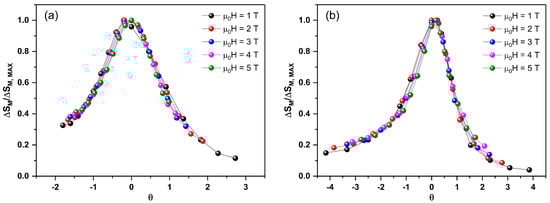

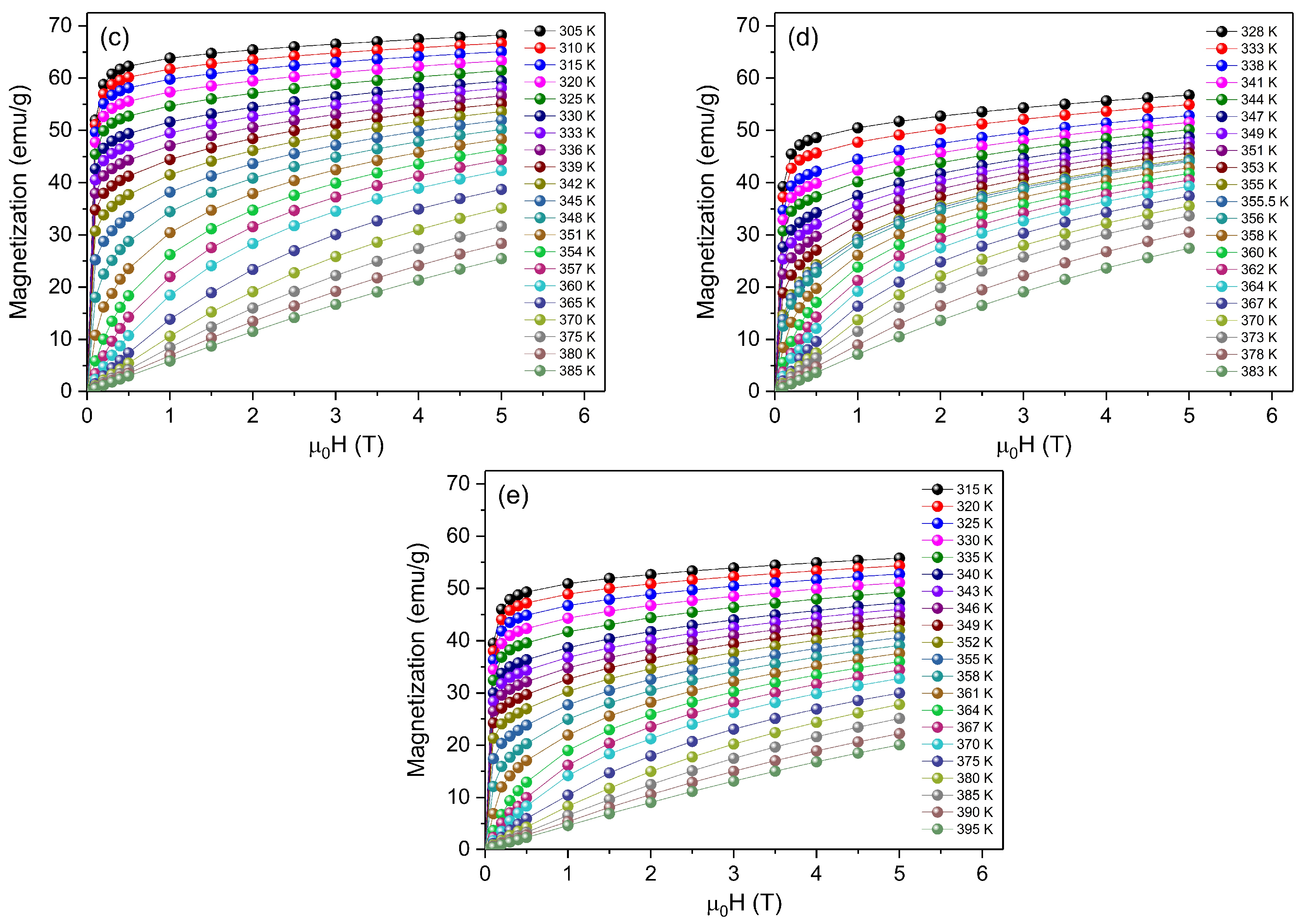

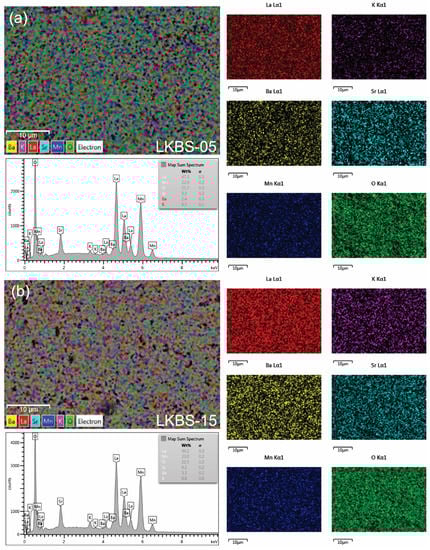

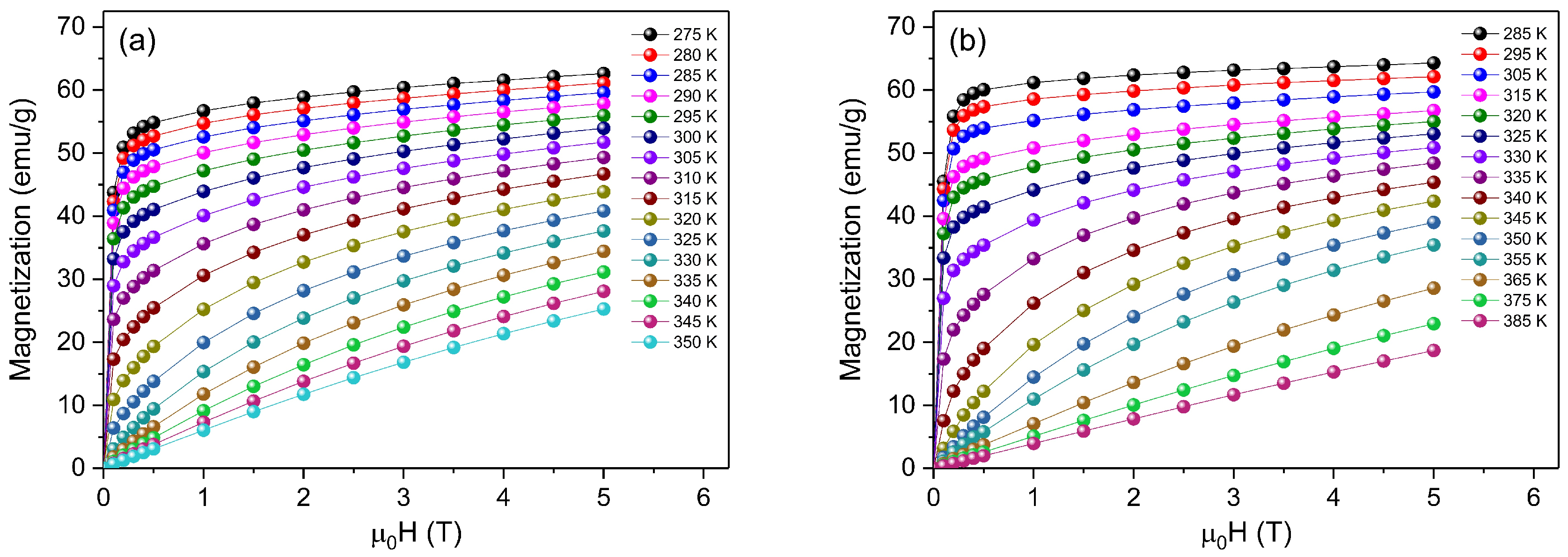

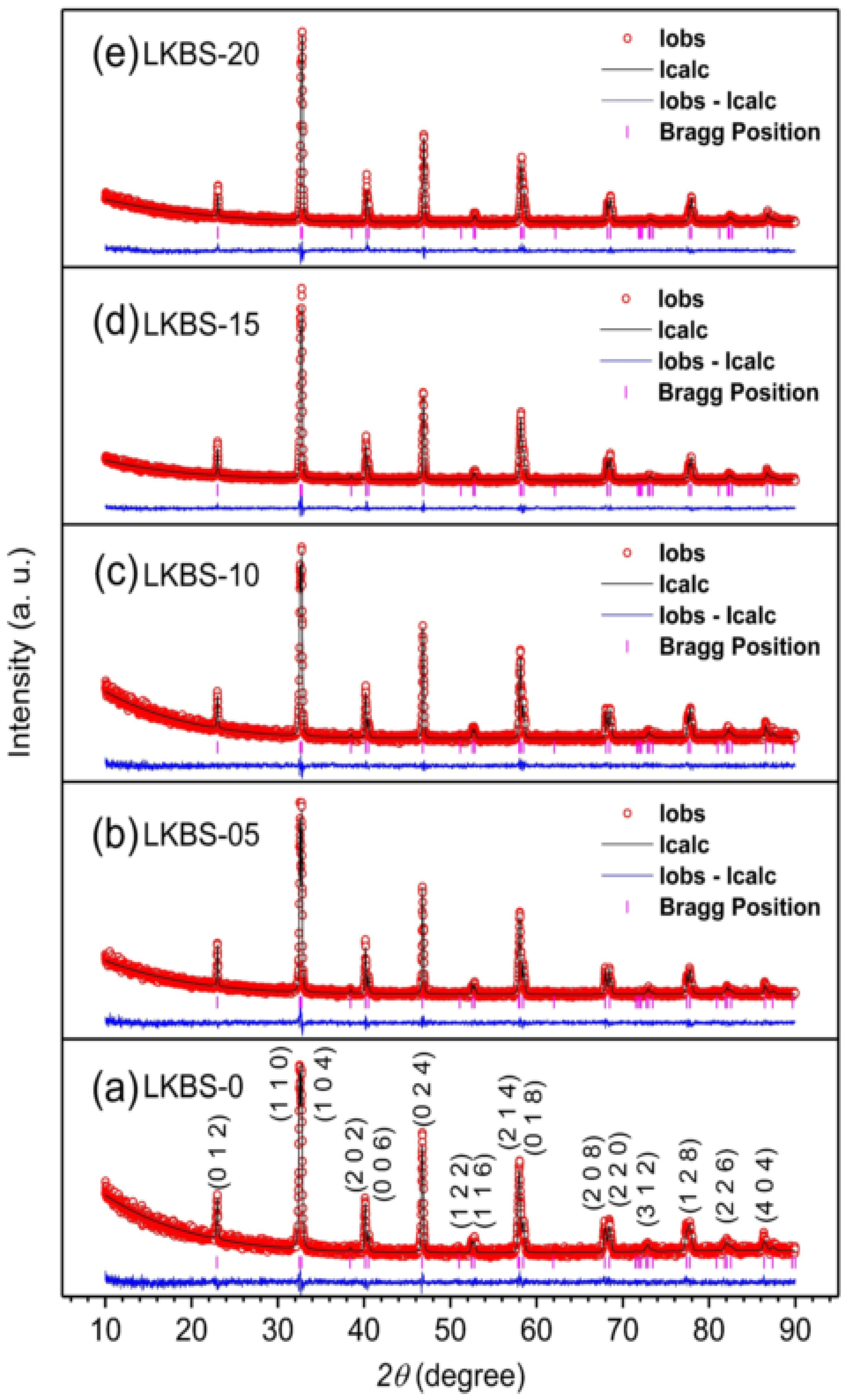

The magnetic and magnetocaloric effects of potassium-substituted La0.8−xKxBa0.05Sr0.15MnO3 (0 ≤ x ≤ 0.20) manganite were explored. The samples in polycrystalline form were synthesized by the sol–gel method, with a final sintering temperature of 1100 °C. Powder X-ray diffraction (XRD) patterns refined by Rietveld refinement show that all samples crystallized in rhombohedral structure with R-3c space group. The unit cell volume of the samples decreases with increasing potassium concentration. In addition, small changes in average bond length and bond angle are also observed in the samples. Scanning electron microscope (SEM) images reveal that the largest average grain size was observed for x = 0.10. Field-cooled (FC) magnetization measurements show that the Curie temperature ( T C ) of the samples increases from 320 K for x = 0 to 360 K for x = 0.2. The largest magnetocaloric (MCE) effect, which is represented by maximum magnetic entropy change (− Δ S M ,   M A X ), reaches its greatest value for the x = 0.10 sample. The monotonous increase in T C suggests that TC is mainly governed by the ferromagnetic coupling between Mn ions induced by the changes on average bond length and bond angle. The obtained − Δ S M ,   M A X value suggests that MCE property is more sensitive to Zener theory of double exchange, which is strongly related to the Mn3+/Mn4+ ratio of the samples. View Full-Text
Keywords: double exchange; magnetic; magnetocaloric; perovskite manganite double exchange; magnetic; magnetocaloric; perovskite manganite
Show Figures

Figure 1

MDPI and ACS Style

Razaq, D.S.; Kurniawan, B.; Munazat, D.R.; Watanabe, K.; Tanaka, H. Role of Potassium Substitution in the Magnetic Properties and Magnetocaloric Effect in La0.8−xKxBa0.05Sr0.15MnO3 (0 ≤ x ≤ 0.20). Crystals 2020, 10, 407.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
