Optimized Corrosion Performance of AISI 1345 Steel in Hydrochloric Acid Through Thermo-Mechanical Cyclic Annealing Processes

Abstract

The thermo-mechanical treatments and cyclic annealing processes have the potential of optimizing the corrosion performance of carbon steels in corrosive environments. Herein, an attempt has been made to optimize the corrosion performance of AISI 1345 steel in hydrochloric acid by thermo-mechanical cyclic annealing treatments. AISI 1345 steel was produced and cast in the laboratory and subjected to three types of thermo-mechanical cyclic annealing treatments (TMCA). The first TMCA treatment comprised hot rolling at 1050 °C followed by oil quenching and single austenitizing at 900 °C followed by furnace cooling (TMSA). The second and the third TMCA treatments involved similar hot rolling processes with double austenitizing and furnace cooling (TMDA) and triple austenitizing and furnace cooling (TMTA) processes. Microstructure analysis showed that dual-phase (retained austenite + pearlite) microstructure was achieved after all TMCA treatments with an exception of secondary phase particles precipitation after TMSA treatment. Maximum fractions of retained austenite and minimum fractions of pearlite were achieved after TMTA treatment. Highly refined microstructure of size 26.7 µm was achieved after TMDA treatment whereas; TMSA treatment offered coarse grained microstructure of size 254 µm. Electrochemical analysis was performed in 5 vol% HCl solution using Tafel scan technique. Results revealed that both TMDA and TMTA treatments caused three-fold reduction in corrosion rates (3.025, 2.771 mpy) compared to non-treated steel sample. After 168 h of immersion corrosion analysis in 5 vol% HCl solution, the surface of TMTA treated sample was observed to be partially covered with a very thin, crack-free oxide layer exhibiting minimum oxygen (8.16%) percentage. These features indicated that the TMTA treated sample underwent a very low-intensity minor corrosion attack of HCl solution and exhibited the best immersion corrosion performance among all samples. Electrochemical and immersion corrosion analysis results were in good agreement.

1. Introduction

Due to excellent mechanical properties, exceptionally low cost, and availability [1], carbon steels are widely used in industrial applications i.e., construction, automobile, power production [2], oil and gas refineries [3], chemical, petroleum, mining [4], and allied industries. Carbon steels are used in manufacturing storage tanks for storing acids, alkali, and salt solutions [5]. Acidic solutions particularly HCl, H₂SO₄, and HNO₃ are commonly employed in the cleaning process of steel boilers, pickling of industrial steel circulating cooling system, ores processing, ion exchangers recovery, oil wells acidizing, and acid descaling [6,7]. In all these applications, carbon steels remain in contact with acids for a long time.

The carbon steels are highly susceptible to natural corrosion in acidic environments and cause considerable economic losses, hazard problems at the workplace, and waste of manpower and materials [8]. Therefore, it is mandatory to find quick, easy, and economical methods of minimizing these adverse corrosion effects on carbon steels [9,10]. Several strategies i.e., inhibitors [1,2,3,4,5,6,7,8,10], materials selection, cathodic protection, coatings [2], and heat-treatment [11], have been reported to control these undesirable mechanisms of degradation.

Various heat-treatment processes i.e., solution treatments [12,13], annealing [14], normalizing, hardening [15], oil quenching [16] and tempering [17,18], water quenching [16], stabilization and sensitization [19], aging [14,20,21,22], intercritical heat-treatment [23], thermo-mechanical treatment (TMT) [24], and cyclic heat-treatment [25], have been employed to optimize the corrosion performance of carbon steels.

TMT treatment is a very well-known, efficient, and cost-effective way of optimizing the corrosion performance of carbon steels [24]. TMT treatment causes grain refinement and bulk recrystallization of nano-scale particles and nano-sized subgrain boundaries in the matrix [26,27]. TMT treatment involves heating of steel to a sufficiently high temperature about 1100 °C, soaking at this temperature for sufficient time, hot rolling to the required shape, and quenching to room temperature [28]. On the other hand, cyclic heat-treatments are also well-recognized processes involving the repetition of austenitization [29,30,31,32], quenching [33], tempering [34], and annealing [35,36,37,38] processes. Cyclic annealing is one of the best methods of achieving ultra-fine microstructure and considerably improved properties of steel. It involves austenitizing near upper critical (AC₃) temperature, furnace cooling to room temperature, re-austenitizing at relatively low temperature, and second furnace cooling to room temperature [35]. TMT and cyclic annealing treatments have been applied on various carbon steels but AISI 1345 steel has not been investigated in this era. AISI 1345 is one of the widely used steels in manufacturing bolts and wear-rings for various applications [39].

In the present work, AISI 1345 steel was produced and cast in the laboratory and subjected to various thermo-mechanical cyclic annealing (TMCA) processes. Microstructure analysis and micro Vickers hardness test results were obtained to evaluate the impact of TMCA treatments on steel’s microstructure. To evaluate the corrosion performance of TMCA treated steel, the electrochemical and immersion corrosion analysis were performed in 5 vol% HCl solutions. Corrosion products properties were also evaluated by SEM, EDS spot analysis, and elemental mapping techniques after immersion corrosion analysis.

2. Materials and Methods

2.1. Materials

The experimental AISI 1345 steel was produced in the laboratory using mild steel scrap, ferro-silicon, ferro-manganese, and carburizer in the pure as-received forms. The required quantities of raw materials were weighed to produce a melt of 52.1 kg, melted in an induction furnace, and cast in the sand molds into ingots of dimensions 50 × 50 × 300 mm³. The chemical compositions of raw materials and produced AISI 1345 steel were measured by combustion analysis and wet analysis. The weights and the chemical compositions of raw materials and produced AISI 1345 steel are given in

Table 1. Weights and chemical compositions (wt. %) of raw materials and produced AISI 1345 steel.

Raw Materials	Wt. (kg)	C	Si	Mn	S	P	Fe
Mild Steel Scrap	50.0	0.10	0.30	0.25	0.002	0.002	Bal.
Carburizer	0.08	98.0	–	–	0.015	–	–
Ferro-Silicon	0.11	–	70.0	–	–	–	Bal.
Ferro-Manganese	1.92	6.00	0.97	60.0	–	–	Bal.
AISI 1345	52.1	0.45	0.37	1.78	0.017	0.002	Bal.

.

2.2. Thermo-Mechanical Cyclic Annealing Processes

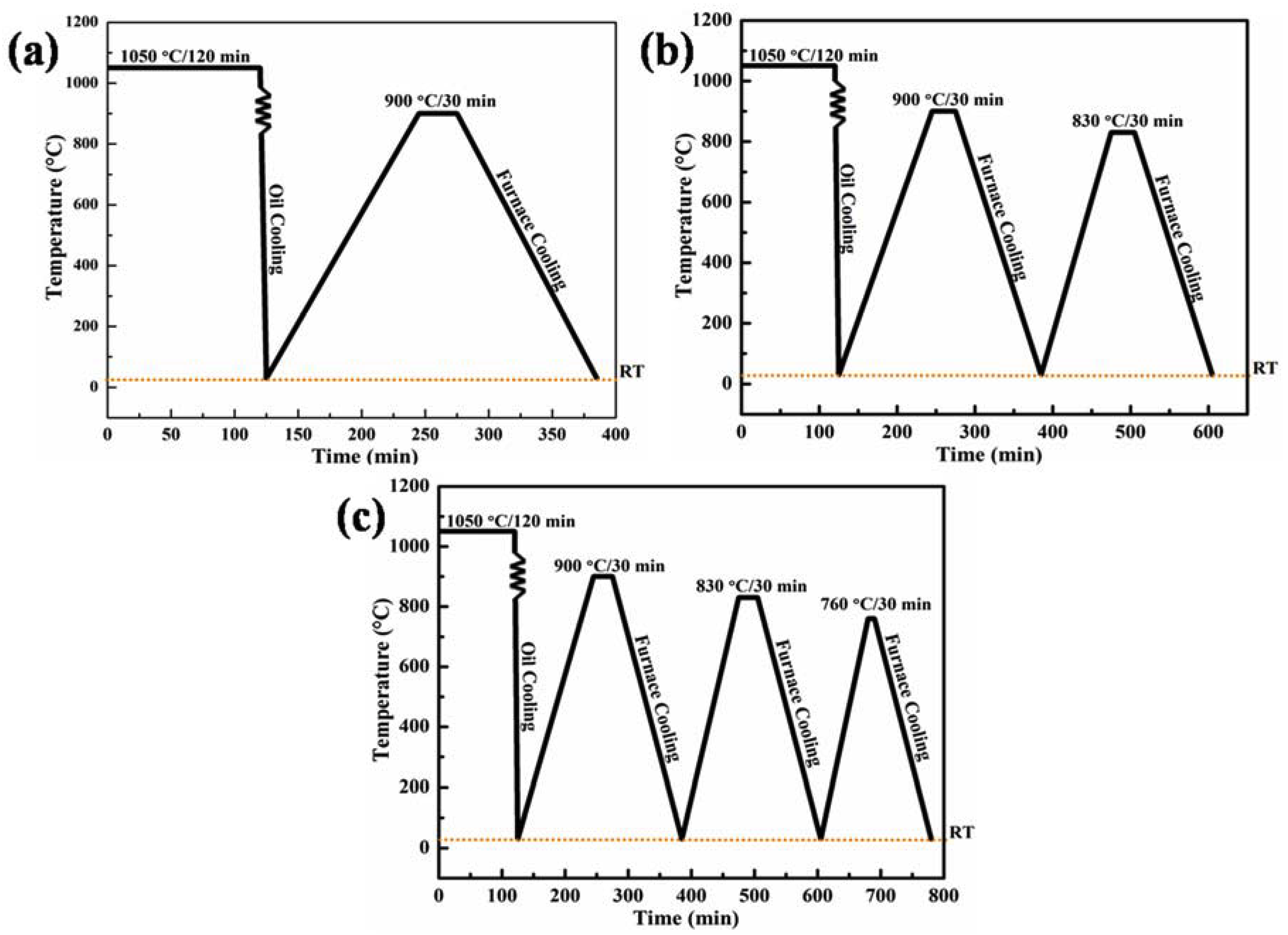

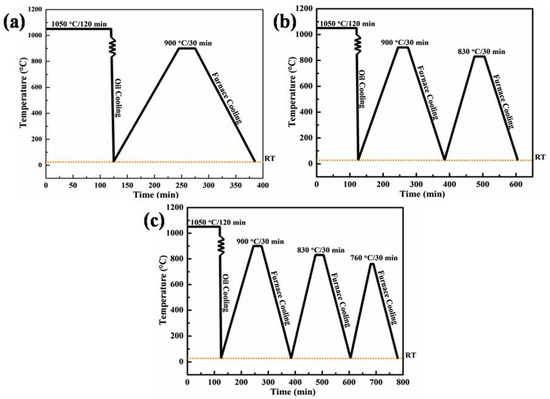

The TMCA processes are schematically presented in Figure 1. In TMCA processes, firstly steel was subjected to TMT treatment by heating to 1050 °C, soaking at this temperature for 120 min, and hot rolling into sheets of 5 mm thickness through multiple passes followed by oil quenching to room temperature. After hot rolling, steel plate samples were subjected to three types of cyclic annealing processes. The first cyclic annealing process was designated as a thermo-mechanical single annealing process (TMSA), second as double annealing (TMDA) process, and third as a triple annealing (TMTA) process. TMSA process comprised of austenitizing at 900 °C for 30 min followed by very slow furnace cooling to room temperature. The TMDA process was performed by repeating the annealing process twice. The first annealing process was identical to the TMSA process whereas, in second annealing experimental steel was austenitized at a relatively lower temperature of 830 °C for 30 min followed by similar furnace cooling to room temperature. The TMTA process was carried out by repeating the annealing process thrice. First and second annealing processes were identical to the TMDA process whereas, in third annealing process steel was austenitized at a relatively low temperature of 760 °C for 30 min followed by slow furnace cooling to room temperature.

2.3. Microstructure Analysis

The TMCA treated AISI 1345 steel samples were wetly sectioned into dimensions of 10 × 10 × 5 mm³ using a wire cut machine for microstructure analysis. All the samples were metallographically prepared by manual grinding on Federation of European Producers of abrasives (FEPA) grades P100, P200, P400, P600, P800, and P1000 grinding papers followed by automatic polishing on diamond pastes (6 µm, 3 µm, 1 µm and 0.25 µm) coated nylon and velvet cloths using an automatic polisher (StruersTegrapol–15 Grinder/Polisher USA). After etching in 4 vol% nital solution (4 vol% nitric achid + 96 vol% ethanol), the microstructure was analyzed under an optical microscope (Leica Model DM-15000M Germany) at 1000× magnification and then by scanning electron microscope (FEI brand model Inspect S50 USA SEM) at 2000× magnification. Elemental compositions of both phases (Retained austenite, Pearlite) of dual-phase microstructure were analyzed using an energy dispersive spectrometer (EDS) equipped with new generation silicon drift detector (SDD) attached with SEM. For this purpose, spot analysis technique was applied by selecting two spots; one on pearlite and the other on retained austenite. Three measurements were taken for each sample to check the reproducibility of results.

2.4. Vickers Hardness Testing

Vickers hardness testing was performed on ground and polished steel samples of dimensions 10 × 10 × 5 mm³ using Vickers hardness tester (Shimadzu Model HMV Japan) equipped with diamond indenter; under the load of 1000 g. Five readings were noted and averaged to get the final hardness value for each sample.

2.5. Electrochemical Analysis

For electrochemical analysis, the steel samples of dimensions 10 × 10 × 5 mm³ were soldered with single copper wire and cold mounted in polyester resin with 10 × 10 mm² exposed surface area. All the samples were metallographically prepared by the aforementioned procedure. Polarization potential and corrosion kinetics of TMCA treated steel were evaluated in 5 vol% HCl solution by the Tafel scan technique on Autolab potentiostat (Metrohm PG30, Netherlands). In the three-electrode system, a saturated calomel electrode was used as a reference electrode, platinum wire as an auxiliary electrode, and experimental steel sample as a working electrode. To validate the reproducibility, three tests were performed for each sample.

2.6. Immersion Corrosion Analysis

Immersion corrosion performance of TMCA treated AISI 1345 steel was evaluated in 5 vol% HCl solution at room temperature. The samples of dimensions 10 × 10 × 5 mm³ were metallographically prepared by the aforementioned procedure from all sides and then vertically immersed in the HCl solution for 168 h. After this immersion time, the samples were taken out of the solution and washed with distilled water. The corrosion morphologies, elemental compositions, and distributions of corrosion products were analyzed using SEM (FEI brand model Inspect S50 USA SEM), EDS spot analysis, and elemental mapping technique.

3. Results and Discussion

3.1. Microstructure Evolution

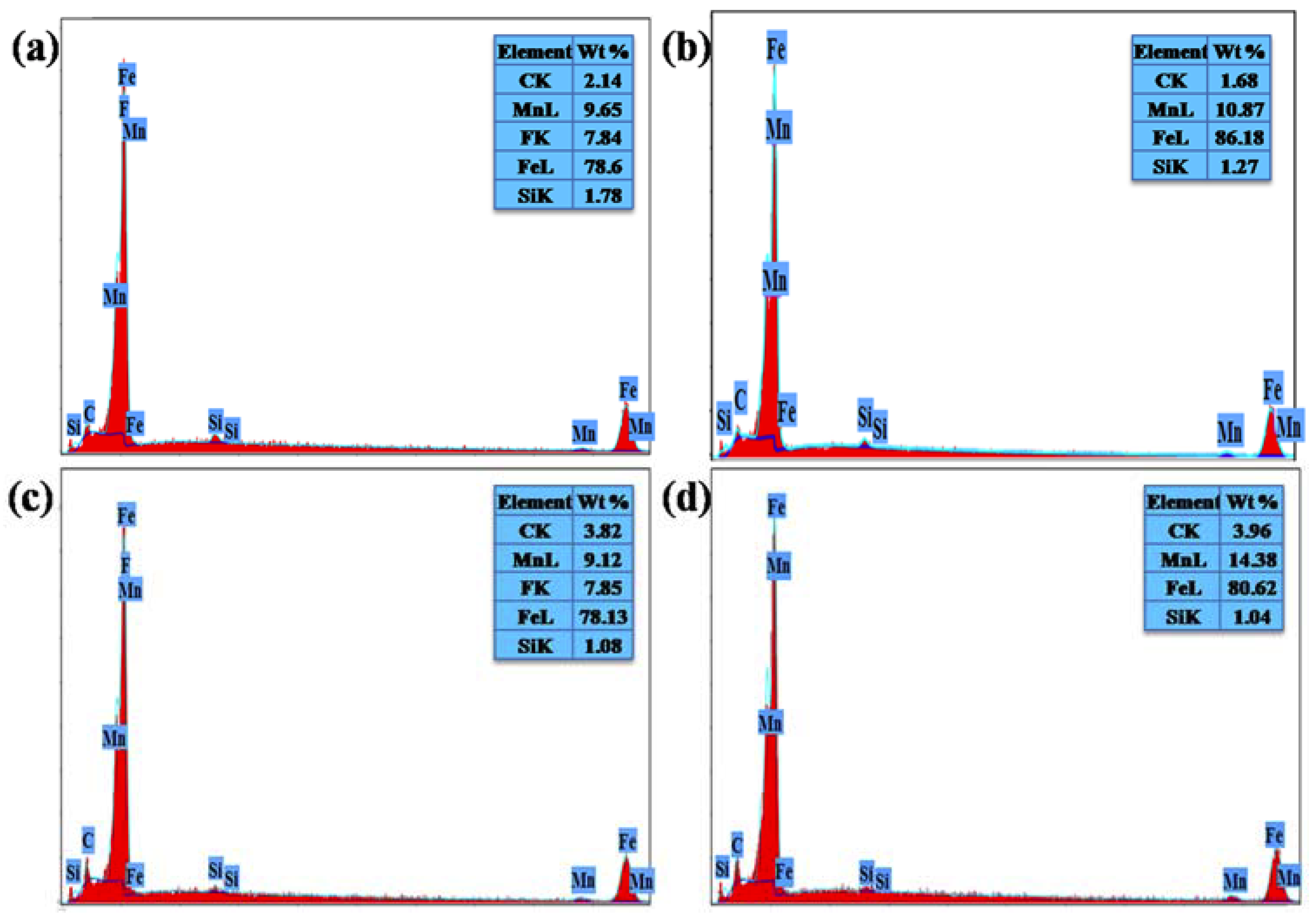

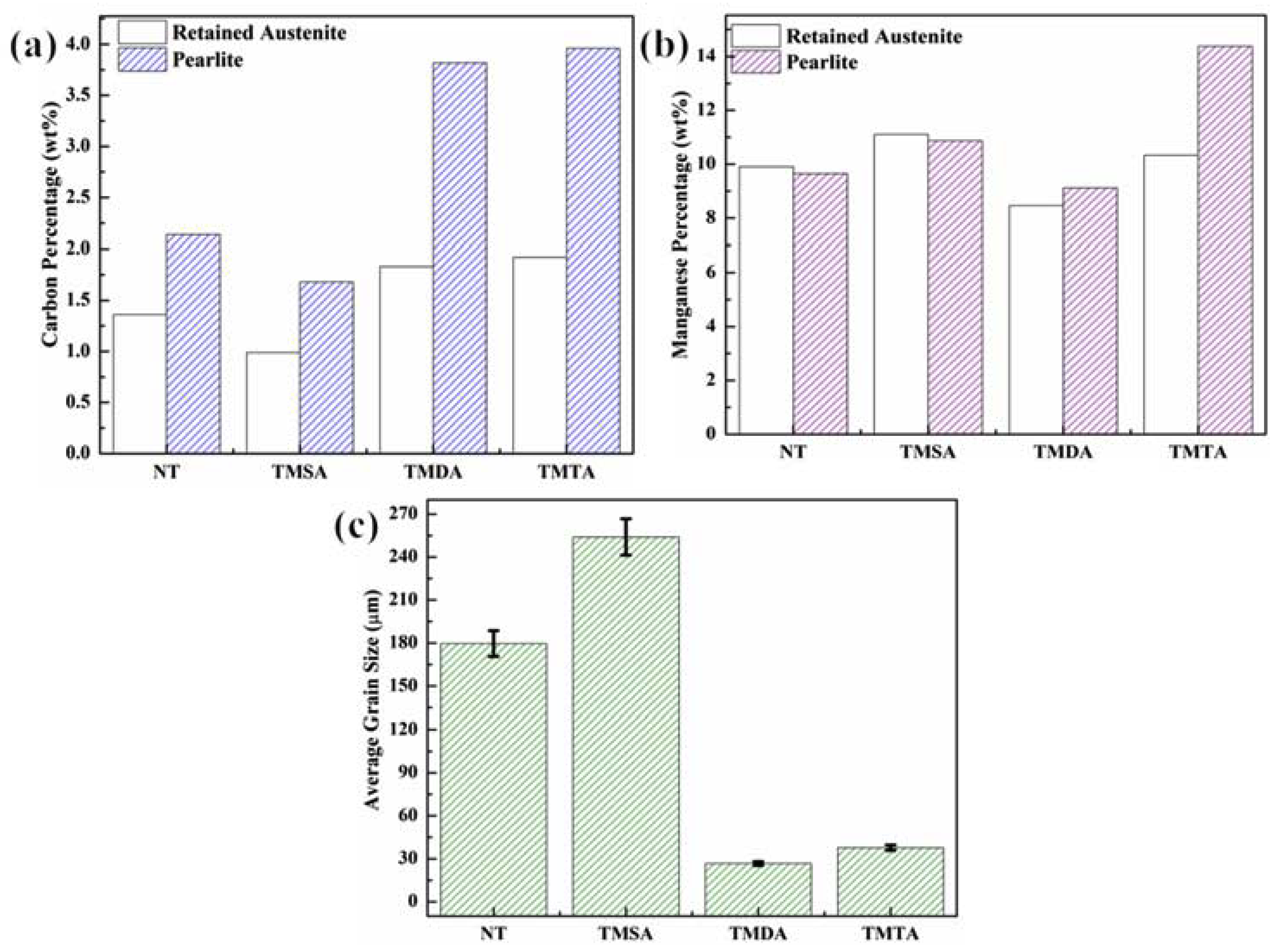

Microstructural features of TMCA treated steel samples were found very sensitive to the applied treatments. Optical and SEM micrographs of non-treated and TMCA treated steel samples are illustrated in Figure 2 and Figure 3, whereas, the corresponding EDS spectra are presented in Figure 4. Variations in C and Mn percentages in retained austenite and pearlite phases and average grain size of microstructure with TMCA treatments are plotted in Figure 5.

In non-treated form, AISI steel exhibited coarse grained (179.6 µm) microstructure having low fraction of retained austenite phase randomly distributed along the grain boundaries of the lamellar pearlitic matrix as illustrated in Figure 2a,b. EDS spectra demonstrated that the retained austenite phase contains 1.36% C and 9.91% Mn whereas, the pearlite phase contains 2.14% C and 9.65% Mn as illustrated in (Figure 4a and Figure 5). It is a well-known fact that TMT treatment including hot rolling and oil quenching produces lath martensite and retained austenite phases in microstructure [40], but subsequent annealing process involving very slow furnace cooling transforms these phases into ferrite, pearlite, or retained austenite phases depending upon the chemical composition of steel [35,37,38]. Therefore, in this work, TMSA treatment transformed the martensite phase obtained after TMT treatment into pearlite phase whereas, retained austenite remains stable due to presence of Mn (1.78 wt%) in the steel. The microstructure obtained after TMSA treatment comprised of relatively coarse grained (254 µm) microstructure with improved fractions of the retained austenite phase and reduced fractions of pearlite phase (Figure 2c,d) compared to non-treated steel. The TMSA treatment also reduced the C percentages (0.99% and 1.68%) in both retained austenite and pearlite phases as illustrated in Figure 4b and Figure 5. Reduction in C percentage in both phases might be attributed to the precipitation of secondary phase particles along the grain boundaries. It has been reported that precipitation of secondary phase particles always causes diffusion of C from other phases to these particles [41,42,43,44].

On the other hand, TMDA treatment offered maximum refined grained (26.7 µm) microstructure having relatively reduced fractions of pearlite and increased fractions of retained austenite (Figure 3a,b) compared to non-treated steel. Due to prolonged and double furnace cooling, most of the C content (3.82%) diffused into the pearlite phase whereas, minor C content (1.83%) lied in the retained austenite phase as illustrated in Figure 4c and Figure 5.

As mentioned earlier, TMTA treatment involved three times repetition of austenitizing and slow furnace cooling, therefore TMTA treatment resulted in well-refined (37.8 µm) microstructure compared to non-treated steel but coarser than TMDA treated steel with maximum retained austenite fractions and minor fractions of pearlite at the great boundaries as illustrated in Figure 3c,d. Pearlite formed after TMTA treatment possessed the highest C (3.96%) and Mn (14.38%) contents among all samples (Figure 4d and Figure 5).

3.2. Vickers Hardness

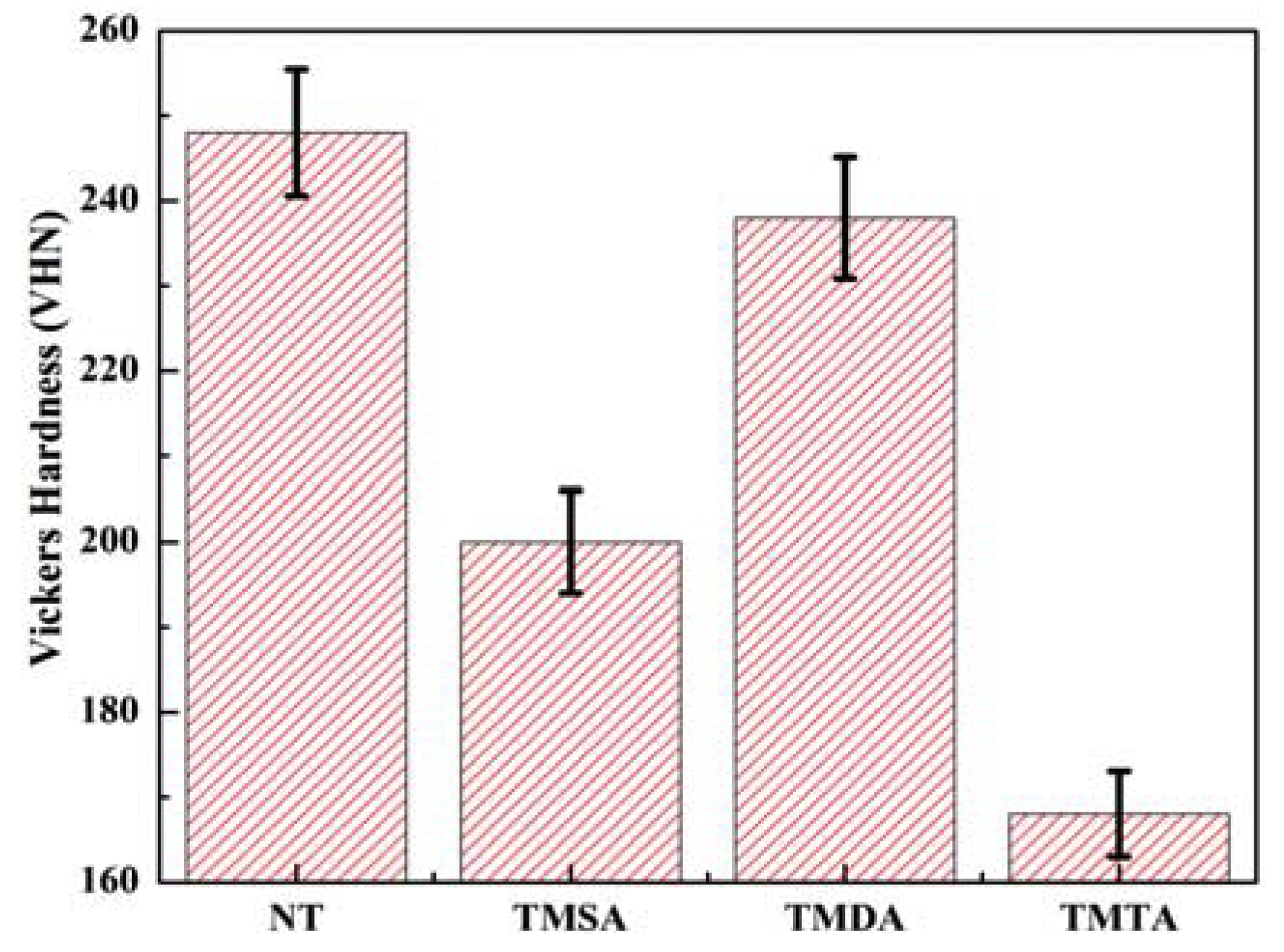

Micro Vickers hardness values of non-treated and TMCA treated AISI 1345 steel are plotted in Figure 6. In non-treated form, experimental steel exhibited the highest hardness value (248 VHN) among all samples attributed to the highest fractions of the pearlite phase and lowest fractions of the randomly distributed retained austenite phase. As mentioned above, TMSA treatment produced a coarse-grained microstructure with improved fractions of retained austenite phase, reduced fractions of pearlite phase, and diffused the C of both phases to the secondary phase particles. Therefore, considerably reduced (19%) Vickers hardness (200 VHN) was achieved after TMSA treatment compared to non-treated steel.

TMDA treatment offered almost identical Vickers hardness value to non-treated steel. This is because TMDA treatment produced a well-refined microstructure containing further improved fractions of retained austenite phase and reduced fractions of the pearlite phase present at the grain boundaries. The lowest Vickers hardness value (168 VHN) was achieved after TMTA treatment. This is because a moderately grained microstructure was formed after TMTA treatment having negligible fractions of pearlite and almost maximum fractions of retained austenite.

3.3. Electrochemical Properties

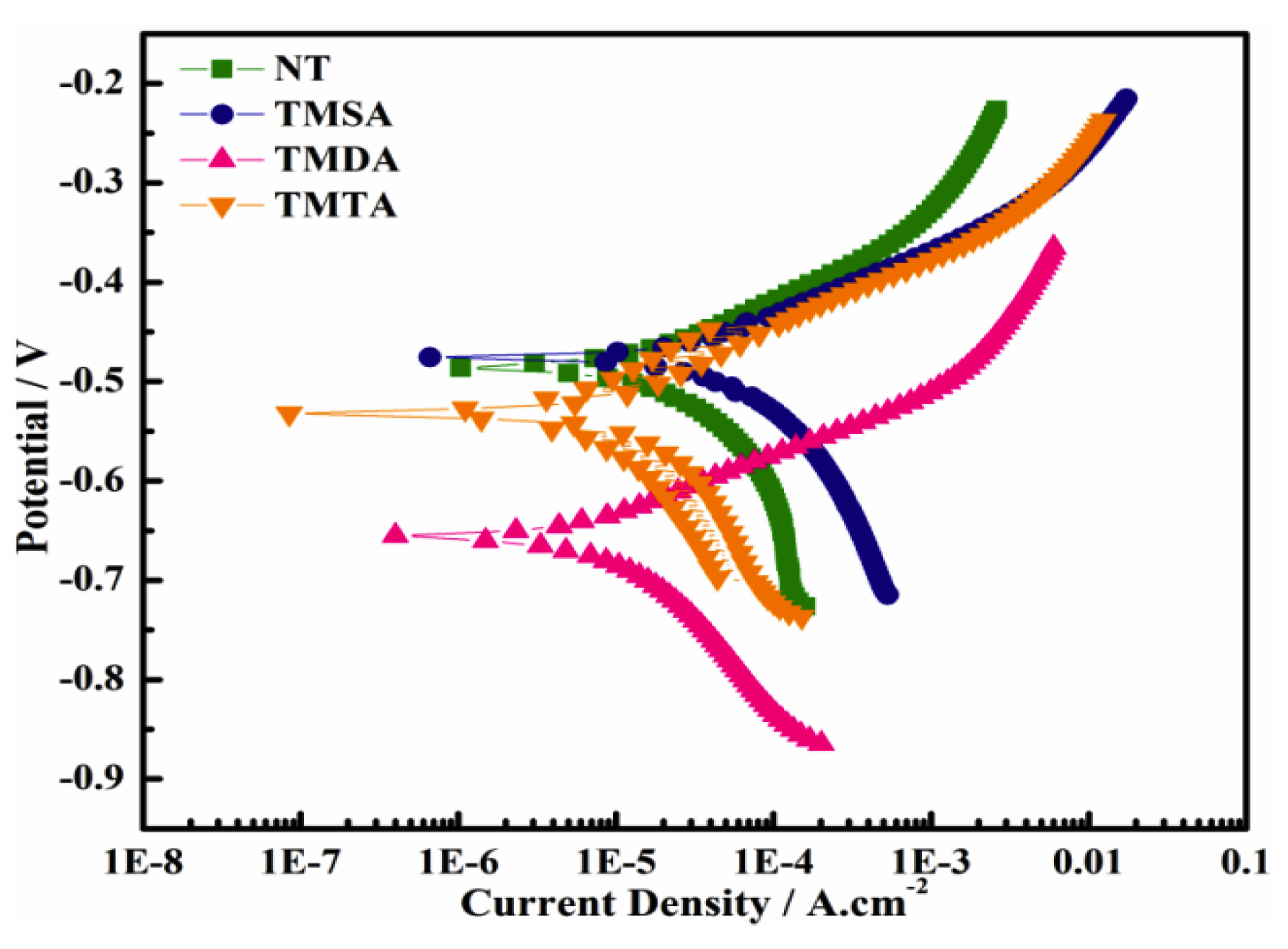

Tafel scans of non-treated and TMCA treated AISI 1345 steel are plotted in Figure 7. The polarization behavior of all steel samples was explored in −0.25 V to 0.25 V potential range with reference to open circuit potential at a scanning rate of 1 mV/s. The Tafel extrapolation method with NOVA 2.1 software was utilized to calculate the kinetic parameters given in

Table 2. Kinetic parameters of non-treated and TMCA treated AISI 1345 steel.

Samples	βa mV/Decades	βc mV/Decades	Icorr (µA.cm−2)	Ecorr (mV)	Corrosion Rate (mpy)
NT	81.40	179.1	20	−480	9.143
TMSA	69.20	143.7	35.60	−469	16.27
TMDA	61.30	142.3	6.610	−647	3.025
TMTA	65.90	138.3	6.060	−522	2.771

. According to the Butler–Volmer relation: [45]

$${\mathit{i}}_{\mathit{n}\mathit{e}\mathit{t}}={\mathit{i}}_{\mathit{o}}\left\{\mathbf{exp}\left({\mathit{\beta }}_{\mathit{a}}\frac{\mathit{n}\mathit{F}}{\mathit{R}\mathit{T}}{\mathit{\eta }}_{\mathit{a}}\right)-\mathit{e}\mathit{x}\mathit{p}\left[-\left(\mathbf{1}-{\mathit{\beta }}_{\mathit{c}}\right)\frac{\mathit{n}\mathit{F}}{\mathit{R}\mathit{T}}{\mathit{\eta }}_{\mathit{c}}\right]\right\}$$

(1)

where $‘{\mathit{\beta }}_{\mathit{a}}’$ anodic Tafel constant, $‘{\mathit{\beta }}_{\mathit{c}}’$ the cathodic Tafel constant, $‘{\mathit{\eta }}_{\mathit{a}}’$ is anodic polarization and $‘{\mathit{\eta }}_{\mathit{c}}’$ is cathodic polarization of the metal surfaces during Tafel extrapolation.

The AISI 1345 steel demonstrated varying values of corrosion current density (I_corr), potential (E_corr), ${\mathit{\beta }}_{\mathit{a}}$, ${\mathit{\beta }}_{\mathit{c}}$, and corrosion rate under varying TMCA treatments. In non-treated form, AISI 1345 steel exhibited moderate I_corr (20 µA.cm⁻²) and moderate corrosion rate (9.143 mpy) whereas, after TMSA treatment, the value of I_corr significantly (78%) increased to 35.60 µA.cm⁻². According to the Butler–Volmer relation, the value of I_corr is directly proportional to the corrosion rate of steel [45]. Therefore, the corrosion rate of TMSA treated steel was also increased (78%) to 16.27 mpy compared to non-treated steel. This increment in I_corr and corrosion rate might be attributed to several factors i.e., coarsening of grain size, uniform distribution of retained austenite and pearlite phases, reduction of C percentages in retained austenite and pearlite phases, and precipitation of secondary phase particles. Although the retained austenite phase is reported to be less susceptible to corrosion attack, but corrosion cells formed in the presence of pearlite phase [46,47]. Therefore, the decrease in the pearlite phase after TMDA treatment reduced the number of corrosion cells and caused a three-fold decrease in corrosion rate (3.025 mpy) compared to non-treated AISI 1345 steel.

As mentioned earlier, fractions of the pearlite phase decreased and that of retained austenite increased to maximum level after TMTA treatment and offered the minimum number of corrosion cells. Due to this fact, the TMTA treated sample demonstrated the lowest corrosion rate (2.771 mpy) among all samples.

3.4. Immersion Corrosion Properties

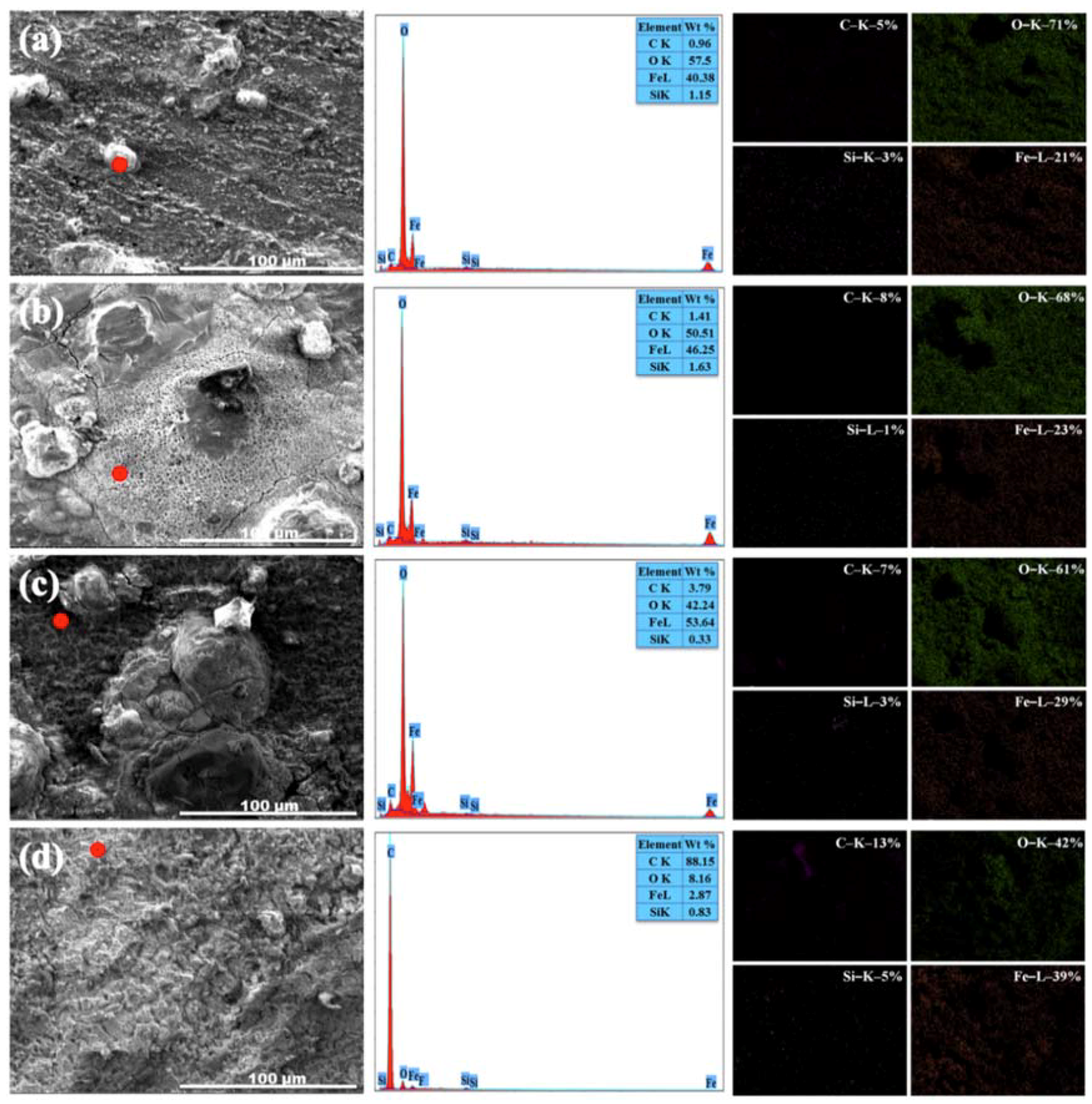

One of the toughest challenges in corrosion science is the prediction of corrosion susceptibility of steels in a specific environment [48]. Corroded surfaces of non-treated and TMCA treated AISI 1345 steel obtained after immersion test in 5 vol% HCl solution for 168 h were analyzed by SEM, EDS spot analysis, and EDS mapping technique. SEM micrographs, EDS spectra, and elemental maps of corroded surfaces of all samples are illustrated in Figure 8. It has been reported that immersion of a steel in a specific corrosive environment can produce various corrosion products i.e., hematite (Fe₂O₃), magnetite (Fe₃O₄), lepidocrocite (γ–FeOOH), goethite (α–FeOOH), calcite (CaCO₃), and green rusts (hydrated ferrous–ferric compounds) [48,49,50,51,52,53]. As the HCl is an aggressive environment, the surface of non-treated steel was observed to be fully covered with thick crack-free corrosion layers (Figure 8a). It has been reported that a high percentage of oxygen in the corrosion product presents a high corrosion rate [54,55,56,57,58]. Here, the intensity of corrosion attack at non-treated steel surface can be judged from the oxygen percentage in the EDS spectrum and elemental map which are highest (57.5% and 71%) among all samples. High percentages of oxygen in the corrosion product indicated that non-treated steel sample underwent intense corrosion attack. On the other hand, the surface of the TMSA treated steel was also fully covered with the thick corrosion layer but this layer was observed to be spongy and has micro-cracks as can be seen in Figure 8b. Oxygen percentages were observed to be slightly lower (50.51% and 68%) than non-treated steel indicating an almost identical intensity of the corrosion attack at the TMSA treated sample surface.

The surfaces of both TMDA and TMTA treated samples were observed to be partially covered with thin, crack-free corrosion layers as illustrated in Figure 8c,d. The oxygen percentage (42% and 61%) in EDS spectrum and elemental map of TMDA treated sample exhibited that this sample underwent moderate corrosion attack of HCl. The intensity of this attack was relatively lower than non-treated and TMSA treated samples. TMTA sample demonstrated minimum oxygen percentage (8.16% and 42%) presenting highest corrosion resistance among all samples. The results of immersion corrosion analysis were observed to be in good agreement with electrochemical analysis results.

4. Conclusions

The following were the extracted conclusions:

i.

Dual-phase microstructures comprising retained austenite and pearlite phases were achieved after all TMCA treatments of AISI 1345 steel. Secondary phase particles precipitation was observed after TMSA treatment. Variations in grain size, fractions of both phases, and C and Mn percentages in both phases were observed with varying TMCA treatments. TMTA treated sample exhibited maximum fractions of retained austenite and minimum fractions of pearlite along grain boundaries. This pearlite contained the highest percentages of C (3.96%) and Mn (14.38%) among all samples. TMDA treatment provided maximum (26.7 µm) whereas, TMSA minimum (254 µm) grain refinement of microstructure.

ii.

TMDA and TMTA treatments significantly improved the electrochemical properties of AISI 1345 steel in 5 vol% HCl solution compared to non-treated steel. Both treatments caused a three-fold reduction in I_corr (6.610, 6.060 µA.cm⁻²) as well as in corrosion rate (3.025, 2.771 mpy) attributed to the reduced fractions of pearlite and in turn number of corrosion cells. On the other hand, TMSA treatment exhibited very poor electrochemical properties among all samples.

iii.

The surface of the TMTA treated sample was observed to be partially covered with a very thin crack-free oxide layer having the lowest oxygen percentages (8.16% and 42%) in the EDS spectrum and EDS map among all samples. These features proved that TMTA treated sample underwent a minimum corrosion attack of the HCl solution. On the other hand, the surface of TMSA treated sample was fully covered with thick, spongy oxide layer having clear micro-cracks and highest oxygen percentages (50.51% and 68%) in the EDS spectrum and EDS map among all treated samples. These features proved that TMSA treated sample underwent intense corrosion attack of the HCl solution. Results of electrochemical analysis and immersion corrosion analysis were in good agreement.
