Article

Numerical Investigation into Optoelectronic Performance of InGaN Blue Laser in Polar, Non-Polar and Semipolar Crystal Orientation

1
Department of Mechatronics Engineering, Khulna University of Engineering & Technology, Khulna 9203, Bangladesh
2
Department of Electrical & Electronic Engineering, Jashore University of Science & Technology, Jashore 7408, Bangladesh
3
Centre for Accident Research & Road Safety-Queensland (CARRS-Q), Queensland University of Technology, Brisbane, Queensland 4059, Australia
4
School of Physics, The University of Sydney, Sydney, NSW 2006, Australia
5
Department of Electrical & Electronic Engineering, Khulna University of Engineering & Technology, Khulna 9203, Bangladesh
6
Department of Computer Science, Cihan University Sulaimaniya, Sulaimaniya 46001, Iraq
7
Electrical Engineering Department, College of Engineering, University of Sulaimani, Sulaimaniya 46001, Iraq
8
Department of Electrical & Computer Engineering, King Abdulaziz University, Jeddah 21589, Saudi Arabia
9
Center of Excellence in Intelligent Engineering Systems (CEIES), King Abdulaziz University, Jeddah 21589, Saudi Arabia
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(11), 1033; https://doi.org/10.3390/cryst10111033
Received: 22 September 2020 / Revised: 2 November 2020 / Accepted: 10 November 2020 / Published: 13 November 2020

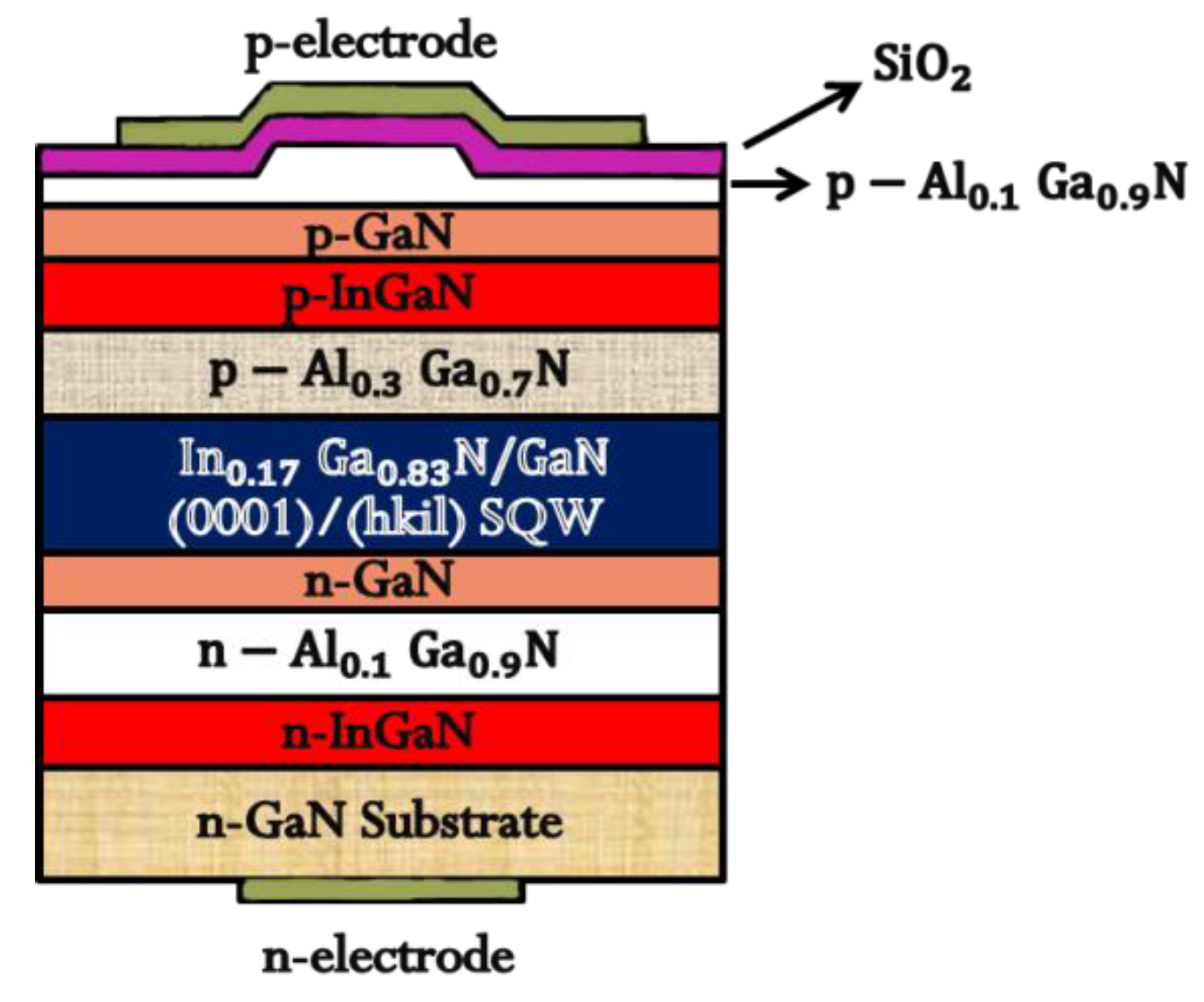

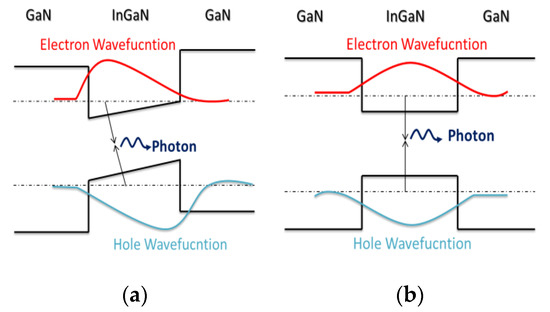

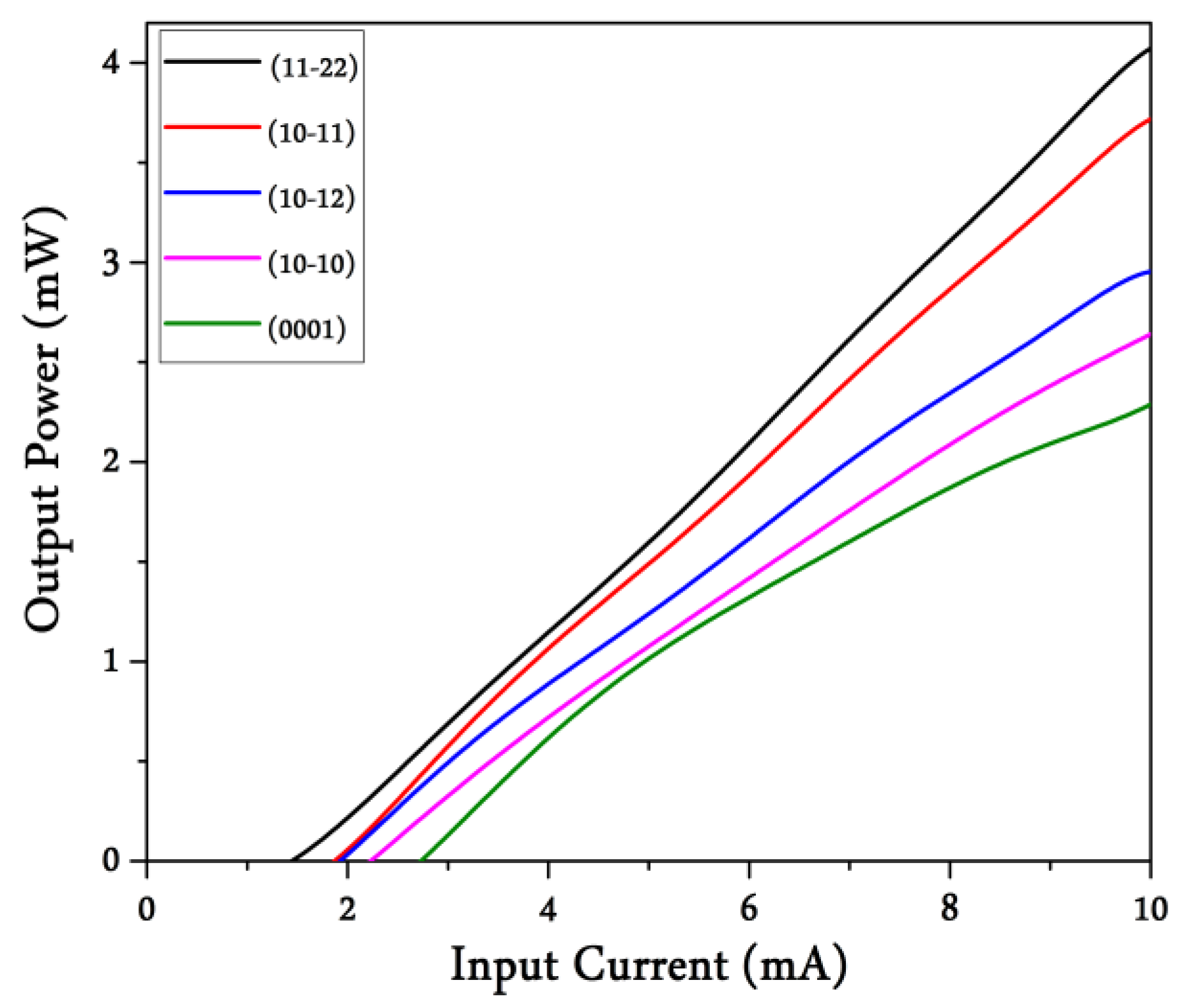

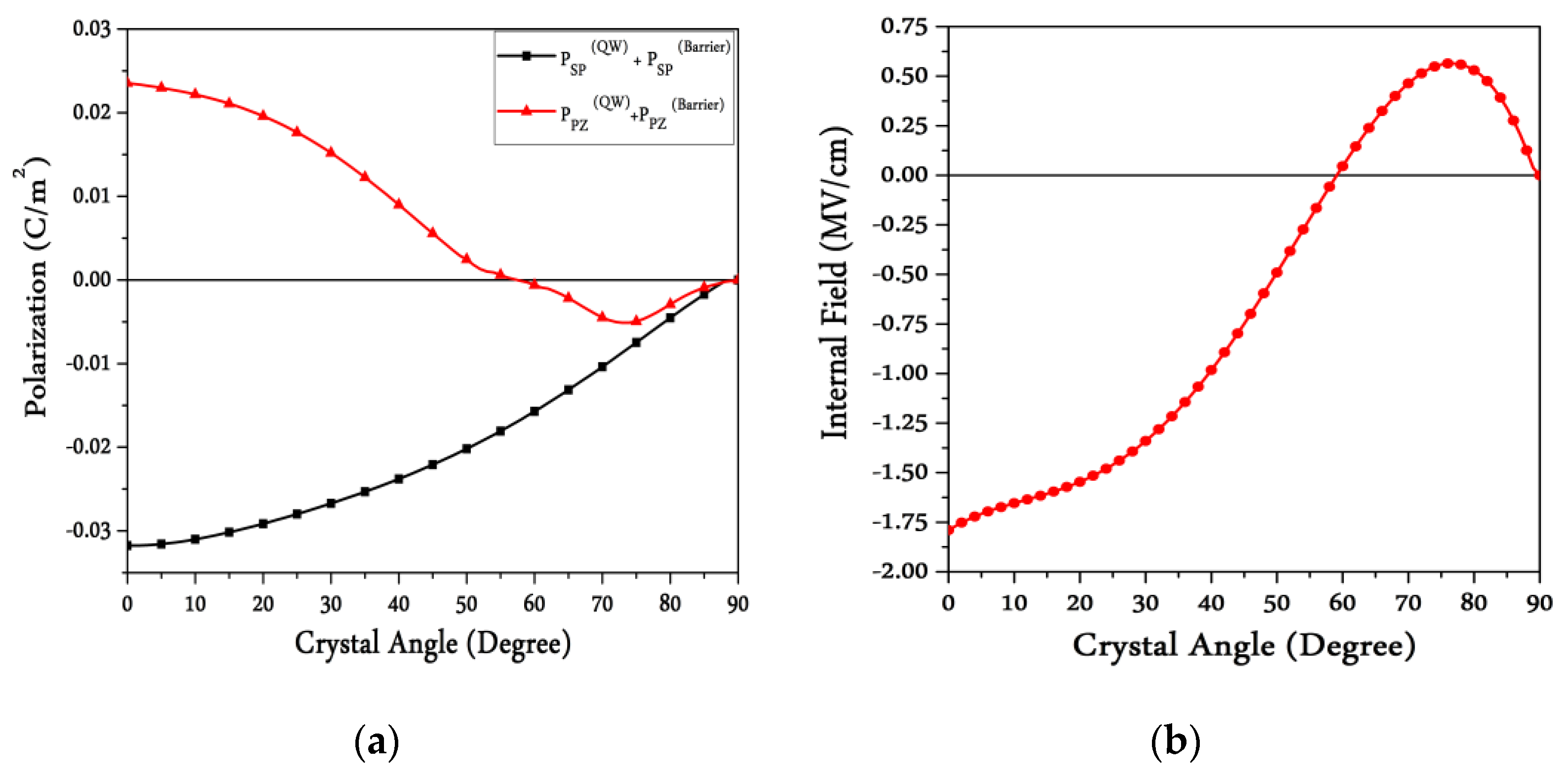

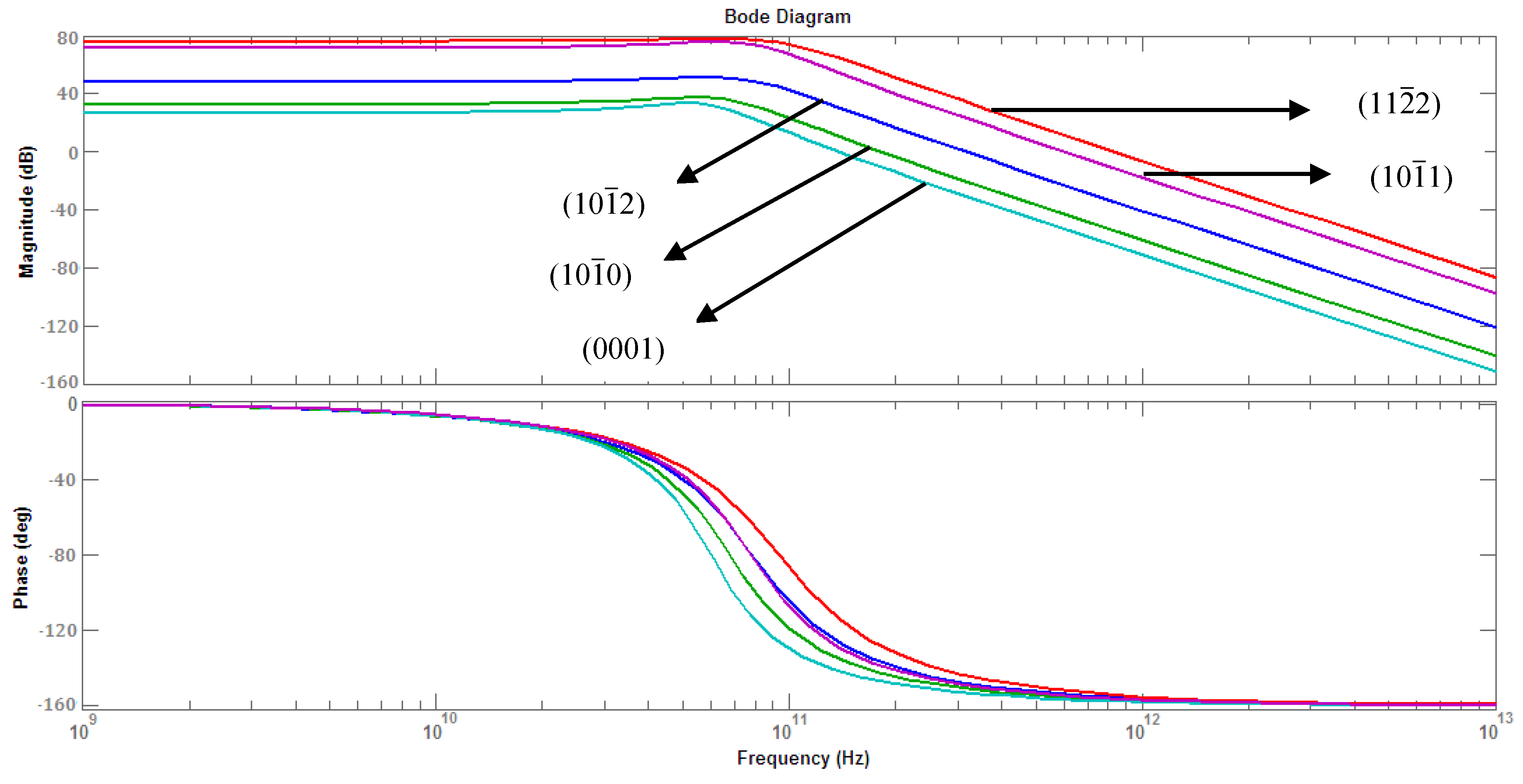

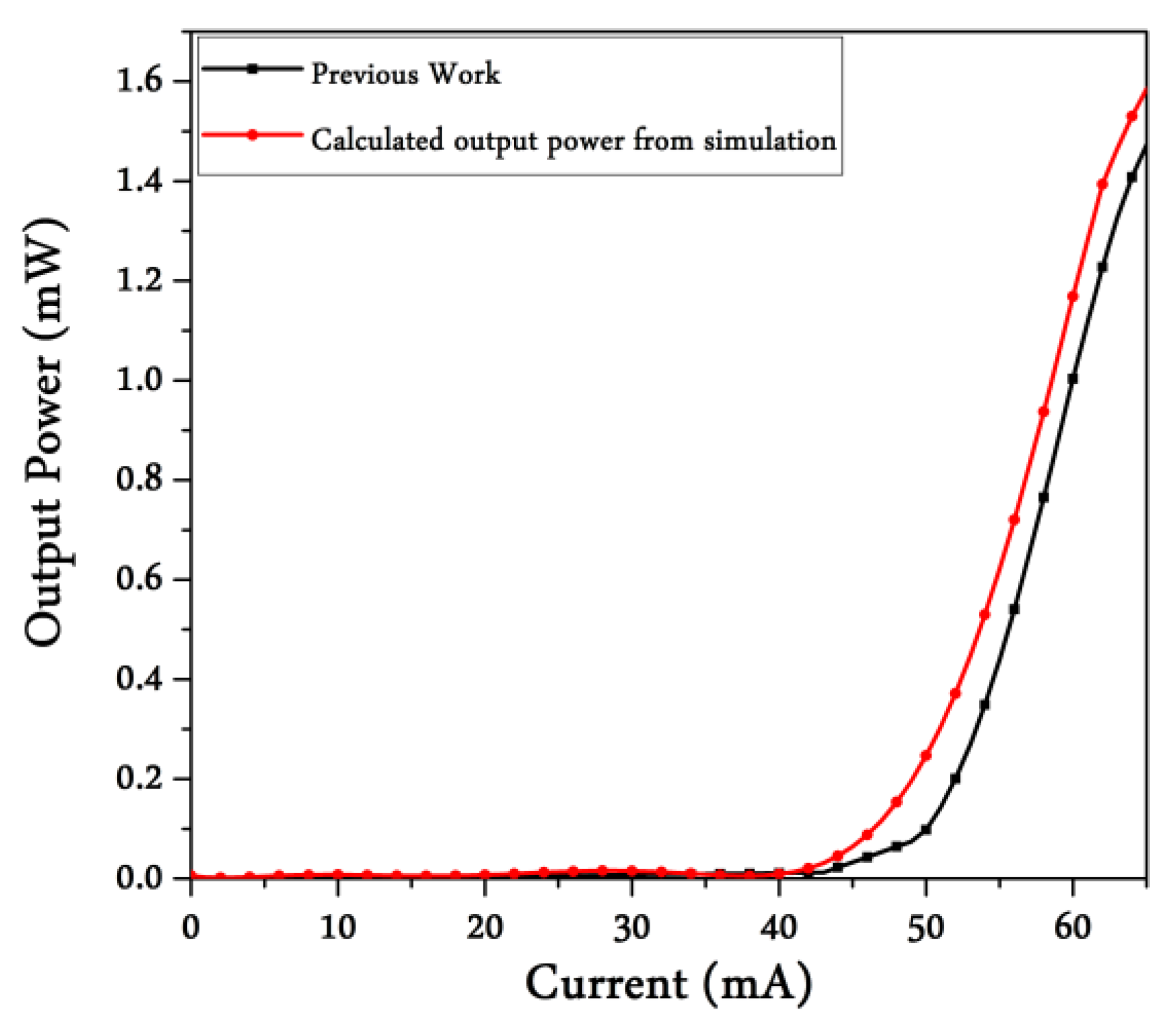

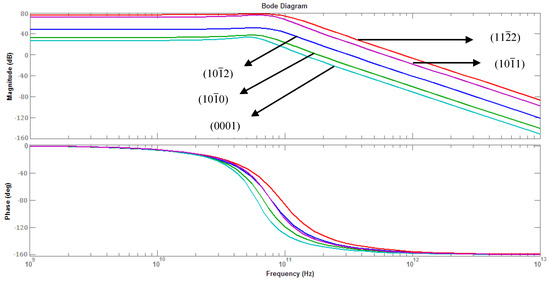

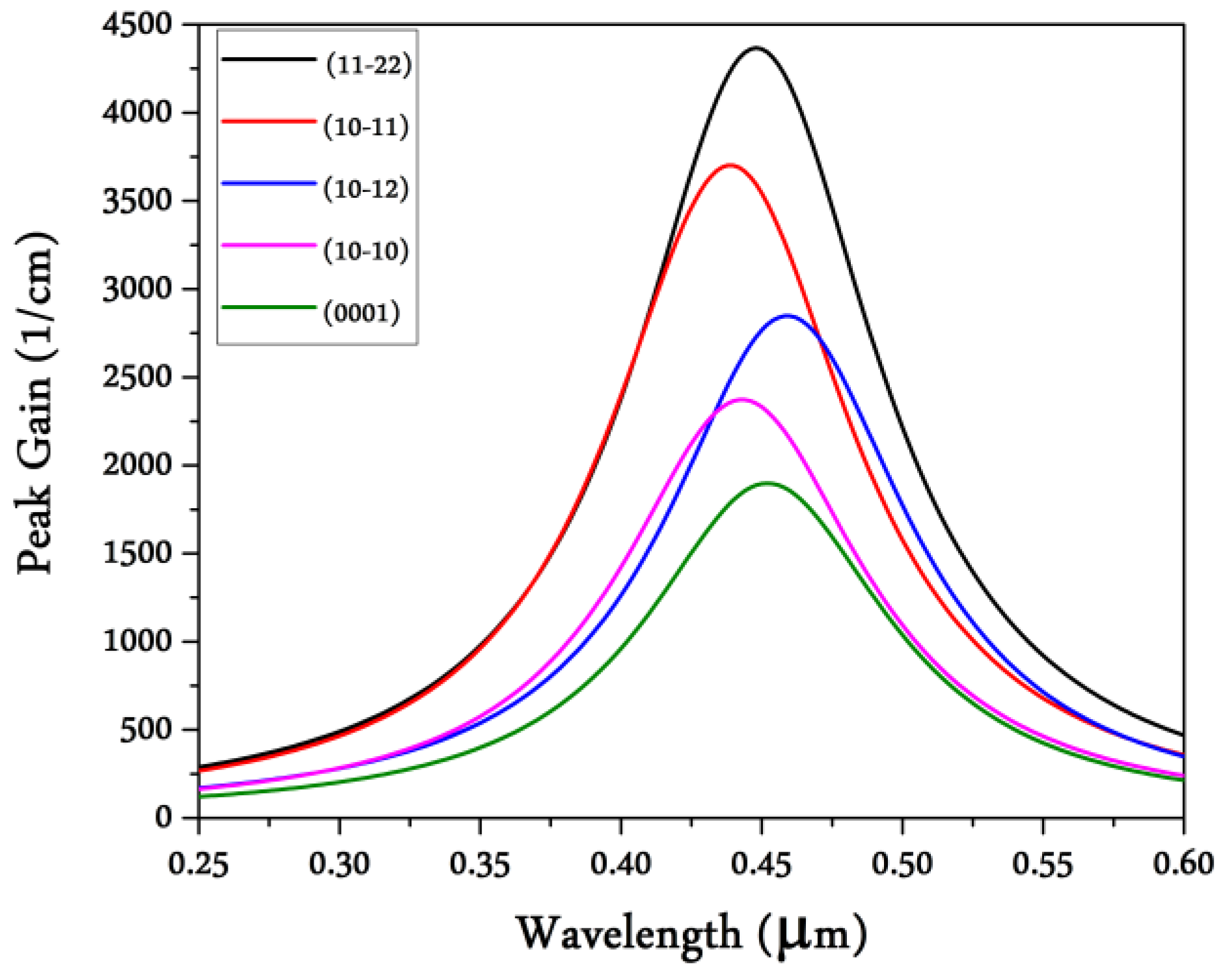

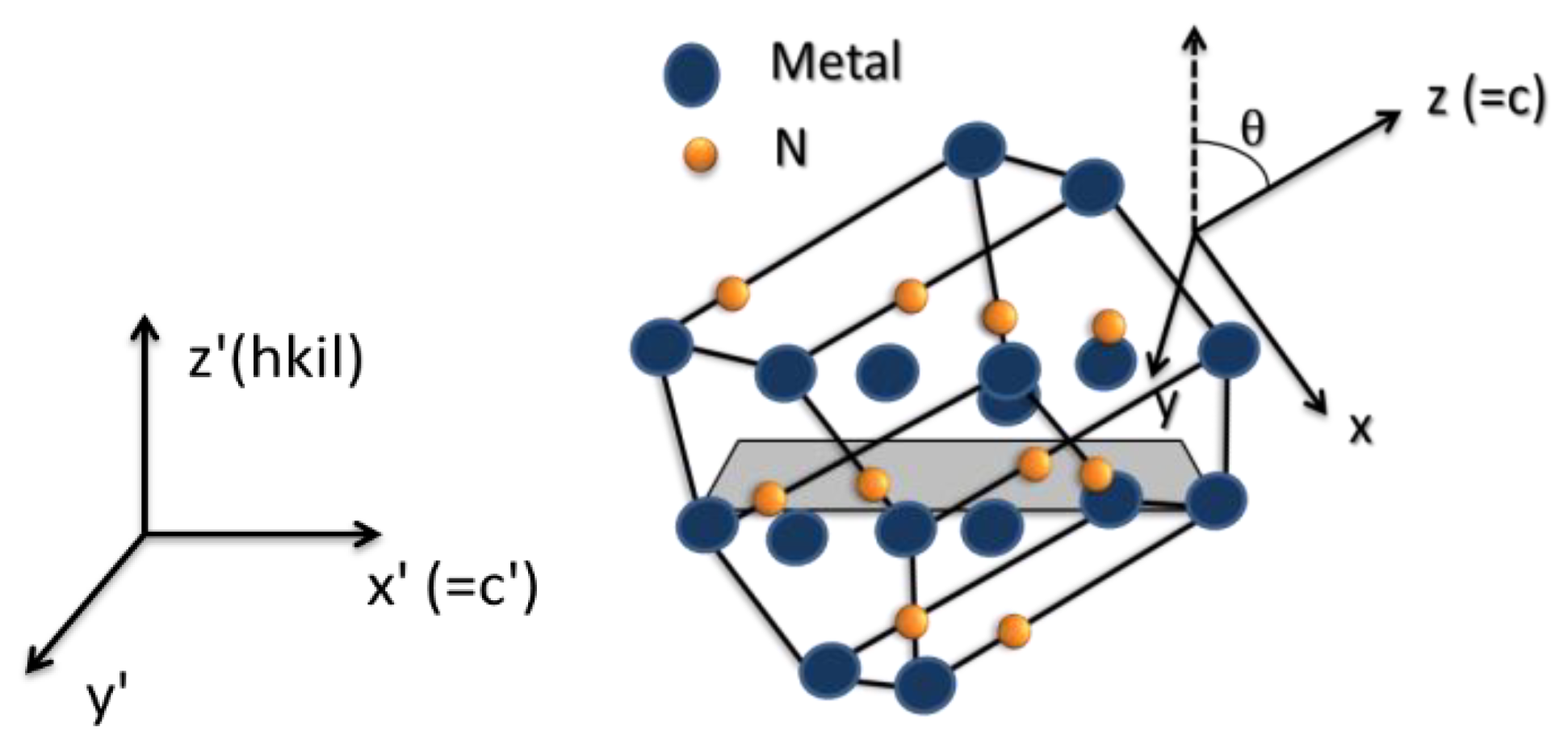

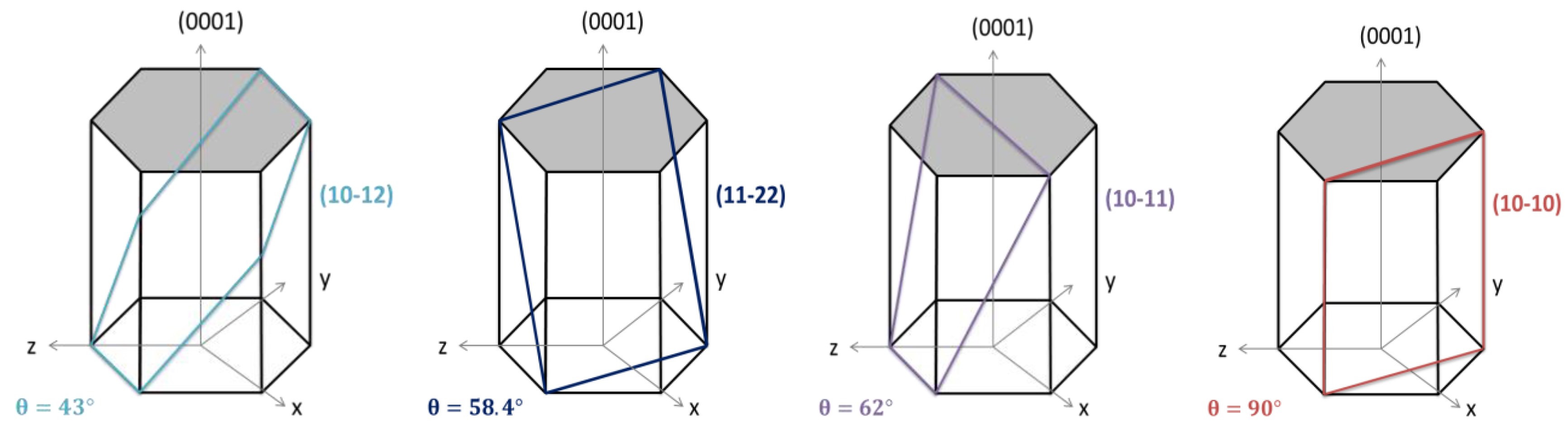

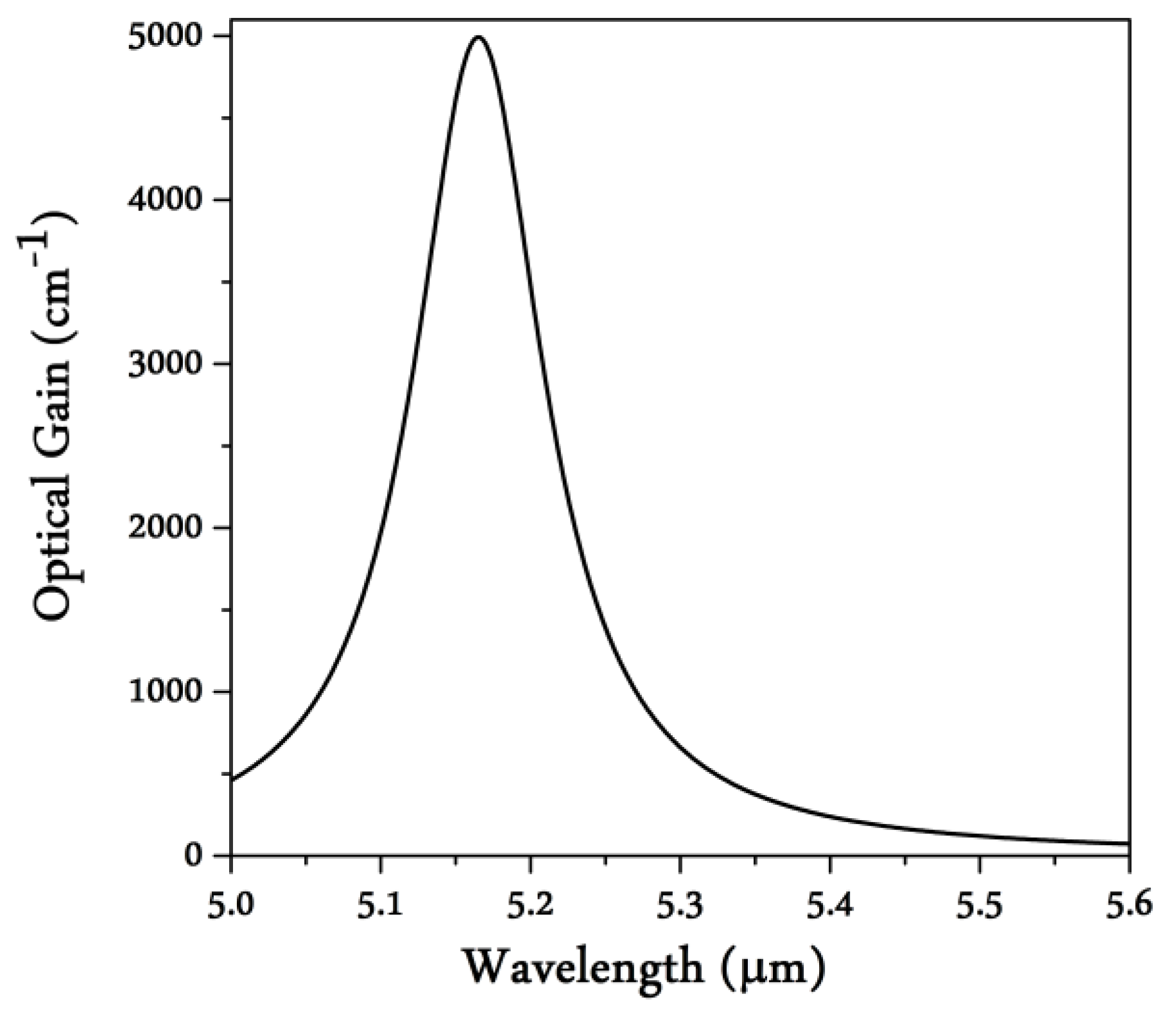

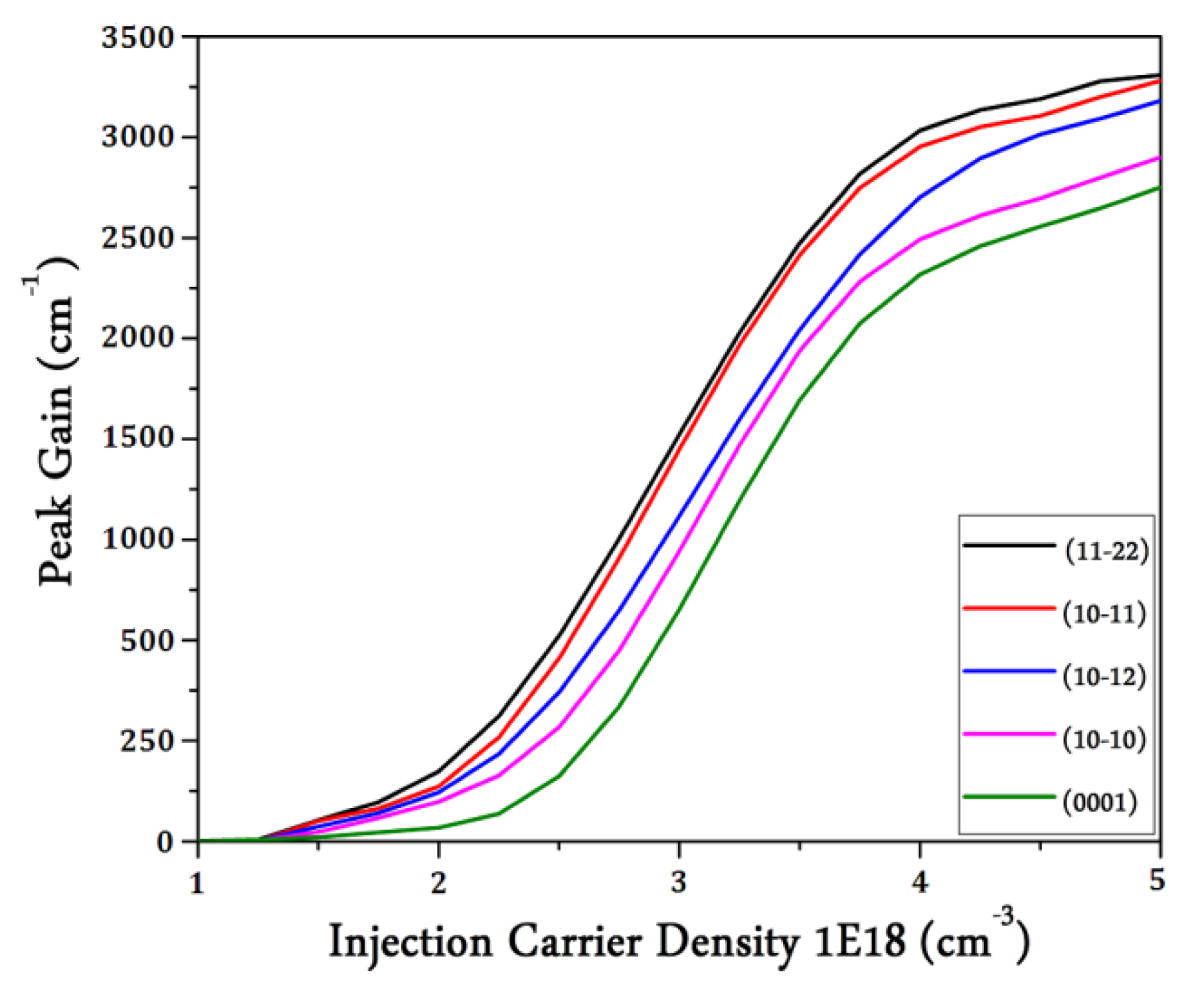

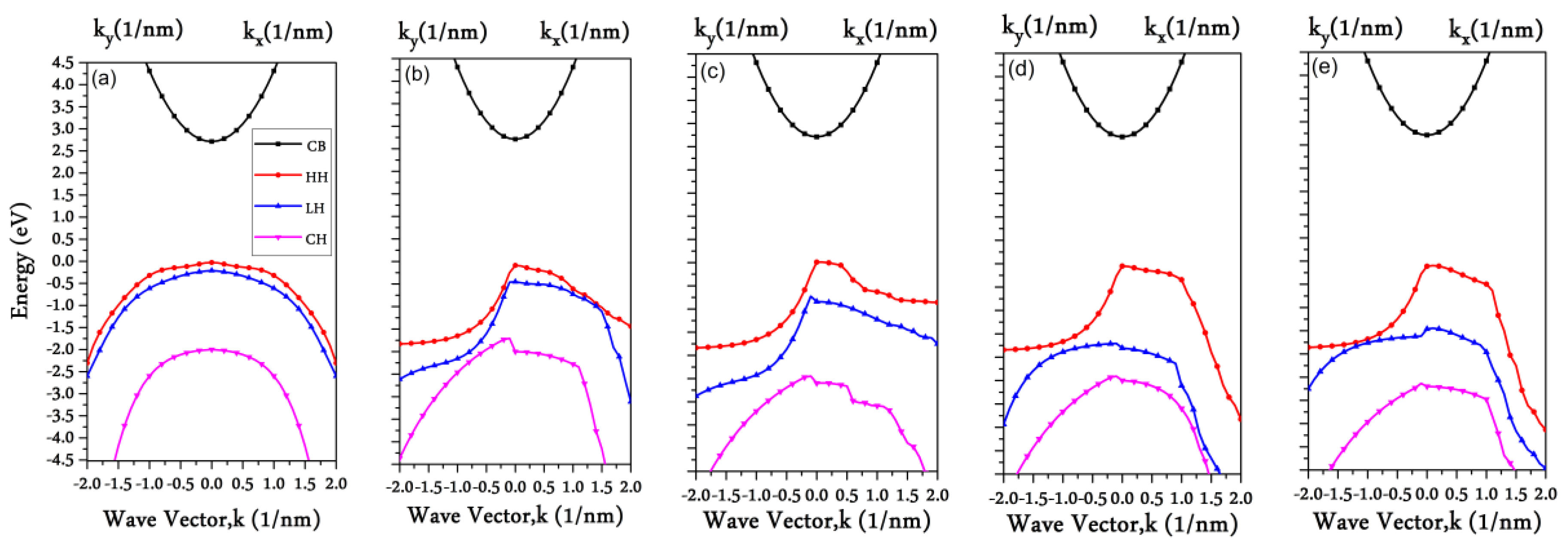

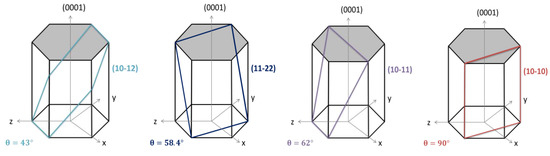

Recently, InGaN grown on semipolar and non-polar orientation has caused special attraction due to reduction in the built-in polarization field and increased confinement of high energy states compared to traditional polar c-plane orientation. However, any widespread-accepted report on output power and frequency response of the InGaN blue laser in non-c-plane orientation is readily unavailable. This work strives to address an exhaustive numerical investigation into the optoelectronic performance and frequency response of In0.17Ga0.83N/GaN quantum well laser in polar (0001), non-polar (101¯0) and semipolar (101¯2), (112¯2) and (101¯1) orientations by working out a 6 × 6 k.p Hamiltonian at the Γ-point using the tensor rotation technique. It is noticed that there is a considerable dependency of the piezoelectric field, energy band gap, peak optical gain, differential gain and output power on the modification in crystal orientation. Topmost optical gain of 4367 cm−1 is evaluated in the semipolar (112¯2)-oriented laser system at an emission wavelength of 448 nm when the injection carrier density is 3.7 × 1018 cm−3. Highest lasing power and lowest threshold current are reported to be 4.08 mW and 1.45 mA in semipolar (112¯2) crystal orientation. A state-space model is formed in order to achieve the frequency response which indicates the highest magnitude (dB) response in semipolar (112¯2) crystal orientation. View Full-Text
Keywords: blue laser; frequency response; InGaN; quantum confined stark effect; semipolar orientation; valence band blue laser; frequency response; InGaN; quantum confined stark effect; semipolar orientation; valence band
