Progress in Synthesizing Analogues of Nitrogenase Metalloclusters for Catalytic Reduction of Nitrogen to Ammonia

Abstract

Ammonia (NH₃) has played an essential role in meeting the increasing demand for food and the worldwide need for nitrogen (N₂) fertilizer since 1913. Unfortunately, the traditional Haber-Bosch process for producing NH₃ from N₂ is a high energy-consumption process with approximately 1.9 metric tons of fossil CO₂ being released per metric ton of NH₃ produced. As a very challenging target, any ideal NH₃ production process reducing fossil energy consumption and environmental pollution would be welcomed. Catalytic NH₃ synthesis is an attractive and promising alternative approach. Therefore, developing efficient catalysts for synthesizing NH₃ from N₂ under ambient conditions would create a significant opportunity to directly provide nitrogenous fertilizers in agricultural fields as needed in a distributed manner. In this paper, the literature on alternative, available, and sustainable NH₃ production processes in terms of the scientific aspects of the spatial structures of nitrogenase metalloclusters, the mechanism of reducing N₂ to NH₃ catalyzed by nitrogenase, the synthetic analogues of nitrogenase metalloclusters, and the opportunities for continued research are reviewed.

1. Introduction

As one of the most important chemicals on our planet, NH₃ has met the growing demand for food and worldwide nitrogen fertilizer since 1913 [1]. Total worldwide NH₃ production exceeded 140 million tons in 2014 and continues to grow [2], and approximately 80% of the NH₃ produced is used as nitrogen fertilizer. Fritz Haber discovered that NH₃ could be directly synthesized by reacting atmospheric N₂ with hydrogen in the temperature range of 400–500 °C and at pressures of 130–170 bar [3], and Carl Bosch subsequently developed it on an industrial scale [4]. As the so-called most important invention of the 20th century, the Haber-Bosch process, a thermo-chemical catalytic conversion technology, is still the primary choice for industrial production of NH₃. According to the Haber-Bosch process, NH₃ is produced from the reaction:

$${\mathrm{N}}_2+{3\mathrm{H}}_2+\stackrel{\mathrm{Catalysts}}{\to }{2\mathrm{NH}}_3$$

(1)

Having been optimized in large industrial facilities over many years [5], the process has significantly benefited humans including feeding the world’s growing population via the use of nitrogen fertilizer. However, the overuse of N₂ fertilization has become a problematic issue, as excess fixed N₂ affects ecosystem balance, human health, and climate change accounting for 1% of global greenhouse gas emissions. More than 1.9 metric tons of fossil carbon dioxide is released per metric ton of NH₃ produced in the best-case scenario of using natural gas to obtain hydrogen, N₂, and energy [2]. The distribution of fertilizer produced by the Haber-Bosch process requires efficient transportation that may be more difficult in developing countries than in developed countries. From saturated fertilizers, the loss of over 40% of reactive N₂ causes algae growth in natural waters and unbalances ecosystems near farms [6] causing significant N₂ pollution of the soil [7].

The Haber-Bosch process reacts the pure feed gases at high temperatures and pressures, requiring an energy input of approximately 485 kJ mol⁻¹ of N₂ and almost 2% of global energy consumption [8]. Therefore, any NH₃ production process that can reduce fossil energy consumption and environmental pollution would be welcomed. Actually, the high dissociation energy of the triple-bonded N₂ molecule (911 kJ mol⁻¹) presents a significant activation energy barrier; however, the negative enthalpy (∆H₃₀₀ = −46.35 kJ mol⁻¹) of the reaction dictates that N₂ could be converted to NH₃ at lower temperatures [9]. Thus, finding a solution that activates the N≡N bond to produce NH₃ with less fossil energy consumption is a great opportunity and challenge for chemists. Artificial catalysts should be able to facilitate the reaction at moderate conditions. Although there are many new approaches, the industrial catalysts used today are extremely similar to the initial catalysts discovered by Mittasch in the 1910 s [10]. The use of energy from sustainable sources, such as solar, in an alternative sustainable NH₃ synthesis process based on the biological fixation of N₂ would be more energy efficient than the Haber-Bosch process [11]. In addition, it would be possible to produce nitrogen fertilizers close to agricultural farms as needed and reduce greenhouse gas emissions and control the global N₂ cycle. Therefore, developing efficient catalysts for synthesizing NH₃ from N₂ under ambient conditions could directly provide nitrogenous fertilizers in agricultural fields as needed in a distributed manner, creating significant opportunities.

There are several advantages for NH₃ synthesis at ambient temperatures [12,13]. Firstly, the reaction from producing NH₃ from N₂ with hydrogen is spontaneous. Secondly, the proton conductivity of low-temperature electrolytes performs better than the higher temperature electrolytes. Thirdly, the reaction kinetics of the NH₃ production processes are extremely slow when operating temperatures are below 100 °C. In addition, it would be a key point around which to build the foundational principles of designing new efficient catalysts for a sustainable NH₃ synthesis production process. Obviously, due to the fact of its energy savings and environmental friendliness, biological N₂ fixation would be an excellent alternative to the Haber–Bosch process. Until now, nitrogenase was the only known enzyme capable of catalytic reduction of N₂ to NH₃ under moderate conditions. Over the past five decades, researchers have taken inspiration from nitrogenase metal clusters and have focused their efforts on synthesizing either analogues or the unique topology of the catalytic activity cores of nitrogenase, and their functional principles have been applied in building novel catalysts for synthesizing NH₃ from N₂ at ambient temperatures and pressures. There are some advantages of synthetic metallocluster analogues over nitrogenase for the reduction of N₂ to NH₃: (1) Compared with natural nitrogenase (protein), the synthetic analogues, which have very stable molecular structures, are less likely to lose their catalytic activity. (2) The synthetic analogues of nitrogenase metalloclusters in the carriers are easier to recover and reuse than the natural nitrogenase the lowering its application cost. (3) The synthetic analogues, but not nitrogenase, can be redesigned according to need by introducing auxiliary factors to obtain new analogues with stronger catalytic activity.

The new methods of catalyst design require us to understand catalytic mechanisms by integrating theory and experiment thereby discovering active, scalable, selective, and long-lived efficient catalysts for sustainable NH₃ synthesis. Based on the detailed insights into the nitrogenase reaction mechanism, by mimicking its reactive centers, synthesizing the analogues of metalloclusters in nitrogenase, and investigating the complex assembly pathways, an opportunity to develop novel efficient catalysts for sustainable NH₃ synthesis should be provided [14]. In this paper, the literature on alternative, available, and sustainable NH₃ production processes in respect to the spatial structures of nitrogenase metalloclusters, the mechanism that reduces N₂ to NH₃ catalyzed by nitrogenase, and the synthetic analogues of metalloclusters in nitrogenase are reviewed.

2. Nitrogenase Metalloclusters

Nitrogenases (EC 1.18.6.1, EC 1.19.6.1) are produced by bacteria including Cyanobacteria, green sulfur bacteria, Azotobacter, Rhizobium, and Spirillum. It is understandable that there are many different structures and mechanisms across the numerous nitrogenase variants, as their biochemical processes evolved in completely different and diverse organisms for two thousand million years [15]. It is well known that only nitrogenase can catalyze the reduction of N₂ to NH₃ at relatively high rates (turnover frequency, TOF ≈ 2 NH₃ s⁻¹) with relatively high turnover numbers (TON > 10⁶) at room temperature and atmospheric pressure [16] in order to maintain the biogeochemical N₂ cycle and sustain life on Earth. There is an overall negative enthalpy of reaction (∆H⁰ = −45.2 KJ mol⁻¹ NH₃) and high activation energy (Ea = 230–420 KJ mol⁻¹) in the equilibrium formation of NH₃ from molecular hydrogen and N₂ [17]. Therefore, the reduction of N₂ to NH₃ can take place in the presence of nitrogenase as a catalyst by reducing this reaction energy barrier at room temperature and atmospheric pressure; this is a key driving force in the development of efficient catalytic N₂ fixation processes.

Over the past five decades, much progress has been made in the fundamental understanding of nitrogenase and the mechanism by which it catalyzes N₂ to NH₃ as well as in identifying significant intermediates [18]. Nitrogenase consists of two proteins: ferritin(Fe)-protein and molybdenum (Mo)-ferritin protein which are called Fe-protein and MoFe-protein, respectively. The Fe-protein consists of two MgATP binding sites and an [4Fe4S] cluster. It weighs approximately 64 KDa [19]. The Fe-protein is an α₂ homodimer consisting of two subunit proteins that bind to the [4Fe4S] cluster [15]. As for the main protein, there is a FeMo-cofacor (FeMo-co, [MoFe₇S₉X], X=C, N, or O) and a P-cluster [Fe₈S₇] [20].

3. Reduction Mechanism of N₂ to NH₃

Nitrogenase is the only known biological system that has the capability of reducing atmospheric N₂ to NH₃ [21]. The Fe-proteins and the MoFe-proteins of nitrogenase together catalyze the reduction of N₂ to NH₃ with an ideal reaction stoichiometry [22]:

$${\mathrm{N}}_2{+8\mathrm{e}}^{-}{+16\mathrm{MgATP}+8\mathrm{H}}^{+}\stackrel{\mathrm{Nitrogenase}}{\to }{2\mathrm{NH}}_3{+\mathrm{H}}_2+16\mathrm{MgADP}+16\mathrm{Pi}$$

(2)

The mechanism of reducing N₂ to NH₃ by nitrogenase is shown in Figure 1. As a homodimer with two nucleotide (magnesium–adenosine–triphosphate, termed MgATP, or magnesium–adenosine–diphosphate, termed MgADP) binding sites; the Fe-protein has a single [4Fe4S] cluster that bridges its two subunits, one of which has one binding site [19] that is the only known reductant of the MoFe-protein. The Fe-protein has a high reducing power and is responsible for the supply of electrons in the reduction process of N₂ to NH₃ [23]. The MoFe-protein contains two catalytic units: the P-cluster and the FeMo-co. The P-cluster is placed between the Fe-protein [4Fe4S] cluster and the FeMo-co by two different stable Fe-protein–MoFe-protein complexes as shown in Figure 1. The P-clusters are believed to mediate the electron transfer between the Fe-protein and the substrate reduction site of the FeMo-co [24,25]. The transient complex allows the reductive equivalents to be passed to the MoFe-protein, and the electron transfer is coupled to the hydrolysis of MgATP [15,16]. One electron is transferred and two equivalents of MgATP are hydrolyzed for each encounter complex. Actually, the reduction of N₂ is activated by the electrons which are delivered from either ferredoxins or flavodoxins to the MoFe-protein, where the catalytic process is mediated by way of the Fe-protein [16]. The formation of the Fe-protein and MoFe-protein complex is beneficial to the intermolecular electrons’ transfer which is driven by the MgATP hydrolysis and will dissociate to restart and accumulate the necessary electrons needed for N₂ reduction when the hydrolysis and the transfer are complete [26,27]. Moreover, through the associated Fe-protein conformational changes, a stepwise mechanism is anticipated to prolong the lifetime of the Fe-protein–MoFe-protein complex which, in turn, could orchestrate the sequence of intra-complex electron-transfer required for substrate reduction [28].

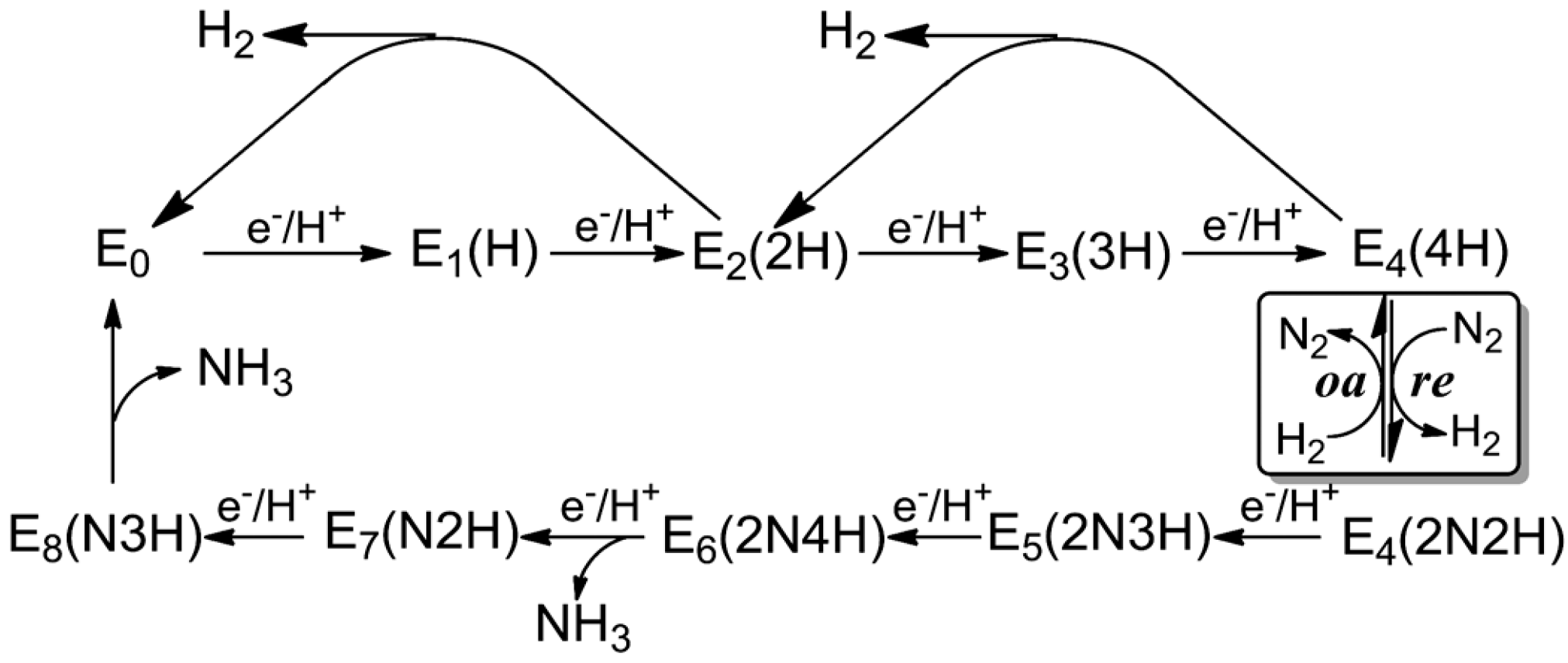

The Lowe and Thorneley (LT) [30] kinetic model involves eight steps which are needed. This involves only adding six hydrogen atoms to the N₂ for the formation of NH₃, because H₂ is released in the process. As shown in Figure 2, when the MoFe-proteins sequentially gain more electrons, they become more reducing, denoted by “E”, and their resting state is E₀. With the gain in electrons from the Fe-protein, E goes through conformational changes. The dissociation of the MgADP from the Fe-protein after transferring electrons to the P-cluster is the rate limiting step [31].

The mechanism mainly describes the accumulation of multiple electrons and protons at the active site of FeMo-co before N₂ can bind, and the loss of electrons and protons through the formation of hydrogen has been well accepted by researchers who have tried to demonstrate the relationship between intermediates and specific states of the LT model by capturing and characterizing different intermediates [15]. Although it is challenging because these captured states may not match the specific states of this model, these captured and characterized states are helpful for completely understanding the nitrogenase catalyzed reduction pathway of N₂ to NH₃ with molecular level insight. In the present study, two hydrides should leave to allow N₂ activation in the E₄ step. After rotating one proton from FeMo-co to release one of the bonds to Mo, N₂ can bind. The N₂ protonation steps are energetically easy [32]. Generally speaking, enzymatic reduction of N₂ to NH₃ by nitrogenase seemly follows the LT kinetics model. Researchers are relatively confident regarding the structures of the first four intermediates (E₀–E₄) and, for a while, some believed an alternating pathway might be followed for subsequent N₂ reduction.

In addition to FeMo-co, Kaczmarek et al. [33] developed a biomimetic mononuclear iron model for the catalytic reduction of N₂ to NH₃ using catalyst (TPB)FeN₂ (tris(phosphine)borate) complex with a biomimetic mononuclear iron center. They found that the lowest energy pathway among several possible NH₃ formation pathways in a natural environment is the consecutive addition of three protons to the same site which has implications for nitrogenases. Coincidentally, the homogeneous N₂ reduction to NH₃ may be catalyzed by artificial nitrogenases EP₃Fe⁻N₂⁻ (E = B, Si) as single site iron complexes. It was found that the catalytic mechanism depends on the applied ligand, and that the energy pathway using catalyst BP₃Fe⁻N₂⁻ is the most favorable route with descending Gibbs free energy [34]. Currently, more studies are being carried out either prove or disprove the recent literature or to provide answers to the problems they raise.

4. Synthesizing Analogues of Nitrogenase Metalloclusters

The discovery of the three unprecedented metalloclusters has led to synthesized analogues of these clusters for NH₃ biosynthesis [35]. As precursors, the [4Fe4S] clusters could provide a higher nuclearity P-cluster and FeMo-co in the Fe-protein component and MoFe-proteins of nitrogenase [36]. Researchers should consider the details of the synthetic analogue methods. For example, the amino acid side chains of the nitrogenase molecule may be necessary to maintain the P-cluster structure. Functionally, the faithfully synthesized analogs of these clusters must be coordinated with each other to reduce N₂ to NH₃. However, the synthesized clusters are not very close to the biological clusters in terms of spatial structure, spectral characteristics, and catalytic function. Therefore, these clusters are challenging synthetic targets because of their intriguing and unprecedented features.

Although synthetic analogues of nitrogenase metalloclusters are promising artificial catalytic clusters due to the fact of their intriguing features, no synthesized clusters have been constructed completely similar to the biogenic clusters, especially in the catalytic functional and capacity aspects [35]. Synthesizing analogues of the nitrogenase active site is an important approach to elucidate the properties of these metal-sulfur clusters and is a major challenge for chemists in developing sustainable NH₃ synthesis processes under ambient conditions. From the structural and mechanistic reduction of N₂ to NH₃ standpoints, accurately synthesizing analogue clusters that can activate the strong bond of N₂ at ambient conditions is an important step toward accomplishing this kind of catalyst design [23].

4.1. Synthesizing Analogues of [4Fe4S] Clusters

4.1.1. Structure of [4Fe4S] Clusters

As an integral part of nitrogenase, the Fe-protein provides the MoFe-protein with electrons which are used to break the N₂ triple bond. Among the 20 different nitrogenases studied, 45–90% share similarities in amino acid sequences [37]. However, there is a considerable similarity in the different [4Fe4S] clusters of different Fe-proteins from different nitrogenases.

In 1994, Watt and Reddy [31] reported that the [Fe4S4]⁺ state of the Fe-protein could be further reduced using methyl viologen. In the normal resting state of the [4Fe4S] cluster (Figure 1), it changes to [Fe₄S₄]²⁺ from [Fe₄S₄]⁺ when it donates an electron to the P-cluster [16]. Simultaneously, with the charge changing of the complex, its conformation also changes [38]. Dithionite as a reductant only reduces the oxidized [Fe₄S₄]²⁺ cluster to [Fe₄S₄]⁺ (as shown in Equation (3)). If the [4Fe4S] cluster could be reduced to [Fe₄S₄]⁰, then the cluster could potentially supply two electrons to the MoFe-protein for breaking the very strong N₂ triple bond. Actually, the [4Fe4S] cluster has an additional reduced state, [Fe₄S₄]⁰, and Ti(III)Cl₃ as a reductant reducing [4Fe4S] cluster could supply two electrons to the process [39]. The structure of a non-dissociating nitrogenase complex suggests two electron transfer pathways from the Fe-protein [4Fe4S] cluster to the MoFe-protein P-cluster [40]. Both the P-cluster and the FeMo-co might be able to accept two electrons, and all substrates of nitrogenase are reduced in multiples of two electrons [16].

$${\left[{\mathrm{Fe}}_4{\mathrm{S}}_4\right]}^{2+}\stackrel{\mathrm{Em}=-300\mathrm{mV}}{\rightleftharpoons }{\left[{\mathrm{Fe}}_4{\mathrm{S}}_4\right]}^{1+}\stackrel{\mathrm{Em}=-790\mathrm{mV}}{\rightleftharpoons }{\left[{\mathrm{Fe}}_4{\mathrm{S}}_4\right]}^0$$

(3)

4.1.2. Preparation of [4Fe4S] Clusters

The spontaneous assembly of Fe atoms in the presence of sulfur reagents is an efficient and common method for synthesizing [4Fe4S] clusters and synthetic analogues of nitrogenase biological clusters. The properties and reactivity of synthesizing [4Fe4S] clusters found in Fe-proteins are governed by several factors, especially as a ligand and a reductant for Fe³⁺, one of which is excess thiolate (−SR) that forms disulfides in the process.

The early synthetic methods involved ferritin (usually FeCl₂ or FeCl₃) with thiolates and sulfide sources (e.g., HS⁻, S²⁻) in polar organic solvents such as methanol and N, N-dimethylformamide (DMF). The halide-terminated clusters with X = Cl and Br give irreversible [Fe₄S_{4 × 4}]^3−/4− reductions [41]. Thus, the thiolate species are more difficultly reduced than the halide species, but the reductions give tetra anions that are unstable on the time scale of the experiment. Interestingly, the addition of phosphine irreversibly reduces the halide-terminated [Fe₄S₄]²⁺ cluster [Fe₄S₄X₄]²⁻ to the [Fe₄S₄]⁺ level at −1.2 V in the neutral product [Fe₄S₄(P^tBu₃)₃X] with mixed unstable ligation, and some of the phosphine is oxidized to the phosphine sulfide [42]. With a slight excess of large tertiary phosphines, all four ferritin atoms were possibly substituted to yield [Fe₄S₄ (PR₃)₄]⁺ (R = Bu^t, Cy, Pri) [43]. Alternatively, [Fe₄S₄ (PR₃)₄]⁰ can be prepared by chemical reduction of the mono-cation with a slight excess of sodium acenaphthalenide. These neutral clusters are so sensitive to oxidation that they have stability only for a few days in solution [44] such as the neutral [Fe₄S₄ (PR₃)₄] clusters [43]. It is interesting to understand whether the stability of these [Fe₄S₄ (PR₄)₄] clusters would lead to sulfur-based reactivity with substrates. Metalation with the Fe–S cluster precursor [Ph₄P]₂[Fe₄S₄Cl₄] provides clusters of different nuclearity that may be controlled with high selectivity through simple and rational modification of the steric profiles of the ligands [45].

Usually, FeCl₃, RS⁻ and hydrosulfide can generate a series of [4Fe4S] clusters with the general formula [Fe₄S₄ (SR)₄]^Y (Y = 0, 1−, 2−, 3−, and 4− as shown in

Table 1. Core oxidation state of [Fe₄S₄(SR)₄]^{0/1−/2−/3−/4−} analogues [43].

Analogues	[Fe4S4(SR)4]0	[Fe4S4(SR)4]1−	[Fe4S4(SR)4]2−	[Fe4S4(SR)4]3−	[Fe4S4(SR)4]4−
Core oxidation state	[Fe4S4]4+	[Fe4S4]3+	[Fe4S4]2+	[Fe4S4]1+	[Fe4S4]0
Composition of oxidation state	4Fe(III)	3Fe(III) + Fe(II)	2Fe(III) + 2Fe(II)	Fe(III) + 3Fe(III)	4Fe (II)

) [46] including the most common class of biomimetic [4Fe4S] clusters, [Fe₄S₄ (SCH₂Ph)₄]²⁻ [47]. On the other hand, for the phenoxide-terminated cluster [Fe₄S₄(OPh)₄]²⁻, two electrochemically reversible reduction features at −1.6 V [48] are somewhat more cathodic than the thiolate analogues. The [4Fe4S] clusters can also be obtained by means of core conversions among different Fe–S clusters, for example, by using two [Fe₂S₂]²⁺ clusters to form a cubic [Fe₄S₄]²⁺ cluster in aqueous solution and especially by synthesizing [Fe₄S₄ (SEt)₄]²⁻ by heating a saturated acetonitrile solution of [Fe₂S₂ (SEt)₄]²⁻ up to 80 °C [49]. [Fe₂S₂ (SPh)₄]²⁻ can also be electrochemically reduced to the corresponding [Fe₄S₄]²⁺ cluster [50].

As indicated in Table 1 and

Table 2. Core oxidation state of [Fe₄S₄(SR)₄]^{1−/2−/3−} analogues.

Analogues	R	Year	Refs
[Fe4S4(SR)4]1−	Ph	1984	[54]
	CH2Ph	1994	[55]
	2,4,6-triisopropylphenyl	1985	[56]
	2,6-di(mesityl)phenyl	1975	[57]
[Fe4S4(SR)4]2−	H	1997	[58]
	Me	1974	[59]
	Bn	1972	[41]
	Ph	1974	[60]
	Et	2003	[50]
	CH3	2014	[61]
	CH2CH2OH	1999	[62]
	2,3,4-pyridinemethane	2012	[63]
	2,6-bis(acylamino)benzenethiolato	1996	[64]
	CH2CH(OH)Me	2002	[65]
	CH(Me)Ph CH2CH(Me)Et CH2CH(OH)CH2OH	2011	[66]
[Fe4S4(SR)4]3−	H	1997	[58]
	Me	1988	[67]
	C6H11	1986	[68]
	4-BrC6H4	1983	[69]
	CH2Ph	2015	[70]

, most examples of synthetic [Fe₄S₄ (SR)₄]²⁻ clusters in the [4Fe4S]²⁺ state have been reported [42]. However, because the [Fe₄S₄ (SR)₄]⁰ cluster in the [4Fe4S]⁴⁺ state and the [Fe₄S₄ (SR)₄]⁴⁻ cluster in the [4Fe4S]⁰ state should be extremely unstable, there are only a few examples of [Fe₄S₄ (SR)₄]⁰ and [Fe₄S₄ (SR)₄]⁴⁻ which still remain elusive [43,51]. In synthesizing analogues of the [4Fe4S] cluster processes using the general formula [Fe₄S₄ (SR)₄]^Y, elemental sulfur works not only as the source of the [4Fe4S] core sulfur atoms, but also as an oxidant to induce the reductive elimination of disulfides from thiolate ligands on iron [52].

The spontaneous assembly reactions driven by increasing the number of Fe atoms in a stepwise manner should terminate when the Fe–S cluster products become stable. The dianionic [4Fe4S] cluster [Fe₄S₄ (SR)₄]²⁻ with an [Fe₄S₄]²⁺ core is the most thermo-dynamically stable Fe–S cluster. To avoid this stability, synthesizing Fe–S clusters with more than four Fe atoms can be realized via destabilization of [Fe₄S₄(SR)₄]²⁻ [47] or by changing the oxidation state. The encapsulation of the [4Fe4S] cluster core by bulky substituents leads to kinetic stabilization, and it is important to control the nuclearity of the cluster products. In addition, it is necessary to obtain [Fe₄S₄(SR)₄]²⁻ and other degradation products to prevent the generation of ionic species from adding non-polar organics in the synthetic media. However, no [Fe₄S₄]⁴⁺ cluster carrying thiolates has been isolated from a one-electron-oxidized form of [Fe₄S₄ (SR)₄]⁻ with an [Fe₄S₄]³⁺ core [53]; that is to say, a reaction targeting [Fe₄S₄ (SR)₄] may likely be unstable. However, due to the short lifetimes of the reduced [Fe₄S₄ (SR)₄]⁴⁻ clusters, it is not clear whether the reactions are mediated by the all-ferrous cluster or by its decomposition products.

The structural parameters for the synthetic analogues above of [4Fe4S] clusters are more precise than the protein-bound structure. A large amount of these synthetic cubane-type clusters will benefit researchers in understanding such synthetic clusters’ two-electron transfer as proposed in nitrogenase.

4.2. Synthesizing Analogues of P-Clusters

4.2.1. Structure of P-Clusters

The P-cluster lies at the interface of α and β subunits of the MoFe-protein and is held by three cysteine residues from each subunit. Two cysteine sulfur atoms bridge the two cubes; that is to say, the [8Fe7S] structure of P-cluster is constructed from two [4Fe4S] sub-clusters linked by a sulfide bonded to six ferritin atoms at one vertex [71]. This is likely assembled by the fusion of two [4Fe4S] sub-clusters [72] and has not been observed in any other biological system as an unusual µ₆-S central atom. The reaction mechanism is well established in synthetic inorganic chemistry and was successfully realized by the synthesis of the P-cluster topology [50,73,74]. The paired [4Fe4S] clusters are likely the precursors to P-clusters which are obtained in the presence of reductant (i.e., dithionite) and ATP-dependent reductase (i.e., Fe-protein/MgATP) [75,76,77].

As a transfer station of electron sources in the enzymatic N₂ fixation process, the P-cluster can transfer two electrons from the Fe-protein to the substrate reduction site of the FeMo-co, both of which are situated at an approximate distance of 15 Å to the Fe protein [78]. A two-electron transfer could explain the behavior of all nitrogenase substrates which reduce by an even number of electrons, as this is difficult to balance in a large amount of charge displacement. The protonation of substrates at the nitrogenase FeMo-co could be helpful in solving the above problem. One interesting possibility is that that Fe-protein binding is coupled to the coordination of S188 to the P-cluster lowering its potential and inducing electron transfer to FeMo-co and then “backfilling” by the Fe protein [79].

Being used in electron transfer, the reduced state of the P-cluster (P^N) is thought to pass two electrons to the FeMo-co and change to an oxidized state (P^OX) [78]. However, with accepting an electron from the Fe-protein, the P-cluster rapidly returns to the P^N state [79]. When the P-cluster oxidizes, significant conformational changes occur. The distance increases among the Fe atoms in the oxidation of the P-cluster [80]. For the spatial structure of the P-cluster, the average Fe–Fe bond distance increases from ~2.59 Å in the normal/reduced state to 2.88 Å in the oxidized state [15].

4.2.2. Preparation of P-Clusters

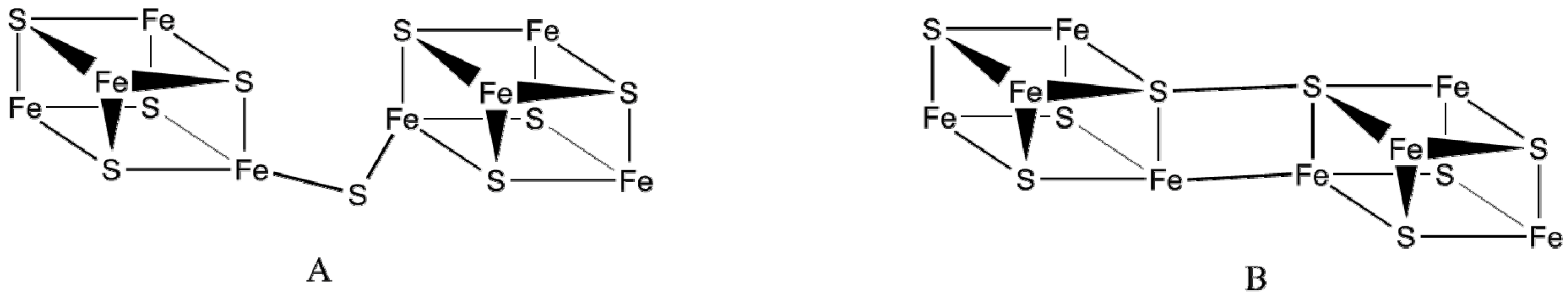

The [Fe₈S₇] core of a P-cluster identified that the hexa-coordinate sulfur atom (μ₆-S) is in the middle of its molecular space structure, and synthesizing Fe–S clusters with a μ₆-sulfur atom became a hot research topic. The inorganic core of the P-cluster consists of two [Fe₄S₄] cubanes which are connected to each other through a disulfide bridge [81]. Respectively, the [Fe₄S₄]–(μ-S)–[Fe₄S₄] cluster [82] and the edge-bridged [Fe₄S₄]–[Fe₄S₄] cluster [50] were early suggested as the bis-[Fe₄S₄] core of the P-cluster (Figure 3). Actually, the P-cluster, located at the interface of the α and β subunits of the MoFe-protein of nitrogenase, is a [Fe₈S₇] unit which is a bridge for the efficient transfer of electrons from the [4Fe4S] cluster of the Fe-protein to the FeMo-co of the MoFe-protein concomitant with MgATP hydrolysis [80].

The P-cluster’s mediation of the reversible two-electron redox process has been demonstrated [83], exhibiting a one-electron reduction step for which the unique [Fe₄S₄] core of the P-cluster may be responsible. In addition, the [Fe₈S₇] core of the P-cluster could degrade into [Fe₄S₄] clusters in the presence of excess thiolate anions or thiols. This is consistent with the fact that 90–103% of non-cofactor ferritin content comes from the P-cluster [84], and the nitrogenase catalytic synthesizing NH₃ process can be turned on/off via controlling the amount of reagents similar to thiols in the reaction solutions.

In a similar manner to the synthesis of the topological analogues to the P-cluster, Mo/Fe/S clusters with the P-cluster topology have been attained. The first Mo/Fe/S clusters [MoFe₃S₄]–[MoFe₃S₄] reacted with (Et₄N)(SH) to generate giant cluster [(Cl₄-cat)₆Mo₆Fe₂₀S₃₀(Pet₃)₆]⁸⁻ (Cl₄-cat, a tetrachloro-catecholate ligand) crystals [85] which consist of Mo₂Fe₆S₉–Mo₂Fe₈S₁₂–Mo₂Fe₆S₉ units. Here, the Mo₂Fe₆S₉ unit is the [Fe₈S₇] cluster, a topological analogue to P-clusters. Another large cluster, [Mo₄Fe₁₂S₁₈], was synthesized from a similar reaction of edge-bridged [MoFe₃S₄]–[MoFe₃S₄] cluster with (E^t₄N)(SH) in the presence of reductant C₁₄H₁₀ [86]. Although the two [Mo₂Fe₆S₉] clusters above differ from P-clusters in that they have molybdenum, their topology resembles the P-cluster core. The structure of [Mo₄Fe₁₂S₁₈] clusters with two Mo₂Fe₆S₉ fragments linked by three potassium cations and two Fe–(μ-S)–Fe bridges is no more complicated than a [Mo₆Fe₂₀S₃₀] cluster with a [Mo₂Fe₆S₉] fragment that has an iso-structural relationship with the same unit in the [Mo₄Fe₁₂S₁₈] cluster [87].

4.3. Synthesizing Analogues of FeMo-co

4.3.1. Structure of FeMo-co

The FeMo-co is the most complicated metallocluster known in nature [88]. With FeMo-co and its associated proteins being well-studied, one of the most intriguing things is its structural features [70]. The FeMo-co consists of a metallocluster with a molybdenum ion, seven Fe atoms, nine sulfur atoms, and one carbon atom as an interstitial ligand in the center termed “C” in Figure 1. The six Fe atoms form a trigonal prism around “C” with the sulfur surrounding the Fe atoms. However, the determination of the spatial structure of FeMo-co faces multiple barriers, as it does not expose all its exceptional catalytic properties for reducing N₂ to NH₃.

Researchers have determined the structure of FeMo-co from nitrogenase many times over the decades. In 1992, Kim and Reed [89] presented the initial structure of FeMo-co consisting of [MoFe₃S₃] and [4Fe4S] bridged by three sulfide ligands with a large, apparently empty, central cavity. However, the conclusion that carbon is the central atom was determined by multiple different studies using more detailed images from X-ray diffraction and more advanced ESEEM (electron spin-echo envelope modulation) [90]. The carbon in the active site may enable slight structural adaptions of the ferritin-core during turnover, and the binding of nitrogenase’s natural substrate, N₂, to five-coordinate Fe complexes mimicking the FeMo-co’s central carbon is also possible [91]. Therefore, Fe-carbon chemistry is important to N₂ activation and reduction in general.

Until now, although FeMo-co has been thought of as the catalytic active site for reducing N₂ to NH₃, the exact N₂ reduction mechanism remains unknown. That is to say, the particular site at which the reduction of N₂ on FeMo-co occurs is still incompletely confirmed. Perhaps the gap at element “C” (as shown in Figure 1) is the site of N₂ reduction [15]; it is also possible that the N₂ reduction takes place on the molybdenum [92] or ferritin ion [78].

Furthermore, keeping the stable spatial structure of FeMo-co analogues very similar to the biological FeMo-co, such as the assignment of the interstitial ligand, is significant to maintaining its catalytic activity for reducing N₂ to NH₃ under ambient conditions [11]. However, it is unnecessary for the major structural rearrangements during catalysis due to the interstitial ligands as carbon species. The interstitial carbon is a huge opportunity for the synthesis of FeMo-co analogues, because, in vitro, synthetic analogues of FeMo-co core metallocluster are difficult to achieve. Generally, nitrogenase’s substrate N₂ could possibly bind to five-coordinate Fe complexes mimicking the FeMo-co’s central carbon [91], which requires the identification of the substrate binding site and the characterization of its various electronic states.

The FeMo-co is the most complex metallocluster known in nature. It is present at nitrogenase’s active site and is recognized for its unique catalytic solution to reduce N₂ to NH₃. However, FeMo-co extracted from nitrogenase into organic solvents cannot directly catalyze the reduction of N₂ to NH₃ due to the crucial influence of the protein matrix on its reactivity [93]. Therefore, the use of compounds such as Mo sources that act as ligands and redox reagents is significant for successfully synthesizing FeMo-co analogues whose stability and isolation are dependent on steric bulky groups of these donor ligands [52,94]. In recent years, much progress has been made in the synthesis of novel molybdenum- or ferritin-based analogues of FeMo-co reducing N₂ to NH₃.

4.3.2. Preparation of FeMo-co Analogues

One of the prerequisites for the preparation of FeMo-co analogues is to assemble eight Fe atoms with sulfur atoms like the P-cluster model, which is key to synthesizing large Fe–S clusters with more than four Fe atoms. Researchers tried to prompt a focus on reproducing this composition’s stoichiometry of extracted FeMo-coin, a synthetic complex [95]. So-called bis(thiolato)sulfide-bridged double cubanes [Mo₂Fe₆S₉(Set)₈]³⁻, including two [MoFe₃S₄] units, were bridged via the Mo centers by inorganic sulfide and two thiolate ligands, to which [MoS₄]²⁻, FeCl₃, and NaSEt together contributed. The self-assembly reactions of [MoS₄]²⁻/FeCl₃/NaSR resulted in forming double-cubane clusters, [MoFe₃S₄]–[MoFe₃S₄], linked by ferritin–thiolate units [96]. The catalytic FeMo-co topology can be regarded as the fusion of Fe₄S₃ and MoFe₃S₃ units that are connected by three bridging u₂-S atoms and an interstitial μ₆-C atom [97]. Functionally, a synthetic, trustworthy FeMo-co analogue must bind and reduce N₂ similarly to nitrogenase. Synthesis of FeMo-co analogues requires compounds reacting together as redox reagents and ligands which can play an important role in the stabilization and isolation of novel clusters due to the fact of their sterically bulky groups [95]. The substrate hydrogenation is not supported by the single-cubane models in the catalytic N₂ reduction process, thus the FeMo-co with double cubanes has efficient catalytic activity for reducing N₂ to NH₃ under ambient conditions [98]. Using [MoS₄]²⁻, FeCl₃, and NaSEt as raw materials, a one-pot self-assembly reaction generated the [Mo₂Fe₆S₉(Set)₈]³⁻ cluster containing two [MoFe₃S₄] units bridged via the Mo centers by inorganic sulfide and two thiolate ligands [99]. After identifying the unique dicubanoid structure of the FeMo-co, the synthesis of analogues shifted to modular approaches using the Mo cubane sources derived from [MoS₄]²⁻ as starting materials. The first edge-fused double cubane, [Mo₂Fe₆S₈ (Pet₃)₆(Cl₄-cat)₂], was attained via the reaction of [MoFe₃S₄Cl₃(Cl₄-cat)(NCMe)]²⁻ with Pet₃[100]. Then, a more discrete dicubane cluster, [Mo₂Fe₆S₉ (SH)₂ (Tp)₂]³⁻ (Tp = tris (pyrazoyl) borate), was generated from a related edge-bridged double cubane [101]. The [Fe₈S₆O (SDmp)₄ (OCPh₃)] (SDmp = 2, 6-dimesitylphe-nylthiolate) cluster containing an interstitial u₄−O²⁻ atom has a more open double-cubanoid configuration than the others [99].

A large barrier is the presence of opposing peripheral Mo and Fe atoms in the FeMo-co analogue production process. The asymmetric core of the [Cp*Mo^IVFe₅S₉ (SH)]³⁻ cluster was synthesized by the timely addition of [Cp*MS₃]⁻ into a solution of hydrosulfide and FeCl₂[51]. However, tiny alterations in the reaction conditions could influence the FeMo-co on the core configuration, such as obtaining the symmetric species [(Cp*)₂Mo₂Fe₄S₉]²⁻ by adding the reagents above in the reverse order. Correspondingly, DFT studies on Cp*Fe (μ-Set)₂FeCp* suggest that the diferritin complex could catalyze the reduction of N₂ to NH₃ [102]. Here, the [Fe₂S₂] scaffold was effective in stabilizing nitrogenase donors [103]. Dance [104] mimicked the reduction of N₂ to NH₃ under mild conditions using three classes of known metal sulfide clusters that resemble the Nfe₇MoS₉ core of FeMo-co. The three model systems possess an [Xfe₄S₄] face which is the key active site of FeMo-co (X is most probably N in FeMo-co and is S in the models).

Figure 4 shows that a molybdenum complex can convert N₂ to NH₃ only when the Mo oxidation states are more than III. Moreover, the ligand enclosing the molybdenum ion only permits small reactants such as nitrogen and protons to reach the active site. The system had cycled at least four times with an appropriate proton source and reductant [105]. Evidently, molybdenum can improve binding or protonation of the substrate by changing the electronic structure of FeMo-co.

Although molybdenum is usually regarded as a possible binding and cleavage site for N₂ reduction, it is difficult to judge whether the electronic structure of FeMo-co is relevant for the N₂ reduction taking place on this cofactor or not. Therefore, there is a hypothesis that the molybdenum ion of FeMo-co would be the site for the last steps (E₅–E₈) of reducing N₂ to NH₃ in the cubane models as shown in Figure 2. With Co(Cp)₂ as electron donor and 2,6-lutidinium (Lu^t-HCl) as a proton source, [MoFe₃S₄]³⁺ cubanes catalyzed the 2e⁻ reduction of hydrazine to NH₃ [106] as did the synthetic analogues with a [Vfe₃S₄]²⁺ core [107]. Theoretically, if ferritin is a possible substrate-binding site of MoFe-co, the first steps (E₀–E₄) (shown in Figure 2) toward reducing N₂ to NH₃ should occur on the Fe ion of FeMo-co, and the reaction intermediates would migrate from the Fe atom to the Mo atom.

4.3.3. Synthesizing FeMo-co Analogues as Photo-Catalysts

Solar light as an energy source is a good choice for the photo-catalytic reduction of N₂ to NH₃ with water (H₂O) as a reducing reagent under ambient conditions without fossil energy consumption and environmental pollution. Metal clusters embedded in the natural environment, such as the [Mn₄O₅Ca] cluster [108], can usually accomplish some complicated photo-catalytic redox reactions. This cluster changes the oxidation state, and controlling the redox potential is easy, as this type behaves similar to the Fe₃/Al₂O₃ cluster catalyst [109]. The photo-catalytic NH₃ production process mainly consists of the photo-catalytic oxidation of H₂O to protons and the photo-catalytic reduction of N₂ to NH₃. The mechanism steps are shown in Equations (4)–(6):

$${\mathrm{H}}_2{\mathrm{O}+2\mathrm{h}}^{+}\to {0.5\mathrm{O}}_2+{2\mathrm{H}}^{+}$$

(4)

$${\mathrm{N}}_2+{6\mathrm{H}}^{+}+{6\mathrm{e}}^{-}\to {2\mathrm{NH}}_3$$

(5)

$${2\mathrm{N}}_2+{3\mathrm{H}}_2\mathrm{O}\underset{\mathrm{photocatalyst}}{\overset{\mathrm{light}}{\to }}{2\mathrm{NH}}_3+1{.5\mathrm{O}}_2$$

(6)

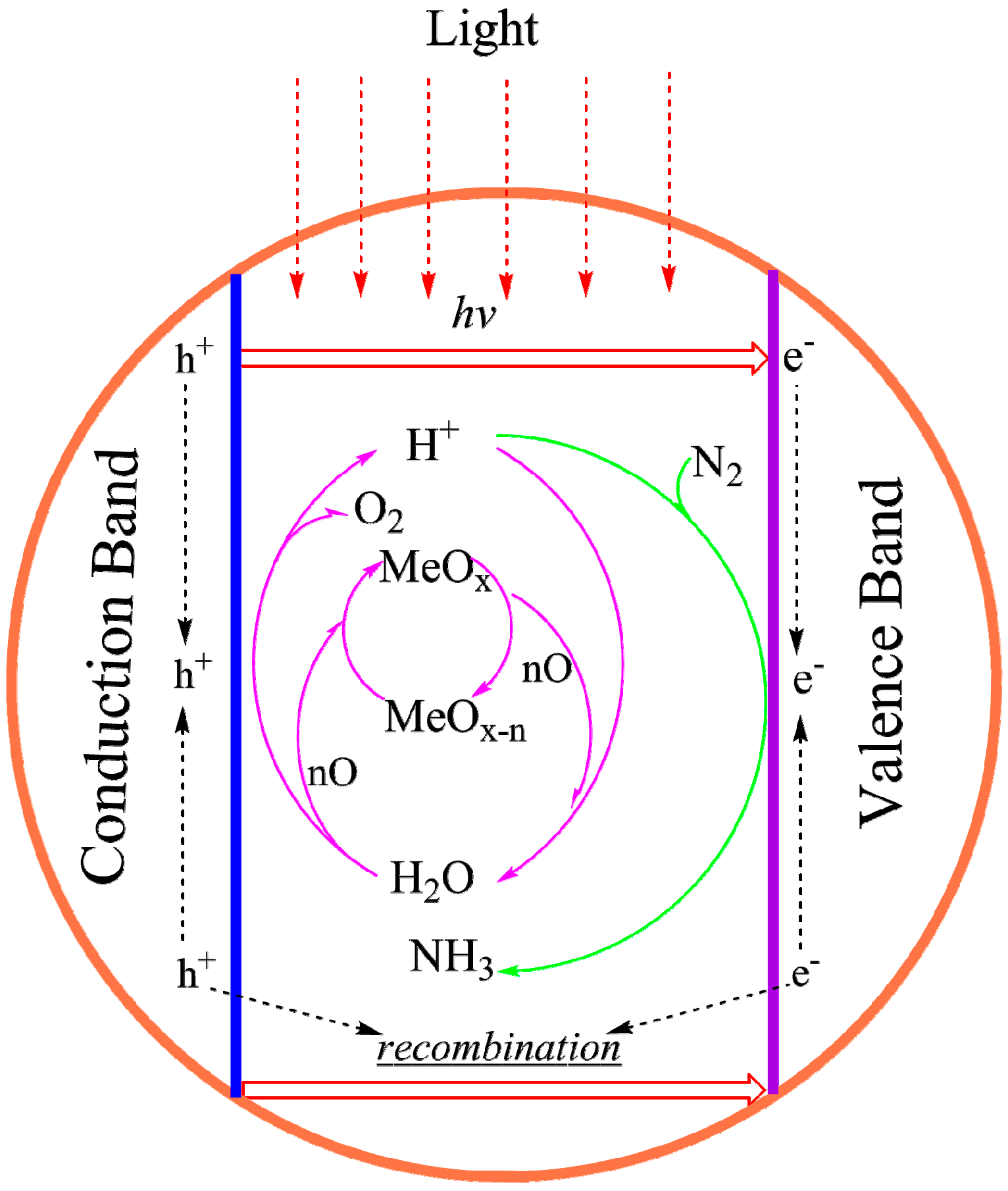

A photo-catalyst is dynamically converted between its oxidized and reduced states in the ammonia production process as shown in Figure 5. In this process, the amount of solar energy should be enough that it is absorbed and converted into the large free energy gain of N₂ to NH₃ (⊿G^θ = 339 kJ mol⁻¹) [110]. That is to say, the photo-catalyst capable of oxidizing H₂O (Equation (4)) can reduce N₂ by the photo-formed conduction band (CB) electrons (Equation (5)), producing NH₃ from N₂ and H₂O (Equation (6)) under ambient conditions. Then, the CB position of the photo-catalysts should be more negative than the reduction potential of the N₂ hydrogenation; as well, the valance band (VB) should be more positive than the oxygen evolution potential, or the photo-generated holes must also be consumed to satisfy the charge neutrality (CB e⁻ + VB h⁺ = 0). Necessarily, a large thermodynamic driving force is required to overcome the N≡N band energy barrier for photo-catalytic synthesis of NH₃ from N₂ in solar light [111].

As the driving force, photons can actually promote the reduction of N₂ to NH₃ via multi-step injections of photo-generated electrons and H₂O-derived protons [113]. The first electron transfer (−4.16 V versus NHE) and proton-coupled electron transfer (−3.2 V versus NHE), shown in

Table 3. Redox potentials of reducing N₂ to NH₃ [112].

No.	Reaction	E0 (V)
1	${\mathrm{H}}_2\mathrm{O}+{2\mathrm{h}}^{+}\to {0.5\mathrm{O}}_2+{2\mathrm{H}}^{+}$	1.33 b
2	${\mathrm{H}}^{+}+{\mathrm{e}}^{-}\to 0.5{\mathrm{H}}_2$	−0.42 a
3	${\mathrm{N}}_2+{\mathrm{e}}^{-}\to {{\mathrm{N}}_2}^{-}$	−4.16 b
4	${\mathrm{N}}_2+{\mathrm{H}}^{+}+{\mathrm{e}}^{-}\to {\mathrm{N}}_2\mathrm{H}$	−3.2 b
5	${\mathrm{N}}_2+{6\mathrm{H}}^{+}+{6\mathrm{e}}^{-}\to {2\mathrm{NH}}_3$	0.55 b

^aE⁰ versus NHE at pH 7; ^b E⁰ vesus NHE at pH 0. (NHE, Normal Hydrogen Electrode).

, must be overcome. Then, it is also necessary for the ideal photo-catalyst materials to have the characteristics of the charge carrier recombination and a small band gap in the visible light region.

The biohybrids of CdS and the polyatomic metal cluster of the MoFe-protein provide a photo-chemical model for achieving light-driven catalyzation of the reaction process. Katherine et al. [114] reported that cadmium sulfide (CdS) nanocrystals can be used to drive the enzymatic reduction of N₂ to NH₃ by photosensitizing the MoFe-protein of nitrogenase, not ATP hydrolysis. Under optimal conditions, the turnover rate was 75 per minute, 63% of the ATP-coupled reaction rate for the nitrogenase complex. In addition, the biohybrids of the CdS and MoFe-protein provide a photochemical model for achieving light-driven catalyzation of the reaction process. In this process, Fe is necessary, but Mo is not; however, this does not mean Mo does not play a role in N₂ binding.

A redox-flexible metal center can adjust the oxidation state of the active center metal and the redox potentials in different steps of the LT model such as Mn, Fe, Co, Ni, and Mo. Results [115] suggest that nitrogenase could keep its photo-catalytic activity when the [4Fe4S] clusters are replaced with other inert ions such as Sb³⁺, Sn⁴⁺, and Zn²⁺. For example, both [Mo₂Fe₆S₈ (SPh)₃] and [4Fe4S] clusters [112,116] in nitrogenase could do so at ambient temperature and pressure. Therefore, redox-active iron–sulfide-containing clusters with high-energy photo-excited states could photo-catalyze the reduction of N₂ to NH₃. Both the reduction potential of the adsorbate and the position of the energy band are important for making a decision on the photo-catalyst materials used for reducing N₂ to NH₃ under ambient conditions.

4.3.4. Incorporating Carbon Atoms into FeMo-co Analogues

As shown in Figure 1, the FeMo-co consists of a molybdenum ion, seven Fe atoms, nine sulfur atoms, and one carbon atom as an interstitial ligand in the center termed “C”. Embedding a carbon donor into analogues of the FeMo-co as an interstitial carbon for mimicking the biological nitrogenase is especially challenging. Xu et al. [117] reported that a core halide ligand (Cl⁻ or Br⁻) replacing thiolate was incorporated into a binding site of the heterometallic clusters using one-electron reductant sodium benzophenone ketyl. The new approach provided opportunities to synthesize the analogues more similar to FeMo-co, because core halides are easily replaced with carbon ligands through metathesis reactions.

The carbide ligand in the FeMo-co is obtained by a methyl group transferring from S-adenosyl methionine [21]. Therefore, methyl anion incorporated into an incomplete cubane might bridge the methyl ligand through salt metathesis or oxidative metathesis. As mentioned above, with all-sulfide clusters dimerizing in the presence of a reductant, the formation of the edge-bridged (bis) cubanes is available, then addition of thiolate sources could cause rearrangement to form corner-sharing (bis) cubanes with the topology of the FeMo-co [118]. The ability to introduce carbon into synthetic Fe–S clusters with the topology of the FeMo-co may provide insight into the influence of the carbide in N₂ reduction [119].

5. Summary and Outlook

Nitrogenase metalloclusters, namely, the [4Fe4S] cluster, P-cluster, and FeMo-co, are indispensable for biological reduction of N₂ to NH₃ at room temperature and atmospheric pressure. Although synthetic analogues of nitrogenase metalloclusters are promising artificial catalytic clusters due to the fact of their intriguing features, no synthesized clusters have yet been entirely similar to the biogenic clusters. Accurate synthesis of nitrogenase metallocluster analogues that can activate the strong bond of N₂ at ambient conditions is an important step to accomplish this kind of catalyst design. Synthetic methods involve ferritin halides (FeCl₂ or FeCl₃) with thiolates and sulfide sources (e.g., HS⁻, S²⁻) in polar organic solvents such as methanol and DMF. The spontaneous assembly of ferritin atoms in the presence of sulfur reagents is an efficient and common method for synthesizing [4Fe4S] clusters. The spontaneous assembly reactions would be terminal when the Fe–S cluster products become stable. The inorganic [Fe₈S₇] core of P-clusters consists of two [4Fe4S] cubanes which are connected to each other through a disulfide bridge. Different approaches to synthesizing analogues of the P-cluster have been carried out and much progress has been made. In a non-polar organic solvent, the [8Fe7S] cluster can be produced from the self-assembly reaction. Topological analogues of the P-cluster can be obtained from the core rearrangement reactions of [MoFe₃S₄]–[MoFe₃S₄] clusters. In addition, the [8Fe7S] core of the P-cluster could degrade into [4Fe4S] clusters in the presence of excess thiolate anions or thiols. There is no doubt that the synthetic analogues of the P-cluster can be compared to the structures and properties of the native clusters. Although much progress on synthesizing FeMo-co analogues have been reported in the past decades, no synthesized analogues of FeMo-co clusters have been completely similar to the biogenic clusters, especially concerning their catalysis, functionality, and capacity aspects. The synthesis of FeMo-co analogues remains a large challenge. The successful synthesis of FeMo-co analogues depends on redox reagents and ligands whose steric bulky groups are good for the stability and isolation of synthetic analogues. Besides these redox reagents and ligands, the appropriate arrangement of a variety of elements, such as molybdenum, ferritin, and sulfur in the cores of FeMo-co analogue clusters, is still a challenging problem which has to be solved. Based on this, the construction of other transition metal–sulfur clusters for generating complicated cluster structures in non-polar solvents may be a good choice for an NH₃ production process under ambient conditions. As more insights into the structures and function of FeMo-co become available, more reliable synthetic models will emerge to gain synthetic analogues with efficient catalytic activity in NH₃ synthesis. No viable and efficient catalysts for sustainable NH₃ synthesis could meet all the requirements of an active, selective, scalable, long-lived catalyst, and discovering novel catalysts which need new design approaches is a major challenge. For example, insight from heterogeneous, homogeneous, enzyme catalysis, and computational methods of atomic-scale controlled synthesis, if combined, could strengthen the possibilities for a break-through in NH₃-synthetic catalyst design. Basically, novel catalyst design approaches should be based on the characterization of the active catalyst, reaction intermediates, and the relevant bond energies as well as the effects of the reaction media. Synthetic analogues of [4Fe4S], the P-cluster, and the FeMo-cofactor that can reduce known nitrogenase substrates would be valuable in better understanding the reactivity of N₂ reduction under ambient conditions.
