Catalysts 2018, 8(9), 403; doi:10.3390/catal8090403
Photooxidation of Cyclohexane by Visible and Near-UV Light Catalyzed by Tetraethylammonium Tetrachloroferrate
Department of Chemistry and Biochemistry, Santa Clara University, Santa Clara, CA 95053, USA
Author to whom correspondence should be addressed.
Received: 2 August 2018 / Accepted: 18 September 2018 / Published: 19 September 2018
Tetraethylammonium tetrachloroferrate catalyzes the photooxidation of cyclohexane heterogeneously, exhibiting significant photocatalysis even in the visible portion of the spectrum. The photoproducts, cyclohexanol and cyclohexanone, initially develop at constant rates, implying that the ketone and the alcohol are both primary products. The yield is improved by the inclusion of 1% acetic acid in the cyclohexane. With small amounts of catalyst, the reaction rate increases with the amount of catalyst employed, but then passes through a maximum and decreases, due to increased reflection of the incident light. The reaction rate also passes through a maximum as the percentage of dioxygen above the sample is increased. This behavior is due to quenching by oxygen, which at the same time is a reactant. Under one set of reaction conditions, the photonic efficiency at 365 nm was 0.018 mol/Einstein. Compared to TiO2 as a catalyst, Et4N[FeCl4] generates lower yields at wavelengths below about 380 nm, but higher yields at longer wavelengths. Selectivity for cyclohexanol is considerably greater with Et4N[FeCl4], and oxidation does not proceed past cyclohexanone.
Keywords:photocatalysis; cyclohexane; cyclohexanol; cyclohexanone; tetrachloroferrate; photooxidation
The photochemical oxidation of hydrocarbons to alcohols, aldehydes, ketones, and carboxylic acids has been pursued as a particularly compelling goal of green chemistry. A successful process would use only molecular oxygen as the oxidizing agent, would run at room temperature and ambient pressure, and would have a high photonic efficiency at wavelengths well into the visible range so that sunlight could be a viable source of photons. The catalyst would be heterogeneous, thus easily recoverable, and would have a high turnover number. The environmental benefits of a successful approach to the photooxidation of hydrocarbons would extend much further, since the primary products are common starting materials for many other reagents.
Maldotti et al. published a very thorough review of the literature on hydrocarbon photooxidation processes in 2002 , drawing particular attention to TiO2, zeolites, and polyoxometallate anions as catalysts, which together constitute by far the largest group of materials used for this purpose. All three types of materials can be very effective at catalyzing photooxidation. Titanium dioxide and polyoxometallate anions have in common the ability to create both oxidizing and reducing centers photochemically - holes and electrons on TiO2 and oxidized and reduced forms of the polyoxometallate anions. This is crucial to the regeneration of the catalyst. Titanium dioxide, polyoxometallate anions, and zeolites share the ability to generate active sites or ions (such as ∙OH) that abstract hydrogen very efficiently, sometimes too efficiently for synthetic purposes, because oxidation often continues to complete mineralization, i.e., CO2, with extended irradiation .
Another disadvantage of these materials from the viewpoint of green chemistry is that all of them are white. They absorb little or nothing in the visible part of the spectrum, and are therefore restricted to the use of but a fraction of solar irradiance. Attempts have been made to dope these substances with compounds that absorb in the visible, generally with some improvement in the yield at higher wavelengths, but not always preserving efficiency in the UV.
Another approach to heterogeneously catalyzed photooxidation makes use of heterogenized tetrachloroferrate(III) ion, and was introduced by Maldotti et al. . This approach is based on the ability of FeCl3 to catalyze photooxidation processes homogeneously [4,5,6]. Iron(III) chloride, which is actually Fe2Cl6 in solvents of low polarity, undergoes photodissociation, and the ability of the dissociated chlorine atoms to abstract hydrogen from a carbon atom, while not as strong as that of hydroxyl radicals or holes on TiO2 or oxidized polyoxometallate anions, is still sufficient to initiate the oxidation of many substrates . Oxygenation then follows through the creation of a peroxyl radical by reaction with O2.
Cl· + RH2 → HCl + HR·
HR· + O2 → HROO·
Regeneration of the catalyst can occur in several ways, but the most likely is by reaction of the reduced iron site with a hydroperoxide, the concentration of which generally increases with irradiation time.
HROOH + FeII → FeIII‒OH− + HRO·
FeIII‒OH− + HCl → FeIII‒Cl− + H2O
We examined the potential of several materials to catalyze heterogeneously the photooxidation of cyclohexane by means of chlorine atom photodissociation: FeCl4− immobilized on an anion exchange resin, FeCl3 on silica gel, Et4N[FeCl4], and Dowex 1-X10 in the chloride form, which has been shown to be photocatalytically active in other systems . Tetraethylammonium tetrachloroferrate, which is insoluble in hydrocarbons, was the best of these, and its properties as a photocatalyst were investigated in detail.
2.1. Development of Products with Time
Figure 1 shows the production of cyclohexanol, cyclohexanone, and chlorocyclohexane during a typical irradiation in the presence of Et4N[FeCl4]. Product development was, as in this graph, generally linear, indicating that at least during the time frame of a typical experiment, products were formed simultaneously and not sequentially.
Another product of cyclohexane photooxidation that has sometimes been reported is cyclohexyl hydroperoxide . We were unable to observe this by GC-MS in these or any other experiments. In addition, we added Bu4NI to photolysates produced under a variety of conditions to test for peroxides by oxidation of I− to I3− , but amounts obtained were always insignificant relative to the other products, perhaps because the hydroperoxide is consumed as in Equation (4).
2.2. Polar Accelerants
The formation of peroxyl radicals and subsequent oxidation processes involve polar molecules and molecular ions, the circulation of which might be improved in the presence of a small fraction of a polar additive, with an increase in yield. This in fact proved to be the case. Acetonitrile, acetone, and acetic acid in small amounts all increased the yield of oxygenated products. Results with acetic acid are shown in Table 1.
It can be expected that the yield will eventually decrease at higher concentrations of acetic acid, due to dilution of the reactant and an increase in viscosity, but the large decrease at a concentration of just 2% implies a more specific mechanism. One possibility is that at this concentration acetic acid cages can form around polar species like cyclohexylperoxy radicals, reducing the rate at which they react. All subsequent experiments were done with cyclohexane containing 0.5% acetic acid.
2.3. Salt Addition
Halide anions have been found to increase the rate of photoprocesses initiated by the dissociation of a chlorine atom, through the formation of radical ions XCl− that are better able than Cl· to escape the solvent cage and avoid recombination [8,10,11]. Table 2 presents some representative data on the effect of added Bu4NBr (abbreviations used in this paper: Chx, cyclohexane; Chx−OH, cyclohexanol; Chx=O, cyclohexanone; Chx−Cl, chlorocyclohexane).
The bromide salt did indeed enhanced the rate of formation of products. Considering data from other experiments as well, the yield was rather insensitive to the exact amount of Bu4NBr used, presumably because even 1 mg of Bu4NBr provides more than enough bromide ion to convert almost all free chlorine atoms to BrCl− radicals. It appeared from this experiment and others that the fraction of product represented by chlorocyclohexane increased with the amount of salt added, probably due to longer radical lifetimes due to stabilization by bromide and consequently higher rates of termination with cyclohexyl radicals. Since all the chlorine in chlorocyclohexane must come from the FeCl4− ion, and thus represents a loss of catalyst, we sought to minimize the amount of chlorocyclohexane whenever possible. Therefore, when Bu4NBr was used, it was at a concentration of 1 mg per mL.
2.4. Optimum Amount of Catalyst
The total yield of oxidized cyclohexane, cyclohexanol plus cyclohexanone plus chlorocyclohexane, increased with the amount of Et4N[FeCl4] to a maximum near 20 mg of catalyst in 1.0 mL of cyclohexane (see Figure 2).
A decline in yield with higher catalyst amounts is expected for heterogeneous photocatalysts and is due to increased reflectance from the front face, and decreased penetration, as the amount of catalyst increases . An equation that has been used to represent this behavior is shown below and was used to fit the experimental data in Figure 1 . The equation is for the fraction of light absorbed by the catalyst, upon which the total yield depends directly. The constants β, γ, and δ are related to the absorptivity and reflectivity of the material, but may here be taken as empirical, with the constraint that γ ≤ 1.
f = 1 − e–βm − γ(1 − e–δm)
The fit to the data in Figure 2 was to this equation. What one may infer from the data is that although a gradual decrease in rate is apparent between 10 and 100 mg/mL of Et4N[FeCl4], the dependence of the reaction rate on the amount of catalyst employed is not great within that range.
2.5. Variation of Yield with Fraction of Oxygen above the Reaction Mixture
Balloons containing mixtures of air, nitrogen, or oxygen were used to vary the percentage of O2 over the reaction mixture. The variation in product yields from the set of experiments shown in Table 3 was typical of that obtained under other conditions (amount of catalyst, cutoff wavelength) as well. The total yield of oxidized cyclohexane appeared to pass through a maximum around 40% O2.
We have shown previously that a complex dependence of the reaction rate on the partial pressure of oxygen is expected from a simple model for a process in which dioxygen is both a reactant and a quencher of the excited state tetrachloroferrate, i.e.,
Chx· + O2 → Chx‒O‒O· → oxygenated products
The equation has the general form:
In Equation (9), a, b, and c are derived from the rate constants in the mechanism , and P represents the combined yield of cyclohexanol and cyclohexanone. The data from Table 3 were fit to this equation, as shown in Figure 3. The third point (air; 21% O2) was an outlier, and was ignored in the fit. Similar overall results (albeit with more scatter) were obtained from several repetitions.
2.6. Yield and Cutoff Wavelength
One of the hypotheses underlying this work was that catalysis through the photodissociation of chlorine atoms would permit the selection of a catalyst with significant photoactive absorption in the visible, making better use of solar insolation. To illustrate the potential for visible light-induced photoreactivity, experiments were carried out with different UV cutoff filters. A comparison under otherwise identical conditions is shown in Table 4.
Et4N[FeCl4] retains photocatalytic activity at 395 nm, and of particular note is that the percentage of chlorocyclohexane decreases markedly as the cutoff wavelength moves toward the visible.
2.7. Photonic Efficiency
A 365 nm interference filter was used to irradiate cyclohexane (1 mL, 80 mg Et4N[FeCl4], 0.5% acetic acid, 1 mg Bu4NBr) with nearly monochromatic light. The power incident on the sample was 39 mW, which in one hour delivered 4.3 × 10−4 Einstein. The yield was 7.7 μmol of oxidized cyclohexane, from which the photonic efficiency at 365 nm was 0.018 mol/Einstein under the specific conditions of this experiment. While photonic efficiencies in heterogeneous systems cannot be directly compared with quantum yields in homogeneous environments, it is instructive to note that very large quantum yields under visible irradiation have been achieved for the photoxidation of cyclohexane catalyzed homogeneously by p-benzoquinone derivatives, as high as 10 mol/Einstein [14,15].
2.8. Catalyst Reuse
A set of experiments was conducted in which the Et4N[FeCl4] remaining after each experiment was washed with hexanes, filtered, dried, and then reused under the same photolysis conditions. There was some loss of catalyst during each cycle, for the most part in the pores of the filter paper. Results are shown in Table 5.
A significant decrease in yield occurred in the first repeat of the experiment with recycled catalyst, after which there was little change, despite the continued loss of catalyst in the filter paper. The relative independence of the yield on catalyst mass is consistent with our findings, reported above, when catalyst mass was the independent variable. All chlorocyclohexane formed represents, of course, a loss of catalyst. The amount of chlorocyclohexane produced during these four photolyses, 10.7 μmol, required approximately 1.5% of the chlorine in the original 60 mg of Et4NFeCl4.
2.9. Longer Irradiation Times
Several experiments were carried out with longer irradiation times and larger volumes. As can be seen in Table 6, a general result was that the fraction of chlorocyclohexane was significantly smaller than in shorter experiments, as long as the shorter wavelength UV was filtered out.
2.10. Comparison of Et4NFeCl4 with Dissolved FeCl3 and FeCl3 on Silica Gel
Because iron(III) chloride has been used as a homogeneous catalyst for the photooxidation of hydrocarbons [5,6], we compared the performance of Et4N[FeCl4] with FeCl3, both homogeneous and heterogenized on silica gel. Results are shown in Table 7.
The results with homogeneous FeCl3 are roughly comparable to those reported by Shulpin and Katz in acetonitrile solution. They found 85 μmol of oxygenated products after a two-hour irradiation of a 5 mL solution (~0.5M C6H12) with a 125-W “street lamp” in an immersion well. It was expected that Et4NFeCl4 would yield better results than FeCl3 on silica gel when wavelengths below 360 nm were eliminated, because the ion has an absorption maximum at 360 nm, while that of FeCl3 on silica gel is at 340 nm . It was somewhat surprising to find that Et4N[FeCl4] also produced more oxygenated products than homogeneous FeCl3, though dissolved FeCl3 caused more net reaction, due to the formation of a large amount of chlorocyclohexane.
2.11. Homogeneous Catalysis with Et4N[FeCl4] and Other Compounds
The homogeneous catalysis of cyclohexane photooxidation by Bu4N[FeCl4] has been reported by Maldotti et al. , carried out in a solution of cyclohexane mixed with dichloromethane and acetonitrile, in which Bu4N[FeCl4] is soluble. These experiments may be compared with those of Shulpin and Katz, in which FeCl3 was used to catalyze the photooxidation of cyclohexane dissolved in acetonitrile .
We carried out several experiments with Et4N[FeCl4] as a catalyst in which cyclohexane was mixed with a solvent in which the tetrachloroferrate salt was soluble, one of which used acetone and is shown in Table 8. This table also shows some literature results with FeCl3 as a homogeneous catalyst. It is difficult to compare yields from vastly different experimental conditions, but in general FeCl3 and appear to behave in a way that is similar to homogeneous photocatalysts.
Diluting the cyclohexane in polar solvents appears to favor the formation of oxygenated over chlorinated photoproducts. The literature experiments in Table 8 that used FeCl3 and Bu4N[FeCl4] as catalysts reported negligible amounts of chlorocyclohexane. This was also true in experiments we performed with Et4N[FeCl4] in cyclohexane/acetone and cyclohexane/acetonitrile mixtures.
Derivatives of p-benzoquinone have been recently reported to catalyze the photooxidation of alkanes with high quantum yields, as noted above [14,15]. Those experiments were undertaken in neat solvents, in which reaction rates tend to be considerably slower than in the mixed systems reported in Table 8. To facilitate comparison, cyclohexane was photolyzed in the presence of heterogeneous Et4N[FeCl4] under conditions similar to those published with homogeneous p-xyloquinone, except for the irradiation time. The results are shown in Table 9.
Despite the very high quantum yield found for the p-xyloquinone-catalyzed homogeneous photooxidation of cyclohexane by visible light , heterogeneous Et4N[FeCl4] appears to perform as well or better.
Not shown in the table is that with Et4N[FeCl4] as the catalyst the ratio of cyclohexanol to cyclohexanone was 4:1, while the p-xyloquinone-catalyzed experiments yielded a ratio of about 3:2, with, however, a still larger product fraction being cyclohexyl hydroperoxide, the concentration of which was negligible in our experiments catalyzed heterogeneously by Et4N[FeCl4].
Part of the impetus for undertaking this study was the hypothesis that cyclohexanone and cyclohexanol could potentially be synthesized using the sun as the only energy source, with the reactants at ambient temperature and pressure. With that in mind, several experiments were undertaken in sunlight. No lenses were used to direct more photons into the reaction mixture, and the mixtures were not stirred. Some representative results are shown in Table 10. Yields were modest, but probably in line with those achieved in the laboratory, considering the difference in incident light intensity.
Cyclohexane is known to photooxidize much more rapidly in mixtures with dichloromethane [3,17,18]. To test this under sunlight we exposed a solution of Et4N[FeCl4] in C6H12/CH2Cl2 for six hours in direct sunlight, with no stirring. The results are shown in Table 11.
The total yield of oxygenated products was 14%, dramatically higher than what can be achieved without the admixture of dichloromethane. It should be noted that Et4N[FeCl4] dissolves in this solvent mixture, hence the process involves homogeneous rather than heterogeneous catalysis.
2.13. Comparison with Other Studies
In Table 12, we have compiled data from published results on the photooxidation of neat (or almost neat) cyclohexane, using titanium dioxide or FeCl4− supported on an Amberlite anion exchange resin as catalyst, which allows some basis for comparison of these catalysts with Et4N[FeCl4].
The data in Table 12 seem to imply that Et4N[FeCl4] performs at least as well as TiO2, or other catalysts, and considerably better than FeCl4− on Amberlite. Where Et4N[FeCl4] is distinctly superior to TiO2 is under higher wavelength irradiation, achieving a respectable yield even with a 395 nm cutoff filter, producing also a minimum amount of chlorocyclohexane.
2.14. Direct Comparison with Titanium Dioxide
Literature reports can be compared with experimental results only in the most general sense, because there are innumerable variables that will differ between laboratories, even after considering quantifiable parameters such as those listed in Table 12. We therefore undertook a direct comparison of Et4N[FeCl4] with TiO2 (anatase), under identical conditions. Results are shown in Table 13.
Table 13 reveals that the comparison with literature data in Table 12 is deceptive, appearing, as it does, to show a decided advantage for Et4N[FeCl4] over TiO2 under almost any circumstances. In a direct comparison, Et4N[FeCl4] was superior only at wavelengths above approximately 380 nm, where the absorptivity of undoped TiO2 becomes negligible. The ketone to alcohol ratios were in the range expected for TiO2-catalyzed photooxidation (see Table 12), but were unexpectedly in the same range with Et4N[FeCl4].
A mixture of cyclohexanol and cyclohexanone in variable ratios, referred to as KA oil, is used for the industrial synthesis of adipic acid, an intermediate in the production of Nylon 6,6. Thus the oxidation of cyclohexane may be profitably carried out without the need to separate the (oxygenated) products. Despite this, experimental studies on the photooxidation of cyclohexane frequently focus on selectivity for cyclohexanol [17,18,19], a desirable synthetic goal.
Brusa and Grela found, using TiO2 as the photocatalyst in neat cyclohexane, that lower irradiation wavelengths and higher intensity each increase the cyclohexanol/cyclohexanone (A/K) ratio, the intensity dependence being linear at all wavelengths tested . They found no change in the A/K ratio with irradiation time , indicating that the further oxidation of cyclohexanol plays no role in the early stages of photooxidation. Boarini et al., also with TiO2 as the photocatalyst, likewise found the A/K ratio unchanged during the irradiation of neat cyclohexane, but reported a fivefold increase in the A/K ratio during the first two hours of irradiation in a mixture of cyclohexane and dichloromethane, the ratio thereafter remaining approximately constant . Boarini et al. also found no dependence of the A/K ratio on the partial pressure of O2, except at very low oxygen fractions, which favored the alcohol over the ketone . Almquist and Biswas repeated this experiment with similar results .
It appears that the catalyst used has a much greater influence on the A/K ratio. With TiO2 as the catalyst the A/K ratio is typically much less than one, usually around 0.1 in fact [17,18,19]. Li et al. have reported that reducing the size of the TiO2 particles to 30 nm or less is accompanied by A/K ratios above 1.0, and as high as 9 . Unfortunately, these experiments were done in 1:1 cyclohexane/acetonitrile mixtures, and the findings cannot be compared directly with the results in neat cyclohexane. Also in mixed solvents, an A/K ratio around 1.0 was achieved with a variety of polyoxotungstates and with an iron(III)-porphyrin complex .
By contrast, with Et4N[FeCl4] as the catalyst, the photooxidation of cyclohexane typically yielded an A/K ratio around 4 (Table 13 data representing a significant exception), and, as can be seen in Figure 1, the ratio did not change during irradiation. In most of the experiments reported here the cyclohexane contained 0.5% acetic acid, but acetic acid additions between 0 and 2% had no appreciable effect on the A/K ratio. We did not see a wavelength effect (Table 4) or an oxygen effect (Table 3). The addition of small quantities of Bu4NBr, while increasing the overall yield, reduced the A/K ratio.
One factor that appeared to offer a means to increase selectivity in favor of the alcohol was the mass of catalyst employed. Though there was considerable scatter in the results, higher A/K ratios were obtained with smaller quantities of Et4N[FeCl4]. Brusa and Grela concluded from their work that selectivity is controlled not by the incident light intensity but by the intensity per particle, and this is consistent with our observation that fewer particles yielded a higher A/K ratio, other conditions being equal.
2.16. Mechanistic Considerations
When chlorine atoms initiate the oxidation process, cyclohexylperoxy radicals are formed as in Equation (3). A great deal of experimental work has been done on alkylperoxy radicals, most of it in the gas phase. There are several channels through which they are known or suspected to react, often spawning radicals that themselves react through several channels. The various pathways lead to a variety of outcomes with respect to the A/K ratio.
1. Peroxyl Radical Channel A
An important reaction channel is the Russell mechanism , whereby the bimolecular termination of peroxyl radicals generates cyclohexanol and cyclohexanone in equal amounts.
2 Chx−O−O· → Chx=O + Chx OH + O2
2. Peroxyl Radical Channel B
Another common pathway in the autoxidation of hydrocarbons is the self-reaction of peroxyl radicals to yield molecular oxygen and alkoxyl radicals .
2 Chx−O−O· → 2 Chx−O· + O2
Additional reaction channels have been proposed for the cyclohexylperoxyl radical during the thermal autoxidation (T = 145 °C) of cyclohexane, involving, for example the abstraction of hydrogen from cyclohexylhydroperoxide [24,25,26]. None of these pathways can explain an A/K ratio greater than one, because they either produce the ketone alone or the ketone and the alcohol in equal amounts.
3. Peroxyl Radical Channel C
Hermans et al. propose that the cyclohexylperoxyl radical can, at least at elevated temperature, abstract hydrogen from cyclohexane, with rupture of the O−O bond, and they have shown by theoretical calculations that the reaction is favorable .
Chx−O−O· + Chx → Chx−O· + Chx−OH
4. Alkoxyl Radical Channel a
Channels B and C both produce cyclohexoxyl radicals, and these can react in several ways, among them the abstraction of hydrogen from cyclohexane.
Chx−O· + Chx → Chx−OH + Chx·
The cyclohexyl radical can then react with oxygen to form another cyclohexylperoxyl radical, extending the chain. Hermans et al. maintain that, at least in thermal autoxidation, this channel is not as important as others in producing cyclohexanol .
5. Alkoxy Radical Channel b
Another pathway for alkoxy radicals consists in the reaction with molecular oxygen to produce an aldehyde or, in this case, a ketone plus a hydroperoxyl radical.
Chx−O· + O2 → Chx=O + HOO·
In the presence of other peroxyl radicals the hydroperoxyl radical generally loses its weakly bound hydrogen and forms a hydroperoxide .
HOO· + Chx−O−O· → Chx−OOH + O2
The cyclohexyl hydroperoxide formed may accumulate in solution, but in the reactions studied here it should be reduced by Fe(II) species, as in Equation (4). Together with Equation (5) this serves to regenerate the catalyst.
The bifurcating radical pathways allow the possibility of a high degree of variability in the A/K product ratio. To summarize the photochemical experiments reported above,
- In neat C6H12 catalysis by Et4N[FeCl4] usually yielded an A/K ratio of about 4.
- In mixed acetone/cyclohexane solutions catalyzed homogeneously by Et4N[FeCl4] the A/K ratio was about 10.
- In mixed dichloromethane/cyclohexane solutions catalyzed homogeneously by Et4N[FeCl4] the A/K ratio was approximately 1.
A tentative inference is that in solution an A/K ratio of about 10 may be considered normal for catalysis through the photodissociation of FeCl4− ions, implying that peroxyl radical channels B and C are more rapid than channel A and that alkoxy radical channel a is more rapid than b. In the presence of dichloromethane, additional pathways are likely to be important, including, for example, hydrogen abstraction from CH2Cl2 and the formation of CHCl2OO radicals, leading to greatly accelerated rates and accompanied by high amounts of the side product chlorocyclohexane. The smaller A/K ratio in the presence of solid Et4N[FeCl4], relative to that in solution, implies changes in the relative channel reaction rates when the cyclohexylperoxyl radical is adsorbed on the solid surface, having presumably been formed there, as in Equation (3), in the first place.
A fundamental question remaining is why the A/K ratio is so much lower when TiO2 is the catalyst, often being in the 0.1 to 0.2 range. The answer appears to be that with TiO2 most of the oxidation chemistry takes place while substrates are adsorbed on the surface. Almquist and Biswas explored in detail the photooxidation of cyclohexane catalyzed by TiO2 in the presence of other solvents that competed for adsorption sites . They concluded that polar solvents competed effectively against cyclohexane and cyclohexanol for sites, reducing the overall yield but increasing the A/K ratio . In other words, adsorbed cyclohexane is oxidized preferentially to cyclohexanone, while cyclohexane in free solution is more likely to produce cyclohexanol. It has been proposed that adsorbed cyclohexane is initially oxidized on TiO2 to even more strongly adsorbed cyclohexanol, which remains adsorbed long enough to be oxidized again, forming the ketone . This contrasts to the process in solution, in which in the early stages of the reaction a cyclohexanol has little chance of encountering a hydrogen-abstracting radical such as ∙OH, simply because such radicals will react with cyclohexane before they have the chance to encounter a cyclohexanol.
The strong adsorption of cyclohexanol and cyclohexanone on the TiO2 surface, together with the high oxidation potential of the photogenerated surface holes, is also responsible for the mineralization to CO2 that is commonly observed during the photooxidation of cyclohexane and other alkanes .
The adsorption of cyclohexane on the surface of Et4N[FeCl4] is evidently much weaker than adsorption on TiO2, permitting a high fraction of the oxidation (Equations (1) through (3) and peroxyl radical channels A and B) to take place in solution. Polyoxometallates present an intermediate case. A variety of polyoxotungstate materials have yielded A/K ratios between those produced by TiO2 and by Et4N[FeCl4] [27,28]. This may be because cyclohexane and cyclohexanol are adsorbed less strongly on polyoxotungstates than on TiO2, but more strongly than on Et4N[FeCl4].
3. Materials and Methods
Tetraethylammonium tetrachloroferrate(III), titanium dioxide (anatase), iron(III) chloride on silica gel (5% by mass), cyclohexanol, cyclohexanone, and chlorocyclohexane were obtained from Sigma-Aldrich (St. Louis, MO, USA). Cyclohexane (GCMS grade) was obtained from VWR Scientific (Radnor, PA, USA). Dowex 1-X10 (200–400 mesh) was from J. T. Baker (Phillipsburg, NJ, USA). Tetrabutylammonium bromide was from Alfa Aesar (Tewksbury, MA, USA).
The photolysis of cyclohexane was carried out most frequently on 1.0 mL samples in glass spectrophotometer cells (Starna 1-SOG-10; Starna Cells, Atascadero, CA, USA; %T is attenuated to 50% at 315 nm). The irradiation source was a 100-W Osram HBO 100W/X3 (Osram GmbH, Munich, Germany) mercury lamp in an Oriel Q housing, passed through a lowpass filter to remove undesired portions of the UV, and focused on the sample. In most experiments a balloon containing air, O2, N2, or mixtures of these was affixed to the opening of the cuvette by means of a plastic pipette tip, which made a firm seal. A fan was used to maintain the temperature of the cuvette at 22 ± 2 °C. The light intensity incident on the sample was measured with a Thorlabs PM400 power meter (Newton, NJ, USA) with a Thorlabs S314C thermal sensor. Some irradiations were performed with a 500-W mercury lamp (Osram HBO 500 W/B; Osram GmbH, Munich Germany) in an Oriel housing with a glass focusing lens. Samples were placed in a glass cuvette with a stem (similar in design to a Starna 3-Q-10/SBT-Starna Cells, Atascadero, CA, USA), to which was attached a balloon with a desired gas mixture. When using either irradiation source the photolysate was stirred magnetically.
Additional experiments were performed in sunlight, in several different containers. Among these were a fused silica right triangular prism (Starna 24-SB-Q-10) and a fused silica rectangular prism (Starna 23-Q-40), both from (Starna Cells, Atascadero, CA, USA). A balloon was attached to the circular stopper hole in the prism by means of a plastic pipette tip bent to an angle of about 60°, and the prism, containing the cyclohexane and solid catalyst, was placed on its side in the sun. The mixture was not stirred and no focusing lens was used to increase the photon flux on the samples.
UV-visible spectra were recorded with a Cary 50 spectrophotometer (Varian Australia, Mulgrave, Australia). GC-MS measurements were carried out on a Shimadzu QP-2100 instrument (Shimadzu Scientific Instruments, Kyoto, Japan) with a Shimadzu 221-75954-30 column, containing a p-bis(dimethylsiloxy)phenylene/dimethylsiloxane crosspolymer as stationary phase. The oven start temperature was 40 °C, and this temperature was maintained for 12 mins, during which cyclohexanol, cyclohexanone, and chlorocylohexane were eluted. Thereafter a 40 °C/min linear temperature gradient was applied to a final temperature of 280 °C. A 20:1 split ratio was applied to sample injections. Species were identified from their mass spectra and by comparison with authentic samples. Total ion count peak areas were measured for known concentrations of cyclohexanol, cyclohexanone, and chlorocyclohexane. There was some second order dependence of the peak areas on concentrations, yielding quadratic equations with an R2 of 0.992 or better. The empirical equations were used to determine the concentrations reported herein.
Tetraethylammonium tetrachloroferrate has been shown to heterogeneously catalyze the photooxidation of neat cyclohexane to cyclohexanol and cyclohexanone, and to retain some photocatalytic activity into the blue region of the spectrum. In a direct comparison with TiO2 under UV irradiation, Et4N[FeCl4] yielded only about 50% of what was achieved with TiO2. Both the higher catalytic efficiency of TiO2 (at irradiation wavelengths it absorbs) and the lower A/K ratio, in comparison to Et4N[FeCl4] can be attributed to stronger adsorption on TiO2 of cyclohexane and its products. Since Et4N[FeCl4] absorbs light well into the visible, it has a strong advantage over TiO2 when irradiation is mainly with visible light, and it has a distinct advantage when a high A/K ratio is required. Furthermore, long irradiation times can be employed with Et4N[FeCl4] without loss of product to mineralization.
P.E.H. conceived and designed the experiments; K.R.B., V.R.B., R.J.E., K.M.F., and A.C.L. performed the experiments; all authors analyzed the data; P.E.H. wrote the paper.
American Chemical Society Petroleum Research Fund, Grant 56513-UR4.
Conflicts of Interest
The authors declare no conflict of interest.
- Maldotti, A.; Molinari, A.; Amadelli, R. Photocatalysis with organized systems for the oxofunctionalization of hydrocarbons by O2. Chem. Rev. 2002, 102, 3811–3836. [Google Scholar] [CrossRef] [PubMed]
- Li, X.; Chen, G.; Po-Lock, Y.; Kutal, C. Photocatalytic oxidation of cyclohexane over TiO2 nanoparticles by molecular oxygen under mild conditions. J. Chem. Technol. Biotechnol. 2003, 78, 1246–1251. [Google Scholar] [CrossRef]
- Maldotti, A.; Varani, G.; Molinari, A. Photo-assisted chlorination of cycloalkanes with iron chloride heterogenized with Amberlite. Photochem. Photobiol. Sci. 2006, 5, 993–995. [Google Scholar] [CrossRef] [PubMed]
- Hoggard, P.E.; Gruber, M.; Vogler, A. The photolysis of iron(III) chloride in chloroform. Inorg. Chim. Acta 2003, 346, 137–142. [Google Scholar] [CrossRef]
- Shulpin, G.B.; Kats, M.M. Ferric chloride catalyzed photooxidation of alkanes by air in organic solvents. React. Kinet. Catal. Lett. 1990, 41, 239–243. [Google Scholar] [CrossRef]
- Shul’pin, G.B.; Nizova, G.V.; Kozlov, Y.N. Photochemical aerobic oxidation of alkanes promoted by iron complexes. New J. Chem. 1996, 20, 1243–1256. [Google Scholar]
- The H−Cl Bond Energy Is 432 kJ/mol, While that of H−OH Is 497 kJ/mol. “Bond-Dissociation Energy”. Available online: https://en.wikipedia.org/wiki/Bond-dissociation_energy (accessed on 18 September 2018).
- Hoggard, P.E.; Maldotti, A. Catalysis of the photodecomposition of carbon tetrachloride in ethanol by an Amberlite anion exchange resin. J. Catal. 2010, 275, 243–249. [Google Scholar] [CrossRef]
- Solis Montiel, E.; Solano, J.A. Spectrophotometric analysis for chlorine by the extraction of triiodide formed in chloroform solution of tetrabutylammonium perchlorate. Ingenieria y Ciencia Quimica 1986, 10, 45–48. [Google Scholar]
- Chan, A.M.; Harvey, B.M.; Hoggard, P.E. Photodecomposition of dichloromethane catalyzed by tetrachloroferrate(III) supported on a Dowex anion exchange resin. Photochem. Photobiol. Sci. 2013, 12, 1680–1687. [Google Scholar] [CrossRef] [PubMed]
- Hoggard, P.E.; Cohen, L.R.; Peña, L.A.; Harvey, B.M.; Chan, A.M. The dependence of photocatalytic reaction yields on catalyst mass in solid-liquid suspensions. Curr. Catal. 2013, 2, 2–6. [Google Scholar] [CrossRef]
- Loddo, V.; Addamo, M.; Augugliaro, V.; Palmisano, L.; Schiavello, M.; Garrone, E. Optical properties and quantum yield determination in photocatalytic suspensions. AIChE J. 2006, 52, 2565–2574. [Google Scholar] [CrossRef]
- Barnard, K.R.; Bright, V.R.; Enright, R.J.; Fahy, K.M.; Liu, A.C.; Hoggard, P.E. Photooxidation of toluene by visible and near-UV light catalyzed by tetraethylammonium tetrachloroferrate. Catalysts 2018, 8, 79. [Google Scholar] [CrossRef]
- Ohkubo, K.; Hirose, K.; Fukuzumi, S. Photooxygenation of alkanes by dioxygen with p-benzoquinone derivatives with high quantum yields. Photochem. Photobiol. Sci. 2016, 15, 731–734. [Google Scholar] [CrossRef] [PubMed]
- Ohkubo, K.; Hirose, K.; Fukuzumi, S. Solvent-free photooxidation of alkanes by dioxygen with 2,3-dichloro-5,6-dicyano-p-benzoquinone via. photoinduced electron transfer. Chem. Asian J. 2016, 11, 2255–2259. [Google Scholar] [CrossRef] [PubMed]
- Peña, L.A.; Segura, R.E.; Chan, A.M.; Hoggard, P.E. Photodegradation of dichloromethane catalyzed by iron(III) chloride on silica gel. Curr. Catal. 2014, 3, 35–38. [Google Scholar] [CrossRef]
- Boarini, P.; Carassiti, V.; Maldotti, A.; Amadelli, R. Photocatalytic oxygenation of cyclohexane on titanium dioxide suspensions: Effect of the solvent and of oxygen. Langmuir 1998, 14, 2080–2085. [Google Scholar] [CrossRef]
- Brusa, M.A.; Di Iorio, Y.; Churio, M.S.; Grela, M.A. Photocatalytic air oxidation of cyclohexane in CH2Cl2-C6H12 mixtures over TiO2 particles. An attempt to rationalize the positive effect of dichloromethane on the yields of valuable oxygenates. J. Mol. Catal. A Chem. 2007, 268, 29–35. [Google Scholar] [CrossRef]
- Almquist, C.B.; Biswas, P. The photo-oxidation of cyclohexane on titanium dioxide: An investigation of competitive adsorption and its effects on product formation and selectivity. Appl. Catal. A 2001, 214, 259–271. [Google Scholar] [CrossRef]
- Molinari, A.; Amadelli, R.; Andreotti, L.; Maldotti, A. Heterogeneous photocatalysis for synthetic purposes: Oxygenation of cyclohexane with H3PW12O40 and (nBu4N)4W10O32 supported on silica. Dalton Trans. 1999, 1203–1204. [Google Scholar] [CrossRef]
- Molinari, A.; Maldotti, A.; Amadelli, R.; Sgobino, A.; Carassiti, V. Integrated photocatalysts for hydrocarbon oxidation: Polyoxotungstates/iron porphyrins systems in the reductive activation of molecular oxygen. Inorg. Chim. Acta 1998, 272, 197–203. [Google Scholar] [CrossRef]
- Simic, M.; Hayon, E. Spectroscopic investigation of cyclohexanol and cyclohexyl radicals and their corresponding peroxy radicals. J. Phys. Chem. 1971, 75, 1677–1680. [Google Scholar]
- Howard, J.A.; Ingold, K.U. Absolute rate constants for hydrocarbon autoxidation. XV. The induced decomposition of some t-hydroperoxides. Can. J. Chem. 1969, 47, 3797–3801. [Google Scholar] [CrossRef]
- Hermans, I.; Jacobs, P.A.; Peeters, J. Understanding the autoxidation of hydrocarbons at the molecular level and consequences for catalysis. J. Mol. Catal. A Chem. 2006, 251, 221–228. [Google Scholar] [CrossRef]
- Hermans, I.; Nguyen, T.L.; Jacobs, P.A.; Peeters, J. Autoxidation of cyclohexane: Conventional views challenged by theory and experiment. ChemPhysChem 2005, 6, 637–645. [Google Scholar] [CrossRef] [PubMed]
- Hermans, I.; Peeters, J.; Jacobs, P.A. Autoxidation of ethylbenzene: The mechanism elucidated. J. Org. Chem. 2007, 72, 3057–3064. [Google Scholar] [CrossRef] [PubMed]
- Maldotti, A.; Molinari, A.; Varani, G.; Lenarda, M.; Storaro, L.; Bigi, F.; Mazzacani, A.; Sartori, G. Immobilization of (n-Bu4N)4W10O32 on mesoporous MCM-41 and amorphous silicas for photocatalytic oxidation of cycloalkanes with molecular oxygen. J. Catal. 2002, 209, 210–216. [Google Scholar] [CrossRef]
- Maldotti, A.; Amadelli, R.; Carassiti, V.; Molinari, A. Catalytic oxygenation of cyclohexane by photoexcited (nBu4N)4W10O32: The role of radicals. Inorg. Chim. Acta 1997, 256, 309–312. [Google Scholar] [CrossRef]

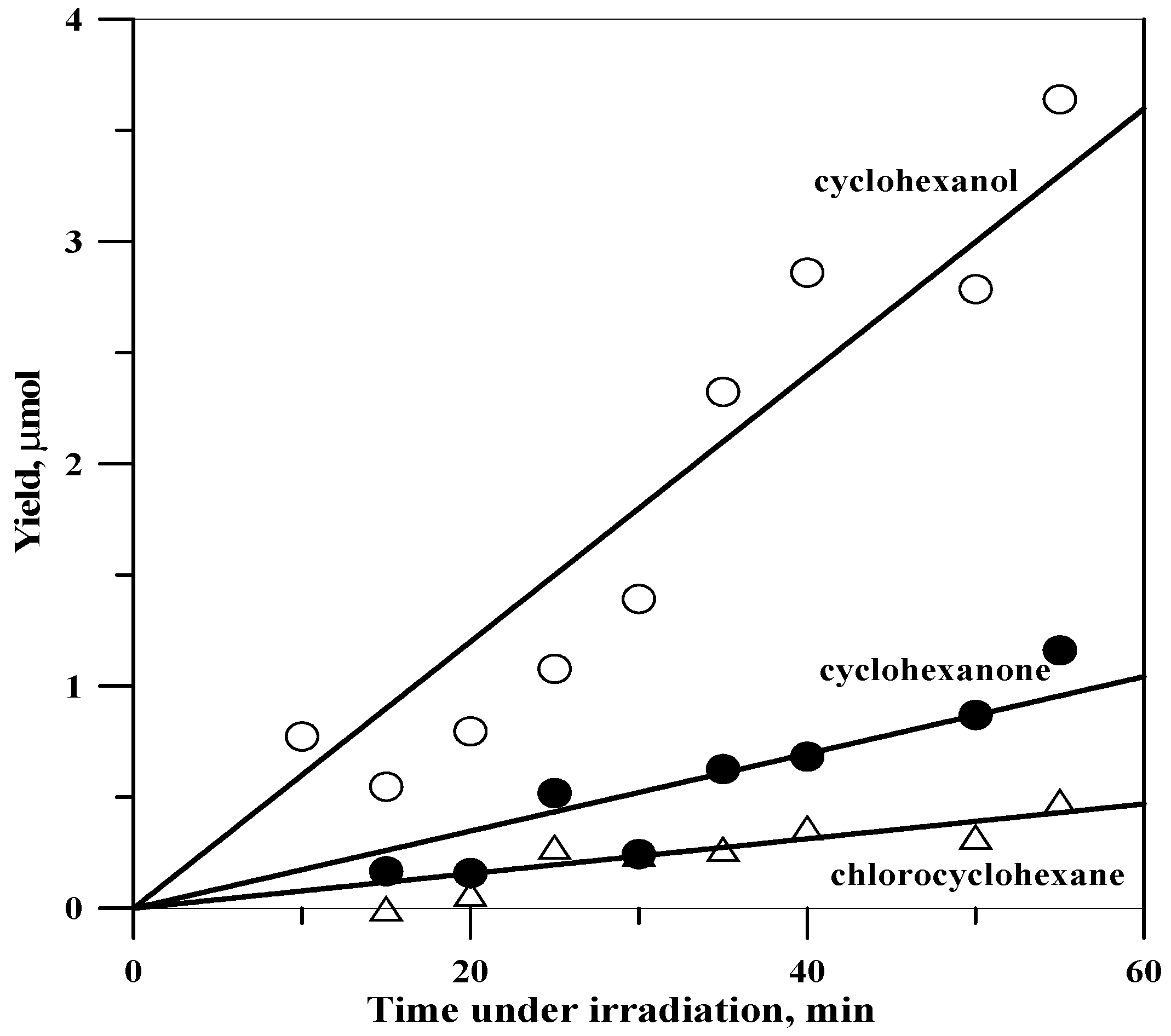

Figure 1. Product development during irradiation (100 W Hg lamp, λ > 360 nm) of 2.0 mL of cyclohexane with 40 mg Et4N[FeCl4]. Straight line fits, all R2 > 0.94.

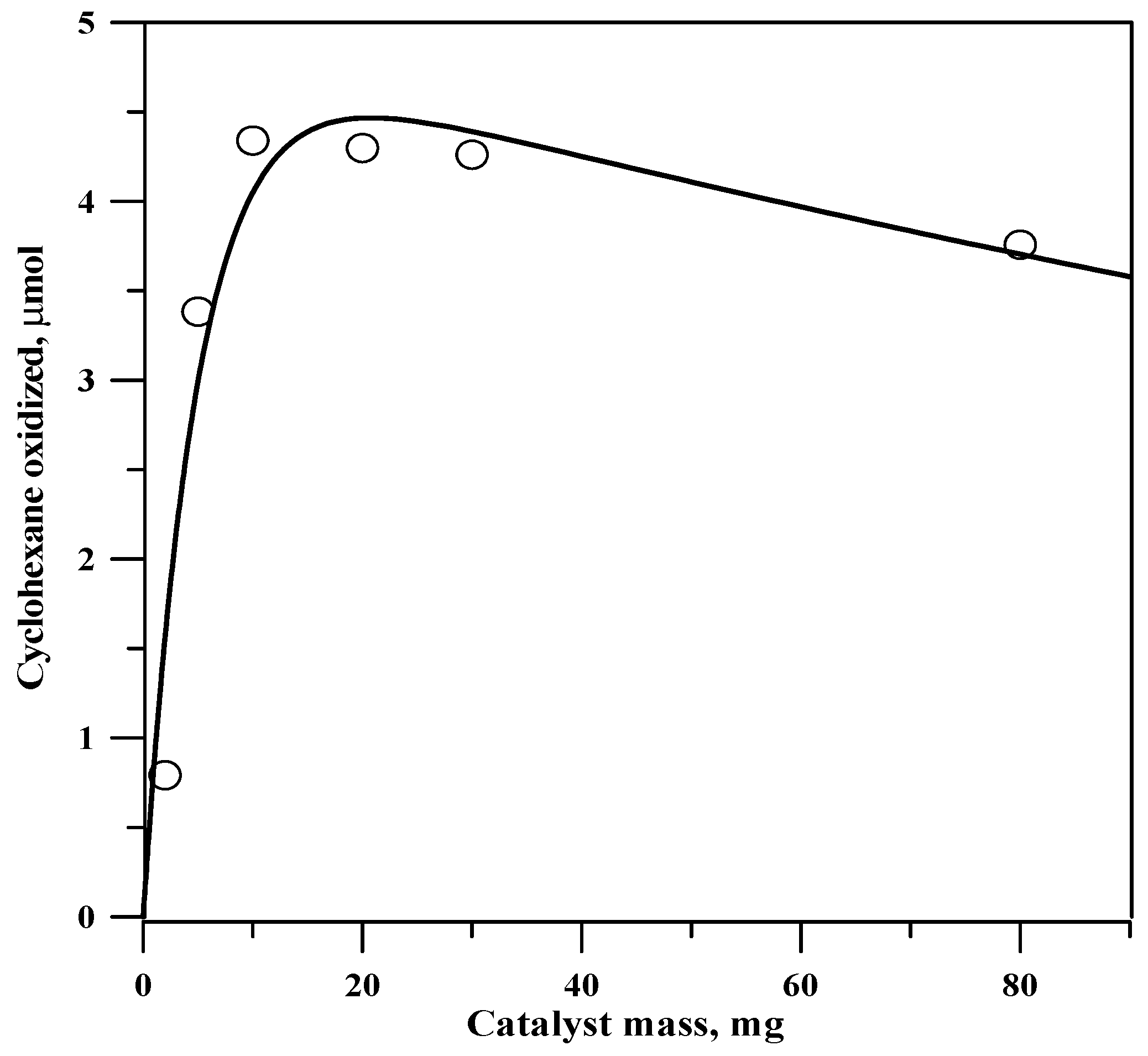

Figure 2. Total yield of oxidized products from the irradiation (100 W Hg lamp, λ > 360 nm) of stirred suspensions of Et4N[FeCl4] in 1.0 mL of cyclohexane (with 0.5% acetic acid and 1 mg Bu4NBr) as a function of the amount of catalyst employed. Solid line is a fit to Equation (6) with β = 0.20, γ = 0.99, and δ = 0.0035.

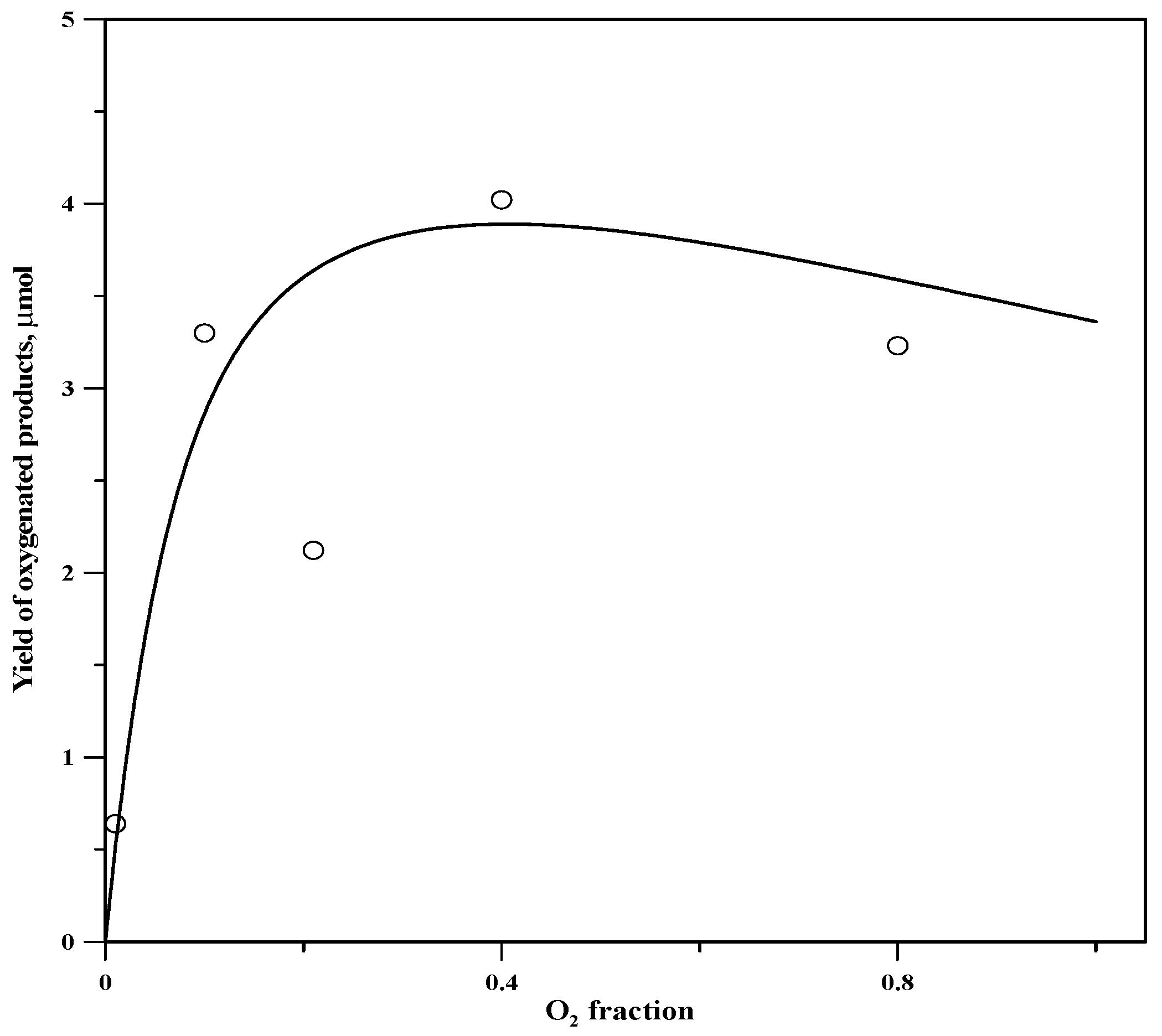

Figure 3. Yield of cyclohexanol plus cyclohexanone following the 20-min. photolysis (100 W Hg lamp, λ > 360 nm) of 1 mL of cyclohexane (with 0.5% acetic acid and 1 mg Bu4NBr) with balloons containing different percentages of O2. Solid line is a fit to Equation (9) with b = 0, c = 1.38, d = 150.
Table 1. Yield of photolysis products after 20-min irradiation (100 W Hg lamp, (λ > 360 nm) of 1.0 mL of cyclohexane with 20 mg of Et4N[FeCl4].
|Acetic Acid Content||Oxidized Products, µmol|
Table 2. Yield (µmol) of photolysis products after 20-min irradiation (100 W Hg lamp, λ > 360 nm) of 1.0 mL of cyclohexane (0.5% acetic acid), with 20 mg of Et4NFeCl4 under an O2 balloon, varying the amount of dissolved Bu4NBr.
Table 3. Yields (μmol) of cyclohexanol, cyclohexanone, and chlorocyclohexane following a 20-min irradiation (100 W Hg lamp, λ > 360 nm) of 1.0 mL of cyclohexane (0.5% acetic acid + 1 mg Bu4NBr) with 25 mg of Et4N[FeCl4].
Table 4. Product yields following a 30-min irradiation (100 W Hg lamp) of 1 mL of cyclohexane (0.5% acetic acid), with 25 mL of Et4N[FeCl4] and a balloon with 50% O2/50% air. Portions of the UV cut off as noted.
|Cutoff Filter||Chx−OH, μmol||Chx=O, μmol||Chx−Cl, μmol||Total Chx Reacted|
a Glass cuvettes were approximately equivalent to a 300 nm cutoff filter.
Table 5. Photolysis of cyclohexane, reusing catalyst from previous run: 1 mL cyclohexane (0.5% acetic acid, 1 mg Bu4NBr, 50% O2/50% air balloon) with 60 mg Et4N[FeCl4] initially, irradiated (100 W Hg lamp, λ > 345 nm) for 20 min.
|Catalyst Mass||Chx−OH, μmol||Chx=O, μmol||Chx−Cl, μmol|
Table 6. Products (µmol) from the photolysis of cyclohexane (0.5% acetic acid, 1 mg Bu4Br/mL) under 50% O2/50% air, other conditions as noted.
|1 mL Chx, 60 mg Et4EtFeCl4, 500 W lamp, water filter, 1 h||121||28||50||2.1%|
|3 mL Chx, 50 mg Et4NFeCl4, 500 W lamp, λ > 395 nm, 2 h||82||20||3||0.4%|
|3 mL Chx, 50 mg Et4NFeCl4, 500 W lamp, λ > 360 nm, 2 h||559||173||17||2.6%|
|250 mL Chx, 500 mg Et4NFeCl4, 200 W immersion lamp, 3 h||727||326||88||0.05%|
Table 7. Products formed (µmol) during the photolysis (100 W Hg lamp, λ > 360 nm, 50% O2/50% air balloon, 20 min irradiation) of 1.0 mL of cyclohexane (1% acetic acid) with FeCl3 and Et4N[FeCl4] as catalysts.
|FeCl3 5% on SiO2||20||1.0||0.3||1.0||1.3|
Table 8. Comparison of yield of oxygenated products from the homogeneously catalyzed photooxidation of cyclohexane diluted in another solvent.
|Catalyst||Chx Environment||Catalyst Conc.||Light Source||Irrad Time, min||Chx−OH+Chx=O μmol||Reference|
|FeCl3||0.5 M in CH3CN||5 × 10−4 M||150 W b||120||6|||
|FeCl3||0.5 M in acetone||5 × 10−4 M||150 W b||300||225|||
|Bu4N[FeCl4]||40% CH2Cl2 10% CH3CN||3 × 10−4 M||400 W Hg||240||67|||
|Et4N[FeCl4]||50% acetone a||0.06 M||100 W Hg|
λ > 360 nm
a 0.5% acetic acid, balloon with 60% O2. b immersion lamp. c this work. Conc.: Concentration.
Table 9. Comparison of homogeneously and heterogeneously catalyzed photooxidation of cyclohexane.
|Catalyst||Catalyst Amount||Sample Volume||Light Source||λ||Irrad Time||Chx−OH+Chx=O μmol||Reference|
|PXQ a||2 × 10−3 M||3 mL||500 W Xe||>390 nm||26 h||225 d|||
|Et4N[FeCl4] b||50 mg||3 mL||500 W Hg||>395 nm||2 h||102||c|
a 2% acetonitrile; b 0.5% acetic acid, balloon with 60% O2; c this work; d includes Chx−OOH.
Table 10. Product yields (µmol) after irradiation of cyclohexane (0.5% acetic acid) in sunlight a.
|6 mL, Erlenmeyer, 150 mg Et4NFeCl4, no balloon, 3 h||103||53||7||0.3%|
|6 mL, Erlenmeyer, 200 mg FeCl3/SiO2, no balloon, 3 h||18||0||76||0.2%|
|1.5 mL, 1-cm rect. cuvette, 300 mg Et4NFeCl4, 60% O2, 6 h||27||7||14||0.3%|
|1 mL, 1-cm triangular cuvette, 80 mg Et4NFeCl4, 60% O2, 6 h||27||11||6||0.5%|
|3 mL, 4-cm rectangular cuvette, 200 mg Et4NFeCl4, 60% O2, 4 h||60||10||17||0.3%|
a Latitude 37.3 °N, experiments performed between 1 August and 15 August.
Table 11. Products from the 6-h irradiation of 3.0 mL of C6H12/CH2Cl2 (50/50 vol%) in sunlight, under an atmosphere of 60% O2, in a 4-cm rectangular cuvette with 200 mg Et4N[FeCl4] (dissolved).
Table 12. Product yield after extended radiation of cyclohexane (containing 0.5% acetic acid and 1 mg Bu4NBr per mL) in the presence of Et4N[FeCl4], with literature data for other catalysts in neat cyclohexane.
|Catalyst||Ref||Sample Volume mL||Catalyst Mass mg||Gas Above rxn||Radiation Source||Irrad Time, min||Yield Chx OH μmol||Yield Chx=O μmol||% Chx−Cl||% Chx Reacted|
|TiO2||||2.5 a||10||air||150 W Hg|
λ > 360 nm
|TiO2||||20||20||air||450 W Xe|
λ = 303 nm
|W10O324− b||||3.0||45||O2||150 W Hg|
λ > 280 nm
|||2.5||625||air||400 W Hg|
λ > 300 nm
|Et4NFeCl4||c||1.0||50||60%O2||500 W Hg|
glass filter e
|Et4NFeCl4||d||3.0||50||air||500 W Hg|
λ > 360 nm
|Et4NFeCl4||d||3.0||50||air||500 W Hg|
λ > 395 nm
a Not reported; 2.5 mL assumed from other publications from this laboratory. b (n-Bu4N)4W10O32 on silica c This work d This work (Table 6) e In all Et4N[FeCl4] experiments (including those with cutoff filters) the beam was filtered through water in a glass container.
Table 13. Yield of cyclohexanone and cyclohexanol after a 40-min irradiation of 1 mL of C6H12 (1% acetic acid) in the presence of 20 mg of TiO2 or Et4N[FeCl4] with a 100- W Hg lamp and a cutoff filter as indicated.
|Catalyst||λcutoff, nm||Chx=O, µmol||Chx−OH, µmol|
© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
