Catalysts 2018, 8(9), 399; doi:10.3390/catal8090399

Article
Performance of Mn-Fe-Ce/GO-x for Catalytic Oxidation of Hg0 and Selective Catalytic Reduction of NOx in the Same Temperature Range
National Engineering Lab for Coal-fired Pollutants Emission Reduction, Shandong University, Jinan 250061, China
*
Authors to whom correspondence should be addressed.
Received: 28 July 2018 / Accepted: 11 September 2018 / Published: 18 September 2018

Abstract

:
A series of composites of Mn-Fe-Ce/GO-x have been synthesized by a hydrothermal method. Their performance in simultaneously performing the catalytic oxidation of Hg0 and the selective catalytic reduction of nitrogen oxides (NOx) in the same temperature range were investigated. In order to investigate the physicochemical properties and surface reaction, basic tests, including Brunauer-Emmett-Teller (BET), XRD, scanning electron microscope (SEM) and X-ray photoelectron spectroscopy (XPS) were selected. The results indicate that the active components deposited on graphene play an important role in the removal of mercury and NOx, with different valences. Especially, the catalyst of Mn-Fe-Ce/GO-20% possesses an excellent efficiency in the temperature range of 170 to 250 °C. Graphene has a huge specific surface area and good mechanical property; thus, the active components of the Mn-Fe-Ce catalyst can be highly dispersed on the surface of graphene oxide. In addition, the effects of O2, H2O, NO and SO2 on the removal efficiency of Hg0 were examined in flue gas. Furthermore, the regeneration experiments conducted by thermal methods proved to be promising methods.
Keywords:
mercury removal; NOx removal; Mn-Fe-Ce/GO-x; same temperature range

1. Introduction

In recent years, the removal of mercury and its derivatives has attracted significant attention due to their toxic effects on ecological safety and human health [1,2,3]. Many researchers have explored an effective way to control the emission of mercury from coal-fired power plants. As we know, mercury is released into exhaust gas in the form of elemental mercury (Hg0), oxidized mercury (Hg2+) and particulate bound mercury (Hgp) [4,5,6]. At present, Hg2+ is water-soluble and can be easily removed by wet flue gas desulfurization, and Hgp attached to fly ash can be captured by electrostatic precipitators and fabric filters. In a word, Hg2+ and Hgp can easily be controlled by existing air pollution control devices [7,8,9,10,11,12]. However, Hg0 is difficult to capture due to its high volatility and water-insolubility. Therefore, Hg0 is the main mercury species that is emitted in the stack flue gas from coal-fired utilities. Even more alarming, Hg0 can circulate in the atmosphere for years, and its toxic effects have a global-scale impact. Consequently, the conversion of Hg0 to Hg2+ or Hgp is the main method of removing elemental mercury. In previous explorations, methods of sorbent injection, catalytic oxidation, electrocatalytic oxidation, and photochemical oxidation were carried out to remove Hg0 [13,14,15,16,17,18]. Therein, the catalytic oxidation of Hg0 is the most promising method due to its high-efficiency.
Besides the difficulties that are associated with mercury removal, reducing the emission of NOx is also difficult. NOx from the exhaust gases of coal-fired power plants is the major source of air pollution. Specifically, NOx causes photochemical smog, acid rain, ozone depletion, and greenhouse effects, etc. So far, the commercial catalyst of V2O5-WO3/TiO2 is widely used in the field of controlling NOx emission. However, this catalyst is significantly affected by the flue gas temperature and easily loses its catalytic activities at low temperatures. Meanwhile, the addition of chlorine into the boiler is needed in order to realize the activities of Hg0 oxidation [19,20,21]. It is necessary to explore an effective and economical catalyst to remove Hg0 and NOx in the same temperature range, without the assistance of chlorine.
Besides the V2O5-WO3/TiO2 catalyst, many transition metal oxides were explored for the oxidation of Hg0 and the reduction of NOx, such as MnOx, FeOx, CeOx, V2O5, CuOx and CoOx [22,23,24,25]. However, the single metal oxides, as mentioned above, can hardly meet the demand of simultaneously removing Hg0 and NOx. Hence, researchers tried to dope one or more metal oxides to obtain catalysts with a higher performance. For instance, Mn-Ce/TiO2, Mn-Fe spinel and Ce-Fe-O were studied to enhance the performance of a single metal oxide for Hg0 and NOx removal [26,27,28]. Mn-Ce/TiO2 is highly effective in removing Hg0 and NOx, for the reason that the Mn oxides exhibit excellent catalytic activities at lower temperatures, and the Ce oxides can provide an amount of trapped oxygen for redox [29,30,31]. However, its high performance is inhibited by SO2 in the flue gas. In order to explore the catalyst that is resistant to SO2, Mn-Fe spinel has been explored, which possesses an excellent SO2-resistance ability, by doping Mn oxides with Fe oxides. Regrettably, the Hg0 oxidation ability of Mn-Fe spinel is limited. It is necessary to explore a catalyst that possesses inhibitory effects of SO2 and a high activity under different flue gas conditions. The above problems motivate us to focus on the design and synthesis of new catalysts with an optimal catalytic performance. To the best of our knowledge, using the three metal oxides, MnOx, CeOx, and FeOx, to synthesize the Fe-Mn-Ce oxide-based catalyst has seldom been reported in the literature for Hg0 oxidation and NOx reduction [32]. Thus, we carried out systematic explorations on the Fe-Mn-Ce oxide-based catalyst.
Moreover, the carrier plays an important role in enhancing the performance of the catalyst. Usually, the metal oxides have a small specific surface area, while the carrier has a big specific surface area. In particular, graphene is a planar sheet that is composed of carbon atoms [33,34,35]. Its large surface area (calculated value, 2630 m2/g) is convenient for the dispersion of active components. Moreover, the mobility of charge carriers (200,000 cm2/Vs) can significantly facilitate electron transfer in an oxidation-reduction reaction [31]. According to the literature, graphene can be oxidized by strong acid or other methods to obtain graphene oxide (GO) with many functional groups, which can offer abundant nucleation sites for metal atoms. It is a viable approach to exploring new catalysts, while using GO as a catalyst carrier.
In this work, the Mn-Fe-Ce/GO-x catalysts were synthesized via a hydrothermal method, based on the excellent properties of GO as a catalyst carrier. Moreover, the characterization methods of Brunauer-Emmett-Teller (BET), XRD, scanning electron microscope (SEM), and X-ray photoelectron spectroscopy (XPS) were selected to reveal the physicochemical properties of the Mn-Fe-Ce/GO-x catalysts. The composites were investigated through a fixed-bed reaction system for Hg0 and NOx removal in the temperature range of 100 to 400 °C. Moreover, the effects of flue gas components, including O2, NO, H2O and SO2, on the oxidation of Hg0 and reduction of NOx were discussed. The combination of GO sheets and the Mn-Ce-Fe-O particles is advantageous for the application of Mn-Ce-Fe oxides. The outstanding performance was discussed in light of the test results and characterization techniques.

2. Results and Discussion

2.1. Characterization of Catalysts

The microstructural parameters of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) catalysts were investigated, and the results are listed in Table 1. With the increase of GO content from 0 to 20%, the specific surface area, pore volume and pore diameter of the catalysts correspondingly increased from 2.37 to 109.23 m2/g, 0.0089 to 0.0462 cm3/g, and 2.321 to 3.426 nm, respectively. However, further increasing the GO content to 30% resulted in a decrease of microstructural parameters due to the aggregation of GO. Therefore, the Ce-Fe-Mn/GO0.2 with an appropriate carrier of GO is considered to be a candidate with a better catalytic performance.
The XRD patterns of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) catalysts are shown in Figure 1. All of the samples show characteristic diffraction peaks of MnO2 and Mn3O4 in the patterns. Nevertheless, few weak peaks of crystalline Fe and Ce oxides are detected in the XRD patterns, indicating that all the Fe and Ce oxides have a fine grain size and exist in an amorphous form. The characteristic diffraction peaks of graphene, at approximately 20–25° in the results, are found in Ce-Mn-Fe/GO-x (x = 10%, 20%, 30%), suggesting that the graphene structure was successfully synthesized, and the peak of GO, at approximately 2θ = 13°, is also detected by a Bruker D2 PHASER diffractometer.
In order to further identify the composition and content on the surface of all the samples, the EDS of Ce-Mn-Fe/GO-20% was selected, and the results are shown in Figure 2. Ce-Mn-Fe/GO-0, Ce-Mn-Fe/GO-10% and Ce-Mn-Fe/GO-30% are shown in Figures S1–S3 in the Supporting Information, respectively. It can be seen, from all of these Figures, that the catalysts present the contents of Fe, Ce, Mn and O elements on the GO carrier. That is to say, there were no visible phases of Fe and Ce oxides in the XRD patterns, indicating that all of the Fe and Ce oxides were highly dispersed over the support, with a low content. The EDS proves the existence of Fe and Ce oxides on GO.
The SEM characterization provides a convenient approach to investigating the morphology of the prepared catalysts. Images of microscopic Ce-Mn-Fe/GO-0 and Ce-Mn-Fe/GO-10% morphologies, which are particle-like as well as highly aggregated and disorganized, are shown in Figures S1 and S2. As shown in the image of Ce-Mn-Fe/GO-20% in Figure 2, the metal oxides distributed on the GO structure were more uniform and showed a smaller particle size. Ce-Mn-Fe/GO-30% in Figure S3 indicates that plenty of GO join together to limit the attachment of oxides, and this result is consistent with the BET test. In the catalyst of Ce-Mn-Fe/GO-20%, numerous nanoparticles were inserted into the GO sheets for further analysis, and this result indicates that GO can not only prevent the aggregation of catalytic activity particles, but also the nanoparticles load on GO through functional groups, such as carboxyl, hydroxyl, and epoxy groups [36]. Hence, the highly dispersed and uniform nanoscale Ce-Mn-Fe-O particles are embedded in GO.
The XPS spectra of the samples were performed to further illustrate the chemical composition and the valence states of Mn, Ce and Fe. The results are exhibited in Figure 3, the Mn 3d spectra with two main peaks, corresponding to Mn 2p3/2 and Mn 2p1/2, are observed in Figure 3a. The Mn 2p1/2 peak consists of three sub-peaks, the corresponding binding energy of Mn3+ is 641.8 eV, and the peaks at about 642.4 eV, 641.2 eV, and 640.2 eV are Mn4+, Mn3+ and Mn2+, respectively. The rate of (Mn4+ + Mn3+)/Mn2+ was usually considerable for Hg0 oxidation, based on article [37]. The high valence Mn oxides enhance Hg0 oxidation efficiency, as Mn4+ can directly oxidize the adsorbed Hg0, and Mn3+ also has potential activity in Hg0 oxidation in the presence of O2. Manganese oxides exist at the mixed states of Mn4+ and Mn3+ in the four composition catalysts of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%). In particular, the Ce-Mn-Fe/GO-20% possesses a higher Hg0 oxidation efficiency than other catalysts of Ce-Mn-Fe/GO-x (x = 0, 10%, 30%), and the main reason may be that the highest ratios of (Mn4+ + Mn3+)/Mn2+ are in the Ce-Mn-Fe/GO-20% sample, which plays an important role in Hg0 oxidation. In addition, the catalyst has quite a high content of Mn4+ and Mn3+ on the surface and it shows good activity in NOx reduction with NH3 at low temperatures [38].
The XPS spectra of Ce3d for these catalysts are presented in Figure 3b. The peaks that were labeled U and V were the corresponding 3d5/2 and 3d3/2 spin-orbit states, respectively [39]. The U0, U1, U3, V3, V2, and V0 belonged to the 3d104f0 state of the Ce4+ species, and U2 and V1 are assigned to the 3d104f1 initial electronic state of the Ce3+ species [40]. When comparing with the four catalysts, the Ce-Mn-Fe/GO-10% has the highest ratio of Ce4+/Ce3+, but the ratio of Ce4+/Ce3+ decreases in the optimal catalyst, Ce-Mn-Fe/GO-20%, and it can be inferred from this result that some reactions take place in the preparation process. Thus, the most possible reaction is as follows [41]:
2 CeO 2 + Mn 2 O 3 Ce 2 O 3 + 2 MnO 2
The reaction further explains the reason why the Ce-Mn-Fe/GO-20% has high ratios of (Mn4+ + Mn3+)/Mn2+. The ratios of Ce4+/Ce3+ were calculated and are shown in Figure 3b, and it is obvious that the majority of the Ce ions are Ce4+, which is beneficial for Hg0 oxidation. Moreover, it has been reported that the Ce3+ species can not only create charge imbalance, vacancies, and unsaturated chemical bonds, but also enhance Hg0 oxidation with the chemisorbed oxygen species on the surface of catalyst [42].
The XPS spectra of Fe2p for catalysts are shown in Figure 3c. The peaks appeared at 709.3 eV, which was attributed to Fe2+ cations [43], and at the 711.42 eV, 713.2 eV, 725.4 eV, which were assigned to Fe3+. Different states of iron cations contain a weak oxidation property in relation to Hg0, however, they have positive effects on NOx reduction with NH3 at the ideal temperatures [44].
As shown in Figure 3d, the peaks at low binding energy (about 259.5–25.97 eV) could be regarded as lattice oxygen (denoted as Oα), the binding energy peak at 531.0–531.7 eV is attributed to chemisorbed oxygen and C=O groups (denoted as Oβ), and the peak at 532.7–533.5 eV was reported to exist in hydroxy (denoted as Or) [45,46]. When comparing GO with Ce-Mn-Fe/GO-0, the peaks at about 532.8–533.5 eV belong to GO, however, the peaks at about 259.5–25.97 eV belong to the metal oxide nanocrystals. On the Ce-Mn-Fe/GO-x (10%, 20%, 30%), the peaks at 531.1–531.7 eV may belong to GO and metal oxide. In this study, the concentrations of the three types of O were listed in Table 2. The concentration of Oβ and Or on the GO is 45.36% and 54.64%, respectively. On the Ce-Mn-Fe/GO-0, the concentration of Oα and Oβ is 60.24% and 30.76%, respectively. With the increasing of GO content from 0.1 to 0.3, the intensity percentage of Oβ on Ce-Mn-Fe/GO-x (10%, 20%, 30%) is 31.73%, 32.16%, and 18.4%, respectively. The catalyst of Ce-Mn-Fe/GO-20% has a higher efficiency of Hg0 removal than Ce-Mn-Fe/GO-x (20%, 30%), because the Oβ species are believed to be the most active oxygen for oxidation reactions [47].
As discussed above, the reactive temperatures of Hg0 shift to a low temperature region when the manganese oxides are involved in the reaction. The cerium has a superior ability to store oxygen, which contributes to Hg0 oxidation and NOx reduction. The oxidizability of manganese and cerium oxides is stronger than that of iron oxides, and the presence of the iron content can enhance the high valence states of the other two metal oxides [33]. As the result, the catalysts that contain the three metals show an effective property for Hg0 and NOx removal.
The reducibility of the prepared catalysts of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) was detected by H2-TPR in the temperature range of 100–900 °C, and the results are shown in Figure 4. For Ce-Mn-Fe/GO-0, the peak at around 314 °C can be attributed to the reduction of a highly dispersed MnO2 to Mn3O4. In addition, the higher two reduction peaks at 422 and 494 °C are the reductions of Mn2O3 to MnO and Fe3O4 to FeO, respectively [30,48]. The peak at 678 °C may be a reduction of CeO2 to Ce2O3 [49]. The peak above 750 °C was assigned to the reduction of surface FeO to Fe [50]. The sample of Ce-Mn-Fe/GO-10% shows three apparent peaks in the H2-TPR curves, and the reduction When compared with Ce-Mn-Fe/GO-10%, the reduction peaks of Ce-Mn-Fe/GO-20% shift to a lower temperature due to the increase of GO. Furthermore, Ce-Mn-Fe/GO-30% evidently has an increase in GO, and the reduction curves shift gradually towards a higher temperature, the main reason being that amounts of GO join together and lead to a decrease of reducibility of metallic oxides. Above all, the sample of Ce-Mn-Fe/GO-20% has higher redox ability, with moderate GO.

2.2. The Performance of the Prepared Materials

The Hg0 oxidation and NOx recondition efficiencies over Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) were studied at reaction temperatures, with a range of 100 to 400 °C, and the results are shown in Figure 5. The catalysts of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) exhibit weak Eoxi, which is approximately 30%, 43%, 67%, and 45% at 100 °C, respectively. The efficiency at this temperature is mainly attributed to the physical adsorption and oxidation of Oβ on the surface of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) for Hg0 oxidation. The Eoxi increases with the increasing of temperature, and over 95% of Eoxi can be obtained at 170 °C for Ce-Mn-Fe/GO-20% and Ce-Mn-Fe/GO-30%. However, the value for Ce-Mn-Fe/GO-30% starts to decrease, when the temperature reaches 200 °C, and it continues to reduce in the range of 200 to 400 °C. Ce-Mn-Fe/GO-20% maintains the highest Eoxi, until the temperature reaches 250 °C, at which point it decreases rapidly until 400 °C. The samples of Ce-Mn-Fe/GO-0 and Ce-Mn-Fe/GO-10% exhibit the highest Eoxi, exceeding 87% at 300 °C and 83% at 220 °C, and the Eoxi decreases to about 62% and 22% at 400 °C, respectively. Comparing the four composites in relation to Eoxi, the sample of Ce-Mn-Fe/GO-20% shows an outstanding efficiency with a low temperature of 170 °C and when the temperature span is 80 °C (see the larger image in Figure 5). The reason is that metallic oxide particles uniformly load on GO with a large specific surface area, which is beneficial for Hg0 absorption and oxidation.
The η of Ce-Mn-Fe/GO-20% at different temperatures with NH3 is shown in Figure 6. At the reaction temperature of 160 to 255 °C (see the larger image in Figure 6), the η is maintained at above 90%, indicating that the catalyst has a rather wide temperature window. Especially, the η reaches 97% at 170 °C. Interestingly, the excellent Eoxi and η of Ce-Mn-Fe/GO-20% is exhibited in the same temperature range of 170–250 °C, and the highest efficiencies that can be achieved are 95% and 97%, respectively. The η over Ce-Mn-Fe/GO-0, Ce-Mn-Fe/GO-10%, and Ce-Mn-Fe/GO-30% catalysts were also investigated, and the results are shown in the Supporting Information for comparison (Figure S4).
The N2O output concentration over Ce-Mn-Fe/GO-20% is shown in Figure 7a. This shows that nearly 100% N2 selectivity was obtained in the region of 180–250 °C over the catalysts. However, the N2O output concentration over Ce-Mn-Fe/GO-20% gradually increased with the rising temperature in the region of 280–300 °C, due to the produce of N2O, resulting from the gradual oxidation of NH3 at a high temperature. The changes of NO2 concentration in the region of 140–300 °C, indicating that there is almost no NO2 output, as shown in Figure 7b.

2.3. Effect of Individual Flue Gas Components

Hg0 oxidation efficiencies (average value of one hour) over the Ce-Mn-Fe/GO-20% catalyst at 170 °C, under different flue gas components, are shown in Figure 8.

2.3.1. The Effect of O2 on Mercury Oxidation over the Ce-Mn-Fe/GO-20% Catalyst

O2 plays an important role in Hg0 oxidation and NOx reduction, and the results are presented in Figure 8. In the absence of O2 (pure N2), at first, the Eoxi is 93%, but after a time, the Eoxi decreases. When the O2 concentration increases to 3%, the Hg0 removal performance is enhanced, and Eoxi is 96%. To further investigate the effect of O2 on Hg0 oxidation, 6% O2 was added in the simulated flue gas, and the Eoxi is increased to 98%. A further increase to 12% O2 makes no sense. Obviously, O2 is favorable for Hg0 oxidation, and this is in accordance with previous studies [23].

2.3.2. The Effect of SO2 on Mercury Oxidation over the Ce-Mn-Fe/GO-20% Catalyst

The effect of SO2 on Eoxi includes inhibition, promotion, and non-response. In our study, different concentrations of SO2 (300 ppm and 600 ppm SO2) were added into the pure N2 gas flow, and the result is demonstrated in Figure 8. The Eoxi decreases from 93% (pure N2) to 83% and 75%, with an SO2 concentration gradient of between 300 ppm to 600 ppm. SO2 has an inhibition effect on mercury removal. Besides, 6% O2 and 300 ppm SO2 were added to the mixer, interestingly increasing the Eoxi to 97%, and the result changes little when the concentration of SO2 changes from 300 ppm to 600 ppm. The reason is that the SO2 may not only directly react with O2 over the catalyst, but may also react with the lattice oxygen to form SO3, which can offer more acid active sites to oxidize the adsorbed Hg0 [51].

2.3.3. The Effect of NO on Mercury Oxidation over the Ce-Mn-Fe/GO-20% Catalyst

The affecting factor of NO concentration is usually considered in relation to Hg0 removal. In this study, the selected concentrations of NO were 300 ppm and 800 ppm. As shown in Figure 8, in the absence of NO, pure N2 was used for comparison, in which the Eoxi is 93%. In an atmosphere of 300 ppm and 800 ppm NO, the Eoxi is 78% and 70%, respectively, and the NO exhibits an inhibitory effect on Hg0 removal. In addition, the Eoxi increased to 95% and 92% when 6% O2 was added to 300 ppm and 800 ppm NO. The probable reason for the promotional effect is that NO could be oxidized by the surface oxygen species in order to generate active species, such as NO2 [52]. Therefore, a promotional effect of NO with O2 on mercury removal in this study was attributed to the production of NO2, which can provide acid sites on the catalyst surface.

2.3.4. The Effect of Water Vapor on Mercury Oxidation over the Ce-Mn-Fe/GO-20% Catalyst

Under the simulated flue gas (SFG), the Eoxi is 98.6% (0% H2O) and the effect of water vapor on Hg0 oxidation was explored. The result is shown in Figure 8, in which it can be seen that the water vapor exhibits an inhibitory effect on Hg0 oxidation. The 5% water vapor was added to the simulated flue gas. The Eoxi decreases from 98.6% to 81.3%, which is probably due to the existence of water on the active sites available for mercury adsorption [53]. Fortunately, the catalyst has better properties of water resistance when compared with others (Ce-Mn-Fe/GO-0, Ce-Mn-Fe/GO-10% and Ce-Mn-Fe/GO-30%). Hence, the catalyst has a potential application in the humid flue gas environment. Besides, the effect of NH3 on Hg0 removal was investigated, and adding 800 ppm NH3 to the SFG caused the Eoxi to decrease slightly. NO should be considered because NO reacts with NH3 over the catalyst, and NH3 displays a slight inhibitory effect on Hg0 removal.

2.4. Effect of Individual Flue Gas Components on NOx Removal over the Ce-Mn-Fe/GO-20% Catalyst under NH3

Additionally, the effects of SO2 and H2O have been explored, under operating conditions, on NOx removal, and the results were demonstrated in Figure 9. SO2 has an adverse effect on NOx removal when 300 ppm SO2 is included in the simulated flue gas (SFG), and η decreased from 97% to 83% and further decreased to 78% when the concentration of SO2 increased to 600 ppm. Then, cutting off SO2, the efficiency recovered slightly. The main reason is that the SO2 can combine with NH3 to form ammonium sulfate and cover the surface of the catalyst to inhibit the reaction, resulting in a decrease of catalytic activity. Water vapor presented an inhibitive effect on η over Ce-Mn-Fe/GO-20% when 6% of water vapor was added to the simulated flue gas, and η gradually decreased from 97% to 83%. The competitive adsorption between H2O and NH3 on the surface of the catalyst could account for the deactivation [54]. It is worth noting that the conversion can recover soon after cutting off the H2O injection.

2.5. Proposed Hg0 Oxidation Mechanism

The adsorption mechanism of Hg0 can be described by the following reactions [55]:
Hg 0 ( g ) + Surface Hg ( ad )
Hg ( ad ) + M x O y HgO ( ad ) + M x O y 1
M x O y 1 + 1 2 O 2 M x O y
HgO ( ad ) + M x O y HgM x O y + 1
where MxOy can be seen as FexOy, MnxOy, and CexOy. The existence of MxOy−1 in the catalyst implies the formation of oxygen vacancy, which can be the adsorption sites for gas phase oxygen to form active oxygen over the catalyst surface. In this work, MnxOy and CexOy were the active components and played an important role in the adsorption of Hg0. In the adsorption process, Hg0 adsorption on Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) is a dynamic process: First, the Hg0(g) forms Hg(ads), and then, MnxOy and CexOy offer lattice oxygen for the oxidation of Hg(ads).

2.6. Regeneration

The most outstanding of the above samples is Ce-Mn-Fe/GO-20%. After 6 h, the Hg0 and NOx removal efficiencies reduced to 54% and 46%, respectively. To explore the active regeneration of the catalyst, the methods of heating to 400 °C in an atmosphere of nitrogen was employed. However, as Figure 10 shows, with the increase of cycling time, the Hg0 and NOx removal performance decreased slightly. After the third circulation, the regeneration capacity of Hg0 and NOx removal reached 85%, so that the regeneration capacity of Ce-Mn-Fe/GO-x highlights its potential applications in the future.

3. Experimental

3.1. Catalyst Preparation

The title composites of Ce-Mn-Fe/GO-x catalysts were synthesized by a hydrothermal method. The commercially available chemicals are reagent grade, and the GO was purchased from Qingdao Tianhe Graphite, Qingdao, China. A mixture of Ce(NO3)3⋅6H2O, Mn(NO3)2⋅6H2O, and Fe(NO3)3⋅9H2O, with a molar ratio of 1:1:1(0.001 mol Ce(NO3)3⋅6H2O, and 0.001 mol Mn(NO3)2⋅6H2O, 0.001 mol Fe(NO3)3⋅9H2O), respectively, was employed. The reagents were dissolved in 70 mL deionized water and placed inside a 100 mL autoclave with 0, 0.1, 0.2, and 0.3 g GO, respectively. Then, the autoclave was heated inside a furnace to 180 °C for 24 h and slowly cooled to room temperature at a rate of 10 °C/h. Further, the precursor was washed using deionized water five times, then calcined at 500 °C under N2 for 3 h. Finally, highly dispersed Ce-Mn-Fe-O nanoparticles were anchored on the surfaces of the GO, and the Ce-Mn-Fe/GO-x (x = 0%, 10%, 20%, 30%, CeOx 0.17 g, MnOx 0.68 g, FeOx 0.15 g) composites were obtained, where x is the mass percentages of GO in the composite.

3.2. Material Characterizations

The surface morphology was characterized using a scanning electron microscope (SEM:DESK V, Denton Vacuum, Cherry Hill, NJ, USA). The X-ray diffraction data were obtained while using a Bruker D2 PHASER diffractometer (Bruker Corp, Billerica, MA, USA), equipped with an incident beam monochromator set for Cu Kα radiation (λ = 1.5418 Å). Diffraction patterns were taken from 10° to 80° (2θ), with a scan step width of 0.02°, and a fixed counting time of 1 s/step. The surface property was analyzed by X-ray photoelectron spectroscopy (XPS), while using a VG Multilab 2000 X-ray photoelectron spectrometer (Thermo Fisher Scientific, Waltham, MA, USA), with Al Kα as the excitation source. The C1s line at 284.8 eV was taken as a reference for binding energy calibration, and experimental data were fitted with the Gaussian-Lorentzian mixed function, as implemented in the XPS software. The specific surface areas of the catalysts were determined while using the BET method, the pore volume and pore size were calculated by the Brunauer-Emmett-Teller (BET) method (Quantachrome, Boynto Beach, FL, USA). The temperature-programmed reduction (H2-TPR) experiments were tested by Chembet Pulsar TPR/TPD 2139 (Quantachrome, Boynto Beach, FL, USA) to study the reducibility of catalysts.

3.3. Hg0 Removal Test

A lab-scale fixed-bed (the inner diameter, height, and thickness is 25 mm, 300 mm, and 2 mm, respectively) reaction system was assembled to evaluate the performance of the catalytic oxidation of Hg0, as shown in Figure 11. In each test, a 2.4 mL sample with a 40–60 mesh size was loaded in the reactor, which was placed in the center of a temperature-programmable electric furnace. A Hg0 permeation tube, loaded in a U-shaped glass tube, was used to generate Hg0 vapor carried by pure N2. The concentration of the Hg0 feed (45 μg·m−3) was provided steadily, and the concentration of Hg0 was measured while using a Thermo Fisher mercury continuous emission monitoring system (Hg0 CEMS). Other simulated gases, including NO, O2, SO2, H2O, and NH3, were introduced into the gas mixer at constant flow rates, controlled by mass flow controllers. The total flow rate was kept at 2 L/min for the accuracy of the experiment, and the calculated space velocity for the tests was 30,000 h−1. In every test, the mercury inlet gas stream bypassed the reaction bed and passed into the analytical system, until the desired inlet mercury concentration was established, and the reaction temperature was controlled from 100 to 400 °C by a temperature-programmed control. The outlet Hg0 concentration was measured at the condition of the gas flow, which was passed through the reactor. Hence, the Hg0 removal efficiency (Eoxi) was calculated according to Equation (6):
E o x i = Hg i n 0 Hg o u t 0 Hg i n 0 × 100 %
where Hg i n 0 and Hg o u t 0 are the inlet and outlet of Hg0 concentration, respectively, which were measured by CEMS.

3.4. NH3-SCR Catalytic Activity Measurement

The NH3-SCR of NOx experiments were performed according to the procedures employed in the Hg0 oxidation tests (Figure 11). The 2.4 mL sample was placed into the reactor, and the reactant gas typically consisted of 800 ppm NO, 800 ppm NH3, and 6% O2. Moreover, N2 was employed as the balanced atmosphere in the reaction system. The reaction temperature was controllable from 100 to 400 °C at a heating rate of 5 °C/min. An infrared gas analyzer (GASMET DX4000, Temet Instruments Oy, Helsinki, Finland) was used to check for a gas component in the outlet of the flue gas. Conversion was calculated according to Equation (7):
η = [ NO x ] i n [ NO x ] o u t [ NO x ] i n × 100 %
where [NOx]in and [NOx]out refer to the inlet and outlet of NOx concentration, respectively. η is the reduction efficiency of NOx. All the concentrations were measured by an infrared gas analyzer.

4. Conclusions

The catalysts of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) have been successfully obtained via a hydrothermal method. Ce-Mn-Fe/GO-20% shows the best performance in Hg0 and NOx removal in simulated flue gas. The better performance of Ce-Mn-Fe/GO-20% in capturing Hg0 and NOx than other comparative composites is owing to the highly dispersed Fe-Mn-Ce-O particles on the GO nanosheets. Besides, the effect factors in Hg0 removal are determined by O2 and SO2 + O2, which are beneficial for Hg0 removal, but the SO2 has an inhibitory effect on Hg0 and NOx removal. Further, NO shows an inhibitory effect on Hg0 removal, and this inhibitory effect can be slightly reduced by adding 6% O2 into the flue gas. The negative effect of water vapor results from the adsorption of H2O on the catalysts, which has a further effect on Hg0 oxidation and NOx reduction, and the effect can recover soon after cutting off the H2O injection. However, the active metal oxides that were loaded on GO have better water resistance than the compared catalysts. The catalyst not only exhibited a superior performance in Hg0 oxidation, but showed itself to be an ideal material for NOx reduction within the same temperature range from 170 to 250 °C. Thus, Ce-Mn-Fe/GO-20% has potential applications both in the field of Hg0 oxidation and NOx reduction.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/8/9/399/s1, Figure S1: The element contents on the surface of graphene (EDS) and SEM images of Ce-Mn-Fe/GO0, Figure S2: The element contents on the surface of graphene (EDS) and SEM images of Ce-Mn-Fe/GO-0.1, Figure S3:The element contents on the surface of graphene (EDS) and SEM images of Ce-Mn-Fe/GO-0.3, Figure S4: NOx conversion as a function of reaction temperature over the Ce-Mn-Fe/GO-x (x = 0, 0.1, 0.3) samples. (Reaction conditions: 800 ppm NO, 800 ppm NH3, 6% O2 and N2 balance, GHSV = 30,000 h−1).

Author Contributions

D.A. and Y.D. conceived and designed the experiments; D.A. conducted the experiments and wrote the paper; X.Z. analyzed the data; X.C. software and checked the paper.

Funding

This research was funded by Foundation of State Key Laboratory of Coal Combustion (FSKLCCA1603).

Acknowledgments

The authors express thanks for the support of Foundation of State Key Laboratory of Coal Combustion (FSKLCCA1603).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, D.Y.; Zhao, S.J.; Qu, Z.; Yan, N.Q. Cu-BTC as a novel material for elemental mercury removal from sintering gas. Fuel 2018, 217, 297–305. [Google Scholar] [CrossRef]
  2. Zhao, B.; Yi, H.H.; Tang, X.L.; Li, Q.; Liu, D.D.; Gao, F.Y. Copper modified activated coke for mercury removal from coal-fired flue gas. Chem. Eng. J. 2016, 286, 585–593. [Google Scholar] [CrossRef]
  3. Pavlish, J.H.; Sondreal, E.A.; Mann, M.D.; Olson, E.S.; Galbreath, K.C.; Laudal, D.L.; Benson, S.A. Status review of mercury control options for coal-fired power plants. Fuel Process. Technol. 2003, 82, 89–165. [Google Scholar] [CrossRef]
  4. Xu, W.; Shao, M.; Yang, Y.; Liu, R.; Wu, Y.; Zhu, T. Mercury emission from sintering process in the iron and steel industry of china. Fuel Process. Technol. 2017, 159, 340–344. [Google Scholar] [CrossRef]
  5. Driscoll, C.T.; Mason, R.P.; Chan, H.M.; Jacob, D.J.; Pirrone, N. Mercury as a global pollutant: Sources, pathways, and effects. Environ. Sci. Technol. 2013, 47, 4967–4983. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, Y.; Wang, C.B.; Liu, H.M. Experiment and mechanism research on gas-phase As2O3 adsorption of Fe2O3/γ-Al2O3. Fuel 2016, 181, 1034–1040. [Google Scholar] [CrossRef]
  7. Xu, M.H.; Qiao, Y.; Zhang, C.G.; Li, L.C.; Liu, J. Modeling of homogeneous mercury speciation using detailed chemical kinetics. Combust. Flame. 2003, 132, 208–218. [Google Scholar] [CrossRef]
  8. Zhang, S.B.; Zhao, Y.C.; Yang, J.P.; Zhang, Y.; Sun, P.; Yu, X.H.; Zhang, J.Y.; Zheng, C.G. Simultaneous NO and mercury removal over MnOx/TiO2 catalyst in different atmospheres. Fuel Process. Technol. 2017, 166, 282–290. [Google Scholar] [CrossRef]
  9. Yang, J.P.; Zhao, Y.C.; Chang, L.; Zhang, J.Y.; Zheng, C.G. Mercury adsorption and oxidation over cobalt oxide loaded magnetospheres catalyst from fly ash in oxyfuel combustion flue gas. Environ. Sci. Technol. 2015, 49, 8210–8218. [Google Scholar] [CrossRef] [PubMed]
  10. Li, Y.N.; Duan, Y.F.; Wang, H.; Zhao, S.L.; Chen, M.M.; Liu, M.; Wei, H.Q. Effects of acidic gases on mercury adsorption by activated carbon in simulated oxy-fuel combustion flue gas. Energy Fuels 2017, 31, 9745–9751. [Google Scholar] [CrossRef]
  11. Pacyna, E.G.; Pacyna, J.M.; Sundseth, K.; Munthe, J.; Kindbom, K.; Wilson, S.; Steenhuisen, F.; Maxson, P. Global emission of mercury to the atmosphere from anthropogenic sources in 2005 and projections to 2020. Atmos. Environ. 2010, 44, 2487–2499. [Google Scholar] [CrossRef]
  12. Cai, J.H.; Jia, C.Q. Mercury removal from aqueous solution using coke-derived sulfur-impregnated activated carbons. Ind. Eng. Chem. Res. 2010, 49, 2716–2721. [Google Scholar] [CrossRef]
  13. Xu, W.Q.; Wang, H.R.; Zhu, T.Y.; Kuang, J.Y.; Jing, P.F. Mercury removal from coal combustion flue gas by modified fly ash. J. Environ. Sci. 2013, 25, 393–398. [Google Scholar] [CrossRef]
  14. Zhang, M.Z.; Wang, P.; Dong, Y.; Sui, H.; Xiao, D.D. Study of elemental mercury oxidation over an SCR catalyst with calcium chloride addition. Chem. Eng. J. 2014, 253, 243–250. [Google Scholar] [CrossRef]
  15. Straube, S.; Hahn, T.; Koeser, H. Adsorption and oxidation of mercury in tail-end SCR-DeNOx plants-bench scale investigations and speciation experiments. Appl. Catal. B Environ. 2008, 79, 286–295. [Google Scholar] [CrossRef]
  16. Mei, Z.J.; Shen, Z.M.; Zhao, Q.J.; Wang, W.H.; Zhang, Y.J. Removal and recovery of gas-phase element mercury by metal oxide-loaded activated carbon. J. Hazard. Mater. 2008, 152, 721–729. [Google Scholar] [CrossRef] [PubMed]
  17. Pavlish, J.H.; Hamre, L.L.; Zhuang, Y. Mercury control technologies for coal combustion and gasification systems. Fuel 2010, 89, 838–847. [Google Scholar] [CrossRef]
  18. Li, C.W.; Zhang, A.C.; Zhang, L.X.; Song, J.; Su, S.; Sun, Z.J.; Xiang, J. Enhanced photocatalytic activity and characterization of magnetic Ag/BiOI/ZnFe2O4 composites for Hg0 removal under fluorescent light irradiation. Appl. Surf. Sci. 2018, 433, 914–926. [Google Scholar] [CrossRef]
  19. Gao, Y.S.; Zhang, Z.; Wu, J.W.; Duan, L.H.; Umar, A.; Sun, L.Y.; Guo, Z.H.; Wang, Q. A critical review on the heterogeneous catalytic oxidation of elemental mercury in flue gases. Environ. Sci. Technol. 2013, 47, 10813–10823. [Google Scholar] [CrossRef] [PubMed]
  20. Li, H.L.; Zhu, L.; Wu, S.K.; Liu, Y.; Shih, K. Synergy of CuO and CeO2 combination for mercury oxidation under low-temperature selective catalytic reduction atmosphere. Int. J. Coal Geol. 2017, 170, 69–76. [Google Scholar] [CrossRef]
  21. Liu, R.; Xu, W.; Tong, L.; Zhu, T. Role of NO in Hg0 oxidation over a commercial selective catalytic reduction catalyst V2O5–WO3/TiO2. J. Environ. Sci. 2015, 38, 126–132. [Google Scholar] [CrossRef] [PubMed]
  22. Du, W.; Yin, L.B.; Zhuo, Y.Q.; Xu, Q.S.; Zhang, L.; Chen, C.H. Performance of CuOx-neutral Al2O3 sorbents on mercury removal from simulated coal combustion flue gas. Fuel Process. Technol. 2015, 131, 403–408. [Google Scholar] [CrossRef]
  23. Chen, G.Q.; Gao, J.; Xu, L.; Fu, X.; Yin, Y.; Wu, S.; Qin, Y. Optimizing conditions for preparation of MnOx/RHA catalyst particle for the catalytic oxidation of No. Adv. Powder Technol. 2012, 23, 256–263. [Google Scholar] [CrossRef]
  24. He, C.; Shen, B.X.; Chen, J.H.; Cai, J. Adsorption and oxidation of elemental mercury over Ce-MnOx/Ti-PILCs. Environ. Sci. Technol. 2014, 48, 7891–7898. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, S.K.; Li, H.L.; Li, L.Q.; Wu, C.Y.; Zhang, J.Y.; Shih, K. Effects of flue-gas parameters on low temperature NO reduction over a Cu-promoted CeO2–TiO2 catalyst. Fuel 2015, 159, 876–882. [Google Scholar] [CrossRef]
  26. Zhang, A.C.; Zhang, Z.H.; Chen, J.J.; Sheng, W.; Sun, L.S.; Xiang, J. Effect of calcination temperature on the activity and structure of MnOx/TiO2 adsorbent for Hg0 removal. Fuel Process. Technol. 2015, 135, 25–33. [Google Scholar] [CrossRef]
  27. Liu, T.; Man, C.Y.; Guo, X.; Zheng, C.G. Experimental study on the mechanism of mercury removal with Fe2O3. Fuel 2016, 173, 209–216. [Google Scholar] [CrossRef]
  28. Li, H.L.; Wu, C.Y.; Li, Y.; Zhang, J.Y. Superior activity of MnOx-CeO2/TiO2 catalyst for catalytic oxidation of elemental mercury at low flue gas temperatures. Appl. Catal. B Environ. 2012, 111–112, 381–388. [Google Scholar] [CrossRef]
  29. Qi, G.; Yang, R.T. Characterization and FTIR studies of MnOx-CeO2 catalyst for low-temperature selective catalytic reduction of NO with NH3. J. Phy. Chem. B. 2004, 108, 15738–15747. [Google Scholar] [CrossRef]
  30. Yang, S.J.; Guo, Y.F.; Yan, N.Q.; Qu, Z.; Xie, J.K.; Yang, C.; Jia, J.P. Capture of gaseous elemental mercury from flue gas using a magnetic and sulfur poisoning resistant sorbent Mn/γ-Fe2O3 at lower temperatures. J. Hazard. Mater. 2011, 186, 508–515. [Google Scholar] [CrossRef] [PubMed]
  31. Xu, H.M.; Qu, Z.; Zong, C.X.; Huang, W.J.; Quan, F.Q.; Yan, N.Q. MnOx/graphene for the catalytic oxidation and adsorption of elemental mercury. Environ. Sci. Technol. 2015, 49, 6823–6830. [Google Scholar] [CrossRef] [PubMed]
  32. Li, J.R.; Chen, J.S.; Yu, Y.K.; He, C. Fe–Mn–Ce/ceramic powder composite catalyst for highly volatile elemental mercury removal in simulated coal-fired flue gas. J. Ind. Eng. Chem. 2015, 25, 352–358. [Google Scholar] [CrossRef]
  33. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, V.V. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed]
  34. Georgakilas, V.; Otyepka, M.; Bourlinos, A.B.; Chandra, V.; Kim, N.; Kemp, K.C.; Hobza, P.; Zboril, R.; Kim, K.S. Functionalization of graphene: covalent and non-covalent approaches, derivatives and applications. Chem. Rev. 2012, 112, 6156–6214. [Google Scholar] [CrossRef] [PubMed]
  35. Li, H.N.; Zhu, M.Y.; Chen, W.; Xu, L.; Wang, K. Non-light-driven reduced graphene oxide anchored TiO2 nanocatalysts with enhanced catalytic oxidation performance. J. Colloid Interface Sci. 2017, 507, 35–41. [Google Scholar] [CrossRef] [PubMed]
  36. Qu, J.Y.; Shi, L.; He, C.X.; Gao, F.; Li, B.B.; Zhou, Q.; Hu, H.; Shao, G.H.; Wang, X.Z.; Qiu, J.S. Highly efficient synthesis of graphene/MnO2 hybrids and their application for ultrafast oxidative decomposition of methylene blue. Carbon 2014, 66, 485–492. [Google Scholar] [CrossRef]
  37. Qiao, S.H.; Chen, J.; Li, J.F.; Qu, Z.; Liu, P.; Yan, N.Q.; Jia, J.P. Adsorption and catalytic oxidation of gaseous elemental mercury in flue gas over MnOx/alumina. Ind. Eng. Chem. Res. 2009, 48, 3317–3322. [Google Scholar] [CrossRef]
  38. Wang, J.G.; Yi, H.H.; Tang, X.L.; Zhao, S.Z.; Gao, F.Y.; Yang, Z.Y. Oxygen plasma-catalytic conversion of NO over MnOx: Formation and reactivity of adsorbed oxygen. Catal. Commun. 2017, 100, 227–231. [Google Scholar] [CrossRef]
  39. Reddy, B.M.; Khan, A.; Yamada, Y.; Kobayashi, T.; Loridant, S.; Volta, J.-C. Structural characterization of CeO2-TiO2 and V2O5/CeO2−TiO2 catalysts by raman and XPS techniques. J. Phys. Chem. B 2003, 107, 5162–5167. [Google Scholar] [CrossRef]
  40. Zhou, Z.J.; Liu, X.W.; Hu, Y.C.; Liao, Z.Q.; Cheng, S.; Xu, M.H. An efficient sorbent based on CuCl2 loaded CeO2-ZrO2 for elemental mercury removal from chlorine-free flue gas. Fuel 2018, 216, 356–363. [Google Scholar] [CrossRef]
  41. Ding, Z.Y.; Li, L.X.; Wade, D.; Gloyna, E.F. Supercritical water oxidation of NH3 over a MnO2. Ind. Eng. Chem. Res. 1998, 37, 1707–1716. [Google Scholar] [CrossRef]
  42. Li, H.H.; Wang, Y.; Wang, S.K.; Wang, X.; Hu, J.J. Removal of elemental mercury in flue gas at lower temperatures over Mn-Ce based materials prepared by co-precipitation. Fuel 2017, 208, 576–586. [Google Scholar] [CrossRef]
  43. Wang, L.Y.; Cheng, X.X.; Wang, Z.Q.; Ma, C.Y.; Qin, Y.K. Investigation on Fe-Co binary metal oxides supported on activated semi-coke for NO reduction by Co. Appl. Catal. B Environ. 2017, 201, 636–651. [Google Scholar] [CrossRef]
  44. Xing, L.L.; Xu, Y.L.; Zhong, Q. Mn and Fe modified fly ash as a superior catalyst for elemental mercury capture under air conditions. Energy Fuels 2012, 26, 4903–4909. [Google Scholar] [CrossRef]
  45. Kang, M.; Park, E.D.; Kim, J.M.; Yie, J.E. Manganese oxide catalysts for NOx reduction with NH3 at low temperatures. Appl. Catal. A Gen. 2007, 327, 261–269. [Google Scholar] [CrossRef]
  46. Dupin, J.C.; Gonbeau, D.; Vinatier, P.; Levasseur, A. Systematic XPS studies of metal oxides, hydroxides and peroxides. Phys. Chem. Chem. Phys. 2000, 2, 1319–1324. [Google Scholar] [CrossRef]
  47. Zhao, Y.C.; Zhang, J.Y.; Tian, C.; Li, H.L.; Shao, X.Y.; Zheng, C.G. Mineralogy and chemical composition of high-calcium fly ashes and density fractions from a coal-fired power plant in china. Energy Fuels 2010, 24, 834–843. [Google Scholar] [CrossRef]
  48. Gao, G.; Shi, J.W.; Liu, C.; Gao, C.; Fan, Z.Y.; Niu, C.M. Mn/CeO2 catalysts for SCR of NOx with NH3: Comparative study on the effect of supports on low-temperature catalytic activity. Appl. Surf. Sci. 2017, 411, 338–346. [Google Scholar] [CrossRef]
  49. Ndifor, E.N.; Garcia, T.; Solsona, B.; Taylor, S.H. Influence of preparation conditions of nano-crystalline ceria catalysts on the total oxidation of naphthalene, a model polycyclic aromatic hydrocarbon. Appl. Catal. B: Environ. 2007, 76, 248–256. [Google Scholar] [CrossRef]
  50. Zhang, X.Y.; Ma, C.Y.; Cheng, X.X.; Wang, Z.Q. Performance of Fe-Ba/ZSM-5 catalysts in NO + O2 adsorption and NO + CO reduction. Int. J. Hydrogen Energy 2017, 42, 7077–7088. [Google Scholar] [CrossRef]
  51. Zhang, A.C.; Xing, W.B.; Zhang, Z.H.; Meng, F.M.; Liu, Z.C.; Xiang, J.; Sun, L.S. Promotional effect of SO2 on CeO2-TiO2 material for elemental mercury removal at low temperature. Atmos. Pollut. Res. 2016, 7, 895–902. [Google Scholar] [CrossRef]
  52. Busca, G.; Lietti, L.; Ramis, G.; Berti, F. Chemical and mechanistic aspects of the selective catalytic reduction of NOx by ammonia over oxide catalysts: A review. Appl. Catal. B Environ. 1998, 18, 1–36. [Google Scholar] [CrossRef]
  53. Zheng, Y.J.; Jensen, A.D.; Windelin, C.; Jensen, F. Review of technologies for mercury removal from flue gas from cement production processes. Prog. Energy Combust. Sci. 2012, 38, 599–629. [Google Scholar] [CrossRef]
  54. Liu, Z.M.; Liu, H.Y.; Zeng, H.; Xu, Q. A novel Ce-Sb binary oxide catalyst for the selective catalytic reduction of NOx with NH3. Catal. Sci. Technol. 2016, 6, 8063–8071. [Google Scholar] [CrossRef]
  55. Miser, D.E.; Shin, E.J.; Hajaligol, M.R.; Rasouli, F. HRTEM characterization of phase changes and the occurrence of maghemite during catalysis by an iron oxide. Appl. Catal. A Gen. 2004, 258, 7–16. [Google Scholar] [CrossRef]

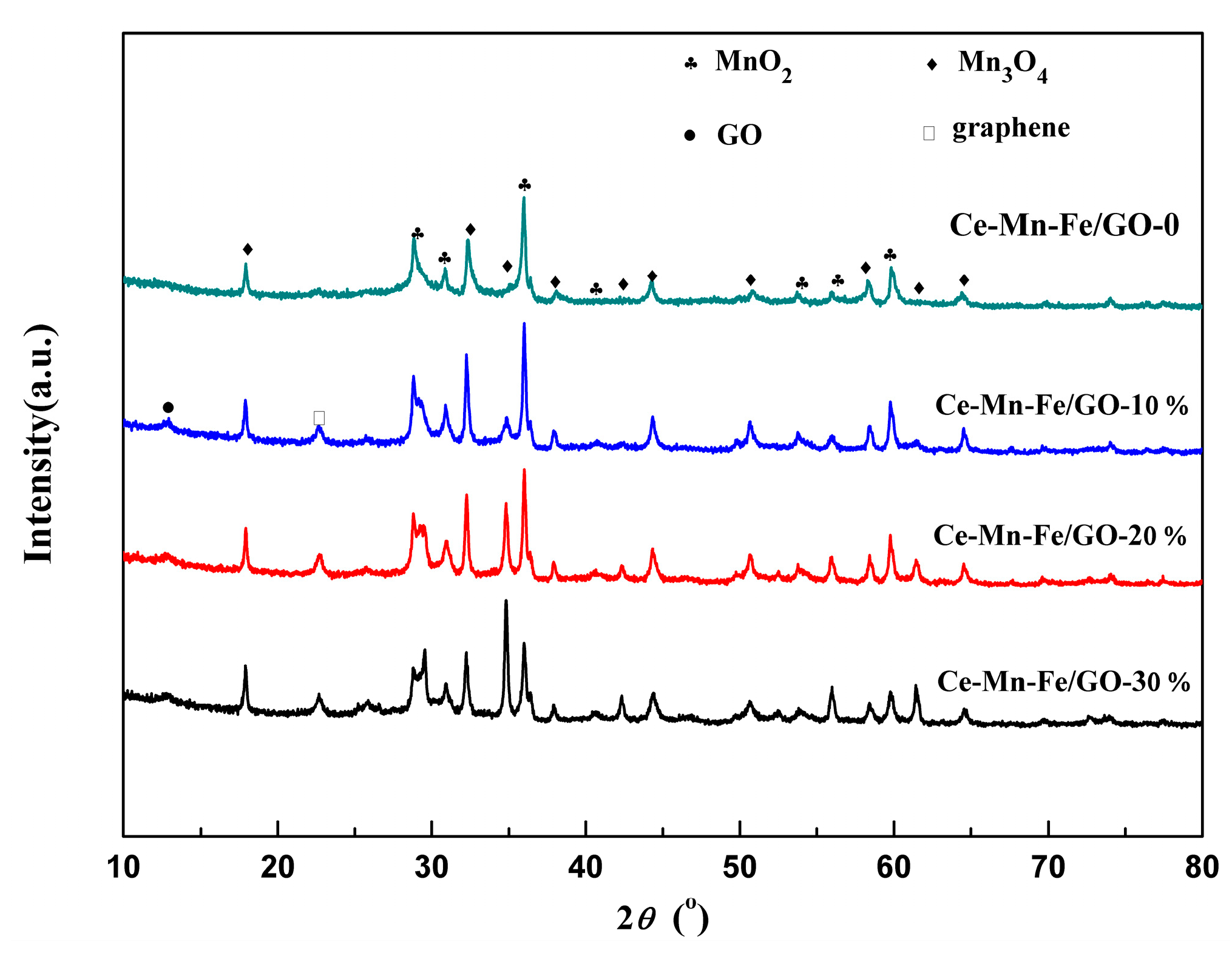

Figure 1. The XRD patterns of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
Figure 1. The XRD patterns of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
Catalysts 08 00399 g001

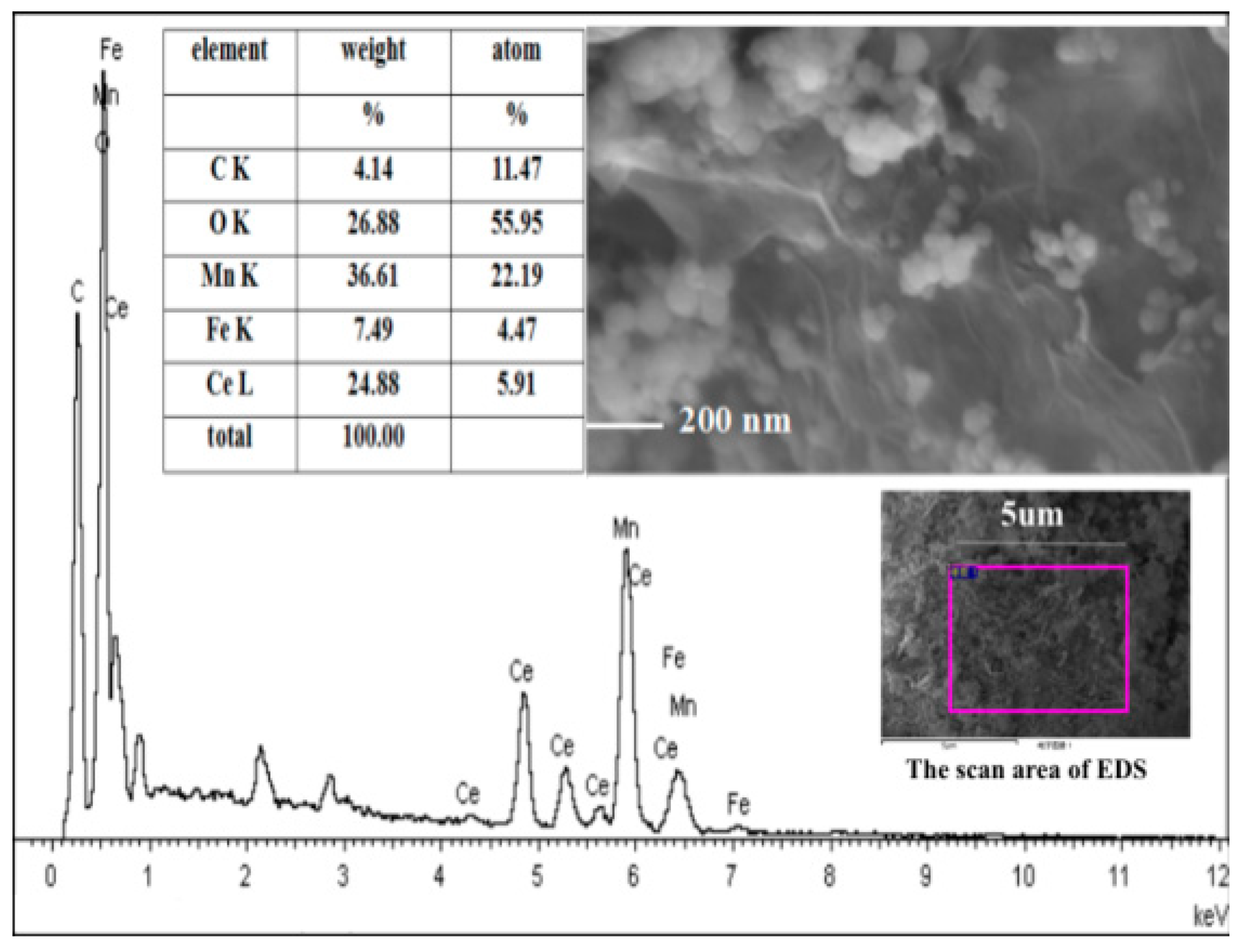

Figure 2. The element contents on the surface of graphene oxide (EDS) and scanning electron microscope (SEM) images of Ce-Mn-Fe/GO-20%.
Figure 2. The element contents on the surface of graphene oxide (EDS) and scanning electron microscope (SEM) images of Ce-Mn-Fe/GO-20%.
Catalysts 08 00399 g002
Figure 3. X-ray photoelectron spectroscopy (XPS) spectra of Mn 2p (a), Ce 3p (b), Fe 2p (c) and O 1s (d) for Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
Figure 3. X-ray photoelectron spectroscopy (XPS) spectra of Mn 2p (a), Ce 3p (b), Fe 2p (c) and O 1s (d) for Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
Catalysts 08 00399 g003aCatalysts 08 00399 g003b

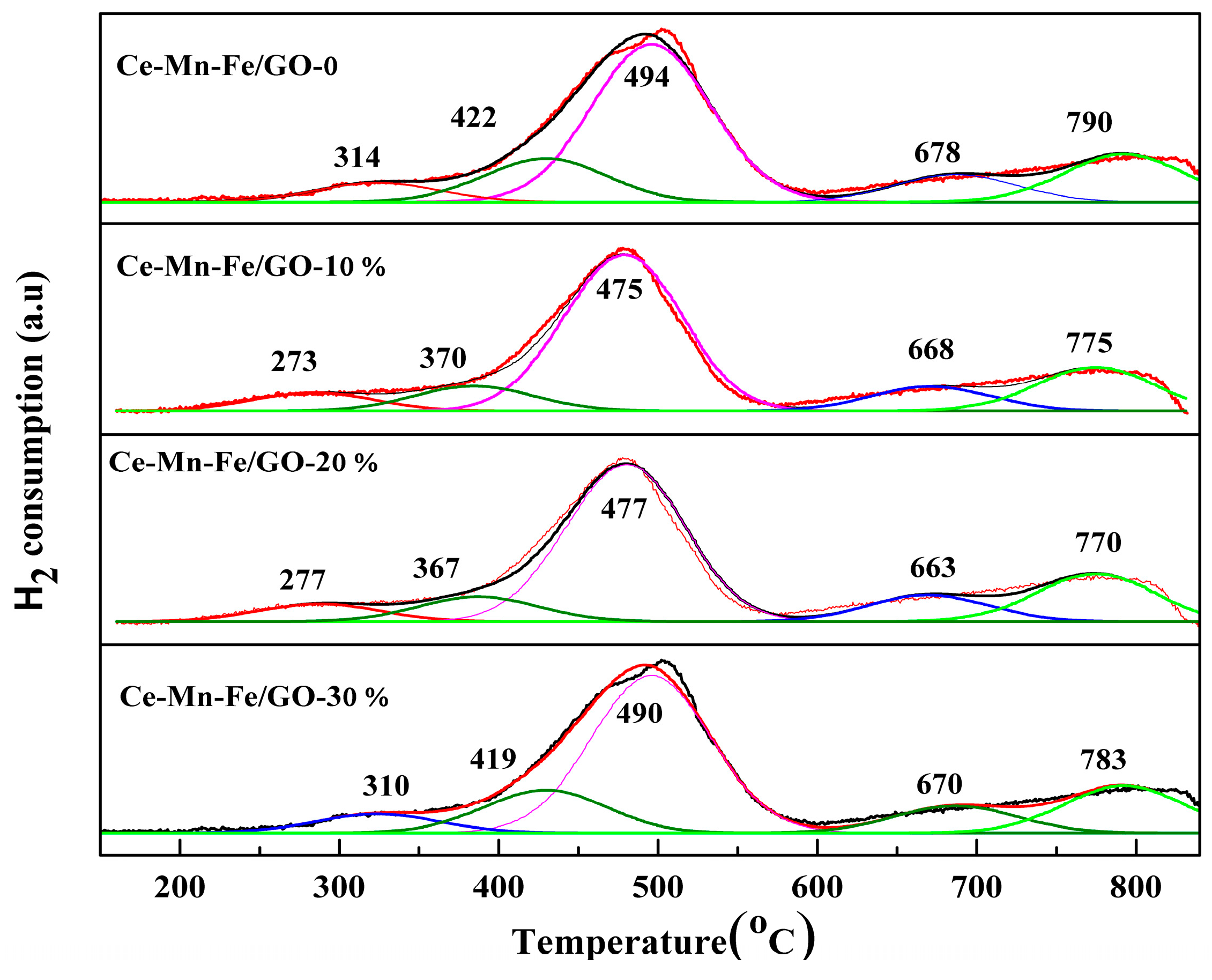

Figure 4. TPR profiles of the Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) samples.
Figure 4. TPR profiles of the Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) samples.
Catalysts 08 00399 g004

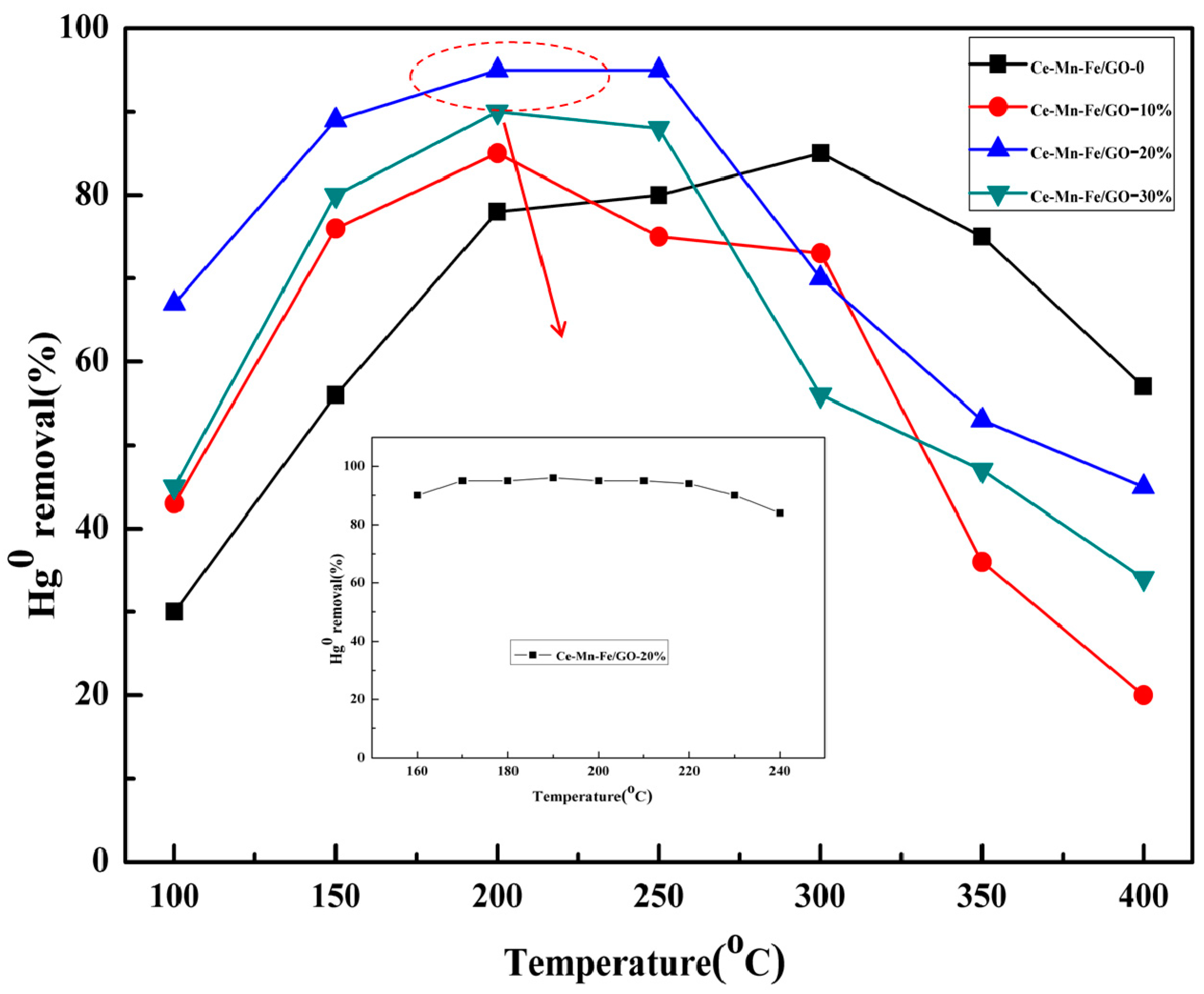

Figure 5. Hg0 removal over Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) catalysts at different temperatures (Flue gas conditions: 6% O2, 600 ppm SO2, 800 ppm nitrogen oxide (NO), N2 as balance gas).
Figure 5. Hg0 removal over Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%) catalysts at different temperatures (Flue gas conditions: 6% O2, 600 ppm SO2, 800 ppm nitrogen oxide (NO), N2 as balance gas).
Catalysts 08 00399 g005
Figure 6. NOx conversion as a function of reaction temperature over the Ce-Mn-Fe/GO-20% sample. (Flue gas conditions: 6% O2, 600 ppm SO2, 800 ppm NO, 800 ppm NH3, N2 as balance gas).
Figure 6. NOx conversion as a function of reaction temperature over the Ce-Mn-Fe/GO-20% sample. (Flue gas conditions: 6% O2, 600 ppm SO2, 800 ppm NO, 800 ppm NH3, N2 as balance gas).
Catalysts 08 00399 g006

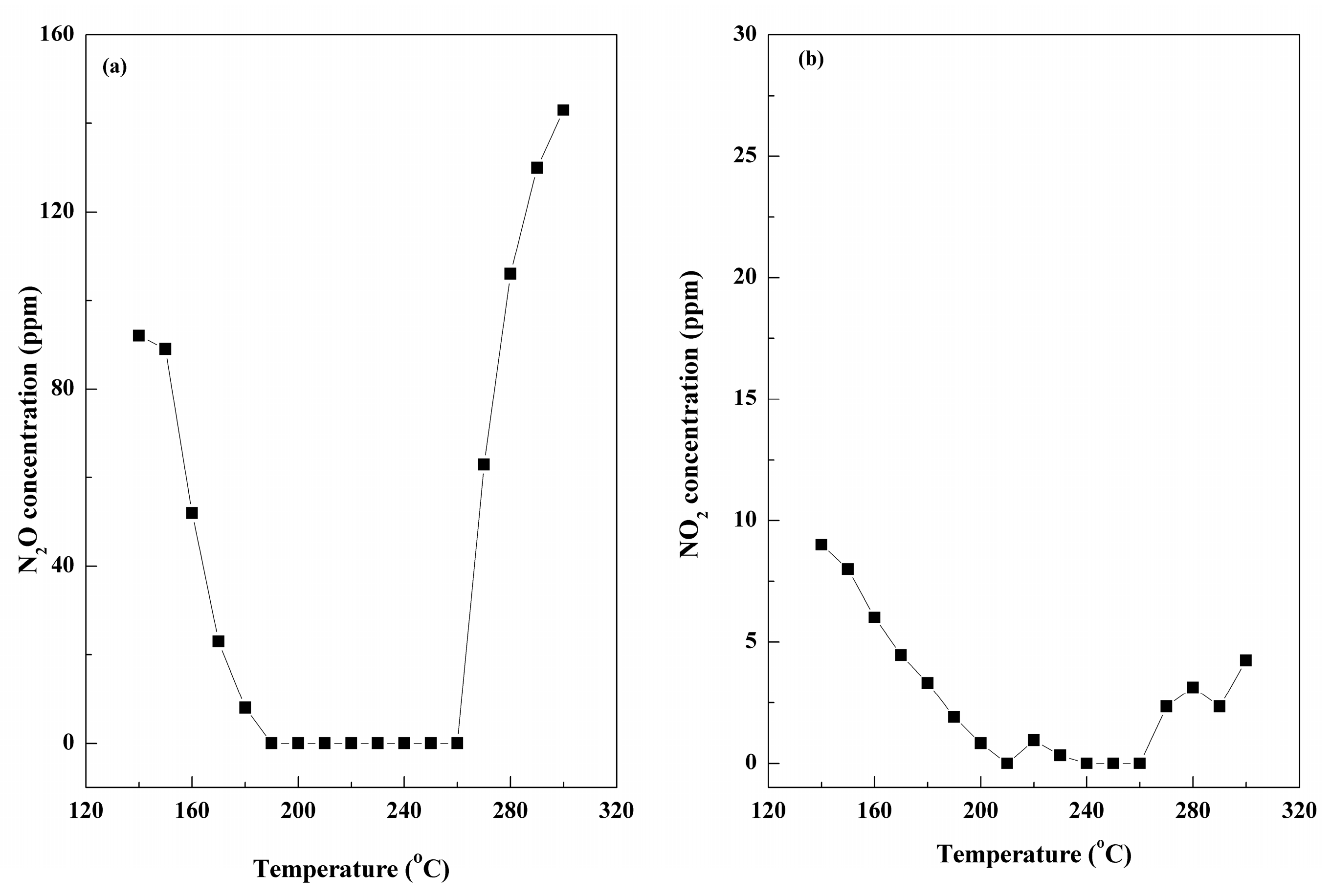

Figure 7. The N2O output concentration (a), NO2 output concentration (b) over Ce-Mn-Fe/GO-20%.
Figure 7. The N2O output concentration (a), NO2 output concentration (b) over Ce-Mn-Fe/GO-20%.
Catalysts 08 00399 g007
Figure 8. Effect of the flue gas components on Hg0 removal over the Ce-Mn-Fe/GO-20% sample at 170 °C.
Figure 8. Effect of the flue gas components on Hg0 removal over the Ce-Mn-Fe/GO-20% sample at 170 °C.
Catalysts 08 00399 g008

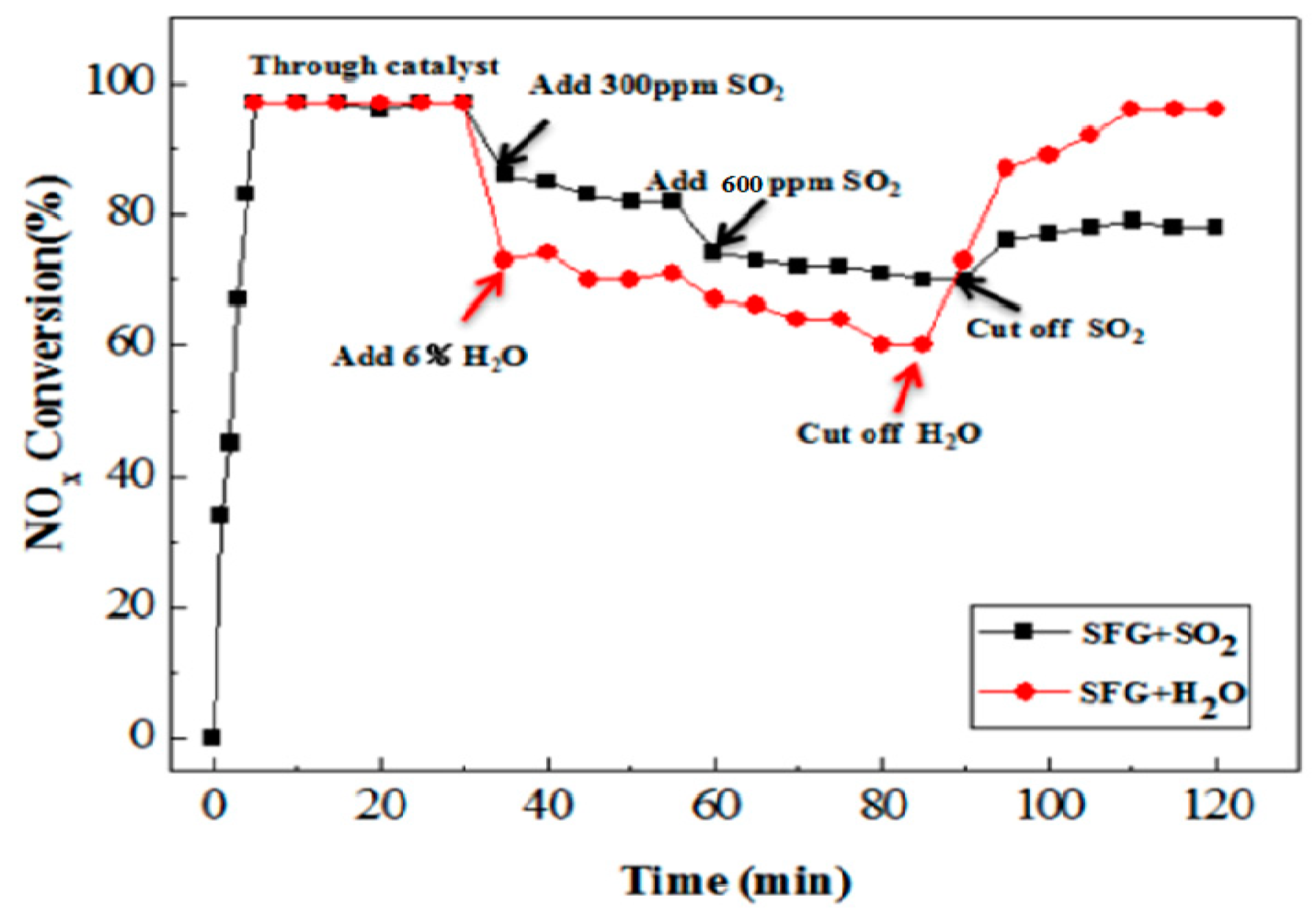

Figure 9. The influence of SO2 and H2O on de-NOx performance over the Ce-Mn-Fe/GO-20% sample.
Figure 9. The influence of SO2 and H2O on de-NOx performance over the Ce-Mn-Fe/GO-20% sample.
Catalysts 08 00399 g009

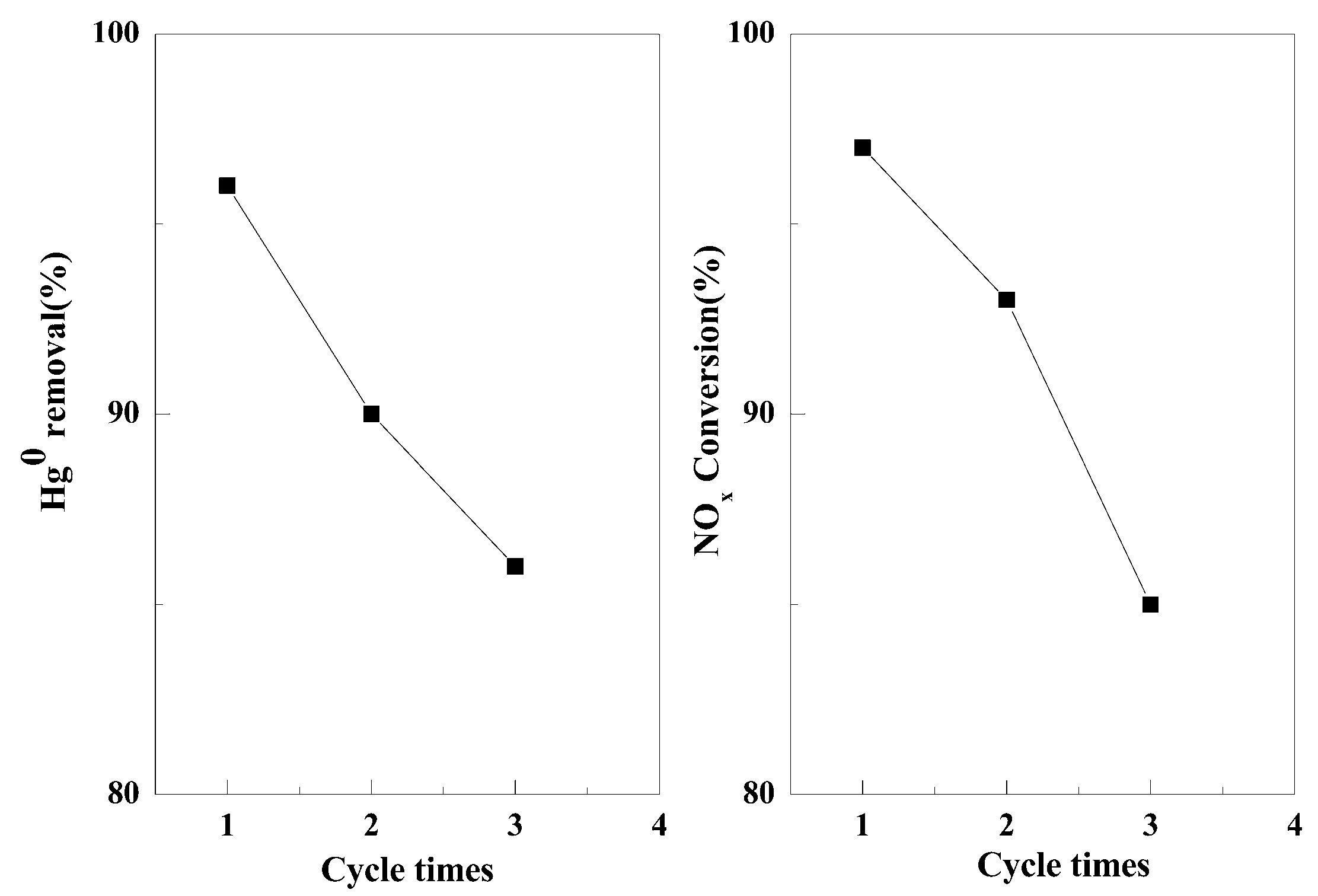

Figure 10. Regeneration performance of the sorbent for Hg0 and NOx removal efficiency.
Figure 10. Regeneration performance of the sorbent for Hg0 and NOx removal efficiency.
Catalysts 08 00399 g010

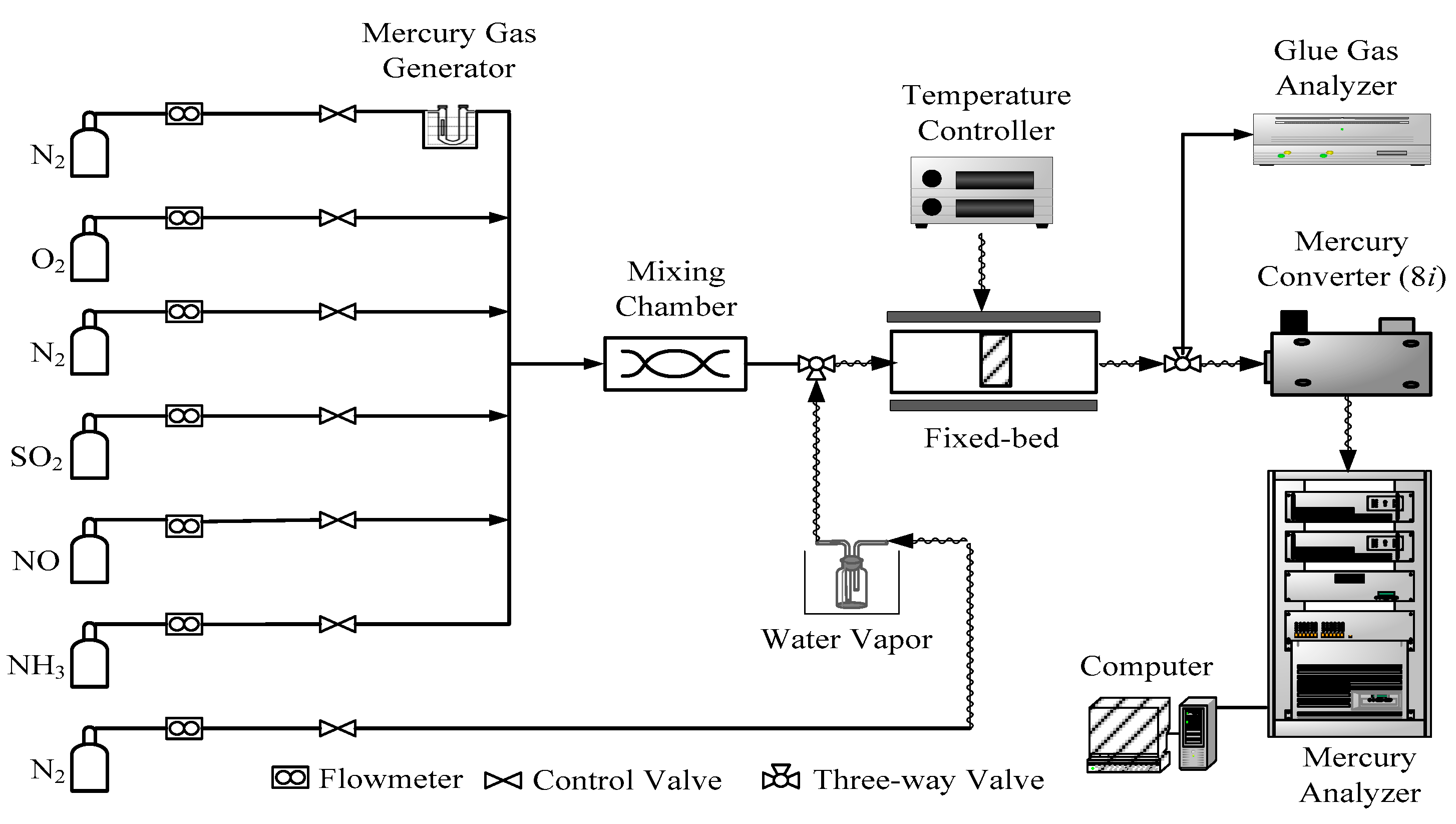

Figure 11. Schematic diagram of the experimental setup.
Figure 11. Schematic diagram of the experimental setup.
Catalysts 08 00399 g011
Table 1. Microstructural parameters of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
Table 1. Microstructural parameters of Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
SamplesBET Surface (m2/g)Pore Volume (cm3/g)Average Pore Diameter (nm)
Ce-Mn-Fe/GO-02.370.00892.321
Ce-Mn-Fe/GO-10%54.390.03633.418
Ce-Mn-Fe/GO-20%109.230.04633.426
Ce-Mn-Fe/GO-30%79.950.03953.415
Table 2. The concentrations of different types of oxygen (Oα, Oβ, Or) in graphene oxide (GO) and Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
Table 2. The concentrations of different types of oxygen (Oα, Oβ, Or) in graphene oxide (GO) and Ce-Mn-Fe/GO-x (x = 0, 10%, 20%, 30%).
SampleSurface Atomic Concentrations (%)
OαOβOr
GO045.3654.64
Ce-Mn-Fe/GO060.2430.760
Ce-Mn-Fe/GO0.161.6531.736.62
Ce-Mn-Fe/GO0.259.8932.267.85
Ce-Mn-Fe/GO0.366.8918.4014.70
