Organic Base-Catalyzed C–S Bond Construction from CO2: A New Route for the Synthesis of Benzothiazolones

by
Xiang Gao
1,
Yuehua Deng
1,
Changyu Lu
1,
Lei Zhang
1,
Xintao Wang
1 and
Bo Yu
2,*
1
College of Geology and Environment, Xi’an University of Science and Technology, Xi’an 710054, China
2
Beijing National Laboratory for Molecular Sciences, Key Laboratory of Colloid, Interface and Thermodynamics, Institute of Chemistry, Chinese Academy of Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Catalysts 2018, 8(7), 271; https://doi.org/10.3390/catal8070271
Submission received: 9 May 2018 / Revised: 27 June 2018 / Accepted: 27 June 2018 / Published: 30 June 2018
Browse Figures
Versions Notes

Abstract

:
The synthesis of organosulfur compounds via the construction of C−S bonds using CO2 as a C1 resource is very interesting. Herein, a novel method of synthesizing benzothiazolones via the cyclocarbonylation of 2-aminothiophenols with CO2 was developed. A series of organic bases was investigated for the catalysis of cyclocarbonylation, and 1,5-diazabicyclo[4.3.0]non-5-ene (DBN) displayed the best catalytic activity. Then, various reaction parameters such as CO2 pressure, temperature, amount of catalyst, and reaction time for the catalytic performance were studied. Finally, a series of benzothiazolones was synthesized under the optimal reaction conditions, and a possible catalytic mechanism was also proposed.

Graphical Abstract

1. Introduction

As a typical sulfur-containing organic compound, benzothiazolone and its derivatives are very important chemical and biological intermediates, and are widely used in the synthesis of agricultural chemicals, dyestuffs, pharmaceuticals, and achiral templates for asymmetric catalysis [1,2,3,4,5]. To date, numerous efforts focused on the development of improved methods for the synthesis of this heterocyclic compounds [6,7,8,9,10]. Among them, the direct cyclocarbonylation of 2-aminothiophenols in the presence of carbonylation agents, such as phosgene [11], CO [12], ClCO2Et [13], dimethyl carbonate [14], urea [15], and isocyanates [16] (Scheme 1a), is one of the most simple and versatile methods. However, phosgene is highly toxic and corrosive, the reactions involving CO are generally catalyzed by transition metals, and the use of super-stoichiometric amounts of carbonyl sources are all incompatible with green-chemistry principles. Therefore, the exploration of environmentally benign approaches using renewable carbonylation reagents to synthesize benzothiazolones is highly desirable.
In recent years, the chemical transformation of CO2 drew much attention owing to its easily available, renewable, abundant, and nontoxic features. Various value-added chemicals were synthesized using CO2 as a C1 building block via the construction of C–H, C–N, C–O, and C–C bonds [17,18,19,20,21,22]. The formation of the C–S bond is one of the important transformations in organic synthesis [23,24], and the construction of C–S bonds using CO2 as a C1 source is an interesting topic. In our recent efforts, we discovered a new route for the synthesis of benzothiazoles via the reaction of 2-aminothiophenols with CO2 and hydrosilanes, which was the first body of work describing the construction of C–S bonds from CO2 [25,26]. It is worth mentioning that a byproduct, benzothiazolone, was detected in minute amounts along with benzothiazole, which was formed via the reaction of 2-aminothiophenol with CO2. Compared to traditional synthetic methods, the synthesis of benzothiazolones using CO2 as a carbonyl source is more attractive (Scheme 1b). However, due to the inherent kinetic inertness and thermodynamic stability of CO2, developing highly efficient catalysts is a key step for the cyclocarbonylation of 2-aminothiophenols with CO2. In previous work from our group, Yu, and Zhao et al. found that ionic liquids could catalyze this reaction, providing only one example with a low yield [27,28]. The further exploration of highly efficient catalysts and the systematic study of the synthesis of benzothiazolone from CO2 are of great importance.
Recently, organic bases were widely applied to CO2-joined reactions with highly efficient catalytic activity. The tertiary nitrogen of these compounds reacted with CO2 to form the carbamate species, which resulted in the activation of CO2, facilitating the reactions [29,30,31,32,33,34,35,36]. Moreover, from an organic synthesis point of view, base-promoted reactions also provide a very important complementary methodology for transition-metal catalyst systems [37,38,39,40]. In this work, a series of organic bases, including 1,5,7-triazabicyclo[4.4.0]dec-5-ene (TBD), 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU), 1,5-diazabicyclo[4.3.0]non-5-ene (DBN), 1,1,3,3-tetramethylguanidine (TMG), 1,4-diazabicyclo[2.2.2]octane (DABCO), 1-methylimidazole (MIm), and hexamethylenetetramine (HMTA) (Figure 1), was investigated for the cyclocarbonylation of 2-aminothiophenols with CO2. Then, various reaction parameters were studied, and a possible reaction mechanism was also discussed. This work presents an environmentally benign method for the synthesis of benzothiazolones directly from a renewable carbonylation source (CO2).

2. Results and Discussion

The reaction of 2-aminothiophenol with CO2 was firstly carried out in various bases at 150 °C and 5 MPa, and the results are listed in Table 1. This reaction neither proceeded without a catalyst nor in the presence of inorganic bases (Table 1, entries 1 and 2). Interestingly, the organic bases were effective in catalyzing this reaction (Table 1, entries 3–8). In particular, DBN showed the best activity, affording benzothiazolone in a yield of 91% under the experimental conditions (Table 1, entry 5). Compared to DBN, both DBU and TBD afforded lower yields of the product, which may result from the joint effects of steric hindrance (DBN < TBD < DBU) and basicity (TBD > DBU > DBN) (Table 1, entry 5 vs. entries 3 and 4). Using TMG as the catalyst, the product yield decreased expectedly, due to its special structure (Table 1, entry 6). Other organic bases exhibiting weaker basicity, such as DABCO, MIm, and HMTA, had little catalytic activity for this reaction, and benzothiazolone was obtained in a yield of <10% (Table 1, entries 7–9). This is understandable, as their basicity and structure accounted for their catalytic activity.
The effect of solvents was also tested in the reaction of CO2 with 2-aminothiophenol catalyzed by DBN at 150 °C and 5 MPa. The catalytic activity of DBN was greatly influenced by the nature of solvent. The product yield increased in the following order: dimethyl sulfoxide (DMSO) < CH3CN < N,N-dimethylformamide (DMF) < 1-methyl-2-pyrrolidinone (NMP) (Table 1, entries 5, 10–12). This corresponded with the order of CO2 solubility in these solvents (expressed as Henry’s constant), DMSO (12.67) > CH3CN (9.049) > DMF (7.966) > NMP (7.61) [41]. Based on the CO2 solubility in various solvents being expressed as Henry’s constants, it was concluded that the yield of benzothiazolone increased as Henry’s constant decreased. As such, the lower the Henry’s constant was, the higher the CO2 solubility, and the higher the yield of benzothiazolone. It was demonstrated that the solvents with high CO2 solubility were more favorable for the carbonylation reaction. Therefore, DBN was chosen as the catalyst and NMP was chosen as the solvent to investigate the synthesis of benzothiazolone under other various conditions.
Firstly, the influence of CO2 pressure on the reaction was investigated under identical reaction conditions (Table 2). As can be seen, pressure had a considerable effect on the yield of the product. Initially, the product yield increased dramatically with an increase in pressure from 1 MPa to 5 MPa, and peaked at 5 MPa with a yield of 91%. However, further increasing CO2 pressure to 9 MPa led to a relative decrease in the yield of benzothiazolone. This is understandable due to the reaction system’s phase behavior. There were two phases in the reaction system in the pressure ranging from 1 MPa to 9 MPa; CO2 not only acted as a reactant, but also as a reaction medium in the reaction process. On one hand, when the pressure was relatively low, an increase in pressure enhanced the reaction rate because the solubility of CO2 in the liquid reaction phase increased with increasing pressure, which helped enhance the reaction rate, since CO2 was a reactant. On the other hand, when the pressure was higher than 5 MPa, the concentration of CO2 in the reaction phase was high enough. Thus, higher CO2 pressure had almost no contribution to the reaction rate, while possibly decreasing the concentration of 2-aminothiophenol in the vicinity of the catalyst, which would retard the interaction, thus resulting in a low efficiency [42,43,44]. Therefore, 5 MPa was deemed a suitable CO2 pressure.
Table 3 shows the temperature dependence of the reaction. Obviously, the reaction was sensitive to the reaction temperature. The yield of benzothiazolone increased sharply as the temperature rose from 110 °C to 150 °C, and reached 91% at 150 °C. The product yield remained unchanged with a further increase in temperature to 160 °C. Accordingly, 150 °C was determined as an appropriate reaction temperature for the synthesis of benzothiazolone.
Table 4 shows the effect of catalyst amount on the yield of benzothiazolone. As can be seen, the product yield increased with an increase in the amount of catalyst, and the maximum yield was obtained with 2mmol of catalyst. A further increase in the amount of catalyst had no notable effect on the yield.
The influence of reaction time on the synthesis of benzothiazolone is presented in Table 5. It was found that the yield noticeably increased with a variation in reaction time from 12 h to 24 h. Furthermore, a product yield of almost 99% was achieved when the reaction time was prolonged to 36 h.
To explore the scope of the reaction, four substituted 2-aminothiophenols with electron-withdrawing groups or electron-donating groups were reacted with CO2 using DBN as a catalyst, and the results are listed in Table 6. These substrates could be transformed to the corresponding benzothiazolones under the optimized reaction conditions. Methyl-substituted 2-aminothiophenol showed high activity when reacting with CO2, producing the corresponding benzothiazolone in a yield of 70% (Table 6, entry 2). In contrast, methoxy-substituted 2-aminothiophenol was less active, producing the corresponding benzothiazolone in a yield of 45% (Table 6, entry 3). The substrates with electron-withdrawing groups (e.g., –Cl and –Br) showed poor activity, and yields of 36% with 2D, and 23% with 2E were obtained, even when the reaction time was prolonged to 40 h (Table 6, entries 4, 5). When using the strong electron-withdrawing group, NO2, on the aromatic ring, the reaction did not take place. This was probably attributed to the electronic effect of 2-aminothiophenols. Substrates with electron-withdrawing groups showed lower reactivity, and the yields of the substituted substrates with neither electron-withdrawing groups nor electron-donating groups were also lower than the model reaction.
Based on previous reports and the experimental results [28,33,41,42,45], a probable catalytic cycle was proposed for the reaction of 2-aminothiophenols with CO2 to benzothiazolones using DBN as a catalyst, as depicted in Scheme 2. Firstly, CO2 could react with DBN to form the key carbamate intermediate 1, leading to the activation of CO2. The 2-aminothiophenols could be activated via a hydrogen bond between the carboxyl (COO) of intermediate 1, which could weaken the N–H bond of the NH2 group in 2-aminothiophenols, making it more favorable for the insertion of CO2. Then, the nucleophilic N atom would easily attack the carbon atom of the activated CO2, and with the intervention of a new DBN molecule, would form intermediate 3. Subsequently, intermediate 4 could be obtained through a dehydration reaction of intermediate 3, and the release of a DBN molecule. Finally, the SH group of the substrates could be further activated via a hydrogen bond, and the intramolecular nucleophilic cyclization of intermediate 4 would take place, thus yielding the product benzothiazolones.

3. Experimental Section

3.1. Materials

CO2 was provided by the Beijing Analytical Instrument Company (Beijing, China) with a purity of 99.99%. Furthermore, 2-aminothiophenol (1a; 98%), 2-amino-6-methylbenzothiazole (98%), 2-amino-6-methoxybenzothiazole (99%), 2-amino-6-chlorobenzothiazole (99%), 2-amino-6-bromobenzothiazole (98%), 1,5,7-triazabicyclo[4.4.0]dec-5-ene (TBD; 98%), 1,4-diazabicyclo[2.2.2]octane (DABCO; 97%), 1,1,3,3-tetramethylguanidine (TMG; 99%), 1-methylimidazole (MIm; 99%), hexamethylenetetramine (HMTA; 99%), 1-methyl-2-pyrrolidinone (NMP), and acetic acid (99%) were purchased from J&K Scientific Ltd (Beijing, China). On the other hand, 1,5-diazabicyclo[4.3.0]non-5-ene (DBN; 98%), 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU; 98%), and 4-nitroacetophenone (98%) were purchased from Alfa Aesar (Shanghai, China). Acetonitrile, N,N-dimethylformamide (DMF), dimethyl sulfoxide (DMSO) were analytical grade, and were provided by the Beijing Chemical Reagents Company (Beijing, China). NaOH was analytical grade, and was purchased from the Sinopharm Chemical Reagent Beijing Co., Ltd (Beijing, China). Finally, 2-amino-5-methylbenzenethiol (1b), 2-amino-5-methoxybenzenethiol (1c), 2-amino-5-chlorobenzenethiol (1d), and 2-amino-5-bromobenzenethiol (1e) were synthesized according to the published procedures (Supplementary Materials, References [S1–S5]). The other chemicals were used without further purification.

3.2. General Procedure for the Synthesis of 2-Aminothiophenol Substrates

In a typical procedure for the preparation of 2-amino-5-methylbenzenethiol (1b), a mixture of 2-amino-6-methylbenzothiazole (5 mmol) and KOH (50 mmol) in H2O (10 mL) was heated at 120 °C. The reaction mixture was kept on reflux for 24 h, and was then cooled to room temperature. Then, the mixture was filtered to remove the scraps, and the filtrate was neutralized with acetic acid (50% in water) to a pH of 6, before the precipitate was collected via filtration. Finally, the pure products were obtained via the column chromatography separation of the precipitate, and the target compound was obtained as a light yellow solid.
Similarly, 2-amino-5-methoxybenzenethiol (1c; reaction temperature, 120 °C; a yellow-green solid), 2-amino-5-chlorobenzenethiol (1d; reaction temperature, 140 °C; a bright-yellow solid), and 2-amino-5-bromobenzenethiol (1e; reaction temperature, 140 °C; a bright-yellow solid) were obtained via the same method using 2-amino-6-methoxybenzothiazole, 2-amino-6-chlorobenzothiazole, and 2-amino-6-bromobenzothiazole, respectively, as their corresponding raw materials.
The purified products were characterized via NMR (Bruker, Karlsruhe, Germany). The characterization data of the substrates are reported below, and the NMR spectra are given in the Supplementary Materials (Figures S1–S4).

3.3. Typical Procedure for the Synthesis of Benzothiazolones

The cyclocarbonylation of 2-aminothiophenol with CO2 was conducted in a Teflon-lined stainless-steel 22-mL autoclave equipped with a magnetic stirrer. In one example, 2-aminothiophenol (2 mmol, 0.2504 g), DBN (2 mmol, 0.2483 g), and NMP (2 mL ) were successively added into the reactor, and the reactor was placed into a water bath of 40 °C, before CO2 was charged into the reactor until the desired pressure (e.g., 5 MPa) was achieved. Then, the reactor was placed into an oil bath of desired temperature (e.g., 150 °C), and the stirrer was started. After a certain time (e.g., 24 h), the reactor was moved into ice water, and CO2 was slowly released. Finally, the reaction mixture was dissolved in methanol, and then transferred into a volumetric flask (100 mL). The quantity analysis of the products was conducted on an HPLC, using a Shimadzu LC-20AT pump, a Hypersil ODS2 5-µm column, and a Soma UV-Vis LC-830 detector at 282 nm. A methanol/water (50:50 v/v) solution was used as the mobile phase with a flow rate of 0.8 mL min‒1.
Similarly, the other benzothiazolone derivatives were obtained using the corresponding substituted 2-aminothiophenols as the substrates. The yields were determined via 1H NMR using 4-nitroacetophenone as the internal standard. The pure benzothiazolones products were obtained via column chromatography separation. The characterization data of the products are reported below, and the NMR spectra are given in the Supplementary Materials (Figures S5–S9).

3.4. NMR Spectral Data of the Substrates and Products

Compound 1b, 2-amino-5-methylbenzenethiol:1H NMR (400 MHz, DMSO) δ 6.92 (d, J = 8.1 Hz, 1H), 6.81 (s, 1H), 6.65 (d, J = 8.1 Hz, 1H), 5.22 (s, 2H), 2.05 (s, 3H). 13C NMR (100 MHz, DMSO) δ 147.84, 136.08, 132.35, 125.02, 117.12, 115.36, 20.13.
Compound 1c, 2-amino-5-methoxybenzenethiol:1H NMR (400 MHz, DMSO) δ 6.78 (dd, J = 8.8, 2.8 Hz, 1H), 6.72 (d, J = 8.8 Hz, 1H), 6.61 (d, J = 2.8 Hz, 1H), 5.05 (s, 2H), 3.54 (s, 3H). 13C NMR (100 MHz, DMSO) δ 150.60, 144.15, 119.12, 119.00, 117.56, 116.61, 55.74.
Compound 1d, 2-amino-5-chlorobenzenethiol:1H NMR (400 MHz, DMSO) δ 7.13 (dd, J = 8.7, 2.3 Hz, 1H), 6.90 (d, J = 2.2 Hz, 1H), 6.76 (d, J = 8.7 Hz, 1H), 5.71 (s, 2H); 13C NMR (100 MHz, DMSO) δ 149.18, 134.34, 131.39, 118.86, 117.60, 116.64.
Compound 1e, 2-amino-5-bromobenzenethiol:1H NMR (400 MHz, DMSO) δ 7.24 (dd, J = 8.7, 2.3 Hz, 1H), 6.99 (d, J = 2.2 Hz, 1H), 6.71 (d, J = 8.7 Hz, 1H), 5.75 (s, 2H); 13C NMR (100 MHz, DMSO) δ 149.55, 137.25, 134.14, 118.13, 117.10, 105.84.
Compound 2A, benzothiazolone:1H NMR (400 MHz, DMSO) δ 11.87 (s, 1H), 7.54 (d, J = 7.9 Hz, 1H), 7.26 (t, J = 7.6 Hz, 1H), 7.11 (d, J = 4.9 Hz, 2H).13C NMR (100 MHz, DMSO) δ 170.47, 136.79, 126.85, 123.76, 123.14, 123.04, 111.94.
Compound 2B, 6-methylbenzothiazolone:1H NMR (400 MHz, DMSO) δ 11.74 (s, 1H), 7.36 (s, 1H), 7.07 (d, J = 8.1 Hz, 1H), 6.99 (d, J = 8.1 Hz, 1H), 2.29 (s, 3H). 13C NMR (100 MHz, DMSO) δ 170.40, 134.45, 132.28, 127.58, 123.73, 123.13, 111.69, 21.10.
Compound 2C, 6-methoxybenzothiazolone:1H NMR (400 MHz, DMSO) δ 11.67 (s, 1H), 7.22 (d, J = 2.5 Hz, 1H), 7.01 (d, J = 8.7 Hz, 1H), 6.85 (dd, J = 8.7, 2.5 Hz, 1H), 3.72 (s, 3H). 13C NMR (100 MHz, DMSO) δ 170.24, 155.70, 130.36, 124.82, 113.68, 112.57, 108.19, 56.04.
Compound 2D, 6-chlorobenzothiazolone:1H NMR (400 MHz, DMSO) δ 12.05 (s, 1H), 7.61 (d, J = 8.4 Hz, 1H), 7.19 (dd, J = 8.4, 2.1 Hz, 1H), 7.11 (d, J = 2.0 Hz, 1H).13C NMR (100 MHz, DMSO) δ 170.57, 137.94, 131.28, 124.75, 122.91, 122.68, 111.69.
Compound 2E, 6-bromobenzothiazolone:1H NMR (400 MHz, DMSO) δ 12.01 (s, 1H), 7.83 (d, J = 2.0 Hz, 1H), 7.43 (dd, J = 8.5, 2.0 Hz, 1H), 7.05 (d, J = 8.5 Hz, 1H). 13C NMR (100 MHz, DMSO) δ 170.14, 136.10, 129.65, 126.06, 125.48, 114.45, 113.61.

4. Conclusions

In conclusion, we displayed a novel method of synthesizing benzothiazolones via the cyclocarbonylation of 2-aminothiophenols with CO2 as the C1 building block, catalyzed by DBN. A series of benzothiazolones was obtained. This work presents a green and environmentally benign method for the synthesis of benzothiazolones, and also opens a new way for the utilization of CO2 in the construction of various chemical bonds, such as C–S bonds.

Supplementary Materials

Supplementary Materials are available online at https://www.mdpi.com/2073-4344/8/7/271/s1.

Author Contributions

In this paper, Xiang Gao and Bo Yu designed the experiments; Xiang Gao, Yuehua Deng, Changyu Lu, Lei Zhang and Xintao Wang conducted the experiments and analyzed the data; Xiang Gao and Bo Yu wrote the article.

Funding

This research was funded by the Basic Research Plan of Natural Science in Shaanxi Province—General Project (Youth) (2018JQ2030), the Outstanding Youth Science Fund of Xi’an University of Science and Technology (6310218022), and the PhD Start-up Fund of Xi’an University of Science and Technology (6310117053).

Acknowledgements

We thank the Basic Research Plan of Natural Science in Shaanxi Province—General Project (Youth) (2018JQ2030), the Outstanding Youth Science Fund of Xi’an University of Science and Technology (6310218022), and the PhD Start-up Fund of Xi’an University of Science and Technology (6310117053).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, X.; Ling, G.; Xue, Y.; Lu, S. Selenium-Catalyzed Reductive Carbonylation of 2-Nitrophenols to2-Benzoxazolones. Eur. J. Org. Chem. 2005, 1675–1679. [Google Scholar] [CrossRef]
  2. Murru, S.; Mondal, P.; Yella, R.; Patel, B.K. Copper(I)-Catalyzed Cascade Synthesis of 2-Substituted 1,3-Benzothiazoles: Direct Access to Benzothiazolones. Eur. J. Org. Chem. 2009, 2009, 5406–5413. [Google Scholar] [CrossRef]
  3. Ciba, M.; Kaynak, F.; Ozgen, S.; Sahin, M.; Onkol, T. Microwave Synthesis and Antimicrobial Evaluation of Mannich Bases of 6-Benzoyl-2(3H)-benzothiazolone. Asian J. Chem. 2010, 22, 5685–5693. [Google Scholar]
  4. Aydın, A.; Akkurt, M.; Uzun, L.; Yıldırım, L.; Önkol, T. Synthesis, Crystal Structure and Spectroscopic Characterization of {6-[2-(2-chlorophenyl)-1,3-thiazol-4-yl]-2-oxo-1,3-benzothiazol-3(2H)-yl}acetic acid. J. Chem. Crystallogr. 2010, 40, 816–820. [Google Scholar] [CrossRef]
  5. Weng, J.; Huang, H.; Yu, Z.; Zhang, H.; Tan, C.; Liu, X. Synthesis and Fungicidal Activity of Hydrazone Derivatives Containing 2(3H)-Benzothiazolone Moiety. Asian J. Chem. 2012, 24, 561–564. [Google Scholar]
  6. Sridhar, R.; Perumal, P.T. A Novel Method for the Synthesis of 2(3H)-Benzimidazolones, 2(3H)-Benzoxazolone, and 2(3H)-Benzothiazolone via In Situ Generated Ortho Substituted Benzoic Acid Azides: Application of Ammonium Azide and Vilsmeier Complex for Acid Azide Generation. Synth. Commun. 2004, 34, 735–742. [Google Scholar] [CrossRef]
  7. Velikorodov, A.V.; Kuanchalieva, A.K.; Melent’eva, E.A.; Titova, O.L. Synthesis of 1,3-benzothiazol-2(3H)-one and some its derivatives. Russ. J. Org. Chem. 2011, 47, 1375–1379. [Google Scholar] [CrossRef]
  8. Liu, Q.; Wu, P.; Yang, Y.; Zeng, Z.; Liu, J.; Yi, H.; Lei, A. Room-Temperature Copper-Catalyzed Oxidation of Electron-Deficient Arenes and Heteroarenes Using Air. Angew. Chem. Int. Ed. 2012, 51, 4666–4670. [Google Scholar] [CrossRef] [PubMed]
  9. Li, J.; Zhang, Y.; Jiang, Y.; Ma, D. CuI-catalyzed one-pot synthesis of benzothiazolones from 2-iodoanilines-derived carbamates and sodium sulfide. Tetrahedron Lett. 2012, 53, 2511–2513. [Google Scholar] [CrossRef]
  10. Yang, Y.; Zhang, X.; Zeng, W.; Huang, H.; Liang, Y. Copper catalyzed three-component synthesis of benzothiazolones from o-iodoanilines, DMF, and potassium sulfide. RSC Adv. 2014, 4, 6090–6093. [Google Scholar] [CrossRef]
  11. Patonay, T.; Hegedüs, L.; Mogyoródi, F.; Zolnai, L. α-Haloalkyl Haloformates and Related Compounds. II. Synthesis of Dichloromethyl Carbonates and Their Transformation to Carbamates. Synth. Commun. 1994, 24, 2507–2513. [Google Scholar] [CrossRef]
  12. Troisi, L.; Granito, C.; Perrone, S.; Rosato, F. Synthesis of benzo-fused five- and six-membered heterocycles by palladium-catalyzed cyclocarbonylation. Tetrahedron Lett. 2011, 52, 4330–4332. [Google Scholar] [CrossRef]
  13. Singh, M.; Singh, P.; Singh, S. Synthesis of benzoxazole-2-ones, benzothiazole-2-ones and their 2-thione derivatives: Efficient conversion of 2-thione to 2-oxo derivatives. Indian J. Chem. 2007, 46, 1666–1671. [Google Scholar] [CrossRef]
  14. Fu, Y.; Baba, T.; Ono, Y. Carbonylation of o-Phenylenediamine and o-Aminophenol with Dimethyl Carbonate Using Lead Compounds as Catalysts. J. Catal. 2001, 197, 91–97. [Google Scholar] [CrossRef]
  15. Schwiebert, K.E.; Chin, D.N.; MacDonald, J.C.; Whitesides, G.M. Engineering the Solid State with 2-Benzimidazolones. J. Am. Chem. Soc. 1996, 118, 4018–4029. [Google Scholar] [CrossRef]
  16. Jing, Y.; Liu, R.; Lin, Y.; Zhou, X. Lanthanide-catalyzed cyclocarbonylation and cyclothiocarbonylation: A facile synthesis of benzannulated 1,3-diheteroatom five- and six-membered heterocycles. Sci. China Chem. 2014, 57, 1117–1125. [Google Scholar] [CrossRef]
  17. Sakakura, T.; Choi, J.C.; Yasuda, H. Transformation of carbon dioxide. Chem. Rev. 2007, 107, 2365–2387. [Google Scholar] [CrossRef] [PubMed]
  18. Cokoja, M.; Bruckmeier, C.; Rieger, B.; Herrmann, W.A.; Kuhn, F.E. Transformation of Carbon Dioxide with Homogeneous Transition-Metal Catalysts: A Molecular Solution to a Global Challenge? Angew. Chem. Int. Ed. 2011, 50, 8510–8537. [Google Scholar] [CrossRef] [PubMed]
  19. He, M.; Sun, Y.; Han, B. Green carbon science: scientific basis for integrating carbon resource processing, utilization, and recycling. Angew. Chem. Int. Ed. 2013, 52, 9620–9633. [Google Scholar] [CrossRef] [PubMed]
  20. Aresta, M.; Dibenedetto, A.; Angelini, A. Catalysis for the Valorization of Exhaust Carbon: from CO2 to Chemicals, Materials, and Fuels. Technological Use of CO2. Chem. Rev. 2014, 114, 1709–1742. [Google Scholar] [PubMed]
  21. Yu, B.; He, L.-N. Upgrading carbon dioxide by incorporation into heterocycles. Using carbon dioxide as a building block in organic synthesis. ChemSusChem 2015, 8, 52–62. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, Q.; Wu, L.; Jackstell, R.; Beller, M. Using carbon dioxide as a building block in organic synthesis. Nat. Commun. 2015, 6, 5933–5947. [Google Scholar] [CrossRef] [PubMed]
  23. Hartwig, J.F. Carbon–heteroatom bond formation catalysed by organometallic complexes. Nature 2008, 455, 314–322. [Google Scholar] [CrossRef] [PubMed]
  24. Shen, C.; Zhang, P.F.; Sun, Q.; Bai, S.Q.; Hor, T.S.A.; Liu, X.G. Recent advances in C–S bond formation via C–H bond functionalization and decarboxylation. Chem. Soc. Rev. 2015, 44, 291–314. [Google Scholar] [CrossRef] [PubMed]
  25. Gao, X.; Yu, B.; Zhao, Y.F.; Hao, L.D.; Liu, Z.M. Hydrosilane-promoted cyclization of 2-aminothiophenols by CO2 to benzothiazoles. RSC Adv. 2014, 4, 56957–56960. [Google Scholar] [CrossRef]
  26. Gao, X.; Yu, B.; Yang, Z.Z.; Zhao, Y.F.; Zhong, H.Y.; Hao, L.D.; Han, B.X.; Liu, Z.M. Ionic Liquid-Catalyzed C–S Bond Construction using CO2 as a C1 Building Block under Mild Conditions: A Metal-Free Route to Synthesis of Benzothiazoles. ACS Catal. 2015, 5, 6648–6652. [Google Scholar] [CrossRef]
  27. Zhao, Y.; Wu, Y.; Yuan, G.; Hao, L.; Gao, X.; Yang, Z.; Yu, B.; Zhang, H.; Liu, Z. Azole-Anion-Based Aprotic Ionic Liquids: Functional Solvents for Atmospheric CO2 Transformation into Various Heterocyclic Compounds. Chem. Asian J. 2016, 11, 2735–2740. [Google Scholar] [CrossRef] [PubMed]
  28. Yu, B.; Zhang, H.; Zhao, Y.; Chen, S.; Xu, J.; Hao, L.; Liu, Z. DBU-Based Ionic-Liquid-Catalyzed Carbonylation of o-Phenylenediamines with CO2 to 2-Benzimidazolones under Solvent-Free Conditions. ACS Catal. 2013, 3, 2076–2082. [Google Scholar] [CrossRef]
  29. Endo, T.; Nagai, D.; Monma, T.; Yamaguchi, H.; Ochiai, B. A novel construction of a reversible fixation− release system of carbon dioxide by amidines and their polymers. Macromolecules 2004, 37, 2007–2009. [Google Scholar] [CrossRef]
  30. Heldebrant, D.J.; Jessop, P.G.; Thomas, C.A.; Eckert, C.A.; Liotta, C.L. Liotta, The Reaction of 1,8-Diazabicyclo[5.4.0]undec-7-ene (DBU) with Carbon Dioxide. J. Org. Chem. 2005, 70, 5335–5338. [Google Scholar] [CrossRef] [PubMed]
  31. Pereira, F.S.; deAzevedo, E.R.; da Silva, E.F.; Bonagamba, T.J.; Agostíni, D.L.d.; Magalhães, A.; Job, A.E.; González, E.R.P. Study of the carbon dioxide chemical fixation-activation by guanidines. Tetrahedron 2008, 64, 10097–10106. [Google Scholar] [CrossRef]
  32. Yang, Z.-Z.; He, L.-N.; Zhao, Y.-N.; Li, B. CO2 capture and activation by superbase/polyethylene glycol and its subsequent conversion. Energy Environ. Sci. 2011, 4, 3971–3975. [Google Scholar] [CrossRef]
  33. Zhao, Y.-N.; Yang, Z.-Z.; Luo, S.-H.; He, L.-N. Design of task-specific ionic liquids for catalytic conversion of CO2 with aziridines under mild conditions. Catal. Today 2013, 200, 2–8. [Google Scholar] [CrossRef]
  34. Sun, J.; Cheng, W.; Yang, Z.; Wang, J.; Xu, T.; Xin, J.; Zhang, S. Superbase/cellulose: An environmentally benign catalyst for chemical fixation of carbon dioxide into cyclic carbonates. Green Chem. 2014, 16, 3071–3078. [Google Scholar] [CrossRef]
  35. Gregory, G.L.; Ulmann, M.; Buchard, A. Synthesis of 6-membered cyclic carbonates from 1, 3-diols and low CO2 pressure: a novel mild strategy to replace phosgene reagents. RSC Adv. 2015, 5, 39404–39408. [Google Scholar] [CrossRef] [Green Version]
  36. Wang, L.; Kodama, K.; Hirose, T. DBU/benzyl bromide: An efficient catalytic system for the chemical fixation of CO2 into cyclic carbonates under metal-and solvent-free conditions. Catal. Sci. Technol. 2016, 6, 3872–3877. [Google Scholar] [CrossRef]
  37. Cecchi, L.; de Sarlo, F.; Machetti, F. 1,4-Diazabicyclo[2.2.2]octane (DABCO) as an Efficient Reagent for the Synthesis of Isoxazole Derivatives from Primary Nitro Compounds and Dipolarophiles: The Role of the Base. Eur. J. Org. Chem. 2006, 2006, 4852–4860. [Google Scholar] [CrossRef]
  38. Heller, S.T.; Schultz, E.E.; Sarpong, R. Chemoselective N-Acylation of Indoles and Oxazolidinones with Carbonylazoles. Angew. Chem. Int. Ed. 2012, 51, 8304–8308. [Google Scholar] [CrossRef] [PubMed]
  39. Quaranta, E.; Angelini, A.; Carafa, M.; Dibenedetto, A.; Mele, V. Carbonic Acid Diester Activation by Polymer-Bound DBU and Its Relevance to Catalytic N-Carbonylation of N-Heteroaromatics: Direct Evidence for an Elusive N-Carboxy-Substituted Amidinium Cation Intermediate. ACS Catal. 2014, 4, 195–202. [Google Scholar] [CrossRef]
  40. Arico, F.; Evaristo, S.; Tundo, P. Synthesis of five-and six-membered heterocycles by dimethyl carbonate with catalytic amounts of nitrogen bicyclic bases. Green Chem. 2015, 17, 1176–1185. [Google Scholar] [CrossRef]
  41. Shim, Y.N.; Lee, J.K.; Im, J.K.; Mukherjee, D.K.; Nguyen, D.Q.; Cheong, M.; Kim, H.S. Ionic liquid-assisted carboxylation of amines by CO2: A mechanistic consideration. Phys. Chem. Chem. Phys. 2011, 13, 6197–6204. [Google Scholar] [CrossRef] [PubMed]
  42. Jiang, T.; Ma, X.; Zhou, Y.; Liang, S.; Zhang, J.; Han, B. Solvent-free synthesis of substituted ureas from CO2 and amines with a functional ionic liquid as the catalyst. Green Chem. 2008, 10, 465–469. [Google Scholar] [CrossRef]
  43. Yang, Z.-Z.; He, L.-N.; Miao, C.-X.; Chanfreau, S. Lewis Basic Ionic Liquids-Catalyzed Conversion of Carbon Dioxide to Cyclic Carbonates. Adv. Synth. Catal. 2010, 352, 2233–2240. [Google Scholar] [CrossRef]
  44. Yang, Z.-Z.; He, L.-N.; Peng, S.-Y.; Liu, A.-H. Lewis basic ionic liquids-catalyzed synthesis of 5-aryl-2-oxazolidinones from aziridines and CO2 under solvent-free conditions. Green Chem. 2010, 12, 1850–1854. [Google Scholar] [CrossRef]
  45. Kee, C.W.; Peh, K.Q.E.; Wong, M.W. Coupling Reactions of Alkynyl Indoles and CO2 by Bicyclic Guanidine: Origin of Catalytic Activity? Chem. Asian J. 2017, 12, 1780–1789. [Google Scholar] [CrossRef] [PubMed]
Catalysts 08 00271 sch001 550

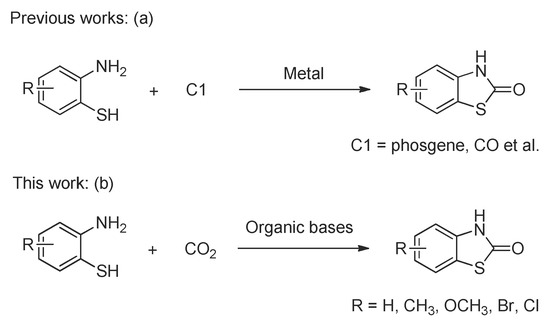

Scheme 1. Cyclocarbonylation of 2-aminothiophenols with various carbonylation agents.
Scheme 1. Cyclocarbonylation of 2-aminothiophenols with various carbonylation agents.
Catalysts 08 00271 sch001
Catalysts 08 00271 g001 550

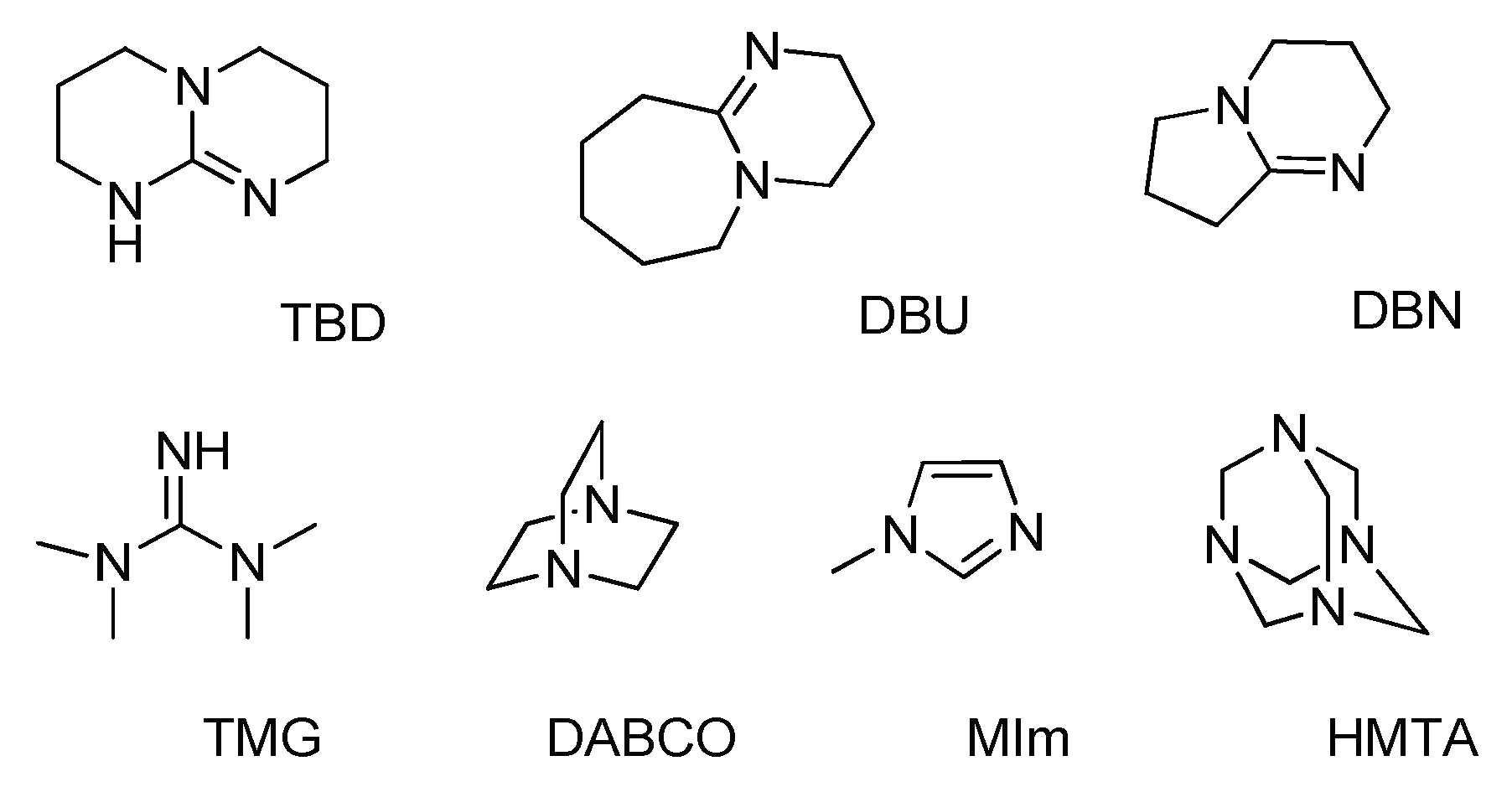

Figure 1. Structures of the organic bases used in this study: 1,5,7-triazabicyclo[4.4.0]dec-5-ene (TBD), 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU), 1,5-diazabicyclo[4.3.0]non-5-ene (DBN), 1,1,3,3-tetramethylguanidine (TMG), 1,4-diazabicyclo[2.2.2]octane (DABCO), 1-methylimidazole (MIm), and hexamethylenetetramine (HMTA).
Figure 1. Structures of the organic bases used in this study: 1,5,7-triazabicyclo[4.4.0]dec-5-ene (TBD), 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU), 1,5-diazabicyclo[4.3.0]non-5-ene (DBN), 1,1,3,3-tetramethylguanidine (TMG), 1,4-diazabicyclo[2.2.2]octane (DABCO), 1-methylimidazole (MIm), and hexamethylenetetramine (HMTA).
Catalysts 08 00271 g001
Catalysts 08 00271 sch002 550

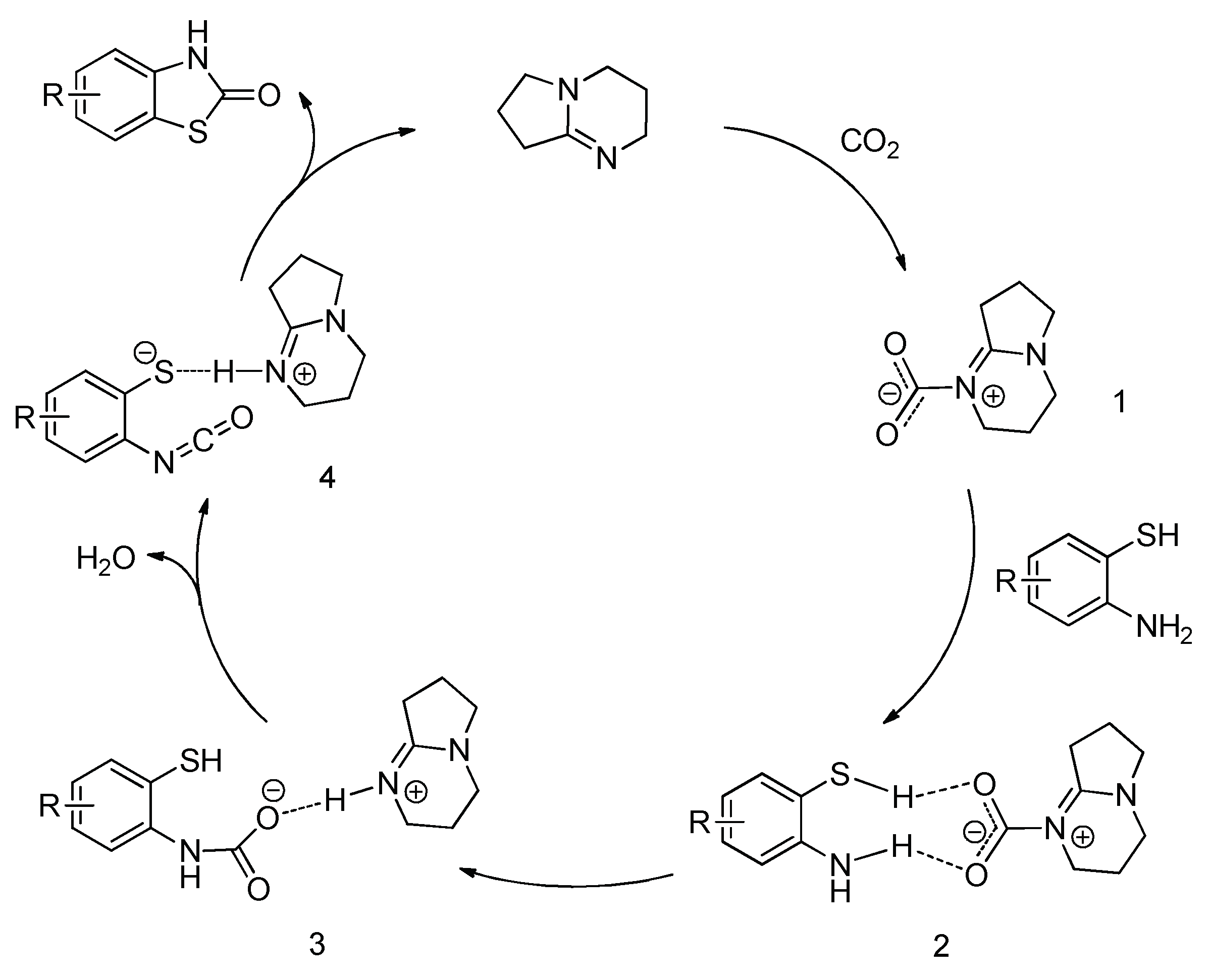

Scheme 2. The proposed mechanism.
