Transformation of 2-Butene into Propene on WO₃/MCM-48: Metathesis and Isomerization of n-Butene

Abstract

The metathesis of 2-butene (Trans and Cis) to propene was investigated over W-based catalysts. Thermodynamic calculations for metathesis and isomerization were carried out at various temperatures to test the reactions. The results showed that the WO₃/MCM-48 catalyst had good catalytic activity. The metathesis activity depended on the acidity of the catalyst and the dispersity of the WO₃ on the supports. High temperatures promoted the isomerization of 2-butene to 1-butene. According to thermodynamic analysis, however, this is adverse to the metathesis reaction, making it important to determine an appropriate reaction temperature.

1. Introduction

Olefin metathesis, which is the reaction of olefin carbon–carbon double bond cleavage and intermolecular rearrangement to form new olefins, can convert low-value olefins to high-value olefins; for example, the by-product of 2-butene into propene of market demand [1] has great prospects in the petrochemical industry and in organic synthesis. Generally, transition metal compounds are used as metathesis catalysts, which are classified into two main groups: (a) heterogeneous catalysts—transition metal oxides or carbonyls deposited on high-surface-area supports, (b) homogeneous catalysts—transition metal salts or coordination compounds in combination with selected organometallic derivatives, or Lewis acids [2]. The most successful heterogeneous catalysts for olefin metathesis are rhenium-based [3], molybdenum-based [4], and tungsten-based [5] catalysts.

Now, many olefin metathesis routes [6,7,8] have been reported to produce propene. Inclusive, we have reported a new propene synthesis route with 2-butene [9].

Most metathesis catalysts are sensitive to oxygen and/or moisture, particularly Re-based and Mo-based catalysts, so metathesis reactions have to be performed in an inert atmosphere. Tungsten-based catalysts have been established to be low cost, poison resistant [10], and regenerative [11]. Accordingly, tungsten-based catalysts have been investigated for decades [12,13]. The support material is one of the key factors influencing the performance of catalysts. WO₃-SiO₂-Al₂O₃ metathesis catalysts were reported to be yielded by one-step preparation methods [14]. Chaemchuen et al. [15] reported that the relationship between the reactivity of catalysts and temperature calcined. Porous materials offer special possibilities, such as large surface areas, large void volume, and so on. Wu et al. [8] reported that tungsten incorporated ordered, mesoporous silicates as a metathesis catalyst. Super-microporous WO₃/SiO₂ olefin metathesis catalysts were prepared by a one-pot aerosol-assisted Sol-gel method [16]. Isomerization and metathesis of 2-butene, however, was less reported.

In the contribution, 2-butene was used as feed stock to study isomerization on MgO. In order to know the effects of supports on the metathesis performance of catalysts, MCM-48, MCM-41 and SiO₂ were used as supports. Four main independent reactions were selected to calculate their thermodynamic properties. The experiments were carried out under different conditions and thermodynamic analyses.

2. Results and Discussion

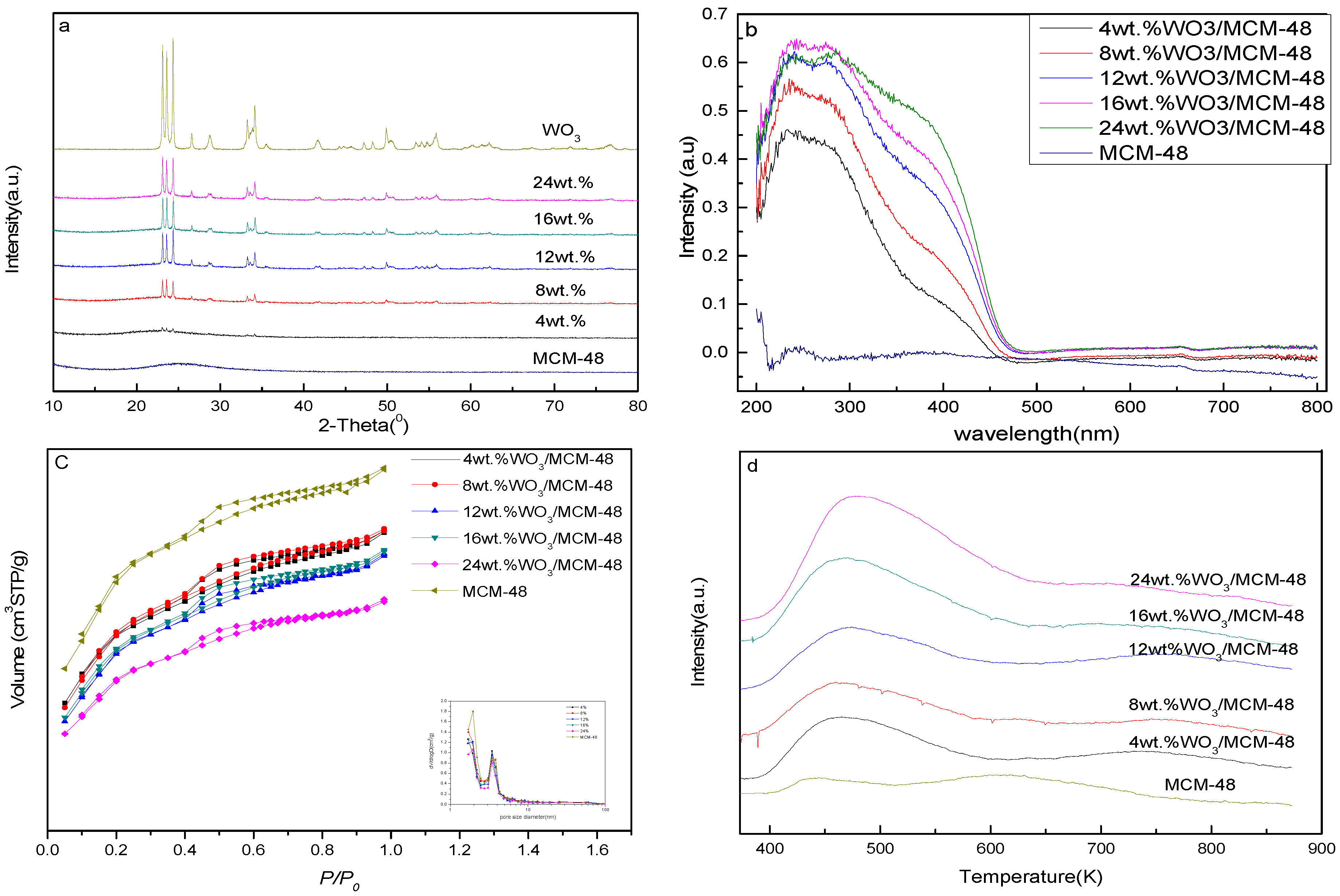

Figure 1 demonstrates the effects of loading on the structural characteristics of the catalysts. Figure 1a shows the XRD (X-ray diffraction) patterns of the catalysts. The characteristic peak of SiO₂ at 10–80° (2-Theta), was only observed for MCM-48. The weak peaks at 23–26° (2-Theta), corresponded to the crystalline phase of WO₃ and were observed for 8WO₃/MCM-48. When loading was more than 8 wt.%, strong peaks at 23–26° and 30–25° (2-Theta) were found; this indicated that the dispersity of WO₃ had worsened. Figure 1b shows the UV-vis DRS of catalysts. There were two absorption bands at ca. 225 and 270 nm for all W-based catalysts. There was an additional absorption band at ca. 400 nm for W-based catalysts with W-loading beyond 4 wt.%. As shown in Figure 1b, MCM-48 does not possess the band. This indicates that the loading of tungsten on supports results in an absorption band at 400 nm. The band at 225 nm is attributed to the charge transfer of the ligand-to-metal which stems from the isolated tetrahedral species [8,9,17]. The band at ca. 270 nm is due to the charge transfer (O²⁻ → W⁶⁺) which is attributed to the octahedral polytungstate WO₃ species [8,9,17]. The absorption band at ca. 400 nm is attributed to the bulk WO₃ species [8]. Uniquely, the band intensities at ca. 225 and 270 nm changed with WO₃ loading which indicated that the populations of active W species were different. Both the intensity of the absorption band at ca. 400 nm and the populations of inactive bulk WO₃ species were higher. Figure 1c shows the isotherms of nitrogen adsorption and pore size distribution for W-based catalysts. The textural properties of catalysts and supports were listed in

Table 1. Characteristics of WO₃/MCM-48.

Samples	SBET (m2/g)	VP (cm3/g)	Average Pore Size (nm)	Total Acidity (mmol/g)
4 wt.%WO3/MCM-48	890.3	0.5376	2.590	0.1967
8 wt.%WO3/MCM-48	881.2	0.5409	2.544	0.2801
12 wt.%WO3/MCM-48	877.1	0.5243	2.578	0.2523
16 wt.%WO3/MCM-48	879.2	0.5299	2.557	0.4579
24 wt.%WO3/MCM-48	875.2	0.5137	2.524	0.4731
MCM-48(powder)	1032.1	0.7296	2.701	0.0215
MCM-48(support)	905.4	0.5639	2.601	0.0198

. The nitrogen adsorption–desorption isotherms of reversible type IV can also be found in Figure 1c. Pore size distribution was ca. 2.5 nm. The specific surface areas of MCM-48 and catalysts were 1302.1 and ca. 880 m²/g, respectively. The textural properties of supports and catalysts are different for the squash technique. Table 1 shows the acidity of WO₃-based catalysts with different loadings. The acidity of MCM-48 was low; however, after the WO₃ was loaded on MCM-48, the acidity of the catalysts became strong enough for interaction between supports and WO₃ to form acidic sites. The peak at 453–473 K was attributed to a weak acid peak and the peak shifted to slightly higher temperatures with loading. It was interesting to note the increased acidity of the catalysts with tungsten loading.

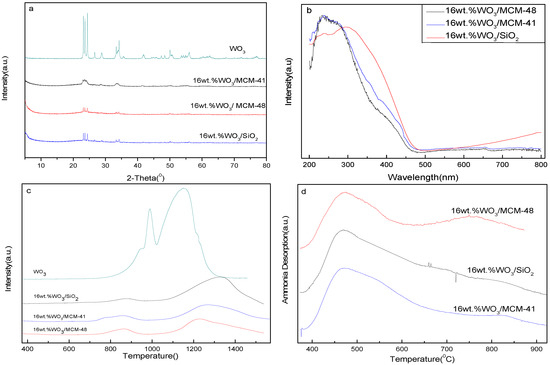

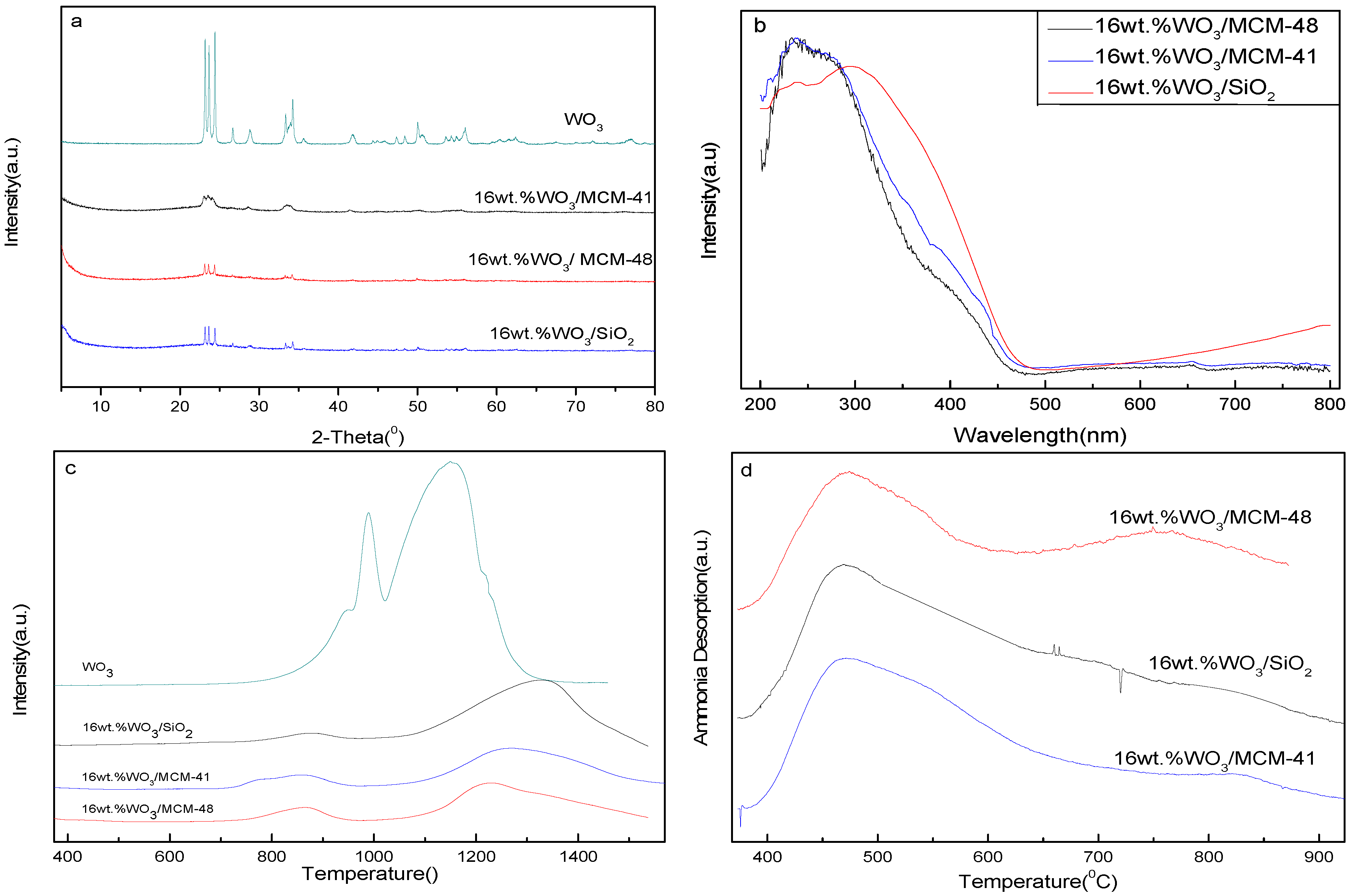

Figure 2a shows the XRD spectrum of catalysts with various supports. The intensity of peaks at 22–25° increased as follows: 16 wt.%WO₃/MCM-48 < 16 wt.%WO₃/MCM-41 < 16 wt.%WO₃/SiO₂, indicating that dispersion of WO₃ on supports worsened. Figure 2b shows the UV-vis DRS of all catalysts. The population of tetrahedral tungsten oxide species was more than that of octahedral W species in the cases of both WO₃/MCM-48 and WO₃/MCM-41. These cases are opposite to WO₃/SiO₂. The intensity of peaks at ca. 400 nm increased as follows: 16 wt.%WO₃/MCM-48 < 16 wt.%WO₃/MCM-41 < 16 wt.%WO₃/SiO₂, showing that the dispersity of WO₃ is different on supports, and the result is in accordance with that of XRD. It was found that peak shifts occurred in the case of 16 wt.%WO₃/SiO₂ for a band at 400 nm. Figure 2c shows the reduction profiles of all catalysts. The position and area of peaks for each catalyst were different. There were two discriminated peaks, one at ca. 853 and the other at 1223 K. The peak at ca. 853 K was attributed to surface WO₃ species (tetrahedral tungsten oxide species) [15], and this peak area qualitatively expressed the population of relevant species. The acid characteristics of catalysts are shown in Figure 2d. Peaks at 473 and 823 K correspond to weak and strong acidic sites respectively. The data are detailed in

Table 2. Characteristics of W-based catalysts.

Samples	SBET (m2/g)	VP (cm3/g)	Average Pore Size (nm)	Total Acidity (mmol/g)
16 wt.%WO3/SiO2	341.8	0.7548	8.778	0.4133
16 wt.%WO3/MCM-41	822.6	0.5295	2.574	0.4431
16 wt.%WO3/MCM-48	879.2	0.5099	2.557	0.4579

.

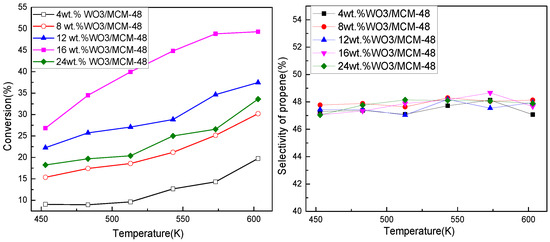

Figure 3 shows the effect of loadings on the performance of catalysts. Butene conversion increased with loadings of WO₃ and catalysts with loadings of 16 wt.% held the highest activity. The conversion of butene decreased with further increase of loadings. Catalytic activity of metathesis catalysts is related to surface tungsten oxide species (tetrahedral) [12,18], which depend on the loading of WO₃. Here, UV-DRS results showed that catalysts with loadings of 16 wt.% held a relatively high proportion of tetrahedral tungsten oxide species at ca. 225 nm. The population of octahedral tungsten oxide species and bulk WO₃ increased exponentially with loading above 16 wt.%, even tetrahedral tungsten oxide species converted into tungsten oxide species without metathesis activity. Catalytic performance also depended on the acidity of the catalyst. Catalysts with more acidic sites showed higher performance. Loading had little effect on propene selectivity.

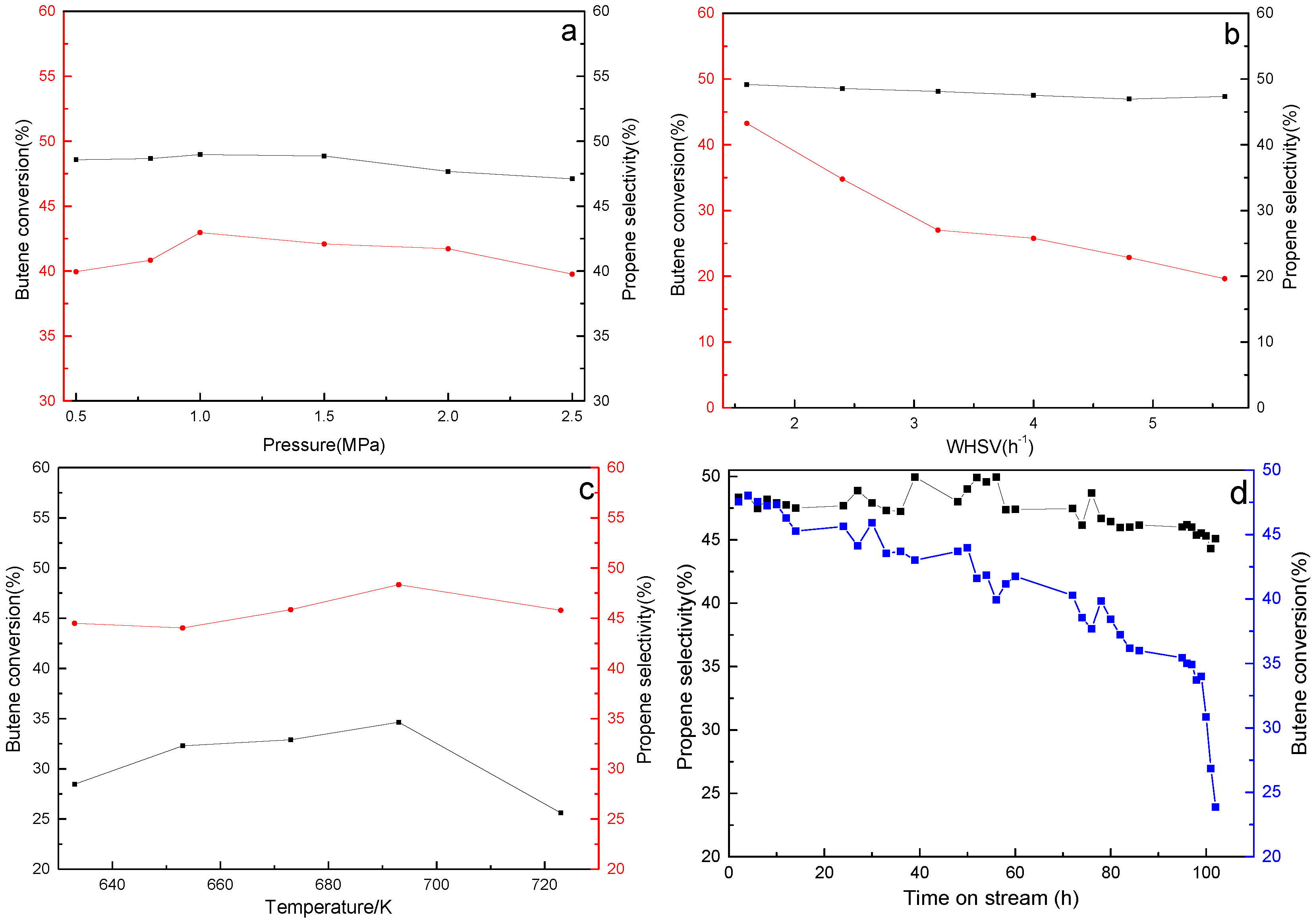

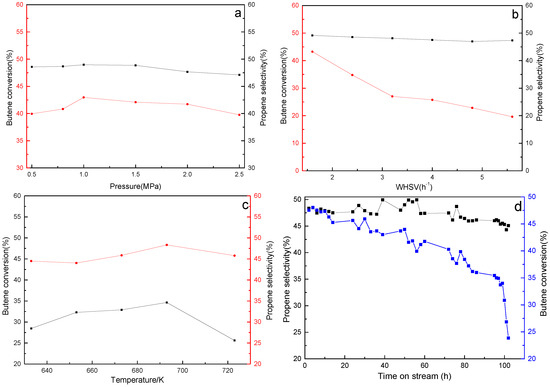

Figure 4 shows the effect of reaction conditions on the performance of a 16 wt.%WO₃/MCM-48 catalyst. As shown in Figure 4a, butene conversion and propene selectivity change slightly with pressure in an equimolar reaction. In Figure 4b, the performance of the catalyst decreases with WHSV, which is attributed to reduced residence time on the catalyst at a temperature. Butene conversion and propene selectivity increase with temperature and are highest at ca. 693 K.

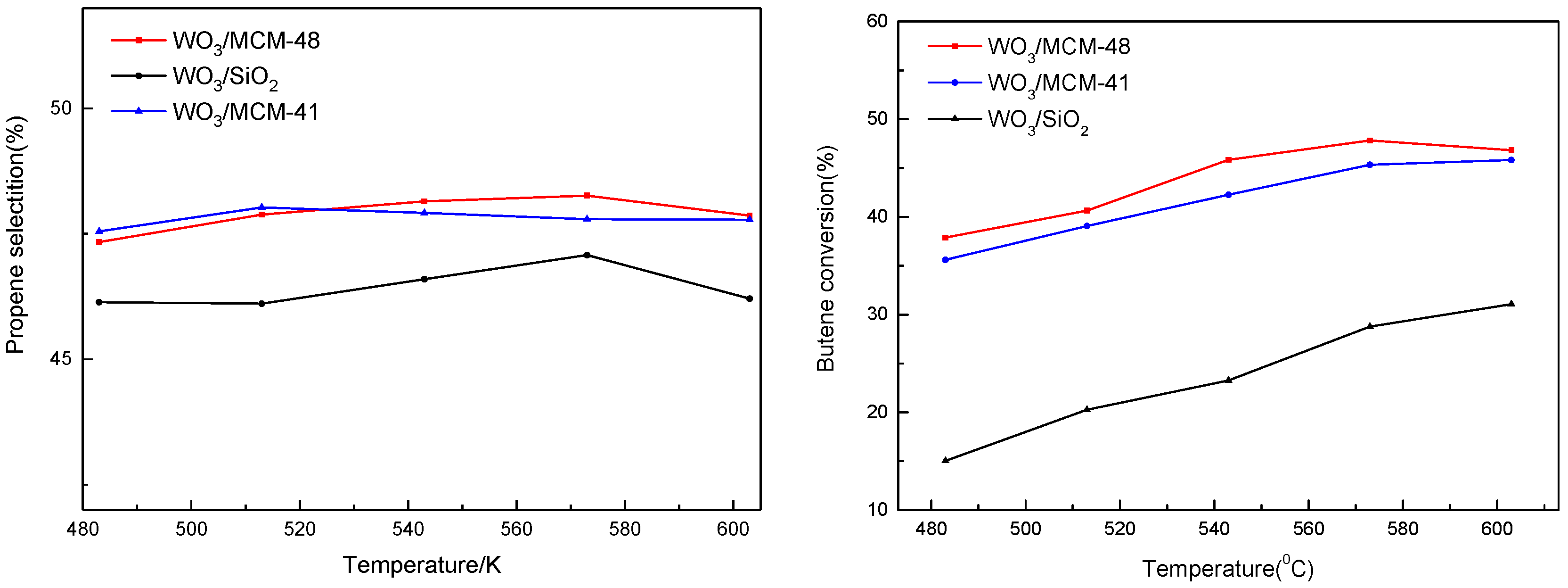

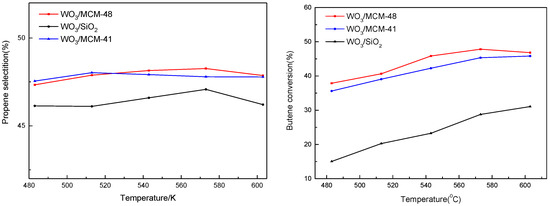

It is found that supports significantly affect the performance of catalyst. In Figure 5, propene selectivity is considerable on 16 wt.%WO₃/MCM-48 and 16 wt.%WO₃/MCM-41 catalysts but is lower on 16 wt.%WO₃/SiO₂. Butene conversion has the same trend as propene selectivity. Bronsted acidity and surface tetrahedral tungsten species play an important role in the metathesis reaction. There is a direct relation between Bronsted acidity and surface tetrahedral tungsten species in line with the above results characteristic of catalysts.

Analysis of Thermodynamics of n-Butene

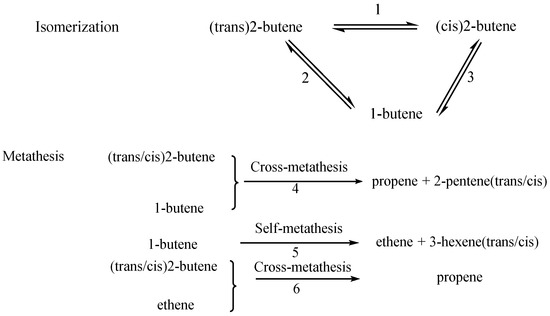

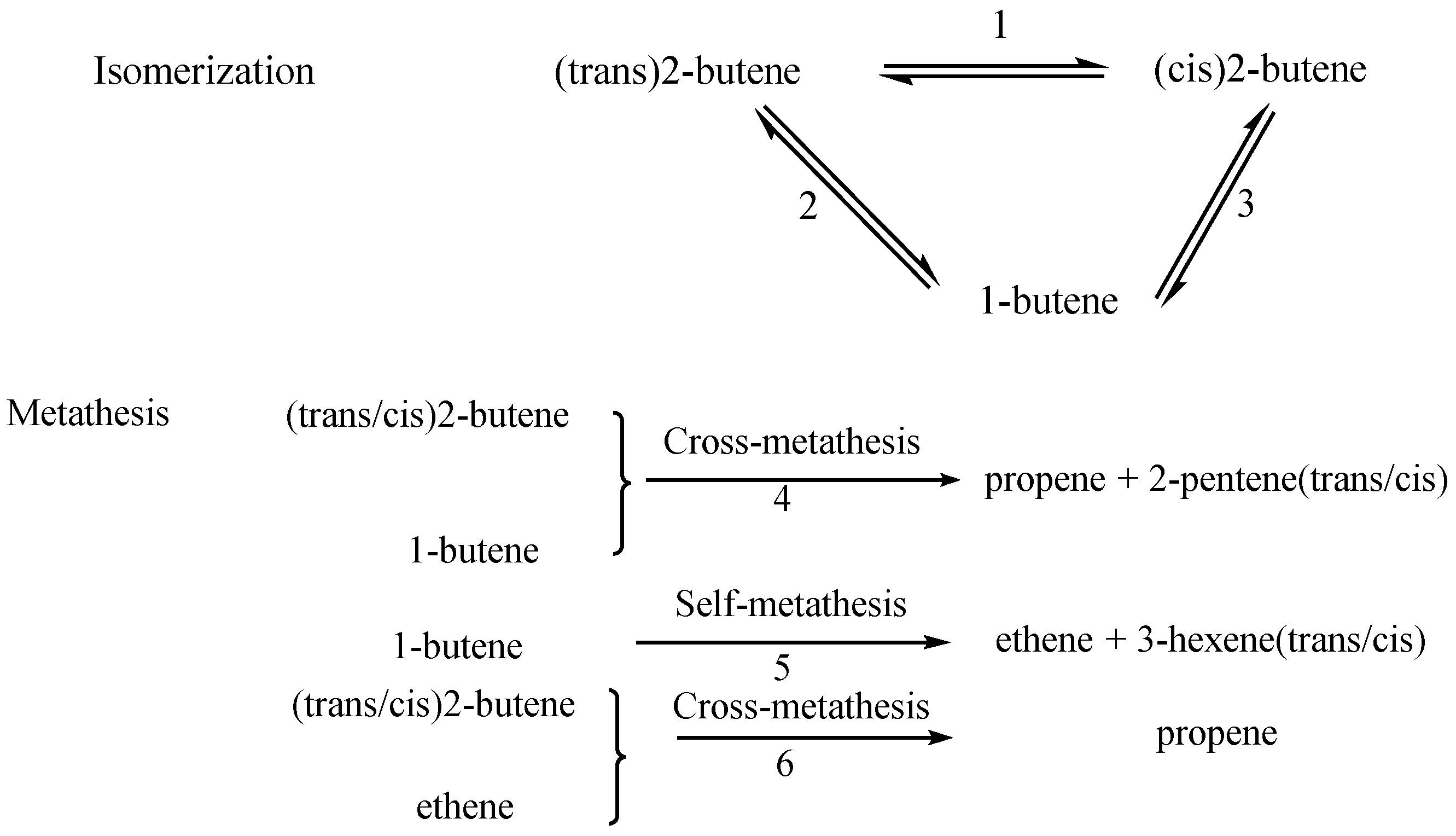

Isomerization of 2-butene to 1-butene is a key reaction. The 2-butene isomerization mainly consists of the double-bond positional and trans/cis isomerization (Scheme 1). The isomerization is endothermic (

Table 3. Thermodynamic parameters of various temperatures.

Temperature (K)	Reactions		${\Delta }_{\mathit{r}}{\mathit{H}}_{\mathit{m}}^{\mathit{\theta } }\mathbf{\left(}\mathit{T}\mathbf{\right)}$ $\mathbf{(}\mathbf{k}\mathbf{J}/\mathbf{mol}\mathbf{)}$	${\Delta }_{\mathit{r}}{\mathit{S}}_{\mathit{m}}^{\mathit{\theta } }\mathbf{\left(}\mathit{T}\mathbf{\right)}$ $\mathbf{(}\mathbf{k}\mathbf{J}\mathbf{/}{\mathbf{molK}}^{\mathbf{-}\mathbf{1}}\mathbf{)}$	${\Delta }_{\mathit{r}}{\mathit{G}}_{\mathit{m}}^{\mathit{\theta } }\left(\mathit{T}\right)$ $(\mathbf{k}\mathbf{J}/\mathbf{mol})$	Log (K)
633	2		10.51	11.06	3.504	0.5139
	3		8.412	10.505	1.761	0.7156
	4	C to C	−5.620	−18.72	6.198	−2.171
		C to T	−0.696	0.615	−1.085	0.375
		T to C	0.665	1.229	−0.113	0.039
		T to T	−0.195	0.748	−0.669	0.231
	5	B to C	0.990	−4.628	3.920	−1.353
		B to T	0.295	−4.722	3.285	−1.134
	6	C to P	−0.728	3.871	−3.179	1.097
		T to P	−0.277	4.004	−2.762	0.954
653	2		10.5	11.049	3.283	0.5643
	3		8.468	10.591	1.55	0.7517
	4	C to C	−5.946	−19.318	6.671	−2.232
		C to T	−0.696	0.616	−1.098	0.367
		T to C	0.643	1.195	−0.137	0.046
		T to T	−0.210	0.725	−0.684	0.229
	5	B to C	0.980	−4.463	4.013	−1.343
		B to T	0.299	−4.714	3.379	−1.131
	6	C to P	−0.721	3.882	−3.257	1.090
		T to P	−0.235	3.991	−2.842	0.951
673	2		10.49	11.034	3.062	0.578
	3		8.520	10.670	1.338	0.784
	4	C to C	−6.160	−19.641	7.061	−2.293
		C to T	−0.696	0.615	−1.110	0.360
		T to C	0.621	1.161	−0.161	0.052
		T to T	−0.225	0.702	−0.698	0.227
	5	B to C	0.9710	−4.657	4.106	−1.333
		B to T	0.301	−4.712	3.473	−1.128
	6	C to P	−0.714	3.892	−3.334	1.083
		T to P	−0.244	3.797	−2.922	0.949
693	2		10.48	11.02	2.842	0.610
	3		8.571	10.744	1.123	0.8229
	4	C to C	−6.393	19.981	7.457	−2.351
		C to T	−0.6970	0.6130	−1.122	0.3540
		T to C	0.6000	1.130	−0.1840	0.05800
		T to T	−0.2410	0.6790	−0.7120	0.2240
	5	B to C	0.9620	−4.670	4.199	−1.324
		B to T	0.303	−4.709	3.568	−1.125
	6	C to P	−0.708	3.901	−3.412	1.076
		T to P	−0.252	3.967	−3.002	0.946
723	2		10.47	11.00	2.511	0.6585
	3		8.644	10.847	0.7990	0.8755
	4	C to C	−6.774	−20.52	8.064	−2.437
		C to T	−0.6990	0.6110	−1.141	0.345
		T to C	0.5700	1.088	−0.2170	0.066
		T to T	−0.2630	0.6470	−0.7320	0.221
	5	B to C	0.9500	−4.687	4.339	−1.312
		B to T	0.306	−4.706	3.709	−1.121
	6	C to P	−0.699	3.914	−3.530	1.067
		T to P	−0.263	3.951	−3.120	0.943

Note: all data from API (American Petroleum Institute) book-10th and HSC 6.0.

), therefore, high temperatures elicit favorable reactions, and ΔG of the reaction positively indicates that the reactions are not spontaneous.

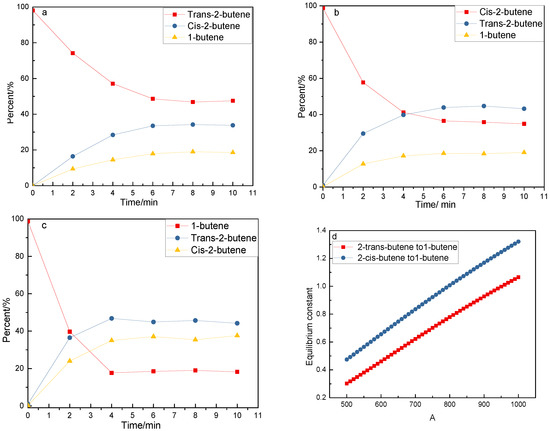

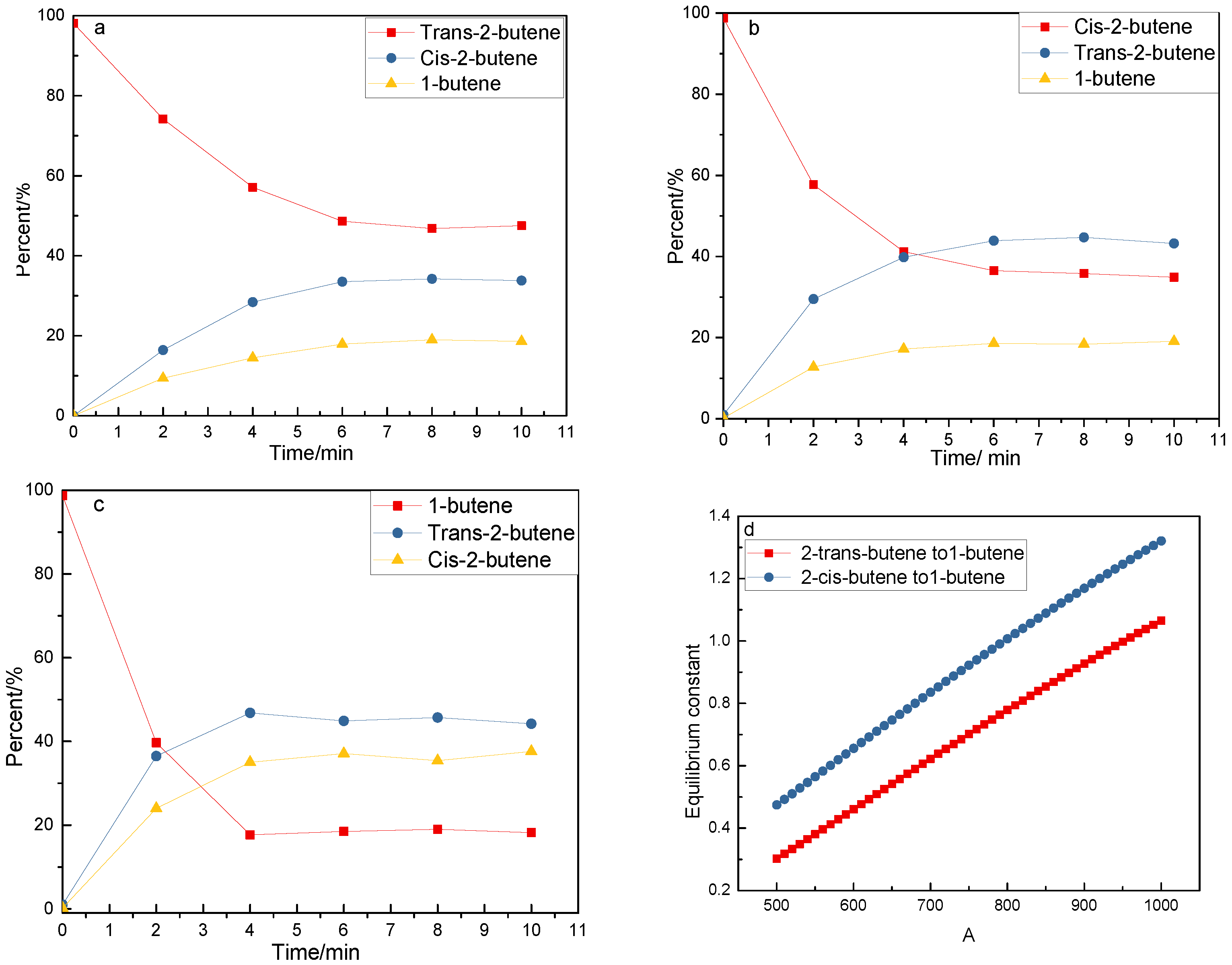

Isomerization of butene was carried out over 2 g MgO at 473 K in a stainless reactor. The results are shown in Figure 6. Other products were not found, indicating that only isomerization occurred. As can be seen in Figure 6a–c, the rate of cis-2-butene as a reactant was higher than that of tras-2-butene as a reactant; the rate of isomerization of 1-butene was the highest while the reverse reaction was the slowest. At equilibrium, ratios of trans-2-butene to 1-butene and cis-2-butene to 1-butene were ca. 0.38 and 0.61, respectively. The ratios were near equilibrium at 473 K (Figure 6d, data from HSC 6.0). The above results show that high temperatures are favorable for the formation of 1-butene.

Metathesis of butene is complex; the detailed reactions are shown in Scheme 1. Thermodynamic parameters of all metathesis reactions and their temperatures are listed in Table 3. For metathesis of 2-butene and 1-butene (route 4), all reactions are exothermal except the reaction of T to C (trans-2-butene to cis-2-pentene), high temperatures are not favorable to them; only the ΔG of C to C is positive, showing that it is not spontaneous. Self-metathesis of 1-butene is exothermal, and high temperatures are favorable. For second metathesis of ethene and n-butene, it is exothermic and ΔG is negative, indicating the reactions are spontaneous. For route 5, whatever product is trans-2-butene or cis-2-butene, ΔH and ΔG of the processes are positive, indicating that the reaction is exothermic and spontaneous and that high temperature is not favorable. However, the case is contrary for route 6. Using only thermodynamic analysis, the main and limited reactions are not definite during metathesis.

3. Experimental Section

3.1. Preparation of Catalyst

All the materials are from Shanghai Civi Chemical Technology Co. (Shanghai, China). Tetraethylorthosilicate was mixed with sodium hydroxide solution at 308 K, and then CTAB and NaF was added sequentially into the mixture. The molar composition of the final mixture was SiO₂:0.70CTAB:60H₂O:0.5NaOH:0.1NaF. The as-synthesized mixture was kept for 24 h at 393 K in an autoclave. The product was filtrated, washed with distilled water, and dried at 373 K. Finally, the synthesized samples were calcined in air at 823 K for 5 h.

Catalysts with different tungsten loadings were prepared using a wet impregnation method. The ratio (weight) of WO₃ to support was 4.0, 8.0, 12.0, 16.0, and 24 wt.%, respectively. Composition of catalysts were listed in

Table 4. Composition of catalysts.

	Content wt.%
	1	2	3	4	5
W	2.97	6.39	9.83	13.1	17.8
Si	45.2	4205	40.7	38.7	36.1

. The impregnated products were kept for 12 h at 353 K; then, catalysts were treated at 823 K for 4 h in a furnace (1 K/min).

3.2. Characterization of Catalysts

Specific surface area, pore volume, and pore size of catalysts were obtained with a Micromeritics ASAP 2010 automatic N₂ adsorption analyzer (Micromeritics, Norcross, GA, USA). The acidic number of samples was determined by the temperature-programmed desorption of ammonia (NH₃-TPD, chemical adsorption-desorption device 6080A, Xianquan company, Tianjin, China). Temperature-programmed reduction of H₂(TPR-H₂) was recorded on chemical adsorption-desorption device 6080A (Xianquan conpany, Tianjin, China). X-ray powder diffraction patterns of W-based catalysts were recorded on a Bruker D8 ADVANCE diffractometer (Bruker, Billerica, MA, USA), by CuKα (1.5406 Å) radiation in the 2-Theta range of 10–80° with a scanning rate of 1°/min. The UV–vis DRS (diffuse reflectance spectroscopy) of catalyst was recorded in the range of 200–800 nm against the support as a reference, on a Hitachi U-4100 spectrophotometer (Hitachi, Tokyo, Japan) equipped with an integration sphere diffuse reflectance attachment. The 244.0 nm line from a He–Cd laser was used as the excitation source. The spectra resolution is estimated to be 4.0 cm⁻¹. The tungsten and silicon contents of the catalysts were determined by inductively coupled plasma optical emission spectrometry (ICP-OES) using a JY 2000 instrument (Jobin Yvon, Horiba, France).

3.3. Test of Catalyst

The isomerization of 2-butene was carried out on MgO (2 g) in a fixed-bed stainless-steel micro reactor (10 mm i.d.). Butenes (1-butene, Trans-2-butene and Cis-2-butene) were from Huter gas in Nanchang, China.

MgO (2 g) and W-based catalysts (0.375 g) were blended mechanically and loaded into the fixed-bed stainless-steel micro reactor. 2-butene (ca. 81 wt.%,

Table 5. Composition of feed stock.

Component	n-Butane	1-Butene	Cis-2-Butene	Trans-2-Butene
Content (wt.%)	11.50	6.99	24.8	56.71

) from Shanghai Gaoqiao Petrochemical co. LTD in China was a by-product of the addition of isobutene and methanol into MTBE (methyl tert-butyl ether). Organic oxides and other trace contaminants, which can cause catalyst deactivation, were removed by BASF adsorbents (Selexsorb CD and COS). After the catalyst was treated in situ with a mixture of N₂ and H₂ for 30 min at 693K, C4 stream was fed into the reactor. Main reactions of n-butene over W-based catalysts are shown in Scheme 1. All products were analyzed using a gas chromatograph SP3420 equipped with a flame ionization detector (FID) and a PONA capillary column (50 m × 0.20 mm).

3.4. Thermodynamic Analysis

For the isomerization and metathesis of 2-butene, isomerization and metathesis reactions will occur sequentially, and metathesis reactions are described in Scheme 1.

1-butene are mainly from Equations (2) and (3). Isomerization reactions consist of Equations (1)–(3), two of them are independent. The equilibrium constants are marked as K₁, K₂, K₃, K₄, K₅, and K₆, respectively. The equilibrium constant of Equation (1) can be described by K₁ = K₂/K₃. Each of Equations (4)–(6) contains four reactions, their equilibrium constants are described by K_i,CT (Cis-reactants to Trans-products).

Equilibrium constants are calculated using the following formulas [19]:

$$\Delta H_{m,i}^{\mathsf{\theta }}\left(T\right)=\Delta H_{m,i}^{\mathsf{\theta }}\left(298.15 K\right)+{{\displaystyle \int }}_{298.15}^T{C}_{p,g,i}^{\mathsf{\theta }}dT$$

(1)

$$S_{m,i}^{\mathsf{\theta }}\left(T\right)=S_{m,i}^{\mathsf{\theta }}\left(298.15 K\right)+{{\displaystyle \int }}_{298.15}^T\frac{C_{p,g,i}^{\mathsf{\theta }}}{T}dT$$

(2)

$${\Delta }_r{G}_m^{\theta }\left(T\right)={{\displaystyle \sum }}_i{\mathsf{\nu }}_i\Delta H_{m,i}^{\mathsf{\theta }}\left(T\right)-T{{\displaystyle \sum }}_i{\mathsf{\nu }}_i{S}_{m,i}^{\mathsf{\theta }}\left(T\right)$$

(3)

$$K\left(T\right)=e^{-\frac{{\Delta }_r{G}_m^{\theta }\left(T\right)}{RT}}$$

(4)

4. Conclusions

Isomerization and metathesis of n-butene were studied over MgO and WO₃/MCM-48 catalysts. The results show that pressure had little effect on butene conversion; 16 wt.% WO₃/MCM-48 catalyst held the highest activity under the same conditions. With the conditions, the catalyst showed outstanding stability on stream with a 2-butene conversion of 47% for 95 h; and then the performance of the catalyst decreased notably. In all factors, temperature and loading played key roles. Except for the above-mentioned factors, the support was also an important factor. Catalytic activity increased as follows: WO₃/SiO₂ < WO₃/MCM-41 < WO₃/MCM-48, which was attributed to the dispersity of WO₃ on the support and acidic sites of the catalysts. The dispersity of WO₃ on MCM-48 was better than the others, and acidic sites were greatest on MCM-48, as evidenced from TPD-NH₃. It was found, using thermodynamic analyses, that high-temperatures benefit in forming 1-butene, which promotes the formation of propene from its dynamics; however, metathesis is complex with 2-butene as a stock feed, and the feasible temperature is 693 K, where all reactions reach optimum. Next, we will investigate an effect of geometric isomerism on products.
